Product Type	Surge Protective Device (SPD)
Model	JK102SPD
Brand	Hager
Dimensions (Width)	18 mm (1 module)
Dimensions (Height)	90 mm
Dimensions (Depth)	70 mm
Weight	Approx. 150 g
Rated Voltage (AC)	230 V
Max Continuous Operating Voltage (Uc)	275 V
Nominal Discharge Current (In)	20 kA (8/20 µs)
Maximum Discharge Current (Imax)	40 kA (8/20 µs)
Voltage Protection Level (Up)	≤ 1.5 kV
Protection Modes	L-N, L-PE, N-PE
Response Time	< 25 ns
Enclosure Protection	IP20
Mounting	DIN rail (EN 60715)
Operating Temperature	-25°C to +55°C
Terminal Capacity	Up to 16 mm² (solid/stranded)
End-of-Life Indicator	Mechanical flag (green/red)
Standards	EN 61643-11, IEC 61643-11

Frequently Asked Questions - JK102SPD HAGER

What is the JK102SPD used for?

The JK102SPD is a Surge Protective Device (SPD) designed to protect electrical installations from transient overvoltages caused by lightning or switching events.

How do I know if the JK102SPD has failed?

The device features a mechanical end-of-life indicator: a green window indicates protection is active, while a red window signals that the SPD has reached its end of life and should be replaced.

What is the maximum discharge current of this SPD?

The maximum discharge current (Imax) is 40 kA (8/20 µs waveform), providing robust protection against severe surges.

Can the JK102SPD be installed on a DIN rail?

Yes, the device is designed for DIN rail mounting (EN 60715) and occupies a single 18 mm module.

What voltage is required for the JK102SPD?

It operates at a rated AC voltage of 230 V (50/60 Hz) with a maximum continuous operating voltage (Uc) of 275 V.

Is the JK102SPD suitable for outdoor use?

No, the enclosure rating is IP20, meaning it is protected only against solid objects larger than 12 mm. It should be installed indoors in a dry location.

How often should the JK102SPD be replaced?

There is no fixed replacement interval. Replace the device when the end-of-life indicator shows red or after a major surge event that could have degraded it.

What is the voltage protection level (Up) of this SPD?

The voltage protection level (Up) is ≤ 1.5 kV, ensuring sensitive equipment is protected from overvoltages.

Can the JK102SPD be used in single-phase systems?

Yes, it is suitable for single-phase systems (L, N, PE) and provides protection in all modes: L-N, L-PE, and N-PE.

What tools are needed for installation?

Installation requires basic electrical tools such as screwdrivers and wire strippers. The device snaps onto the DIN rail and terminals accept up to 16 mm² conductors.

USER MANUAL JK102SPD HAGER

Surge Protection Kit

Type 2 Surge Protection Kit for Hager 125A TP&N Distribution Boards to aid compliance with 18 ^th Edition BS 7671.

• Combination of high capacity voltage limiting varistors and N-PE spark gap
• Suitable for CT2 connection as per 534.4.3.2 BS7671 18th Edition
• Optical status indication for each cartridge
  Neutral = Healthy, Red = Replace
• Pluggable surge protection modules for ease of replacement
• Each cartridge incorporates its own thermal disconnect mechanism
• Cartridges are mechanically coded to prevent mis-connection
• Cartridges can be routinely checked and changed if required without interrupting supply to loads
• No secondary back-up protection required in distribution boards of 125A I_n or less

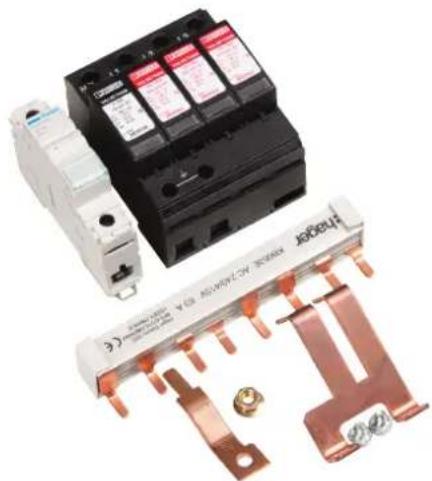

Electronic components including a circuit breaker, fuses, and copper circuit boards (no visible text or symbols)

JK102SPD

Product Description

A Surge protection device (SPD) kit specifically developed for Hager standard TPN (Type B) Distribution boards. Developed to ensure optimal performance of SPD technology within Hager distribution boards. SPD is CT2 type to ensure compatibility with all common UK Earthing arrangements e.g. TN-C-S (PME), TN-S and TT earthing arrangements. This is an IEC Type 2 / class II SPD for 3 – phase power supply networks. A type 2 SPD is generally used in sub-distribution boards, downstream of the primary board which may incorporate a Type 1 SPD.

This SPD kit fits within the standard distribution board. Line, Neutral and Earth connections are via copper busbar and copper links, minimising SPD conductor losses, maximising the effective performance of the SPD ( U_p effective). SPD performance coordination with upstream Type 1 SPD within Hager MCCB Panelboards has been verified.

Key Specifications

• Power Supply System -TN / TT
• Requirement class -SPD class II acc. to IEC 61643-11; SPD Type 2 acc. to EN 61643-11
• Max. continuous operating voltage Uc -L-N: 275 V a.c. / N-PE: 260 V a.c.
• Nominal voltage U n -230/400 V AC 50/60 Hz
• Nominal discharge current I n (8/20) microseconds 20 kA
• Max. discharge current I max (8/20) microseconds 40 kA

SPD Protection level U_p -L-N: <1.35 kV/N-PE: <1.5 kV

Solution Protection level U_p effective (measured at the main busbars on the TPN board) -L-N: <1.5kV/ N-PE: <1.5kV Short-circuit current rating ISCCR -25kA

Degree of protection - IP20

Tightening torque - see installation instructions.

Dimensional Drawing Circuit Diagram

General Data

Standards/regulations IEC 61643-11 2011 EN 61643-11 2012
IEC test classification T2
EN type T2
Mode of protection L-N	L-PEN-PE
Mounting type DIN rail: 35 mm
Degree of pollution 2
Overvoltage category III
Degree of protection IP20
Shock (operation) 25g (Half-sine / 11 ms / 3x ±X, ± Y, ±Z)
Vibration (operation) 5g (10 ... 500 Hz/ 2.5 h / X, Y, Z)
Ambient temperature (operation) -40 °C ... 80 °C
Ambient temperature (storage/transport) Permissible humidity (operation)	-40 °C ... 80 °C

Electrical Data

Nominal voltage U_n	230 / 400 V AC (TN / TT)
Nominal frequency f_n	50 Hz (60 Hz)
Maximum continuous operating voltage Uc (L-N)	275 V AC
Maximum continuous operating voltage Uc (L-PE)	275 V AC
Maximum continuous operating voltage Uc (N-PE)	260V AC
Residual current I_PE	≤ 5 uA
Standby power consumption Pc	≤ 360 mVA
Nominal discharge current In (8/20) μs	20kA
Maximum discharge current Imax (8/20) μs	40kA
Follow current interrupt rating I_f (N-PE)	100A
Short-circuit current rating IsccR	25kA
Voltage protection level Up (L-N)	≤ 1.35kV
Voltage protection level Up (L-PE)	≤1.6 kV
Voltage protection level UP (N-PE)	≤ 1.5kV
Max. backup fuse	125 A (gG)
Max. backup fuse with V-type through wiring	80 A (gG)
