Product Type	Air Purifier
Model	HPA-318WIFI
Brand	Heinner
Dimensions (W x D x H)	25 x 25 x 50 cm
Weight	3.5 kg
Power Supply	AC 220-240V, 50Hz
Power Consumption	50 W
CADR (Particulate)	200 m³/h
Recommended Room Size	Up to 30 m²
Filter Type	HEPA + Activated Carbon + Pre-filter
Number of Fan Speeds	3 (Low, Medium, High)
Noise Level	30 - 50 dB
WiFi Connectivity	Yes (2.4 GHz)
App Control	Compatible with Heinner Home app
Timer	1 - 8 hours
Air Quality Sensor	PM2.5
Filter Replacement Indicator	Yes
Child Lock	Yes
Certification	CE, RoHS
Maintenance	Clean pre-filter every 2 weeks; replace HEPA filter every 6-12 months
Safety Features	Overheat protection, tip-over switch
Spare Parts Availability	Filters available online

Frequently Asked Questions - HPA-318WIFI Heinner

How do I connect the air purifier to Wi-Fi?

Download the Heinner Home app, create an account, and follow the in-app instructions. Make sure the purifier is in pairing mode (press and hold the Wi-Fi button for 3 seconds).

How often should I replace the filters?

The pre-filter should be cleaned every 2-4 weeks. The HEPA and activated carbon filters typically need replacement every 6-12 months, depending on usage and air quality.

Can I use the purifier in a bedroom?

Yes, the HPA-318WIFI operates quietly (as low as 30 dB) on low speed, making it suitable for bedrooms. It also has a sleep mode or dimmable lights.

What should I do if the filter replacement indicator lights up?

Check the filters. If they are dirty, clean or replace them. After replacement, reset the indicator by pressing and holding the filter reset button for 3 seconds.

How does the air quality sensor work?

The built-in PM2.5 sensor continuously monitors particulate matter. The display changes color (green, yellow, red) to indicate air quality level.

Can I schedule the purifier to turn on/off automatically?

Yes, use the timer function on the device or set a schedule via the Heinner Home app.

What is the recommended room size for this purifier?

The purifier is designed for rooms up to 30 m² (approximately 320 sq ft) with a ceiling height of 2.5 m.

How do I clean the pre-filter?

Remove the back cover, take out the pre-filter, and vacuum it or wash it with mild soap and water. Let it dry completely before reinstalling.

Is there a child lock feature?

Yes, press and hold the child lock button for 3 seconds to enable/disable it. When active, other buttons are locked.

What does the error code ‘E1’ mean?

An E1 error typically indicates a motor or sensor issue. Try unplugging the unit for 10 minutes, then plug it back in. If the error persists, contact Heinner support.

USER MANUAL HPA-318WIFI Heinner

White air purifier with digital display and ventilation grilles (no visible text or symbols)

• Purificator de aer
  • CADR (flux de aer) 318 m³/h
  • Arie de acoperire: 38 m²

Close-up of a gray electronic device with a grid-patterned ventilation grille (no text or symbols visible)

White electronic device with a grid-patterned panel and a small screen (no visible text or symbols)

Partea posterioară

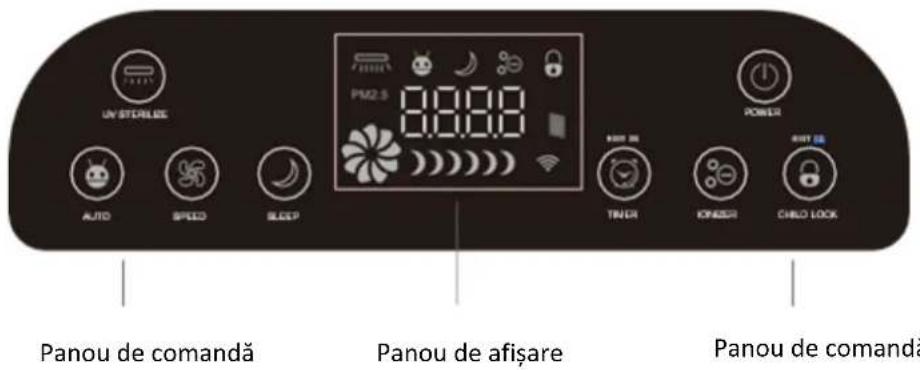

V. PANOUL DE COMANDĂ

Accumulated working Note of the Blue

Simple line drawing of a battery with a cross symbol on top (no text or labels)

Simple line drawing of a device with two hands and arrows indicating motion (no text or symbols)

- Scoateți filtrele

Diagram of a hand holding a tool interacting with a vertical object (no text or symbols present)

Technical diagram of a mechanical device with gear and a side panel (no text or symbols)

Diagram of a device with a grid-patterned panel and an arrow pointing to its side (no text or symbols present)

Diagram of a device with mesh panel and side view showing a labeled component (no text or symbols present)

CARACTERISTICILE PURIFICATORULUI

Diagram of a device showing internal fan structure and a schematic view of a device with ports and connections (no text or symbols)

Figura 2

Three rectangular panels with different textures and patterns, labeled 1, 2, and 3 at the bottom (no text or symbols on panels)

White air purifier with digital display and control panel (no visible text or symbols)

• Air purifier
• CADR 318 ~m^3 / h
• Room space: 38 ~m^2

Thank you for purchasing this product!

I. INTRODUCTION

Before using the appliance, please read carefully this instruction manual and keep it for future reference.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

II. CONTENT OF YOUR PACKAGE

Air purifier
Filters
Remote control
User manual
Warranty card

ATTENTION! Remove the plastic bag before using the filter! Also, do not wash the filter, clean and maintain it according to the info from CLEANING AND MAINTENANCE chapter.

III. SAFETY MEASURES

1. Do not lift or move the machine when it is working. Never pull the cord when moving or storing, may cause a short circuit or the power cord damage, fire or get an electric shock accident.
2. Do not damage the power cord or plug, do not cutting, excessive twisting, pulling, reverse power line. If the power cord is damaged, to avoid the danger, must be replaced by the manufacturer, the maintenance department, or professional staff.

1. Do not use beyond the rated power, universal socket or connected devices, May cause the cord to overheat and cause fire accidents

1. Do not touch the power plug with wet hands, may cause electric shock.

1. Prohibit the use of fingers or metal objects into the air outlet gap, may cause electric shock or injury.

1. Do not let water, flammable detergent or other liquid into the product may cause electric shock or fire.

1. This product is not supposed to be used as daily ventilator, dust cleaner or cooker hood.

1. Do not use this product near as gas appliances, heating devices no near stove.

1. Do not use this product in a humid or high-temperature environment (e.g. bathroom, toilet or kitchen).

1. Do not allow children to have access to the remote control.

1. Do not place in such a place

2. Unstable places (products may drop, overturned, resulting in injury, cause leakage, electric shock or fire accident)
   • High temperature, high humidity or place of wet machine, e.g. the bathroom.
   • Kitchen and other places of soot emission

3. Do not use air purifier in Aromatherapy scent insecticide environment

4. Chemical residues may accumulate in the machine, then released from the outlet and harm to health

5. After using insecticide, should thoroughly ventilate the room before using air purifier.

MANDATORY ITEMS

1. When the following occurs, please immediately turn off the power of the machine. (May cause electric shock, sparks, or smoke)

• Abnormal sound or vibration during operation
• Product odour, burnt smell

1. Please regularly clean the power plug

• Pull out the power plug, wipe with a dry cloth
- If do not use electrical appliances for a long time, please pull out the power plug

1. Before maintenance, make sure to disconnect the power

• Products may suddenly start, causing electric shock and injury

1. Please safely insert the plug into the socket

- Do not use damaged plug or loose power socket

1. Please hold the plug insulation parts to pull out power plug

- Use the power cord to pull off the plug from the power cord, may cause power cord damaged, electric shock, short circuit, fire disaster

1. When any of the following occurs, please immediately turn off the machine and find the maintenance department

• A switch does not work
• The power cord or plug abnormal heat
• Abnormal sound or vibration
• Any anomalies or malfunctions

1. Unprofessional people are not allowed to install or uninstall the machine.

IV. PRODUCT DESCRIPTION

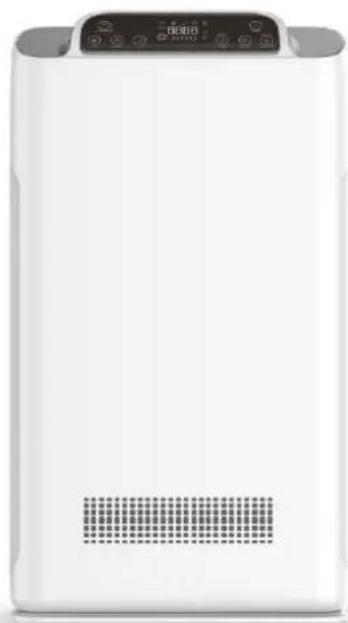

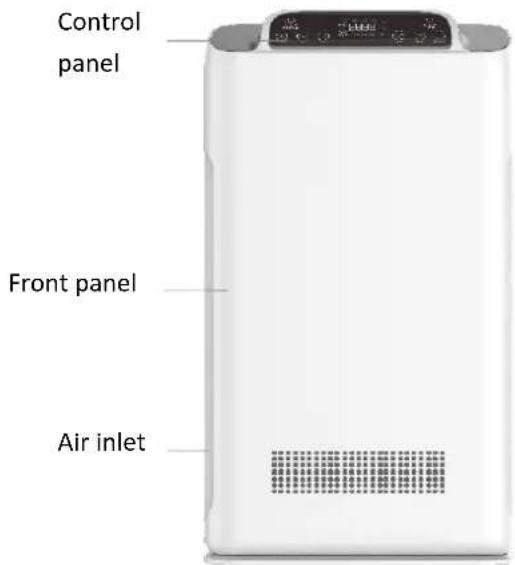

Front side

Top side

Close-up of a gray electronic device with a grid-patterned ventilation grille (no text or symbols visible)

Control panel
Handle
Air inlet

Side view

White electronic device with a grid-patterned panel and a small screen (no visible text or symbols)

Rear side

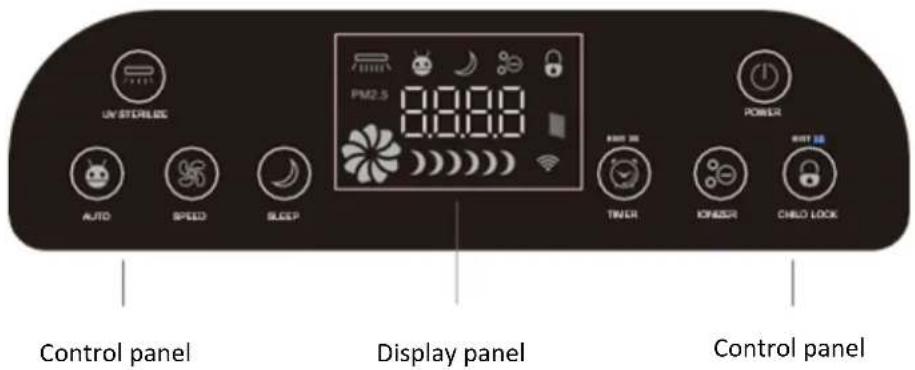

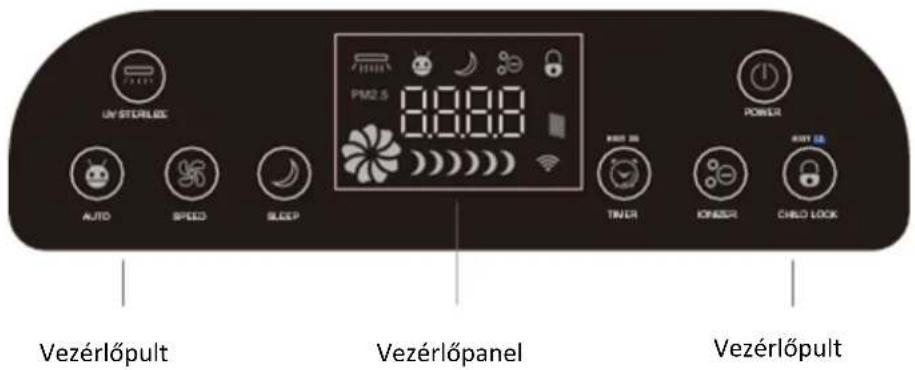

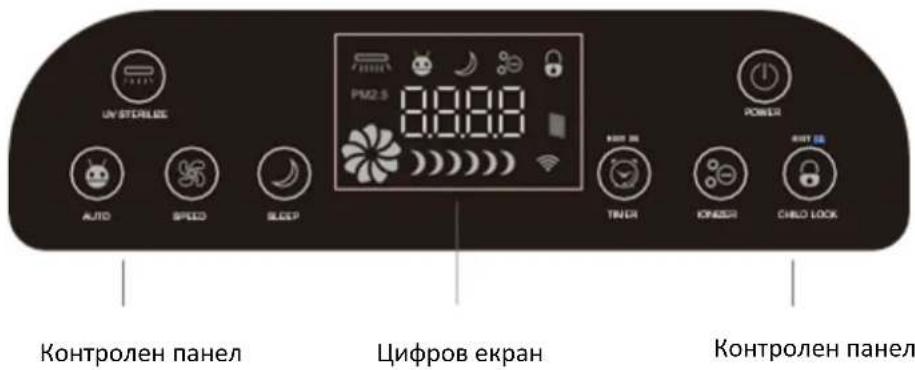

V. CONTROL PANEL

1. Switch on

POWER

Touch the power button at standby mode. Machine will on last time running mode.

(Not including timer and sleep mode).

Machine will go into standby mode after press the power button when it on running mode. It will record the current operation mode at the same time.

Remark: The machine includes panel switch and anti-fall switch. Machine will not turn on when remove panel and machine fall down.

2. Select the operating mode

CHILD LOCK

All buttons will disable when press child lock. Icon will light up and keep running.

Press this button for 3 seconds to exit this mode.

IONIZER

Ionizer will on/off when press this button. The icon will light up and down accordingly. Motor will turn on and stay low speed mode if you press this button at standby mode.

TIMER

Timer Press this button to set the working time. Every time increase 30 minutes. It will recycle after 12 hours. You can press 3 seconds to exit this mode. The machine will go into standby mode and exit timer mode if you press this button but machine not at purifying mode.

(Display panel will show 00:30 1:00 1:30 2:00 2:30)

UV STERILIZE

UV sterilize on/off after press this button when machine running. Icon will light up or down at the same time. Motor will turn on and stay low speed mode if you press this button at standby mode.

AUTO

Press auto button on the control panel, machine into auto mode, "Auto" indicator on the panel. Under this mode, according to the degree of air pollution, automatic to start work, air volume automatically adjust. PM2.5<60 (Low speed), 60≤PM2.5<150 (Medium speed), PM2.5≥150 (High speed).

SLEEP

The display panel and light will turn off when sleep mode start. Motor only works at low speed. Timer is available at this mode. Machine will at standby mode after the time setting finish. Press any button to exit sleep mode.

SPEED

Press this button can adjust the motor speed at Low(500RPM), Medium(700RPM),

High (900 RPM) and let the machine exit auto mode. The motor speed won't control by sensor if it's modified without permission.

Accumulated working time of the fiber

Press child lock for 5 seconds when at normal working mode (child lock mode does not start), it will show accumulated working time of the filter. It will disappear after 3 seconds.

WiFi

In the power-on state, press the "IONIZER" button and the WiFi icon flashes to enter the APP connection mode.

3. Power Off

POWER

When machine running, it will turn into standby mode when press this button.

VI. USING THE PRODUCT

INSTALLATION NOTICE

1. Do not place on the following places

- Direct sunlight or facing outlet of air condition, Heated place. (May cause deformation, deterioration, discoloration and malfunction.)

- Televisions and radios and other equipment nearby. (Images may cause disorder and noise, remote control machine, disruption to television and radio, please put more than 1meter away.)

1. In view of the pollen and other indoor dust, this product should be placed on the ground.

- Pollen, dust and other easily fall near the floor, it is recommended that the product be placed on a flat ground in the room.

1. In order to make effective air circulation in the room.

- There should be a gap of at least 20 cm at both sides and back of the product, while 30 cm from the top surface.

1. Do not place anything on the product.

(Otherwise, it may cause malfunction)

• Special Notice: Do not place magnets and metal object

Simple line drawing of a battery with a cross symbol on top (no text or labels)

1. Do not block the air inlet and outlet.

• For example, do not place anything on the outlet or front air inlet.

INSTALL FILTER

1. Take out filter from machine

- Open the cover

• Take out the filters

- Remove all packaging material

2. Install filter and front panel

• Install filter 3 (Antibacterial + HEPA compound filters) Note: Please ensure the tab side is facing you.

• Install filter 2 (Activated carbon + Formaldehyde removal compound filters) Note: Please ensure the tab side is facing you.

• Install filter 1 (Pre-filter) Note: Please ensure the handle side is facing you.

• Install front plate

Technical line drawing of a mechanical device with gear and a side panel (no text or symbols)

Diagram of a device with a grid pattern and an arrow pointing to its side panel (no text or symbols present)

Diagram of a device with a mesh panel and a separate close-up view (no text or symbols)

PURIFIER FEATURES

Aluminum Pre Filter

Aluminum pre filter, remove large granule dust, dander, pollen, floating compound and other pollutants. washable and reusable.

Cold Catalyst Filter

The cold catalyst will play a catalyst effect in normal living environment without any external assistance like UV light, sunlight, high temperature or pressure.

The cold catalyst can be used to deal with formaldehyde, ammonia, benzene, TVOC, hydrogen sulfide and other harmful gases released by plywood, furniture, wallpapers, carpets, curtains and bedspreads.

Antibacterial Filter

The 5 Microns Filter with Antimicrobial Agents Can Efficiently Kill Bacteria In The Air.

High Efficiency HEPA Filter

The precision of the HEPA filter is 0.01 micron, and it is able to eliminate particles which are larger than 0.01 micron with the filtration rate of 99% or more. dust, bacteria, fungi, viruses, allergens and other small and tiny particles are not able to get through the HEPA filter.

UV Sterilize Light

A variety of bacteria can be killed by the 365 nm UV light. The UV germicidal lamp is used to purify the air and it is able to eliminate odor caused by smoke and mold.

Anion Release

The ionizer releases large amounts of anions and make the oxygen negatively-charged, thus gathering the positively-charged particles like floating dust, bacteria, viruses and smoke. The particles become denser and sink to the ground. the smaller the particle size, the higher the capture rate.

FUNCTION DESCRIPTIONS

1. Remote control

The product is equipped with remote control, use the button cell (If don't use the remote control for a long time, please take out the battery).

Note: The buttons on the remote control, the corresponding buttons on the operation panel, function and operation method are exactly the same, otherwise no introduction.

2. Product use

- Intelligent operation, the machine under the status of the power supply is connected, press the power button, and the smart key, the machine can run under the sensor intelligent induction. The operation of the motor gear will follow sensors adjusted value. This operation can use the vast majority of applications.

- Enforce running, the machine under the status of the power supply is connected, press the power button, key selection according to wind speed motor gear, to select on or off negative ions and UV germicidal lamp. Complete the purification function, suitable for the operating manual intervention force purification applications. In this mode cannot be automatically shift machine.

- The above two kinds of operating modes when it runs at night, as long as the sleep button is automatically in the purification of a machine, to ensure that no noise, will not affect your rest.

- Regular operation, the above three kinds of operation mode, simply press time, the setting of the machine

- running time, it will run the countdown, will stop running automatically after the times out. (If needs to cancel the timing, long press time 3 seconds to cancel this function.)

- Child lock mode, as long as you press the Child lock button, the control panel and buttons on the remote control cannot work. (Long press 3 seconds locked to lift, or press the unlock button on the remote control).

VII. CLEANING AND MAINTENANCE

FILTER CLEANING

1. Pre-filter (every 15 days)

1. Cellular - activated Carbon Filter (every 2 months)

• Use the vacuum cleaner to clear the dust on the surface of the screen.
• Place the filter into the ventilated place. Don't expose under the strong sunshine.
• Do not force of hold on the filter.

• Do not use water to clean the filter.

• Antibacterial / HEPA filter (every 2 months)

• Place the filter into the ventilated place. Don't expose under the strong sunshine.

• Do not use water to clean the filter.

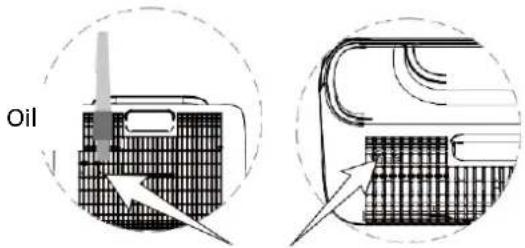

• Negative Ion Generator

negative ions

- When you hear the machine with a creak sound, use the brush pen as cleaning tool, regularly clean the dust around the negative ion generator.

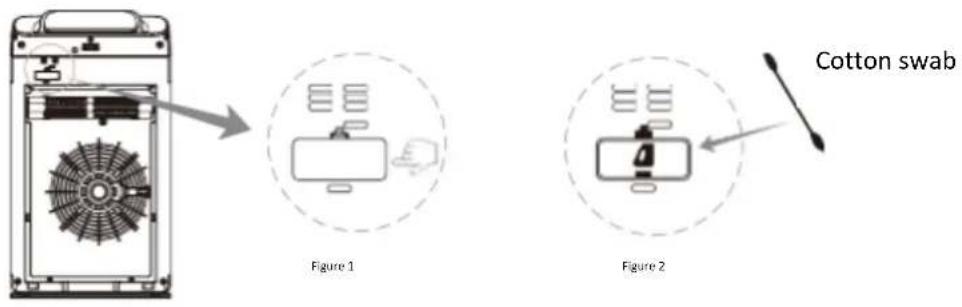

5. Particle Sensor (Every 2 months)

• With a dry cotton swab and regular cleaning the lens to remove the moisture and smoke, remove the outer cover of particle sensor (fig 1), use the dry cotton swab to clean the lens (fig 2).
• Please ensure to disconnect the power before cleaning.
• Irradiated with light when it can't see clearly.

Tips

• Ensure to disconnect the power before cleaning and maintenance
• Do not open the machine when it removes the filter
• Please unplug power if the machine is not in use in long time
• According to the use of places and methods (e.g. The family with many of smokers or the place with serious pollution), the filter life will be shortened. Please replace the filter in time.

REPLACING THE FILTERS

Snap Joints

Diagram of a device with arrows indicating motion or force direction (no text or symbols)

A

Diagram of a door handle mechanism with an arrow indicating direction (no text or symbols)

B

Line drawing of a rectangular device with a mesh panel and a handle (no text or symbols)

C

Diagram of a mechanical device with a grid-patterned panel and mounting bracket (no text or symbols)

D

A. Press the middle of front panel, to make the upper button out of its position.
B. Pull out the front panel
C. Take out the filters one by one
D. Fill in new filters one by one in a correct consequence

Three rectangular panels with different textures and patterns, labeled 1, 2, and 3 at the bottom (no text or symbols on panels)

1. Pre-filter
2. Cellular - Activated Carbon / Cold Catalyst filter
3. Antibacterial / HEPA filter

Suggest to maintain no. 1 filter in every 15 days

Suggest to maintain no. 2 and no. 3 filters in every 60 days

Suggest to replace no. 1 filter in every 2 years

Suggest to replace no. 2 and no. 3 filters in every 6 months

Filter change reminding reset

The machine has filter change reminding function. It's set at 1500 hours. Please replace no. 2 and no. 3 filter when „change” icon light up. Also please press the child lock button for 5 seconds to reset this function.

VIII. TROUBLESHOOTING

Usually problem and way of control and protect

Problem	Solution
Can not turn on or key has no response	The power cord is plugged in?--Plug in the power.The machine front plate is covered?--Cover the front plateThe machine is in the Child-lock mode?--When the display showed “child-lock” lights up, press the “child-lock/ reset” 5 seconds until the light off.The machine is put on the flat place?--Put it on a flat place.
The air is dirty, but the indicator still show green colour, even continuous operation, the indicator is always displayed in red.	If the machine is put in the place of not easy to adsorbed the dirty air?--Change the place.Particle sensor is dirty?--Clean the sensor.
Sound during operation	The negative ion generator is too much dust?--Clean the negative ion generator.
The smell of the outlet to let a person feel uncomfortable.	Filter is dirty?--Clean the filter .Filter for a long time did not change?--replace a new one.
Not into sleep mode automatically in the night.	Purifier in manual mode?--Press “Auto” button on the control panel, make sure enter the Auto mode.
Purifier work time is long , but the air purifier quality not improved obviously.	1. Have remove the filter bag ?--Please remove filter bag in use of the first time.2. Installation order filter is wrong?--Installation sequence.
Display is showed “F1” or “F2”	Please turn off the power immediately and find maintenance department.

IX. TECHNICAL FICHE

Power	80 W
Voltage	220-240 V~, 50/60 Hz
CADR	318 m3/h
Room space	38 m2
Noise (low)	≤29.4 dB
Ionizer	20 million / cm3

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

http://www.heinner.com, http://www.nod.ro

CE

This product is in conformity with norms and standards of European Community.

Importer: Network One Distribution

Str. Marcel Iancu, nr. 3-5, Bucuresti, Romania

Tel: [phone], www.heinner.com, www.nod.ro

HEINNER

ПРЕЧИСТВАТЕЛ НА ВЪЗДУХ Модел: Forest Breeze Sense 318 Код: HPA-318WIFI

White air purifier with digital display and ventilation grilles (no visible text or symbols)

Close-up of a gray electronic device with a grid-patterned ventilation grille (no visible text or symbols)

White electronic device with a grid-patterned cover and two wires attached (no visible text or symbols)

Задна страна

V. КОНТРОЛЕН ПАНЕЛ

Accumulated working Date of the Day

Simple line drawing of a battery with a cross symbol on top (no text or labels)

Technical line drawing of a mechanical device with gear and a side panel (no text or symbols)

Diagram of a device with a grid pattern and an arrow pointing to its side panel (no text or symbols present)

Diagram of a device with mesh panel and side panel, no visible text or symbols

Three rectangular blocks with different patterns and numbers, no text or symbols present

White air purifier with digital display and ventilation grilles (no visible text or symbols)

Close-up of a gray electronic device with a grid-patterned ventilation grille (no visible text or symbols)

White rectangular device with a grid pattern and two wires attached (no visible text or symbols)

Hátsó rész

V. VEZÉRLÓPANEL

Accumulated working time at the time

Simple line drawing of a battery with a cross symbol on top (no text or labels)

Simple line drawing of a device with two hands and arrows indicating motion (no text or symbols)

Diagram of a hand holding a tool interacting with a vertical device (no text or symbols present)

Technical illustration of a mechanical device with gear and a side panel (no text or symbols)

Diagram of a device with a grid-patterned panel and an arrow pointing to a component (no text or symbols)

Diagram of a device with a mesh panel and a separate close-up view showing a closed lid (no text or symbols)

A LÉGTISZTÍTÓ JELLEMZŐI

Alumínium előszúrő

Three rectangular panels with different textures and patterns, labeled 1, 2, and 3 at the bottom (no text or symbols on panels)
