| Product Type | 8x8 HDMI Matrix Switcher with HDR |
| Brand | Atlona |
| Model | AT-HDR-H2H-88MA |
| Category | Router / Matrix Switcher |
| Video Inputs | 8 x HDMI |
| Video Outputs | 8 x HDMI |
| Maximum Resolution | 4K@60Hz 4:4:4 (up to 18Gbps) |
| HDR Support | HDR10, HLG, Dolby Vision |
| HDCP Support | HDCP 2.2 |
| Audio Formats | LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio |
| Control Methods | IR remote, RS-232, TCP/IP, Web GUI |
| EDID Management | Yes, internal presets and learning |
| Dimensions (W x D x H) | 17.3 x 10.2 x 1.7 inches (440 x 260 x 44 mm) |
| Weight | 5.3 kg (11.7 lbs) |
| Power Supply | 100-240V AC, 50/60Hz, 50W |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Rackmountable | Yes, 1U rackmount ears included |
| Maintenance | Clean with a soft, dry cloth. Do not use liquids. |
| Safety | Use only with grounded outlet. Do not open enclosure. |
| Spare Parts | IR remote, power adapter, rack ears, RS-232 cable |
Frequently Asked Questions - AT-HDR-H2H-88MA Atlona
User questions about AT-HDR-H2H-88MA Atlona
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Router in PDF format for free! Find your manual AT-HDR-H2H-88MA - Atlona and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AT-HDR-H2H-88MA by Atlona.
USER MANUAL AT-HDR-H2H-88MA Atlona
| Version Release Date Notes | |
| 1 April 2018 Initial release | |
| 2 May 2019 Added note for new front panel OSD to Panel Description | |
| 3 Dec 2019 Added USB Updating instructions | |
| 4 June 2023 IR remote control no longer included | |
Welcome to Atlona!
Thank you for purchasing this Atlona product. We hope you enjoy it and will take a extra few moments to register your new purchase.
Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware. Atlona product registration is voluntary and failure to register will not affect the product warranty.
To register your product, go to http://www.atlona.com/registration
Sales, Marketing, and Customer Support
Main Office
Atlona Incorporated
70 Daggett Drive
San Jose, CA 95134
United States
Office: +1.877.536.3976 (US Toll-free)
Office: +1.408.962.0515 (US/International)
Sales and Customer Service Hours
Monday - Friday: 6:00 a.m. - 4:30 p.m. (PST)
http://www.atlona.com/
International Headquarters
Atlona International AG
Ringstrasse 15a
8600 Dübendorf
Switzerland
Office: +41 43 508 4321
Sales and Customer Service Hours
Monday - Friday: 09:00 - 17:00 (UTC +1)
Operating Notes
As of this writing, there are no firmware updates for this product. When new firmware is released, update instructions will be included with the firmware and will be appended to this manual.
IMPORTANT: Visit http://www.atlona.com/product/AT-HDR-H2H-88MA for the latest firmware updates and User Manual.
Atlona, Inc. ("Atlona") Limited Product Warranty
Coverage
Atlona warrants its products will substantially perform to their published specifications and will be free from defects in materials and workmanship under normal use, conditions and service.
Under its Limited Product Warranty, Atlona, at its sole discretion, will either:
- repair or facilitate the repair of defective products within a reasonable period of time, restore products to their proper operating condition and return defective products free of any charge for necessary parts, labor and shipping.
OR
- replace and return, free of charge, any defective products with direct replacement or with similar products deemed by Atlona to perform substantially the same function as the original products.
OR
- refund the pro-rated value based on the remaining term of the warranty period, not to exceed MSRP, in cases where products are beyond repair and/or no direct or substantially similar replacement products exist.
Repair, replacement or refund of Atlona products is the purchaser's exclusive remedy and Atlona liability does not extend to any other damages, incidental, consequential or otherwise.
This Limited Product Warranty extends to the original end-user purchaser of Atlona products and is non-transferrable to any subsequent purchaser(s) or owner(s) of these products.
Coverage Periods
Atlona Limited Product Warranty Period begins on the date of purchase by the end-purchaser. The date contained on the end-purchaser 's sales or delivery receipt is the proof purchase date.
Limited Product Warranty Terms – New Products
• 10 years from proof of purchase date for hardware/electronics products purchased on or after June 1, 2013.
• 3 years from proof of purchase date for hardware/electronics products purchased before June 1, 2013.
• Lifetime Limited Product Warranty for all cable products.
Limited Product Warranty Terms - Refurbished (B-Stock) Products and Discontinued Products
- 3 years from proof of purchase date for all Refurbished (B-Stock) and Discontinued hardware and electronic products purchased on or after June 1, 2013.
Remedy
Atlona recommends that end-purchasers contact their authorized Atlona dealer or reseller from whom they purchased their products. Atlona can also be contacted directly. Visit www.atlona.com for Atlona's contact information and hours of operation. Atlona requires that a dated sales or delivery receipt from an authorized dealer, reseller or end-purchaser is provided before Atlona extends its warranty services. Additionally, a return merchandise authorization (RMA) and/or case number, is required to be obtained from Atlona in advance of returns.
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408-962-0515 (US/international) or via Atlona's website at www.atlona.com.
Exclusions
This Limited Product Warranty excludes:
- Damage, deterioration or malfunction caused by any alteration, modification, improper use, neglect, improper packaging or shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature.
Atlona, Inc. ("Atlona") Limited Product Warranty
- Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.
- Equipment enclosures, cables, power supplies, batteries, LCD displays, and any accessories used in conjunction with the product(s).
- Products purchased from unauthorized distributors, dealers, resellers, auction websites and similar unauthorized channels of distribution.
Disclaimers
This Limited Product Warranty does not imply that the electronic components contained within Atlona's products will not become obsolete nor does it imply Atlona products or their electronic components will remain compatible with any other current product, technology or any future products or technologies in which Atlona's products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
Limitation on Liability
The maximum liability of Atlona under this limited product warranty shall not exceed the original Atlona MSRP for its products. To the maximum extent permitted by law, Atlona is not responsible for the direct, special, incidental or consequential damages resulting from any breach of warranty or condition, or under any other legal theory. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.
Exclusive Remedy
To the maximum extent permitted by law, this limited product warranty and the remedies set forth above are exclusive and in lieu of all other warranties, remedies and conditions, whether oral or written, express or implied. To the maximum extent permitted by law, Atlona specifically disclaims all implied warranties, including, without limitation, warranties of merchantability and fitness for a particular purpose. If Atlona cannot lawfully disclaim or exclude implied warranties under applicable law, then all implied warranties covering its products including warranties of merchantability and fitness for a particular purpose, shall provide to its products under applicable law. If any product to which this limited warranty applies is a “Consumer Product” under the Magnuson-Moss Warranty Act (15 U.S.C.A. §2301, ET SEQ.) or other applicable law, the foregoing disclaimer of implied warranties shall not apply, and all implied warranties on its products, including warranties of merchantability and fitness for the particular purpose, shall apply as provided under applicable law.
Other Conditions
Atlona's Limited Product Warranty offering gives legal rights, and other rights may apply and vary from country to country or state to state. This limited warranty is void if (i) the label bearing the serial number of products have been removed or defaced, (ii) products are not purchased from an authorized Atlona dealer or reseller. A comprehensive list of Atlona's authorized distributors, dealers and resellers can be found at www.atlona.com.
Important Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCT THE RISK OF
ELECTRIC SHOCK
DO NOT OPEN ENCLOSURE OR EXPOSE
TO RAIN OR MOISTURE
NO USER-SERVICEABLE PARTS
INSIDE REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the product.
The information bubble is intended to alert the user to helpful or optional operational instructions in the literature accompanying the product.
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this product near water.
6 Clean only with a dry cloth.
7 Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8 Do not install or place this product near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9 Do not defeat the safety purpose of a polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
11 Only use attachments/accessories specified by Atlona.
12 To reduce the risk of electric shock and/or damage to this product, never handle or touch this unit or power cord if your hands are wet or damp. Do not expose this product to rain or moisture.
13 Unplug this product during lightning storms or when unused for long periods of time.
14 Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.
FCC Statement
FCC Compliance and Advisory Statement: This hardware device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference
to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4) consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations.
Table of Contents
Introduction 8
Features 8
Package Contents 8
Panel Description 9
Installation 10
Control 10
Audio 10
Mounting Instructions 11
Connection Instructions 13
Connection Diagram 13
WebGUI 14
USB Updating 19
Appendix 20
Specifications 20
Introduction
The Atlona AT-HDR-H2H-88MA is an 8×8 HDMI matrix switcher for high dynamic range (HDR) formats. It is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The AT-HDR-H2H-88MA is ideal for professional HDMI signal routing in residential and commercial applications were a number of AV sources must be shared throughout eight zones to reduce the installed equipment footprint and to reduce the costs associated with multiple, redundant devices. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0b specification, plus the ability to pass metadata for HDR content. The HDR-H2H-88MA includes EDID and HDCP management features, and can send CEC display control independently to each output. An unbalanced analog audio output is paired with each HDMI input for sending de-embedded HDMI audio to a whole-house audio system. The HDR-H2H-88MA can be controlled via Ethernet, RS-232, and IR.
Features
• Supports resolutions up to 4K/UHD 60Hz @ chroma sub-sampling 4:2:0 10-bit
• HDCP 2.2 compliant
• EDID learning for up to 8 display EDIDs
• Built in internal EDID mode provides 14 unique EDIDs to ensure compatibility
- Multiple control options such as RS-232, IR, TCP/IP, webGUI, and front panel
- Multi-channel audio pass through up to Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, and Dolby Atmos
Package Contents
1 x AT-HDR-H2H-88MA
1 x Captive screw connector, 5-pin
8 x Captive screw connector, 4-pin
1 x 24V DC power supply
1 x Pair mounting ears w/screws
4 x Feet w/screws
1 x Installation Guide
Panel Description
1 OSD
Front panel OSD will display the on screen menu for routing, EDID management, and device info.
NOTE: Starting on firmware 1.0.13, the front panel LCD will turn off after 30 seconds of inactivity. Press any button to activate the LCD again.
2 Function Buttons
Power - Sets the unit in and out of standby.
Enter - Used for making selection within the front panel OSD.
FNC - Use to switch number buttons to their secondary function.
CANCEL - Navigates back one step in the front panel OSD.
3 Number Buttons
Use for selection of inputs and outputs.
1 - Press FNC + 1 to route selected input to all outputs.
2 - Press FNC + 2 to turn the IR receiver window on and off.
3 - Press FNC + 5 to open the EDID menu.
4 - Press FNC + 6 to display the device firmware.
Press 4 again to view IP, IP port, and MAC.
4 AUDIO OUT
This port provides source audio 2CH de-embedding. The audio of the HDMI inputs will be directly de-embedded to an audio DSP, amplifier, or player device.
5 LAN
Connect an Ethernet cable from this port to a Local Area Network (LAN). This port provides access to the webGUI or TCP/IP control.
6 FW
Connect a mini USB cable to this port to update the firmware.
7 Control Port
Connect a third party controller or PC to control the matrix through either IR or RS-232.
8 HDMI IN
Connect HDMI cables to these ports from HDMI sources.
9 HDMI OUT
Connect an HDMI cable from this port to an HDMI display, extender, or switcher.
10 DC 24V
Connect the included 24V DC power supply to this power receptacle.
Installation
Control
A 5-pin captive screw connector for control has been included. The first three terminals are RS-232 control, the last two terminals are for IR.
1 Use wire strippers to remove a portion of the cable jacket.
2 Remove at least 3/16" (5 mm) from the insulation of each wire.
3 Insert the wires into the correct terminal on the included captive screw connector, as shown below.
4 Tighten the screws to secure the wires. Do not use high-torque devices as this may damage the screws and/or connector.
Pin out will be determined by the RS-232 cable and connect as RX (receive), TX (transmit) and ± (Ground).
IR IN is connected by a ground and signal wire. Use with 3rd party control systems. For easy termination, Atlona recommends using the 2 meter IR cable AT-LC-CS-IR-2M.
Audio
Connect to an audio DSP, amplifier, or other audio distribution or player devices. Only unbalanced connections may be used.
NOTE: Audio is directly de-embedded from the HDMI IN ports and are not zone output audio ports.
Unbalanced
Mounting Instructions
The AT-HDR-H2H-88MA can be placed freestanding on top of a desk, a table, or in a cabinet. To prevent damage to the surfaces or unnecessary movement of the matrix, four feet have been included.
Rack installation
1 Remove the front two case screws from the sides of the case.
2 Attach the included rack ears to each side of the AT-HDR-H2H-88MA using the case screws.
3 Install the HDR-H2H into a rack, using four rack screws.
NOTE: Increase the air flow as needed to maintain the recommended temperature inside the rack.
NOTE: Do not exceed the maximum weight loads for the rack. Install heavier equipment in the lower part of the rack for stability.
Surface mounting
The AT-HDR-H2H-88MA can be placed freestanding on top of a desk, a table, or in a cabinet. To prevent damage to the surfaces or unnecessary movement of the matrix, four feet have been included.
1 Turn the unit upside down.
2 Install each foot using the included feet screws, the rubber grips of the feet should be facing up during installation.
3 Turn the unit right-side up and place it in the desired location.
1 Connect up to 8 HDMI sources to the HDMI IN ports.
2 Connect up to 8 HDMI displays to the HDMI OUT ports.
3 For control, connect to the captive screw port for IR and RS-232, or the LAN port for TCP/IP and webGUI.
4 Connect the included 24V power supply to the DC 24V port.
5 Connect the power supply to an AC outlet.
Connection Diagram
WebGUI

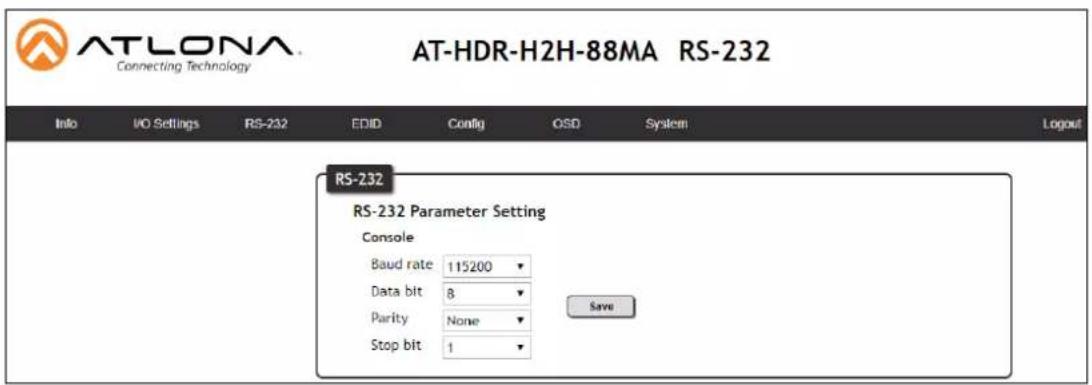

The AT-HDR-H2H-88MA includes a built-in webGUI, which allows easy management and control of all features. Follow the instructions below to access the webGUI.
1 View the IP address of the unit using the front panel OSD.
- Press the FNC button.
- Press button 6 (INFO). The firmware version will display on the front panel screen.
- Press button 6 again to bring up the IP address.
NOTE: If there is no IP address or the unit is not connected to a DHCP network, press and hold buttons 1 + 2 for 5 seconds to switch the unit to a static IP address. The default static IP address and netmask is 192.168.1.254 255.255.0.0.
2 Launch a web browser and enter the IP address of the unit.
3 The AT-HDR-H2H-88MA Login page will be displayed.
4 Enter the following information on the Login page.
Login: root
Password: Atlona
5 Click the Login button.
6 The info page will display, giving all the general information of the AT-HDR-H2H-88MA.
7 Select I/O Settings from the top menu.
Output
Input Selection - Select the input to route to the output.
Output Name - The outputs have the option for labeling to help make routing and switching simpler. Label each output individually. Type the name in the box, and press save.
Input
HDCP Settings - Toggle HDCP reporting between compliant (on) and non-compliant (off).
Input Name - The inputs have the option for labeling to help make routing and switching simpler. Label each input individually. Type the name in the box, and press save.
Analog Audio - Mute and unmute the output audio on the selected Analog Audio port.
Preset
Store - Save the current I/O route to memory.
Recall - Load a previously saved I/O route.
8 Select RS-232 from the top menu.
RS-232 Parameter Setting
Console - Select the baud rate, data bit, parity, and stop bit. Default baud rate, data bit, parity, and stop bit is 1152000, 8, None, and 1.
9 Select EDID from the top menu.
EDID Settings
Input - Select the EDID from the drop down list.
EDID Saved
Save from - Save the output's EDID to memory to be loaded to the inputs.
10 Select Config from the top menu.
Web & Telnet Login Settings
Password - Update the admin password then press Save.
All User Login Settings
Username & Password - Add extra users for control and login.
11 Select System from the top menu.
Network
IP Mode - Switch between static and DHCP modes.
IP, Netmask, Gateway, Telnet Port - This will display the current IP settings on DHCP. When set to static, fill in the IP address, netmask, gateway, and telnet port.
Telnet Login Mode - Toggle telnet login mode on and off. If on, a username and password will be required to control the unit via TCP/IP.
Telnet Timeout - Set the amount of time between actions before the current user is logged out.
Broadcast - Toggles broadcast on and off.
System
Power - Toggles the unit between on and standby.
Lock - Lock and unlock the front panel keys.
IR - Turns the IR window on the front of the unit on and off.
Reset to Default - Select to set the unit back to the original factory settings.
Firmware Update - Press Choose File to search the local PC for the most recent firmware file. Press Update once the file is selected.
USB Updating
The HDR-H2H can be updated through the FW port on the back of the unit, if the webGUI is not available for updating.
Requirements:
- New firmware - Downloaded from atlona.com
- AT-HDR-H2H-XX
• Computer running Windows
• USB-A to USB mini-B cable
1 Connect power to the HDR-H2H.
2 Press and hold the CANCEL button on the front panel, while connecting the USB-A to USB mini-B cable from the computer, to the FW port on the rear of the unit. Continue to hold down the CANCEL button until Step 3.
3 Release the CANCEL button once the USB UPDATE folder is displayed.
If the folder is not displayed, automatically, select the USB UPDATE drive from Windows Explorer.
4 Delete any files found within the USB UPDATE drive folder.
5 Drag and drop the new firmware file into the folder. The power LED will flash red while the unit is updating.
6 Once the unit has automatically rebooted and the power button's LED is back to blue, disconnected the USB cable from the unit and computer. The update is now complete.
Appendix
Specifications
| Video | ||
| UHD/HD/SD 4096×2160@24/25 | 30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 2048×1080p,1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz,720p@50/59.94/60Hz, 576p, 576i, 480p, 480i | |
| VESA 2560×2048, 2560×1600, | 2048×1536, 1920×1200, 1680×1050, 1600×1200,1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×8001280×768, 1152×768, 1024×768, 800×600 | |
| Color Space YUV, RGB | ||
| Chroma Sampling 4:4:4, 4:2:2, | 4:2:0 | |
| Color Depth 8-bit, 10-bit, 12-bit | ||
| HDR HDR10 and Dolby® VisionTM @ 60Hz | ||
| Audio | ||
| HDMI IN / OUT PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby® Digital, DTS® 5.1, Dolby Digital PlusTM,Dolby TrueHD, DTS-HD Master AudioTM, Dolby Atmos®, DTS:X® | ||
| Sample Rate 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz | ||
| Bit Rate up to 24-bit | ||
| Distance Feet Meters | ||
| HDMI IN / OUT @ 4K 15 5 | ||
| HDMI IN / OUT @ 1080p 30 10 | ||
| Signal | ||
| Bandwidth | 18 Gbps | |
| CEC | Yes | |
| HDCP | 2.2 | |
| Temperature Fahrenheit | Celsius | |
| Operating | 32 to 122 | 0 to 50 |
| Storage | -40 to 158 | -40 to 70 |
| Humidity (RH) | 20% to 90%, non-condensing | |
| Power | ||
| Consumption | 43.3W | |
| Idle Consumption | 21.7 W | |
| Supply | Input: 110 - 240 VAC, 50 / 60 HzOutput: 24V DC, 2.7 A | |
| Dimensions | Inches | Millimeters |
| H x W x D | 1.73 x 17.24 x 10.00 | 44.00 x 438.00 x 254.00 |
| H x W x D, w/feet/ears | 2.18 x 18.93 x 10.23 | 55.50 x 481.00 x 260.00 |
| Rack Size | 1 RU | |
Appendix
| Weight Pounds Kilograms | ||
| Device 8.81 4 | ||
| Certification | ||
| Power Supply CE, FCC, UL, and LVD certificates Level VI compliant | ||
| Unit CE, FCC | ||
- Welcome to Atlona!
- Sales, Marketing, and Customer Support
- Main Office
- International Headquarters
- Operating Notes
- Atlona, Inc. ("Atlona") Limited Product Warranty
- Coverage
- OR
- Coverage Periods
- Limited Product Warranty Terms – New Products
- Limited Product Warranty Terms - Refurbished (B-Stock) Products and Discontinued Products
- Remedy
- Exclusions
- Disclaimers
- Limitation on Liability
- Exclusive Remedy
- Other Conditions
- Important Safety Information
- CAUTION
- FCC Statement
- Table of Contents
- Introduction
- Features
- Package Contents
- Panel Description
- OSD
- Function Buttons
- Number Buttons
- AUDIO OUT
- LAN
- FW
- Control Port
- HDMI IN
- HDMI OUT
- DC 24V
- Installation
- Control
- Audio
- Mounting Instructions
- Rack installation
- Surface mounting
- Connection Instructions
- WebGUI
- Output
- Input
- Preset
- RS-232 Parameter Setting
- EDID Settings
- EDID Saved
- Web & Telnet Login Settings
- All User Login Settings
- Network
- System
- USB Updating
- Requirements:
- Appendix
Brand : Atlona
Model : AT-HDR-H2H-88MA
Category : Router
