Product Type	5x1 HDBaseT/HDMI Switcher with mirrored outputs
Model	AT-UHD-SW-5000ED
Dimensions (H x W x D)	1.73 x 8.64 x 10 in (44 x 219.5 x 254 mm)
Weight	3.70 lb (1.66 kg)
Power Supply	48 V DC, 1.25 A; input 100-240 V AC, 50/60 Hz
Power Consumption	44.22 W (max), 22 W (idle)
Video Inputs	2x HDBaseT (RJ45), 3x HDMI (Type A)
Video Outputs	1x HDMI, 1x HDBaseT (RJ45) – mirrored
Max Resolution	4K/UHD @ 60 Hz (4:2:0, 8-bit); 1080p @ 60 Hz
HDBaseT Distance (4K)	Up to 230 ft (70 m) over CAT5e; 330 ft (100 m) over CAT6a/7
HDBaseT Distance (1080p)	Up to 330 ft (100 m) over CAT5e/6a/7
Audio Output	Balanced analog (5-pin captive screw), PCM 2.0 only, downmixed from multichannel
Control Interfaces	Front panel buttons, IR, RS-232, TCP/IP (web GUI, Telnet)
EDID Management	Built-in presets (1080p, 4K, etc.) and 8 user memory slots
HDCP Support	HDCP 1.4; per-input compliant/non-compliant setting
Auto-Switching	Based on hot plug detect and video detection (enabled by default)
Display Control	CEC, IP, RS-232; auto power on/off timers and warm-up delay
Firmware Update	Via web server or USB mini-B port
Operating Temperature	32 to 122 °F (0 to 50 °C)
Humidity	20% to 60% RH (non-condensing)
Safety & Compliance	CE, FCC Class A; cULus power supply; RoHS, NDAA-899 compliant
Warranty	3-year limited

Frequently Asked Questions - AT-UHD-SW-5000ED Atlona

How do I set up the AT-UHD-SW-5000ED for the first time?

Connect sources to the inputs (HDBaseT on 1-2, HDMI on 3-5), connect the output to a display via HDMI or HDBaseT, and power the unit with the included 48 V DC supply. By default, DHCP is enabled; if no DHCP server is found, the unit uses Auto IP (169.254.x.x). Access the web GUI by entering the IP address in a browser (default login: root / Atlona).

How can I change the input manually?

Press and release the INPUT button on the front panel to cycle through inputs 1-5. Alternatively, use the web GUI under Settings > Video Settings > Source drop-down list.

What is the maximum cable length for 4K video over CAT cable?

For 4K/UHD @ 60 Hz (4:2:0), use CAT5e up to 230 ft (70 m), or CAT6a/7 up to 330 ft (100 m). For 1080p, all CAT5e/6a/7 support up to 330 ft (100 m). Solid, shielded cabling is strongly recommended.

How do I configure EDID for a specific input?

Log into the web GUI (default root/Atlona), go to the EDID page. Under EDID Settings, click the drop-down for each input and choose a preset (e.g., ATL 1080P 2CH) or a stored memory slot (MEM_1 to MEM_8). The default is STD, which works with most displays.

Can I control the switcher via RS-232?

Yes. Connect a 3-pin captive screw block to the RS-232 port (pins: TX, RX, GND). Default baud rate is 115200, 8 data bits, no parity, 1 stop bit. The RS-232 port on the switcher is typically used to control the connected display, while the switcher itself is best controlled via IP.

How do I update the firmware?

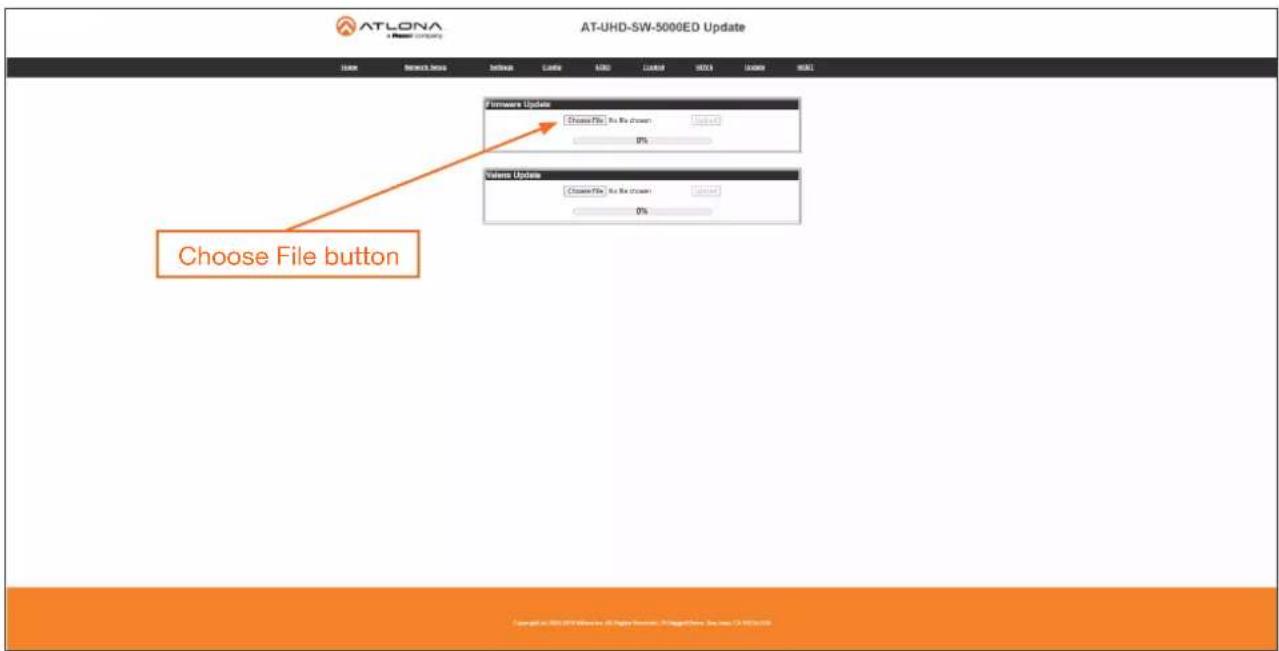

Two methods: 1) Via web GUI: go to Update page, click Choose File for the firmware file (downloaded from Atlona.com), then Upload. 2) Via USB: power off, connect USB mini-B to computer, hold INPUT while powering on until a USB drive appears, then copy the firmware file to the drive.

Does this switcher support HDCP 2.2?

No. The AT-UHD-SW-5000ED supports HDCP 1.4 only. For HDCP 2.2 sources, you would need a different model. The unit can be set to 'Noncompliant' per input to instruct sources to send non-HDCP content if possible.

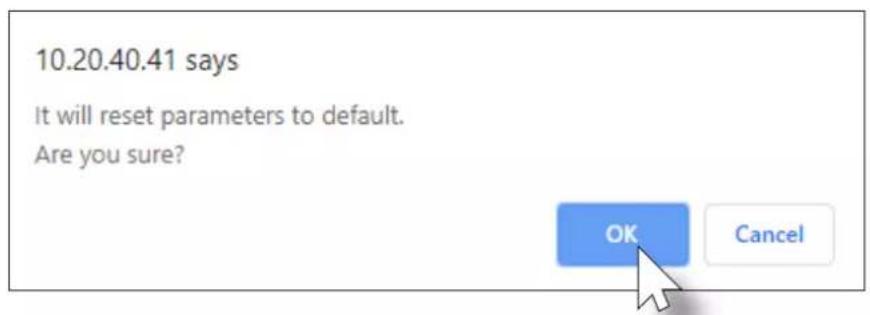

How do I reset the unit to factory defaults?

From the front panel: simultaneously press and hold the INPUT and POWER buttons for 15 seconds until the HDBaseT 1 LED lights solid. From the web GUI: go to Settings page and click Reset next to 'Factory Default'. The unit will reboot with DHCP enabled and all settings cleared.

Can I connect two HDVS transmitters to this switcher?

Yes. Inputs 1 and 2 are HDBaseT ports designed for use with HDVS-200-TX series transmitters (e.g., AT-HDVS-210U-TX-WP). The HDVS page in the web GUI shows connected transmitters and allows management.

How do I adjust the analog audio output volume?

Use the front panel UP and DOWN cursor buttons to adjust volume (displayed on the VOLUME LED bar, -80 to +15 dB). Or via web GUI under Settings > Audio Settings, drag the Volume slider. Muting is available per output (HDMI, HDBaseT, L/R).

USER MANUAL AT-UHD-SW-5000ED Atlona

with Two HDBaseT Inputs

and Mirrored HDMI / HDBaseT Outputs

Version Information

Version Release Date Notes
4 Jun 2023 -	Minor corrections	to distance specs.

Sales, Marketing, and Customer Support

Main Office

Atlona Incorporated

70 Daggett Drive

San Jose, CA 95134

United States

Office: +1.408.962.0515

Sales and Customer Service Hours

Monday - Friday: 6:00 a.m. - 4:30 p.m. (PST)

https://atlona.com/

International Headquarters

Atlona International AG

Tödistrasse 18

8002 Zürich

Switzerland

Office: +41.43.508.4321

Sales and Customer Service Hours

Monday - Friday: 09:00 - 17:00 (UTC +1)

Operating Notes

IMPORTANT: Visit https://atlona.com/product/AT-UHD-SW-5000ED for the latest firmware updates and User Manual.

NOTE: The AT-UHD-SW-5000ED no longer ships with an IR remote control. However, IR documentation remains for units currently in the field.

Warranty

To view the product warranty, use the following link or QR code:

https://atlona.com/warranty/

Safety and Certification

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCT THE RISK OF

ELECTRIC SHOCK

DO NOT OPEN ENCLOSURE OR EXPOSE

TO RAIN OR MOISTURE.

NO USER-SERVICEABLE PARTS

INSIDE REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the product.

The information bubble is intended to alert the user to helpful or optional operational instructions in the literature accompanying the product.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this product near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install or place this product near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of a polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
11. Only use attachments/accessories specified by Atlona.
12. To reduce the risk of electric shock and/or damage to this product, never handle or touch this unit or power cord if your hands are wet or damp. Do not expose this product to rain or moisture.
13. Unplug this product during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.

FCC Compliance

FCC Compliance and Advisory Statement: This hardware device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4) consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations.

Copyright, Trademark, and Registration

© 2023 Atlona Inc. All rights reserved. "Atlona" and the Atlona logo are registered trademarks of Atlona Inc. Pricing, specifications and availability subject to change without notice. Actual products, product images, and online product images may vary from images shown here.

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI licensing Administrator, Inc.

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, and Digital Surround are registered trademarks and/or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

All other trademark(s), copyright(s), and registered technologies mentioned in this document are the properties of their respective owner(s).

Table of Contents

Introduction 7

Features 7

Package Contents 7

Panel Description 8

Front Panel 8

Rear Panel 9

Installation 10

Power 10

Audio 10

RS-232 11

Connection Instructions 12

Connection Diagram 13

IP Configuration 14

Setting the IP Address using the Web Server 14

Auto IP (APIPA) Mode 14

Device Operation 15

LED Indicators 15

System Configuration 16

Getting the MAC Address 16

Changing the Network IP Mode 17

Setting Static IP Mode using the Front Panel 18

Changing the Telnet Port 19

Telnet Login Mode 20

Setting the Host Name 21

Video Switching 22

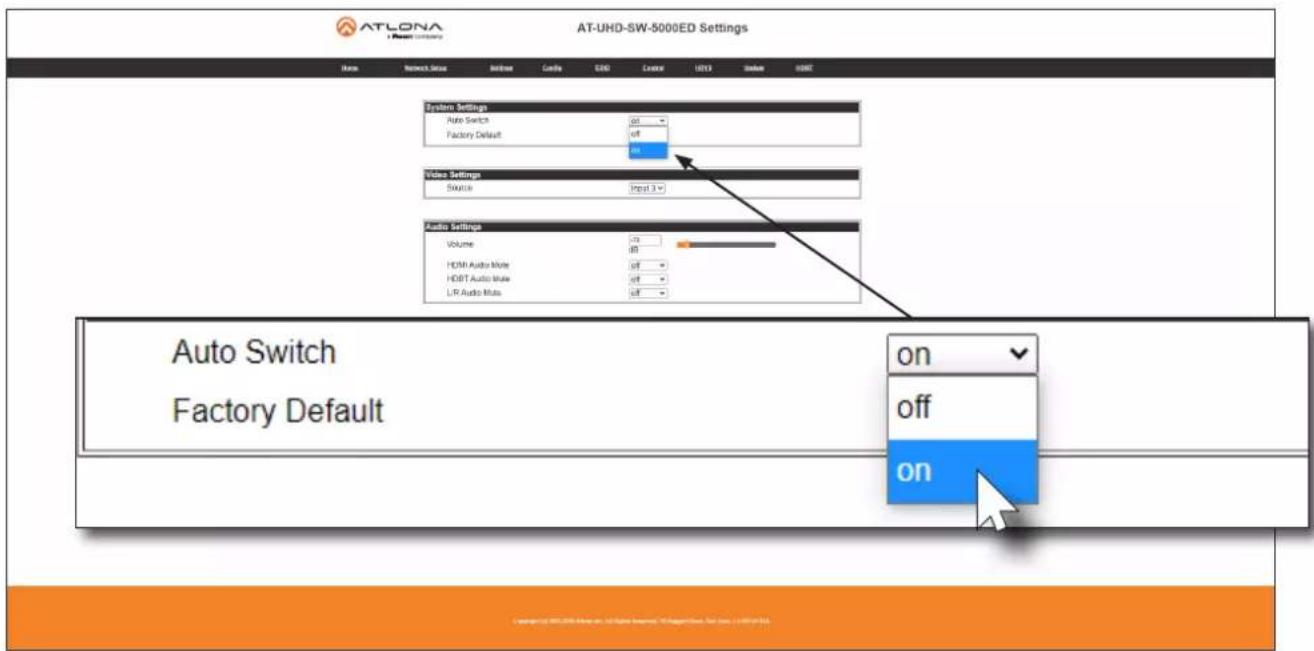

Enabling / Disabling Auto-Switching 22

Selecting the Input 23

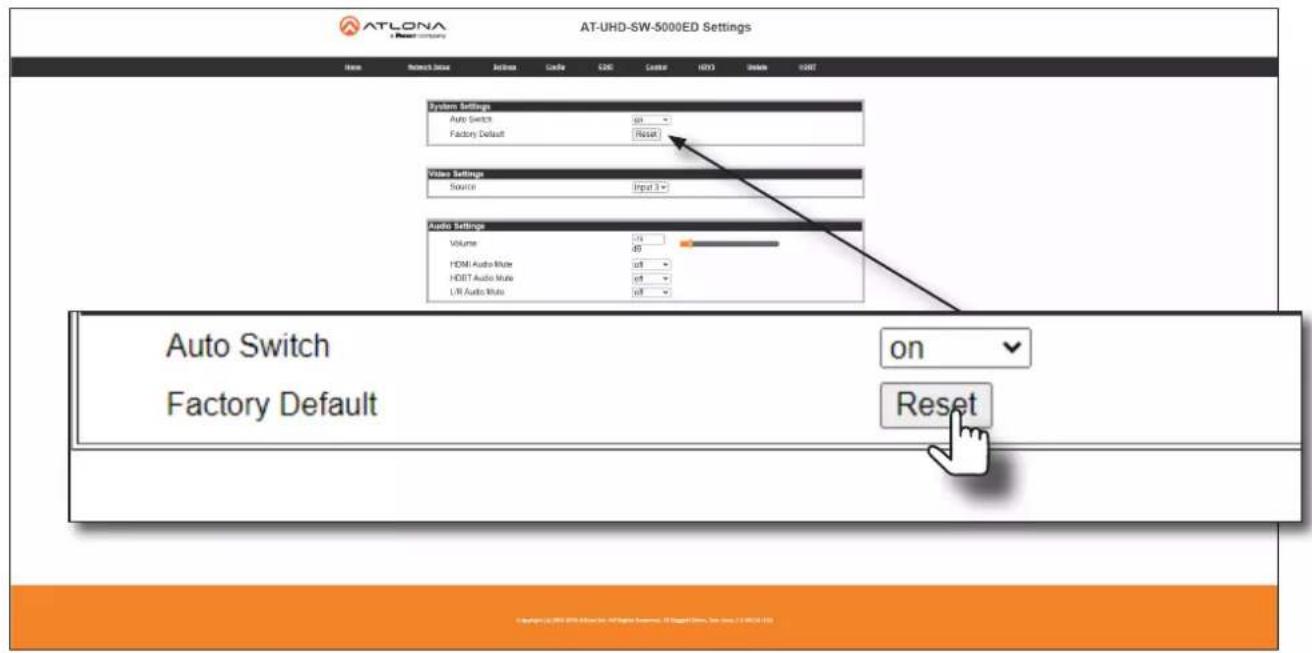

Resetting to Factory-Defaults 24

Using the Web Server 24

Using the Front Panel 25

Audio Management 26

Adjusting Output Volume 26

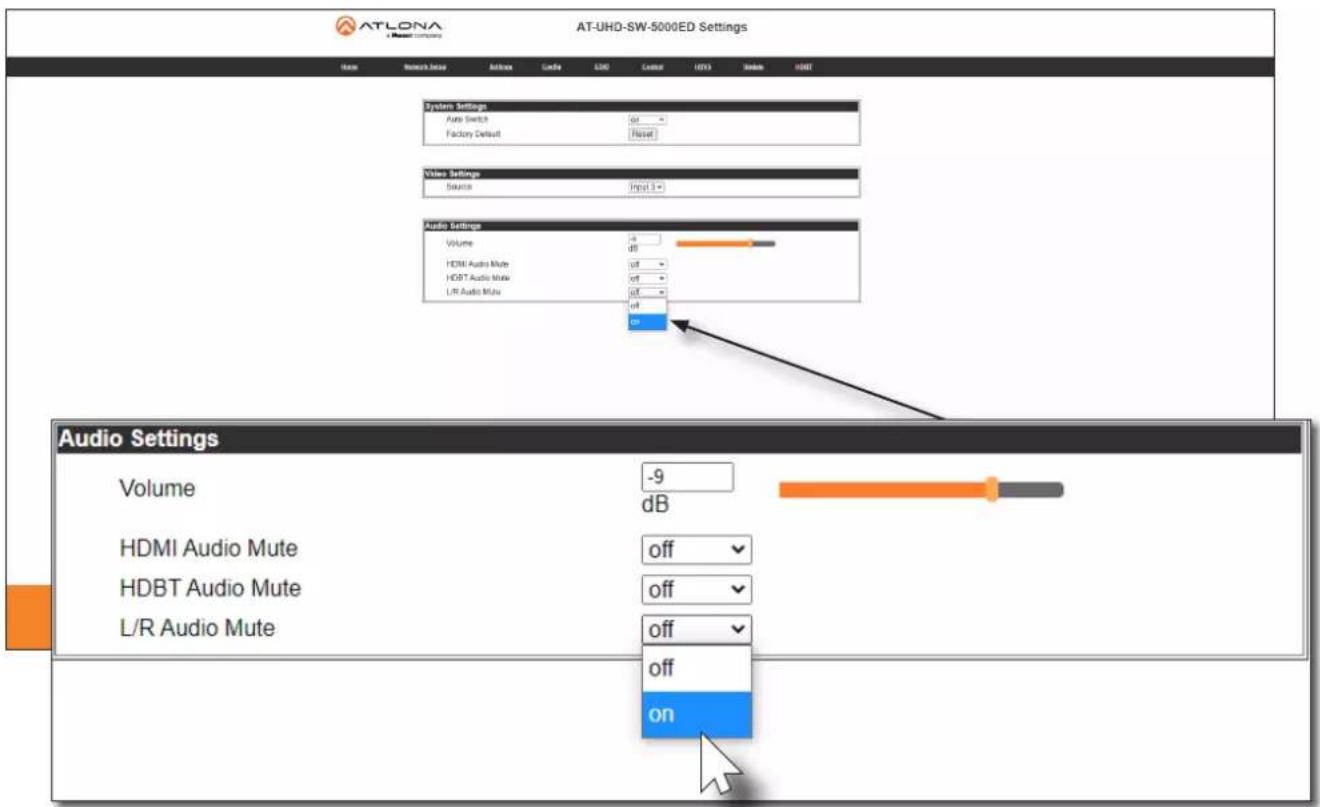

Audio Output Muting 27

User Management 28

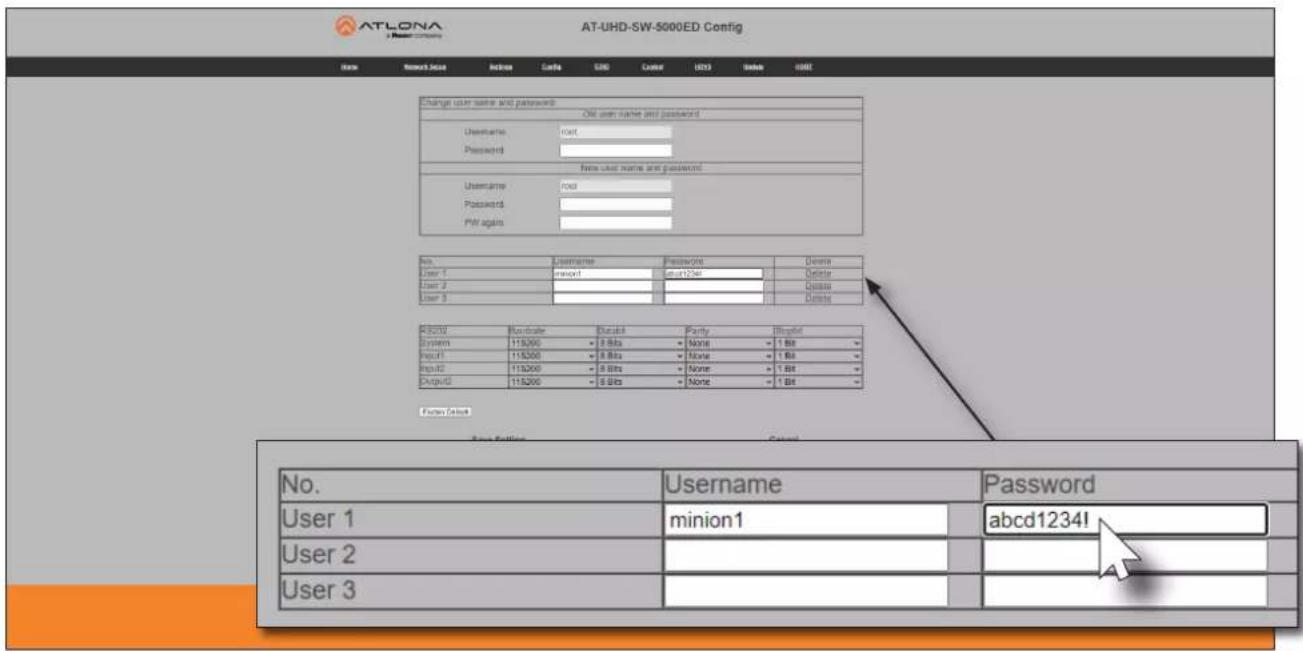

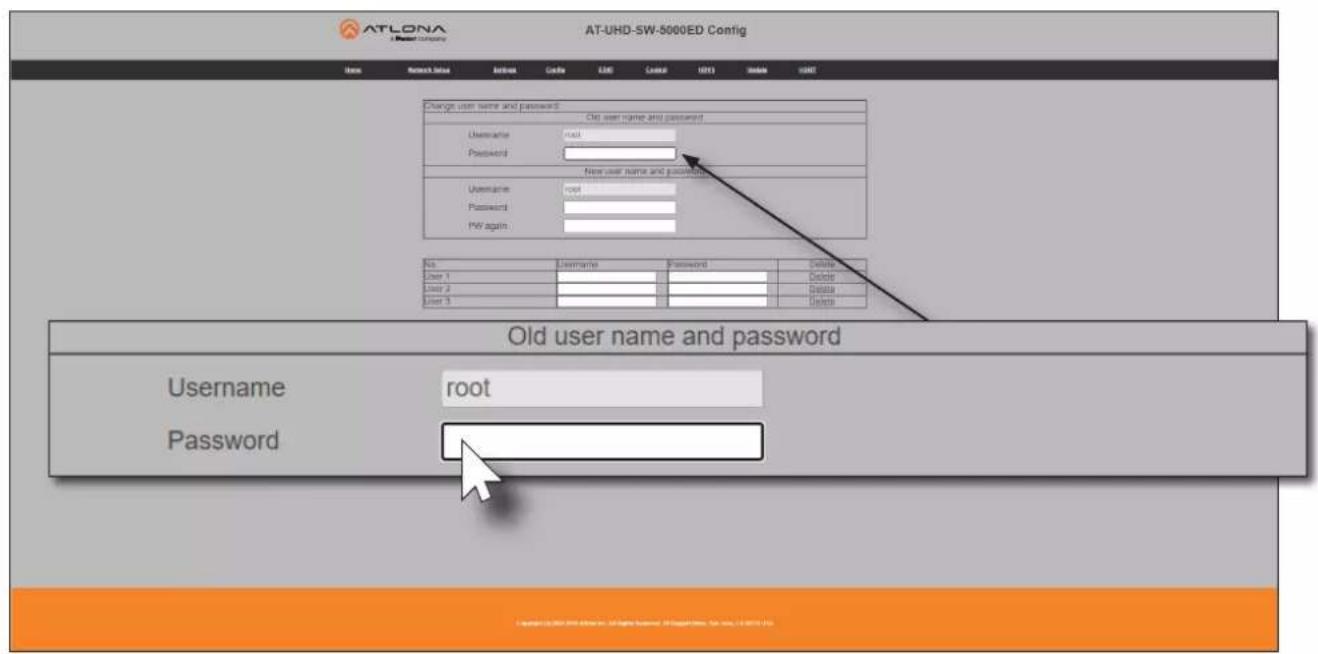

Changing the Administrator Password 28

Adding Users 29

Editing / Deleting Users 30

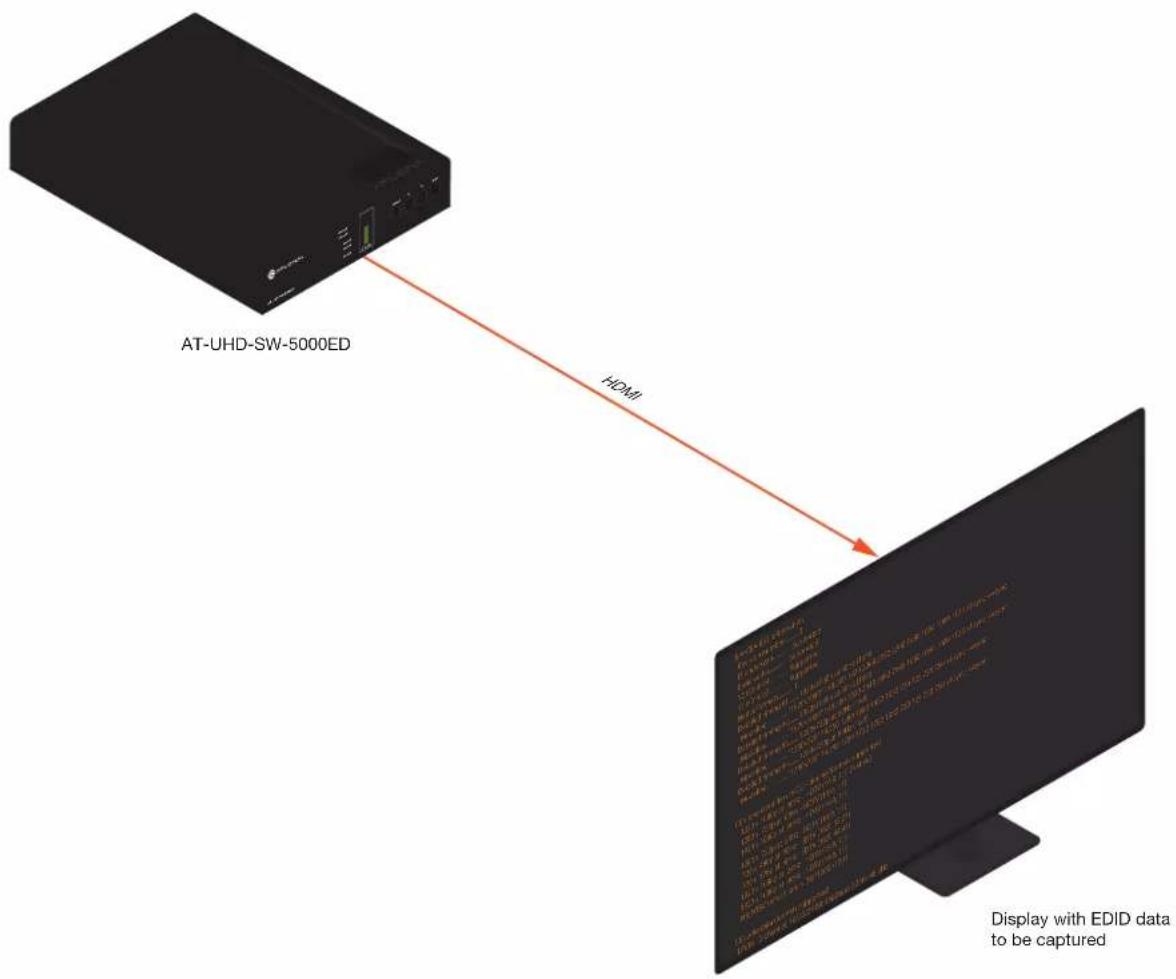

EDID Management 31

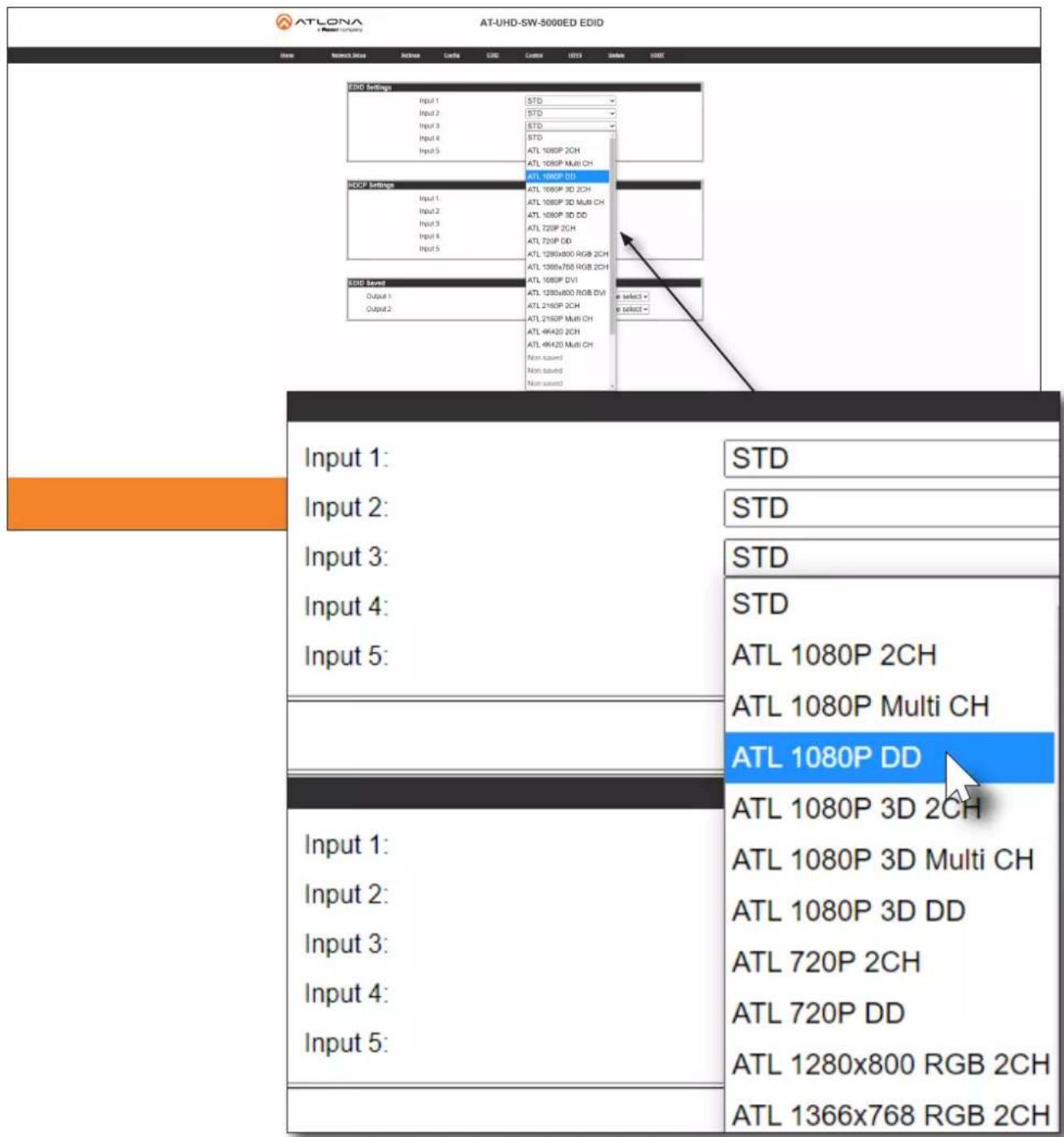

EDID Presets 31

Storing EDID Data 33

HDCP Content 35

Configuration and Management Interfaces 36

Introduction to the Web Server 36

Home Page 37

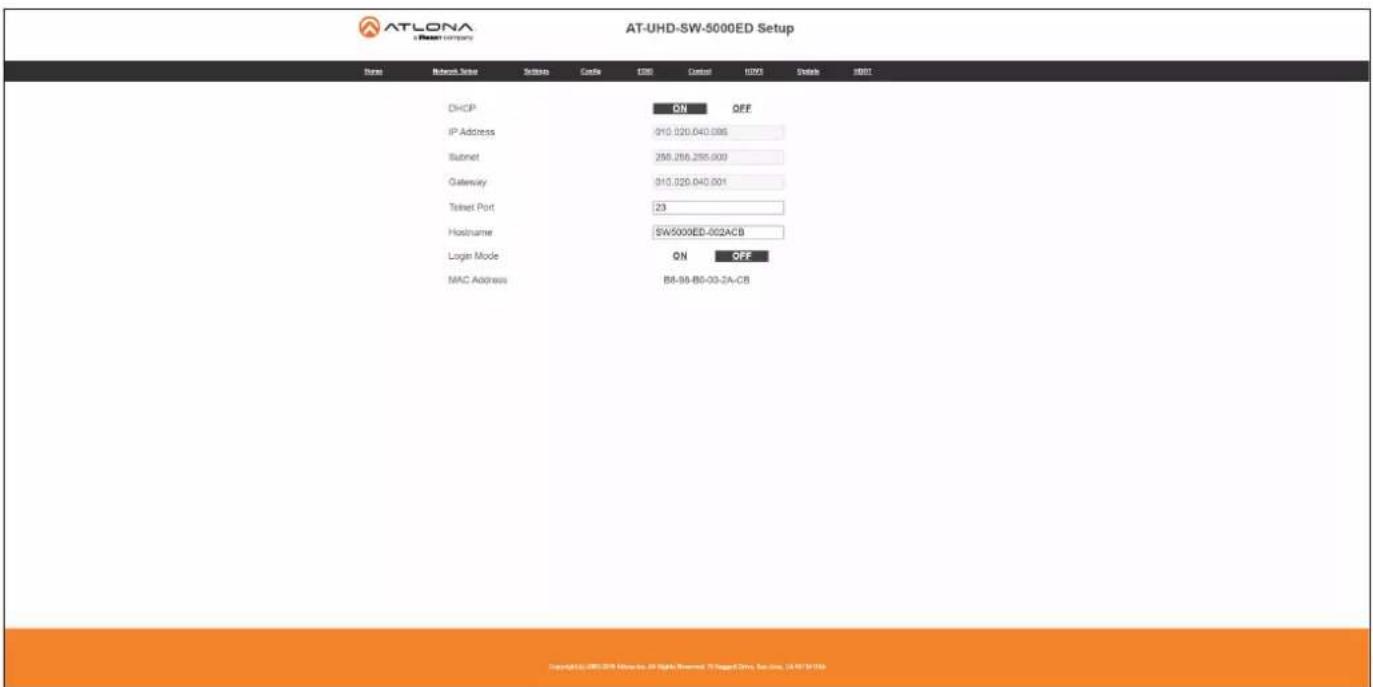

Network Setup Page 38

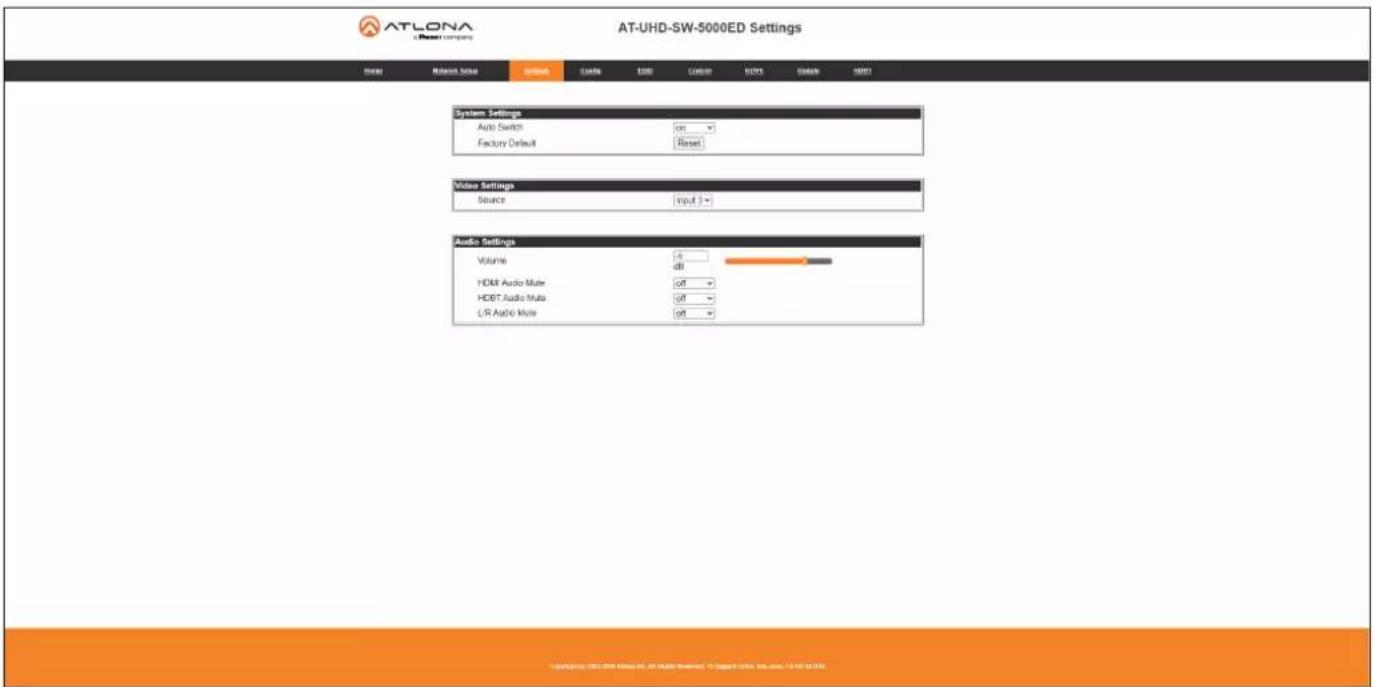

Settings Page 39

Config Page 40

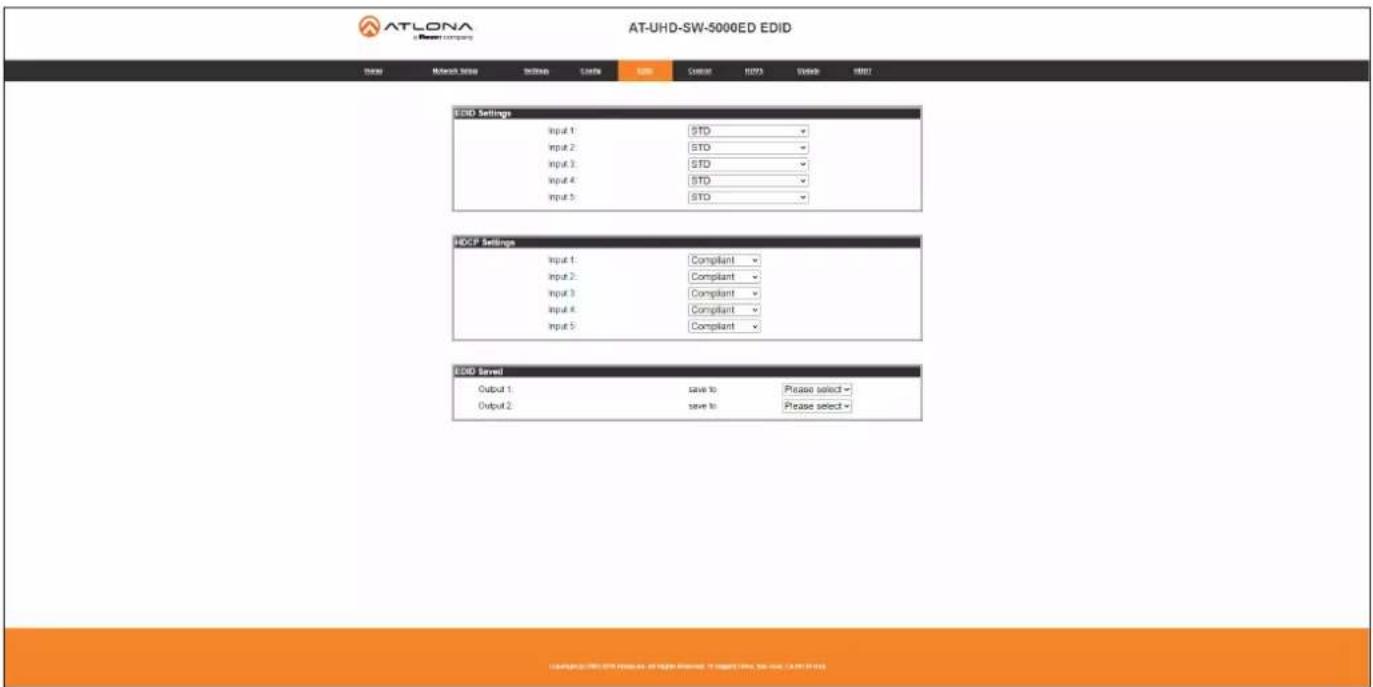

EDID Page 42

Control Page 44

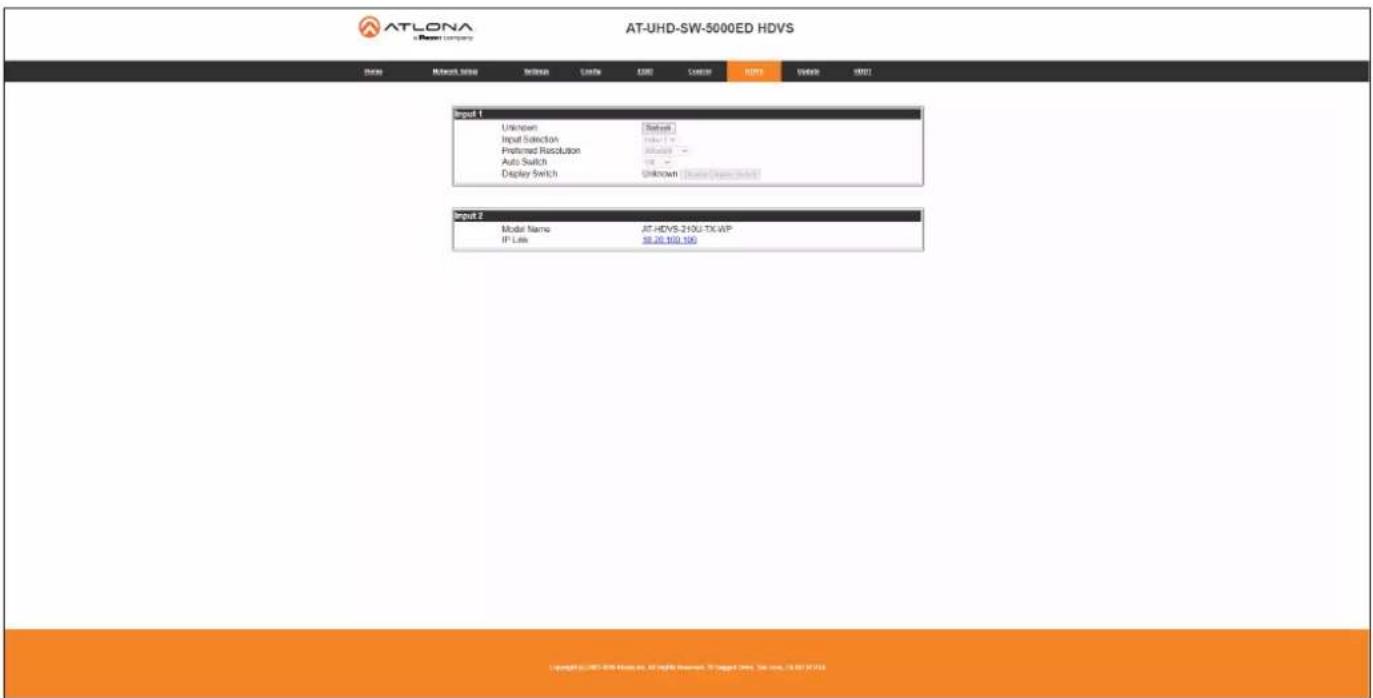

HDVS Page 47

Update Page 48

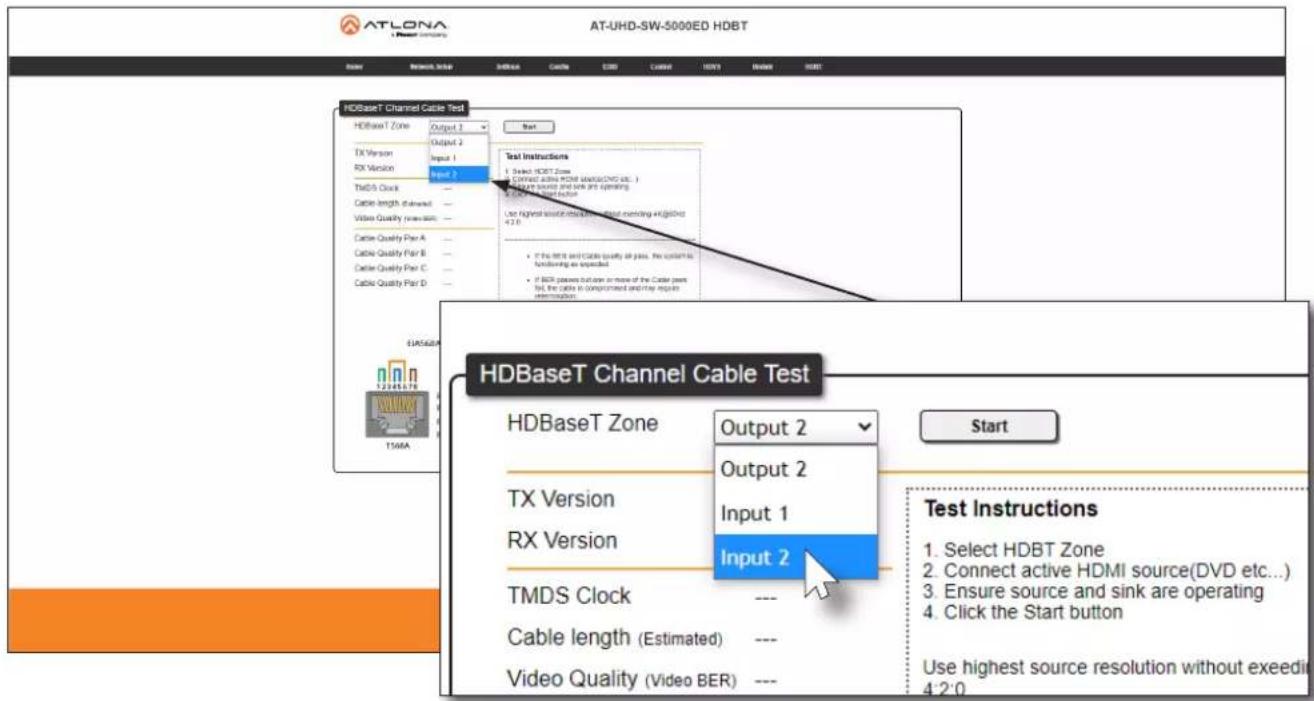

HDBT Page 49

Table of Contents

Appendix

50

Updating the Firmware 50

Using the Web Server 50

Using the USB Interface 51

HDBaseT Testing 53

Mounting Instructions 54

Single Unit Rack Installation 54

Dual Unit Rack Installation 55

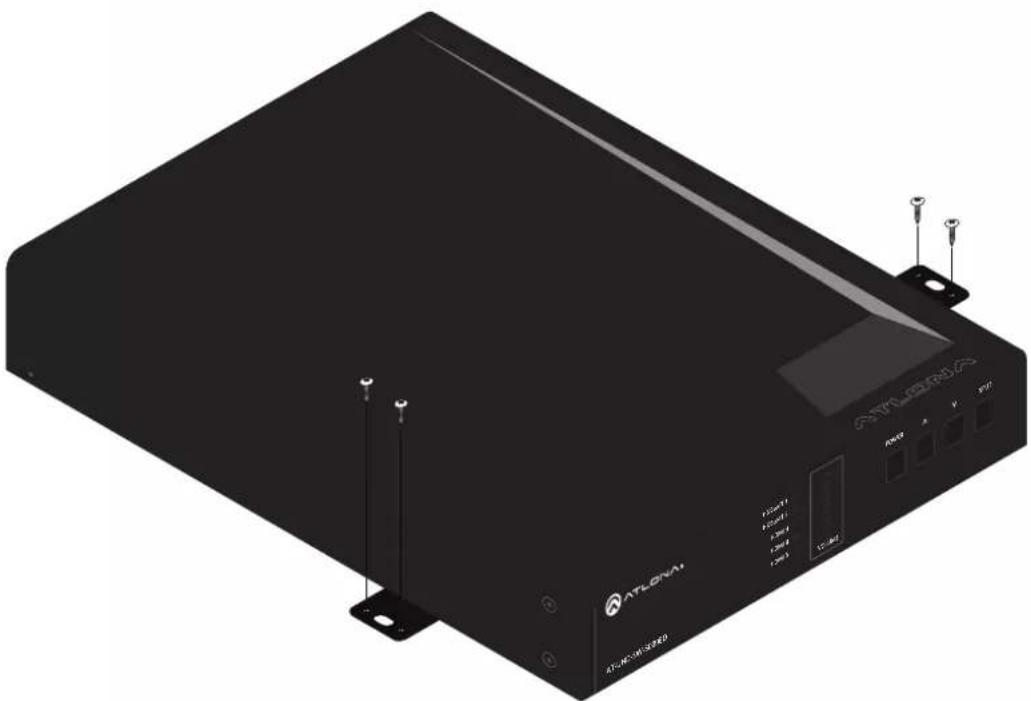

Flat Surface 56

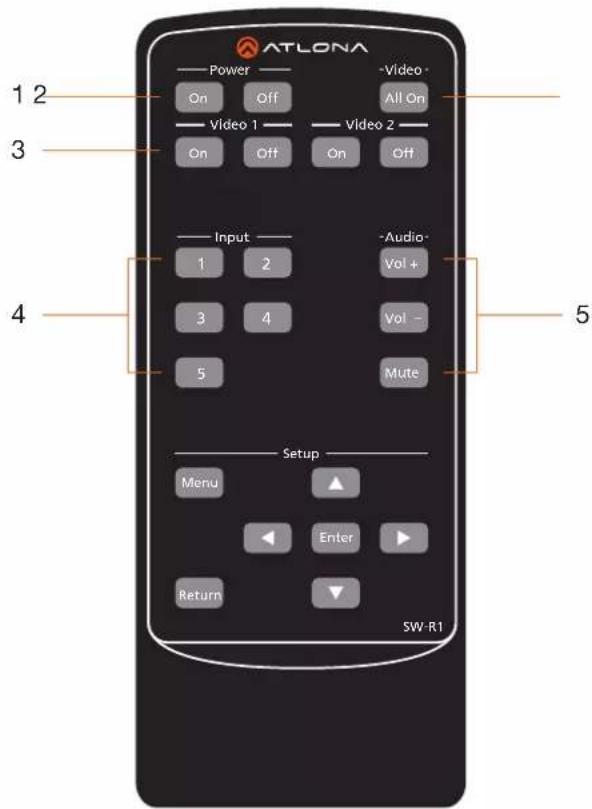

IR Remote Control 57

Specifications 58

Introduction

The Atlona AT-UHD-SW-5000ED is a 5x1 switcher with two HDBaseT™ inputs, three HDMI inputs, mirrored HDMI and HDBaseT outputs, balanced audio outputs, automatic input selection, and advanced display control capability. The HDBaseT inputs match perfectly with the HDVS-200-TX modules to enable VGA and HDMI sources to be easily integrated into a system. The switcher supports 4K/UHD @ 60 Hz, 4:2:0; (10.2 Gbps). It transmits AV signals along with Ethernet, power, and control over a single cable to displays up to 328 feet (100 meters) from the switcher. Control options include automatic input selection, front-panel buttons, and compatibility with IR, RS-232, or TCP/IP-based control systems. Displays are automatically turned on and off using CEC, IP, or RS-232. Advanced features also include a web-based GUI for easy set-up and management of EDID, HDCP, and display control. The switcher offers audio de-embedding of PCM audio over HDMI to two-channel, balanced +4 dBu analog audio outputs. The switcher is a cost-effective product for professional integration featuring a compact, 1U, half-rack width enclosure that is easily installed with included 19" rack-mount brackets. Two units can be mounted side-by-side.

The AT-UHD-SW-5000ED enables two HDVS transmitters to be used in a single system. With Ethernet enabled HDBaseT transmission to the HDVS transmitters and the receiver control, setup and maintenance is simplified. Automatic input selection and display control simplify the system, reducing cost, reducing setup time and resulting in a better end user experience.

Features

• Two, Ethernet-enabled HDBaseT Inputs
• Mirrored, dual outputs on HDMI and HDBaseT
  • Automatic display control
  • Automatic input selection using hot plug detect and video detection technology
• Ethernet-enabled HDBaseT
  • EDID management and HDCP management
• 4K/UHD capability
  • AV, Ethernet, power and control over HDBaseT
  • TCP/IP, RS-232, and IR control
• Easy, GUI-based configuration using integrated web server
  • Volume controls
  • Volume setting indicator
  • Balanced, line level output
  • Multi-channel audio compliant
• Rack-mountable, 1U, half rack width enclosure
  • Works with Velocity with Integrated AMS

Package Contents

1 x AT-UHD-SW-5000ED

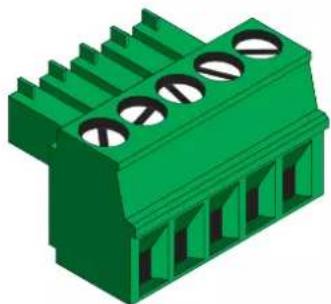

2 x 5-pin captive screw connectors
1 x 3-pin captive screw connector
1 x 2-pin captive screw connector
1 x Rack ears set, 1-long, 1 short, 2 table mount
4 x Rack ears screws
1 x 48 V / 1.25 A DC power supply
1 x power cord

Panel Description

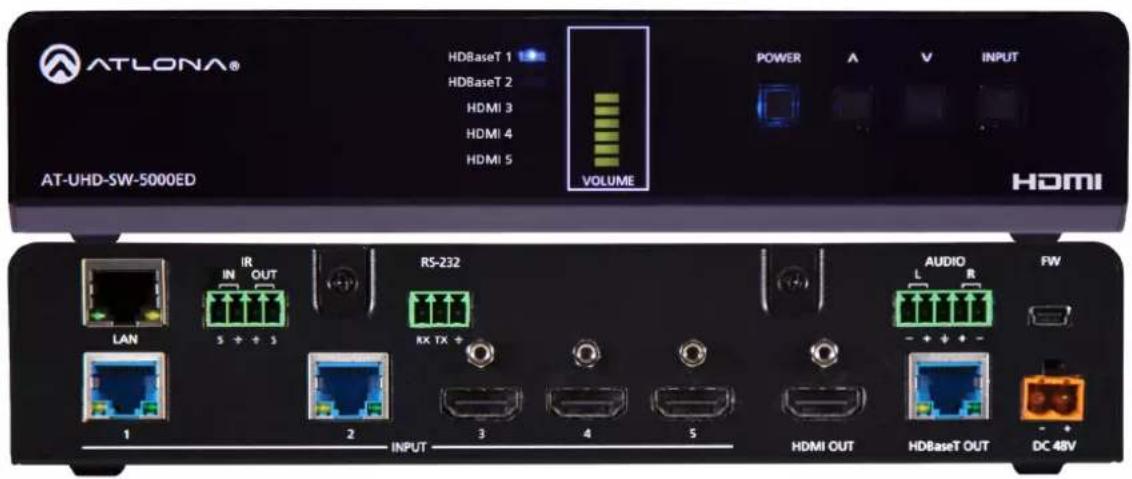

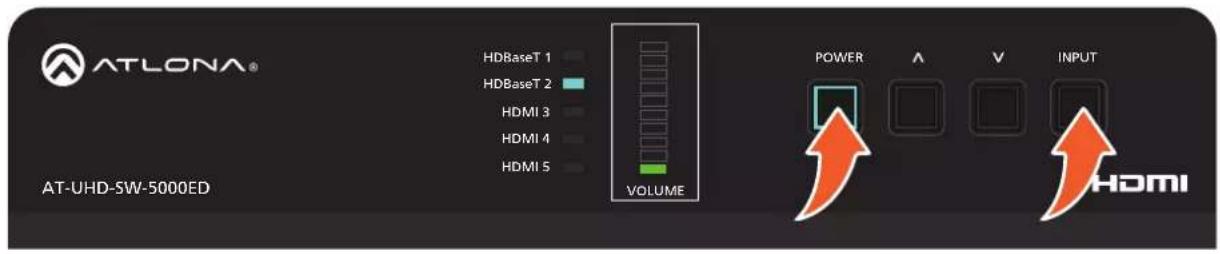

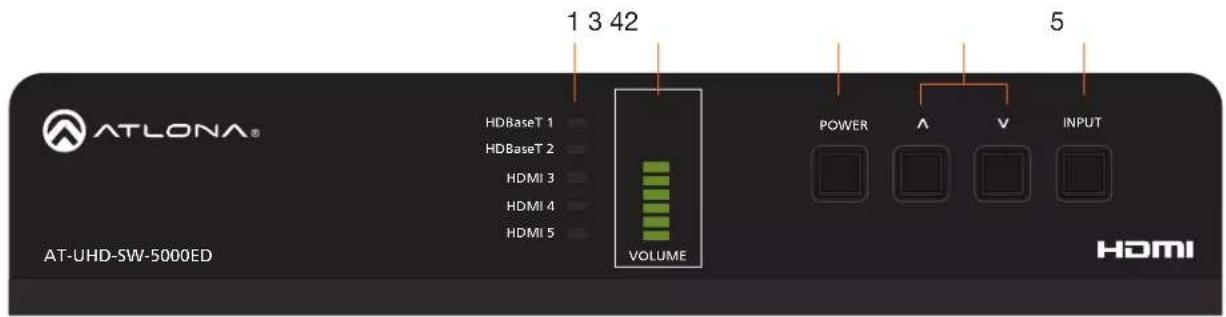

Front Panel

1 Input LED Indicators

These LED indicators display which input is routed to the HDMI OUT port. A solid blue indicator represents the active input being used

2 VOLUME

Displays the output audio level. Refer to LED Indicators (page 15) for more information.

3 POWER

Press this button to toggle between "on" and "standby" power states. When in "standby", A/V is muted. When "on", A/V muting will be disabled.

4 Cursor Buttons

Press and release these buttons to increase or decrease the audio output volume on the ANALOG OUT port.

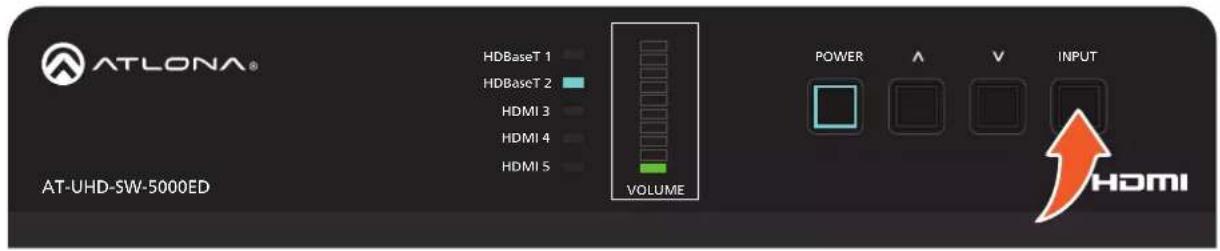

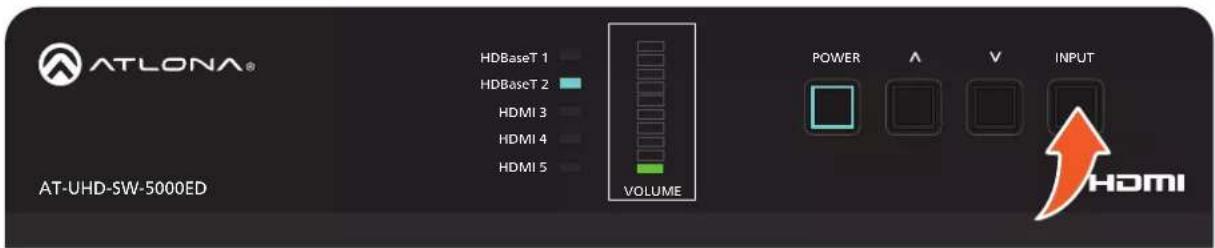

5 INPUT

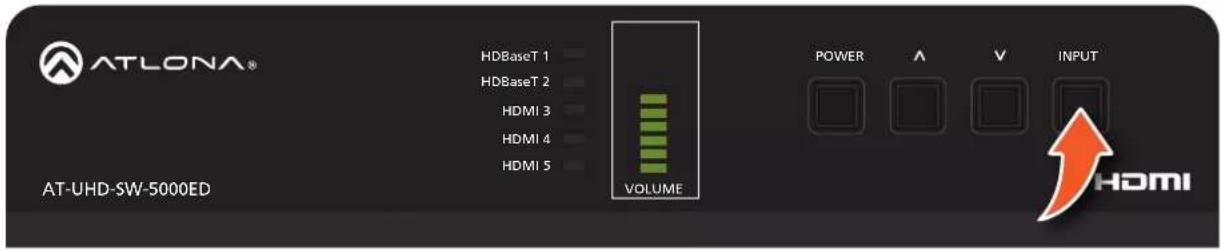

Press and release this button to cycle through each of the inputs.

Panel Description

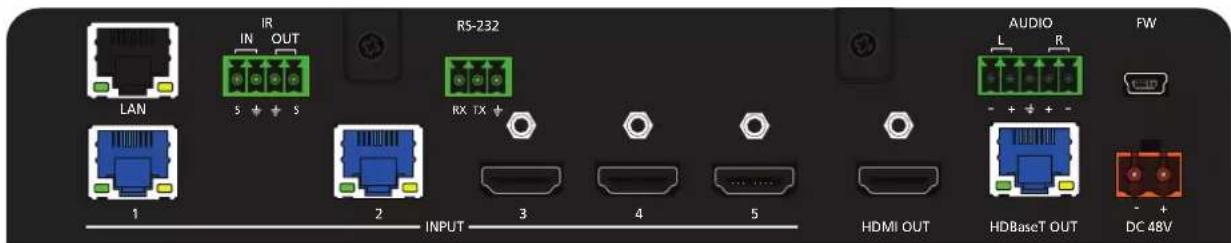

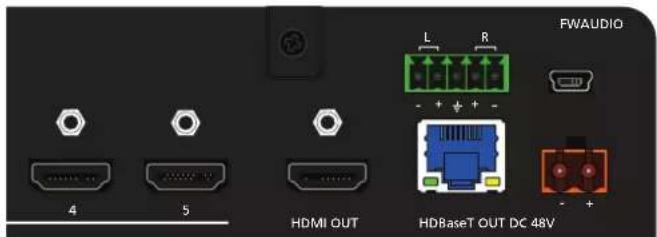

Rear Panel

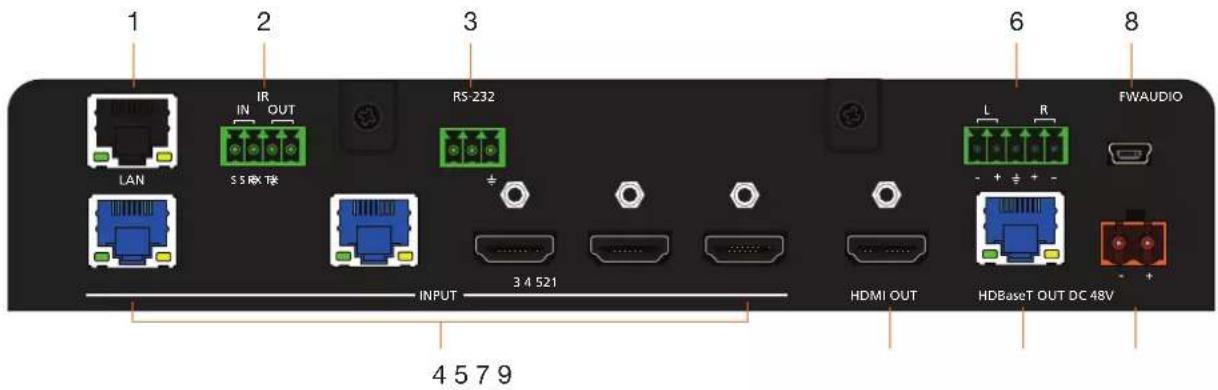

1 LAN

Connect an Ethernet cable from this port to the Local Area Network (LAN). The AT-UHD-SW-5000ED includes a built-in web server, which can be used to manage and configure the product.

2 IR IN/OUT

Connect the included 4-pin captive screw block to this port.

3 RS-232

Connect the included 3-pin captive screw block to an RS-232 controller to control the AT-UHD-SW-5000ED.

4 INPUT

Connect an category cable (CAT-5e or better) from INPUT 1 and INPUT 2 to HDBaseT transmitters.

Connect an HDMI cable from INPUT 3, INPUT 4, and INPUT 5 to UHD/HD HDMI sources.

5 HDMI OUT

Connect an HDMI cable from this port to an HD/UHD display.

6 AUDIO

Connect an audio output device to this port using the included captive screw block. Refer to Audio (page 10) for information on wiring.

7 HDBaseT OUT

Connect a category cable from this port to a the HDBaseT IN port of a compatible receiver unit.

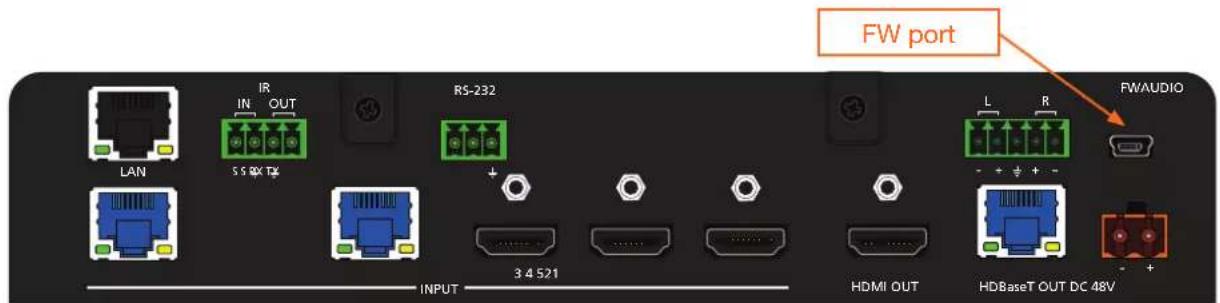

8 FW

Connect a USB-to-mini USB cable to this port from a computer for firmware updates.

9 DC 48V

Connect the included 48 V DC power supply from this power receptacle to an available AC electrical outlet. Refer to Power (page 10) for more information on wiring the included captive screw connector.

Installation

Power

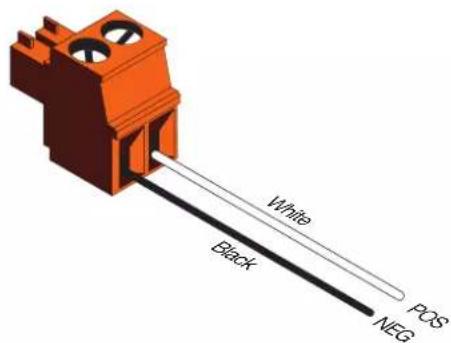

Connect the included 2-pin captive screw connector to the DC 48V power receptacle on the rear of the unit. Insert the positive and negative leads, from the power supply, into the terminals of the 2-pin captive screw connector block, as shown.

Audio

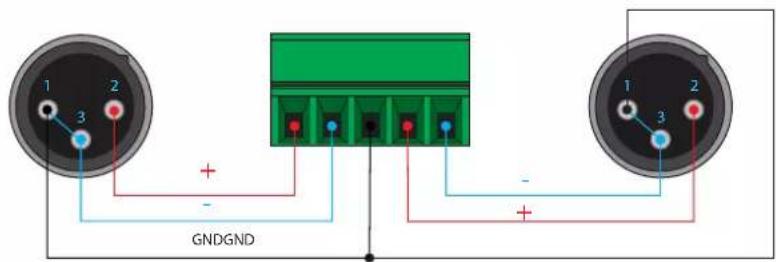

The AUDIO OUT connector on the AT-UHD-SW-5000ED provides a separate output for balanced audio. Connect the included 5-pin captive-screw terminal block to the AUDIO OUT port. Balanced audio connections use two signal wires and a ground to minimize interference in audio signals. Unbalanced output audio is not supported.

Green 3D model of a mechanical connector with multiple slots and mounting holes (no text or symbols)

RS-232

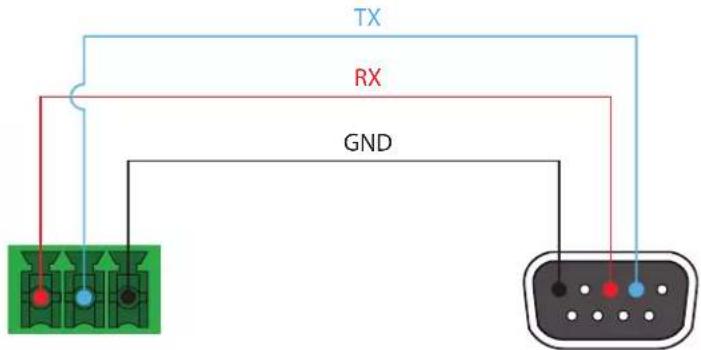

The AT-UHD-SW-5000ED provides an RS-232 port which can be used to control a display connected to an HDMI output. Atlona recommends controlling the AT-UHD-SW-5000ED using IP and reserving the RS-232 port for local display control.

1. Use wire strippers to remove a portion of the cable jacket.
2. Remove at least 3/16" (5 mm) of insulation from each of the wires.
3. Insert the wires into correct terminal using the included 3-pin captive screw connector.
4. Attach the 3-pin connector block to the RS-232 port on the AT-UHD-SW-5000ED.

Green 3D component with three circular holes, no text or symbols visible

Installation

Connection Instructions

1. Connect up to two HDBaseT transmitters to INPUT 1 and INPUT 2. Atlona recommends CAT-5e or better cabling.
2. Connect up to three UHD/HD HDMI sources to ports INPUT 3 through INPUT 5.
3. Connect an HDMI cable from the HDMI OUT port to a UHD/HD display.
4. Connect a category cable (CAT-5e or better) from the HDBaseT OUT port to a compatible receiver.

Refer to the tables below for recommended cabling when using Altona products with HDBaseT technology. The green bars indicate the signal quality when using each type of cable. Higher-quality signals are represented by more bars. These tables are for guidance, only. Performance may vary, based on environmental factors.

Core Shielding	CAT5e	CAT6	CAT6a	CAT7
Solid UTP (unshielded) N/A					■	■■■		■■■■
					■■	■■■■		■■■■■

Cable Max. Distance @ 4K Max. Distance @ 1080p
CAT5e 295 feet (90 meters)	330 feet (100 meters)
CAT6a / CAT6a / CAT7 330 feet (100 meters)	330 feet (100 meters)

IMPORTANT: Stranded or patch cable is not recommended due to performance issues. Sheilded cables are strongly recommended to minimize signal noise and interference.

1. Connect an Ethernet cable from the LAN port to the Local Area Network (LAN).
2. OPTIONAL: Connect the included 5-pin captive screw connector to the AUDIO OUT port.
3. OPTIONAL: Connect the included 4-pin captive screw connector to the IR IN/OUT port.
4. OPTIONAL: Connect the included 3-pin captive screw block to the RS-232 port.
5. Connect the included power supply to the DC 48V connector and connect the power cord to an available electrical outlet. Refer to Power (page 10) for more information.

Installation

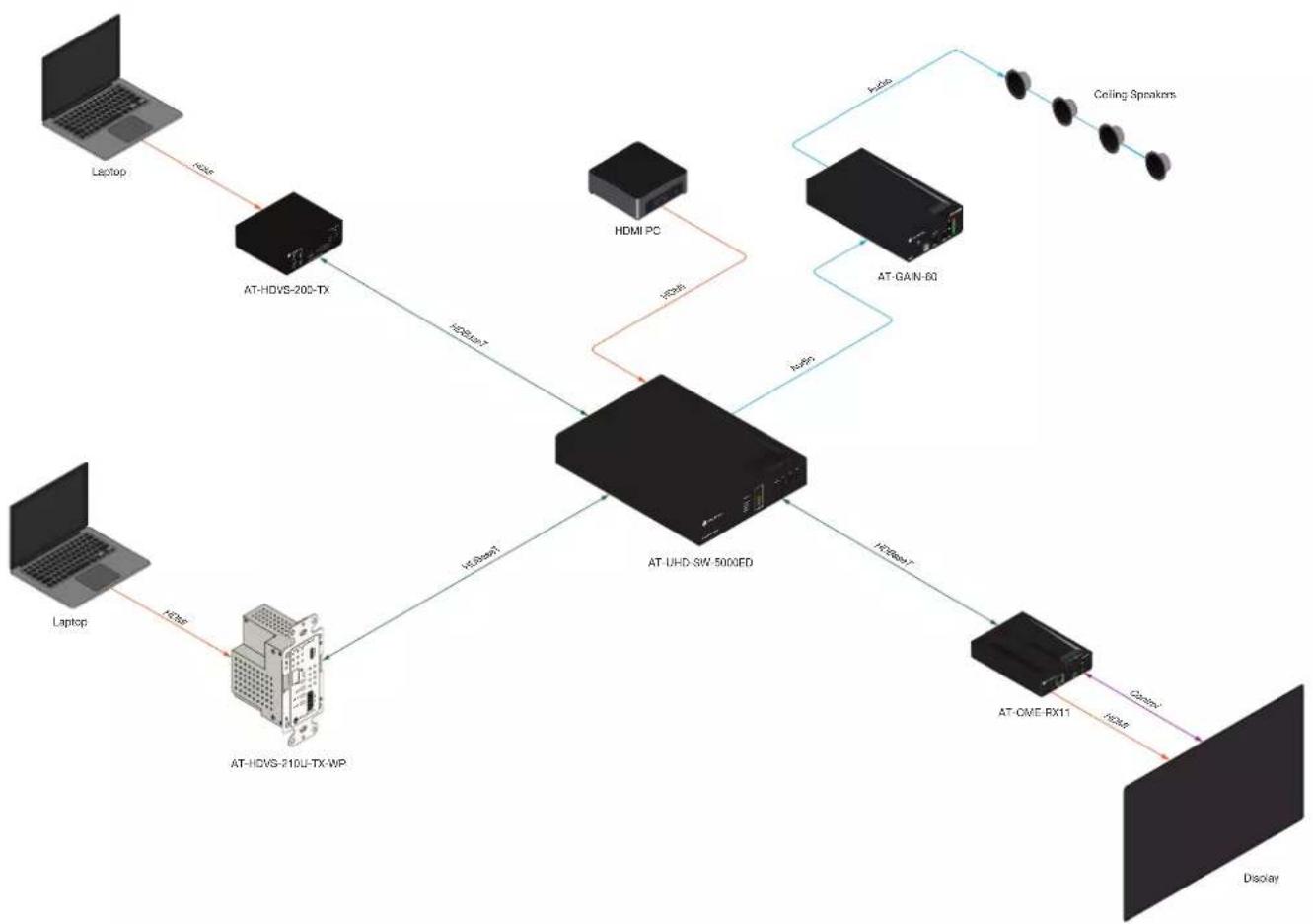

Connection Diagram

IP Configuration

The AT-UHD-SW-5000ED is shipped with DHCP enabled. Once connected to a network, the DHCP server (if available), will automatically assign an IP address to the unit. If the AT-UHD-SW-5000ED is unable to detect a DHCP server within 15 seconds, then the unit will use a self-assigned IP address within the range of 169.254.xxx.xxx.

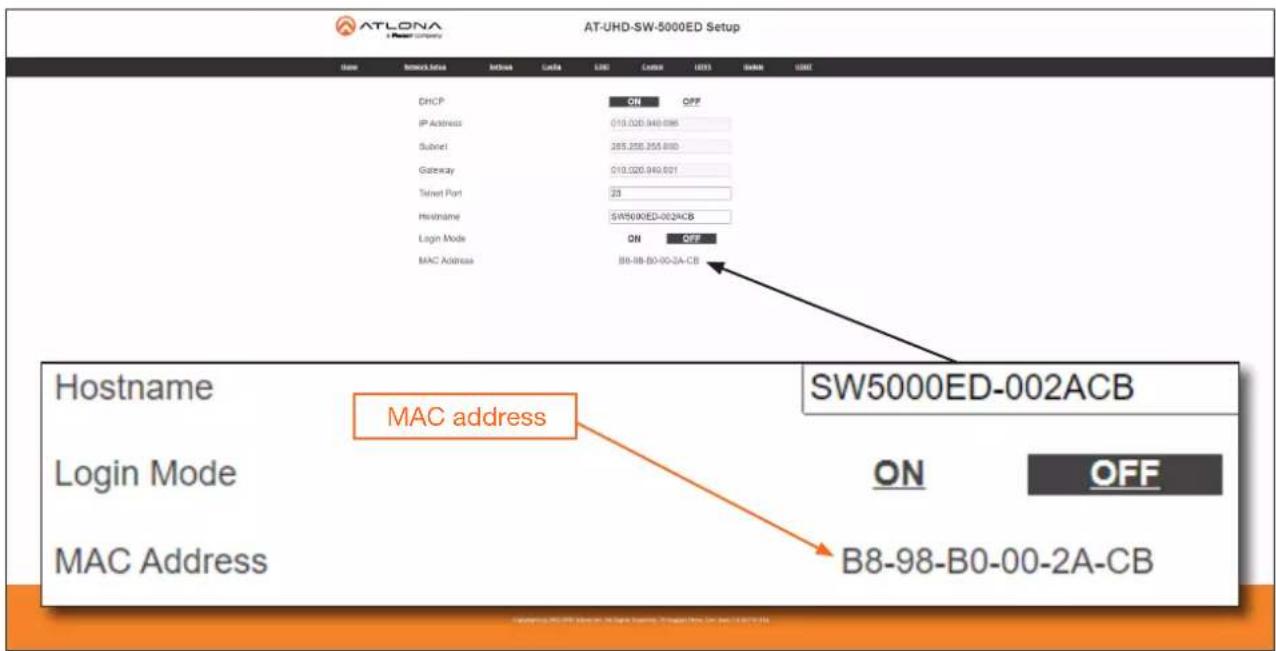

Use an IP scanner, along with the MAC address on the bottom of the unit, to identify the unit on the network. If a static IP address is desired, the unit can be switched to static IP mode. The default static IP address is 192.168.1.254.

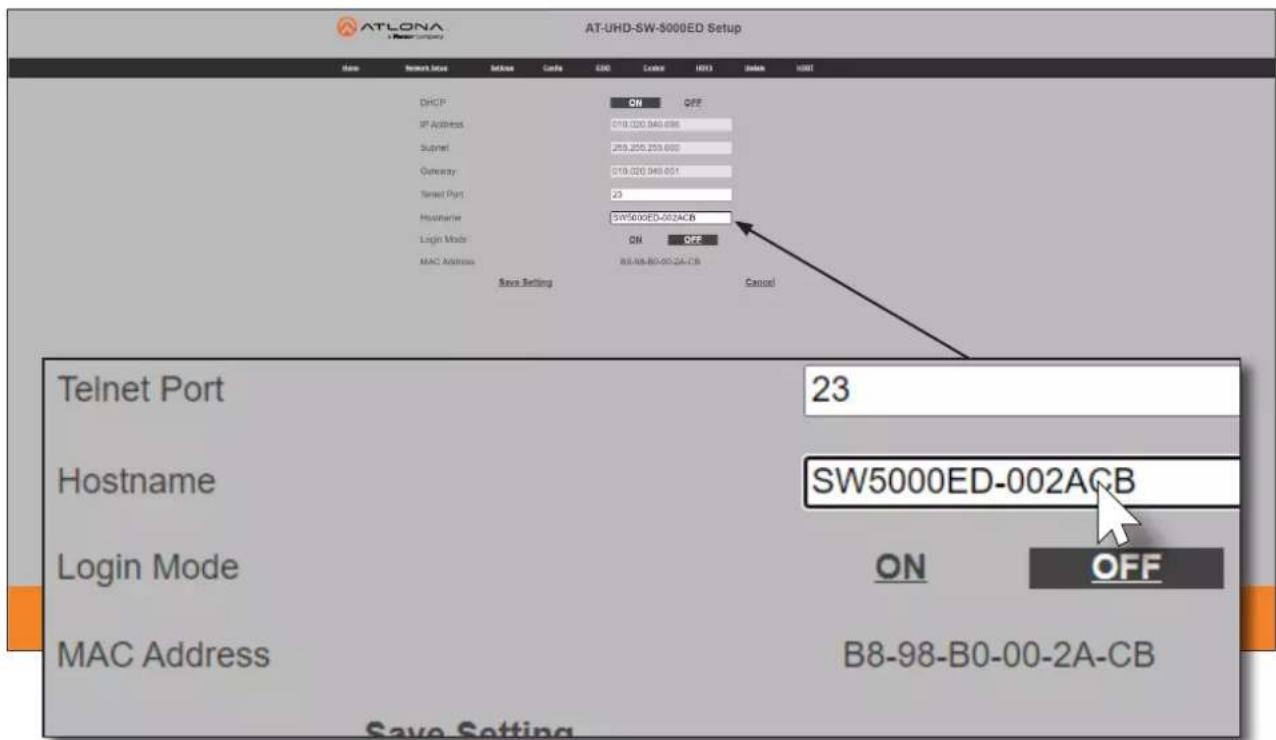

Setting the IP Address using the Web Server

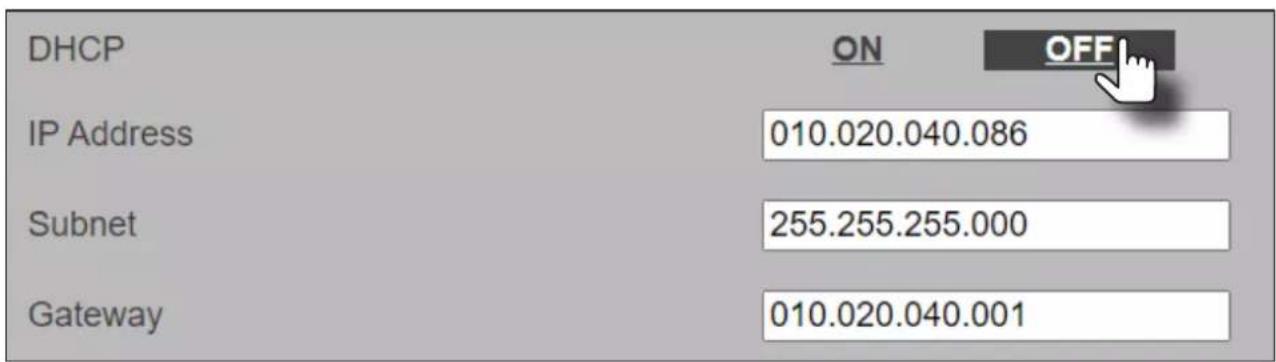

The AT-UHD-SW-5000ED can be set to either DHCP or static IP mode. If changing the IP mode through the built-in web server, the IP address of the AT-UHD-SW-5000ED must be known. By default, the AT-UHD-SW-5000ED is set to DHCP mode and will automatically be assigned an IP address by a DHCP server. Refer to the Changing the Network IP Mode (page 17) for more information.

Auto IP (APIPA) Mode

If the AT-UHD-SW-5000ED is unable to detect a DHCP server within 15 seconds, then the unit will use a self-assigned IP address within the range of 169.254.xxx.xxx. If this occurs, connect the AT-UHD-SW-5000ED to a computer running Microsoft Windows® and follow the procedure below.

1. Click Start > Settings > Control Panel > Network and Sharing Center.
2. Click Change adapter settings.
3. Right-click on the adapter that is used to establish a wired connection to the network, and select Properties from the context menu.
4. Under the Ethernet Properties dialog box, select Internet Protocol Version 4 and then click the Properties button.
5. Click the Use the following IP address radio button.

IMPORTANT: Before continuing, write down the current IP settings in order to restore them, later. If Obtain an IP address automatically and Obtain DNS server automatically are selected, then this step is not required.

1. Enter the desired static IP address or the IP address provided by the network administrator. If the PC does not require Internet access or if a statically-assigned IP address is being used, then an IP address of 169.254.xxx.xxx can be entered.

2. Set the subnet mask to 255.255.0.0.

3. Click the OK button then close all Control Panel windows.

Device Operation

LED Indicators

The LED indicators on both the front and rear of the unit provide basic information on the current status of the AT-UHD-SW-5000ED.

LED Description
HDBaseT 1, HDBaseT 2, HDMI 3 - HDMI 5	Solid green The input is the currently selected (active) input.
	Off The input is not the active input.
VOLUME Solid	green Acceptable range for output volume.
	Solid amber Output volume level is approaching audio clipping.
	Solid red Audio clipping.
POWER Solid	blue Unit is powered and in normal operating mode. A/V muting is disabled.
	Solid red Unit is powered and in standby mode. In this mode, A/V will be muted.
	Press the POWER button to place the unit in normal operating mode.
	Off Unit is not powered.
		Check the power supply and make sure it is securely fastened to the captive screw connector on the rear of the unit.Make sure that the power supply is connected to an available electrical outlet and that the outlet is “live” (some outlets are controlled by a wall switch).

System Configuration

The AT-UHD-SW-5000ED provides easy access to system configuration through the built-in web server, and is the recommended method to adjust network settings.

NOTE: When a setting within the Network Settings page is being modified, the background color will switch from white to gray. This indicates that a setting is being changed.

Getting the MAC Address

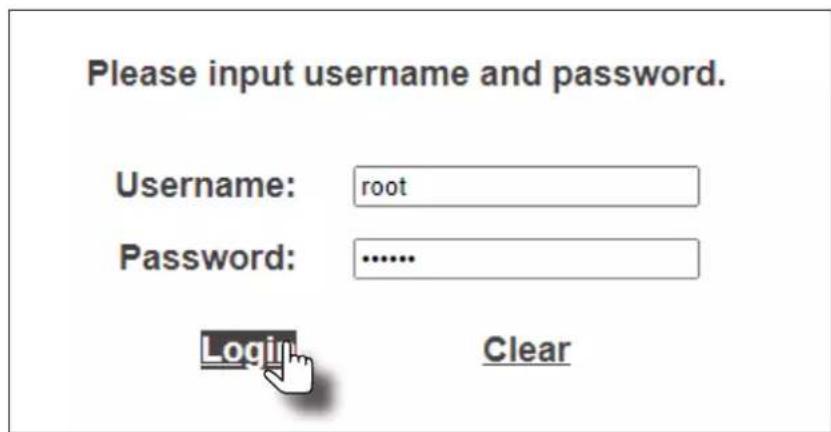

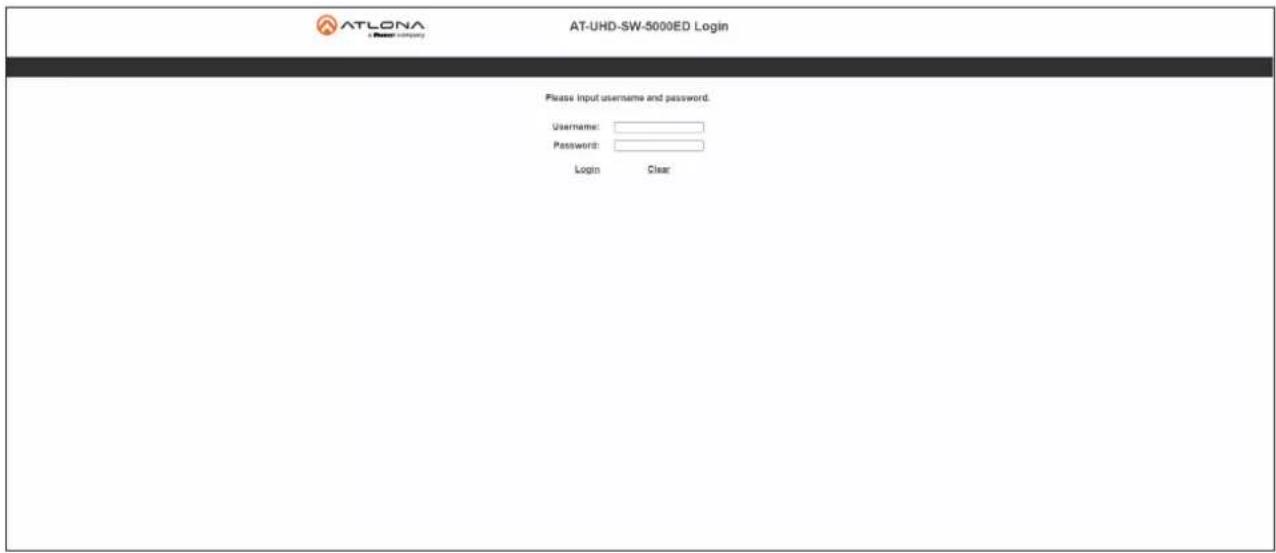

1. Login to the web server. Refer to Introduction to the Web Server (page 36). The default username and password are listed below:

Username: root

Password: Atlona

1. Click Network Setup in the menu bar.
2. Locate the MAC address field, as shown below. This is the hardware address of the AT-UHD-SW-5000ED.

Device Operation

Changing the Network IP Mode

By default, the AT-UHD-SW-5000ED is set to DHCP mode. Once connected to a network, and if a DHCP server is found (or available), the AT-UHD-SW-5000ED will be assigned an IP address on the network, and no further network configuration is required. However, if the AT-UHD-SW-5000ED is unable to detect a DHCP server within 15 seconds, then the unit will use a self-assigned IP address within the range of 169.254.xxx.xxx. The instructions below will focus on setting the AT-UHD-SW-5000ED to static IP mode.

IMPORTANT: Before assigning a static IP address to the AT-UHD-SW-5000ED, it is recommended to consult with the network or system administrator and obtain a available IP address. If the AT-UHD-SW-5000ED is assigned an IP address which is already in use by another device, it may cause either network issues and/or the AT-UHD-SW-5000ED will be not accessible.

1. Login to the web server. Refer to Introduction to the Web Server (page 36). The default username and password are listed below:

Username: root

Password: Atlona

1. Click Network Setup in the menu bar.
2. Locate the DHCP section at the top of the page. The default setting is ON.
3. Click the OFF button to set the AT-UHD-SW-5000ED to static IP mode.
4. Enter the desired IP address for the AT-UHD-SW-5000ED in the IP Address field.
5. Enter the subnet mask and gateway address in the Subnet and Gateway fields, respectively.

1. Click Save Setting to commit changes. Click Cancel to abort changes. Changes will take effect immediately.

Device Operation

Setting Static IP Mode using the Front Panel

By default, the AT-UHD-SW-5000ED is set to DHCP mode. Once connected to a network, and if a DHCP server is found (or available), the AT-UHD-SW-5000ED will be assigned an IP address on the network, and no further network configuration is required. However, in some cases, a static IP assignment may be desired. This procedure can be done through the web server (see previous page) or by using the front-panel buttons, as shown below.

1. Verify that the AT-UHD-SW-5000ED is powered.
2. Press and hold the INPUT button for 15 seconds, then release the button.

1. The POWER button will flash four times to indicate that the AT-UHD-SW-5000ED is in static IP mode. The following IP settings are assigned, automatically:

IP Address: 192.168.1.254

Subnet: 255.255.0.0

Gateway: 192.168.1.1

Changing the Telnet Port

Typically, the Telnet service is assigned to TCP port 23. This is the default setting for the AT-UHD-SW-5000ED. However, depending upon the network environment, the default Telnet port can be changed.

1. Login to the web server. Refer to Introduction to the Web Server (page 36). The default username and password are listed below:

Username: root

Password: Atlona

1. Click Network Setup in the menu bar.

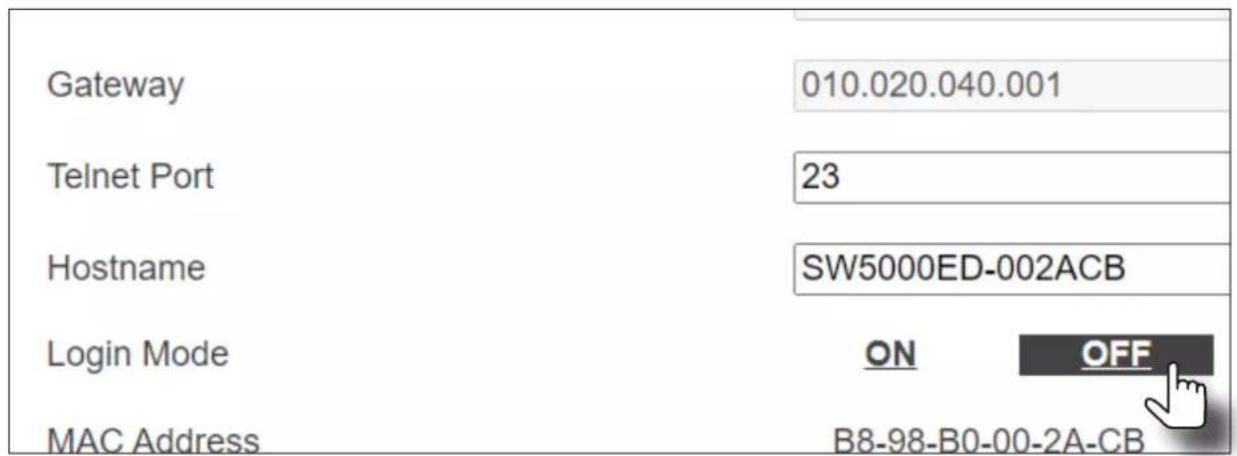

2. Locate the Telnet Port field and enter the desired port in the field.

Gateway	010.020.040.001
Telnet Port	23
Hostname	SW5000ED-002ACB

1. Click Save Settings to commit changes. Click Cancel to abort changes.

Device Operation

Telnet Login Mode

When a Telnet session is requested, the AT-UHD-SW-5000ED provides the option to prompt for user credentials or bypass authentication before the Telnet session begins. Prompting for credentials can be enabled or disabled. When prompting for user credentials, use the same login information required by the built-in web server.

1. Login to the web server. Refer to Introduction to the Web Server (page 36). The default username and password are listed below:

Username: root

Password: Atlona

1. Click Network Settings in the menu bar.

2. Click the Login Mode button to ON or OFF.

3. Set this button to ON to prompt for user credentials.

4. Set this button to OFF to bypass user credentials request.

1. Click Save Setting to commit changes. Click Cancel to abort changes.

Setting the Host Name

By default, the AT-UHD-SW-5000ED is assigned a hostname, which is constructed as follows:

SW52ED-[last six digits of MAC address]

For example, a default hostname might look like this: SW52ED-006154. This value can be changed to easily identify the AT-UHD-SW-5000ED within the Atlona Management System (AMS) or a network. If using a custom hostname, it must meet the hostname standards defined here: https://tools.ietf.org/html/rfc1123

1. Login to the web server. Refer to Introduction to the Web Server (page 36). The default username and password are listed below:

Username: root

Password: Atlona

1. Click Network Settings in the menu bar.

2. Click the Hostname field and enter the desired name.

1. Click Save Setting to commit changes. Click Cancel to abort changes.

Video Switching

Enabling / Disabling Auto-Switching

The AT-UHD-SW-5000ED provides auto-switching capability, which is enabled by default. This feature will automatically switch the input to the most recently-connected source. If a source is disconnected, then the input will automatically be switched to the previously-connected source.

By default, auto-switching is enabled on the AT-UHD-SW-5000ED, allowing the unit to automatically switch between inputs when sources are connected or disconnected.

1. Login to the web server. Refer to Introduction to the Web Server (page 36). The default username and password are listed below:

Username: root

Password: Atlona

1. Click Settings in the menu bar.
2. Click the Auto Switch drop-down list and select On to enable auto-switching. Auto-switching is disabled by default. If auto-switching is not desired, select Off from the drop-down list.

NOTE: The AT-UHD-SW-5000ED retains the currently selected input, even after the unit is powered-off then powered-on.

1. Auto-switching configuration is complete.

Selecting the Input

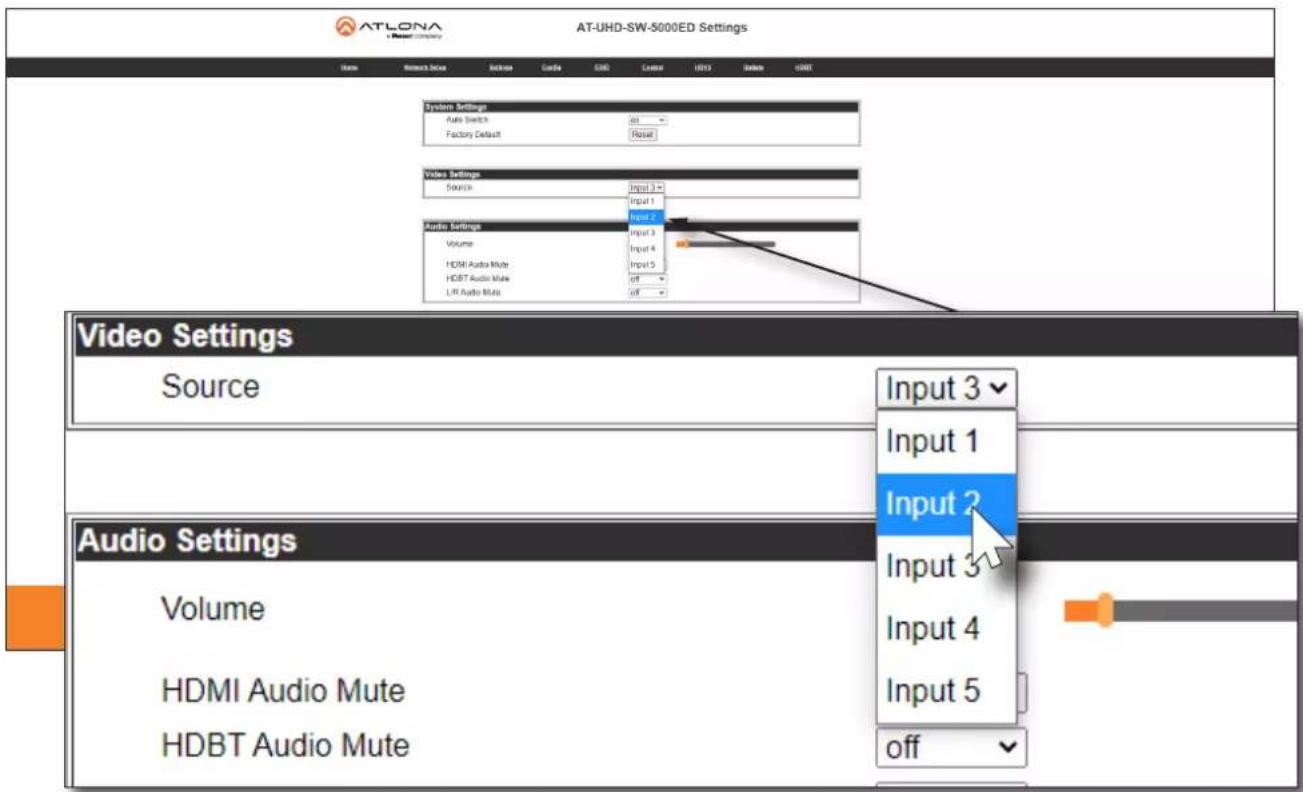

The active input can be selected from the front panel, the built-in web server, or an API call. Refer to the AT-UHD-SW-5000ED Application Programming Interface for more information.

1. Login to the web server. Refer to Introduction to the Web Server (page 36). The default username and password are listed below:

Username: root

Password: Atlona

1. Click Settings in the menu bar.
2. Click the Auto Switch drop-down list and select On to enable auto-switching. Auto-switching is disabled by default. If auto-switching is not desired, select Off from the drop-down list.

1. Selection of the active input is complete.
2. To select the input using the front panel buttons, press and release the INPUT button to cycle through each of the available inputs on the unit.

Resetting to Factory-Defaults

The following procedure will reset the AT-UHD-SW-5000ED to factory-default settings. The network IP mode will be set to DHCP mode.

Using the Web Server

1. Login to the web server. Refer to Introduction to the Web Server (page 36). The default username and password are listed below:

Username: root

Password: Atlona

1. Click Settings in the menu bar.
2. Click the Reset button, next to Factory Default.

1. The following message will be displayed at the top of the screen. Click OK to continue with the factory-default reset procedure. Click Cancel to abort the process.

1. Once the factory-default process is complete, the web server Login screen will be displayed.
2. The factory-reset process is complete.

Device Operation

Using the Front Panel

1. Verify that the AT-UHD-SW-5000ED is powered.
2. Simultaneously press and hold the INPUT and POWER buttons for 15 seconds.
3. The input indicator will switch to HDBaseT 1.

1. Factory reset is complete.

Audio Management

The AT-UHD-SW-5000ED provides volume control and independent audio muting. Audio muting can be controlled on HDMI OUT, HDBaseT OUT, and ANALOG OUT ports. To de-embed the source audio on the ANALOG OUT port, connect the included 5-pin captive screw connector to the ANALOG OUT port. De-embedding audio is restricted to multichannel Linear PCM formats. Audio output is always downmixed to two-channel stereo.

Adjusting Output Volume

1. Login to the web server. Refer to Introduction to the Web Server (page 36). The default username and password are listed below:

Username: root

Password: Atlona

1. Click Settings in the menu bar.

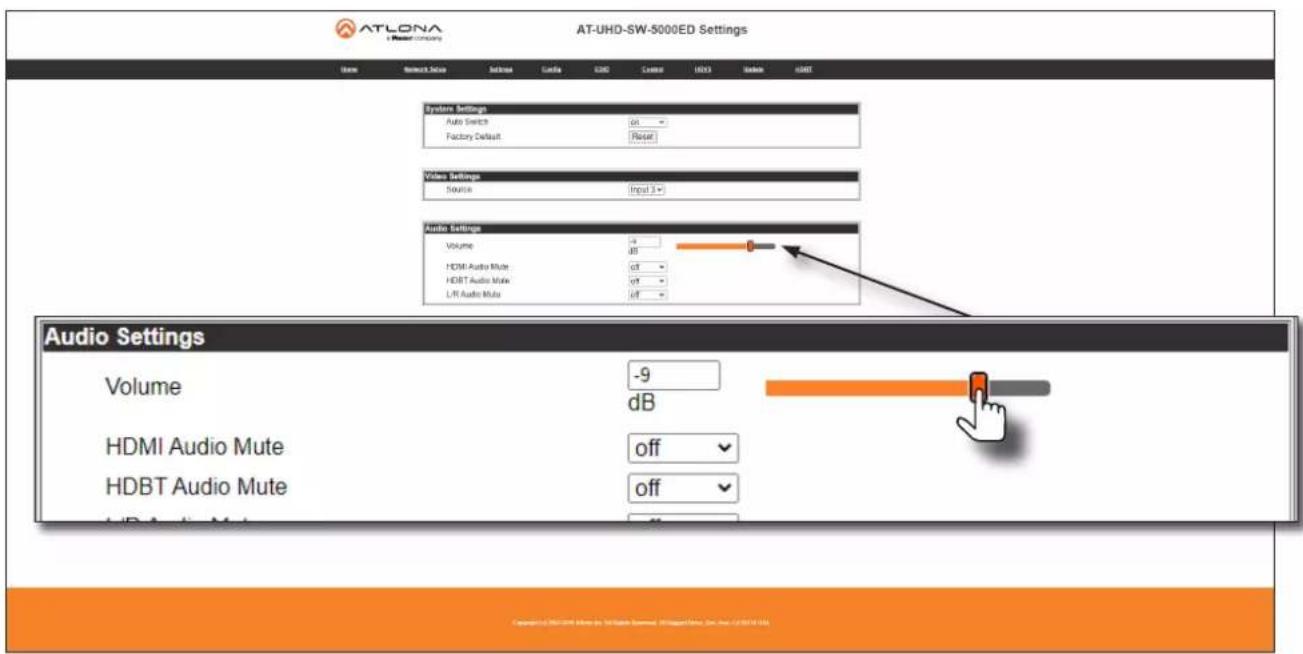

2. Under Audio Settings, click and drag the Volume slider to adjust the audio output level. The current output volume, in decibels, will be displayed in the Volume field, next to the slider bar. Audio output level can be set within the range of -80 dB to +15 dB. The default settings is 0 dB.

1. Output audio level adjustment is complete.

Audio Output Muting

1. Login to the web server. Refer to Introduction to the Web Server (page 36). The default username and password are listed below:

Username: root

Password: Atlona

1. Click Settings in the menu bar.
2. Locate the Audio Settings section.
3. Click the drop-down list for the desired output. For example, to mute the audio output on the ANALOG OUT port, click the L/R Audio Mute drop-down list and select on. To re-enable the audio for that output, select off from the drop-down list.

User Management

The AT-UHD-SW-5000ED allows the administrator password to be changed. The password applies to both the web server and Telnet sessions. Note that the Username field cannot be changed. All users have the same level of access to control the AT-UHD-SW-5000ED. However, only the root user is allowed to manage other users. Up to three additional users can be created.

Changing the Administrator Password

1. Login to the web server. Refer to Introduction to the Web Server (page 36). The default username and password are listed below:

Username: root

Password: Atlona

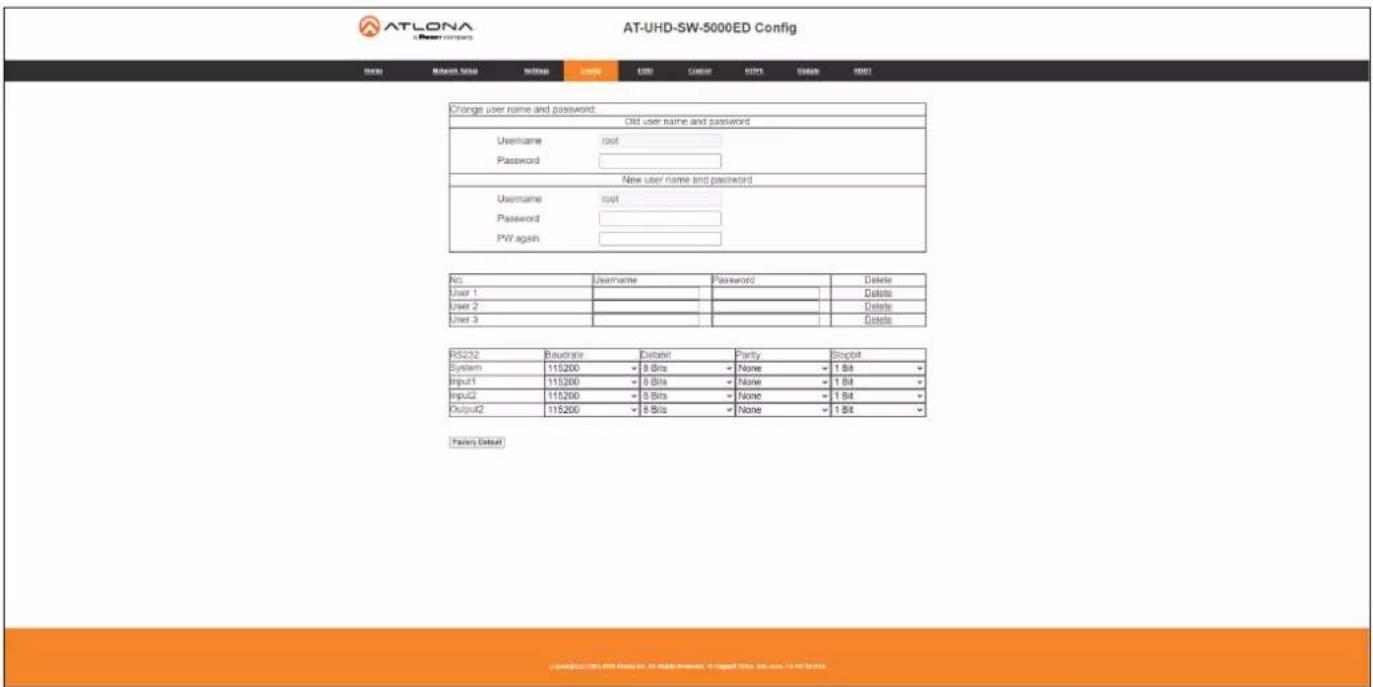

1. Click Config in the menu bar.
2. Click the Password field and enter the current password.

1. Under the New user name and password section, enter the new password in the Password field.
2. Verify the new password by entering it in the PW again field.
3. Click the Save Settings to commit changes. To login with the new username, close the web session, then enter the new password on the Login page.

NOTE: Password fields will always be masked for security purposes.

Device Operation

Adding Users

1. Login to the web server. Refer to Introduction to the Web Server (page 36). The default username and password are listed below:

Username: root

Password: Atlona

1. Click Config in the menu bar.

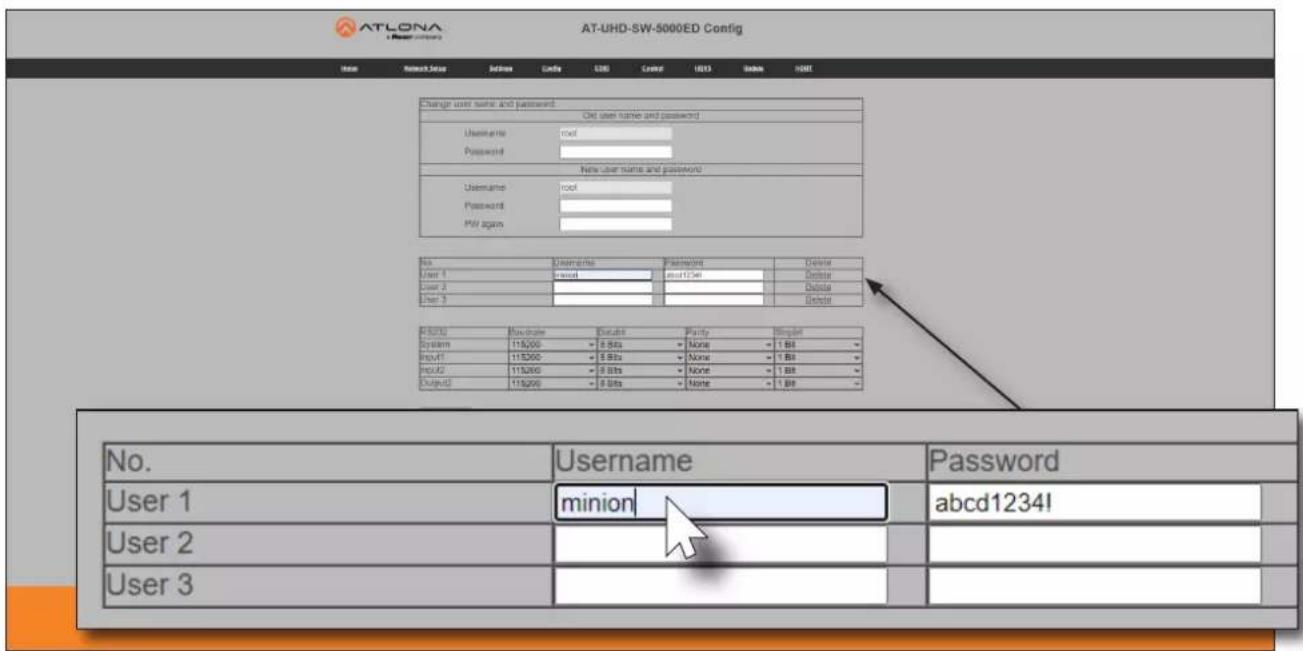

2. Enter the desired username and password for the desired user field: User 1, User 2, and User 3.

1. Click Save Setting to commit changes.
2. To login with the new username, close the web session, then enter the username and password on the Login page.

Editing / Deleting Users

The username and password of a user can be changed using this method.

1. Login to the web server. Refer to Introduction to the Web Server (page 36). The default username and password are listed below:

Username: root

Password: Atlona

1. Click Config in the menu bar.

Editing Users

a. Click in the Username or Password field for the desired user and update the current information.
b. Click Save Setting to commit changes. Click Cancel to abort changes.

Deleting Users

a. Click Delete in the row next to the user to be deleted. Note that no prompt will be provided to confirm the deletion of the desired user.

EDID Management

Before a source can send picture and sound to a display device, the source reads the EDID (Extended Display Identification Data) structure, which is stored in the display. The EDID contains information about what type of video and audio formats are supported by the display. The AT-UHD-SW-5000ED can use either the downstream EDID (from the display/sink), and stored, or use a built-in EDID preset.

• EDID Presets
- Storing EDID Data

EDID Presets

The AT-UHD-SW-5000ED provides the option of selecting a preset EDID. The following presets are available. For information on MEM_1 through MEM_8 settings, refer to Storing EDID Data (page 33).

IMPORTANT: If problems are encountered when using an EDID preset, try selecting the STD EDID preset.

EDID listing
STD The default (generic) EDID for use with most displays.
ATL 1080P 2CH 1920 x 1080p @ 60 Hz with two-channel audio support.
ATL 1080P Multi CH 1920 x 1080p @ 60 Hz with multichannel audio support.
ATL 1080P DD 1920 x 1080p @ 60 Hz with Dolby ^ Digital audio support.
ATL 1080P 3D 2CH 1920 x 1080p @ 60 Hz with 3D and two-channel audio support.
ATL 1080P 3D Multi CH 1920 x 1080p @ 60 Hz with 3D and multichannel audio support.
ATL 1080P 3D DD 1920 x 1080p @ 60 Hz with 3D and Dolby ^ Digital audio support.
ATL 720P 2CH 1280 x 720p @ 60 Hz with two-channel audio support.
ATL 720P DD 1280 x 720p @ 60 Hz with Dolby ^ Digital audio support.
ATL 1280x800 RGB 2CH 1280 x 800 @ 60 Hz with RGB color space and two-channel audio support.
ATL 1366x768 RGB 2CH 1366 x 768 @ 60 Hz with RGB color space and two-channel audio support.
ATL 1080P DVI 1920 x 1080p @ 60 Hz DVI.
ATL 1280x800 RGB DVI 1280 x 800 with RGB color space DVI.
ATL 2160P 2CH 3840 x 2160 @ 60 Hz with two-channel audio support.
ATL 2160P Multi CH 3840 x 2160 @ 60 Hz with multichannel audio support.
ATL 4K420 (4:2:0) 2CH	4096 x 2160 (DCI) @ 60 Hz with 4:2:0 chroma and two-channel audio support.
ATL 4K420 (4:2:0) Multi CH	4096 x 2160 (DCI) @ 60 Hz with 4:2:0 chroma and multichannel audio support.
MEM_1 - MEM_8	Memory presets 1 through 8

1. Login to the web server. Refer to Introduction to the Web Server (page 36). The default username and password are listed below:

Username: root Password: Atlona

1. Click EDID in the menu bar.

2. Locate the EDID Settings section.

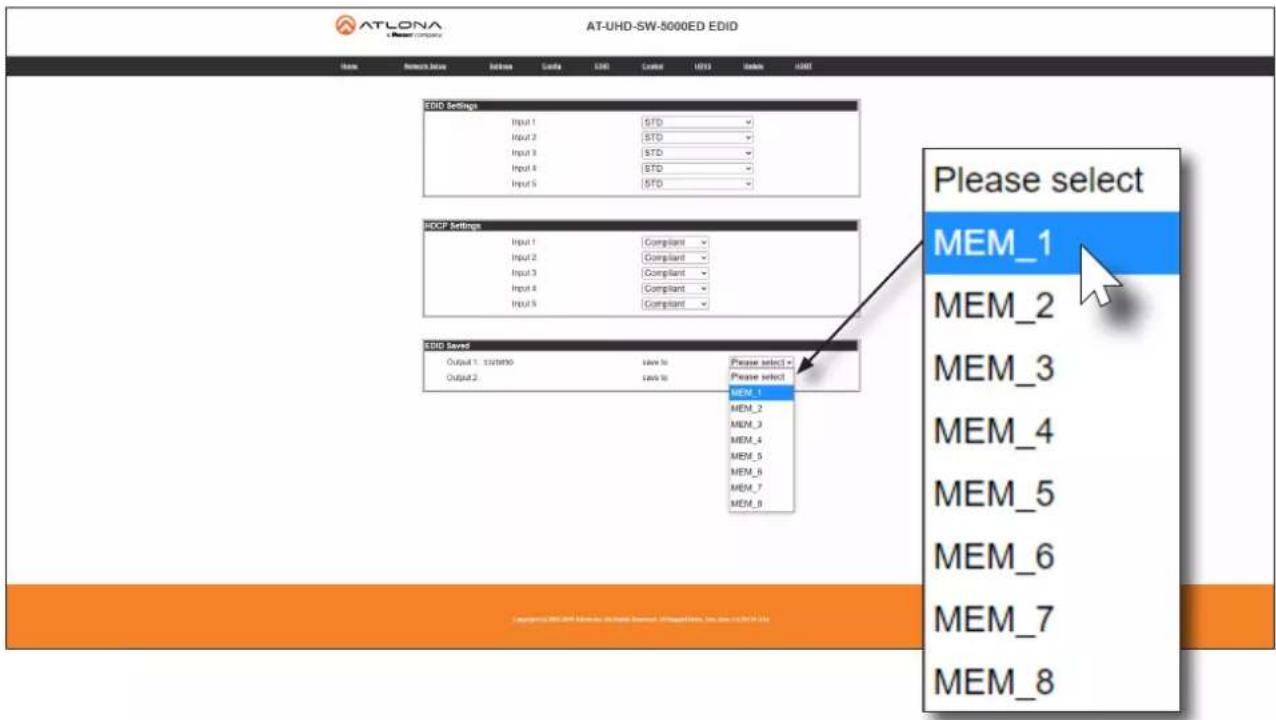

3. Click the drop-down list, next to the port that is connected to the display device, and select the desired EDID preset. For example, if the HDMI IN 3 port is connected to a display, click the Input 3 drop-down list and select the EDID.

1. EDID preset selection is complete.

Device Operation

Storing EDID Data

The AT-UHD-SW-5000ED provides eight memory locations which can be used to store EDID data. Any downstream EDID can be captured and stored in these locations. Each memory location is non-volatile and captured EDID data is stored after power is disconnected from the unit.

1. Connect an HDMI cable from the HDMI OUT port on the AT-UHD-SW-5000ED to the HDMI input on the display, containing the EDID to be stored.

NOTE: The AT-UHD-SW-5000ED retains the currently selected input, even after the unit is powered-off then powered-on.

1. Login to the web server. Refer to Introduction to the Web Server (page 36). The default username and password are listed below:

Username: root

Password: Atlona

1. Click EDID in the menu bar.

2. Locate the EDID Saved section.

Device Operation

1. Click the drop-down list, next to the output which will be used to fetch the EDID. In this example, since the display is connected to the HDMI OUT port, a memory location next to the Output 1 option is selected. Here, the EDID will be stored in MEM_1.

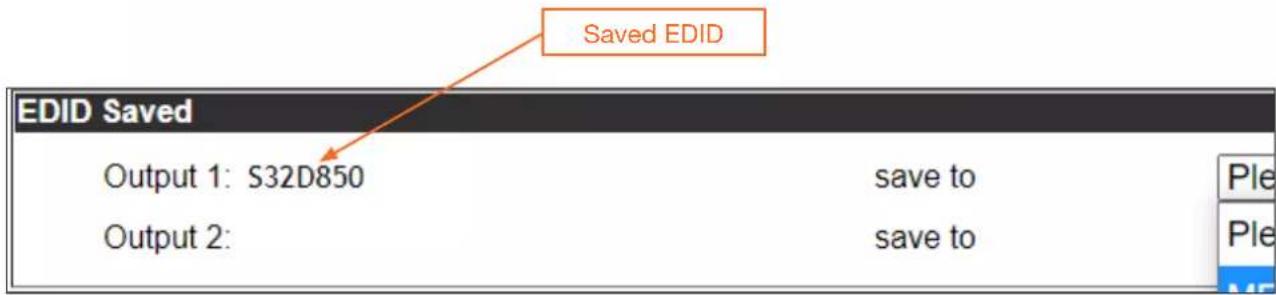

1. The saved EDID will appear next to the memory location, as shown below.

1. Click any of the Input drop-down list boxes. Note that the stored EDID appears as an available EDID preset for each available input on the AT-UHD-SW-5000ED.
2. The EDID storing procedure is completed.

NOTE: Once an EDID is written to a memory location, it can be overwritten with a different EDID, when desired. To overwrite an EDID with a different EDID, repeat steps 5 through 7, above.

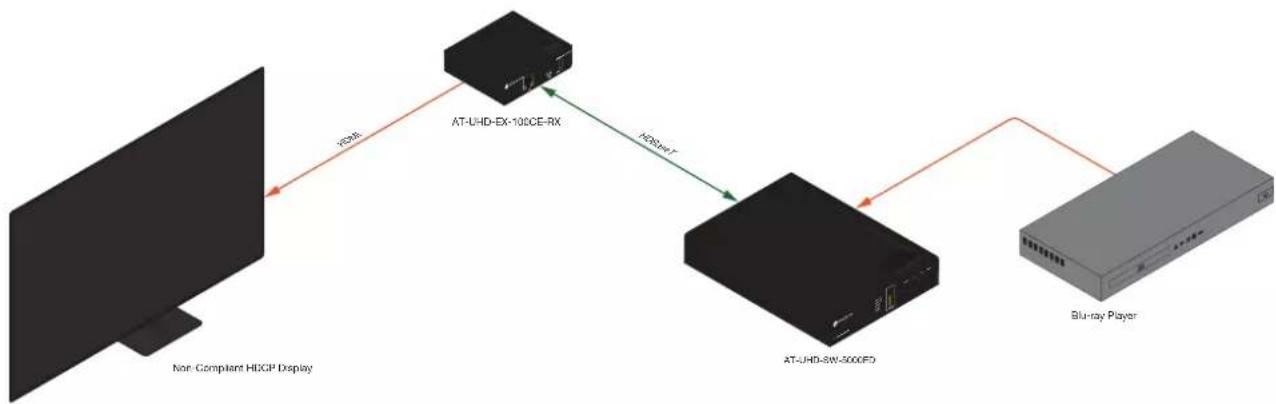

HDCP Content

Normally, if a source is transmitting HDCP content to a display that is not HDCP-compatible, then the resulting image on the display can be "snow", image flickering, or no picture. For example, in the illustration below, a laptop source is connected to the AT-UHD-SW-5000ED. A non-compliant display is connected to a receiver, which is connected to the AT-UHD-EX-100CE-RX using HDBaseT.

IMPORTANT: Not all source devices are capable of transmitting non-HDCP content. For example, Sony PlayStation® gaming consoles and Mac® computers always transmit HDCP-encrypted content.

By default, the laptop may transmit HDCP content. However, when connected to a display that does not support HDCP, the laptop must be instructed to send non-HDCP content, in order for the content to be displayed.

1. Login to the web server. Refer to Introduction to the Web Server (page 36). The default username and password are listed below:

Username: root

Password: Atlona

1. Click EDID in the menu bar.
2. Locate the HDCP Settings section.
3. Click the drop-down list next to the desired input. For example, clicking the drop-down list, next to Input 2, and selecting Noncompliant will instruct the source device to send non-HDCP content, if possible.

HDCP Settings

Input 1:	Compliant
Input 2:	Compliant
Input 3:	Compliant
Input 4:	Noncompliant
Input 5:	Compliant

Configuration and Management Interfaces

Introduction to the Web Server

The AT-UHD-SW-5000ED includes a built-in web server. Atlona recommends that the web server be used to set up the

AT-UHD-SW-5000ED, as it provides intuitive management of all features. Follow the instructions below to access the webGUI.

1. Make sure that an Ethernet cable is connected between the LAN port on the AT-UHD-SW-5000ED and the network.
2. Launch a web browser and enter the IP address of the unit. If the default static IP address is being used, enter 192.168.1.254.
3. The AT-UHD-SW-5000ED Login page will be displayed.

1. Enter the username and password in the Username and Password fields. The default username and password are listed below:

Username: root

Password: Atlona

1. Click the Login button or press the ENTER key on the keyboard.

Configuration and Management Interfaces

Home Page

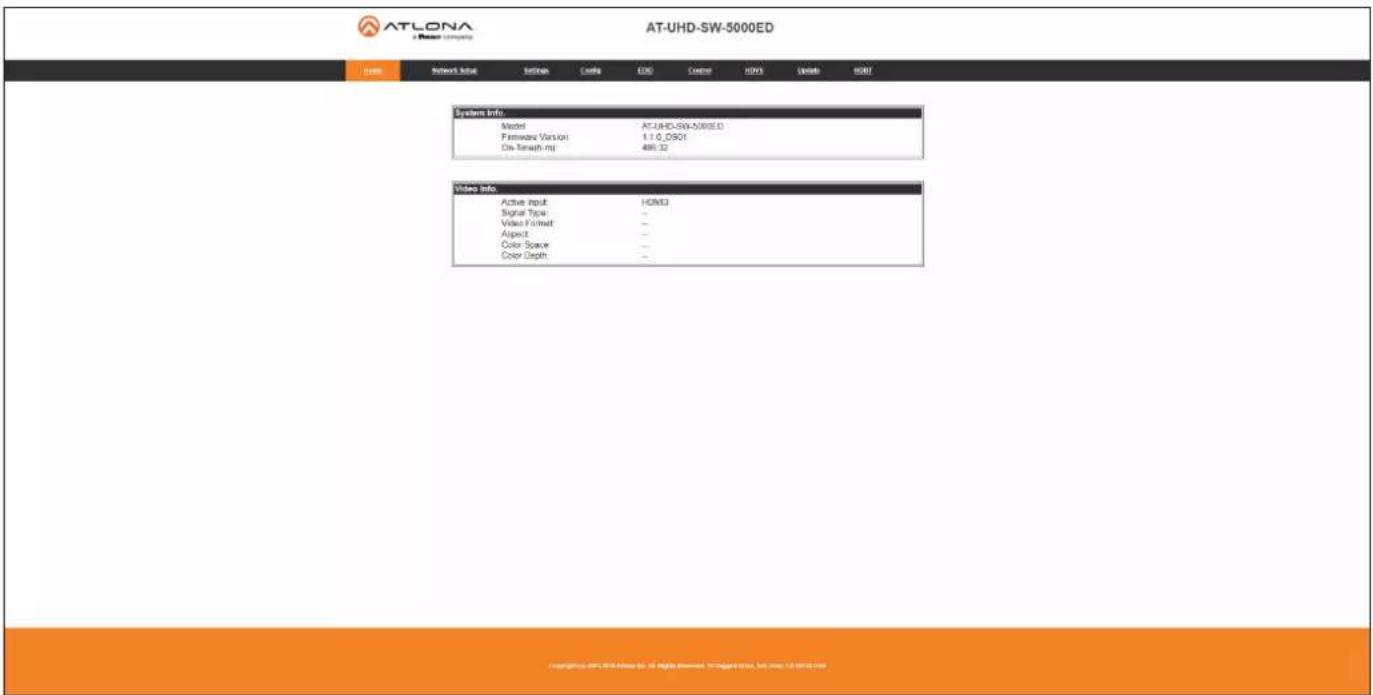

After logging in, the Home page will be displayed. The Info page provides various information about the AT-UHD-SW-5000ED, including software version and video information.

Model

The model SKU of this product.

Firmware Version

The version of firmware that the AT-UHD-SW-5000ED is running. Always make sure to check the AT-UHD-SW-5000ED product page, on the Atlona web site, for the latest version of firmware.

On-Time(h-m)

Displays how long the system has been powered since the last reboot/reset.

Active Input

The currently selected (active) input.

Signal Type

The type of input signal.

Video Format

The input resolution of the source device.

Aspect

Aspect ratio of the input signal.

Color Space

Displays the color space and chroma sub-sampling of the input signal.

Color Depth

The color depth of the input signal.

Configuration and Management Interfaces

Network Setup Page

The Network Setup page provides information about the current network settings of the AT-UHD-SW-5000ED. In addition, the network mode, Telnet port, and hostname can be assigned from this page.

DHCP

Click the desired setting to switch the AT-UHD-SW-5000ED to ON or OFF mode. The default setting is ON mode. When set to OFF, the AT-UHD-SW52ED will be set to static IP mode. Refer to Changing the Network IP Mode (page 17) for more information.

IP Address

Enter the IP address of the AT-UHD-SW-5000ED in this field. This field will only be available when DHCP is set to OFF. The default static IP address of the AT-UHD-SW-5000ED is 192.168.1.254.

Subnet

Enter the subnet mask of the AT-UHD-SW-5000ED in this field. This field will only be available when DHCP is set to OFF.

Gateway

Enter the gateway (router) IP address in this field. This field will only be available when DHCP is set to OFF.

Telnet Port

Enter the desired Telnet port (for Telnet sessions) in this field. The default port is 23. Refer to Changing the Telnet Port (page 19) for more information.

Hostname

Displays the hostname of the AT-UHD-SW-5000ED, as it would appear on a network. To change the hostname, type the new hostname in this field. Refer to Setting the Host Name (page 21) for more information.

Login Mode

Click the desired setting to switch the Telnet Login Mode to ON or OFF. If set to ON, then login credentials (same as web server) will be required when starting a Telnet session.

MAC Address

This field displays the MAC address of the AT-UHD-SW-5000ED.

Configuration and Management Interfaces

Settings Page

The Settings page is divided into three sections: Video, Audio, and HDCP. The Video section provides controls for switching modes and input selection. The Audio section provides options to control the output audio volume and de-embedding. The HDCP section controls whether or not HDCP content is allowed to pass.

Auto Switch

Click this drop-down list to set auto-switching to on or off. The default settings is off. When set to on, the AT-UHD-SW-5000ED will automatically switch to the last-connected port. Refer to Enabling / Disabling Auto-Switching (page 22).

Factory Default

Click the Reset button to reset the AT-UHD-SW-5000ED to factory-default settings. Refer to Resetting to Factory-Defaults (page 24) for more information.

Source

Click this drop-down list to select the desired input. Available inputs are Input 1 through Input 5.

Volume

Click and drag this slider to adjust the output volume. Output volume is measured in decibels (dB) and ranges from -80 to +15 dB. The default setting is 0 dB.

HDMI Audio Mute

Click this drop-down list to control HDMI audio output muting. If set to on, then HDMI audio output will be muted.

HDBaseT Audio Mute

Click this drop-down list to control HDBaseT audio output muting. If set to on, then HDBaseT audio output will be muted.

L/R Audio Mute

Click this drop-down list to control analog audio output muting. If set to on, then the analog audio output will be muted.

Factory Default

Click the Factory Default button to reset the current page to factory-default settings. Note that clicking this button does not reset the AT-UHD-SW-5000ED to factory settings.

Configuration and Management Interfaces

Config Page

The Config page provides management of the administrator password. The administrator username ("root") cannot be changed. Refer to User Management (page 28) for more information. Up to three additional users can be managed within this page. This page also provides settings for both local and HDBaseT RS-232 control.

Username (old)

This field cannot be changed. "root" is the administrator user.

Password (old)

Enter the current password for the "root" username in this field. The default password is "Atlona".

Username (new)

Enter the new username in this field.

Password (new)

Enter the new password in this field.

PW again

Verify the new password by retyping it in this field.

User 1 - User 3

Enter the username and password for each user in the respective fields. Click Delete to remove a user.

Configuration and Management Interfaces

System

Sets the RS-232 port settings and used for local control by a third-party control system.

Output2

If the AT-UHD-SW-5000ED is connected to a device such as the AT-UHD-EX-100CE-RX-PSE, the drop-down list can be set to the baud rate of the HDBaseT RS-232 settings on the corresponding device. If the AT-UHD-SW-5000ED is connected to another HDBaseT device, such as the AT-UHD-CLSO-824, the drop-down list will be disabled and the HDBaseT baud rate will be locked at 115200.

Setting Description
Baud rate Sets the baud rate. The following options are available: 2400, 9600, 19200, 38400, 56000, 57600, 115200.
Data bit Sets the number of data bits used to represent each character of data. The following options are available: 7 or 8.
Parity Sets the parity bit, which can be included with each character to detect errors during the transmission of data. The following options are available: None, Odd, or Even.
Stop bit	Sets the stop bit. Stop bits are sent at the end of each character, allowing the client to detect the end of a character stream. The following options are available: 1 or 2.

Factory Default

Click the Factory Default button to reset the current page to factory-default settings. Note that clicking this button does not reset the AT-UHD-SW-5000ED to factory settings.

Configuration and Management Interfaces

EDID Page

This page provides controls for selecting and storing EDID data. Refer to EDID Management (page 31) for more information.

EDID Settings

Click these drop-down lists to select the desired EDID to be used for each input. The following EDID presets are available. When selecting an EDID, make sure that the display/sink device is capable of supporting the resolution/timing. If the sink device is not able to support a feature, then the source will not be displayed. Selecting the STD EDID will provide the most compatible settings for most displays. In addition, eight memory locations are available for storing captured EDID data. If an EDID is stored in a memory location, it will also be added to the list available EDID selections.

EDID listing
STD ATL 2160P 2CH
ATL 1080P 2CH ATL 2160P Multi CH
ATL 1080P Multi CH ATL 4K420 (4:2:0) 2CH
ATL 1080P DD ATL 4K420 (4:2:0) Multi CH
ATL 1080P 3D 2CH MEM_1
ATL 1080P 3D Multi CH MEM_2
ATL 1080P 3D DD MEM_3
ATL 720P 2CH MEM_4
ATL 720P DD MEM_5
ATL 1280x800 RGB 2CH MEM_6
ATL 1366x768 RGB 2CH MEM_7
ATL 1080P DVI MEM_8
ATL 1280x800 RGB DVI

Configuration and Management Interfaces

HDCP Settings

Each input provides control of how HDCP content is handled. Some source devices will send HDCP content if an HDCP-compliant display (sink) is detected. However, there may be applications where sending HDCP content is not desired. Setting the port to the OFF position, will instruct the source to send non-HDCP content to the display. Note that not all sources have this capability.

NOTE: Setting this feature to OFF, for any source, does not provide decryption of HDCP content to non-HDCP compliant sink devices. Sources such as Mac® computers and the Sony PlayStation® will always transmit HDCP content.

- Compliant

When set to Compliant, the source will transmit HDCP content to the AT-UHD-SW-5000ED.

- Noncompliant

When set to Noncompliant, non-HDCP content will be transmitted (if possible) to the AT-UHD-SW-5000ED.

EDID Saved

The AT-UHD-SW-5000ED provides eight memory locations used for storing captured EDID data. Click these drop-down lists to select and store the external EDID. Output 1 refers to the HDMI OUT port and Output 2 refers to the HDBaseT OUT port.

Configuration and Management Interfaces

Control Page

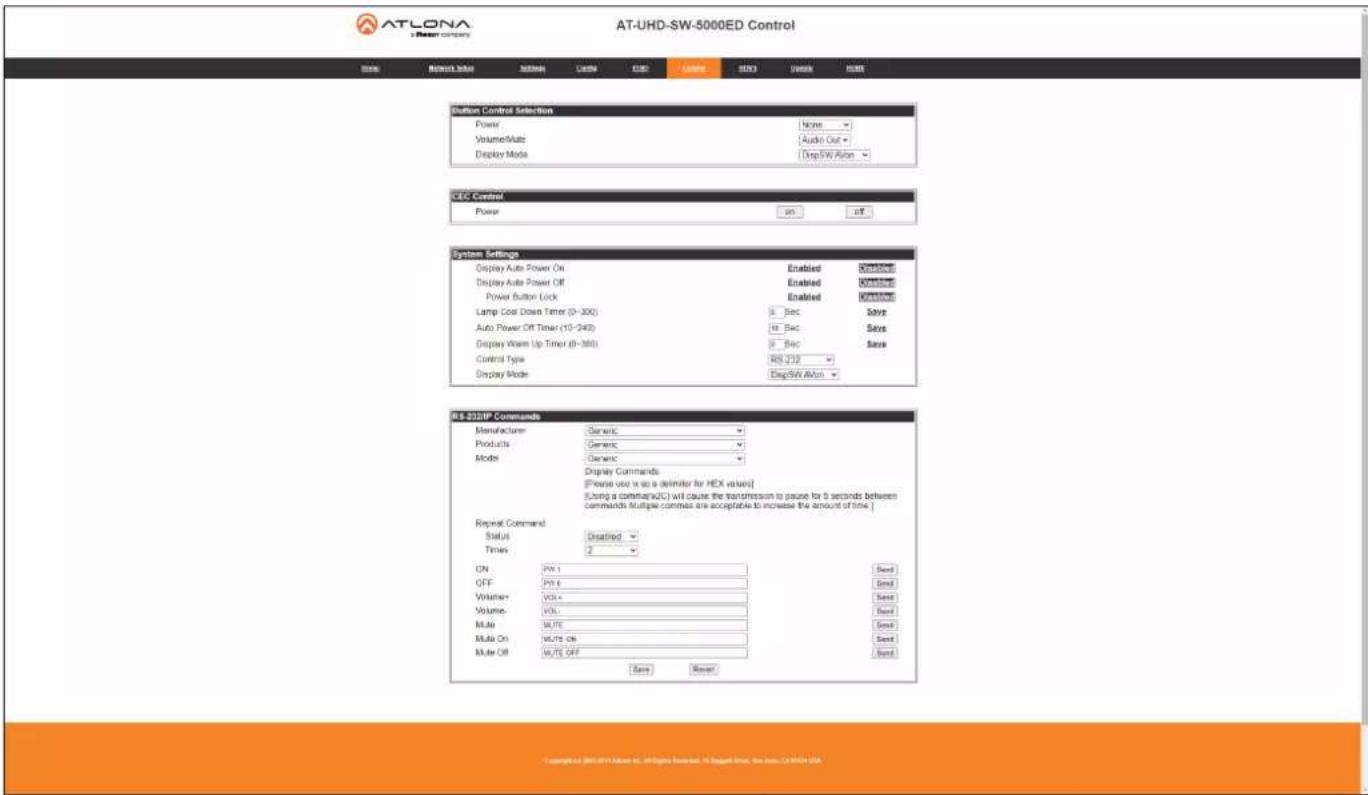

This page provides controls for CEC, device timers, and configuration for controlling external devices.

NOTE: To display all settings on the screen, as shown below, the Display Auto Power drop-down list must be set to Enabled.

Power

Click this drop-down list to select the control protocol for the POWER button on the front panel. Available options are None, CEC, RS-232, or IP. To power-on and power-off the AT-UHD-SW-5000ED, set this drop-down list to None.

Volume/Mute

Click this drop-down list to select the control protocol for the Volume/muting buttons on the front panel. Available options are Audio Out, RS-232, or IP.

Setting Description
Audio Out Volume and mute buttons will control the volume output of the AT-UHD-SW-5000ED.
RS-232 Volume/Mute buttons will send RS-232 commands over HDBaseT to compatible receivers and displays.
IP	Volume/Mute buttons will send the commands over Ethernet using either the LAN port or the CAT5e/6/7 (HDBaseT) port.

Configuration and Management Interfaces

Display Mode

Click this drop-down list to select the power mode for the source / display.

Setting Description
DispSW AVon Display switches on/off, source audio/video signal always on.
DispSW AVSW Display switches on/off, source audio/video signal switches on/off.
AV SW Display is always on, source audio/video signal switches on/off
Always ON Both source and display are always on.

CEC Control

Click the on and off buttons to test power-on and power-off CEC commands, respectively.

Display Auto Power On

Set this toggle to ENABLED to allow the AT-UHD-SW-5000ED to send the power-on command to the display when an A/V signal is detected. When the AV signal is no longer present, the AT-UHD-SW-5000ED will send the power-off command to the display. If this feature is not desired, then set to DISABLED. This feature is disabled by default.

Display Auto Power Off

Set this toggle to ENABLED to allow the AT-UHD-SW-5000ED to send the power-off command to the display when an A/V signal is detected. If this feature is not desired, then set to DISABLED. This feature is disabled by default.

Power Button Lock

Set this toggle to ENABLED to prevent the AT-UHD-SW-5000ED from being powered-off, if the POWER button is accidentally pressed.

Lamp cool down timer

Sets the cool-down interval, in seconds, before the projector is powered-off. During this time interval, the projector will not accept any "power on" or "power off" commands until the last "power off" command has been processed and the projector lamp has completed the cool-down cycle. Available values are 15 seconds to 15 minutes. The default setting is 10 seconds.

Auto power off timer

Sets the time interval before the command to power-off the display is sent, when an A/V signal is no longer present. The default value is 15 seconds. Available values are 15 seconds to 15 minutes.

Display Warm-Up Timer

Click this drop-down list to select the display warm-up time interval. Available values are 10 to 300 seconds. The default value is 10 seconds.

Control Type

Click this drop-down to select the control type. Available settings are CEC*, IP, and RS-232. When this drop-down list is set to CEC, the RS-232/IP Commands window group will be hidden.

* Consumer Electronics Control (CEC): Atlona has confirmed proper CEC functionality with several current models of Samsung, Panasonic, and Sony displays. However, it is not guaranteed that CEC will work with all displays. Many manufacturers do not support the CEC “off” command, and older displays use proprietary commands. Atlona only supports displays that use the CEC command structure defined in HDMI 1.2a. It is recommended that dealers request an evaluation product from Atlona, before designing a system using the CEC protocol. If this is not possible, then other control methods will need to be considered, in order to control displays using Atlona products.

Configuration and Management Interfaces

Display Mode

Click this drop-down list to select the power mode for the source / display.

Setting Description
DispSW AVon Display switches on/off, source audio/video signal always on.
DispSW AVSW Display switches on/off, source audio/video signal switches on/off.
AV SW Display is always on, source audio/video signal switches on/off

IP Mode

If the device does not require a login, then set this drop-down value to Non-Login. If the device requires login credentials, select Login from the drop-down list. Note that if Login is selected, then the Username and Password fields will need to be populated with the required login credentials.

IP Address

Enter the IP address of the device to be controlled.

Port

Enter the port in this field.

Username

This field is only required if IP Mode is set to Login. Enter the username in this field.

Password

This field is only required if IP Mode is set to Login. Enter the required password in this field.

ASCII / Hex

Click these radio buttons to set the desired data transmission method.

Test

Click these buttons to send the appropriate data to the unit being controlled.

On/Off/Volume+/Volume-/Mute/

Enter the appropriate ASCII or Hex data string in each of these fields. Refer to the user manual for the display or device being controlled, for the proper command strings.

Feedback

Enter the desired feedback string in this field. This field can be any string value.

Configuration and Management Interfaces

HDVS Page

This page provides management for HDVS HDBaseT transmitters that may be connected to the AT-UHD-SW-5000ED. If a transmitter is connected, then the device will be displayed under the associated input. In the example below, an AT-HDVS-210U-TX-WP is connected to INPUT 2 on the AT-UHD-SW-5000ED. If the transmitter is connected to the Local Area Network (LAN), then the IP address will be displayed as a hyperlink. Clicking on the IP address will open a new browser window with the login page of the device.

Refresh

Click this button to refresh the HDBaseT link on the associated input. This button will only be displayed if an HDVS unit is connected, but may not be recognized by the AT-UHD-SW-5000ED.

Configuration and Management Interfaces

Update Page

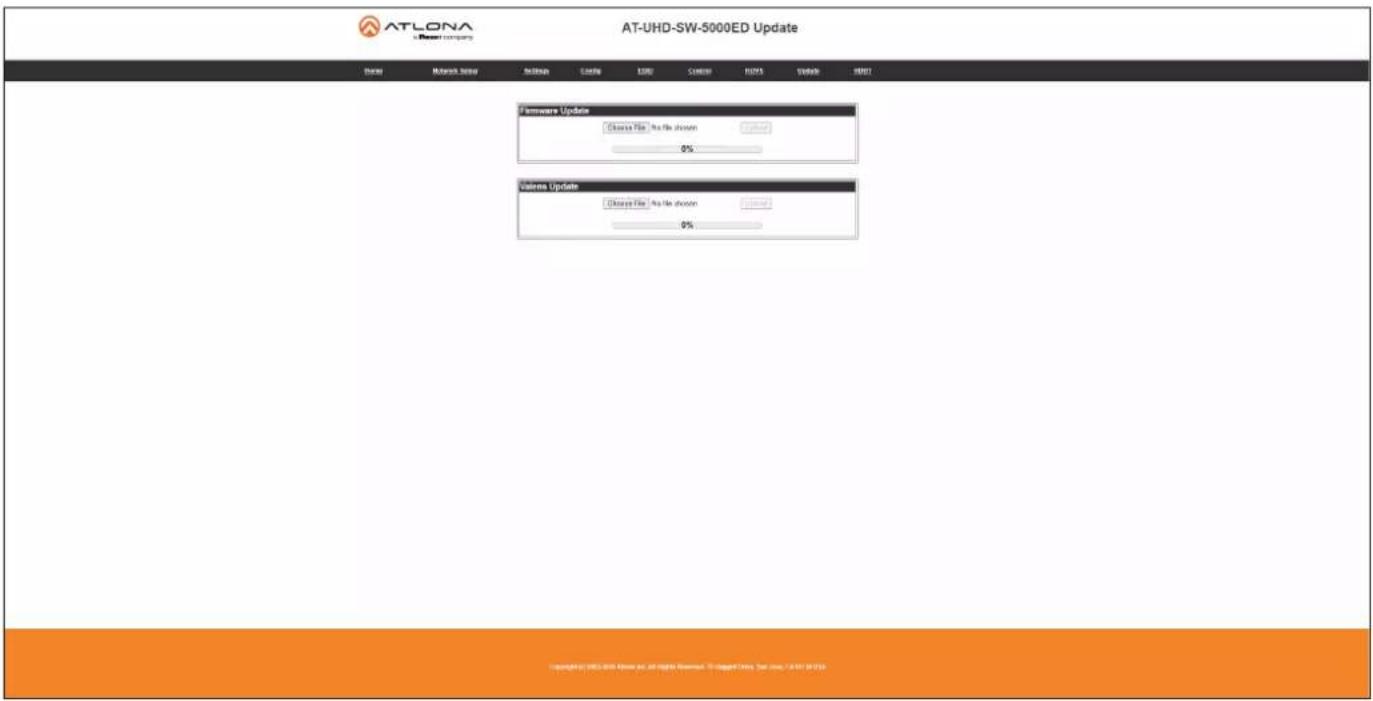

This page provides management for updating the AT-UHD-SW-5000ED firmware.

Choose File

Click this button to select the firmware file to be uploaded to the AT-UHD-SW-5000ED. Note that this button is available for both the "master" firmware and Valens chip update.

Upload

Click this button to begin the firmware update process. Note that this button is available for both the "master" firmware and Valens chip update.

Configuration and Management Interfaces

HDBT Page

This page provides management for updating the AT-UHD-SW-5000ED firmware.

HDBT Zone

Click this drop-down list to select the output channel (ZONE OUT) to test. Refer to HDBaseT Testing (page 53) for more information.

Appendix

Updating the Firmware

Updating the firmware can be completed using either the USB interface or the built-in web server. Atlona recommends using the web server for updating the firmware. However, if a network connection is not available, the AT-HDVS-210H-TX-WP firmware can be updated using a USB-A to USB mini-B cable.

Using the Web Server

Requirements:

• AT-UHD-SW-5000ED
- Firmware file
• Computer on the same network as the AT-UHD-SW-5000ED

1. Download the firmware file from atlona.com and extract the contents of the .zip file to a folder on the computer desktop.

2. Connect an Ethernet cable from the computer, containing the firmware, to the same network where the AT-UHD-SW-5000ED is connected.

3. Login to the web server. Refer to Introduction to the Web Server (page 36). The default username and password are listed below:

Username: root

Password: Atlona

1. Click Update in the menu bar, then click the Choose File button, under the Firmware Update section.

2. Browse to the location of the firmware file, select it, and click the Open button.

1. Click the Upload button, under the Firmware Update section.
2. A progress bar will be displayed during the update process. After the update is complete, and if a restart is required, the web server will display a prompt.
3. The AT-UHD-SW-5000ED is now ready for use.

Appendix

Using the USB Interface

Requirements:

• AT-UHD-SW-5000ED
- Firmware file
• Computer with a USB port
• USB-A to USB mini-B cable

1. Download the firmware file from atlona.com and extract the contents of the .zip file to a folder on the computer desktop.
2. Disconnect power from the AT-UHD-SW-5000ED.
3. Connect the USB-A to USB mini-B cable between the computer and the FW port on the AT-UHD-SW-5000ED.

1. Simultaneously press and hold down the INPUT button on the front panel, while connecting the power supply to the AT-UHD-SW-5000ED. Continue to hold down the INPUT key for five seconds AFTER the power supply has been connected.

2. Release the INPUT key.

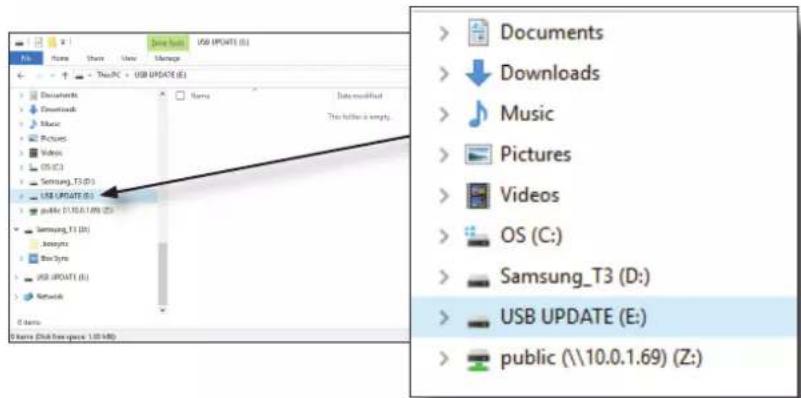

1. The USB UPDATE folder will be displayed.

If this folder is not displayed, automatically, select the USB UPDATE drive from Windows Explorer.

Appendix

1. Delete all files from the USB UPDATE drive, if any are present.
2. Drag-and-drop the firmware file to the drive.
3. After the file has been copied, disconnect the USB cable from both the computer and the AT-UHD-SW-5000ED.
4. The firmware update process is complete and the AT-UHD-SW-5000ED is now ready for use.

Appendix

HDBaseT Testing

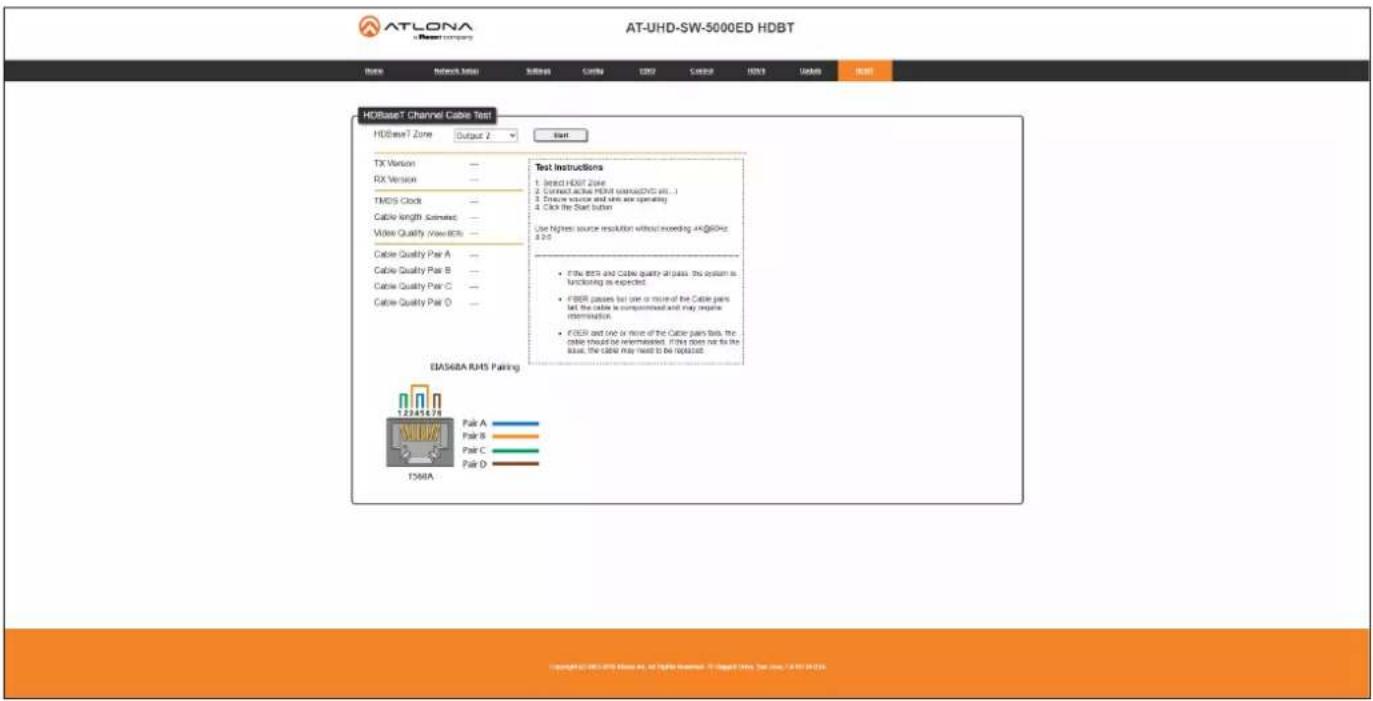

The web server of the AT-UHD-SW-5000ED provides a tool for testing the signal integrity of HDBaseT cables. This tool is useful for troubleshooting and identifying defective or damaged category cables which are connected from the HDBaseT INPUTS/OUTPUT ports to a receiver/transmitter.

1. Login to the web server. Refer to Introduction to the Web Server (page 36) for more information, if necessary.
2. Click HDBT in the top menu bar.
3. Click the HDBT Zone drop-down list and select the desired zone to test. Before testing a zone, make sure that an category cable is connected between the HDBaseT port (INPUT/OUTPUT) and a compatible transmitter/receiver.

1. Click the Start button to begin testing the selected channel.

2. If the HDBaseT link integrity is good, then all tests will display as "Pass".

3. If any part of the HDBaseT cable fails, then a numerical value, in decibels, will be displayed next to the associated pair, under the Signal Quality section. These values can be reported to Atlona Technical Support Engineers to help resolve possible issues.

Appendix

Mounting Instructions

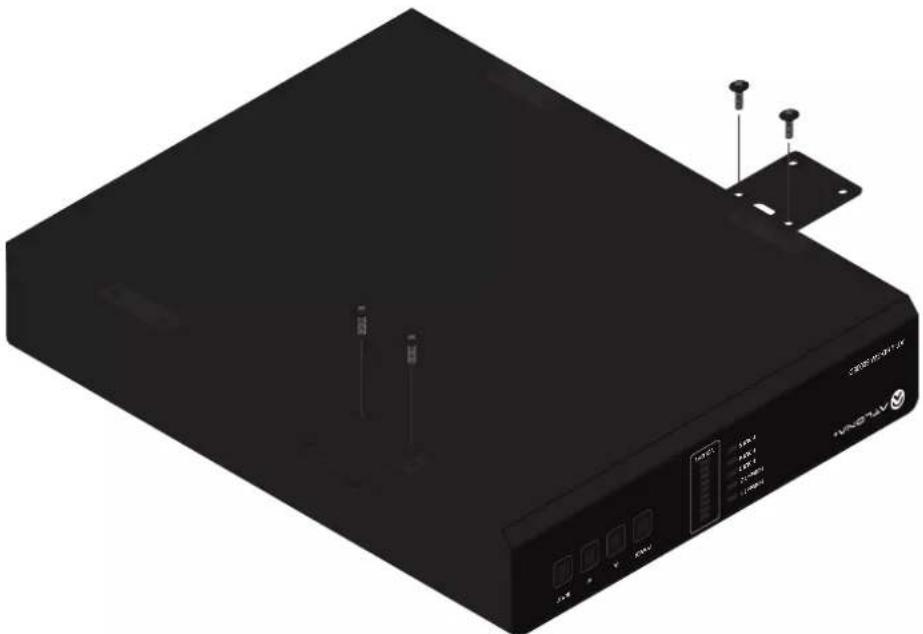

The AT-UHD-SW-5000ED includes two mounting brackets, which can be used to attach the unit to any flat surface. Use the two enclosure screws, on the sides of the unit to attach the mounting brackets.

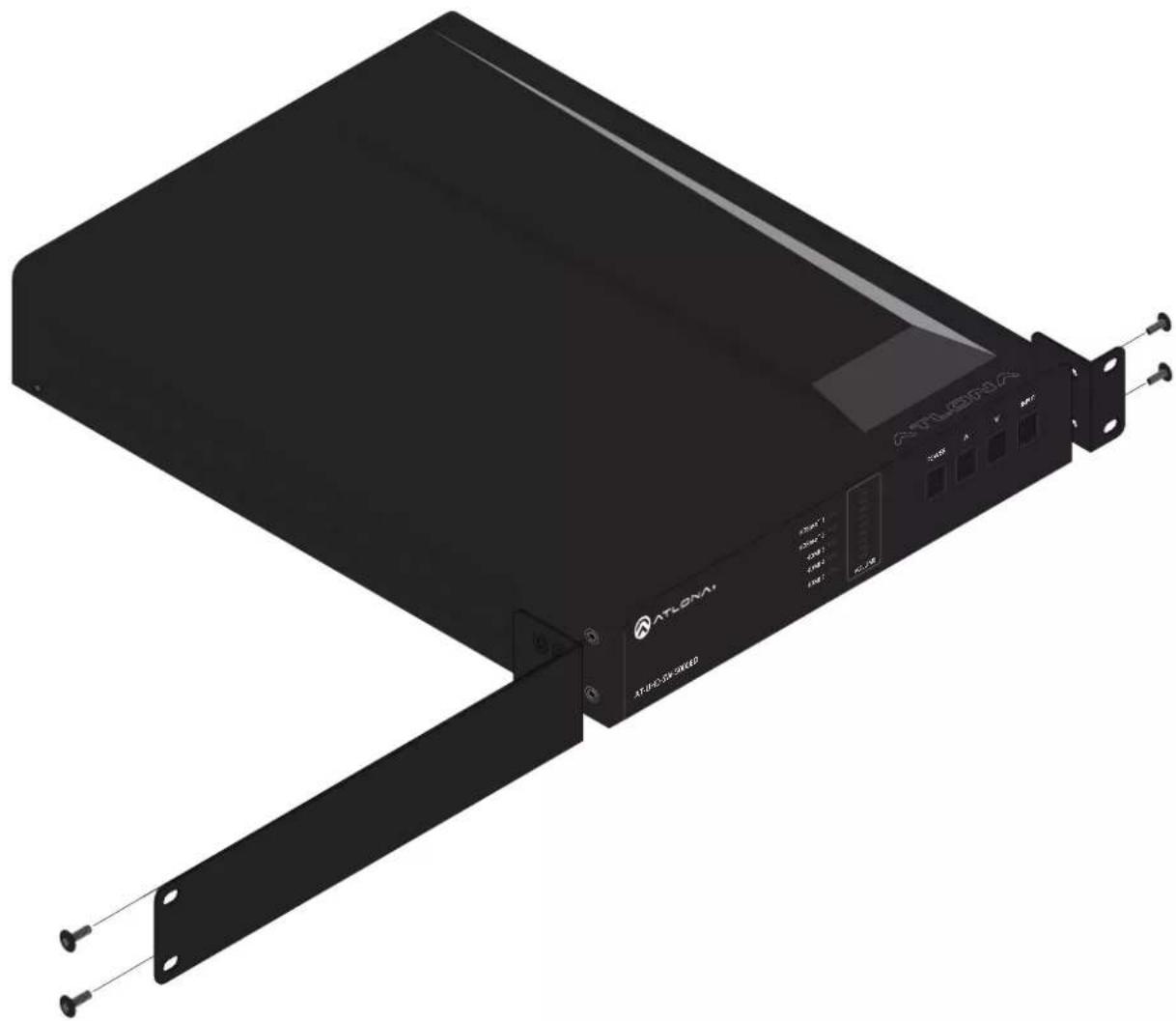

Single Unit Rack Installation

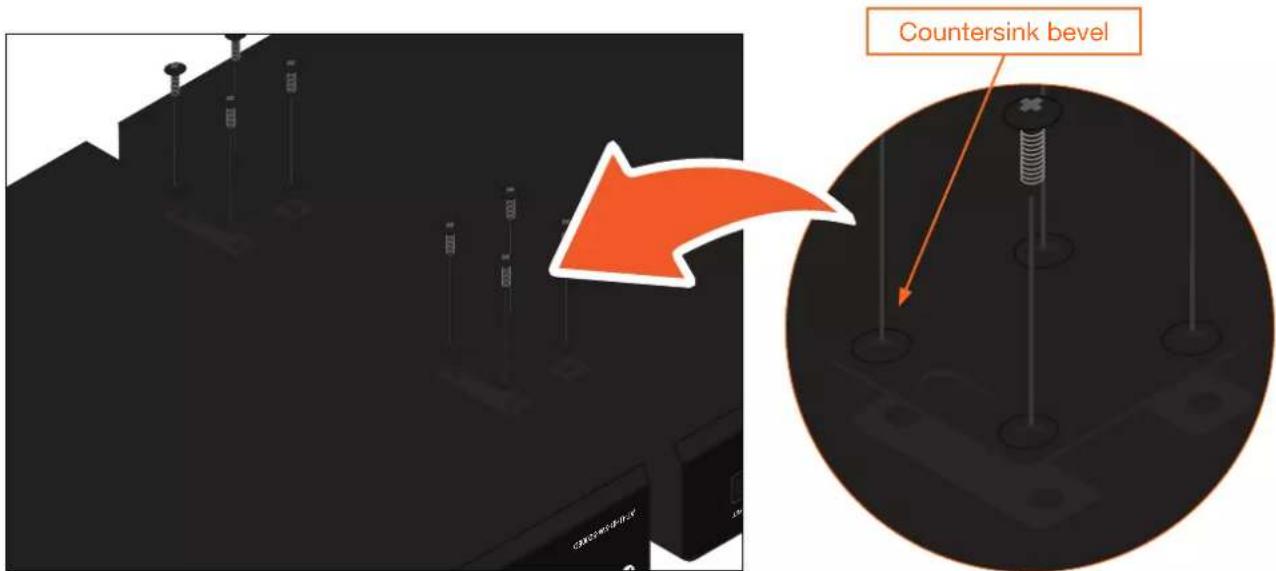

1. Attach the included small rack ear to one side of the AT-UHD-SW-5000ED, using the included screws.
2. Attach the included longer rack ear to the opposite side of the AT-UHD-SW-5000ED using the included screws.

Exterior view of a black ATLON1 network device with attached cable and drive slots (no readable text or symbols)

Appendix

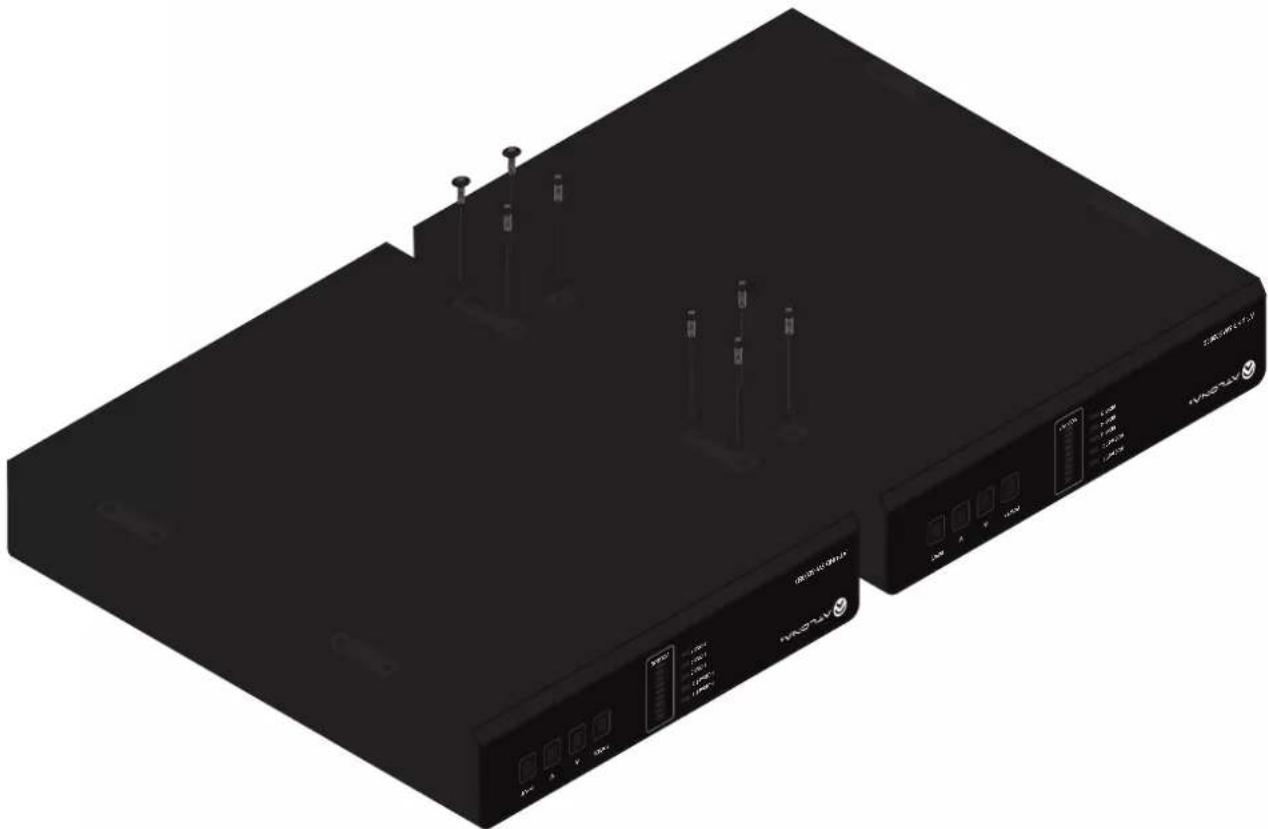

Dual Unit Rack Installation

1. Turn both units upside-down on a flat surface, next to each other, as shown.
2. Position the included mounting plate over the pre-drilled holes on the bottom of the enclosure. When attaching the mounting plate, the countersink bevels on the mounting plate should face upward.

1. Turn the attached units over and install the rack ears (sold separately) to one side of each enclosure using the included screws.

Exterior view of a black HACVR device with ports and indicator lights (no readable text or symbols)

Appendix

Flat Surface

1. Turn the unit upside down, on a flat surface.

2. Position the included mounting plates over the pre-drilled holes on the bottom of the enclosure. When attaching mounting plates, the countersink bevels on the mounting plates should face upward.

Black electronic device with ports and connectors, no visible text or symbols on the main body

1. Mount the unit using the circular holes, on each mounting plate. If using a drywall surface, a #6 drywall screw is recommended. Mounting screws are not included.

Exterior view of a black ATL-CHN4 network device with ports and connectors (no readable text or symbols beyond branding)

NOTE: The unit can also be mounted under a flat surface, such as a table, by turning the unit upside down.

IR Remote Control

NOTE: The AT-UHD-SW-5000ED no longer ships with an IR remote control. However, IR documentation remains for units currently in the field.

IMPORTANT: The AT-SW-R1 IR remote can be used to control the AT-UHD-SW-5000ED from a maximum distance of 15 feet (4.5 meters). Exceeding this distance may result in unreliable behavior. In addition, environmental lighting conditions, such as florent bulbs, high-intensity light (sunlight), and other factors may also affect IR operation.

NOTE: The buttons under the Setup section do not function with the AT-UHD-SW-5000ED.

1 Power On Off

Press the On button to power on the unit or press the Off button to turn off the unit.

2 Video All On

Press this button to enable video output on both HDMI 1 and HDMI 2.

3 Video 1 On Off / Video 2 On Off

Press these buttons to enable or disable video output on HDMI OUT or HDBaseT OUT. Press the On button to enable video output. Press the Off button to disable video output.

4 Input

Press these button to select the desired input.

5 Audio Vol + / Vol - / Mute

Press the Vol + button to increase the output volume level or press the Vol - button to decrease the output volume. Press the Mute button to mute the audio output.

Specifications

Video
Signal Type HDMI
HDCP 1.4
Pixel Clock 300 MHz
UHD/HD/SD	4096×2160@60(1)/50(1)/30/25/24 Hz	1280×720p@60/59.94/50 Hz
	3840×2160@60(1)/50(1)/30/25/24 Hz	720×576p
	2048×1080p	720×576i
	1920×1080p@60/59.94/50/30/	640×480p
	29.97/25/24/23.98 Hz	640×480i
	1920×1080i@60/59.94/50 Hz
VESA	2560×2048	1366×768
	2560×1600	1360×768
	2048×1536	1280×1024
	1920×1200	1280×800
	1680×1050	1280×768
	1600×1200	1152×768
	1600×900	1024×768
	1440×900	800×600
	1400×1050	640×480
Color Space	YUV, RGB
Chroma Subsampling	4:4:4, 4:2:2, 4:2:0
Color Depth	8-bit, 10-bit, 12-bit

Audio
HDMI / HDBaseTPass-Through Formats	PCM 2.0LPCM 5.1LPCM 7.1	Dolby® DigitalDolby Digital PlusTMDolby TrueHDDolby Atmos®	DTS® Digital SurroundTM DTS-HD Master AudioTM DTS:X®
S/PDIF PCM 2.0 Dolby® Digital	DTS-HD Master AudioTM
Bit Depth Up to 24 bits
Analog Audio
Format Maximum analog output: balanced +18dBu @ 0 dBfs, LPCM 2.0 only
Sample Rate 32 kHz, 44.1 kHz,	48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

Control
RS-232 Device control and configuration	Bidirectional pass-through from control system over HDBaseT Supported baud rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
IP Protocols: HTTPS, Telnet, mDNS	Modes: DHCP, Static - selectable through front panel and web server
CEC Support Yes

Resolution / Distance	4K/UHD - Feet / Meters 1080p - Feet / Meters
HDMI IN/OUT	15	5	30	10
CAT5e/6	230	70	330	100
CAT6a/7	330	100	330	100

Appendix

Buttons and Indicators
Buttons:POWER, UP, DOWN, INPUT	4 - Momentary, tact-type
Indicators:HDBaseT 1 - HDBaseT 2,HDMI 3 - HDMI 5VOLUME	5 - LED, blue9 - LED, green, amber, red

Connectors
HDMI IN	3 - Type A, 19-pin female
HDMI OUT	1 - Type A, 19-pin female
HDBaseT IN	2 - RJ45
HDBaseT OUT	1 - RJ45
LAN	1 - RJ45, 10/100 Mbps
AUDIO OUT	1 - 5-pin captive screw, balanced / unbalanced 2-channel
RS-232	1 - 3-pin captive screw (bidirectional)
IR IN/OUT	1 - 4-pin captive screw
FW	1 - Mini USB
PWR	1 - 2-pin captive screw

Temperature Fahrenheit Celsius
Operating 32 to 122 0 to 50
Storage -4 to 140 -20 to 60
Humidity (RH) 20% to 60%, non-condensing

Power
Consumption 44.22 W
Idle Consumption 22 W
Supply Input: 100 - 240 V AC, 5	0/60 HzOutput: 48 V / 1.25 A DC

Dimensions (H x W x D) Inches Millimeters
Unit 1.73 x 8.64 x 10 44 x 219.5 x 254
Power Supply (AT-PS-4812-C)	1.42 x 1.81 x 4.41	36 x 46 x 112

Weight Pounds	Kilograms
Device	3.70	1.66

Certification
Device	CE, FCC
Power Supply CE, FCC, cULus	RoHS

Compliance
NDAA-899	Yes

Warranty
Device	3-year limited

(1) 4096×2160 @ 50/60 Hz and 3840×2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit only.
