Product Type	5x1 HDMI Switcher
Brand	Atlona
Model	AT-UHD-SW-51
Video Support	4K/UHD @ 60 Hz (4:2:0), 3D pass-through, 10.2 Gbps bandwidth
Audio Support	PCM 2.0/5.1/7.1, Dolby TrueHD, DTS-HD Master Audio, ARC via S/PDIF
Control Interfaces	TCP/IP, RS-232, IR, front panel, web GUI
EDID Management	Built-in presets and memory for custom EDID (8 slots)
HDCP Management	Compliant/Noncompliant per input
Auto-Switching	Yes, based on hot plug detect and video detection
Audio De-embedding	Analog stereo (RCA) and S/PDIF optical output
Dimensions (H x W x D)	1.73 x 8.64 x 10 in (44 x 219 x 254 mm)
Weight	1.40 lb (0.64 kg)
Power Supply	5 V DC, 3.6 A, consumption 5.94 W
Mounting	1U half-rack width, rack ears included, side-by-side dual option
Warranty	10 years limited (hardware purchased after June 1, 2013)
Package Contents	Switcher, 3-pin and 2-pin captive screw connectors, mounting plates, screws, feet, power supply, installation guide
Cleaning	Use a dry cloth only
Safety	Do not expose to rain/moisture; no user-serviceable parts; refer servicing to qualified personnel
Firmware Update	Via web server or USB (mini-USB port)
Compliance	CE, FCC Class A

Frequently Asked Questions - AT-UHD-SW-51 Atlona

How do I change the EDID for a specific input?

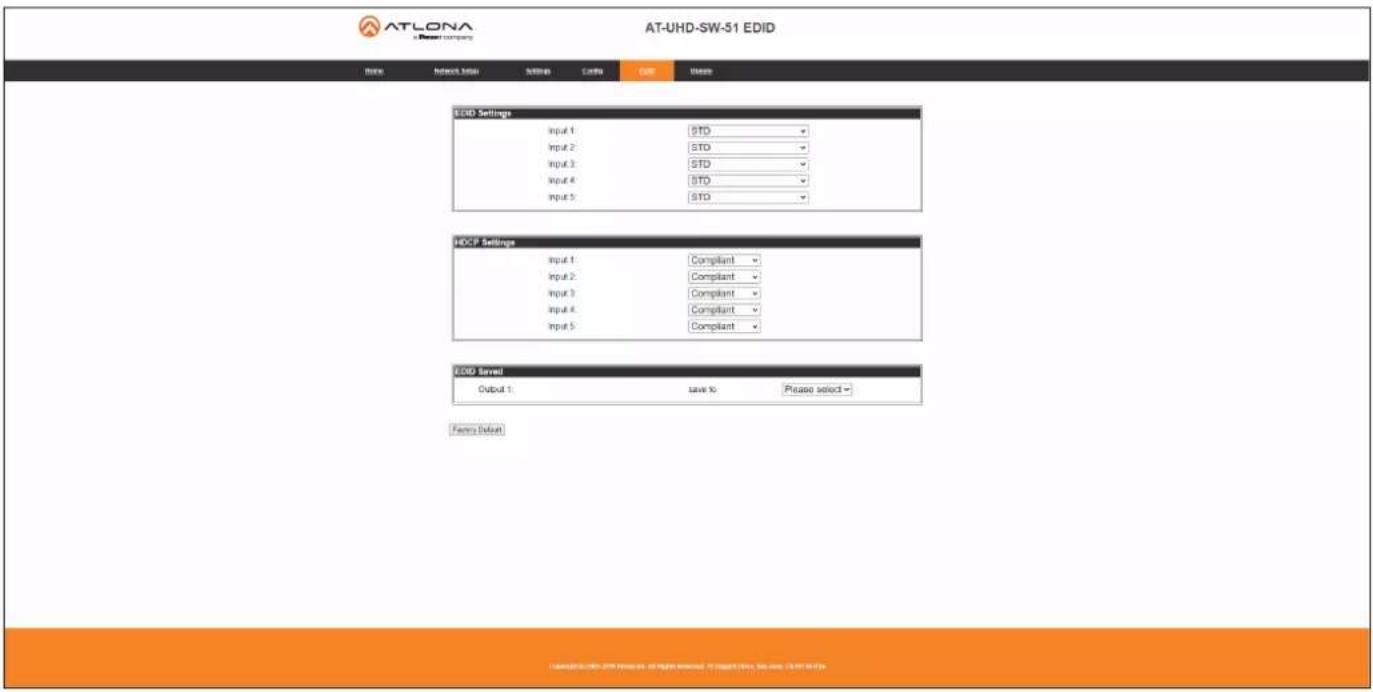

Log into the web server, go to the EDID page, and select a preset from the drop-down list next to the desired input. You can also store a custom EDID by capturing it from the display using the memory slots (MEM_1 to MEM_8).

What is the default IP address of the AT-UHD-SW-51?

By default, the unit uses DHCP. If no DHCP server is found, it falls back to Auto IP (169.254.x.x). The static IP (when enabled) defaults to 192.168.1.254 with subnet 255.255.0.0 and gateway 192.168.1.1.

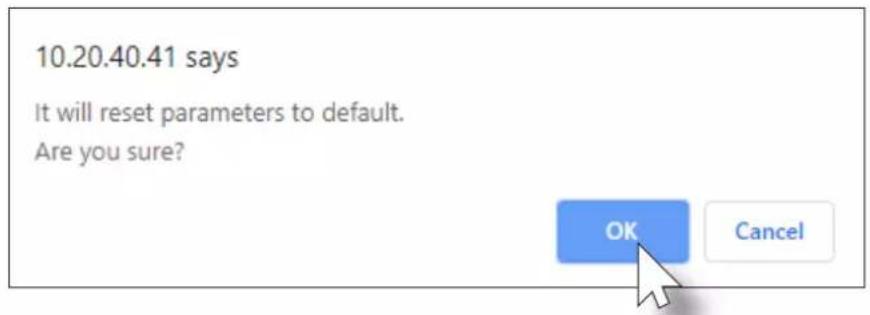

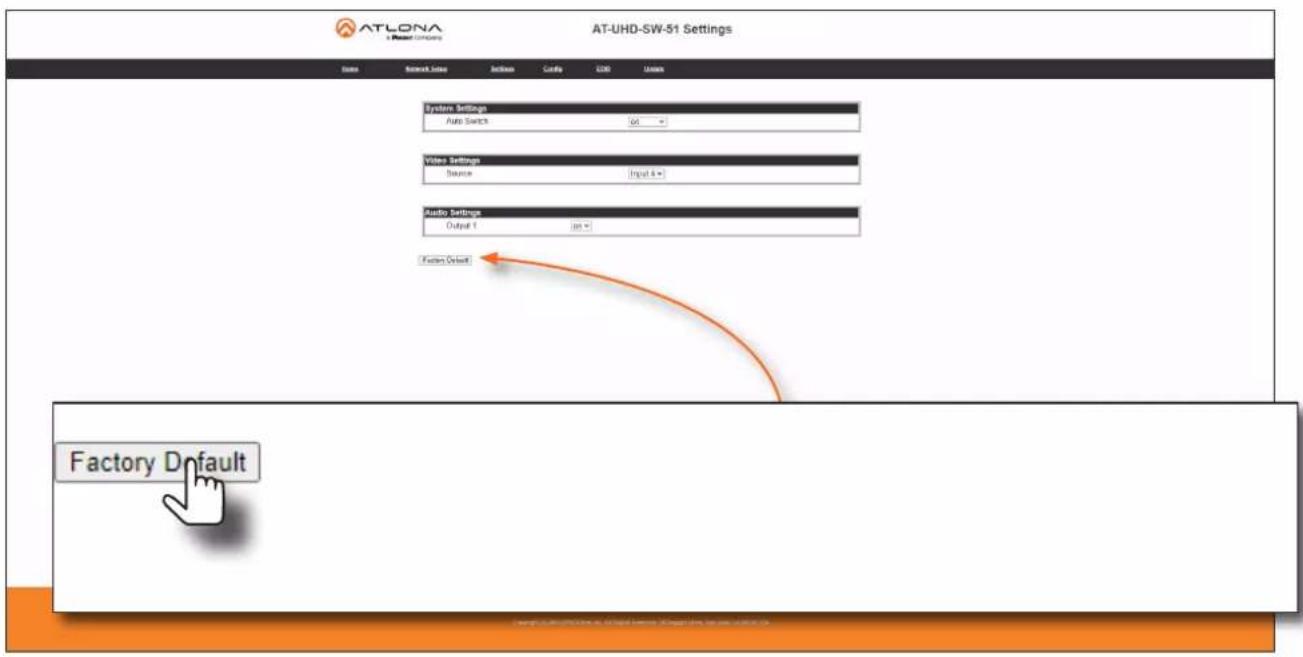

How can I reset the switcher to factory defaults?

You can reset via the web server (Settings page > Factory Reset) or via front panel: power on, select any input from 2-5, then press and hold both INPUT and POWER for 15 seconds until the input indicator switches to HDMI 1.

Does the AT-UHD-SW-51 support 4K at 60Hz?

Yes, it supports 4K/UHD at 60 Hz with 4:2:0 chroma subsampling (8-bit). Higher resolutions up to 4096x2160 are supported at reduced refresh rates or with 4:2:0 only.

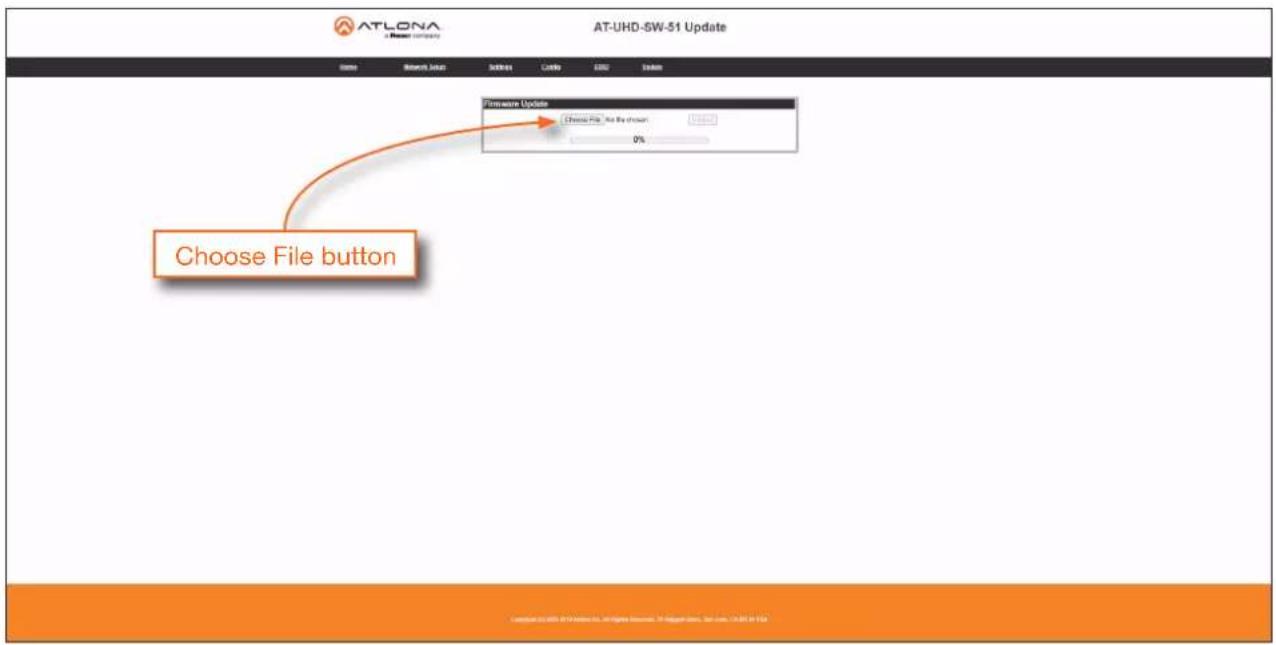

How do I update the firmware?

Download the firmware from atlona.com. Update via the web server (Update page) or using a USB mini-B cable: disconnect power, hold INPUT while reconnecting power, then copy the firmware file to the USB UPDATE drive that appears.

Can I control the switcher via RS-232?

Yes, the unit has a 3-pin captive screw RS-232 port. It can be used for direct control or bidirectional pass-through. Default baud rate settings are configurable via the web server.

How do I enable or disable auto-switching?

Log into the web server, go to Settings, and set the Auto Switch drop-down to On (enable) or Off (disable). Auto-switching is enabled by default.

What audio formats can be de-embedded?

The analog audio output (RCA) outputs downmixed 2-channel PCM. The S/PDIF output can carry PCM 2.0, Dolby Digital, and DTS Digital Surround (up to 5.1). ARC is supported from the HDMI display to S/PDIF.

What is the warranty period?

New hardware products purchased after June 1, 2013, have a 10-year limited warranty. For products purchased before that date, the warranty is 3 years. Refurbished/discontinued products have a 3-year warranty.

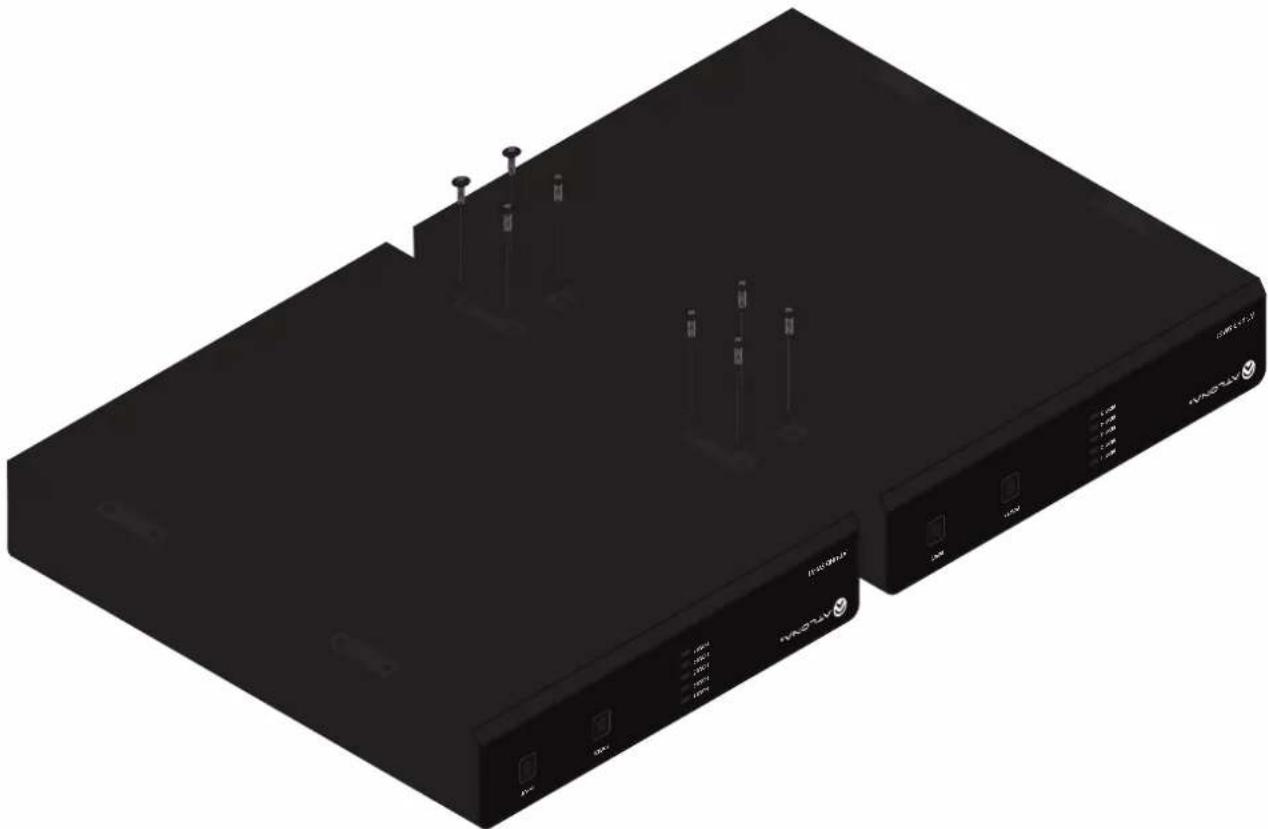

How do I mount the AT-UHD-SW-51 in a rack?

Attach the included rack ears using the screws on the sides. For a single unit, use one short and one long ear. For two units side-by-side, attach the mounting plate to the bottom, then install rack ears on the outer sides.

USER MANUAL AT-UHD-SW-51 Atlona

Version Release Date Notes
1 Feb 2021 New Format
2 Mar 2021 Added password requirements, page 29
3 Sep 2021 IR remote no longer shipping with unit; IR documentation is still included for units in the field.

Welcome to Atlona!

Thank you for purchasing this Atlona product. We hope you enjoy it and will take a extra few moments to register your new purchase.

Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware. Atlona product registration is voluntary and failure to register will not affect the product warranty.

To register your product, go to https://atlona.com/register/

Sales, Marketing, and Customer Support

Main Office

Atlona Incorporated

70 Daggett Drive

San Jose, CA 95134

United States

Office: +1.877.536.3976 (US Toll-free)

Office: +1.408.962.0515 (US/International)

Sales and Customer Service Hours

Monday - Friday: 6:00 a.m. - 4:30 p.m. (PST)

https://atlona.com/

International Headquarters

Atlona International AG

Tödistrasse 18

8002 Zürich

Switzerland

Office: +41.43.508.4321

Sales and Customer Service Hours

Monday - Friday: 09:00 - 17:00 (UTC +1)

Operating Notes

IMPORTANT: Visit https://atlona.com/product/AT-UHD-SW-51 for the latest firmware updates and User Manual.

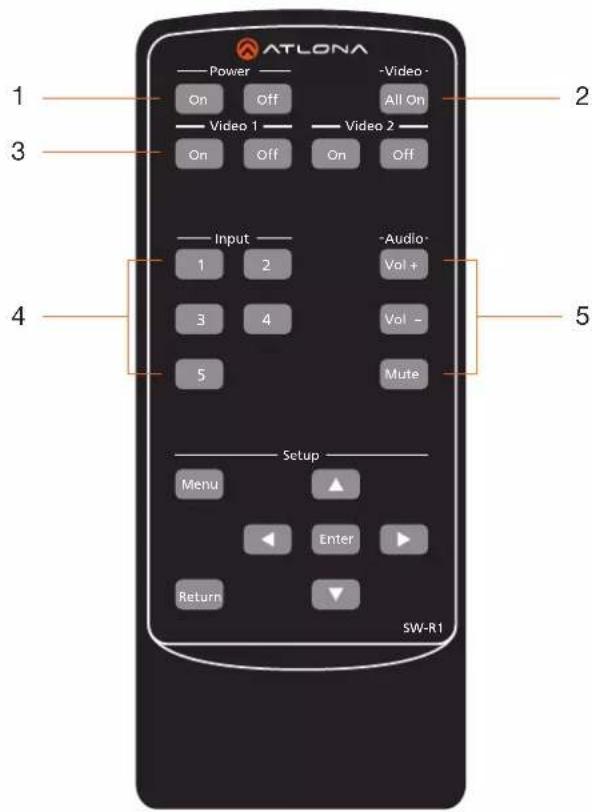

NOTE: The AT-UHD-SW-51 no longer ships with an IR remote control. However, IR documentation remains for units currently in the field.

Atlona, Inc. ("Atlona") Limited Product Warranty

Coverage

Atlona warrants its products will substantially perform to their published specifications and will be free from defects in materials and workmanship under normal use, conditions and service.

Under its Limited Product Warranty, Atlona, at its sole discretion, will either:

- repair or facilitate the repair of defective products within a reasonable period of time, restore products to their proper operating condition and return defective products free of any charge for necessary parts, labor and shipping.

OR

- replace and return, free of charge, any defective products with direct replacement or with similar products deemed by Atlona to perform substantially the same function as the original products.

OR

- refund the pro-rated value based on the remaining term of the warranty period, not to exceed MSRP, in cases where products are beyond repair and/or no direct or substantially similar replacement products exist.

Repair, replacement or refund of Atlona products is the purchaser's exclusive remedy and Atlona liability does not extend to any other damages, incidental, consequential or otherwise.

This Limited Product Warranty extends to the original end-user purchaser of Atlona products and is non-transferrable to any subsequent purchaser(s) or owner(s) of these products.

Coverage Periods

Atlona Limited Product Warranty Period begins on the date of purchase by the end-purchaser. The date contained on the end-purchaser 's sales or delivery receipt is the proof purchase date.

Limited Product Warranty Terms – New Products

• 10 years from proof of purchase date for hardware/electronics products purchased on or after June 1, 2013.
• 3 years from proof of purchase date for hardware/electronics products purchased before June 1, 2013.
• Lifetime Limited Product Warranty for all cable products.

Limited Product Warranty Terms - Refurbished (B-Stock) Products and Discontinued Products

- 3 years from proof of purchase date for all Refurbished (B-Stock) and Discontinued hardware and electronic products purchased on or after June 1, 2013.

Remedy

Atlona recommends that end-purchasers contact their authorized Atlona dealer or reseller from whom they purchased their products. Atlona can also be contacted directly. Visit atlona.com for Atlona's contact information and hours of operation. Atlona requires that a dated sales or delivery receipt from an authorized dealer, reseller or end-purchaser is provided before Atlona extends its warranty services. Additionally, a return merchandise authorization (RMA) and/or case number, is required to be obtained from Atlona in advance of returns.

Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408-962-0515 (US/international) or via Atlona's website at atlona.com.

Exclusions

This Limited Product Warranty excludes:

- Damage, deterioration or malfunction caused by any alteration, modification, improper use, neglect, improper packaging or shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature.

Atlona, Inc. ("Atlona") Limited Product Warranty

• Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.
• Equipment enclosures, cables, power supplies, batteries, LCD displays, and any accessories used in conjunction with the product(s).
• Products purchased from unauthorized distributors, dealers, resellers, auction websites and similar unauthorized channels of distribution.

Disclaimers

This Limited Product Warranty does not imply that the electronic components contained within Atlona's products will not become obsolete nor does it imply Atlona products or their electronic components will remain compatible with any other current product, technology or any future products or technologies in which Atlona's products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage in icted to its products from acts of god.

Limitation on Liability

The maximum liability of Atlona under this limited product warranty shall not exceed the original Atlona MSRP for its products. To the maximum extent permitted by law, Atlona is not responsible for the direct, special, incidental or consequential damages resulting from any breach of warranty or condition, or under any other legal theory. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to speci ed amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

To the maximum extent permitted by law, this limited product warranty and the remedies set forth above are exclusive and in lieu of all other warranties, remedies and conditions, whether oral or written, express or implied. To the maximum extent permitted by law, Atlona specifically disclaims all implied warranties, including, without limitation, warranties of merchantability and tness for a particular purpose. If Atlona cannot lawfully disclaim or exclude implied warranties under applicable law, then all implied warranties covering its products including warranties of merchantability and tness for a particular purpose, shall provide to its products under applicable law. If any product to which this limited warranty applies is a “Consumer Product” under the Magnuson-Moss Warranty Act (15 U.S.C.A. §2301, ET SEQ.) or other applicable law, the foregoing disclaimer of implied warranties shall not apply, and all implied warranties on its products, including warranties of merchantability and tness for the particular purpose, shall apply as provided under applicable law.

Other Conditions

Atlona's Limited Product Warranty offering gives legal rights, and other rights may apply and vary from country to country or state to state. This limited warranty is void if (i) the label bearing the serial number of products have been removed or defaced, (ii) products are not purchased from an authorized Atlona dealer or reseller. A comprehensive list of Atlona's authorized distributors, dealers and resellers can be found at atlona.com.

Safety and Certification

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCT THE RISK OF

ELECTRIC SHOCK

DO NOT OPEN ENCLOSURE OR EXPOSE

TO RAIN OR MOISTURE.

NO USER-SERVICEABLE PARTS

INSIDE REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the product.

The information bubble is intended to alert the user to helpful or optional operational instructions in the literature accompanying the product.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this product near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install or place this product near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of a polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
11. Only use attachments/accessories specified by Atlona.
12. To reduce the risk of electric shock and/or damage to this product, never handle or touch this unit or power cord if your hands are wet or damp. Do not expose this product to rain or moisture.
13. Unplug this product during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.

FCC Compliance

FCC Compliance and Advisory Statement: This hardware device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4) consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations.

Copyright, Trademark, and Registration

© 2021 Atlona Inc. All rights reserved. "Atlona" and the Atlona logo are registered trademarks of Atlona Inc. Pricing, specifications and availability subject to change without notice. Actual products, product images, and online product images may vary from images shown here.

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI licensing Administrator, Inc.

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, and Digital Surround are registered trademarks and/or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

All other trademark(s), copyright(s), and registered technologies mentioned in this document are the properties of their respective owner(s).

Table of Contents

Introduction 9

Features 9

Package Contents 9

Panel Description 10

Front Panel 10

Rear Panel 11

Installation 12

Power 12

RS-232 12

Connection Instructions 13

Connection Diagram 14

IP Configuration 15

Setting the IP Address using the Web Server 15

Auto IP (APIPA) Mode 15

Device Operation 16

LED Indicators 16

System Configuration 17

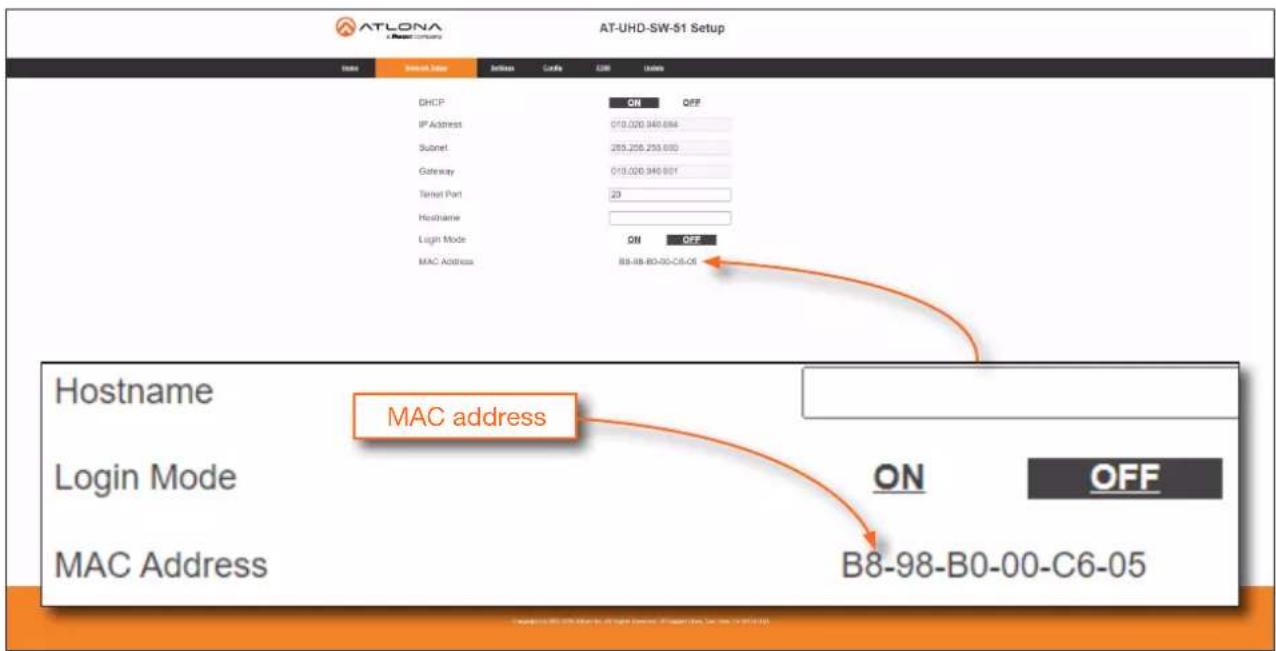

Getting the MAC Address 17

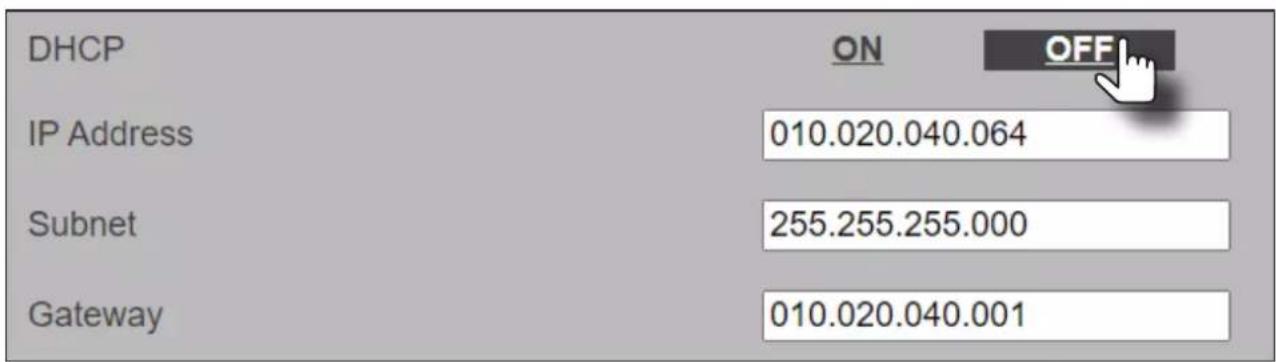

Changing the Network IP Mode 18

Setting Static IP Mode using the Front Panel 19

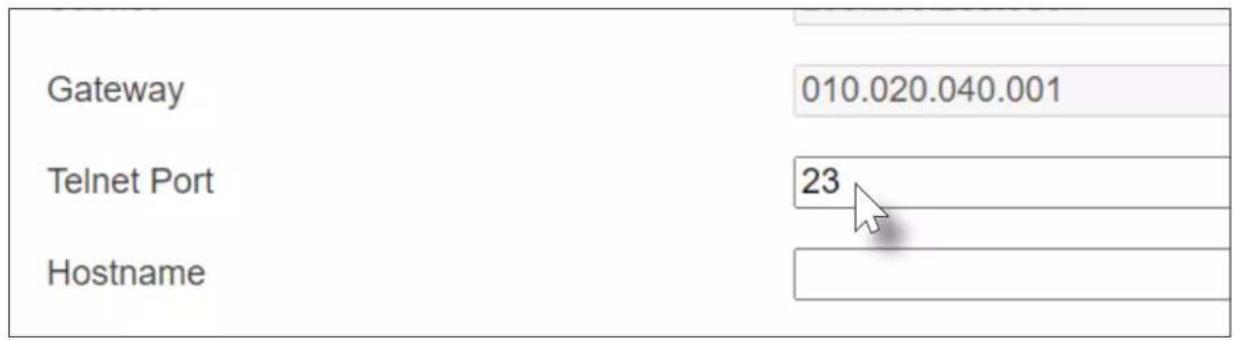

Changing the Telnet Port 20

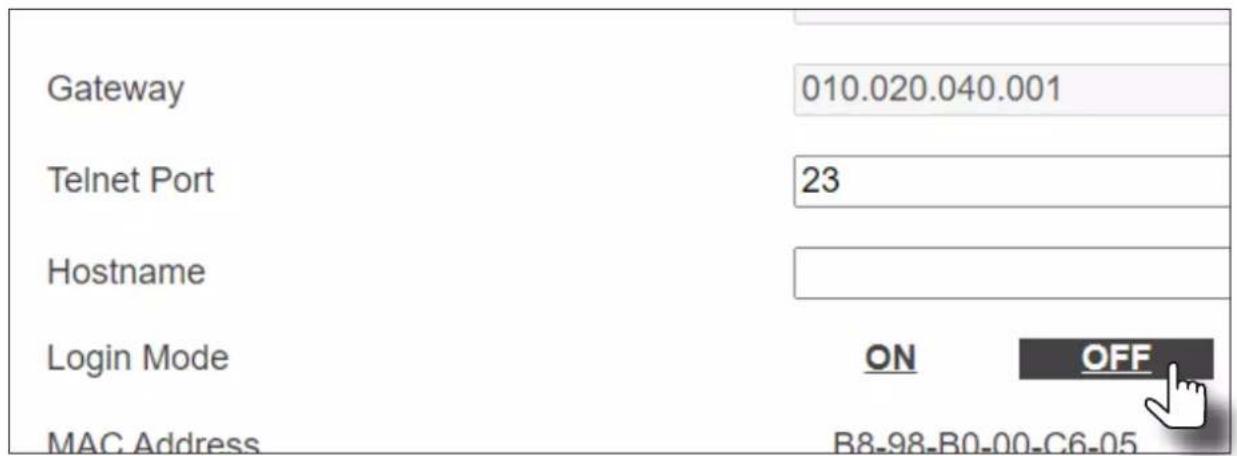

Telnet Login Mode 21

Setting the Host Name 22

Video Switching 23

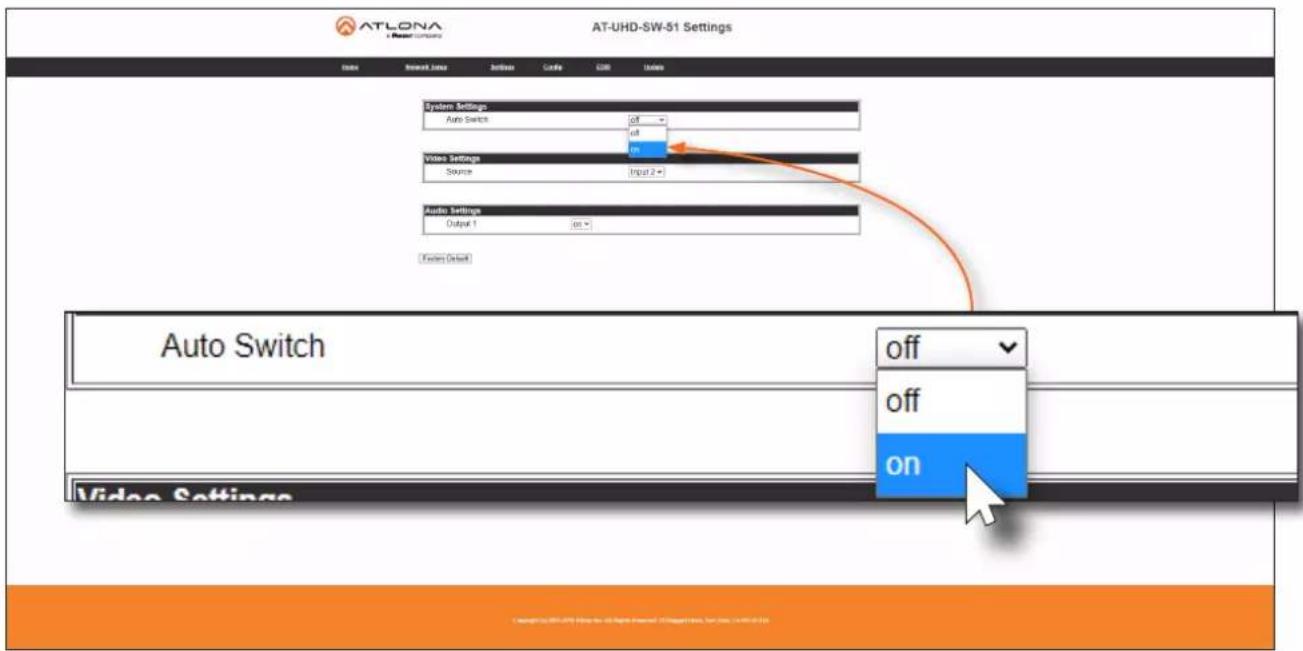

Enabling / Disabling Auto-Switching 23

Selecting the Input 24

Resetting to Factory-Defaults 25

Using the Web Server 25

Using the Front Panel 26

Audio Muting 27

User Management 28

Changing the Administrator Password 28

Adding Users 30

Editing / Deleting Users 31

EDID Management 32

EDID Presets 32

Storing EDID Data 34

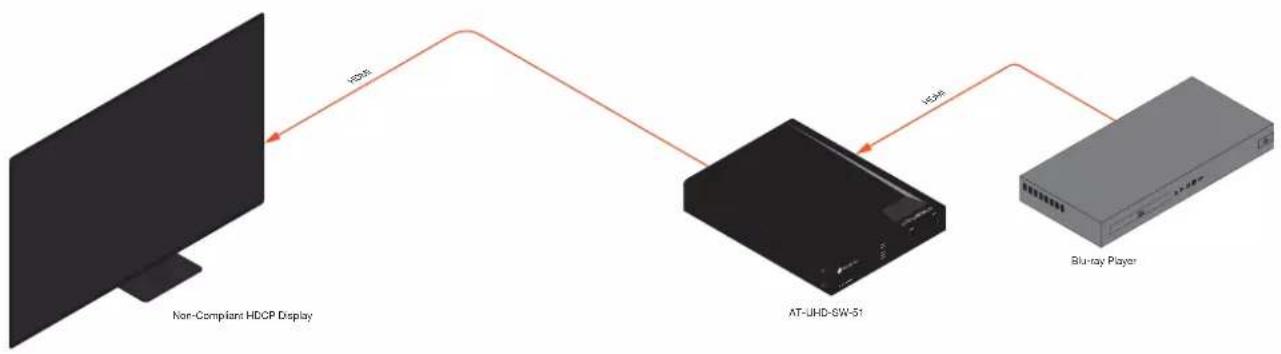

HDCP Content 36

Configuration and Management Interfaces 37

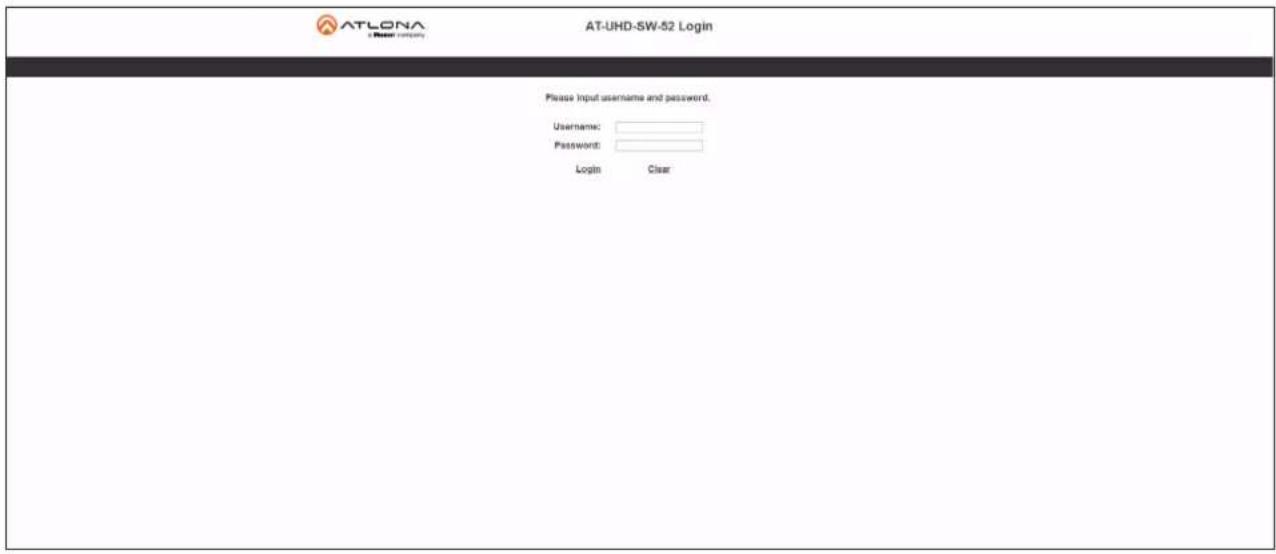

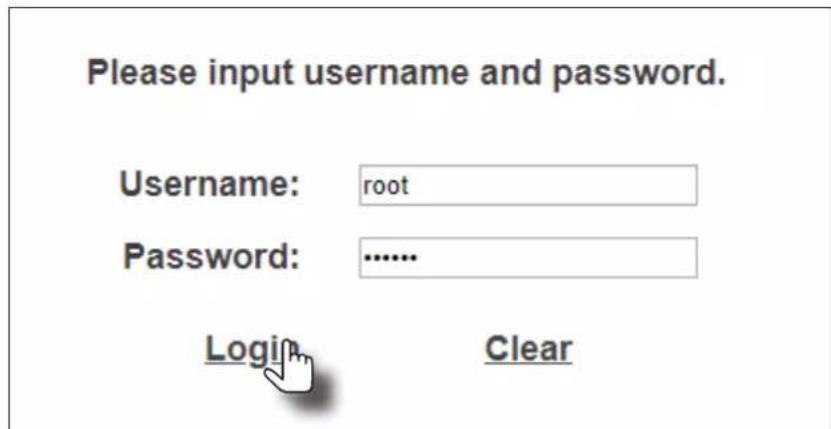

Introduction to the Web Server 37

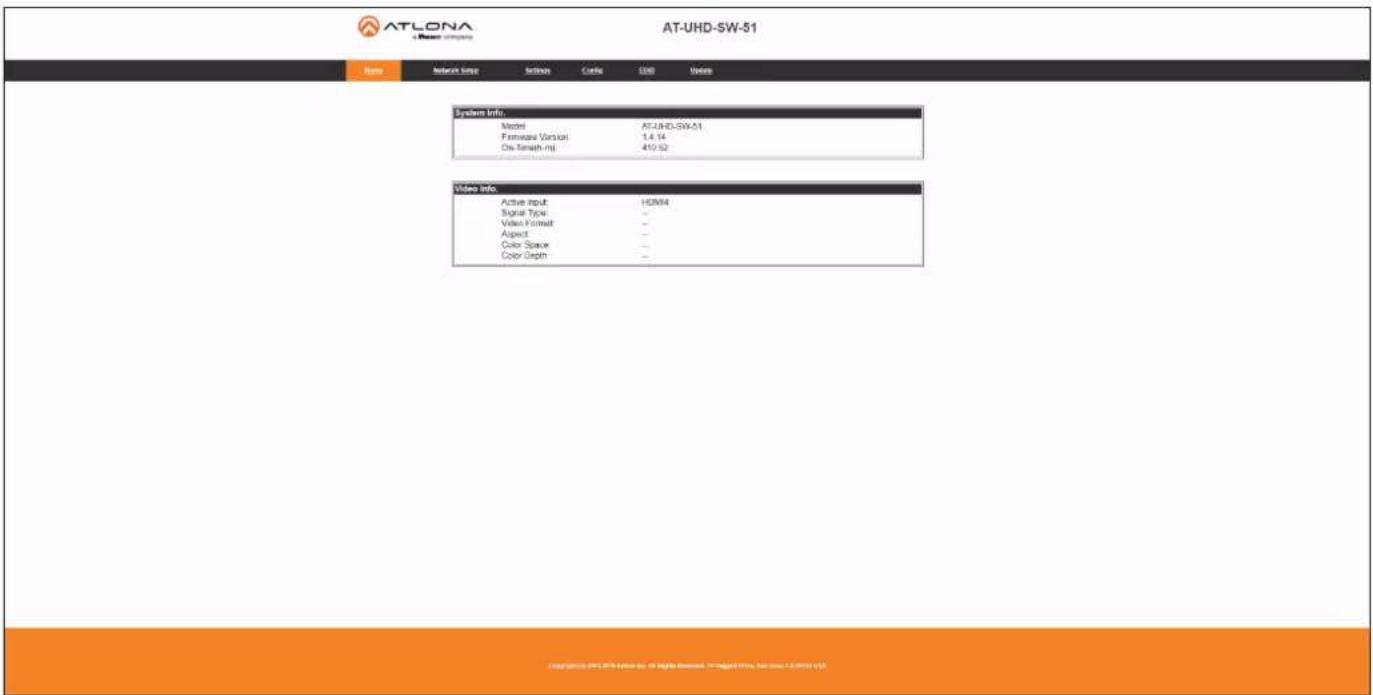

Home Page 38

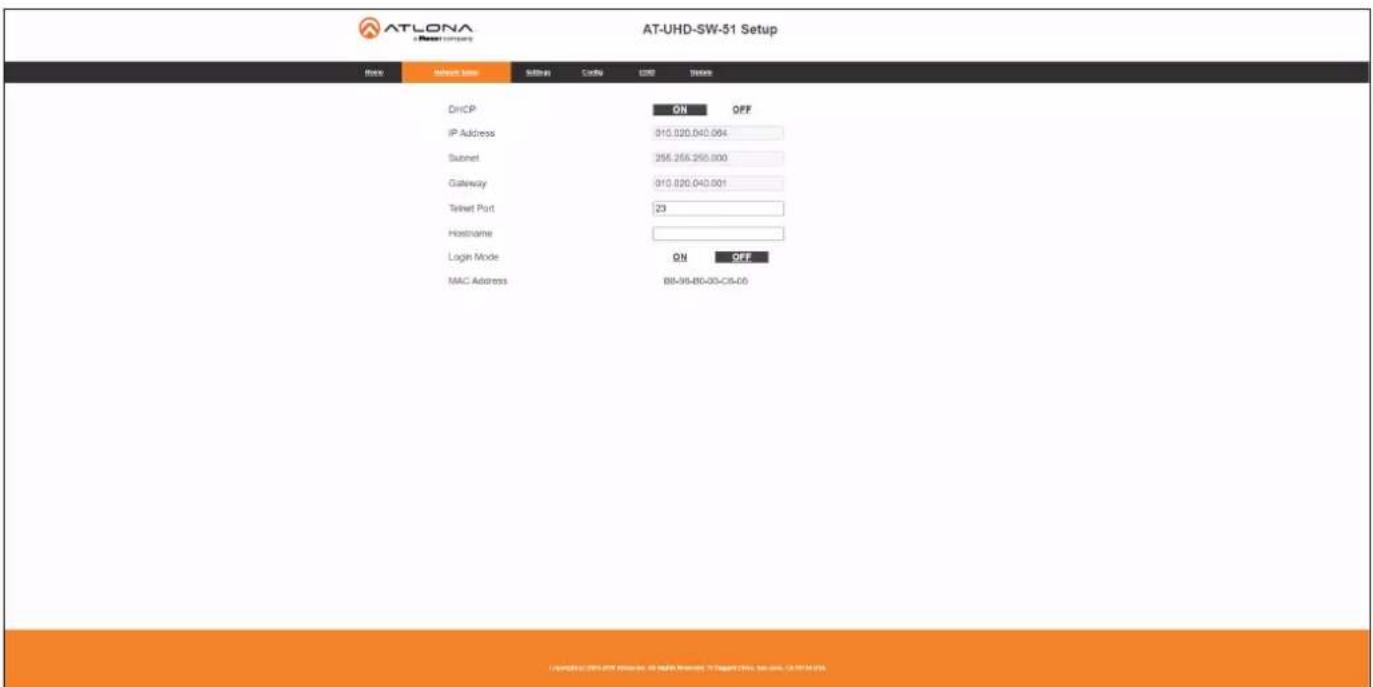

Network Setup Page 39

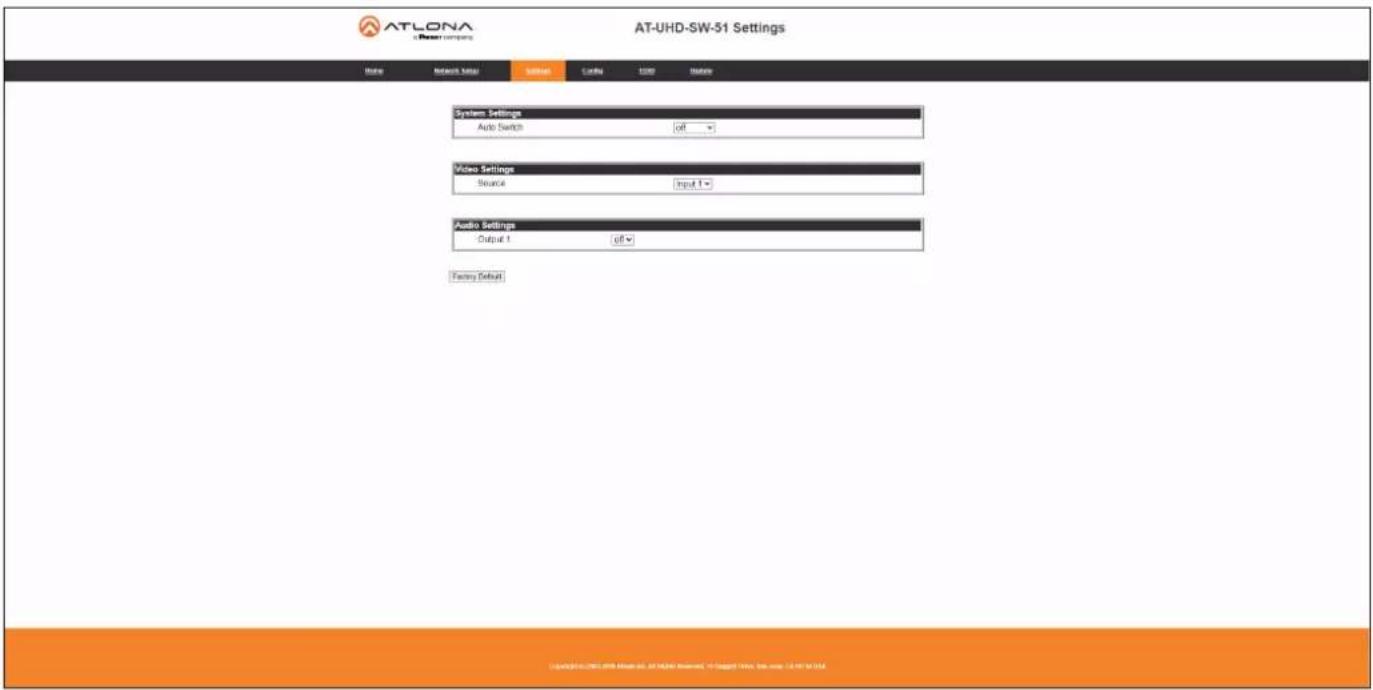

Settings Page 40

Config Page 41

EDID Page 43

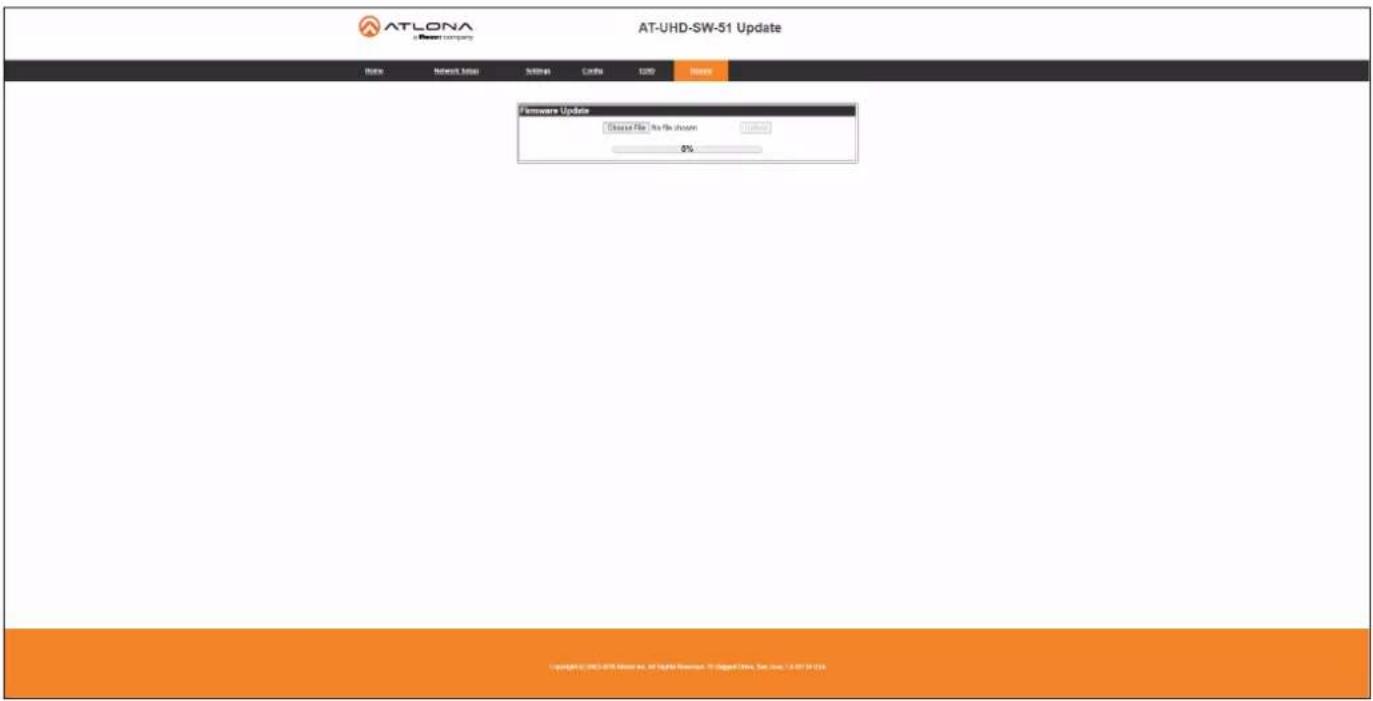

Update Page 45

Table of Contents

Appendix

46

Updating the Firmware 46

Using the Web Server 46

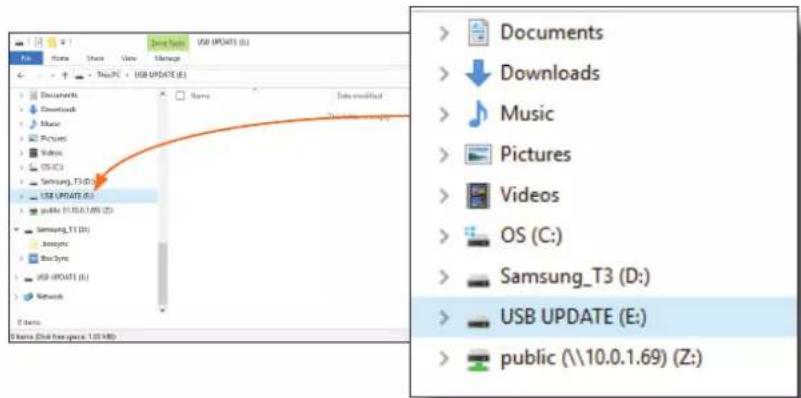

Using the USB Interface 47

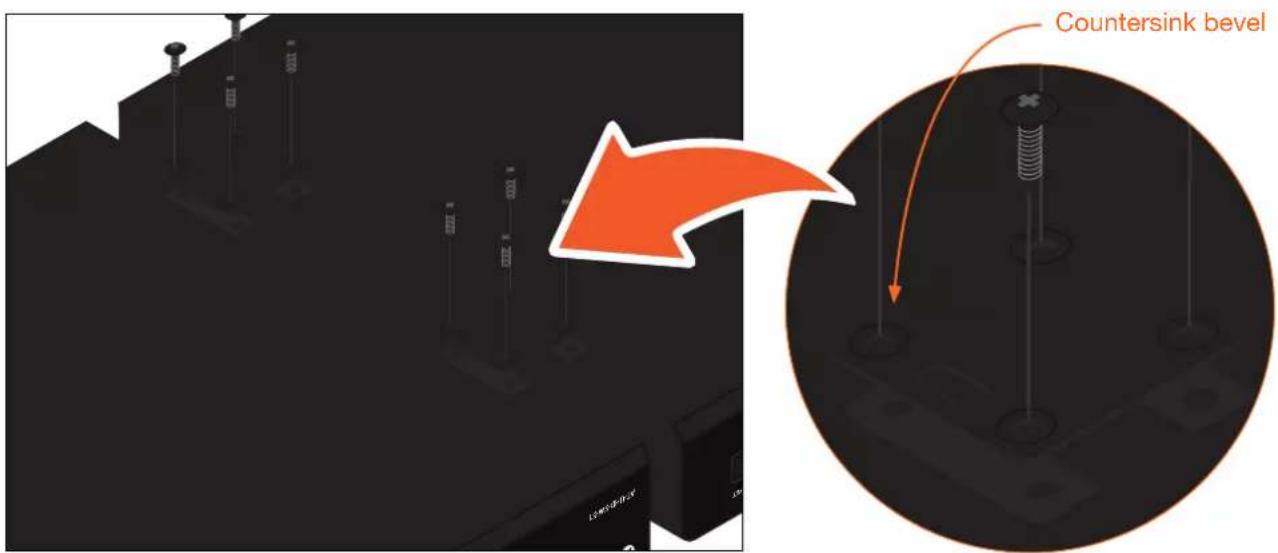

Mounting Instructions 49

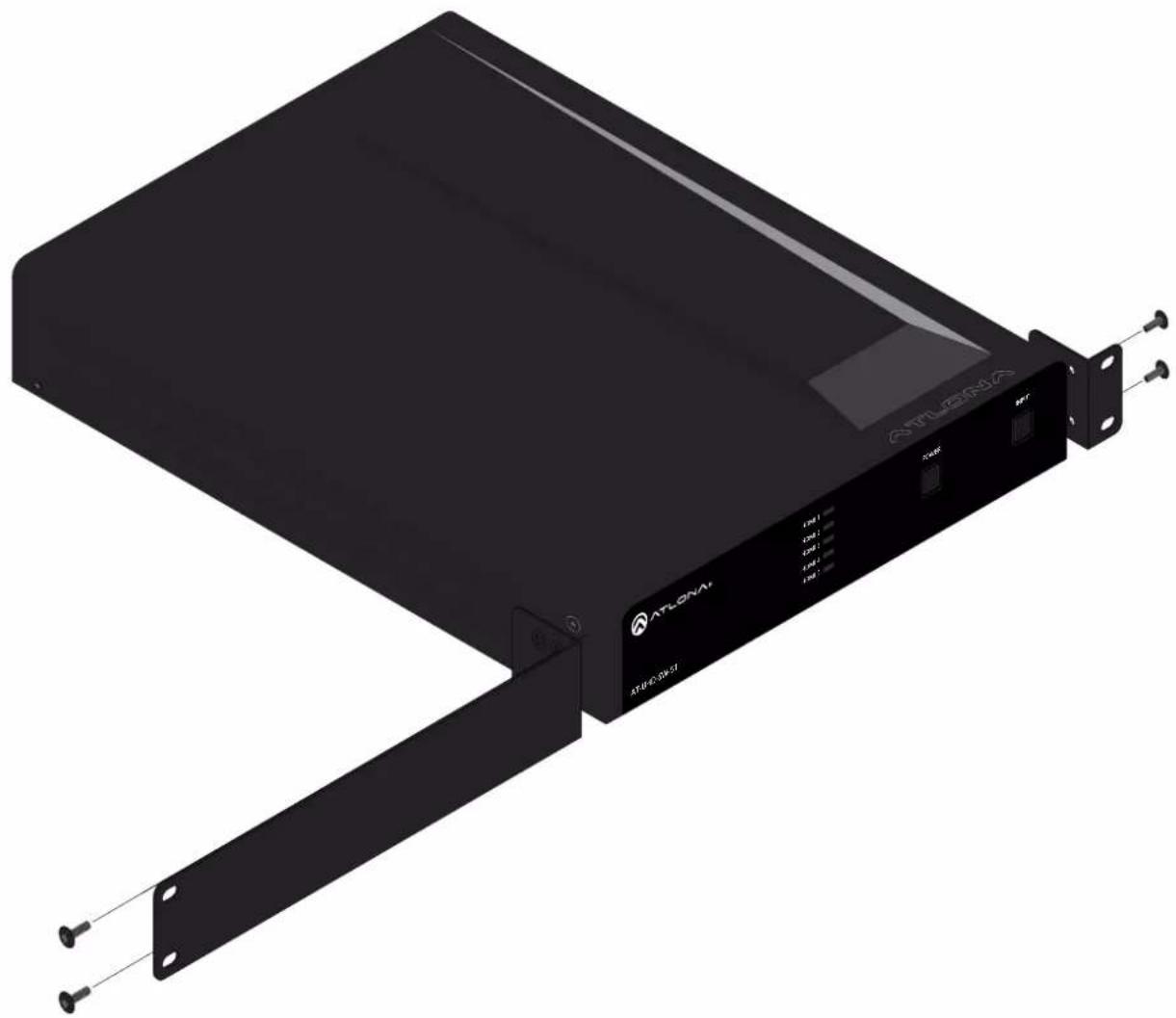

Single Unit Rack Installation 49

Dual Unit Rack Installation 50

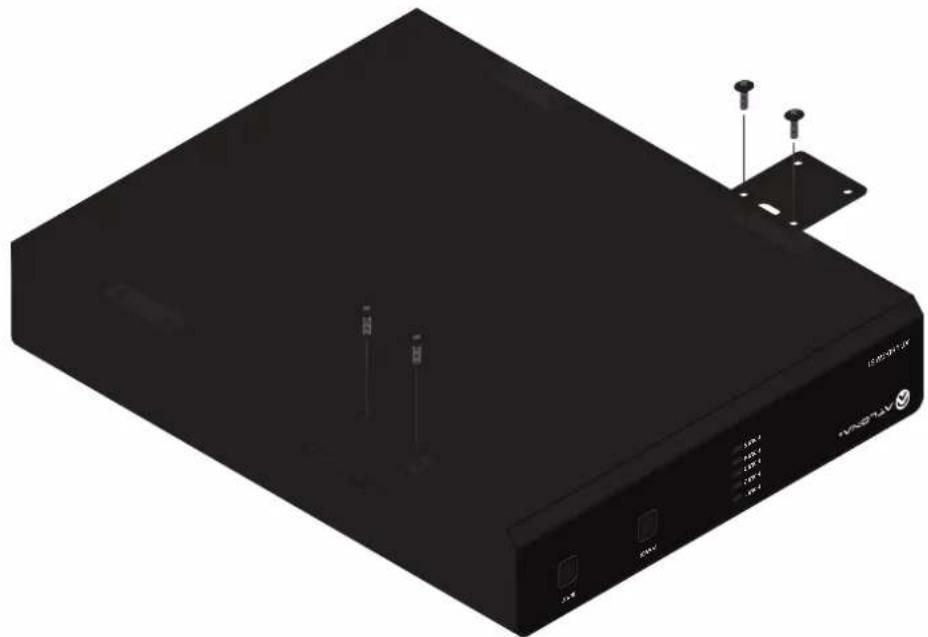

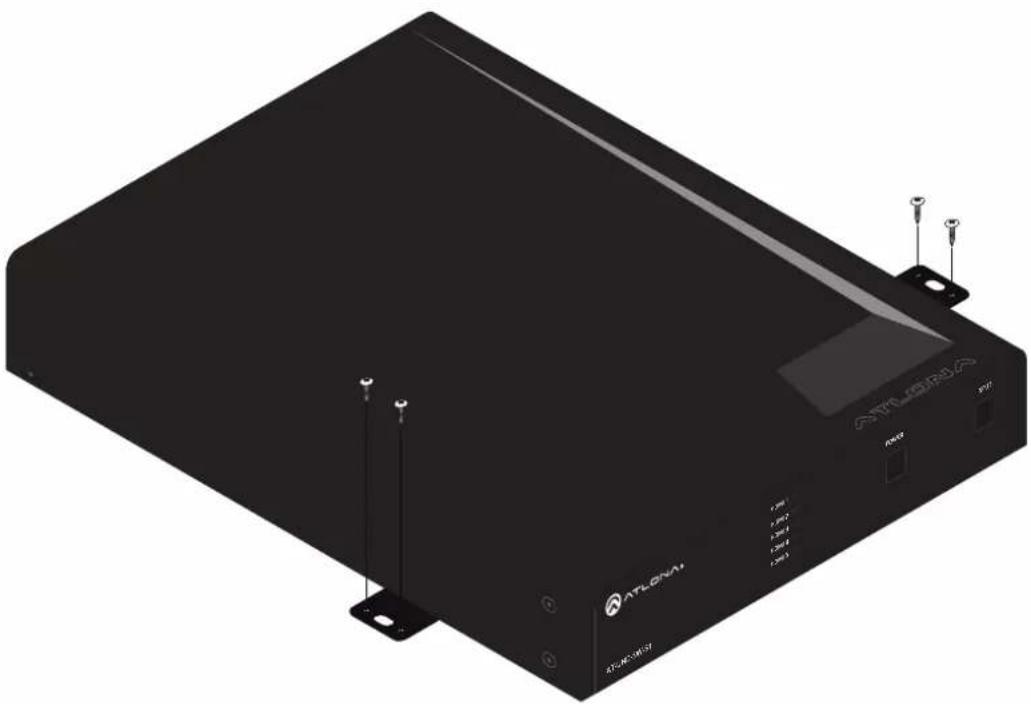

Flat Surface 51

IR Remote Control 52

Specifications 53

Introduction

The Atlona AT-UHD-SW-51 is a 5×1 HDMI switcher with auto-switching and advanced control capability. The switcher supports 4K/UHD @ 60 Hz with 4:2:0 color, offers 3D pass-through, and 10.2 Gbps bandwidth. With front panel buttons and IR control, it can be a standalone switcher. Designed as a cost-effective, easy to install solution, the switcher offers a web-based GUI for easy set-up and management of EDID and HDCP. Additional control options include auto-switching, front panel selector, and compatibility with RS-232 or TCP/IP-based control systems. Audio features include de-embedding of PCM audio over HDMI to either S/PDIF or two-channel analog audio outputs; pass-through of Dolby TrueHD® and DTS-HD Master Audio™; plus an Audio Return Channel feed to the S/PDIF output from the HDMI display. The compact, 1U, half-rack width enclosure is easily installed in rack mounted systems with the 19" rack mount brackets. Two units can be mounted side-by-side.

Features

• 4K/UHD capability
  • TCP/IP, RS-232, and IR control
  • EDID management
• HDCP management
• Easy, GUI-based configuration using integrated web server
  • ARC – Audio Return Channel
  • Multi-channel audio compliant
• Rack-mountable, 1U, half rack width enclosure
• HDCP management
• Award-winning 10 year limited product warranty

• Automatic input selection using hot plug detect and video detection technology

Package Contents

1 x AT-UHD-SW-51
1 x Captive screw connector, 3-pin
1 x Captive screw connector, 2-pin
2 x Mounting plate
4 x Mounting screw
1 x Long rack ear
1 x Short rack ear
4 x Feet w/rubber grips
1 x 5 V DC power supply
1 x Installation Guide

Panel Description

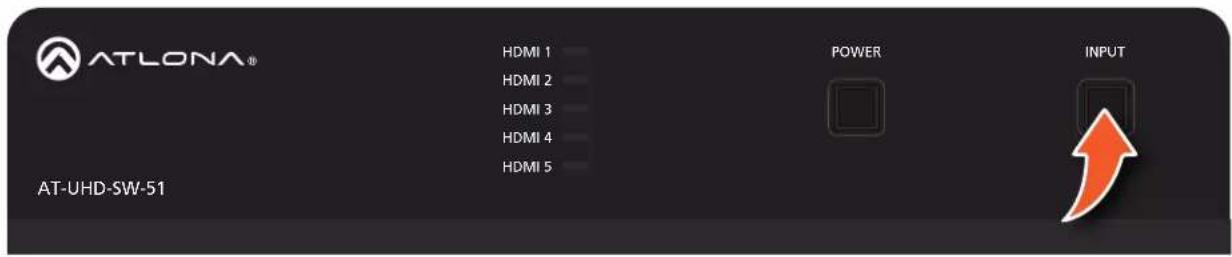

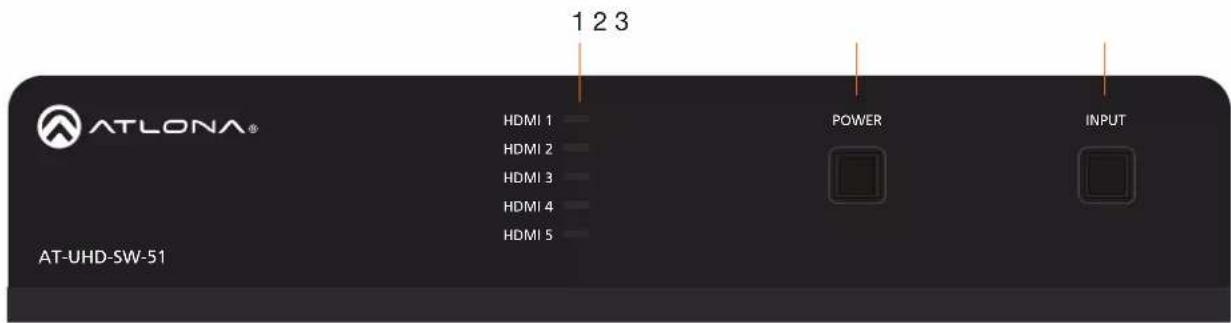

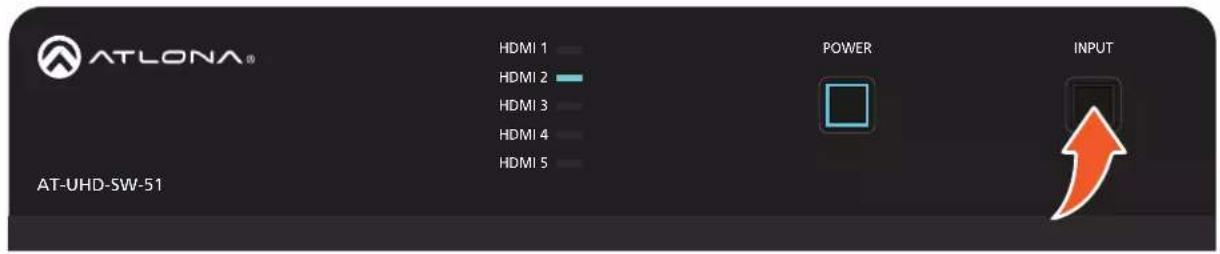

Front Panel

1 HDMI 1 - HDMI 5: Input LED Indicators

These LED indicators display which input is routed to the HDMI OUT port. A solid blue indicator represents the active input being used

2 POWER

Press this button to toggle between "on" and "standby" power states. When in "standby", A/V is muted. When "on", A/V muting will be disabled.

3 INPUT

Press and release this button to cycle through each of the HDMI inputs.

Panel Description

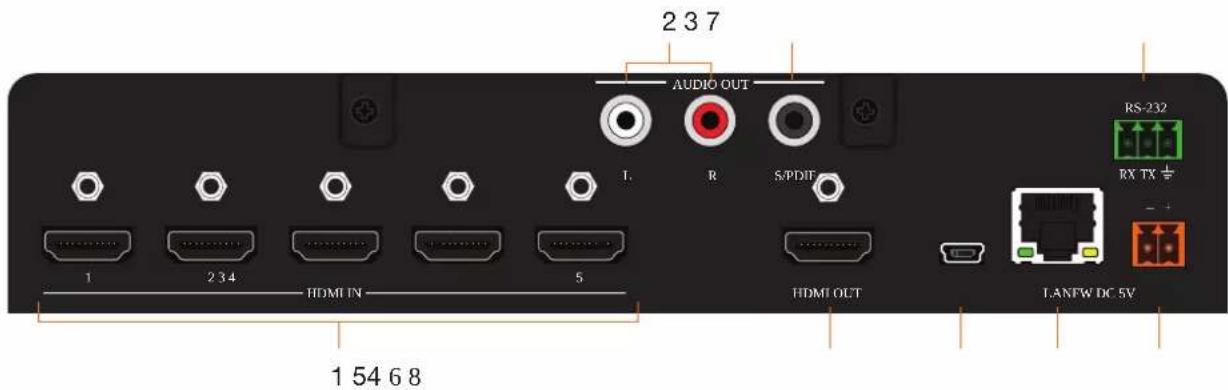

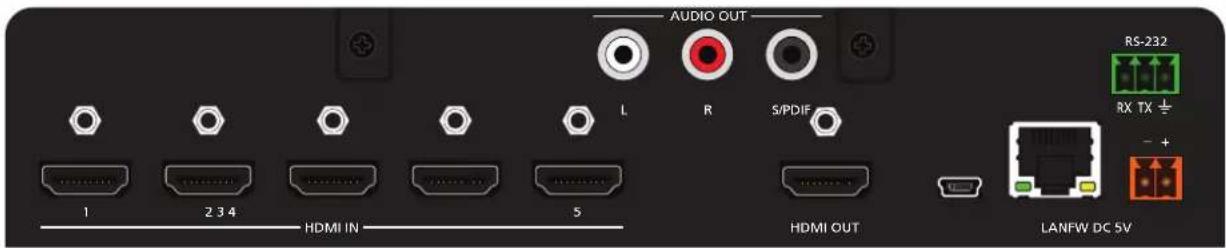

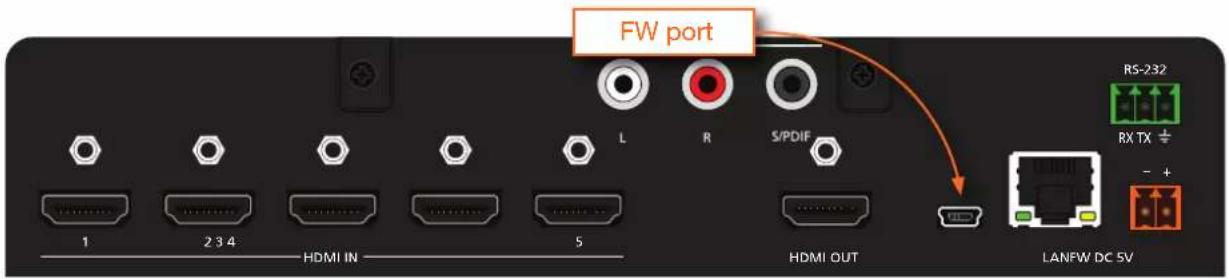

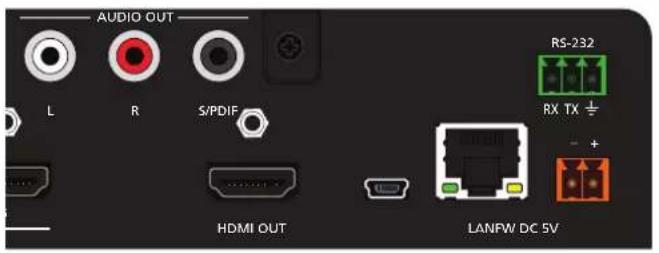

Rear Panel

1 HDMI IN

Connect an HDMI cable from each of these ports to a UHD/HD source.

2 AUDIO OUT (L/R)

Connect two RCA-type cables from these ports to an audio output device.

3 AUDIO OUT (S/PDIF)

Connect an RCA-type cable from this port to the S/PDIF audio input port on an A/V receiver or other audio output device.

4 HDMI OUT

Connect an HDMI cable from each of these ports to an HD/UHD display.

5 FW

Connect a USB-to-mini USB cable to this port from a computer for rmware updates.

6 LAN

Connect an Ethernet cable from this port to the Local Area Network (LAN). The AT-UHD-SW-51 includes a built-in web server, which can be used to manage and con gure the product.

7 RS-232

Connect the included captive screw block to an RS-232 controller to control the AT-UHD-SW-51.

8 DC 5V

Connect the included 5 V DC power supply from this power receptacle to an available AC electrical outlet. Refer to Power (page 12) for more information on wiring the included captive screw connector.

Installation

Power

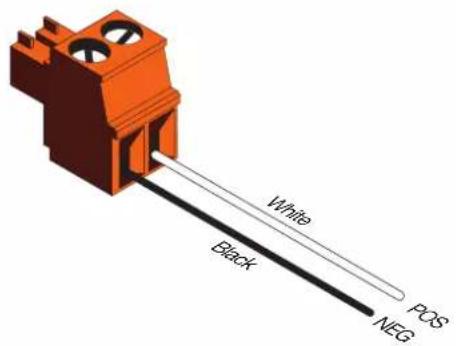

Connect the included 2-pin captive screw connector to the DC 5V power receptacle on the rear of the unit. Insert the positive and negative leads, from the power supply, into the terminals of the 2-pin captive screw connector block, as shown.

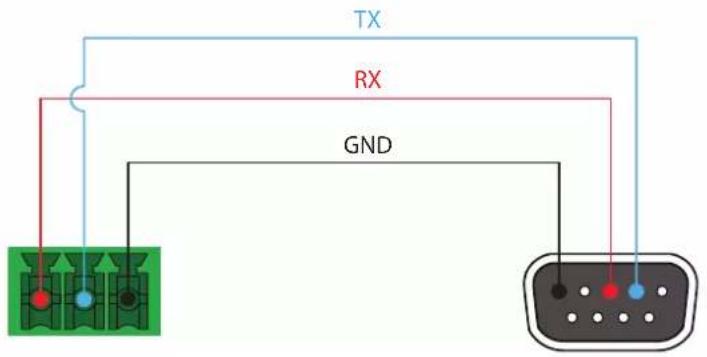

RS-232

The AT-UHD-SW-51 provides an RS-232 port which can be used to control a display connected to an HDMI output. Atlona recommends controlling the AT-UHD-SW-51 using IP and reserving the RS-232 port for local display control.

1. Use wire strippers to remove a portion of the cable jacket.
2. Remove at least 3/16" (5 mm) of insulation from each of the wires.
3. Insert the wires into correct terminal using the included 3-pin captive screw connector.
4. Attach the 3-pin connector block to the RS-232 port on the AT-UHD-SW-51.

Green 3D model of a mechanical connector or terminal block (no text or symbols visible)

Installation

Connection Instructions

1. Connect up to five UHD/HD sources, using HDMI cables, to ports HDMI IN 1 through HDMI IN 5.
2. Connect an HDMI cable from each of the HDMI OUT ports to a UHD/HD display.
3. Connect an Ethernet cable from the LAN port to the Local Area Network (LAN).
4. OPTIONAL: Connect two RCA-type cables from the AUDIO OUT L/R ports to an output audio device.
5. OPTIONAL: Connect the included 3-pin captive screw block to the RS-232 port.
6. Connect the included power supply to the DC 5V connector and connect the power cord to an available electrical outlet. Refer to Power (page 12) for more information.

Installation

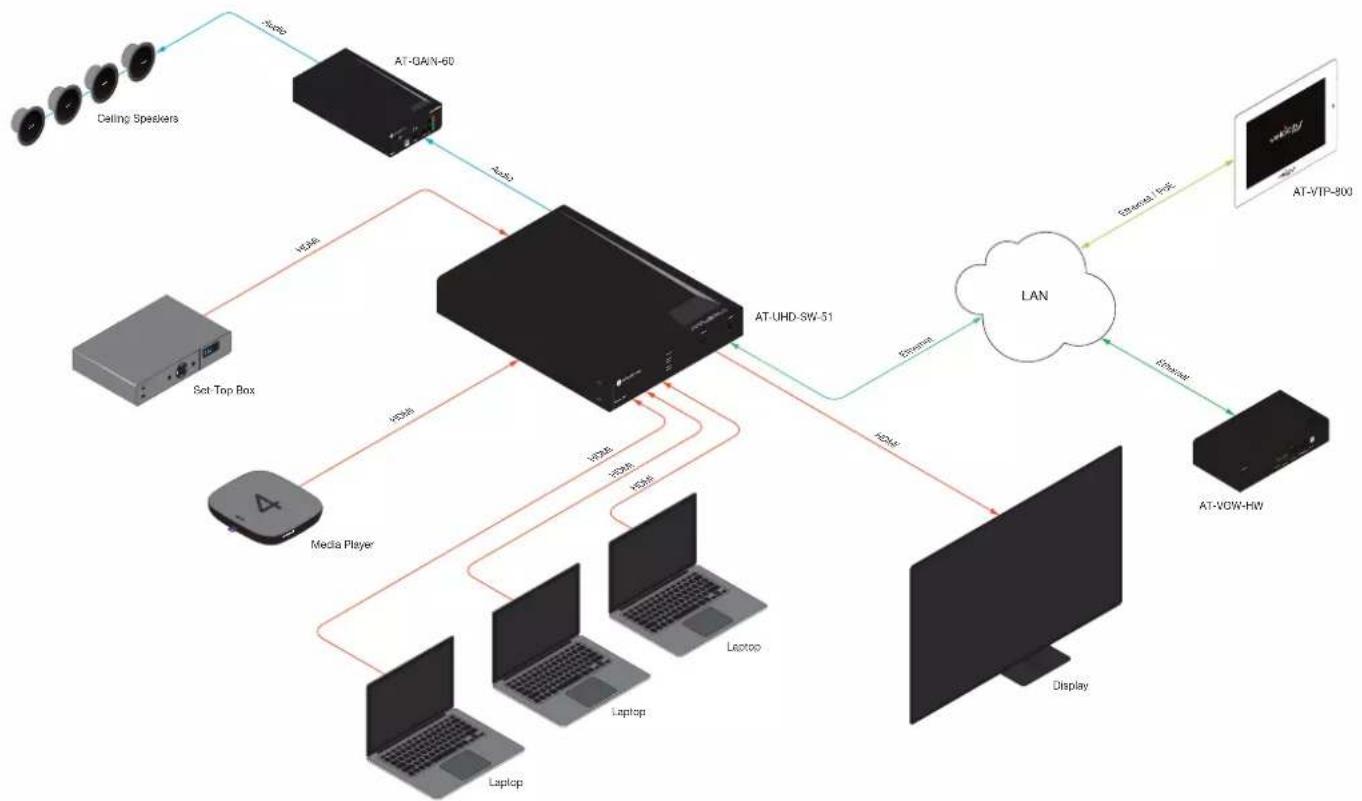

Connection Diagram

IP Configuration

The AT-UHD-SW-51 is shipped with DHCP enabled. Once connected to a network, the DHCP server (if available), will automatically assign an IP address to the unit. If the AT-UHD-SW-51 is unable to detect a DHCP server within 15 seconds, then the unit will use a self-assigned IP address within the range of 169.254.xxx.xxx.

Use an IP scanner, along with the MAC address on the bottom of the unit, to identify the unit on the network. If a static IP address is desired, the unit can be switched to static IP mode. The default static IP address is 192.168.1.254.

Setting the IP Address using the Web Server

The AT-UHD-SW-51 can be set to either DHCP or static IP mode. If changing the IP mode through the built-in web server, the IP address of the AT-UHD-SW-51 must be known. By default, the AT-UHD-SW-51 is set to DHCP mode and will automatically be assigned an IP address by a DHCP server. Refer to the Changing the Network IP Mode (page 18) for more information.

Auto IP (APIPA) Mode

If the AT-UHD-SW-51 is unable to detect a DHCP server within 15 seconds, then the unit will use a self-assigned IP address within the range of 169.254.xxx.xxx. If this occurs, connect the AT-UHD-SW-51 to a computer running Microsoft Windows® and follow the procedure below.

1. Click Start > Settings > Control Panel > Network and Sharing Center.
2. Click Change adapter settings.
3. Right-click on the adapter that is used to establish a wired connection to the network, and select Properties from the context menu.
4. Under the Ethernet Properties dialog box, select Internet Protocol Version 4 and then click the Properties button.
5. Click the Use the following IP address radio button.

IMPORTANT: Before continuing, write down the current IP settings in order to restore them, later. If Obtain an IP address automatically and Obtain DNS server automatically are selected, then this step is not required.

1. Enter the desired static IP address or the IP address provided by the network administrator. If the PC does not require Internet access or if a statically-assigned IP address is being used, then an IP address of 169.254.xxx.xxx can be entered.
2. Set the subnet mask to 255.255.0.0.
3. Click the OK button then close all Control Panel windows.

Device Operation

LED Indicators

The LED indicators on both the front and rear of the unit provide basic information on the current status of the AT-UHD-SW-51.

LED Description
HDMI 1 - HDMI 5	Solid blue The input is the currently selected (active) input.
	Off The input is not the active input.
POWER Solid	blue Unit is powered and in normal operating mode. A/V muting is disabled.
	Solid red Unit is powered and in standby mode. In this mode, A/V will be muted.·Press the POWER button to place the unit in normal operating mode.
	Off Unit is not powered.	·Check the power supply and make sure it is securely fastened to the captive screw connector on the rear of the unit.·Make sure that the power supply is connected to an available electrical outlet and that the outlet is “live” (some outlets are controlled by a wall switch).

System Configuration

The AT-UHD-SW-51 provides easy access to system configuration through the built-in web server, and is the recommended method to adjust network settings.

NOTE: When a setting within the Network Settings page is being modified, the background color will switch from white to gray. This indicates that a setting is being changed.

Getting the MAC Address

1. Login to the web server. Refer to Introduction to the Web Server (page 37). The default username and password are listed below:

Username: root

Password: Atlona

1. Click Network Setup in the menu bar.
2. Locate the MAC address field, as shown below. This is the hardware address of the AT-UHD-SW-51.

Changing the Network IP Mode

By default, the AT-UHD-SW-51 is set to DHCP mode. Once connected to a network, and if a DHCP server is found (or available), the AT-UHD-SW-51 will be assigned an IP address on the network, and no further network configuration is required. However, if the AT-UHD-SW-51 is unable to detect a DHCP server within 15 seconds, then the unit will use a self-assigned IP address within the range of 169.254.xxx.xxx. The instructions below will focus on setting the AT-UHD-SW-51 to static IP mode.

IMPORTANT: Before assigning a static IP address to the AT-UHD-SW-51, it is recommended to consult with the network or system administrator and obtain a available IP address. If the AT-UHD-SW-51 is assigned an IP address which is already in use by another device, it may cause either network issues and/or the AT-UHD-SW-51 will be not accessible.

1. Login to the web server. Refer to Introduction to the Web Server (page 37). The default username and password are listed below:

Username: root

Password: Atlona

1. Click Network Setup in the menu bar.
2. Locate the DHCP section at the top of the page. The default setting is ON.
3. Click the OFF button to set the AT-UHD-SW-51 to static IP mode.
4. Enter the desired IP address for the AT-UHD-SW-51 in the IP Address field.
5. Enter the subnet mask and gateway address in the Subnet and Gateway fields, respectively.

1. Click Save Setting to commit changes. Click Cancel to abort changes. Changes will take effect immediately.

Setting Static IP Mode using the Front Panel

By default, the AT-UHD-SW-51 is set to DHCP mode. Once connected to a network, and if a DHCP server is found (or available), the AT-UHD-SW-51 will be assigned an IP address on the network, and no further network configuration is required. However, in some cases, a static IP assignment may be desired. This procedure can be done through the web server (see previous page) or by using the front-panel buttons, as shown below.

1. Verify that the AT-UHD-SW-51 is powered.
2. Press and hold the INPUT button for 15 seconds, then release the button.

1. The POWER button will flash four times to indicate that the AT-UHD-SW-51 is in static IP mode. The following IP settings are assigned, automatically:

IP Address: 192.168.1.254

Subnet: 255.255.0.0

Gateway: 192.168.1.1

Changing the Telnet Port

Typically, the Telnet service is assigned to TCP port 23. This is the default setting for the AT-UHD-SW-51. However, depending upon the network environment, the default Telnet port can be changed.

1. Login to the web server. Refer to Introduction to the Web Server (page 37). The default username and password are listed below:

Username: root

Password: Atlona

1. Click Network Setup in the menu bar.
2. Locate the Telnet Port field and enter the desired port in the field.

1. Click Save Settings to commit changes. Click Cancel to abort changes.

Telnet Login Mode

When a Telnet session is requested, the AT-UHD-SW-51 provides the option to prompt for user credentials or bypass authentication before the Telnet session begins. Prompting for credentials can be enabled or disabled. When prompting for user credentials, use the same login information required by the built-in web server.

1. Login to the web server. Refer to Introduction to the Web Server (page 37). The default username and password are listed below:

Username: root

Password: Atlona

1. Click Network Settings in the menu bar.

2. Click the Login Mode button to ON or OFF.

3. Set this button to ON to prompt for user credentials.

4. Set this button to OFF to bypass user credentials request.

1. Click Save Setting to commit changes. Click Cancel to abort changes.

Setting the Host Name

By default, the AT-UHD-SW-51 is assigned a hostname, which is constructed as follows:

SW52-[last six digits of MAC address]

For example, a default hostname might look like this: SW51-0060D2. This value can be changed to easily identify the AT-UHD-SW-51 within the Atlona Management System (AMS) or a network. If using a custom hostname, it must meet the hostname standards defined here: https://tools.ietf.org/html/rfc1123

1. Login to the web server. Refer to Introduction to the Web Server (page 37). The default username and password are listed below:

Username: root

Password: Atlona

1. Click Network Settings in the menu bar.

2. Click the Hostname field and enter the desired name.

3. Click Save Setting to commit changes. Click Cancel to abort changes.

Video Switching

Enabling / Disabling Auto-Switching

The AT-UHD-SW-51 provides auto-switching capability, which is enabled by default. This feature will automatically switch the input to the most recently-connected source. If a source is disconnected, then the input will automatically be switched to the previously-connected source.

By default, auto-switching is enabled on the AT-UHD-SW-51, allowing the unit to automatically switch between inputs when sources are connected or disconnected.

1. Login to the web server. Refer to Introduction to the Web Server (page 37). The default username and password are listed below:

Username: root

Password: Atlona

1. Click Settings in the menu bar.
2. Click the Auto Switch drop-down list and select On to enable auto-switching. Auto-switching is disabled by default. If auto-switching is not desired, select Off from the drop-down list.

NOTE: The AT-UHD-SW-51 retains the currently selected input, even after the unit is powered-off then powered-on.

1. Auto-switching configuration is complete.

Selecting the Input

The active input can be selected from the front panel, the built-in web server, or an API call. Refer to the AT-UHD-SW-51 Application Programming Interface for more information.

1. Login to the web server. Refer to Introduction to the Web Server (page 37). The default username and password are listed below:

Username: root

Password: Atlona

1. Click Settings in the menu bar.

2. Click the Auto Switch drop-down list and select On to enable auto-switching. Auto-switching is disabled by default. If auto-switching is not desired, select Off from the drop-down list.

3. Selection of the active input is complete.

4. To select the input using the front panel buttons, press and release the INPUT button to cycle through each of the available inputs on the unit.

Resetting to Factory-Defaults

The following procedure will reset the AT-UHD-SW-51 to factory-default settings. The network IP mode will be set to DHCP mode. After a factory reset the DHCP mode, under the Network Setup page, will be set to ON.

Using the Web Server

1. Login to the web server. Refer to Introduction to the Web Server (page 37). The default username and password are listed below:

Username: root

Password: Atlona

1. Click Settings in the menu bar.
2. Click the Factory Reset button.

1. The following message will be displayed at the top of the screen. Click OK to continue with the factory-default reset procedure. Click Cancel to abort the process.

1. Once the factory-default process is complete, the web server Login screen will be displayed.
2. The factory-reset process is complete.

Using the Front Panel

1. Verify that the AT-UHD-SW-51 is powered.
2. Select any input from 2 through 5, by pressing and releasing the INPUT button.

3. Simultaneously press and hold the INPUT and POWER buttons for 15 seconds.

4. The input indicator will switch to HDMI 1.

5. Factory reset is complete.

Audio Muting

The AT-UHD-SW-51 provides audio muting. Audio muting is applied to both HDMI OUT and AUDIO OUT ports. To de-embed the source audio, connect two RCA-type cables from the AUDIO OUT L/R ports to an audio output device. De-embedding audio is restricted to two-channel multichannel Linear PCM formats. Audio output is always downmixed to two-channel stereo.

1. Login to the web server. Refer to Introduction to the Web Server (page 37). The default username and password are listed below:

Username: root

Password: Atlona

1. Click Settings in the menu bar.
2. Locate the Audio Settings section.
3. To mute all audio, click the drop-down list and select o . To re-enable the audio for that output, select on from the drop-down list.

User Management

The AT-UHD-SW-51 allows the administrator password to be changed. The password applies to both the web server and Telnet sessions. Note that the Username eld cannot be changed. All users have the same level of access to control the AT-UHD-SW-51. However, only the root user is allowed to manage other users. Up to three additional users can be created.

Changing the Administrator Password

1. Login to the web server. Refer to Introduction to the Web Server (page 37). The default username and password are listed below:

Username: root

Password: Atlona

1. Click Con g in the menu bar.

2. Click the Password eld and enter the current password.

3. Enter the new password in the Password eld, under the New user name and password section.

4. Enter the same password in the PW again eld. Passwords must adhere to the following requirements:

NOTE: Password elds will always be masked for security purposes.

• Passwords must contain 5 - 20 characters.
• Only a combination of uppercase, lowercase, and numeric characters are supported.
• No special characters are permitted, except “-” (dash), “.” (period), and “_” (underscore).

• Passwords must include one uppercase, one lowercase, and one numeric character.

• If the password requirements are not met, the following dialog will be displayed.

• Click the Save Setting to commit changes. To login with the new username, log out or close the web session, then enter the new password on the Login page.

Adding Users

1. Login to the web server. Refer to Introduction to the Web Server (page 37). The default username and password are listed below:

Username: root

Password: Atlona

1. Click Con g in the menu bar.

2. Enter the desired username and password for the desired user eld: User 1, User 2, and User 3.

3. Click Save Setting to commit changes.

4. To login with the new username, close the web session, then enter the username and password on the Login page.

©

EDID Management

Before a source can send picture and sound to a display device, the source reads the EDID (Extended Display Identification Data) structure, which is stored in the display. The EDID contains information about what type of video and audio formats are supported by the display. The AT-UHD-SW-51 can use either the downstream EDID (from the display/sink), and stored, or use a built-in EDID preset.

• EDID Presets
- Storing EDID Data

EDID Presets

The AT-UHD-SW-51 provides the option of selecting a preset EDID. The following presets are available. For information on MEM_1 through MEM_8 settings, refer to Storing EDID Data (page 34).

IMPORTANT: If problems are encountered when using an EDID preset, try selecting the STD EDID preset.

STD The default (generic) EDID for use with most displays.

ATL 1080P 2CH 1920 x 1080p @ 60 Hz with two-channel audio support.

ATL 1080P Multi CH 1920 x 1080p @ 60 Hz with multichannel audio support.

ATL 1080P DD 1920 x 1080p @ 60 Hz with Dolby

^® Digital audio support.

ATL 1080P 3D 2CH 1920 x 1080p @ 60 Hz with 3D and two-channel audio support.

ATL 1080P 3D Multi CH 1920 x 1080p @ 60 Hz with 3D and multichannel audio support.

ATL 1080P 3D DD 1920 x 1080p @ 60 Hz with 3D and Dolby

^® Digital audio support.

ATL 720P 2CH 1280 x 720p @ 60 Hz with two-channel audio support.

ATL 720P DD 1280 x 720p @ 60 Hz with Dolby

^® Digital audio support.

ATL 1280x800 RGB 2CH 1280 x 800 @ 60 Hz with RGB color space and two-channel audio support.

ATL 1366x768 RGB 2CH 1366 x 768 @ 60 Hz with RGB color space and two-channel audio support.

ATL 1080P DVI 1920 x 1080p @ 60 Hz DVI.

ATL 1280x800 RGB DVI 1280 x 800 with RGB color space DVI.

ATL 2160P 2CH 3840 x 2160 @ 60 Hz with two-channel audio support.

ATL 2160P Multi CH 3840 x 2160 @ 60 Hz with multichannel audio support.

ATL 4K420 (4:2:0) 2CH

4096 x 2160 (DCI) @ 60 Hz with 4:2:0 chroma and two-channel audio support.

ATL 4K420 (4:2:0) Multi CH

4096 x 2160 (DCI) @ 60 Hz with 4:2:0 chroma and multichannel audio support.

MEM_1 - MEM_8

Memory presets 1 through 8

1. Login to the web server. Refer to Introduction to the Web Server (page 37). The default username and password are listed below:

Username: root Password: Atlona

1. Click EDID in the menu bar.

2. Locate the EDID Settings section.

3. Click the drop-down list, next to the port that is connected to the display device, and select the desired EDID preset. For example, if the HDMI IN 1 port is connected to a display, click the Input 1 drop-down list and select the EDID.

4. EDID preset selection is complete.

©

1. Click the drop-down list, next to the output which will be used to fetch the EDID. In this example, since the display is connected to the HDMI OUT port, a memory location next to the Output 1 option is selected. Here, the EDID will be stored in MEM_1.

2. The saved EDID will appear next to the memory location, as shown below.

Saved EDID

1. Click any of the Input drop-down list boxes. Note that the stored EDID appears as an available EDID preset for each available input on the AT-UHD-SW-51.
2. The EDID storing procedure is completed.

NOTE: Once an EDID is written to a memory location, it can be overwritten with a different EDID, when desired. To overwrite an EDID with a different EDID, repeat steps 5 through 7, above.

HDCP Content

Normally, if a source is transmitting HDCP content to a display that is not HDCP-compatible, then the resulting image on the display can be "snow", image flickering, or no picture. For example, in the illustration below, a laptop source is connected to the AT-UHD-SW-51. A non-compliant display is connected to a receiver, which is connected to the AT-UHD-EX-100CE-RX using HDBaseT.

IMPORTANT: Not all source devices are capable of transmitting non-HDCP content. For example, Sony PlayStation® gaming consoles and Mac® computers always transmit HDCP-encrypted content.

By default, the laptop may transmit HDCP content. However, when connected to a display that does not support HDCP, the laptop must be instructed to send non-HDCP content, in order for the content to be displayed.

1. Login to the web server. Refer to Introduction to the Web Server (page 37). The default username and password are listed below:

Username: root

Password: Atlona

1. Click EDID in the menu bar.
2. Locate the HDCP Settings section.
3. Click the drop-down list next to the desired input. For example, clicking the drop-down list, next to Input 2, and selecting Noncompliant will instruct the source device to send non-HDCP content, if possible.

HDCP Settings

Input 1:

Input 2:

Input 3:

Input 4:

Input 5:

Configuration and Management Interfaces

Introduction to the Web Server

The AT-UHD-SW-51 includes a built-in web server. Atlona recommends that the web server be used to set up the AT-UHD-SW-51, as it provides intuitive management of all features. Follow the instructions below to access the webGUI.

1. Make sure that an Ethernet cable is connected between the LAN port on the AT-UHD-SW-51 and the network.
2. Launch a web browser and enter the IP address of the unit. If the default static IP address is being used, enter 192.168.1.254.
3. The AT-UHD-SW-51 Login page will be displayed.

1. Enter the username and password in the Username and Password fields. The default username and password are listed below:

Username: root

Password: Atlona

1. Click the Login button or press the ENTER key on the keyboard.

Configuration and Management Interfaces

Home Page

After logging in, the Home page will be displayed. The Info page provides various information about the AT-UHD-SW-51, including software version and video information.

Model

The model SKU of this product.

Firmware Version

The version of firmware that the AT-UHD-SW-51 is running. Always make sure to check the AT-UHD-SW-51 product page, on the Atlona web site, for the latest version of firmware.

On-Time(d-h:m:s)

Displays how long the system has been powered since the last reboot/reset.

Active Input

The currently selected (active) input.

Signal Type

The type of input signal.

Video Format

The input resolution of the source device.

Aspect

Aspect ratio of the input signal.

Color Space

Displays the color space and chroma sub-sampling of the input signal.

Color Depth

The color depth of the input signal.

Configuration and Management Interfaces

Network Setup Page

The Network Setup page provides information about the current network settings of the AT-UHD-SW-51. In addition, the network mode, Telnet port, and hostname can be assigned from this page.

DHCP

Click the desired setting to switch the AT-UHD-SW-51 to ON or OFF mode. The default setting is ON mode. When set to OFF, the AT-UHD-SW-51 will be set to static IP mode. Refer to Changing the Network IP Mode (page 18) for more information.

IP Address

Enter the IP address of the AT-UHD-SW-51 in this field. This field will only be available when DHCP is set to OFF. The default static IP address of the AT-UHD-SW-51 is 192.168.1.254.

Subnet

Enter the subnet mask of the AT-UHD-SW-51 in this field. This field will only be available when DHCP is set to OFF.

Gateway

Enter the gateway (router) IP address in this field. This field will only be available when DHCP is set to OFF.

Telnet Port

Enter the desired Telnet port (for Telnet sessions) in this field. The default port is 23. Refer to Changing the Telnet Port (page 20) for more information.

Hostname

Displays the hostname of the AT-UHD-SW-51, as it would appear on a network. To change the hostname, type the new hostname in this field. Refer to Setting the Host Name (page 22) for more information.

Login Mode

Click the desired setting to switch the Telnet Login Mode to ON or OFF. If set to ON, then login credentials (same as web server) will be required when starting a Telnet session.

MAC Address

This field displays the MAC address of the AT-UHD-SW-51.

Con guration and Management Interfaces

Settings Page

The Settings page is divided into three sections: System, Video, and Audio. The Systems allows control of auto switching. The Video section provides controls for input selection. The Audio section provides options to control the output audio volume and muting.

Auto Switch

Click this drop-down list to set auto-switching to on or off. The default settings is off. When set to on, the AT-UHD-SW-51 will automatically switch to the last-connected port. Refer to Enabling / Disabling Auto-Switching (page 23).

Source

Click this drop-down list to select the desired input. Available inputs are HDMI IN 1 through HDMI IN 5.

Output 1

Click this drop-down list to control audio output muting. If set to off, then all audio output will be muted.

Factory Default

Click this button to reset the current page to factory-default settings. Note that clicking this button does not reset the AT-UHD-SW-51 to factory settings.

Configuration and Management Interfaces

Config Page

The Config page provides management of the administrator password. The administrator username ("root") cannot be changed. Refer to User Management (page 28) for more information. Up to three additional users can be managed within this page. This page also provides settings for both local and HDBaseT RS-232 control.

Username (old)

This field cannot be changed. "root" is the administrator user.

Password (old)

Enter the current password for the "root" username in this field. The default password is "Atlona".

Username (new)

Enter the new username in this field.

Password (new)

Enter the new password in this field.

PW again

Verify the new password by retyping it in this field.

User 1 - User 3

Enter the username and password for each user in the respective fields. Click Delete to remove a user.

Configuration and Management Interfaces

System

Sets the RS-232 port settings and used for local control by a third-party control system.

Setting Description

Baud rate Sets the baud rate. The following options are available: 2400, 9600, 19200, 38400, 56000, 57600, 115200.

Data bit Sets the number of data bits used to represent each character of data. The following options are available: 7 or 8.

Parity Sets the parity bit, which can be included with each character to detect errors during the transmission of data. The following options are available: None, Odd, or Even.

Stop bit Sets the stop bit. Stop bits are sent at the end of each character, allowing the client to detect the end of a character stream. The following options are available: 1 or 2.

Factory Default

Click the Factory Default button to reset the current page to factory-default settings. Note that clicking this button does not reset the AT-UHD-SW-51 to factory settings.

Configuration and Management Interfaces

EDID Page

This page provides controls for selecting and storing EDID data. Refer to EDID Management (page 32) for more information.

EDID Settings

Click these drop-down lists to select the desired EDID to be used for each input. The following EDID presets are available. When selecting an EDID, make sure that the display/sink device is capable of supporting the resolution/timing. If the sink device is not able to support a feature, then the source will not be displayed. Selecting the STD EDID will provide the most compatible settings for most displays. In addition, eight memory locations are available for storing captured EDID data. If an EDID is stored in a memory location, it will also be added to the list available EDID selections.

EDID listing
STD ATL 2160P 2CH
ATL 1080P 2CH ATL 2160P Multi CH
ATL 1080P Multi CH ATL 4K420 (4:2:0) 2CH
ATL 1080P DD ATL 4K420 (4:2:0) Multi CH
ATL 1080P 3D 2CH MEM_1
ATL 1080P 3D Multi CH MEM_2
ATL 1080P 3D DD MEM_3
ATL 720P 2CH MEM_4
ATL 720P DD MEM_5
ATL 1280x800 RGB 2CH MEM_6
ATL 1366x768 RGB 2CH MEM_7
ATL 1080P DVI MEM_8
ATL 1280x800 RGB DVI

Con guration and Management Interfaces

HDCP Settings

Each input provides control of how HDCP content is handled. Some source devices will send HDCP content if an HDCP-compliant display (sink) is detected. However, there may be applications where sending HDCP content is not desired. Setting the port to the OFF position, will instruct the source to send non-HDCP content to the display. Note that not all sources have this capability.

NOTE: Setting this feature to OFF, for any source, does not provide decryption of HDCP content to non-HDCP compliant sink devices. Sources such as Mac ^® computers and the Sony PlayStation ^® will always transmit HDCP content.

- Compliant

When set to Compliant, the source will transmit HDCP content to the AT-UHD-SW-51.

- Noncompliant

When set to Noncompliant, non-HDCP content will be transmitted (if possible) to the AT-UHD-SW-51.

EDID Saved

The AT-UHD-SW-51 provides eight memory locations used for storing captured EDID data. Click these drop-down lists to select and store the external EDID. Output 1 refers to the HDMI OUT 1 port and Output 2 refers to the HDMI OUT 2 port.

Factory Default

Click the Factory Default button to reset the current page to factory-default settings. Note that clicking this button does not reset the AT-UHD-SW-51 to factory settings.

Con guration and Management Interfaces

Update Page

This page provides management for updating the AT-UHD-SW-51 rmware.

Choose File

Click this button to select the rmware le to be uploaded to the AT-UHD-SW-51. Note that this button is available for both the "master" rmware and Valens chip update.

Upload

Click this button to begin the rmware update process. Note that this button is available for both the "master" rmware and Valens chip update.

Appendix

Updating the Firmware

Updating the firmware can be completed using either the USB interface or the built-in web server.

Atlona recommends using the web server for updating the firmware. However, if a network connection is not available, the AT-UHD-SW-51 firmware can be updated using a USB-A to USB mini-B cable.

Using the Web Server

Requirements:

• AT-UHD-SW-51

• Firmware file
  • Computer on the same network as the AT-UHD-SW-51

• Download the firmware file from atlona.com and extract the contents of the .zip file to a folder on the computer desktop.

• Connect an Ethernet cable from the computer, containing the firmware, to the same network where the AT-UHD-SW-51 is connected.
• Login to the web server. Refer to Introduction to the Web Server (page 37). The default username and password are listed below:

Username: root

Password: Atlona

1. Click Update in the menu bar, then click the Choose File button, under the Firmware Update section.

2. Browse to the location of the firmware file, select it, and click the Open button.

1. Click the Upload button, under the Firmware Update section.
2. A progress bar will be displayed during the update process. After the update is complete, and if a restart is required, the web server will display a prompt.
3. The AT-UHD-SW-51 is now ready for use.

Using the USB Interface

Requirements:

• AT-UHD-SW-51

• Firmware file
  • Computer with a USB port
  • USB-A to USB mini-B cable

• Download the firmware file from atlona.com and extract the contents of the .zip file to a folder on the computer desktop.

• Disconnect power from the AT-UHD-SW-51.
• Connect the USB-A to USB mini-B cable between the computer and the FW port on the AT-UHD-SW-51.

1. Simultaneously press and hold down the INPUT button on the front panel, while connecting the power supply to the AT-UHD-SW-51. Continue to hold down the INPUT key for five seconds AFTER the power supply has been connected.
2. Release the INPUT key.

1. The USB UPDATE folder will be displayed.

If this folder is not displayed, automatically, select the USB UPDATE drive from Windows Explorer.

Appendix

1. Delete all files from the USB UPDATE drive, if any are present.
2. Drag-and-drop the firmware file to the drive.
3. After the file has been copied, disconnect the USB cable from both the computer and the AT-UHD-SW-51.
4. Power-cycle the AT-UHD-SW-51.
5. The firmware update process is complete and the AT-UHD-SW-51 is now ready for use.

Appendix

Mounting Instructions

The AT-UHD-SW-51 includes two mounting brackets, which can be used to attach the unit to any flat surface. Use the two enclosure screws, on the sides of the unit to attach the mounting brackets.

Single Unit Rack Installation

1. Attach the included small rack ear to one side of the AT-UHD-SW-51, using the included screws.
2. Attach the included longer rack ear to the opposite side of the AT-UHD-SW-51 using the included screws.

3D rendering of a black ATLGN4 network device with attached cable and connector (no visible text or symbols on the device body)

Appendix

Dual Unit Rack Installation

1. Turn both units upside-down on a flat surface, next to each other, as shown.
2. Position the included mounting plate over the pre-drilled holes on the bottom of the enclosure. When attaching the mounting plate, the countersink bevels on the mounting plate should face upward.

1. Turn the attached units over and install the rack ears (sold separately) to one side of each enclosure using the included screws.

Exterior view of two black HAC-LVD electronic devices with indicator lights and ports (no readable text or symbols)

Appendix

Flat Surface

1. Turn the unit upside down, on a flat surface.

2. Position the included mounting plates over the pre-drilled holes on the bottom of the enclosure. When attaching mounting plates, the countersink bevels on the mounting plates should face upward.

Black electronic device with labeled ports and connectors (no readable text or symbols)

1. Mount the unit using the circular holes, on each mounting plate. If using a drywall surface, a #6 drywall screw is recommended. Mounting screws are not included.

3D rendering of a black electronic device labeled 'ATLON' with ports and connectors, no readable text or symbols beyond branding and labels.

NOTE: The unit can also be mounted under a flat surface, such as a table, by turning the unit upside down.

IR Remote Control

NOTE: The AT-UHD-SW-51 no longer ships with an IR remote control. However, IR documentation remains for units currently in the field.

IMPORTANT: The AT-SW-R1 IR remote can be used to control the AT-UHD-SW-51 from a maximum distance of 15 feet (4.5 meters). Exceeding this distance may result in unreliable behavior. In addition, environmental lighting conditions, such as florent bulbs, high-intensity light (sunlight), and other factors may also affect IR operation.

NOTE: The buttons under the Setup section do not function with the AT-UHD-SW-51.

1 Power On Off

Press the On button to power on the unit or press the Off button to turn off the unit.

2 Video All On

Press this button to enable video output on both HDMI 1 and HDMI 2.

3 Video 1 On Off / Video 2 On Off

Press these buttons to enable or disable video output on HDMI 1 or HDMI 2. Press the On button to enable video output. Press the Off button to disable video output.

4 Input

Press these button to select the desired HDMI input.

5 Audio Vol + / Vol - / Mute

Press the Vol + button to increase the output volume level or press the Vol - button to decrease the output volume. Press the Mute button to mute the audio output.

Specifications

Video
Signal Type HDMI
HDCP 1.4
Pixel Clock 300MHz
UHD/HD/SD	4096 × 2160@60^(1)/50^(1)/30/25/24Hz 3840 × 2160@60^(1)/50^(1)/30/25/24Hz 2048 × 1080p 1920 × 1080p@60/59.94/50/30/29.97/25/24/23.98Hz 1920 × 1080i@60/59.94/50Hz	1280 × 720p@60/59.94/50Hz 720 × 576p 720 × 576i 640 × 480p 640 × 480i
VESA	2560 × 2048 2560 × 1600 2048 × 1536 1920 × 1200 1680 × 1050 1600 × 1200 1600 × 900 1440 × 900 1400 × 1050	1366 × 768 1360 × 768 1280 × 1024 1280 × 800 1280 × 768 1152 × 768 1024 × 768 800 × 600 640 × 480
Color Space	YUV, RGB
Chroma Subsampling	4:4:4, 4:2:2, 4:2:0
Color Depth	8-bit, 10-bit, 12-bit

Audio
HDMI / HDBaseTPass-Through Formats	PCM 2.0LPCM 5.1LPCM 7.1	Dolby® DigitalDolby Digital PlusTMDolby TrueHDDolby Atmos®	DTS® Digital SurroundTM DTS-HD Master AudioTM DTS:X®
S/PDIF PCM 2.0 Dolby® DigitalBit Depth Up to 24 bits	DTS-HD Master AudioTM
Analog Audio
Format unbalanced, LPCM 2.0 only
Sample Rate 32 kHz, 44.1 kHz,	48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

Control
RS-232 Device control and configuration	Bidirectional pass-through from control system over HDBaseT Supported baud rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
IP Protocols: HTTPS, Telnet, mDNS	Modes: DHCP, Static - selectable through front panel and web server
CEC Support Yes

Resolution / Distance	4K/UHD - Feet / Meters 1080p - Feet / Meters
HDMI IN/OUT	15	5	30	10

Buttons and Indicators
Buttons:POWER, INPUT	2 - momentary, tact-type
Indicators:HDMI 1 - HDMI 5VOLUME	5 - LED, blue9 - LED, green, amber, red

Appendix

Connectors
HDMI IN	5 – Type A, 19-pin female
HDMI OUT	1 – Type A, 19-pin female
LAN	1 - RJ45, 10/100 Mbps
AUDIO OUT	2 – RCA-type, unbalanced 2-channel
S/PDIF OUT	1 – RCA-type, female
RS-232	1 – 3-pin captive screw (bidirectional)
FW	1 – Mini USB
PWR	1 - 2-pin captive screw

Temperature Fahrenheit Celsius
Operating +32 to +122 0 to +50Storage -4 to +140 -20 to +60
Humidity (RH) 20% to 90%, non-condensing

Power
Consumption 5.94 WSupply Input: 100 - 240 V AC, 50/60 HzOutput: 5 V / 3.6 A DC

Dimensions (H x W x D) Inches Millimeters
Unit 1.73 x 8.64 x 10 44 x 219 x 254
Power Supply 1.2 x 2 x 3.2 30 x 50 x 81

Weight Pounds Kilograms
Device	1.40	3.10

Certification
Device	CE, FCC
Power Supply CE, FCC, cULus,	RCM

Accessories

SKU	Description
AT-LC-H2H-1M	LinkConnect HDMI to HDMI 1 Meter Cable
AT-LC-H2H-2M	LinkConnect HDMI to HDMI 2 Meter Cable
AT-LC-H2H-3M	LinkConnect HDMI to HDMI 3 Meter Cable

Footnotes

(1) 4096×2160 @ 50/60 Hz and 3840×2160 @ 50/60Hz supported @ chroma subsampling 4:2:0 8-bit only.
