AT-UHD-CLSO-601 - Router Atlona - Free user manual and instructions

Product Type	HDBaseT Switcher with scaling, matrix routing
Dimensions (H x W x D)	1.73 x 17.08 x 10.04 in (44 x 433.8 x 255 mm)
Weight	6.9 lb (3.12 kg)
Power Supply	External 48 V / 3.125 A DC; consumption 33 W
Video Inputs	4 x HDMI (Type A, 19-pin female), 2 x VGA/analog multi-function (DE-15, 15-pin female)
Video Outputs	1 x HDMI (Type A), 1 x HDBaseT (RJ45)
Maximum Resolution	4K @ 30Hz (3840x2160 or 4096x2160)
Audio Inputs	1 x MIC/Line (3-pin captive screw), 2 x balanced analog audio (6-pin captive screw), 4 x HDMI embedded
Audio Output	1 x balanced analog audio (6-pin captive screw), HDMI/HDBaseT pass-through
Control Interfaces	RS-232 (captive screw), IR (5-pin captive screw), TCP/IP (RJ45, 10/100/1000), WebGUI, front panel, OSD
HDBaseT Distance	Up to 330 ft (100 m) at 1080p, 295 ft (90 m) at 4K on CAT5e
Special Features	Auto switching, EDID management, scaling (up/down), mic ducking, independent audio switching, IP to RS-232 conversion
Operating Temperature	32 to 122 °F (0 to 50 °C)
Storage Temperature	-4 to 140 °F (-20 to 60 °C)
Humidity	20% to 90% non-condensing
Certifications	CE, FCC (Class A), cULus, RoHS, CCC, RCM
Warranty	10 years (new products purchased after June 1, 2013)
Maintenance	Clean with dry cloth; no user-serviceable parts
Safety	Do not expose to rain/moisture; unplug during storms; refer servicing to qualified personnel

Frequently Asked Questions - AT-UHD-CLSO-601 Atlona

How do I update the firmware on the AT-UHD-CLSO-601?

To update firmware, download the latest file from atlona.com. Connect the unit to a PC via mini USB port while holding the corresponding input button (Input 1 for main, Input 2 for OSD, etc.) during power-on. Then copy the firmware file to the removable drive that appears. Detailed instructions are in the Appendix of the manual.

What is the maximum distance for HDBaseT transmission?

For 1080p signals, the maximum distance is 330 feet (100 meters) using CAT6/6a/7 cable. For 4K signals, the maximum distance is 295 feet (90 meters) on CAT5e and 330 feet (100 meters) on CAT6/6a/7.

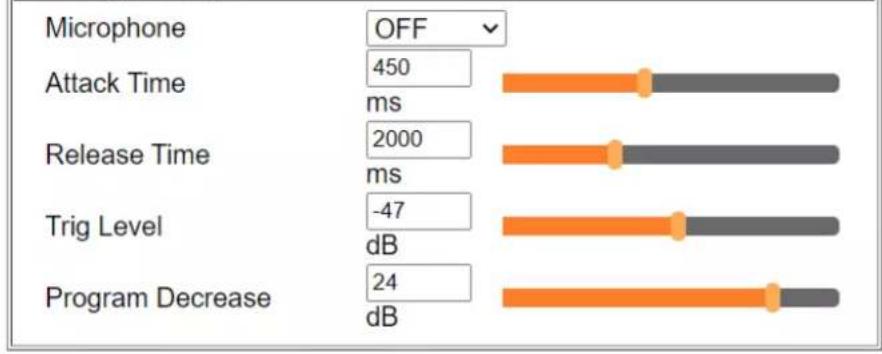

How do I set up microphone ducking?

Connect a microphone to the MIC/LINE input and set the dip switch accordingly. In the Audio section of the WebGUI, enable ducking, then adjust Attack Time, Release Time, Trig Level, and Program Decrease. Start with master volume at 0 dB, then set microphone volume just below feedback. Fine-tune for best results.

What video resolutions are supported?

The switcher supports resolutions up to 4K @ 30Hz (3840x2160 and 4096x2160). It also supports all standard HD resolutions including 1080p, 1080i, 720p, 576p, 480p, plus many VESA PC resolutions from 640x480 to 2560x1440. Scaling can convert between resolutions.

Can I control the switcher via a web browser?

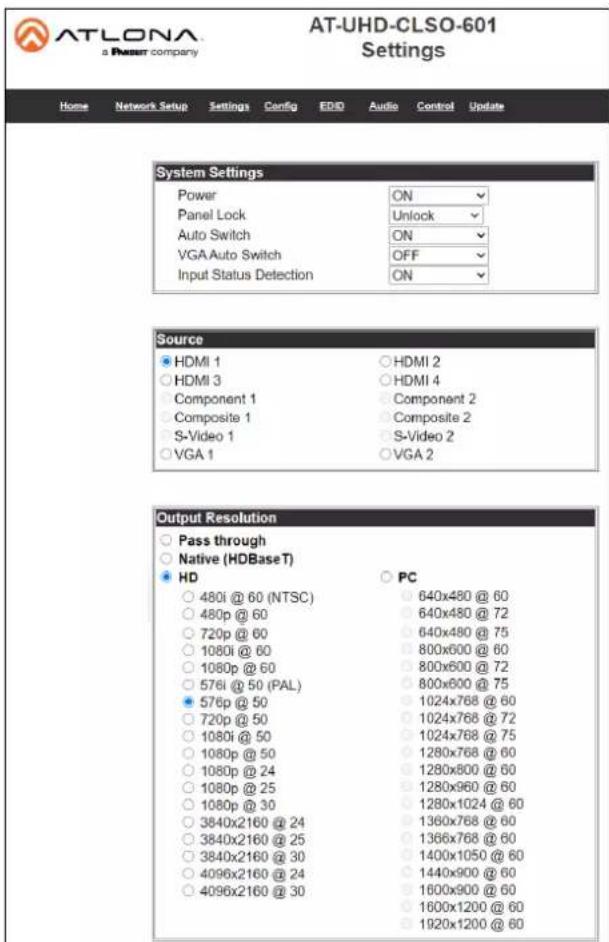

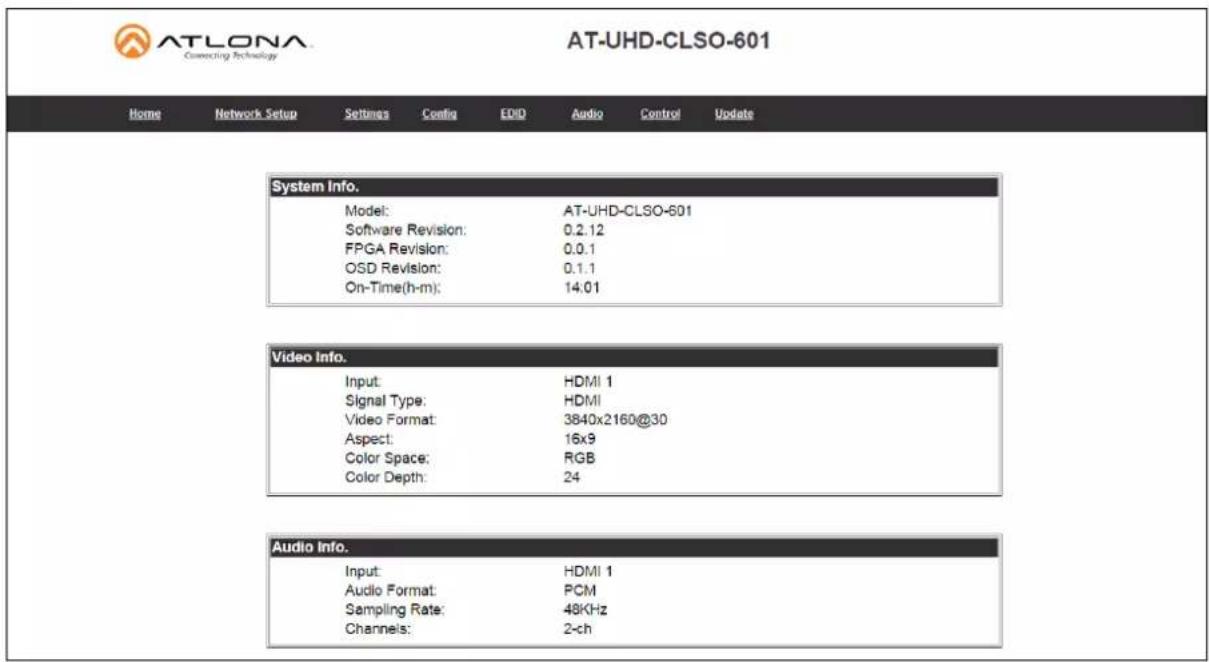

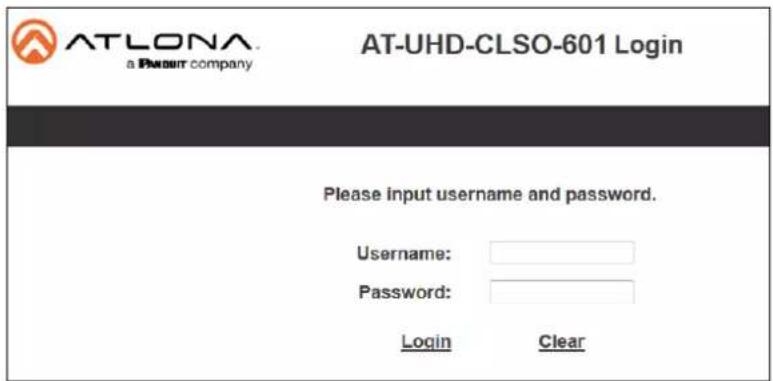

Yes. Connect the unit to the network, find its IP address (using an IP scanner), and enter that IP in a browser. The default login is root and password Atlona. The WebGUI provides full control over routing, EDID, audio, and settings.

What is the warranty period for the AT-UHD-CLSO-601?

For new products purchased on or after June 1, 2013, the warranty is 10 years from the date of purchase. It covers defects in materials and workmanship. Atlona will repair, replace, or refund at its discretion.

How do I connect RS-232 for control?

Use the 3-pin captive screw connector labeled MASTER RS-232. Connect TX, RX, and GND to your control system. The default baud rate is 9600 (other rates supported). Commands are available in the API document.

What types of analog video signals can be connected to the VGA inputs?

The multifunction inputs accept VGA (with DDC), RGBHV, component (YUV), S-Video, and composite video. Use appropriate breakout cables or adapters. Audio can be embedded via the captive screw connectors.

How do I rack-mount the device?

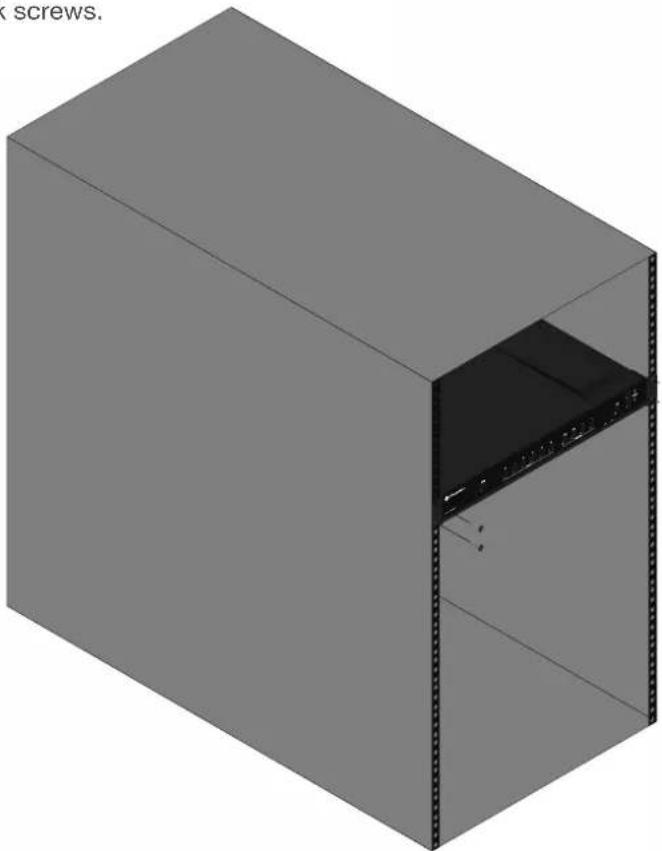

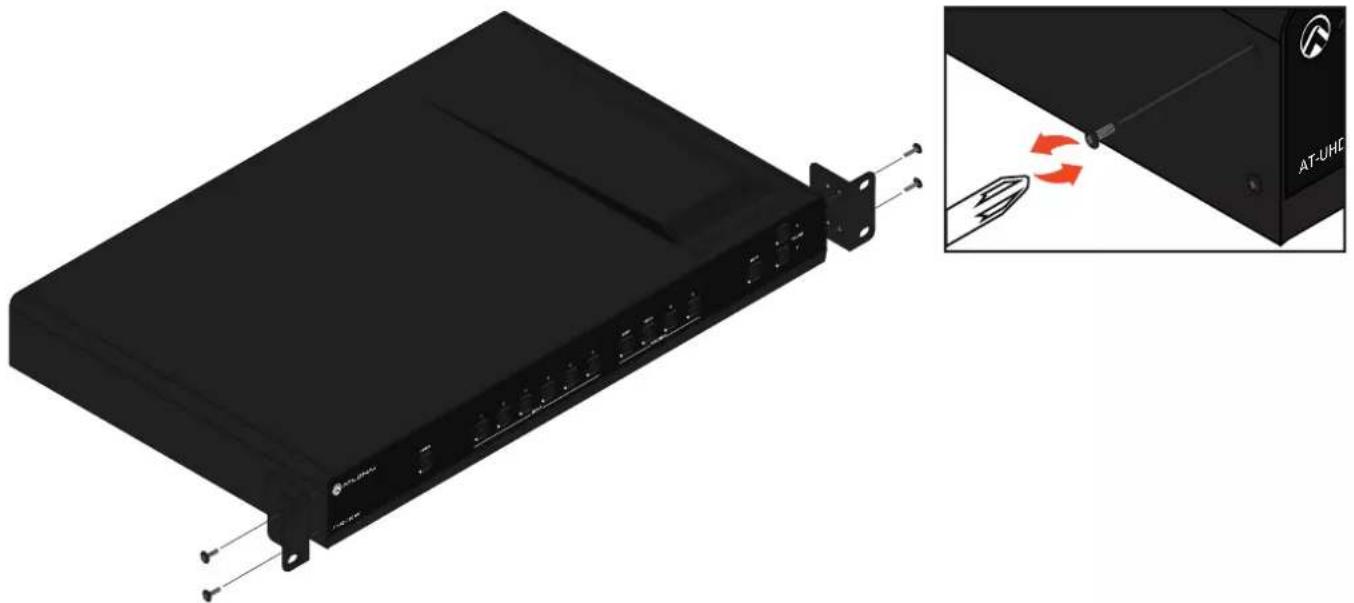

Remove the front two case screws, attach the included rack ears to each side using those screws, then install the unit in a standard 19-inch rack using four rack screws. Ensure proper airflow and weight distribution.

Is there a factory reset procedure?

The manual does not specify a dedicated factory reset button. To reset settings, you can reload the firmware via the Update page in the WebGUI or re-flash the firmware using the USB method. Alternatively, restoring defaults may be done through the Config menu (if available) or by contacting Atlona support.

USER MANUAL AT-UHD-CLSO-601 Atlona

Version Release Date Notes

1 Oct 2021 Updated to new manual format

Sales, Marketing, and Customer Support

Main Office

Atlona Incorporated

70 Daggett Drive

San Jose, CA 95134

United States

Office: +1.877.536.3976 (US Toll-free)

Office: +1.408.962.0515 (US/International)

Sales and Customer Service Hours

Monday - Friday: 6:00 a.m. - 4:30 p.m. (PST)

http://atlona.com/

International Headquarters

Atlona International AG

Tödistrasse 18

8002 Zürich

Switzerland

Office: +41.43.508.4321

Sales and Customer Service Hours

Monday - Friday: 09:00 - 17:00 (UTC +1)

Operating Notes

IMPORTANT: Visit http://atlona.com/product/AT-UHD-CLSO-601 for the latest firmware updates and User Manual.

Atlona, Inc. ("Atlona") Limited Product Warranty

Coverage

Atlona warrants its products will substantially perform to their published specifications and will be free from defects in materials and workmanship under normal use, conditions and service.

Under its Limited Product Warranty, Atlona, at its sole discretion, will either:

- repair or facilitate the repair of defective products within a reasonable period of time, restore products to their proper operating condition and return defective products free of any charge for necessary parts, labor and shipping.

OR

- replace and return, free of charge, any defective products with direct replacement or with similar products deemed by Atlona to perform substantially the same function as the original products.

OR

- refund the pro-rated value based on the remaining term of the warranty period, not to exceed MSRP, in cases where products are beyond repair and/or no direct or substantially similar replacement products exist.

Repair, replacement or refund of Atlona products is the purchaser's exclusive remedy and Atlona liability does not extend to any other damages, incidental, consequential or otherwise.

This Limited Product Warranty extends to the original end-user purchaser of Atlona products and is non-transferrable to any subsequent purchaser(s) or owner(s) of these products.

Coverage Periods

Atlona Limited Product Warranty Period begins on the date of purchase by the end-purchaser. The date contained on the end-purchaser 's sales or delivery receipt is the proof purchase date.

Limited Product Warranty Terms – New Products

• 10 years from proof of purchase date for hardware/electronics products purchased on or after June 1, 2013.
• 3 years from proof of purchase date for hardware/electronics products purchased before June 1, 2013.
• Lifetime Limited Product Warranty for all cable products.

Limited Product Warranty Terms - Refurbished (B-Stock) Products and Discontinued Products

- 3 years from proof of purchase date for all Refurbished (B-Stock) and Discontinued hardware and electronic products purchased on or after June 1, 2013.

Remedy

Atlona recommends that end-purchasers contact their authorized Atlona dealer or reseller from whom they purchased their products. Atlona can also be contacted directly. Visit atlona.com for Atlona's contact information and hours of operation. Atlona requires that a dated sales or delivery receipt from an authorized dealer, reseller or end-purchaser is provided before Atlona extends its warranty services. Additionally, a return merchandise authorization (RMA) and/or case number, is required to be obtained from Atlona in advance of returns.

Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408-962-0515 (US/international) or via Atlona's website at atlona.com.

Exclusions

This Limited Product Warranty excludes:

- Damage, deterioration or malfunction caused by any alteration, modification, improper use, neglect, improper packaging or shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature.

Atlona, Inc. ("Atlona") Limited Product Warranty

• Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.
• Equipment enclosures, cables, power supplies, batteries, LCD displays, and any accessories used in conjunction with the product(s).
• Products purchased from unauthorized distributors, dealers, resellers, auction websites and similar unauthorized channels of distribution.

Disclaimers

This Limited Product Warranty does not imply that the electronic components contained within Atlona's products will not become obsolete nor does it imply Atlona products or their electronic components will remain compatible with any other current product, technology or any future products or technologies in which Atlona's products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.

Limitation on Liability

The maximum liability of Atlona under this limited product warranty shall not exceed the original Atlona MSRP for its products. To the maximum extent permitted by law, Atlona is not responsible for the direct, special, incidental or consequential damages resulting from any breach of warranty or condition, or under any other legal theory. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

To the maximum extent permitted by law, this limited product warranty and the remedies set forth above are exclusive and in lieu of all other warranties, remedies and conditions, whether oral or written, express or implied. To the maximum extent permitted by law, Atlona specifically disclaims all implied warranties, including, without limitation, warranties of merchantability and fitness for a particular purpose. If Atlona cannot lawfully disclaim or exclude implied warranties under applicable law, then all implied warranties covering its products including warranties of merchantability and fitness for a particular purpose, shall provide to its products under applicable law. If any product to which this limited warranty applies is a “Consumer Product” under the Magnuson-Moss Warranty Act (15 U.S.C.A. §2301, ET SEQ.) or other applicable law, the foregoing disclaimer of implied warranties shall not apply, and all implied warranties on its products, including warranties of merchantability and fitness for the particular purpose, shall apply as provided under applicable law.

Other Conditions

Atlona's Limited Product Warranty offering gives legal rights, and other rights may apply and vary from country to country or state to state. This limited warranty is void if (i) the label bearing the serial number of products have been removed or defaced, (ii) products are not purchased from an authorized Atlona dealer or reseller. A comprehensive list of Atlona's authorized distributors, dealers and resellers can be found at atlona.com.

Safety and Certification

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCT THE RISK OF

ELECTRIC SHOCK

DO NOT OPEN ENCLOSURE OR EXPOSE

TO RAIN OR MOISTURE.

NO USER-SERVICEABLE PARTS

INSIDE REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the product.

The information bubble is intended to alert the user to helpful or optional operational instructions in the literature accompanying the product.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this product near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install or place this product near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of a polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
11. Only use attachments/accessories specified by Atlona.
12. To reduce the risk of electric shock and/or damage to this product, never handle or touch this unit or power cord if your hands are wet or damp. Do not expose this product to rain or moisture.
13. Unplug this product during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.

FCC Compliance

FCC Compliance and Advisory Statement: This hardware device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4) consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations.

Copyright, Trademark, and Registration

© 2021 Atlona Inc. All rights reserved. "Atlona" and the Atlona logo are registered trademarks of Atlona Inc. Pricing, specifications and availability subject to change without notice. Actual products, product images, and online product images may vary from images shown here.

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI licensing Administrator, Inc.

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, and Digital Surround are registered trademarks and/or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

All other trademark(s), copyright(s), and registered technologies mentioned in this document are the properties of their respective owner(s).

Table of Contents

Introduction 8

Features 8

Package Contents 8

Panel Description 9

Installation 10

Captive Screw Connections 10

Cable Recommendation Guidelines 11

Mounting Instructions 12

Analog Multi-Function Inputs 13

Control 14

CEC 14

RS-232 14

TCP/IP 14

WebGUI 14

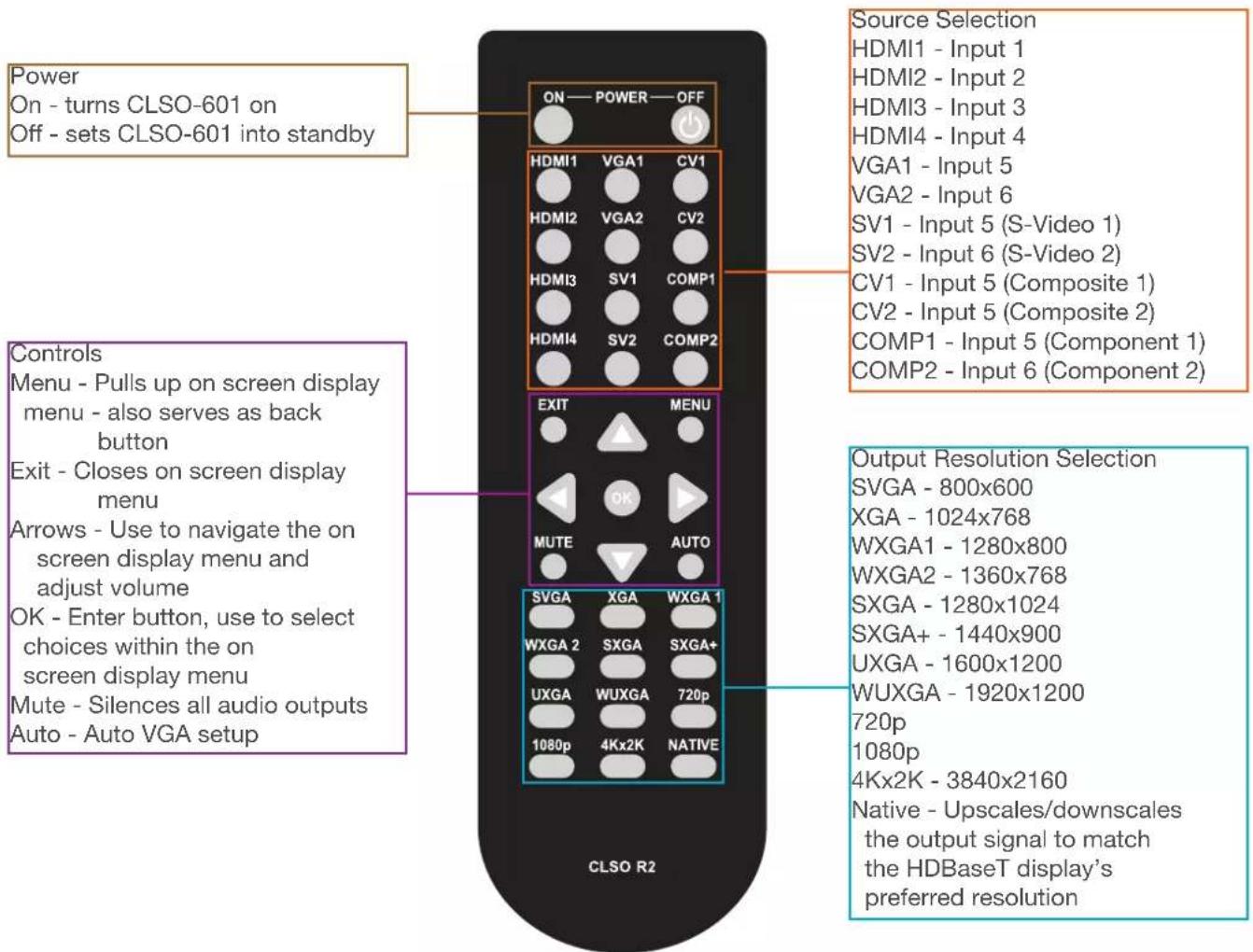

IR Remote 15

On-Screen Display (OSD) 16

WebGUI 19

Network Setup 20

Settings 21

Config 23

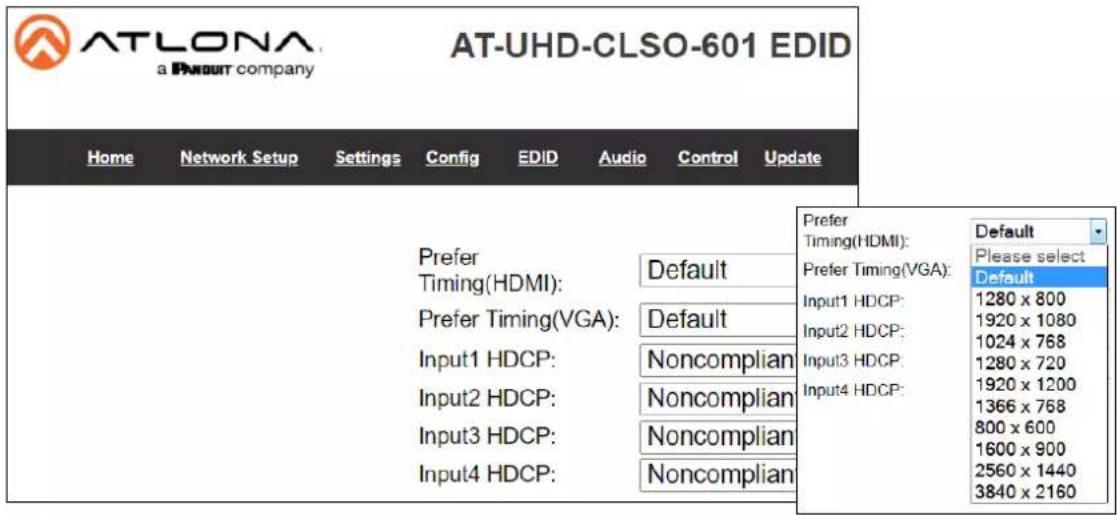

EDID 24

Audio 25

Control 27

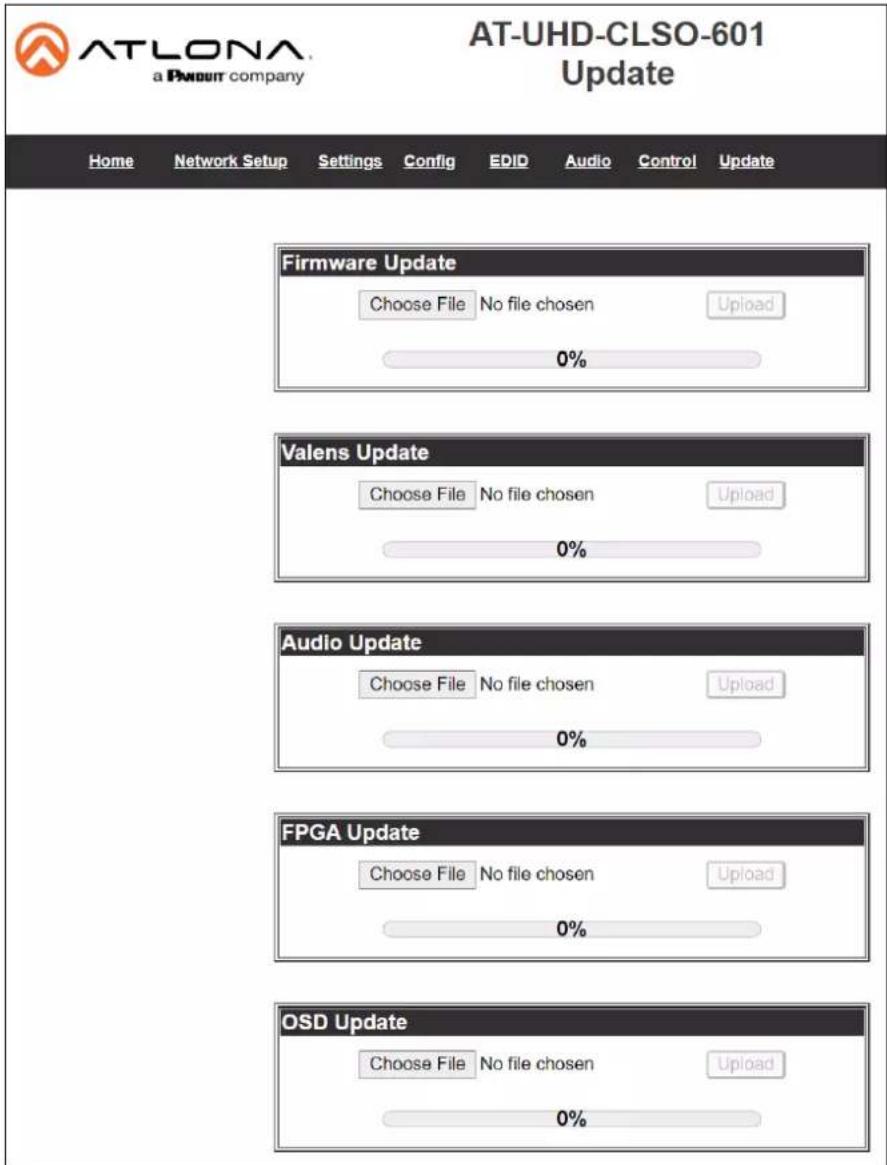

Update 30

Appendix 31

Updating the Firmware 31

Specifications 32

Introduction

Easy to integrate, the CLSO-601 was designed for conference and classrooms with inputs near the switcher. Displays can be up to 328 feet (100 meters) from the switcher with HDBaseT outputs. Local HDMI and multifunction analog inputs work with any source. Combined with great features such as: 4K up/down scaling, microphone ducking, and audio control, this is the core component of your AV presentation system.

Features

• Four HDMI inputs (accepts DVI and DisplayPort with adaptors)
• Multifunctional VGA ports for RGBHV, component, S-Video, and composite signals
• Microphone (dynamic, phantom, and line) input with ducking
• HDBaseT output mirrored to HDMI output
• PoE output to power compatible receivers (e.g. AT-UHD-EX-100CE-RX)
• Auto switching - automated switching to last connected source without using a control system
  • Balanced audio inputs for embedding audio
  • DID management options including internal and learned EDID
  • Balanced (-10 dbu) analog audio output for de-embedding audio to amplifiers or audio systems
• Upscaling and downscaling to ensure compatibility with any display up to 4K @ 30Hz resolution
  • Control via RS-232, IR, TCP/IP, WebGUI, front panel, and multi-language On-Screen Display
• Multi-channel audio pass through up to Dolby TrueHD or DTS-HD Master Audio
  • Master and sub volume control
• Adjust treble and bass of audio output to ensure the best speaker performance
• IP to RS-232 conversion enables TCP/IP commands to be sent using RS-232 ports
• Independent audio switching enables analog audio inputs to be embedded on any video input
  • Multiple RS-232 ports for source control
  • HDCP Compliance and management

Package Contents

1 x AT-UHD-CLSO-601
16 x Female Captive Screw Connector
6 pin: audio (x3) - 5 pin: IR (x1) - 3 pin: RS-232 (x8) - 3 pin: MIC/Line (x1) - 2 pin: power (x1)
1 x IR Remote Control
1 x Pair of dual purpose wall/rack mounts
1 x 48V/3.125A DC power supply adaptor
1 x IEC power cord
1 x Installation Guide

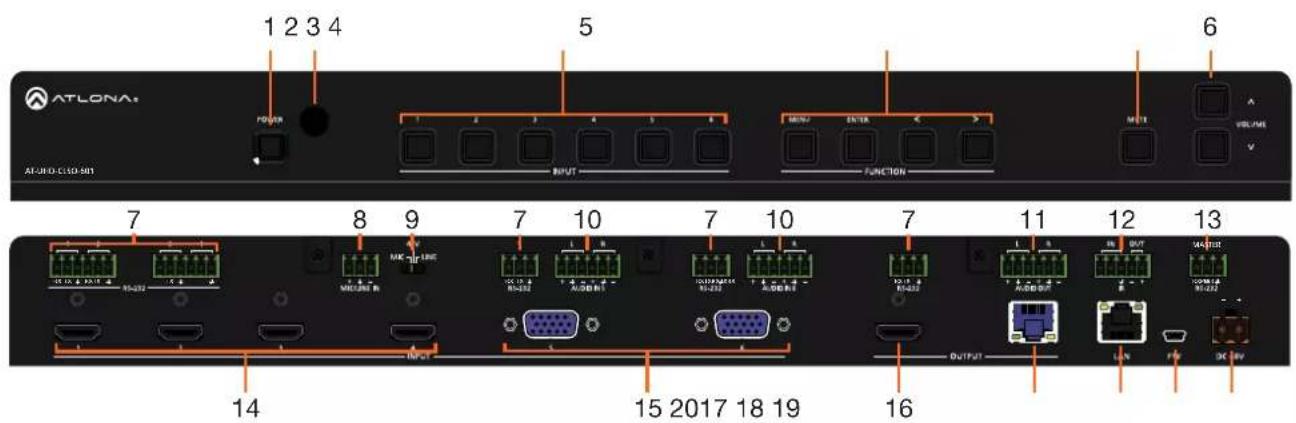

Panel Description

1 POWER button

Use to turn the unit on or place into standby. LED will illuminate blue for on and red for standby.

2 INPUT buttons

Select the button that corresponds with the inputs.

The currently selected input will illuminate blue.

3 INPUT buttons

Select the button that corresponds with the inputs.

The currently selected input will illuminate blue.

4 FUNCTION buttons

Use these buttons to open, navigate, and select items within the on screen display menu.

5 MUTE Button

Use to mute and unmute the output audio.

6 Volume Buttons

Increase and decrease the output volume.

7 RS-232

Use for device control.

8 MIC/LINE IN

Connect microphone or line input to this port.

9 MIC/LINE Dip Switch

Use to switch between MIC, 48V, and line level input.

10 AUDIO IN

Connect 2CH audio sources to these ports.

11 AUDIO OUT

Connect to an audio DSP, amplifier, or other audio distribution devices.

12 IR IN/OUT

Connect an a control system or IR receiver to the IR IN port. Connect an IR blaster/emitter to the IR OUT port for local device control.

13 MASTER RS-232

Connect a control system to this port for control of the switcher.

14 HDMI IN

Connect HDMI sources here (DVI or DisplayPort compatible with adapters).

15 VGA IN

Connect analog video sources here. Compatible with component, composite, and S-Video signals.

16 HDMI OUT

Connect to a local display.

17 HDBaseT OUT

Connect a CAT5e/6/6a/7 cable from this port to a compatible HDBaseT receiver or HDBaseT display. (e.g. AT-UHD-EX-100CE-RX).

18 LAN

Connect an Ethernet cable from this port to a Local Area Network (LAN).

19 FW

Connect a mini USB cable from this port to a PC to firmware update the unit.

20 DC 48V

Connect the included DC 48V power supply to this port.

Installation

Captive Screw Connections

RS-232

A 3-pin captive screw connector has been included for RS-232.

Green 3D model of a mechanical connector or terminal block (no text or symbols visible)

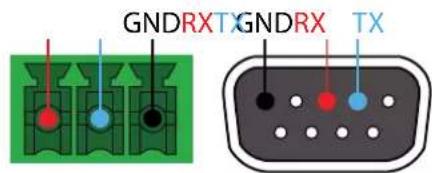

Pin out will be determined by the RS-232 cable and connect as RX (receive), TX (transmit) and 1= (Ground). Ground will be shared between port 1 and port 2.

IR

A 5-pin captive screw connector has been included for IR control of the unit and local devices. Connect a control system or IR receiver to the IR IN port and a IR emitter to the IR OUT port.

Green 3D component with multiple slots and mounting holes (no text or symbols)

IR IN is connected by a power, ground, and signal wire. Use a 12V IR receiver with this port or connect a compatible control system. (e.g. AT-IR-CS-RX purchasable through atlona.com)

IR OUT is connected by a ground and signal wire. Use the included IR emitter with this port.

Audio

Connect the input to any audio device and the output to an audio DSP, amplifier, or other audio distribution devices.

Green 3D component with multiple slots and circular holes (no text or symbols)

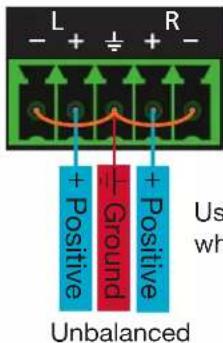

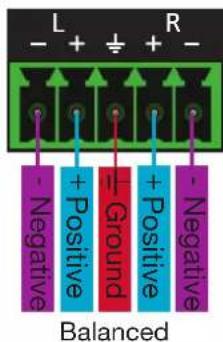

Use a jumper between the negative and ground pins when using an unbalanced connection.

MIC / LINE

Connect dynamic or self-powered microphones in this mode.

Use this setting for phantom powered microphones. Supplies 48 volts.

Connect wireless microphone receivers (or other sources) with line level outputs using this setting. Either balanced, unbalanced, mono, or two channel connections may be used.

Balanced Balanced Balanced Unbalanced

Cable Recommendation Guidelines

Refer to the tables below for recommended cabling when using Altona products with HDBaseT. The green bars indicate the signal quality when using each type of cable. Higher-quality signals are represented by more bars.

Core	Shielding	CAT5e	CAT6	CAT6a	CAT7
Solid	UTP (unshielded)				N/A
	STP (shielded)
Performance Rating (MHz)		350	500	600	800

IMPORTANT: Stranded or patch cables are not recommended due to performance issues.

Cable	Max. Distance @ 4K	Max. Distance @ 1080p
CAT5e	295 feet (90 meters)	330 feet (100 meters)
CAT6 / CAT6a / CAT7	330 feet (100 meters)	330 feet (100 meters)

Use of a TIA/EIA 568B

termination is recommended for optimal performance.

Mounting Instructions

The AT-UHD-CLSO-601 can be mounted in a standard 19-inch rack or placed freestanding on top of a desk or table.

Rack Installation

1. Remove the front two case screws from the sides of the case.
2. Attach the included rack ears to each side of the AT-UHD-CLSO-601 using the case screws.

Exterior view of a black network switch device with attached cable and connector, shown with an inset showing a hand holding a cable with red rotation arrows (no text or symbols on the device itself)

1. Install the AT-UHD-CLSO-601 into a rack, using four rack screws.

NOTE: Increase the air flow as needed to maintain the recommended temperature inside the rack.

NOTE: Do not exceed the maximum weight loads for the rack. Install heavier equipment in the lower part of the rack for stability.

3D rendering of a gray rectangular box with a black internal panel and visible screws on the side (no text or symbols)

Analog Multi-Function Inputs

The CLSO-601 multi-function analog inputs (Input 5 and 6) can be used with most analog video signal formats including VGA (with DDC), RGBHV (without DDC), component (YUV), S-Video, or composite video. Balanced analog audio can be input and embedded using the provided captive screw connectors.

Each format can be directly accessed from RS-232, IR, or IP control. Front panel buttons sequentially progress through each input format. The last format used is the first source selected when returning to these inputs. Unused formats can be removed from the sequence using WebGUI, RS-232, or IP.

VGA (m) to BNC, VGA (m) to RCA, and S-Video to 2 BNC adaptors can be used to connect sources to these inputs.

VGA

Use a VGA to VGA cable to ensure that the Preferred Resolution DDC is communicated to your source.

RGBHV

Use a HD-15 (VGA) to 5 BNC breakout cable for this format. An existing RGBHV analog matrix switch can be connected here to maintain full function of the analog matrix.

Component

YUV (YPbPr) signal from DVD (or other sources) can be input to the CLSO-601 using the green (Y), blue (Pb), and red (Pr) connections on a HD-15 (VGA) to 5 BNC breakout cable or with a common VGA (m)-Component (3 RCA m) adaptor.

S-Video

YC signal from a VCR or teleconference system can be input to the CLSO-601 using the blue (Y), and green (C) connections on a HD-15 (VGA) to 5 BNC (m) breakout cable and a common S-Video (m) to 2 BNC (f) adaptor

Composite

NTSC, PAL, or Secam video signals can be input to the CLSO-601 using the blue connection on a HD-15 (VGA) to 5 BNC (m) breakout cable.

A common application for this type of input would be to connect a RGBHV matrix switcher to the CLSO-601. Then each input to the matrix could be connected to a different format analog signal. A 3rd party control system could ensure the correct format is selected to match the input to the switcher.

Control

CEC

CEC is available for trigger through RS-232, TCP/IP, and WebGUI. The trigger commands for RS-232 and TCP/IP can be found within the API at https://atlona.com/pdf/AT-UHD-CLSO-601_API.pdf.

RS-232

RS-232 control for connected devices and the unit are available through the RS-232 captive screw connection. The commands can be found within the API at https://atlona.com/pdf/AT-UHD-CLSO-601_API.pdf.

TCP/IP

TCP/IP control for connected devices and the unit are available through the LAN connection. The commands can be found within the API at https://atlona.com/pdf/AT-UHD-CLSO-601_API.pdf.

WebGUI

The unit has a built in web UI that will allow for unit configuration and device control. See the webGUI section for more information.

IR Remote

System IR is typically used to connect to control system processors. This input is used to control the CLSO-601.

Note: The IR receiver is optional for the UHD-CLSO-601. The compatible IR receiver (AT-IR-CS-RX) can be purchased through atlona.com.

The wires of the emitter and receiver have been marked to differentiate the pin outs.

Simple line drawing of a cylindrical object with three parallel wires extending from it, no text or symbols present.

Cross-sectional diagram of a cable with coiled wire (no text or symbols)

—— Signal (S) Ground ( ± )

The included IR emitter has two wires: signal and ground. Signal will have a solid line and ground will be blank. The IR emitter will plug into the IR OUT ports.

Pure 3D diagram of a rectangular block with a small horizontal bar on the left side (no text or symbols)

Pure electrical circuit lines without any symbols

— — Signal (S) Ground ( 12 ) Power (P)

There are three wires on the IR receiver (sold separately): signal, ground, and power. Signal has a dotted line, ground will be blank, and power will have a solid line. The IR receiver will plug into the IR IN ports.

On-Screen Display (OSD)

On Screen Display
Input Input 1 HDMI 1
	Input 2 HDMI 2
	Input 3 HDMI 3
	Input 4 HDMI 4
	Input 5 VGA 1	Component 1Composite 1S-Video 1
	Input 6 VGA 2	Component 2Composite 2S-Video 2
Audio Volume Master -80 to -10db
		Sub HDMI 1 -	80 to +10db
			HDMI 2 -80 to +10db
			HDMI 3 -80 to +10db
			HDMI 4 -80 to +10db
			Analog 1 -80 to +10db
			Analog 2 -80 to +10db
			Analog 3 -80 to +10db
			Line In -80 to 0db
Video Contrast 0 to 100
	Brightness 0 to 100
	Sharpness 0 to 30
	Color	0 to 100
	Tint	0 to 100
	H Position	0 to 40
	Phase	0 to 63
	NR	BNR Disabled	LowMediumHigh
		MNR	DisabledLowMediumHigh
		RNR Disabled	LowMediumHigh
	Scale	FullOverscanUnderscanLetterboxPanscanFollow Input

On Screen Display (OSD)

On Screen Display
Setup Language English		SpanishFrenchGerman
	OSD Settings Transparency
		Position Horizontal	Vertical
		Menu Timer 10 sec	30 sec60 sec
		Info Banner On	Off
	Output Format HD Pass Through		480i@60 (NTSC)480p@60720p@601080i@601080p@60576i@50 (PAL)576p@50720p@501080i@501080p@501080p@24
		Native
		UHD 3840x2160p@24	3840x2160p@253840x2160p@304096x2160p@244096x2160p@30
		PC-1 640x480@60	640x480@72640x480@75800x600@60800x600@72800x600@751024x768@601024x768@721024x768@75
		PC-2 1280x768@60	1280x800@601280x960@601280x1024@601360x768@601366x768@601400x1050@601440x900@601600x900@601600x1200@601920x1200@60
	Network Network Status MAC	Address	xx-xx-xx-xx-xx-xxIP Addressxxx.xxx.x.xxxSubnetxxx.xxx.xxx.xGatewayxxx.xxx.x.x
		DHCP ON	OFF

Note: After selecting a new language, close the menu and reopen it for the change to take effect.

On Screen Display (OSD)

On Screen Display
Status System Info Software	Revision		x.x.xx (e.g. 1.0.01)
		OSD Revision	x.x.x (e.g. 1.0.0)
		FPGA Revision	x.x.x (e.g. 1.0.0)
		On-Time (h-m)	x:xx (e.g. 1:15)
	Video Info Input		xxxx (e.g. HDMI 1)
		Signal Type	xxxx (e.g. HDMI)
		Video Format	xxxx (e.g. 1080i@60)
		Aspect	xxxx (e.g. 16x9)
		Color Space	xxxx (e.g. YUV)
		Color Depth	xxxx (e.g. 24)
	Audio Info Input		xxxx (e.g. HDMI 1)
		Audio Format	xxxx (e.g. PCM)
		Sampling Rate	xxxx (e.g. 48 KHz)
		Channels	xxxx (e.g. 2-Ch)

WebGUI

The AT-UHD-CLSO-601 includes a built-in webGUI, which allows easy remote management and control of all features. Follow the instructions below to access the webGUI.

1. Make sure that an Ethernet cable is connected between the LAN port on the AT-UHD-CLSO-601 and the network.
2. Use an IP scanner to determine the IP address of the unit.
3. Launch a web browser and enter the IP address in the address bar.
4. The AT-OME-PS62 Login page will be displayed.
5. Enter the following information on the Login page.

Login: root

Password: Atlona

NOTE: If the login and password are entered wrong six times, the unit will lock the login screen for two minutes.

1. Click the Login button. The info page will display, giving all the general information of the AT-UHD-CLSO-601.

Network Setup

Select Network Setup from the top navigation to adjust IP information.

ATLONA

a PANDUIT company

AT-UHD-CLSO-601 Setup

Home	Network Setup	Settings	Config	EDID	Audio	Control	Update
	DHCP			ON		OFF
	IP Address			010.020.040.068
	Subnet			255.255.255.000
	Gateway			010.020.040.001
	Telnet Port			23
	Hostname			CLSO601-0052C8
	Login Mode			ON		OFF
	MAC Address			B8-98-B0-00-52-C8

Network

DHCP - Switch between static (OFF) and DHCP (ON) IP modes.

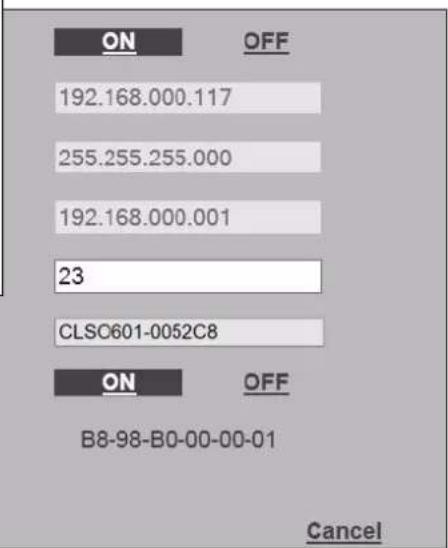

IP, Netmask, Gateway - This will display the unit's current DHCP IP settings. When set to static, fill in the IP address, netmask, and gateway.

Telnet Port - Set the telnet port if needed for control. Default port is 23.

Hostname - Set the name for the matrix, this will show up in network discovery.

Login Mode - Toggle telnet login mode on and off. If on, a username and password will be required to control the unit via telnet.

MAC Address - Displays the MAC address of the unit.

Settings

Select Settings from the top navigation to adjust routing and video settings.

System Settings

Power - Turn the switcher on and off

Panel Lock - Locks/unlocks the front panel buttons, or just the menu when Lock Menu is selected

Auto Switch - Turns auto switching between HDMI inputs on/off

VGA auto switch - Turns VGA auto switching on/off

Note: VGA auto switching is only available on VGA and will not work with component, composite, and S-Video

*Component, composite, and S-Video poll settings will grey out when VGA auto switching is on*

Input Status Detection - When enabled (ON), the poll settings will display the type of input signal being received on the VGA port.

Source

Select the input to be routed to the output.

Output Resolution

Switch between multiple video output resolutions:

Pass through - Input video will pass to the display without being scaled

Native - Upscales/downscales the output signal to match the HDBaseT display's preferred resolution

HD - Will upscale/downscale the output signal to match the selected HD resolution

PC - Will upscale/downscale the output signal to match the selected PC resolution

Note: When the output is set to UHD resolutions, UHD sources are passed through without scaling. Frame rates are not changed. (e.g. if 3840x2160@30Hz input is received, output will remain 30Hz even if output is set to 24Hz)

©

©

EDID

Select EDID from the top navigation to set the preferred timings of the input ports and to adjust HDCP compliance reporting.

Prefer Timing (HDMI)

Set the resolution of the HDMI ports.

Prefer Timing (VGA)

Set the resolution of the VGA ports..

RS-232

System - This will change the settings of the Master RS-232 ports

Inputs - These will change the settings of RS-232 ports 1 through 6

Output 1 - This corresponds with the RS-232 port 7

Output 2 - This will adjust the RS-232 settings of the HDBaseT receiver.

Note: CLSO-601 protects HDCP encoded content and will not pass HDCP content to a non-HDCP compliant device.

Note: Some devices flag all content as protected when connected to an HDCP compliant display. This prevents what should be non-protected content from reaching devices (i.e. teleconference system) through the CLSO-601.

Note: When HDCP reporting is non-compliant, only user created content is transmitted. Protected content from all sources (e.g. BluRay, AppleTV, etc) is blocked.

Audio

Select Audio from the top navigation to set it.

ATLONA

a PANQUIT company

AT-UHD-CLSO-601 Audio

Home

Network Setup

Settings

Config

EDID

Audio

Control

Update

Volume Settings

Master	10	dB
HDMI 1	-15	dB
HDMI 2	-59	dB
HDMI 3	-7	dB
HDMI 4	-55	dB
Analog 1	-17	dB
Analog 2	-68	dB
Microphone	-10	dB
Line In	-21	dB
Bass	0	dB
Treble	0	dB

Audio settings adjust output volume for all sources including the microphone.

Master - Affects all sources at the same time

Inputs - Used to balance levels from each source.

Note: For best results, gains should be balanced between master and source levels.

Ducking Settings

Microphone ducking uses the audio level from the microphone to decrease the program level so the speaker may be heard.

Note: Proper set up is critical for satisfactory operation. If program levels are too high they can trigger the ducking process.

Note: Setting the microphone volume too high may result in feedback.

It is recommended that a handheld or headset microphone be used with ducking to reduce feedback and maximize the difference between voice and program levels.

Best results are received with the following sequence:

1. Set master volume to 0. (This is 10 db below maximum)
2. Raise appropriate microphone (or line in) volume until just below feedback or adequate volume is reached (whichever setting is lower). - Master level and amplifier gains may be increased to get appropriate levels

Note: If feedback occurs and volume is not adequate, move the speakers and/or microphone to eliminate feedback.

1. Raise source "sub" volumes to appropriate levels without talking
2. Set attack time to minimize popping, but still fast enough that initial talking sounds are heard.
3. Set release time so that program levels do not increase between sentences.

Note: Shorten time so that the microphone doesn't interfere with the program.

1. Set the trigger level so that words spoken at a normal level trigger the ducking process

Note: Set the trigger level too sensitive and the program will trigger the ducking. Set too low and the speaker will have to talk very loudly to trigger ducking. The further right the slider is, the more sensitive the setting.

1. Set program decrease to ensure when ducking is triggered the program level is low enough the speaker can be heard.

Fine tuning these settings will help achieve the best results.

©

©

RS-232 / IP Commands

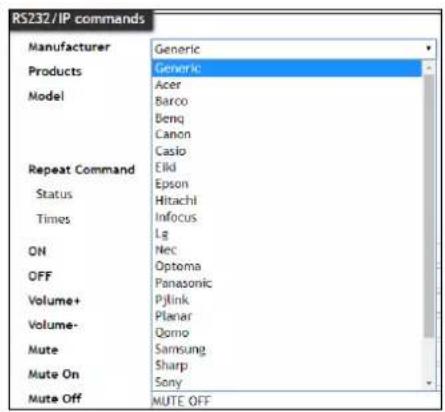

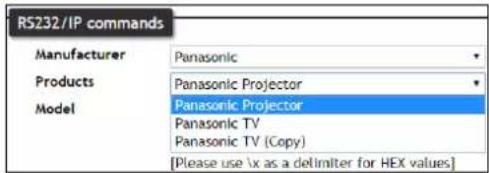

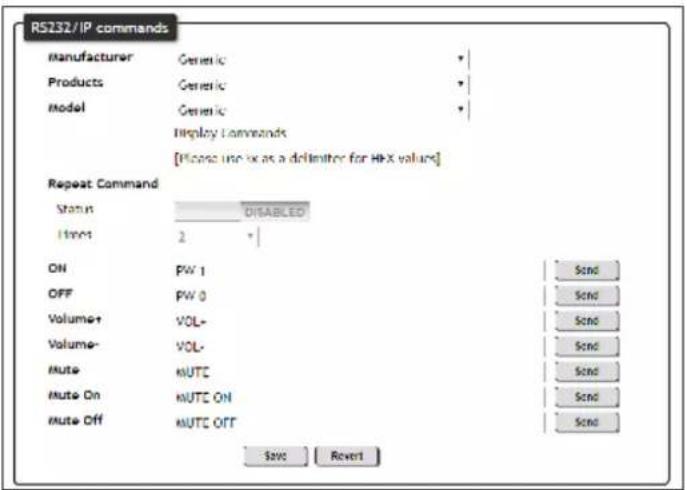

Manufacturer, Products, Models - Select the make and model of the display for control. Commands have been programmed into the PS62 for a wide range of products. If the current display is not found within the database, use generic and manually adjust the command fields.

Repeat Command - Enable Status to repeat the commands. Default repeat number is 2 and can be adjusted from 2 to 4 times.

Commands: On/Off/Volume/Mute - These fields will automatically be filled with the correct command when selecting a manufacturer and product from the drop down menus. If manually entering the commands, type them into the fields next to the command name.

Send - Use this button to send the command to the display, this can be used while manually typing the commands to ensure the commands are correct.

Save - Save the commands to the webGUI. Manufacturer, products, and Model will revert to Generic but the commands will be saved from the previously selected and saved Manufacturer, products, and model selection.

Revert - Sets the commands back to the previously saved settings.

Update

Select Update from the top navigation to update the switcher, valens, audio, FPGA, and OSD firmware.

- Select the browse button for the type of firmware to be updated

• Firmware Update - MCU/Main firmware
• Valens Update - Valens firmware
• Audio Update - DSP firmware
• FPGA Update - FPGA firmware

OSD Update - OSD firmware

• Select the new firmware file that was downloaded either from atlona.com or box.com
• Press the update button

A progress bar will display as the update is completed. After the update is complete, if a restart is required, the webGUI will display a prompt. The firmware update is now complete and the switcher is ready to be used.

Appendix

Updating the Firmware

Putting the unit into update mode:

1. Unplug the power from the CLSO-601
2. Connect CLSO-601 to a computer using the mini USB to USB A cable

3. Press and hold the input key of the specific type of firmware update
   Input 1 - USB/main firmware
   Input 2 - OSD firmware
   Input 3 - DSP/Audio firmware
   Input 4 - FPGA firmware
   Input 5 - Valens firmware

4. Plug the power back into the CLSO-601 (while still holding the input key)

5. Continue holding the input key for 5 seconds then release it

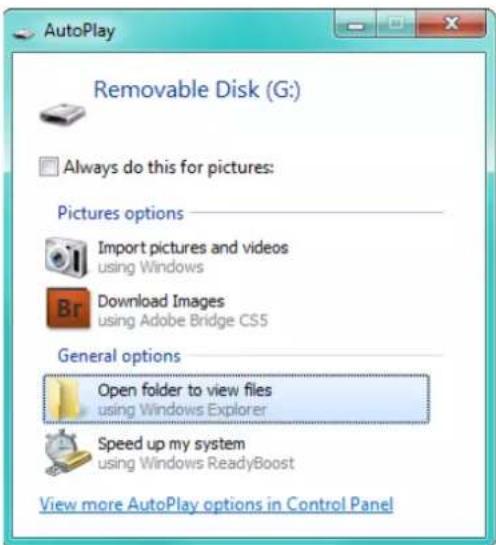

6. Click the option, "open folder to view files" (if AutoPlay runs)

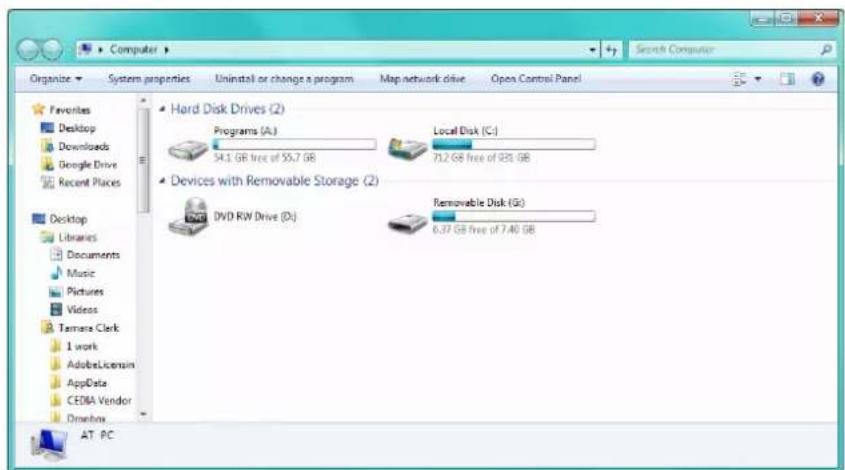

If the computer does not auto detect the connection, open "My Computer" and select the USB drive.

1. Place the latest firmware in the folder (if there is already a file in the folder, delete it)
2. Remove the USB cable from the CLSO-601 and computer
3. Unplug the power cable from the CLSO-601
4. Plug the power cable back in
5. Repeat the process until all firmwares are updated

The update process is complete and the switcher is ready to be used Unplug the power from the CLSO-601

Specifications

Video
HDMI 2.0
Copy Protection 1.4
Pixel Clock 300 MHz
UHD/HD	4096x2160@24/30Hz	1280x720p@25/29.97/30/50/59.94/60Hz
	3840x2160@24/25/30Hz	720x576p
	1920x1080p@23.98/24/25	720x576i
	/29.97/30/50/59.94/60	640x480p
	1920x1080i@50/59.94/60Hz	640x480i
VESA
All resolutions are 60 Hz	2560x1440	1366x768
	2048x1152	1360x768
	2048x1080	1280x1024
	1920x1200	1280x960
	1680x1050	1280x800
	1600x1200	1280x768
	1600x900	1024x768
	1440x1050	800x600
	1440x900	640x480
Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Color Depth 8-bit, 10-bit, 12-bit

Audio
Analog Out LPCM 2.0
HDMI/HDBaseT Out (pass through)	Dolby® Digital Dolby Digital PlusTM Dolby TrueHD Dolby Atmos®	DTS® Digital SurroundTM DTS-HD Master AudioTM DTS:X®
Bit Rate 24 Mbits/s max
Analog Audio
Format 2-channel stereo
Balanced Output +4 dBu, nominal gain; +20 dBu headroom
Frequency Response 20 Hz to THD + N < 0.009% @ 20 Hz to SNR > 94 dB @ 1 kHz, zero clipping @ 0 dBFS, unweighted
Sample Rate 32 kHz, 44.1 kHz,	48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

Protocols
Addressing DHCP, static

Control
RS-232	Device control and configurationBidirectional pass-through from control system over HDBaseTSupported baud rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
IP	Protocols: HTTPS, Telnet, mDNSModes: DHCP, Static – selectable through front panel and built-in web server
CEC	Yes

Appendix

Resolution / Distance 4K/UHD - Feet / Meters 1080p - Feet / Meters
HDMI IN/OUT 15 5 30 10
CAT5e/6 230 70 330 100
CAT6a/7 330 100 330 100

Connectors
HDMI IN 4 - Type A, 19-pin female
HDMI OUT 1 - Type A, 19-pin female
VGA IN 2 - DE-15, 15-pin female
HDBaseT OUT 1 - RJ45
RS-232 2 - 6-pin captive screw, 4 - 3-pin captive screw (bidirectional)
IR 1 - 5-pin captive screw
MIC/LINE IN 1 – 3-pin captive screw
AUDIO IN	2 – 6-pin captive screw
AUDIO OUT	1 - 6-pin captive screw
LAN	1 - RJ45, 10/100/1000 Mbps
FW	1 - Micro USB
DC 48V	1 - 2-pin captive screw

Indicators and controls
INPUT 1 - INPUT 6	6 - LED, blue
POWERINPUT 1 - INPUT 6MENU, ENTER, >, <MUTE, VOL UP, VOL DN	16 - momentary, tact-type

Environmental	Fahrenheit	Celsius
Operating Temperature	+32 to +122 °F	0 to 50 °C
Storage Temperature	-4 to +140 °F	-20 to 60 °C
Operating Humidity (RH)	20% to 90%, non-condensing

Power
Consumption 33 W
Idle Consumption	3.1 W
External Power Supply	100 - 240 V AC, 50/60 HzOutput: 48 V / 3.125 A DC

Dimensions	Inches	Millimeters
Device (H x W x D)	1.73 x 17.08 x 10.04	44 x 433.8 x 255
Device (w/ feet)	2.17 x 17.08 x 10.04	55.15 x 433.8 x 255

Weight	Pounds	Kilograms
Device	6.9	3.12

Certification
Device	CE, FCC
Power	CE, FCC, cULus, RoHS, CCC, RCM
