USER MANUAL TB272BC TROY-BILT

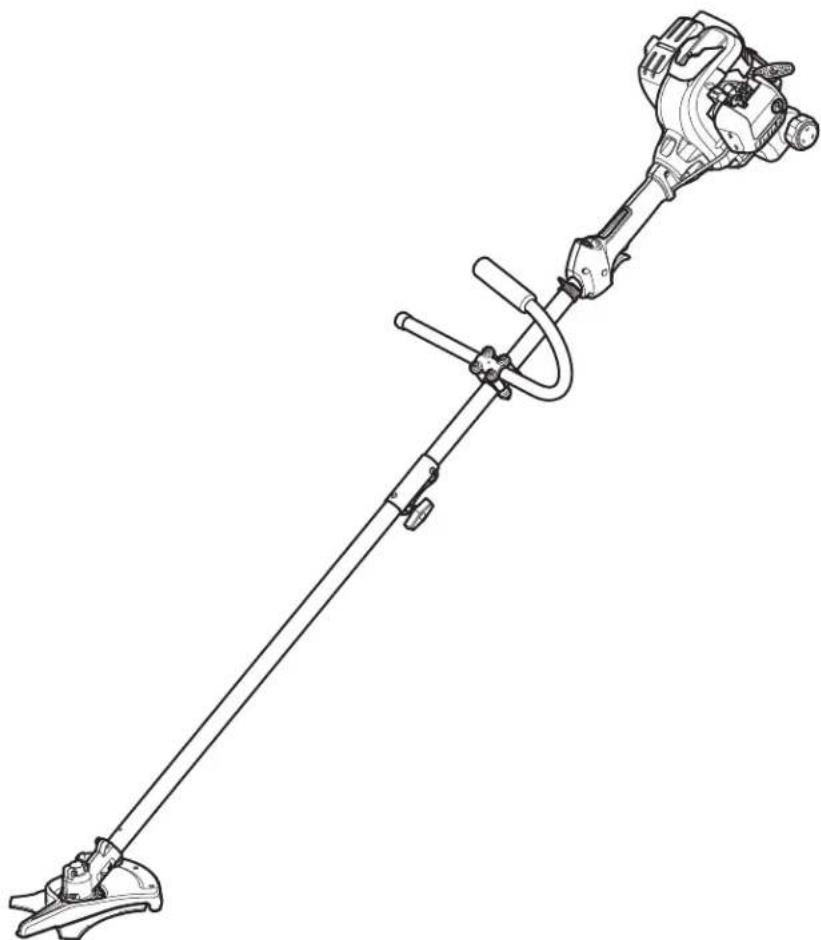

2-Cycle Brushcutter / Trimmer

Technical line drawing of a manual push tool with lever and handle (no text or symbols)

SAVE THESE INSTRUCTIONS

IMPORTANT: Read this manual thoroughly before using this product. Follow all instructions.

TABLE OF CONTENTS

Service	2
Safety	2
Know Your Unit	6
Specifications	6
Assembly	7
Oil and Fuel	13
Starting and Stopping	14
Operation	15
Maintenance	18
Cleaning and Storage	22
Troubleshooting	23
Warranty	24

All information, illustrations, and specifications in this manual are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice.

The product may vary slightly from the illustrations contained in this manual.

Copyright© 2019 MTD SOUTHWEST INC, All Rights Reserved.

SERVICE

DO NOT RETURN THIS UNIT TO THE RETAILER. PROOF OF PURCHASE WILL BE REQUIRED FOR WARRANTY SERVICE.

For assistance regarding the assembly, operation or maintenance of the unit, please call 1-800-828-5500 (in the United States) or 1-800-668-1238 (in Canada). Additional information can be found at www.troybilt.com (in the United States) or www.troybilt.ca (in Canada).

Warranty service is available through an authorized service center. To locate a service center in your area, please visit our website or call the number listed above. Service on this unit, both within and after the warranty period, should only be performed by an authorized and approved service center. When servicing, use only identical replacement parts.

SAFETY

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures.

SYMBOL MEANING

DANGER: Signals an EXTREME hazard. Failure to obey a safety DANGER symbol WILL result in serious injury or death to yourself or to others.

WARNING: Signals a SERIOUS hazard. Failure to obey a safety WARNING symbol CAN result in serious injury to yourself or to others.

CAUTION: Signals a MODERATE hazard. Failure to obey a safety CAUTION symbol MAY result in property damage or injury to yourself or to others.

NOTE: Advises you of information or instructions vital to the operation or maintenance of the equipment.

SPARK ARRESTOR NOTE

NOTE: For users on U.S. Forest Land and in the states of California, Maine, Oregon and Washington. All U.S. Forest Land and the state of California (Public Resources Codes 4442 and 4443), Oregon and Washington require, by law that certain internal combustion engines operated on forest brush and/or grass-covered areas be equipped with a spark arrestor, maintained in effective working order, or the engine be constructed, equipped and maintained for the prevention of fire. Check with your state or local authorities for regulations pertaining to these requirements. Failure to follow these requirements could subject you to liability or a fine. This unit is factory equipped with a spark arrestor. If it requires replacement, contact your local service dealer to install the appropriate muffler assembly.

WARNING: This product can expose you to chemicals including engine exhaust, which is known to the State of California to cause cancer, and carbon monoxide, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Read the operator's manual and follow all warnings and safety instructions. Failure to do so can result in serious injury to the operator and/or bystanders.

- IMPORTANT SAFETY INSTRUCTIONS •

READ ALL INSTRUCTIONS BEFORE OPERATING

WARNING: When using the unit, all safety instructions must be followed. Please read these instructions before operating the unit in order to ensure the safety of the operator and any bystanders. Please keep these instructions for later use.

• Read the instructions carefully. Be familiar with the controls and proper use of the unit. Know how to stop the unit and disengage the controls quickly.
• Stay alert. Do not operate this unit when tired, ill or under the influence of alcohol, drugs or medication.
• Never allow children to operate the unit. Teens must be trained, accompanied and supervised by an adult. Never allow adults to operate the unit without proper instruction.
• All guards and safety attachments must be installed properly before operating the unit.
• Inspect the unit before use. Check for damaged parts. Check for fuel leaks. Make sure all parts operate properly. Make sure all fasteners are in place and secure. Make sure all moving parts are properly aligned and are not bound. Replace parts that are cracked, chipped, or damaged in any way. Have all damaged or improperly working parts repaired or replaced by an authorized service center. Do not operate the unit with loose or damaged parts.
• Be aware of risk of injury to the head, hands and feet.
• Carefully inspect the area before starting the unit. Remove rocks, broken glass, nails, wire, string and other objects that may be thrown or become entangled with the unit.
• Clear the area of children, bystanders and pets; keep them outside a 50-foot (15 m) radius, at a minimum. Even then, they are still at risk from thrown objects. Encourage bystanders to wear eye protection. If you are approached, stop the unit immediately.
• Squeeze the throttle control and check that it returns automatically to the idle position. Make all adjustments or repairs before using the unit.
• Do not change the engine governor settings or overspeed the engine.
• This unit is intended for occasional, household use only.

SAFETY WARNINGS FOR GAS UNITS

WARNING: Gasoline is highly flammable and its vapors can explode if ignited. Take the following precautions:

• Store fuel only in containers specifically designed and approved for the storage of such materials.
• Always stop the engine and allow it to cool before filling the tank. Never remove the fuel tank cap or add fuel when the engine is hot. Always loosen the fuel tank cap slowly to relieve any pressure in the tank before fueling.
• Always mix and add fuel in a clean, well-ventilated outdoor area where there are no sparks or flames. DO NOT smoke.
• Never operate the unit without the fuel cap securely in place.
• Avoid creating a source of ignition for spilled fuel. Wipe up any spilled fuel from the unit immediately, before starting the unit. Move the unit at least 30 ft. (9.1 m) from the fueling source and site before starting the engine. DO NOT smoke.
• Never start or run the unit inside a closed room or building. Breathing exhaust fumes can kill. Operate this unit only in a well ventilated outdoor area.

WHILE OPERATING

• Wear safety glasses or goggles that meet current ANSI / ISEA Z87.1 standards and are marked as such. Wear ear/hearing protection when operating this unit. Wear a face mask or dust mask if the operation is dusty. Use a hard hat or other type of safety helmet.
• Wear heavy long pants, boots, gloves and a long sleeve shirt. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot. Secure hair above shoulder level.
• The cutting head / blade should remain stationary when the engine idles. If it does not, refer to Adjusting the Idle Speed.
• Adjust the handle to provide the best grip, if applicable.
• Make sure the cutting head / blade is not in contact with anything before starting the unit.
• Use the unit only in daylight or good artificial light.

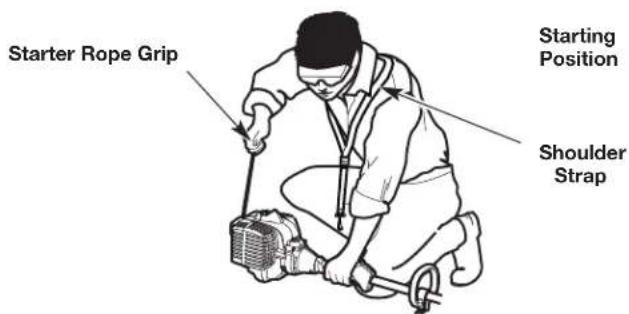

• Avoid accidental starting. Be in the starting position whenever pulling the starter rope. The operator and unit must be in a stable position while starting. Refer to Starting and Stopping.
• Use the right tool. Only use this tool for its intended purpose. Only use the unit as described in this manual.
• Always hold the unit with both hands when operating. Keep a firm grip on both handles or grips.
• Do not overreach. Always keep proper footing and balance. Take extra care when working on stairs, steep slopes or inclines. To avoid serious injury, do not operate the unit while on a ladder or a roof.
• Keep hands, face, and feet away from all moving parts. Do not touch or try to stop moving parts.
• Do not touch the engine, gear housing or muffler. These parts get extremely hot from operation, even after the unit is turned off.
• Do not operate the unit faster than the speed needed to do the job. Do not run the unit at high speed when not in use.
• Do not force the unit. It will do a better, safer job when used at the intended rate.

• Always turn the unit off when operation is delayed or when carrying the unit from one location to another. Make sure all moving parts come to a complete stop.

• Before setting the unit down, always make sure the engine is off and all moving parts have stopped.

• If the unit strikes or becomes entangled with a foreign object, stop the unit immediately. Check for damage. If damaged, do not restart or operate the unit until it is repaired. Do not operate the unit with loose or damaged parts.
• Turn the engine off and disconnect the spark plug for maintenance or repair.
• Use only original equipment manufacturer (OEM) replacement parts and accessories for this unit. These are available from your authorized service dealer. Use of any other parts or accessories could lead to serious injury to the user, or damage to the unit, and void the warranty.
• Keep the unit clean. Carefully remove vegetation and other debris that could block moving parts.
• To reduce fire hazard, replace a faulty muffler and spark arrestor. Keep the engine and muffler free from grass, leaves, excessive grease or carbon build up.
• If the unit starts to vibrate abnormally, stop the unit immediately. Inspect the unit for the cause of the vibration. Vibration is generally an indicator of trouble.

TRIMMER SAFETY

• Only use the trimming line described in the Specifications section of this manual. Never use metal-reinforced line, wire, chain or rope. These can break off and become dangerous projectiles.
• The cutting head shield must always be in place while operating the unit.
• Do not operate the unit without both trimming lines extended and the proper line installed. Do not extend the trimming line beyond the length of the shield.

BRUSHCUTTER SAFETY

• The blade guard must always be in place while operating the unit.

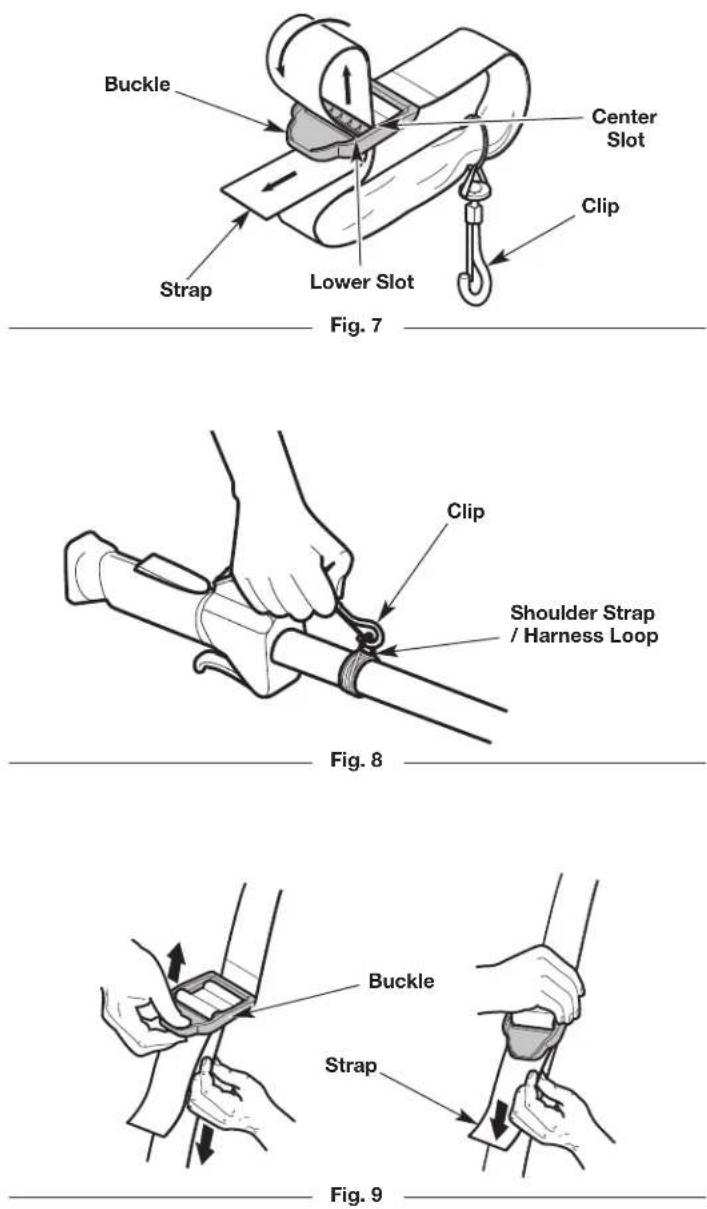

• Always use the shoulder harness when operating a brushcutter.
• Always keep the handle between the operator and the blade during operation.
• Never operate the unit with the blade above waist level.
• To avoid violent kickback, do not attempt to cut material larger than 1/2 inch (1.27 cm) in diameter.
• Blade thrust may occur when the spinning blade contacts an object that it does not immediately cut. Blade thrust can be violent enough to propel the unit and/or operator in any direction, possibly causing a loss of control. Blade thrust can occur without warning if the blade snags, stalls or binds. This is more likely to occur in areas where it is difficult to see the material being cut.
• The blade will continue to spin after the unit is turned off. A coasting blade can cause serious injury. Maintain control of the unit until all moving parts have stopped.
• Do not sharpen the blade. Sharpening the blade can cause the tip of the blade to break off while in use. This can result in severe personal injury. Replace the blade if it is dull.
• Do not operate the unit with a bent, cracked or dull blade. Replace bent, cracked or dull blades.
• Do not use the blade for edging; severe personal injury to yourself or others may occur.
• The blade may become very sharp from use. Always wear heavy gloves when handling, replacing or cleaning the blade.

OTHER SAFETY WARNINGS

• Maintain the unit with care. Follow all maintenance instructions in this manual.
• Do not perform maintenance procedures other than those described in this manual. All service, other than the maintenance procedures described in this manual, should be performed by an authorized service dealer.
• Never remove, modify or make inoperative any safety device furnished with the unit.
• Before inspecting, maintaining, cleaning, storing, transporting or replacing any parts on the unit:
• Stop the unit. Refer to Starting and Stopping.
• Make sure all moving parts have stopped.
• Allow the unit to cool.
• Disconnect the spark plug wire.
• Secure the unit while transporting.
• Never store the unit with fuel in the tank, inside a building where fumes may reach an open flame (pilot lights, etc.) or sparks (switches, electrical motors, etc.).
• Store the unit in a dry place, secured or at a height to prevent unauthorized use or damage. Keep the unit out of the reach of children.
• Never douse or squirt the unit with water or any other liquid. Keep handles dry and clean (free from debris, oil and grease). Clean the unit after each use. Refer to Cleaning and Storage. Do not use solvents or strong detergents.
• Keep these instructions. Refer to them often and use them to instruct other users. If you loan this unit to others, also loan them these instructions.

SAVE THESE INSTRUCTIONS

• SAFETY & INTERNATIONAL SYMBOLS •

This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating and maintenance and repair information.

SYMBOL MEANING SYMBOL MEANING

	• SAFETY ALERT SYMBOLIndicates danger, warning or caution. May be used in conjunction with other symbols or pictographs.
	• READ OPERATOR'S MANUALWARNING: Read the operator's manual(s) and follow all warnings and safety instructions. Failure to do so can result in serious injury to the operator and/or bystanders.
	• WEAR HEAD, EYE AND HEARING PROTECTIONWARNING: Thrown objects and loud noise can cause severe eye injury and hearing loss. Wear eye protection meeting current ANSI / ISEA Z87.1 standards and ear protection when operating this unit. Wear head protection when operating this unit. Use a full face shield when needed.
	• WEAR FOOT PROTECTIONAlways wear heavy-duty, non-slip footwear when operating this unit.
	• WEAR HAND PROTECTIONAlways wear heavy-duty, non-slip gloves when handling this unit.
	• HANDLE POSITIONPosition the handle as instructed in the Assembly section.
	• UNLEADED FUELAlways use clean, fresh unleaded fuel.
	• OILRefer to operator's manual for the proper type of oil.
	• DO NOT USE E85 FUEL IN THIS UNITCAUTION: It has been proven that fuel containing greater than 10% ethanol will likely damage this engine and void the warranty.

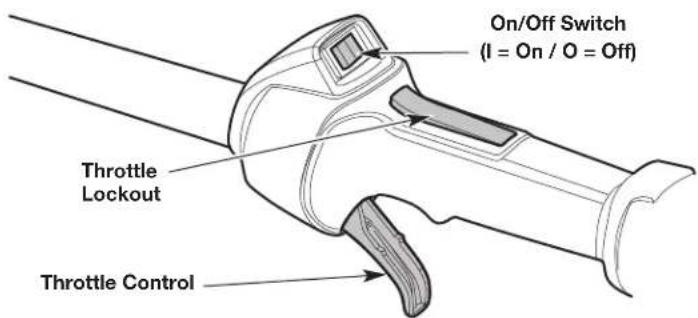

	ON / OFF STOP CONTROLON / START / RUN
	ON / OFF STOP CONTROLOFF or STOP
	PRIMER BULBPush primer bulb, fully and slowly, 10 times.

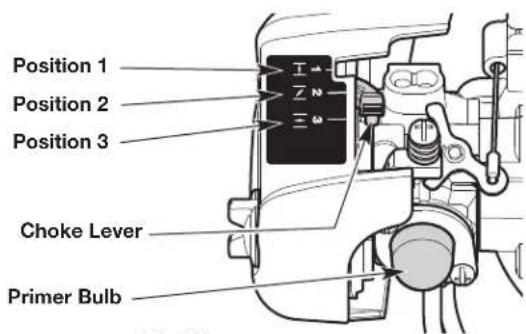

HNH	CHOKE CONTROL1. • FULL choke position2. • PARTIAL choke position3. • RUN choke position
	THROWN OBJECTS CAN CAUSE SEVERE INJURYWARNING: Small objects can be propelled at high speed, causing injury.
Min. 50 ft15 m	KEEP BYSTANDERS AWAYWARNING: Keep all bystanders, especially children and pets, at least 50 feet (15 m) from the operating area.
	HOT SURFACEWARNING: Do not touch a hot muffler or cylinder. You may get burned. These parts get extremely hot from operation. When turned off, they remain hot for a short time.
	SHARP BLADEWARNING: There is a sharp blade on the cutting head shield. To prevent serious injury, do not touch the line cutting blade.
	BRUSHCUTTER: REPLACE DULL BLADEWARNING: Do not sharpen the blade. Sharpening the blade can cause the tip of the blade to break off while in use. This can result in severe personal injury. Replace the blade if it is dull.
	BLADE THRUSTWARNING: Blade thrust may occur when the spinning blade contacts an object that it does not immediately cut. Blade thrust can be violent enough to propel the unit and/or operator in any direction, possibly causing a loss of control. Blade thrust can occur without warning if the blade snags, stalls or binds. This is more likely to occur in areas where it is difficult to see the material being cut.

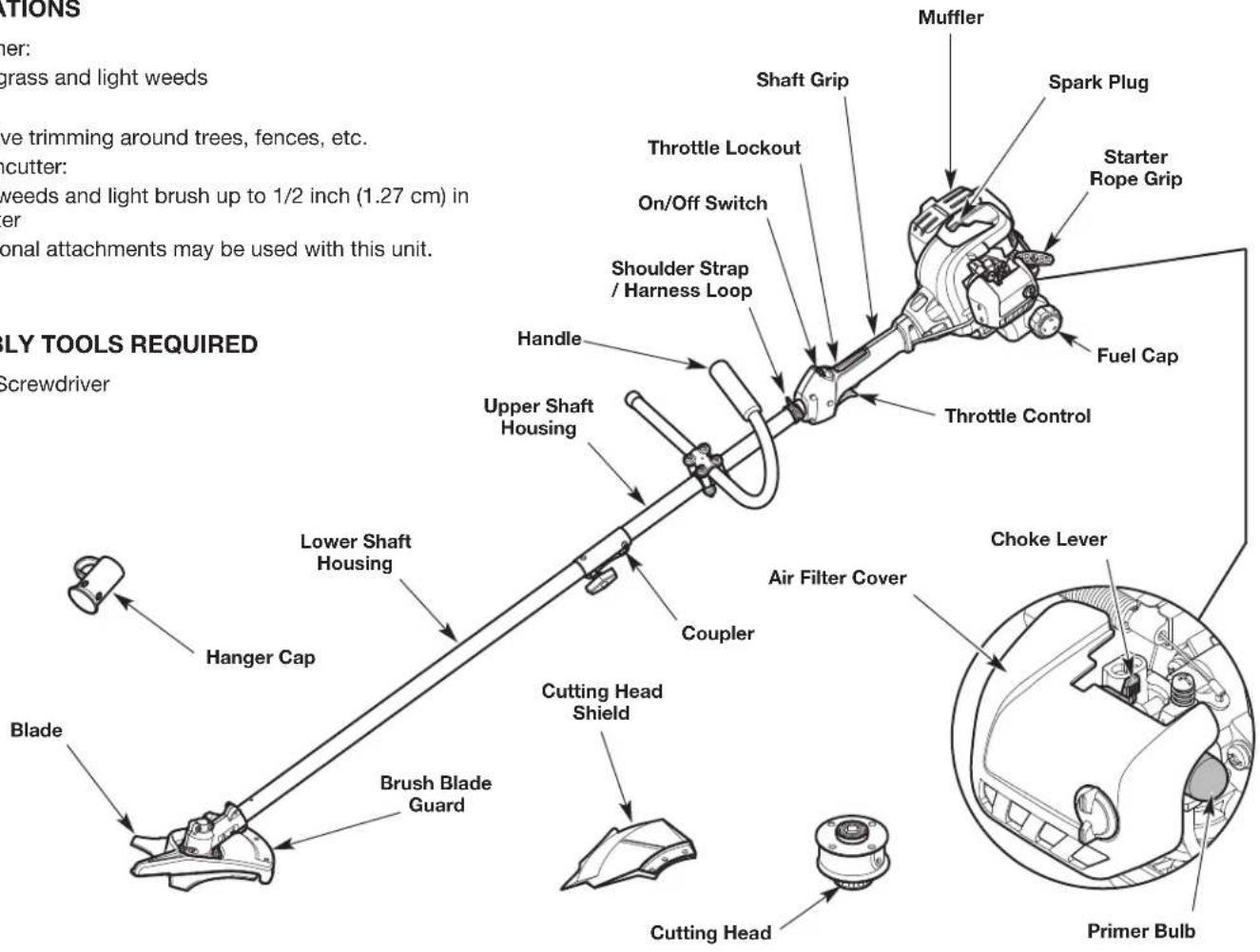

KNOW YOUR UNIT

APPLICATIONS

As a trimmer:

• Cutting grass and light weeds

- Edging

• Decorative trimming around trees, fences, etc.

As a brushcutter:

- Cutting weeds and light brush up to 1/2 inch (1.27 cm) in diameter

Other optional attachments may be used with this unit.

ASSEMBLY TOOLS REQUIRED

• Phillips Screwdriver

SPECIFICATIONS\*

Engine Type ....... Air-Cooled, 2-Cycle

Displacement. 27 cc (1.64 cu. in.)

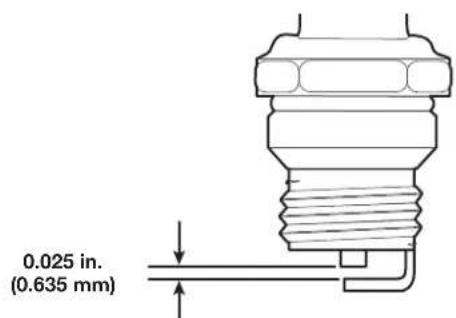

Spark Plug Gap....0.025 in. (0.635 mm)

Spark Plug. .... Champion® RDJ7J or equivalent plug

Lubrication Fuel/Oil Mixture

Fuel/Oil Ratio 40:1

Fuel Tank Capacity 14 oz. (414 ml)

Approximate Unit Weight (No fuel) 13 - 14.5 lbs. (5.9 - 6.6 kg)

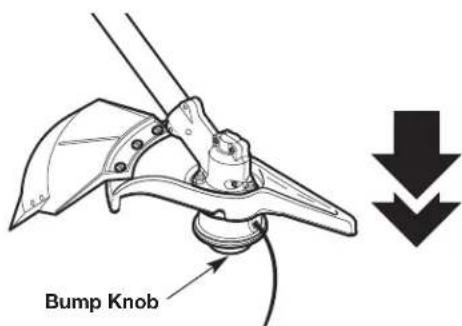

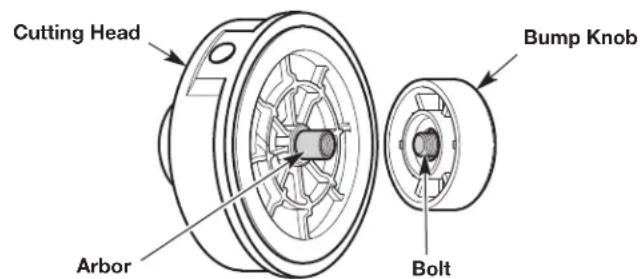

Trimmer Mechanism....Bump Head

Trimming Line Diameter 0.105 inches (2.67 mm)

Cutting Path Diameter (Trimmer)....18 in. (45.7 cm)

Cutting Path Diameter (Brushcutter) 8 in. (20.3 cm)

* All specifications are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice.

ASSEMBLY

INSTALLING AND REMOVING THE ATTACHMENT

The coupler enables the use of various optional attachments.

WARNING: Before using any attachment, read and understand the manual that came with the attachment. Follow all safety information contained within.

WARNING: To avoid serious personal injury and damage to the unit, shut the unit off before removing or installing an attachment.

Installing the Attachment

1. Remove the hanger cap from the attachment. Keep the hanger cap for use when storing the attachment. If present, remove the gray spacer from the coupler.
2. Set the unit on a flat, level surface.

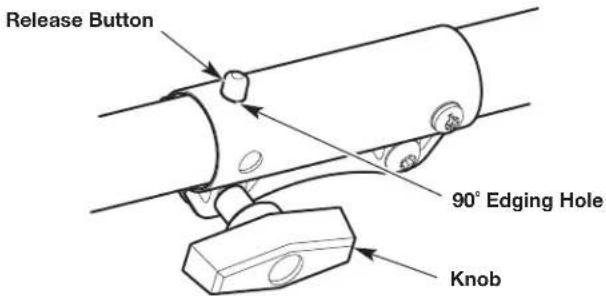

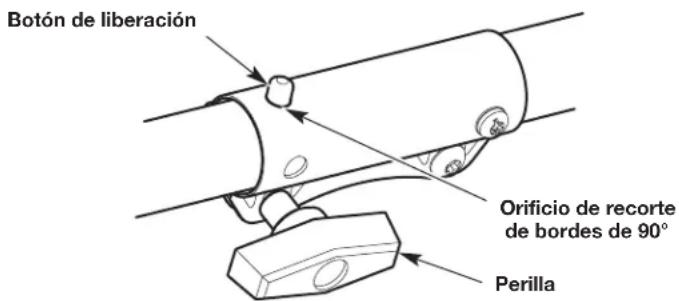

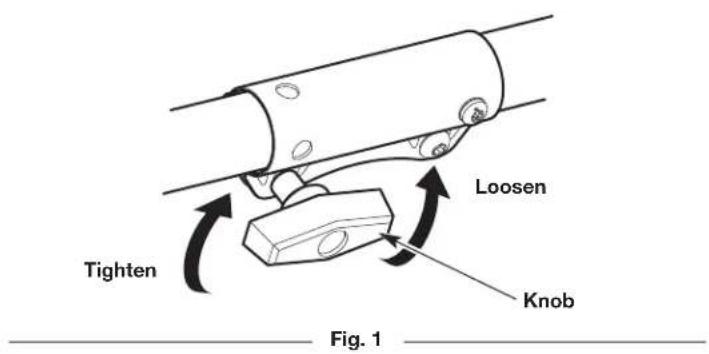

3. Turn the knob counterclockwise to loosen the coupler (Fig. 1).

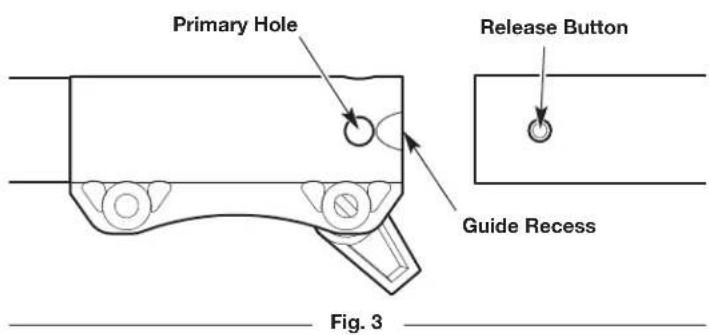

4. Align the release button with the guide recess (Fig. 3).

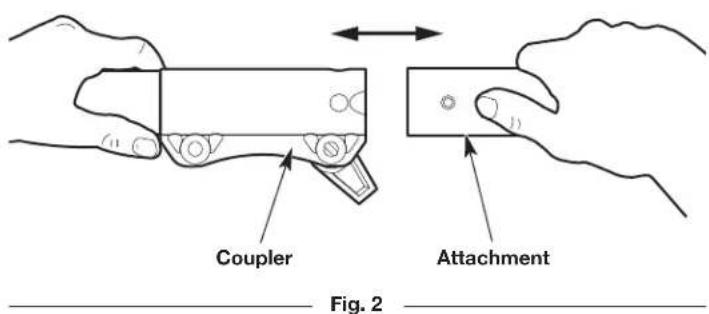

5. Push the attachment straight into the coupler (Fig. 2) until the release button snaps firmly into the primary hole (Fig. 3).
6. Turn the knob clockwise to tighten the coupler (Fig. 1).

WARNING: Before operating the unit, make sure the release button is fully snapped into the primary hole and the knob is securely tightened.

WARNING: Unless specified otherwise, the release button should be snapped into the primary hole only. Using the wrong hole could lead to personal injury or damage to the unit.

Removing the Attachment

1. Set the unit on a flat, level surface.
2. Turn the knob counterclockwise to loosen the coupler (Fig. 1).
3. Press and hold the release button (Fig. 3).
4. Pull the attachment straight out of the coupler (Fig. 2).

INSTALLING AND ADJUSTING THE HANDLE

Installing the Handle

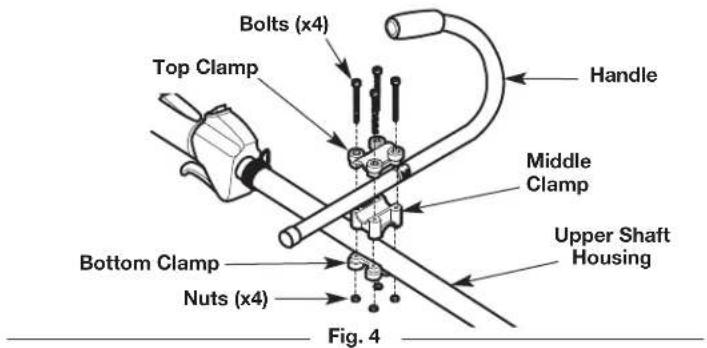

1. Place the handle between the top clamp and middle clamp (Fig. 4). If necessary, rotate or flip the middle clamp until the holes in the top clamp and middle clamp align.
2. Place the clamps and handle over the upper shaft housing and onto the bottom clamp (Fig. 4).

NOTE: Make sure the curved portion of the handle is on the operator's left (Fig. 4).

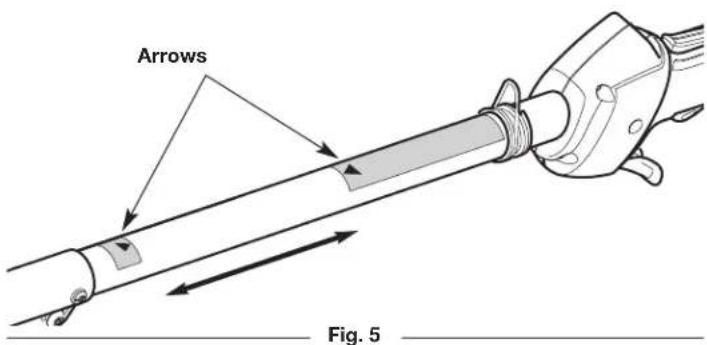

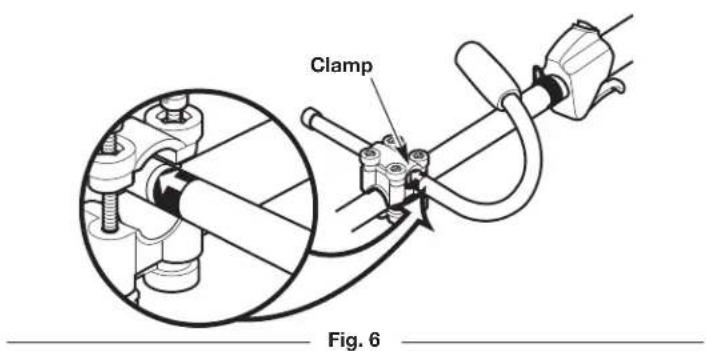

NOTE: Always make sure the handle is positioned between the two arrows (Fig. 5).

1. While holding the pieces together, insert the bolts (x4) into the aligned holes (Fig. 4).
2. Screw a nut onto the end of a bolt, but only slightly. Push the nut into the hexagonal recess on the bottom clamp. Hold the nut in place with a finger to keep it in the recess. Tighten the bolt with a Phillips screwdriver, but do not tighten it completely (Fig. 4). Repeat this step for each nut and bolt.
3. Hold the unit in the operating position (Fig. 22) and slide the handle in or out of the clamp until the arrow/line on the decal touches the clamp (Fig. 6).
4. Angle the handle forward or backward, as desired.
5. Tighten the bolts with a Phillips screwdriver until the handle is secure.

Adjusting the Handle

If the handle requires adjustment:

1. Loosen the bolts (x4) slightly with a Phillips screwdriver (Fig. 4).
2. Hold the unit in the operating position (Fig. 22) and angle the handle forward or backward, as desired.
3. Tighten the bolts with a Phillips screwdriver until the handle is secure.

ASSEMBLING AND USING THE SHOULDER STRAP

WARNING: To avoid serious personal injury, always use the shoulder strap when operating the unit as a brushcutter.

Assembling the Shoulder Strap

1. Push the strap up through the center slot in the buckle (Fig. 7).
2. Bend the strap over and push it down through the lower slot in the buckle (Fig. 7).

Using the Shoulder Strap

1. Put the shoulder strap over the operator's head and onto the left shoulder.
2. Start the unit. Refer to Starting and Stopping.
3. Snap the clip onto the shoulder strap / harness loop (Fig. 8).
4. Adjust the shoulder strap to fit the operator (Fig. 9). Pull the buckle up to loosen the shoulder strap. Pull the strap down to tighten the shoulder strap.

CONVERTING THE UNIT FROM A BRUSHCUTTER TO A TRIMMER

WARNING: To avoid serious personal injury, always wear gloves when handling the blade.

WARNING: To avoid serious personal injury, always stop the engine and allow the unit to cool before installing or removing any parts. Never install or remove parts while the unit is running. Disconnect the spark plug wire to prevent the unit from starting accidentally.

Removing the Blade

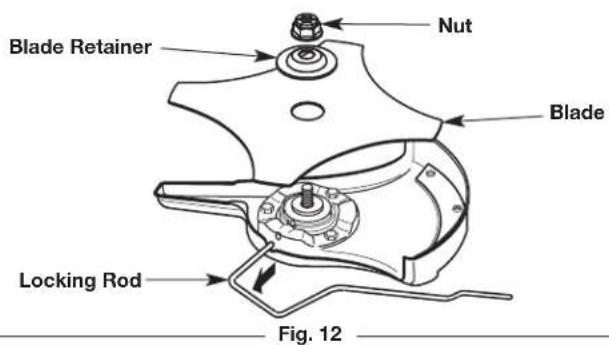

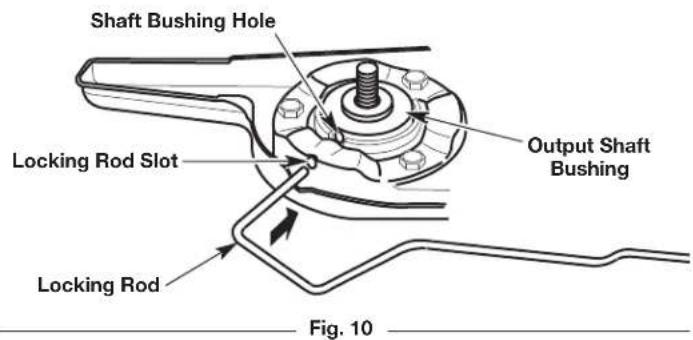

1. Rotate the blade (Fig. 12) until the shaft bushing hole aligns with the locking rod slot (Fig. 10).
2. Insert the locking rod through the locking rod slot and into the shaft bushing hole (Fig. 10).
3. Hold the locking rod in place by grasping the other end against the shaft housing (Fig. 11).

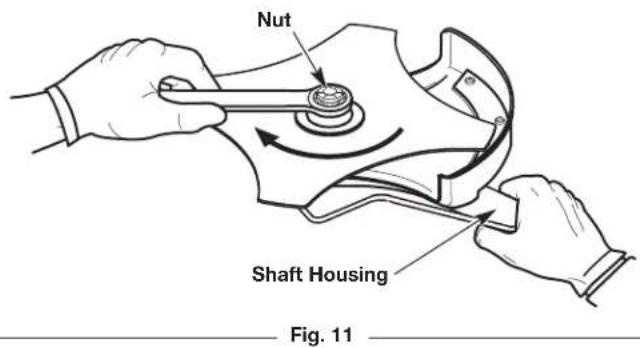

4. While holding the locking rod in place, unscrew the nut by turning it clockwise with a wrench (Fig. 11).
5. Remove the locking rod (Fig. 12).
6. Remove the blade retainer and blade (Fig. 12).

Installing the Cutting Head

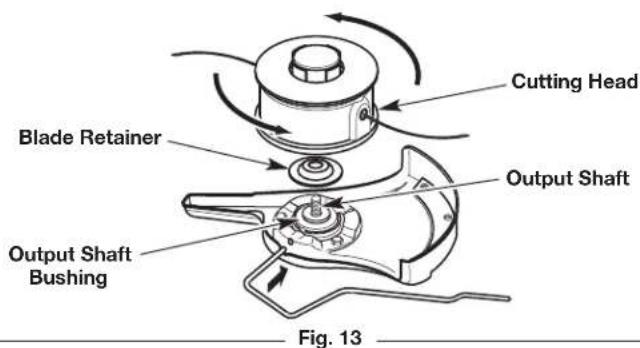

1. Rotate the output shaft bushing until the shaft bushing hole aligns with the locking rod slot (Fig. 10).
2. Insert the locking rod through the locking rod slot and into the shaft bushing hole (Fig. 10).
3. Hold the locking rod in place by grasping the other end against the shaft housing (Fig. 11).
4. While holding the locking rod in place, put the blade retainer on the output shaft with the flat surface against the output shaft bushing (Fig. 13).
5. Screw the cutting head counterclockwise onto the output shaft (Fig. 13). Tighten the cutting head securely.
6. Remove the locking rod.
7. Install the cutting head shield. Refer to Installing and Removing the Cutting Head Shield.

WARNING: To avoid serious personal injury or damage to the unit, do not start or operate the unit with the locking rod inserted into the locking rod slot.

CONVERTING THE UNIT FROM A TRIMMER TO A BRUSHCUTTER

WARNING: To avoid serious personal injury, always wear gloves when handling the blade.

WARNING: To avoid serious personal injury, always stop the engine and allow the unit to cool before installing or removing any parts. Never install or remove parts while the unit is running. Disconnect the spark plug wire to prevent the unit from starting accidentally.

Removing the Cutting Head

1. Remove the cutting head shield. Refer to Installing and Removing the Cutting Head Shield.

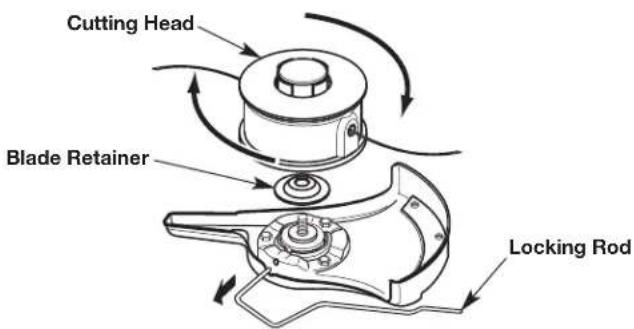

2. Rotate the cutting head (Fig. 15) until the shaft bushing hole aligns with the locking rod slot (Fig. 10).
3. Insert the locking rod through the locking rod slot and into the shaft bushing hole (Fig. 10).
4. Hold the locking rod in place by grasping the other end against the shaft housing (Fig. 14).
5. While holding the locking rod in place, unscrew the cutting head by turning it clockwise (Fig. 15).
6. Remove the locking rod (Fig. 15).
7. Remove the blade retainer (Fig. 15).

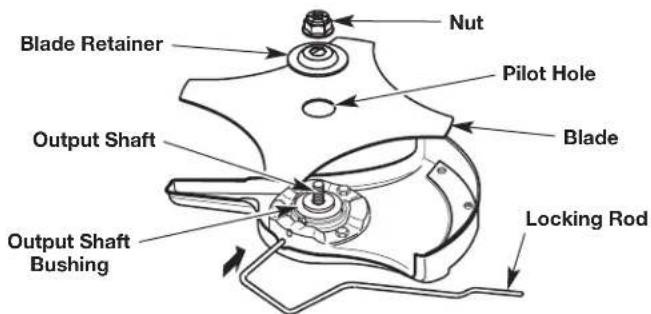

Installing the Blade

1. Rotate the output shaft bushing until the shaft bushing hole aligns with the locking rod slot (Fig. 10).
2. Insert the locking rod through the locking rod slot and into the shaft bushing hole (Fig. 10).
3. Hold the locking rod in place by grasping the other end against the shaft housing (Fig. 14).
4. While holding the locking rod in place, put the blade on the output shaft bushing (Fig. 16).

WARNING: To avoid serious personal injury, make sure that the pilot hole on the blade is sitting flat against the output shaft bushing (Fig. 16). The unit will vibrate and the blade may fly off if the blade is not centered.

1. Place the blade retainer on the output shaft with the flat surface against the blade (Fig. 16).

2. Screw the nut onto the output shaft (Fig. 16).

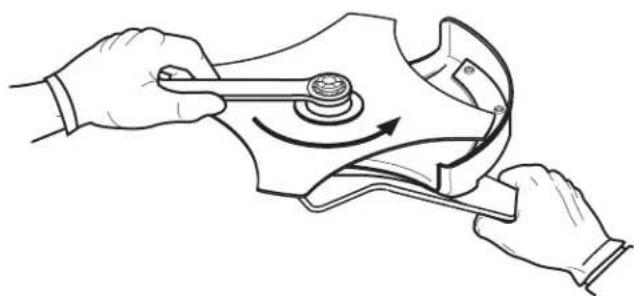

3. Tighten the nut counterclockwise with a wrench (Fig. 17):

4. If using a torque wrench, torque to: 325 - 335 in•lb, 27 - 28 ft.•lb, 37 - 38 N•m.

5. If using a closed-end or socket wrench, turn the nut until the blade retainer is snug against the blade. Make sure the blade is installed correctly, then rotate the nut an additional 1/4 to 1/2 turn counterclockwise.

6. Remove the locking rod.

WARNING: To avoid serious personal injury or damage to the unit, do not start or operate the unit with the locking rod inserted into the locking rod slot.

Fig. 14

Fig. 15

Fig. 16

Line drawing of two hands operating a mechanical device with a rotating knob (no text or symbols)

Fig. 17

INSTALLING AND REMOVING THE CUTTING HEAD SHIELD

WARNING: To prevent serious personal injury, when using the unit as a trimmer, never operate the unit without the cutting head shield in place.

WARNING: DO NOT install the cutting head shield when operating the unit as a brushcutter. Remove the cutting head shield before removing or installing the blade.

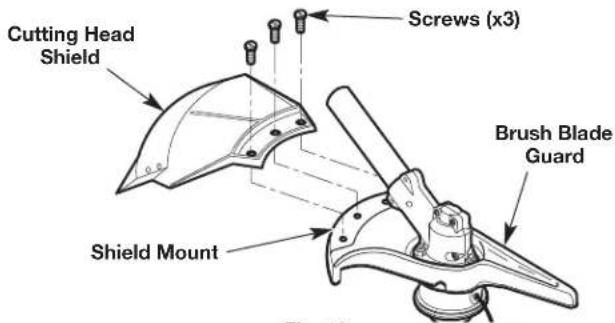

Installing the Cutting Head Shield

1. Place the cutting head shield over the shield mount surface on the brush blade guard (Fig. 18).
2. Insert the screws (x3) through the screw holes on the cutting head shield (Fig. 18).
3. Tighten the screws with a Phillips screwdriver.

Removing the Cutting Head Shield

1. Unscrew the screws (x3) on the cutting head shield with a Phillips screwdriver (Fig. 18).
2. Store the parts for future use.

Fig. 18

OIL AND FUEL

OIL AND FUEL MIXING INSTRUCTIONS

The use of old and/or improperly mixed fuel is the most common cause of performance problems. Use only fresh, clean unleaded gasoline. Follow the instructions carefully for the proper gasoline/oil mixture.

Definition of Blended Fuels

Today's fuels are often a blend of gasoline and oxygenates such as ethanol, methanol or MTBE (ether). Alcohol-blended fuel absorbs water. As little as 1% water in the fuel can make fuel and oil separate, forming acids when stored. ALWAYS use fresh fuel (less than 30 days old).

NOTE: Dispose of old fuel according to federal, state and local regulations.

Using Blended Fuels

If using a blended fuel:

• Always use the fresh fuel mix explained in this operator's manual
- Use the fuel additive STA-BIL® or an equivalent
• Always agitate the fuel mix before fueling the unit

CAUTION: DO NOT USE E85 FUEL IN THIS UNIT. It has been proven that fuel containing greater than 10% ethanol will likely damage this engine and void the warranty.

Using Fuel Additives

The container of 2-cycle oil provided with this unit includes a fuel additive to help inhibit corrosion and minimize gum deposits. Always use the brand of 2-cycle oil that came with this unit. If this is unavailable, use a 2-cycle oil designed for air-cooled engines and mix it with a fuel additive, such as STA-BIL Fuel Stabilizer or an equivalent. Add 0.8 oz. (23 ml) of fuel additive per gallon of fuel, according to the instructions on the container. NEVER add fuel additives directly to the unit's fuel tank.

Mixing the Fuel

NOTE: This unit comes with a 3.2 oz. (95 ml) container of 2-cycle oil. To obtain the correct fuel mixture described below, pour the entire container into one gallon of unleaded gasoline.

CAUTION: For proper engine operation and maximum reliability, pay strict attention to the gasoline and oil mixing instructions on the 2-cycle oil container. Using improperly mixed fuel can severely damage the engine.

Thoroughly mix the proper ratio of unleaded gasoline with 2-cycle engine oil. Do not mix them directly in the unit's fuel tank. Use a separate fuel can. Use a 40:1 gasoline/oil ratio. See the table below for specific gasoline and oil mixing ratios.

Unleaded gasoline	2-cycle oil
1 gallon U.S.(3.8 liters)	3.2 fl. oz.(95 ml)
1 liter 25 ml

MIXING RATIO - 40:1

FUELING THE UNIT

WARNING: Gasoline is extremely flammable. Ignited vapors may explode. Always stop the engine and allow it to cool before filling the fuel tank. Do not smoke while filling the tank. Keep sparks and open flames at a distance from the area.

WARNING: Remove the fuel cap slowly to avoid injury from fuel spray. Never operate the unit without the fuel cap securely in place.

WARNING: Add fuel in a clean, well-ventilated outdoor area. Wipe up any spilled fuel immediately. Avoid creating a source of ignition for spilled fuel. Do not start the engine until fuel vapors dissipate.

1. Position the unit with the fuel cap facing up.
2. Slowly remove the fuel cap.
3. Place the fuel container spout into the fuel tank fill hole and fill the tank.
   NOTE: Do not overfill the tank.
4. Wipe up any fuel that may have spilled.
5. Reinstall the fuel cap.
6. Move the unit at least 30 ft. (9.1 m) from the fuel container and the fueling site before starting the engine.

STARTING AND STOPPING

WARNING: Operate this unit only in a well-ventilated outdoor area. Carbon monoxide exhaust fumes can be lethal in a confined area.

WARNING: Avoid accidentally starting the unit. To avoid serious injury, the operator and the unit must be in a stable position when pulling the starter rope (Fig. 21).

STARTING INSTRUCTIONS

NOTE: To prevent the throttle control from being squeezed accidentally, this unit has a throttle lockout. The throttle control cannot be squeezed unless the throttle lockout is also engaged.

NOTE: There is no need to turn the unit on. The On/Off switch is in the On (1) position at all times (Fig. 19).

Before Starting the Unit

1. Mix gasoline with oil. Refer to Oil and Fuel Mixing Instructions.
2. Fill the fuel tank. Refer to Fueling the Unit.
3. Put the shoulder strap over the operator's head and onto the left shoulder (Fig. 21).

Starting the Unit

1. Slowly press and release the primer bulb 10 times (Fig. 20). If fuel cannot be seen in the primer bulb, press and release the primer bulb until fuel is visible.
2. Move the choke lever to Position 1 (Fig. 20).
3. Crouch in the starting position (Fig. 21).
4. Press and hold the throttle lockout (Fig. 19). Squeeze and hold the throttle control (Fig. 19).

NOTE: Continue to SQUEEZE and HOLD the throttle lockout and the throttle control for ALL further steps.

1. Pull the starter rope with a controlled and steady motion 5 times (Fig. 21).
2. Move the choke lever to Position 2 (Fig. 20).
3. Pull the starter rope with a controlled and steady motion 3 to 5 times to start the engine.
4. Allow the engine to warm up for 30 to 60 seconds.
5. Move the choke lever to Position 3 (Fig. 20). Allow the engine to warm up for an additional 60 seconds. The unit may be used during this time.
   NOTE: The engine is properly warmed up when it accelerates without hesitation.

IF... the engine hesitates, return the choke lever to Position 2 and continue the warm-up.

IF... the engine does not start, repeat the starting procedure.

IF... the engine fails to start after a few attempts: Move the choke lever to Position 3. Press and hold the throttle lockout. Squeeze and hold the throttle control. Pull the starter rope with a controlled and steady motion until the unit starts.

IF... the engine is already warm, begin the starting procedure with step 6.

After Starting the Unit

1. Snap the shoulder strap clip onto the shoulder strap / harness loop. Adjust the shoulder strap to fit the operator. Refer to Assembling and Using the Shoulder Strap.

Fig. 19

Fig. 20

Fig. 21

STOPPING INSTRUCTIONS

1. Release the throttle control and allow the engine to idle.
2. Press and hold the On/Off switch in the Off (O) position until the engine comes to a complete stop (Fig. 19).

OPERATION

HOLDING THE UNIT

WARNING: Always wear appropriate eye, hearing, hand, foot and body protection to reduce the risk of injury when operating this unit. Wear head protection. Use a full face shield when needed. Refer to the Safety section for appropriate safety equipment information.

WARNING: To prevent serious personal injury, avoid arm contact with the engine while operating the unit. The engine may be extremely hot.

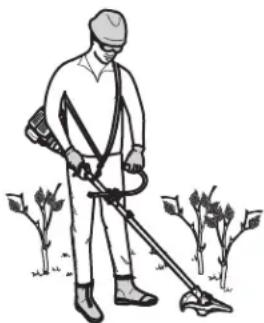

• Stand in the operating position (Fig. 22). Stand up straight. Do not bend over.
• Keep feet apart and firmly planted.
• Hold the shaft grip with the right hand. Keep the right arm slightly bent.
• Hold the handle with the left hand. Keep the left arm straight.
• Hold the unit at waist level.
• Position the cutting head / blade a few inches above the ground.

Line drawing of a person using a manual lawn brush (no text or symbols)

Illustration of a person using a long-range tool in a field with plants (no text or symbols)

Fig. 22

TIPS FOR BEST RESULTS (AS A BRUSHCUTTER)

WARNING: To avoid serious injury to the operator or others, do not use the blade as an edger.

• Keep the blade parallel to the ground.
• Always cut with the unit running at full speed. This provides maximum cutting power and makes the blade less likely to bind, stall or cause blade thrust.

WARNING: Blade thrust can occur when the spinning blade contacts an object that it does not immediately cut. Blade thrust can be violent enough to cause the unit and/or operator to be propelled in any direction and possibly lose control of the unit. Blade thrust can occur without warning if the blade snags, stalls or binds. This is more likely to occur in areas where it is difficult to see the material being cut.

• To direct clippings away from the operator, cut from left to right whenever possible.
  • Always release the throttle control and allow the unit to idle when not cutting.
• When finished, always unsnap the shoulder strap from the unit before taking off the shoulder strap.
• Never use a dull blade. If the blade becomes dull, refer to Maintaining the Blade in the Maintenance section.

WARNING: The blade will continue to spin for a while after the unit is turned off. To avoid serious personal injury, do not touch a coasting blade.

WARNING: To avoid serious personal injury, always turn the unit off before removing debris from the unit. Allow the blade to come to a complete stop.

ADJUSTING THE TRIMMING LINE LENGTH

This unit is equipped with a bump head. Trimming line can be released from the cutting head without stopping the engine.

To release more line, lightly tap the bump knob on the ground (Fig. 23) while operating the unit at high speed. For best results, tap the bump knob on bare ground or hard soil. Attempting to release line in tall grass may stall the engine.

NOTE: Do not rest the cutting head on the ground while the unit is running.

Each time the bump knob is tapped, about 1 inch (25.4 mm) of trimming line is released.

NOTE: Always keep the trimming line fully extended. Line release becomes more difficult when the cutting line gets shorter.

A blade in the cutting head shield will cut the line to the proper length if any excess line is released.

WARNING: Do not remove or alter the line cutting blade assembly. Excessive line length will make the unit overheat. This may lead to serious personal injury or damage to the unit.

TIPS FOR BEST RESULTS (AS A TRIMMER)

• For most operations, cut from side to side.

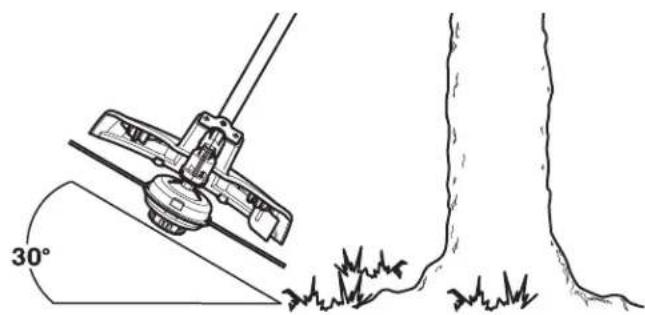

• To direct clippings away from the operator, tilt the cutting head slightly down to the right; cut from left to right whenever possible.
• Cut tall grass (over 8 inches (20cm)) from the top down by lowering the cutting head onto the grass.
• Cut with the tip of the trimming line.
• Cut in small increments. Move slowly. Do not force the unit.
• Do not trim wet grass or weeds.

NOTE: Some line breakage will occur from:

• Entanglement with foreign matter
- Normal line fatigue
- Attempting to cut thick vegetation
- Forcing the line into objects such as walls or fence posts

DECORATIVE TRIMMING (AS A TRIMMER)

When trimming around trees, posts, fences, etc., rotate the whole unit so that the cutting head is at a 30^ angle to the ground (Fig. 24).

Fig. 23

Fig. 24

EDGING (AS A TRIMMER)

The trimmer attachment can be used for edging (Fig. 25). Alternatively, a bladed lawn edger attachment can also be purchased for use with this unit.

Rotating the Trimmer Attachment

WARNING: To avoid serious personal injury and damage to the unit, shut the unit off before rotating the attachment.

When edging around sidewalks, flowerbeds, etc., rotate the trimmer attachment 90° inside the coupler. DO NOT rotate the entire unit 90°.

1. Turn the knob counterclockwise to loosen the coupler (Fig. 26).
2. Press and hold the release button (Fig. 26).
3. Rotate the attachment until the release button snaps firmly into the 90° edging hole (Fig. 26).
4. Turn the knob clockwise to tighten the coupler (Fig. 26).

WARNING: Only snap the release button into the 90° edging hole when edging with the trimmer attachment. Using the 90° edging hole with other attachments could lead to personal injury or damage to the unit.

Maintaining the Trimming Line

Hard surfaces, such as sidewalks, can cause the trimming line to wear down quickly or break.

• Frequently check and adjust the trimming line length. Refer to Adjusting the Trimming Line Length. Always keep the trimming line fully extended.
• DO NOT force the unit. Make shallow cuts in as many passes as are necessary to achieve the desired depth. Cut at a slow, even pace.

Line drawing of a person using a lawn power presser (no text or symbols present)

Fig. 25

Fig. 26

MAINTENANCE

WARNING: To avoid serious personal injury, always stop the engine and allow it to cool before cleaning or maintaining the unit. Never perform cleaning or maintenance while the unit is running. Disconnect the spark plug wire to prevent the unit from starting accidentally.

WARNING: Wear protective clothing and observe all safety instructions to prevent serious personal injury.

MAINTENANCE SCHEDULE

Perform these required maintenance procedures at the frequency stated in the table. These procedures should also be a part of any seasonal tune-up.

NOTE: Some maintenance procedures may require special tools or skills. If you are unsure about these procedures, take the unit to an MTD authorized service dealer.

NOTE: Maintenance, replacement, or repair of the emission control devices and system may be performed by an MTD authorized service dealer.

NOTE: Please read the California/EPA statement that came with the unit for a complete listing of terms and coverage for the emissions control devices, such as the spark arrestor, muffler, carburetor, etc.

FREQUENCY MAINTENANCE REQUIRED
Every 10 hours •	Clean and re-oil the air filter. Refer to Maintaining the Air Filter.
Every 25 hours •	Check the spark plug condition and gap.Refer to Maintaining the Spark Plug.

REPLACING THE TRIMMING LINE

Only use the trimming line described in the Specifications section. Other types of trimming line may cause the unit to overheat or fail.

WARNING: Never use metal-reinforced line, wire, chain or rope. These can break off and become dangerous projectiles.

NOTE: Always use the correct line length when installing trimming line. The line may not release properly if the line is too long.

Part 1 - Removing the Inner Reel

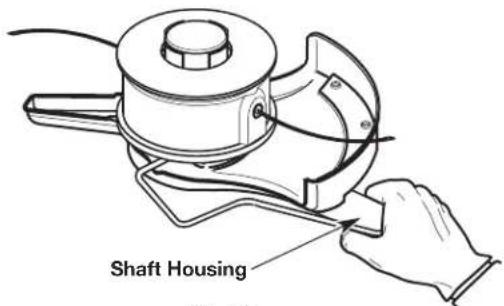

1. Hold the cutting head in place (Fig. 27). Turn the bump knob clockwise to unscrew it from the cutting head (Fig. 27).
   NOTE: The outer spool (Fig. 28) will remain attached to the unit.
2. Inspect the bolt inside the bump knob to make sure it moves freely (Fig. 27). Replace the bump knob if it is damaged.

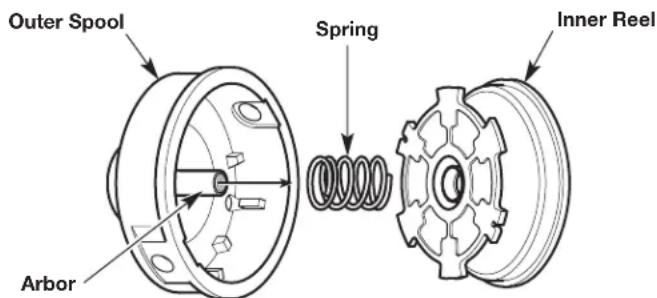

3. Remove the inner reel from the outer spool (Fig. 28).
4. Remove the spring from the inner reel (Fig. 28).
5. Use a clean cloth to clean the inner reel, spring, arbor and inner surface of the outer spool.

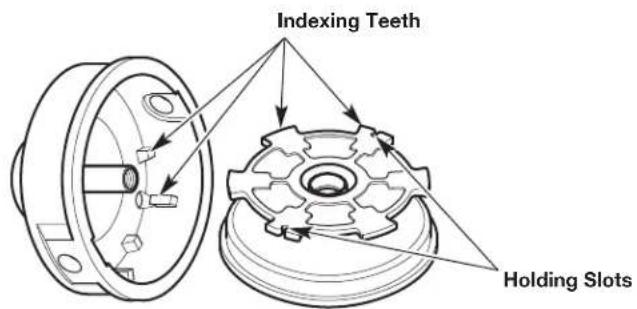

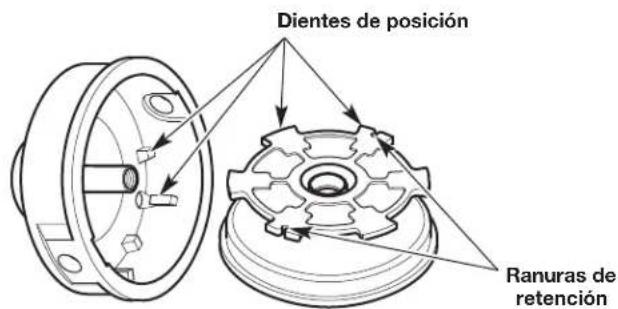

6. Check the indexing teeth and holding slots for wear (Fig. 29). If necessary, remove burrs or replace the inner reel and outer spool.
   Proceed to Part 2 - Winding New Trimming Line onto the Inner Reel.

Fig. 27

Fig. 28

Fig. 29

Fig. 30

Part 2 - Winding New Trimming Line onto the Inner Reel

• If using single line, refer to Winding Single Line.
• If using split line, refer to Winding Split Line.
• If using a prewound inner reel, proceed to Part 3 - Installing the Inner Reel.

Winding Single Line

1. Cut one 18-foot (5.5 m) length of new single trimming line. Fold the line in half to create a loop in the middle.

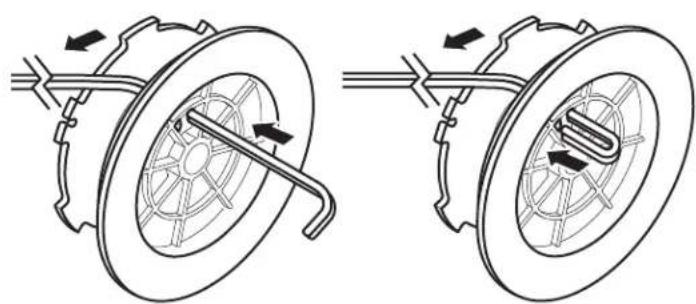

2. Insert the two line ends through the two holes in the inner reel (Fig. 30). Pull the line through the inner reel so that the loop is as small as possible (Fig. 30). Make sure the line ends are of equal length.
3. Wind the line tightly in the direction shown on the bottom of the inner reel until about 6 inches (150 mm) of line remains. Place your index finger between the two lines to stop the lines from overlapping.

NOTE: Failure to wind the line in the direction indicated will cause the cutting head to operate incorrectly.

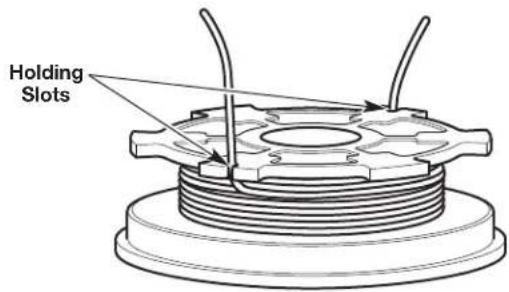

1. Insert the two 6-inch ends into the two holding slots (Fig. 31). Proceed to Part 3 - Installing the Inner Reel.

Winding Split Line

1. Cut one 9-foot (2.7 m) length of new split line trimming line.

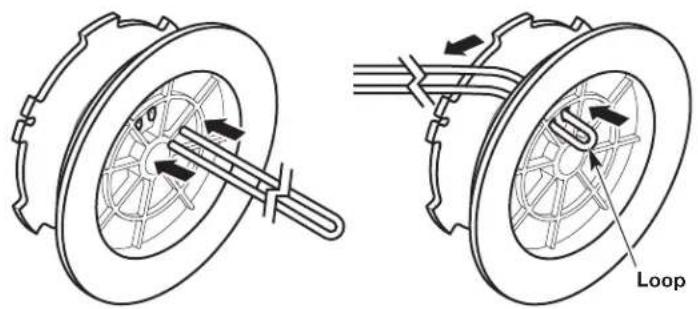

2. Insert one line end through one of the two holes in the inner reel. Pull the line through the inner reel until about 4 inches (10 cm) remain (Fig. 32).
3. Insert the end of the 4-inch section into the open hole in the inner reel and pull the line tight to make the loop as small as possible (Fig. 32).
4. Split the other line end about 6 inches (150 mm).
5. Wind the line tight in even layers in the direction indicated on the inner reel.

NOTE: Failure to wind the line in the direction indicated will cause the cutting head to operate incorrectly.

1. Insert the two 6-inch ends into the two holding slots (Fig. 31). Proceed to Part 3 - Installing the Inner Reel.

Part 3 - Installing the Inner Reel

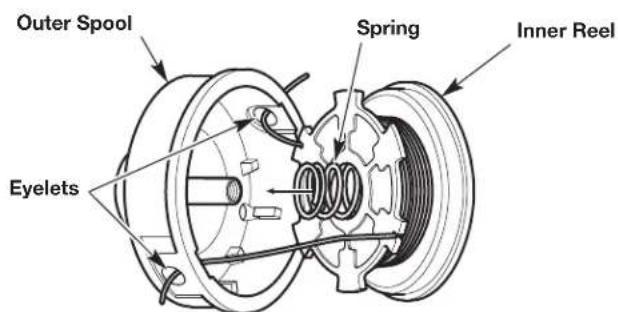

1. Pass the two line ends through the eyelets in the outer spool (Fig. 33).
2. Place the spring inside the inner reel (Fig. 33).
3. Insert the inner reel into the outer spool (Fig. 33). Push the inner reel and outer spool together.
4. While holding the inner reel and outer spool together, firmly pull the two line ends to release them from the holding slots.
5. While holding the inner reel and outer spool together, screw the bump knob on counterclockwise (Fig. 27). Tighten the bump knob securely.

Fig. 31

Diagram showing two mechanical components with directional arrows indicating motion or force (no text or symbols)

Fig. 32

Fig. 33

MAINTAINING THE BLADE

WARNING: Do not sharpen the blade. Sharpening the blade can cause the blade tip to break off while in use. This can result in severe personal injury.

The blade has a second cutting edge. If the blade becomes dull, remove the blade, turn it upside down and reinstall the blade. If both sides are dull, replace the blade. Refer to Removing the Blade and Installing the Blade in the Assembly section.

MAINTAINING THE AIR FILTER

Failure to maintain the air filter can result in poor performance or can cause permanent damage to the engine. Engine failure due to improper air filter maintenance is not covered by the product warranty.

Cleaning the Air Filter

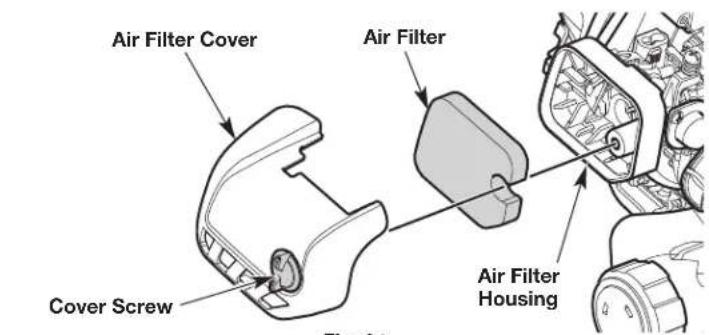

1. Open the air filter cover by unscrewing the cover screw (Fig. 34).
2. Remove the air filter from the air filter housing (Fig. 34).
3. Wash the air filter in detergent and water. Rinse the air filter thoroughly and allow it to dry.
4. Lightly coat the air filter with clean SAE 30 oil.
5. Squeeze the air filter to spread and remove excess oil.
6. Reinstall the air filter in the air filter housing (Fig. 34).

NOTE: Operating the unit without the air filter and air filter cover will VOID the warranty.

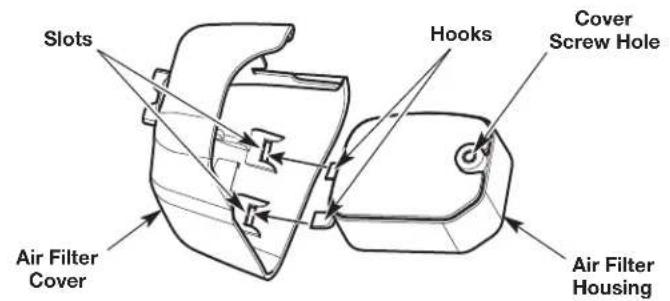

1. Insert the hooks on the air filter housing into the slots on the air filter cover (Fig. 35).
2. Swing the air filter cover to the right and align the cover screw with the cover screw hole (Fig. 35). Tighten the cover screw to secure the air filter cover.

NOTE: Do not over tighten as this may strip the screw.

Fig. 34

Fig. 35

ADJUSTING THE IDLE SPEED

WARNING: The cutting head / blade may spin during idle speed adjustments. Wear protective clothing and observe all safety instructions to prevent serious personal injury.

If the engine will not idle properly:

1. Start the engine. Refer to Starting and Stopping.
2. Release the throttle control and let the engine idle.

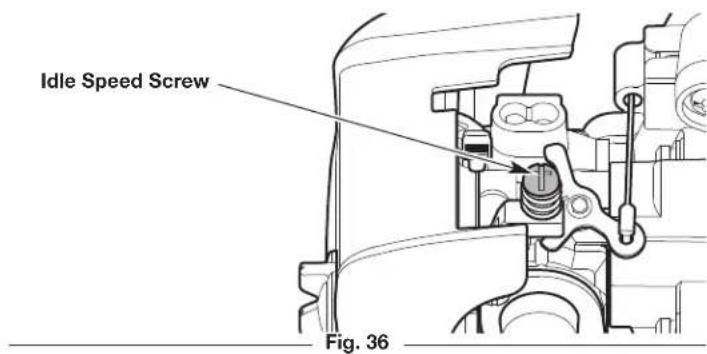

- If the engine stops, increase the idle speed. Use a small Phillips screwdriver to turn the idle speed screw clockwise, 1/8 of a turn at a time, until the engine idles smoothly (Fig. 36).

- If the cutting head / blade spins when the engine idles, reduce the idle speed. Turn the idle speed screw counterclockwise, 1/8 of a turn at a time, until the cutting head / blade stops moving (Fig. 36).

MAINTAINING THE SPARK PLUG

1. Stop the engine and allow it to cool. Grasp the spark plug boot firmly and pull it from the spark plug.
2. Clean around the spark plug. Remove the spark plug from the cylinder head with a 5/8-inch socket, turning counterclockwise.

WARNING: Do not sand blast, scrape or clean spark plug electrodes. Grit in the engine could damage the cylinder.

1. Inspect the spark plug. If the spark plug is cracked, fouled or dirty, replace it with replacement part #753-06847, a Champion RDJ7J or an equivalent spark plug.
2. Use a feeler gauge to set the air gap at 0.025 in. (0.635 mm) (Fig. 37).
3. Install the spark plug in the cylinder head. Tighten the spark plug with a 5/8-inch socket, turning it clockwise until snug.

NOTE: If using a torque wrench, torque to:

110-120 in. • lb. (12.3-13.5 N•m). Do not over tighten.

1. Reattach the spark plug boot.

Fig. 37

CLEANING AND STORAGE

CLEANING

WARNING: To avoid serious personal injury, always stop the engine and allow it to cool before cleaning or maintaining the unit.

Use a small brush to clean the outside of the unit. Do not use strong detergents. Household cleaners that contain aromatic oils such as pine and lemon, and solvents such as kerosene, can damage plastic. Wipe off any moisture with a soft cloth.

Clean the brushcutter blade with a household cleaner to remove gum buildup. Wipe the brushcutter blade with a light machine oil to prevent rust.

STORAGE

• Never store a fueled unit where fumes may reach an open flame or spark.
• Allow the engine to cool before storing.
• Lock up the unit to prevent unauthorized use or damage.
• Store the unit in a dry, well-ventilated area.
• Store the unit out of the reach of children.
• To suspend the attachment from a hook, install the hanger cap onto the attachment. Make sure the release button is securely locked into one of the holes on the hanger cap.

Short-term Storage (1-2 weeks)

1. Store the unit in a horizontal position. If this is not possible, store the unit vertically with the engine at the top.

Long-term Storage

1. Remove the fuel cap, tip the unit and drain the fuel into an approved container. Reinstall the fuel cap.
2. Start the engine and allow it to run until it stalls. This ensures that all fuel has been drained from the carburetor.
3. Allow the engine to cool. Remove the spark plug and put 5 drops of any high-quality motor oil or 2-cycle oil into the cylinder. Pull the starter rope slowly to distribute the oil. Reinstall the spark plug.
4. Thoroughly clean the unit and inspect it for any loose or damaged parts. Repair or replace damaged parts and tighten loose screws, nuts or bolts.

Preparing the Unit for Use after Long-term Storage

1. Remove the spark plug. Tip the unit and drain all of the oil from the cylinder into an approved container. Reinstall the spark plug.

NOTE: Do not use fuel that has been stored for more than 30 days. Dispose of old fuel and oil according to federal, state and local regulations.

TROUBLESHOOTING

PROBLEM SOLUTION
THE ENGINE WILL NOT START
The fuel tank is empty Fill the fuel tank with properly-mixed fuel
The primer bulb was not pressed enough Press the primer bulb 10 times or until fuel is visible
The engine is flooded	Move the choke lever to Position 3, press the throttle lockout, squeeze the throttle control and pull the starter rope until the engine starts
The fuel is old (over 30 days) and/or improperly mixed Drain the fuel tank and add fresh, properly-mixed fuel
The spark plug is fouled Replace the spark plug
THE ENGINE WILL NOT IDLE
The air filter is dirty Clean or replace the air filter
The fuel is old (over 30 days) and/or improperly mixed Drain the fuel tank and add fresh, properly-mixed fuel
The idle speed is incorrect Adjust the idle speed
THE ENGINE WILL NOT ACCELERATE
The fuel is old (over 30 days) and/or improperly mixed Drain the fuel tank and add fresh, properly-mixed fuel
The cutting head is bound with grass Stop the engine and clean the cutting head
The air filter is dirty Clean or replace the air filter
THE ENGINE LACKS POWER OR STALLS
The fuel is old (over 30 days) and/or improperly mixed Drain the fuel tank and add fresh, properly-mixed fuel
The air filter is dirty Clean or replace the air filter
The spark plug is fouled Replace the spark plug
THE CUTTING HEAD WILL NOT ADVANCE LINE
The cutting head is bound with grass Stop the engine and clean the cutting head
The cutting head is out of line Refill the cutting head with new line
The inner reel is bound up Rewind the line
The cutting head is dirty Clean the inner reel and outer spool
The line is welded Open the cutting head and remove the welded section
The line is twisted Rewind the line
Not enough line is extended	Stop the unit, push the bump knob and pull the line until 4 inches (102 mm) is outside of the cutting head
THE CUTTING LINE ADVANCES UNCONTROLLABLY
There is oil, cleaner or lubricant in the cutting head Clean and thoroughly dry the cutting head

If further assistance is required, contact an authorized service center.

MANUFACTURER'S LIMITED WARRANTY FOR:

TROY-BILT®

The limited warranty set forth below is given by Troy-Bilt LLC (Troy-Bilt) with respect to new merchandise purchased and used in the United States, its possessions and territories.

Troy-Bilt warrants this product against defects in material and workmanship for a period of two (2) years commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in material or workmanship. This limited warranty shall only apply if this product has been operated and maintained in accordance with the Operator's Manual furnished with the product, and has not been subject to misuse, abuse, commercial use, neglect, accident, improper maintenance, alteration, vandalism, theft, fire, water or damage because of other peril or natural disaster. Damage resulting from the installation or use of any accessory or attachment not approved by Troy-Bilt for use with the product(s) covered by this manual will void your warranty as to any resulting damage. This warranty is limited to ninety (90) days from the date of original retail purchase for any Troy-Bilt product that is used for rental or commercial purposes, or any other income-producing purpose.

HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF OF PURCHASE THROUGH YOUR LOCAL AUTHORIZED SERVICE DEALER. To locate the dealer in your area, visit our website at www.troybilt.com or www.troybilt.ca, check for a listing in the Yellow Pages, call 1-800-828-5500 or 1-800-668-1238 in Canada, or write to P.O. Box 361131, Cleveland, OH 44136-0019. No product returned directly to the factory will be accepted unless prior written permission has been extended by the Customer Service Department of Troy-Bilt.

This limited warranty does not provide coverage in the following cases:

A. Tune-ups - Spark Plugs, Carburetor Adjustments, Filters
B. Wear items - Bump Knobs, Outer Spools, Cutting Line, Inner Reels, Starter Pulley, Starter Ropes, Drive Belts, Saw Chains, Guide Bars, Cultivator Tines, Blades.
C. Troy-Bilt does not extend any warranty for products sold or exported outside of the United States of America, its possessions and territories, except those sold through Troy-Bilt's authorized channels of export distribution.

Troy-Bilt reserves the right to change or improve the design of any Troy-Bilt Product without assuming any obligation to modify any product previously manufactured.

No implied warranty, including any implied warranty of merchantability or fitness for a particular purpose, applies after the applicable period of express written warranty above as to the parts as identified. No other express warranty or guaranty, whether written or oral, except as mentioned above, given by any person or entity, including a dealer or retailer, with respect to any product shall bind Troy-Bilt. During the period of the Warranty, the exclusive remedy is repair or replacement of the product as set forth above. (Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.)

The provisions as set forth in this Warranty provide the sole and exclusive remedy arising from the sales. Troy-Bilt shall not be liable for incidental or consequential loss or damages including, without limitation, expenses incurred for substitute or replacement lawn care services, for transportation or for related expenses, or for rental expenses to temporarily replace a warranted product. (Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.)

In no event shall recovery of any kind be greater than the amount of the purchase price of the product sold. Alteration of the safety features of the product shall void this Warranty. You assume the risk and liability for loss, damage, or injury to you and your property and/or to others and their property arising out of the use or misuse or inability to use the product.

This limited warranty shall not extend to anyone other than the original purchaser, original lessee or the person for whom it was purchased as a gift.

How State Law Relates to this Warranty: This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

To locate your nearest service dealer, dial 1-800-828-5500 in the United States or 1-800-668-1238 in Canada.

TROY-BILT LLC

P.O. Box 361131

Cleveland, OH 44136-0019

TROY-BILT®

Manual del Operador

TB272 BC

Technical line drawing of a manual tool with a mounted power tool and lever (no text or symbols)

CONSERVE ESTAS INSTRUCCIONES

Illustration of two hands performing a mechanical tool manipulation (no text or symbols)

Line drawing of a person using a manual lawn brush (no text or symbols)

Illustration of a person spraying a manual lever outdoors with plants in the background (no text or symbols)

Fig. 22

Line drawing of a person using a manual lawn power tool (no text or symbols present)

Fig. 25

Fig. 28

Diagram showing two mechanical components with directional arrows indicating motion, no text or symbols present

Fig. 32
