FKH93-2INOX - Range hood Exquisit - Free user manual and instructions

Product Type	Under cabinet range hood
Brand	Exquisit
Model	FKH93-2INOX
Color / Material	Stainless steel (INOX)
Width	90 cm
Depth	50 cm
Height (without chimney)	15 cm
Weight	16 kg
Power Supply	220-240 V, 50 Hz
Motor Power	250 W
Maximum Extraction Rate	750 m³/h
Noise Level (max)	65 dB(A)
Lighting	2 x 3 W LED
Controls	Electronic touch buttons with 3 speeds
Grease Filter	Aluminum mesh (dishwasher safe)
Carbon Filter	Optional (for recirculation mode)
Exhaust Outlet	150 mm diameter
Installation Type	Ducted or recirculating
Energy Efficiency Class	B
Annual Energy Consumption	55 kWh/year
Warranty	2 years

Frequently Asked Questions - FKH93-2INOX Exquisit

How do I install the Exquisit FKH93-2INOX range hood?

Installation should be performed by a qualified professional. The hood can be mounted under a cabinet or on a wall. Ensure the exhaust duct (150 mm) is properly connected if using ducted mode. For recirculation mode, install charcoal filters. Refer to the manual for detailed step-by-step instructions.

How often should the grease filters be cleaned?

The aluminum mesh grease filters should be cleaned every 2 to 3 months, or more frequently with heavy use. They are dishwasher safe. Remove the filters and wash them with warm water and mild detergent, then dry thoroughly before reinstalling.

Can this range hood be used in recirculation mode?

Yes, the Exquisit FKH93-2INOX can be used in recirculation mode. You will need to purchase optional charcoal (carbon) filters that absorb odors. Install the carbon filters according to the manual; they need to be replaced every 4-6 months.

What is the maximum extraction rate?

The maximum extraction rate is 750 m³/h, achieved at the highest speed setting. This is suitable for medium to large kitchens.

How do I replace the LED lights?

The LED lights are integrated and should be replaced by a qualified technician. If a light fails, contact customer service for assistance. Do not attempt to replace them yourself to avoid electric shock.

The hood is making loud noise. What should I do?

Check if the grease filters are clogged and clean them if needed. Also ensure the ductwork is not blocked or kinked. If noise persists, inspect for loose parts or contact a service professional. Normal noise level is around 55-65 dB.

What are the dimensions of the FKH93-2INOX?

The width is 90 cm, depth 50 cm, and height (without chimney) 15 cm. The overall height with chimney is adjustable depending on installation.

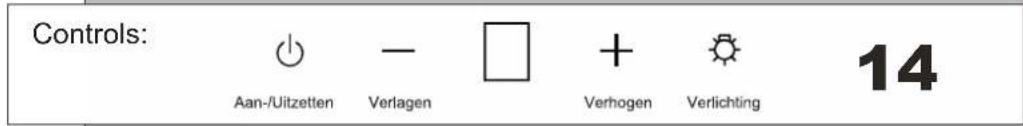

How do I control the fan speed?

The range hood has an electronic touch control panel with three speed settings. Press the buttons to adjust the fan speed as needed. There may also a boost function for maximum extraction.

Is this range hood energy efficient?

The Exquisit FKH93-2INOX has an energy efficiency class B, with an annual energy consumption of approximately 55 kWh. It also uses energy-saving LED lights.

Where can I find spare parts or filters?

Spare parts such as grease filters, carbon filters, and LED modules can be ordered from the Exquisit website or authorized dealers. Use the model number FKH93-2INOX to ensure compatibility.

USER MANUAL FKH93-2INOX Exquisit

Simple line drawing of a rectangular block with two small icons and an inset showing three bullet points (no text or symbols)

5

6

Simple line drawing of a mechanical press or lifting device mounted on a base, with no text or symbols present.

Simple line drawing of a mechanical assembly with a rectangular housing and base plate (no text or symbols)

Simple line drawing of a mechanical setup with two platforms, a switch, and a control panel (no text or symbols)

8

Diagram showing a structural support system with an inset diagram of a beam being inserted into a block, labeled '10' (no text or symbols on the diagram itself)

Exquisit Servicebepalingen

domestic and professional appliances

Koper →

Naam

Adres

Plaats

Aankoop

Importeur →

DOMEST MULTIBRAND SALES & SERVICES B.V.

J.F. Kennedylaan 101b 7001CZ Doetinchem NL

Tel. 0314 - 362244

Fax 0314 - 378232

E-mail: [e-mail]

DOMEST

domestic and professional appliances

MULTIBRAND

SALES & SERVICES

Line drawing of a kitchen air conditioner unit with ventilation grilles and top panel (no text or symbols)

In certain circumstances electrical appliance may be a danger hazard.

A) There must be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
B) Do not check the status of the filters while the cooker hood is operating.
C) Do not touch the light bulb within half an hour after appliance has been use.
D) Do not light a flame under the cooker hood.
E) Avoid opening gasometer when there is no pan on the stove, as it is damaging for the filters and a fire hazard.
F) Constantly check food frying to avoid overheated oil splashing and becoming a fire hazard.
G) Disconnect the electrical plug prior to any maintenance.
H) Regulations concerning the discharge of air have to be fulfilled.
I) When the range hood and appliances supplied with energy Other than electricity are simultaneously in operation. The negative pressure in the room must not exceed 4 Pa ( 4 × 10^-5 bar)

J) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
K) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
L) the range hood is inteded to be installed over a hob having no more than four hob elements.
M) Indoor use and household use only
N) When the appliance is not in use and before cleaning, unplug the appliance from the outlet.
O) Attention! Observe the warning in the instruction sheet concerning the operation of the appliance when air is discharged from the room
P) There is a fire risk if cleaning is not carried out in accordance with the instructions.

Line drawing of a kitchen air conditioner unit with ventilation grilles and a cabinet (no text or symbols)

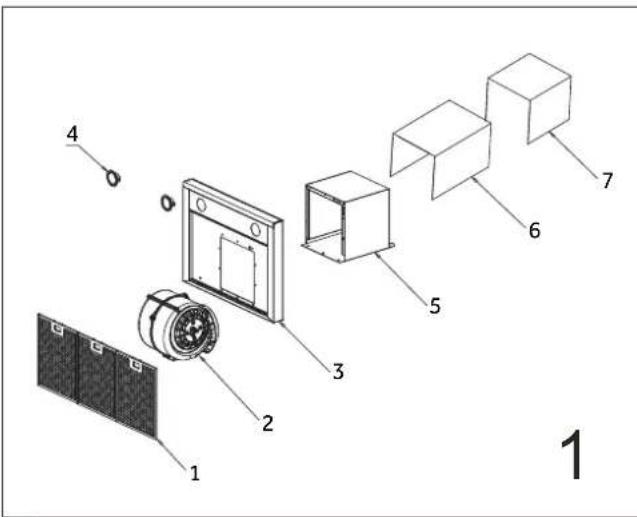

Know your cook er hood

Please read these instructions Before using your cooker hood

1.Filter assembly

1. Air duct assembly

3.Main body assembly

4.LED light

5.Bellows

1. Outside chimney

2. Inner chimney

i

Information

Congratulations on the purchase of our Cooker hood, which is designed to include many superior features that permit you the fullest expression of your living. Before installing and/or using the cooker hood carefully read all the instructions.

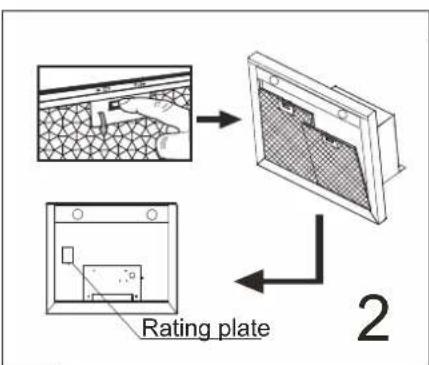

Check voltage and Frequency given on the rating plate located on the inside of the hood.

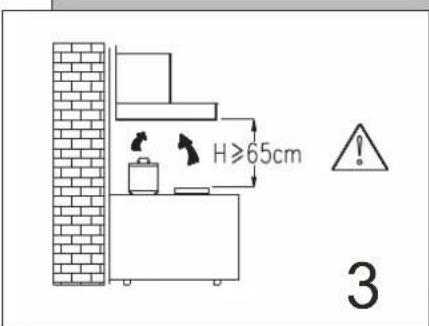

We recommend that after installation the bottom of the hood should be no less than 650mm and no more than 750mm above the stove's heating elements and burners.

i

Information

The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room)

Line drawing of a kitchen air conditioner unit with ventilation grilles and a cabinet (no text or symbols)

Know your cook er hood

Please read these instructions Before using your cooker hood

Line drawing of a kitchen air conditioner unit with ventilation grilles and a cabinet (no text or symbols)

Know your cook er hood

Please read these instructions Before using your cooker hood

The cooker hood is fully convertible for different venting direction.

Diagram of a pipe or channel with fluid flow and brick wall (no text or symbols)

8

Vertical is the most common. If your kitchen has an attic space above, the ducting may be run up through the cupboard and attic to a roof cap.

Technical diagram of a brick wall structure with internal components and a magnified inset showing internal structure (no text or symbols)

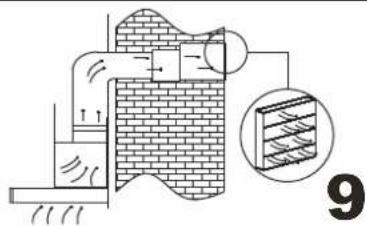

If your kitchen has a soffit above the cupboards, you may run the duct up into the soffit and then discharge horizontally through the outside wall to a wall cap.

Information

The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Simple line drawing of a vertical stack with an arrow indicating downward motion, no text or symbols present.

10

Put the outer chimney on the windshield.

Information

Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.

11

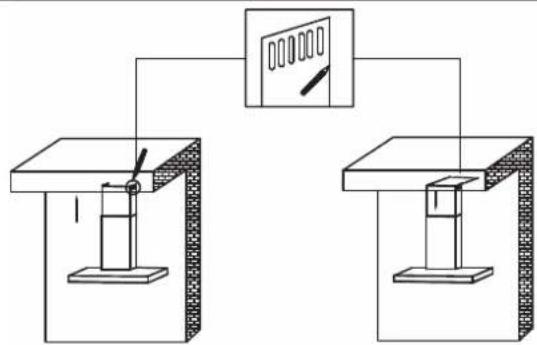

According to the dimension of the chimney fixed bolster, make sure the position of the two chimneys.

Line drawing of a kitchen air conditioner unit with ventilation grilles and a cabinet (no text or symbols)

Know your cook er hood

Please read these instructions Before using your cooker hood

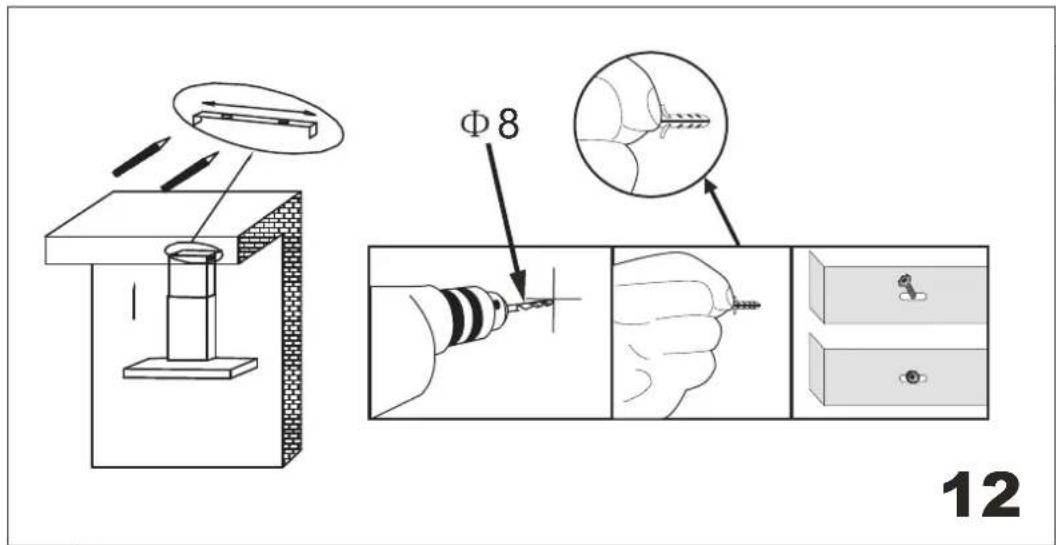

12

Install the chimney fixed bolster on the corresponding position on the wall.

To install this hood you will require two assistants

Information

Do not touch the light bulb within half an hour after appliance use. The lamp shall not be covered with therm insulation or other material

Line drawing of a kitchen air conditioner unit with ventilation grilles and a cabinet (no text or symbols)

Replacement and maintenance

If the supply cord is damaged, it must be replaced by the manufacturer its service agent or similarly qualified persons in order to avoid a hazard

Replacing lamp

12V 1WX2 Max

15

1. Disconnect the electrical plug.
2. Use the "—" type screwdriver to remove the damaged lamp from lamp hole.
3. Disconnect the connectors between damaged lamp and lamp wire.
4. Connect the connectors between new lamp and lamp wire. Put the lamp click into place of lamp hole.

Warning: Lamp replacement must be done by qualified after-sales service maintenance personnel.

(--- to be "0.45 m")

Required min. distance to surfaces (such as lids, oven cloth or the like) in order to prevent hot parts and fire hazards.

16

Only self shielded lamps can be used in order to prevent undue hot parts, fire hazards and exposure to UV radiation.

17

Hand holding a tool interacting with a textured surface (no text or symbols visible)

Hand holding a tool interacting with a mesh-patterned surface (no text or symbols visible)

18

- It is recommendable to clean the metallic filter every three months by carrying out the following instructions:

-Remove the metallic filter from the cooker hood and wash it in a solution of water and neutral liquid detergent, leaving to soak

—Rinse thoroughly with warm water and leave to dry.

-The metallic filter may also be washed in the dishwasher.

The metallic filter may alter in color after several washes.

This is not cause for customer complaint nor replacement of metallic filter.

i

Information

The power of bulb must not be more than 1W .

i

Information

There is a fire risk if cleaning is not carried out in accordance with the instructions.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

The manufacturer shall decline all responsibility if the foregoing recommendations and instruction regarding installation, maintenance and use are not observed and respected when using the cooker hood.

1. These warranty conditions apply exclusively to the original buyer and for domestic use of the appliance in the Benelux. If the appliance is resold from user to user, the warranty becomes null and void.
2. The warranty only applies if, in the event of a warranty claim, this warranty certificate with the original purchase invoice is shown by the original buyer.
3. No guarantee shall apply to defects caused by: damage, rough or injudicious handling, negligence on the part of the user, use of the appliance at an incorrect voltage or use for a purpose other than that for which it was supplied. Nor can the warranty be invoked when the rating plate with serial number has been changed or removed and/or when the device has been worked on by unqualified persons.
4. Not covered under the terms of this warranty: glass(ceramic), lighting, plastic/metal parts and/or accessories (i.e. filters, grills, pan supports), wire baskets and/or separation partitions, lacquer and/or enamel damage.
5. The warranty period commences on the day of purchase registered on the original invoice and covers: A two-year guarantee on the entire device and its electrical parts such as thermostat, thermal protection, relay, ventilation fan, transformer, switch, etc. with the exception of all parts mentioned under 4.
6. The warranty only covers the replacement of defective- or damaged parts and related labour costs in accordance with the stated responsibility in these warranty conditions.
7. Transport and/or packaging costs as well as the transportation risk (for equipment that can only be repaired in our service department) are not covered by the guarantee and will be charged to the user. More details, please see 'Service Terms Exquisit' below in which, among other things, calculation of call-out charges and labour costs, when applicable, are specified.
8. Note that repair- and material costs not covered by this warranty must be paid directly in cash. If invoicing of the mechanic's costs is required, please take into account that additional administration costs will be charged.
9. We are not responsible for any work- and/or repair costs carried out by third parties, not commissioned by by us. Nor are we, at any time, responsible for any (extra) costs and/or any consequences hereof, in any case, directly or indirectly resulting from a malfunction, defect or injudicious use of the device caused by a 3 ^rd party not deployed by Exquisit, its importer and/or suppliers.
10. Replacement of parts does not extend the original warranty period.

Service terms Exquisit

1. Do not use damaged appliances upon receipt, but report this immediately to your supplier. It is not possible to return damaged, used appliances!
2. During the first 24 months after the date of purchase on the original invoice of the 1st buyer no costs will be charged for services which are covered by these applicable warranty terms and conditions.
3. Only if 4 or more appliances intended for use in 1 and the same kitchen are listed on the original purchase invoice, then following costs will be charged in the 36 month period starting 2 years after the date of purchase on the original invoice:
   a. Call-out costs
   b. Labour costs
4. In case of a mechanic's visit all costs and materials used, which are not covered by this warrant, must be paid directly in cash in accordance with the stipulations stated in point 7-8 in the Warranty Terms & Conditions and in points 2-4 in the Service Terms Exquisit, regardless of the nature of the work.
5. Dispatch of any parts will always take place on payment in advance.
6. Note: If 4 or more appliances, intended for use in 1 and the same kitchen are listed on the original purchase invoice of the first buyer, the entire guarantee expires 5 years after the purchase date on this original purchase invoice and all costs will be charged in accordance with the specified regulations under point 8. If less than 4 appliances are listed on the original purchase invoice of the first buyer, the entire guarantee expires 2 years after the purchase date on this original purchase invoice and all costs will be charged in accordance with the specified regulations under point 8.
