UBH20-2.3MI - Range hood Exquisit - Free user manual and instructions

Product Type	Range Hood
Brand	Exquisit
Model	UBH20-2.3MI
Installation Type	Built-in / Undercabinet
Width	600 mm
Depth	500 mm
Height (Max)	150 mm
Weight	12 kg
Power Supply	220-240 V ~ 50 Hz
Motor Power	150 W
Max Extraction Rate	350 m³/h
Noise Level (Max)	55 dB(A)
Number of Speeds	3
Lighting	LED, 2 x 1.5 W
Grease Filter	Aluminum, washable
Charcoal Filter	Optional (for recirculation)
Ducting Diameter	150 mm
Control Type	Push buttons
Energy Class	C
Safety Features	Overheat protection, auto shut-off
Cleaning	Grease filter in dishwasher, exterior with damp cloth

Frequently Asked Questions - UBH20-2.3MI Exquisit

How do I install the Exquisit UBH20-2.3MI range hood?

The hood is designed for undercabinet installation. Ensure the cabinet is securely mounted. Connect the ducting (150 mm) for extraction or install a charcoal filter for recirculation. Follow the provided manual for electrical connections.

Can I use the hood without ducting?

Yes, you can use it in recirculation mode. Purchase the optional charcoal filter (model not specified) and install it as per instructions.

How often should I clean the grease filters?

Clean the aluminum grease filters every 1-2 months depending on usage. They can be washed in a dishwasher or by hand with warm soapy water.

How do I replace the charcoal filter?

Charcoal filters should be replaced every 3-6 months. To replace, remove the grease filter, take out the old charcoal filter, and insert a new one. Ensure the filter is properly seated.

What should I do if the hood is not extracting properly?

Check if the grease filters are clogged. Clean them. Also verify the ducting is not blocked and the charcoal filter (if used) is not saturated. Increase speed setting if needed.

How do I change the LED lights?

Disconnect power. Remove the lamp cover (if any) and gently pull out the LED module. Replace with a compatible 1.5W LED (e.g., G4 base). Reinstall cover and restore power.

What is the noise level at different speeds?

Typical noise levels: low speed ~45 dB, medium ~50 dB, high ~55 dB. These values may vary slightly depending on installation.

Can I install the hood myself?

Installation is suitable for DIY if you have basic electrical knowledge. Ensure the wall/cabinet can support the weight. For safety, disconnect power before installation.

Why does the hood turn off by itself?

The hood has an auto shut-off feature for safety, triggered after extended use (e.g., 4 hours) or if overheating occurs. Wait for it to cool down, then restart.

Where can I find spare parts?

Spare parts like grease filters, charcoal filters, and LED modules are available through Exquisit dealers or online. Use the model number UBH20-2.3MI to search.

USER MANUAL UBH20-2.3MI Exquisit

Blue background with a circle of twelve yellow stars, representing the European Union flag (no text or symbols beyond the stars)

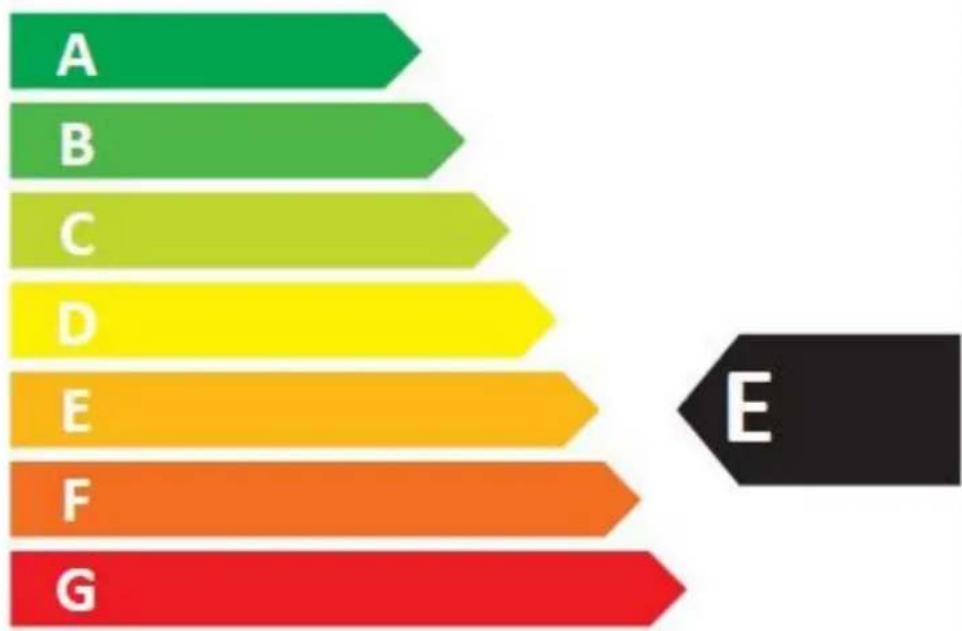

ENERG

енергия · ενέργεια

UBH20 MI

exquisit

E

84

kWh/annum

Blue triangular logo with three leaf design inside a circle, enclosed in a rounded rectangle (no text or symbols on the logo itself)

Blue light bulb icon inside a rounded rectangle, with text 'ABCDEF G' below (no other symbols or text)
