Product Type	Range Hood (Cooker Hood)
Brand	Exquisit
Model	FKH92-3BL
Color	Black (model suffix BL)
Installation Type	Wall-mounted, ducted or recirculation
Control Type	Push buttons (Light, Low, Mid, High, Boost)
Number of Speeds	4 (Low, Mid, High, Boost)
Lighting	LED module, 1.5W, DC 12V, replaceable
Grease Filter	Metal, washable in dishwasher, clean every 2 months
Charcoal Filter	Optional, replace every 4 months, not washable
Duct Outlet Diameter	120 mm or 150 mm (with reducer flange)
Minimum Distance from Hob	65 cm (gas), see manual for electric
Power Supply	220-240 V, 50 Hz (Europe)

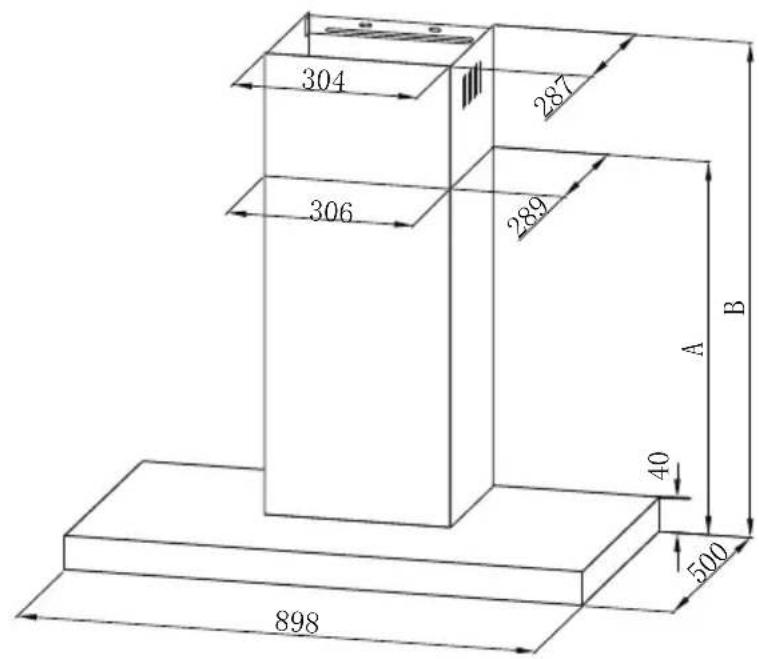

Dimensions (Hood Body, approx.)	898 mm (W) x 500 mm (D) x 145 mm (H)
Chimney Height Adjustment	Range from 430-800 mm (option 1) up to 630-1200 mm (option 3)
Included Accessories	Hood body, lower/upper chimney, exhaust pipe, mounting brackets, screws, wall plugs, instruction manual
Safety Features	Class I, earthing required, automatic boost return to high after 8 min
Warranty	See manufacturer's conditions (scan QR code in manual)

Frequently Asked Questions - FKH92-3BL Exquisit

What is the minimum distance required between the hob and the range hood?

For gas hobs, the minimum distance is 65 cm. If your gas hob instructions specify a greater distance, that must be respected. For electric hobs, refer to the installation manual.

How do I clean the grease filters?

Remove the metal grease filters by pushing them towards the back of the hood and pulling downwards. Clean them every 2 months or more frequently with heavy use. They can be washed in a dishwasher. Avoid bending and ensure they are completely dry before reinstalling.

How often should I replace the charcoal filter?

The activated charcoal filter is used in recirculation mode and cannot be washed. Replace it every 4 months of operation, or more often with heavy usage. To replace, remove the grease filters, take out the old charcoal filter, fit the new one, and reinstall the grease filters.

What should I do if the motor does not work but the light is on?

Check if the blades are blocked. If not, the capacitor or motor may be damaged, or the wiring may be disconnected. Contact a qualified technician for repair.

How do I replace the LED light?

Unplug the hood or switch off the circuit breaker. Remove the grease filter and the 2 screws on the front plate. Disconnect the terminal, press the LED light from the back to remove it. Install a new LED module (max 1.5W, DC 12V, 33.2x120mm), reconnect, and reassemble.

How do I adjust the fan speed?

Press the Low, Mid, High, or Boost buttons. Each press turns the speed on/off. The Boost speed automatically returns to High after 8 minutes.

Can I use the hood with gas appliances?

Yes, but ensure the room has adequate ventilation to prevent backflow of exhaust gases. The negative pressure in the room must not exceed 0.04 mbar. The minimum distance from the hob is 65 cm.

How do I install the ducted version?

Connect the hood outlet to an exhaust flue using a pipe of min. 120 mm diameter. Use a reducer flange if needed. Ensure the flue route is as short as possible. For recirculation, install the charcoal filter.

What does the boost function do?

The Boost speed provides maximum suction for a short period. It automatically switches back to High speed after 8 minutes to prevent overheating.

Where can I find the warranty conditions?

Scan the QR code in the instruction manual or visit the link provided (https://www.exquisitbenelux.nl). Scroll to the footer for warranty terms.

USER MANUAL FKH92-3BL Exquisit

Simple line drawing of a lamp emitting vapor, with a control panel and base (no text or symbols)

Simple line drawing of a house with a chimney and a cross-shaped object, no text or symbols present.

Simple line drawing of a T-shaped object with a vertical centerline and two small dots below (no text or symbols)

Goed

Simple line drawing of a rectangular block with a vertical centerline and horizontal base (no text or symbols)

Fout

AANSLUITEN OP ROOKAFVOERKANAAL

* LUCHTAFVOER MET LUCHTUITLAATSYSTEEM

Gebruik

Snelheid regelen

Illustration of a hand using a tool to press or interact with a device, showing a circular frame and a downward arrow (no text or symbols)

ACTIEVE KOOLSTOFFILTER (luchtcirculatie)

Technical line drawing of a mechanical fan assembly (no text or symbols)

VERLICHTING

Technical line drawings showing three steps of installing or adjusting a device panel (no text or symbols present)

	Max power	Spanning Afbeelding Lampkap ILCOS D code
Rond/Diameter33.2mm x 120mm	1.5W DC 12 V			— —	DSS-1.5-S-33.2/120

https://www.exquisitbenelux.nl

domestic and professional appliances

MULTIBRAND SALES & SERVICES

COOKER HOOD

INSTRUCTION MANUAL

FKH92-3BL

The instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

● The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

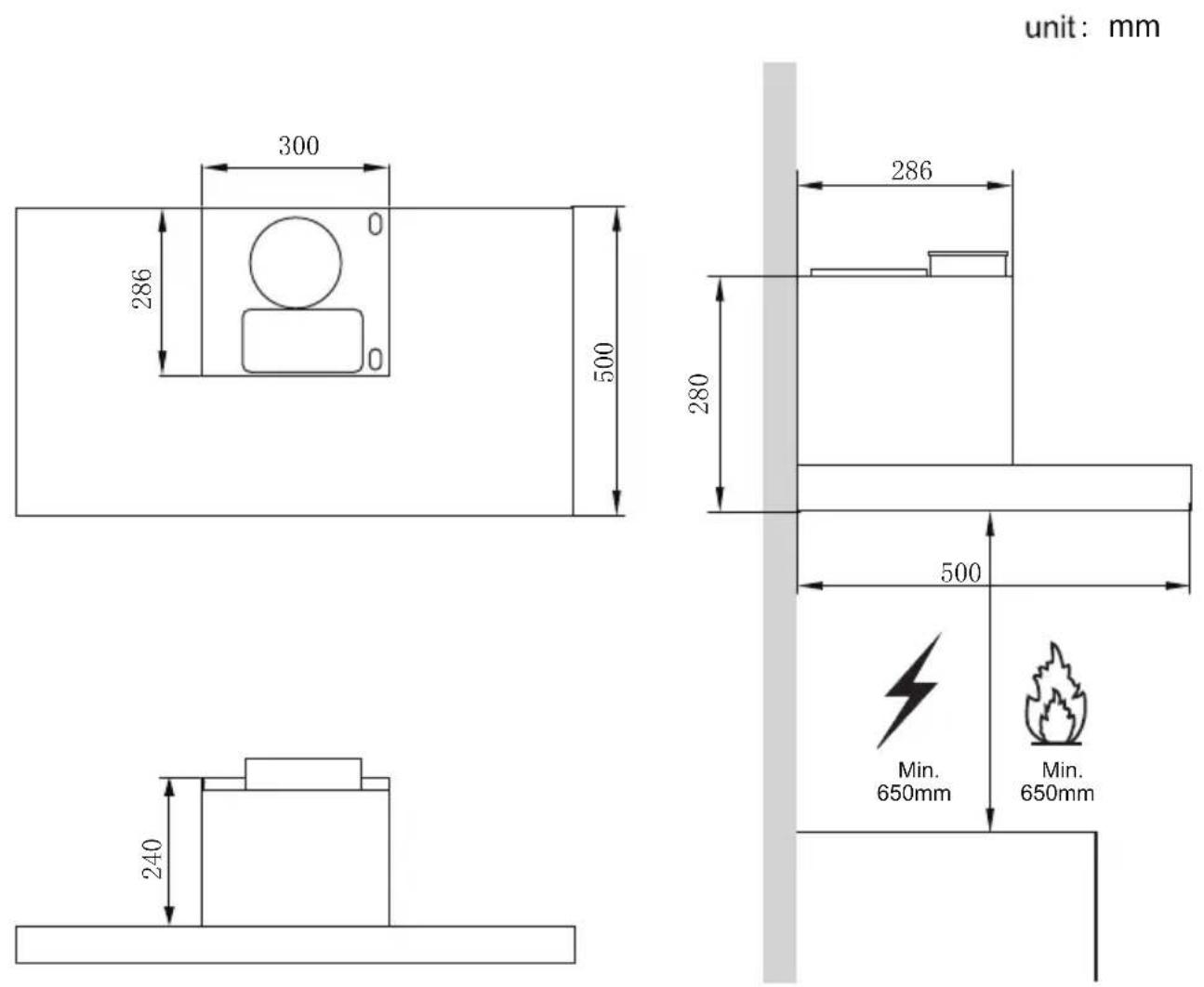

- The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood. ( When the range hood is located above a gas appliance, this distance shall be at least 65 cm. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. The distance of 65 cm can be reduced for:non-combustible parts of range hoods, and parts operating at safety extra low voltage,Provided these parts do not give access to live parts if deformed;)
- Check that the mains voltage corresponds to that indicated on the rating plate fixed to the hood.
- For Class I appliances, check that the domestic power supply guarantees adequate earthing.
- Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm. The route of the flue must be as short as possible.
● The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.
- When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
● Regulations concerning the discharge of air have to be fulfilled.

Illustration of a heating lamp with a smokestack emitting vapor (no text or symbols)

USE

● The cooker hood is only for home use, not suitable for barbecue, roast shop and other commercial purposes.

● Never use the hood for purposes other than for which it has been designed.

● Never leave high naked flames under the hood when it is in operation.

- Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.

● Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

● Do not flame under the range hood; risk of fire.

● This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

● Children should be supervised to ensure that they do not play with the appliance.

● Cleaning and user maintenance shall not be made by children without supervision.

● "CAUTION: Accessible parts may become hot when used with cooking appliances".

MAINTENANCE

● The cooker hood and its filter should be cleaned regularly according to the instruction.
- Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
● Clean and/or replace the Filters after the specified period(Fire hazard).
● Clean the hood using a damp cloth and a neutral liquid detergent.
● The appliance uses 4 hob elements at most.

Simple line drawing of a house with a chimney and a sunburst background (no text or symbols)

The symbol is packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

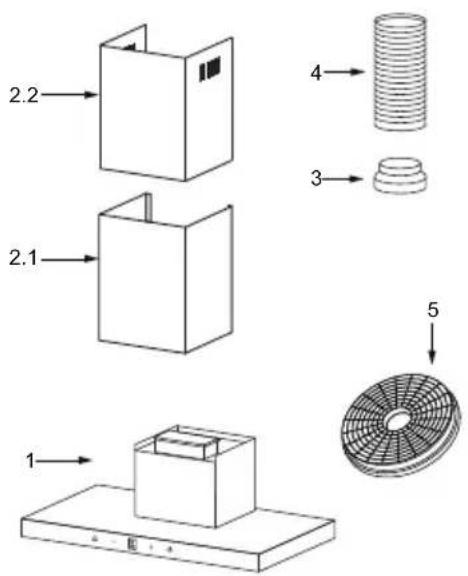

Ref. Qty.		Product Components
1	1	Hood Body,complete with: Controls, Light, Blower,Filter.
2.1	1	Lower Decorative Chimney
2.2	1	Upper Decorative Chimney
3	1	Flange ( optional )
4	1	Exhaust Pipe
5	2	The Activated Charcoal filter ( optional )

Qty. Documentation

1 Instruction Manual

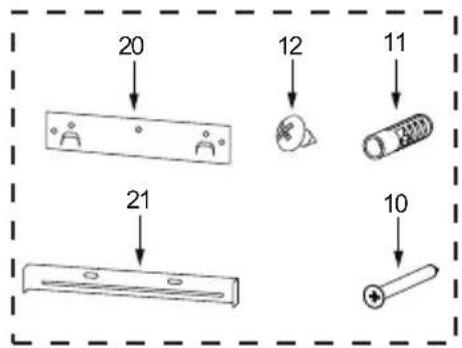

Ref. Qty. Optional Installation Components
10	7	Screws 5 x 50
11	7 Wall Plugs
12	6 Screws 4,2 x 9,5
20	1	Hood fixing bracket
21	2	Chimney fixing bracket

Option	ChBmney			Height
1	400+390	430	465-800	430-800
2	500+490	530	565-1000	530-1000
3	600+590	630	665-1200	630-1200

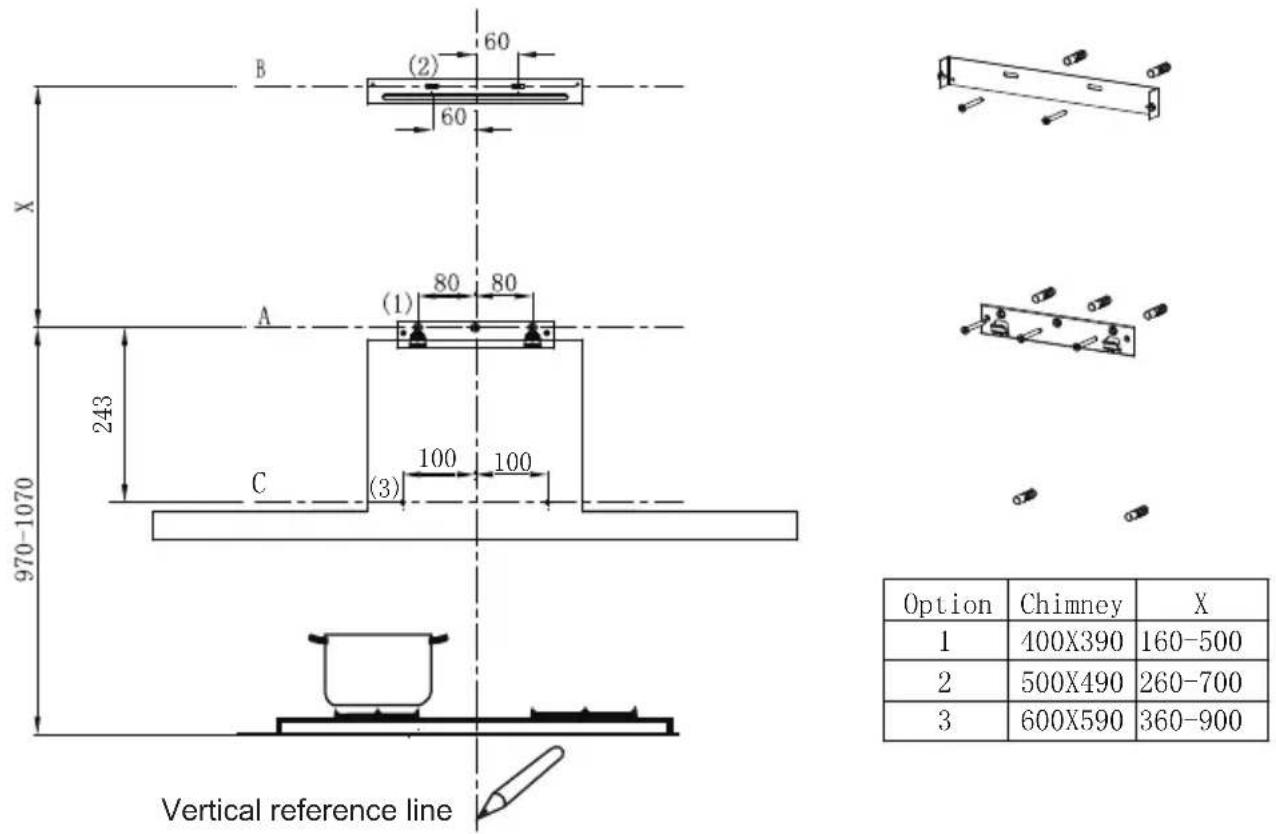

WALL DRILLING AND BRACKET FIXING

Option	Chimney	X
1	400X390	160-500
2	500X490	260-700
3	600X590	360-900

As a first step, proceed with the following drawings:

- A vertical line up to the ceiling or up to the upper limit, at the center of the area in which the hood is to be fitted.

● A horizontal line A at 970 – 1070 mm above the cooker top.
● A horizontal line B at a X mm above the horizontal line A.
● A horizontal line C at a 243 mm below the horizontal line A.

Mark Points:

● Mark a point (1) on the horizontal line A, 80 mm to the vertical reference line.
- Repeat this operation on the other side and on the vertical reference line, checking that the three marks are leveled.
- Mark a point (2) on the horizontal line B, 60 mm to the vertical reference line.
- Repeat this operation on the other side, checking that the two marks are on the same horizontal line.
- Mark a point (3) on the horizontal line C, 100 mm to the vertical reference line. Repeat this operation on the other side, checking that the two marks are leveled.

Fix the brackets :

● Drill holes at the marked points with a 10 mm drill bit.
- Insert the Wall Plugs 11 into the holes.
● Fix the hood fixing bracket 20 with 3 screws 10 (5 x 50) at the horizontal line A.
● Fix a Chimney fixing bracket 21 with 2 screws 10 (5 x 50) at the horizontal line B.

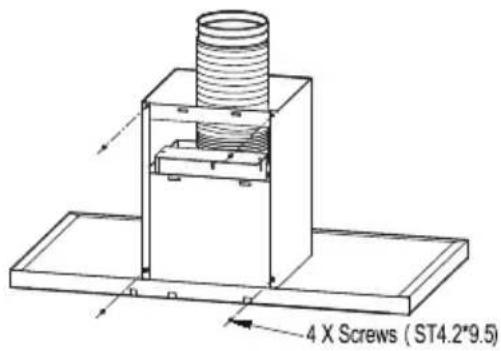

Lower decorative chimney

● Fix the exhaust pipe on the hood body, connect chimney and hood body with 2 screws 12. connect chimney fixing bracket and chimney with 2 screws 12.

Hook the hood body

- Hook the hood body to the bracket 20.

● Level the hood body itself.

- Remove the filter from the inside of the hood body, fix the screws 10 to Wall Plugs 11 at the points (3).

Simple line drawing of a rectangular block resting on a horizontal bar with a vertical centerline (no text or symbols)

Right

Simple line drawing of a rectangular block resting on a horizontal beam with a vertical centerline (no text or symbols)

Wrong

CONNECTIONS

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120 mm, the choice of which is left to the installer.

• If to install a 120 mm air exhaust connection, insert the reducer flange 3 on the hood body outlet.
  ● Fix the pipe 4 in position using sufficient pipe clamps (not supplied).
• Remove possible charcoal filters.

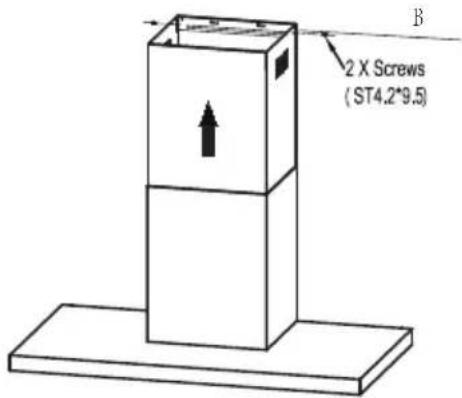

Upper Decorative Chimney

• Insert the upper decorative chimney 2.2 into the lower decorative chimney 2.1 and drag it up to the horizontal line B
• Connect upper decorative chimney 2.2 and chimney fixing bracket 21 with 2 screws 12 .

Speed adjustment(for some models).

• After plugging, buzz once to declare the hood is connected with electricity. After the connection:
• Press the Light button, control light being on and off independently. Press it once, he lights will be on. Press again, they will be off.
• Press the Low button, control low speed being on and off independently. Press it once, the low speed key light is on and motor run at low speed. Press again, they will be off.
• Press the Mid button, control middle speed being on and off independently. Press it once, the mid speed key light is on and motor run at mid speed. Press again, they will be off.
• Press the High button, control high speed being on and off independently. Press it once, the high speed key light is on and motor run at high speed. Press again, they will be off.
• Press the Boost button, control boost speed being on and off independently. Press it once, the boost speed key light is on and motor run at boost speed. Press again, they will be off. The Boost speed will automatically revert to High speed after running 8 minutes.

B

Light

Low

Mid

High

B

Boost

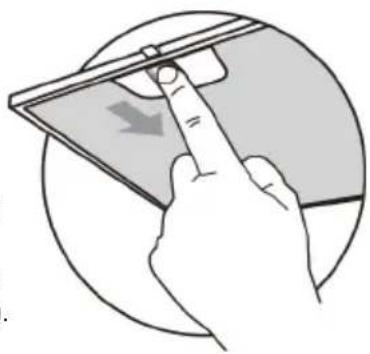

GREASE FILTERS

CLEANING METAL SELF-SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Remove the filters one by one pushing them towards the back side of the hood unit and simultaneously pulling downwards.
• Any kind of bending of the filters has to be avoided when washing them. Before fitting them again into the hood make sure that they are completely dry. (The color of the filter surface may change throughout the time but this has no influence to the filter efficiency).
• When fitting the filters into the hood pay attention that they are mounted in correct position the handle facing outwards.

Illustration of a hand pressing a tablet with a finger, showing a download arrow (no text or symbols)

ACTIVATED CHARCOAL FILTER (RECIRCULATION VERSION)

These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

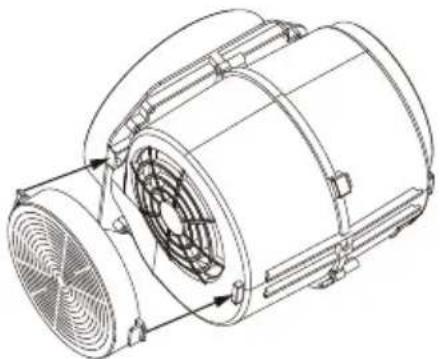

REPLACING THE ACTIVATED CHARCOAL FILTER

• Remove the metal grease filters.
• Remove the saturated activated charcoal filter.
  ● Fit the new filters.
• Replace the metal grease filters.

Technical line drawing of a mechanical fan or impeller assembly (no text or symbols)

LIGHTING

LIGHT REPLACEMENT(Completed by professionals)

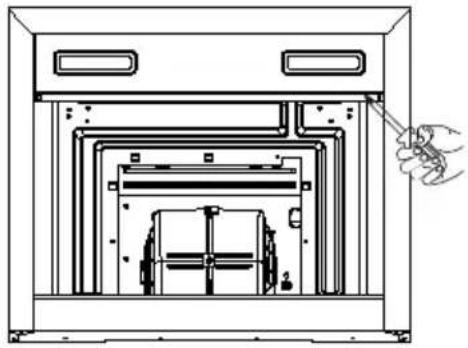

Replacing the light modules

- Before changing the light module(s), unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

• Remove the grease filter and carefully remove the 2 screws from the front plate (a cross headed screwdriver will be needed to remove the screws).
• Disconnect the terminal of LED light.
• Press LED light on the back of the front plate, take the LED light out.
• Replace the lamp(commercially available LED lamp (max.1.5w).

Technical line drawing of a mechanical device with internal components and a hand holding a tool (no text or symbols)

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Hand holding a tool interacting with a battery pack (no text or symbols visible)

Lamp type	Max Power	Voltage	Picture Lamp Cap ILCOS D code
LED modules,separate ballast	1.5W DC	12 V	Square / Dimesion: 33.2mm x 120mm	— —	DSS-1.5-S-33.2/120

• Press LED light on the front of front plate, install the LED light on the front plate.
• Connect the terminal of LED light and light leads.
• Carefully fasten the 2 screws on the front plate, reinstall the grease filter.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Fault Cause	Solution
Light on, but motor does not work	The blades are blocked.	Check the blades.
	The capacitor is damaged. Replace capacitor.
	The motor is damaged. Replace motor.
	The internal wiring of motor is cut off/disconnected. An unpleasant smell may be produced.	Replace motor.
Both light and motor do not work	Apart from the above mentioned, check the following:
	Light damaged. Replace lights.
	Power cord loose.	Connect the wires as the electric diagram.
Oil leakage	Outlet and the air ventilation entrance are not tightly sealed.	Take down the outlet and seal with glue.
Vibration	The blade, if damaged, can cause vibrating.	Replace the blade.
	The motor is not tightly fastened. Fasten the motor tightly.
	The cooker hood is not tightly fixed. Fixed the cooker hood tightly.
Insufficient suction	The distance between the cooker hood and the cooker top is too large.	Readjust the distance.
	Too much ventilation from open doors or windows.	Choose a new place to install the appliance or close some doors / windows.
The machine inclines	The fixing screws are not tight enough.	Tighten the fixing screw and make it horizontal.
	The hanging screws are not tight enough	Tighten the hanging screw and make it horizontal.

Warranty conditions

Dear user,

For our warranty conditions, please scan the QR code below or use the link underneath. At the bottom in the footer you will find our warranty conditions.

https://www.exquisitbenelux.nl

For questions regarding sales you can email to: [e-mail]

For questions regarding service you can email to: [e-mail]

For other questions you can email to: [e-mail]

We can also be reached by phone : [phone]

DOMEST

domestic and professional appliances
