Product Type	CD Player
Brand	Nevir
Model	NVR-482UCM
Dimensions (W x D x H)	430 x 250 x 90 mm
Weight	2.5 kg
Power Supply	AC 220-240V, 50/60Hz
Power Consumption	15 W
Disc Compatibility	CD, CD-R, CD-RW
Playback Functions	Play, Pause, Stop, Skip, Repeat, Program, Random
Audio Outputs	RCA (L/R) stereo, Headphone jack (3.5mm)
Frequency Response	20 Hz - 20 kHz
Signal-to-Noise Ratio	≥ 85 dB
Total Harmonic Distortion	< 0.05%
Display	LED display with track/time information
Remote Control	Included (battery type: CR2025)
Cleaning and Maintenance	Clean exterior with a dry soft cloth. Use a CD lens cleaner disc periodically.
Safety Precautions	Do not expose to moisture. Keep away from heat sources. Use only supplied power cord.
Spare Parts Availability	Contact Nevir support for replacement parts.
Repairability	Service should be performed by qualified personnel only.

Frequently Asked Questions - NVR-482UCM NEVIR

How do I play a CD?

Press the Open/Close button to open the disc tray, place the CD with the label side up, close the tray, and press Play.

Can I play MP3 CDs?

This model supports playback of CD, CD-R, and CD-RW discs. It does not support MP3 or other compressed audio formats.

Why is the CD not playing?

Ensure the disc is inserted correctly and not scratched. Try cleaning the disc with a soft cloth. If the problem persists, the laser lens may need cleaning.

How do I use the repeat function?

Press the Repeat button on the remote or unit to cycle through repeat one, repeat all, or repeat off.

Can I connect headphones?

Yes, plug headphones into the PHONES jack on the front panel. The speakers will be muted automatically.

How do I program a playlist?

Press Program while stopped, then use the number buttons to select tracks. Press Play to start the programmed sequence.

What should I clean the CD player with?

Wipe the exterior with a dry soft cloth. For the lens, use a commercially available CD lens cleaner disc. Do not use liquids directly.

The remote control is not working. What should I do?

Check the battery (CR2025) and replace if necessary. Ensure there are no obstacles between the remote and the unit. Point the remote directly at the sensor.

Is this CD player compatible with Bluetooth?

No, the NVR-482UCM is a standalone CD player without Bluetooth connectivity.

What safety precautions should I follow?

Do not expose the player to water or moisture. Place it on a flat, stable surface. Use only the provided AC power cord. Keep ventilation slots clear.

USER MANUAL NVR-482UCM NEVIR

Black neuvir CD radio cassette recorder with external antenna and control panel (no visible text or symbols on device body)

AVISO: PARA EVITAR INCENDIOS O RIESGO DE ELECTROCUCIONES, NO EXPONGA ESTE APARATO A LA LLUVIAO A LA HUMEDAD.

Line drawing of a cassette tape device with a vertical tube and two ports, no text or symbols present

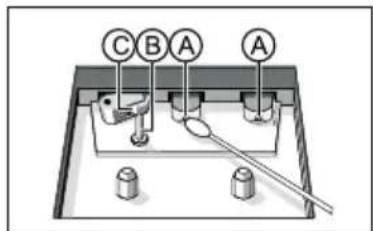

MANTENIMIENTO

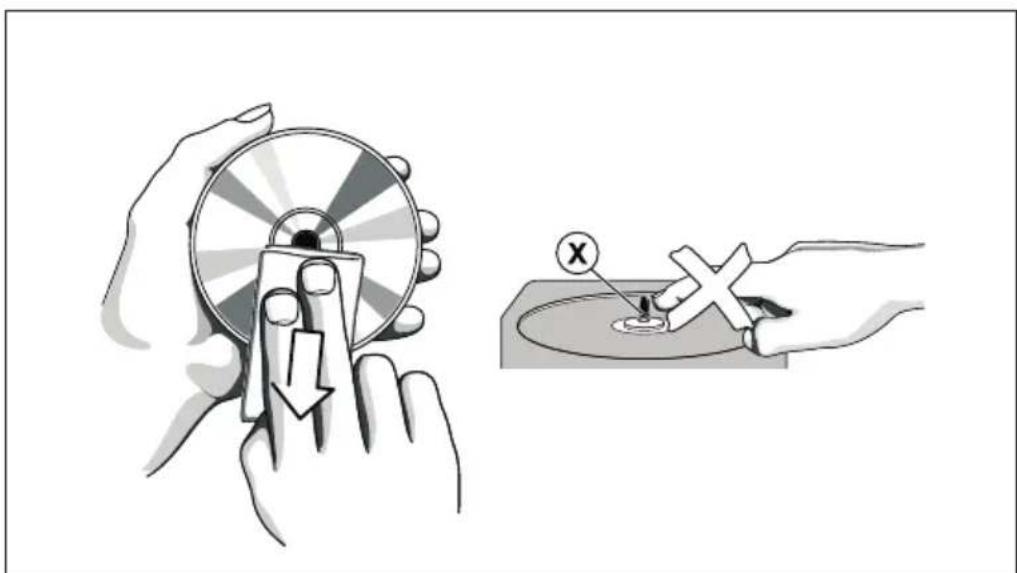

Illustration showing a hand holding a circular object with a pointer and a magnified view of a small object on a surface (no text or symbols)

Black and silver portable electronic device with a CD/RSB cassette recorder, shown with a remote control panel (no visible text or symbols on the device body)

INSTRUCTION MANUAL

Know these

safety symbols

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This "bolt of lightning" indicates uninsulated material within your unit which may cause an electrical shock.

For the safety of everyone in your household, please do not remove product covering.

The "exclamation point" calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

Dripping warning:

The product shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the product.

For Customer Use

Enter below the Serial No. which is located On the bottom of the ca bin et. Reta in this Info mati on for future reference.

Mode N o.

Serial No.

WARNING: TO PREVENT

FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION: TO PREVENT

ELECTRIC SHOCK, MATCH WIDE BLADEOF PLUG TO WIDE SLOT, AND FULLY INSERT.

Ventilation warning:

The normal ventilation of the product shall not be impeded for intended use.

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

CLASS 1 LASER PRODUCT

Unpacking and Setup

* Carefully remove the unit from the display carton and remove all packing material from the unit itself.
* Remove any descriptive labels that may be found on either the front or top cabinet of the unit. Do not remove any labels located on either the back or button cabinet of the unit.
* Press the CD door OPEN Button to open the CD compartment door. There is a white card in the CD compartment which is intended to prevent the CD pickup from moving during shipment of the product, Remove this card from the CD compartment before use.

POWER SUPPLY

Using AC power

1. Check if the power voltage, as shown on the type plate located on the bottom of the set, corresponds to your local AC power supply. If it does not, consult your dealer or service centre.
2. Connect the power cord to the AC socket inlet and the wall outlet. the power supply is now connected and ready for use.
3. To switch off completely, unplug the power cord from the wall outlet.
4. Unplug the power cord from the wall outlet to protect your set during heavy thunderstorms.

Batteries (not included)

Open the battery compartment and insert eight batteries, type LR14, UM-2 or C-cells, (preferably Alkaline) with the correct polarity as indicated by the + and " - symbols inside the compartment

Batteries contains chemical substances, so they should be disposed of properly.

Incorrect use of batteries can cause electrolyte leakage and will corrode the compartment or cause the batteries to burst. Therefore:

• Do not mix battery types: e.g. alkaline with carbon Zinc. Only use batteries of the same type for the set.
• When inserting new batteries, do not try to mix old batteries with new ones.
  Remove the batteries if the set is not be used for a long time.

1

1. VOLUME-/VOLUME+ BUTTON

2. REP-DN/REP-UP BUTTON

3. POWER BUTTON

4. FUNCTION SELECT

5. STEREO HEADPHONE JACK

6. CD DOOR OPEN BUTTON

7. USB SLOT

8. SEARCH BACK

9. STOP BUTTON

10. PLAY/PAUSE BUTTON

11. SEARCH NEXT

12. REPEAT BUTTON

13. LCD DISPLAY

14. STANDBY INDICATOR

15. CASSETTE RECORDERS KEYS

16. FM ANTENNA

17. PROGRAM/TIME BUTTON

18. BATTERY DOOR

19. AUX JACK

20. AC MAINS

21. CASSETTE COMPARTMENT.

English

Top and front panels (See ①)

1. VOLUME-/VOLUME+ BUTTON

- adjust volume level.

2. PRE-DN/REP-UP BUTTON

- In the radio mode, press PRE-DN/PRE-UP button to choose the back channel.

- In the mp3 mode, Press PRE-DN/PRE-UP button to enter the back folder.

3. POWER BUTTON

-Press POWER button on.

4. FUNCTION SELECT

- select source of sound MP3/CD, TAPE (OFF) or RADIO, also the power off switch

5. STEREO HEADPHONE JACK

- 3.5 mm stereo headphone jack.

6. CD DOOR OPEN BUTTON

- press here to open the CD door.

7. USB SLOT

To listen to your USB flash memory stick with Mp3 music files.

8. SEARCH BACK

BACK track selection

- Press and Hold more than 1.5 sec BACK Search intra track

9. STOP BUTTON

- stop CD/MP3/USB/playback; erase a CD program.

10. PLAY/PAUSE BUTTON

- start or pause MP3/CD/USB play

- Press and Hold more than 1.5 sec change CD/USB media.

11. SEARCH NEXT

NEXT track selection

- Press and Hold more than 1.5 sec Forward Search intra track

12. REPEAT BUTTON

- repeata track/CD/MP3/USB program RANDOM BUTTON.

13. LCD DISPLAY

- show the AM/FM dial frequency - show the number of tracks

14. STANDBY INDICATOR

15. CASSETTE RECORDERS KEYS

RECORD ( • ) - start recording

PLAY (◀) - start playback

F.REW (▶) - rewind the tape toward the beginning.

F.FWD (◀) - advance the tape toward the end.

STOP/EJECT ( ▪ - stop the tape

- open the cassette compartment

PAUSE (▶II) - interrupt recording or playback

16. FM ANTENNA

- to improve FM reception

17. PROGRAM/TIME

-In standby mode,to setup the time of the unit.

-program and review programmed track numbers.

-In the working status, push down this button can on CD/MP3 for programming..

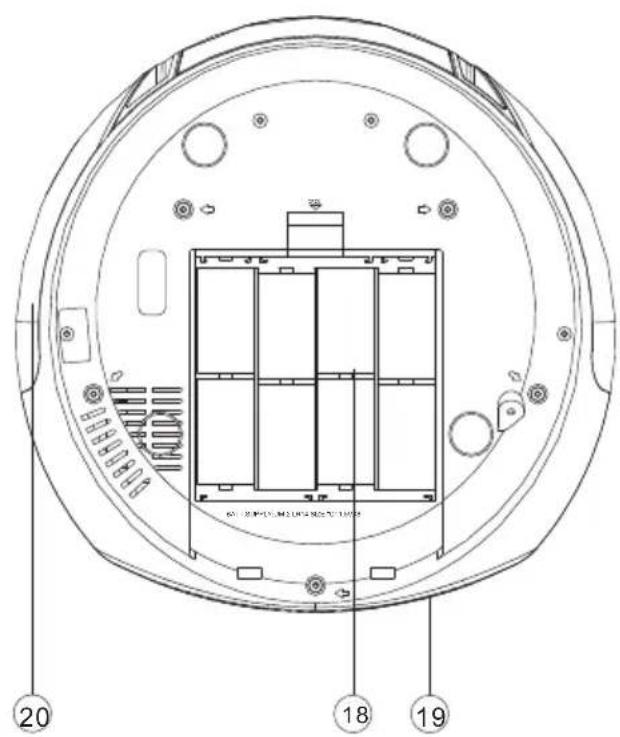

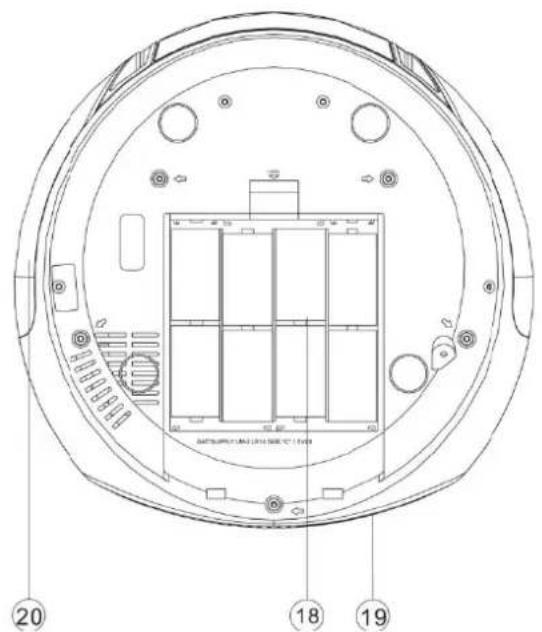

18. BATTERY DOOR

-to open battery compartment

19. AUX JACK

20. AC MAINS

- inlet for power cord.

1. CASSETTE COMPARTMENT.

Remote Control

1. POWER BUTTON
2. TIME BUTTON
3. INTRO BUTTON
4. MUTE BUTTON
5. RANDOM BUTTON
6. P-UP BUTTON
7. REP. BUTTON
8. PROG. BUTTON
9. BACK BUTTON
   10.FUNCTION BUTTON
10. NEXT BUTTON
11. EQ BUTTON
12. PLAY/PAUSE BUTTON
    14.P-DN BUTTON
13. BBS BUTTON
14. STOP BUTTON
15. NUMBER KEY
16. VOL - BUTTON
17. VOL + BUTTON

* Please pull out the plastic paper from the battery door before use the remote control.
* When the remote control operation becomes unstable or the distance from which the remote control works is shorter. replace the batteries with new ones.
* Using the remote control unit
To use the remote unit, point at the REMOTE SENSOR and press the buttons gently and firmly. Remote control operation is possible within approximate 18ft(6m). However, since the remote control range is less when the unit is used at an angle, use directly in front of the REMOTE SENSOR, for maximum distance. Do not expose the REMOTE SENSOR to strong light(direct sunlight or artificial lighting) and make sure that there are no obstacles between the REMOTE SENSOR and the remote control unit.

USE REMOTE CONTROL OTHER IMPORTANT BUTTON

RANDOM BUTTON

-In the player CD/MP3/USB/AUX, press the RANDOM button can be played at random.

Press again to cancel.

BBS BUTTON

-In the player CD/MP3/USB/AUX/RADIO, press the BASS button can make into the bass state. Press again to cancel.

EQ BUTTON

-In the player CD/MP3/USB/AUX/RADIO, press the EQ button to change music style.

-When playing the music, press this button is in the classica-rock-popular-jazz-FLR.

MUTE BUTTON

-In the player CD/MP3/USB/AUX/RADIO, press the MUTE button to enter the mute state. Press again to restore volume.

INTRO BUTTON

-In the player CD/MP3/USB, press the INTRO button into 10 seconds browsing repertoire state, press again cancel browse.

USE CLOCK

To setup the time of the unit

1. connect the ac on (The following operation must be in standby mode)
2. short according to the time button, the time will flashing on the lcd display.
3. Press BACK、NEXT to select the number of the time. you can setup the time format by 12h or 24h.
4. press time button to confirm.
5. then you can set the hour and the minute with the same method of steps 3-4.
6. after setup the unit time, long press the time button can setup the unit begin working time, with the same method of steps 3–4.

Note: after setup the beginning time, the lcd will display the radio/cd/usb/aux mode, Press the BACK or NEXT to choose the mode, then it press time button to affirm, otherwise it play usb or aux mode first.

USE RADIO

Radio reception

1. Press bEUNCNbON select RADIO

2. Tune to required station by press BACK or NEXT.

Manual Tuning: Break or NEXT and then release within 1 sec.

Auto Tuning: Press the play/pause button enter the automatic channel scade, and to be put automatically sets.

Preset Channel:(FM 30 Preset memories)

(1) Press BACK or NEXT Select desired station.
(2) Press PROGRAM button once, The MEMORY number indicator begins steady in the display.
(3) Press PRESET-UP ☑RESET-DOWN buttons to select the desired number.
(4) Press PROGRAM button to save that station.
(5) Repeat steps (1) to (4) procedures for other stations.

1. After end of program, press PRE-UP or PRE-DN to start play the frequency that you selected or press number key on the remote control.

2. Press [VOL-] or [VOL +] to adjust the volume.

3. Extend TELESCOPIC ANTENNA to its full length if you are listening to FM broadcasting.

4. Turn off the radio by press FUNCTION button select other mode or press power button to off the unit.

5. Switch on again after shut down, the memory frequency still exists.

USE AUX

To listen music with a mp3 discman walkman

1. Connect to the AUX.
2. Press function button selector to AUX, the sound source of the mp3 or discman or walkman will output from the unit.

-Press the volume control to adjust the volume.

-The unit can't control the player.

PROGRAM METHOD

(1) Press the [PROGRAM] key at STOP mode, system will go to PROGRAM mode.

-The PRG icon and P01 will blink at 2Hz. This prompts the user to enter the first songs in the program PLAY list.

(2)The user can select the desire tracks by using [NEXT], [BACK] keys.

Once these keys are pressed, the Display will show the selected track.

(3) After select the desired track, press [PROGRAM] key again and it will be stored in the memory.

Mp3 Maximum 99 and CD Maximum 20 tracks can be programmed when Repeat steps (2) to (3) procedures.

(4) If press the [STOP] key during the program mode, then the selected TRACKS will be stored in the memory and return to STOP mode (Continuous Play mode)
(5) If press the [PLAY] key during the program mode, it will start the program PLAY mode.

PLAY start from P01 Track

Erasing a program

You can erase the content of the memory by:

• While playing, press STOP button twice.
• Opening the CD door
• Select the other mode.

USING THE CASSETTE

UNDERSTANDING THE BUTTONS

RECORD - Press to record from the radio or CD play.

PLAY - Press to play cassettes.

REW - From stop mode, press to rewind the tape toward the beginning.

F.FWD - From stop mode, press to advance the tape toward the end.

STOP/EJ. - Press to stop current tape activity or to open the cassette compartment door when no buttons are active.

PAUSE - Press to interrupt tape play or record mode, press the second time to resume tape play or tape record mode.

PLAY A CASSETTE TAPE

1. Press FUNC button select TAPE mode.
2. Press STOP/EJ.key to open the cassette compartment door.
3. Insert a recorded cassette and close the cassette compartment door.
4. Press PLAY to start playback.
5. To interrupt playback, press PAUSE, To resume, press the key again.
6. Press REW/F.FWD to move tape to the desired starting point.
7. Adjust the volume to your desired listening level.
8. To stop the tape, press STOP/EJ.

- The keys are automatically released at the end of the tape, except if PAUSE has been activated.

CD/MP3 Player

Playing a CD/MP3

This CD-player can play Audio Discs, MP3, CD-R.

Do not try to play CD-ROM, CDi, VCD, DVD or computer CD.

1. Press function button to CD state.
2. to open the cd door, press cd open button.
3. insert a mp3/cd or cd-r , with the printed side facing up and press cd door gently to close.
4. press play/pause on the set to start playback.
5. Press the pause button to pause play, press the play button back playing.
6. to stop cd playback, press stop. note: cd/mp3 play will also stop when:
   -you open the cd compartment;
   -you select radio sound source;
   -the cd/mp3 has reached to the end. selecting a different track.
   during playback you can use back or next to select a particular track.

- If you have selected a track number in the stop or pause position, press play to start playback.

- Press once briefly for the next track, or press repeatedly until the desired track number appears in the display.

- Pback once briefly to return to the beginning of a current track.

- Please more than once briefly for a previous track.

Finding a passage within a track

1. Paredshold down back or next. the cd is played at high speed.

2. when you recognize the passage you want release back or next.

→ normal playback resumes.

different play modes:repeat

repeat-play the current track continuously.

repeat all-plays the entire cd continuously. playing tracks in random order after press the random button, the tracks will be played in random order.

Playing a USBPlaying a USB

USB Audio functions

1) Press function button or stop usb button to choose the usb state.
2) PLAY/PAUSE
3) NEXT, BACK Skip search
4) Program Track(MP3 99 Track CD 20 Track )
5) RMDIEA T normal->repeat 1->repeat all -> repeattrabulum
6) Maximum Folder : 99 Folders
7) Maximum File : 999 Files

*Notice :

-When the unit has not the disc, inserting the usb card will automatically real usb card, it read the USB first while having the USB.

-The unit don't support the HDD all and the portion usb with mp3 player.

Note: at the mode of CD/MP3/USB, the lcd will display the number of song or the song playing time.

USE POWER(ERP2 function)

- When the unit this idle on CD function or (SD) after 10 minutes, then the unit will turn off automatically for saving energy.

GENERAL INFORMATION ON RECORDING

• Recording is permissible in so far as copyright or other rights of third parties are not infringed.
• This deck is not suitable for recording on CHROME (IEC II) or METAL (IEC IV) type cassettes. For recording, use NORMAL type cassettes (IEC I) on which the tabs have not been broken.
• The best recording level is set automatically. Altering the VOLUME controls will not affect the recording in progress.
• At the very beginning and end of the tape, no recording will take place during the 7 seconds, when the leader tape passes the recorder heads.
• To protect a tape from accidental erasure, have the tape in front of you and break out the left tab. Recording on this side is no longer possible. To record over this side again, cover the tabs with a piece of adhesive tape.

Diagram of a device with a vertical rod and arrow pointing to a button (no text or symbols)

MAINTENANCE

Tape deck maintenance

To ensure quality recording and playback of the tape deck, clean parts A, B and C shown in the diagram below, after approx. 50 hours of operation, or on average once a month. Use a cotton bud slightly moistened with alcohol or a special head cleaning fluid to clean the deck.

1. Open the cassette door by pressing STOP • EJECT.
2. Press PLAY and clean the rubber pressure rollers ©.
3. Press PAUSE and clean the magnetic heads Ⓐ and also the Capstan Ⓑ.
4. After cleaning, press STOP • EJECT.

Note: Cleaning of the heads can also be done by playing a cleaning cassette through once.

Precautions & General maintenance

• Place the set on a hard and flat surface so that the system does not tilt.
• Do not expose the set, batteries or CDs to humidity, rain, sand or excessive heat caused by heating equipment or direct sunlight.
• Do not cover the set. Adequate ventilation with a minimum gap of 6 inches between the ventilation holes and surrounding surfaces is necessary to prevent heat build-up.
• The mechanical parts of the set contain self-lubricating bearings and must not be oiled or lubricated.
  • To clean the set, use a soft dry cloth. Do not use any cleaning agents containing alcohol, ammonia, benzene or abrasives as these may harm the housing.

CD PLAYER AND CD HANDLING

• The lens of the CD player should never be touched!
• Sudden changes in the surrounding temperature can cause condensation to form and the lens of your CD player to cloud over. Playing a CD is then not possible. Do not attempt to clean the lens but leave the set in a warm environment until the moisture evaporates.
  • Always close the CD door to keep the CD compartment dust-free. To clean, dust the compartment with a soft dry cloth.
• To clean the CD, wipe in a straight line from the centre towards the edge using a soft, lint-free cloth. Do not use cleaning agents as they may damage the disc.
• Never write on a CD or attach any stickers to it.

TROUBLESHOOTING

Troubleshooting

If a fault occurs, first check the points listed below before taking the set for repair.

Do not open the set as there is a risk of electric shock.

If you are unable to remedy a problem by following these hints, consult your dealer or service center.

WARNING: Under no circumstances should you try to repair the set yourself, as this will invalidate the warranty.

- Problem

- Solution

No sound /power

• Volume not adjusted
• Adjust the VOLUME
• power cord not securely connected
• Connect the AC power cord properly
• Batteries dead/ incorrectly inserted
• Insert (fresh) batteries correctly

Display does not function properly / No reaction to operation of any of the controls

- Electrostatic discharge

- Switch off and unplug the set. Reconnect after a few seconds

Poor cassette sound quality

– Dust and dirt on the heads, etc.
- Clean deck parts etc., see Maintenance
- Use of incompatible cassette types (METAL or CHROME)
- Only use NORMAL (IEC I) for recording

Recording does not work

– Cassette tab(s) may be broken
- Apply a piece of adhesive tape over the missing tab space

no disc indication

• No CD/MP3 inserted
• Insert a CD,MP3, CD-R.
• CD badly scratched or dirty
• Replace/ clean CD, see Maintenance

- CD-R is blank or the disc is not finalized

- Use a finalized CD-R.

CD/MP3/USB playback does not work

• CD/MP3 badly scratched/dirty/USB
• Replace/clean CD/MP3/USB (see maintenance)
• Laser lens steamed up
• Wait until lens has adjusted to room temperature

The CD/MP3 skips tracks

• CD/MP3 damaged or dirty

• Replace or clean CD/MP3

• Program is active

• Quit Program mode(s)

ENVIRONMENTAL INFORMATION

We have done our best to reduce the packaging and make it easy to separate into 3 materials: cardboard, paper pulp and expandable polyethylene.

Your set consists of materials which can be recycled if disassembled by a specialized company.

Please observe the local regulations regarding the disposal of packaging, dead batteries and old equipment..

TECHNICAL SPECIFICATIONS

GENERAL

Power Requirement AC 230V-50Hz

Power consumption AC 16 Watts

Dimensions.....Approx.268 mm(L)x 270mm(W) x156 mm(H)

Operation temperature....+5 ℃ - +35℃

RECEIVER SECTION

Receiving Bands.....FM ST.

Tuning Range.....FM:87.5-108MHz

COMPACT DISC SECTION

Optical Pickup....3-Beam Laser

Frequency Response....100Hz-16KHz

AUDIO SECTION

Power output ......Maximum 2.5 Watt x 2

Headphone Impedance 4 \~ 32 Ohms

ACCESSORIES

Instruction Booklet....1

AC line cord....1

Remote control....1

Imported by: B60421062 – Comte d'Urgell 143, 08036 Barcelona (Spain)

WEEE (Waste of Electrical and Electronics Equipment):

This symbol indicates that when the end-user wishes to discard this product, it must be sent to separate collection facilities for recovering and recycling. By separating this products from other household-type waste the volume of waste sent to incinerators or land fields is reduced and natural resources will thus be preserved. Besides that, waste batteries and / or accumulators must be removed prior to delivery of WEEE, through the separated collection channels provided for this purpose (distributors and / or facilities of Local Authorities)

In order to fulfill ruling UNE EN-60665, if flexible wire is damaged, it can only be replace or repair but a technical serviced reorganized by Nevir S.A. because special tooling is required
