NVR-480UB - CD Player NEVIR - Free user manual and instructions

Product Type	CD Player
Brand	Nevir
Model	NVR-480UB
Dimensions (W x H x D)	430 x 100 x 280 mm
Weight	3.5 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	15 W
Disc Compatibility	CD, CD-R, CD-RW
Playback Formats	Audio CD, MP3
Playback Modes	Repeat (1/All), Shuffle, Program
Display	LED display with track and time information
Remote Control	Included (batteries not included)
Audio Outputs	RCA stereo, Headphone jack
Signal-to-Noise Ratio	80 dB
Frequency Response	20 Hz - 20 kHz
Harmonic Distortion	< 0.05%
Chassis Material	Metal with plastic front panel
Operating Temperature	5°C to 35°C
Accessories Included	User manual, Remote control, RCA cable
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use solvents.
Safety Precautions	Do not expose to moisture or extreme temperatures. Unplug during storms.
Spare Parts / Repairability	Contact Nevir support for laser pickup and other parts.

Frequently Asked Questions - NVR-480UB NEVIR

How do I connect the NVR-480UB to my amplifier?

Use the included RCA cable to connect the audio outputs on the back of the CD player to a free input on your amplifier. Ensure the amplifier is set to the corresponding input.

Can I play MP3 discs on this player?

Yes, the NVR-480UB supports playback of MP3 files burned onto CD-R or CD-RW discs.

How do I use the programmable play feature?

Press the PROG button on the remote or front panel. Use the skip buttons to select a track, then press ENTER to add it. Repeat for up to 20 tracks, then press PLAY.

What should I do if the CD does not play?

Check that the disc is inserted with the label facing up. Ensure the disc is not scratched or dirty. Clean it with a soft cloth from the center outwards. Try another disc.

How do I set the repeat mode?

Press the REPEAT button repeatedly to cycle through: Repeat One, Repeat All, Repeat Off. The display will indicate the current mode.

Can I connect headphones?

Yes, plug your headphones into the headphone jack on the front panel. Use the volume knob to adjust the headphone level (this does not affect the main outputs).

What type of batteries does the remote control require?

The remote control uses two AAA batteries (not included). Make sure to insert them with the correct polarity.

Why is the display showing 'NO DISC'?

The player may not detect a disc. Try opening and closing the tray, or power cycling the unit. If the problem persists, the laser may need cleaning or service.

How do I clean the CD player?

Unplug the player. Wipe the exterior with a soft, dry cloth. Do not use alcohol or abrasive cleaners. Use a lens cleaning disc to clean the laser pickup.

What is the warranty on the NVR-480UB?

The warranty typically covers 1 year for manufacturing defects. Keep your proof of purchase. For service, contact the dealer or Nevir support.

USER MANUAL NVR-480UB NEVIR

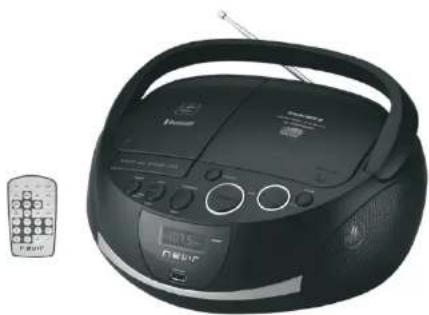

Black portable electronic device with control panel and remote control (no visible text or symbols)

-Sp2-

-Sp3-

PANEL FRONTAL Y POSTERIOR

1.REPETIR

1. ENCENDIDO/APAGADO

2. HORA

3. ACEPTAR

4. SILENCIO

5. REPROD. ALEATORIA

6. P-UP (PREVIO)

7. REPETIR

8. PROGRAMAR

9. RETROCEDER

10.FUNCIÓN

1. SIGUIENTI

2. ECUALIZADOR

3. PLAY/PAUSE)

4. P-DOWN (POSTERIOR)

5. (REFUERZO DE GRAVES)

6. STOP

7. TECLAS NUMERICAS

8. VOL-

9. VOL+

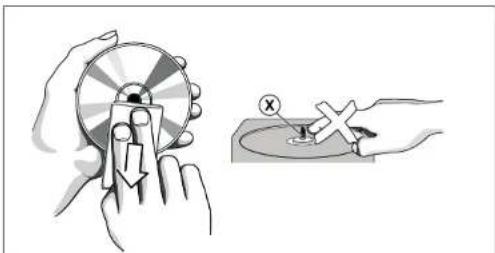

Illustration of a hand holding a circular object with a pointer, next to a hand holding a magnet with an 'X' symbol (no text or labels present)

-Sp10-

Black portable radio with control knobs and a remote control unit (no visible text or symbols)

Before connection operating or adjusting this product Please read these instructions completely Please keep this manual.

Know these

safety symbols

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

For Customer Use Enter below the Serial No. which is located On the bottom of the cabin et. Retain this Information for future reference.

Mode No. NVR-480UB Serial No.

This "bolt of lightning" indicates uninsulated material within your u

which may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The "exclamation point" calls attention to features for which you should read

the enclosed literature closely to prevent operating and maintenance problems.

Dripping warning:

The product shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the product.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADEOF PLUG TO WIDE SLOT, AND FULLY INSERT.

Ventilation warning: The normal ventilation of the product shall not be impeded for intended use.

CLASS 1 LASER PRODUCT

-En1-

PREPARATION FOR USE

Unpacking and Setup

* Carefully remove the unit from the display carton and remove all packing material from the unit itself.
* Remove any descriptive labels that may be found on either the front or top cabinet of the unit. Do not remove any labels located on either the back or button cabinet of the unit.
* The detachable AC power cord is packed in the carton separately from the unit. Make sure that the AC power cord is not accidentally discarded with the carton or packing material.
* Press the CD door OPEN Button to open the CD compartment door. There is a white card in the CD compartment which is intended to prevent the CD pickup from moving during shipment of the product, Remove this card from the CD compartment before use.

Power Sources

Using AC Power

Connect the AC power cord into AC Socket and Standard household wall outlet. The batteries will be automatically disconnected. For dual voltage version. Make sure that the AC VOLTAGE SELECTOR is switched to your local voltage.

1

1.REPEAT BUTTON

1. NEXT BUTTON
2. PLAY/PAUSE BUTTON
3. FUNCTION SELECT
4. VOLUME BUTTON
5. PRE-DN BUTTON
6. PRE-UP BUTTON
7. POWER BUTTON
8. CD DOOR OPEN/CLOSE BUTTON
   10.TIME/PROGRAM BUTTON

9. BACK BUTTON

10. LCD DISPLAY

11. STOP/BAND BUTTON
12. USB JACK
13. STANDBY INDICATOR
14. AUX JACK
15. STEREO HEADPHONE JACK
16. AC SOCKET
17. EM ANTENNA

-En2-

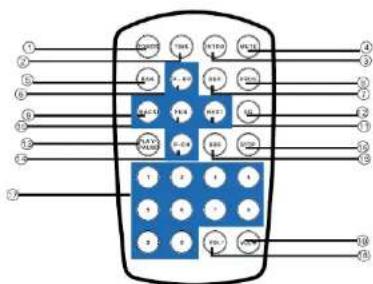

REMOTE CONTROL

1. POWER BUTTON

2. TIME BUTTON

3. INTRO BUTTON

4. MUTE BUTTON

5. RANDOM BUTTON

6. P-UP BUTTON

7. REPEAT BUTTON

8. PROGRAM BUTTON

9. BACK BUTTON

10. FUNCTION BUTTON

11. NEXT BUTTON

12 EQ BUTTON

1. PLAY/PAUSE BUTTON

2. P-DOWN BUTTON

15 BRS BUTTON

1. STOP BUTTON

17 NUMBER KEY

1. VOL-BUTTON

2. VOL + BUTTON

10.12.2017

* Please pull out the plastic paper from the battery door before use the remote control. * When the remote control operation becomes unstable or the distance from which the remote control works is shorter. Replace the batteries with new ones.

* Using the remote control unit

To use the remote unit, point at the REMOTE SENSOR and press the buttons gently and firmly. Remote control operation is possible within approximate

18ft (6m). However, since the remote control range is less when the unit

is used at an angle, use directly in front of the REMOTE SENSOR, for maximum distance.

Do not expose the REMOTE SENSOR to strong light(direct sunlight or artificial lighting)and make sure that there are no obstacles between the REMOTE SENSOR and the remote control unit.

USE REMOTE CONTROL OTHER IMPORTANT BUTTON

P-UP / P-DN

- in the radio mode, press these buttons to select desired preset station number.

- in the MP3 mode, press these buttons to select the NEXT/PREV folder/album.

RANDOM BUTTON

-In the player CD/MP3/USB/AUX, press the RANDOM button can be played at random.

Press again to cancel.

BBS BUTTON

-In the player CD/MP3/USB/BT/AUX/RADIO, press the BASS button to enhance the heavy bass effect.

Press again to cancel.

EQ BUTTON

-In the CD/MP3/USB/BT/AUX/RADIO mode, press the EQ button to change music style among

5 equalizer levels

-When playing the music, press this button to select the sound effect: classic-rock-popular-jazz-FLR. MUTE BUTTON

-In the CD/MP3/USB/BT/AUX/RADIO mode, press the MUTE button to mute the sound.

Press again to restore the sound.

INTRO BUTTON

-In the CD/MP3/USB mode, press the INTRO button to browse 10 seconds of each track of the repertoire, press again to cancel this function.

-En3-

English

CONTROLS

POWER SUPPLY

Top and front panels (See 1)

1.REPET BUTTON

• Repeat a track CD/MP3/USB program.
• Play mode : normal->repeat 1->repeat all->repeat album ->normal.

2. SEARCH NEXT (▶)

-To setup the time standby state.
- NEXT track selection.
- Press and hold more than 1.5 sec forward search intra track.
- In the radio mode, press NEXT will enter the high-end manual channel scan mode.

3. PLAY/PAUSE BUTTON (▶II)

- Start or pause MP3/CD/USB play.

- In the radio mode, press the play/pause button enter the automatic channel scan mode.

4. FUNCTION SELECT

-Select source of sound CD/USB/AUX /RADIO/BLUETOOTH mode

5. VOLUME BUTTON

- Adjust volume level.

6. PRE-DN BUTTON

• In the radio mode, press PRE-DN button Mark place to choose the back channel.
• In the mp3 mode, Press PRE-DN button Mark place to enter the back folder.

7.PRE-UP BUTTON

-In the radio mode, press PRE-UP button Mark place to choose the next channel. -In the mp3 mode, press PRE-UP button Mark place enter into the next folder. Note: press In addition to the marked place does not work.

8. POWER BUTTON

-Press POWER button to control on/off power.

9. CD DOOR OPEN/CLOSE BUTTON

-Press here to open/close the CD door.

10. TIME/PROGRAM BUTTON

-In standby mode, to setup the time of the unit. -Program and review programmed track numbers.
-In the working status, press this button can on CD/MP3/USB/RADIO for programming.

11. SEARCH BACK (◀◀)

-To setup the time standby state.
- BACK track selection.
- Press and hold more than 1.5 sec BACK search intra track.
- In the radio mode, press BACK will enter the low end of the manual channel scan mode.

12. LCD DISPLAY

• Show the FM dial frequency.
• Show the number of tracks.

13.STOP BUTTON

- Stop CD/MP3/USB playback; -Stop a programming CD

14. USB JACK

-To listen to your USB flash memory.
-Stick with Mp3 music files.

1. STANDBY INDICATOR

16. AUX JACK

-PlaysMFONCDIGMATIONWALKMANXALSXation.

(insertconjunction)disc. (Need to usb the AUX NOTE: Please take out the CD disc.

17. STEREO HEADPHONE JACK

- 3.5 mm stereo headphone jack.

18. AC SOCKET

• Inlet for power cord.
• FM ANTENNA
• To improve FM reception.

USE CLOCK

To setup the time of the unit

1. Connect the ac on (The following operation must be in standby mode).
2. Short according to the time button, the time will flashing on the lcd display.
3. Press BACK, NEXT to select the number of the time. you can setup the time format by 12h or 24h.
4. Press time button to confirm.
5. Then you can set the hour and the minute with the same method of steps 3-4.
6. After setup the unit time, long press the time button can setup the unit begin working time, with the same method of steps 3-4.

RADIO

Radio reception

1. FUNCTION select RADIO

2. Tune to required station by press BACK or NEXT.

Manual Tuning: BACK or NEXT and then release within 1 sec.

Auto Tuning:

Preset Channel:(FM 30 Preset memories)

(1) Press BACK or NEXT Select desired station.

(2) Press PROGRAM button once, The MEMORY number indicator begins steady in the display.

(3) Press PRESET-UP PRESET- DOWN buttons to select the desired number

(4) Press PROGRAM button to save that station

(5) Repeat steps (1) to (4) procedures for other stations.

1. After end of program, press PRE-UP or PRE-DN to start play the frequency that you selected or press number key on the remote control.

2. Extend TELESCOPIC ANTENNA to its full length if you are listening to FM broadcasting.

3. Turn off the radio by press FUNCTION button select other mode or press power button to off the unit.

4. Switch on again after shut down, the memory frequency still exists.

Press button mode

Press the play/pause button enter the automatic channel

mode, and to be put automatically sets.

Press [VOL-] or [VOL +] to adjust the volume.

PROGRAM METHOD

(1)Press the [PROGRAM] key at STOP mode, system will go to PROGRAM mode.
-The PRG icon and P01 will blink at 2Hz. This prompts the user to enter the first songs in the program PLAY list.
(2)The user can select the desire tracks by using [NEXT][+10 Track], [BACK][-10 Track] keys. Once these keys are pressed, the Display will show the selected track.
(3) After select the desired track, press [PROGRAM] key again and it will be stored in the memory. -A maximum 99 tracks can be programmed.
(4) If press the [STOP] key during the program mode, then the selected TRACKs will be stored in the memory and return to STOP mode (Continuous Play mode)
(5) If press the [PLAY] key during the program mode, it will start the program PLAY mode. PLAY start from P01 Track

-En4-

-En5-

Erasing a program

You can erase the content of the memory by:

• While playing, press STOP button twice.
• Opening the CD door
• Select the other mode.

BLUETOOTH MODE

* The operational range between this unit and a Bluetooth device is approximately 10 meters, different BLUETOOTH devices may be slightly different operation.
* Before you connect a Bluetooth device to this unit, familiarize yourself with the Bluetooth capabilities of the device (IPHONE, IPAD, MOBILE PHONE, etc.) by reading the device instructions.
* Compatibility with all Bluetooth devices is not guaranteed.
* Any obstacle between this unit and a Bluetooth device can reduce the operational range.
* Keep this unit away from any other electronic device that may cause interference.

In order to avoid interferences, please de-activate Wi-Fi on your device (Smartphone, tablet, etc...) when playing music using Bluetooth.

PAIRING YOUR BLUETOOTH DEVICE

Note: Prior to use Bluetooth function, your Niver CD player should be paired firstly with your Bluetooth device (refer to Bluetooth operation of your external device).

Press FUNCTION button and select BLUE mode.

Search BLUETOOTH equipment*NVR-480UB* model for connection. Enable the Bluetooth function of your Bluetooth audio source device to make it discoverable (see your device's operation instructions to add or setup a Bluetooth device).

Select NVR-480UB on your Bluetooth device to make the pairing. If required by the External Bluetooth audio source, enter default password "0000".

PLAYBACK

1. Press PLAY/PAUSE button to play or pause playback.
2. Push [VOL-] or [VOL +] to adjust the volume level.
3. Press BACK or NEXT to select tracks

LISTEN TO MUSIC FROM BLUETOOTH EXTERNAL DEVICE

- If the connected Bluetooth device supports Advanced Audio Distribution Profile (A2DP), you can listen to the music stored on the external device through the Niver NVR-480UB.

You can control music via the CD PLAYER.

- If the device also supports Audio Video Remote Control Profile (AVRCP), you can use the Niver NVR-480UB remote control to play music and control playback of the music stored on the external device.

CD/MP3 PLAYER

CD/MP3 Player

Playing a CD/MP3

This CD-player can play Audio Discs, MP3 CD-R. Do not try to play CD-ROM, CDi, VCD, DVD or computer CD.

1. Press function button to CD state.

2. to open the cd door, press cd open button.

3. insert a mp3/cd or cd-r , with the printed side facing up and press cd door gently to close.

4. press play/pause on the set to start playback

5. Press the pause button to pause play, press the play button back playing.

6. to stop cd playback, press stop.

note: cd/mp3 play will also stop when:

-you open the cd compartment;

-you select radio sound source;

-the comp3 has reached to the end.

selecting a different track,

during playback you can use back or next to select a particular track.

- if you have selected a track number in the stop or pause position, press play to start playback.

- Press next once briefly for the next track, or press repeatedly until the desired track number appears in the display.

- Press back once briefly to return to the beginning of a current track.

- Press back more than once briefly for a previous track.

finding a passage within a track

1. Press and hold down back or next.

• the cd is played at high speed.

1. when you recognize the passage you want release back or next.

→ normal playback resumes.

different play modes:repeat

repeat-play the current track continuously.

repeat all-plays the entire cd continuously, playing tracks in random order after press the random button, the tracks will be played in random order.

Playing a USB

USB Audio functions

1) press function button or stop usb button to

choose the usb state.

2) PLAY/PAUSE

3) NEXT, BACK Skip search

4) Program Track(MP3 99 Track CD 20 Track )

5) PLAYMODE : normal->repeat 1->repeat all->

repeat album ->normal

6) Maximum Folder : 99 Folders

7) Maximum File : 999 Files

"Notice

-When the unit has not the disc, inserting the usb card will automatically real usb card,

it read the USB first while having the USB.

-The unit don't support the HDD all and the portion usb with mp3 player.

Note: at the mode of CD/MP3 / USB, the lcd will display the number of song or the song playing time.

USE AUX

To listen music with a mp3-discman-walkman- 1. Connect to the AUX.

1. press function selector to AUX, the sound source of the mp3 or discman or walkman will output from the unit.

-Press the volume control to adjust the volume. -The unit can't control the player.

-En6-

-En7-

ADVERTENCIA

Aviso

Precautions & General Maintenance

• Place the set on a hard and flat surface so that the system does not tilt.
• Do not expose the set, batteries or CDs to humidity, rain, sand or excessive heat caused by heating equipment or direct sunlight.
• Do not cover the set. Adequate ventilation with a minimum gap of 6 inches between the ventilation holes and surrounding surfaces is necessary to prevent heat build-up.
• The mechanical parts of the set contain self-lubricating bearings and must not be oiled or lubricated.
  • To clean the set, use a soft dry cloth. Do not use any cleaning agents containing alcohol, ammonia, benzene or abrasives as these may harm the housing.

CD player and CD handling

• The lens of the CD player should never be touched!
- Sudden changes in the surrounding temperature can cause condensation to form and the lens of your CD player to cloud over. Playing a CD is then not possible. Do not attempt to clean the lens but leave the set in a warm environment until the moisture evaporates.
- Always close the CD door to keep the CD compartment dust-free. To clean, dust the compartment with a soft dry cloth.
• To clean the CD, wipe in a straight line from the centre towards the edge using a soft, lint-free cloth. Do not use cleaning agents as they may damage the disc.
- Never write on a CD or attach any stickers to it.

Illustration showing a hand holding a circular object with a downward arrow, and a hand holding a magnet with a cross symbol (no text or labels)

-En8-

Troubleshooting

If a fault occurs, first check the points listed below before taking the set for repair. Do not open the set as there is a risk of electric shock.

If you are unable to remedy a problem by following these hints, consult your dealer or service center.

WARNING: Under no circumstances should you try to repair the set yourself, as this will invalidate the warranty.

- Problem

- Solution

No sound /power

• Volume not adjusted
• Adjust the VOLUME
• power cord not securely connected
• Connect the AC power cord properly
• Batteries dead/ incorrectly inserted
• Insert (fresh) batteries correctly

Display does not function properly / No reaction to operation of any of the controls

• Electrostatic discharge
• Switch off and unplug the set. Reconnect after a few seconds

no disc indication

• No CD/MP3 inserted
• Insert a CD,MP3, CD-R.
• CD badly scratched or dirty
• Replace/ clean CD, see Maintenance
• Laser lens steamed up
• Wait until lens has cleared
• CD-R is blank or the disc is not finalized
• Use a finalized CD-R

CD/MP3/USB playback does not work

• CD/MP3/USB badly scratched/dirty
• Replace/clean CD/MP3/USB
  (see maintenance)
• Laser lens steamed up
• Wait until lens has adjusted to room
  temperature

The CD/MP3 skips tracks

• CD/MP3 damaged or dirty
• Replace or clean CD/MP3
• Program is active
• Quit Program mode(s)

Power Consumption.... AC 9.8 Watts

Dimensions.....Approx 302 mm(L)× 234 mm(W) ×135 mm(H)

Operation temperature....+5 ℃ - +35 ℃

RECEIVER SECTION

Receiving Bands....FM PLL

Tuning Range FM: 88-108MHz

COMPACT DISC SECTION

Optical Pickup....3-Beam Laser

Frequency Response....100Hz - 16KHz

AUDIO SECTION

Power output ...... Maximum 2 Watt x 2

Headphone Impedance 4\~32 Ohms

ACCESSORIES

Instruction Booklet....1

Remote controller....1

Power AC Cable....1

WEEE (Waste of Electrical and Electronics Equipment):

This symbol indicates that when the end-user wishes to discard this product, it must be sent to separate collection facilities for

covering and recycling. By separating this products from other

household-type waste the volume of waste sent to incinerators or land fields is reduced and natural resources will thus be preserved. Besides that, waste batteries and/or accumulators must be removed prior to delivery of WEEE, through the separated collection channels provided for this purpose (distributors and/or facilities of Local Authorities)

In order to fulfill ruling UNE EN-60665, if flexible wire is damaged, it can only be replace or repair but a technical serviced recognized by Nevir S.A. because special tooling is required

-En10-

nevir

MANUAL DE INSTRUÇÕES

NVR-480UB

Black portable electronic device with control knobs and a small remote control (no visible text or symbols)

Radio CD MP3 USB e Bluetooth

1. Repita BOTÓN

2.Botão próximo

3.PLAY/PAUSA

4.Function

5.VOLUME-/VOLUMEN +

6.PRE-DN

7.PRE-UP

8.Power

Technical diagram of an electronic device with labeled components and connections (no readable text or symbols)

1.-Repetir

-Para configurar o tempo de espera.

repetir album -> normal

1. Próximo

-Para configurar tempo de espera.

1.Bolão power

2.Vez que o botão

1. Intro button

4.Botão de mudo

5.Botão aleatório

6.P-up botão

7.Repeat button

8.Botão programa

Illustration showing a hand using a compass to interact with a circular object, and a hand holding a cross-shaped object (no text or symbols present)
