BK30 - Scale BLACK & DECKER - Free user manual and instructions

Product Type	Digital Kitchen Scale
Brand	Black & Decker
Model	BK30
Weighing Capacity	5 kg (11 lbs)
Graduation	1 g (0.05 oz)
Units	g, kg, lb, oz, ml, fl.oz (water/milk)
Display	LCD with backlight
Power Source	2x AAA batteries (included)
Auto-Off	Yes (approx. 2 minutes of inactivity)
Tare Function	Yes
Platform Material	Tempered glass
Overload Indicator	Yes ("EEEE")
Low Battery Indicator	Yes
Dimensions (approx.)	22 x 15 x 1.5 cm (8.7 x 5.9 x 0.6 in)
Weight (without batteries)	250 g (8.8 oz)
Cleaning Instructions	Wipe with a soft damp cloth; do not immerse in water.
Safety Warnings	Use on a flat, stable surface; keep away from moisture and heat sources.
Whats Included	Scale, 2x AAA batteries, user manual

Frequently Asked Questions - BK30 BLACK & DECKER

How do I replace the batteries in the Black & Decker BK30 scale?

Open the battery compartment on the bottom of the scale. Remove old batteries and insert two new AAA batteries following the polarity markings. Close the compartment securely.

Why does my scale display 'EEEE'?

The 'EEEE' error typically indicates an overload. Remove the weight immediately. The maximum capacity is 5 kg (11 lbs).

Can I weigh liquids directly on the scale?

Yes, but only use a container. The scale has a tare function: place the empty container on the scale, press the tare button to zero, then add the liquid. Avoid spilling on the scale.

How do I switch between weight units?

Press the UNIT button on the front of the scale to cycle through g, kg, lb, oz, ml, and fl.oz (water/milk). The selected unit will appear on the display.

Why does the scale turn off automatically?

The scale has an auto-off function to save battery. It will automatically turn off after approximately 2 minutes of no activity. Press the ON button to restart.

How do I clean the BK30 scale?

Use a soft damp cloth to wipe the glass surface and plastic parts. Do not use abrasive cleaners or immerse the scale in water, as it may damage the electronics.

Is the scale accurate?

The Black & Decker BK30 has a graduation of 1 gram, providing reliable measurements for most kitchen tasks. For best results, place the scale on a flat, hard surface and avoid using near mobile phones or other electronic devices.

What should I do if the display shows 'Lo'?

The 'Lo' indicates low battery. Replace the AAA batteries with fresh ones. If the problem persists, check battery contacts for corrosion.

Can I use the scale to weigh food directly?

Yes, the platform is made of tempered glass and is food-safe. For hygiene, you can also place a sheet of wax paper or a plate on the scale using the tare function.

How do I reset or calibrate the scale?

The BK30 does not require user calibration. If the scale seems inaccurate, ensure it is on a flat surface, press the tare button to zero, and try again. If issues continue, replace batteries or contact Black & Decker support.

USER MANUAL BK30 BLACK & DECKER

English (Original Instructions)

1. Display

Intended use

Your Black & Decker Scale has been designed for weighing the human body.

This product is intended for household use only.

Read this entire manual carefully before using the appliance.

Safety instructions

• Warning! When using battery-powered appliances, basic safety precautions, including the following, should always be followed to reduce the risk of fire, leaking batteries, personal injury and material damage.
• Read this entire manual carefully before using the appliance.
• The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of material damage.
• Retain this manual for future reference.

Using your appliance

• Do not place the appliance on or near heat sources.
• Do not use the appliance near flammable materials.
• Do not use the appliance outdoors.
• Always protect the appliance from water or excessive humidity.
• Do not overload the appliance.
• Do not use the appliance at ambient temperatures below 10 °C or above 30 °C.
• Do not place the scale on an uneven surface.
• Do not immerse the scale in liquids.
• Do not allow the scale to get wet.
• Do not step on the edge of the scale.
• Do not step on the scale with wet feet.

- Ensure scale is dry before stepping onto it.

Safety of others

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not allow children or any person unfamiliar with these instructions to use the appliance.

After use

• Remove the batteries when the appliance is not going to be used for a longer period of time.
• When not in use, the appliance should be stored in a dry place. Children should not have access to stored appliances.

Inspection and repairs

• Before use, check the appliance for damaged or defective parts. Check for breakage of parts and any other conditions that may affect its operation.
• Do not use the appliance if any part is damaged or defective.
• Have any damaged or defective parts repaired or replaced by an authorised repair agent.
• Never attempt to remove or replace any parts other than those specified in this manual.

Electrical safety

To avoid the risk of short circuiting, do not immerse the appliance or the batteries in water or other liquid.

English (Original Instructions)

• Use only the correct type of battery for the appliance (see technical data)
• Never attempt to charge non-rechargeable batteries.
• The electronic components inside the appliance may be affected by other devices used in close proximity, such as mobile phones or microwave ovens. If this happens, the display will show erroneous data. To remedy this, either switch the interfering device off, or move the appliance away from it.

Additional safety instructions for non-rechargeable batteries.

• Never attempt to open for any reason.
• Do not store in locations where the temperature may exceed 40 °C.
• When disposing of batteries, follow the instructions given in the section “Protecting the environment”.

- Do not incinerate batteries.

- Under extreme conditions, battery leakage may occur. When you notice liquid on the batteries, proceed as follows:

- Carefully wipe with the liquid off with a damp cloth.

- Avoid skin contact.

- The batteries and battery compartment should be checked periodically for any signs of corrosion.

Assembly

Fitting the batteries

- Remove the battery cover from the appliance.

Diagram of a mechanical or electrical component with an upward arrow and internal structure (no text or symbols)

- Insert 2 batteries (CR2032) into the appliance.

- Refit the battery cover.

Simple icon of a computer monitor with a downward arrow and a document symbol (no text or labels)

Note! The appliance display will show “Lo” if there is insufficient power in the batteries. If this occurs then change the batteries.

Use

• Place the appliance on a flat surface.
• Ensure the appliance is dry before stepping on to it.

Selecting the measuring system

The appliance can show the results in both metric and the imperial system.

• Turn the appliance over.
• Select the required measuring system by pressing the button. A beep will be heard and the display will show the chosen measuring system (kg / lb).

Abstract graphic with a white arrow pointing downward over a gray background, no text or symbols present.

Switching on and off

Switching on

- Lightly press down on the scale with your foot. "8888" will appear in the display (1) followed by "0.0".

Switching off

- After approximately 10 seconds of inactivity the screen will go blank.

Measuring weight only

• Switch the appliance on.
• “8888” will appear in the display (1).
• Step on to the appliance when “0.0” appears in the display. (The appliance will turn off automatically if you do not step on to it within 10 seconds)
• A beep will be heard and the weight will appear on the screen for approximately 3 seconds.

Error indicator

The screen will display an error warning "Err" if an error during measurement has occurred.

Cleaning and maintenance

Warning! Before cleaning and maintenance, switch the appliance off.

Warning! Do not immerse the appliance in water or any other liquid.

• Wipe the product exterior with a damp cloth.
• Do not use scouring pads.
• If necessary, use a mild detergent to remove spots.
• Do not use any abrasive or solvent based cleaner.
• Do not immerse the appliance in water or any other liquid.

Technical data

Voltage	6V DC
Batteries 2 X CR2032
Max weight capacity 150kg

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

• Black & Decker provides a facility for recycling Black & Decker products once they have reached the end of their working life. This service is provided free of charge. To take advantage of this service, please return your product to any authorised repair agent who will collect them on our behalf.
• You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorized Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

Batteries

At the end of their useful life, discard batteries with due care for our environment:

• Do not short-circuit the battery terminals.
• Do not dispose of the battery(s) in fire, as this may result in a risk of personal injury or an explosion.
• Run the battery down completely, then remove it from the appliance/tool.
• Batteries are recyclable. Place the battery in suitable packaging to ensure that the terminals cannot be short-circuited. Take them to any authorised repair agent or a local recycling station.

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

The product has been used for trade, professional or hire purposes;
The product has been subjected to misuse or neglect;
The product has sustained damage through foreign objects, substances or accidents;
➢ Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

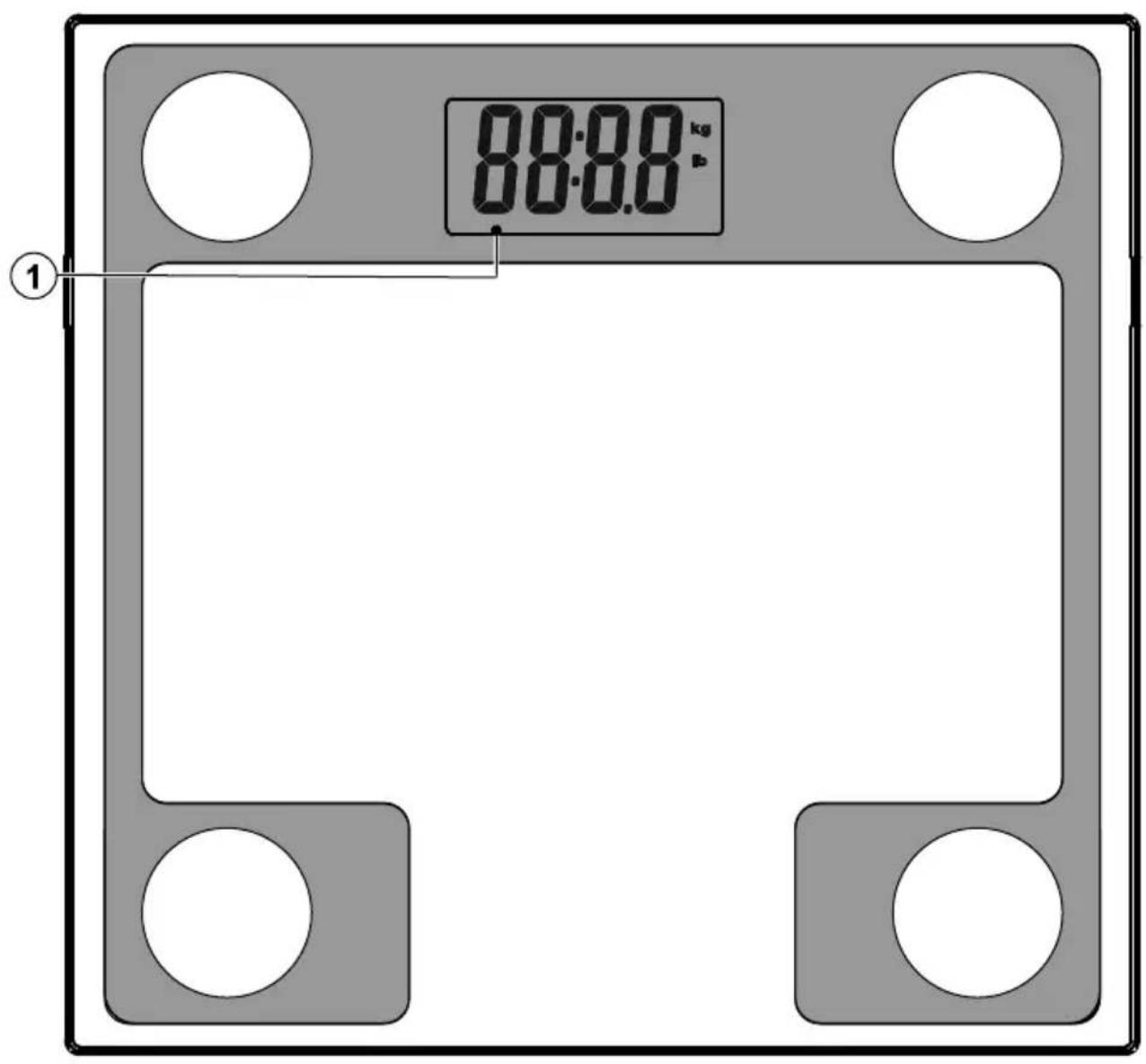

1. Display

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols visible

Simple icon of a computer monitor with a download arrow (no text or symbols)

Abstract graphic with a white arrow pointing to a gray rectangular shape (no text or symbols)

Nota!

Diagram of a mechanical or electrical component with an upward arrow and internal structure (no text or symbols)

Simple icon of a computer monitor with a download arrow (no text or symbols)

Abstract gray graphic with a black arrow pointing downward and a curved line below (no text or symbols)

Σημείωση!

Do not forget to register your product!

www.blackanddecker.co.uk/productregistration Register your product online at www.blackanddecker.co.uk/productregistration or send your name, surname and product code to Black & Decker in your country
