Brand	Black & Decker
Model	BK70
Product Type	Digital Body Scale
Intended Use	Household weighing of human body
Weight Capacity	2 – 150 kg
Graduation	0.1 kg
Body Fat Range	3 – 50%
Body Water Range	25 – 75%
Display	LCD screen
Measurement Systems	Metric (kg, cm) and Imperial (lb, ft)
Memory	Up to 12 user profiles
Special Modes	Athlete mode
Power Supply (Scale)	4 x AAA batteries
Power Supply (Remote)	2 x AAA batteries
Dimensions (approx.)	32 x 32 x 2.5 cm
Weight (approx.)	1.5 kg
Material	Plastic body with stainless steel electrodes
Cleaning	Mild soap and damp cloth; do not immerse
Safety	Not for pregnant women or persons with pacemakers; avoid wet feet and uneven surfaces
Spare Parts / Repairability	Batteries only; repairs by authorized agent
Guarantee	24 months against defects

Frequently Asked Questions - BK70 BLACK & DECKER

How do I set up my personal profile on the BK70 scale?

Switch on the scale, wait for the program number to blink on the LCD, then use the adjustment buttons (up/down) to select a number (1-12). Press Set to confirm. Follow the menus to enter measurement system, gender, height, and age.

How can I change the measurement system from metric to imperial?

Before a measurement, wait for the athlete mode message to appear on the screen, then press and hold the Set button for 1 second. The measurement system will toggle between metric and imperial.

What is the athlete mode and how do I activate it?

Athlete mode is for people aged 15-50 who train intensively over 12 hours per week and have a low resting heart rate. To activate, wait for the athlete mode prompt on the screen, then press and hold the UP adjustment button for 1 second. The athlete mode symbol will appear.

How do I measure body fat and water percentage?

Remove the remote control, switch on the scale, select your user profile, then tap the center of the scale to activate. Step on barefoot when the red indicator lights up. The weight, body fat percentage, and body water percentage will be displayed sequentially.

What should I do if the scale shows an error or overload warning?

If an error occurs during measurement, the screen will display an error icon. Remove your weight and try again. If the overload warning appears because the weight exceeds 150 kg, immediately step off to prevent damage.

How do I replace the batteries in the scale and remote control?

For the scale, remove the battery cover on the bottom, insert 4 AAA batteries in the correct orientation, and replace the cover. For the remote control, slide it off the scale, remove its battery cover, insert 2 AAA batteries, and reattach the cover.

Can I use the BK70 scale if I have a pacemaker?

No. The scale uses a small electrical current for body composition analysis. It must not be used by pregnant women or persons with cardiac pacemakers or other implanted medical devices.

How do I clean the scale?

Clean the scale with a mild soap and a damp cloth. Do not use abrasive or solvent-based cleaners. Never immerse any part of the scale in water or other liquids.

What does the low battery indicator look like?

The LCD screen will show a battery icon when batteries are low. A symbol near the remote display indicates remote batteries need replacing, and one near the scale display means scale batteries are low. Replace them promptly.

How do I dispose of the BK70 scale and its batteries?

Do not dispose of the scale with household waste. Recycle it through separate collection at municipal waste sites or return it to an authorized Black & Decker repair agent. Remove batteries and recycle them at a local battery recycling station.

USER MANUAL BK70 BLACK & DECKER

Technical line drawing of a device rear panel and side view showing internal components (no text or symbols)

ENGLISH

Intended use

Your Black & Decker scale has been designed for weighing the human body. This product is intended for household use only.

Safety instructions

Warning! When using battery-powered appliances, basic safety precautions, including the following, should always be followed to reduce the risk of fire, leaking batteries, personal injury and material damage.

◆Read this entire manual carefully before using the appliance.

◆The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of material damage.

◆Retain this manual for future reference.

Using the appliance

◆Do not use the appliance outdoors.

◆Always protect the appliance from water or excessive humidity.

◆Do not use the appliance at ambient temperatures below 10 °C or above 30 °C.

◆Do not use the appliance on an uneven surface.

◆Do not use the appliance if your feet are wet.

◆Do not step on the edge of the appliance.

◆Do not overload the appliance.

Safety of others

◆Do not allow children or any person unfamiliar with these instructions use the appliance.

After use

◆Remove the batteries when the appliance is not going to be used for a longer period of time.

When not in use, the appliance should be stored in a dry place. Children should not have access to stored appliances.

Inspection and repairs

Before use, check the appliance for damaged or defective parts. Check for breakage of parts and any other conditions that may affect its operation.

◆Do not use the appliance if any part is damaged or defective.

◆Have any damaged or defective parts repaired or replaced by an authorised repair agent.

◆Never attempt to remove or replace any parts other than those specified in this manual.

Electrical safety

Warning! To avoid the risk of short circuiting, do not immerse the appliance or the batteries in water or other liquid.

◆Use only the correct type of battery for the appliance (see technical data).

Additional safety instructions for non-rechargeable batteries

◆Never attempt to open for any reason.

◆Do not store in locations where the temperature may exceed 40 °C.

- When disposing of batteries, follow the instructions given in the section "Protecting the environment". Do not incinerate the batteries.

◆Under extreme conditions, battery leakage may occur. When you notice liquid on the batteries, proceed as follows:

- Carefully wipe the liquid off using a cloth. Avoid skin contact.

Features

1. On/off button

2. Adjustment buttons (up/down)

3. Set button

4. LCD screen

5. Battery cover (remote control)

6. Power indicator

7. Battery cover (appliance)

Assembly

Fitting the batteries (fig. A)

Fitting the batteries into the appliance

◆Remove the battery cover (7).

◆Insert the batteries into the appliance in the orientation as shown.

◆Refit the cover and let it click into place.

Fitting the batteries into the remote control

In order to fit the batteries, the unit must be removed from the appliance.

◆Remove the battery cover (5).

◆Insert the batteries into the appliance in the orientation as shown.

◆Refit the cover and let it click into place.

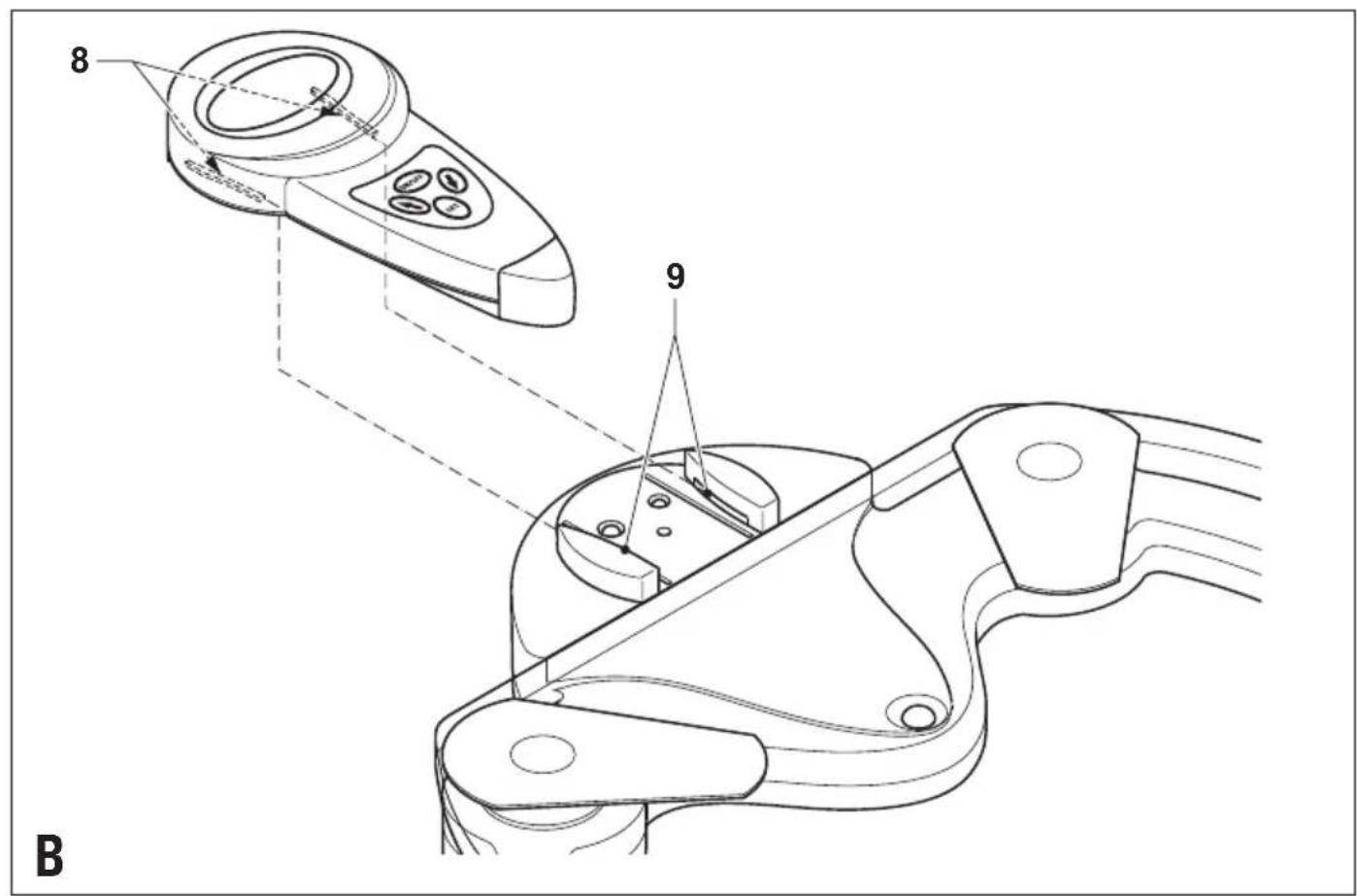

Removing and re-fitting the remote control (fig. B)

Removing

◆Slide the unit off the appliance in the direction as shown.

Re-fitting

◆Hold the unit in front of the appliance, aligning the rails (8) with the slots (9).

◆Slide the unit onto de rails.

Use

◆Place the appliance on a flat surface.
◆Ensure the appliance is dry before stepping onto it.

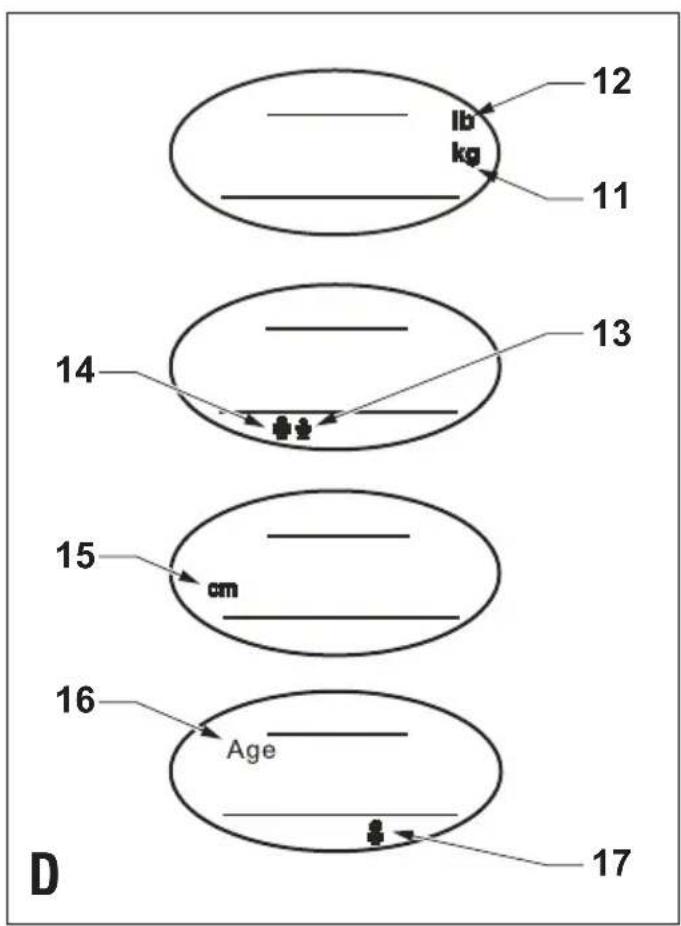

Setting personal data (fig. C & D)

The memory can store personal data for up to 12 persons.

◆Switch the appliance on.
◆Wait for the message (10) to appear blinking on the screen (4).
◆Select a program number by pressing the adjustment buttons (2).
◆Confirm the selection by pressing the set button (3).
◆Enter the data in the menus appearing in the order as follows.

Selecting the measurement system

The appliance can show the results both in the metric (11) and the imperial (12) system.

◆Enter the measurement system by pressing the buttons (2) as required.
◆Store the data by pressing the set button (3).

Selecting the gender

The screen will display the gender by a female (13) or a male (14) symbol.

◆Enter the gender by pressing the buttons (2) as required.
◆Store the data by pressing the set button (3).

Setting the height

The screen will show the data in in centimeters (15).

◆Enter the height by pressing the buttons (2) as required.
◆Store the data by pressing the set button (3).

Setting the age

The screen will show the data in years of age (16). The screen will display the child mode symbol (17) if the selected age is 12 or below.

◆Enter the age by pressing the buttons (2) as required.
◆Store the data by pressing the set button (3).

Storing the data

After the program number has stopped blinking and remains on, the data has been stored in the memory.

◆If necessary, select a following program number and repeat the steps to enter the data for the next person.

Switching on and off

Switching on

◆Press the on/off button (1) on the remote control.

When the remote control is fitted, the appliance is activated automatically. When the remote control is removed, the appliance must be activated by tapping the centre of the scale with one foot.

Auto switch-off

◆After approximately 10 seconds of inactivity, the screen will go blank.

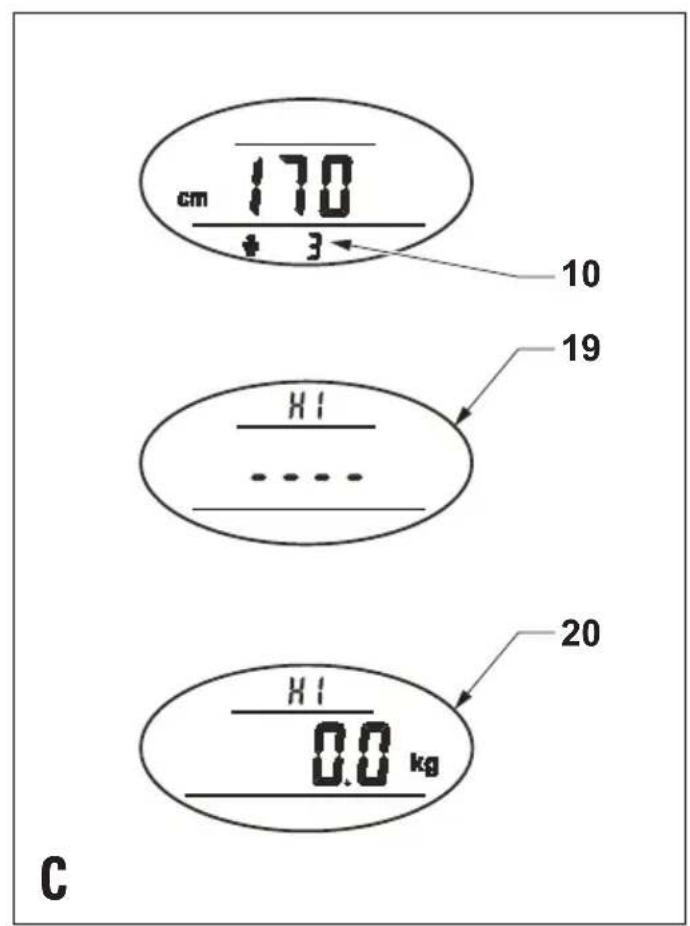

Measuring the weight (fig. C)

◆Switch the appliance on by pressing the on/off button (1) twice. The message (19) appears on the screen (4).
◆Tap the centre of the scale with one foot to activate the appliance. The message (20) appears on the screen (1).
◆Step on the appliance. The digits on the screen start blinking.
◆The result appears on the screen.

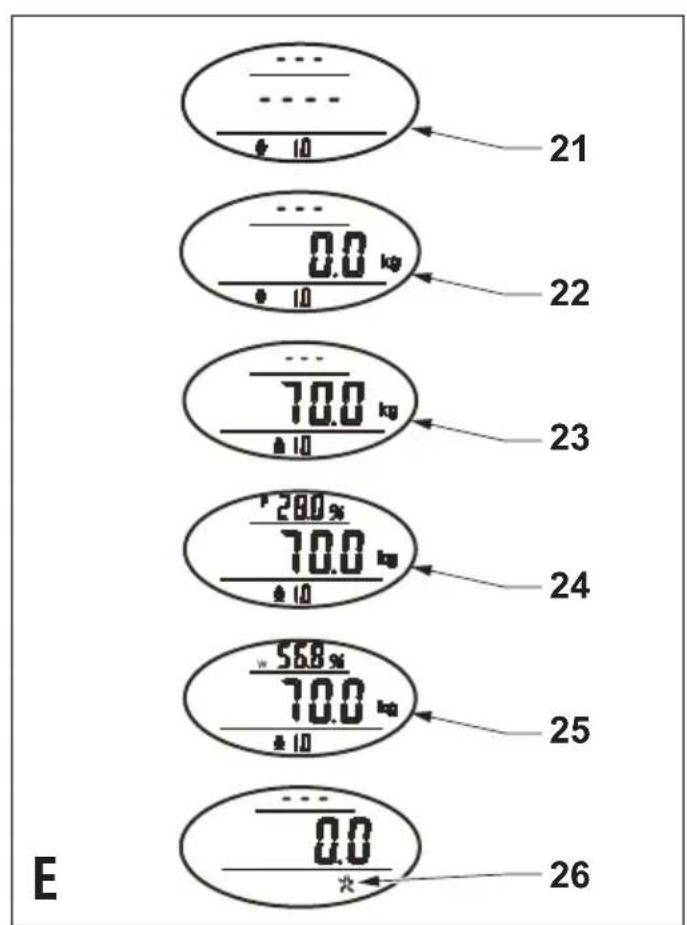

Measuring the body fat and water percentage (fig. C, D & E)

These measurements are an indication of your level of fitness and your physical health. Consult your physician or a qualified dietician for appropriate advice regarding further action.

The measurements are performed using the technique of BIA, a highly reliable method for analyzing the composition of the human body. BIA, short for bioelectrical impedance analysis, measures the resistance to the flow of a small, harmless low-level electrical current using the built-in electrodes. Personal data like gender, height and age, form the key factors to the analysis results processed by the software program.

When using this application, we recommend that you take regular measurements, always around the same time of day and under the same conditions.

Refer to the tables below for an indicative interpretation of the analysis results.

Note:

– The application only works if you are barefoot.
- Excessive drinking or eating, exercising, medical conditions, use of medication, the female menstrual cycle etc., have an effect on the measurement results.

- Warning! This application must not be used by pregnant women and people with a cardiac pacemaker or any other medical device implanted in their body.

◆Remove the remote control from the appliance.
◆Switch the unit on.
◆Wait for the message (10) to appear blinking on the screen (4).
◆Select the program number of your personal data.

ENGLISH

◆Tap the centre of the scale with one foot to activate the appliance. The red indicator (6) lights up.
◆Wait for the message (22) to appear on the screen (1).
◆Re-fit the remote control or place it on a location within arm's reach and within transmitting range for remote interaction with the appliance.
◆Step on the appliance. The digits on the screen start blinking.
◆The weight (23) appears on the screen.
◆The result for body fat percentage (24) appears on the screen.
◆The result for body water percentage (25) appears on the screen.

Athlete mode

People of 15-50 years of age who train intensively for more than 12 hours a week and who have a resting heart rate of approximately 60 beats per minute or less, have these measurements performed more accurately in the athlete mode. The athlete mode can be selected prior to performing a measurement.

◆Wait for the message (21) to appear on the screen (4).
◆Press and hold the 'UP' adjustment button (2) for 1 second. The athlete mode symbol (26) appears on the screen.

Body fat percentage

Age Thin Under Normal Over Obese weight weight

Female

6-15 < 8 8-15 15-22 22-29 > 29

16-39 < 13 13-20 20-27 27-34 > 34

40-55 < 14 14-21 21-28 28-35 > 35

56-75 < 15 15-22 22-29 29-36 > 36

Athlete 15-25

Male

6-15 < 8	8-15	15-22	22-29 > 29
16-39 < 10	10-17	17-24	24-31 > 31
40-55 < 11	11-18	18-25	25-32 > 32
56-75 < 12	12-19	19-26	26-33 > 33
Athlete 3-15

Body water percentage

	Female Male
Child 58-70 60-73
Adult	42-61 46-66
Athlete	56-71 60-73

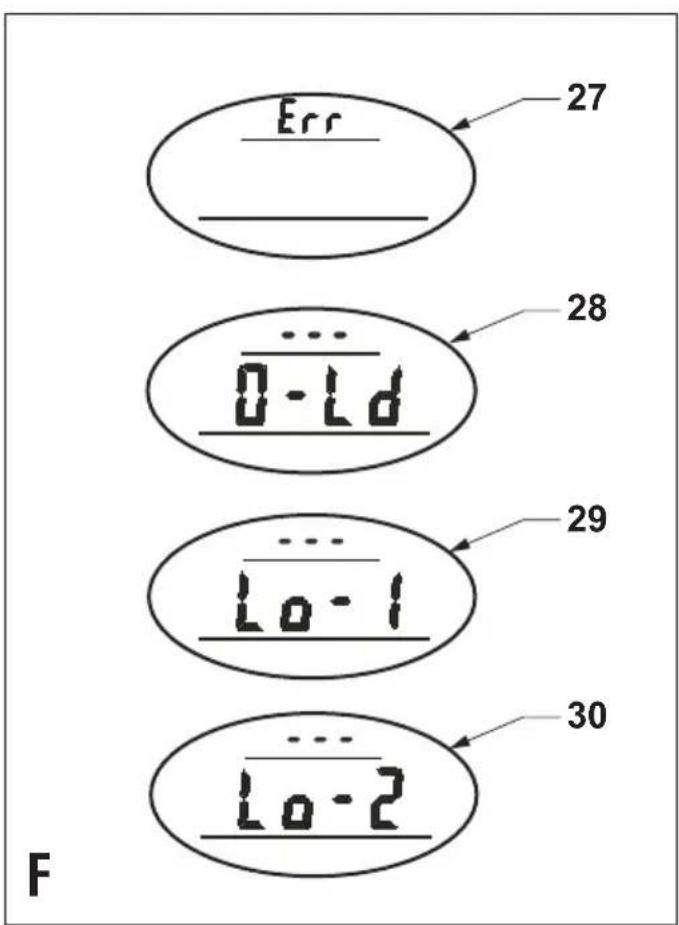

Error indicator (fig. F)

The screen will display an error warning (27) if an error during measurement has occurred.

Changing the measurement system (fig. D & E)

The measurement system can be changed prior to performing a measurement.

◆Wait for the message (21) to appear on the screen (4).
◆Press and hold the set button (3) for 1 second. The change of measurement system (11 or 12) appears on the screen.

Overload indicator (fig. F)

The screen will display an overload warning (28) if the weight exceeds the maximum capacity.

- Immediately remove the weight from the appliance to prevent damage.

Maintenance

Warning! Before cleaning or maintenance make sure the appliance is switched off.

◆Clean the appliance using only mild soap and a damp cloth. Do not use any abrasive or solvent-based cleaner.
◆Periodically open the battery compartment and check the batteries for corrosion.

Warning! Do not immerse any part of the appliance in water or any other liquid.

Low battery indicator (fig. F)

The LCD screen will display a low battery warning (29) when the battery of the remote control is nearly empty. The LCD screen will display a low battery warning (30) when the battery of the appliance is nearly empty.

◆Replace the battery.

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

Black & Decker provides a facility for the collection and recycling of Black & Decker products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet

at: www.2helpU.com

Batteries

At the end of their useful life, discard batteries with due care for our environment.

◆Remove the batteries as described above.

◆Place the batteries in a suitable packaging to ensure that the terminals cannot be short-circuited.

◆Take the batteries to a local recycling station.

Technical data

	BK70
Weighing range kg 2 - 150
Graduation kg 0.1
Body fat percentage range 3 - 50 %
Body water percentage range 25 - 75 %
Batteries
appliance 4 x AAA
remote control 2 x AAA

EC declaration of conformity

BK70

Black & Decker declares that these products conform to: EN 5022, EN 5024

Kevin Hewitt

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG,

United Kingdom

01-01-05

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

◆The product has been used for trade, professional or hire purposes;

◆The product has been subjected to misuse or neglect;

◆The product has sustained damage through foreign objects, substances or accidents;

◆Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at:

www.2helpU.com

Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and to be kept up to date on new products and special offers. Further information on the Black & Decker brand and our range of products is available at www.blackanddecker.co.uk

Uso previsto

Spennymoor, County Durham DL16 6JG,

United Kingdom

01-01-05

Garanzia

Spennymoor, County Durham DL16 6JG,

United Kingdom

01-01-05

Garantía

Spennymoor, County Durham DL16 6JG,

United Kingdom

01-01-05

Garantia
