Product Type	CRT Video Projector
Model	Graphics 808s
Brand	Barco
Display Technology	3 CRT (8-inch)
Resolution	Up to 1600 x 1200 pixels
Scan Rate	Horizontal: 15-135 kHz, Vertical: 50-150 Hz
Input Signals	RGBHV, RGBS, RGsB, Component, Composite, S-Video
Dimensions (W x H x D)	800 x 600 x 400 mm
Weight	80 kg
Power Consumption	1200 W (max)
Power Supply	100-240 V AC, 50/60 Hz
Lens Options	Interchangeable lenses (various focal lengths)
Keystone Correction	Digital, horizontal & vertical
Installation Features	Remote control, RS-232, ceiling mountable
Maintenance	Periodic filter cleaning, CRT convergence adjustment
Safety	High voltage (CRT), internal shielding, cooling fans
Spare Parts Available	CRT tubes, lenses, power supplies, boards
Repairability	Serviceable by qualified technicians; schematics available
General Information	High brightness CRT projector for professional AV and simulation

Frequently Asked Questions - Graphics 808s Barco

What is the maximum resolution of the Barco Graphics 808s?

The Graphics 808s supports resolutions up to 1600 x 1200 pixels with compatible input signals.

Can I use a bulb/lamp in this projector?

No, this projector uses CRT tubes instead of a lamp. Tube life is typically 10,000-15,000 hours depending on usage.

How do I connect my computer to the Graphics 808s?

Use a VGA to BNC cable (RGBHV) connected to the projector's input connectors. Ensure the computer's output resolution matches a supported mode (up to 1600x1200).

Is the projector compatible with HDTV signals?

Yes, it accepts 720p and 1080i via component or RGB inputs, but not 1080p as it was designed before that standard.

How often should I clean the air filters?

Clean the foam filters every 500 hours of operation, or more frequently in dusty environments.

What is the weight of the projector?

The projector weighs approximately 80 kg (176 lbs), so a sturdy mount or cart is required.

Can I replace the CRT tubes myself?

No, CRT replacement requires high-voltage safety precautions and precise convergence alignment. It should be done by a trained technician.

Does the projector have a remote control?

Yes, it comes with a wired or wireless remote for basic functions like power, input selection, and menu navigation.

What type of lens mount does the Graphics 808s use?

It uses a Barco-specific bayonet mount for interchangeable lenses. Available focal lengths range from 0.8:1 to 5.0:1.

How do I access the service menu?

Press the Menu button on the remote or local keypad, then enter the code 1234 (default) to access advanced adjustments like convergence and geometry.

USER MANUAL Graphics 808s Barco

Due to constant research, the information in this manual is subject to change without notice.

Produced by BARCO NV, April 2003.

All rights reserved.

Trademarks are the rights of their respective owners.

Printed in Belgium

BARCO n.v./Projection Systems

Noordlaan 5

B-8520 Kuurne

Belgium

Tel: [phone]

Fax: [phone]

E-mail : [e-mail]

Visite Barco at the web : http://www.barco.com

Printed in Belgium

TABLE OF CONTENTS

TABLE OF CONTENTS ...... I-1

SAFETY INSTRUCTIONS 1-1

On safety 1-1
On installation 1-2
On servicing 1-2
On cleaning 1-2
On repacking 1-2
On illumination 1-2

LOCATION AND FUNCTIONS OF CONTROL 2-1

Rear panel terminology 2-1
Control panel terminology 2-2
a. The Local Keypad 2-2

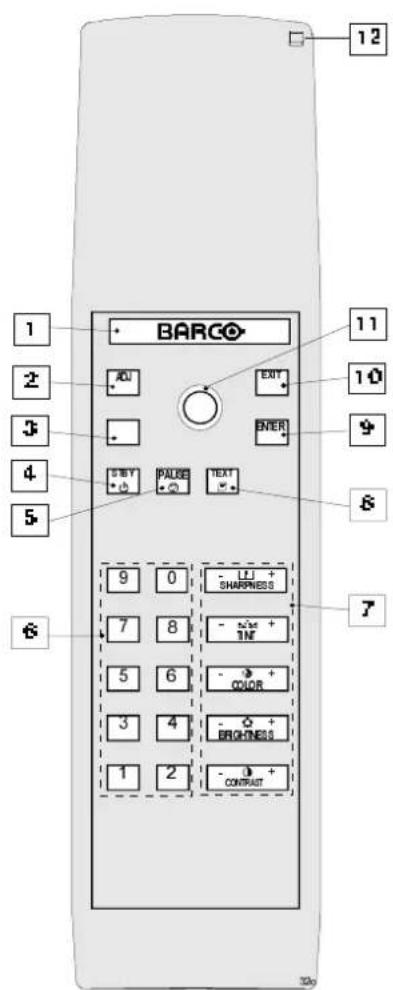

b. RCU control panel terminology 2-2

CONNECTIONS 3-1

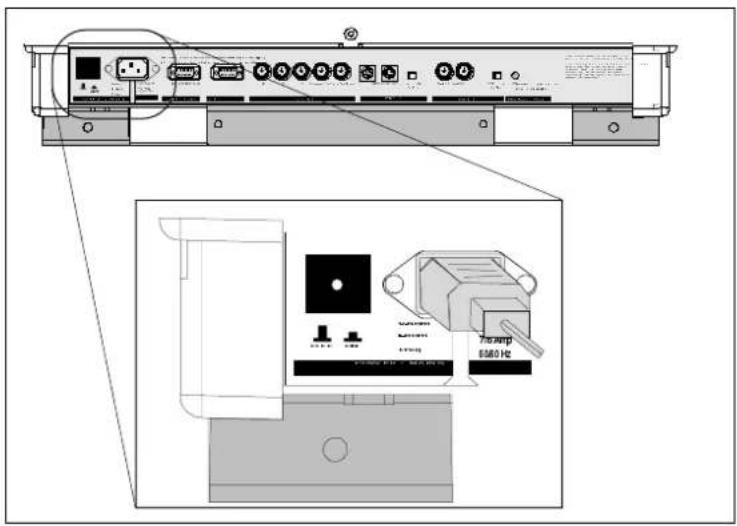

AC Power (mains) Cord Connection 3-1
Power Check 3-1
Switching On/Off 3-1
Signal Input Connection to the Projector : 3-2
Connecting a RGB Analog source to port 3. 3-3
Connecting a RGB Analog source to port 4/5. 3-3

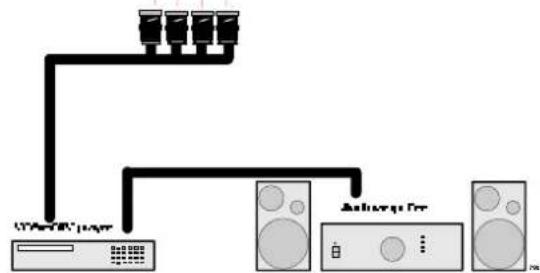

Connecting a RGB Analog source with Tri-level sync to port 4/5. 3-4

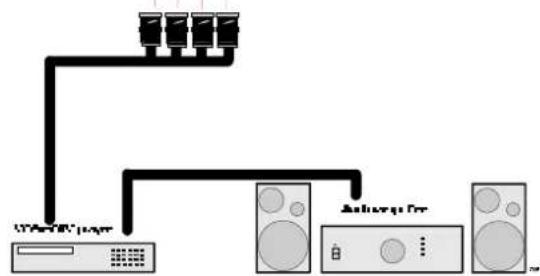

Connecting a Component Video source to port 4/5. 3-4

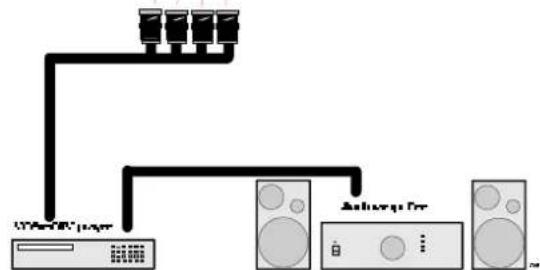

Connecting a Component Video source with Tri-level sync to port 4/5. 3-4

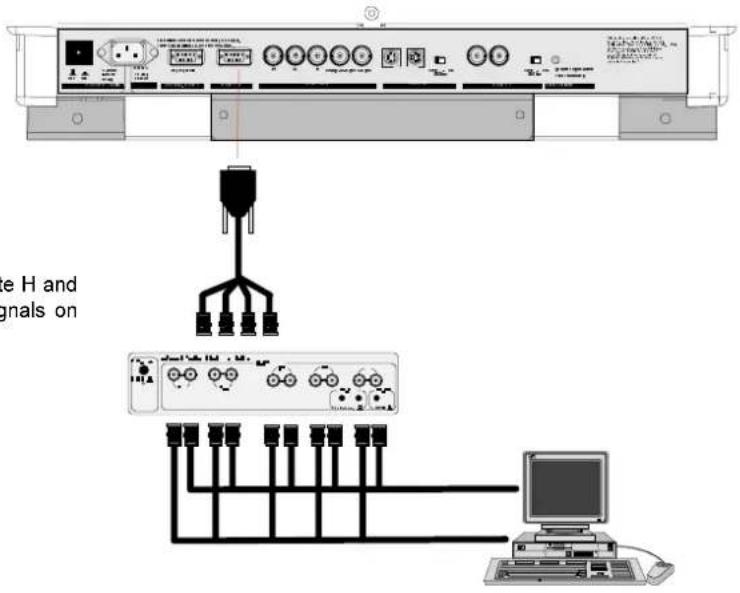

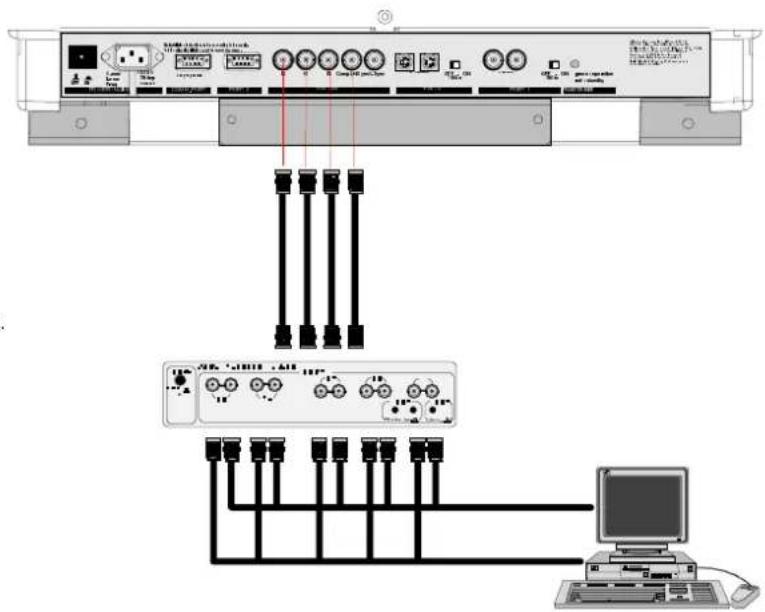

Connecting a computer to the projector. 3-5
Peripheral equipment 3-5
Connecting a RCVDS 05 switcher to the projector....3-5

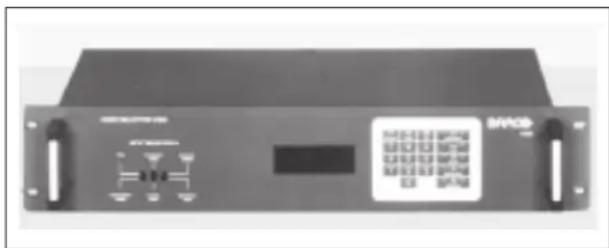

Connecting a VS05 switcher to the projector....3-5

CONTROLLING 4-1

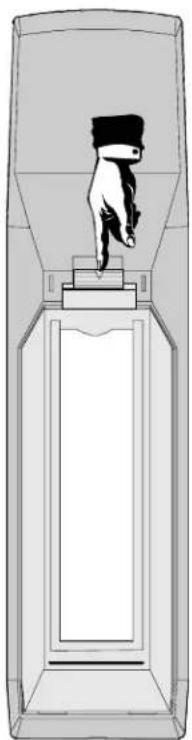

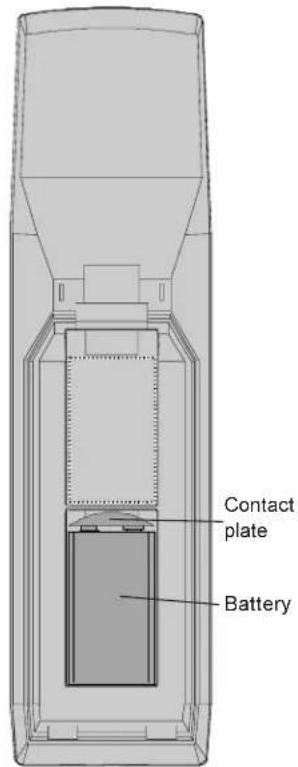

Battery installation in the RCU. 4-1

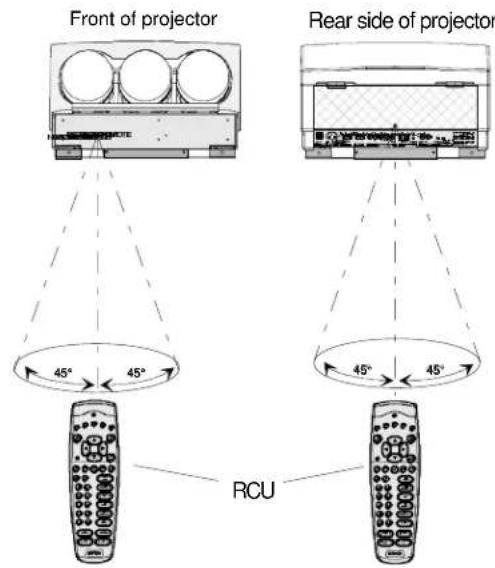

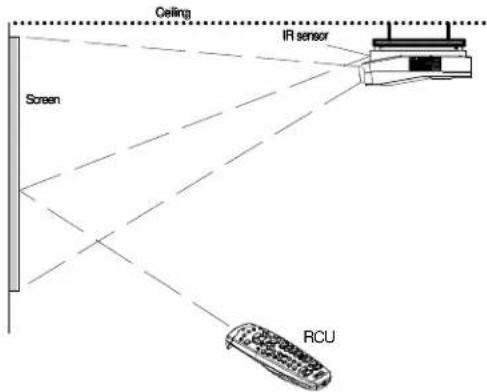

How to use your RCU 4-2
Projector Address 4-2

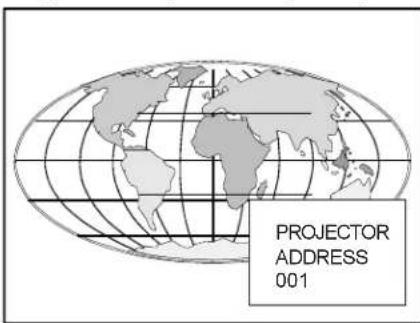

How to display a projector address? 4-2
How to program an address into the RCU? 4-3
Input selection 4-3

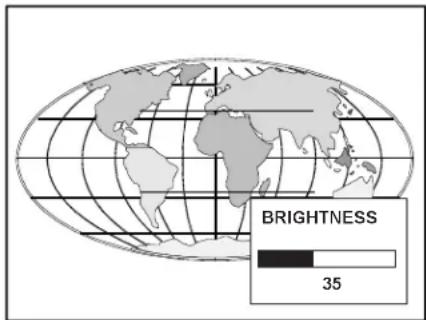

Analog Picture Controls 4-3
Controlling chained projectors....4-4

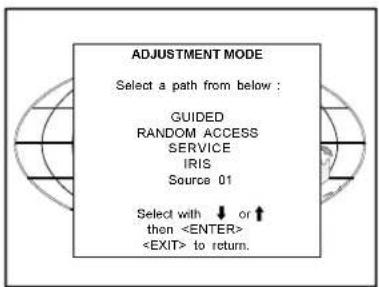

START UP OF THE ADJUSTMENT MODE 5-1

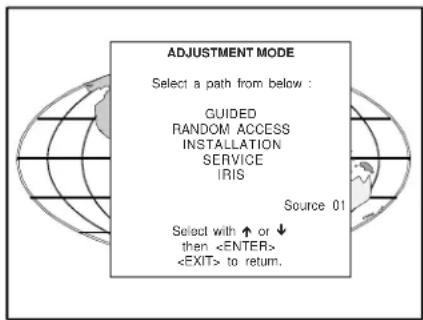

Adjustment Mode 5-1

RANDOM ACCESS ADJUSTMENT MODE 6-1

Starting-Up the Random Access Adjustment mode. 6-1

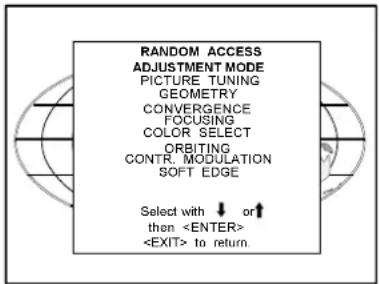

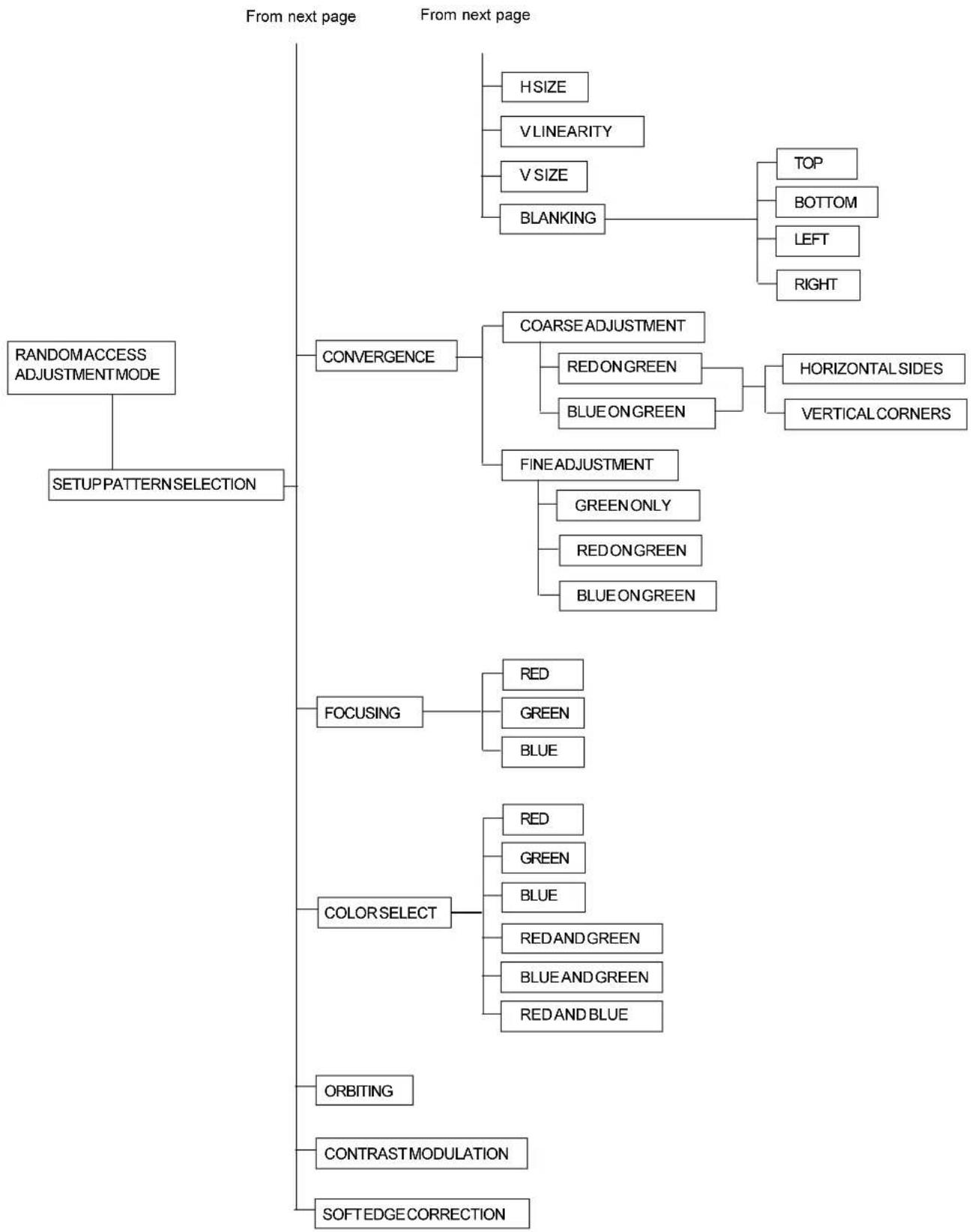

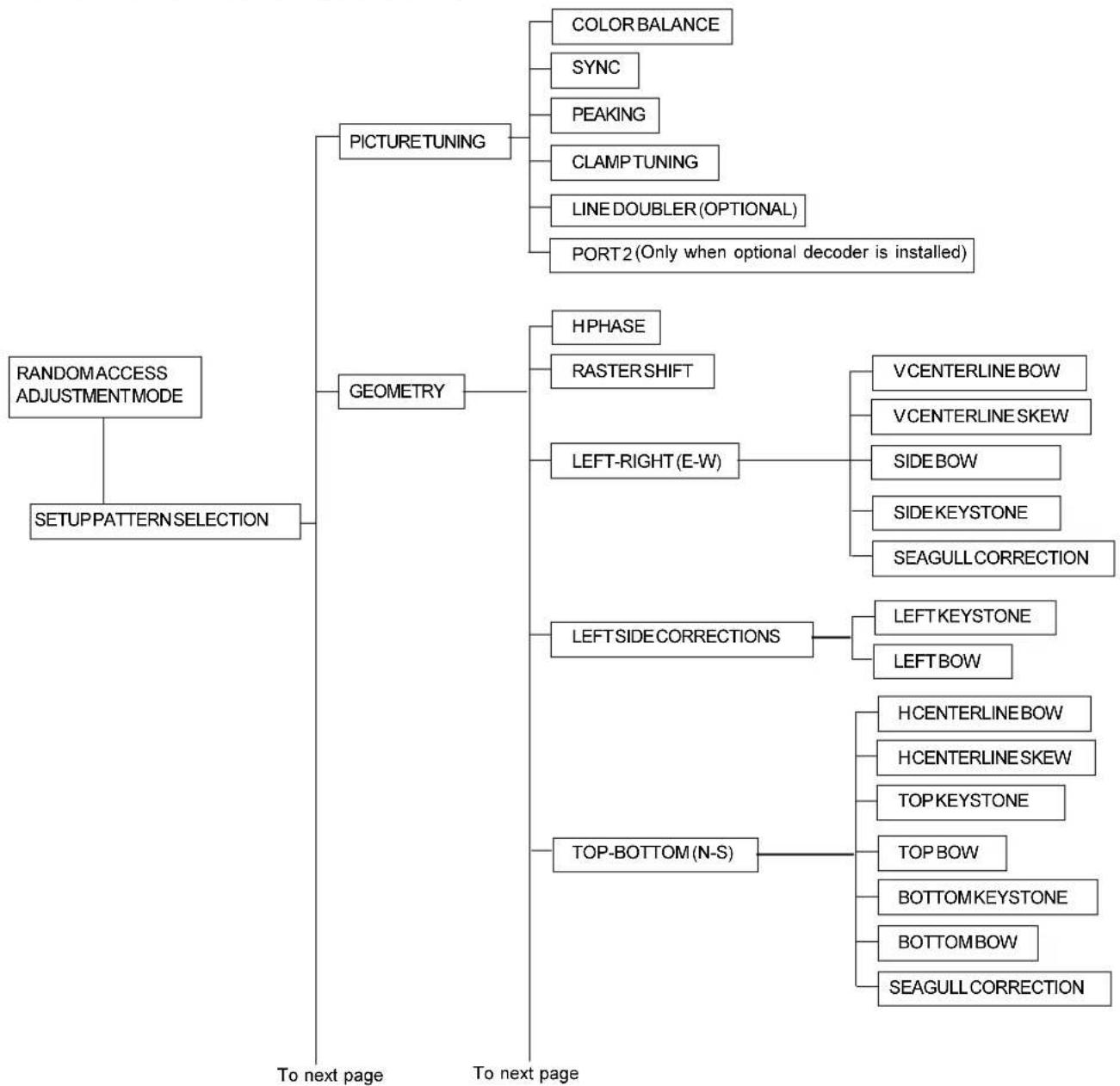

Overview 'Random Access Adjustment' mode 6-1

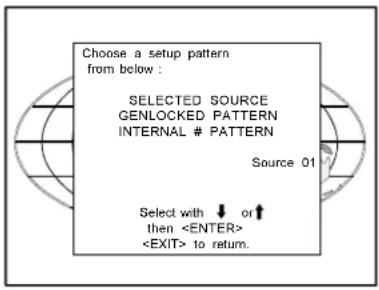

Selecting Setup Pattern 6-3

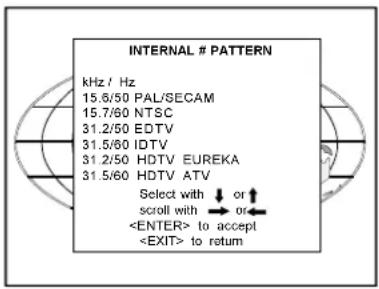

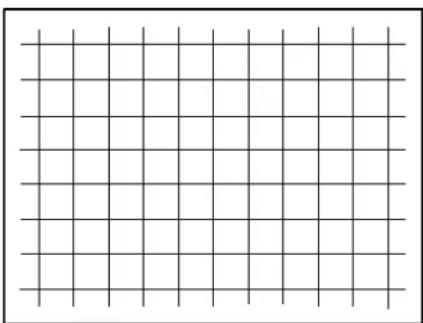

Internal Cross Hatch Pattern 6-3
Random access adjustment mode selection menu. 6-4

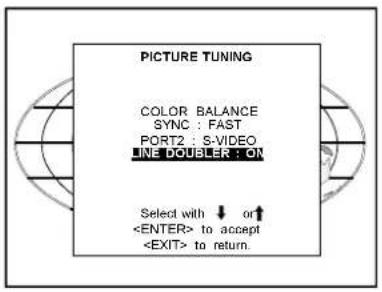

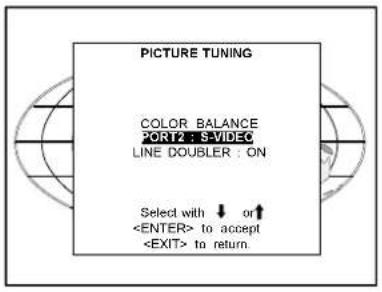

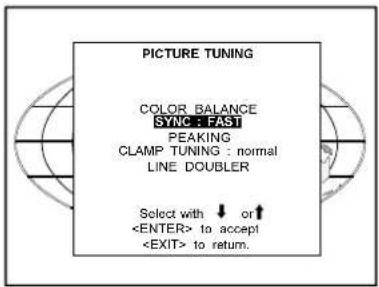

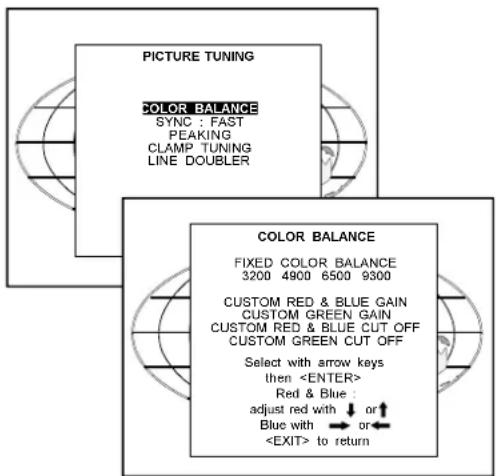

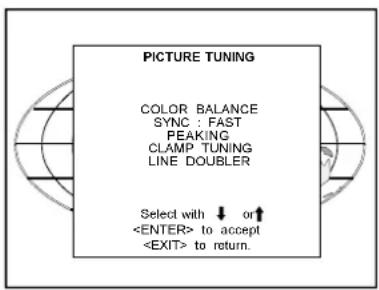

Picture Tuning 6-4
Color Balance 6-4
Sync Fast/Slow Adjustment 6-5

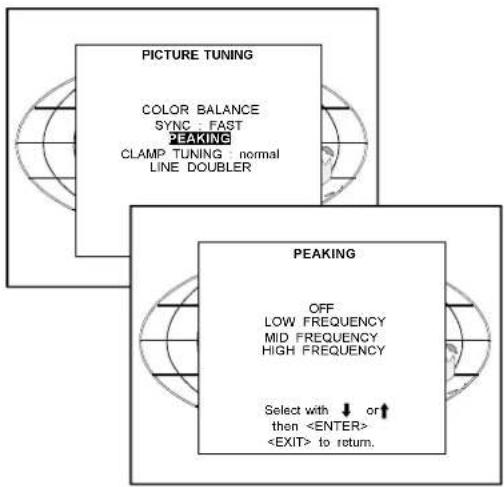

Peaking 6-5

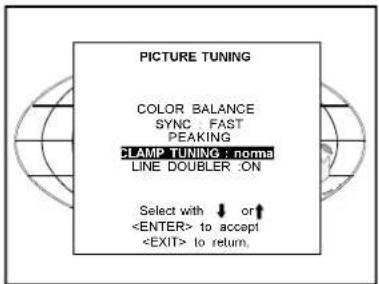

Clamp Tuning 6-5
Port 2 : Video or S-Video 6-6
Line Doubler (option) 6-6

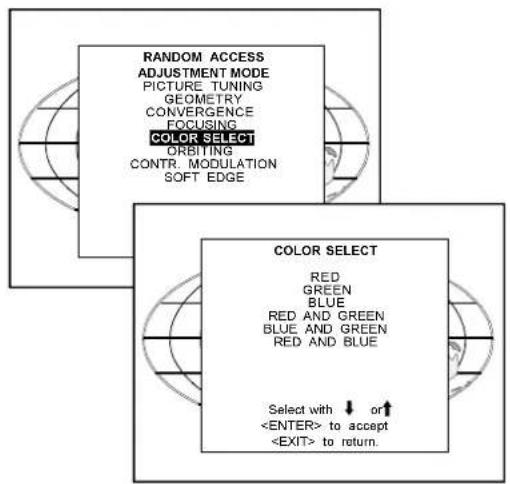

Color Select 6-6

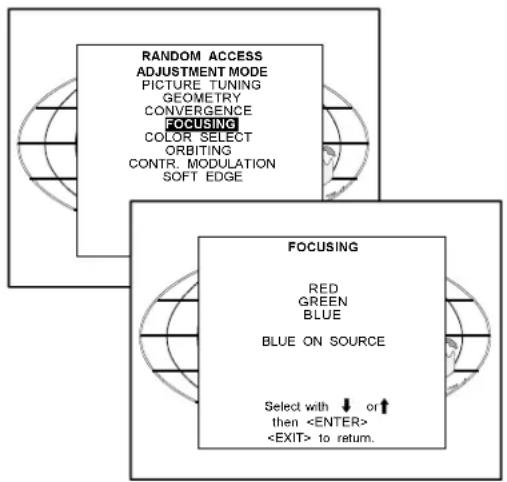

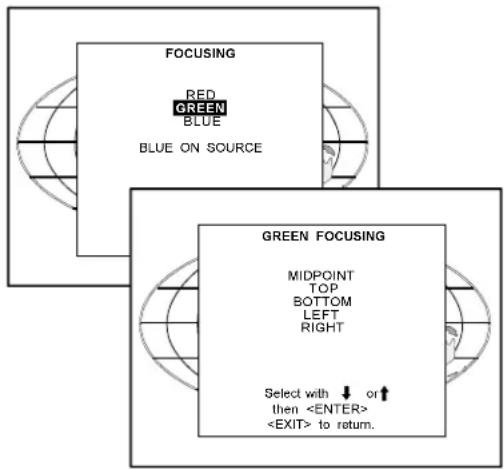

Focusing 6-7
Focusing color select....6-7
Midpoint focusing 6-7
Top image focusing 6-7
Bottom image focusing 6-7
Left image focusing 6-7
Right image focusing 6-7
Blue on source 6-7

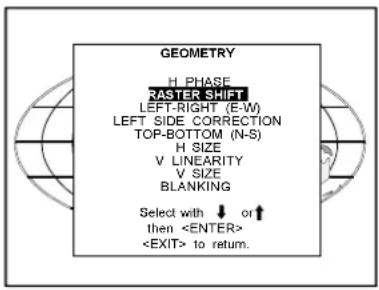

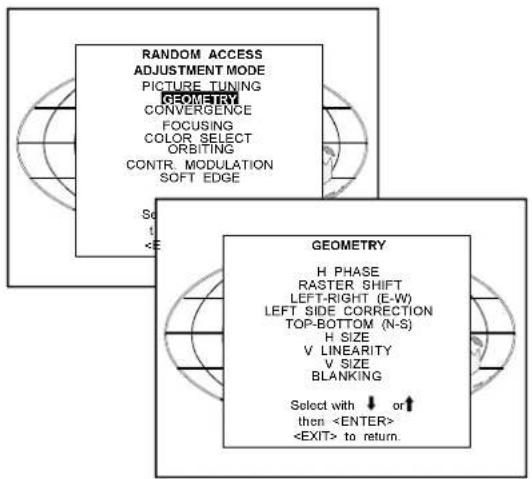

Geometry Adjustments 6-8

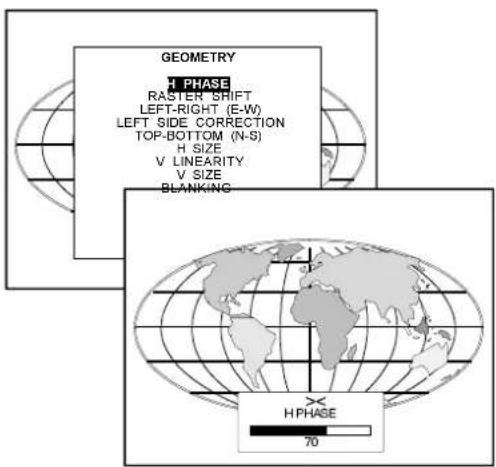

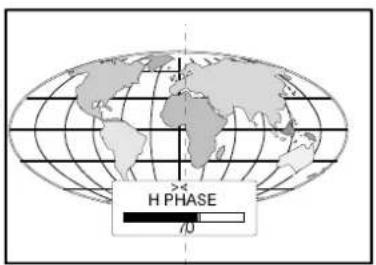

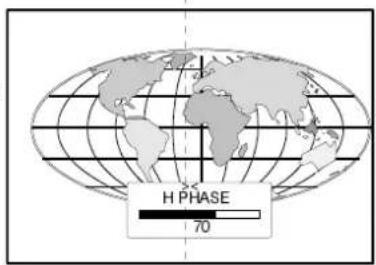

Horizontal Phase Adjustment 6-8

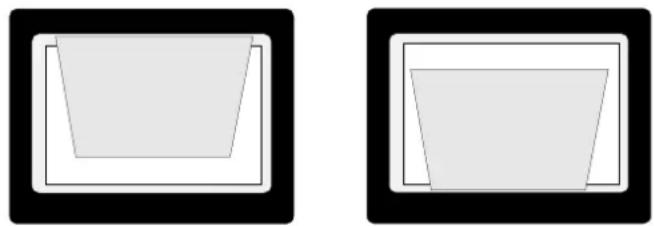

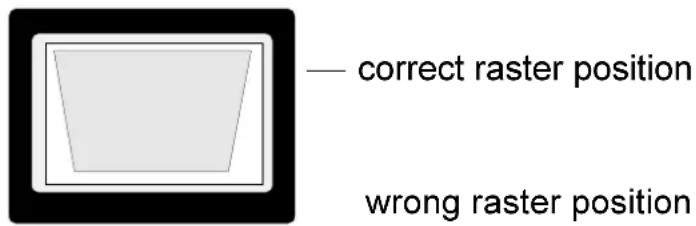

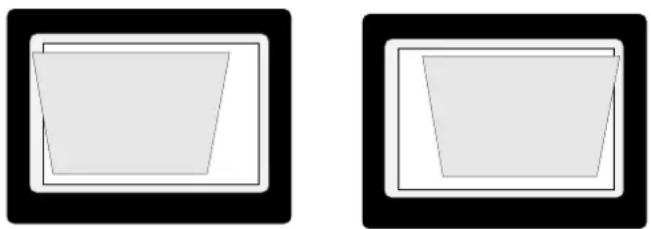

Raster Shift Adjustment 6-9

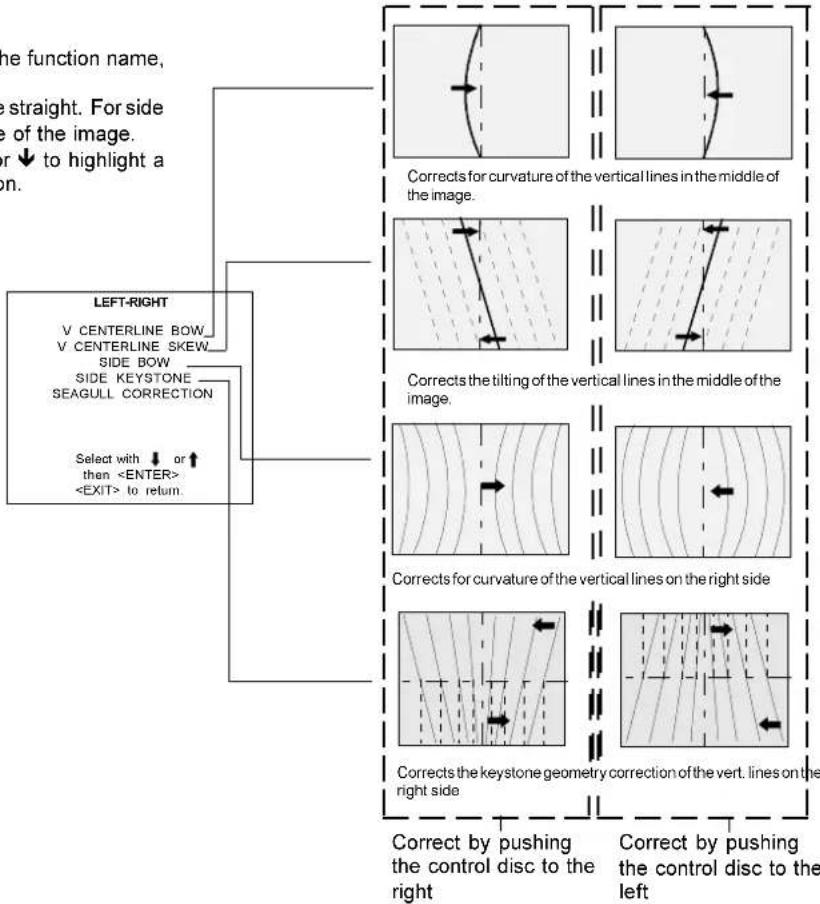

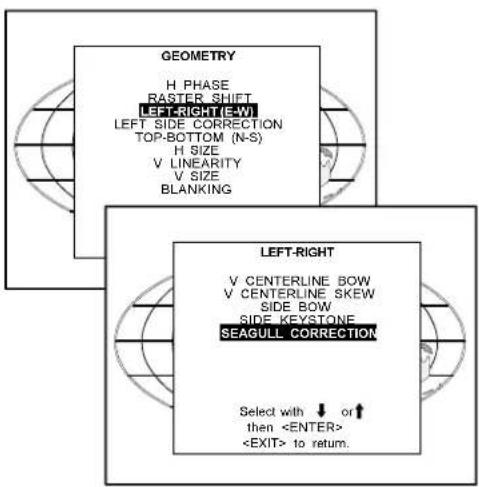

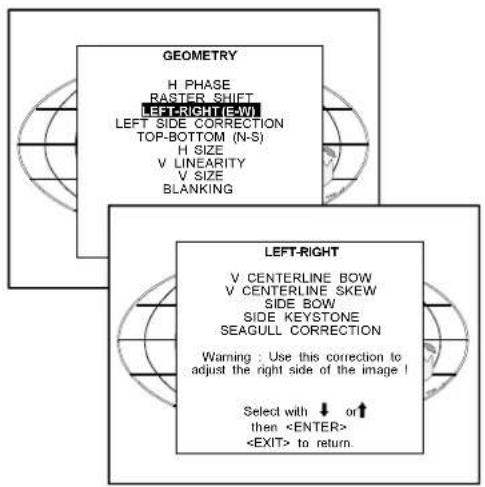

Left-Right (east-west) Adjustments 6-10

Seagull correction 6-11

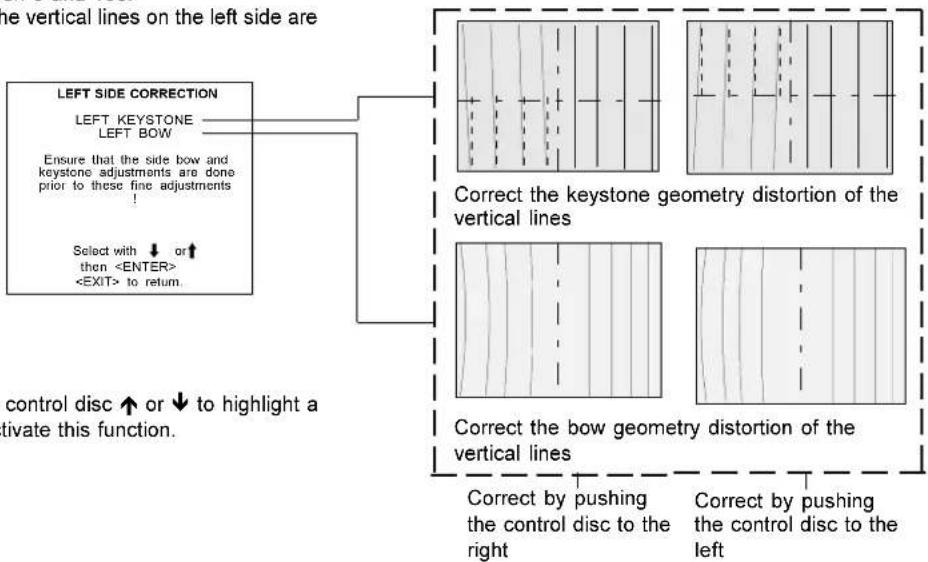

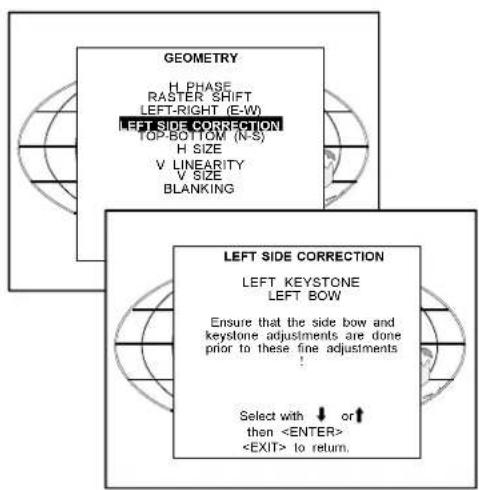

Left Side Correction 6-11

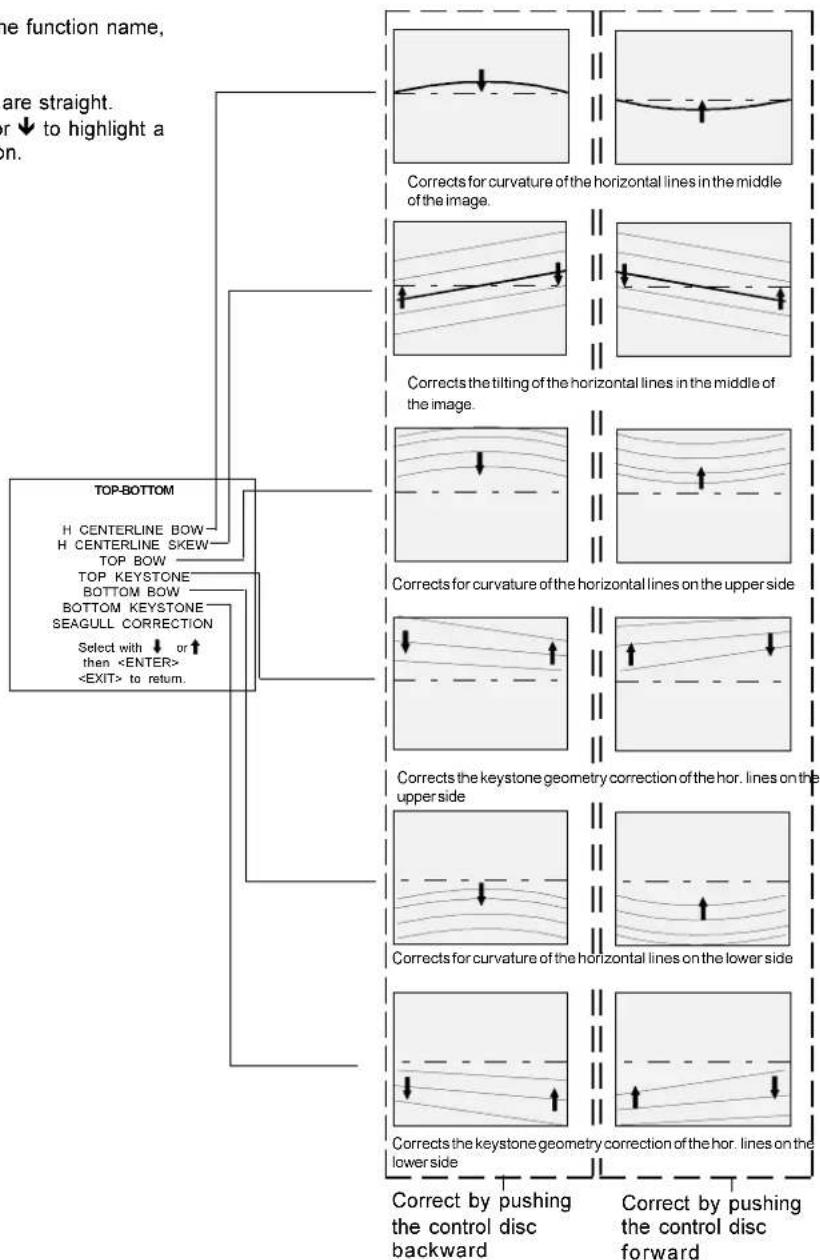

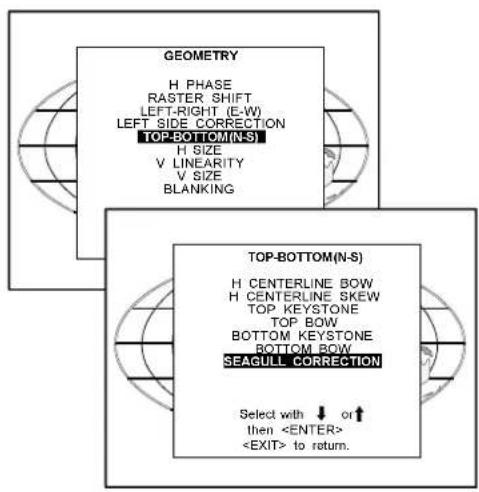

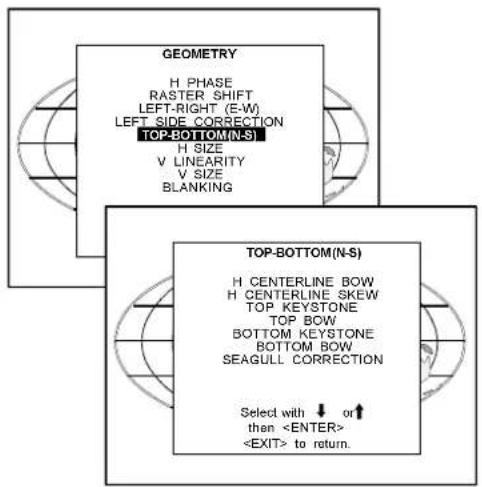

Top-Bottom (north-south) Adjustments 6-12

Seagull Correction 6-13

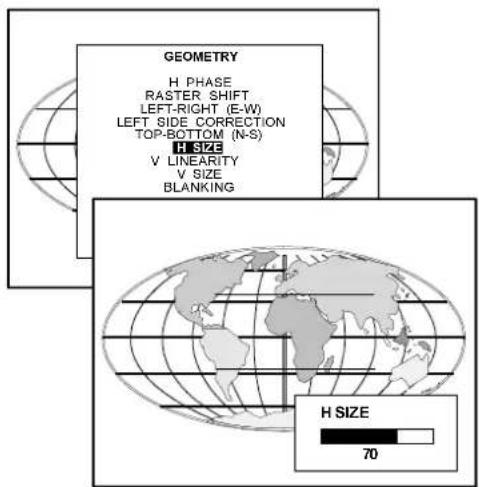

Horizontal Size Adjustment 6-13

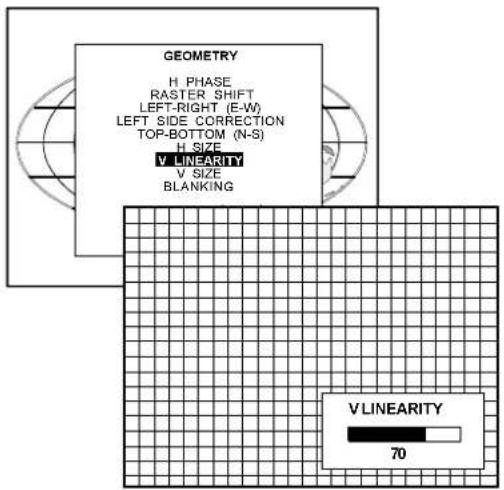

Vertical Linearity Adjustment 6-14

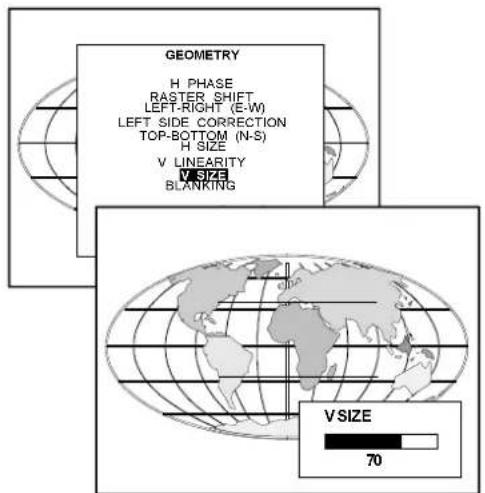

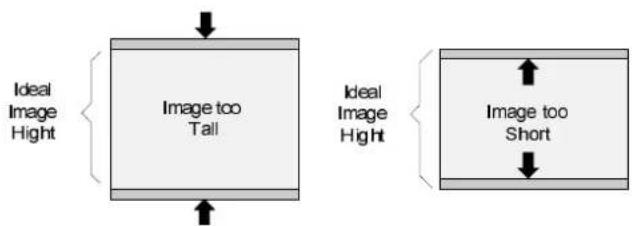

Vertical Size Adjustment 6-14

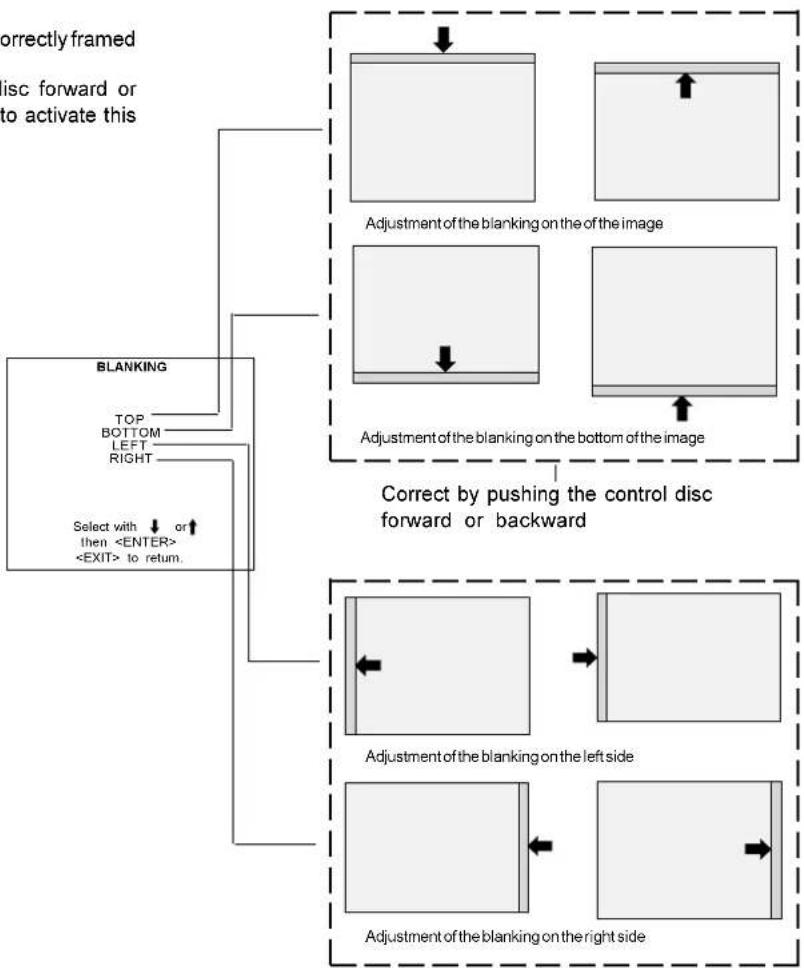

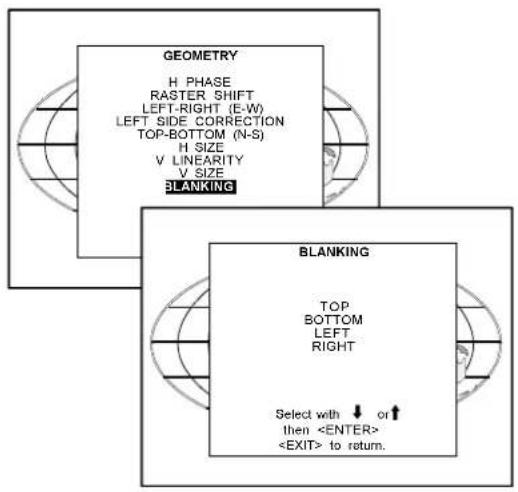

Blanking Adjustments 6-15

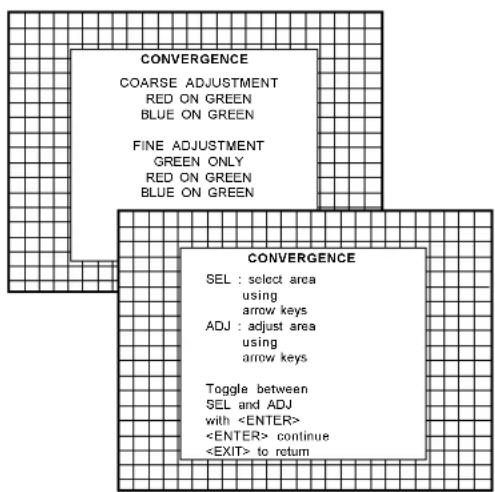

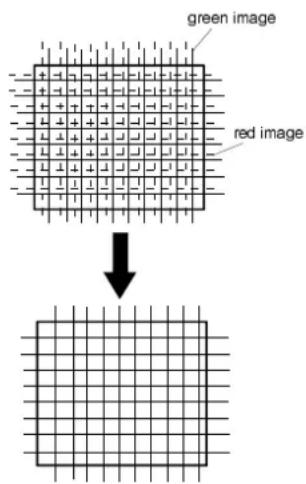

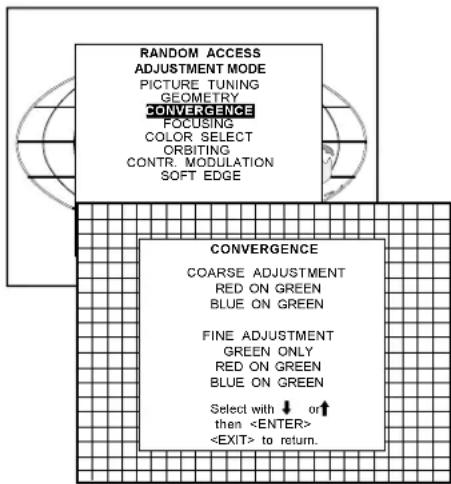

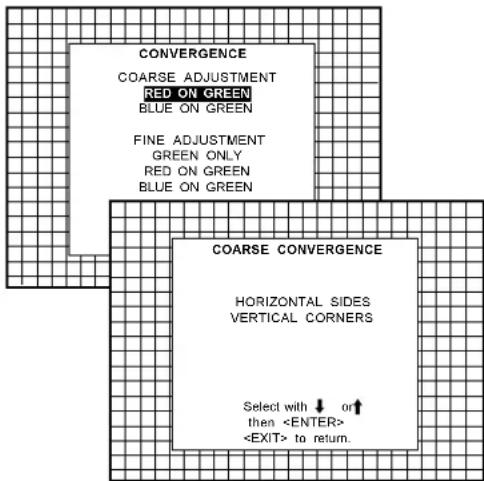

Convergence Adjustment 6-16

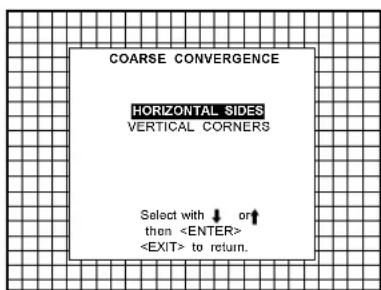

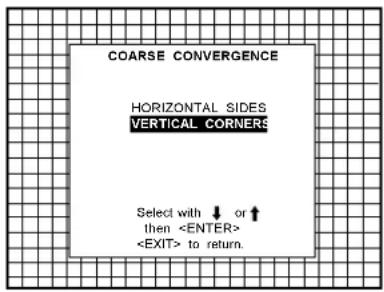

Coarse Convergence Adjustment. 6-16

Horizontal sides 6-16

Vertical corners 6-17

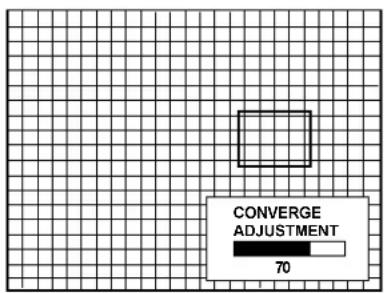

Fine Convergence Adjustment....6-17

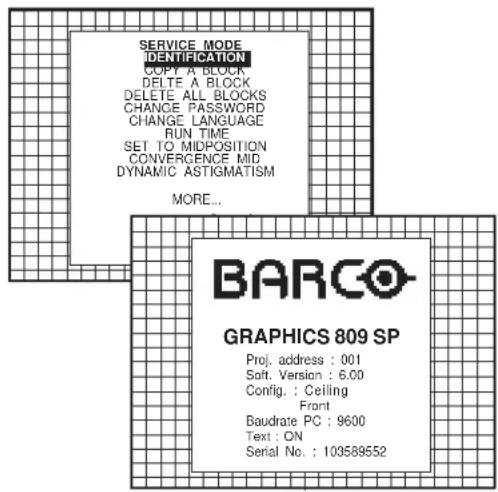

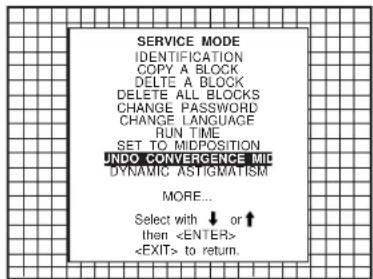

SERVICE MODE 7-1

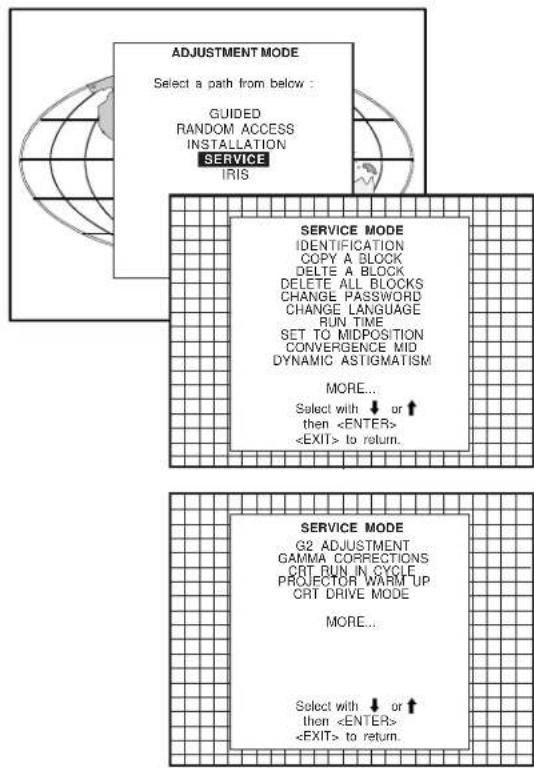

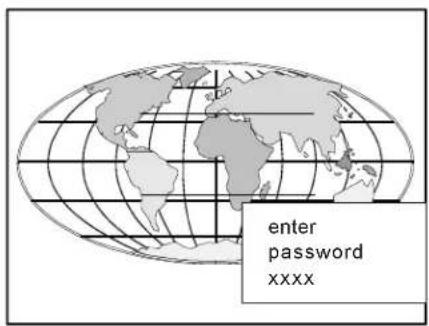

Starting up the Service mode 7-1

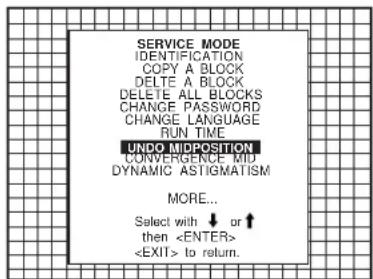

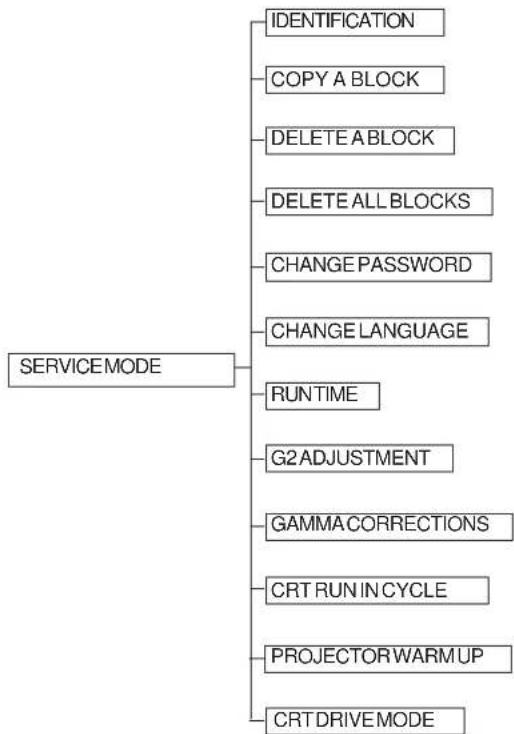

Overview flowchart 'Service' mode 7-1

Identification 7-2

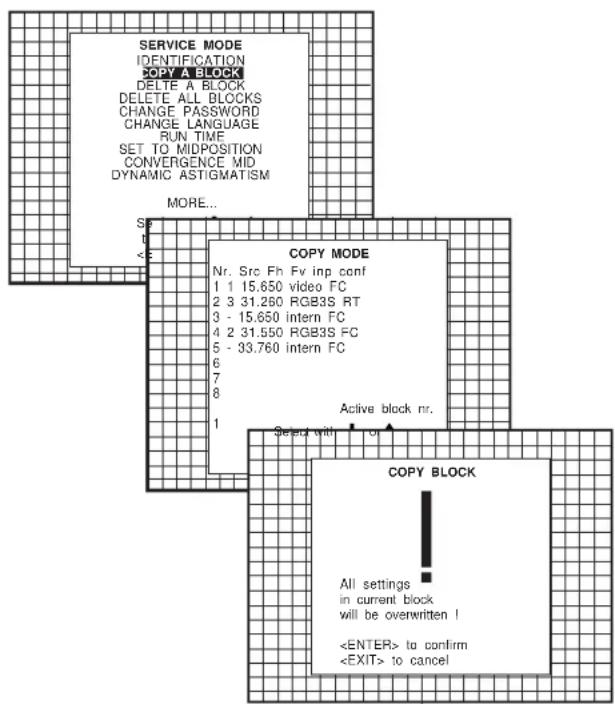

Copy a block 7-2

Deletion of blocks 7-3

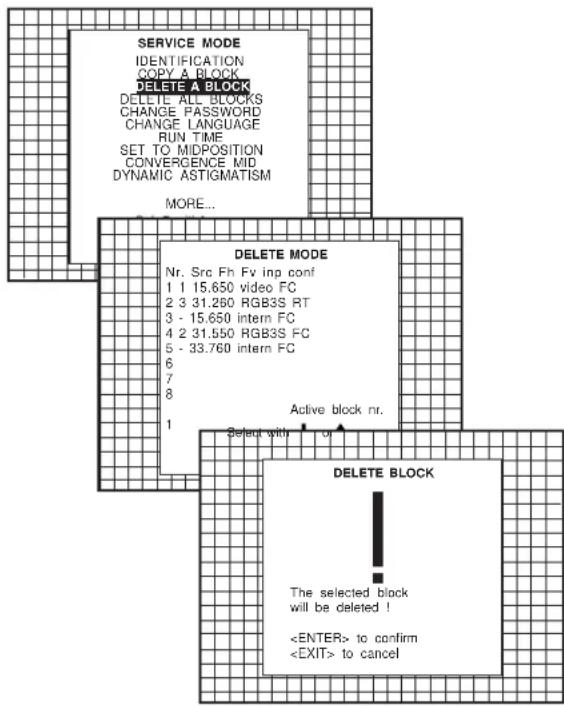

Deleting block by block 7-3

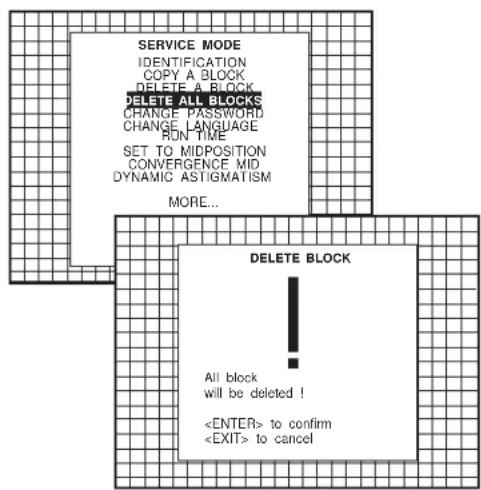

Deletion of all blocks 7-3

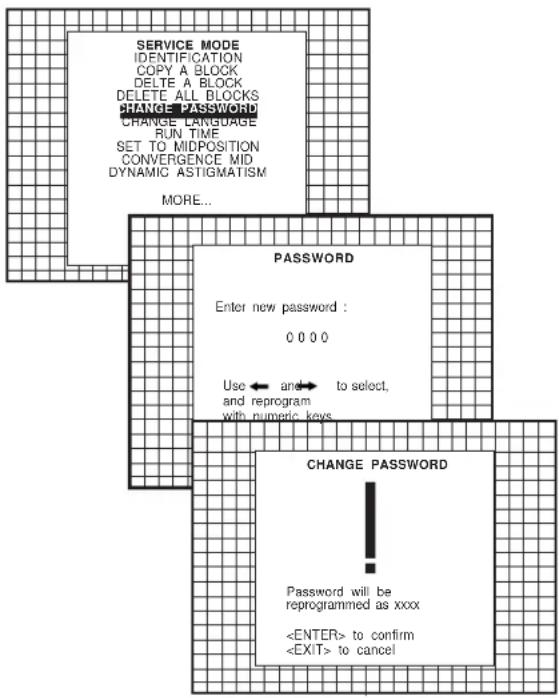

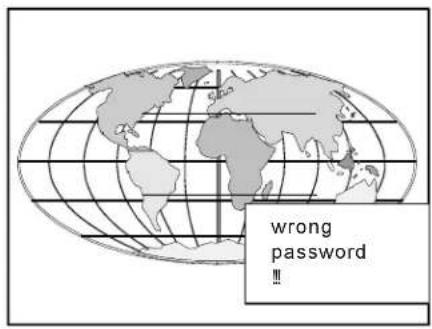

Change password 7-4

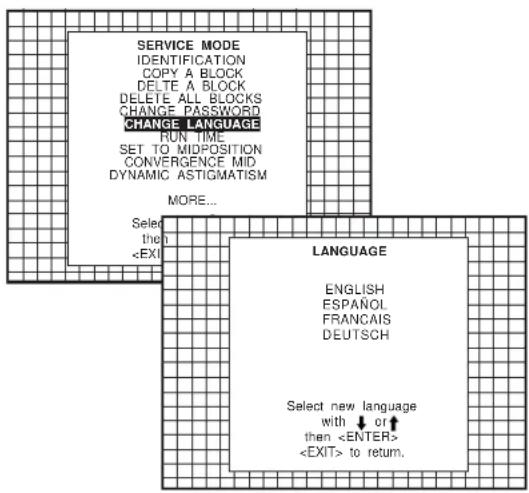

Change Language 7-4

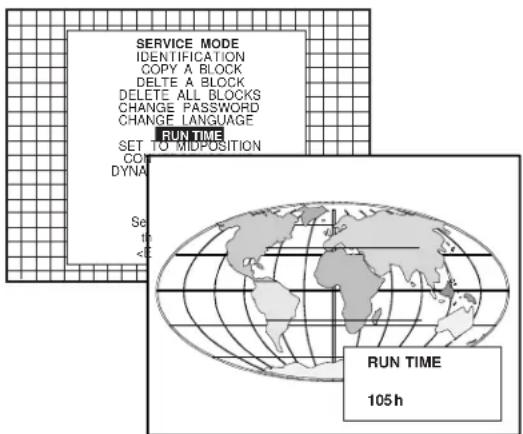

Run time 7-4

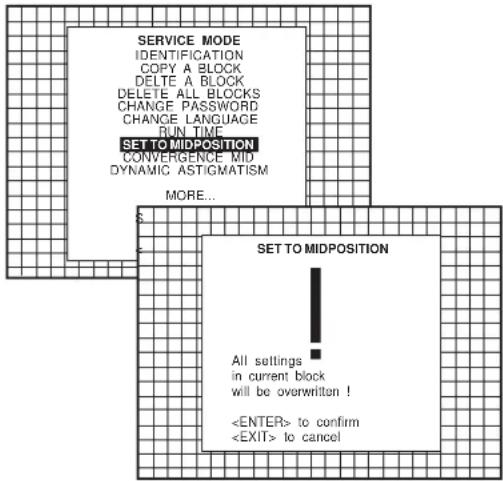

Set to midposition 7-5

Undo Midposition 7-5

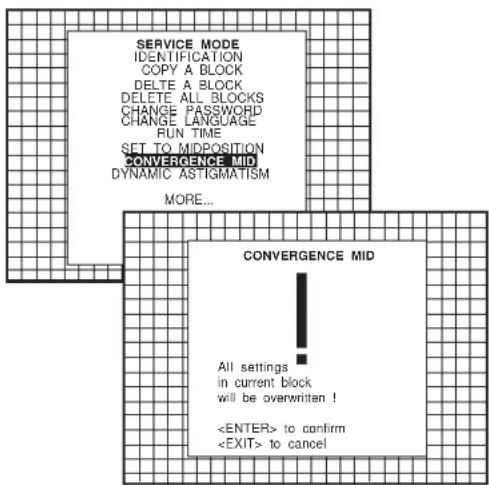

Convergence Mid 7-5

Undo Convergence Mid(position) 7-5

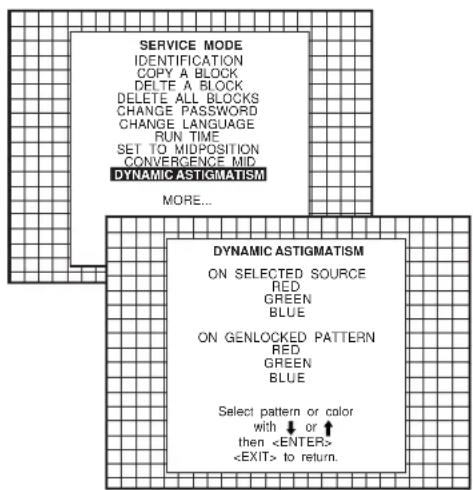

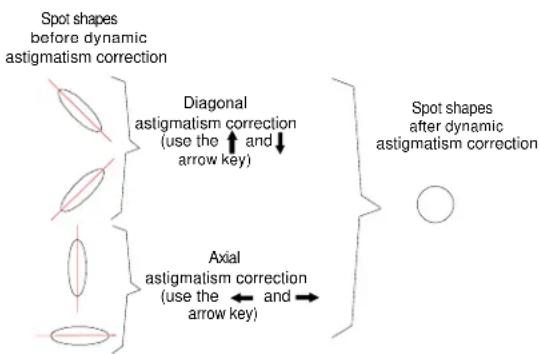

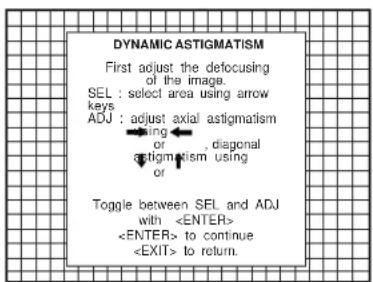

Dynamic Astigmatism (spot shape adjustment) 7-6

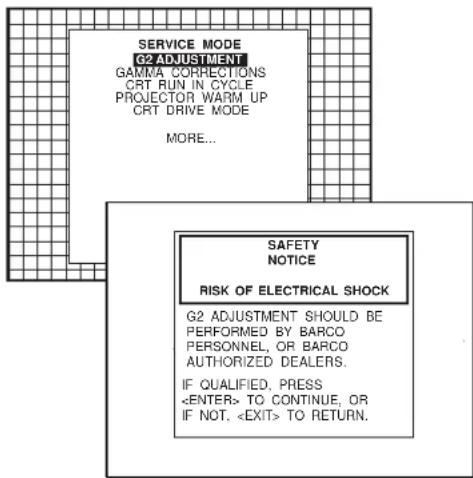

G2 Adjust 7-7

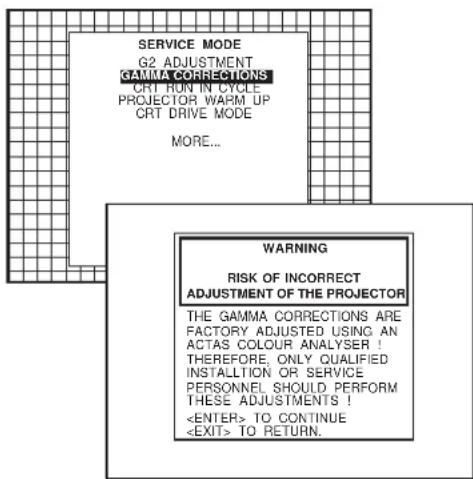

Gamma corrections 7-7

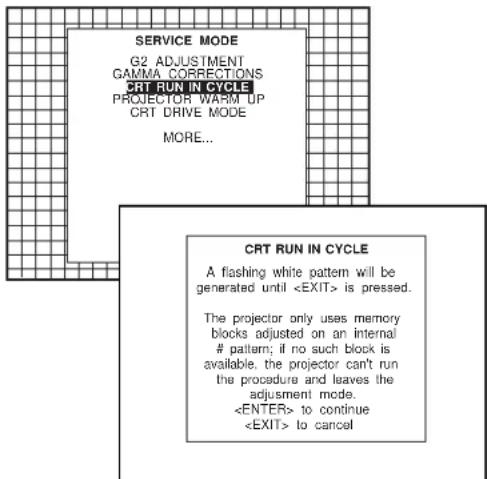

CRT run in cycle 7-7

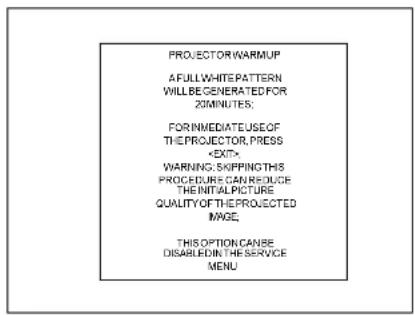

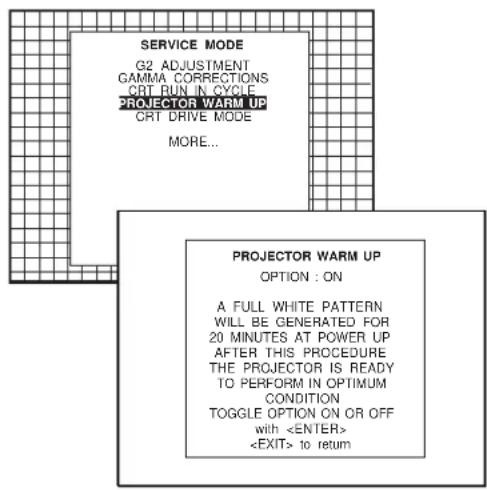

Projector Warm Up 7-8

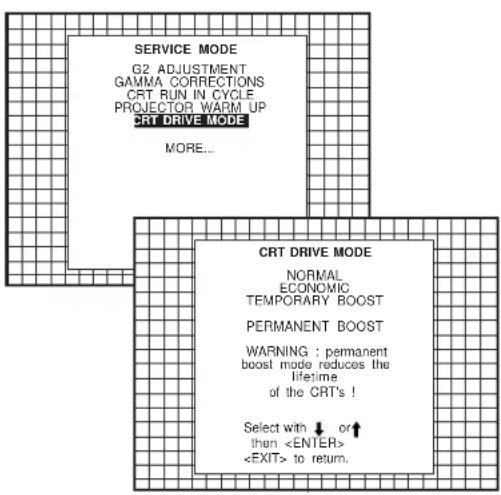

CRT Drive Mode 7-8

MESSAGES, WARNINGS AND FAILURE CODES 8-1

OPTIONS 9-1

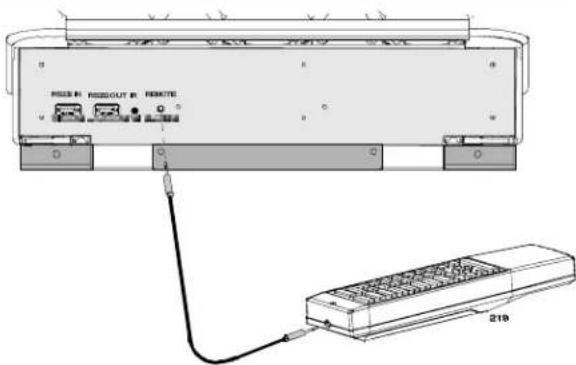

Hardwired RCU. 9-1

Projector Control software 9-1

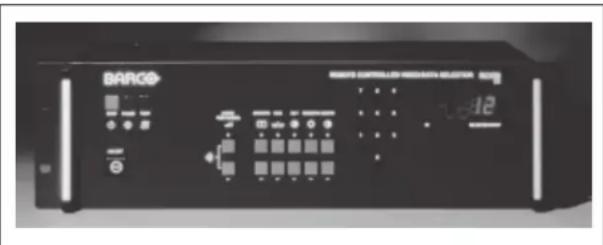

RCVDS 05 Source Selector 9-1

VS05 Switcher 9-1

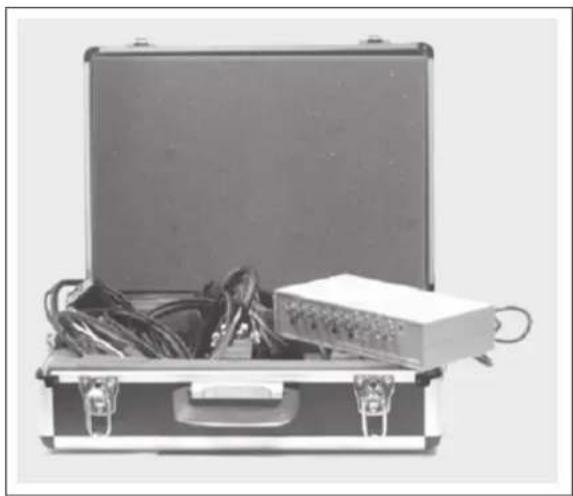

MAGIK Interface 9-2

Adapter and communication cables 9-2

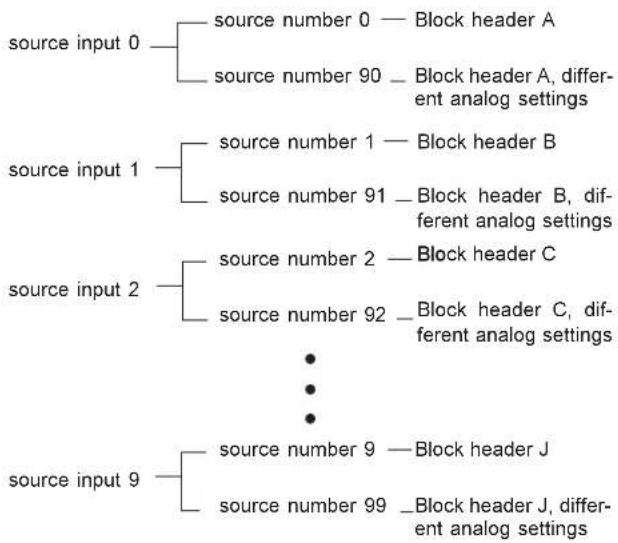

Appendix A : Adjustment blocks and source numbers 90 - 99 ...... A-1

SAFETY INSTRUCTIONS

Notice on Safety

This equipment is built in accordance with the requirements of the international safety standards EN60950, UL 1950 and CSA C22.2 No.950, which are the safety standards of information technology equipment including electrical business equipment.

These safety standards impose important requirements on the use of safety critical components, materials and isolation, in order to protect the user or operator against risk of electric shock and energy hazard, and having access to live parts.

Safety standards also impose limits to the internal and external temperature rises, radiation levels, mechanical stability and strength, enclosure construction and protection against the risk of fire.

Simulated single fault condition testing ensures the safety of the equipment to the user even when the equipment's normal operation fails.

INSTALLATION INSTRUCTIONS

Before operating this equipment please read this manual thoroughly, and retain it for future reference. Installation and preliminary adjustments should be performed by qualified BARCO personnel or by authorized BARCO service dealers.

OWNER'S RECORD

The part number and serial number are located at the back side of the projector. Record these numbers in the spaces provided below. Refer to them whenever you call upon your BARCO dealer regarding this product.

PART NUMBER :

SER.NUMBER:

DEALER:

The lightning flash with an arrowhead within a triangle is intended to tell the user that parts inside this product may cause a risk of electrical shock to persons.

The exclamation point within a triangle is intended to tell the user that important operating and/or servicing instructions are included in the technical documentation for this equipment.

WARNING TO PREVENT FIRE OR ELECTRICAL SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE

FEDERAL COMMUNICATION COMMISSION (FCC STATEMENT)

This equipment has been tested and found to comply with the limits of a class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Note :

The use of shielded cables is required to comply within the limits of Part 15 of FCC rules and EN55022.

* All the safety and operating instructions should be read before using this unit.
* The safety and operating instructions manual should be retained for future reference.
* All warnings on the equipment and in the documentation manuals should be adhered to.
* All instructions for operating and use of this equipment must be followed precisely.

On safety

1. This product should be operated from an AC power source. This projector may be connected to an IT-power system.

Operating AC power voltage of the projector:

Power voltage is autoranging between 100V (-10%) and 240V (+6%)

If you are not sure of the type of AC power available, consult your dealer or local power company.

1. This product is equipped with a 3-wire grounding plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the purpose of the grounding-type plug.

WARNING FOR THE CUSTOMERS: THIS APPARATUS MUST BE GROUNDED (EARTHED) via the supplied 3 conductor AC power cable.

(If the supplied power cable is not the correct one, consult your dealer.)

A. Mains lead (Power cord) with CEE 7 plug:

The wires of the mains lead are colored in accordance with the following code.

Green and yellow:earth (safety earth)

Blue: neutral

Brown: line (live)

B. Power cord with ANSI 73.11 plug:

The wires of the power cord are colored in accordance with the following code.

Green/yellow:ground

White: neutral

Black: line (live)

1. Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord.

To disconnect the cord, pull it out by the plug. Never pull the cord itself.

1. If an extension cord is used with this product, make sure that the total of the ampere ratings on the products plugged into the extension cord does not exceed the extension cord ampere rating. Also make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.

2. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electrical shock.

Never spill liquid of any kind on the product. Should any liquid or solid object fall into the cabinet, unplug the set and have it checked by qualified service personnel before resuming operations.

1. Lightning - For added protection for this video product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the projector due to lightning and AC power-line surges.

On installation

CAUTION FIRE HAZARD

WARNING: DO NOT PLACE FLAMMABLE OR COMBUSTIBLE MATERIALS NEAR PROJECTOR!

BARCO large screen projection products are designed and manufactured to meet the most stringent safety regulations. This projector radiates heat on its external surfaces and from ventilation ducts during normal operation, which is both normal and safe.

Exposing flammable or combustible materials into close proximity of this projector could result in the spontaneous ignition of that material, resulting in a fire. For this reason, it is absolutely necessary to leave an "exclusion zone" around all external surfaces of the projector whereby no flammable or combustible materials are present. The exclusion zone must be not less than 10 cm (4") for BARCO Retro Projectors and not less than 40 cm (16") for all other BARCO projectors. Do not cover the projector with any material while the projector is in operation.

Keep flammable and combustible materials away from the projector at all times. Mount the projector in a well ventilated area away from sources of ignition and out of direct sun light. Never expose the projector to rain or excessive moisture. In the event of fire, use sand, CO_2 or dry powder fire extinguishers; never use water on an electrical fire.

Always have service performed on this projector by authorized BARCO service personnel. Always insist on genuine BARCO replacement parts. Never use non-BARCO replacement parts as they may degrade the safety of this projector.

This product complies to standards set by Underwriter's Laboratories, Inc., Canadian Standards Association, and meets all applicable U.S. / Canadian and European

government regulations or directives.

1. Do not place this equipment on an unstable cart, stand, or table. The product may fall, causing serious damage to it.

2. Do not use this equipment near water.

3. Slots and openings in the cabinet and the back or bottom are provided for ventilation; to ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register.

The projector should not be placed in a built-in installation or enclosure unless proper ventilation is provided.

1. Do not block the projector cooling fans or free air movement under and around the projector. Loose papers or other objects may not be nearer to the projector than 4" on any side.

On servicing

Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage potentials and risk of electric shock!

Refer all servicing to qualified service personnel.

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power cord or plug is damaged or frayed.

b. If liquid has been spilled into the equipment.

c. If the product has been exposed to rain or water.

d. If the product does not operate normally when the operating instructions are followed.

Note : Adjust only those controls that are covered by the operating instructions since improper adjustment of the other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.

e. If the product has been dropped or the cabinet has been damaged. f. If the product exhibits a distinct change in performance, indicating a need for service.

Replacement parts - When replacement parts are required, be sure the service technician has used original BARCO replacement parts or authorized replacement parts which have the same characteristics as the BARCO original part. Unauthorized substitutions may result in degraded performance and reliability, fire, electric shock or other hazards. Unauthorized substitutions may void warranty.

Safety check - Upon completion of any service or repairs to this projector, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

On cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

• To keep the cabinet looking brand-new, periodically clean it with a soft cloth. Stubborn stains may be removed with a cloth lightly dampened with mild detergent solution. Never use strong solvents, such as thinner or benzine, or abrasive cleaners, since these will damage the cabinet.
• To ensure the highest optical performance and resolution, the projection lenses are specially treated with an anti-reflective coating, therefore, avoid touching the lens. To remove dust on the lens, use a soft dry cloth. Do not use a damp cloth, detergent solution, or thinner.

On repacking

Save the original shipping carton and packing material; they will come in handy if you ever have to ship your equipment. For maximum protection, repack your set as it was originally packed at the factory.

On illumination

In order to obtain the best quality for the projected image, it is essential that the ambient light which is allowed to fall on the screen be kept to an absolute minimum.

When installing the projector and screen, care must be taken to avoid exposure to ambient light directly on the screen. Avoid adverse illumination on the screen from direct sunlight or fluorescent lighting fixtures.

The use of controlled ambient lighting, such as incandescent spot light or a dimmer, is recommended for proper room illumination. Where possible, care should also be taken to ensure that the floors and walls of the room in which the projector is to be installed are non-reflecting, dark surfaces. Brighter surfaces will tend to reflect and diffuse the ambient light and hence reduce the contrast of the projected image on the screen.

LOCATION AND FUNCTION OF CONTROLS

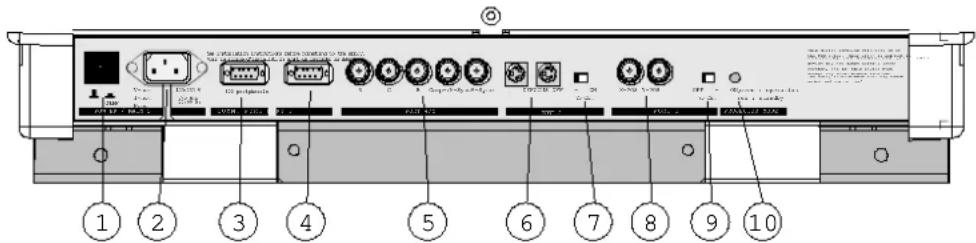

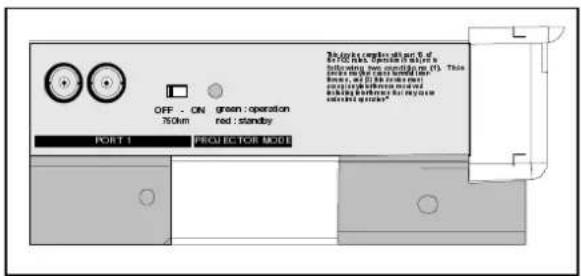

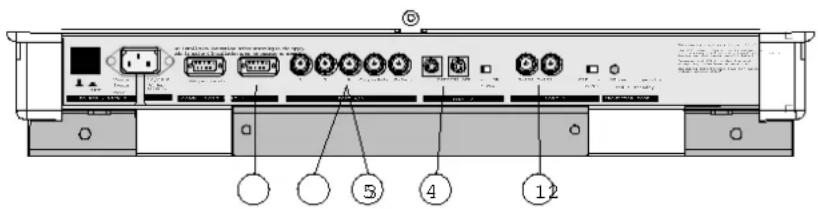

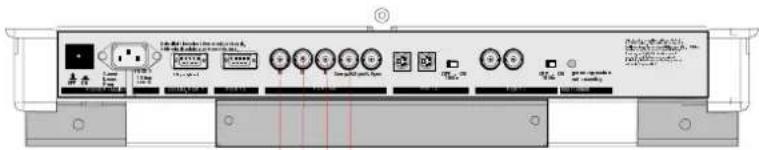

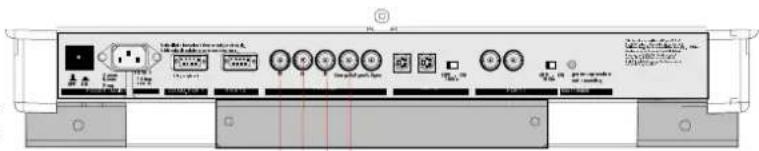

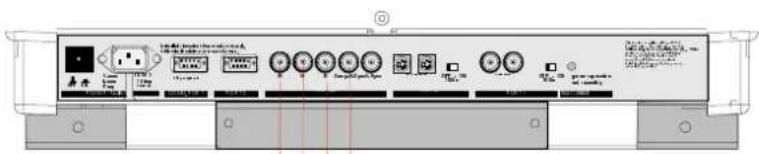

REAR PANEL TERMINOLOGY

1 AC Power Switch : to switch on the projector.

Depending on the set-up of the projector during installation, the projector switches to standby or to 'Operational mode. If in standby, the standby LED lights up.

2 AC Power Input : connect the supplied AC power (mains) cord here and to the wall outlet.

3 Communication Port (800 peripherals)

* Allows communication between the RCVDS switcher and the projector.

* Allows connection of a remote IR receiver unit to the projector.

4 Port 3

RGB Analog Input (9 pin female sub D connector). Allows a character generator, microcomputer, etc. having analog RGB outputs to be connected to the projector.

5 Port 4/5 : RGB-S Input (5x BNC connector):

RGB-S input : allows a character generator, microcomputer, video camera, etc. having analog RGB output to be connected to the projector.

Line inputs: - Signals RED-GREEN-BLUE

- COMPOSITE sync. signal

- Tri level sync signal (option)

6 DEFOCUS: For future expansion

7 75 ohm Termination Switch for S- Video signals

8 X-POS / Y-POS: For future expansion

9 75 ohm Termination Switch forVideo signals

10 IR Remote

Connector for remote input for hard wired remote control

11 Projector Pilot Lamp : Indicates the status of the projector.

- Unlit : mains (power) switch is not pressed.

- Lit : mains (power) switch is pressed and the indicated color shows the projector mode:

Green color : operational mode of the projector.

Red color : standby mode of the projector

Important : projector ("Operational" or "Standby") mode is defined during the installation of the projector. (Refer to a qualified technician for change).

12 IR Sensor

Receiver for control signals transmitted from the RCU.

13 RS 232 Output Port

RS 232 Input Port allows a communication link for PC or MAC to the next projector in a series of projector.

14 RS 232 Input Port

Connection between the projector and an IBM PC (or compatible) or MAC (RS422) for remote computer control and data communication.

CONTROL PANEL TERMINOLOGY

a. Gaining access to the keyboard

The local keypath is underneath the top cover door with the BARCO logo.

To open this door, push and turn it to the front side of the projector.

This local keypad has the same functions as the Remote Control Unit (RCU).

b. RCU control panel

This remote control includes a battery powered infrared (IR) transmitter that allows the user to control the projector remotely. This remote control is used for source selection, control, adaptation and set-up. It includes automatic storing of :

• Picture controls (Brightness, Sharpness,...)
• Picture geometry adjustments
• Convergence adjustments

Other functions of the remote control are:

• Switching between standby and operational modes
• Switching to "pause" (blanked picture, full power for immediate restarting)
• Direct access to all connected sources
• Variable adjustment speed : when pushing continuously on the control stick or the picture keys, the adjustment will be executed in an accelerated fashion.

stand-by

pause/park

sharpness

tint

color

brightness

contrast

1 Back light key : When activated, all keys will be lit up and visible in the dark.
2 ADJ.: Adjust key, to enter or exit the adjustment mode.
3 Address key (recessed key), to enter the address of the projector (between 0 and 9). Press the address key, followed by pressing one digit button between 0 and 9.
4 STBY : Stand by button :

• To initiate remote power up operation
• To stop projection without main power off.

5 Pause: To blank the image, press PAUSE. The image disappears but full power is retained for immediate restarting.
6 Digit buttons : Direct input selection.
7 Picture controls : Use these buttons to obtain the desired level (see also 'Controlling') for each picture function.
8 TEXT: When adjusting one of the image controls during a meeting, the displayed bar scale can be removed by pressing 'TEXT' key first. To re-display the bar scale on the screen, press 'TEXT' key again. 'TEXT' key is only active in operational mode. When 'TEXT' is off, no warning message will be displayed.
11 Control stick key : To make menu selections when in the adjustment mode. Also allows to increment or decrement an adjustment in the adjustment mode. control stick forward = up arrow in the menus control stick backward = down arrow in the menus control stick to the right = arrow to the right on the menus control stick to the left = arrow to the left on the menus
15 RC operating indication : Lights up (green) when a button on the remote control is pressed. (This is a visual indicator to check the operation of the remote control)

CONNECTIONS

AC Power (mains) Cord Connection

Use the supplied power cord to connect your projector to the wall outlet. Plug the female power connector into the male connector on the lower part at the backside of the projector.

Power Check

The Power voltage is autoranging between 100V (-10%) and 240V (+6%)

If the wall outlet voltage is different, call a qualified technician for power adaptation of the projector.

Switching On/Off

The projector is switched ON and OFF using the power (mains) switch ON/OFF on the rear panel.

Pressed : ON

Not pressed : OFF

The projector can start in the 'operational mode' (image displayed) or in the 'stand by mode', depending on the position of the 'power up' dip switch on the controller unit. This DIP switch must be set during installation by a qualified technician. If you want to change this start up mode, call a qualified technician.

Stand by indication lamp (projector mode):

No light up : projector switched off

Green color : projector in Operational mode

Red color : projector is in Standby mode.

When starting up the projector, with the power switch or via the stand-by key, the projector can start up in two ways if the "CRT run in" cycle option is switched OFF.

• full white image (projector warm up) or
• immediate image display.

The way of starting up can be set in the service mode.

Start up with full white image.

The next menu will be displayed for 30 seconds.

a. Start up with warm up period.

If no action is taken, a white image will be displayed for 20 minutes.

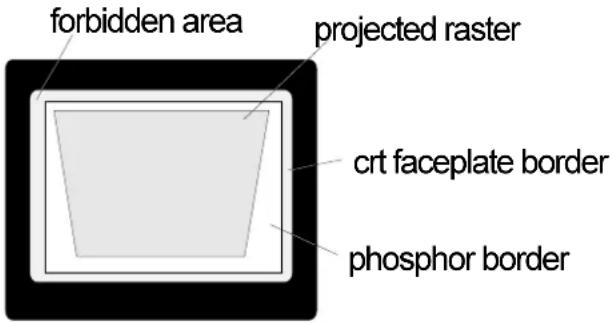

This white image will be shifted on the faceplate of the CRT to avoid a CRT burn in. During this warm up period, it is possible to interrupt this white image projection by pressing the EXIT key. The previous menu will be repeated for another 30 seconds but the remaining time will be indicated.

If EXIT is pressed, the remaining warm up period will be skipped.

During the warm up period, every 30 seconds a text box with the remaining time will be displayed on the screen for 2 seconds. This text box will be displayed each time in a different place.

If another key, different from EXIT, is pressed, a text box with following text will be displayed :

Please use to leave this procedure.

b. Start up without warm up period.

REMAINING PROJECTOR WARMUP TIME 18.5 MIN

If the EXIT key is pressed, the warm up period will be skipped and the projector is immediately ready for use.

Warning : skipping this warm up procedure can reduce the initial picture quality of the projected image.

Signal Input Connection to the Projector :

• RGBS or RGsB
• RGB3S or RG3sB (option)

Port No Projector input Press Digit Button
1 For future expansion -
2 For future expansion -
3 RGB	^2	3
4/5 RGB	^2	4 or 5
4/5 Component video	^3	6
4/5 RGB with Tri level sync	^4	7
4/5 Component video with Tri-level sync ^5		8

2 Input signal: R, G and B with automatic sync detection between separate sync (separate composite sync or with separate Hor and Vert. sync) or sync on green (composite sync).
^3 Input signal: R-Y, Y and B-Y with separate composite sync or with separate Hor and Vert. sync or with composite sync on Y.
4 Input signal : R, G and B with separate Tri level sync or with Tri-level sync on green.
5 Input signal: R-Y, Y and B-Y with separate Tri-level sync or with composite Tri-level sync.

Only available when the optional Tri-level sync module is installed.

Connecting a RGB Analog source to port 3.

Connect your RGB source via an interface to Port 3.

Always use an interface when a computer and local monitor have to be connected to the projector.

Available Barco interfaces :

Universal analog interface R9826100

RGB 120 MHz analog interface R9826570

VGA interface 120V R9828079

230V R9828070

MAC interface 120V R9828059

230V R9828050

MAGIK interface 120V R9828129 & R9828128

230V R9828120 & R9828121

RGB analog input with automatic sync detection. (Separate H and V sync inputs, with composite sync input or with sync signals on green)

Pin configuration D9 connector of the Analog input.

1 Not connected

2 Ground RGBS

3RED

4GREEN

5BLUE

6 Ground RGBS

7 Ground RGBS

8 Hor/comp. sync

9 Vert. sync

Analog Input Selection :

Press digit button 3 on the RCU or the local keypad.

Connecting a RGB Analog source to port 4/5.

RGB analog input terminals with separate H and V sync inputs, composite sync input or sync signals on green (automatic sync detection).

Always use an interface when a computer and local monitor have to be connected to the projector. See 'Connecting a RGB Analog source to port 3' for a list of BARCO interfaces which can be applied.

RGB input selection :

(RGB : R, G, B signals with automatic sync detection)

Press digit button 4 or 5 on the RCU or the local keypad.

Connecting a RGB Analog source with Tri-level sync to port 4/5. (option)

RGB analog input terminals with Tri level sync input or Tri-level sync on green. The projector detects automatically where the sync signal is located.

RGB input selection : (RG3sB : R, G, B signals with automatic Tri-level sync detection)

Press digit button 7 on the RCU or the local keypad.

Connecting a Component Video source to port 4/5.

A component video (R-Y, Y, B-Y) with sync signals can be connected to the projector via the Port 4/5. The projector automatically detects where the sync signal is located.

To select the component video input :

Press digit button 6 on the RCU or the local keypad.

Connecting a Component Video source with Tri-level sync to port 4/5. (Opion)

A component video (R-Y, Y, B-Y) with Tri-level sync signals can be connected to the projector via the Port 4/5. The projector automatically detects where the sync signal is located.

To select the component video input :

Press digit button 8 on the RCU or the local keypad.

PERIPHERAL EQUIPMENT

Connecting a RCVDS 05 switcher to the retroprojector.

• Up to 20 inputs with the RCVDS 05 switcher and up to 90 inputs when 10 RCVDS switchers are linked via the 5-cable input modules.
• Serial communication with the projector.
• Remote control buttons on the RCVDS to control the retroprojector (source selection and analog settings)
• The selected source number will be displayed on a 2 digit display and the selected input modules will be indicated with a LED on the rear.

For more information consult the Owner's Manual of the RCVDS.

Connecting a VS05 switcher to the retroprojector.

The VS05 can switch up to 5 Composite Video sources, 3 S-Video Sources and 1 RGB analog or component Video source to the retroprojector. In addition, an audio signal associated with the source, can be switched to an audio amplifier. Order number : R9827890.

For more information consult the Owner's Manual.

Connecting an IR Remote Receiver to the Projector.

This infrared receiver unit makes it possible to control the projector from another room. There is a communication line cable between the IR receiver and the projector or the RCVDS. The infrared control information from the Remote Control Unit is sent to the IR Remote Receiver. The IR Remote Receiver 800 displays the selected source on a 7-segment display.

CONTROLLING

Caution : Do not display a stationary image with full brightness and contrast for longer than 20 min., otherwise you risk damage to the CRT's.

Battery installation in the RCU.

A new battery (not yet installed to save the battery life) is delivered inside the plastic bag with the power cord. Before using the RCU, follow the battery installation procedure.

Remove the battery cover on the backside of the RCU by pushing the indicated handle a little to the bottom of the RCU. Lift up the top side of the cover at the same time (fig. 1).

Insert the new 9 V battery (type 6F22S or equivalent) in the lower compartment and connect the battery to the contact plate.

Insert the battery into the lower compartment and put the cover back.

3D technical drawing of a rectangular mechanical component with internal cavity and mounting base (no text or symbols)

Behind the plastic cover, insert the 'card for RCU'. You can cut out the insert card on the last page of the installation manual.

Illustration of a hand holding a small object above a rectangular frame (no text or symbols)

fig.1

The BARCOREALITY 812HS can be controlled with

a. The RCU
b. The hardwired RCU (cable not included)
c. The local keyboard

The procedure and results of controlling the projector with either of these RCU options is essentially the same.

How to use your RCU

a) Point the front of the RCU towards the reflective screen surface

b) Point the front of the RCU towards one of the IR sensors in the projector.

When using the wireless remote control, make sure you are within the effective operating distance (30m, 100ft in a straight line). The remote control unit will not function properly if strong light strikes the sensor window or if there are obstacles between the remote control unit and the projector's IR sensor.

c) RCU used in a hardwired configuration.

Plug one end of the remote cable in the connector on the bottom of the RCU and the second side in the connector in the rear panel of the BARCODATA 808s SP labelled 'REMOTE'.

Projector Address

a. Hardware set up of the projector address.

Every projector requires an individual address between 0 and 255 which is set with hardware DIP switches inside the projector. To change that address, contact a BARCO authorized technician.

b. How to control the projector.

The projector's address may be set to any value between 0 and 255. When the address is set, the projector can be controlled now with: - the RCU for addresses between 1 and 9.

- computer, e.g. IBM PC (or compatible), Apple MAC, etc. for addresses between 0 and 255.

Note : A projector will respond to a RCU set to an address of '0' regardless of what address is set in the projector itself. Address "O" is therefore a universal address.

c. Using your RCU.

Before using your RCU, it is necessary to enter the projector address into the RCU (only when that address is between 1 and 9). The projector with the corresponding address will listen to that specific RCU.

When address 0, 'zero address' is programmed into the RCU, every projector, without exception will listen to the commands given by this RCU.

How to display a projector address?

Press the ADDRESS key (recessed key on the RCU) with a pencil.

The projector's address will be displayed in a 'Text box'. This text box disappears after a few seconds.

To continue using your RCU, it is necessary to enter the same address with the digit buttons (address between 0 and 9). For example, if the Adress Key displays projector address 003, then press the "3" digit button on the RCU to set the RCU's address to match the projector's address. Do not press digit 003. This will address the remote to '0' and control all projectors in the room.

How to program an address into the RCU?

Press the ADDRESS key (recessed key on the RCU) with a pencil and enter the address with the digit buttons. That address can be any digit between 0 and 9.

When programming '0', zero address, the RCU will control a projector regardless of the projector's address. This feature allows multiple projectors with different addresses to be controlled by a single RCU.

Input selection

Port No	Projector input Press Digit	Button
1 Comp. Video 1
2 S-Video ^1 /Comp. Video* 2
3 RGB ^2		3
4/5 RGB ^2		4 or 5
4/5 Component video ^3		6
4/5 RGB with Tri level sync ^4		7
4/5 Component video with Tri-level sync ^5		8

Only available when the optional Tri-level sync module is installed.

1 Input signal Y/C (luma/chroma)
^2 Input signal: R, G and B with automatic sync detection between separate sync (separate composite sync or with separate Hor and Vert. sync) or sync on green (composite sync).
^3 Input signal : R-Y, Y and B-Y with separate composite sync or with separate Hor and Vert. sync or with composite sync on Y.
4 Input signal : R, G and B with separate Tri level sync or with Tri-level sync on green.
5 Input signal: R-Y, Y and B-Y with separate Tri level sync or with composite Tri-level sync.
* Video or S-Video : switchable in the Picture Tuning menu.

With the digit buttons on the RCU, it is possible to select input sources, Video, S-Video, RGsB or RGBS, RG3sB or RGB3S.

When a valid and available source is selected, there will be information displayed on the screen about that source (if "Text" is on). This information includes :

• Source number
• Horizontal frequency
• Vertical frequency

Blank grid paper with uniform squares, no text or symbols present

When the entry is a non valid source number, a warning appears on the screen: 'input not available'.

When a valid source number is selected, the projector will display this source or it will wait on the selected source number until the source

becomes available. A message 'source not available' will be displayed for a short time.

Analog Picture Controls

The analog picture controls can be adjusted with the RCU. The control keys are located on the lower right side of the key panel of the RCU and indicated with the name of the control and an icon.

When an analog picture control is pressed, a text box with bar scale and the function name of the control, e.g. 'brightness...' appears on the screen (only if 'TEXT' is ON). The length of the bar scale indicates the current memorized setting for this source. The bar scale changes as the + or - buttons of the control are pressed.

Brightness Control

A correct 'brightness' setting is important for good image reproduction. Adjust the brightness with the + or - button (RCU) until the darkest parts of the picture appear black.

A bar scale gives a visual indication on the screen of the current brightness setting while pressing on the above indicated keys. If the bar scale is not visible on the screen, press 'TEXT' key once and retry the above indicated keys.

The bar scale increases when pressing on the + button (higher brightness) and decreases when pressing on the - button (lower brightness).

Contrast Control

A correct 'contrast' setting is important for good image reproduction. Adjust the contrast to the level you prefer, according to room lighting conditions. If the Contrast Control is too low, the picture will be too dim. If it is set too high, the picture may be too bright and not sharp. A bar scale gives a visual indication on the screen of the current contrast setting while pressing the + or - buttons (RCU). If the bar scale is not visible on the screen, press 'TEXT' key once and retry the above indicated keys.

The bar scale increases when pressing on the + button (higher contrast) and decreases when pressing on the - button (lower contrast).

Color Saturation Control

Color saturation is only active for Video and S-Video Inputs. This control adjusts the color intensity of the picture. Adjust the color saturation using the + and - buttons (RCU). A bar scale gives a visual indication on the screen of the current color setting while pressing on the above indicated keys. If the bar scale is not visible on the screen, press 'TEXT' key once and retry the above indicated keys. The bar scale increases when pressing on the + button (richer colors) and decreases when pressing the - button (lighter colors).

Tint Control

Tint is only active for Video and S-Video Inputs. The Tint Control is effective only when using the NTSC 4.43 or NTSC 3.58 system. A bar scale gives a visual indication on the screen of the current tint setting while pressing the + or - buttons (RCU). If the bar scale is not visible on the screen, press the 'TEXT' key once and retry the above indicated buttons.

The bar scale increases when pressing on the + button (greener flesh tones) and decreases when pressing the - button (redder flesh tones).

Sharpness Control.

Sharpness control is only active for Video and S-Video Inputs. A bar scale gives a visual indication on the screen of the current sharpness setting while pressing the + or - buttons (RCU). If the bar scale is not visible on the screen, press 'TEXT' key once and retry the above indicated keys.

The bar scale increases when pressing on the + button (sharper picture) and decreases when pressing on the - button (softer picture).

Controlling chained projectors.

Projectors can be controlled individually as well as in a group.

For individual control see previous pages.

For group control of the projectors.

(Input selection and analog picture control)

Program the 'zero address' into any RCU. Therefore, press on the address key and key in the address ("0") with the numeric keys on the RCU itself.

Once address '0' is pressed, all projectors will be controlled together until a new address is entered on the RCU. It is possible to have a common input selection and a common analog picture control.

Once a new address is entered, only the projector with that specific address will follow the new instructions.

Note : For group control, all projectors in a control group must be capable of receiving the IR signal from the controlling RCU at the same time.

START UP OF THE ADJUSTMENT MODE

Adjustment Mode

All picture geometry and convergence adjustments are made while in the 'Adjustment mode'. Press the ADJUST key to enter the 'adjustment mode'.

You are now in the 'Adjustment mode'. The Control disc is used to make menu selections and also vertical and horizontal adjustments. The ENTER and EXIT keys are used to move forward and backward through the menu structure. The ADJUST key can be used to terminate the adjustment mode while any path selection menu is displayed.

When an adjustment menu is displayed on the screen and no action is taken within the first 5 minutes, the projector will automatically reduce the brightness and contrast to a level so that the stationary image cannot damage the tubes.

There are 5 possible paths to follow once in the Adjustment mode. They are :

INSTALLATION - Installation should be selected if the projector has been relocated and/or a different screen size is desired.

When selecting 'Installation', the user or operator will be warned to call a qualified technician to perform the installation procedure (see example of projected warning on the next page)

GUIDED - Guided should be selected if the user intends to perform a complete alignment of the projected image. All of the necessary geometry and convergence adjustments are made in a predetermined sequence.

RANDOM ACCESS - Random Access should be selected if the user intends to make only a few adjustments.

SERVICE - Service should be selected if the user intends to delete blocks, change password, select service adjustments or get set-up information.

IRIS - To start up the IRIS Auto-Convergence unit.

While in Guided or Random Access adjustment Modes, the user may use an external source, an internally generated genlocked pattern or an internally generated multifrequency cross hatch pattern as a setup pattern.

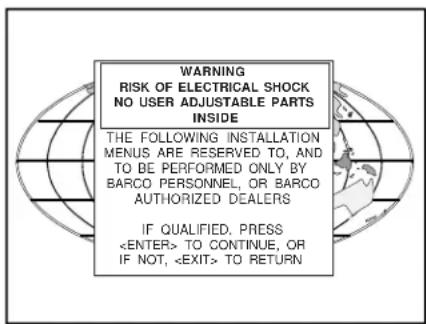

Warning during the start up of the installation mode.

Some items in the Adjustment mode are password protected. While selecting such an item, the projector asks you to enter your password. (Password protection is only available when the password DIP switch on the controller module is in the ON position. Contact a BARCO authorized technician when no password is requested during the adjustment procedure and password protection is desired.) Your password contains 4 digits.

Enter the digits with the numeric keys on the RCU.

Example : 2 3 1 9

For each digit entered, a 'X' appears on the screen under the displayed text 'enter password'.

When your password is correct, you gain access to the 'Adjustment item'. When the entered password is wrong, The message 'Wrong password !!!' will be displayed. The projector stays on the previous selected item.

Factory programmed password :

0000

Once the password is entered correctly, all other password protected items are accessible without re-entering your password. When re-entering the Adjustment mode, it will be necessary to enter your password again when selecting a password protected item.

RANDOM ACCESS ADJUSTMENT MODE

Starting-Up the Random Access Adjustment mode.

Push the control disc ↑ or ↓ to highlight "RANDOM ACCESS" and then press ENTER.

Some items in the Random access mode are password protected (when the password function is enabled). Enter your password to continue. All other password protected items are now also available if you stay in the adjustment mode.

ENTER continues to Setup Pattern Selection EXIT returns to Operational mode

Overview 'Random Access Adjustment' mode

    D --> K["HSIZE"]
    D --> L["V LINEARITY"]
    D --> M["V SIZE"]
    D --> N["BLANKING"]
    N --> O["TOP"]
    N --> P["BOTTOM"]
    N --> Q["LEFT"]
    N --> R["RIGHT"]

    E --> S["RED ON GREEN"]
    E --> T["BLUE ON GREEN"]
    E --> U["GREEN ONLY"]
    E --> V["RED ON GREEN"]
    E --> W["BLUE ON GREEN"]

    F --> X["RED"]
    F --> Y["GREEN"]
    F --> Z["BLUE"]

    G --> AA["RED"]
    G --> AB["GREEN"]
    G --> AC["BLUE"]

    H --> AD["RED AND GREEN"]
    H --> AE["BLUE AND GREEN"]
    H --> AF["RED AND BLUE"]

    I --> AG["CONTRAST MODULATION"]

Selecting Setup Pattern

If an external source is connected to the projector, this menu will be displayed. Push the control disc ↑ or ↓ to highlight the desired setup pattern and then press ENTER.

Genlocked pattern : internally generated cross hatch pattern, locked on the external source.

Internal # pattern : internally generated cross hatch pattern and locked on internal generated sync signals. (No external source necessary)

ENTER continues to Random Access Adjustment Mode or Internal # Pattern Selection

EXIT returns to Path Selection menu

ADJUST returns to Operational mode

If no external source is connected to the projector, the internal cross hatch pattern menu will be displayed.

Note: The menus in this manual are created for an external source, connected to one of the inputs, and the 'Genlocked Pattern' is selected.

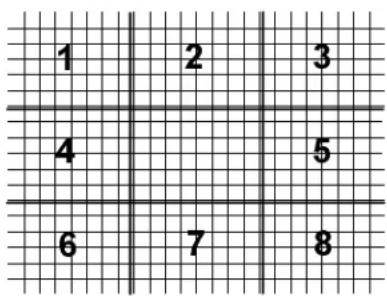

Internal Cross Hatch Pattern

The Internal # pattern menu will be displayed if the internal cross hatch pattern has been selected or if no source is connected to the projector.

The table below lists the 8 fixed factory preset frequencies available. Another 8 blocks are custom programmable.

Push the control disc ↑ or ↓ to highlight the desired cross hatch frequency. Use the left and right arrow to scroll to another page. Press ENTER. if the desired block is selected.

Exemples :

kHz/Hz

15.6/50 PAL/SECAM

15.7/60 NTSC

31.2/50 EDTV

31.5/60 IDTV

31.2/50 HDTV EUREKA

31.5/60 HDTV ATV

33.7/60 HDTVHIVISION

15.8/60 EGA 1

21.8/60 EGA 2

61.0/76 VGA 1,2

35.5/87 VGA 4

ENTER continues to the Random Access Adjustment Mode. EXIT returns to the Setup Pattern Selection menu.

Random access adjustment mode selection menu.

This is the main menu for the Random Access adjustment mode.

Through this menu, the following adjustments and features are accessible :

- Picture Tuning

Enhanced Blue (only for RGB)

Sync slow/fast(video/s-video)

Color Balance

• Focusing
• Geometry
• Convergence
• Color select

And also Orbiting, Contrast modulation and Soft Edge if these options are installed.

Picture Tuning

Highlight Picture tuning by pushing the control disc or and press ENTER.

The Picture tuning menu will be displayed.

Depending on the input source, the Picture tuning menu will display different items.

For Video input sources :

Color Balance

Line Doubler

Port 2 : Video or S-Video (only when source 2 is selected)

For RGB analog sources :

Color Balance

Sync slow/fast

Peaking

Clamp Tuning

for Component input and RGB on 15 kHz.

Color Balance

Sync slow/fast

Peaking

Clamp Tuning

Line Doubler (option)

Color Balance

The Color Balance function is used to select or adjust the color temperature of white used by the projector.

The Color Balance can be adjusted on two different ways :

- fixed color balance. You have the choice between 3200 K (reddish), 4900 K, 6500 K (white) or 9300 K (bluish).

- Custom white and black balance.

Fixed Color Balance.

Highlight one of the 4 preprogrammed color temperatures with the cursor keys and press ENTER to display the desired color balance.

Custom Color Balance.

Select custom Red & Blue gain with the cursor keys and press ENTER to start the adjustment.

Push the control disc or to adjust the red gain and push the control disc or to adjust the blue gain. A bar scale indicates the amount of adjustment.

Select custom Green gain with the control disc and press ENTER to start the adjustment.

Push the control disc or to adjust the green gain.

Select custom R & B cut off with the control disc and press enter to start the adjustment. Push the control disc ↑ or ↓ to adjust the red cut-off and push the control disc → or ← to adjust the blue cut-off. Select custom Green cut off with the control disc and press enter to start the adjustment. Push the control disc ↑ or ↓ to adjust the red cut-off

EXIT returns to the Picture tuning menu.

Sync Fast/Slow Adjustment

The sync function is used to minimize horizontal jittering or tearing at the top to the displayed image.

Highlight SYNC by pushing the control disc ↑ or ↓ and press ENTER to toggle between FAST and SLOW.

Note: SYNC is normally used in the SLOW position. For Video and S-Video the sync is automatically set to FAST.

ENTER will toggle Sync between FAST and SLOW EXIT will return to the random access selection menu

Peaking

Peaking improves the contours in an projected image.

Highlight PEAKING by pushing the control disc ↑ or ↓ and press ENTER to display the peaking menu.

During the creation of new settings for a RGB source the corresponding peaking is switched on as default.

For frequencies between :

15 kHz - 45 kHz : Low frequency peaking

45 kHz - 85 kHz : Mid frequency peaking

85 kHz - 110 kHz : High frequency peaking

If another peaking is desired, use the cursor key to highlight 'low', 'mid' or 'high' frequency or to switch off the peaking.

Clamp Tuning

Highlight CLAMP TUNING by pushing the control disc ↑ or ↓ and press ENTER to toggle between NORMAL and RESTORATION.

Select Normal: - for all standard sources and all sources with a backporch > 0.8μs,

- for sources with noise and spikes in the signal.

Select Restoration

: - for standard sources with a backporch between 0.4 μs and 0.8 μs,

- for sources with sync separate or sync on Green.

Port 2 : Video or S-Video (Only when optional decoder is installed)

Port 2 can be used as a Video or S-Video input. Highlight Port 2 by pushing the control disc ↑ or ↓ and press ENTER to toggle between VIDEO and S-VIDEO.

Line Doubler/Multiplier (Optional)

Line doubling/multipling is only possible for Video, S-Video, Component Video images on standard line frequency and RGB signals on 15 kHz.

To eliminate the video line patterns and to improve the image stability, the line doubler/multiplier has to be switched on. The line doubler/multiplier is default set in the ON position when starting up for the first time. The setting of the line doubler/multiplier will be saved together with the source number. Each time this source number is selected, the last saved version will be loaded.

Highlight Line Doubler/Multiplier with the control disc and press ENTER to toggle between ON (active) and OFF (non active).

EXIT will return to the random access selection menu.

Color Select

Highlight COLOR SELECT by pushing the control disc forward or backward and press ENTER to display the color select menu.

ENTER continues to the color select menu EXIT will return to Internal Crosshatch Selection or Setup Pattern Selection Menu ADJUST returns to operational mode

Use the control disc to highlight a color (CRT) or combination of colors to display the projected image in that specific color. To select a new color, press ENTER, the color selection menu appears again on the screen. To terminate the color select procedure, press EXIT.

ENTER continues with the selected color or color combination. EXIT returns to the Random access main menu.

Focusing

Before starting the 'focusing' adjustment, be sure the lenses are correctly focused.

Push the control disc forward or backward to select 'Focusing' and press ENTER.

ENTER continues to the Focusing color select menu. EXIT returns to Internal Crosshatch Selection or Setup Pattern Selection menu.

ADJUST returns to operational mode.

Focusing color select.

The focusing has to be done for the three colors separately. Therefore, start by selecting Green by pushing the control disc forward or backward and adjust Midpoint, top, bottom left and right focusing.

Return to this focusing color select menu and continue with Red and Blue. Repeat for both colors Midpoint, top, bottom left and right focusing.

ENTER selects the focusing menu for the selected color. EXIT returns to the Random access main menu.

Midpoint focusing

Push the control disc forward or backward to select midpoint and press ENTER continue with the midpoint focusing.

Adjust by pushing the control disc to the left or to the right until the center of the image is sharp.

Press ENTER to return to the focusing menu.

Top image focusing

The same procedure has to be repeated as for the midpoint focusing. Push the control disc forward or backward and press ENTER to continue to the top focusing.

Push the control disc to the left or to the right to adjust the top focusing. Adjust until the upper part of the image is sharp.

ENTER to return to the Green Focusing menu.

Bottom image focusing

The same procedure has to be repeated as for the midpoint focusing. Push the control disc forward or backward to select bottom and press ENTER to continue to the bottom focusing.

Push the control disc forward or backward to adjust the bottom focusing. Adjust until the lower part of the image is sharp.

ENTER to return to the Green Focusing menu.

Left image focusing

The same procedure has to be repeated as for the midpoint focusing. Push the control disc forward or backward to select LEFT and press ENTER to continue to the left focusing.

Push the control disc forward or backward to adjust the left focusing. Adjust until the left part of the image is sharp.

ENTER to return to the Green Focusing menu.

Right image focusing

The same procedure has to be repeated as for the midpoint focusing. Push the control disc forward or backward to select RIGHT and press ENTER to continue to the right focusing.

Push the control disc to the left or to the right to adjust the right focusing. Adjust until the right part of the image is sharp.

ENTER to return to the Green Focusing menu.

When on the Green Focusing menu, press EXIT to return to the focusing color select menu and continue with the other colors.

Blue on source

After focusing the three color, and a discoloring on a normal image is still visible, select 'Blue on source' on the Focusing menu and repeat the above steps for Midpoint, top, bottom left and right focusing.

Press EXIT to return to focusing menu.

Geometry Adjustments

The geometry adjustments have to be done only on the green image. These adjustments are automatically implemented for the other color images: Left-right (EW) and Top-Bottom Corrections, Blanking, Horizontal Amplitude, Vertical Amplitude, Vertical Linearity and Horizontal Phase.

Highlight GEOMETRY by pushing the control disc or and press ENTER to display the geometry menu.

ENTER will display Geometry menu

EXIT will return to Internal Crosshatch Selection or Setup Pattern Selection Menu

ADJUST returns to operational mode

Within the Geometry Adjustment menu, the following adjustments are available :

• Horizontal Phase (not for internal # pattern).
• Raster Shift
• Left-Right Corrections
• Left Side Corrections
• Top-Bottom Corrections
• Horizontal Size
• Vertical Linearity
• Vertical Size
• Blanking

The convergence corrections are disabled during geometry corrections. The blanking corrections are only enabled during the blanking adjustments.

Horizontal Phase Adjustment

Push the control disc ↑ or ↓ to highlight H PHASE on Geometry menu and then press ENTER.

Note : No horizontal phase adjustment is available on the internal # pattern.

For external sources :

If the raster shift is correctly adjusted, the H Phase text box is projected in the middle of the raster. At that moment, the "<<" icon indicates the middle of the raster.

Adjust the H Phase control until the middle of the projected image is equal with the middle of > < icon.

Note :

- If the genlocked pattern wasselected, the external source will be displayed.

A bar scale and a number indicator (between 0 and 100) on the screen give a visual indication of the horizontal phase adjustment.

ENTER continues to geometry menu.

Push the control disc to the right to correct

Push the control disc to the left to correct

Raster Shift Adjustment

The green raster must be centered both horizontally and vertically on the center of the CRT surface. To center the green raster, look into the green lens and use the control disc to move the raster.

CAUTION

It is necessary to look into the lenses to perform these adjustments. To avoid eye discomfort while looking into the lenses, reduce the contrast and gradually increase the brightness level until the raster becomes visible on the face of the CRT.

ENTER will select green raster shift adjustment EXIT returns to random access adjustment mode menu.

Warning : In order to ensure maximum CRT longevity and to avoid CRT damage, do not shift the raster outside the phosphor area of the CRT.

To start the adjustment, use the control disc to highlight Raster shift and press ENTER to display the green raster on the phosphor.

Two identical geometric shapes with overlapping triangles inside black and white borders (no text or symbols)

Two identical geometric shapes with overlapping triangles inside black and white borders (no text or symbols)

Press EXIT to return to the Geometry menu.

Note : Horizontal and Vertical shifts for Red and Blue should end up with a setting close to 50%. If these settings are significantly greater or lesser than 50%, contact a BARCO authorized service technician.

Left-Right (east-west) Adjustments

Left-right adjustments affect only the vertical lines of the projected image. Only the green image is displayed while making left-right adjustments. The red and blue images will automatically be corrected in the same manner. Convergence corrections are automatically disabled for the duration of these adjustments.

The following adjustments can be executed :

• Vertical Centerline Bow
• Vertical Centerline Skew
• Side Bow
• Side Keystone
• Seagull correction

Push the control disc ↑ or ↓ to highlight LEFT-RIGHT (E/W) on the geometry menu and then press ENTER.

ENTER will select Left-Right adjustment menu.

EXIT returns to random access adjustment mode main menu.

ADJUST returns to operational mode.

The warning: "Use this correction to adjust the right side of the image" appears on the screen when selecting 'Side Bow' or 'Side Keystone'. When the right side is correctly adjusted, use 'Left Side Correction' to correct the left side of the image.

All adjustments are indicated on the screen with the function name, a bar scale and a number between 0 and 100.

Adjust the next alignments until the vertical lines are straight. For side bow and side keystone, look only to the right side of the image.

To enter an alignment, push the control disc or to highlight a function and press ENTER to activate this function.

Press EXIT to return.

Seagull correction

Use this correction only if, after adjusting the vertical lines with the side bow or side keystone, still a 'S' deformation is visible on the left and the right side of the image.

The default value on the bar scale for this correction is 50.

Push the control disc ↑ or ↓ to highlight SEAGULL CORRECTION on the Left-Right menu and then press ENTER.

Eliminate the deformation by pushing the control disc → or ← until a straight line is obtained.

Empty rectangular frame with four corner arrows, no text or symbols present

Left Side Correction

Left side corrections affect only the vertical lines of the set up pattern. Only the green image is displayed while making the left side adjustments. The red and blue images will automatically be corrected in the same manner.

Convergence corrections are automatically disabled for the duration of these adjustments.

Look only to the left side of the image while adjusting these fine tunings (bow and keystone). Before starting the left side correction, insure that the side bow and keystone adjustments are done prior to these fine adjustments!

The following adjustments can be executed :

• Left keystone
• Left bow

Push the control disc ↑ or ↓ to highlight LEFT SIDE CORRECTION on the geometry menu and then press ENTER.

ENTER will select the Left Side Correction menu.

EXIT will return to the random access adjustment menu.

ADJUST returns to operational mode.

All adjustments are indicated on the screen with the function name, a bar scale and a number between 0 and 100.

Adjust the next alignments until the vertical lines on the left side are straight.

To enter an alignment, push the control disc or to highlight a function and press ENTER to activate this function.

Press EXIT to return.

Top-Bottom (north-south) Adjustments

Top-Bottom and center adjustments affect only the horizontal lines of the projected image.

To start up the Top-Bottom and center corrections, follow the next procedure :

Push the control disc ↑ or ↓ to highlight TOP-BOTTOM (N/S) on the geometry menu and then press ENTER.

Only the green image is displayed while making top-bottom adjustments. The red and blue images will automatically be corrected in the same manner. Convergence corrections are automatically disabled for the duration of these adjustments.

The following adjustments can be executed :

• Horizontal centerline bow
• Horizontal centerline skew
• Top bow
• Top keystone
• Bottom bow
• Bottom keystone
• Seagull correction

All adjustment are indicated on the screen with the function name, a bar scale and a number between 0 and 100.

Adjust the next alignments until the vertical lines are straight. To enter an alignment, push the control disc or to highlight a function and press ENTER to activate this function.

Press EXIT to return.

Seagull Correction

Use this correction after the image has been adjusted with top and bottom bow and keystone. If still a deformation (like a seagull) on top and bottom of the image is visible, proceed to the seagull correction. Due to interaction, it is possible that the top and bottom bow have to be readjusted after adjusting the seagull correction to obtain an improved image. The default value on the bar scale of this correction is 50.

Push the control disc ↑ or ↓ to select the 'Seagull Correction' and press ENTER to select.

Eliminate the deformation by pushing the control disc or until a straight line is obtained.

ENTER will return to Top-Bottom adjustment menu EXIT will return to Geometry menu.

Empty rectangular frame with four corner arrows (no text or symbols)

Horizontal Size Adjustment

Push the control disc ↑ or ↓ to highlight H SIZE on the Geometry menu and then press ENTER.

ENTER will select horizontal size adjustment.

EXIT returns to random access adjustment mode menu.

ADJUST returns to operational mode.

Adjust the horizontal size by the control disc or until the exact image width is obtained.

Note :

• If the internal # pattern was selected, this pattern remains on the screen.
• If the genlocked pattern was selected, the external source will be displayed.

A bar scale and a numeric indicator help to gauge the horizontal size adjustment.

Hint: In order to avoid loss of resolution in the projected image and to ensure maximum CRT longevity, do not use an excessively small horizontal size setting.

EXIT will return to Geometry

Vertical Linearity Adjustment

The vertical linearity adjustment function corrects for vertical non-linearities which extend from the center of the image to the top and bottom of the image.

Push the control disc ↑ or ↓ to highlight V LINEARITY on the Geometry menu and then press ENTER.

ENTER will select vertical linearity adjustment.

EXIT returns to random access adjustment mode menu.

ADJUST returns to operational mode.

Adjust the vertical linearity with the control disc until the distances between the horizontal lines of the set up pattern are equal from top to bottom.

EXIT will return to the Geometry menu.

Blank grid paper with no text, numbers, or symbols

Vertical Size Adjustment

Push the control disc forward or backward to highlight V SIZE on the Geometry menu and then press ENTER.

ENTER will select vertical size adjustment.

EXIT returns to random access adjustment mode menu.

ADJUST returns to operational mode.

Adjust the vertical size by pushing the control disc forward or backward until the correct image height is obtained.

Note :

• If the internal # pattern was selected, this pattern remains on the screen.
• If the genlocked pattern was selected, the external source will be displayed.

A bar scale and a numeric indicator give a visual indication of the vertical size adjustment.

Hint : In order to avoid loss of resolution in the projected image and to ensure maximum CRT longevity, do not use an excessively small vertical size setting.

EXIT will return to Geometry

Blanking Adjustments

Blanking adjustments affect only the edges of the projected image and are used to frame the projected image on to the screen and to hide or black out unwanted information (or noise). A 0% on the bar scale indicates no blanking.

To start up the Blanking adjustments, follow the next procedure :

Push the control disc forward or backward to highlight BLANKING on the Geometry menu and then press ENTER.

The following blanking corrections are possible :

• Top blanking
• Bottom blanking
• Left blanking
• Right blanking

Therefore :

• If the internal # pattern was selected, this pattern remains on the screen.
• If the genlocked pattern was selected, the external source will be displayed.

Adjust the next blanking alignments until the image is correctly framed or the unwanted information is blanked out.

To enter a blanking alignment, push the control disc forward or backward to highlight a function and press ENTER to activate this function.

Press EXIT to return.

Correct by pushing the control disc to the right or to the left

Convergence Adjustment

Convergence adjustments affect both the horizontal and vertical lines of the setup pattern. These adjustments are performed on the red image while superimposed on the green image and then on the blue image while superimposed on the green image.

Start with the Coarse convergence adjustments and finalise with the Fine convergence adjustment.

The screen area is divided into 25 areas.

Coarse Convergence Adjustment.

Highlight 'Red on green' under the coarse convergence item and press ENTER. The coarse convergence menu will be displayed.

The following items are possible :

- Horizontal sides : adjust the vertical lines, within a certain area, on both sides without influencing the lines on the middle of the image.

- Vertical corners : adjust the horizontal lines in the four corners, within a certain area, without influencing the middle of the image.

Repeat for 'blue on green'

Horizontal sides

Highlight 'Horizontal lines' and press ENTER to start the adjustment. To make a coarse adjustment of the red or blue vertical lines in zone 3 and 5 simultaneously.

Hint :

• look to the end of scan and adjust until the red or the blue vertical lines are on the green lines or as close as possible to the green lines.
• during these adjustments, the horizontal convergence adjustments in zones 2, 3, 4 and 5 will be set to midposition (barscale 50).

25	23 9	15 17
24	22 8	14 16
5	4	1	2	3
20 18	6 10 12
21	19 7	11 13

Vertical corners

Highlight 'Vertical corners' and press ENTER to start the adjustment. To make a coarse adjustment of the red or blue horizontal lines in zone 10, 14, 18 and 22 simultaneously.

Two parallel lines with upward and downward arrows, no text or symbols present

Hint :

• adjust until the red or the blue horizontal lines are on the green lines or as close as possible to the green lines.
• during these adjustments, the horizontal convergence adjustments in zones 10 to 25 will be set to midposition (barscale 50).

Fine Convergence Adjustment.

Use these controls after coarse convergence adjustment to optimize the convergence of the red and blue image on the green image.

Use the control disc to make horizontal or vertical convergence adjustments in the selected zone and then press ENTER to move the box to another zone or EXIT to return to the Convergence menu. ENTER toggles arrow keys between zone selection and zone adjustment.

EXIT returns to convergence menu

Note: the green convergence adjustments can be added as an option. When these are available, always start with 'green only'. This option will also be indicated on the convergence menu.

Highlight first 'Green only' when available with the control disc and press ENTER to display the convergence adjustment menu. Continue with red on green and blue on green.

SERVICE MODE

Starting up the Service mode.

Use the control disc to highlight 'Service' and then press ENTER.

Some items in the Service mode are password protected (when the password function is active). Enter your password to continue. All other password protected items are now also available if you stay in the adjustment mode.

ENTER continues to the Service Mode main menu.

EXIT returns to the Operational mode.

The service items are combined in two service menus. To switch from the first to the second menu or vice versa, push the control disc forward or backward to select 'more...'

Overview flowchart 'Service' mode.

Identification

Highlight 'Identification' with the control disc and press ENTER.

The 'Identification' screen gives information concerning :

- Projector address. To change the address of your projector, contact a qualified service technician.

- Software version.

- Configuration. Possible configurations : Front-Ceiling Front-Table Rear-Ceiling Rear-Table

- Baud rate PC : transfer speed for communication with an IBM PC (or compatible) or MAC. The baud rate of the projector must be the same as the baud rate of the connected computer. When there is a difference, contact a qualified service technician to make the appropriate changes.

- Text ON/OFF Indicates in operational mode if the bar scale and number indicator will be displayed and if warnings and failures will be displayed. ON : displayed OFF : not displayed

The status can be changed by pressing the 'TEXT' key once on the RCU.

- Serial no.: Indicates the fabrication number of the projector. This number can be useful when calling for technical assistance.

Copy a block

The copy a block function copies the settings of a selected block into the active block. Highlight copy a block with the control disc and press ENTER. ENTER will select the highlighted item.

To copy the settings of a closed block to the block you are working on (active block), use the control disc to select a block. All existing settings will be overwritten with the new settings.

Press ENTER to copy the selected block. A confirmation screen will be displayed.

If you are certain you wish to copy the contents of the selected block into the active block, press ENTER. EXIT cancels the copy procedure and returns without copying the block.

Deletion of blocks

This item is password protected.

The delete function is used to clear all data (settings) from an adjustment block.

A delete can be given :

- Block by block

or

- For all blocks.

Deleting block by block

The delete a block function deletes the settings of a selected block. Highlight 'Delete a block' with the control disc and press ENTER.

Push the control disc ↑ or ↓ to select the desired adjustment block. Press ENTER to delete the selected adjustment block. A confirmation menu will be displayed.

ENTER will delete the selected block.

EXIT cancels the deletion procedure and returns to the Service mode main menu.

Deletion of all blocks

Highlight 'delete all blocks' with the control disc and press ENTER. ENTER gives a confirmation message before deleting.

If you are certain you wish to delete all blocks, press ENTER to confirm, otherwise press EXIT to return.

Once ENTER is pressed, all block headers and adjustment settings are permanently removed and cannot be restored.

Change password

This item is password protected.

Highlight 'change password' with the control disc and press ENTER.

The current password is displayed. The new password must consist of 4 digits between 0 and 9. Push the control disc → or ← to select the digits to be changed. Use the numeric keys to enter the new digits.

Press ENTER to save the new password. Before saving the new password, a confirmation screen will be displayed.

Press EXIT to return to the Service menu without saving the new password.

When the displayed password is correct, press ENTER to save. If not correct, press EXIT to cancel the saving.

Change Language

The 'Change Language' function offers the possibility to change the language of the screen menus to :

• English
• Spanish
• French
• German

Push the control disc ↑ or ↓ to highlight 'Change language' and press ENTER to select the language menu.

Push the control disc ↑ or ↓ to select the desired language and press ENTER to change the language.

Run time

Highlight 'run time' with the control disc and press ENTER to display the amount of time the projector has played since its first start up at the factory.

Note : all projectors leave the factory after a burn-in period of approximately 100 hours.

Press EXIT to return the service mode menu.

Set to midposition

Item is password protected.

Highlight 'set to midposition' with the control disc and press ENTER to set all settings to their midposition.

A confirmation menu will be displayed first.

ENTER will set all settings to their midposition. EXIT will cancel the operation to set all settings to their midposition.

Undo Midposition

When 'Set to Midposition' is selected, all settings are set to their midposition. To cancel this action, select 'Undo Midposition' by pushing the control disc or and press ENTER. 'Undo Midposition' is displayed in the service mode in stead off 'Set to Midposition' when this latter is pressed.

An undo is possible as long as the projector is playing on the same source (= same adjustment block) even when some adjustments as geometry or convergence are already readjusted. When undo is pressed all settings are reset to the previous settings.

Convergence Mid

Item is password protected.

Highlight 'convergence mid' with the control disc and press ENTER to set all convergence settings to their midposition. A confirmation screen will be displayed first.

ENTER sets the convergence settings to their midposition. EXIT cancels the procedure to set the convergence settings to their midposition.

Undo Convergence Mid(position)

When 'Convergence Mid' is activated, all convergence settings are set to their midposition. To cancel this action, select 'Undo Convergence Mid' by pushing the control disc ↑ or ↓ and press ENTER.

'Undo Convergence Mid' is displayed in the service mode menu in stead off 'Convergence Mid' when this latter is activated.

An 'undo' is possible :

* As long as the projector is operating on the same source (= same adjustment block) even when some convergence adjustments are already readjusted

AND

* 'Set to midposition' is not yet selected.

When undo is pressed all convergence settings are reset to the previous settings.

Dynamic Astigmatism (spot shape adjustment)

The spot shape adjustments correct the spot shape in 8 different areas on the screen for all three colors separately.

The spot shape is adjusted according to the axial axises and the diagonal axises when using the control disc on the RCU.

These adjustments have to be done on a dot pattern (e.g. the internally generated pattern) with standard line frequency (15 kHz). The adjustment values are stored in the EEPROM and remain the same for all frequencies.

Follow the next procedure :

Highlight 'Dyn. Astigmatism' by pushing the control disc up or down and press ENTER to select.

EXIT returns to the path selection main menu.

Select the source type, selected source or genlock pattern, by highlighting the color for which the spot shape has to be corrected and press ENTER.

e.g. when selecting RED under 'on genlocked pattern', the projector switches to a genlocked pattern.

Press ENTER to continue adjustment.

Increase the contrast level using the Contrast Control to near maximum. Using that "+" Sharpness Key, defocus the image until the dots are large and easily visible. Press ENTER to continue to SEL.

SEL : select the adjustment area on the screen where the spot shape has to be corrected.

Use the control disc to select one of the 8 areas. Press ENTER to continue to ADJ.

ADJ: adjust the spot shape in the axial or diagonal direction when using the arrow keys for the selected area. Adjust until the spot shape is circular.

Use the control disc or for the diagonal astigmatism adjustment and the control disc or for the axial astigmatism adjustment. Press ENTER to continue selecting a new area.

The adjustment direction (axial or diagonal) and adjustment value are given in a text box on the screen. When all areas are adjusted, press EXIT to return to the service main menu.

G2 Adjust

Item is password protected.

Highlight 'G2 adjust' with the control disc and press ENTER to continue.

A safety notice will be displayed on the screen as it is necessary to open the top cover to adjust the G2.

'G2 adjustment should be performed by BARCO personnel, or BARCO authorized dealers'.

If you are qualified, press ENTER to continue. If not qualified, press EXIT to return to the Service mode main menu. Further description of the G2 adjustment is given in the Installation manual.

Gamma corrections

Item is password protected.

Highlight 'Gamma Corrections' with the control disc and press ENTER to continue.

A warning will be displayed on the screen as there is a risk of incorrect adjustment of the projector..

'The Gamma Corrections are factory adjusted using an ACTAS colour analyser!

Therefore, only qualified installation or service personnel should perform these adjustments!

If you are qualified, press ENTER to continue. If not qualified, press EXIT to return to the Service mode main menu. Further description of the Gamma Corrections are given in the Installation manual, Appendix C.

CRT run in cycle

The CRT run in cycle option can only be activated when memory blocks on an internal # pattern are available. When one or more such blocks are available, a flashing white image (5sec on, 5 sec off) is generated and that for 5 min on the first internal block. In the next 5 min, a second internal block will be used to generate the flashing white image. The image will also be shifted in a vertical way to prevent a CRT burn in. To quit the CRT run in cycle option, press EXIT.

Highlight 'CRT run in cycle' with the control disc and press ENTER to start.

If a memory block adjusted on an internal # pattern is available, the CRT run in cycle will start when pressing ENTER. If no such a block is available, the projector cannot run the CRT run in option and leaves the adjustment mode.

If you still want to run CRT run in cycle, create first a memory block on an internal # pattern and restart the CRT run in option.

Projector Warm Up

Highlight 'Projector Warm Up' by pushing the control disc ↑ or ↓ and press ENTER to select the projector warm up menu.

The ON/OFF option can be toggled with the ENTER key.

When in the ON position (and the CRT run in cycle is OFF), the projector can start up with a warm up period of 20 minutes. During the start up a warm up menu will be displayed. This menu offers the possibility to skip the warm up periode anyway by pressing the EXIT key and offers the possibility to adjust the horizontal and vertical amplitude of the this white image with the control disc. During this warm up period, a full white image is shifted on the CRT faceplate to avoid a burn in. Every 30 seconds a text box will be displayed on another place on the screen with the remaining time to go.

When EXIT is pressed during this warm up period, the warm up menu will be redisplayed with the remaining time indication. Press another time EXIT to interrupt the warm up cycle.

When the warm up option is OFF, when switching on the projector, it starts immediately with the projection of the selected source.

CRT Drive Mode

The projector CRT's can be driven with the normal current (normal mode), a lower current (economic mode) or with a higher current (boost mode).

To change the drive mode, highlight 'CRT drive mode' by pushing the control disc ↑ or ↓ and press ENTER to display the CRT drive mode menu.

To change the boost mode, push the disc or to select a display mode and press ENTER to select.

The following modes are available :

• Normal
• Economic : Lower drive current to the CRT's, the lifetime of the CRT's will enlarge but the light output will reduce.
• Tempory boost: Higher drive current to the CRT's, the lifetime of the CRT's will shorten but the light output will be higher. This situation is temporary, when restarting the projector, the drive mode is automatically set to normal.
• Permanent boost : Higher drive current to the CRT's, the lifetime of the CRT's will shorten but the light output will be higher. This setting will be saved in the EEPROM. When restarting the projector, it will start up in boost mode.

A warning, permanent BOOST mode in use, will be displayed to inform the user.

When text is on, this warning will be repeated every time a new source is selected.

WARNING

PERMANENT BOOST MODE IN USE !

MESSAGES, WARNINGS AND FAILURE CODES

SOURCE01

Fh= 15.6 kHz

Fv=050 Hz

When selecting a new source, information about this source will be displayed on the screen. Source number, horizontal and vertical frequencies of the displayed source.

WARNING:

source not available

The input is a valid input but the source is not connected to the input terminals or the input source is switched off.

SOURCE01

Fh= 15.6 kHz

Fv=050 Hz

Announcement of the selected source.

WARNING :

invalid key entry

When a wrong key is pressed on the RCU.

enter password xxxx

Message to enter your password. Password contains 4 digits.

WARNING :

invalid code entry

Message when the entered password is wrong.

text on

These messages will be displayed on the screen when pushing the key.

text off

Text ON: the 'bar scale indication' will be enabled during the change of an analog control in the 'operational mode'+ all warnings and failures will be displayed.

Text OFF: the 'bar scale indication' will be disabled during the change of an analog control in the 'operational mode'+ all warnings and failures will not be displayed.

WARNING :

end of ad-just range

End of adjustment range.

WARNING: input no longer available

Message will be displayed when the input source is no longer available. The following message then appears: 'check input signal or select new source'.

PROJECTOR ADDRESS: 003

Indication of the projector address when activating the 'AD-DRESS' button on the RCU with a pencil or other small object.

check input signal or select new source

This message will be displayed after the message 'input no longer available'. It asks to check the connections between the source and the projector or to check if the source is switched on.

WARNING:

input not available

When using the projector with the RCVDS, this warning will be displayed when selecting an input slot of an RCVDS where the input board is missing.

WARNING: input selector not available

It warns you to check the power connection or the power status of the RCVDS. Next message will appear immediately on the screen : 'go to stand-by'.

WARNING :

go to stand by

Projector will switch to 'stand-by'when the RCVDS is no longer available.

FAILURE RCVDS com- munication error

Serial communication error between RCVDS and projector.

WARNING: invalid frequency input

The entered frequency or applied frequency of the source is out of the projector's range.

FAILURE RWI communication error

Hardware failure. Call a qualified service technician.

WARNING: default settings loaded in the E2PROM

Adjustment settings are lost. Reload using Projector Control Software via PC or MAC (if this option is available), or readjust image.

FAILURE IRIS communication error

Communication error between IRIS and the projector. Call a qualified service technician.

table is deleted

Message to inform that selected table is deleted. This message will be followed by 'confirm message', on which the user has to answer.

WAIT starting up IRIS

Message during the start up of the IRIS. Message will disappear when the IRIS is ready to accept commands.

FAILURE invalid RWI soft version

Wrong software version in your projector. Call for technical support.

FAILURE

^2 C error addr. : 7FH3

Hardware failure. Call a qualified service technician for repair.

FAILURE short circuit on I²C bus

Hardware failure. Call a qualified service technician for repair.

OPTIONS

Hardwired RCU.

The control signals from the RCU can be sent to the projector via a wired connection.

Preparing your remote cable :

Use a shielded cable with a maximum length of 100 m and two mini-jack 3.5 mm connectors (order number : R3131991).

• Peel back the vinyl covering of the cable on both sides and twist the wire core.
• Solder a jack plug as shown in drawing above to each end of the cable.

shield = ground

conductor = data information

When the cable is ready, plug one side in the remote control and the other side in the connector on the rear of the projector labelled 'remote'.

Projector Control software

The software is user-friendly and makes full use of : mouse control, pull down menus and dialog boxes.

Two main applications are available with this software : remote control and transferring and receiving data of projector settings.

Remote Control Simulation. Advantage : address range 0 to 255.

Adjustment Data : Where can it be located when a IBM PC (or compatible) or MAC or Workstation is connected :

• Hard memory device with files of settings.
• The contents of the local memory of the computer.
• The contents of the projector.

RCVDS 05 Source Selector

An optional RCVDS05 makes it possible to connect up to 20 sources to the projector. When RCVDS's are linked via the expansion module, even 90 inputs can be connected to the projector.

The selected source number will be displayed on a 2 digit display and the selected input module will be indicated with a LED on the rear.

VS05 Switcher

Front view of a black electronic device labeled 'MOS' with control panel and indicator lights (no readable text beyond branding)

The VS05 is a versatile Video and HDTV source selector for all BARCO's digitally controlled large screen projectors. It offers the possibility to connect and switch up to 5 different Video sources, 3 different S-Video sources and 1 RGB Analog source to a BARCO projector. In addition, the audio signal proper to the source, can be switched to an audio amplifier.

MAGIK Interface

Open aluminum toolbox containing cables and a small electronic device (no visible text or symbols)

Multifunctional Analog Graphics Interface Kit.

BARCO's MAGIK interface allows the user to connect a presentation device such as a projector or a professional monitor to any computer with analog video signal with or without maintaining the connection with its own display. The MAGIK interface buffers and amplifies any RGB analog signal with TTL or analog sync without signal loss or image degradation.

The MAGIK can be delivered together with connection cables for PC, MAC, SUN or workstation in a nice handbag case.

Order numbers MAGIK with cables and case :

R9828120 (230V)

R9828129 (120V)

Order number MAGIK only :

R9828121 (230V)

R9828128 (120V)

Adapter and communication cables

BARCO provides several cables to connect peripheral equipment to the projector.

a. D9-D9 communication cable

• To connect an IBM PC (or compatible) to the projector.
• To connect a RCVDS05 to the projector.
• To connect a IR receiver to the RCVDS05 to the projector.
• To be used as extension cable for all other adapter cables.

Available length: 5 m (16ft), order number R982770; 15 m (50ft), order number R9827560; and 30 m (100ft), order number R9827570

b. Din Mini8-D9 adapter cable.

- To connect a Macintosh computer to the REALITY 812HS. Available length: 1 m (3,2 ft), order number R9827640.

c. D25-D9 adapter cable

- To connect a workstation to the REALITY 812HS. Available length : 1 m (3,2 ft), order number R9827630

d. 5 BNC to 5 BNC cable

- To connect an analog source to the BNC input of the projector Available length : 60 cm, order number R9828260

150 cm, order number R9828261

5 m, order number R9828262

15 m, order number R9828263

ADJUSTMENT BLOCKS AND SOURCE NUMBERS 90 - 99

Adjustment Blocks (memory blocks)

As the projector is digitally controlled, all geometry and convergence adjustments are stored in the projector's memory as numeric values. These numeric values are used to control digital potentiometers which in turn, control the projector. Each source connected to the projector has a unique set of adjustment data which is automatically downloaded into the projector's digital potentiometers once the source has been selected. This set of adjustment data is referred to as an "adjustment block".

An adjustment table is automatically created for a source when the source is first connected to the projector and the Adjustment mode is entered. If other sources have already been connected to the projector and geometry and convergence adjustments have been performed on these sources, the projector will use Linear Digital Interpolation to create a new block for the new source. This block will provide an initial set of adjustments for the new source that have been calculated by the projector from "previous experience".

The projector's memory has the capacity to store 32 adjustment blocks. The adjustment block consists of two parts, the block header and the data representing the values for all adjustments (eg. Convergence and Geometry) in the projector for the source the block corresponds to. The block header contains the basic characteristics of the source and the projector configuration used to display the source.

Block Header example of block header

Block Number 01

Source Number 01

Horizontal Frequency 15.6 kHz

Vertical Frequency 50 Hz

Input Type video

Scan Switch Configuration Front/Ceiling

The data representing the various adjustments for the source follows the block header.

Source numbers 90 - 99

Source numbers 90 - 99 do not correspond to physical inputs to the projector or RCVDS. They are used to assign an additional adjustment block to a source. This additional adjustment block may contain different geometry and convergence settings, sync fast/slow positions and enhanced blue on/off settings. The relationship between source numbers 0 - 9 and 90 - 99 (projector with RCVDS) or 1 - 5 and 91 - 95 (stand-alone projector) is shown in the diagram below.

The alternate adjustment block for sources 0 - 9 (projector with RCVDS) or 1 - 5 (stand-alone projector) is activated by selecting the corresponding source number 0 - 9 (projector with RCVDS) or 1 - 5 (stand-alone projector). Once this source number is selected, the alternate block of adjustment data is in use and may be modified via the adjust mode of the projector. The alternate adjustment block is automatically stored.

Follow the steps below to create a second adjustment block for a source between 0 and 9.

1. Select the source between 0 and 9 that the second adjustment block is to be created for.

2. Select the corresponding source number between 90 and 99. The adjustment block for the source number between 0 and 9 is copied to the corresponding source number between 90 and 99.

3. Enter the adjust mode and make any desired changes (geometry, convergence, sync fast/slow, enhanced blue on/off) to the second adjustment block.
4. Exit the adjust mode.

Note : the above also applies to source number 1 - 5 and 91 - 95 of a stand alone projector (no RCVDS)
