USER MANUAL C 516BEE NAD

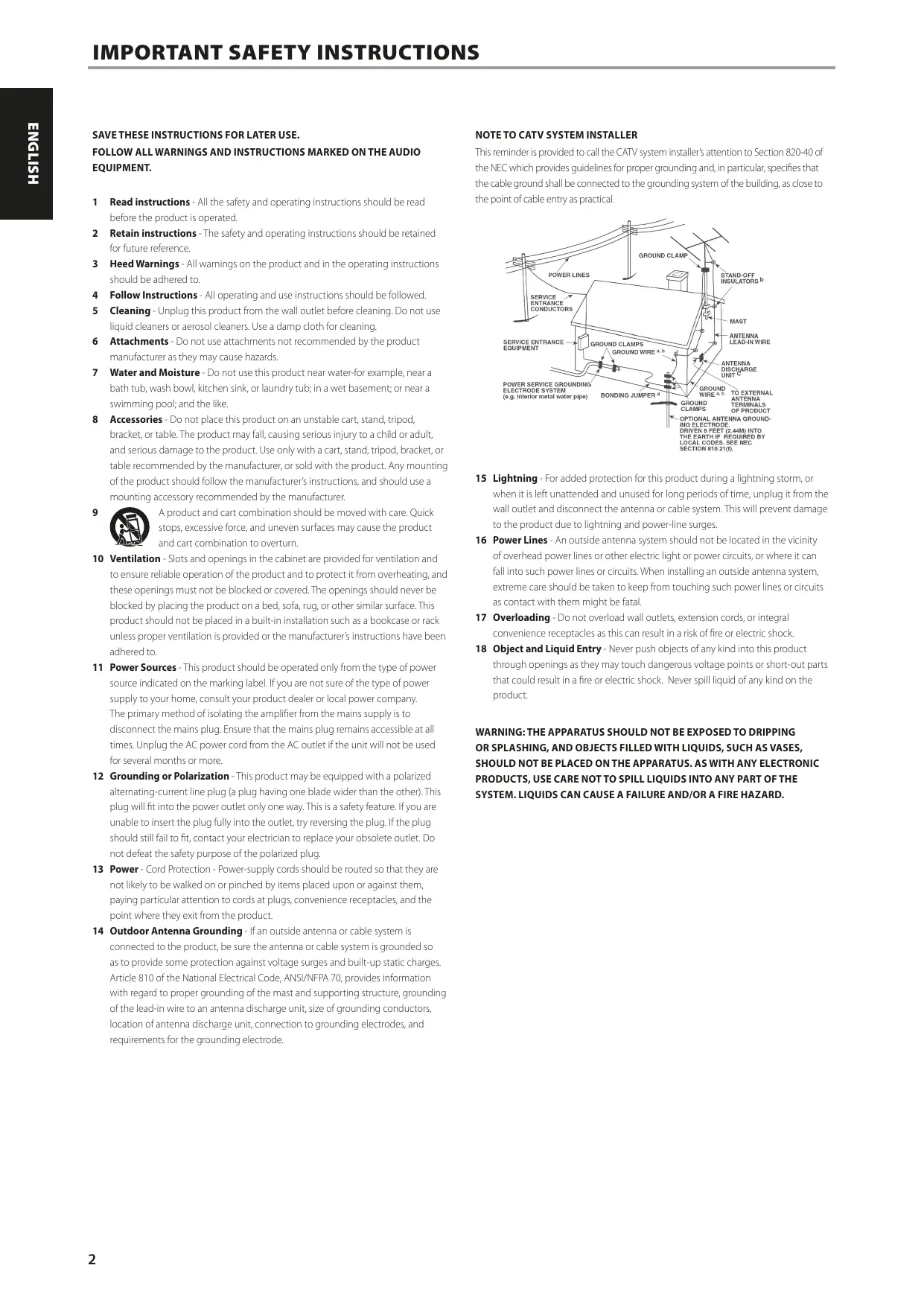

SAVE THESE INSTRUCTIONS FOR LATER USE. FOLLOW ALL WARNINGS AND INSTRUCTIONS MARKED ON THE AUDIO EQUIPMENT. 1 Read instructions All the safety and operating instructions should be read before the product is operated 2 Retain instructions - The safety and operating instructions should be retained for future reference. 3 Heed Warnings All wamings on the product and in the operating instructions should be adhered to.

4. Followinstructions - All operating and use instructions should be followed

5. Cleaning- Unplug this product from the wall outlet before cleaning. Do not use

liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 6 Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards

7. Water and Moisture - Do not use this product near water for example, near a

bath tub, wash boul, kitchen sink, or laundry tub;in a wet basement or near a swimming pool and the like. 8 Accessories - Do not place this product on an unstable cart, stand tripod, bracket, or table. The product may fall, causing serious injury to à child or adult, and serious damage to the product. Use onty with a cart, stand, ipod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting ofthe product should follow the manufacturers instructions, and should use a mounting accessory recommended by the manufacturer 9 A product and cart combination should be moved with care. Quick tops, excessive force, and uneven surfaces may cause the product 2 and cart combination to overtum. 10 Ventilation - Slots and opening in the cabinet are provided for ventilation and to ensure reliable operation ofthe product and to protect i from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a buil-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturers instructions have been adhered to, 11 Power Sources - This product should be operated only from the type of power source indicated on the marking label. you are not sure ofthe type ofpower suppl to your home, consult your product dealer or local power company. The primary method ofisolating the amplifier from the mains supply is to disconnect the mains plug. Ensure that the mains plug remains accessible at all times. Unplug the AC power cord frm the AC outlet the unit will not be used for several months or more. 12 Grounding or Polarization - This product may be equipped with a polarized altemating-current line plug (a plug having one blade wider than the other) This Plug will fi into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. IFthe plug should still fai to ft, contact your electrician to replace your obsolete outiet. Do not defeat the safety purpose of the polarized plug. 13 Power - Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product 14 Outdoor Antenna Grounding - fan outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 ofthe National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding ofthe lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

NOTETO CATV SYSTEM INSTALLER

‘This reminder is provided to callthe CATV system installers attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular specifls that the cable ground shall be connected to the grounding system ofthe building, as close to the point of cable entry as practical, ÉSteN \'anoumD we » RS otormo vale ppe) BONDNG AUNPERS | ÉSCTETS ightning - For added protection for this product during a lightning storm, or whenitis left unattended and unused for long periods oftime, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-lne surges. 16 Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fallinto such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. Overloading - Do not overload wall outiets, extension cords, or integral convenience receptacles as this can result in a risk offre or electric shock. Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spil liquid of any kind on the product

19 Damage Requiring Service - Unplug this product fiom the wall outiet and refer servicing to qualiied service personnel under the following conditions:

2) When the powersupply cord or plug is damaged.

b) liquid has been spilled, or objects have fallen into the product. d_Hfthe product has been exposed to rain or water. di Hfthe product does not operate normall by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and wil often require extensive work by a qualied technician to restore the product to its normal operation € Ifthe product has been dropped or damaged in any way. #1." when the product exhibits a distinct change in performance-this indicates à need for service 20 Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 21 Safety Check- Upon completion of any service or repairs to this product, ask the sendice technician to perform safety checks to determine that the product is in proper operating condition. 22 Wall or Ceiling Mounting - The product should be mounted to a wall or celing only as recommended by the manufacturer. 23 Heat-The product should be situated away from heat sources such as radiators, heat registers,stoves or other products (including ampliiers] that produce heat WARNING 10 REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NO RAIN OR MOISTURE.

POSE THIS PRODUCT TO

CAUTION 10 PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. CAUTION ‘The C SI6BEE employs a Laser System To ensure proper use of this product, please read this owners manual carefully and retain for future reference. Should the unit require maintenance, contact an authorized service location. Use of controls, adjustments or the performance of procedures other than those specified may result in exposure to laser radiation. To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when the enclosure is opened DO NOT STARE INTO BEAM. FCC NOTICE ‘This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates, uses and can radiate radio frequency energy and f not installed and used in accordance with the instructions, may cause harmfulinterference to radio communications. However there is no guarantee that interference wil| not occur in a particular installation. Fthis equipment does cause harmfulinterference to radio or television reception, which can be determined by tuming the equipment off and on, the useris encouraged to try to correct the interference by one or more of the following measures + Reorient orrelocate the receiving antenna + Increase the separation between the equipment and receiver. + Connect the equipment into an outlet on a circuit different from that to which the receiver is connected + Consult the dealer or an experienced radio/TV technician for help. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment.

INDUSTRY CANADA REQUIREMENT

This Class B digital apparatus meets all requirements ofthe Canadian Interference- Causing Equipment Regulations. (THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN L'TRIANGLE, IS INTENDED TO ALERT THE USER TO THE

QUALIFIED SERVICE PERSONNEL. The socket-outlet shall be installed near the apparatus and shall be easily accessible. CAUTION Changes or modifications to this equipment not expressiy approved by NAD Electronics for compliance could void the users authority to operate this equipment.

CAUTION REGARDING PLACEMENT

To maintain proper ventilation, be sure to leave a space around the unit (om the largest outer dimensions including projections) that is equal to or greater than shown below: Left and Right Panels: 10 cm Rear Panel: 10 cm Top Panel: 50 cm

Atthe end ofits useful fe, this product must not be disposed of with regular household waste but must be retumed to a collection point or the recycling of electrical and electronic equipment The symbol on the product, users manual and packaging, point this out: ‘The materials can be reused in accordance with their markings. ough re-use, recycling of ra materials or other forms of recycling of old products, you are making an important contribution to the protection of our environment. Your local administrative office can acbise you of the responsible waste disposal point INFORMATION ABOUT COLLECTION AND DISPOSAL OF WASTE BATTERIES (DIRECTIVE 2006/66/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL OF EUROPEAN UNION) (FOR EUROPEAN CUSTOMERS ONLY) Batteries bearing any of these symbols indicate that they should be treated as"separate collection" and not as municipal waste. lis encouraged that necessary measur Pb *erPhemenedin maine the separte colon of waste batteries and to minimize the disposal of batteries 25 mixed municipal waste. End-users are exhorted not to dispose waste batteries Hg Cd _ 2sunsorted municipal waste. In order to achieve a high level of recycling waste batteries, discard waste batteries separately and properly through an accessible collection point in your vicinity. For more information about collection and recycling of waste batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. By ensuring compliance and conformance to proper disposal of waste batteries, potential hazardous effects on human health is prevented and the negative impact of batteries and waste batteries on the environment is minimized, thus contributing to: the protection, preservation and quality improvement of the environment NOTE: THE C 516BEE IS NOT AN AUTO VOLTAGE CD PLAVER. CONNECT ONLY TO THE PRESCRIBED AC OUTLET, LE, 120V 60HZ OR 230V 50HZ. RECORD YOUR MODEL NUMBER (NOW, WHILE YOU CAN SEE IT) ‘The model and serial number of your newr C S16BEE are located on the back ofthe cabinet. For your future convenience, we suggest that you record these numbers here Model no. Serial no. NAD isa trademark of NAD ElectroniesInternation. Copyright 2012, NAD Ek à division ofLenbrook Industries Limited cranies International, a division of Lenbrack Industries Limited

UNPACKING AND SETUP 6

THANK YOU FOR CHOOSING NAD. The C S16BEE CD Player is a technologically advanced and highly capable product - yet we have invested great effort in making it simple and easy to use. We have been careful to ensure that the C S16BEE is as musically transparent and spatially accurate as possible, incorporating much of what wreve learned from over three decades of experience designing audio and home-theater components. As with all our products, NAD's*Music First design philosophy guided the C S16BEES design, such that it can confidentiy promise you both state-of-the-art and audiophile-quality music listening for years to come. We encourage you to take a few minutes now to read right through this manual. Investing a little time here at the outset might save you à good deal of time later, and is by far the best way to ensure that you make the most of your investment in the C S16BEE. One more thing:We urge you to register your C 516BEE ownership on the NAD Worldwide Web site: http/NADelectronics.com/salon For warranty information contact your local distributor.

Packed with your C S16BEE you will find + An audio cable connector + The CD 7 remote control with 2 (two) AAA batteries + This owners manual

Please save the box and all ofthe packaging in which your € S168£E arrived. Should you move or otherwise need to transport your C ST6BEE, this is by far the safest container in which to do so. Weve seen too many otherwise perfect components damaged in transit for lack of à proper shipping carton, so please: Save that box! CHOOSING À LOCATION Choose a location that is well ventilated (with at least several inches to both sides and behind), and that will provide a clear line of sight, within 25 feet/8 meters, between the C S16BEES front panel and your primary listening/viewing position. This will ensure reliable infrared remote control communications. The C S16BEE generates a modest amount of heat, but nothing that should trouble adjacent components. It is perfectly possible to stackthe C 516BEE on top ofother components.

NOTE ON INSTALLATION

IMPORTANT! Install the C S1ÉBEE Compact Disc player on a level, vibration- free surface. Severe vibration or operation in a tilted position may cause the player to mis-track. The player may be stacked with other stereo components, as long as there is adequate ventilation around it. Ifthe CS16BEE is placed in close proximity to a radio tuner (AM or FM), a VCR or a television set, the operation of its digital circuits may produce static that would interfere with reception of weak broadcast signals. IF this occurs, move the C 516BEE away from other devices or switch it off when viewing or listening to broadcasts. QUICK START In case you simply cannot wait to experience the performance of your new NAD C 516BEE, we provide the following “Quick Start" instructions to get you underweÿ. Please make all the connections to your € S16BEE with the unit unplugged His also advisable to power-down or unplug all associated components while making or breaking any signal or AC power connections. PLAY À CD Connect a twin RCA-to-RCA lead from the L (left) and R (right) Line Output jacks to the corresponding CD inputs on your amplifier. 2 Plugin the AC power cord 3 Pressthe POWER button to tu ON the player. 4 Press [OPEN/CLOSE] to open the disc drawer. 5 Place a CD, label side up, in the traÿ circular recess. Be certain thatthe disc is centered within the recess. Press [PLAY]. The drawer closes automatically, and the disc begins to Play. 7 Atany time you may press [SKIP bb or 6] to select different tracks on the disc. 8 Press [PAUSE] if you want to stop play temporarly while keeping the pickup at its current position on the disc. Press [PAUSE] again or [PLAY] when you want to resume playback. Press STOP if you want to end play and resetthe pickup to the beginning of the disc. OC)

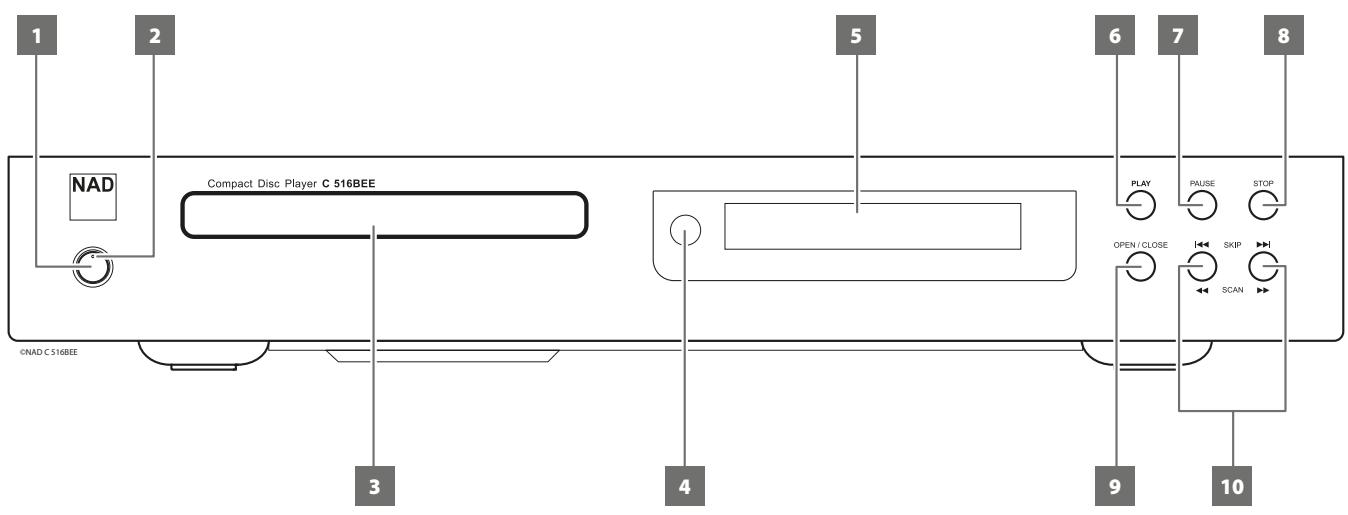

FRONT PANEL 1 POWER: Press this button to switch ON the C S16BEE, The Standby LED indicator will turn from amber to blue and illuminate the Vacuum Fluorescent Display (VFD). Pressing the power button again turns the unit back to standby mode: The C S16BEE can also be switched ON from standby mode by pressing IOPEN/CLOSE] or [PLAY] button on the front panel as well as on the remote control IFthe disc tray is open and the C S16BEE is powered OFF, the disc tray will draw close and the unit powered OFF. 2 INDICATOR: This indicator will light up amber when the C 516BEE is in standby state. When the C 516BEE is at ON state, this indicator will illuminate blue. 3 DISCTRAY: With the DISC TRAY open, insert a CD or other compatible media disc face down onto the traÿ. “No Disc'appears on the C 516BÈES VFD ifthe disc is placed upside down 4 REMOTE SENSOR: Point the CD 7 at the remote sensor and press the buttons. Do not expose the remote sensor ofthe CD 7 to a strong light source such as direct sunlight or ilumination. If you do so, you may not be able to operate the C 516BEE with the remote control Distance: About 23ft (7m) from the front of the remote sensor. Angle: About 300 in each direction of the front of the remote sensor. 5 VFD: The Vacuum Fluorescent Display (VFD) provides playback information, settings and other indicators. 6 PLAY: Press to start play or to resume play after Pause. Ifthe disc traÿ is open, press this button to automatically close the tray and start playback ifa disc is loaciedl 7 PAUSE: During playback press this button to stop playback temporal, keeping the optical pickup at its current position on the disc. To resume playback at the exact point where it stopped, press IPLAY] or [PAUSE] again. 8 STOP: Press the [STOP] button once to stop playback and re-set the pickup to the beginning ofthe disc. The display reverts to showing the number of tracks and total playing time on the disc. IFthe_C S16BEE was programmed to play a selection oftracks, the program will be retained in the players memory. Pressing [STOP] twice at program mode will delete the program 9 OPEN/CLOSE: Press this button to open and close the disc tray. When in standby, this button wil also power ON the C S16BÈE and at the same time open the disc tray. 10 SKIP/SCAN: Press 110 skip forward or Ho skip backward a track orflle. Press and hold bb or 44 for more than 2 secondk to search up or down a track. The SCAN #4 button causes the optical pickup to scan backwards through the recording at high speed. The SCAN > button causes the optical pickup to scan rapidly forward through the music.

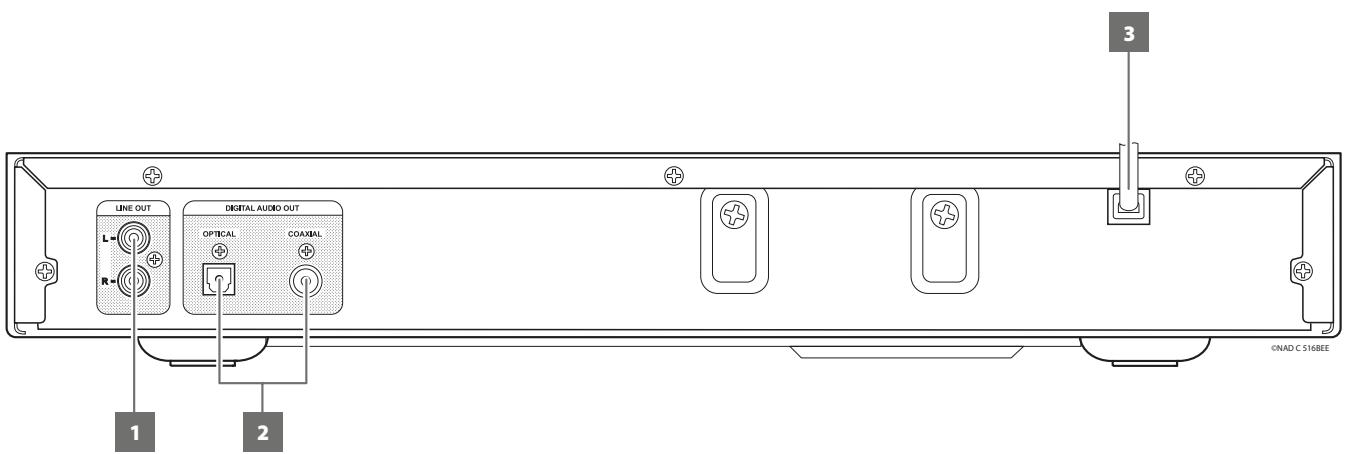

REAR PANEL S Te ATTENTION! Please make sure that the C 5 16BEE is powered off or unplugged before making any connections. is also advisable to power-down or unplug all associated components while making or breaking any signal or AC power connections. 1 LINEOUT: Connect to the corresponding analog audio input of an 3 ACPOWER CORD: Plug the AC power cord into a live AC wall socket. amplifier, receiver or stereo system: Make sure all connections have been made before connecting to the mains 2 DIGITAL OUT (COAXIAL, OPTICAL}: Connect the optical or coaxial digital OUT ports to the corresponding S/PDIF digital input of an amplifier receiver, computer soundcard or other digital processors.

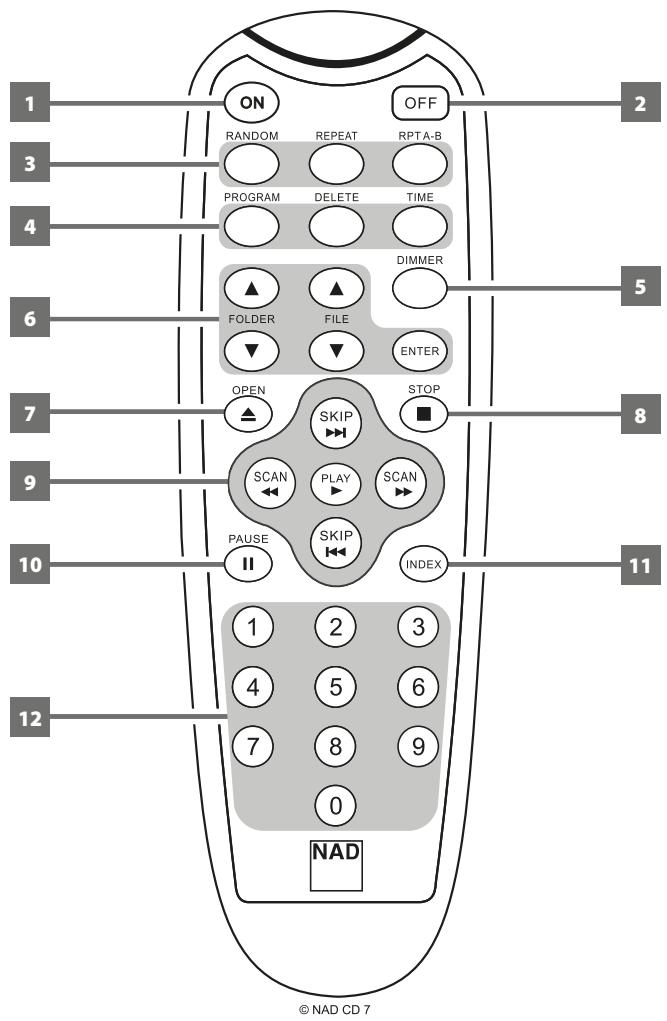

1 ON: Switches CD Player ON. 2 OFF: Switches CD player OFF. OFF. FU 3 RANDOM :Pky tracks in random mode | | RANEGV _REZEN RPIAS REPEAT : Repeat track, file or whole disc. RPT A-B : Repeat sequence.

DELETE : Clears programmed track. TIME : Toggle to show timer and information details of the current track or MP3/WMA file. Oje Oje. 5 DIMMER: Toggle to reduce, turn off or restore VFD brightness. FOLDER : Toggle between folder lists © FILE : Scroll through WMA or MP3 filles. ENTER : Starts playback of MP3 or WMA file.

OPEN :Opens and closes disc tray. 8 STOP: Stops playback. SKIP»»1 : Go to next track or file. SKIP H#4: Go to beginning of current track/fle or to previous track/fle SCANR> : Press for fast forward search SCAN 44: Press for fast reverse search PLAY : Starts playback CXCXE) CXELCXS)

10 PAUSE : Pauses playback temporal. 11 INDEX : Playback can be started from any desired index number 12 Number buttons 0-9 : Direct-entry of track or file number. eNDco7

The C 516BÈE can play back CD-R or CDRW audio discs that have been recorded on à computer or CD recorder. The quality of CD-R, CD-RW audio discs varies widely which may affect playability Some factors that affect playability + The quality ofthe disc itself Generally speaking, CD-R, CD-RW blanks from welk-renowned companies give better results than unbranded ones + The quality of CD-recorder or computer CD re/writer. Some recorders and writers produce better results than others. +__ The CD-R and CD-RW were created with high-speed writing. In general, the quality of a CD-R or CD-RW is better when produced at a lower speed against a higher speed on the same recorder or re/writer.

PLAYING MP3/WMA FILES

The C 516BÈE can play MP3/WMA formatted recordings on CD-R or CD-RW discs. You may mix any ofthe file types on the disc. Using the CD 7 remote control, one can select through the MP3AWMBA folders and files as well as start playback through the following steps 1 Load the applicable disc. 2 Press [FOLDER A/W] to select desired folder. Press [ENTERI] 3 Press [FILE A/W] to select desired file number. You must be at STOP or playback mode to access both folders 4 Press [ENTER] to start playback. For each file type being played, the CS16BEE will display the file type at the VFD and a corresponding icon atthe VFD. Information about the Song Title, Album and Artist name, if available, wall scroll through the VFD during playback NOTES + Thefle numbers recognized per disc, not per folder - that is, the number assigned to each file corresponds to their sequence in the dis. Ifyou want to select file number "9" in a disc where there are 100 or more MP3/WMA files, press “0” twice and then “9:" PROGRAMMING The program function enables you to store your favorite tracks from any disc in the player memory. When programming a sequence of tracks, the C516BÈE must be in STOP mode. Using the CD 7 remote control, enter your desired program sequence through the following steps 1 Press [PROGRAM] The display indicates*PO1 T00". The “00"in the*TO0" keeps on blinking, meaning that the player is awaiting the fist Program entry. 2 Use the Direct-Entry numeric keypad buttons to enter the first track in your planned sequence. Upon entering the track number, the VFD will briefly shows the total number and total time of the currentiy programmed tracks like*TTL O1 3:25" 3 The display will revert to show“P02 TOO’ indicating that the player is ready for your second program entry. Upon entering the second track, the VFD will again briefly show the total number and total time ofthe currently programmed tracks like “TTL O2 6:45"-*TTL 02"indicates that there are now a total of two programmed tracks and*6:45"is the total playback time of both programmed tracks. 4 Repeat steps 2 and 3 to select and store other track numbers in memory, up to à maximum of 40 entries. If you attempt to program more than 40 tracks or fles,“P-FULL'wéll be displayed in the VFD. 5 Press [PROGRAM] to end or finalize the program - the VFD will show the last programmed number and track. 6 Press to start program playback

NOTES + Theprocedure for programming MP3/WMA iles is the same as above with an exception at step 2 and 3 the total number ofprogrammed files and total playback time will not be displayed during programming. Ifyou want to select file number “9"in a disc where there are 100 or more MP3/WMA files, press 0" twice and then "9" Pressing STOP key at any time during the programming procedure will put to a STOP the sequence and clear allthe currently programmed tracks or files. VFD will revert back to displaying the total number of tracks and total playback time for audio CD and total number offiles for MP3/WMA. Pressing STOP key twice during program playback will result to having the whole program list deleted.

REVIEW / EDIT PROGRAM LIST

1. initiate review or edit of your program entries through either of the

following initial steps + Ifyou are stillin programming mode, press [PROGRAM] + lduring program playback, press [STOP] once then [PROGRAM]

2. TheVFD will show the first Program Number and the corresponding

“blinking' programmed track 3 To change the programmed track of a particular sequence, use the Direct-Entry numeric keypad buttons. Press [SKIP #1 or éd to move forward or backward the programmed tracks as well as review the list and change if so desired 4 Ifyou want to delete a particular program sequence during program review, press [DELETE] key.

5. After finalizing your program changes or completing your reviews press

[PROGRAM] again. PROGRAM PLAYBACK 1 To play the stored program, press [PLAY] while you are in “PROGRAM” mode. "PROG" icon will appear in the display, indicating that a stored program is being played. During Program Play, the SKIP buttons will access only the tracks in the program list.

2. lfyouwant to play only a portion of a stored program, initiate play and

press SKIP to jump over the programmed tracks that you don't want ta hear.

STOP OR DELETE PROGRAM

1 To terminate Program play, press [STOP] once. The stored track list remains in memory. If you want to play the program again, simply press [PLAY]

2. To clearthe program memory, perform any of the following steps

+ Press [STOP] twice during program playback + Press [OPEN to open the disc tray. + SwitchOFF the power.

OPERATION Awireless remote control is provided with your compact disc player, enabling you to operate playback functions from the comfort of your chair or from virtually anywhere in the room. For reliable operation there should be a clear line-ofsight path from the remote control to the front of the CD player IFthe player does not respond to remote commands, it may be that this line-of-sight path is obstructed by clothing, paper, or furnishings. Most ofthe buttons on the remote control handset have the same effect as the corresponding buttons on the front panel ofthe player. In addition, the handset is equipped with some extra buttons like the following function keys.

Using the direct-entry numeric keypad (0 to 9) causes the C S16BEE to jump directly to the beginning of a numbered track and commence play. Thus, to play Track 5, simply press “5 To play Track 20, press "2' and ‘0° REPEAT To repeatthe playback of a particular track or file, press the CD 75 REPEAT] key once. Toggle the [REPEATI key to repeat all the tracks, files, folder (blinking) or until repeat mode is turned OFF. REPEAT A-B To repeat a sequence, implement the following procedures. 1 Press [RPT AB] at your chosen starting point.

2. Press [RPT À-B] again at your chosen end point. The repeat sequence

begins. 3 Press [RPT A-BJ again to cancel the sequence. RANDOM Press [RANDOM] key during playback or stop mode. Playback of the first random selected track or file automatically begins. À corresponding “RANDOM'icon is illuminated at the VFD. Press [RANDOM] again to return to normal playback DIMMER Toggle to reduce, turn off and restore VFD brightness.

USING THE CD 7 REMOTE CONTROL

TIME Toggle to display the following disc information during playback. INFORMATION Elapsed time ofthe current track

v - Remaining time ofthe current track Total playhacktime ofthe disc

Comment NOTES + Some information may not be displayed on some discs. Display is dependent on the disc information content. Information about the Song Title, Album and Artist name, if available, will scroll through the VFD during playback. 1fthe file has no available information about the artist or album, the display will show “No artist” or “No album" For audio CD, the default information display is the elapsed time ofthe current track. INDEX The index system is a method of subdividing tracks into smaller divisions for easier location of those parts. IFa disc includes index numbers, playback can be started from any desired index number through the following steps 1 Press [INDEX] during playback.

ROUBLESHOOTING CONDI No power. The power is on, but the C S16BEE does not work. The C 516BEE does not start playback. No sound. Sound skips. The remote control does not work properly. POSSIBLE CAUSES + The power cord is disconnected + No discis inserted. + The disc is loaded upside down: + The disc is too dirty. + The equipment connected with the audio cable is not set to receive CD signal output. + The power of the equipment connected with the audio cable is turned off. + The C 516BEE is subject to vibration or physical shock from external sources. + The remote control is not pointed at the remote sensor on the CD player. + The remote control is too far from the CD player. + The remote control batteries are dead. POSSIBLE SOLUTIONS + Plug the power cord into the wall outlet secureby. + Insert a disc. + Reload the disc with the label side UP. + Clean the disc. + Select the correct input mode of the audio receiver so you can listen to the sound from the C SI6BEE. : Turn on the equipment connected with the audio cable. + Change the installation location: + Point the remote control at the remote sensor ofthe CD player. + Operate the remote control closer to the CD player. + Replace the remote control batteries

HANDLING DISCS Do not touch the playback side ofthe disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc. STORING DISCS After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in à parked car exposed to direct sunlight.

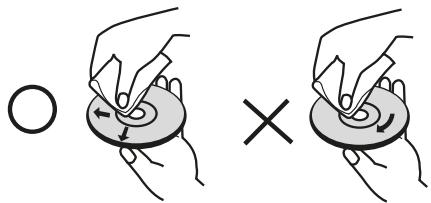

CLEANING DISCS from the center out.

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth, Wipe the disc

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records

REFERENCE GENERAL PARAMETERS Output level Frequency response ‘Total harmonic distortion Signal/Noise ratio Channel balance Channel separation De-emphasis Linearity Standby poer Idle power

DIMENSION AND WEIGHT

Unit Dimensions (W x H xD) Net weight Shipping weight *_- Gross dimensions include feet, extended buttons and rear panel terminals SPECIFICATIONS 2.2#0.1V (Analog)

-3.73 to -5.33 dB (ref. dB 1kHz, 5 kHz) -8.04 to -10.04 dB (ref. dB 1kHz, 16kH2) -3 20.01 dB (ref. OdB 1 kz at -3 dB)

60.02 dB (ref. OdB 1 kHz at -6 dB)

-10 +0.02 dB (ref. OdB 1 kHz at -10 dB) -20 +0.05 dB (ref. OdB 1 kHz at -20 dB) -60 +0.15 dB (ref. OdB 1 kHz at -60 dB) <05W <80W 435x70x249 mm (Gross)* 17 x 23/X9 8heinches 35kg(7.7Ibs)

Specifications are subject to change without notice. For updated documentation and features, check out wwNADelectronies.com for the latest information about C SI6BEE.
