INTRODUCTION

Safety precautions 2

Before use 4

Symbol used in this Manual 4

About the (S) Symbol Display 4

Notes on Discs 4

Types of Playable Discs 5

Disc-related terms 6

Front Panel and Display Window 7

Rear Panel 8

Remote Control 9

INSTALLATION AND SETUP

Connections 10

Setting up the Player 10

DVD Player Connections 10

Audio Connection to Optional Equipment 11

Before operation 11

On-Screen Display 12

Initial Settings 13

Language. 13

Display. 13

AUDIO 14

Others 15

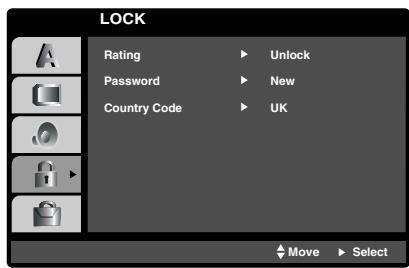

LOCK (Parental Control) 16

OPERATION

Operation with DVD and Video CD 17

Playing a DVD or Video CD 17

General Features 17

Special DVD Features 19

DVD Audio Discs 20

Operation with Audio CD and MP3 / WMA Disc .21

Playing an Audio CD or MP3/WMA Disc 21

Audio CD and MP3 / WMA Disc Features 22

Programmed Playback 23

Operation with JPEG Disc 24

Viewing a JPEG Disc 24

Operation with a DVD VR format Disc 25

Maintenance and Service 25

Operation with a DivX Movie Disc 26

Additional Information 27

Additional Features 27

Speaker Setup 28

REFERENCE

Troubleshooting 29

Table of Languages and their Codes 30

Country Codes List 31

Specifications 32

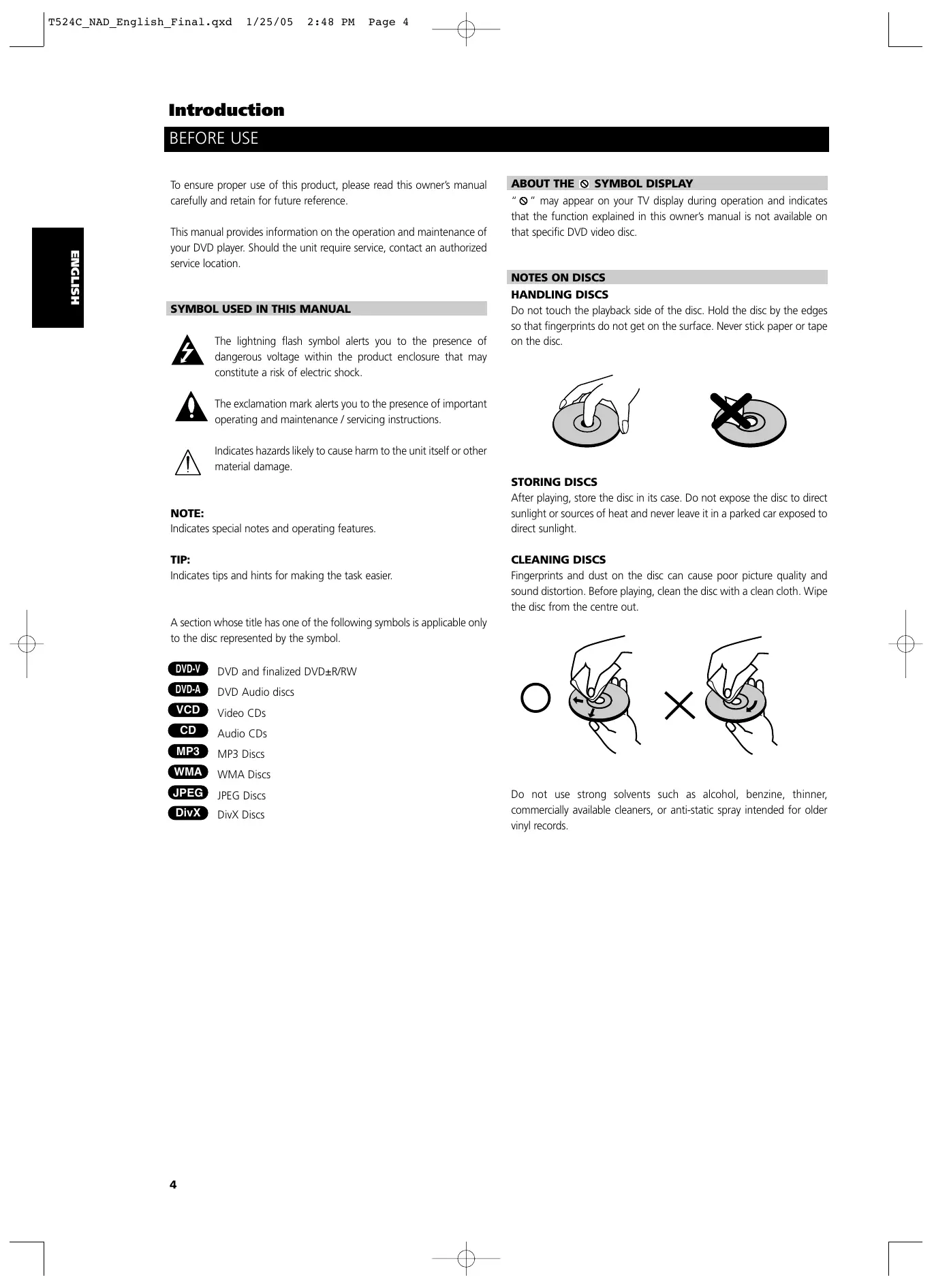

BEFORE USE

To ensure proper use of this product, please read this owner's manual carefully and retain for future reference.

This manual provides information on the operation and maintenance of your DVD player. Should the unit require service, contact an authorized service location.

SYMBOL USED IN THIS MANUAL

The lightning flash symbol alerts you to the presence of dangerous voltage within the product enclosure that may constitute a risk of electric shock.

The exclamation mark alerts you to the presence of important operating and maintenance / servicing instructions.

Indicates hazards likely to cause harm to the unit itself or other material damage.

NOTE:

Indicates special notes and operating features.

TIP:

Indicates tips and hints for making the task easier.

A section whose title has one of the following symbols is applicable only to the disc represented by the symbol.

DVD-V

DVD and finalized DVD±R/RW

DVD-A

DVD Audio discs

VCD

Video CDs

CD

Audio CDs

MP3

MP3 Discs

WMA

WMA Discs

JPEG

JPEG Discs

DivX

DivX Discs

ABOUT THE SYMBOL DISPLAY

" ^ may appear on your TV display during operation and indicates that the function explained in this owner's manual is not available on that specific DVD video disc.

NOTES ON DISCS

HANDLING DISCS

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc.

STORING DISCS

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.

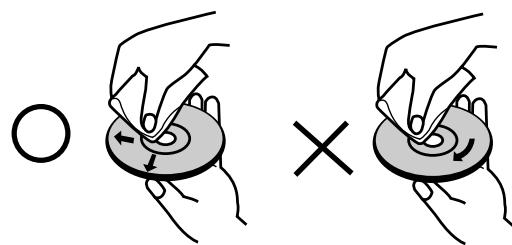

CLEANING DISCS

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the centre out.

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

TYPES OF PLAYABLE DISCS

DVD (8 cm / 12 cm disc)

DVD audio discs (8 cm / 12 cm disc)

Video CD (VCD)
(8 cm / 12 cm disc)

Audio CD (8 cm / 12 cm disc)

In addition, this unit plays DivX file, DVD -R, DVD +R, DVD -RW, DVD +RW, SVCD and CD-R / CD-RW that contains audio titles, MP3, WMA, and/or JPEG files.

RW

COMPATIBLE

This indicates a product feature that is capable of playing DVD-RW discs recorded with Video Recording format.

NOTES

• Depending on the conditions of the recording equipment or the CD-R/RW (or DVD -R, DVD +R, DVD -RW, DVD +RW) disc itself, some CD-R/RW (or DVD -R, DVD +R, DVD -RW, DVD +RW) discs cannot be played on the unit.
• Do not attach any seal or label to either side (the labelled side or the recorded side) of a disc.
• Do not use irregularly shaped CDs (e.g., heart-shaped or octagonal) since they may result in malfunctions.

NOTES ON DVDS AND VIDEO CDS

Some playback operations of DVDs and Video CDs may be intentionally programmed by software manufacturers. This unit plays DVDs and Video CDs according to disc content designed by the software manufacturer, therefore some playback features may not be available or other functions may be added.

MANUFACTURED UNDER LICENCE FROM DOLBY LABORATORIES. "DOLBY", "PRO LOGIC", "MLP LOSSLESS", AND THE DOUBLE-D SYMBOL ARE TRADEMARKS OF DOLBY LABORATORIES.

DTS AND DTS DIGITAL OUT ARE TRADEMARKS OF DIGITAL THEATER SYSTEMS, INC.

REGIONAL CODE

This DVD player is designed and manufactured for playback of region "2" encoded DVD software. This unit can play only DVD discs labeled "2" or "ALL".

NOTES ON REGIONAL CODES

• Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your DVD player's regional code or the disc cannot play.
• If you try to play a DVD with a different region code from your player, the message "Check Regional Code" appears on the TV screen.

DISC-RELATED TERMS

DVD ±R / DVD ±RW

DVD -R and DVD +R are two different standards for recordable DVD drives and discs. This format allows information to be recorded onto the DVD disc only once. DVD +RW and DVD -RW are two standards for re-writeable media, meaning the DVD content can be erased and re-recorded. Single-sided discs can hold 4.38 Gigabytes and double-sided discs hold twice as much. There are no dual layer single sided recordable discs.

VCD (VIDEO CD)

A VCD holds up to 74 minutes (650 MB disc) or 80 minutes (700 MB disc) of MPEG-1 full-motion video along with quality stereo sound.

MPEG

MPEG is an international standard for video and audio compression. MPEG-1 is used in encoding video for VCD and provides for multichannel surround sound coding such as PCM, Dolby Digital, DTS and MPEG audio.

MP3

MP3 is a popular compression format used for digital audio files that yields very high near-CD quality.

WMA

Windows media audio file. A type of coding / decoding developed by Microsoft Corp.

JPEG

Joint Pictures Expert Group. JPEG is a compressed file format that allows you to save images with no limit on the number of colors.

DIVX

DivX is the name of a revolutionary new video codec which is based on the new MPEG-4 compression standard for video. You will be able to play DivX movies using this DVD player.

PBC: PLAYBACK CONTROL (VIDEO CD ONLY)

Playback control is available for Video CD (VCD) version 2.0 disc formats. PBC allows you to interact with the system via menus, search functions, or other typical computer-like operations. Moreover, still pictures of high resolution can be played if they are included in the disc. Video CDs not equipped with PBC (Version 1.1) operate in the same way as audio CDs.

TITLE (DVD VIDEO DISCS ONLY)

A title is generally a distinct section of a DVD disc. For example the main feature could be title 1, a documentary describing how the film was made could be title 2, and cast interviews could be title 3. Each title is assigned a reference number enabling you to locate it easily.

CHAPTER (DVD VIDEO DISCS ONLY)

A chapter is a segment of a title such as a scene in a film or one interview in a series. Each chapter is assigned a chapter number, enabling you to locate the chapter you want. Depending on the disc, chapters may not be recorded.

GROUP (DVD AUDIO DISCS ONLY)

The main audio content or accompanying feature content or additional feature content, or music album. Each group is assigned a group reference number enabling you to locate it easily.

SCENE (VCD)

On a video CD with PBC (playback control) functions, moving pictures and still pictures are divided into sections called "scenes". Each scene is displayed in the menu screen and assigned a scene number, enabling you to locate the scene you want. A scene is composed of one or several tracks.

TRACK

A distinct element of audiovisual information, such as the picture or sound track for a specific language (DVD), or a musical piece on a video or audio CD. Each track is assigned a track number, enabling you to locate the track you want. DVD discs allow one track of video (with multiple angles) and several tracks of audio.

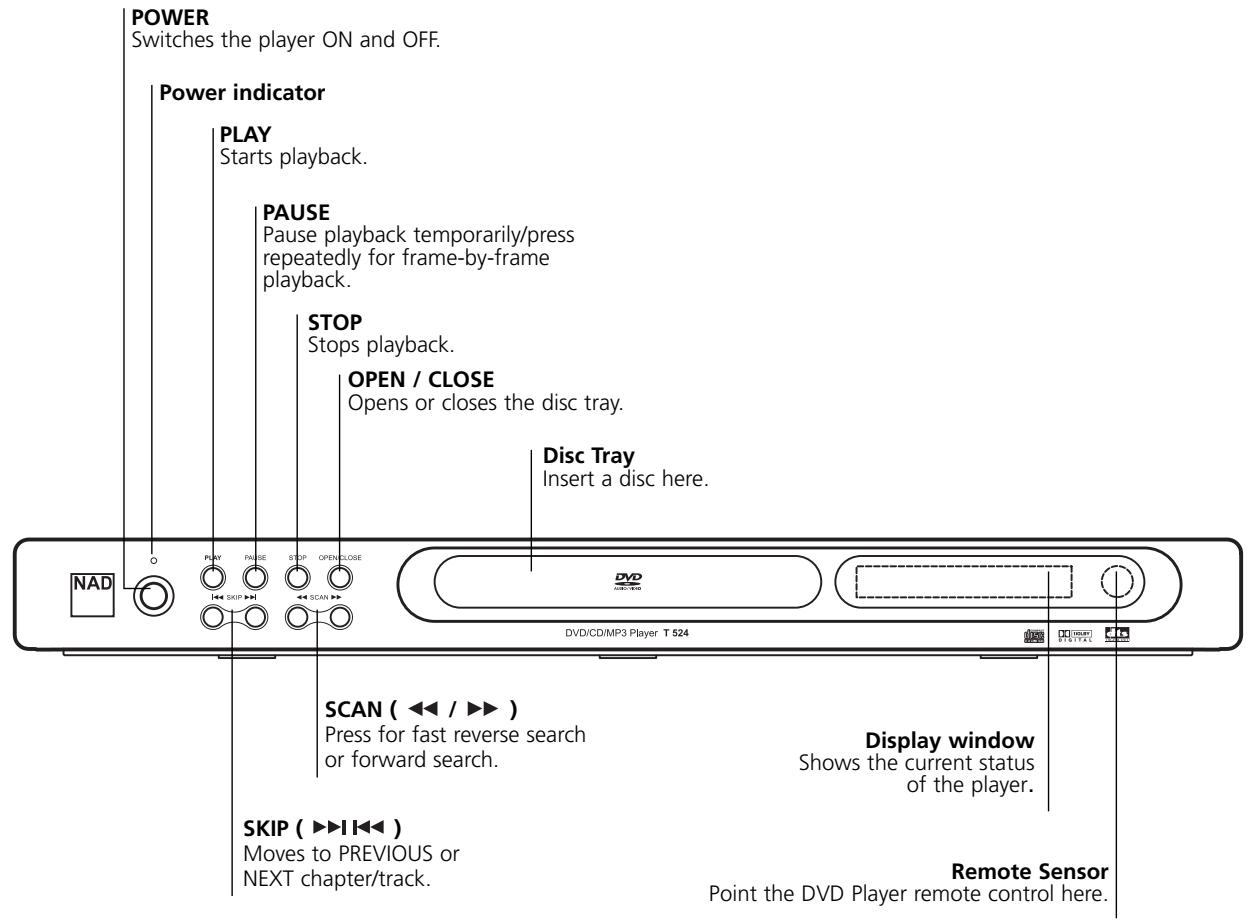

Front Panel

Display Window

Indicates current player function (Play, Pause)

DVD DVD inserted

DVD A DVD Audio disc inserted

CD Audio CD inserted

VCD Video CD inserted

SVCD Super Video CD inserted

MP3 MP3 or WMA disc inserted

CHP/TRK

Indicates current chapter or track number

ACB,ALL Indicates repeat mode

Indicates encoding DTS and Dolby digital of the current disc.

Indicates total playing time/Elapsed time

SVCD DVD ACHP

MP3

CD:TRK

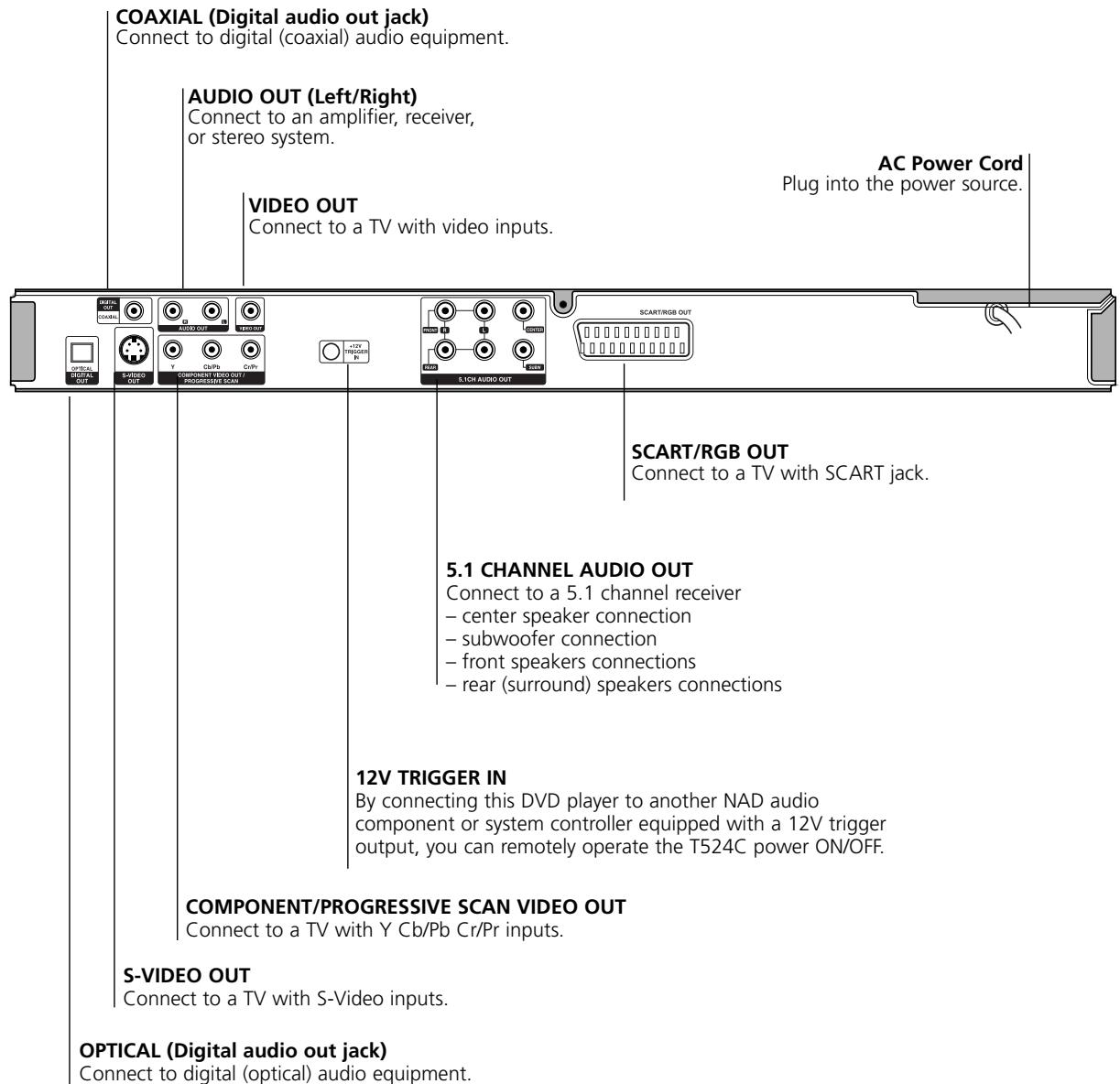

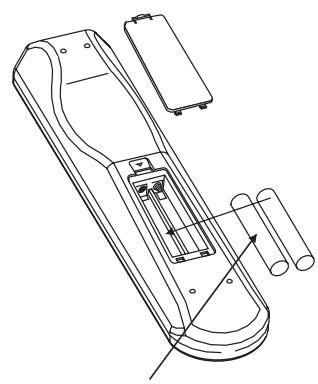

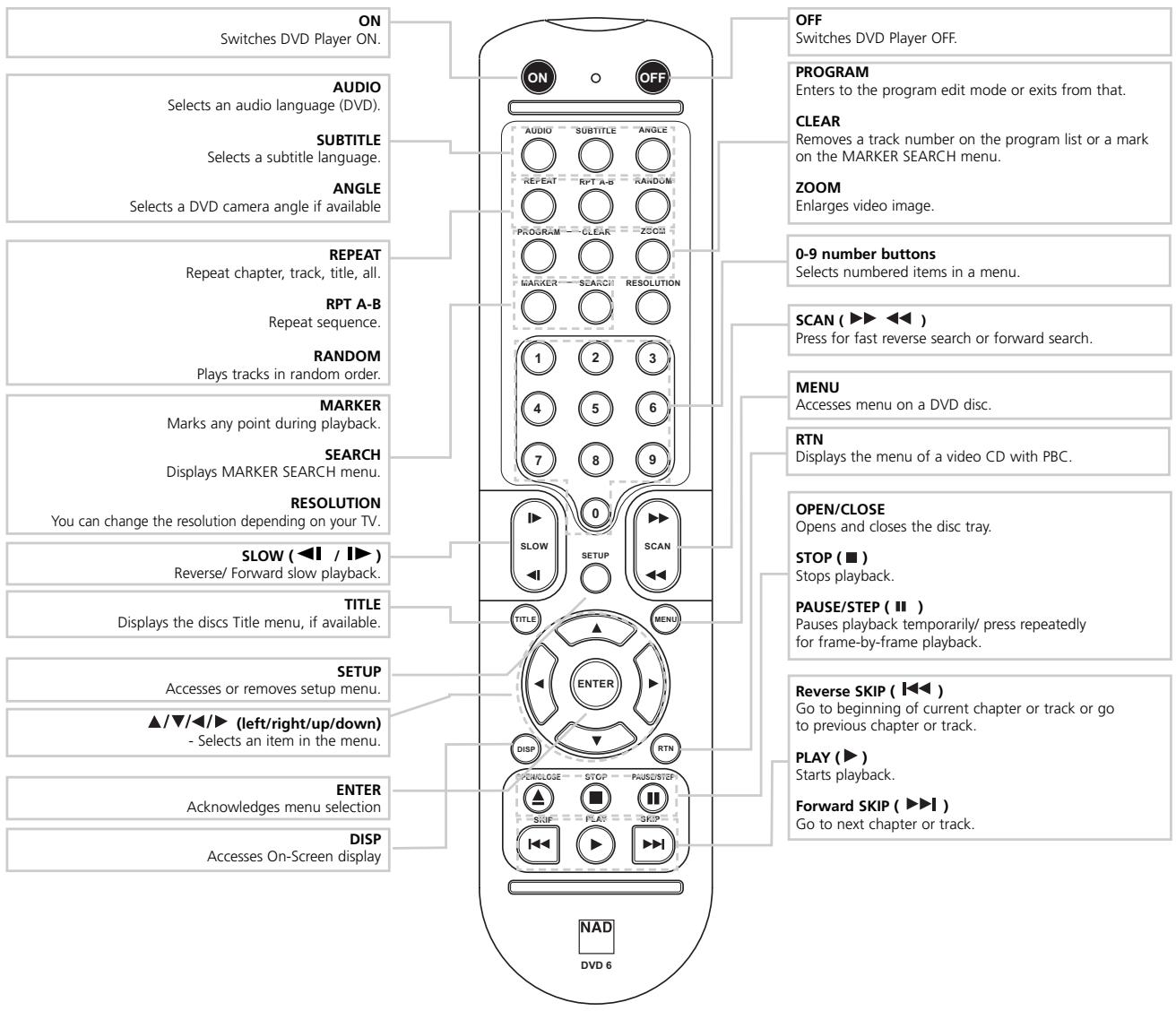

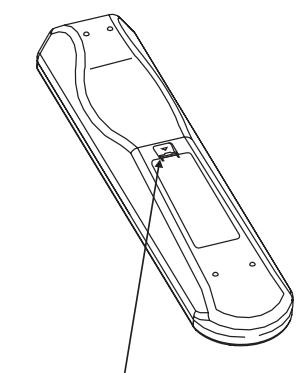

PRESS IN AND LIFT TAB TO REMOVE BATTERY COVER OUT FROM RECESS

PLACE BATTERIES INTO OPENING.ENSURE THE CORRECT POLARITY IS OBSERVED

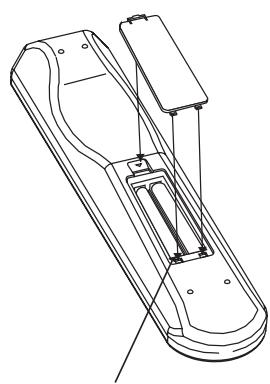

REPLACE BATTERY COVER BY ALIGNING AND INSERTING THE TWO TABS INTO THE HOLES.
PRESS BATTERY COVER INTO PLACE UNTIL IT 'CLICKS' CLOSED

CONNECTIONS

SETTING UP THE PLAYER

The picture and sound of a nearby TV, VCR, or radio may be distorted during playback. If this occurs, position the player away from the TV, VCR, or radio, or turn off the unit after removing the disc.

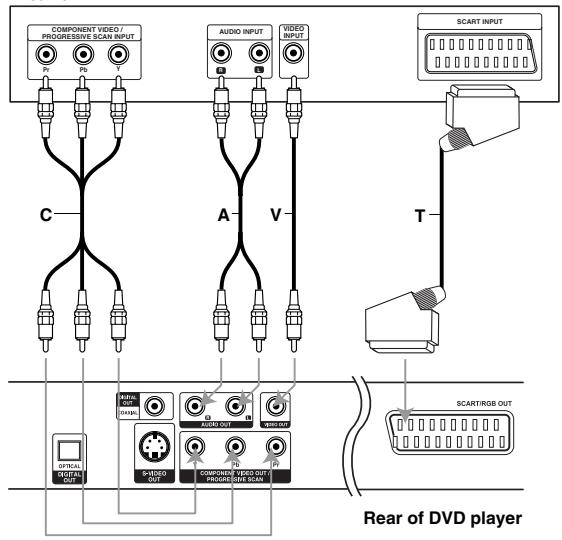

DVD PLAYER CONNECTIONS

Depending on your TV and other equipment there are various ways you can connect the player. Please refer to the manuals of your TV, stereo system or other devices as necessary for additional connection information.

Rear of TV

CAUTION

You must set the TV Output Select option to use COMPONENT Video OUT/PROGRESSIVE SCAN and SCART jacks. (See "TV Output Select" on page 14.)

Video and Audio Connections to Your TV

Make sure the DVD player is connected directly to the TV and not to a VCR, otherwise the DVD image could be distorted by the copy protection system.

Video

Connect the VIDEO OUT jack on the DVD player to the video in jack on the TV using the video cable (V).

SCART connection

Connect the TO TV SCART jack on the DVD Player to the corresponding in jacks on the TV using the SCART cable (T).

Component Video (Color Stream®)

Connect the COMPONENT VIDEO OUT/PROGRESSIVE SCAN jacks on the DVD Player to the corresponding in jacks on the TV using an Y Pb Pr cable (C).

PROGRESSIVE SCAN (COLORSTREAM® PRO):

• If your television is a high-definition or "digital ready" television, you may take advantage of the DVD Player's progressive scan output for the highest video resolution possible.
• If your TV does not accept the Progressive Scan format, the picture will appear scrambled if you try Progressive Scan on the DVD Player.

NOTES

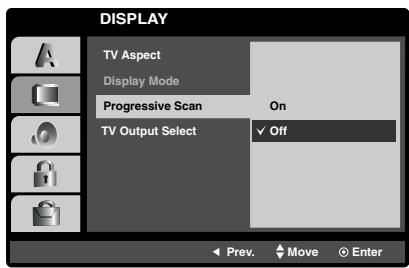

• Set the Progressive to "On" on the setup menu for progressive signal, see page 14.
• Set the progressive to "Off" by removing any disc from the unit and close the disc tray. See that "no disc" is displayed on the display window. Then press STOP and hold it for five seconds before releasing it.
• Progressive scan does not work with the analogue video connections (yellow VIDEO OUT jack).

Audio Connection to Your TV:

Connect the left and right AUDIO OUT jacks of the DVD Player to the audio left and right IN jacks on the TV (A) using the audio cables. Do not connect the DVD Player's AUDIO OUT jack to the Phono In jack (record deck) of your audio system.

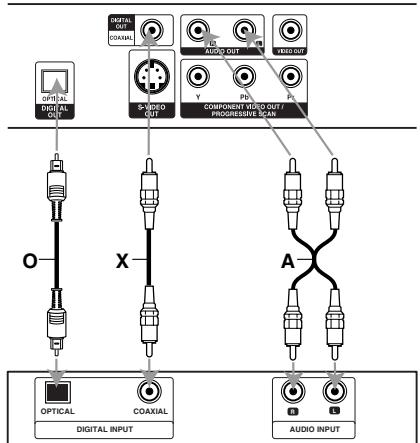

AUDIO CONNECTION TO OPTIONAL EQUIPMENT

Connect the DVD player to your optional equipment for audio output.

Rear of DVD player
Amplifier (Receiver)

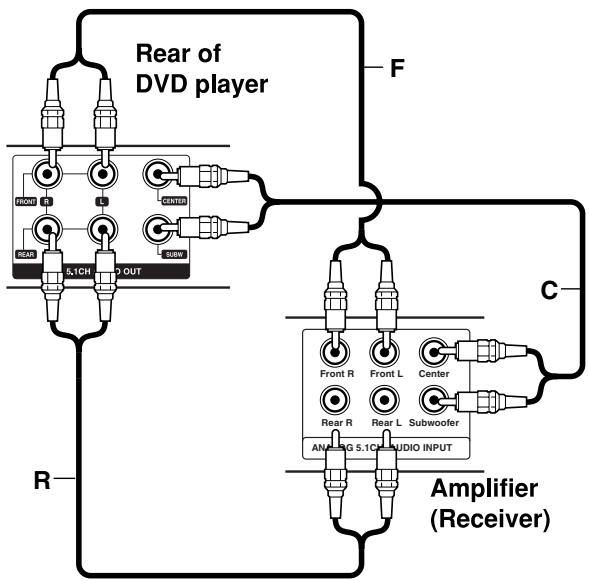

Amplifier equipped with 2-channel analogue stereo or Dolby Pro Logic II / Pro Logic

Connect the left and right AUDIO OUT jacks on the DVD player to the audio left and right IN jacks on your amplifier, receiver, or stereo system, using the audio cables (A).

Amplifier equipped with 2-channel digital stereo (PCM) or audio / video receiver equipped with a multi-channel decoder (Dolby Digital™, MPEG 2, or DTS)

1 Connect one of the DVD Player's DIGITAL AUDIO OUT jacks (OPTICAL O or COAXIAL X) to the corresponding in jack on your amplifier.
2 Use an optional digital (optical O or coaxial X) audio cable.

DIGITAL MULTI-CHANNEL SOUND

A digital multi-channel connection provides the best sound quality. For this you need a multi-channel audio / video receiver that supports one or more of the audio formats supported by your DVD player such as MPEG 2, Dolby Digital and DTS. Check the receiver manual and the logos on the front of the receiver.

NOTES

• If the audio format of the digital output does not match the capabilities of your receiver, the receiver produces a strong, distorted sound or no sound at all.
• Six Channel Digital Surround Sound via a digital connection can only be obtained if your receiver is equipped with a Digital Multi-channel decoder.
• To see the audio format of the current DVD in the on-screen display, press AUDIO.

Analogue connection to a multi-channel A/V receiver with 6 Channel connectors (Dolby Digital)

1 This DVD Player contains a multi-channel decoder.
2 This enables playback of DVDs recorded in Multi-channel Surround without the need for an optional decoder.

Make the appropriate Sound settings for Analogue Output and Speaker Settings in the setup menu. See page 28.

BEFORE OPERATION

ON-SCREEN DISPLAY

You can display the general playback status on the TV screen. Some items can be changed using the menu. To use the on-screen display:

1 Press DISPLAY during playback.
2 Press / to select an item. The selected item is highlighted.
3 Press to change the setting. You can also use the number buttons if appropriate (e.g. inputting the title number). For some functions, press ENTER to execute the setting.

NOTES

Some discs may not provide all of the features shown below.
- If no button is pressed for 10 seconds, the on-screen display disappears.

PLAYBACK STATUS/RESTRICTIONS

Repeat title

Repeat sequence

Enter a Marker

Marker Search menu

Resume play from this point

Action prohibited or not available

Example: On-Screen Display during playing DVD Video

Items		Selection Method
Title Number	1/3	▲/▼ ▲/▲, Numbers ENTER
Chapter Number	1/12	▲/▼ , Numbers ENTER
Time search	0:20:09	Numbers, ENTER
Audio language and Digital Audio Output mode	1 ENG 1 ENG 3/2.1CH	▲/▼ or AUDIO
Subtitle language	1 ENG	▲/▼ or SUBTITLE
Angle	1/3	▲/▼ or ANGLE
Sound	3D SUR	▲/▼

Example: On-Screen Display during playing VCD

Items		Selection Method
Track Number (or PBC mode)	1/3	▲/▲, Numbers ENTER
Time search	0:20:09	Numbers ENTER
Audio Channel	Stereo	▲/▲ or AUDIO
Sound	3D SUR	▲/▲

Example: On-Screen Display during playing DivX movie disc

Items		Selection Method
Track Number	1/3	Numbers, ENTER
Time search	0:20:09	Numbers, ENTER
Audio language and Digital Audio Output mode	1 MP3 2/0 CH	AUDIO
Subtitle language	1 ENG	SUBTITLE
Sound	3D SUR

Example: On-Screen Display during playing DVD Audio

Items		Selection Method
Group Number	1/2	< / >, Numbers ENTER
Track Number	1/6	< / >, Numbers ENTER
Time search	0:20:09	Display only
DVD Audio Output mode	1 ENG PPCM 3/2.1CH	< / > or AUDIO
Subtitle language	OFF	Display only
Page (or Angle)	1/21	< / > or ANGLE
	or
	1/3
Sound	3D SUR	< / >

INITIAL SETTINGS

By using the Setup menu, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup menu, among other things. For details on each Setup menu item, see pages 13 to 16.

TO DISPLAY AND EXIT THE MENU:

Press SETUP to display the menu. A second press of SETUP will take you back to initial screen.

To go to the next level:

Press on the remote control.

To go back to the previous level:

Press on the remote control.

GENERAL OPERATION

1 Press SETUP. The Setup menu appears.
2 Use / to select the desired option then press to move to the second level. The screen shows the current setting for the selected item, as well as alternate setting(s).
3 Use / to select the second desired option then press to move to the third level.
4 Use / to select the desired setting then press ENTER to confirm your selection. Some items require additional steps.
5 Press SETUP or PLAY to exit the Setup menu.

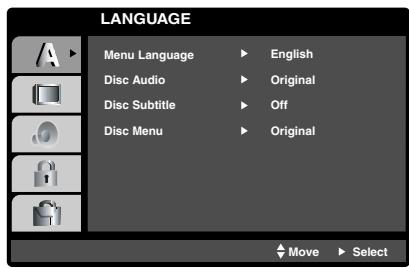

LANGUAGE

MENULANGUAGE

Select a language for the Setup menu and on-screen display.

DISC AUDIO/SubTITLE/MENU DVD-V DVD-A

Select the language you prefer for the audio track (disc audio), subtitles, and the disc menu.

Original: Refers to the original language in which the disc was recorded.

Other: To select another language, press number buttons then ENTER to enter the corresponding 4-digit number according to the language code list in the reference chapter. If you enter the wrong language code, press CLEAR.

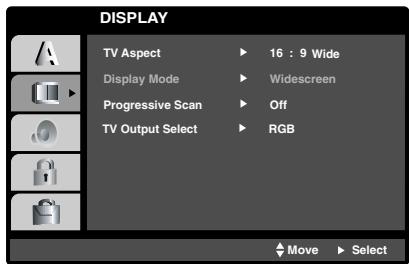

DISPLAY

TV ASPECT DVD-V DVD-A

4:3: Select when a standard 4:3 TV is connected.

16:9 Wide: Select when a 16:9 wide TV is connected.

DISPLAY MODE DVD-V DVD-A

Display Mode setting works only when the TV Aspect mode is set to "4:3".

Letterbox: Displays a wide picture with bands on the upper and lower portions of the screen.

Panscan: Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit.

BEFORE OPERATION

PROGRESSIVE SCAN

Progressive Scan Video provides the highest quality pictures with less flickering.

If you are using the Component Video jacks for connection to a TV or monitor that is compatible with a progressive scan signal, set Progressive Scan to On.

TO TURN ON PROGRESSIVE SCAN:

Connect Component out of the DVD to the input of your monitor/television, set your television or monitor to Component Input.

1 Select "Progressive Scan" on the DISPLAY menu then press

2 Select "On" using the / buttons.
3 Press ENTER to confirm your selection. The confirm menu will appear.

NOTE

If your TV does not accept the Progressive Scan format, the picture will appear scrambled if you try Progressive Scan on the DVD Player.

4 When the confirm menu appears on your screen Cancel is highlighted as default. Use the / buttons to highlight Enter.
5 Pressing ENTER will set the player to Progressive scan mode.

CAUTION

Once the setting for progressive scan output is entered, an image will only be visible on a progressive scan compatible TV or monitor. If you set Progressive Scan to On in error, you must reset the unit. First, remove the disc in the DVD Player. Next, press STOP (■) and hold it for five seconds before releasing it. The video output will be restored to the standard setting, and a picture will once again be visible on a conventional analogue TV or monitor.

TV OUTPUT SELECT

Set the player's TV Output Select options according to the TV connection type.

YPbPr: When your TV is connected with the COMPONENT VIDEO OUT/PROGRESSIVE SCAN jacks on the DVD player.

RGB: When your TV is connected with the SCART (RGB signal) jack.

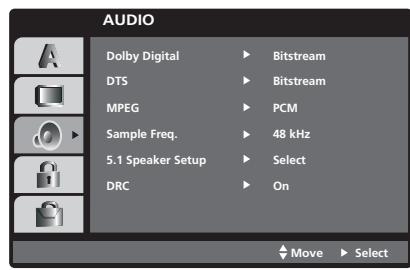

AUDIO

Each DVD disc has a variety of audio output options. Set the player's AUDIO options according to the type of audio system you use.

DOLBY DIGITAL / DTS / MPEG DVD DivX

BITSTREAM: Select "Bitstream" if you connect the DVD Player's DIGITAL OUT jack to an amplifier or other equipment with a Dolby Digital, DTS or MPEG decoder.

PCM (FOR DOLBY DIGITAL / MPEG): Select when connected to a two-channel digital stereo amplifier. DVDs encoded in Dolby Digital or MPEG will be automatically downmixed to two-channel PCM audio.

OFF (FOR DTS): If you select "Off", the DTS signal is not output through the DIGITAL OUT jack.

SAMPLE FREQ. (FREQUENCY) DVD-V DVD-A

If your receiver or amplifier is NOT capable of handling 96 kHz signals, select 48 kHz. When this choice is made, this unit automatically converts any 96 kHz signals to 48 kHz so your system can decode them.

If your receiver or amplifier is capable of handling 96 kHz signals, select 96 kHz. When this choice is made, this unit passes each type of signal through without any further processing.

Check the documentation for your amplifier to verify its capabilities.

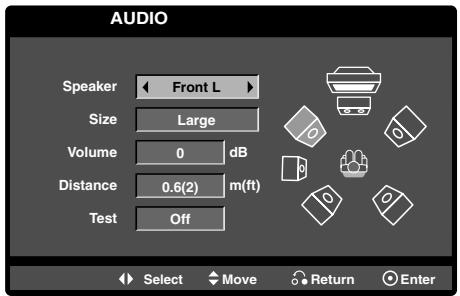

5.1 SPEAKER SETUP DVD-V DVD-A DivX

Select speaker settings, including volume balance and distance, or test the speaker settings.

Speaker settings are only active on the Analogue Multi-Channel Output. (See "Speaker Settings", page 28.)

DYNAMIC RANGE CONTROL (DRC)

DVD-V DVD-A DivX

With the DVD format, you can hear a program's soundtrack in the most accurate and realistic presentation possible, thanks to digital audio technology. However, you may wish to compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones). This allows you to listen to a movie at a lower volume without losing clarity of sound. Set DRC to On for this effect.

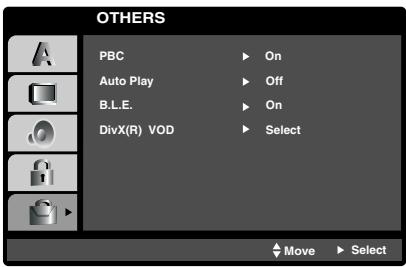

OTHERS

The PBC, Auto Play, B.L.E. and DivX(R) VOD settings can be changed.

PBC VCD

SetPlaybackControl(PBC)toOnorOff.

On: Video CDs with PBC are played according to the PBC.

Off: Video CDs with PBC are played the same way as Audio CDs.

AUTO PLAY DVD-V

You can set up the DVD Player so a DVD disc automatically starts playing whenever the DVD is inserted.

If Auto Play mode is set to On, this DVD player will search for the title that has the longest playback time and then play back the title automatically.

On: Auto Play function is active.

Off: Auto Play function is not active.

NOTE

The Auto Play function may not work for some DVDs.

B.L.E. (BLACK LEVEL EXPANSION)

To select the black level of playback pictures. Set your preference and monitor's ability.

On: Expanded grey scale. (0 IRE cut off)

Off: Standard grey scale. (7.5 IRE cut off)

NOTE

The B.L.E. function works on NTSC systems only.

DIVX(R) VOD DivX

You can show the DivX DRM (Digital Right Management) Registration code for your unit only.

The Registration code is used for VOD (Video-On- Demand) service agent. You can purchase or rent an encrypted movie file.

NOTE

If you rent the DivX VOD file, it has several options of viewing limits as show below.

• Displays the number of times that you can watch the file.

• Shows if the rental has expired.

• Displays an authorization error.

LOCK (PARENTAL CONTROL)

RATING DVD-V

Some movies contain scenes that may not be suitable for children to view. Many of these discs contain parental control information that applies to the complete disc or to certain scenes on the disc. Movies and scenes are rated from 1 to 8, depending on the country. Some discs offer more suitable scenes as an alternative.

The parental control feature allows you to block access to scenes below the rating you input, thereby preventing your children from being able to view material you believe is unsuitable.

1 Select "Rating" on the LOCK menu then press
2 To access the Rating, Password and Country Code features, you must input the 4-digit security code you created. If you have not yet entered a security code you are prompted to do so.

Input a 4-digit code and press ENTER. Enter it again and press ENTER to verify. If you make a mistake before pressing ENTER, press CLEAR.

3 Select a rating from 1 to 8 using the / buttons.

Rating 1-8

Rating one (1) has the most restrictions and rating eight (8) is the least restrictive

Unlock

If you select unlock, parental control is not active and the disc plays in full.

NOTE

If you set a rating for the player, all disc scenes with the same rating or lower are played. Higher rated scenes are not played unless an alternate scene is available on the disc. The alternative must have a lower rating. If no suitable alternative is found, playback stops. You must enter the 4-digit password or change the rating level in order to play the disc.

4 Press ENTER to confirm your rating selection, then press SETUP to exit the menu.

TOKEN (SECURITY CODE)

You can enter or change password.

1 Select Password on the LOCK menu then press
2 Follow step 2 as shown left (Rating). "Change" or "New" is highlighted.
3 Enter the new 4-digit code, then press ENTER. Input it again to verify.
4 Press SETUP to exit the menu.

If you forget your Security Code

If you forget your security code you can clear it using the following steps:

1 Press SETUP to display the Setup menu.
2 Input the 6-digit number "210499" and the security code is cleared.
3 Enter a new code as described above.

COUNTRY CODE DVD-V

Enter the code of the country/area whose standards were used to rate the DVD video disc, based on the list in the reference chapter.

1 Select "Country Code" on the LOCK menu then press
2 Follow step 2 as shown in the left column (Rating).
3 Select the first character using / buttons.
4 Press ENTER and select the second character using / buttons.
5 Press ENTER to confirm your country code selection.

PLAYING A DVD OR VIDEO CD

PLAYBACK SETUP

You can enter or change password.

1 Turn on the TV and select the video input source connected to the DVD player.
2 Turn on the audio system (if applicable) and select the input source connected to the DVD player.
3 Press OPEN/CLOSE to open the disc tray and load your chosen disc in the tray, with the playback side down.
4 Press OPEN/CLOSE to close the tray. Playback starts automatically. If playback does not start, press PLAY.

In some cases, the disc menu might appear instead:

DVD-V

Use the / / buttons to select the title/chapter you want to view, then press ENTER to start.

Press TITLE or DVD MENU to return to the menu screen.

DVD-A

Use the / / buttons to select an option you want, then press ENTER to view the option.

VCD

Use the number buttons to select the track you want to view and press RETURN to return to the menu screen. Menu settings and operating procedures may differ. Follow the instructions on the each menu screen. You also may set PBC to Off (See "PBC" on page 15).

NOTES

• If parental control is set and the disc is not within the rating settings you must input the password. (See "Lock Menu" on page 16.)
• DVDs may have a region code. Your player will not play discs that have a region code different from your player. The region code for this player is 2 (two).

GENERAL FEATURES

NOTES

Unless stated otherwise, all operations described use the remote control. Some features may also be available on the Setup menu.

MOVING TO ANOTHER TITLE/GROUP DVD-V DVD-A

When a disc has more than one title/group, you can move to another title/group. Press DISPLAY while playback is stopped then the appropriate number (0-9) or use to move to another title/group. You can play any title by inputting its number while playback is stopped.

MOVING TO ANOTHER CHAPTER/TRACK

DVD-V

DVD-A

VCD

DivX

When a title on a disc has more than one chapter or a disc has more than one track, you can move to another chapter/track as follows:

• Press SKIP or briefly during playback to select the next chapter/track or to return to the beginning of the current chapter/track.
• Press SKIP twice briefly to step back to the previous chapter/track.
• To go directly to any chapter during DVD playback, press DISPLAY and press / to select the chapter/track icon. Then, input the chapter/track number or use / .

SEARCH

DVD-V

DVD-A

VCD

DivX

1 Press SCAN (or▶) during playback...
2 Press SCAN (or ) repeatedly to select the required speed.
DVD, DivX disc; X2, X4, X16 or X100
Video CD; X2, X4 or X8
3 To exit SEARCH mode, press PLAY.

NOTE

When using a DVD audio disc that includes pictures, this operation may be permitted in some picture segments.

CHANGING THE AUDIO CHANNEL VCD

Press AUDIO repeatedly during playback to hear a different audio channel (Stereo, Left, or Right).

OPERATION WITH DVD AND VIDEO CD

STILL PICTURE AND FRAME-BY-FRAME PLAYBACK

DVD-V DVD-A VCD DivX

1 Press PAUSE/STEP on the remote control during playback. Advance the picture frame-by-frame by pressing PAUSE/STEP repeatedly.
2 To exit still motion mode, press PLAY.

NOTE

When using a DVD audio disc that includes pictures, this operation may be permitted in some picture segments.

1 Press PAUSE/STEP (II) during playback.

The DVD player will now go into PAUSE mode.

2 Use the SCAN (or ) to select the required speed: 1/16,

1/8, 1/4, or 1/2 (backward), or 1/16, 1/8, 1/4, or 1/2 (forward).

With a DivX Disc and Video CD, the Slow speed changes: 1-1/6

1/8, 1/4 or 1/2 (forward).

3 To exit Slow Motion mode, press PLAY (▶).

NOTES

• Slow motion playback in reverse is not possible with Video CDs and DivX Discs.
• When using a DVD audio disc that includes pictures, this operation may be permitted in some picture segments.

RANDOM VCD Karaoke DVD

1 Press RANDOM during playback. The unit automatically begins random playback and RANDOM appears on the TV screen.
2 Press RANDOM again to return to normal.

TIP

By pressing SKIP during random playback, the unit selects another title (track) and resumes random playback.

NOTE

On a Video CD with PBC, You must set PBC to Off on the setup menu to use the random function

(See "PBC" on page 15).

REPEAT A-B DVD-V DVD-A VCD DivX

To repeat a sequence.

1 Press A-B at your chosen starting point. " A * " appears briefly on the TV screen.
2 Press A-B again at your chosen end point. "A B" appears briefly on the TV screen and the repeat sequence begins.
3 Press A-B again to cancel.

REPEAT DVD-V DVD-A VCD DivX

You can play a title/chapter/all/track/group on a disc. Press REPEAT during playback to select a desired repeat mode.

DVDVIDEO DISCS-REPEAT CHAPTER/TITLE/OFF

1 Chapter: repeats the current chapter.
2 Title: repeats the current title.
3 Off: does not play repeatedly.

VIDEO CDS, DIVX DISCS - REPEAT TRACK/ALL/OFF

1 Track: repeats the current track
2 All: repeats all the tracks on a disc.
3 Off: does not play repeatedly.

DVD AUDIO DISCS - REPEAT TRACK/GROUP/OFF

1 Track: repeats the current track.
2 Group: repeats the current Group.
3 Off: does not play repeatedly.

NOTES

• On a Video CD with PBC, you must set PBC to Off on the setup menu to use the repeat function (See "PBC" on page 15).
• If you press SKIP (▶▶I) once during Repeat Chapter (Track) playback, the repeat playback cancels.

To produce a 3D surround effect that simulates multi-channel audio from two stereo speakers (instead of the five+ speakers normally required for multi-channel audio from a home theatre system).

1 Press DISPLAY during playback.
2 Use / to select the sound option. The sound option will be highlighted.
3 Use to select "3D SUR".

To turn off the 3D Surround effect, select "Normal".

TIME SEARCH DVD-V VCD DivX

To start playing at any chosen time on the disc:

1 Press DISPLAY during playback. The time search box shows the elapsed playing time.
2 Press / to select the time clock icon and "---" appears.
3 Input the required start time in hours, minutes, and seconds from left to right. If you enter the wrong numbers, press CLEAR to remove the numbers you entered. Then input the correct numbers.
4 Press ENTER to confirm. Playback starts from the selected time.

ZOOM DVD-V DVD-A VCD DivX

Use zoom to enlarge the video image.

1 Press ZOOM during playback or still playback to activate the Zoom function. The square frame appears briefly in the right bottom of the picture.
2 Each press of the ZOOM button changes the TV screen in the sequence: 100% size 400% size 1600% size screen fit mode 100% size

Screen fit mode:

You can change the way the image appears on the screen when you're playing a DVD movie. Press / to select between Normal, Enhanced, and Maximum.

3 Use the / / buttons to move through the zoomed picture.
4 To resume normal playback, press CLEAR.

NOTES

• Zoom may not work on some DVDs.
• Screen fit mode is available for playing the DVD disc, VR disc and movie file.

MARKER SEARCH DVD-V VCD DivX

To enter a Marker

You can start playback from up to nine memorized points. To enter a marker, press MARKER at the desired point on the disc. The Marker icon appears on the TV screen briefly. Repeat to enter up to nine markers.

To Recall or Clear a Marked Scene

1 During disc playback, press SEARCH. The marker search menu appears on the screen.
2 Within 10 seconds, press to select a marker number that you want to recall or clear.
3 Press ENTER and playback starts from the marked scene. Or, Press CLEAR and the marker number is erased from the list.
4 You can play any marker by inputting its number on the marker search menu.

PAUSE DVD-V DVD-A VCD DivX

1 Press PAUSE/STEP during playback.
2 To return to playback, press PLAY.

SPECIAL DVD FEATURES

CHECKING THE CONTENTS OF DVD DISCS: MENUS

DVDs may offer menus that allow you to access special features. To use the disc menu, press DVD MENU. Input the corresponding number or use the / / buttons to highlight your selection.

Then press ENTER.

TITLE MENU DVD-V DVD-A

1 Press TITLE. If the current title has a menu, the menu appears on the screen. Otherwise, the disc menu may appear.
2 The menu offers features such as camera angles, spoken language and subtitle options, and chapters for the title.
3 Press TITLE to exit.

DISC MENU DVD-V DVD-A

1 Press DVD MENU and the disc menu is displayed.
2 Press DVD MENU again to exit.

CAMERA ANGLE DVD-V DVD-A

If the disc contains scenes recorded at different camera angles, you can change to a different camera angle during playback. Press ANGLE repeatedly during playback to select a desired angle. Note that the number of the current angle appears on the display.

TIP

The angle indicator will blink on the TV screen during scenes recorded at different angles as an indication that angle switching is possible.

CHANGING THE AUDIO LANGUAGE

DVD-V DVD-A DivX

Press AUDIO repeatedly during playback to hear a different audio language or audio track.

With DVD-RW discs recorded in VR mode that have both a main and a Bilingual audio channel, you can switch between Main (L), Bilingual (R), or a mix of both (Main + Bilingual) by pressing AUDIO.

SUBTITLES DVD-V DivX

Press SUBTITLE repeatedly during playback to see the different subtitle languages.

NOTES

• The subtitle file of the DivX file is displayed only in smi, srt and sub.
• If there is no information or there is a code that cannot be read in the DivX file, "1" etc., is displayed.

DVD AUDIO DISCS

DVD Audio is a new disc format building on the success of DVD to provide high quality, uncompressed, multi-channel audio for a new experience in audio quality. A DVD Audio disc can be identified by the DVD audio logo on the disc jacket or on the disc itself.

DVD Audio can provide higher quality stereo than Audio CDs with a sampling rate of up to 192kHz (compared to 44.1kHz for CDs). DVD Audio digital sound can be delivered with up to 24 bits of data (compared to 16 bits for a standard CD).

A typical DVD Audio disc contains up to seven times the data capacity of a CD. This additional space is used for music, either Advanced Resolution multi-channel sound quality that is closer to the artist's master recording or for longer recordings. Many DVD Audio discs contain on-screen text, such as artist biographies, playlists, or lyrics. Some DVD Audio discs contain photo galleries or video clips.

NOTE

To enjoy maximum sound quality and surround effect of DVD Audio, you must use 5.1 channel analogue audio output (5.1CH AUDIO OUT jacks on the DVD Player). If you use the DIGITAL OUT (OPTICAL or COAXIAL) for your audio connection, the sound will only be similar to CD-quality sound even though you're playing a DVD Audio disc.

MOVING TO ANOTHER GROUP

Some DVD Audio discs divide content into different groups. Your player enables you to quickly access different groups during playback via the on-screen display.

1 Press DISPLAY during playback on in stop mode.
2 Press / to select Group icon.
3 Press or the numbered buttons (0-9) to select a group number.

NOTE

Sometimes the author of the disc creates hidden content that can only be accessed by entering a password. If the lock icon appears on the TV screen, enter the password (sometimes you'll find it on the disc's jacket cover or on a web site). This password control isn't dictated by your DVD Player — it is a function of the disc.

Since the authoring of DVD Audio Discs varies, some of the on-screen display choices might not be available for the disc you're playing.

VIEWING ANOTHER PAGE

Since DVD Audio discs can hold a lot of content, there are various ways to see what's available on the disc.

1 Press DISPLAY during playback.
2 Press / to select Page icon.
3 Press to select a page number.

What appears on the screen will vary from disc to disc because the information available depends upon the way the disc was created.

NOTE

Since the authoring of DVD Audio Discs varies, some of the on-screen display choices might not be available for the disc you're playing.

PLAYING AN AUDIO CD OR MP3/WMA DISC

The DVD player can play MP3/WMA formatted recordings on CD-ROM, CD-R, or CD-RW discs.

AUDIO CD

Once you insert an audio CD a menu appears on the TV screen. Press / to select a track then press PLAY or ENTER and playback starts.

MP3/WMA

1 Press / to select a folder, and press ENTER to see the folder contents.
2 Press / to select a track then press PLAY or ENTER. Playback starts.

ID3 TAG

• When playing a file containing information such as track titles, you can see the information by pressing DISPLAY. [Title, Artist, Album, Year, Comment]
• If there is no information, "NO ID3 TAG" appear on the display.

TIP

• If you are in a file list on the MUSIC menu and want to return to the Folder list, use the I / to highlight and press ENTER.
• Press DVD MENU to move to the next page.
• On a CD with MP3/WMA and JPEG, you can switch between MP3/WMA and JPEG. Press TITLE and MUSIC or PHOTO at the top of the menu is highlighted.

MP3 / WMA disc compatibility with this player is limited as follows:

1 Sampling frequency: within 8 - 48 kHz (MP3), within 32 - 48 kHz (WMA)
2 Bit rate: within 8 - 320kbps (MP3), 32 - 192kbps (WMA)
3 The player cannot read an MP3/WMA file that has a file extension other than ".mp3" /".wma".
4 CD-R physical format should be ISO 9660
5 If you record MP3 / WMA files using software that cannot create a file system (eg. Direct-CD) it is impossible to playback MP3 / WMA files. We recommend that you use Easy-CD Creator, which creates an ISO 9660 file system.
6 File names should have a maximum of 8 letters and must incorporate an .mp3 or .wma extension.
7 They should not contain special letters such as /? *: " < > I etc.
8 The total number of files on the disc should be less than 650. This DVD player requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain pre-existing conditions (see above) to ensure compatible playback.

Customers should note that permission is required in order to download MP3 / WMA files and music from the Internet. NADE ELECTRONICS INTERNATIONAL has no right to grant such permission. Permission should always be sought from the copyright owner.

AUDIO CD AND MP3 / WMA DISC FEATURES

PAUSE CD MP3 WMA

1 Press PAUSE/STEP during playback.
2 To return to playback, press PLAY, ENTER or press PAUSE/STEP again.

MOVING TO ANOTHER TRACK CD MP3 WMA

1 Press SKIP (I_← or >▶I) briefly during playback to go to the next track or to return to the beginning of the current track.
2 Press SKIP twice briefly to go back to the previous track.
3 You can play any track by inputting its number (CD only).

REPEAT TRACK/ALL/OFF CD MP3 WMA

You can play a track/all on a disc.

1 Press REPEAT when playing a disc. The repeat icon appears.
2 Press REPEAT to select a desired repeat mode.

Track: repeats the current track

All: repeats all the tracks on a disc.

Off(No display): does not play repeatedly.

NOTE

If you press SKIP (▶▶) once during Repeat Track playback, the repeat playback cancels.

SEARCH CD MP3 WMA

1 Press SCAN (or ) during playback.
2 Press SCAN (or ) repeatedly to select the required speed: X2, X4, X8 backward or forward.
3 To exit SEARCH mode, press PLAY.

RANDOM CD MP3 WMA

1 Press RANDOM during playback. Random Playback begins immediately and RANDOM appears on the menu screen.
2 To return to normal playback, press RANDOM repeatedly until RANDOM disappears from the menu screen.

TIP

By pressing SKIP: during random playback, the unit selects another track and resumes random playback.

REPEAT A-B CD

1 To repeat a sequence during disc playback press A-B at your chosen starting point. The Repeat icon and "A" appear on the menu screen.
2 Press A-B again at your chosen end point. The Repeat icon and "A-B" appear on the menu screen, and the sequence begins to play repeatedly.
3 To exit the sequence and return to normal play, press A-B again. The Repeat icon disappears from the menu screen.

3D SURROUND C

To produce a 3D surround effect that simulates multi-channel audio from two stereo speakers (instead of the five+ speakers normally required for multi-channel audio from a home theatre system).

1 Press AUDIO during playback.
"3D SUR." appears on the menu screen.
2 To return to normal playback, press AUDIO repeatedly until "3D SUR." disappears from the menu screen.

The program function enables you to store your favourite tracks from any disc in the player memory. A program can contain 30 tracks.

1 Insert a disc.

Audio CD or MP3/WMA Discs:

AUDIO CD or MUSIC menu appears.

2 Press PROGRAM.

The mark will appear to the right of the word"Program" on the right side of the menu screen.

NOTE

Press PROGRAM again, then the mark will disappear to exit the Program Edit mode.

Audio CD Menu

MP3/WMA Menu

VIDEO CD

Press PROGRAM while playback is stopped. The program menu appears. Press PROGRAM again and hold it down for a few seconds to exit the menu.

NOTE

On a Video CD with PBC, you must set PBC to Off on the setup menu to use the programmed playback (See "PBC" on page 15).

Video CD Menu

3 Select a track on the "List", then press ENTER to place the selected track on the "Program" list. Repeat to place additional tracks on the list.
4 Press

Select the track you want to start playing on the "Program" list.

5 Press PLAY or ENTER to start. Playback begins in the order in which you programmed the tracks. Playback stops after all of the tracks on the "Program" list have played once.
6 To resume normal playback from programmed playback, select a track of AUDIO CD (or MUSIC) list and then press PLAY.

REPEAT PROGRAMMED TRACKS

1 Press REPEAT when playing a disc. The repeat icon appears.
2 Press REPEAT to select a desired repeat mode.

Track: repeats the current track

All: repeats all the tracks on the programmed list.

Off (No display): does not play repeatedly.

NOTE

If you press :▶ once during Repeat Track playback, the repeat playback cancels.

ERASING A TRACK FROM PROGRAM LIST

1 Use / to select the track that you wish to erase from the Program list.
2 Press CLEAR. Repeat to erase additional tracks on the list.

ERASING THE COMPLETE PROGRAM LIST

1 Press to move to the "Program" list.
2 Use / to select "Clear All", then press ENTER.

NOTE

The programs are also cleared when the disc is removed.

VIEWING A JPEG DISC

Using this DVD Player you can view Kodak PICTURE CDs and discs with JPEG files.

1 Insert a disc and close the tray. The PHOTO menu appears on the TV screen.

2 Press / to select a folder, and press ENTER. A list of files in the folder appears. If you are in a file list and want to return to the previous Folder list, use the / buttons on the remote to highlight and press ENTER.
3 If you want to view a particular file, press / to highlight a file and press ENTER or PLAY. Viewing the file proceeding starts. While viewing a file, you can press STOP to move to the previous menu (PHOTO menu).

TIP

• Press DVD MENU to move to the next page.
  There are three Slide Speed options >> (Fast), >> (Normal), and > (Slow).

Use / / to highlight the Speed. Then, use to select the option you want to use then press ENTER.

• On a disc with MP3/WMA and JPEG, you can switch between MP3/WMA and JPEG. Press TITLE and MUSIC or PHOTO at the top of the menu is highlighted.
• Press RETURN, file information is hidden.

SLIDE SHOW

JPEG

Use / / to highlight the (Slide Show) then press ENTER.

STILL PICTURE

JPEG

1 Press PAUSE/STEP during slide show. The player will now go into PAUSE mode.
2 To return to the slide show, press PLAY or press PAUSE/STEP again.

MOVING TO ANOTHER FILE

JPEG

Press SKIP (I< or >) or cursor (</>) once while viewing a picture to advance to the next or previous file.

ZOOM JPEG

Use zoom to enlarge the photo image. (see page 19)

TO ROTATE PICTURE

JPEG

Press / during showing a picture to rotate the picture clockwise or counter clockwise.

TO LISTEN TO MP3/WMA MUSIC WATCHING PICTURE

JPEG

You can display files while listening to MP3/WMA music files recorded on the same disc.

1 Insert the disc containing the two types of files in the player.
2 Press TITLE to display PHOTO menu.
3 Press / to select a photo file.
4 Use to select icon then press ENTER. Playback starts. The playback will continue until STOP is pressed.

TIP

To listen to only the desired music watching picture, programmed the desired tracks from the "MUSIC" menu and then proceed as above.

JPEG DISC COMPATIBILITY WITH THIS PLAYER IS LIMITED AS FOLLOWS:

• Depending upon the size and number of JPEG files, it could take a long time for the DVD player to read the disc's contents. If you don't see an on-screen display after several minutes, some of the files may be too large — reduce the resolution of the JPEG files to less than 2M pixels as 2760 × 2048 pixels and burn another disc.
• The total number of files and folders on the disc should be less than 650.
• Some discs may be incompatible due to a different recording format or the condition of the disc.
• Ensure that all the selected files have the ".jpg" extensions when copying into the CD layout.
• If the files have ".jpeg" or ".jpeg" extensions, please rename them as ".jpg" files.
• File names without a ".jpg" extension will not be able to be read by this DVD player even though the files are shown as JPEG image files in Windows Explorer.

This unit will play DVD-R/RW discs recorded using the DVD-Video format that have been finalized using a DVD-recorder.

• This unit will play DVD-RW discs recorded using the Video Recording (VR) format.

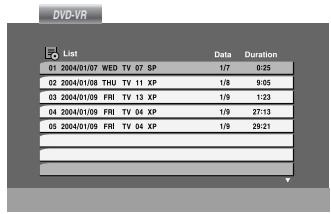

1 Insert a disc and close the tray. The DVD-VR menu appears on the TV screen.

2 Press / to select a track then press PLAY or ENTER and playback starts.

NOTES

• Unfinalized DVD-R/RW discs cannot be played in this player.
• Some DVD-VR disc are made with CPRM data by DVD REORDER. Player does not support these kinds of discs and display the "CHECK DISC".

WHAT IS CPRM?

CPRM is a copy protection system (with scramble system) only allowing the recording of 'copy once' broadcast programs. CPRM stands for Content Protection for Recordable Media.

This player is CPRM compatible, which means that you can record copy-once broadcast programs, but you cannot then make a copy of those recordings. CPRM recordings can only be made on DVD-RW discs formatted in VR mode, and CPRM recordings can only be played on players that are specifically compatible with CPRM.

MAINTENANCE AND SERVICE

Refer to the information in this chapter before contacting a service technician.

HANDLING THE UNIT

When shipping the unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Keeping the exterior surfaces clean

• Do not use volatile liquids such as insecticide spray near the unit.
• Do not leave rubber or plastic products in contact with the unit for a long period of time. since they leave marks on the surface.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution.

Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

Maintaining the Unit

The DVD player is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished.

Depending on the operating environment, regular inspection and maintenance are recommended after every 1,000 hours of use.

For details, please contact your nearest authorized service centre.

OPERATION WITH A DIVX MOVIE DISC

Using this DVD Player you can play DivX discs.

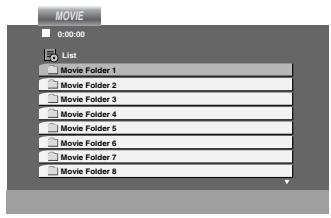

1 Insert a disc and close the tray. The MOVIE menu appears on the TV screen.

2 Press / to select a folder, and press ENTER. A list of files in the folder appears. If you are in a file list and want to return to the Folder list, use the / buttons on the remote to highlight - and press ENTER.
3 If you want to view a particular file, press / to highlight a file and press ENTER or PLAY.
4 Press STOP to exit.

TIP

• Press DVD MENU to move to the next page.
• On a CD with MP3/WMA, JPEG and MOVIE files, you can switch to the MUSIC, PHOTO and MOVIE menu. Press TITLE and MUSIC, PHOTO and MOVIE at the top of the menu is highlighted.

DIVX DISC COMPATIBILITY WITH THIS PLAYER IS LIMITED AS FOLLOWS:

• Available resolution size of the DivX file is under 720x576 (W x H) pixels.
• The file name of the DivX subtitle is available up to 56 characters.
• If there is an impossible code to express the DivX file, it may be displayed as " _ " mark on the display.
• If the number of screen frames is over 30 per 1 second, this unit may not operate normally.
• If the video and audio structure of the recorded file is not interleaved video, audio or both may not be outputted.

• If the file is recorded with GMC, the unit supports only 1-point of the record level.

• GMC?

GMC is the acronym for Global Motion Compensation. It is an encoding tool specified in MPEG4 standard. Some MPEG4 encoders, like DivX or Xvid, have this option. There are different levels of GMC encoding, usually called 1-point, 2-point, or 3-point GMC.

Playable DivX files

• "AC3", "DTS", "PCM", "MP3", "WMA".
• Sampling frequency: within 8 - 48 kHz (MP3), within 32 - 48 kHz (WMA)
• Bit rate: within 8 - 320kbps (MP3), 32 - 192kbps (WMA)

ADDITIONAL FEATURES

LAST SCENE MEMORY

DVD-V DVD-A CD VCD

This player memorizes the last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the player or switch off the player. If you load a disc that has the scene memorized, the scene is automatically recalled.

NOTE

This player does not memorize the scene of a disc if you switch off the player before commencing to play the disc.

SCREENSAVER

The screen saver appears when you leave the DVD player in Stop mode for about five minutes. If the Screen Saver is displayed for five minutes, the DVD Player automatically turns itself off.

VIDEO MODE SETTING

• With certain discs, the playback picture may be flickering or Dot Crawl is shown on straight lines. That means Vertical interpolation or De-interlace is not perfectly matched with the disc. In this case, the picture quality may be improved by changing the video mode.
• To change the video mode, press and hold DISPLAY about 3 seconds during disc playback. The new video mode number selected is displayed on the TV screen. Check whether the video quality has improved. If not, repeat the above procedure until picture quality is improved.
  Video mode change sequence: MODE1 MODE2 MODE3 MODE1
• If you turn off the power, the video mode will be back to initial state (MODE1).

TIP

DETAILED DESCRIPTIONS FOR VIDEO MODES

MODE1: The source material of the DVD video (film material or video material) is determined from disc information.

MODE2: Suitable for playing film based content or video based material recorded by the progressive scan method.

MODE3: Suitable for playing video based content with comparatively little motion.

NOTE

The video mode setting only works when the Progressive Scan mode is set to "On" in the Setup menu.

SYSTEM SELECT

You must select the appropriate system mode for your TV system. If NO DISC appears in the display window, press and hold PAUSE on the front panel for more than 5 seconds to be able to select a system (PAL, NTSC, or AUTO).

This chapter includes important reference information to help you set your DVD player.

SPEAKER SETUP

Make the following settings for the built-in 5.1 channel surround decoder.

1 Press SETUP. The setup menu appears.

2 Use / to select the AUDIO option then press 4 to move to the second level.
3 Use / to select the Speaker Setup option then press to move to the third level. "Select" is highlighted.
4 Press ENTER and the 5.1 Speaker Setup menu appears.
5 Use to select the desired speaker.
6 Adjust options using / / buttons.
7 Press ENTER to confirm your selection. Returns to the previous menu.

SPEAKER SELECTION

Select a speaker that you want to adjust. (Front speakers (Left), Centre Speaker, Front speakers (Right), Rear speakers (Right), Rear speakers (Left), or SubWoofer).

SIZE

Press to set a mode. (Large, Small or None)

If you have connected the system to a speaker with a low frequency of 100Hz or below, select "Large."

If you have connected the system to a speaker without a low frequency of 100Hz or below, select

"Small." If you have not connected a subwoofer, always select "Large" for Front speakers (L/R).

When you do not have a certain speaker connected, select "None."

Front L/R speaker's size can be set to "Large" or "Small."

If Front L/R speaker's size is set to "Small," Rear and Centre speaker's size can be set to "Small" or "None."

Subwoofer's size can be set only to "Large" or "None".

VOLUME

Press to adjust the output level of the selected speaker. (-10dB - 0dB)

DISTANCE

If you connected speakers to your DVD Player, setting the Distance lets the speakers know how far the sound has to travel to reach your set listening point. This allows the sound from each speaker to reach the listener at the same time.

Press to adjust the Distance of the selected speaker.

[0.3(1)m(ft) - 6.0(20)m(ft)]

TEST

Press to test the signals of each speaker. Adjust the volume to match the volume of test signals memorized in the system.

Front Left (L) Center Front Right (R)

Rear Left (R) Rear Right (L) SubWoofer

You can adjust the volume during operating the test tone, first use / buttons to select Volume or Speaker option, then use the / buttons to select volume or speaker, so that the volume of all speakers is the same from the listener's position.

If you adjust the volume while operating the test tone, the test tone will be held paused in the current speaker channel.

Check the following guide for the possible cause of a problem before contacting service.

SYMPTOM	CAUSE	CORRECTION
No power.	The power cord is disconnected.	Plug the power cord securely into the mains socket.
The power is on, but the DVD player does not work.	No disc is inserted.	Insert a disc. (Check that the DVD or, audio CD indicator in the display window is lit.)
No picture.	The TV is not set to receive DVD signal output.	Select the appropriate video input mode on the TV.
	The video cable is not connected securely.	Connect the video cable securely.
No sound.	The equipment connected with the audio cable is not set to receive DVD signal output.	Select the correct input mode of the audio receiver so you can listen to the sound from the DVD player.
	The power of the equipment connected with the audio cable is turned off.	Turn on the equipment connected with the audio cable.
	The AUDIO options are set to the wrong position.	Set the Digital Audio Output to the correct position, then turn on the DVD player again by pressing POWER.
The DVD player does not start playback.	An unplayable disc is inserted.	Insert a playable disc. (Check the disc type, color system, and regional code.)
	The rating level is set.	Cancel the rating function or change the rating level.
The remote control does not work properly.	The remote control is not pointed at the remote sensor on the DVD player.	Point the remote control at the remote sensor of the DVD player.
	The remote control is too far from the DVD player.	Operate the remote control closer to the DVD player.

TABLE OF LANGUAGE AND THEIR CODES

Language Code List

Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu.

Code Language

6566 Abkhazian

6565Afar

6570 Afrikaans

8381 Albanian

6577 Ameharic

6582 Arabic

7289 Armenian

6583 Assamese

6588 Aymara

6590 Azerbaijani

6665 Bashkir

6985 Basque

6678 Bengali; Bangla

6890 Bhutani

6672 Bihari

6682 Breton

6671 Bulgarian

7789Burmese

6669 Byelorussian

7577 Cambodian

6765 Catalan

9072 Chinese

6779 Corsican

7282 Croatian

6783Czech

6865 Danish

7876 Dutch

6978 English

6979 Esperanto

6984 Estonian

7079 Faroese

Code Language

7074 Fiji

7073 Finnish

7082 French

7089 Frisian

7176 Galician

7565 Georgian

6869 German

6976 Greek

7576 Greenlandic

7178 Guarani

7185 Gujarati

7265 Hausa

7387 Hebrew

7273 Hindi

7285 Hungarian

7383 Icelandic

7378 Indonesian

7365 Interlingua

7165 Irish

7384 Italian

7465 Japanese

7487 Javanese

7578 Kannada

7583 Kashmiri

7575 Kazakh

7589 Kirghiz

7579 Korean

7585 Kurdish

7679 Laothian

7665 Latin

7686 Latvian, Lettish

Code Language

7678 Lingala

7684 Lithuanian

7775 Macedonian

7771 Malagasy

7783 Malay

7776Malayalam

7784 Maltese

7773 Maori

7782 Marathi

7779 Moldavian

7778 Mongolian

7865 Nauru

7869 Nepali

7879 Norwegian

7982 Oriya

8065 Panjabi

8083 Pashto, Pushto

7065 Persian

8076 Polish

8084 Portuguese

8185 Quechua

8277 Rhaeto-Romance

8279 Rumanian

8285 Russian

8377 Samoan

8365 Sanskrit

7168 Scots Gaelic

8382 Serbian

8372 Serbo-Croatian

8378 Shona

8368 Sindhi

Code Language

8373 Singhalese

8375 Slovak

8376 Slovenian

8379 Somali

6983 Spanish

8385 Sudanese

8387 Swahili

8386 Swedish

8476 Tagalog

8471 Tajik

8465 Tamil

8484 Tatar

8469 Telugu

8472 Thai

6679 Tibetan

8473 Tigrinya

8479 Tonga

8482 Turkish

8475 Turkmen

8487 Twi

8575 Ukrainian

8582 Urdu

8590 Uzbek

8673 Vietnamese

8679 Volapuk

6789 Welsh

879 Wolof

8872 Xhosa

7473 Yiddish

8979 Yoruba

9085Zulu

Choose a country code from this list.

Code Country

AD Andorra

AE United Arab Emirates

AF Afghanistan

AG Antigua and Barbuda

Al Anguilla

AL Albania

AM Armenia

AN Netherlands Antilles

AO Angola

AQ Antarctica

AR Argentina

AS American Samoa

AT Austria

AU Australia

AW Aruba

AZ Azerbaidjan

BA Bosnia-Herzegovina

BB Barbados

BD Bangladesh

BE Belgium

BF Burkina Faso

BG Bulgaria

BH Bahrain

BI Burundi

BJ Benin

BM Bermuda

BN Brunei Darussalam

BO Bolivia

BR Brazil

BS Bahamas

BT Bhutan

BV Bouvet Island

BW Botswana

BY Belarus

BZ Belize

CA Canada

CC Cocos (Keeling) Islands

CF Central African Republic

CG Congo

CH Switzerland

Cl Ivory Coast

CK Cook Islands

CL Chile

CM Cameroon

CN China

CO Colombia

CR Costa Rica

CS Former Czechoslovakia

CU Cuba

CV Cape Verde

CX Christmas Island

CY Cyprus

CZ Czech Republic

DE Germany

DJ Djibouti

DK Denmark

DM Dominica

DO Dominican Republic

DZ Algeria

EC Ecuador

EE Estonia

EG Egypt

EH Western Sahara

Code Country

ER Eritrea

ES Spain

ET Ethiopia

FI Finland

FJ Fiji

FK Falkland Islands

FM Micronesia

FO Faroe Islands

FR France

FX France (European Territory)

GA Gabon

GB Great Britain

GD Grenada

GE Georgia

GF French Guyana

GH Ghana

Gibraltar

GL Greenland

GM Gambia

GN Guinea

GP Guadeloupe (French)

GQ Equatorial Guinea

GR Greece

GS S. Georgia &

S. Sandwich Isls.

GT Guatemala

GU Guam (USA)

GW Guinea Bissau

GY Guyana

HK Hong Kong

HM Heard and McDonald Islands

HN Honduras

HR Croatia

HT Haiti

HU Hungary

ID Indonesia

IE Ireland

IL Israel

IN India

IO British Indian Ocean Territory

IQ Iraq

IR Iran

IS Iceland

IT Italy

JM Jamaica

JO Jordan

JP Japan

KE Kenya

KG Kyrgyzstan

KH Cambodia6

KI Kiribati

KM Comoros

KN Saint Kitts & Nevis Anguilla

KP North Korea

KR South Korea

KW Kuwait

KY Cayman Islands

KZ Kazakhstan

LA Laos

LB Lebanon

Code Country

LC Saint Lucia

LI Liechtenstein

LK Sri Lanka

LR Liberia

LS Lesotho

LT Lithuania

LU Luxembourg

LV Latvia Islands

LY Libya

MA Morocco

MC Monaco

MD Moldavia

MG Madagascar

MH Marshall Islands

MK Macedonia

ML Mali

MM Myanmar

MN Mongolia

MO Macau

MP Northern Mariana Islands

MQ Martinique (French)

MR Mauritania

MS Montserrat

MT Malta

MU Mauritius

MV Maldives

MW Malawi

MX Mexico

MY Malaysia

MZ Mozambique

NA Namibia

NC New Caledonia (French)

NE Niger

NF Norfolk Island

NG Nigeria

NI Nicaragua

NL Netherlands

NO Norway

NP Nepal

NR Nauru

NU Niue

NZ New Zealand

OM Oman

PA Panama

PE Peru

PF Polynesia (French)

PG Papua New Guinea

PH Philippines

PK Pakistan

PL Poland

PM Saint Pierre and Miquelon

PN Pitcairn Island

PR Puerto Rico

PT Portugal

PW Palau

PY Paraguay

QA Qatar

RE Reunion (French)

RO Romania

RU Russian Federation

RW Rwanda

SA Saudi Arabia

SB Solomon Islands

Code Country

SC Seychelles

SD Sudan

SE Sweden

SG Singapore

SH Saint Helena

SI Slovenia

SJ Svalbard and

Jan Mayen

SK Slovak Republic

SL Sierra Leone

SM San Marino

SN Senegal

SO Somalia

SR Suriname

ST Saint Tome and Principe

SU Former USSR

SV El Salvador

SY Syria

SZ Swaziland

TC Turks and Caicos Islands

TD Chad

TF French Southern

Territories

TG Togo

TH Thailand

TJ Tadjikistan

TK Tokelau

TM Turkmenistan

TN Tunisia

TO Tonga

TP East Timor

TR Turkey

TT Trinidad and Tobago

TV Tuvalu

TW Taiwan

TZ Tanzania

UA Ukraine

UG Uganda

UK United Kingdom

UM USA Minor Outlying Islands

US United States

UY Uruguay

UZ Uzbekistan

VA Vatican City State

VC Saint Vincent &

Grenna

VE Venezuela

VG Virgin Islands (British)

VI Virgin Islands (USA)

VN Vietnam

VU Vanuatu

WF Wallis and Futuna Islands

WS Samoa

YE Yemen

YT Mayotte

YU Yugoslavia

ZA South Africa

ZM Zambia

ZR

ZW Zimbabwe

SPECIFICATIONS

GENERAL

Power requirements AC 110-240 V, 50/60 Hz

Power consumption 12 W

Dimensions (approx.) 430 × 39 × 242 mm ( W × H × D ) without foot

Weight (approx.) 2.2 kg

Operating temperature 5^ to 35^ (41 ^ to 95^

Operating humidity 5 % to 90 %

SYSTEM

Laser Semiconductor laser, wavelength 650 nm

Signal system PAL/NTSC

Frequency response DVD (PCM 96 kHz): 8 Hz to 44 kHz

DVD (PCM 48 kHz): 8 Hz to 22 kHz

CD: 8 Hz to 20 kHz

Signal-to-noise ratio More than 100 dB (ANALOG OUT connectors only)

Harmonic distortion Less than 0.008%

Dynamic range More than 90 dB (DVD/CD)

OUTPUTS

VIDEO OUT 1 Vp-p 75 Ω, sync negative, RCA jack x 1 /SCART (TO TV)

S-VIDEO OUT (Y) 1.0 V (p-p), 75 Ω, negative sync, Mini DIN 4-pin x 1

(C) 0.3V( - )75

COMPONENTVIDEOOUT (Y)1.0V(p-p),75Ω,negative sync,RCA jack x 1

(Cb/Pb)/(Cr/Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2

AUDIO OUT 2.0 Vrms (1 KHz, 0 dB), 600 Ω, RCA jack (L, R) x 1/SCART (TO TV)

DIGITAL OUT (COAXIAL) 0.5 V (p-p), 75 Ω, RCA jack x 1

DIGITAL OUT (OPTICAL) 3 V (p-p), 75 Ω, Optical Connector x 1

ACCESSIONS

Video cable 1

Audio cable 1

Remote control 1

Batteries 2

Note: Design and specifications are subject to change prior notice.

www.NADelectronics.com

©2004 NAD ELECTRONICS INTERNATIONAL A DIVISION OF LENBROOK INDUSTRIES LIMITED
