Product Type	Range Hood
Brand	Electrolux
Model	EFA90950
Width (cm)	90
Depth (cm)	50
Height (cm)	60-100 (adjustable)
Weight (kg)	18
Power Supply	220-240 V, 50 Hz
Maximum Extraction Rate (m³/h)	600
Noise Level (dB)	55-65 (depending on speed)
Number of Speeds	3 + intensive boost
Lighting	LED, 2 x 3 W
Control Type	Touch controls
Grease Filter	Aluminum, dishwasher safe
Charcoal Filter	Optional, for recirculation mode
Ducting Diameter (mm)	150
Energy Class	B
Annual Energy Consumption (kWh)	45
Auto Shut-Off Timer	Yes
Remote Control Included	No
Spare Parts Availability	At least 7 years after production
Warranty (years)	2

Frequently Asked Questions - EFA90950 ELECTROLUX

How do I install the Electrolux EFA90950 range hood?

Installation should be carried out by a qualified professional. Ensure the hood is at least 65 cm above gas hobs and 50 cm above electric hobs. Follow the manual for ducting or recirculation setup.

Can I use the hood in recirculation mode?

Yes, you can use recirculation mode by installing optional charcoal filters. The air is filtered and redirected back into the kitchen.

How often should I clean the grease filters?

Grease filters (aluminum) should be cleaned every 2-3 months, or more frequently with heavy use. They are dishwasher safe.

How do I replace the charcoal filter?

Charcoal filters need replacement every 3-6 months depending on usage. Open the panel under the hood, remove old filters, and insert new ones. Ensure they are correctly positioned.

What is the maximum extraction rate?

The maximum extraction rate is 600 m³/h on the intensive boost setting. Normal speeds range from 250 to 450 m³/h.

Is the hood noisy?

Noise levels vary by speed: approximately 55 dB on low, 60 dB on medium, and 65 dB on high. The boost mode may be louder.

How do I change the LED lights?

LED lights are integrated and should be replaced by a technician. Contact Electrolux service for assistance if the lights fail.

Does the hood have a remote control?

No, the EFA90950 is operated via touch controls on the front panel. No remote control is included.

What are the power requirements?

The hood requires a 220-240 V supply at 50 Hz. It should be connected to a dedicated circuit with proper grounding.

Where can I find spare parts?

Spare parts are available through Electrolux authorized service centers or online retailers. Use the model number EFA90950 to order compatible parts.

USER MANUAL EFA90950 ELECTROLUX

Thinking of you Electrolux

USER MANUAL

EFA90950

Close-up of a young girl with curly hair and hands preparing food, wearing a patterned overalls (no visible text or symbols)

We were thinking of you

when we made this product

EN

IMPORTANT SAFETY INFORMATION 4

YOUR APPLIANCE 5

OPERATING INSTRUCTIONS 6

MAINTENANCE AND CLEANING 8

SOMETHING NOT WORKING 11

GUARANTEE/CUSTOMER SERVICE 12

GUARANTEE CONDITIONS 13

INSTALLATION INSTRUCTIONS 15

ELECTRICAL CONNECTIONS 16

INSTALLING THE COOKER HOOD 17

RU

Welcome to the world of Electrolux

Thank you for choosing a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. The Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable. You find some examples on the cover in this manual. Please take a few minutes to study this manual so that you can take advantage of the benefits of your new machine. We promise that it will provide a superior User Experience delivering Ease-of-Mind. Good luck!

RU

Guide to use the instruction book

The following Symbols will be found in the text to guide you through the instruction book

Safety instructions

Step by step instructions

IMPORTANT SAFETY INFORMATION

These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of the meanings of these warnings contact the Customer Care Department.

■ Installation

• Any installation work must be undertaken by a qualified electrician or a competent person.
• This hood must be installed in accordance with the installation instructions and all measurements must be adhered to.
• If the cooker hood is installed for use above a gas appliance then the provision for ventilation must be in accordance with the Gas Safety Codes of Practice BS.6172, BS.5440 and BS.6891 (Natural Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation & Use) Regulations, the Building Regulations issued by the Department of the Environment, the Building standards (Scotland) (Consolidated) Regulations issued by the Scottish Development Department.
• The fan motor of this cooker hood incorporates a cut-out device which will operate if the cooker hood is installed below the minimum height recommended under section ‘Clearance Height’, or if the motor becomes overheated. If the cut-out device is activated, switch off the fan motor and allow the cooker hood to cool. The cut-out device will reset itself when the fan motor has cooled significantly.
• It is dangerous to alter the specifications or modify this product in any way.
• When installed between adjoining wall cabinets the wall cabinets must not overhang the hob.
• If the room where the hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the room sealed or balanced flue type.

• If other types of flue or appliances are fitted ensure that there is an adequate supply of air to the room.

• The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose.

• Do not install above a cooker with a high level grill.

■ Child Safety

- This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.

■ During Use

• This product is for domestic use only.
- Never leave frying pans unattended during use as over-heated fats and oils might catch fire.
- Never do flambé cooking under this cooker hood.
- Do not leave naked flames under the hood.
- This cooker hood is designed to extract unpleasant odours from the kitchen, it will not extract steam.

■ Maintenance and Service

• This appliance can be a hazard if the synthetic paper and charcoal filters are not replaced as recommended.
• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or more serious malfunction. Refer to your local Electrolux Service Force Centre. Always insist on genuine spare parts.

YOUR APPLIANCE

EN

OPERATING INSTRUCTIONS

The cooker hood is designed to extract unpleasant odours from the kitchen, it will not extract steam.

The hood can be switched on pushing directly onto the requested speed without firstly having to select 0/1 button.

KEY LED FUNCTIONS

L 0/1 Light Turns lighting on and off.

T1 0/1 Motor on First speed. When pressed for about 1 second the motor is switched off.
T2 Speed on Second speed.
T3 Speed on Third speed.
T4 Speed Fixed Max. speed

Flashing Intensive speed. Suitable for the strongest cooking vapours and odours. The function becomes active when the button is pushed for about 2 seconds. After 10 minutes of functioning it turns off automatically. This function can be interrupted by means of pressing any of the buttons.

S1 Led Fixed Indicates that the Metal grease filters saturation alarm has been triggered, and the filters need to be washed. The alarm is triggered after 100 working hours. (Reset; check the Maintenance-paragraph)

Flashing indicates that the activated charcoal odour filter saturation alarm has been triggered, and the filter has to be replaced; the metal grease filters must also be washed. The activated charcoal odour filter is triggered after 200 working hours. (Activation and Reset; check the Maintenance-paragraph)

To Operate

Select the required fan speed and light if required.

Recirculation

In the recirculation mode the contaminated air enters the cooker hood through the grease filters. The air is cleaned by passing through the charcoal filters before being passed back into the kitchen through the grilles in either side of the chimney stack.

Extraction

In the extraction mode the contaminated air enters the cooker hood passing through the grease filters and is passed out through the ducting into the atmosphere.

To obtain the best performance when cooking it is advisable to switch the cooker hood on for a few minutes before you start cooking and leave it running for about 15 minutes after finishing.

When used in the ducting mode the charcoal filters are not required.

Never do flambé cooking under this cooker hood.

Never leave frying pans unattended during use, as over-heated fats and oils can catch fire.

Do not leave naked flames under the cooker hood.

Ensure heating areas on your hob are covered with pots and pans when using the hob and cooker hood simultaneously.

MAINTENANCE AND CLEANING

Before carrying out any maintenance or cleaning isolate the cooker hood from the mains supply.

The cooker hood must be kept clean, as a build up of grease or fat can be a fire hazard.

External Cleaning

Wipe the cooker hood frequently with warm soapy water using a mild detergent.

Never use scouring pads or abrasive cleaners.

Never use excessive amounts of water when cleaning particularly around the control panel.

Metal Grease Filters

The filters are washable and must be cleaned when the Led S1 lights up or at least every 2 months of operation, or more frequently for particularly heavy usage.

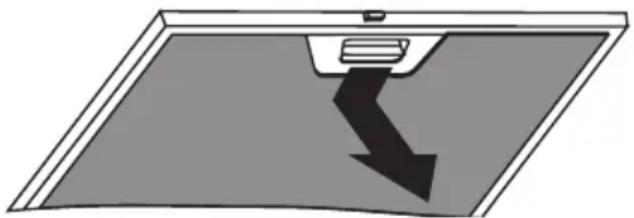

Remove the metal grease Iters one at a time by:

Releasing the catches on the filters, the filters can be removed.

The metal grease filters should be washed, by hand, in mild soapy water or in a dishwasher. Allow to dry completely before replacing.

Alarm signal reset

Switch off the lights and extractor motor.

Press Button T3 for at least 3 seconds, until the leds start to flash.

Diagram of a device with a downward arrow indicating a decrease or drop, mounted on a flat panel (no text or symbols present)

Before carrying out any maintenance or cleaning isolate the cooker hood from the mains supply.

Charcoal Filters

In the recirculation mode the charcoal filters absorb smells and unwanted odours.

Enabling the alarm signal

- In Recirculation version Hoods, the Filter saturation alarm can be enabled on installation or at a later date.

- Turn the Lights and the suction Motor off.

- Disconnect the Hood using the Main switch or the double-pole switch on the mains power supply.

- Restore the connection by pressing and holding T1.

- Release the button. All five LEDs are turned on

- Within 3 seconds press T1 until LEDs T1 and T4 flash in confirmation:

• LED flashes twice - Activated charcoal filter saturation alarm ENABLED

• LED flashes once - Activated charcoal filter saturation alarm DISABLED

The filter is not washable and cannot be reused. It must be replaced when led S1 flashes or at least every 4 months. The alarm signal will only light up when the extractor motor is switched on.

To Remove/Replace the Charcoal Filters

• Remove the metal grease filters
• Remove the saturated activated carbon filter by releasing the fixing hooks
• Fit the new filter by hooking it into its seating
• Replace the metal grease filters.

This appliance can be a possible fire hazard if the grease and charcoal filters are not cleaned and replaced as recommended.

Alarm signal reset

• Switch off the lights and extractor motor.
• Press button T3 for at least 3 seconds, until the leds start to flash.

Illustration of a hand pressing a component on a green surface, with a green downward arrow symbol (no text or labels)

10 electrolux MAINTENANCE AND CLEANING

Changing the halogen light

• Remove the snap-on lamp cover by levering it from under the metal ring, supporting it with one hand.
• Remove the halogen lamp from the lamp holder by pulling gently.
• Replace the lamp with a new one of the same type, making sure that you insert the two pins properly into the housings on the lamp holder.
• Replace the snap-on lamp cover.

Replacement filters and light bulbs can be purchased from your local Service Force Centre.

Illustration of a hand holding a small object above a circular frame (no text or symbols)

SOMETHING NOT WORKING

If, having followed these instructions carefully, your cooker hood fails to work properly please carry out the following checks.

Symptom	Solution
The cooker hood will not start	Check the hood is connected to the electricity supply.Make sure the switch is in the ‘ON’ position.
The cooker hood is not working effectively	The fan speed is set high enough for the taskThe grease filter is clean.The kitchen is adequately vented to allow the entry of fresh air.If set up for recirculation, check that the charcoal filter is still effective.If set up for extraction, check that the ducting and outlets are not blocked.
The cooker hood has switched off during operation	The safety cut-out device has been tripped.Tum off the hob and then wait for the device to reset.

If after all these checks, the fault persists, contact your local Service Force Centre, quoting the model and serial number.

Please note that it will be necessary to provide proof of purchase for any in-guarantee service calls.

In-guarantee customers should ensure that the above checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

GUARANTEE/CUSTOMER SERVICE

Standard guarantee conditions

We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:

• The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's instructions.
• The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.
• Electrolux Service Force Centre must undertake all service work under this guarantee
• Any appliance or defective part replaced shall become the Company's property.
• This guarantee is in addition to your statutory and other legal rights.

Exclusions

• Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.
• Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside

the United Kingdom.

• Appliances found to be in use within a commercial environment, plus those which are subject to rental agreements.
• Products of Electrolux manufacturer that are not marketed by Electrolux

Service and Spare Parts

In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Service Force Centre by telephoning

0870 5 929 929

Your telephone call will be automatically routed to the Service Force Centre covering your postcode area.

For the address of your local Service Force Centre and further information about Service Force, please visit the website at

www.serviceforce.co.uk

Before calling out an engineer, please ensure you have read the details under the heading “Something not working” When you contact the Service Force Centre you will need to give the following details:

1. Your name, address and postcode.
2. Your telephone number.
3. Clear concise details of the fault.
4. The model and Serial number of the appliance (found on the rating plate).
5. The purchase date.

Please note a valid purchase receipt or guarantee documentation is required for in guarantee service calls.

GUARANTEE CONDITIONS

Customer Care

For general enquiries concerning your Electrolux appliance, or for further information on Electrolux products please contact our Customer Care Department by letter or telephone at the address below or visit our website at www.electrolux.co.uk

Customer Care Department

Electrolux Major Appliances

Addington Way

Luton

Bedfordshire, LU4 9QQ

Tel: [phone] (*)

(*) Calls may be recorded for training purposes

European Guarantee

This appliance is guaranteed by Electrolux in each of the countries listed at the back of this user manual, for the period specified in the appliance guarantee or otherwise by law. If you move from one of these countries to another of the countries listed below the appliance guarantee will move with you subject to the following qualifications:-

• The appliance guarantee starts from the date you first purchased the appliance which will be evidenced by production of a valid purchase document issued by the seller of the appliance.
• The appliance guarantee is for the same period and to the same extent for labour and parts as exists in your new country of residence for this particular model or range of appliances.
• The appliance guarantee is personal to the original purchaser of the appliance and cannot be transferred to another user.
• The appliance is installed and used in accordance with instructions issued by Electrolux and is only used within the home, i.e. is not used for commercial purposes.
• The appliance is installed in accordance with all relevant regulations in force within your new country of residence.

The provisions of this European Guarantee do not affect any of the rights granted to you by law.

www.electrolux.com
Albania [phone] Rr. Pjeter Bogdani Nr. 7 Tirane
Belgique/België/Belgien [phone] Bergensesteenweg 719, 1502 Lembeek
Česká republika [phone] Budějovická 3, Praha 4, 140 21
Danmark [phone] Sjaellandsgade 2, 7000 Fredericia
Deutschland [phone] Muggenhofer Str. 135, 90429 Nürnberg
Eesti [phone] Mustamäe tee 24, 10621 Tallinn
España [phone] Carretera M-300, Km. 29,900 Alcalá de Henares Madrid
France	www.electrolux.fr
Great Britain	[phone]	Addington Way, Luton, Bedfordshire LU4 9QQ
Hellas	[phone], Limnou Str., 54627 Thessaloniki
Hrvatska	[phone]	Slavonska avenija 3, 10000 Zagreb
Ireland [phone]	Long Mile Road Dublin	12
Italia	[phone]	C.so Lino Zanussi, 26 - 33080 Porcia (PN)
Latvija	[phone]	Kr. Barona iela 130/2, LV-1012, Riga
Lietuva	[phone]	Verkių 29, LT-09108 Vilnius
Luxembourg [phone] Rue de Bitbourg, 7, L-1273 Hamm
Magyarország	[phone]	H-1142 Budapest XIV, Erzsébet királyné útja 87
Nederland	[phone]	Vennootsweg 1, 2404 CG - Alphen aan den Rijn
Norge	[phone] Rislokkvn. 2 , 0508 Oslo
Österreich	[phone]	Herziggasse 9, 1230 Wien
Polska	[phone]	ul. Kolejowa 5/7, Warsaw
Portugal	[phone]	Quinta da Fonte - Edificio Gonçalves Zarco - Q 35 -2774-518 Paço de Arcos
Romania	[phone]	Str. Garii Progresului 2, S4, 040671 RO
Schweiz - Suisse - Svizzera	[phone]	Industriestrasse 10, CH-5506 Mägenwil
Slovenija [phone]	Tržaška 132, 1000 Ljubljana
Slovensko	[phone]	Electrolux Slovakia s.r.o., Electrolux Domáce spotrebiče SK, Seberíniho 1, 821 03 Bratislava
Suomi	[phone]	Konepajanranta 4, 28100 Pori
Sverige [phone]		Electrolux Service, S:t Göransgatan 143, S-105 45 Stockholm
Türkiye	[phone] Tarabași caddesi no : 35 Taksim İstanbul
Россия [phone]		129090 Москва, Олимпийский проспект, 16, БЦ "Олимпик"

INSTALLATION INSTRUCTIONS

⚠️It is dangerous to alter the specifications or attempt to modify this product in any way.

Technical Information

DIMENSIONS HEIGHT OF CANOPY: 70mm

HEIGHT OF CHIMNEY: (UPPER SECTION) 415mm

(LOWER SECTION) 700mm

WIDTH OF CANOPY : 898mm

DEPTH OF CANOPY: 650mm

GROSS : 44,4kg

NET : 33kg

ELECTRICAL SUPPLY: VOLTAGE: 220-240 V 50Hz

POWER CONSUMPTION: 285W

FAN MOTOR: 205W

LIGHT BULB: (4 x 20 W) 80W

SUITABLE FOR INSTALLATION

ABOVE: ELECTRIC HOB: 7KW (max)

GAS HOB: 10KW (max)

SLOT-IN GAS COOKER

SLOT-IN ELECTRIC COOKER

13.5KW (max)

12.4KW (max)

Note: CE Marking certifies that this appliance complies with the requirements laid down in EEC directive 89:336. (Electromagnetic compatibility) and subsequent modifications and Low Voltage directive 72/23/E.

The symbol 📋 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

ELECTRICAL CONNECTIONS

DOUBLE INSULATED DO NOT EARTH

Electrical Requirements

Any permanent electrical installation must comply with the latest I.E.E. Regulations and local Electricity Board regulations. For your own safety this should be undertaken by a qualified electrician e.g. your local Electricity Board, or a contractor who is on the roll of the National Inspection Council for Electrical Installation Contracting (NICEIC).

Electrical Connection

Before connecting to the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood.

This appliance is fitted with a 2 core mains cable and must be permanently connected to the electricity supply via a double-pole switch having 3mm minimum contact gap on each pole. A Switched Fuse Connection Unit to BS1363 Part 4, fitted with a 3 Amp fuse, is a recommended mains supply connection accessory to ensure compliance with the Safety Requirements applicable to fixed wiring instructions.

This appliance conforms to BS 800:1988 and EEC Directive No. 78 308 regarding suppression of radio and television interference.

INSTALLING THE COOKER HOOD

Please ensure that when the appliance is installed it is easily accessible to an engineer in the event of a breakdown.

All installations must comply with the local authorities requirements for the discharge of exhaust air.

Incorrect installation may affect the safety of this cooker hood.

Installation Requirements

Before installation check the wall to which the cooker hood is to be fitted for electric cables, water pipes or gas.

This cooker hood is designed to be fixed to any horizontal surface over a cooking area, and can be used in the extraction (ducted to the outside) or recirculation mode.

The installation work must be undertaken by a qualified and competent person.

The manufacturer disclaims any responsibility for damage due to incorrect installation of the cooker hood or if the hood is not installed in compliance with relevant regulations controlling this type of installation.

Unpacking

Before unpacking the cooker hood position the carton with the arrows pointing upwards as illustrated on the carton.

18 electrolux INSTALLING THE COOKER HOOD

The cooker hood is made up of the following components:

Ref Qty Product Components

1 Hood body, complete with controls, lighting, fan and filters.

2 1 Telescopic Chimney comprising:

2.1 1 Upper section

2.2 1 Lower section

7.1 1 Telescopic frame complete with extractor, consisting of:

7.1a 1 Upper frame

7.1b 1 Lower frame

9 1 ∅150-120 Reducer flange

9.1 1 ∅120-125 Ducting flange

10 1 Flange ø150

15 1 Air outlet Connector

24 1 Junction Box

25 Pipe clamps (not included)

26 2 Cable clamps

27 1 Finishing plug

Ref Qty Installation Components

12c 10 Chimney and Air outlet Connector fixing screws

12f 2 Hood body fixing screws

12e 4 Junction Box fixing screws

12q 4 Hood body fixing screws

21 1 Drilling template

22 4 6.4 mm int. dia washers

Ref Qty Documentation

1 Instruction booklet

The clereance height between the inferior part of the cooker hood and the hob must be 650 mm (some models can be fitted at a lower height from the hob, please refer to the installation paragraph).

Drilling the Ceiling/Support

Shelf

• Use a plumb line to mark the centre of the hob on the ceiling/support shelf.
• Place the drilling template 21 provided on the ceiling/support shelf, making sure that the template is in the correct position by lining up the axes of the template with those of the hob.
• Mark the centres of the holes in the template.

• Drill the holes at the points marked:

• For concrete ceilings, drill for plugs appropriate to the screw size.

• For hollow brick ceilings with wall thickness of 20 mm: drill ø 10 mm (immediately insert the Dowels not provided).
• For wooden beam ceilings, drill according to the wood screws used.
  • For wooden shelf, drill ø 7 mm.
• For the power supply cable feed, drill 10 mm.
• For the air outlet (Ducted Version), drill according to the diameter of the external air exhaust duct connection.

- Insert two screws of the following type, crossing them and leaving 4-5 mm from the ceiling:

• For concrete ceilings, use the appropriate plugs for the screw size (not provided).
• For Cavity ceiling with inner space, with wall thickness of approx. 20 mm, Screws not provided.
• For wooden beam ceilings, use 4 wood screws (not provided).
• For wooden shelf, use 4 screws with washers and nuts (not provided)

3D diagram of a mechanical assembly with a cylindrical component and base plate, no visible text or symbols

Pure technical drawing of a mechanical part with centerlines and dimension lines (no text or symbols)

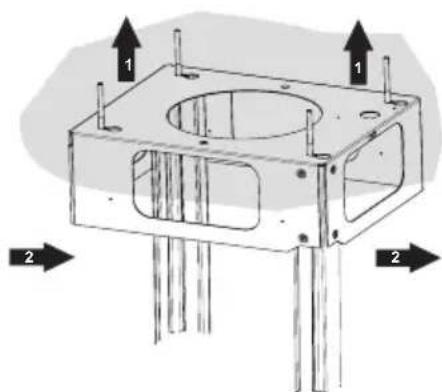

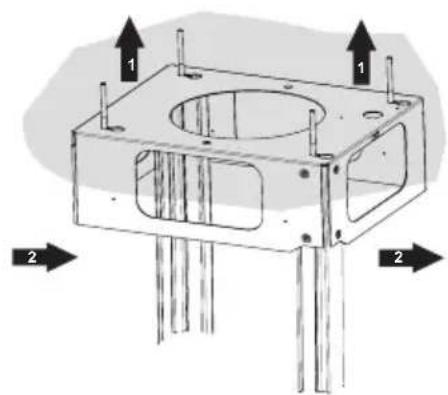

Fixing the Frame

• Loosen the two screws fastening the lower chimney and remove this from the lower frame.
• Loosen the two screws fastening the upper chimney and remove this from the upper frame.

If you wish to adjust the height of the frame, proceed as follows:

• Unfasten the metric screws joining the two columns, located at the sides of the frame.

• Adjust the frame to the height required, then replace all the screws removed as above.

• Insert the upper chimney stack from above, and leave it running free on the frame.

• Lift up the frame, fit the frame slots onto the screws up to the slot end positions.
• Tighten the two screws and fasten the other two screws provided with the hood.

Before tightening the screws completely it is possible to adjust the frame by turning it. Make sure that the screws do not come out of their seats in the slotted holes.

- The frame mountings must be secure to withstand the weight of the hood and any stresses caused by the occasional side thrust applied to the device.

On completion, check that the base is stable, even if the frame is subjected to bending.

- In all cases where the ceiling is not strong enough at the suspension point, the installer must provide strengthening using suitable plates and backing pieces anchored to the structurally sound parts.

Technical illustration of a mechanical assembly with a magnified inset showing a screwdriver inserted into a component (no text or symbols present)

Extraction

The cooker hood is more effective when used in the extraction mode (ducted to the outside).

Venting kits may be purchased through your retailer or DIY store, and must be ducted to an outside vent of ∅125mm (5") or ∅150mm (6").

For the best performance use the shortest possible duct run and the minimum number of bends.

Where flexible ducting is fitted it should not be turned through very tight bends as this may impair the performance of the hood.

It is recommended a maximum length of 3 metres with one bend, to be installed, to be reduced metre for each 900 bend.

If a distance is greater than 3 metres the efficiency of the hood could be impaired.

The ducting used must be manufactured from fire retardant material conforming to the relevant British Standard or DIN 4102-B1.

When the cooker hood is ducted to the outside the charcoal filter must be removed.

Ducting Connection

Connect the ducting chosen to:

- the ∅150mm ducting spigot on top of the motor housing, or the ∅150-120mm ducting spigot item 9 and secure using the jubilee clips item 25 (not included).

- A ∅120-125mm collar item 9.1 is provided to fit over the ∅120mm ducting spigot when 125mm ducting is fitted.

If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler, then its flue must be of the room sealed or balanced flue type.

If other types of flue or appliances are fitted sure that there is an adequate supply of air to the room.

The cooker ducting (extraction mode) must never be connected to central heating flues, radiators or water heaters etc.

Recirculation

The cooker hood is supplied specified for use in the recirculation mode, with the charcoal filter fitted.

In the recirculation mode contaminated air is passed through the charcoal filter to be purified and recirculated into the kitchen through the grille outlets on either side of the chimney.

Recirculation Connection

• Fix the connection item 15 to the frame using the 4 screws provided.
• Fix the flange item 10 to the lower opening of the connection item 15.
• Connect the hood air outlet to the flange in the lower part of the junction using a rigid or flexible 150 tube (by installer's choice).

Chimney Stack

The chimney consists of two sections. The lower chimney measures 700mm and the upper chimney (with the recirculation grilles on either side) measures 415mm. The overall installed measurement is min. 810 - max 1050mm.

Fitting the Chimney

• Position the upper chimney section and fix the upper part to the frame using the 2 screws 12c (2,9 x 9,5) provided.
  • Similarly, position the lower chimney section and fix the lower part to the frame using the 2 screws 12c (2,9 x 9,5) provided.

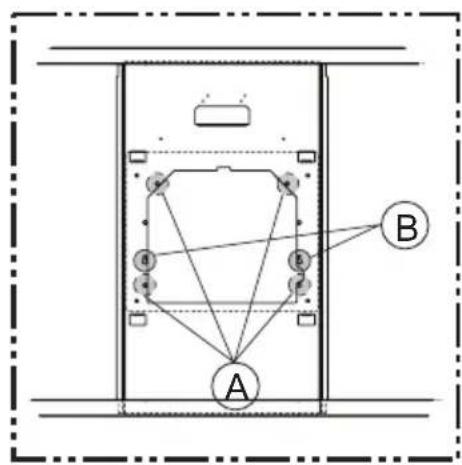

Fitting the Hood Body

• Before fixing the hood body to the frame:
• Screw the 2 screws 12f half way into the holes provided in the sides of the bottom of the frame.
• Remove the grease filters from the hood canopy.
• Remove any activated charcoal filters.
• Lift the hood canopy and engage the screws 12f in the slots (A) as far as they will go.
• Working from below, fix the hood canopy to the frame (B), using the 4 screws 12q and 4 washers 22 provided, then tighten all the screws securely.

Electrical Connection

• Connect the Hood to the Mains power supply, inserting a two-pole Switch with a contact aperture of at least 3 mm.
• Remove the Metal grease filters (see par. on "Maintenance") and make sure that the power supply Cable is properly inserted in the Suction fan socket.
  • Take the wires indicated in fig.1 and pass them through the slot formed on the galvanized diffuser support, as shown in fig.2.

2
1

Close-up of hands connecting cables to a device (no visible text or symbols)

Close-up of a hand holding a small electronic device with cables, no visible text or symbols

- Position the finishing plug 27 over the housing in the diffuser support, fixing it using a screw 12e (2.9 x 9.5) and applying the 2 cable clamp elements 26 as indicated in figs. 3 and 4.

4

Close-up of a mechanical assembly with wires and a metal bracket (no visible text or symbols)

3

Close-up of hands holding a black cable with wires, no visible text or symbols

• Connect the Controls Connector fig. 5.
• Connect the Lighting Connector fig. 6.
• Store both the Connectors in the Protective box 24 and close it with 2 Screws 12e (2.9 x 9.5), provided.

6

Person handling a device with a tool, no visible text or symbols

5

Interior view of a vehicle showing a person lying down with luggage (no visible text or symbols)

- Remove the protective film from the double-sided adhesive on the connection box, and fix it inside the motor compartment fig. 7.

7

Close-up of hands holding a device with cables and components (no visible text or symbols)

Diagram of a mechanical assembly with a cylindrical component and a base plate, showing alignment lines (no text or symbols)

Крепление Каркаса

Technical illustration of a mechanical assembly with a magnified inset showing a screwdriver inserted into a component (no text or symbols present)

Technical diagram of a mechanical housing with two directional arrows indicating movement or force (no text or symbols present)

Illustration of a hand pressing a green arrow on a device screen (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a green arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a circular object with a lid, enclosed in a circle (no text or symbols)

RADY A DOPORUČENÍ

INSTALACE

3D diagram of a mechanical assembly with a cylindrical component and base plate (no text or symbols)

Upevnění kostry

Technical illustration of a mechanical assembly with a magnified inset showing a screwdriver inserted into a component (no text or symbols present)

Technical diagram of a mechanical housing with two directional arrows indicating force or movement (no text or symbols present)

41 electrolux

Hand interacting with a device showing a green arrow indicating direction (no text or symbols present)

UHLÍKOVÉ FILTRY PROTI ZÁPACHU (FILTRAČNÍ PROVEDENÍ)

Illustration of a hand pressing a component on a green surface with a green arrow symbol (no text or labels)

Illustration of a hand holding a circular object with a lid, enclosed in a circle (no text or symbols)

Modern stainless steel refrigerator with vertical glass panels and a black handle (no visible text or symbols)

Exterior view of a modern microwave oven with digital display and control panel (no visible text or symbols)

White electric stove with four top ovens and a front-mounted door (no visible text or symbols)

Red and silver vacuum cleaner with handle and blue control panel (no text or symbols visible)

3D rendering of a yellow gas stove with four black flanges (no text or symbols visible)

Exterior view of a stainless steel laboratory oven with control panel and ventilation duct (no visible text or symbols)

Exterior view of a modern stainless steel appliance with a glass door and control panel (no visible text or symbols)

Exterior view of a silver rectangular appliance with ventilation grilles and a label (no visible text or symbols)

Exterior view of a red and blue vacuum cleaner with a compact base (no text or symbols visible)

Exterior view of a silver washing machine with a digital display and vent, shown against a plain background (no text or symbols visible)

Exterior view of a stainless steel electric grill with six grilles and open doors (no visible text or symbols)

Exterior view of a modern stainless steel refrigerator with dual doors and a blue water dispenser (no visible text or symbols)

www.electrolux.com
