Product Type	Range Hood
Brand	Gorenje
Model	WHT68INI
Installation Type	Built-in / Under Cabinet
Width	60 cm
Depth	50 cm
Height	13 cm (without chimney)
Weight	16 kg
Power Supply	220-240 V, 50 Hz
Total Power Consumption	200 W
Motor Power	180 W
Number of Motors	1
Max Extraction Rate (m³/h)	650 m³/h
Noise Level (Normal)	55 dB(A)
Noise Level (Intensive)	65 dB(A)
Number of Speeds	3 + Intensive
Filter Type	Aluminum Grease Filter
Carbon Filter (Optional)	Yes
Lighting	2 x 1.5 W LED
Controls	Electronic Push Button
Energy Class	A
Duct Diameter	150 mm
Filter Cleaning Indicator	Yes
Color	Stainless Steel

Frequently Asked Questions - WHT68INI GORENJE

How do I install the WHT68INI range hood?

Ensure the hood is mounted securely under a cabinet or on the wall at least 65 cm above gas hobs or 50 cm above electric hobs. Use the provided template and screws. Connect to a 220-240V outlet and if using recirculation mode, install carbon filters.

How often should I clean the grease filter?

The aluminum grease filter should be cleaned every 2-3 months with mild detergent or in the dishwasher. A dirty filter reduces efficiency and increases noise.

Can I use the hood without ducting?

Yes, the hood can be used in recirculation mode. You will need to install the optional carbon filters (active charcoal filters) to absorb odors. These filters need replacement every 3-6 months.

What is the correct replacement bulb?

The hood uses 2 x 1.5W LED bulbs (GU10 base). To replace, remove the old bulb by turning it counterclockwise and insert the new one. Ensure the power is off.

Why is my hood noisy?

Check if the grease filter is dirty or not properly installed. Also ensure the ducting is not blocked or too long. Operating at higher speeds increases noise; use the lowest effective speed.

Does the hood have a warranty?

Gorenje typically offers a 2-year warranty for parts and labor. Register your product online to confirm. Keep the purchase receipt.

How do I reset the filter cleaning indicator?

After cleaning or replacing filters, press and hold the timer button (if equipped) for 5 seconds until the indicator light turns off. Refer to the manual for exact steps.

What are the dimensions of the WHT68INI?

The hood has a width of 60 cm, depth of 50 cm, and height of 13 cm (without chimney extension). Ensure your cabinet opening matches these dimensions.

Can I use a longer duct than supplied?

Yes, but keep the duct as short and straight as possible. Maximum recommended duct length is 5-6 meters with minimal bends to maintain performance.

How to activate the intensive speed?

Press the intensive speed button (usually marked with a triangle or 'P') while the hood is running. It runs for 5-10 minutes then returns to the previous speed. Ideal for strong odors.

USER MANUAL WHT68INI GORENJE

Product catalog image showing various kitchen appliances including oven, microwave, and air conditioner (no visible text or labels)

Diagram of a mechanical or structural assembly with directional arrows and a house icon (no text or symbols)

Technical diagram of a mechanical assembly with directional arrows indicating movement or force (no text or symbols present)

1

Isometric line drawing of a kitchen appliance with a chimney, stove, and hand tool (no text or symbols)

Technical line drawing of a kitchen appliance with a mounted stove and a close-up inset showing a tool interacting with the stove (no text or symbols)

Technical line drawing of a ductwork assembly with a pipe and housing, showing airflow direction (no text or symbols)

Isometric line drawing of a mechanical component with labeled parts 14 and 15, showing internal structure and mounting base (no text or symbols beyond labels)

Diagram showing three steps of installing a solar panel layout, with no text or symbols present.

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The extractor hood has been designed exclusively for domestic use.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.

! Read the instructions carefully: there is important information about installation, use and safety.

! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.

Note: the elements marked with the symbol “(*)” are optional accessories supplied only with some models or elements to purchase, not supplied.

Caution

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

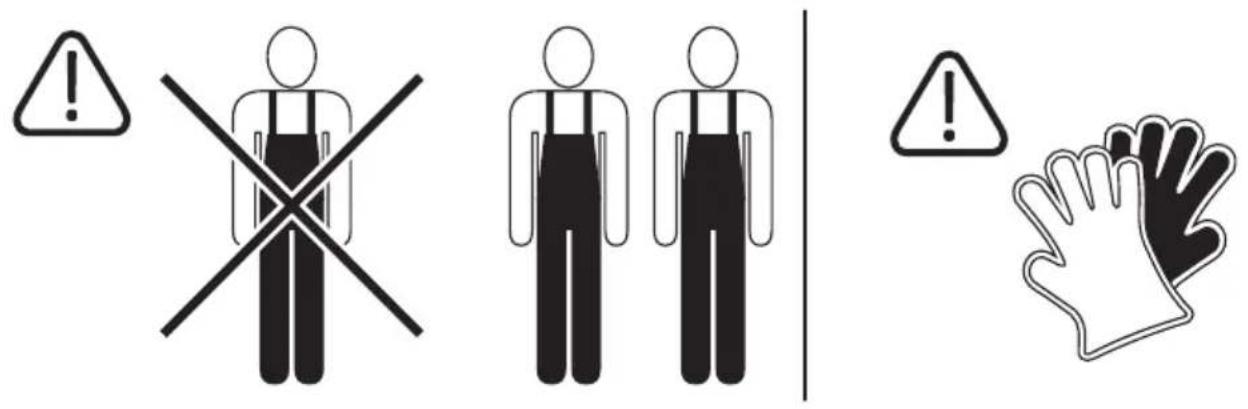

Always wear work gloves for all installation and maintenance operations.

The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.

This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance.

This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.

Never use the hood without effectively mounted grating!

The hood must NEVER be used as a support surface unless specifically indicated.

The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels.

The flaming of foods beneath the hood itself is severely prohibited.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

Accessible parts of the hood may become hot when used with cooking appliance.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observance of the instructions included in this manual.

This appliance is marked according to the European directive

2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol 📄 on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Use

The hood is designed to be used either for exhausting or filter version.

The models with no suction motor only operate in ducting mode, and must be connected to an external suction device (not supplied).

The connecting instructions are supplied with the peripheral suction unit.

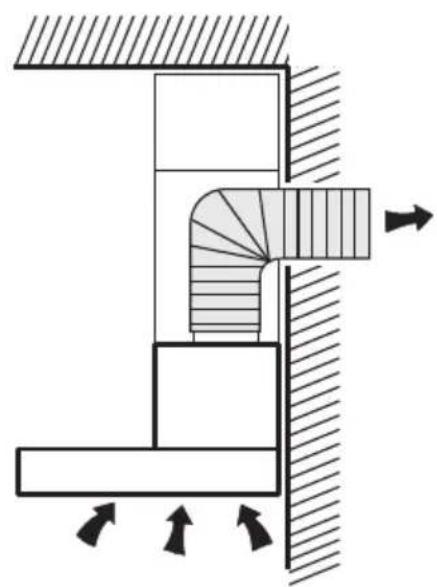

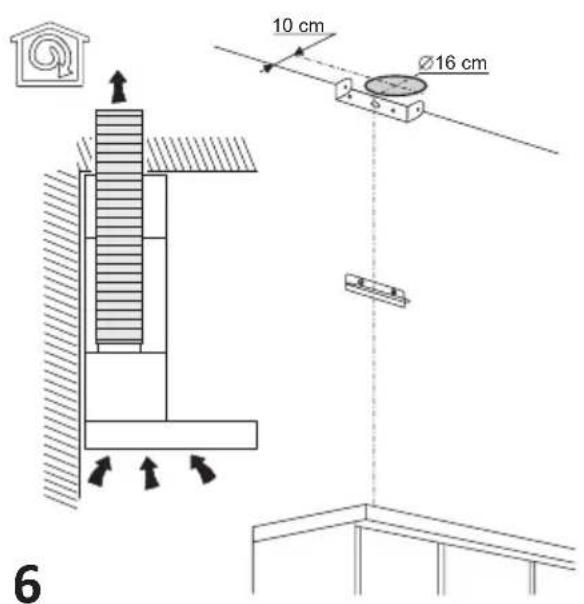

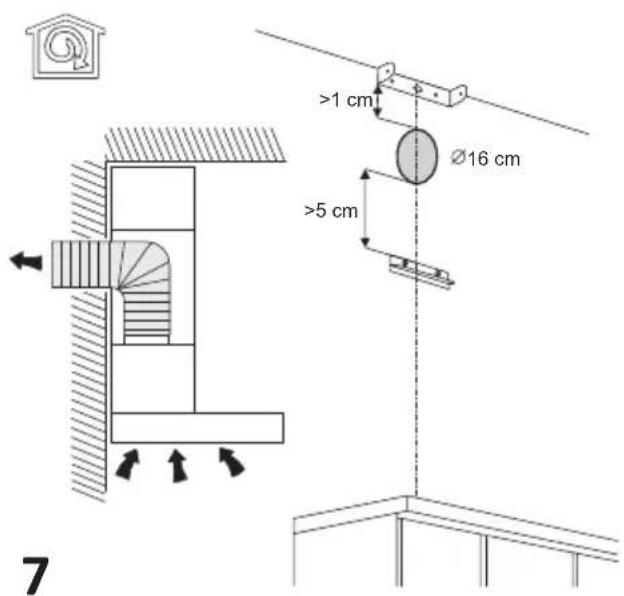

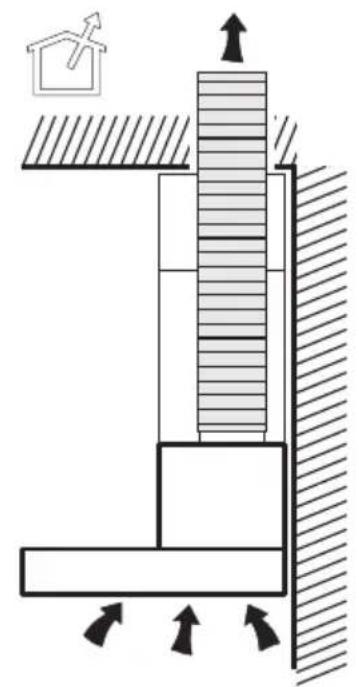

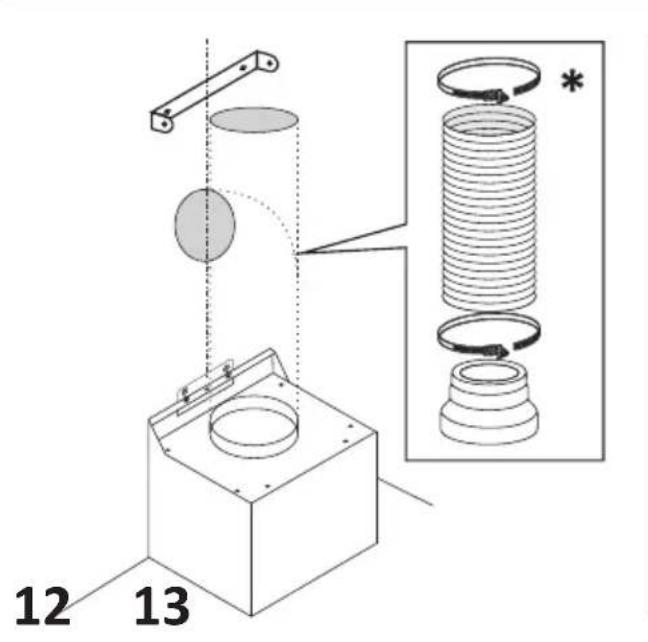

Ducting version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

Attention! The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

In the horizontal runs the exhausting pipe must be slightly slanted (about 10^ ) and directed upwards to vent the air easily from the room to the outside.

Attention! If the hood is supplied with active charcoal filter, then it must be removed.

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.

! Use a duct with as few elbows as possible (maximum elbow angle: 90°).

! Avoid drastic changes in the duct cross-section.

! Use a duct with an as smooth as possible inside.

! The duct must be made of certified material.

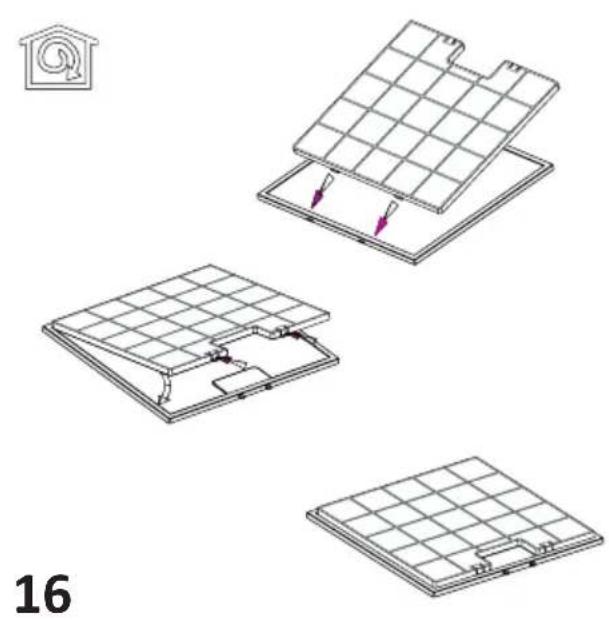

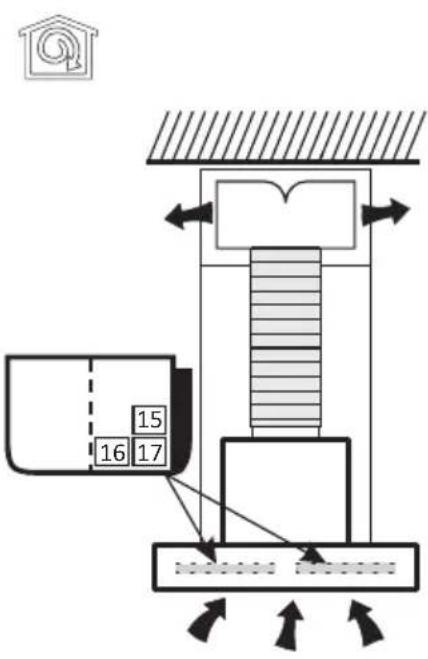

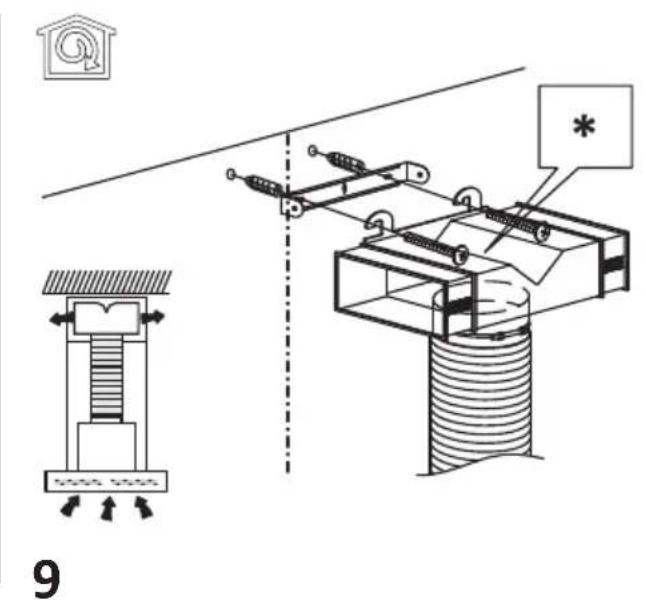

Filter version

One active charcoal filter is needed for this and can be obtained from your usual retailer.

The filter removes the grease and smells from the extracted air before sending it back into the room through the upper outlet grid.

Installation

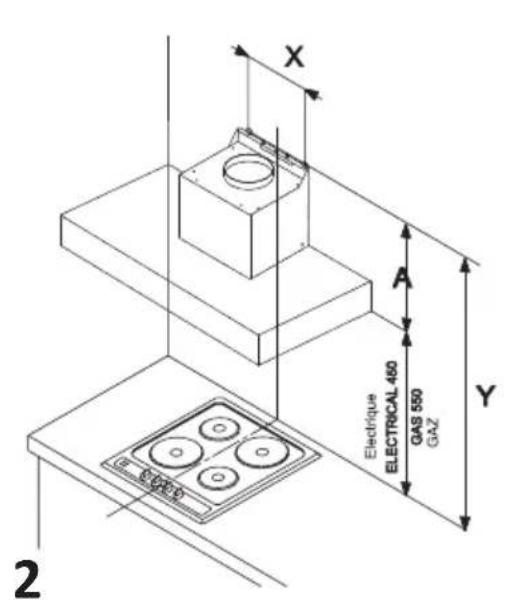

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

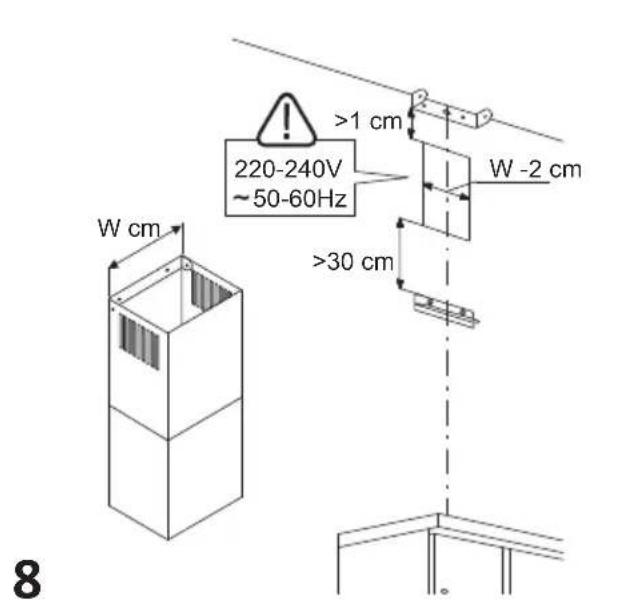

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The hood is provided with a special power cable ; if the cable is damaged, request a new one from Technical Service.

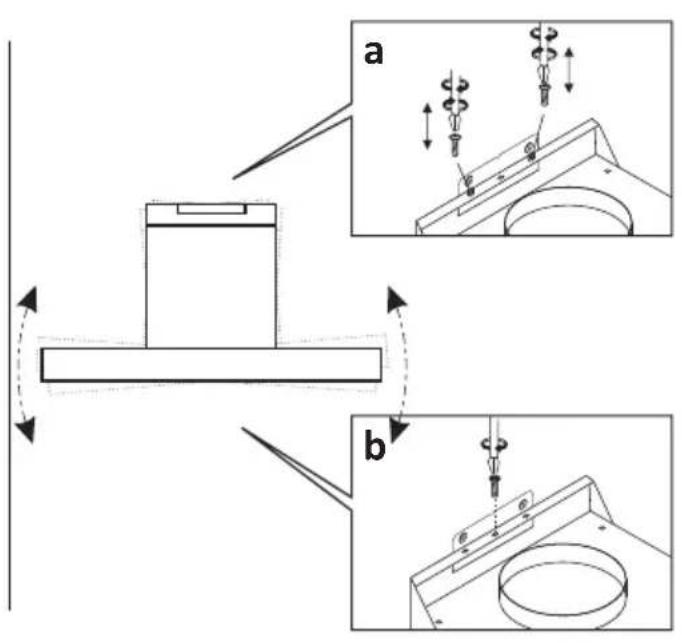

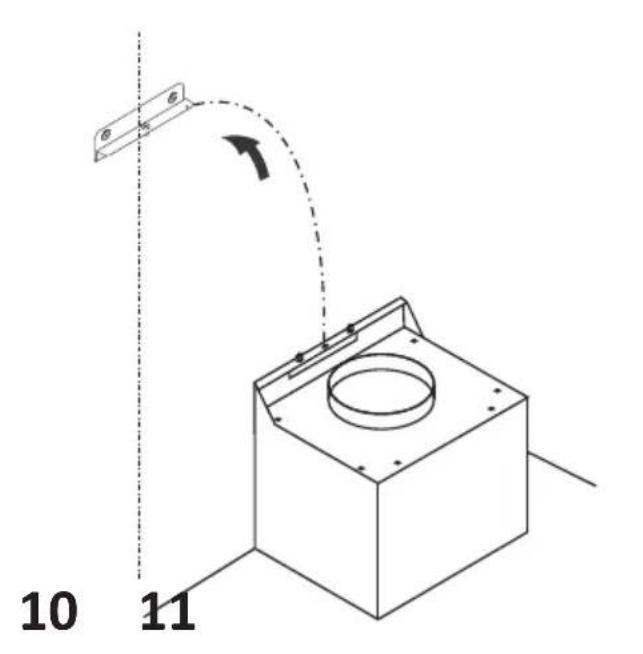

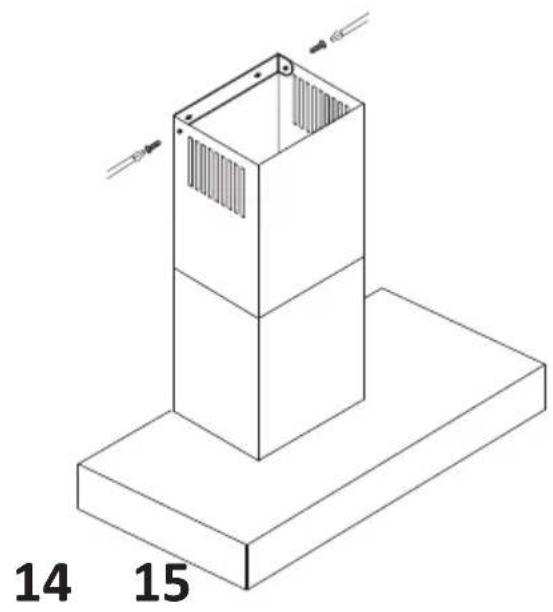

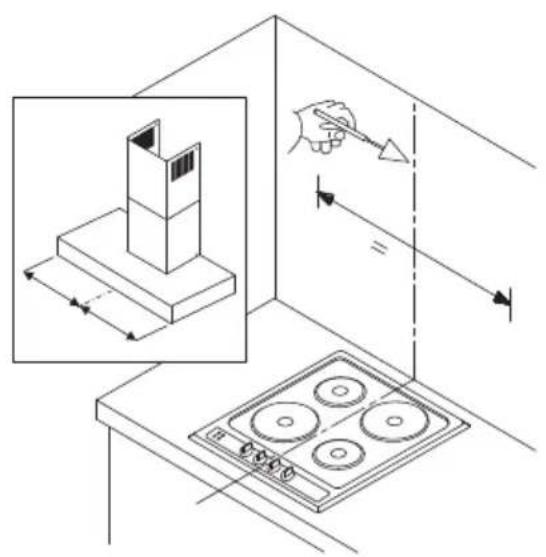

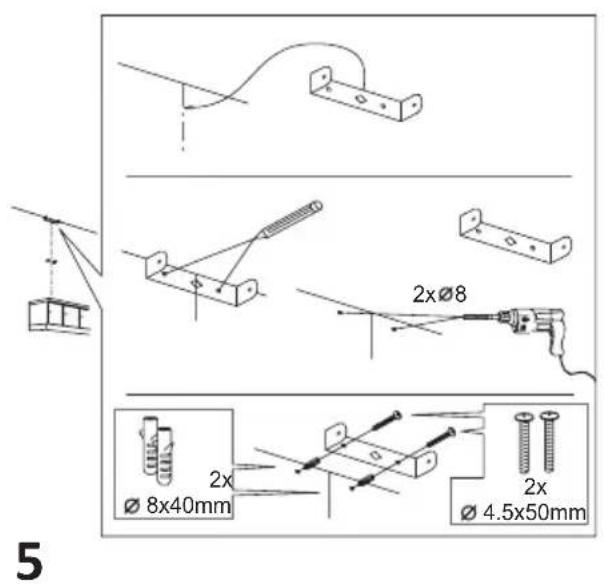

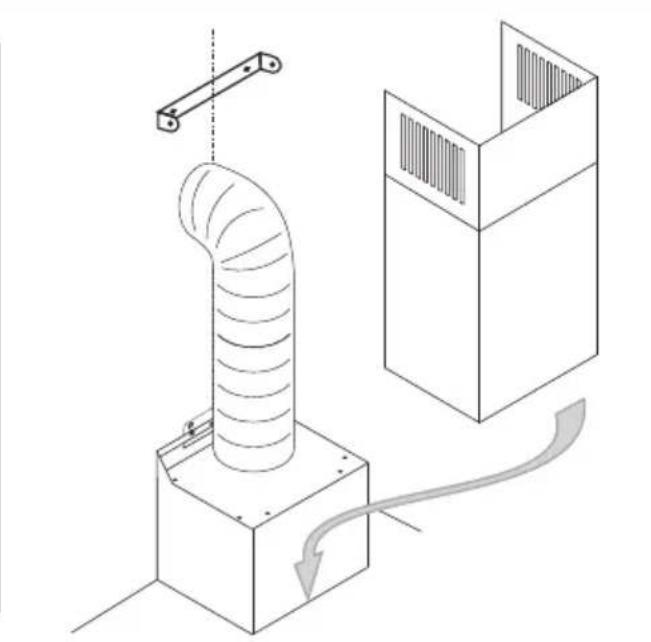

Mounting

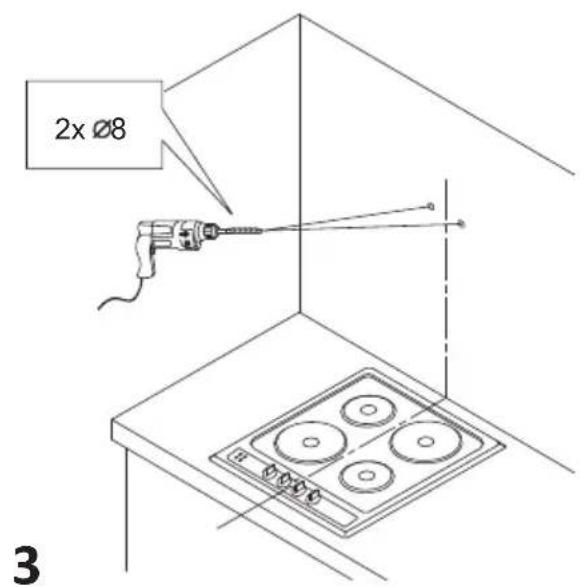

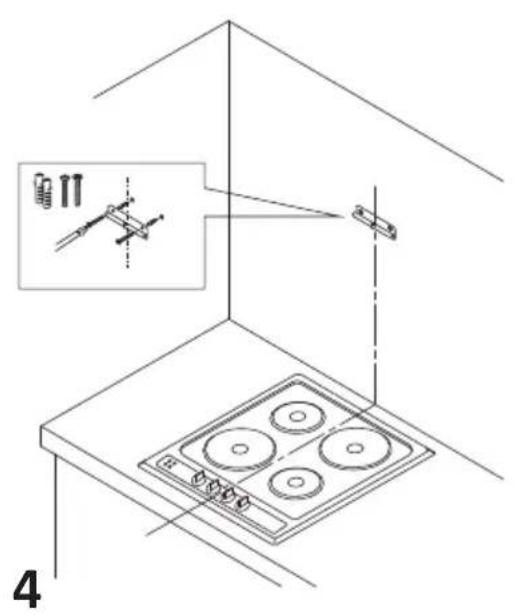

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

Operation

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

WHT68INI, WHT68INB

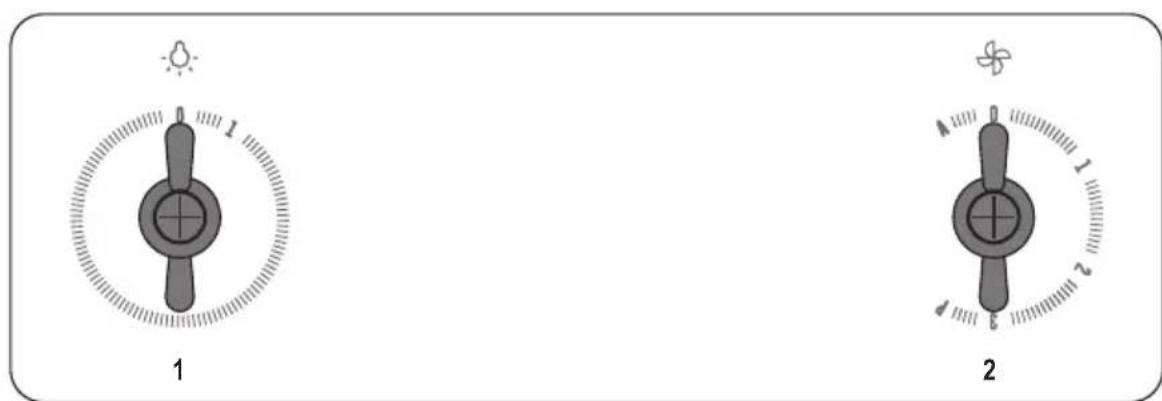

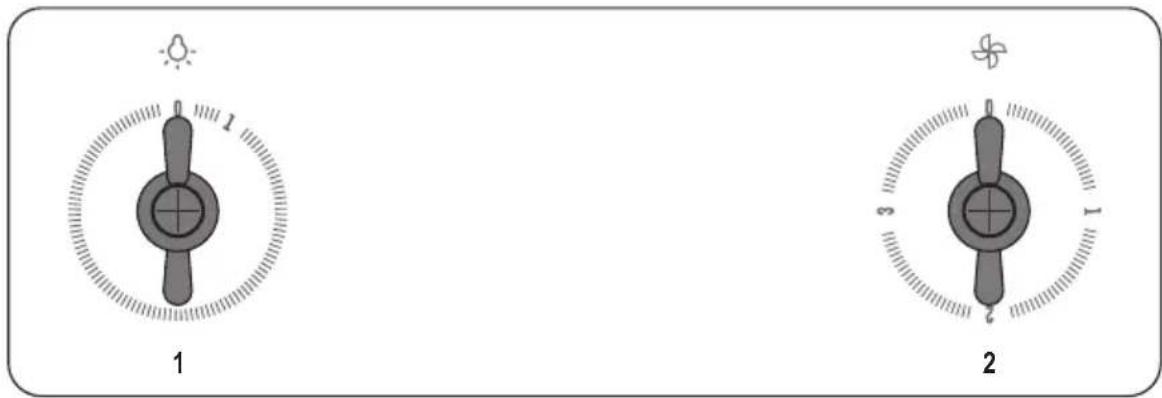

1 ON/OFF lights

2 ON / OFF motor / Speed Increase

Turning the knob into position "0" during functioning, the hood turns OFF.

Turning the knob from position "0" into position "1" hood passes from the OFF state to speed 1.

Turning the knob in right direction (hood in ON state) the motor speed is increased from speed 1 to intensive

Speed 1:1

Speed 2: 2

Speed 3:3

WHT68AINI, WHT68AINB

1. Mechanical control cooperates with the electronics assembly – it serves only as a control panel. The electronics assembly is responsible for activation of the motor's power supply.
2. By turning the wing knob clockwise from position 0 to position 1, the motor goes into first gear and stays in first gear until this position is altered manually. Reverse action reverts the settings to their previous state – gear 0.
3. By turning the wing knob clockwise from position 1 to position 2, the motor goes into second gear and stays in second gear until this position is altered manually. Reverse action reverts the settings to their previous state – gear 1.
4. By turning the wing knob clockwise from position 2 to position 3, the motor goes into third gear and stays in third gear until this position is altered manually. Reverse action reverts the settings to their previous state – gear 2.
5. By turning the wing knob clockwise from position 3 to position P, the motor goes into fourth gear and stays in fourth gear for five minutes, unless this position is altered manually within that time. Once 5 minutes passes, the motor returns to gear 3.
   The wing knob has an auto-return function in this position – once the wing knob is released, it returns to position 3.
   Repeat action reverts the settings to their previous state – gear 3. During the operation of the 4th gear (BOOST function), the light indicator flashes white.
6. By turning the wing knob anti-clockwise from position 0 to position A, the automatic function of adjusting the motor's speed depending on the conditions detected under the hood is switched on – Automatic.
   The wing knob has an auto-return function in this position – once the wing knob is released, it returns to position 0.
   When the device operates in the Automatic mode, the light indicator lights up white.

Maintenance

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

Cleaning

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products.

DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks.

Therefore, we recommend observing these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

Grease filter

Traps cooking grease particles.

This must be cleaned once a month (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

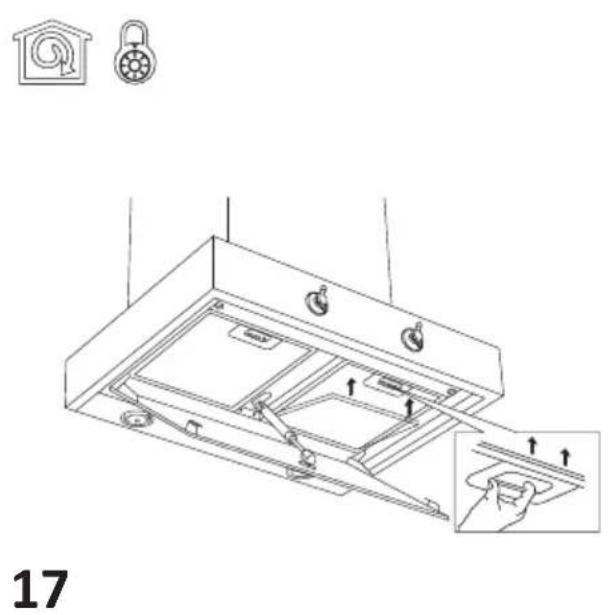

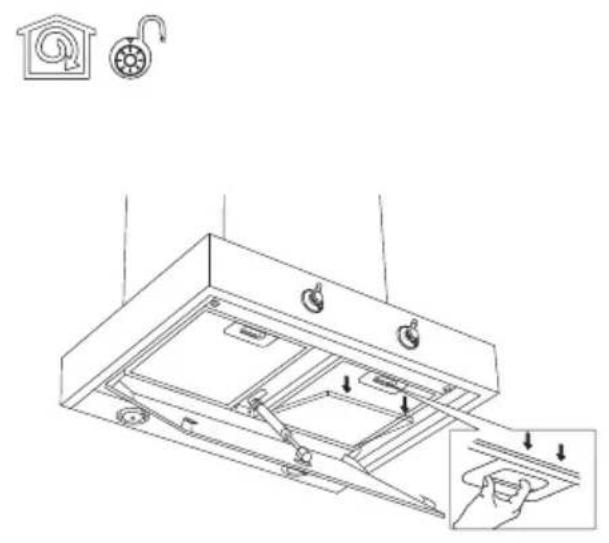

To remove the grease filter, pull the spring release handle.

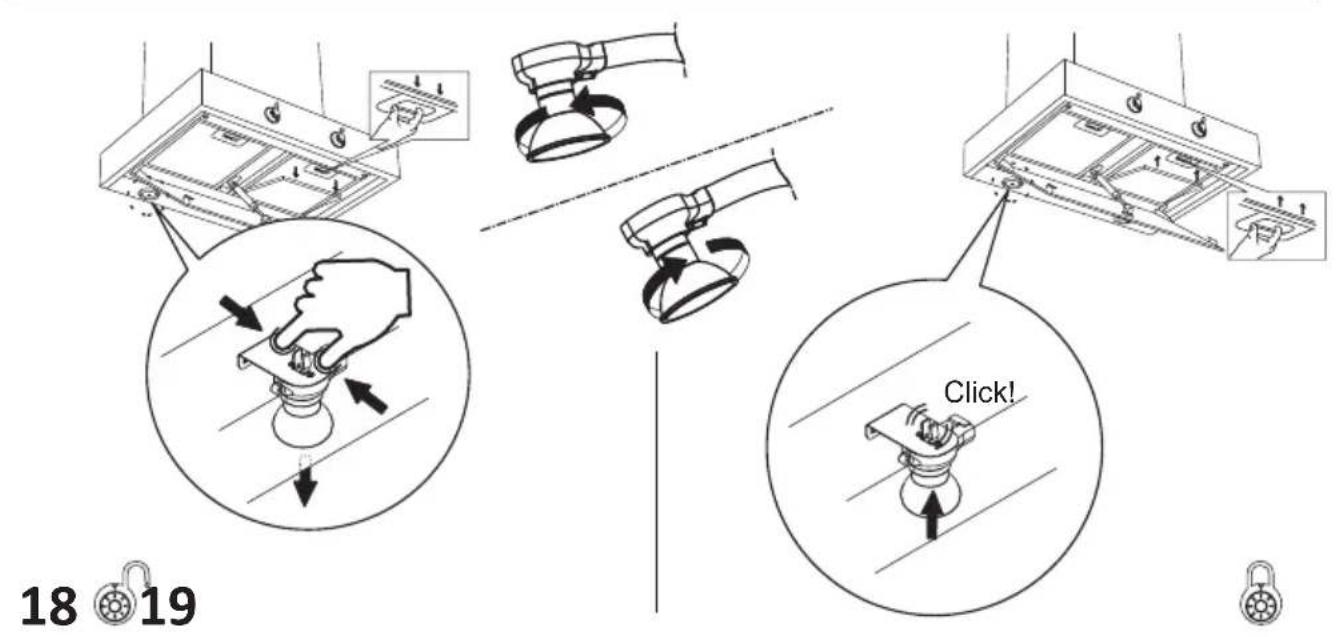

Replacing lamps

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

1. Remove the bulb halogen
2. Replace burned-out light bulb. Use only the contribution GU10 bulbs. After replacing the bulb needs to be cleaned.

If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.
