GZ-208 - Kettle Guzzanti - Free user manual and instructions

Product Type	Electric Kettle
Brand	Guzzanti
Model	GZ-208
Capacity	1.7 L
Power Rating	2200 W
Voltage	220-240 V ~ 50/60 Hz
Material	Stainless Steel Body, Plastic Lid
Dimensions (W x D x H)	22 x 15 x 25 cm
Weight	1.2 kg
Cord Length	0.75 m
Auto Shut-Off	Yes
Boil-Dry Protection	Yes
Concealed Heating Element	Yes
360° Swivel Base	Yes
Water Level Indicator	Transparent Window with Scale
Removable Filter	Yes, Mesh
Lid Opening	Push-Button with Wide Opening
Non-Slip Feet	Yes
Cool-Touch Handle	Yes, Ergonomic
Cleaning Instructions	Wipe exterior with damp cloth; descale regularly with vinegar or citric acid
Safety Features	Auto shut-off, boil-dry protection, thermal fuse
Warranty	2 years

Frequently Asked Questions - GZ-208 Guzzanti

What is the capacity of the Guzzanti GZ-208 kettle?

The Guzzanti GZ-208 has a capacity of 1.7 liters, suitable for multiple cups of tea or coffee.

How do I clean the kettle?

Unplug and let cool. Wipe the exterior with a damp cloth. For descaling, fill with a mixture of water and vinegar (1:2 ratio) or use citric acid, boil, let sit, then rinse thoroughly.

Does the kettle have automatic shut-off?

Yes, the GZ-208 features an auto shut-off function that turns off the kettle once the water reaches boiling point.

What is the power rating of the kettle?

The power rating is 2200 W at 220-240 V, allowing rapid boiling.

Can I use the kettle on a 360-degree base?

Yes, the kettle sits on a 360° swivel base, making it easy to lift and replace from any angle.

Is there a water level indicator?

Yes, there is a transparent window with markings for minimum and maximum levels.

Does the kettle have a filter?

Yes, it includes a removable mesh filter near the spout to trap limescale particles.

What materials is the kettle made of?

The body is made of stainless steel with a plastic lid and handle for heat insulation.

Is the kettle safe to leave unattended?

It has boil-dry protection and auto shut-off, but never leave any appliance unattended while in use.

What is the warranty period for the Guzzanti GZ-208?

The kettle comes with a 2-year warranty against manufacturing defects.

USER MANUAL GZ-208 Guzzanti

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

1. Voltage: 120V; frequency: 60Hz; power: 1300W; capacity: 2.0 L; standby power consumption: below 0.5W;
2. Intelligent temperature controlled for heating, with optional 50 °C, 70 °C, 80 °C, 90 °C, and 100 °C heating temperature;
3. Intelligent thermal insulation, with optional 50 °C, 70 °C, 80 °C, 90 °C, and 100 °C insulation temperature.
4. Tow soft keys + four LED luminescent tube + The kettle colorful lights;
5. “☐” key: Power switch to start / stop heating;
6. Long by three seconds to “☐” key, set insulation 50 °C, 70 °C, 80 °C, 90 °C
7. “+ / -” key: insulation selection button to select the design temperature, such as 50 °C, 70 °C, 80 °C, 90 °C

Notice before use:

1. Before use, check that the voltage required by electric kettle is consistent with that that your used. If not consistent, do not use this product to avoid accident!
2. Use this product on a level surface to prevent the damage to the product due to dumping to cause accident. In use, the power plug of the electric kettle shall be connected with the power socket firmly.
   3 The product is equipped with dry-run automatic power off device, with power cut off automatically in case of dry-run overheating to prevent the damage to the product.
3. During the use, if the kettle boils dry accidentally, pull out the power plug and add the right amount of cold water into it to reduce the temperature of the electric hot tray. The power off device will automatically work after the temperature meets the requirement. Pour out the first cooked water to normally use the electric kettle.
4. There are four indicators on the key panel, to indicate the selected temperature (50 °C, 70 °C, 80 °C, 90 °C), indicating function starting temperature setting and power

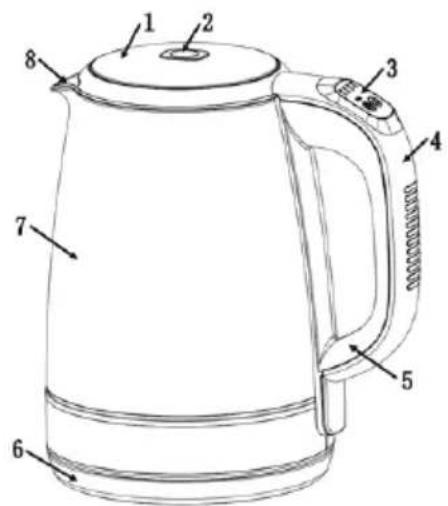

Overall kettle and key panel diagram (as shown below)

1 – Lid; 2 – Lid open key; 3 – Key panel; 4 – Handle cover; 5 – Handle; 6 – Base; 7 – Glass body; 8 – Kettle mouth (with filter); 9 – Temperature sign; 10 - Temperature indicator; 11 - Temperature option key; 12 – Power key

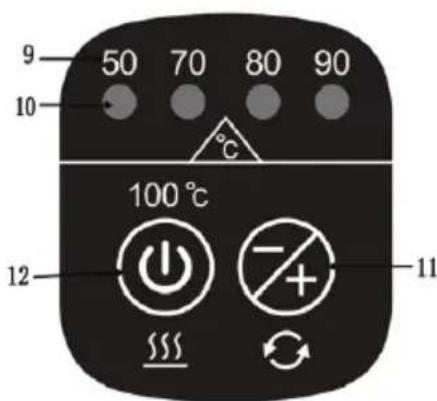

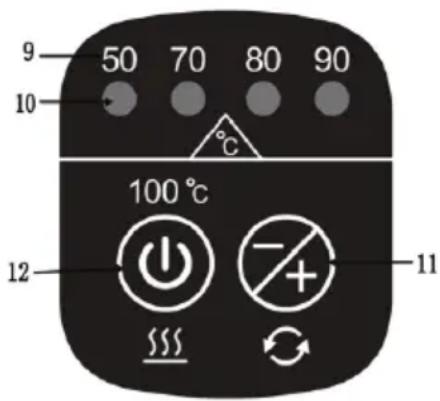

Overall kettle diagram Key panel diagram

Operating Instructions:

Instructions of buzz:

1) Power-on or heating temperature reaches pre-set temperature -- buzz twice;
2) Operate buttons -- buzz once;

Instructions of pre-set temperature indicator light:

Normal mode: 50 °C, 70 °C, 80 °C, 90 °C corresponding indicator light keep shine, others light off; Keep warm mode: 50 °C, 70 °C, 80 °C, 90 °C corresponding indicator light keep flash, others light off;

Instructions of button:

1) Start Button:

Press the start button to start heating, press it again to stop heating, Followed by Recycling. Press the start button 3 seconds into keep warm mode; press the start button 1 seconds again to exit keep warm mode;

2) Buttons for Temperature Pre-set:

Normal mode, the temperature indicator light turn on 50 ^ 70 ^ 80 ^ 90 ^ (all light off at) 100 ^ 50 ^ ; Keep warm mode, the temperature indicator light turn on 50 ^ 70 ^ 80 ^ 90 ^ 50 ^ ; When in keep warm mode the indicator light will flash, interval 0.5 seconds;

Instructions of LED on the kettle body:

1) Pre-set temperature is 50 °C -- the LED shine green; 70 °C--the LED shine blue; 80 °C--LED shine purple; 90 °C--LED shine orange; 100 °C -- LED shine red;
2) The LED turns on in the process of set temperature, heating or keep warm: When finish heating the LED turn off;

Instructions of Working Status:

Normal mode:

1) Power on → Buzz twice → Indicator light all light up 1 second → LED on kettle body flash red, green, blue in turn → into standby status
2) After power on, default pre-set temperature is 100 °C , Press start button to boiling directly, when water temperature get 98 °C , kettle start timing and stop heating after 8-10 seconds, then turn into standby status after buzz twice.
3) If not press start button after pre-set temperature, the corresponding indicator light shall turn off after 15 seconds, and kettle turn into standby status.
4) When start heating after pre-set temperature, the indicator light turn on, after water get pre-set temperature kettle stop heating, then buzz twice, the LED on kettle body turn off, the indicator light still keep shine, turn into standby state after a minute. Boiling water temperature range is +3 degrees;
5) During the heating process, can set temperature through pre-set temperature button.

Keep warm mode:

1) In standby status, press start button 3 seconds turn into keep warm mode and start heating water, default pre-set temperature is 50 °C, press start button 1 seconds again kettle stop working and turn in standby status.
2) Turn into keep warm mode, shall pre-set temperature first, the corresponding indicator light turn on: if not press start button 3 seconds after set temperature, the indicator light shall turn off after 15 seconds, and kettle turn into standby status: if press start button 3 seconds after pre-set temperature, then kettle turn in keep warm mode and start heating, corresponding indicator light flash interval 0.5 second.
3) In keep warm mode, when the water temperature get pre-set temperature first time, kettle shall buzz twice, and will not buzz afterwards.
4) After get pre-set temperature first time, kettle start keep warm in 30 minutes, when water temperature below pre-set temperature, kettle start heating automatically: after 30 minutes kettle turn into keep warm mode into standby status.
5) In keep warm mode, only corresponding pre-set temperature indicator light flash, others light off, until keep warm stop: in keep warm process, press pre-set temperature button is invalid.
6) Keep warm temperature range is 1/+3 degree.

Description of malfunction:

A) When NTC short circuit, all the temperature indicator lights flash, kettle stop heating, buttons cannot operable.
B) When NTC open circuit, all the temperature indicator lights turn off, kettle stop heating, buttons cannot operable.

Warning:

1. This product is designed only for bsoiling water indoors, with other liquid filled or for other purpose forbidden.
2. When using the product, be sure to fill with the water and then turn on the power.
3. Do not exceed Max. rated capacity when filling the water, to avoid the boiling water overflow to cause burns. Water volume can not exceed
4. Cut off the power and then move the electric kettle; do not touch other parts of the kettle filling with boiling water except for handle, to prevent burns.
5. In use process, do not hang the power wire near the table or similar part, to avoid any danger.
6. In order to prevent the water from eroding any internal part, do not immerse the electric kettle into any liquid for cleaning. For details, refer to “Cleaning and descaling”.
7. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

8. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

9. Keep the appliance and its cord out of reach of children aged less than 8 years.

10. If the kettle is overfilled, boiling water may be ejected.
11. The appliance must not be immersed.
12. The kettle is only to be used with the stand provided.

13. This appliance is intended to be used in household and similar applications such as:

14. Staff kitchen areas in shops, offices and other working environments

15. Farm houses;
16. by clients in hotels, motels and other residential type environments;
17. bed and breakfast type environments

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Cleaning and descaling

Cleaning

• Carefully read "Warning" part before cleaning;
• Before cleaning, pull out the power plug to keep the electric kettle cool down;
• Wipe up the outside of bottom cover of the electric kettle with a damp cloth, and then dry it with a dry cloth. Do not use rough cleaning compound, otherwise it will scratch the pot body.
• The soap water and cleaning agent both are used for cleaning and removing the debris and attachments, with strong acids or other corrosive detergent forbidden to clean the kettle part.

Descaling

• Descale the water kettle regularly to ensure a longer life;
• Descaling shall be carried out twice every year in normal use state;
• Add the edible vinegar to the Max level shown on the water level gauge and then boil it.
• Cut off the power (pull out the power plug);
• Place the boiled edible vinegar into the kettle and then drain out it after one night.
• Add the water to the MAX level shown on the water level gauge and then drain out it, to remove the remaining scales and vinegar;
• And then wash the kettle with clean water for descaling.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
