Product Type	Portable Bluetooth Speaker
Brand	Hitachi
Model	AXS240BTU
Dimensions (W x H x D)	Approximately 200 x 100 x 100 mm
Weight	Approximately 0.8 kg
Power Supply	Built-in rechargeable battery (DC 5V via USB-C)
Battery Life	Up to 10 hours at moderate volume
Charging Time	Approximately 3 hours
Bluetooth Version	Bluetooth 5.0
Bluetooth Range	Up to 10 meters
Audio Output	2 x 5W RMS stereo
Frequency Response	80 Hz - 20 kHz
Speaker Driver	2 x 52 mm full-range drivers
Controls	Power, Volume +/-, Play/Pause, Bluetooth pairing button, Aux input
Inputs	Bluetooth, 3.5mm AUX, USB-C charging
Water Resistance	IPX5 (splash proof)
Hands-Free Function	Yes, built-in microphone for calls
Cleaning	Wipe with a dry soft cloth; do not use harsh chemicals
Safety	Do not expose to extreme temperatures; keep away from water sources
Spare Parts	Contact Hitachi support for replacement batteries or charging cables
Repairability	Not user-serviceable; professional repair recommended
General Information	Compatible with smartphones, tablets, laptops; supports voice assistants

Frequently Asked Questions - AXS240BTU HITACHI

How do I pair my Hitachi AXS240BTU speaker with Bluetooth?

Turn on the speaker. Activate Bluetooth on your device. Select HITACHI AXS240BTU from the list. If prompted, enter 0000 or confirm pairing.

How long does the battery last?

At moderate volume, the battery lasts up to 10 hours. Actual battery life may vary depending on volume and audio content.

Is the speaker waterproof?

It has an IPX5 rating, meaning it is splash-proof but not fully waterproof. Avoid submerging it in water.

Can I use the speaker while charging?

Yes, you can use the speaker while it is connected to a USB power source. However, charging may take longer.

What should I do if the speaker doesn't turn on?

Charge the battery for at least 2-3 hours using a compatible USB-C cable. If it still doesn't turn on, try a different cable and power source.

How do I reset the speaker?

With the speaker on, press and hold the Power and Volume + buttons simultaneously for about 5 seconds until you hear a beep. Then power cycle the speaker.

Can I connect two AXS240BTU speakers together for stereo?

This model does not support True Wireless Stereo (TWS). Each speaker works independently.

Why is the audio quality poor or distorted?

Check that the Bluetooth connection is stable and not too far away. Reduce the volume on both the speaker and your device. Also, ensure the audio source is not clipped.

How do I clean the speaker?

Use a soft, dry cloth to wipe the exterior. Do not use alcohol, solvents, or abrasive cleaners. For the grille, gently brush with a soft brush.

What is the warranty period?

Hitachi typically offers a 1-year limited warranty for this speaker. Register your product or check with your retailer for specific terms.

USER MANUAL AXS240BTU HITACHI

Black rectangular and textured sound wave device with a circular button, shown against white background (no text or symbols visible)

Bluetooth®

Important - Please read these instructions fully before installing or operating and keep for future reference.

These instructions contain important information which will help you get the best from your Sound Bar and ensure safe and correct installation and operation.

For any help concerning set up and use of your sound bar Please call the Customer Helpline: 0345 604 0105

Lines open: 8am - 7pm Monday to Saturday and 10am - 4pm Sunday

Contents

Safety Warnings 4

Supervision 5

Support 6

Unpacking 7

Product Overview 8

Main Unit 8

Rear View of Subwoofer 9

Remote Control 10

Preparation 11

Battery Replacement for the Remote Control 11

Remote Control Operation Range 11

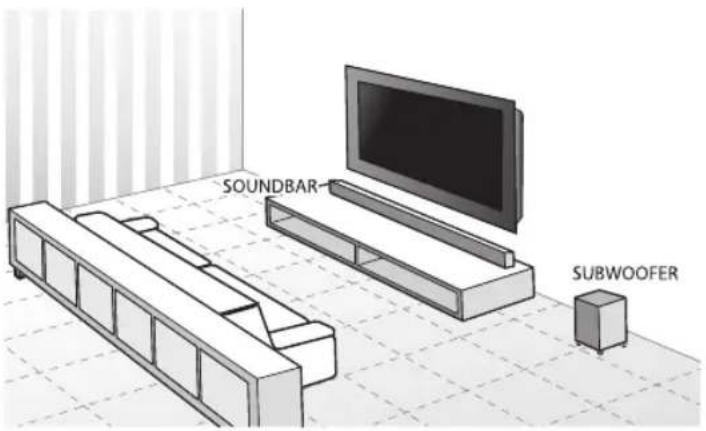

Speakers Placement 12

Connections 13

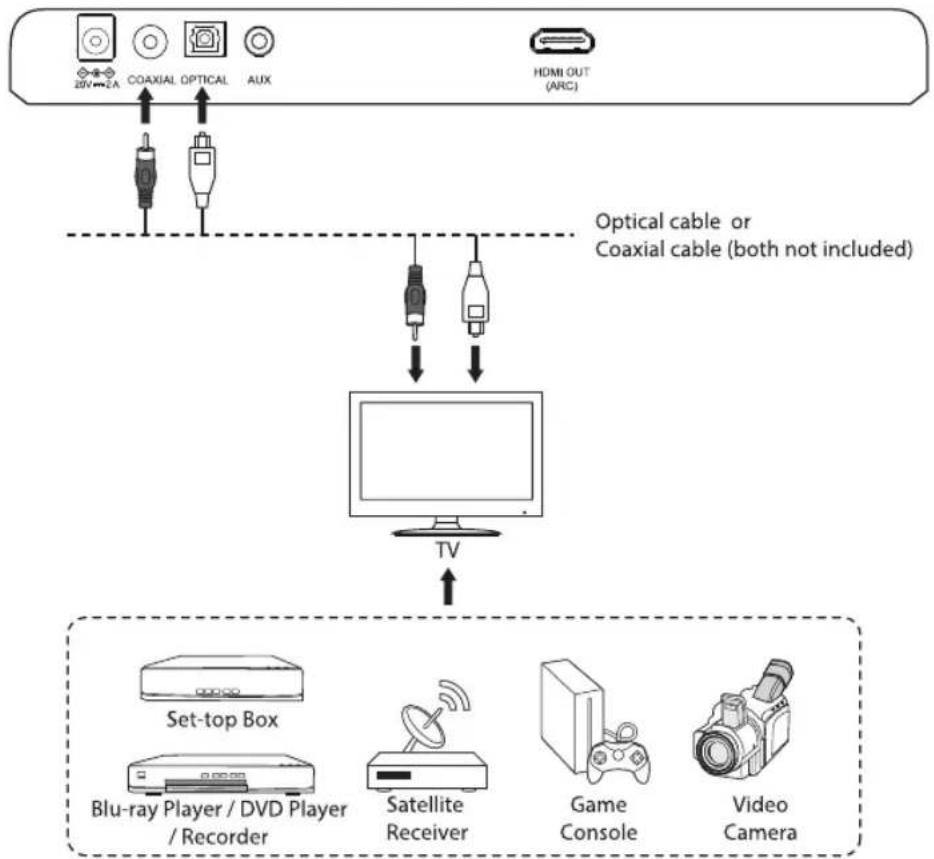

Method 1: Optical / Coaxial Connection 13

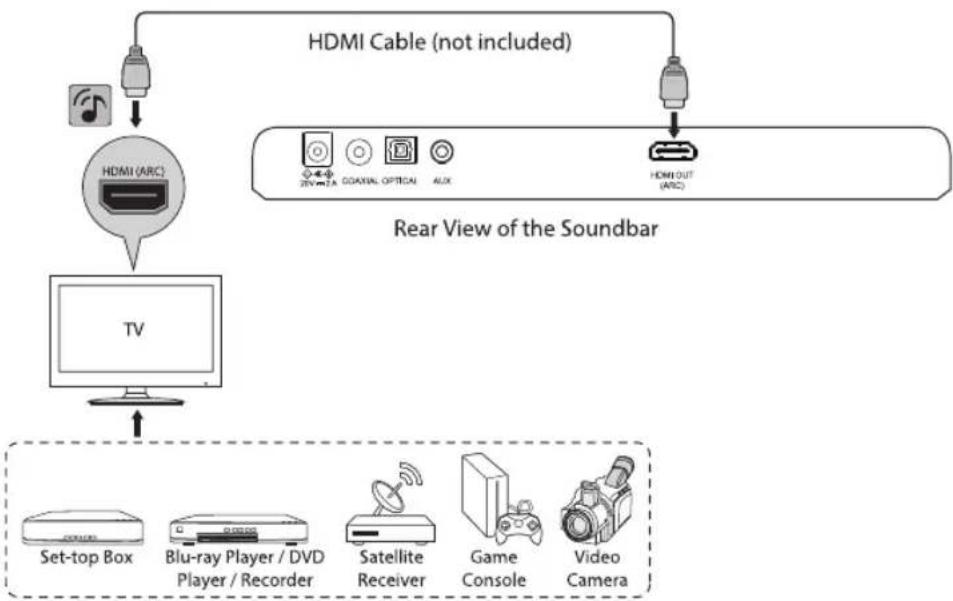

Method 2: HDMI Hub Connection ....14

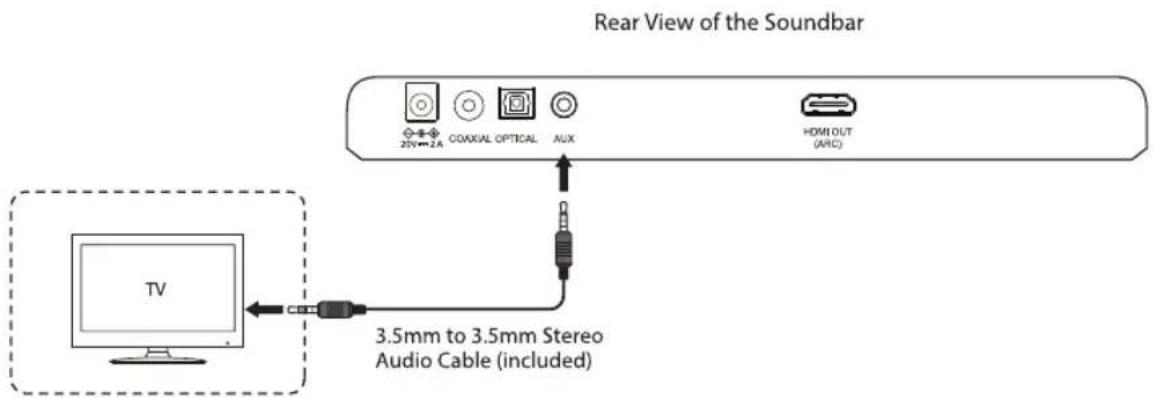

Method 3: AUX Connection ....15

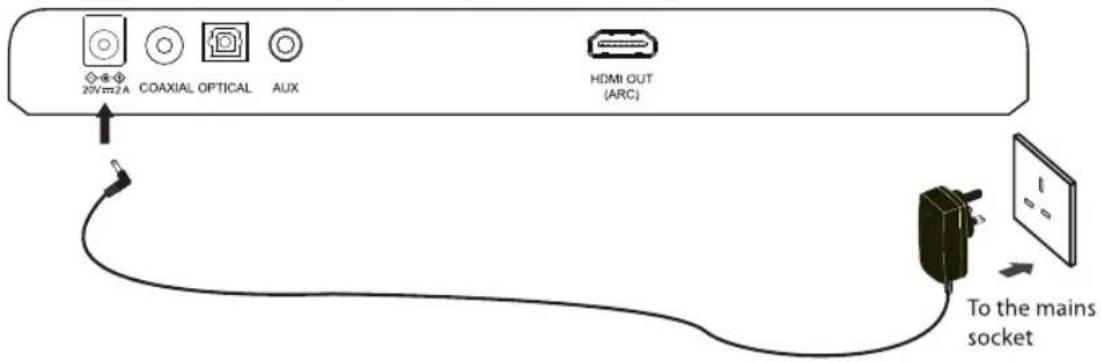

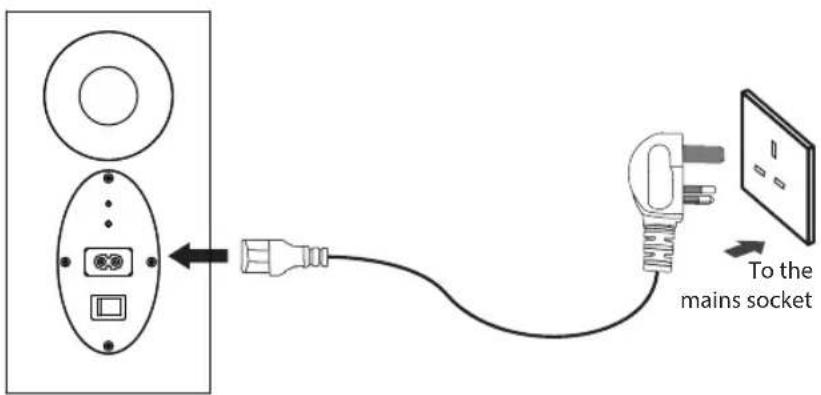

Connecting to the Mains Supply 16

Pairing the Wireless Subwoofer with the Soundbar 17

General Operation 18

Standby / ON 18

Automatic Power Off Function 18

Selecting Modes 18

Adjusting the Speaker Level Settings and Effects 18

AUX / Coaxial / Optical / HDMI Operation 19

Bluetooth® Operation 20

Maintenance 20

Hints and Tips 21

Specifications 22

Warning 24

Guarantee 25

Illustration of various electronic components including batteries, cylinders, and connectors (no text or symbols)

BATTERY SAFETY GUIDELINES

Used correctly, domestic batteries are a safe and dependable source of portable power. Problems can occur if they are misused or abused – resulting in leakage or, in extreme cases, fire or explosion. Here are some simple guidelines to safe battery use designed to eliminate any such problems.

Two batteries with different charging and discharging symbols (no text or labels)

Take care to fit your batteries correctly, observing the plus and minus marks on the battery and appliance. Incorrect fitting can cause leakage or, in extreme cases, fire or even an explosion.

Diagram of battery charging process with batteries and a battery holder (no text or symbols)

Replace the whole set of batteries at one time, taking care not to mix old and new batteries or batteries of different types, since this can result in leakage or, in extreme cases, fire or even an explosion.

Store unused batteries in their packaging and away from metal objects which may cause a short-circuit resulting in leakage or, in extreme cases, fire or even an explosion.

Abstract geometric pattern with diagonal lines and wavy segments on black background (no text or symbols)

Remove dead batteries from equipment and all batteries from equipment you know you are not going to use for a long time. Otherwise the batteries may leak and cause damage.

Never dispose of batteries in fire as this can cause them to explode. Please recycle dead batteries; do not put with the normal household waste.

Abstract black-and-white graphic with a gauge, cross, and house shapes (no text or symbols)

Never attempt to recharge ordinary batteries, either in a charger or by applying heat to them. They may leak, cause fire or even explode. There are special rechargeable batteries which are clearly marked as such.

Illustration of a hand holding a rectangular object with a handle, against a black background (no text or symbols)

Supervise children if they are replacing batteries themselves in order to ensure these guidelines are followed.

Illustration of a human mouth with a pill bottle and a cross mark (no text or symbols)

Remember that small button cell batteries such as used in some hearing aids, toys, games and other appliances, are easily swallowed by young children and this can be dangerous.

Abstract black-and-white graphic with white hand gestures and curved lines, no text or symbols present

Keep loose button cells away from young children.

Hand inserting a card into a folder (no text or symbols visible)

Make sure battery compartments are secure.

Diagram of a human torso with a downward arrow and coin, accompanied by a cross symbol (no text or labels)

Seek medical advice if you believe a cell has been swallowed.

Safety Warnings

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
• This unit is designed for indoor, domestic use only.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas / electric fires.
• Avoid exposure to direct sunlight and other sources of heat.
• Attention should be drawn to the use of apparatus in moderate climates.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit. Do not operate the unit with wet hands, near water or other liquid.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

- Do not operate the unit with wet hands.

Ventilation

• the ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
• A minimum distance of 5 cm around the unit should be maintained to allow for sufficient ventilation.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting / disconnecting other devices or moving the unit.
- Unplug the unit from the mains socket during a lightning storm.
- In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains plug from the mains socket.

Mains Cable

• Make sure the unit or unit stand is not resting on top of the mains cable, as the weight of the unit may damage the mains cable and create a safety hazard.
• If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Mains Adapter Cable

- Make sure the unit or unit stand is not resting on top of the mains adapter cable, as the weight of the unit may damage the cable and create a safety hazard.

Mains Adapter

• The mains adapter will continue to draw electricity from the mains supply when plugged in the mains socket. In the interests of safety and to avoid unnecessary energy consumption, never leave the adapter plugged in the mains socket while unattended for long periods of time. Disconnect the adapter from the power supply.
• The AC plug is considered as a disconneted device of the adapter.

• The adapter shall be installed near the equipment and shall be easily accessible.

Use only power supplies listed in the user instructions.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted picture or sound.

Batteries

• Batteries used in the remote control for this unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the remote control. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.
• Do not expose the battery to direct sunlight or sources of excessive heat.
• Attention should be drawn to the environmental aspects of battery disposal.

Supervision

• Children should be supervised to ensure that they do not play with the unit and the remote control.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
• Do not use liquids to clean the unit.

Wall Mounting

- Please use two M6 screws (not included), and its length is more than 8 cm.

To prevent the spread of fire, keep candles or other open flames away from this product at all times.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

Support

Technical experts are available 7 days a week

• Simple help and advice on setting up your digital equipment (image).
  •Guidance on connecting other devices to your television such as a DVD player, Sky, home cinema system or a games console.
• Order spare parts, including that lost remote control.
  • Any other technical issues you may need assistance with.

Call us today: 0345 604 0105

Local call rates applies*

Lines open 8am-7pm Monday to Saturday and 10am-4pm Sunday.

*Calls to Argos enquiry lines may attract a charge and set up fee from residential lines depending on your call plan/tariff. Mobile and other providers costs may vary, see www.bt.com/pricing for details.

For Security and training purposes, telephone calls to and from customer service centres maybe recorded and monitored. Calls from Republic of Ireland will attract international call charges.

HITACHI Europe Ltd., declares that the radio equipment type soundbar is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://estadoc.hitachi.eu/estadoc/index.htm

Thank you for purchasing your new HITACHI Soundbar.

We recommend that you spend some time reading this instruction manual so that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Main Unit

Remote Control

Subwoofer

Mains Cable x 1

Mains Adapter

3.5mm to 3.5mm
Stereo Audio Cable

Instruction Manual

Product Overview

Main Unit

Front View

1. LED Indicators

Show the current status.

1. Remote Control Sensor

Receive signal from the remote control.

1. Standby / Subwoofer

Red indicator.

(Standby: solid, subwoofer: to pair with the soundbar)

1. Bluetooth

Blue indicator.

1. COAXIAL/OPTICAL

Coaxial:Green indicator. Optical:White indicator.

1. HDMI

Amber indicator.

1. AUX

The white indicator and green indicator will become solid.

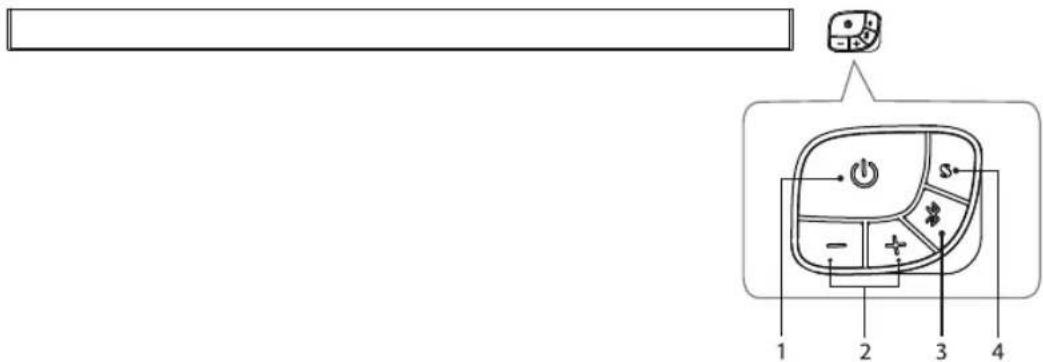

Right side View

Front view of main unit

1. ⏻ Button

Switch the unit between On and Standby mode.

1. VOL - / + Button

Adjust the volume.

1. Bluetooth Button

Select Bluetooth input.

1. SOURCE Button

Select the input source.

Rear View

1. ◇-©+20V---2A Socket
2. AUX Socket
3. COAXIAL Socket
4. HDMI OUT (ARC) Socket
5. OPTICAL Socket

Rear View of Subwoofer

1. POWER Indicator Light up orange when the pairing succeed.

2. AC 100\~240V Power Socket

3. ON/OFF Switch Switch the subwoofer ON or OFF.

4. PAIR Button Pair with the main unit.

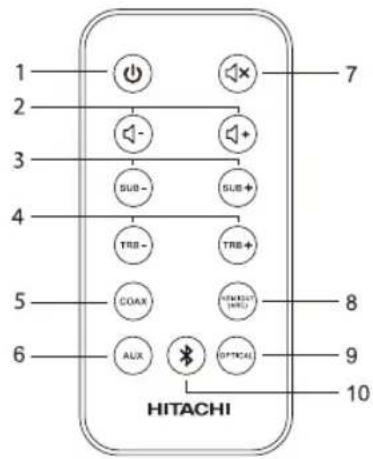

Remote Control

1. ⏻ Button Switch the unit between On and Standby mode.

2. VOL - / + Buttons Adjust the volume.

3. SUB -/+ Buttons Adjust the subwoofer sound level.

4. TRB - / + Buttons Adjust the treble sound level.

5. COAX Button Switch between COAXIAL mode.

6. AUX Button Switch between AUX mode.

7. Button Mute the unit or resume the sound.

8. HDMI OUT (ARC) Button Switch between HDMI OUT (ARC) mode.

9. OPTICAL Button Switch between OPTICAL mode.

10. ✿ PAIR Button Direct switch to Bluetooth® mode. Press and hold to enable Bluetooth® pairing in Bluetooth® mode. If there is an existing connection, press and hole to disconnect the paired Bluetooth® device. The unit will then enter paring mode.

Preparation

Battery Replacement for the Remote Control

The remote control requires a CR2025, 3V Lithium battery.

1. Slide and hold the battery release tab in the direction of the arrow.

1. Pull out the battery holder and remove the old battery.

Diagram showing a rectangular device with internal components and an open lid with directional arrows indicating movement (no text or symbols)

1. Replace with a new battery.

Simple line drawing of a device with a handle and a coin icon, no text or symbols present

1. Insert the battery holder back into the remote control.

Line drawing of a rectangular electronic device with a capacitor inserted into a slot (no text or symbols)

Remove the Plastic Strip from the Remote Control

Remove the plastic strip from the battery if the battery is being used for the first time. It is located at the bottom rear of the remote control.

Handling the Battery

• Install the battery correctly in the battery compartment. Normally the battery's positive polarity (+) will face up.
- A warning that batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
- Do not dispose of used batteries as domestic waste. Dispose of them in accordance with local regulations.
- Small button cell batteries such as the one used in the remote control are easily swallowed by young children and this is dangerous. Keep loose button cells away from young children and make sure that the battery is secure in the remote control. Seek medical advice if you believe a battery cell has been swallowed.

Handling the Remote Control

• Take care of your fingernails when you slide and pull the battery release tab.
• Do not drop the remote control.
- Do not allow anything to impact the remote control.
• Do not spill water or any liquid on the remote control.
- Do not place the remote control on a wet object.
- Do not place the remote control under direct sunlight or near sources of excessive heat.
- Remove the battery from the remote control when not in use for a long period of time, as corrosion or battery leakage may occur and result in physical injury, and / or property damage, and / or fire.
- When the battery is exhausted, the remote control will not function.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Remote Control Operation Range

• The remote control sensor on the front unit is sensitive to the remote control's commands up to a maximum of 5 metres away and within a maximum of a 60^ arc.
• Please note that the operating distance may vary depending on the brightness of the room.

Speakers Placement

• The subwoofer should be within 5 metres of the soundbar in an open area (the closer the better).
• Do not put anything on the top of the subwoofer.

Soundbar

Soundbar carries most of the dialog as well as music and effects.

• If your TV is placed on a table, you can place the soundbar on the table directly in front of the TV stand, centered with the TV screen.
• If your TV is attached to a wall, you can mount the soundbar on the wall directly below the TV screen.

Subwoofer

A subwoofer is designed to reproduce powerful low bass effects (explosions, the rumble of spaceships, etc.).

- The performance of a subwoofer is directly related to its placement in the listening room. Experiment with placement before choosing a final location for your subwoofer. Find the location where the bass performance is best.

Connections

This section involves various methods of connecting the product to other external components. Ensure all audio connections of the unit are connected before connecting to the mains power socket.

Method 1: Optical / Coaxial Connection

Use an optical cable / coaxial cable (both not included) to connect the soundbars OPTICAL / COAXIAL socket to the OPTICAL OUT / COAXIAL OUT socket of the external device.

The simplest option is to connect your soundbar directly to your TV. If you connect the soundbar to another external device (e.g. Blu-Ray player), you will hear the sound from that device through the soundbar.

when connecting a fibre optic cable please ensure to remove the protective caps before plugging into the Optic port.

After connection, press SOURCE on the unit repeatedly or OPTICAL or COAXIAL on the remote control to select OPTICAL or COAXIAL to play audio from your input device.

Rear View of the Soundbar

The unit may not be able to decode all digital audio formats from the input source. In this case, the unit will mute. This is NOT a defect. Ensure that the audio setting of the input source (e.g. TV, game console, DVD player, etc.) is set to PCM (Refer to the user manual of the input source device for its audio setting details) with optical / coaxial input.

Method 2: HDMI Hub Connection

Using Your TV as a hub

The ARC (Audio Return Channel) function allows sound to travel to and from your ARC-compliant TV to your soundbar through a single HDMI connection. To enjoy the ARC function, please ensure that your TV is ARC compliant and set up accordingly.

When you switch your TV on/off with your remote control, you soundbar will also be switched on/off. Be patient that it might take a few seconds for your TV to tell your Soundbar to switch on or off.

• HDMI ARC function only works with a compatible HDMI cable (Version 1.4 or above) & TV that supports ARC function.

Use this method to connect all your devices into your TV.

Connect an HDMI cable (not included) from your soundbars HDMI OUT (ARC) socket to the HDMI (ARC) socket on your ARC-compliant TV.

After connection, press SOURCE on the unit repeatedly or HDMI OUT (ARC) on the remote control to select ARC to play audio from your input device.

For a single remote use when connected to a Hitachi TV please carry out the following: (Please check your user manual for other manufacturers TV as this may not be the same.)

• Connect HDMI cable to ARC supported HDMI port of TV set,
• Set Speaker as Amplifier (Menu >> Settings>>More...>> Other Settings>> Speaker >> Amplifier)
• Then whether you use TV remote control or sound bar remote control, TV speakers will be MUTE and you will hear sound from sound bar without any problem.
  • After stand by on off or power off on, TV keeps last settings.

Using the HDMI converter

Connect the HDMI cable with the HDMI converter (not included) in area with insufficient space for HDMI cable connection.

Simple line drawing of a connector with a plug and cable, no text or symbols present

Method 3: AUX Connection

Use a 3.5mm to 3.5mm stereo audio cable (included) to connect the soundbar's AUX to the headphone socket of the external device.

After connection, press SOURCE on the unit repeatedly or AUX on the remote control to select AUX to play audio from your input device.

If the input to the soundbar is fed from the TV's headphone socket, then to prevent speaker from going into standby it is recommended to have the TV volume set to at least 50% of its range and to use the soundbar remote to control volume.

Connecting to the Mains Supply

The soundbar and subwoofer are designed to operate with the supplied mains adapter and mains cables.

• Connecting the unit to any other power source may damage the unit.
• Ensure all audio connections of the unit are connected before connecting to the mains power socket.
  • Make sure the mains plug is firmly inserted into the mains socket.
  • To switch the unit off completely, remove the mains plug from the mains socket.
• Please turn the unit off completely to save energy when not in use.
• The mains adapter and mains cable are designed for this Hitachi soundbar only. DO NOT use the mains adapter and mains cable for other purposes.

Soundbar

Unwind the mains adapter cable to its full length. Connect mains cable to the mains adapter and then connect to the ◇€⊕20V---2A socket on the rear of the unit and a mains socket at the other end. Make sure the mains adapter is fully inserted into the mains socket.

Rear View of the Unit

Subwoofer

Connect the other end of the mains cable to the AC 100-240V socket at the rear of the subwoofer then connect the mains plug to the mains socket.

Rear View of the Subwoofer

Pairing the Wireless Subwoofer with the Soundbar

Automatic Pairing

Plug the soundbar and the subwoofer into the mains sockets and switch on the subwoofer. Press on the unit or on the remote control to switch the unit to On mode. The red indicator will blink. Then the subwoofer and soundbar will automatically paired within 30 seconds.

Do not press PAIR on the rear of the subwoofer, except for manual pairing.

Manual Pairing

It is very abnormal that the connection would fail. You should not attempt manual pairing in normal usage.

If the automatic pairing fails or the subwoofer is switched OFF, the red indicator will rapidly blink. Ensure that all the cables are well connected, the main unit and the subwoofer is switched to On mode. If it still doesn't work, pair the subwoofer with the soundbar manually.

1. Unplug both units from the mains sockets, then plug them in again after 3 minutes.
2. Press and hold the PAIR button on the rear of the subwoofer, and then press and hold VOL+ and SOURCE on the unit for a few seconds to start pairing. The pair indicator on the subwoofer will blink when pairing and will become solid when successful.
3. While the unit is pairing with the subwoofer, the red indicator will blink.
4. After the subwoofer is paired with the unit, the red indicator will become solid for 10 seconds and then turn off.

• After connecting the power, you must press PAIR on the subwoofer within 20 seconds to be effective.
• The subwoofer should be within 5 m of the soundbar in an open area.
- If the wireless connection fails again, check if there is conflict or strong interference (for example, interference from an electronic device) around your location. Remove these conflicts or strong interferences and repeat the above procedures.

This instruction manual explains the basic instructions for operating this unit. Unless otherwise stated, all operations described are based on remote control use.

General Operation

Standby / ON

When you first connect the unit to the mains socket, the unit will be in Standby mode.

• During Standby mode, the POWER indicator of the subwoofer will be off. Press ⏻ on the unit or on the remote control to switch the unit on. All indicators will light for 3 seconds and the unit will return to the last used mode. When the unit is switched on, the sound level will be fixed to level 15 (if the unit was at less than level 15 previously, the sound level will remain unchanged)
• Press ∅ on the unit or on the remote control again to switch the unit back to Standby mode, the red indicator will become solid.

Automatic Power Off Function

The unit automatically turns to Standby mode after about 10 minutes if the TV or the external unit is disconnected, switched off or the volume is too close to mute.

• To switch the unit off completely, remove the mains plug from the mains socket.
- Please turn the unit off completely to save energy when not in use.

Selecting Modes

Press SOURCE on the unit repeatedly to select between AUX, BT (Bluetooth®), COAXIAL, OPTICAL, HDMI OUT (ARC) mode.

Alternatively,

• press AUX on the remote control to select AUX mode.
• press COAXIAL on the remote control to select COAXIAL mode.
• press OPTICAL on the remote control to select OPTICAL mode.
• press HDMI OUT (ARC) on the remote control to select HDMI OUT(ARC) mode.
• Press 🧑 PAIR on the remote control to select BT (Bluetooth®) mode directly.

Adjusting the Speaker Level Settings and Effects

Adjusting the Volume

• Press VOL + / - to adjust the volume.
1. Volume = level 0: min volume, the white indicator rapidly blink.
2. Level 0 < volume ≤ level 6: the white indicator light.
3. Level 6 < volume ≤ level 12: the white and amber indicator light.
4. Level 12 < volume ≤ level 18: the white, amber and green indicator light.
5. Level 18 < volume ≤ level 24: the white, amber, green and blue indicator light.
6. Level 24 < volume ≤ level 30: the white, amber, green, blue and red indicator light.
7. Volume = level 30: max volume, the white, amber, green and blue indicator light and the red indicator rapidly blink.

- If you wish to turn the sound off, press ✉ on the remote control. The red and white indicators will light at the same time. Press ✉ again, or press VOL + / - on the unit or on the remote control to resume normal listening. Then the corresponding volume indicator will light 3 seconds and turn off.

Adjusting the Subwoofer and Treble Volume Level

Press SUB +/− repeatedly to adjust the bass volume level from SUB MIN (−12) to SUB MAX (12). Each press will increase or decrease 2 level.

Press TRB + / – repeatedly to adjust the bass volume level from TREBLE MIN (-12) to TREBLE MAX (12). Each press will increase or decrease 2 level.

1. Level -12, -10, -8: the white, amber and green indicator light.
2. Level -6, -4, -2: the amber and green indicator light.
3. Level 0: the green indicator light.
4. Level 2, 4, 6: the green and blue indicator light.
5. Level 8, 10, 12: the green, blue and red indicator light.

When input signal cannot be decoded (e.g. Dolby, DTS Studio Sound I etc.), the unit is mute and the corresponding mode indicator rapidly blink.

AUX / Coaxial / Optical / HDMI Operation

There are COAXIAL / OPTICAL / AUX and HDMI sockets located at the rear of the unit. Analogue audio sound signals from other sources can be connected to the unit through these sockets.

1. Before connecting to the mains socket, ensure all the connections are completed.
2. While in the On mode, press SOURCE on the unit repeatedly to select between AUX, BT (Bluetooth ^* ), COAXIAL, OPTICAL, HDMI OUTARC mode.

Alternatively,

• press AUX on the remote control to select AUX mode, the white and green indicator will become solid.
• press COAXIAL on the remote control to select COAXIAL mode, the green indicator will become solid.
• press OPTICAL on the remote control to select OPTICAL mode, the white indicator will become solid.
• press HDMI OUT (ARC) on the remote control to select HDMI OUT(ARC) mode, the amber indicator will become solid.

• Press ✉ PAIR on the remote control to select BT (Bluetooth®) mode directly.

• Operate your audio device directly for playback features.

Bluetooth® Operation

Pairing the unit with a Bluetooth ^® device to listen to music:

First time pairing

1. During On mode, press SOURCE on the unit repeatedly or press ✿ PAIR on the remote control to select Bluetooth® mode. The blue indicator will blink.
2. Activate your Bluetooth® device and select the search mode. "AXS240BTU" will appear on your Bluetooth® device list.
3. Select "AXS240BTU" and enter "0000" for the password if necessary. After pairing, the blue indicator will become solid.
4. Press and hold Bluetooth on the unit or ✕ PAIR on the remote control to clear all pairing setting. The unit will enter pairing mode, and the blue indicator will blink. Follow step 2-3 to pair your Bluetooth® device.

Bluetooth ^® device already in the connection memory

1. After entering the Bluetooth* mode, the blue indicator will blink.
2. The unit will automatically reconnect with the Bluetooth® device. After pairing, the blue indicator will become sold.

If your Bluetooth ^® device supports A2DP, play music via your device.

To disconnect the Bluetooth® function, switch to another function on the unit or disable the function from your Bluetooth® device. You may also press and hold SOURCE on the unit or ✪ PAIR on the remote control to disconnect current connection and go to new Bluetooth Pairing. The blue indicator will blink and the unit is now ready for pairing. Follow step 2-3 in "First time pairing" above to pair your Bluetooth® device.

• The operational range between the unit and the device is approximately 6 metres.
- Before connecting a Bluetooth® device to the unit, ensure you know the devices capabilities.
- Compatibility with all Bluetooth ^ devices is not guaranteed.
• Any obstacle between the device and the unit can reduce operational range.
- Keep this player away from other electronic devices that may cause interference.
• The player will also be disconnected when your device is moved beyond the operational range.

Maintenance

Ensure the unit is fully unplugged from the mains socket before cleaning.

• To clean the units, wipe the case with a slightly moist, lint-free cloth.
• Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
• Do not spray aerosol at or near the unit.

Hints and Tips

If a problem does occur, it may often be due to something very minor. The following table contains various tips.

Problem	Solution
No power.	· Ensure the mains plug is connected.· Make sure that you select the On mode.
The remote control does not function.	· Use the remote control near the unit.· Point the remote control at the remote sensor on the unit.· Replace the battery in the remote control with a new one.· Remove any obstacles between the remote control and the unit.
Loud hum or noise is heard.	· The plugs and sockets are dirty. Wipe them with a cloth slightly moistened with alcohol.
No sound from the soundbar and subwoofer.	Please try either one of the solutions below:· Make sure that the unit is not muted. Press × or VOL + / - button to resume normal listening.· Press on the unit or on the remote control to switch the soundbar to standby mode. Then press the button again to switch the soundbar on.· Unplug both the soundbar and the subwoofer from the mains socket, then plug them again. Switch on the soundbar.· Ensure the audio setting of the input source (e.g. TV, game console, DVD player, etc.) is set to PCM mode while using digital (e.g. HDMI, OPTICAL, COAXIAL) connection.· The subwoofer is out of range, please move the subwoofer closer to the soundbar. Make sure the subwoofer is within 5 m of the soundbar (the closer the better).· The soundbar may have lost connection with the subwoofer. Re-pair the units by following the steps on the section "Pairing the Wireless Subwoofer with the Soundbar".· The unit may not be able to decode all digital audio formats from the input source. In this case, the unit will mute. This is NOT a defect.
The unit does not respond when pressing any buttons.	· The unit may freeze up during use. Switch the unit off and then on again at the mains socket to reset the unit.
Cannot use the TV remote control to switch on/off or adjust the volume of the soundbar.	· Make sure that your TV is HDMI ARC compatible. Use the correct HDMI cable to make the connection between the unit and TV. For details, please refer to "Method 2: HDMI Hub Connection" section.
Intermittent sound output from subwoofer.	You are at the operating limit of the subwoofer. Move the subwoofer closer to the Soundbar (the closer the better) or remove obstacles from between the soundbar and Subwoofer.
I cannot find“AXS240BTU” on my Bluetooth® device.	Ensure the Bluetooth® function is activated on your Bluetooth® device.Ensure you have paired your unit with the Bluetooth® device.

If any anomaly is encountered, unplug the mains adapter from the mains socket and reconnect it again.

Specifications

Model		AXS240BTU
Soundbar
Power Adapter (Use only power adapter listed below)
Power Adapter Manufacturer		AQUIL STAR PRECISION INDUSTRIAL (SHENZHEN) CO., LTD.
Power Adapter Model		ASSA30B-180200
Input		AC 100 - 240 V~ 50/60 Hz, 1A
Output		DC 20 V =2 A ◇◎◇
Main Unit
Main Unit Input		DC 20 V =2 A ◇◎◇
Ecodesign Information (Soundbar)
Information on Power Consumption	Power Consumption of Standby Mode	< 0.5 W
	Network Standby Power Consumption	N/A
Time interval for power management function switches the unit automatically into standby		Switch to standby mode within 10 minutes after intended use
Power consumption in network standby if all wireless network ports are activated		N/A
How to activate wireless network port:Connect the unit with powerSwitch to wireless mode (e.g. Bluet ooth, wifi, etc)How to deactivate wireless network port:Press the Standby button
Bluetooth®		Bluetooth® 4.2 (GVADP/A2DP/AVRCP)
Signal to Noise Ratio		>65 dB
Net Weight		1.39 kg
Dimension		950 mm (W) x 49 mm (H) x 63 mm (D)
Subwoofer
Power Supply		AC100-240 V ~ 50/60 Hz
Power Consumption		40 W
Ecodesign Information (Subwoofer)
Information on Power Consumption	Power Consumption of Standby Mode	N/A
	Network Standby Power Consumption	2.0 W (max.)
Time interval for power management function switches the unit automatically into standby		N/A
Power consumption in network standby if all wireless network ports are activated		N/A
How to activate wireless network port:Connect the unit with powerSwitch to wireless mode (e.g. Bluet ooth, wifi, etc)How to deactivate wireless network port:Press the Standby button
Net Weight		2.64 kg
Dimension		123 mm (W) x 230 mm (H) x 266 mm (D)

Features subject to changes without prior notice.

WARNING

Do not ingest the battery, Chemical Burn Hazard

(The remote control supplied with) This product contains a button cell battery. If the button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children.

If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

Notes for battery disposal

The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

Product Guarantee

This product is guaranteed against manufacturing defects for a period of

Year

This product is guaranteed for twelve months from the date of original purchase. Any defect that arises due to faulty materials or workmanship will either be replaced, refunded or repaired free of charge where possible during this period by the dealer from whom you purchased the unit.

The guarantee is subject to the following provisions:

• The guarantee does not cover accidental damage, misuse, cabinet parts, knobs or consumable items.
• The product must be correctly installed and operated in accordance with the instructions contained in this manual.
• It must be used solely for domestic purpose.
• The guarantee will be rendered invalid if the product is re-sold or has been damaged by inexpert repair.
• Specifications are subject to change without notice.
• The manufacturer disclaims any liability for the incidental or consequential damages.
• The guarantee is in addition to, and does not diminish your statutory or legal rights.
• In the event of a problem with the product with in the guarantee period call the Customer Helpline: 0345 604 0105.

Guarantor: Argos Ltd

489 - 499 Avebury Boulevard

Central Milton Keynes

MK9 2NW

HITACHI Inspire the Next

Manufacturer:

Hitachi Europe Ltd.,

Whitebrook Park,

Lower Cookham Road,

Maidenhead,

Berkshire SL6 8YA

U.K.

Importer:

Argos Ltd.,

489 - 499 Avebury Boulevard,

Central Milton Keynes,

Buckinghamshire MK9 2NW

U.K.
