Product Type	2.1 Bluetooth Soundbar with Wireless Subwoofer
Soundbar Dimensions	985 mm (W) x 54 mm (H) x 74 mm (D)
Subwoofer Dimensions	250 mm (W) x 327 mm (H) x 265 mm (D)
Soundbar Weight	2.1 kg
Subwoofer Weight	6 kg
Power Input (Soundbar)	DC 25V 2.6A via included adapter (DYS602-250260W)
Power Input (Subwoofer)	AC 100-240V ~ 50Hz
Bluetooth Version	4.0
Bluetooth Frequency Range	2402-2480 MHz
Wireless Subwoofer Frequency	2400-2483 MHz
Total RMS Power	115 W (Soundbar 50W + Subwoofer 65W)
Total Peak Power	460 W
Inputs	Optical, Coaxial, AUX1 (RCA L/R), AUX2 (3.5mm), HDMI 1, HDMI 2, HDMI ARC
Outputs	HDMI ARC (Audio Return Channel)
Remote Control	Yes, with 2x AAA batteries
NFC	Yes, for quick Bluetooth pairing
Audio Decoding	Dolby Audio, DTS Studio Sound, DTS TruVolume
Wall Mountable	Yes, brackets and screws included
Auto Power Off	After 10 minutes of inactivity
Standby Power Consumption	< 0.5 W
Network Standby Power Consumption	< 2.0 W
Cleaning Instructions	Wipe with slightly moist lint-free cloth; do not use alcohol, ammonia, or abrasives
Safety	Do not expose to rain or moisture; ensure ventilation; disconnect during storms
Customer Helpline	0345 604 0105 (UK, local call rates apply)
Guarantee	1 year from date of purchase

Frequently Asked Questions - AXS460BTU HITACHI

How do I connect the soundbar to my TV using HDMI ARC?

Use an HDMI cable (not included) to connect the soundbar's HDMI OUT (ARC) socket to the TV's HDMI (ARC) socket. Then press the SOURCE button on the unit or HDMI on the remote to select ARC mode. Ensure your TV supports HDMI-CEC and ARC, and set the TV speaker to 'Amplifier' in the menu.

How do I pair the wireless subwoofer with the soundbar?

Automatic pairing occurs within 30 seconds after plugging both units into mains and switching on the subwoofer. If not, perform manual pairing: unplug both for 3 minutes, plug back in, press and hold the PAIR button on the subwoofer, then press and hold SOURCE and VOL+ on the soundbar. The subwoofer indicator will blink and then become solid when paired.

How do I connect via Bluetooth?

Press SOURCE on the unit or the PAIR button on the remote to select Bluetooth mode. The display will show 'PAIRING'. On your device, search for 'AXS460BTU' and select it. If prompted, enter '0000' as password. The display will show 'PAIRED' when connected.

Why is there no sound from the soundbar?

First, ensure the unit is not muted (press MUTE or VOL+). Check that the correct input source is selected. For digital connections, set the audio output of your source device to PCM or Dolby AC-3. Also verify the subwoofer is within 5 meters and paired. If still no sound, reset by unplugging for 3 minutes.

Can I control the soundbar with my TV remote?

Yes, if your TV supports HDMI-CEC and ARC. Connect via HDMI ARC, set the TV speaker to 'Amplifier', and ensure CEC is enabled on the TV. Then the TV remote can adjust volume and power on/off the soundbar.

How do I mount the soundbar on a wall?

Attach the included wall brackets to the soundbar using the supplied screws. Drill two parallel holes (3-8 mm diameter) 475 mm apart in the wall. Insert wall anchors if needed, then screw the provided screws leaving a 3 mm gap. Hang the soundbar on the screws.

How do I clean the soundbar and subwoofer?

Unplug the units from the mains. Use a slightly moist lint-free cloth to wipe the surfaces. Do not use any cleaning fluids containing alcohol, ammonia, or abrasives. Do not spray aerosols on or near the units.

How do I replace the remote control battery?

Press and slide the back cover to open the battery compartment. Insert two AAA batteries, ensuring the (+) and (-) ends match the markings. Close the cover. Remove batteries if not using the remote for a long time to prevent leakage.

What is DTS TruVolume and how do I enable it?

DTS TruVolume provides consistent volume levels across different sources, reducing loudness variations between TV programs and adverts. Press the DTS TVOL button on the remote to switch TVOL ON or OFF. If you notice volume dropping, consider turning it off.

How do I use NFC to pair with my phone?

Enable NFC on your mobile device. Tap the phone gently on the NFC logo (marked with ) on the soundbar. The unit will automatically switch to Bluetooth mode and enter pairing. For disconnection, tap the phone on the NFC logo again or disable Bluetooth on the phone.

USER MANUAL AXS460BTU HITACHI

2.1 Bluetooth Soundbar with Wireless Subwoofer

AXS460BTU

847/5833

Contents

Safety Warnings....3

Support 5

Unpacking......6

Product Overview 7

Main Unit....7

Rear View of Subwoofer 8

Remote Control 9

Preparation....10

Battery Replacement for the Remote Control 10

Remote Control Operation Range....10

Installing the Foot Pads....11

Wall Mounting....11

Speakers Placement....13

Connections....14

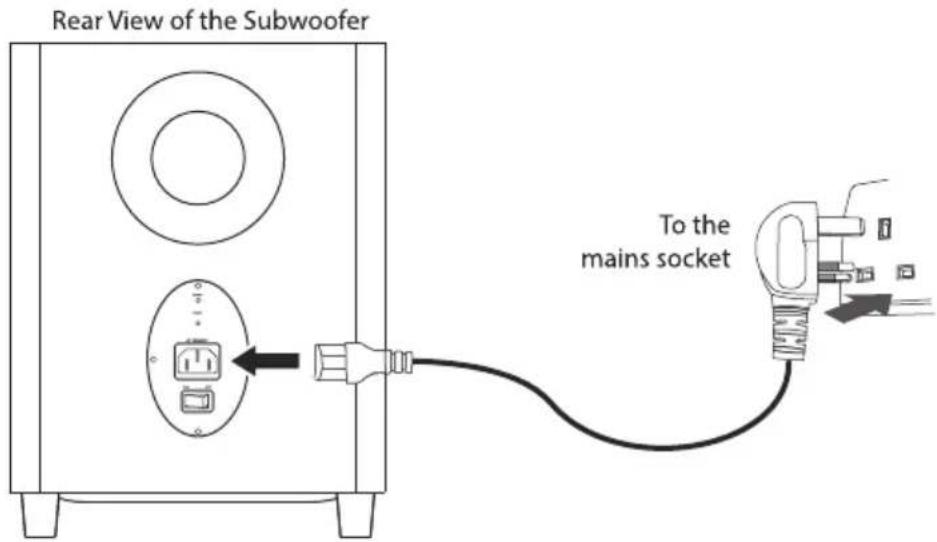

Connecting to the Mains Supply 14

Method 1: Optical / Coaxial Connection....15

Method 2: HDMI Hub Connection....16

Method 3: AUX Connection ....18

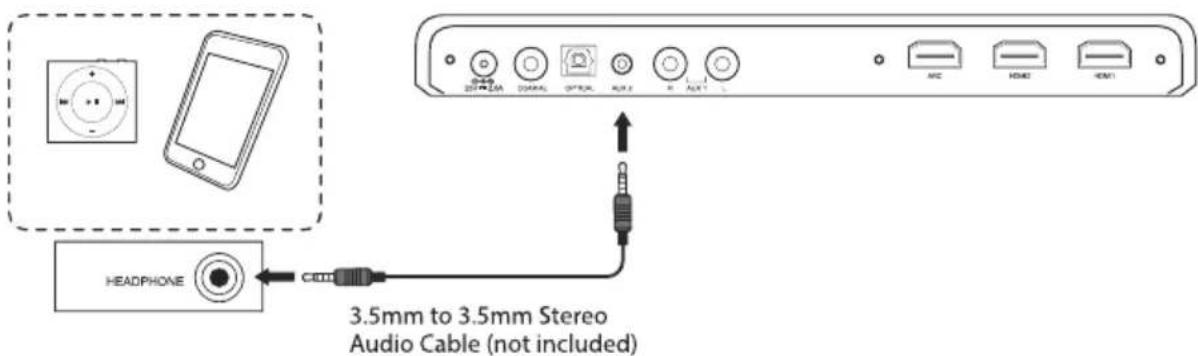

Connecting an MP3 Player 18

Pairing the Wireless Subwoofer with the Soundbar 19

General Operation 20

Standby / ON 20

Automatic Power Off Function 20

Selecting Modes....20

Adjusting the Speaker Level Settings and Effects....21

AUX / Coaxial / Optical / HDMI Operation ....21

Bluetooth® Operation 22

NFC (Near Field Communication) Operation 22

Maintenance....23

Hints and Tips....23

Product Fiche and Specifications.... 24

Guarantee....26

Other Information and Licenses....27

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
• This unit is designed for indoor, domestic use only.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas / electric fires.
• Avoid exposure to direct sunlight and other sources of heat.
• Attention should be drawn to the use of apparatus in moderate climates.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit. Do not operate the unit with wet hands, near water or other liquid.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

• the ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
• A minimum distance of 5 cm around the unit should be maintained to allow for sufficient ventilation.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting / disconnecting other devices or moving the unit.
- Unplug the unit from the mains socket during a lightning storm.
- In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains plug from the mains socket.

Mains Cable

• Make sure the unit or unit stand is not resting on top of the mains cable, as the weight of the unit may damage the mains cable and create a safety hazard.
- If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Mains Adapter Cable

• Make sure the unit or unit stand is not resting on top of the mains adapter cable, as the weight of the unit may damage the cable and create a safety hazard.

Mains Adapter

- The mains adapter will continue to draw electricity from the mains supply when plugged in the mains socket. In the interests of safety and to avoid unnecessary energy consumption, never leave the adapter plugged in the mains socket while unattended for long periods of time. Disconnect the adapter from the power supply.

Use only power supplies listed in the user instructions.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted picture or sound.

Batteries

• Batteries used in the remote control for this unit are easily swallowed by young children and this is dangerous.
• Use of manganese batteries is recommended. Do not mix manganese batteries with alkaline batteries.
• When replacing batteries, replace everything with a new one.
  • There is a risk of liquid leakage when using alkaline batteries.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the remote control. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.
• Do not expose the battery to direct sunlight or sources of excessive heat.
• Attention should be drawn to the environmental aspects of battery disposal.

Supervision

• Children should be supervised to ensure that they do not play with the unit and the remote control.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

For Subwoofer

• Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
  • Do not operate the unit with wet hands.
• The product shall be connected to a MAINS socket outlet with a protective earthing connection.

Maintenance

• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
  • Do not use liquids to clean the unit.

To prevent the spread of fire, keep candles or other open flames away from this product at all times.

Technical experts are available 7 days a week

• Simple help and advice on setting up your digital equipment (image).
  •Guidance on connecting other devices to your television such as a DVD player, Sky, home cinema system or a games console.
• Order spare parts, including that lost remote control.
• Any other technical issues you may need assistance with.

Call us today: 0345 604 0105

Local call rates applies*

Lines open 8am-7pm Monday to Saturday and 10am-4pm Sunday.

*Calls to Argos enquiry lines may attract a charge and set up fee from residential lines depending on your call plan/tariff. Mobile and other providers costs may vary, see www.bt.com/pricing for details.

For Security and training purposes, telephone calls to and from customer service centres maybe recorded and monitored. Calls from Republic of Ireland will attract international call charges.

HITACHI Europe Ltd., declares that the radio equipment type soundbar is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://estadoc.hitachi.eu/estadoc/index.htm

Thank you for purchasing your new product.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Main Unit

Optical Cable

Remote Control

Subwoofer

Mains Cable x 1

Mains Cable x 1

Mains Adapter for Main Unit

Wall Bracket x 2

Screw x 2 PM5*8

Foot Pad x 2

AAA Battery x 2

Instruction Manual

Main Unit

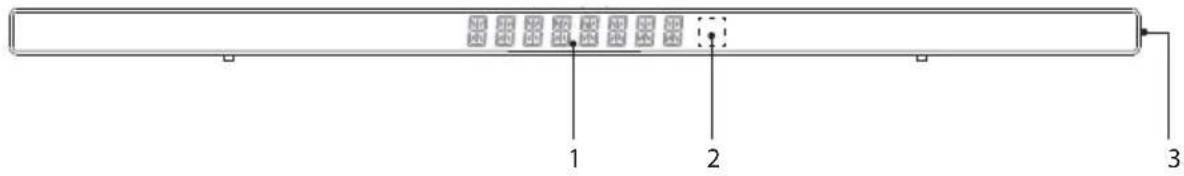

Front View

1. LED Display Show the current status.

2. NFC (Near Field Communication) Sensor

3. Remote Control Sensor Receive signal from the remote control.

Top View

1. Button Switch the unit between On and Standby mode.
2. SOURCE Button Select the input source.
3. VOL - / + Button Adjust the volume.

Rear View

1. 25Vc-2.6A Socket
2. COAXIAL Socket
3. OPTICAL Socket

4. AUX 2 Socket

5. AUX 1 (L/R) Sockets

6. ARC Sockets
7. HDMI 2 Socket
8. HDMI 1 Socket

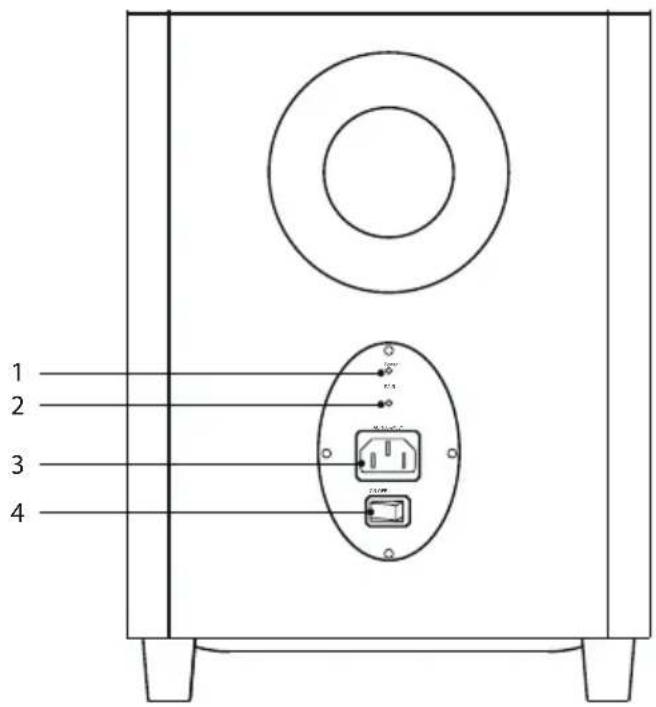

Rear View of Subwoofer

1. POWER Indicator Light up orange when the pairing succeed.

2. PAIR Button Pair with the main unit.

3. AC 100\~240V Power Socket

4. ON/OFF Switch Switch the subwoofer ON or OFF.

5. AC 100\~240V Power Socket

6. ON/OFF Switch Switch the subwoofer ON or OFF.

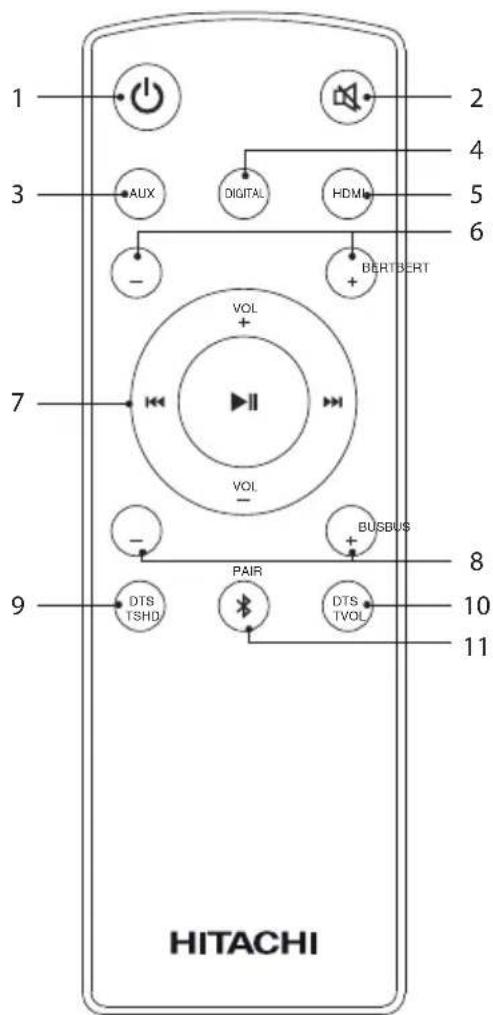

Remote Control

1. Button Switch the unit between On and Standby mode.

2. Button Mute the unit or resume the sound.

3. AUX Button Switch between AUX 1 / AUX 2 mode.

4. DIGITAL Button Switch between OPTICAL / COAXIAL mode.

5. HDMI Button Switch between HDMI 1 / HDMI 2 / ARC mode.

6. TREB - / + Buttons Adjust the treble sound level.

7. VOL + / - Buttons Adjust the volume.

◀◀ Button Skip to the previous track in Bluetooth® mode.

▶II Button Play / pause / resume playback in Bluetooth® mode.

▶▶Button Skip forwards to the next track in Bluetooth® mode.

1. SUB - / + Buttons Adjust the subwoofer sound level.

2. DTS TSHD Button Activate: DTS ON / DTS OFF

3. DTS TVOL Button Activate DTS TruVolume: TVOL ON/ TVOL OFF.

4. ✕ PAIR Button Direct switch to Bluetooth® mode. Press and hold to enable Bluetooth® pairing in Bluetooth® mode. If there is an existing connection, press and hold to disconnect the paired Bluetooth® device. The unit will then enter paring mode.

Battery Replacement for the Remote Control

1. Press and slide the back cover to open the battery compartment of the remote control.
2. Insert two AAA size batteries. Make sure the (+) and (−) ends of the batteries match the (+) and (−) ends indicated in the battery compartment.
3. Close the battery compartment cover.

Handling the Battery

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.
  • Only use the battery type indicated in this manual.
• Do not install new batteries with used ones and do not mix different types of batteries.
• Do not dispose of used batteries as domestic waste. Dispose of them in accordance with local regulations.

Handling the Remote Control

• Do not drop the remote control.
• Do not allow anything to impact the remote control.
• Do not spill water or any liquid on the remote control.
• Do not place the remote control on a wet object.
- Do not place the remote control under direct sunlight or near sources of excessive heat.
- Remove the battery from the remote control when not in use for a long period of time, as corrosion or battery leakage may occur and result in physical injury, and / or property damage, and / or fire.
- When the battery is exhausted, the remote control will not function.

Remote Control Operation Range

• The remote control sensor on the front unit is sensitive to the remote control's commands up to a maximum of 5 metres away and within a maximum of a 60° arc.
• Please note that the operating distance may vary depending on the brightness of the room.

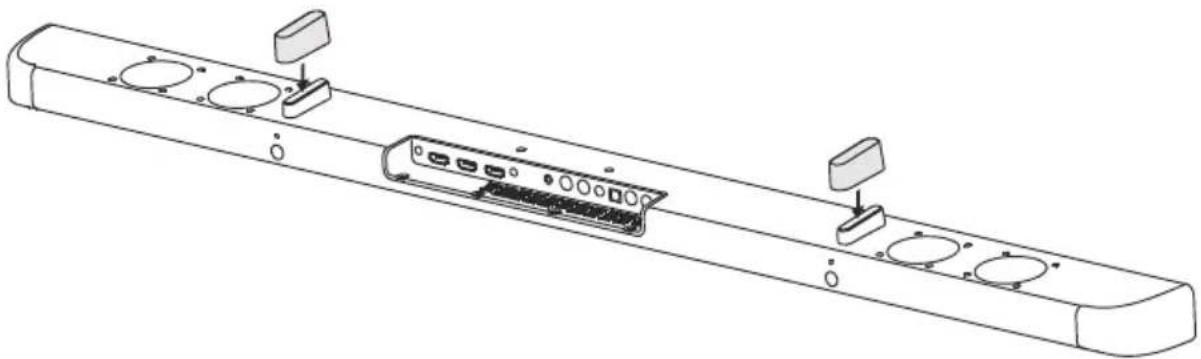

Installing the Foot Pads

Ensure all cables to the main unit are disconnected before installing or removing the foot pads.

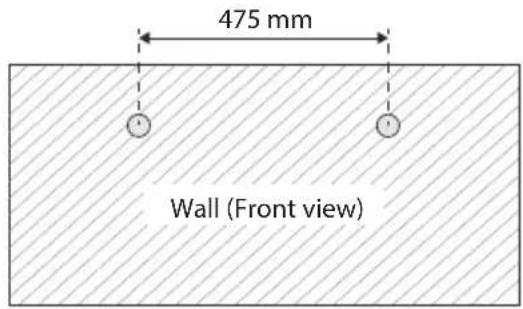

Wall Mounting

• Installation must be carried out by qualified personnel only. Incorrect assembly can result in severe personal injury and property damage (if you intend to install this product yourself, you must check for installations such as electrical wiring and plumbing that may be buried inside the wall). It is the installer's responsibility to verify that the wall will safely support the total load of the Soundbar.
  • Additional tools (not included) are required for the installation.
  • Do not overtighten screws.

• Keep this instruction manual for future reference.
  • Use an electronic stud finder to check the wall type before drilling and mounting.

• Attach the wall brackets (included) to the main unit with the supplied screws.

1. Drill 2 parallel holes ( 3-8 mm each according to wall type) in the wall. The distance between the holes should be 475 mm.

1. Firmly fix 1 dowel (not included) into each hole in the wall if necessary.

1. Insert 1 screw (included) into each dowel. Be sure to leave a 3 mm gap between the wall and the screw's head. Lift the unit over the heads of the screws and slot into place.

Speakers Placement

- The subwoofer should be within 5 metres of the soundbar in an open area (the closer the better).

• Do not put anything on the top of the subwoofer.

Soundbar

Soundbar carries most of the dialog as well as music and effects.

• If your TV is placed on a table, you can place the soundbar on the table directly in front of the TV stand, centered with the TV screen.
- If your TV is attached to a wall, you can mount the soundbar on the wall directly below the TV screen.

Subwoofer

A subwoofer is designed to reproduce powerful low bass effects (explosions, the rumble of spaceships, etc.).

- The performance of a subwoofer is directly related to its placement in the listening room. Experiment with placement before choosing a final location for your subwoofer. Find the location where the bass performance is best.

Connections

Connecting to the Mains Supply

The soundbar and subwoofer are designed to operate with the supplied mains adapter and mains cables.

• Connecting the unit to any other power source may damage the unit.
• Ensure all audio connections of the unit are connected before connecting to the mains power socket.
  • Make sure the mains plug is firmly inserted into the mains socket.
  • To switch the unit off completely, remove the mains plug from the mains socket.
• Please turn the unit off completely to save energy when not in use.
• The mains adapter and mains cable are designed for this soundbar only. DO NOT use the mains adapter and mains cable for other purposes.

Soundbar

Unwind the mains adapter cable to its full length. Connect mains cable to the mains adapter and then connect to the ◇@◆ 25V --- 2.6A socket on the rear of the unit and a mains socket at the other end. Make sure the mains adapter is fully inserted into the mains socket.

Rear View of the Unit

Subwoofer

Connect the other end of the mains cable to the AC 100-240V socket at the rear of the subwoofer then connect the mains plug to the mains socket.

This section involves various methods of connecting the product to other external components. Ensure all audio connections of the unit are connected before connecting to the mains power socket.

Method 1: Optical / Coaxial Connection

Use an optical cable (included)/coaxial cable (not included) to connect the soundbar's OPTICAL / COAXIAL socket to the OPTICAL OUT / COAXIAL OUT socket of the external device. The simplest option is to connect your soundbar directly to your TV. If you connect the soundbar to another external device (e.g. Blu-Ray player), you will hear the sound from that device through the soundbar.

1. After connection, press ⏻ button on the unit or remote control to switch the unit on.
2. Press SOURCE on the unit or DIGITAL on the remote control repeatedly to select OPTICAL or COAXIAL to play audio from your input device.

Rear View of the Soundbar

Set-top Box

Blu-ray Player / DVD Player
/ Recorder

Satellite
Receiver

Game
Console

Video
Camera

The unit may not be able to decode all digital audio formats from the input source. In this case, the unit will mute. This is NOT a defect. Ensure that the audio setting of the input source (e.g. TV, game console, DVD player, etc.) is set to PCM or Dolby AC-3 (Refer to the user manual of the input source device for its audio setting details) with optical / coaxial input.

Method 2: HDMI Hub Connection

Using your Soundbar as a hub

Use this method to connect all your devices into your soundbar. If your TV is not ARC compatible, then you will need to follow "Method 1: Optical / Coaxial Connection" to listen to normal TV through your TV.

1. Connect an HDMI cable (not included) from your soundbar's HDMI OUT (ARC) socket to the HDMI IN socket on your TV.
2. After connection, press ⏻ button on the unit or remote control to switch the unit on.
3. Press SOURCE on the unit or HDMI on the remote control repeatedly to select HDMI 1 / HDMI 2 to play audio from your input device.

The unit may not be able to decode all digital audio formats from the input source. In this case, the unit will mute. This is NOT a defect. Ensure the audio setting of the input source (e.g. TV, game console, DVD player, etc.) is set to PCM or Dolby AC-3 (Refer to the user manual of the input source device for its audio setting details) with HDMI input.

For a single remote use when connected to a Hitachi TV please carry out the following:

(Please check your user manual for other manufacturers TV as this may not be the same.)

• Connect HDMI cable to ARC supported HDMI port of TV set,
• Set Speaker as Amplifier (Menu >> Settings>>More...>> Other Settings>> Speaker >> Amplifier)
• Then whether you use TV remote control or sound bar remote control, TV speakers will be MUTE and you will hear sound from sound bar without any problem.
  • After stand by on off or power off on, TV keeps last settings.

Using Your TV as a hub

• Ensure to use an HDMI cables that can support the ARC function.
• HDMI-CEC will be called different names by different manufacturers – please refer to your owner's manual for details on setting up HDMI-CEC and ARC.
• While using an HDMI cable for ARC function, CEC (Consumer Electronics Control) provides interoperability between the unit and various devices (e.g. TV). However, this unit is not guaranteed to fully operate with all HDMI-CEC enabled devices. This is NOT a defect.

The ARC (Audio Return Channel) function allows sound to travel to and from your ARC-compliant TV to your soundbar through a single HDMI connection. To enjoy the ARC function, please ensure that your TV is both HDMI-CEC and ARC compliant and set up accordingly. When correctly set up, the CEC feature allows you to adjust the volume output (VOL +/- and MUTE) of the soundbar with the TV remote control. When you switch your TV on/off with your remote control, you soundbar will also be switched on/off. Be patient that it might take a few seconds for your TV to tell your Soundbar to switch on or off.

Use this method to connect all your devices into your TV.

1. Connect an HDMI cable (not included) from your soundbar's HDMI OUT (ARC) socket to the HDMI (ARC) socket on your ARC-compliant TV.
2. After connection, press ⏻ button on the unit or remote control to switch the unit on.
3. Press SOURCE on the unit or HDMI on the remote control repeatedly to select ARC to play audio from your input device.

Using the HDMI converter

Connect the HDMI cable with the HDMI converter (not included) in area with insufficient space for HDMI cable connection.

Method 3: AUX Connection

1. Use an RCA to RCA stereo audio cable (not included) or 3.5 mm to RCA stereo audio cable (not included) to connect the soundbar's AUX 1 (L/R) socket to the AUDIO OUT sockets of the external device.
2. After connection, press ⏻ button on the unit or remote control to switch the unit on.
3. Press SOURCE on the unit or AUX on the remote control repeatedly to select AUX 1 to play audio from your input device.

Rear View of the Soundbar

If the input to the soundbar is fed from the TV's headphone socket, then to prevent speaker from going into standby it is recommended to have the TV volume set to at least 50% of its range and to use the soundbar remote to control volume.

- Please check with the manufactures instructions for compatibility.

Connecting an MP3 Player

1. Use a 3.5mm to 3.5mm stereo audio cable (not included) to connect the soundbar's AUX 2 to the headphone socket of the external device.
2. After connection, press ⏻ button on the unit or remote control to switch the unit on.
3. Press SOURCE on the unit or AUX on the remote control repeatedly to select AUX 2 to play audio from your input device.

Rear View of the Soundbar

Pairing the Wireless Subwoofer with the Soundbar

Automatic Pairing

Plug the soundbar and the subwoofer into the mains sockets and switch on the subwoofer. Press on the unit or on the remote control to switch the unit to On mode. The display will show "WELCOME". Then the subwoofer and soundbar will automatically paired within 30 seconds.

Do not press PAIR on the rear of the subwoofer, except for manual pairing.

Manual Pairing

It is very abnormal that the connection would fail. You should not attempt manual pairing in normal usage.

If the automatic pairing fails or the subwoofer is switched OFF, the display will flash "CHK SUB" for 20 seconds. Ensure that all the cables are well connected, the main unit and the subwoofer is switched to On mode. If it still doesn't work, pair the subwoofer with the soundbar manually.

1. Unplug both units from the mains sockets, then plug them in again after 3 minutes.
2. Press ⏻ on the unit or on remote control to switch the unit on.
3. Press and hold the PAIR button on the rear of the subwoofer, and then press and hold SOURCE and VOL+on the unit for a few seconds to start pairing. The pair indicator on the subwoofer will rapidly blink when pairing and will become solid when successful.
4. While the unit is pairing with the subwoofer, "CNCT SUB" will flash on the display.
5. After the subwoofer is paired with the unit, "CNCT SUB" will disappear, and the display will show the current channel.

• After connecting the power, you must press PAIR effective subwoofer within 20 seconds to be eff
• The subwoofer should be within 5 m of the soundbar in an open area.
- If the wireless connection fails again, check if there is conflict or strong interference (for example, interference from an electronic device) around your location. Remove these conflicts or strong interferences and repeat the above procedures.

This instruction manual explains the basic instructions for operating this unit. Unless otherwise stated, all operations described are based on remote control use.

General Operation

Standby / ON

When you first connect the unit to the mains socket, the unit will be in Standby mode.

• During Standby mode, the POWER indicator of the subwoofer will be off on the unit or on the remote control to switch the unit on. The display will show "WELCOME", and then the last used mode. The sound level will fix on level 15 after every time the unit is switched on.
• After the unit is idle for about 10 seconds, the display will show "--".Press any button (except ⏻ and MUTE) to exit the idle mode.
• Press ⏻ on the unit or on the remote control again to switch the unit back to Standby mode. The display will show "GOODBYE", and then turn off

Automatic Power Off Function

The unit automatically turns to Standby mode after about 10 minutes if the TV or the external unit is disconnected, switched off or the volume is too close to mute.

• To switch the unit off completely, remove the mains plug from the mains socket.
- Please turn the unit off completely to save energy when not in use.

Selecting Modes

Press SOURCE on the unit repeatedly to select between AUX 1, AUX 2, BT (Bluetooth®), OPTICAL, COAXIAL, HDMI 1, HDMI 2, and ARC mode.

Alternatively,

• press AUX on the remote control repeatedly to select between AUX 1 and AUX 2 mode.
• press DIGITAL on the remote control repeatedly to select between OPTICAL and COAXIAL mode.
• press HDMI on the remote control repeatedly to select between HDMI 1, HDMI 2 and ARC mode.
• Press ✉ PAIR on the remote control to select BT (Bluetooth®) mode directly.

Adjusting the Speaker Level Settings and Effects

Adjusting the Volume

- Press VOL + / - to adjust the volume.

- If you wish to turn the sound off, press 📁 on the remote control. The display will show "MUTE". Press again, or press VOL + / - on the unit or on the remote control to resume normal listening.

Adjusting the Subwoofer Volume Level

Press SUB + / – repeatedly to adjust the bass volume level from SUB MIN (-10) to SUB MAX (10).

Adjusting the Treble Volume Level

Press TREB + / – repeatedly to adjust the treble volume level from TREB MIN (-10) to TREB MAX (10), each press will increase or decrease 2 level.

DTS Studiosound

Press DTS TSHD to activate DTS ON or DTS OFF.

DTS TruVolume

Press DTS TVOL to switch between TVOL ON or TVOL OFF.

This feature is designed to level out the volume to provide a consistent loudness experience across sources. When watching a TV program and the adverts come on the volume level of the adverts is often louder than the program you are watching. This feature will level out the volume levels between the TV program and adverts. After TVOL (TruVolume) is switched ON, it can adjust the volume levels while watching TV or movies, which might cause the volume level dropping from time to time. If you notice this happening we recommend switching the feature off.

AUX / Coaxial / Optical / HDMI Operation

There are COAXIAL / OPTICAL / AUX 1(L/R) / AUX 2 and HDMI sockets located at the rear of the unit. Analogue audio sound signals from other sources can be connected to the unit through these sockets.

1. Before connecting to the mains socket, ensure all the connections are completed.

2. While in the On mode, press SOURCE on the unit repeatedly to select between AUX 1, AUX 2, BT (Bluetooth®), OPTICAL, COAXIAL, HDMI 1, HDMI 2, and ARC mode.

Alternatively,

• press AUX on the remote control repeatedly to select between AUX1 and AUX2 mode.
• press DIGITAL on the remote control repeatedly to select between OPTICAL and COAXIAL mode.
• press HDMI on the remote control repeatedly to select between HDMI1, HDMI2 and ARC mode.

• Press ✝ PAIR on the remote control to select BT (Bluetooth®) mode directly.

• Operate your audio device directly for playback features.

Bluetooth® Operation

Pairing the unit with a Bluetooth ^® device to listen to music:

First time pairing

1. During On mode, press SOURCE on the unit repeatedly or press ✉ PAIR on the remote control to select Bluetooth® mode. The display will show BT. Then PAIRING will flash in the display.
2. Activate your Bluetooth® device and select the search mode. "AXS460BTU" will appear on your Bluetooth® device list.
3. Select "AXS460BTU" and enter "0000" for the password if necessary. After pairing, the display will show PAIRED.

Pairing a new device after first time pairing

1. In Bluetooth® mode, press and hold SOURCE on the unit or ✕ PAIR on the remote control to clear all pairing setting. The unit will enter pairing mode, and PAIRING will flash in the display.
2. Follow step 2-3 to pair your Bluetooth ^® device.

Bluetooth® device already in the connection memory

1. After entering the Bluetooth® mode, the display will show BT.
2. The unit will automatically reconnect with the Bluetooth® device. After pairing, the display will show PAIRED.

To disconnect the Bluetooth® function, switch to another function on the unit or disable the function from your Bluetooth® device. You may also press and hold SOURCE on the unit or ✪ PAIR on the remote control to clear all pairing setting. PAIRING will flash in the display and the unit is now ready for pairing. Follow step 2-3 in "First time pairing" above to pair your Bluetooth® device.

• The operational range between the unit and the device is approximately 6 metres.
- Before connecting a Bluetooth® device to the unit, ensure you know the device's capabilities.
- Compatibility with all Bluetooth devices is not guaranteed.
• Any obstacle between the device and the unit can reduce operational range.
- Keep this player away from other electronic devices that may cause interference.
• The player will also be disconnected when your device is moved beyond the operational range.

NFC (Near Field Communication) Operation

Pair your NFC-enabled mobile device directly with this unit by just a single tap.

1. Activate NFC on your mobile device.

2. Tap the mobile device on the 📋 icon of the unit. Your unit will switch to Bluetooth® mode automatically. The display will show BT. The unit will enter pairing mode, and PAIRING will flash in the display.

3. Operate your mobile device for playback features.

4. To disconnect, tap the mobile device on the 📋 icon of the unit to disconnect or disable Bluetooth® from your mobile device.

• The NFC function only works with mobile devices that support NFC technology.
• You may need to remove your mobile devices case to connect using NFC.

Ensure the unit is fully unplugged from the mains socket before cleaning.

• To clean the units, wipe the case with a slightly moist, lint-free cloth.
• Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
• Do not spray aerosol at or near the unit.

Hints and Tips

If a problem does occur, it may often be due to something very minor. The following table contains various tips.

Problem Solution
No power.	· Ensure the mains plug is connected.· Make sure that you select the On mode.
The remote control does not function.	· Use the remote control near the unit.· Point the remote control at the remote sensor on the unit.· Replace the battery in the remote control with a new one.· Remove any obstacles between the remote control and the unit.
Loud hum or noise is heard.	· The plugs and sockets are dirty. Wipe them with a cloth slightly moistened with alcohol.
No sound from the soundbar and subwoofer.	Please try either one of the solutions below:· Make sure that the unit is not muted. Press 📄 or VOL +/- button to resume normal listening.· Press 📄 on the unit or on the remote control to switch the soundbar to standby mode. Then press the button again to switch the soundbar on.· Unplug both the soundbar and the subwoofer from the mains socket, then plug them again. Switch on the soundbar.· Ensure the audio setting of the input source (e.g. TV, game console, DVD player, etc.) is set to PCM or Dolby AC-3 mode while using digital (e.g. HDMI, OPTICAL, COAXIAL) connection.· The subwoofer is out of range, please move the subwoofer closer to the soundbar. Make sure the subwoofer is within 5 m of the soundbar (the closer the better).· The soundbar may have lost connection with the subwoofer. Re-pair the units by following the steps on the section "Pairing the Wireless Subwoofer with the Soundbar".· The unit may not be able to decode all digital audio formats from the input source. In this case, the unit will mute. This is NOT a defect.
The unit does not respond when pressing any buttons.	· The unit may freeze up during use. Switch the unit off and then on again at the mains socket to reset the unit.
Cannot use the TV remote control to switch on/off or adjust the volume of the soundbar.	· Make sure that your TV is HDMI-CEC and ARC compatible. Use the correct HDMI cable to make the connection between the unit and TV. For details, please refer to “Method 2: HDMI Hub Connection” section.
Intermittent sound output from subwoofer.	· You are at the operating limit of the subwoofer. Move the subwoofer closer to the Soundbar (the closer the better) or remove obstacles from between the soundbar and Subwoofer.
I cannot find “AXS460BTU” on my Bluetooth® device.	· Ensure the Bluetooth® function is activated on your Bluetooth® device.· Ensure you have paired your unit with the Bluetooth® device.
Some NFC-enabled mobile devices cannot pair directly with the unit.	· Download and install NFC reader apps into your NFC-enabled mobile device. Please refer to your mobile device’s guidebook for more details.· Pair the NFC-enabled mobile device via Bluetooth®, and then tap the 📋 icon.· Pair your mobile device with the unit via Bluetooth®.

If any anomaly is encountered, unplug the mains adapter from the mains socket and reconnect it again.

Product FIabion and Specific

Model		AXS460BTU
Soundbar
Power Adapter (Use only power adapter listed below)
Power Adapter Manufacturer		Dongguan Dongsong Electronic Co., Ltd.
Power Adapter Model		DYS602-250260W
Input		100-240V AC 50/60Hz
Output		DC 25 V=2.6 A ◇◎◇
Main Unit
Main Unit Input		DC 25 V=2.6 A ◇◎◇
Bluetooth®	Bluetooth® Version	Bluetooth® 4.0
	Maximum transmitted power	10 dBm
	Frequency bands 2402	MHz ~ 2480 MHz
Ecodesign Information (Soundbar)
Information on Power Consumption	Power Consumption of Standby Mode	< 0.5 W
	Network Standby Power Consumption	< 2.0 W
Time interval for power management function switches the unit automatically into standby		Switch to standby mode within 10 minutes after intended use
Power consumption in network standby if all wireless network ports are activated		N/A
How to activate wireless network port:Connect the unit with powerSwitch to wireless mode (e.g. Bluetooth, wifi, etc)How to deactivate wireless network port:Press the Standby button
Net Weight		2.1 kg
Dimension		985 mm (W) x 54 mm (H) x 74 mm (D)
Subwoofer
Power Supply		AC100-240 V ~ 50 Hz
Power Consumption		65 W
Ecodesign Information (Subwoofer)
Information on Power Consumption	Power Consumption of Standby Mode	N/A
	Network Standby Power Consumption	< 2.0 W
Time interval for power management function switches the unit automatically into standby		N/A
Power consumption in network standby if all wireless network ports are activated		N/A
How to activate wireless network port:Connect the unit with powerSwitch to wireless mode (e.g. Bluetooth, wifi, etc)How to deactivate wireless network port:Press the Standby button
2.4 GHz Wireless Connection	Maximum transmitted power	8 dBm
	Frequency bands	2400 MHz ~ 2483 MHz
Net Weight		6 kg
Dimension		250 mm (W) x 327 mm (H) x 265 mm (D)

Features and specifications are subject to change without prior notice.

For any help concerning set up and use of your sound bar please call the Customer Helpline: 0345 604 0105

Product Guarantee

This product is guaranteed against manufacturing defects for a period of

Year

This product is guaranteed for twelve months from the date of original purchase. Any defect that arises due to faulty materials or workmanship will either be replaced, refunded or repaired free of charge where possible during this period by the dealer from whom you purchased the unit.

The guarantee is subject to the following provisions:

• The guarantee does not cover accidental damage, misuse, cabinet parts, knobs or consumable items.
• The product must be correctly installed and operated in accordance with the instructions contained in this manual.
• It must be used solely for domestic purpose.
• The guarantee will be rendered invalid if the product is re-sold or has been damaged by inexpert repair.
• Specifications are subject to change without notice.
• The manufacturer disclaims any liability for the incidental or consequential damages.
• The guarantee is in addition to, and does not diminish your statutory or legal rights.
• In the event of a problem with the product with in the guarantee period call the Customer Helpline: 0345 604 0105.

Guarantor: Argos Ltd

489 - 499 Avebury Boulevard

Central Milton Keynes

MK9 2NW

Amplifier(RMS Output)specifications

Soundbar	50 RMS
Subwoofer	65 RMS
Total	115 RMS
Total Peak Power	460 W

Other Information and Licenses

DOLBY AUDIO™

Manufactured under license from Doldy Laboratories.

Doldy, Doldy Audio, and the double-D symbol are trademarks of Doldy Laboratories.

HDMI

HIGH-DEFINITION MULTIMEDIA INTERFACE

The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Studio Sound

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Studio Sound is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by HITACHI EUROPE LTD is under license. Other trademarks and trade names are those of their respective owners.

HITACHI

Inspire the Next

Manufacturer:

Hitachi Europe Ltd.,

Whitebrook Park,

Lower Cookham Road,

Maidenhead,

Berkshire SL6 8YA

U.K.

Importer:

Argos Ltd.,

489 - 499 Avebury Boulevard,

Central Milton Keynes,

Buckinghamshire MK9 2NW

U.K.
