Product Type	Chest Freezer
Model	FZ602
Brand	Khind
Net Capacity	200 L
Dimensions (W x D x H)	90 x 60 x 85 cm
Weight	35 kg
Power Supply	220-240 V, 50 Hz
Energy Consumption	0.8 kWh/24h
Climate Class	N
Freezing Capacity	10 kg/24h
Temperature Range	-18°C to -24°C
Defrost	Manual
Refrigerant	R600a
Noise Level	42 dB
Number of Baskets	1
Thermostat Control	Mechanical
Interior Light	No
Lockable Lid	Yes
Wheels/Casters	Yes
Color	White
Spare Parts Availability	Thermostat, door gasket, baskets via authorized service
Warranty	1 year parts and labor

Frequently Asked Questions - FZ602 Khind

How do I set the temperature on my Khind FZ602 freezer?

The temperature is controlled by a mechanical thermostat dial inside the freezer. Turn the dial to a higher number for colder temperature. A setting of 3-4 is suitable for normal use.

What is the recommended temperature for storing food?

For safe long-term storage, the freezer should be set to -18°C or lower. The FZ602 can reach temperatures down to -24°C.

How often should I defrost the freezer?

Defrost when the frost build-up reaches about 5-10 mm thick. This may be every few months depending on usage. Unplug the unit, remove food, and let the ice melt. Do not use sharp tools.

Why is my freezer making a loud noise?

Normal operation sounds include a humming from the compressor and occasional gurgling from refrigerant. If you hear knocking or clicking, ensure the freezer is level and not touching walls. Persistent loud noise may require service.

How much food can the FZ602 hold?

The net capacity is 200 liters, which can hold approximately 120-150 kg of frozen food, depending on packaging.

Can I use an extension cord with this freezer?

It is not recommended. The freezer should be plugged directly into a properly grounded outlet. If unavoidable, use a heavy-duty cord rated for at least 10 amps and as short as possible.

What should I do if the freezer stops working?

Check if the thermostat is set correctly, ensure the plug is inserted properly and the circuit breaker has not tripped. Also verify the air vents are not blocked. If it still does not run, contact Khind service.

How do I clean the freezer?

Unplug the unit and remove all food. Wash the interior with a solution of mild detergent and warm water. Rinse and dry thoroughly. Clean the exterior with a damp cloth. Do not use abrasive cleaners.

Is the door gasket replaceable?

Yes, the door gasket can be replaced. Contact Khind authorized service for the correct part. A damaged gasket reduces efficiency and may cause frost buildup.

Does the FZ602 have a lock?

Yes, the lid can be locked with a padlock. This feature helps secure the contents, especially useful in garages or shared spaces.

USER MANUAL FZ602 Khind

Diagram 1 / Rajah 1 3-D showing almost all component 3-D menunjukkan hampir semua komponen

Specifications / Spesifikasi

Model :	FZ 201	FZ 301	FZ 501	FZ 602
External Dimension / Dimensi Luar :	815 x 611 x 840mm	1045 x 705 x 865mm	1325 x 705 x 865mm	1650 x 611 x 840mm
Internal Dimension / Dimensi Dalam :	695 x 491 x 711mm	920 x 530 x 703mm	1200 x 530 x 703mm	1530 x 491 x 711mm
Gross Capacity / Kapasiti Kasar :	220	320	420	510
Net Capacity / Kapasiti Bersih :	200	290	395	470
Lid Type / Door / Jenis Pintu :	Lifting / Angkat	Lifting / Angkat	Lifting / Angkat	Lifting / Angkat
Rated Voltage / Kadar Voltan :	220-240V	220-240V	220-240V	220-240V
Rated Frequency / Kadar Kekerapan :	50Hz	50Hz	50Hz	50Hz
Rated Power Input / Kadar Input Kuasa :	128W	156W	240W	240W
Power Consumption / Penggunaan Kuasa :	2.4KWh/24h	2.7KWh/24h	3.6KWh/24h	3.6KWh/24h
Temperature Control / Kawalan Suhu :	Mechanical / Mekanikal	Mechanical / Mekanikal	Mechanical / Mekanikal	Mechanical / Mekanikal
Defrosting / “Defrosting” :	Mechanical / Mekanikal	Mechanical / Mekanikal	Mechanical / Mekanikal	Mechanical / Mekanikal
Cooling System / Sistem Penyejuikan :	Direct / Terus	Direct / Terus	Direct / Terus	Direct / Terus

Specifications / Spesifikasi

Model :	FZ 201	FZ 301	FZ 501	FZ 602
Temperature range at ambient: temperature of 30°C / Linkungan Suhu pada 30°C	-18 to -26	-18 to -26	-18 to -26	-18 to -26
Compressor: Type - Hermetic / : Kompresor : Jenis- “Hermetic”	1/6 HP	1/5 HP	1/5 HP	1/3HP
Freezer Basket / : Bakul Dingin Beku	1	1	1	2
Built-in-lock / : Pemegang Berkunci	YES / ADA	YES / ADA	YES / ADA	YES / ADA
Built-in-roller / Beroda :	YES / ADA	YES / ADA	YES / ADA	YES / ADA
Nett Weight / Berat Bersih :	45 Kg	52 Kg	66 Kg	76 Kg
Gross Weight / Berat Kasar :	55 Kg	64 Kg	82 Kg	100 Kg
Carton Dimension / : Dimensi Kotak	853 x 708 x 864mm	1105 x 740 x 826mm	1385 x 740 x 826mm	1715 x 740 x 826mm

*Specifications are subject to change without prior notice / Perubahan spesifikasi holeh dilakukan tampa sebarang notis

Cautions

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
3. Must use separate, well-earthed 3 core cable & plug top.
4. Do not squeeze, fold, knot or damage the cord.
5. Keep children away from package and its parts. Danger of suffocation from folding cartons and plastic film!
6. When repairing or cleaning the appliance, pull out the plug.
7. When pulling out plug, do not pull cord to avoid cord damage.

DANGER

1. Do not put inside flammable & explosive material (e.g. Alcohol, gasoline etc) Risk of explosion and fire!
2. Do not store bottled or canned drinks (especially carbonated drinks) in the freezer compartment. Risk of explosion!
3. Do not touch food or metal container in the freezer compartment by wet hand. Do not put frozen food straight from the freezer compartment into your mouth. Risk of low-temperature burns!

Cautions / Perhatian

WARNING

1. Do not damage the refrigerant circuit. Leaking refrigerant may ignite or cause eye injuries. Wash the eyes at once and see a doctor.
2. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. (e.g., heaters, electric ice makers etc.)
   Do not use microwave oven, rice cooker and voltage regulator on the top of the appliance.
3. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
4. To avoid hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

Installation

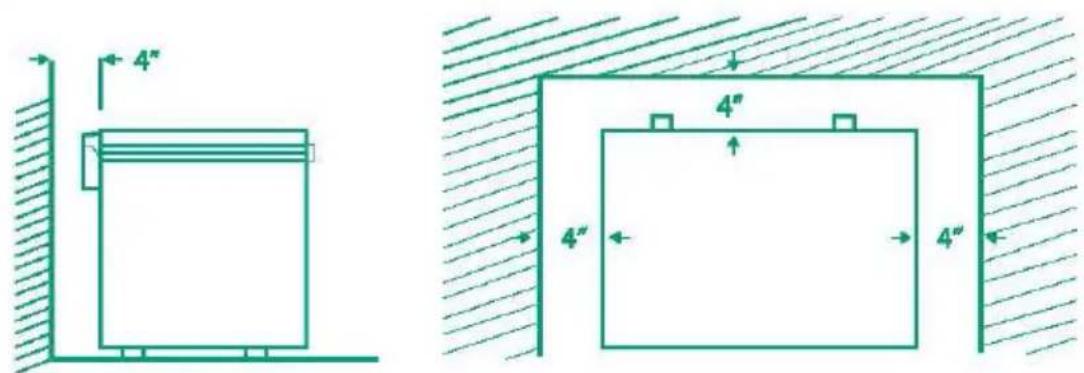

The freezer should be placed on an even floor, preferably in a well ventilated room and as far away as possible from any heat source. Any side of the freezer should be at least 4" from the wall so that the warm air from the compressor motor and the mild heat from the cabinet's exterior can circulate freely.

Diagram 2

Electrical Connection

Connect this appliance to the electricity supply using a 13A three pin plug (single receptacle power source) WARNING - this appliance must be earthed. The wires in this mains lead are colored in accordance with the following code:

Green	-	Earth
Blue	-	Neutral
Brown	-	Live

Ensure that all connections are tight and that there are no loose strands or wire left free or insulations on the leads trapped under the terminal in the plug, also that the cord clamp on the plug grips the outer sheath of the cord.

Thermostat

Load:

1,2&3 - Less load
4,5&6 - Average load
7&8 - Full load

The temperature in the chest freezer is automatically controlled by the adjustable thermostat.

Operation

Before using the freezer it must be cleaned thoroughly with lukewarm or clean water to remove away dust or dirt at the interior surface of the freezer. This is to avoid contamination of food. After cleaning switch on the freezer and set the thermostat control to MAX, without putting any food for at least 4-5 hours. This is to ensure that the cold air in the freezer has reached a suitable temperature for freezing food. As a result, frozen food can preserve its freshness and taste for a longer period. After stabilizing the temperature, the thermostat control is set to the appropriate setting according to the food load.

CAUTION :

During start up (i.e. 3-5 hours) DO NOT BE ALARMED by the heat on the external cabinet. This is normal as the condenser is concealed around the internal surface of the cabinet.

Defrosting

Complete defrosting will in course of time become necessary. This should be carried out if the frost built up cannot be scraped away or if it begins to interfere with frozen food storage.

Procedures:

1. Take out the frozen food, turn the freezer off at the main supply and leave the lid open.
2. Scrape away as much frost as possible, thawing of the reminder can be accelerated by placing a bowl of hot water inside the cabinet. As the solid frost loosens, scrape it away with a plastic scraper and then wipe over the cabinet and the lid and dry thoroughly.
3. When the cabinet is completely dry and clean, close the lid, switch on main supply. Proceed as for instruction on "OPERATION OF THE FREEZER".

Storage / Usage

• Always put frozen food at the bottom section of the freezer.
• Not more than 15kg of raw food can be put into the basket provided for freezing at any one time.
• Always cover the frozen food with plastic sheet before putting into the freezer. This will prevent difficulty of taking frozen food out later from the freezer.

Note:

In case of failure in door opening in the usual manner, due to the internal vacuum effect, use a screw driver or any similar shape but NOT SHARP item to lift up a portion of the gasket to flow air into the unit then try to open the door again.
