CF4005 - Coffee maker SOLAC - Free user manual and instructions

Product type	Drip coffee maker
Brand	SOLAC
Model	CF4005
Capacity	12 cups (approx. 1.5 L)
Main components	Lid, water tank, filter holder, permanent filter, thermal carafe, warming plate, switch with indicator light, measuring scoop
Functions	Filter coffee brewing, anti-drip system, thermal carafe for heat retention, automatic shut-off (position O)
Carafe	Thermal carafe with tab-opening lid, preheating recommended
Safety	Do not immerse, do not touch hot surfaces, cord should not hang, unplug before cleaning
Cleaning	Body: damp sponge; filter holder and permanent filter: soapy water or dishwasher; carafe and lid: soapy water, not dishwasher
Descaling	Every 6 months with water-vinegar mixture (50/50), then two cycles with fresh water
Power supply	Grounded outlet, voltage to check on rating plate
Maintenance	Regular descaling, cleaning after each use, let cool before cleaning
Usage tips	Preheat the carafe, use 1 scoop per cup, do not remove the carafe for too long during brewing
Repairability	Contact an authorized technical service for any malfunction or damaged cord

Frequently Asked Questions - CF4005 SOLAC

How to use the CF4005 coffee maker for the first time?

Before first use, run the coffee maker 2 to 3 times with only cold water to clean the system. Fill the tank with cold water, place the filter holder without coffee and start a cycle.

Why does my coffee overflow from the filter holder?

If coffee overflows, you have put too much ground coffee. Reduce the amount: use a level measuring scoop per cup. Also check that the permanent or paper filter is properly placed.

How to remove and replace the thermal carafe lid?

To remove the lid, turn it to the right until the arrow aligns with 'OPEN' then pull up. To put it back, align the arrow with 'OPEN', turn to the right until 'CLOSE'.

Can I use paper filters with the permanent filter?

No, use either the permanent filter or a paper filter, not both at the same time. If using a paper filter, remove the permanent filter.

What to do if the coffee maker does not turn on?

Check that the switch is in position 'I' and the indicator light is on. Make sure the outlet works and the cord is not damaged. If the problem persists, contact an authorized technical service.

How to clean the thermal carafe?

Wash the carafe and its lid with soapy water, rinse thoroughly. Do not put them in the dishwasher. Do not immerse the coffee maker itself.

How often to descale the coffee maker?

Descale the coffee maker every 6 months or so, or more often if water is hard. Use a mixture of equal parts water and vinegar, run the mixture through, then two cycles with fresh water.

Can I remove the carafe during coffee brewing?

Yes, the anti-drip system prevents coffee from dripping, but do not remove the carafe for too long as the water in the filter holder may overflow.

How to serve coffee with the thermal carafe?

It is not necessary to remove the lid. Press the lid tab down to pour the coffee, then release to close and keep the coffee hot.

What to do if the power cord is damaged?

Do not use the appliance. Take it to an authorized technical service for replacement, as special tools are required.

USER MANUAL CF4005 SOLAC

Exterior view of a modern black SOlac Piacere Thermo coffee maker (no signage or text on device body)

Solac is a registered Trade Mark

11/04

5- 7 • ESPAÑOL

8-10 • ENGLISH

11-13 • FRANÇAIS

14-16 • DEUTSCH

17-19 • PORTUGUÊS

20-22 • ITALIANO

23-25 • NEDERLANDS

26-27 • ČESKY

28-30 • POLSKA

31-33 • SLOVENSKY

34-36 • MAGYAR

37-39 • българск

40-42 • HRVATSKA

Fig. 1 solac Piacere Thermo

Fig.2 OPEN

Fig.3 CLOSE←→OPEN

Fig.4

Fig.5

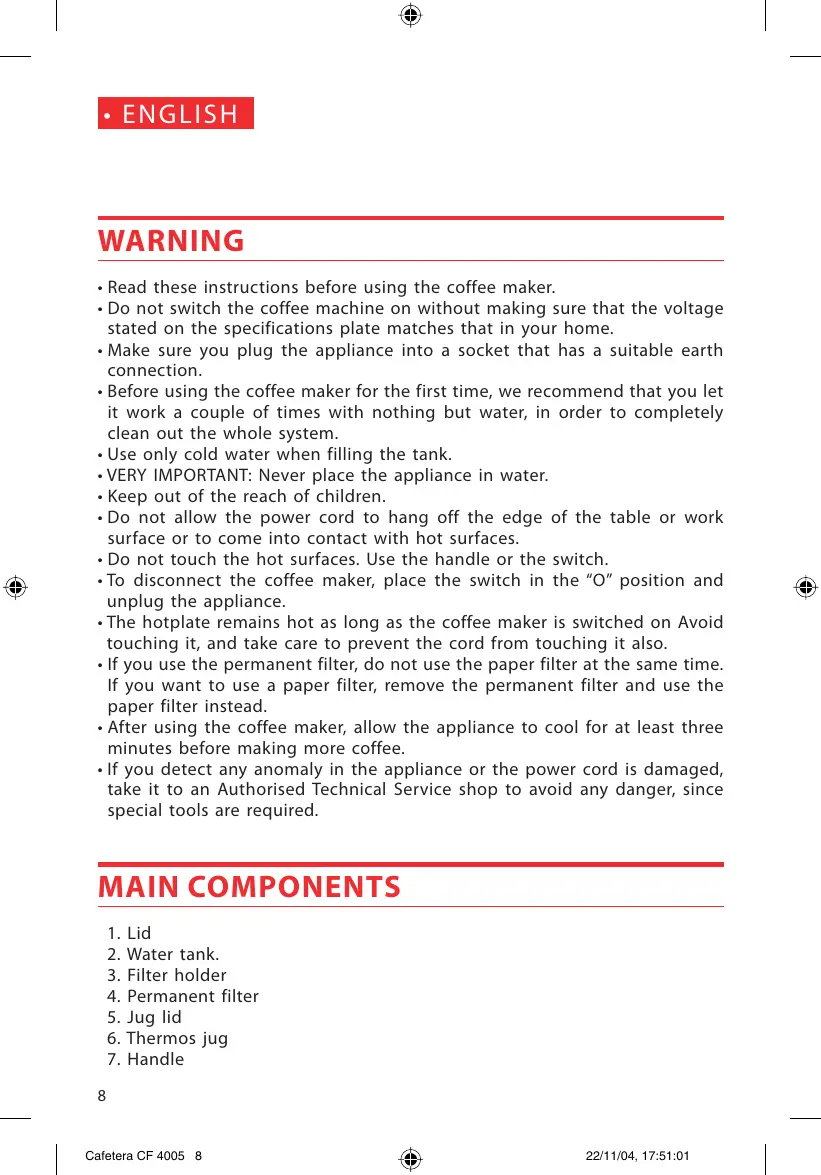

ATENCIÓN

• Read these instructions before using the coffee maker.
• Do not switch the coffee machine on without making sure that the voltage stated on the specifications plate matches that in your home.
• Make sure you plug the appliance into a socket that has a suitable earth connection.
• Before using the coffee maker for the first time, we recommend that you let it work a couple of times with nothing but water, in order to completely clean out the whole system.
• Use only cold water when filling the tank.
• VERY IMPORTANT: Never place the appliance in water.
• Keep out of the reach of children.
• Do not allow the power cord to hang off the edge of the table or work surface or to come into contact with hot surfaces.
• Do not touch the hot surfaces. Use the handle or the switch.
• To disconnect the coffee maker, place the switch in the "O" position and unplug the appliance.
• The hotplate remains hot as long as the coffee maker is switched on Avoid touching it, and take care to prevent the cord from touching it also.
• If you use the permanent filter, do not use the paper filter at the same time. If you want to use a paper filter, remove the permanent filter and use the paper filter instead.
• After using the coffee maker, allow the appliance to cool for at least three minutes before making more coffee.
• If you detect any anomaly in the appliance or the power cord is damaged, take it to an Authorised Technical Service shop to avoid any danger, since special tools are required.

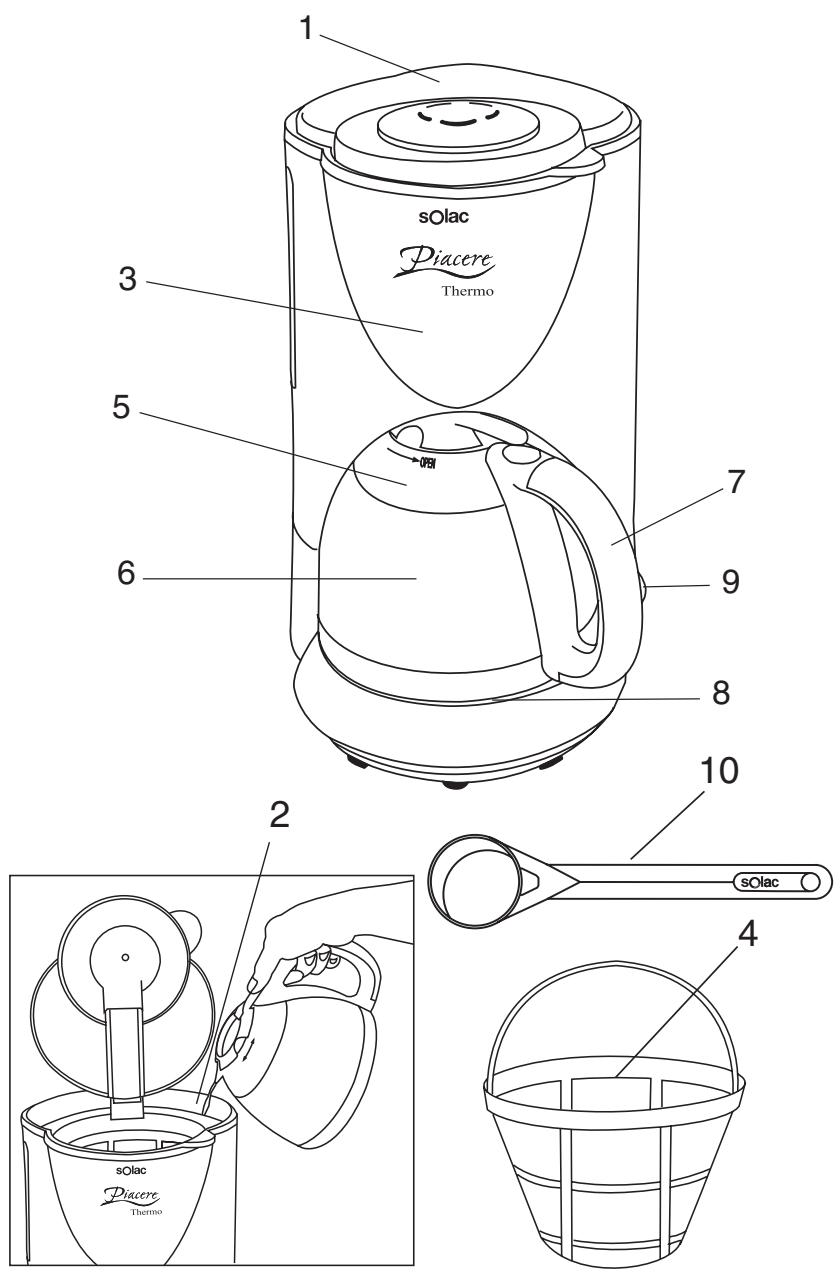

MAIN COMPONENTS

1. Lid
2. Water tank.
3. Filter holder
4. Permanent filter
5. Jug lid
6. Thermos jug

7. Handle

8. Hotplate to keep the coffee hot

9. ON/OFF switch with pilot light
10. Coffee scoop

INSTRUCTIONS FOR USE

• Lift up the lid (1) and pour water into the water tank (2) according to the number of cups you want to make.

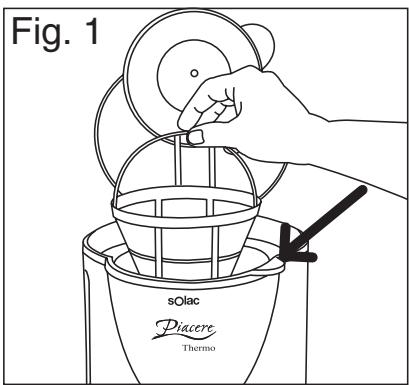

• Place the filter holder (3) in the coffee maker, checking that it fits correctly with the tab on the right (fig.1), then place the permanent filter (4) or a paper filter and add ground coffee to the filter (4). Recommended dose: 1 coffee scoop per cup.
• Close the lid again.
• NOTE: You should preheat the thermos jug before starting to make coffee. To do so, wash the inside with hot water. This will keep the coffee hot for longer. In order for the coffee to stay hot for longer, we recommend making at least half a jug of coffee each time.

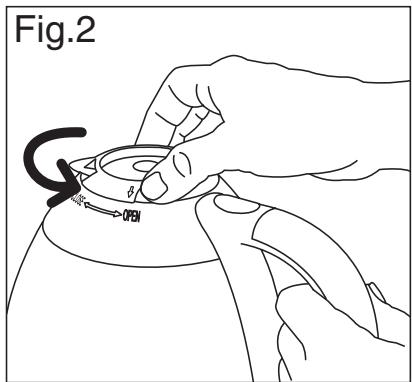

  • To remove the lid from the jug, turn it to the right until the arrow on the jug matches the OPEN marking (fig.2). Then pull upwards.

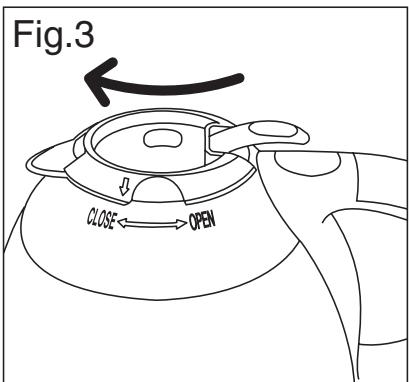

• To place the lid on the jug, align the arrow on the lid with the OPEN marking and turn it to the right until it matches the CLOSE marking (fig.3).

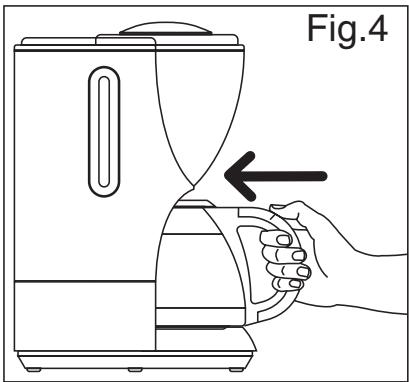

• Make sure the lid of the jug is correctly in place and place the jug (6) on the hotplate (8) as shown in figure 4.
• Plug the coffee maker into the mains.
• Turn the switch (7) to the on position (I). The pilot light will come on.
• You can remove the jug during the coffee-dripping process, since the automatic antidrip system will prevent it from dripping. Be careful if you remove the jug for too long, since the water in the filter holder can overflow.
• If you find that the coffee overflowed from the coffee holder at the end of the process, use a smaller amount of coffee the next time.

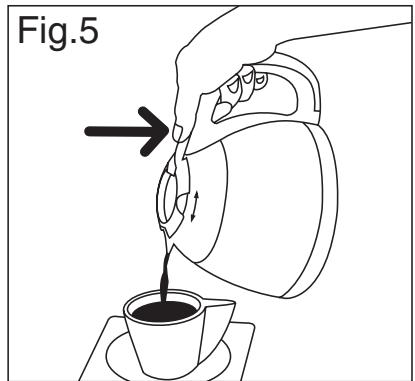

• You do not need to remove the thermos jug lid to serve the coffee, simply press down on the tab on the lid (fig.5). After serving the coffee, release the tab so that the coffee is kept hot inside the thermos jug (6).
• If you did not drink all the coffee, you can leave the jug on the hotplate (8) with the coffee maker switched on or off, since the thermos jug will keep the coffee hot.

CLEANING AND MAINTENANCE

- Before cleaning the coffee maker, leave it to cool and check that it is unplugged. You must not place it in water nor spray it with water.

• To clean the body of the coffee maker and the hotplate, simply use a sponge or a damp cloth.
- You can wash the filter holder with hot, soapy water or in the dishwasher.
- Wash the thermos jug and its lid with soapy water and rinse with plenty of water. Never wash them in the dishwasher.
- Descale the coffee maker approximately once every 6 months, depending on how often you use it and the hardness of the water. To remove incrusted scale, we recommend cleaning out all the pipes that carry water. To do so, add equal amounts of water and vinegar. Switch the coffee maker on and let all the liquid come out. Then, let the coffee maker work twice with nothing but water, to clean it out completely.

ATTENTION
