Product Type	Saw
Model	008-804
Brand	Meec Tools
Power Source	Corded Electric (230 V, 50 Hz)
Motor Power	1200 W
Blade Diameter	210 mm
Max Cutting Depth (90°)	65 mm
Max Cutting Depth (45°)	45 mm
No-Load Speed	4800 rpm
Weight	4.5 kg
Dimensions (L x W x H)	380 x 260 x 280 mm
Cutting Angle Adjustment	0° - 45° bevel
Dust Extraction Port	Yes, 35 mm
Safety Features	Blade guard, safety switch, anti-kickback pawls
Maintenance	Regular blade cleaning, check carbon brushes, lubricate moving parts
Spare Parts Available	Replacement blades, carbon brushes, drive belt
Warranty	2 years

Frequently Asked Questions - 008-804 Meec Tools

How do I change the saw blade on the Meec Tools 008-804?

Unplug the saw. Press the spindle lock and use the supplied wrench to loosen the blade bolt. Remove the outer flange and old blade. Install new blade with teeth facing forward, then tighten the bolt.

What is the maximum cutting depth of this saw?

At 90°, the maximum cutting depth is 65 mm, and at 45° bevel, it is 45 mm.

Can I use this saw for cutting metal?

This saw is designed for wood cutting. Using a metal-cutting blade may work but is not recommended. Always use appropriate blades for the material.

How do I adjust the cutting angle?

Loosen the bevel adjustment knob, tilt the base to the desired angle (0° to 45°), and retighten the knob securely.

What safety features does this saw have?

It includes a blade guard, a safety switch to prevent accidental starts, and anti-kickback pawls. Always wear safety glasses and keep hands away from the blade.

How do I connect a dust extraction system?

The saw has a 35 mm dust port. Attach a compatible vacuum hose to collect dust during cutting.

What should I do if the saw does not start?

Check the power cord, plug, and fuse. Ensure the safety switch is pressed. If it still doesn't start, inspect carbon brushes; replace if worn.

How often should I replace the carbon brushes?

Inspect brushes every 50 hours of use. Replace when they are shorter than 6 mm to prevent motor damage.

Can I use a different brand of blade?

Yes, as long as the blade has a 210 mm diameter and a 30 mm arbor hole. Always choose blades rated for the saw's speed (4800 rpm).

What maintenance is required after heavy use?

Clean dust from vents, check blade sharpness, lubricate pivot points lightly, and inspect power cord for damage.

USER MANUAL 008-804 Meec Tools

Industrial machine with coiled tubing and a transparent cover, no visible text or symbols

OPERATING INSTRUCTIONS

▲ Important! Read the user instructions carefully before use. Save them for future reference. (Translation of the original instructions)

BRUKSANVISNING

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

Jula reserves the right to make changes. In the event of problems, please contact our customer service. www.jula.com

Tillverkare/Produsent/Producenci/Manufacturer Jula AB, Box 363, 532 24 SKARA

Distributör/Distributör/Dystrybutor/Distributor

Jula Poland Sp. z o.o., ul.

For latest version of operating instructions, see www.jula.com

2019-08-12

© Jula AB

CE

EU DECLARATION OF CONFORMITY

EU FÖRSÄKRAN OM ÖVERENSSTÄMMELSE

EU SAMSVARSERKLÆRING

DEKLARACJA ZGODNOŚCI UE

Jula AB, Box 363, SE-532 24 SKARA, SWEDEN

This declaration of conformity is issued under the sole responsibility of the manufacturer

Machinery Directive 2006/42/EC

EN 62841-1:2015, EN 62841-3-1:2014

Electromagnetic Compatibility 2014/30/EU,

EN 55014-1:2006+A1+A2, EN 55014-2:2015

EN 61000-3-2:2014, EN 61000-3-3:2013

RoHS Directive 2011/65/EU and (EU) 2015/863

EN 50581:2012

This product was CE marked in year -19

Name and address of the person authorised to compile the technical file:

2

Close-up of a transparent plastic mechanical component mounted on a metal base (no visible text or symbols)

Close-up of hands using a tool to adjust or install a mechanical component, no visible text or symbols

Diagram of a mechanical or geological interaction showing a curved blade with serrated edges and directional arrows, resting on a surface (no text or symbols)

Mechanical assembly with a coiled hose and plastic bag, no visible text or symbols

Interior view of a mechanical device with visible gears and shafts (no text or symbols)

Close-up of a mechanical assembly with a transparent plastic bag attached to a workbench (no visible text or symbols)

Mechanical device with a hand holding a tool, no visible text or symbols

Close-up of a mechanical device with a coiled cable and lever mechanism (no visible text or symbols)

Mechanical assembly with a transparent plastic component and mechanical components (no visible text or symbols)

Person operating a machine with a tool and hose, no visible text or symbols

SÄKERHETSANVISNINGAR

WARNING!

FÖRPACKNINGSINNEHÅLL

BRUK OG VEDLIKEHOLD AV EL-VERKT∅Y

When using power tools, the following safety instructions must be followed to protect against electric shocks and the risk of injury or fire. Read all of these instructions before using this power tool, and keep the safety instructions in a safe place.

WORK AREA

• Keep the work area clean and well lit. Dark and cluttered work areas increase the risk of accidents and injuries.
• Do not use power tools in explosive environments, such as in the vicinity of flammable liquids, gas or dust. Power tools produce sparks that can ignite dust and fumes.
• Keep children and onlookers at a safe distance when using power tools. You can lose control of the tool if you are distracted.

ELECTRICAL SAFETY

• The plug on the power tool must match the power point. Never modify the plug in any way. Never use an adapter with earthed power tools. Unmodified plugs and matching outlets reduce the risk of electric shock.
• Avoid body contact with earthed surfaces such as pipes, radiators, cookers and refrigerators. There is an increased risk of electric shock if your body is earthed.
• Do not expose power tools to rain or moisture. There is a greater risk of electric shock if water gets into a power tool.
• Be careful with the power cord. Never use the power cord to carry or pull the tool, or to pull out the plug from the power point. Keep the power cord away from heat, oil, sharp edges and moving parts.

Damaged or tangled power cords increase the risk of electric shock.

• If using the tool outdoors, only use an extension cord approved for outdoor use. Cords intended for outdoor use reduce the risk of electric shock.
• If it is absolutely necessary to use power tools in damp conditions, use a mains connection protected by a residual current device (RDC). Using an RCD reduces the risk of electric shock.

PERSONAL SAFETY

• Stay alert. Pay attention to what you are doing, and use your common sense when working with power tools. Never use power tools if you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when using a power tool can result in serious personal injury.
• Use personal safety equipment. Depending on the type of tool and how it is used, safety equipment such as dust masks, non-slip safety shoes, safety helmets and ear protection reduce the risk of personal injury.
• Avoid accidental starting. Make sure the power switch is in the OFF position before inserting the battery or lifting/carrying the tool. Carrying a power tool with your finger on the switch, or connecting a tool to the mains when the switch is in the ON position, increases the risk of accidents and injuries.
• Remove adjuster keys/spanners before switching on the power tool. Spanners or the like that are left in a rotating part of the tool can cause personal injury.
• Do not overreach. Always maintain a firm footing and good balance. This ensures better control over the power tool in unexpected situations.
• Wear suitable clothing. Do not wear loose-fitting clothing or jewellery. Keep your hair, clothing and gloves away from

EN

moving parts. Loose-fitting clothing, jewellery and long hair can get caught in moving parts.

• If dust extraction and dust collection equipment is available, this should be connected and used correctly. The use of such devices can reduce the risk of dust-related problems.
• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

USING AND LOOKING AFTER POWER TOOLS

• Do not force the power tool. Use the correct power tool for the planned work. The tool does the job better and safer when used at the rate for which it was designed.
• Do not use the tool if it cannot be switched on and off with the power switch. Power tools that cannot be controlled with the power switch are dangerous and must be repaired.
• Pull out the plug and/or remove the battery before making any adjustments, changing accessories or putting the power tool away. These safety precautions reduce the risk of accidentally starting the power tool.
• Store power tools out of the reach of children when not in use. Never allow children, or anyone who is unfamiliar with the power tool and these instructions, to use the tool. Power tools are dangerous if used by inexperienced persons.
• Keep the power tool properly maintained. Check that moving parts are properly adjusted and do not jam, and that no parts are incorrectly fitted or damaged. Check for other factors that could affect functionality. If the power tool is damaged, it must be repaired before being used again. Many accidents are

caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
• Use the power tool, accessories and bits etc., in accordance with these instructions, taking into account the actual working conditions and the work that is to be done. It can be dangerous to use power tools for purposes other than those they are intended to be used for.
• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool unexpected situations.

SERVICE

• The power tool must only be serviced by qualified personnel using identical spare parts. This will ensure that the power tool remains safe to use.
• A damaged power cord or plug must be replaced by an authorised service centre or other qualified personnel to ensure safe use.

SAFETY INSTRUCTIONS FOR HANDLING BLADES

• Only use tool inserts if you know how to handle them.
• Pay attention to the maximum permitted speed. The maximum speed specified on the tool being used must not be exceeded. Keep within the speed range, if one is specified.
• Pay attention to the direction of the motor, the blade and the gear.
• Do not use any tools that have cracks. Remove any cracked tools. It is not permitted to repair these.
• Remove dirt, grease, oil and water from

the clamp's surfaces.

• Do not use loose reduction rings or similar to reduce the size of the holes in circular saw blades.
• Make sure that the fixed reduction rings are the same diameter as the tool they are secured with, and at least 1/3 of the average diameter.
• Check that fixed reduction rings are parallel with each other.
• Handle insertion tools with care. These are best stored in their original packaging or in special containers. Wear safety gloves to improve your grip and further reduce the risk of damage.
• Check that all safety devices are properly secured by using tool inserts.
• Make sure that the tool setting you are using corresponds to the power tool's technical requirements and is properly secured.
• Only use the supplied blade for sawing wood, never for working on metal.

REDUCTION OF NOISE AND VIBRATIONS

• Plan the work so that exposure to heavy vibrations is spread over a longer period.

• To reduce noise and vibrations when in use, limit the time the tool is in use, and use low-power/vibration mode and suitable safety equipment.
  • Take the following precautions to minimise the risks of exposure to vibrations and/or noise:

• Only use the tool in accordance with these instructions.

• Check that the tool is in good condition.
  — Use accessories in good condition, and which are suitable for the purpose.
• Keep a firm grip on the handles/grips.
• Maintain and lubricate the tool in accordance with these instructions.

SYMBOLS

	Read the operating instructions.
	Wear eye and ear protection.
	Wear a dust filter mask.
	Wear safety gloves.
	Safety class II.
	Approved in accordance with the relevant directives.
	Recycle discarded product in accordance with local regulations.

TECHNICAL DATA

Rated voltage 230 V ~ 50 Hz

Power consumption 1500 W

Speed, no load 5000 rpm

Blade capacity 210 x 30 mm

Table 502 x 465 mm

Height adjustment 0 – 70 mm

Inclining the blade 0^ - 45^

Cutting depth 45^ 45 mm

Cutting depth 90^ 70 mm

Cable length 2 m

Connection, extractor 35 mm

Dimensions 676 x 502 x 264 mm

Weight 10 kg

Sound pressure level, LpA 99.6 dB(A), K = 3 dB

Sound power level*, LwA 112.6 dB(A), K = 3 dB

EN

Sound power level**, LwA 115 dB(A), K = 3 dB

* Measured, ** Guaranteed

Always wear ear protection.

The declared values for vibration and noise, which have been measured according to a standardised test method, can be used to compare different tools with each other and for a preliminary assessment of exposure. The measurement values have been determined in accordance with EN 62841-3-1:2014.

WARNING!

The actual vibration and noise level when using tools may differ from the specified maximum value, depending on how the tool is used and the material being processed. It is therefore necessary to determine which safety precautions are required to protect the user, based on an estimate of exposure in actual operating conditions (taking into account all stages of the work cycle, e.g. the time when the tool is switched off and when it is idling, in addition to the start-up time).

DESCRIPTION

1. Saw table

2. Blade guard

3. Feeder

4. Blade

5. Splitting knife

6. Saw table insert

7. Parallel fence

8. Wheel

9. Lock knob

10. Power switch + overload cut-out

11. Eccentric lever

12. Lateral fence

13. Screw

14. Connection for extractor device

15. Screw with countersunk head

16. Hole (splitting knife)

17. Mounting screw

18. Screw

19. Slot

20. Scale

21. Stop rail

22. Holder

23. Slot

24. Screw

25. Slot

26. Guide rail

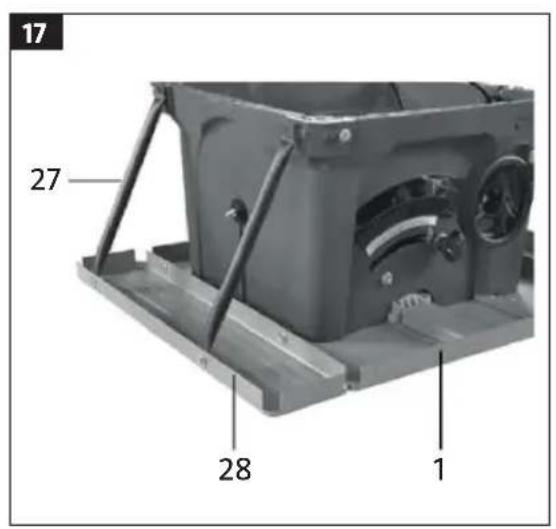

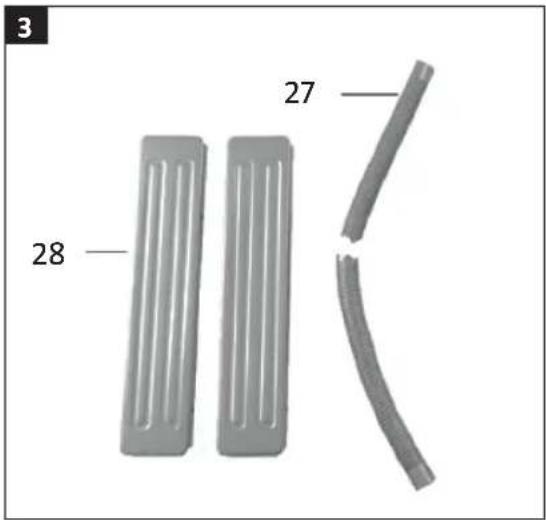

27. Supports

28. Bench extension

29. Tool hook

30. Spanner

31. Suction hose

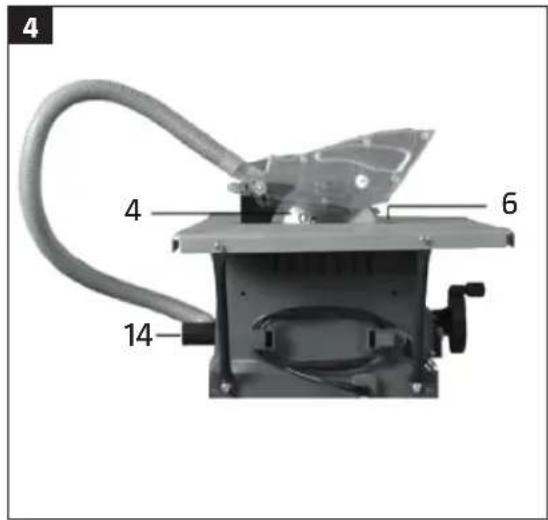

Fig. 1-4

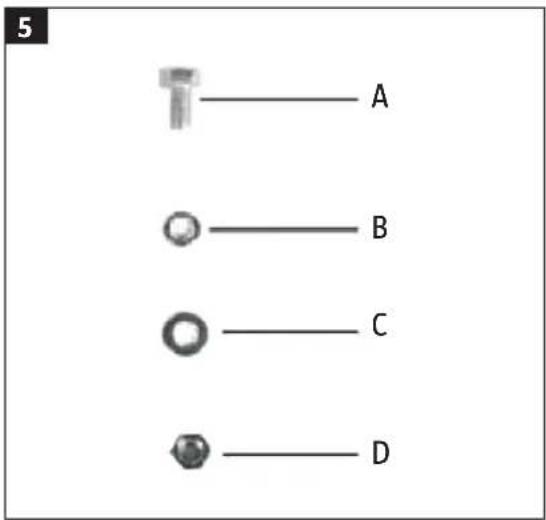

A. Hex screw

B. Spring washer

C. Washer

D. Nut

Fig. 5

ASSEMBLY

UNPACKING

1. Remove all packaging materials and any transport protection.
2. Check that all the parts are included (see packaging contents below).

3. Inspect the product and accessories for damage. Do not attempt to assemble or use the product if any parts are missing or damaged.

4. Save the packaging materials for future use.

WARNING!

Do not allow children to play with the packaging material or the product. Do not allow children to play with plastic bags, film or small parts – risk of suffocation!

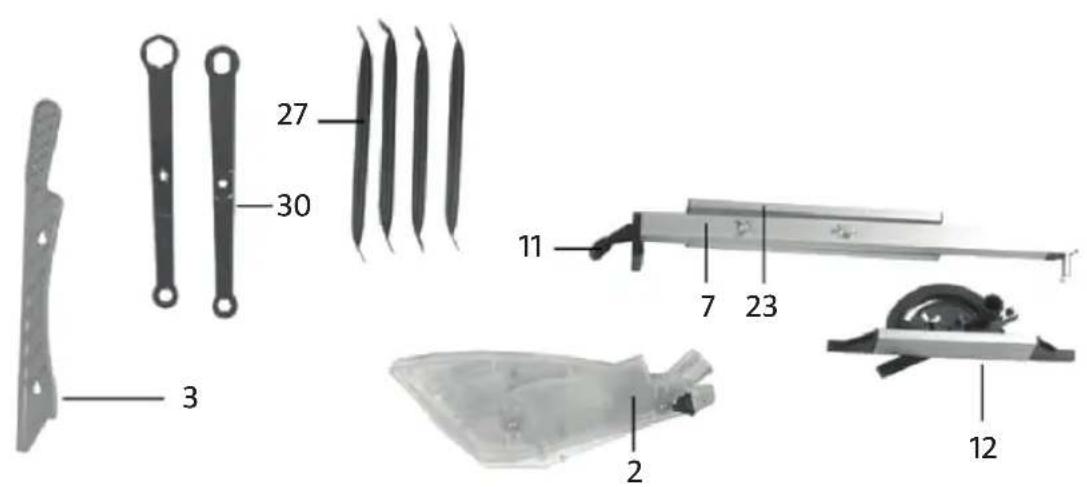

PACKAGE CONTENT

• Blade guard
• Feeder
• Parallel fence
• Lateral fence
• Stop rail
• Support (x4)
• Table extension (x2)
• Assembly parts
• Operating instructions

ASSEMBLY

WARNING!

Pull out the plug, switch off the product and wait until all moving parts have completely stopped before adjusting, maintenance and/or replacing accessories.

Installing/removing blade guards

1. Install the blade guard on the splitting knife with the screw through the hole in the splitting knife.
2. Do not tighten the screw too firmly – the blade guard must be able to move freely.
3. Follow the instructions in reverse order to remove the blade guard.

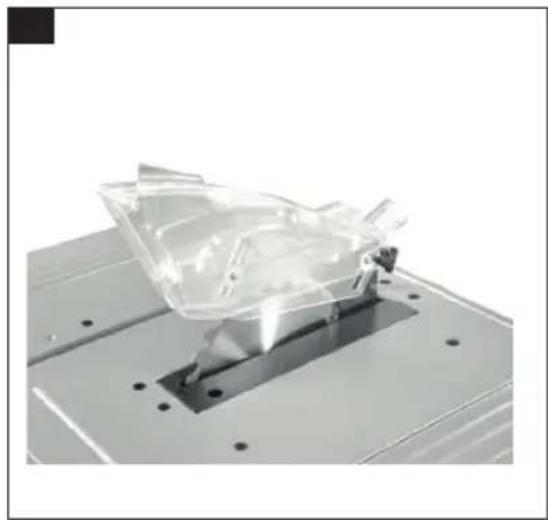

Fig. 6, 10

WARNING!

The blade guard must always be lowered over the workpiece before sawing.

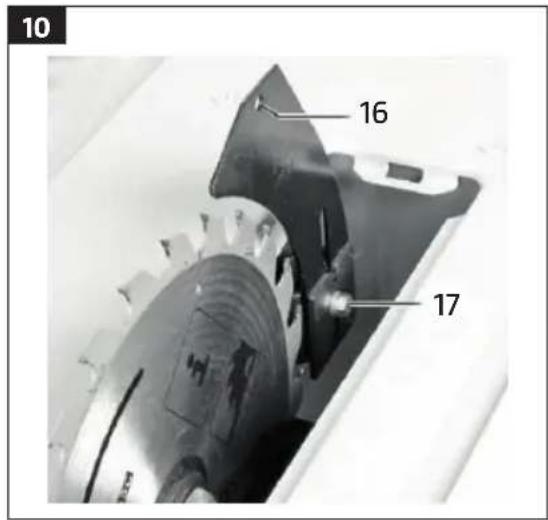

Adjusting the splitting knife

Switch off the product, pull out the plug and wait until all moving parts have completely stopped before adjusting, replacing parts, cleaning and/or carrying out maintenance.

1. Set the blade to the largest cutting depth, move it to 0^ and lock.
2. Remove the blade guard.
3. Remove the saw table insert.
4. Loosen the mounting screw.

Fig. 6, 8, 9, 10

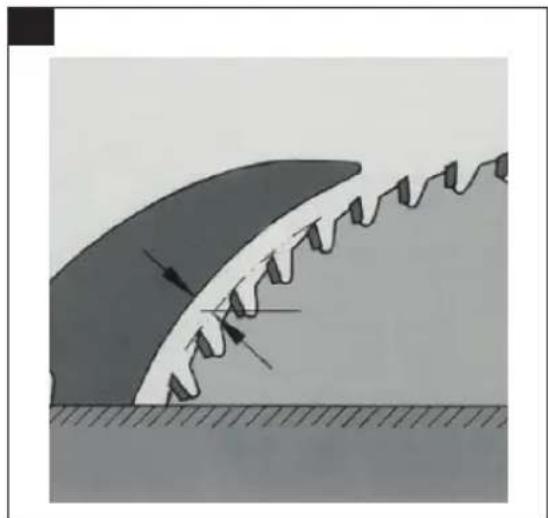

Setting max. material thickness

1. Lift up the splitting knife so that the distance between the saw table and the top of the splitting knife is approx. 10 cm.
2. The distance between the blade and the splitting knife must be 3–5 mm.
3. Tighten the screw and install the saw table insert.

Fig. 8, 9, 10

Replacing the saw table insert

Replace the saw table insert immediately if it is worn or damaged, as otherwise there is a risk of personal injury.

1. Remove the blade guard.
2. Remove the countersunk screw.
3. Remove the saw bench insert.
4. Follow the instructions in reverse order to install a new saw table insert.

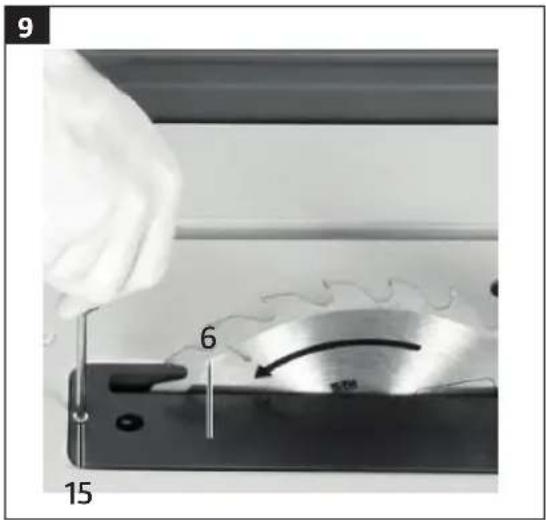

Fig. 9

EN

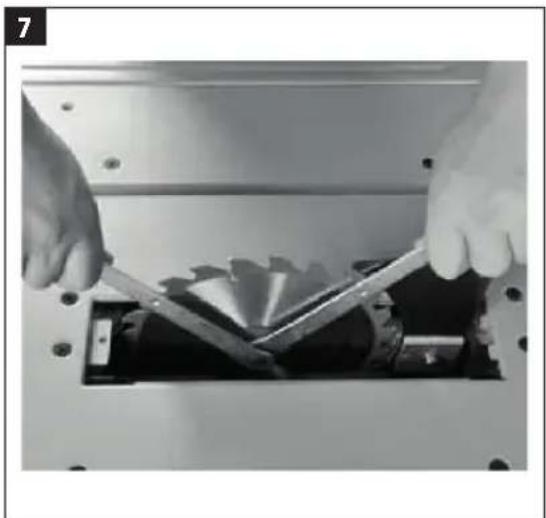

Fitting/replacing the saw blade

IMPORTANT:

Switch off the product, pull out the plug and wait until all moving parts have completely stopped before adjusting, replacing parts, cleaning and/or carrying out maintenance.

1. Remove the saw table insert by removing the 2 countersunk screws.
2. Undo the nut with a 24 mm spanner. Hold the motor shaft securely with a 10 mm open-ended spanner.

Fig. 7

IMPORTANT:

Turn the nut in the blade's direction of rotation.

1. Remove the outer flange and pull the blade away from the inner flange by angling the blade.
2. Clean the blade flanges carefully before installing the new blade.
3. Install the new saw blade by following the above instructions in reverse order.

IMPORTANT:

• Exercise care to fit the saw blade in the right direction of rotation. The cutting edge on the teeth should point forwards in the direction of rotation (see the arrow on the blade guard).
• Always check that all the safety devices are correctly fitted and in working order before use.
• Install and adjust the splitting knife and the blade guard.

Installing saw table extension

1. Install the saw table extensions on the saw table using screws and washers. Do not fully tighten the screw joint.
2. Screw the supports onto the saw casing

and onto the saw table extensions. Do not fully tighten the screw joint.

1. Align the saw table extensions so that they are level with the saw table.

2. Tighten all the screw unions.

Fig. 17

HOW TO USE

PREPARATIONS

• Check that the mains voltage corresponds to the rated voltage on the rating plate.
• Place the product on a flat, stable surface, such as a work bench, or screw it onto a robust stand.
• Check each time before using the blade that is correctly fitted and that moving parts do not jam. The blade must be able to rotate freely.
• All covers and safety devices must be fitted before starting the product.
• Make sure there are no nails, screws or other foreign objects in the workpieces, which could cause kickback, personal injury and/or damage to property.

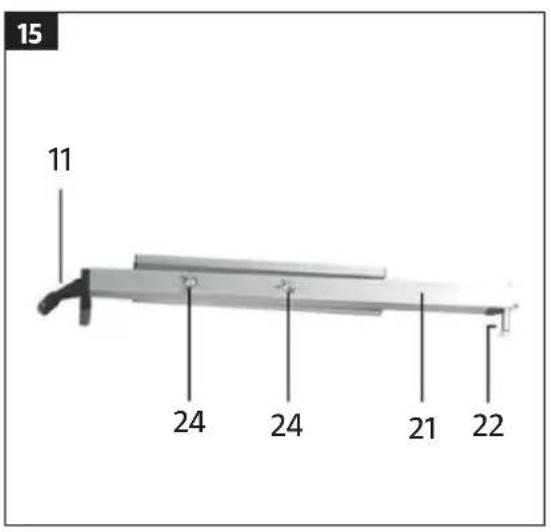

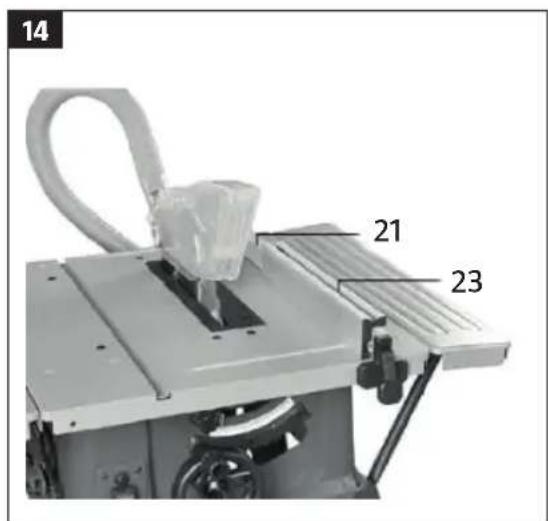

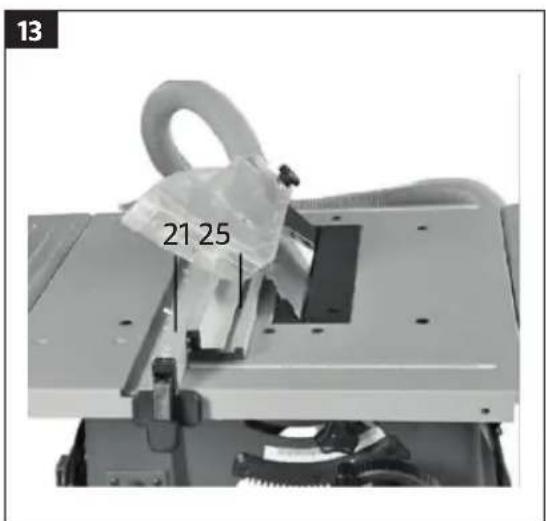

LENGTHWISE SAWING

Lengthwise sawing means sawing along the tree's grain. Lay the workpiece with a flat side against the saw table and press one edge against the parallel fence. The blade guard must always be lowered over the workpiece. Never stand in the direction of sawing in the case of lengthwise sawing.

1. Adjust the parallel fence according to the workpiece's thickness and the desired width.
2. Start the saw.
3. Keep your fingers together, lay your hands flat on the workpiece and move the workpiece towards the blade along the parallel fence.
4. The hand that is on the same side as

the parallel fence must NEVER be moved further forward than the front edge of the blade guard.

1. Move the workpiece forward past the end of the splitting knife.
2. The sawn off part must remain on the saw table until the blade has stopped completely and is in standby mode.
3. Support long workpieces with roller supports, or the equivalent.

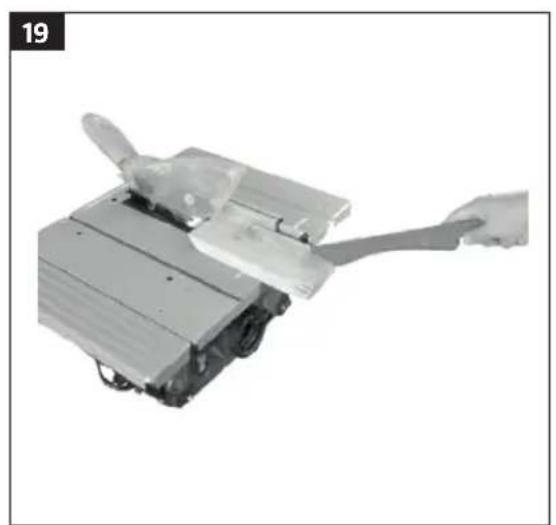

SAWING NARROW WORKPIECES

Always use the feeder when splitting workpieces narrow than 120 mm. The feeder is supplied with the product. Replace the feeder immediately if it is worn or damaged.

Fig. 19

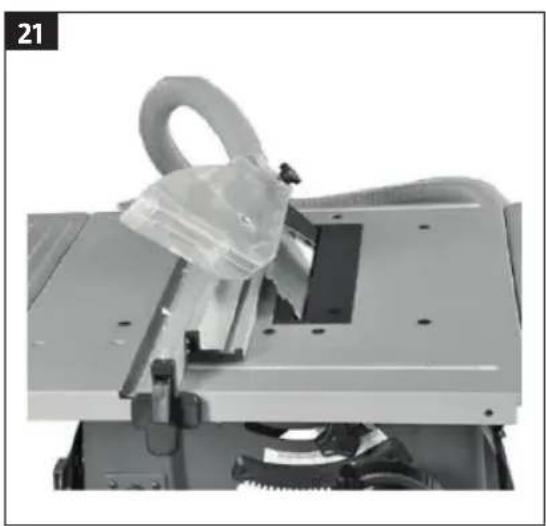

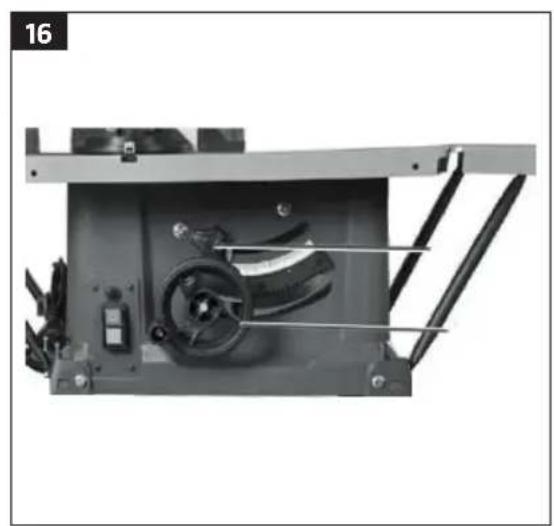

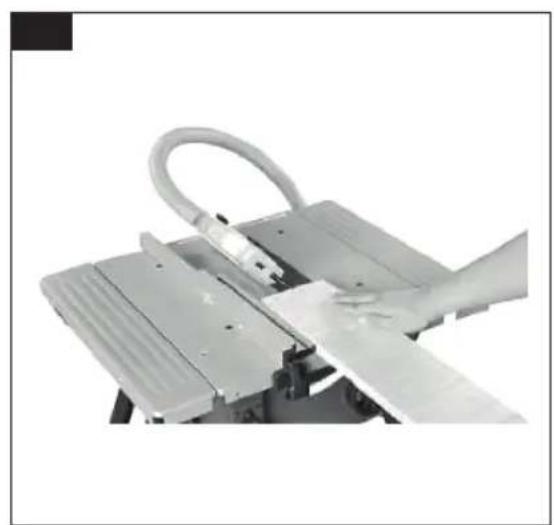

BEVEL SAWING

The parallel fence must always be used during bevel sawing.

1. Adjust the blade to the desired angle.
2. Adjust the parallel fence according to the workpiece's thickness and the desired width.
3. Make the cut at the desired width.

Fig. 16, 20, 21

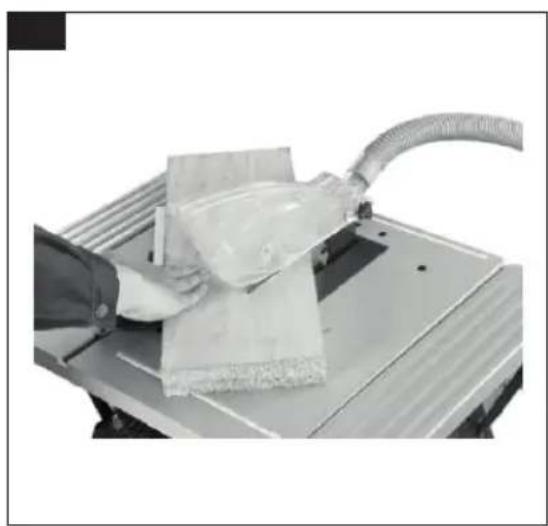

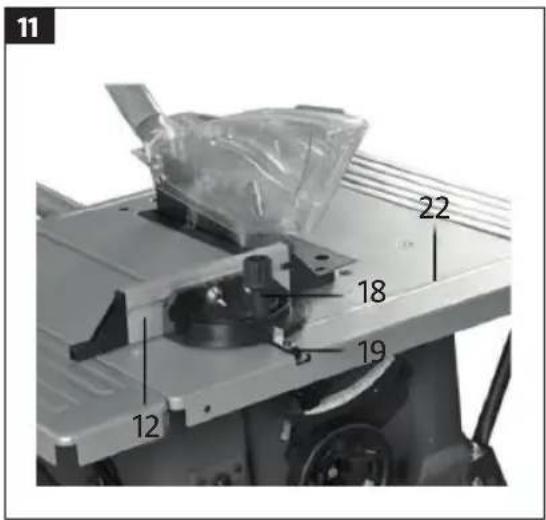

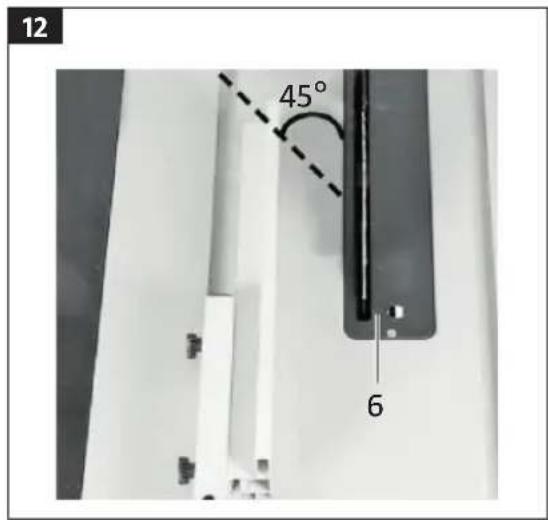

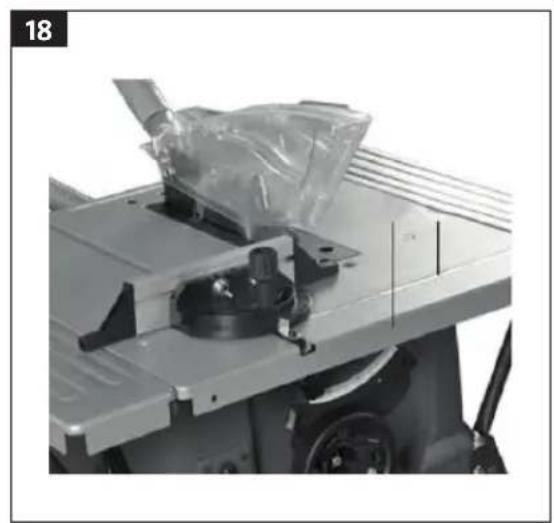

CROSSCUTTING

1. Insert the lateral fence into one of the grooves in the saw table and adjust to the desired angle. If the blade is to be angled, use the groove, which prevents hands and the lateral fence from coming into contact with the blade guard.
2. Press the workpiece steadily against the lateral fence.
3. Start the product.
4. Move the lateral fence and the workpiece

against the blade to make the cut.

Fig. 22

WARNING!

Hold the part of the workpiece that is resting against the parallel fence. Never hold the part that is to be sawn off.

1. Move the parallel fence forward until the workpiece has been sawn through completely.
2. Switch off the product. Do not remove the sawn off part until the blade has come to a complete standstill.

MAINTENANCE

WARNING!

Switch off the product, pull out the plug and wait until all moving parts have completely stopped before cleaning.

CLEANING

• Clean the product regularly with a cloth moistened with water and a mild detergent. Do not use strong detergents or solvents, they can damage the plastic parts. Make sure that no water gets into the product. If water gets into the product, this will increase the risk of electric shock.
• Keep the safety devices, ventilation openings and the motor housing free from dust and dirt. Wipe clean with a clean cloth, or blow clean with compressed air at low pressure.

CARBON BRUSHES

The carbon brushes must be inspected by a qualified electrician in the event of heavy sparking.
