Product Type	Lawn Mower
Brand	Meec Tools
Model	010-460
Intended Use	Mowing private lawns
Engine Type	Single-cylinder, four-stroke
Displacement	137.7 cm³
Output	2.1 kW
Speed	2900 rpm
Fuel	Unleaded petrol
Fuel Tank Capacity	0.9 L
Oil Type	SAE30
Oil Tank Capacity	0.4 L
Cutting Width	46 cm
Grass Catcher Capacity	55 L
Weight	25.5 kg
Sound Pressure Level	83 dB(A) (K=0.35 dB)
Guaranteed Sound Power Level	96 dB(A)
Vibration Level (Left/Right)	4.49 / 4.51 m/s² (K=1.5 m/s²)
Mowing Height Adjustment	Lever-operated, multiple positions
Cutting System	Rotary blade (replaceable)
Safety Features	Engine control lever, spark plug disconnection, blade brake
Assembly Required	Yes (handle, catcher, side ejector, mulch plug)
Maintenance	Oil changes, spark plug cleaning, air filter cleaning, blade replacement every 50h/2 years
Storage	Empty fuel tank, change oil for long-term
Conformity	CE, Machinery Directive 2006/42/EC, EMC 2014/30/EU, Noise 2000/14/EC

Frequently Asked Questions - 010-460 Meec Tools

How do I start the lawn mower?

Ensure the spark plug lead is connected, oil level is correct, and fuel tank is filled. Set the desired mowing height. If the engine is cold, press the primer bulb 3-5 times. Press the engine control lever against the top handle. Stand behind the mower, pull the starter cord slowly until it catches (about 10-15 cm), then pull quickly. Release the handle slowly once the engine starts.

How do I adjust the cutting height?

Switch off the engine and disconnect the spark plug lead. Pull the mowing height adjustment lever outward, move it to the desired position, then release to lock in place. Always use the lowest setting for the first mow of the season or dry grass.

How often should I change the engine oil?

Change the engine oil at the end of every season or after 50 hours of use. Use SAE30 oil. To change, unscrew the oil filler plug, use an oil change pump to extract old oil, then refill with new oil up to the Max mark on the dipstick.

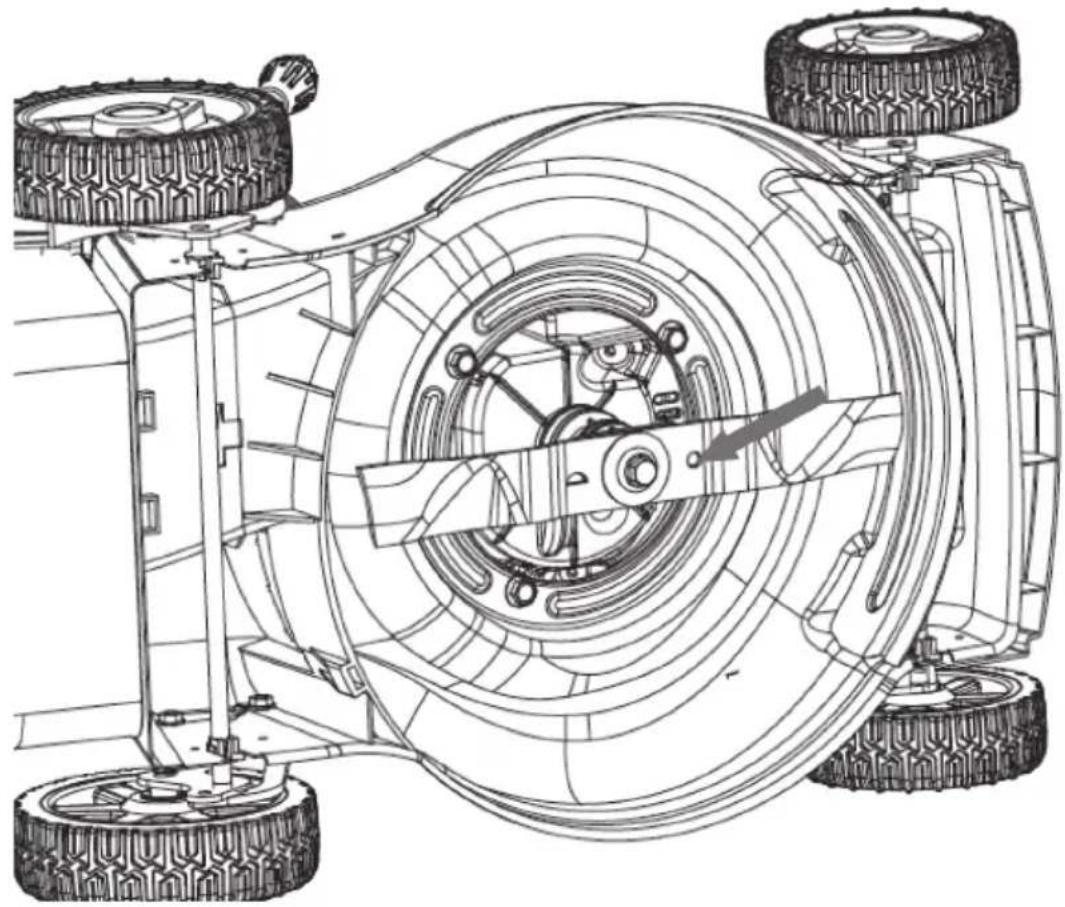

How do I replace the blade?

Replace the blade after 50 working hours or 2 years (whichever comes first). Tilt the mower on its side towards the oil filler. Hold the blade and undo the screw anticlockwise. Remove washer and blade, fit new blade on mounting flange, secure with washer and screw, and tighten to 45-50 Nm.

What type of fuel and oil should I use?

Use clean, fresh unleaded petrol for fuel. For oil, use SAE30 engine oil. The fuel tank capacity is 0.9 L and the oil tank capacity is 0.4 L. Never mix oil with petrol.

How do I clean the air filter?

Remove the air filter cover and take out the filter. Wash it with hot water and mild detergent, rinse with clean water, and allow to dry completely. If very dirty, replace it. Refit the filter and cover.

What should I do if the lawn mower vibrates excessively?

Check for loose screw unions and tighten if necessary. Also check the blade retainer screws. If vibration persists, the blade may be unbalanced; have an authorized service center replace the blade set.

How do I store the lawn mower for winter?

Empty the fuel tank, remove the spark plug cap, change the oil at the end of the season. Remove the spark plug, pour 20 ml of clean engine oil into the cylinder, pull the starter cord slowly a few times, then replace the spark plug. Store in a well-ventilated area out of reach of children.

Is it safe to use on slopes?

Mow across slopes, not up and down. Do not use on slopes with a gradient of more than 15°. Be very careful when changing direction on slopes. Always maintain good footing.

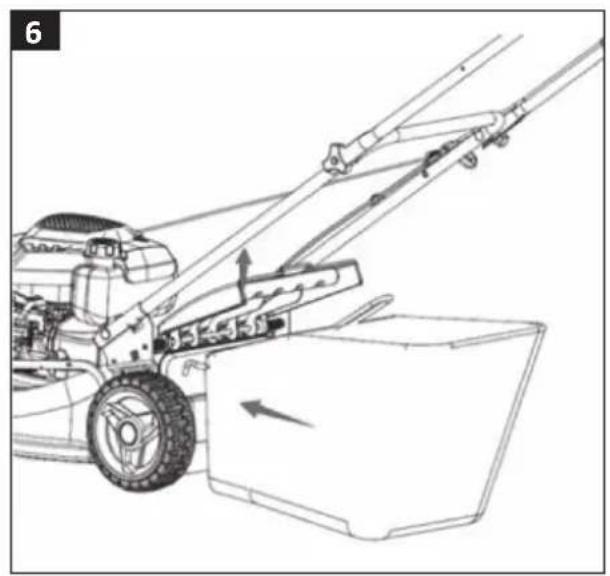

How do I empty the grass catcher?

Switch off the lawn mower. Lift the ejector flap with one hand, grip the grass catcher handle with the other, and lift it out. Empty the catcher and replace it by hooking it onto the frame.

USER MANUAL 010-460 Meec Tools

Red and black MEEC 700 lawn mower with visible blades and wheels (no text or symbols on the device body)

OPERATING INSTRUCTIONS

LAWN MOWER GRESSKLIPPER

▲ Important! Read the user instructions carefully before use. Save them for future reference. (Translation of the original instructions)

BRUKSANVISNING

GRÄSKLIPPARE

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

Jula reserves the right to make changes. In the event of problems, please contact our customer service.

www.jula.com

Tillverkare/Produsent/Producenci/Manufacturer

Jula AB, Box 363, 532 24 SKARA

Distributör/Distributør/Dystrybutor/Distributor

Jula Poland Sp. z o.o., ul.

For latest version of operating instructions, see www.jula.com

2019-11-11

© Jula AB

CE

EU DECLARATION OF CONFORMITY / EU FÖRSÄKRAN OM ÖVERENSSTÄMMELSE EU SAMSVARSERKLÆRING / DEKLARACJA ZGODNOŚCI UE

Jula AB, Box 363, SE-532 24 SKARA, SWEDEN

This declaration of conformity is issued under the sole responsibility of the manufacturer

Machinery Directive 2006/42/EC

EN ISO 5395-1:2013+A1, EN ISO 5395-2:2013+A1+A2

Electromagnetic Compatibility Directive 2014/30/EU

EN ISO 14982:2009

Outdoor Noise Directive 2000/14/EC, amended by 2005/88/EC

Measured sound power level on an equipment representative for this type: Uppmätt ljudeffektnivå på en utrustning som år representativ för denna typ: Målt lydeffektnivå for utstyr som er representativ for vedkommenende type: zmierzony poziom mocy akuslycznej urządzenia reprezentatywnego dla danego typu:	Guaranteed sound power level: Garanterad ljudeffektnivå: Garantert lydeffektnivå: Gwarantowana moc akuslyczna:	Conformity assessment procedure according to 2000/14/EC: Förfarande för bedömning av överensstämmelse enligt 2000/14/EC: Framgangsmáter for samsvarsvurdering iht. 2000/14/EC: Procedura oceny zgodności na podstawie dyrektywy 2000/14/WE:
94 dB(A) 96 dB(A)		Annex VI / Bilaga VI Vedlegg VI / Załącznik VI

Where applicable, name and address of the notified body involved:

Where applicable, the number of the EC type-examination certificate:

I/ISETC.000620191021

This product was CE marked in year -19

Name and address of the person authorised to compile the technical file:

Technical line drawing of a mechanical device with wheels and structural components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a lawn mower system with levers and guide rails (no text or symbols)

Technical line drawing of a rectangular container with internal flow arrows indicating movement (no text or symbols)

Line drawing of a manual lawn mower with lever mechanism and wheels (no text or symbols)

Technical line drawing of a vehicle tire assembly with mounting bracket and wheel (no text or symbols)

Technical line drawing of a lawn mower with visible motors and wheels (no text or symbols)

Technical line drawing of a mechanical ladder assembly with arrows indicating motion (no text or symbols)

Line drawing of a lawn mower with a hand operating the blade (no text or symbols)

Technical line drawing of a mechanical assembly with gears and motors (no text or symbols)

Line drawing of a mechanical tool or connector with a pointed tip and flange (no text or symbols)

Line drawing of a lawn mower with visible blade and wheel (no text or symbols)

Technical line drawing of a lawn mower assembly (no text or symbols)

Technical line drawing of a mechanical assembly with wheels, gears, and a central wheel (no text or symbols)

SÄKERHETSANVISNINGAR

VEDLIKEHOLD OG OPPBEVARING

• Read these instructions carefully and familiarise yourself with the controls on the lawn mower before use.
• Never allow children, or anyone who is unfamiliar with the lawn mower and these instructions, to use it. There may be local regulations for the minimum age of persons allowed to use the machine.
• Do not use the lawn mower when other persons, especially children, or pets are in the vicinity.
• The user is responsible for any accidents or risks to other persons or property.
• Do not use the lawn mower if you are tired, ill, upset, or under the influence of drugs, alcohol or medication.
• Do not modify the lawn mower.
• Risk of hearing impairment. Wear ear protection. The user must wear ear protection, which others in the vicinity may also need to wear.
• Noisy work should be limited to specific periods.
• Rest at regular intervals. Failure to take sufficiently long and frequent breaks can result in vibration injuries.
• Exposure to vibrations from the prolonged use of petrol-powered hand tools can result in circulation injuries.
• Do not use the lawn mower in bad weather.
• Prolonged use in cold weather has been linked to blood vessel injuries in otherwise healthy people. If symptoms such as numbness, pain, weakness, swelling, changes in skin colour or loss of feeling in fingers, hands and joints should occur, stop using the machine and seek medical attention.

BEFORE USE

• Always wear heavy-duty shoes and long trousers when using the lawn mower.

Do not use the lawn mower if you are barefoot or wearing open shoes.

- Carefully inspect the area where the lawn mower is to be used and remove any objects that can be thrown up.

- The engine is supplied without oil and petrol. Always fill up with fuel and engine oil before using for the first time. Do not run the engine without enough oil – risk of serious engine damage.

• Always use clean, fresh unleaded petrol.

- Always be careful when handling fuel – it is highly flammable. Store out of the reach of children.

- Only refuel in a well-ventilated area with the engine switched off. Keep petrol away from sparks and naked flames, and do not smoke where petrol is stored or when filling petrol. Avoid repeated or prolonged skin contact with fuel and/or inhalation of fuel fumes.

- Petrol is highly flammable and can in some circumstances be explosive.

- Only store fuel in an approved container.

- Fill up with fuel outdoors. Smoking prohibited!

- Fill up with fuel before starting the engine. Never remove the fuel cap or add fuel while the engine is running. Allow the engine to cool before filling with fuel.

- Do not start the lawn mower if fuel has been spilled. Move the lawn mower away from any spilt fuel before starting. Be careful not to ignite spilled petrol. Replace the fuel cap and fuel tank cover properly.

- Repair/replace the muffler if it gets damaged.

- Always check the lawn mower before use to make sure that the blades, blade screws and mower deck are not worn or damaged.

- On lawn mowers with multiple blades, all the blades can move when just one blade is turned – risk of personal injury.

HOW TO USE

• Do not use the lawn mower if parts are missing or damaged – risk of serious personal injury.
• Do not run the engine in confined spaces where noxious carbon monoxide can accumulate.
• Only use the lawn mower in daylight, or in good artificial lighting.
• Make sure you always have a good footing on sloping ground.
• Use the machine carefully. Never run with the lawn mower. Be very careful on uneven surfaces.
• Mow across slopes, never up and down. Be very careful when changing direction and on slopes. Do not use the lawn mower on slopes with a gradient of more than 15^ .
• Do not mow high or wet grass. Wet grass can block the blades and the catcher system.
• Be very careful when going backwards or pulling the lawn mower towards you.
• Switch off the lawn mower if it has to be tilted when moving it over an ungrassed surface, or when moving to and from the area to be mowed.
• Never use the lawn mower if the guards or covers are dismantled or damaged.
• Never use the lawn mower without the safety devices fitted, e.g. ejector guide and/or catcher.
• Do not change the speed governor setting and do not over rev the engine.
• Disengage and put all the controls in neutral mode before starting the engine.
• Start the engine carefully according to the instructions. Keep your feet away from the blades.

• Do not tilt the lawn mower when starting the engine, unless this is necessary to start it. If the lawn mower must be tilted, do not tilt it more than is absolutely necessary. Lift up the end furthest away from the user.

• Do not stand in front of the ejector opening when starting the engine.

• Never put your hands or feet near, or under, rotating parts. Always keep at a safe distance from the ejector opening.
• Never lift or carry the lawn mower when the engine is running.
• Switch off the engine, release the cap from the spark plug, and wait until all moving parts have completely stopped in the following situations.

— Before clearing blockages or cleaning the ejector.
— Before checking, cleaning or doing any other work on the lawn mower.
- If the blade strikes an object. Check the lawn mower and repair any damage before using it again.
- If the lawn mower starts vibrating abnormally (check immediately).
– Before leaving the lawn mower.
– Before filling up with fuel.
- Before transport.

- Reduce the throttle and close the fuel cock (if there is one) before stopping the engine.

- Do not carry out any adjustments while the lawn mower is running.

- Never open the ejector flap if the engine is running and the grass catcher is not fitted. Lawn mower blades can cause serious personal injury.

- During the mowing, switch off the lawn mower at regular intervals to clear the blades and mower deck.

- Do not use your hands or feet to clear the blades and deck. Use a brush, broom or other suitable tool.

- Never start the engine indoors or in an enclosed area. Exhaust fumes from the engine contain carbon monoxide, an odourless and highly dangerous gas – risk of serious personal injury and/or death.

Keep your hands, feet, hair, and loose-fitting clothes away from moving parts.

The engine and exhaust pipe get very hot when in use – risk of burn injuries.

• Do not start the engine without an air filter.
  • Always check the blades after use.
• A damaged or blunt blade reduces the functionality of the lawn mower.

MAINTENANCE AND STORAGE

• Failure to follow the maintenance instructions can result in the risk of personal injury.
  • Make sure that all the screw unions are properly tightened to keep the lawn mower in safe condition.
• Never store the lawn mower with fuel in the tank in areas with sources of heat.
• Dispose of old fuel in accordance with local regulations.
• Allow the engine to cool before putting the lawn mower away.
• Keep the engine, muffler, battery compartment and area where fuel is stored free from grease, grass, moss, and leaves, etc. – fire risk.
• Regularly check the grass catcher, the mulch plug and side ejector, for wear and damage.
• Replace damaged or worn parts.
• If the tank needs emptying, do this outside.
• Do not empty the fuel tank in an enclosed area, or near naked flame or other source of heat. Do not smoke.
• Petrol and petrol fumes are highly flammable and can in some situations be explosive.

• Repairs that are not carried out correctly can result in the risk of fatal or serious personal injury and/or damage to the environment.

• Never use petrol or flammable solvents to clean the filter.

• If blades or screws are worn or damaged, always replace the complete set to avoid imbalance.
  • Always use original spare parts when replacing blades, fasteners and bolts. For reasons of safety blades should only be sharpened and fitted by an authorised service representative or other qualified personnel.
• Wear safety gloves when handling blades.

INTENDED USE

• The lawn mower is intended for mowing lawns.
• The lawn mower must only be used as it is intended to be used and in accordance with these instructions. The manufacturer is not liable for any personal injury or damage to equipment resulting from incorrect use. The full responsibility for any such personal injury or material damage rests on the user.
  • Recycle the packaging in accordance with local regulations.
• Two persons are needed to lift the lawn mower out of the packaging. Make sure there is enough space to put down the lawn mower. Stand firmly with your feet apart, bend your knees and keep your back straight when lifting.

SYMBOLS

	Read the instructions.
	Approved in accordance with the relevant directives.
	WARNING: Read all the instructions carefully before use, to minimise the risk of personal injury.
	Risk of personal injury as a result of ejected parts. Keep at a safe distance.
	Blades are sharp. Release the spark plug lead before maintenance/cleaning.
	Never refuel when the engine is running.
	Risk of personal injury. Never open or remove safety devices when the engine is running.
	Wear safety glasses and ear protection.
	Hot surfaces – risk of burn injuries.
	WARNING: Exhaust fumes from the engine contain carbon monoxide, an odourless and highly dangerous gas – risk of serious personal injury and/or death.Never start or run the engine indoors or in an enclosed area.
	Guaranteed sound power level

Recycle discarded product in accordance with local regulations.

TECHNICAL DATA

Engine type Single-cylinder, four stroke

Ignition system TCI

Displacement 137.7 cm ^3

Output 2.1 kW

Speed 2900 rpm

Fuel tank 0.9 l

Fuel Unleaded petrol

Oil tank 0.4 l

Engine oil SAE30

Mowing width 46 cm

Catcher 55 l

Weight 25.5 kg

Sound pressure level, LpA 83 dB(A), K=0,35 dB

Sound power level*, LwA 94 dB(A), K=0,35 dB

Sound power level**, LwA 96 dB(A)

Vibration level 4.49 m/s ^2 , K=1.5 m/s ^2 ***

4.51 m/s ^2 , K=1.5 m/s ^2 ****

*Measured / **Guaranteed
***Left / ****Right

DESCRIPTION

1.	Top handle
2.	Engine control lever
3.	Wing nut
4.	Bottom handle
5.	Fuel tank cap
6.	Spark plug cap
7.	Chassis
8.	Front wheel
9.	Oil filler cap
10.	Side ejector
11.	Back wheel
12.	Control for mowing height adjustment

EN

1. Ejector opening
2. Catcher
3. Guide for starter cord
4. Top handle
5. Starter handle

FIG. 1

ASSEMBLY

FITTING THE HANDLE

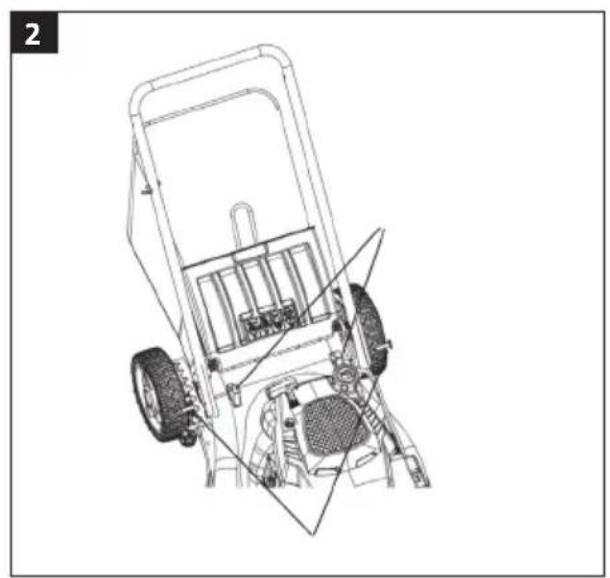

1. Fit the bottom handle on the product with 1 screw (F) and 1 wing nut on each side.

FIG. 2

1. Fold out the top handle and lock in place by tightening the wing nuts and screws (E).

FIG. 3

NOTE:

Check that the guide for the starter cord is on the right side of the handle, seen from behind the product.

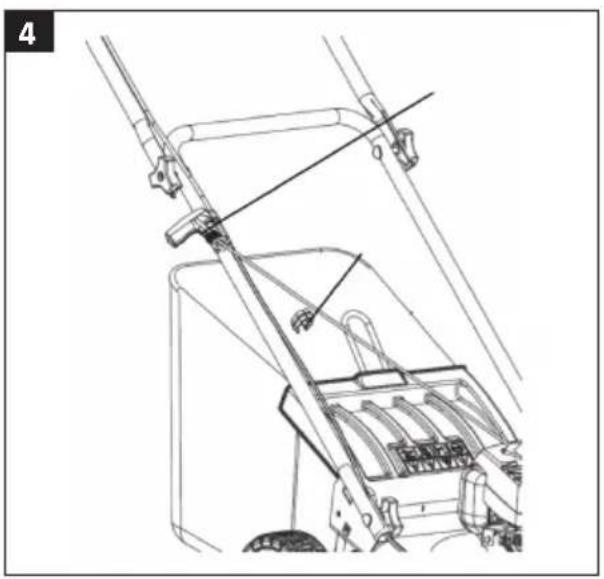

POSITION OF STARTER CORD

1. Pull the starter cord through the clamp.
2. Move the engine control lever to the start position.
3. Hold the starter handle and carefully pull out the starter cord so that the handle just goes past the guide. Hook the starter handle in the guide.

FIG. 4

FITTING THE CATCHER

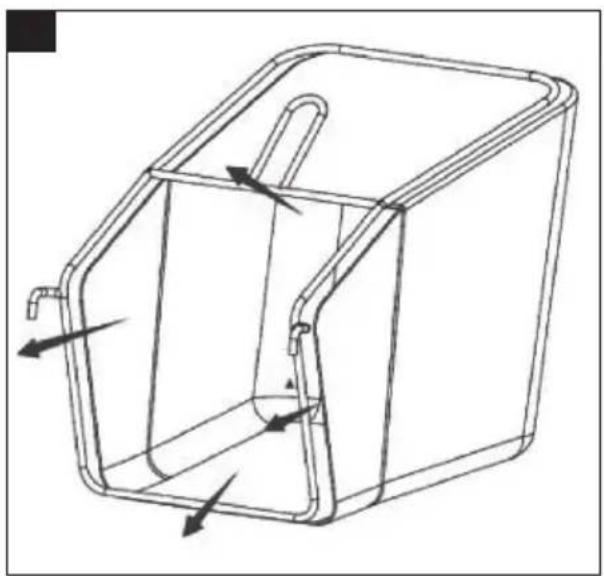

1. Fasten the grass catcher on the frame by hooking on all the plastic hooks.
2. Lift up the ejector flap with one hand and hook on the grass catcher.
3. Release the ejector flap to lock the grass catcher in place.

FIG. 5

FIG. 6

SIDE EJECTOR

1. Lift up the side guard with one hand and hook the side ejector on the grass catcher with the other. Check that both the hooks have hooked on properly.
2. Release the side guard.

MULCH PLUG

1. Lift up the guard.
2. Press both pins in the holes so that the mulch plug snaps in place.
3. Release the guard so that it drops down and covers the mulch plug.

USE

INTENDED USE

The product is intended for mowing lawns in private gardens. The product must only be used for its intended purpose and in accordance with these instructions. All other use is considered to be unsuitable. The manufacturer is not liable for any personal injury or damage to equipment resulting from incorrect use. The full responsibility for any such personal injury or material damage rests on the user.

ADJUSTING THE MOWING HEIGHT

IMPORTANT:

Switch off the engine and disconnect the spark plug lead from the spark plug before changing the mowing height.

1. The mowing height is adjusted with the lever for this.
2. Pull the lever out and move it to the position for the required mowing height.

Release the lever to hook it in the required position.

FIG. 7

LAWN MOWING

• Always use the lowest mowing height setting when mowing for the first time at the start of the season, or when the grass is very dry.
- Do not mow more than 1/3 of the height of the grass.
- If cuttings come onto the lawn behind the lawn mower the side ejector may be blocked, the grass catcher could be full, or the underside of the mower deck could be blocked.

Starting/switching off the lawn mower

1. Check that the spark plug lead is connected to the spark plug, that the oil level is correct, and that there is petrol in the fuel tank.
2. Set the required mowing height.

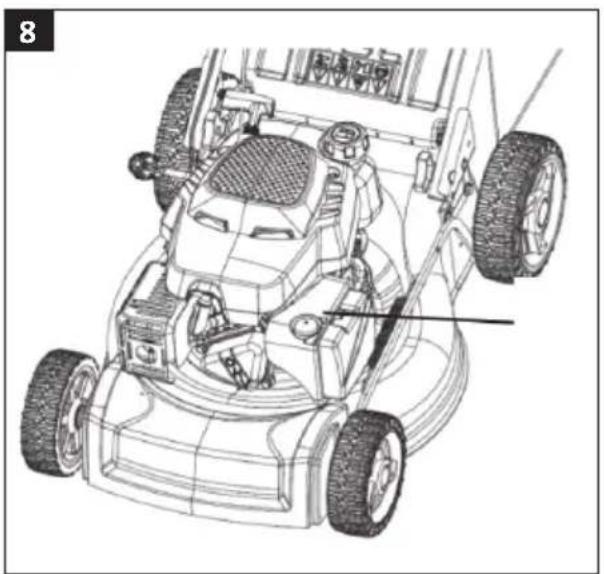

3. When starting a cold engine or if the engine stops due to lack of fuel, press the primer bulb 3-5 times. It is not necessary to use the primer bulb if the engine is warm.

FIG. 8

1. Press the engine control lever towards the top handle.

FIG. 9

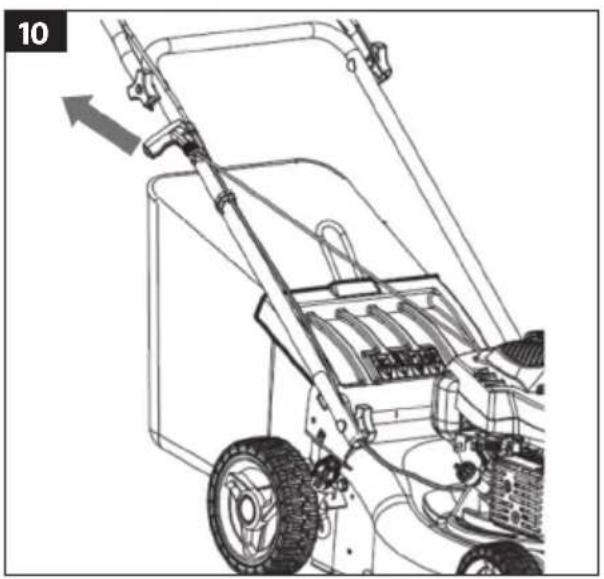

1. Stand behind lawn mower. To start the engine, pull the starter cord slowly until it catches (about 10–15 cm) and then pull quickly. If the engine has not started after three attempts, repeat the process from the beginning.

FIG. 10

1. Let the starter handle return to its original position slowly when the engine has started.
2. Keep a firm grip on the top handle and the engine control lever and follow after the lawn mower when it moves forward.
3. Release the engine control lever. Check that the engine stops when the lever is released.

EMPTYING THE GRASS CATCHER

WARNING!

Switch off the lawn mower before emptying the grass catcher.

1. Lift up the ejector flap with one hand, grip the grass catcher handle with the other, and lift out the grass catcher. When the grass catcher is removed the ejector flap falls down and covers the mulch plug.
2. Empty the grass catcher and replace.

MAINTENANCE

WARNING!

Switch off the lawn mower before maintenance and service.

• Clean the lawn mower after use, especially the underside of the mower deck and blade mounting.
• Clean the ejector to remove any residual grass.
• Clean the engine's cooling fins and the casing.

ENGINE OIL

IMPORTANT:

There is no oil in the lawn mower on delivery. Always fill with engine oil before using for the first time.

Check the oil level

1. Place the lawn mower on a level surface with the engine switched off.

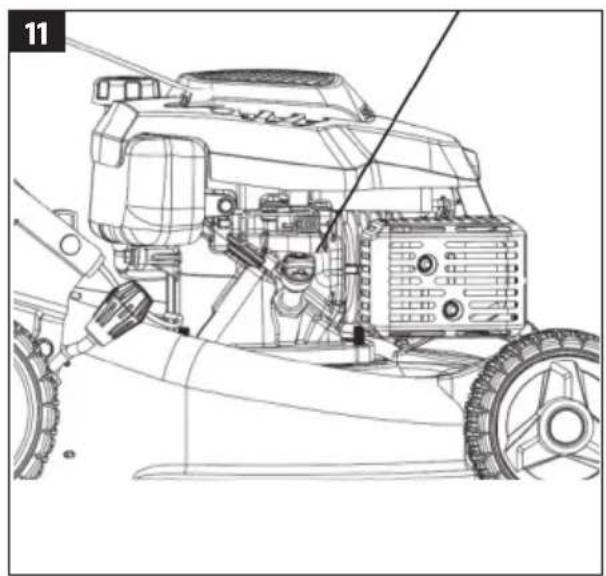

2. Unscrew the oil filler plug and wipe the dipstick.

FIG. 11

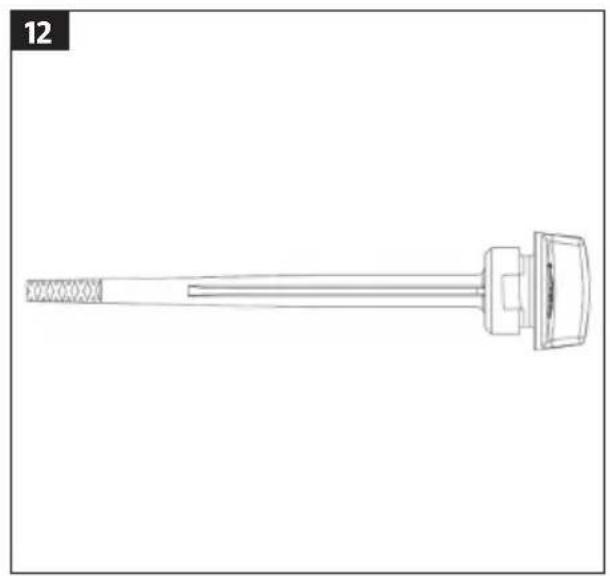

1. Replace the filler plug with the dipstick, without screwing it in.
2. Remove the dipstick again and check the oil level. The oil level should be between the Max and Min marks.

FIG. 12

NOTE:

Do not screw in the dipstick when checking the level – just insert it up to the thread.

Fill up with oil

IMPORTANT:

There is no oil in the lawn mower on delivery. Always fill with engine oil before using for the first time.

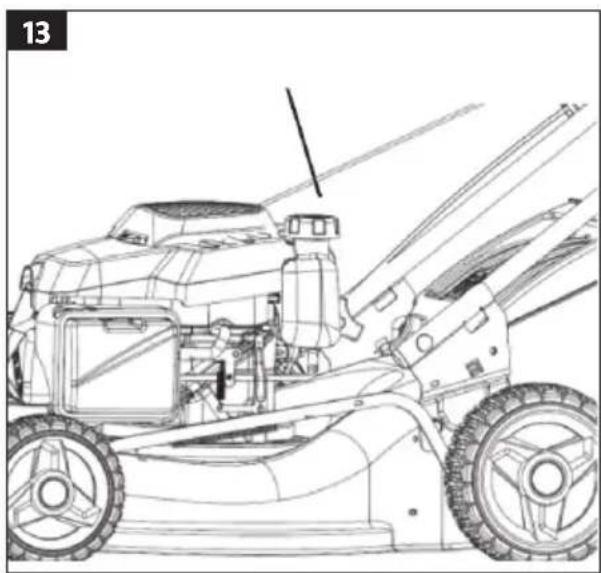

1. Unscrew the oil filler cap.

FIG. 13

1. Top up with oil if the oil level is near or below the Min mark on the dipstick.
2. Top up to the Max mark on the dipstick. Do not overfill. Wipe off any spilled oil.
3. Replace the oil filler plug.

Changing the oil

WARNING!

Switch off the lawn mower before changing the oil.

1. Undo the oil filler plug.

2. Use an oil change pump and suck up the old oil from the oil tank.

3. Refill with new oil with the help of a funnel to the Max mark on the dipstick. The new oil should be at room temperature when changing. Do not overfill. Wipe off any spilled oil.

4. Screw in the oil filler plug.

FUEL

IMPORTANT:

There is no petrol in the lawn mower on delivery. Always fill up with fuel before use.

1. Clean the area around the fuel filler cap before opening.
2. Open the fuel filler cap and check the fuel level.
3. Fill up with fuel if the level is too low. Avoid spilling fuel when filling. Do not overfill. The fuel must not come up the filler tube.
4. Wipe up any spilled fuel before starting the engine.
5. Replace and tighten the cap on the tank by hand.

NOTE:

• Petrol is a perishable product. Do not buy more petrol than you can use in 30 days.
• Do not mix oil in the petrol.
• Do not fill more than to the bottom edge of the filler tube, so that the fuel can expand.
• Do not overfill the tank.

CLEANING/REPLACING THE SPARK PLUG

1. Remove the spark plug cap.
2. Undo the spark plug with a spark plug spanner.
3. Unscrew the spark plug by hand.
4. Clean the spark plug electrode with a

brass brush, or replace if necessary.

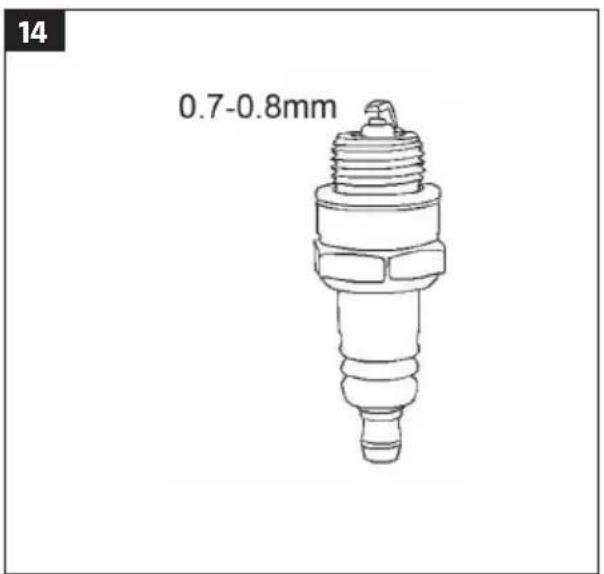

1. Adjust electrode gap to 0.7-0.8 mm by using a feeler gauge.

FIG. 14

1. Carefully screw back the spark plug by hand. When it seats, tighten with the spark plug spanner.

CLEANING/REPLACING THE AIR FILTER

The engine will not work properly if the air filter is blocked because of the reduction in the supply of air to the carburettor. Clean the air filter more often if there is a lot of dust in the air. Replace the filter if it is very dirty.

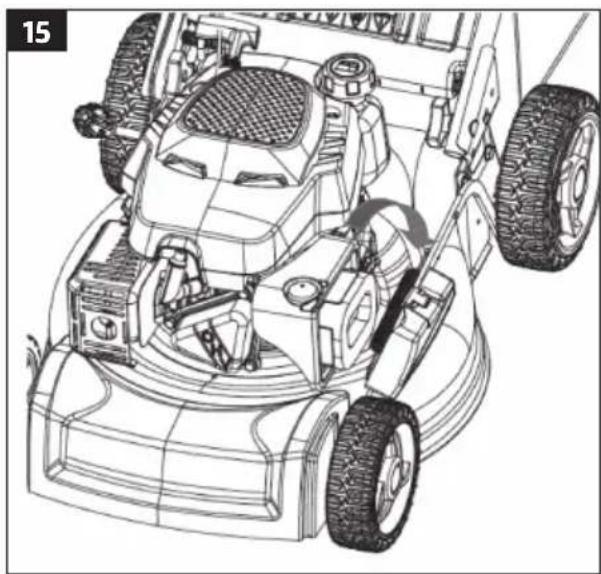

1. Remove the air filter cover and take out the air filter.

FIG. 15

1. Wash the air filter carefully with hot water and a mild detergent. Rinse the air filter with clean water and allow to dry.

2. Refit the cleaned air filter, or a new one.

3. Refit the air filter cover.

REPLACING THE BLADE

NOTE:

• Replace the blade after 50 working hours or 2 years (which ever comes first) regardless of its condition.

• Tilt the lawn mower on its side towards the oil filler when replacing the blade. Do not turn the lawn mower upside down.

• Hold the blade and undo the screw anticlockwise with a spanner.

• Remove the washer and blade.
• Fit a new blade on the mounting flange and lock in place with the washer and screw.
• Check that the blade is correctly positioned and tighten the screw to

45–50 Nm. Do not overtighten.

FIG. 16

STORAGE

Short-term storage

No special preparations are required for short-term storage.

1. Allow the engine to completely cool.
2. Remove the cap from the spark plug.
3. Empty the grass catcher.
4. Clean the lawn mower in accordance with the instructions.
5. Store the lawn mower upright on a level surface.
6. Store the lawn mower out of the reach of children and unauthorised persons in a well ventilated area.

Long-term storage

The following preparations are required for storage of more than two weeks.

1. Empty the fuel tank.
2. Remove the cap from the spark plug.
3. Change the oil at the end of every season.
4. Remove the spark plug. Pour 20 ml of clean engine oil into the cylinder through the spark plug hole. Pull the starter cord

slowly several times to distribute the oil in the engine.

1. Replace the spark plug.

2. Store the lawn mower out of the reach of children and unauthorised persons in a well ventilated area.

TRANSPORT

1. Empty the fuel tank.
2. Remove the cap from the spark plug.
3. Empty the oil tank when the engine is warm.
4. If possible, transport the lawn mower in its original pack.

TROUBLESHOOTING

Problem Possible cause	Action
The lawn mower is noisy and vibrates excessively.	Loose screw unions. Check screw unions and tighten if necessary.
	The blade retainer screws are loose. Check blade retainer screws and tighten if necessary.
	Blade is unbalanced. Allow an authorised service centre to replace blade set.
The engine will not start.	Defective spark plug. Replace spark plug.
	The engine control lever is not pressed against the handle.	Press the engine control lever against the handle.
	The primer bulb is empty. Press the primer pump 3–5 times.
	The blades are worn or damaged. Allow an authorised service centre to replace blade set.
	Fuel tank is empty. Fill up with fuel.
	The engine is flooded. Unscrew, wipe and refit the spark plug.
The engine does not run smoothly.	The air filter is dirty. Clean the air filter.
	The spark plug is dirty. Clean the spark plug.
Uneven mowing.	The blades are blunt.	Sharpen all the blades.
	Mowing height too low.	Adjust to a suitable mowing height.
