CU 7000 - Knife sharpener Orbegozo - Free user manual and instructions

Product Type	Electric Knife Sharpener
Brand	Orbegozo
Model	CU 7000
Power Supply	220-240 V ~ 50/60 Hz
Power	100 W
Dimensions (L x D x H)	20 x 10 x 15 cm
Weight	1 kg
Sharpening Stone Material	Diamond and Ceramic
Number of Sharpening Slots	2 (coarse and fine)
Sharpening Angle	20°
Compatible Knife Types	Straight and Serrated Knives
Automatic Stop	Yes, thermal safety
Non-Slip Base	Yes, rubber feet
Light Indicator	Yes, power-on LED
Maintenance and Cleaning	Clean with a dry cloth, use the provided brush for residue
Spare Parts Available	Replacement stones (ref. CU7000P)
Repairability	Repairability index: 6/10 (accessible parts)
Color	Black and Silver

Frequently Asked Questions - CU 7000 Orbegozo

How to use the Orbegozo CU 7000 sharpener?

Insert the blade into the appropriate slot (coarse or fine) keeping the knife straight, then gently press and pull towards you. Repeat 3 to 5 times on each side.

What sharpening angle is used by the CU 7000?

The sharpening angle is fixed at 20°, ideal for most kitchen knives.

Can I sharpen serrated knives with this sharpener?

Yes, the fine slot is suitable for serrated blades. Gently pass the blade without forcing.

Does the sharpener stop automatically in case of overheating?

Yes, it is equipped with thermal protection that cuts off power in case of overheating. Let it cool before reusing.

How to clean the sharpener?

Unplug the device, use the provided brush to remove metal residues on the stones. Do not use water. Wipe the exterior with a dry cloth.

Can I use the sharpener for scissors?

No, the CU 7000 is designed only for knives. Sharpening scissors could damage the device.

How to replace the sharpening stones?

Unscrew the bottom cover, remove the worn stones and install the new ones (ref. CU7000P). Screw the cover back on. Consult the manual for more details.

Does the sharpener need oil?

No, the stones are self-lubricating. Never add oil or liquid to the stones.

Why is the knife not sharpening properly?

Check that the blade is properly inserted into the slot, that you are not forcing it, and that the stones are not clogged. Clean with the brush if necessary.

Is the Orbegozo CU 7000 sharpener under warranty?

Yes, the legal warranty of conformity of 2 years applies. Keep the purchase receipt for any claim.

USER MANUAL CU 7000 Orbegozo

Exterior view of a silver Ombegozo brand brush rester with control knob and screwdriver (no text or symbols on device body)

CU 7000

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

G. Interruptor ON/OFF.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail].

14. WARNING: In case of misuse, there is a risk of possible injury.

15. Place the appliance on a flat, stable surface.

16. Before sharpening a knife or tool, should remove any grease or dirt from surface.
17. Electric sharpener is designed to sharpen kitchen knives household type, knives and most non-serrated knives. Not attempt to sharpen ax blades or any other blade that does not fit well into the slots or have special sierra.
18. Sharpener should be kept away from heat sources such as hot air outlets, ovens, pans, irons, toasters, etc. The cable should never be left hanging by the work surface or touch hot surfaces.
19. WARNING: newly sharpened knives in electric sharpening are sharper than expected so to avoid any damage, use and handle them with care. When cutting careful not to close your finger to the knife edge and avoid placing fingers near sharpening slots during the sharpening process.
20. After sharpening knives and to prevent damage, store knives in a safe place out of reach of children, even it is recommended to covers or protections on knife blades.
21. Always connect the machine before inserting the blade in sharpening slot. Never attempt to sharpen more than one blade at the same time.
22. In the sharpening process maintains a slight downward pressure, because with too much pressure can overheat

the engine or even block the rotation of the engine and cause serious damage.

- Do not use any lubricant such as oil, water or abrasive products in the sharpened or rectified process.

- Do not use the appliance more than 3 minutes. After that 3 minutes, let it rest for 20 minutes.

- Always disconnect the appliance from the power supply if it is left unattended and before assembling, disassembling or cleaning.

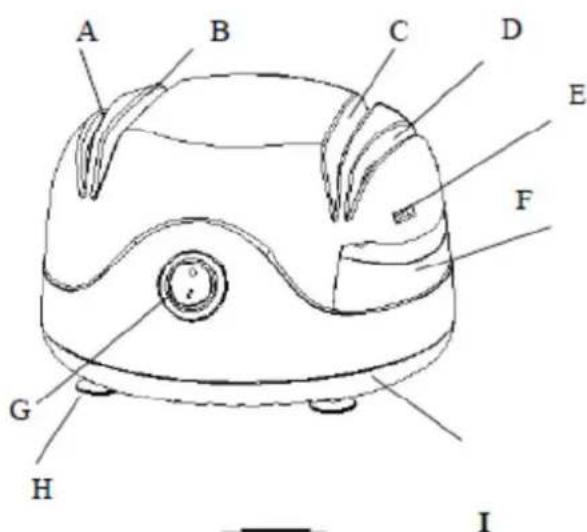

DESCRIPTION

A. V slot for grinding.
B. V slot for grinding.
C. V slot for sharpening.
D. V slot for sharpening.
E. Hole for sharpening screwdrivers.
F. Slot for sharpening scissors.

G. ON/OFF switch.
H. Suction cups to attach the base.
1. Base.

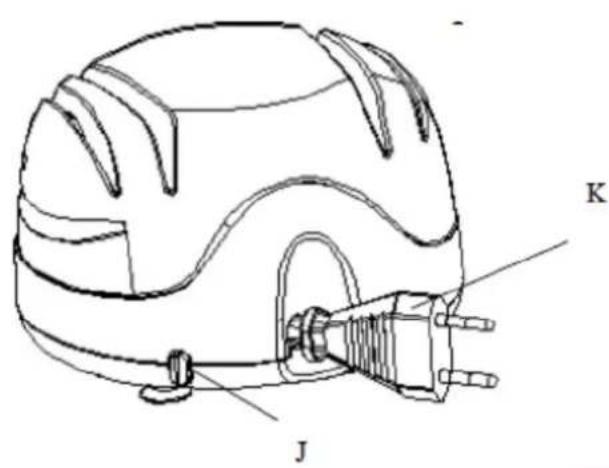

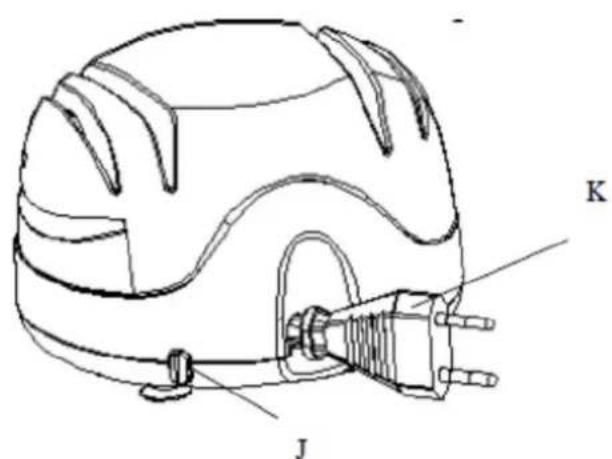

J. Button to collect the cord.
K. Plug.

TIPS FOR BETTER RESULTS

• Always should clean and dry knives before of grinding or sharpening.
• Press the blade down steadily avoiding blocking rotation of the motor.
• When you are grinding or sharpening, keep steady pace and adequate speed, and never stop rotation of the motor occasioned by excessive pressure in the wheel.
• Alternate sharpening between left slot and right slot (except that only special sheets need to be sharpened on one side).
• For a good sharpening the knife point should lift the handle up slightly as it approaches the end of the blade.
• Hold the appliance by hand while using, it will be more stable. Do it carefully not to cut with knife.
• Motor will heat after several uses, let cool before using it again.

USE

BEFORE FIRST USE

When you unwrap the appliance, ensure to remove all the packaging. Clean the appliance with a damp cloth.

VERY IMPORTANT: it is not recommended to use the sharpener for more than 3 minutes continuously. After this operation, switch it off and let it rest for 20 minutes, so it will cool.

HOW TO SHARPEN A KNIFE

STEP 1. Grinding: the first step is making a grinding blade.

Plug into the mains supply and press the switch. Should place the knife in the grinding zone, in the slot A of picture, the handle of the knife should be as close to the slot. Lower the knife slowly to avoid blocking the rotation of the wheel and pull the knife down to the tip, do it the same placing the knife in the slot B of the picture. Repeat these operations 3 or 4 times, or until you see that the edge angle and the grinding is entirely uniform along the entire blade.

IMPORTANT: Should start pulling of the handle to you as soon as insert the blade into the slot. Make sure the pressure applied on the handle is enough to keep the blade in contact with the grinding wheel without actually stopping the rotation of the motor.

STEP 2. Sharpening: the second step is making sharpening blade.

Should place the knife in the sharpening zone, in the slot C of the picture, the handle of the knife should be as close to the slot. Lower the knife slowly to avoid blocking the rotation of the wheel far as the plastic stop, then pull the knife slowly watching the grinding wheel is not locked so go sharpening evenly around the edge to reach the tip. Do the same in slot D shown in picture. Repeat these operations 3 or 4 times, or until you verify that the edge is completely uniform throughout the blade and on both sides.

HOW TO SHARPEN SCISSORS

• Plug to the mains supply and pulse the switch.
• Open the scissors and hold it by the edge.
• Put the finer side up, insert the scissors into the slot that puts "scissors" (F in picture) and when you feel it touch the wheel pull them toward you keeping pressure on the wheel (without blocking).
• Can adjust the angle between the scissors and the wheel according the thickness and size of scissors slightly.
• Sharpening the other blade in the same way.
• When you finish, switch off and unplug the sharpener.

HOW TO SHARPEN A SCREWDRIVER

• Plug the sharpener and switch on.
• Hold the screwdriver by the handle and the tip in the grinding slot (A or B in picture) to repair the deformed tip on each side (one to one).
• Then insert the tip in the square hole of the right, where you read "screwdriver", so you can grind the peak of screwdriver.
• After this process switch off and unplug the sharpener.

HOW TO USE THE AUTO REWIND FUNCTION

- Pull the cord to the length needed to connect the sharpener to the mains supply when using it.

- When you finish its use, unplug and press the button on the back of the sharpener (J in the picture), the cord is automatically rewinded. If the cord don't rewind, hold it with the hand and pulse the button, the cord rewind slowly.

CLEANING AND MAINTENANCE

This appliance works with an electric engine, therefore it is not necessary to use any lubricating on moving parts, engine, bearings or surfaces for grinding. Do not use detergents or abrasives products to clean. Just clean with a damp cloth or a towel. Do not clean the base in water or in dishwasher. Do not knock the wheel, it could easily damage.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
