Tempa - Tent Zempire - Free user manual and instructions

Type de produit	Tent
Marque	Zempire
Modèle	Tempa
Capacité	2-3 persons
Dimensions (L x l x H)	210 x 140 x 110 cm (approx.)
Poids	2.8 kg (approx.)
Matériau du double-toit	Polyester 185T with PU coating
Matériau du sol	Polyethylene 180g/m²
Arceaux	Fiberglass 8.5mm
Imperméabilité	3000 mm (flysheet)
Saison	3-season
Type d'ouverture	Front door with mesh
Type de montage	Free-standing pole structure
Caractéristiques spéciales	Ventilated inner tent, storage pocket
Nettoyage	Hand wash with mild soap, air dry
Rangement	Store in a dry place, avoid prolonged UV exposure
Sécurité	Fire retardant treatment (meets CPAI-84)
Pièces détachées	Replacement poles and pegs available separately
Réparabilité	Pole repair splint included; patch kit recommended for tears
Garantie	1 year limited warranty

Frequently Asked Questions - Tempa Zempire

How do I set up the Zempire Tempa tent?

Lay out the tent flat, assemble the poles, insert them into the pole sleeves, and raise the tent. Secure with pegs and guy lines. See the user manual for detailed steps.

Is the Tempa tent waterproof?

Yes, the flysheet has a 3000mm waterproof rating and the groundsheet is polyethylene. Seams are taped to prevent leaks.

What is the weight of the Tempa tent?

The tent weighs approximately 2.8 kg, making it suitable for backpacking and car camping.

How many people can sleep in this tent?

It is designed for 2-3 persons with enough space for sleeping bags and gear.

Can I use the tent in winter?

The Tempa is a 3-season tent, suitable for spring, summer, and fall. It is not recommended for heavy snow or extreme winter conditions.

How do I clean and maintain the tent?

Clean with mild soap and water, do not machine wash. Dry thoroughly before storing. Avoid prolonged sun exposure to prevent UV damage.

Are replacement parts available?

Yes, you can purchase replacement poles and pegs from Zempire or authorized dealers. A repair splint is included in the package.

Does the tent have good ventilation?

Yes, the inner tent features mesh panels for airflow, and the flysheet can be adjusted to reduce condensation.

Is the tent fire-resistant?

The tent fabric is treated with a fire retardant that meets CPAI-84 standards. Keep all flame sources away from the tent.

What size is the tent when packed?

The packed size is approximately 50 x 15 x 15 cm, fitting easily into a backpack.

USER MANUAL Tempa Zempire

1. Clear your site making sure there are no sharp objects where you are going to pitch your tent. Try to get a site that is as flat as possible.

1. Assemble the 4 pole sections. Ensure that the poles are inserted fully in tho the steel connectors.

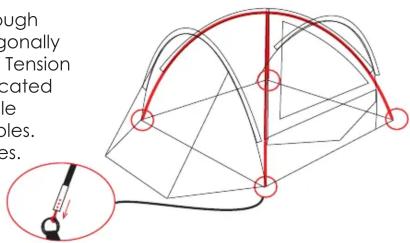

2. Thread the RED poles through the pole sleeves that run diagonally across the centre of the tent. Tension the poles inserting the pins located directly underneath each pole sleeve into the ends of the poles. Attach the C Clips to the poles. These are located below each pole sleeve.

3. Thread the BLUE poles through the pole sleeves on either side of the centre dome. Insert the pins into the pole ends. Attach the C Clips to the poles.

1. Firstly peg our the 4 corners of the centre of the tent(●). Then peg out the remaining peg points(●). Try to get the floor sitting as flat as possible at each stage.

2. Firmly peg out the ORANGE anchor Webbing attached to the large fin at the rear of the tent. Also peg out lower vents at this stage.

Diagram of a tent structure with a belt buckle, showing structural details and a red arrow indicating rotation (no text or symbols)

1. Peg out all the guy ropes. Try to have guy ropes at a 45^ angle to the ground.

3D geometric diagram of a folded structure with highlighted section and arrow, no text or symbols present

1. Pull the fly over the tent and connect the SR buckle sewn onto the fins at either side. Attach the hooks onto the loops sewn around the pole sleeves.

3D wireframe diagram of a geometric structure with intersecting curved and straight lines (no text or symbols)

This tent design is under copyright protection by Freedom Camping, New Zealand. The "Freedom Camping" and "airflow" logos are registered trademarks of Flow Imports Ltd. Any reproduction of this manual is prohibited without the prior consent of Flow Imports Ltd.

PITCHING INSTRUCTIONS - TEMPA airflowseries

1. Ensure guy ropes are pegged out at all times during use
2. Never pack your tent away wet. If you must take your tent down when wet, ensure that you dry you tent completely as soon as possible to prevent mildew forming.
3. If mildew does form on your tent wash off pours with warm water and a soft brush to prevent further growth. Do not use detergents.
4. Do not use an open flame inside your tent. The fabric has been treated with a fire retardant but is in no way fire proof
5. Clean all pegs and poles before storing

Freedom zempire

Freedom Zempire is proud to be a 100% New Zealand owned and operated business.

For more information about this and other great products we offer please visit our website.

airflowseries

TEMPA

pitching

instructions
