STEREN

RAD-530

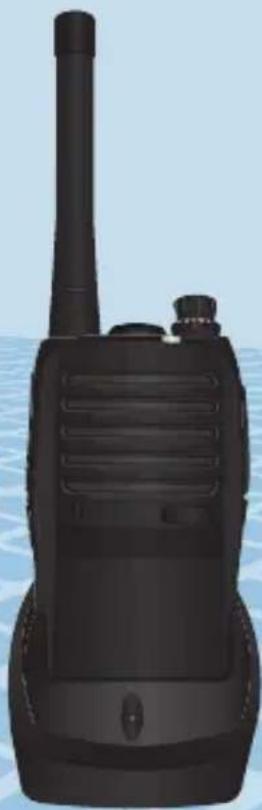

7 W 2-way UHF radio

Black walkie-talkie device with antenna and control knob (no visible text or symbols)

Instruction manual

0914b

V0.1

7 W 2-way UHF radio

RAD-530

Thank You on purchasing your new Steren product.

This manual includes all the feature operations and troubleshooting necessary to install and operate your new Steren's 7 W 2-way UHF radio.

Please review this manual thoroughly to ensure proper installation and operation of this product. For support, shopping, and everything new at Steren, visit our website:

www.steren.com

The instructions of this manual are for reference about the product. There may be differences due to updates.

Please check our website (www.steren.com) to obtain the latest version of the instruction manual.

"The operation of this equipment is subject to the following two conditions: (1) it is possible that this equipment or device may not cause harmful interference, and (2) this device must accept any interference, including interference that may cause undesired operation."

IMPORTANT

▶ Do not try to open the equipment, may cause malfunction and warranty will be void.
Do not use or store the equipment near wet or damp places. It may cause malfunction or shock hazard.
▶ Check the battery periodically.
When the equipment is not to be used for a long time, remove the battery.
Do not use the equipment if the antenna is broken, it may cause several damages on human body.

Do not use the equipment or don't change the battery on dangerous places as gas stations.
Do not place the equipment on top of the car airbags.
▶ Clean with a soft, dry cloth.
YourcommunicatormayinterferewithTVsetsorradios,evenwhen operating properly.

HIGHLIGHTS

• The professional radio offers 16 semi-duplex channels in UHF band.
- It has long life battery (Li-ion), includes mini lantern and low battery indicator.
• Transmits with 7 W of power output in a maximum operating range of 7 km in free areas. Very light weight, being perfect for security personnel or recreation activities.
- It is compatible with other brand radios, such as Motorola, usin our RAD-502 (sold by separate).

CONTENT

a. Radio
b. Li-ion battery
c. Belt clip
d. Strap
e. Battery charger
f. Antenna
g. User manual
h. Power adapter

a

Black walkie-talkie device with ventilation slots and antenna (no visible text or labels)

b

Front view of a black electronic device with three metallic buttons and a small screen (no visible text or symbols)

C

Black plastic object with rounded edges and mounting holes (no text or symbols visible)

d

Simple black-and-white illustration of a looped ring with a metallic handle (no text or symbols)

e

Close-up of a black plastic object with three vertical pins and a circular base (no text or symbols visible)

f

9

h

Coiled black electrical plug with two terminal pins (no text or symbols visible)

CONTROLS

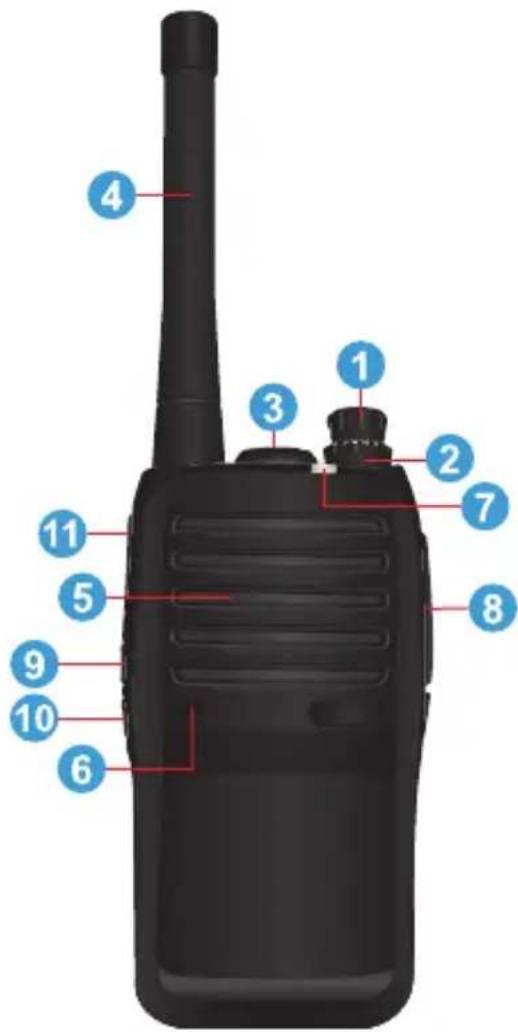

Front view

1. ON/OFF control and volume control.
2. Channel control.
3. Lantern.
4. Antenna.
5. Speaker.
6. Microphone.
7. LED Indicator:

When transmitting lights red.

When receiving turns on green.

When the battery is low, the LED flashes red.

1. SPKR/MIC INPUT:

You can connect an external microphone and speaker (not included).

1. MONITOR Button:

This button is used to verify activity on the selected channel before transmission.

You can also detect weak signals.

1. SCAN button:

Scans channels signal.

Turns on the lantern.

1. PTT button:

Press the PTT button to transmit.

1. Belt clip.

2. Battery.

3. LED indicator for the battery charger:

The LED indicator lights red when the battery is in the process of loading.

Turns green when the battery is fully charged.

1. AC Power input.

Close-up of a black mechanical component with internal slots and a red indicator line (no text or symbols)

Front view

3D model of a black rectangular object with a red vertical line and blue circle marker labeled '15' (no text or symbols on the object itself)

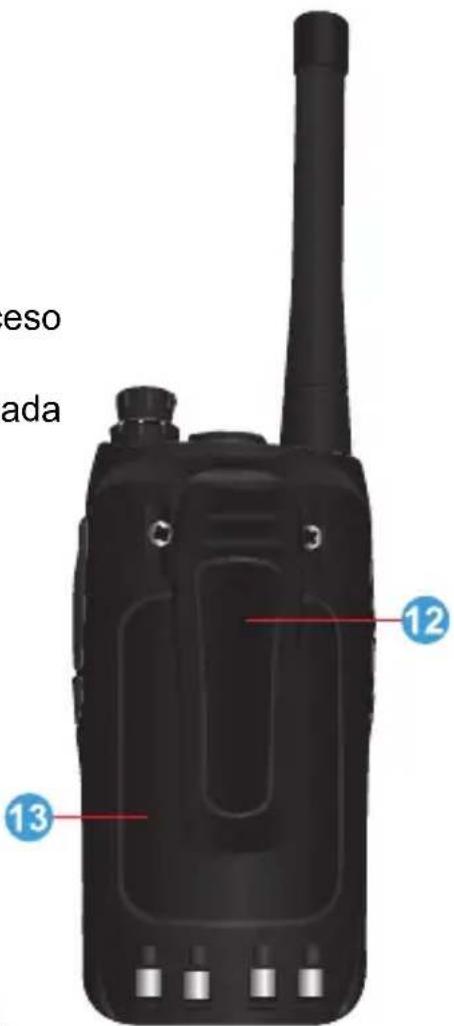

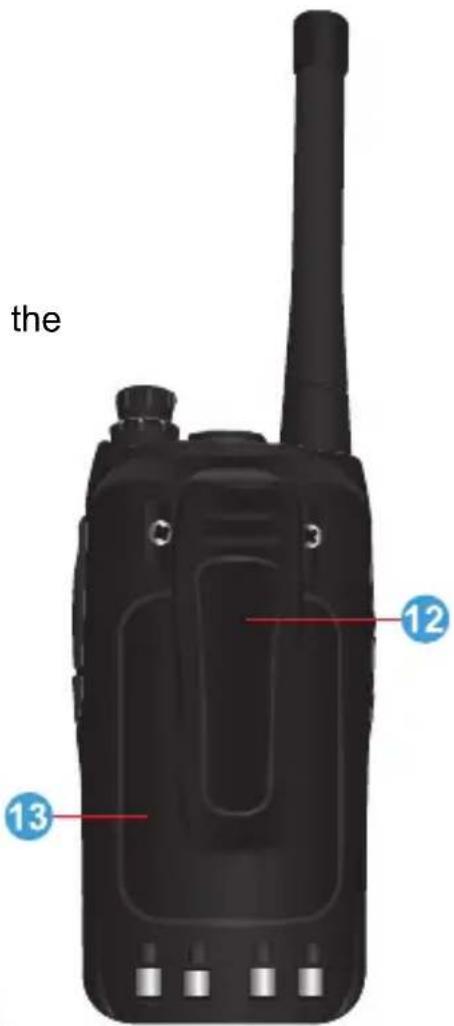

Rear view

Rear view

INSTALLATION

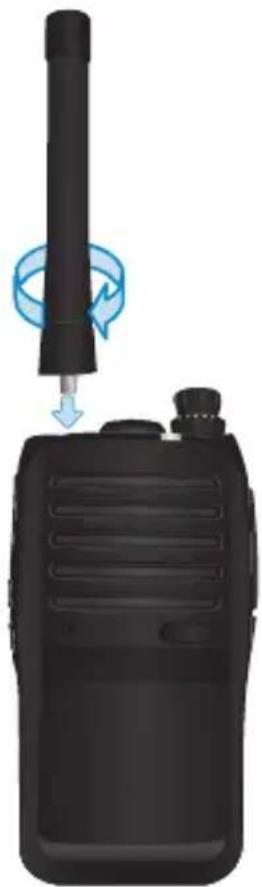

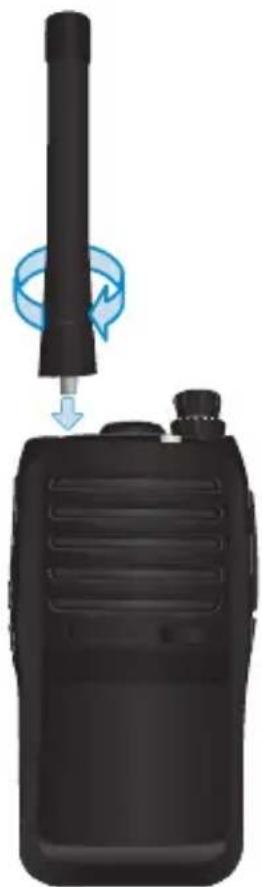

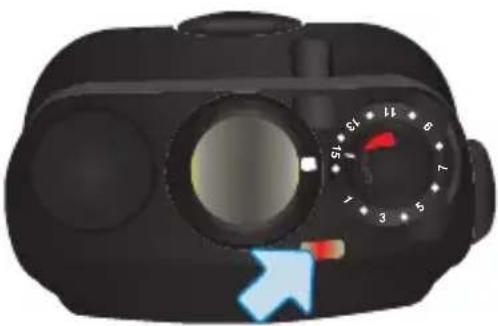

1. To install the antenna, simply insert and turn it making sure it is firmly attached.

Illustration of a walkie-talkie and its external device with a blue arrow indicating rotation (no text or symbols present)

Black walkie-talkie with a hand holding a cable, no visible text or symbols

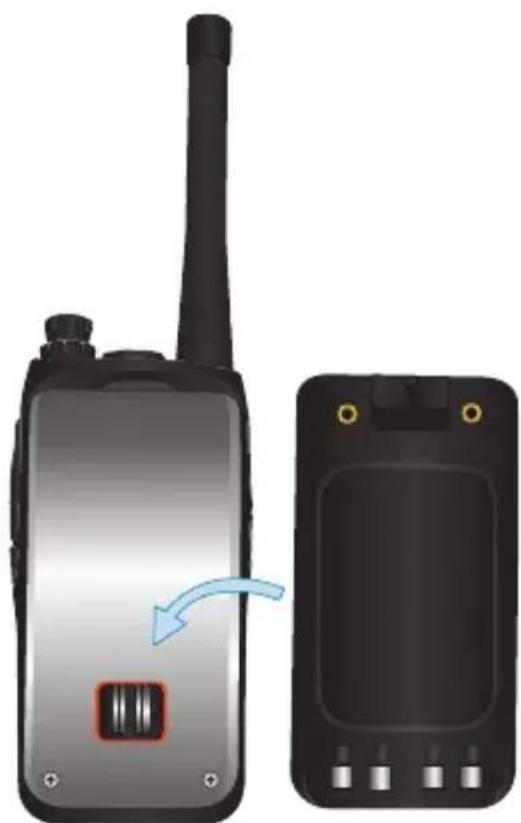

1. To place the battery, insert and slide it in the battery compartment.

To withdraw press the release button and pull the battery.

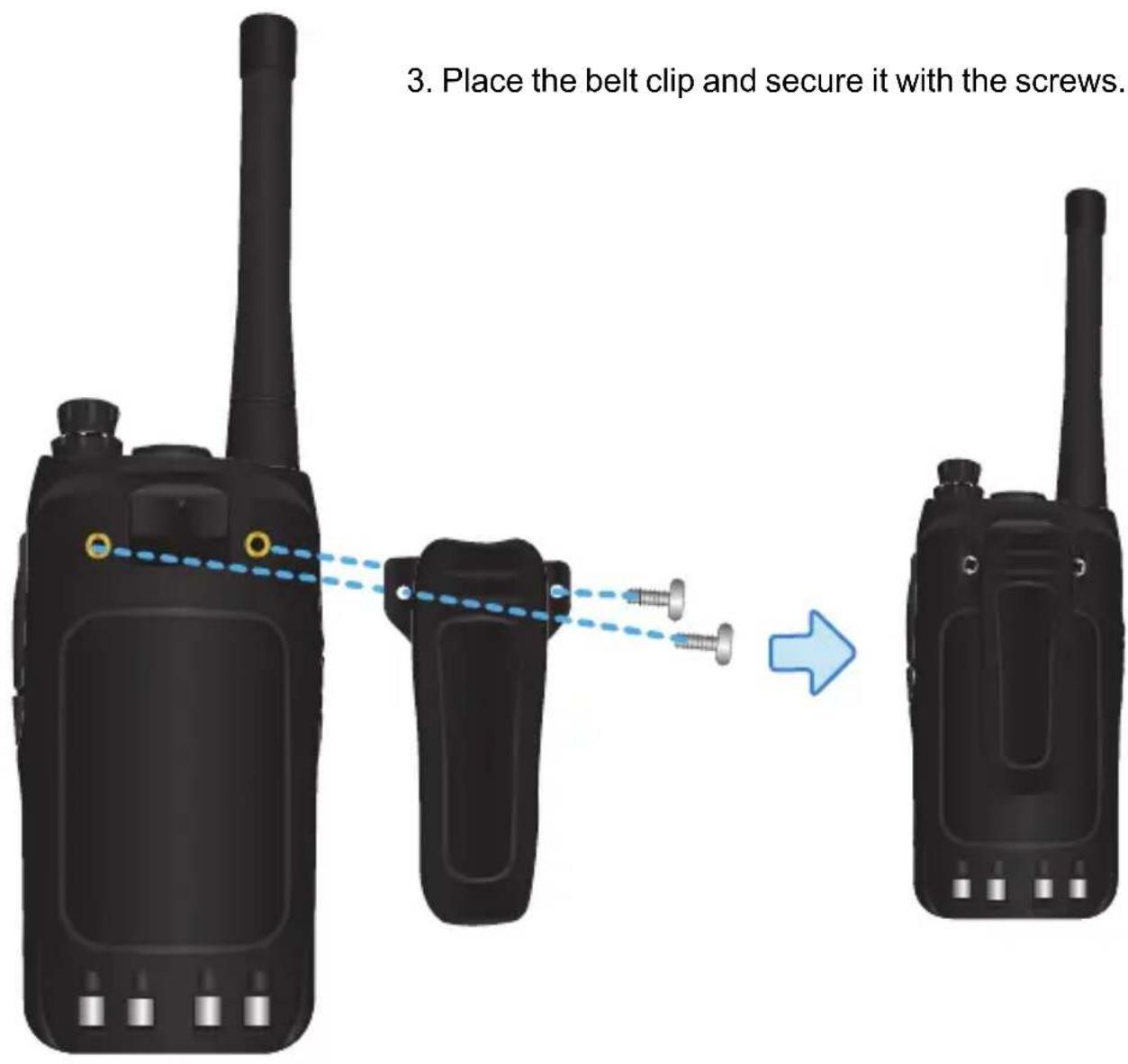

1. Place the belt clip and secure it with the screws.

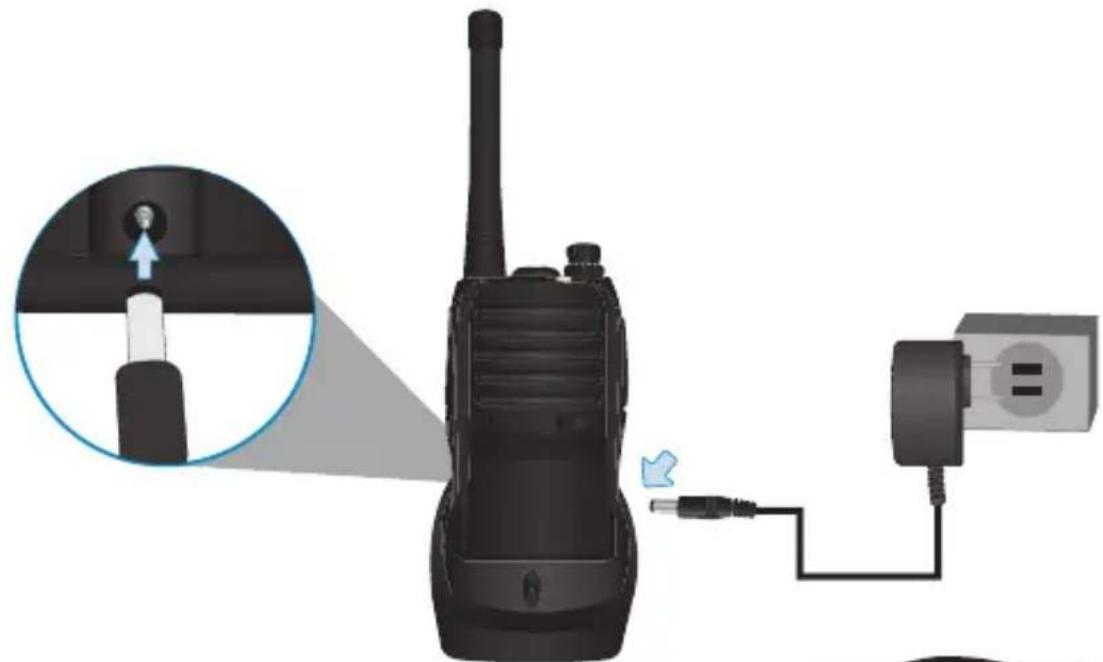

1. Once you've installed the battery charger, connect the AC charger adaptor into an AC household outlet. Insert the terminal on the charger and perform the initial charge for 12 hours or so.

The LED indicator lights red when the battery is in the process of loading.

Turns green when the battery is fully charged.

Illustration of a walkie-talkie connected to a power adapter via cable (no text or symbols present)

The LED in the 2-way radio flashes in red when battery is discharged.

Insert terminal on the charger and charge it.

3D rendered image of a black VR headset with circular dial and red/gray buttons, showing no text or symbols

HOW TO USE

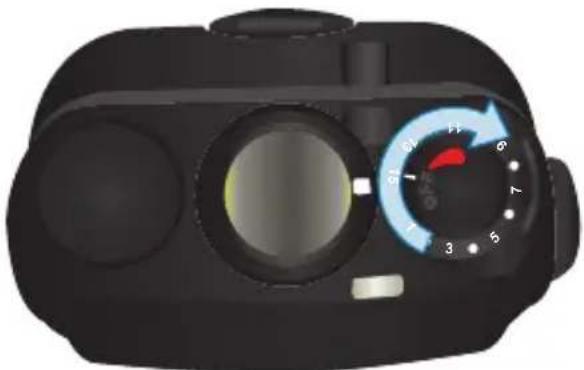

1. Turn the microphone on.

Close-up of a black VR headset with blue circular dial and orange indicator lights (no text or symbols visible)

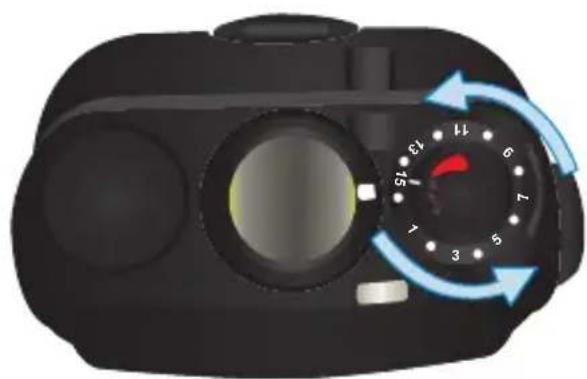

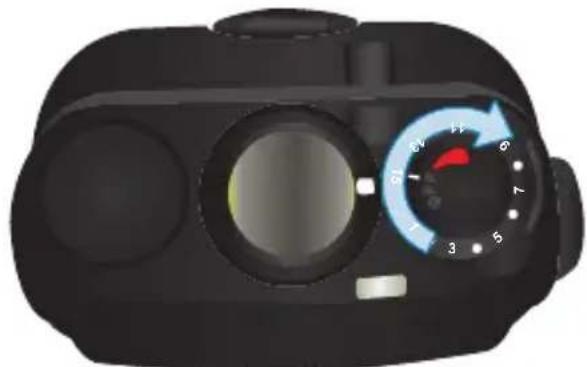

1. Select a channel with the channel selector or press and hold the exploration button (SCAN) until the LED indicator flashes green, the radio start the search for signal and will stop when the device found an active signal.

Press the button PTT channel to communicate to an activate signal channel and search will be deactivated.

If you want to continue exploring press and hold the SCAN button, the indicator LED will turn off.

Close-up of a black handheld device with circular dial and rotary scroll arrows (no text or symbols)

Close-up of a black remote control with a blue arrow pointing to the left side (no text or symbols visible)

1. To start communicating, just press and hold the PTT button, the LED indicator lights up red. While speaking, keep the unit in an upright position and at a distance of 2.5 cm from the mouth. When you want to finish the conversation, release the PTT button.

When receiving, the LED indicator lights up green.

1. Adjust the volume level according to your needs

Close-up of a black remote control panel with buttons and a blue arrow pointing to it (no text or symbols visible)

Illustration of a black walkie-talkie with a finger pointing to the handle (no text or symbols visible)

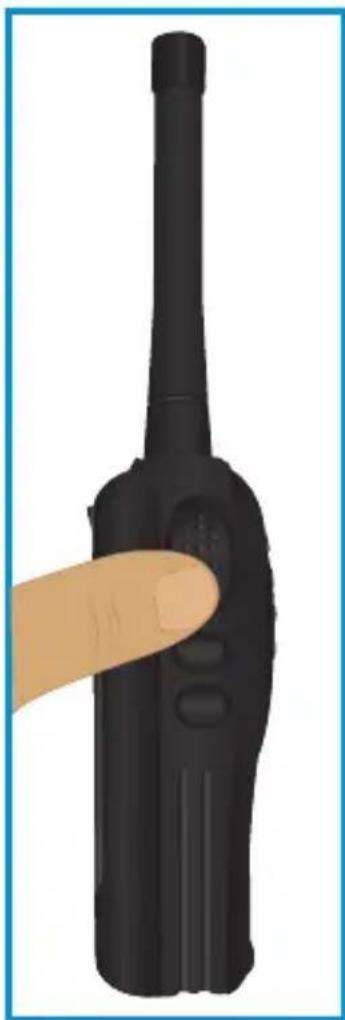

1. To turn on/off the light, press briefly the SCAN button.

TROUBLESHOOTING

Trouble Solution
Cannot power on the device	Check the battery. Make sure that the battery is properly installed.
	Recharge the battery.
The reception is weak	Increase the volume level.
	The signal can be out of range or the equipment is too far from signal.
	Check the antenna position.
The range is limited	Changeyourposition.Ifyou’reinsideofa steelestructure or concrete building, go to a place with fewer obstacles.
	Check the antenna position.
	Battery energy is weak.
Sound distortion	If you’re transmitting, place the device around 2.5 cm from your mouth.
	If you’re receiving, decrease the volume level.

SPECIFICATIONS

Frequency range: 400-470 MHz

Channels: 16 UHF

Channel space: 25 kHz/12.5 kHz

Operating temperature range: -20 °C to +60 °C

Power supply: 7.4 V ---

Weight: 444 g (including the battery pack)

Transmitter: UHF

Transmitting power: ≤7 W

Frequency stability: ≤± 2.5 ppm

Modulated mode: 16K50F3E (width) 8K50F3E (narrow)

Spurious emissions: ≤-36 dBm

FM noise: ≤-40 dB

Audio distortion: ≤5%

Maximum frequency deviation: ≤5 kHz(width) ≤2.5 kHz(narrow)

Receiver: UHF

Frequency stability: ± 2.5 ppm

Sensitivity: Better than 0.2μV(width) Better than 0.25 μV(narrow)

Receiving FM bandwidth: ≥±7 KHz(width) ≥±3.5 KHz(narrow)

Adjacent channel selectivity: ≥60 dB

Intermodulation rejection ratio: ≥60 dB

Anti-interference of spurious wave: ≥60 dB

Audio output power: 500 mW

AC/DC adaptor

Input: 90 V -240 V \~ 50/60 Hz 7 W

Output: 9 V = 800 mA

Charger base

Input: 9 V = 800 mA

Output: 8.6 V = 750 mA

Battery: 7.4 V = 2500 mAh

Transmission:

Adjacent channel power output: >=55 dB (width) /55 dB(narrow)

Receiver

SNR: >=45 dB (width)/40 dB (narrow)

Audio distortion: <=5%

Consumption: 75 Wh/day

Stand-by power consumption: 7 Wh/day

Product design and specifications are subject to change, without notice.

Product: 7 W 2-way UHF radio

Part number: RAD-530

Brand: Steren

WARRANTY

This Steren product is warranted under normal usage against defects in workmanship and materials to the original purchaser for one year from the date of purchase and three months on its battery.

CONDITIONS

1. This warranty card with all therequired information, invoice, productboxor package, and product, must be presented when warranty service is required.
2. If the product is in the warranty time, the company will repair it free of charge.
3. The repairing time will not exceed 30 natural days, from the day the claim was received.
4. Steren sell parts, components, consumables and accessories to customer, as well as warranty service, at any of the addresses mentioned later.

THIS WARRANTY IS VOID IN THE NEXT CASES:

If the product has been damaged by an accident, act so of God, mishandling, leaky batteries, failure to follow enclosed instructions, improper repair by unauthorized personnel, improper safe keeping, among others.

a) The consumer can also claim the warranty service in the purchase establishment.

b) If you lose the warranty card, we can reissue it, if you show the invoice or purchase ticket.

RETAILER INFORMATION

Name of the retailer ____

Address ____

Product

Brand

Part number ____

Serial number ____

Date of delivery ____

In case your product fails or have questions, please contact your nearest dealer. If you are in Mexico, please call to our Call Center.

01 800 500 9000

STEREN

Help us to improve this instruction manual, call us:

01800 500 9000

Customer Service Center

www.steren.com
