Product Type	Drip Coffee Maker
Brand	Menuett
Model	802-622
Color	Black / Stainless Steel
Dimensions (H x W x D)	34 x 25 x 20 cm
Weight	1.9 kg
Power	900 W
Voltage	220-240 V
Frequency	50/60 Hz
Capacity	Up to 12 cups (1.5 L)
Water Tank Capacity	1.5 L
Filter Type	Permanent gold-tone filter (reusable)
Carafe Type	Glass carafe with marking
Keep Warm Function	Yes, automatic keep warm plate
Anti-Drip Function	Yes, pause and serve
Auto Shut-Off	Yes, after 2 hours
Cord Length	80 cm
Material	Plastic housing, stainless steel heating element
Cleaning Instructions	Descaling every 3 months with vinegar or citric acid
Safety Features	Overheat protection, automatic shut-off
Accessories Included	Measuring spoon, permanent filter
Warranty	2 years

Frequently Asked Questions - 802-622 Menuett

How do I descale my Menuett 802-622 coffee maker?

Use a mixture of equal parts water and white vinegar. Fill the water tank, run a brew cycle without coffee, then run 2-3 cycles with fresh water to rinse. Repeat every 3 months.

Can I use pre-ground coffee with this machine?

Yes, add pre-ground coffee to the permanent filter. Use about one tablespoon per cup.

What is the maximum water capacity of the tank?

The water tank holds up to 1.5 liters, which makes about 12 cups of coffee.

Does the coffee maker have an automatic shut-off?

Yes, it automatically shuts off after 2 hours of inactivity for safety.

How do I clean the permanent filter?

Rinse the filter under running water after each use. For deep cleaning, soak in warm soapy water and scrub gently.

Why is my coffee not hot enough?

Ensure the carafe is properly placed on the hot plate. Pre-warm the carafe with hot water before brewing. Also, descale the machine if mineral buildup occurs.

Can I use paper filters instead of the permanent one?

Yes, you can use a size 4 paper filter. Place it in the filter basket before adding coffee.

What should I do if the coffee maker leaks?

Check that the carafe is correctly positioned and the lid is closed. Inspect the water tank for cracks. If leaking continues, consult the manual or contact support.

How do I adjust the brew strength?

Use more or less coffee grounds according to your taste. The machine does not have a strength selector.

Is the coffee maker suitable for travel?

It is designed for home use; its size and voltage (220-240 V) make it less suitable for travel to regions with different voltages.

USER MANUAL 802-622 Menuett

User Instructions for Coffee Maker 800 W

802-622

Black and silver coffee maker with clear glass handle and side panel (no visible text or symbols)

SV Bruksanvisning i original

NO Bruksanvisning i original

EN Operating instructions in original

SVENSKA 3

SÄKERHETSANVISNINGAR 3

TEKNISKA DATA 4

BESKRIVNING 4

Delar....4

HANDHAVANDE 4

Användning 4

UNDERHÄLL 4

Rengöring 5

Avkalkning....5

FELSÖKNING....6

NORSK 7

SIKKERHETSANVISNINGER 7

TEKNISKE DATA 8

BESKRIVELSE 8

Deler 8

BRUK 8

Bruk....8

VEDLIKEHOLD 9

Rengjøring 9

Avkalking....9

FEILS∅KING 10

POLSKI 11

ZASADY BEZPIECZEŃSTWA 11

DANE TECHNICZNE 12

OPIS 12

Części 12

OBSŁUGA 12

HANDHAVANDE

Användning

BRUK

Bruk

1. Åpne vannbeholderen og fyll på kaldt vann til ønsket nivå.
2. Lukk lokket igjen.
3. Fell ut filterholderen og sett inn et filter. Legg en passende mengde kaffe i filteret.
4. Før tilbake filterholderen og kontroller at den går i sporet.
5. Sett kannen på varmeplaten.
6. Slå på apparatet med strømbryteren. Indikatorlampen tennes og apparatet begynner å trakte.
7. Apparatet arbeider til vannbeholderen er tom, og så går den automatisk til varmholdingsmodus. (Den varme platen holder den ferdige kaffen varm ved en temperatur på over 72°C,) til apparatet slås av automatisk innen 40 minutter.
8. Trekk støpselet ut av stikkontakten.

VEDLIKEHOLD

Rengjøring

OBSŁUGA

Sposób użycia

Read the User Instructions carefully before use.

Save these instructions for future reference.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance
• Never touch hot parts on the appliance, e.g. the decorative metal ring on the filter holder – risk of burn injuries.
• The appliance is intended for household use, or for use in staff rooms, hotel rooms or other similar places.
  • Never immerse the appliance, the power cord or plug in water or any other liquid.
• The appliance must only be connected to a correctly earthed mains outlet. Check that the mains voltage corresponds to the rated voltage on the type plate.
• Never leave the appliance unattended when switched on.
• Check the power cord regularly for damage. A damaged power cord must be replaced by an authorised service centre, or qualified person, to ensure safe use.
• Do not use the appliance if it is damaged or not working properly, or if the power cord or plug are damaged. Take the appliance to an authorised service centre to be checked, repaired or adjusted.
• Never use the appliance outdoors or in damp areas.
• Unplug the power cord before cleaning and/or maintenance, if it malfunctions, before filling, and when the appliance is not in use.
• Do not allow the power cord to come into contact with the hot surfaces. Do not expose the appliance to high temperatures or direct sunlight.
• Never move the appliance by pulling the power cord. Do not pull the power cord to unplug the plug. Do not wind the power cord round the appliance. Do not fold or twist the power cord.
• Place the appliance on a level, stable surface.

IMPORTANT: Never touch hot parts on the appliance. Only touch the plastic parts on the appliance and lift the pot by the handle.

• Steam from the coffee filter is very hot – risk of burn injuries.
  • Never start the coffee maker without filling it with water. Only use fresh, cold water.
• Never fill the container beyond the MAX mark. Do not start the appliance if the container is filled beyond the MAX mark.
  • Never heat the coffee by placing the pot in an oven or microwave oven.
  • Remember that the coffee is very hot. Handle the pot with care – risk of scalding.
  • Handle glass pots with care. Never use the appliance if there are cracks in the pot.
• Never place an empty or almost empty glass pot on the hot plate when the coffee maker is switched on, or on other hot surfaces.
• Only use accessories recommended or supplied by the manufacturer. Other accessories can damage the appliance and/or result in a risk of personal injury.
• Switch off the appliance before unplugging the power cord.
• Do not use the appliance at temperatures lower than 0^ – risk of malfunctioning.
• Descale the appliance regularly for best functionality.
• Allow the appliance to cool before cleaning and putting it away.

• The first time you use the appliance it may emit fumes. This is quite normal.

TECHNICAL DATA

Voltage	220–240 VAC, 50 Hz
Output	800 W
Volume, water reservoir	1.2 l

DESCRIPTION

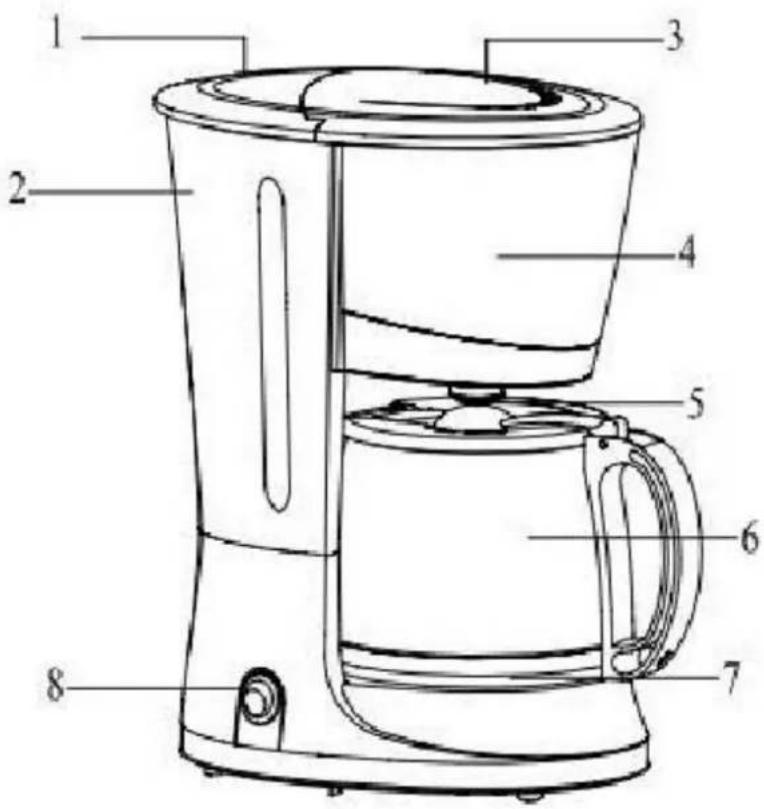

Parts

OPERATION

Use

1. Open the water reservoir and fill with cold water to the required level.
2. Replace the lid.
3. Take out the filter holder and insert a filter. Put a suitable amount of coffee in the filter.
4. Replace the filter holder and check that it fits in place.
5. Put the pot on the hot plate.
6. Switch on the appliance with the power switch. The status light goes on and the appliance starts brewing.
7. The appliance connues working unl the water container is empty, and then switches automacally to keep warm mode. (The warm plate will keep the brewed coee warm at above 72^ C,) unl the appliance switches automacally into o mode within 40 minutes.
8. Unplug from the socket.

7. MAINTENANCE

Cleaning

1. Switch off the appliance, unplug the power cord, and allow to cool before cleaning.
2. Never immerse the appliance, the power cord or plug in water or any other liquid.
3. Allow the appliance to cool and wipe with a soft, dry cloth. Never use steel wool or the equivalent.
4. Wash the permanent coffee filter (if used) and other removable parts in warm water and washing-up liquid, and then rinse and dry before replacing.
5. Wash the inside of the pot with hot water and washing-up liquid, and then rinse and dry before replacing.

NOTE: Never wash the pot in a dishwasher.

1. Clean the appliance at least every three months for best functionality.
2. Store the appliance in a dry place that is not too warm.

Descaling

Descale the appliance regularly, otherwise this will affect the taste and scale can permanently damage the appliance.

Descale the appliance immediately in the event of abnormal noise, if the brewing takes longer, or if the appliance stops brewing before the water container is empty.

How often descaling is required depends on the hardness of the water and how often the appliance is used. Follow the instructions below.

- Soft water – every three months.

- Hard water – every two weeks.

Information about water hardness can generally be found on your local authority's website.

Use liquid descaling agent. Read the instructions on or enclosed with the pack before use.

1. Mix the descaling agent with cold water in a measuring cup as shown in the instructions.

NOTE: Do not use descaling agent in powder form.

1. Fill the water container on the appliance to the MAX marking with the mixture.

2. Do not put a filter and coffee in the filter holder. Allow the appliance to continue working until the water container is empty.

3. Repeat steps 1 to 3.

NOTE: Do not pour the descaling solution into the water container again, it will no longer be effective.

1. Fill the container with cold, clean water and allow the appliance to continue working until the container is empty. Repeat once.

IMPORTANT:

• Never interrupt the descaling process.
• The warranty does not cover faults caused by scale.

TROUBLESHOOTING

The troubleshooting guide will help you identify the causes of common problems and how they can be rectified. Contact your dealer if you experience a problem that is not included in this troubleshooting guide.

Problem	Action
The appliance does not work.	Check that the mains voltage corresponds to the rated voltage on the type plate.
	Check that the power cord is plugged in and that the appliance is switched on.
Water is running from the appliance.	Check that the water container is not filled over the MAX mark.
The appliance produces abnormal noise and large amounts of steam during the brewing.	Check that the water container does not fill with hot water.
	Descale the appliance according to the instructions above.
Coffee powder in the pot.	Check that there is not too much coffee in the filter. Check that the pot is correctly placed under the filter holder. Avoid removing the pot from the hot plate for more than 30 seconds while brewing is in progress.
	Check that the filter is the right size and has not burst.
The brewing takes an unusually long time.	Descale the appliance according to the instructions above.
The appliance stops brewing before water container is empty.	Descale the appliance according to the instructions above.
The coffee is too weak.	Check that you have added enough coffee. As a rule one level measure of coffee per cup is enough.
	Check that you are not using coffee with a mild taste.
The coffee is too strong.	Check that you have added too much coffee. As a rule one level measure of coffee per cup is enough.
	Check that you are not using coffee with a strong taste.
The coffee does not taste good.	Do not allow the pot to stand for too long on the hot plate, especially with only a little coffee in it.
The coffee is not hot enough.	Do not brew too little – a larger amount stays hot longer.
	Check that the pot is correctly placed on the hot plate.
It is difficult to take out and put back the pot.	Check that the filter holder and pot lid are correctly positioned.
	Tilt the pot slightly when taking it out and putting it back. Make sure not to spill any – risk of scalding.
There is less coffee than expected.	Check that the pot is correctly placed on the hot plate, so that the drip-stop mechanism does not prevent the coffee from running down from the filter.
	Descale the appliance according to the instructions above.

Jula reserves the right to make changes. In the event of problems, please contact our service department. www.jula.com

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled.

Leave the product for recycling at the designated station e.g. the local authority's recycling station.
