| Product Type | Camera Tripod |
| Model | CL-TPPRO22-SL |
| Brand | CamLink |
| Maximum Height | 170 cm (67 in) |
| Minimum Height | 45 cm (17.7 in) |
| Folded Length | 50 cm (19.7 in) |
| Weight | 2.1 kg (4.6 lbs) |
| Load Capacity | 5 kg (11 lbs) |
| Material | Aluminum alloy |
| Head Type | 3-way pan/tilt head with quick release plate |
| Leg Sections | 3 sections |
| Leg Lock Type | Flip locks |
| Center Column | Geared center column with hook for counterweight |
| Leveling Bubble | Yes, on tripod base |
| Compatibility | DSLR cameras, camcorders, spotting scopes |
| Colour | Black |
| Accessories | Carrying bag, hex key, quick release plate |
| Power Supply | Manual operation (no power required) |
| Maintenance | Wipe with dry cloth; keep locks clean and dry |
| Safety Precautions | Do not exceed maximum load; use on stable ground |
| Spare Parts / Reparability | Replacement feet and plates available from CamLink |
Frequently Asked Questions - CL-TPPRO22-SL CamLink
How do I attach my camera to the tripod?
Attach the quick release plate to your camera's tripod socket using the provided screw. Then slide the plate into the tripod head's clamp and lock it securely.
What is the maximum load capacity?
The maximum load capacity is 5 kg (11 lbs), suitable for most DSLR and mirrorless cameras with standard lenses.
How do I adjust the tripod height?

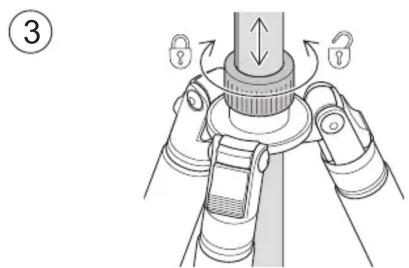

Unlock the leg sections by flipping the lever locks, extend to desired height, and lock each section. Use the center column crank for fine height adjustments.
Can I change the tripod head?
Yes, the tripod head is interchangeable. The standard 3/8-inch screw allows you to mount any compatible head.
How do I keep the tripod stable on uneven ground?
Each leg can be independently adjusted. Compensate for slopes by extending legs to different lengths and use the bubble level to ensure balance.
Is a carrying bag included?
Yes, a padded carrying bag is included for convenient transport and storage.
How do I clean and maintain the tripod?
Wipe with a soft dry cloth. Avoid solvents. Keep leg locks and column clean and dry, and occasionally lubricate moving parts with a silicone spray.
What is the folded length for travel?
The tripod folds down to 50 cm (19.7 in), making it easy to fit in a suitcase or carry-on bag.
Can I replace the rubber feet?
Yes, replacement rubber feet are available from CamLink. They can be unscrewed and replaced if worn.
What cameras is this tripod compatible with?
It is compatible with any camera or device that has a standard 1/4-inch tripod socket, including DSLRs, mirrorless, camcorders, and spotting scopes.
User questions about CL-TPPRO22-SL CamLink
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Tripod in PDF format for free! Find your manual CL-TPPRO22-SL - CamLink and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CL-TPPRO22-SL by CamLink.
USER MANUAL CL-TPPRO22-SL CamLink


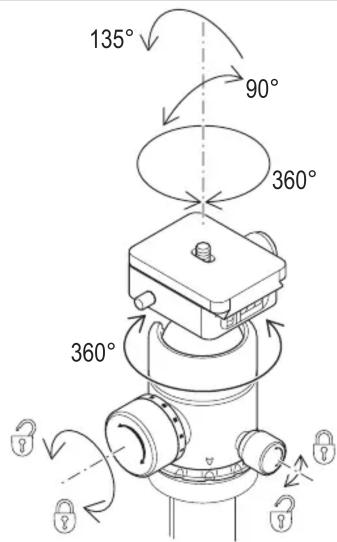

Diagram of a mechanical or electrical component with rotating arms and fasteners (no text or symbols)
CAMLINK
CL-TPPRE23-BL / CL-TPPRE29-BL
CL-TPPRO22-SL / CL-TPPRO28-SL
⑥
8
⑨
