Product Type	Household Fan
Brand	Innoliving
Model	INN-529
Color	White and Grey
Material	Plastic body, metal stand
Dimensions (Product)	40 x 40 x 120 cm (WxDxH)
Weight	4.5 kg
Power Supply	AC 220-240V, 50Hz
Power Consumption	50 W
Fan Speed Settings	3 speeds (low, medium, high)
Modes	Normal, Natural, Sleep
Oscillation	Yes, 90° horizontal
Timer	1-7 hours
Remote Control	Yes, with battery (CR2025)
Adjustable Height	Yes, telescopic pole
Safety Features	Overheat protection, tip-over switch
Maintenance	Clean with damp cloth; do not immerse
Accessories Included	Remote control, user manual
Energy Efficiency Class	Class A

Frequently Asked Questions - INN-529 Innoliving

How do I clean the fan?

Unplug the fan. Use a soft damp cloth to wipe the exterior. For the blades, use a brush attachment on a vacuum cleaner or a damp cloth. Do not disassemble the fan for cleaning.

Can the fan be used outdoors?

No, this fan is designed for indoor use only. Keep it away from water and moisture.

Is the height adjustable?

Yes, the fan has a telescopic pole that allows you to adjust the height from 100 cm to 120 cm.

How do I set the timer?

Press the Timer button on the remote or control panel repeatedly to select from 1 to 7 hours. The fan will automatically turn off after the set time.

What does the Sleep mode do?

Sleep mode gradually reduces the fan speed over time to provide a comfortable environment while you sleep.

My fan is not turning on. What should I do?

Check if the power cord is plugged in and the outlet is working. Ensure the tip-over switch is engaged (fan placed upright). If still not working, contact customer support.

The remote control is not working. What can I try?

First, check the battery: replace with a new CR2025 coin cell battery. Ensure the remote is pointed at the fan's receiver and within range (about 5 meters).

Why is the fan making noise?

Noise can be due to loose parts or dust. Check that all screws are tight and clean the blades. If noise persists, contact support.

How should I store the fan when not in use?

Unplug the fan, clean it, and store it in a dry place. You can lower the pole height to save space. Keep the remote control in a safe place.

What is the warranty for this fan?

The Innoliving INN-529 typically comes with a 2-year warranty. Please refer to the user manual or contact your retailer for specific terms.

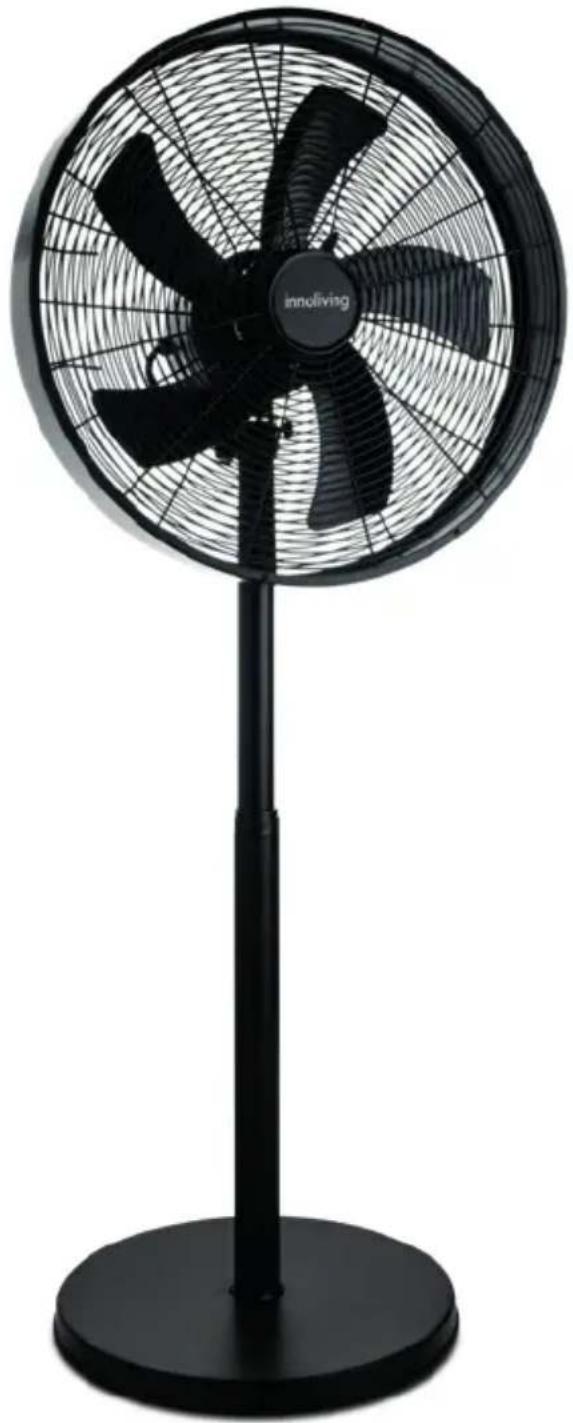

USER MANUAL INN-529 Innoliving

innoliving easy tech, easy life

Black office desk fan with visible blades and a 'innolivisag' branding on the top (no other text or symbols)

VENTILATORE A PIANTANA IN METALLO

METAL STAND FAN

INN-529B

MANUALE D'USO

USER MANUAL

MANUALE D'ISTRUZIONE

Close-up of a black circular fan with radial blades and a red pointer, no visible text or symbols.

Top-down view of a black electric fan with red directional arrows indicating airflow or blades (no text or symbols)

Close-up of a black and white fan with a red circular icon highlighting the blade (no text or symbols)

Close-up of a black and white industrial fan with five blades (no text or symbols visible)

Close-up of a black electric fan with five blades, shown from front and side views (no text or symbols visible)

Thank you for purchasing the INN-529B INNOLIVING digital stand fan.

Read the instructions carefully before use and keep this manual for future reference.

WARNINGS AND SAFETY RULES

• Before using the appliance, carefully read the instructions for use, especially the safety warnings, and follow them. Keep this manual for the entire lifespan of the appliance for reference. Failure to follow the instructions may result in accidents and void the warranty, releasing the manufacturer from any liability.
• This product is not intended for use by persons (including children) with reduced physical, mental, or sensory capabilities, or by those lacking experience and knowledge, unless they are supervised or instructed on the use of the appliance by a person responsible for their safety and understand the potential hazards.
• This product is not a toy. Ensure that children do not play with the appliance. Keep the product and its cord out of the reach of children.
• Disconnect the fan from the power supply before removing the protective grills, before any maintenance or cleaning operations, before moving the product, before long periods of non-use, or during thunderstorms.
• Never operate the fan without the protective grills. RISK OF INJURY DUE TO ACCIDENTAL CONTACT WITH

MOVING BLADES!

- This appliance must be used solely for its intended purpose as an indoor domestic fan. Any other use is considered improper and therefore dangerous.

- This appliance is intended for DOMESTIC USE ONLY.

- Packaging elements (plastic bags, cardboard, polystyrene, etc.) must not be left within the reach of children as they can pose a danger and should be disposed of in compliance with current regulations.

- After unpacking the appliance, check for any transport damage and verify the integrity of the supplied components according to the diagram. If damaged or if there are any doubts about its integrity, do not use the appliance and contact an authorized service center.

- Before connecting the appliance, ensure that the mains voltage data on the data label matches the local power supply. The data label is located on the appliance itself.

- The appliance plug must fit perfectly into the socket. Do not modify the plug in any way. Do not use adapters or extension cords.

- Do not use the product if it has fallen to the ground, shows visible signs of damage, or leaks.

- Do not pull the power cord to lift, carry, or unplug the appliance from the power socket.

- Ensure that the cord is not knotted or bent.

- Check the condition of the power cord. Damaged or

knotted cords increase the risk of electric shock.

• Do not touch or use the product with wet or damp hands or feet. Do not touch the plug or cord with wet or damp hands or feet.
• Do not leave the product unattended while it is operating.
• If the power cord is damaged, it must be replaced by the manufacturer or an authorized service center to prevent any risk. Do not use the appliance if the cord or plug is damaged.
• In case of malfunction or fault, switch off the appliance and do not tamper with it. For repairs, contact only an authorized service center.
• Never immerse the product in water or other liquids. Risk of electric shock!
• Do not use the product if it has fallen or shows visible damage or leaks.
• Do not use the product outdoors. For operation, place the product on a flat and stable surface. Do not use the fan near an open window to avoid short circuits due to dripping or rainwater.
• Protect the product from extreme temperatures, direct sunlight, strong vibrations, excessive humidity, moisture, flammable gases, vapors, or solvents.
• Ensure that there are no parts, such as textiles or hair, that could get caught in the fan blades.

• Use the appliance only with the protective grill properly closed.

• Never cover the product while it is in operation.

• Risk of injury! Do not insert objects through the protective grill while the product is in operation.
• Ensure that the cord does not come into contact with hot surfaces, incandescent elements, open flames, pots, or other hot utensils.
• For cleaning instructions, refer to the "Cleaning and Maintenance" section of the manual.
• User cleaning and maintenance must not be carried out by children without supervision.
• Store the product in a dry, dust-free environment, away from direct sunlight and heat sources, and out of reach of children.
• Use the appliance only with the accessories and spare parts provided.

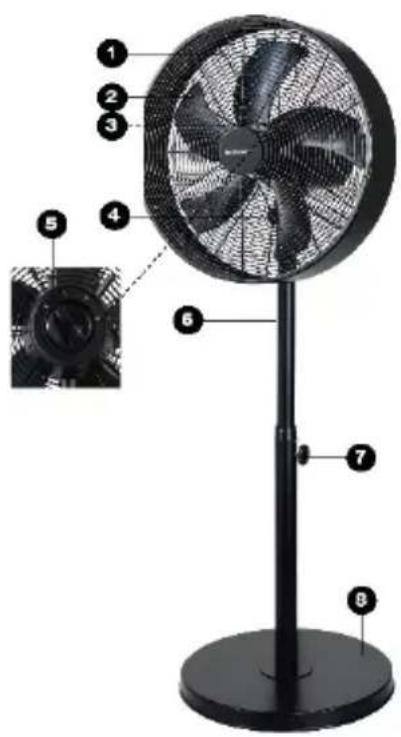

DESCRIPTION OF THE PARTS

1. Protection grilles (front and rear)
2. Fan blades
3. Motor with speed control and swing knob (on the back, not visible here)
4. Tilt knob
5. Speed adjustment knob
6. Telescopic support
7. Height adjustment knob
8. Support base

ASSEMBLY INSTRUCTIONS

Attaching the grilles and blades

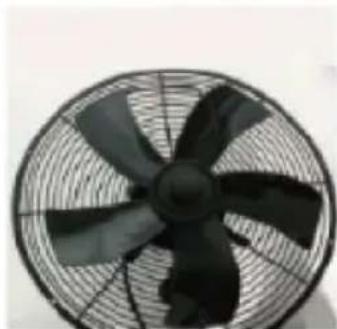

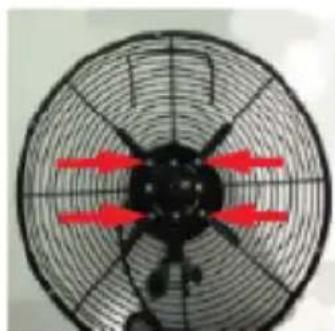

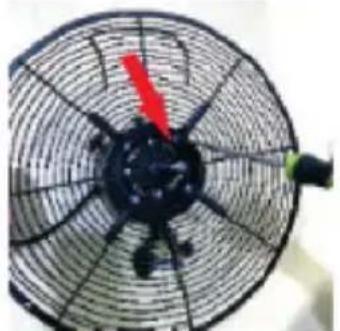

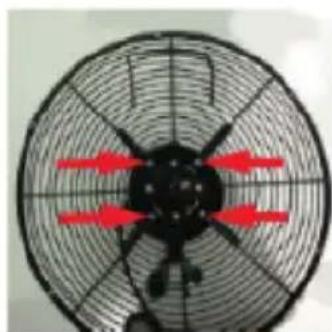

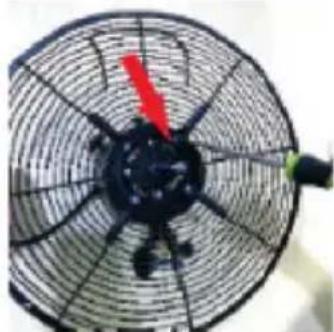

1. Unscrew the four screws from the motor body, place the rear grille and tighten the screws.

Close-up of a black industrial fan with visible blades and central hub (no text or symbols)

Close-up of a black industrial fan with red directional arrows indicating blades (no text or symbols visible)

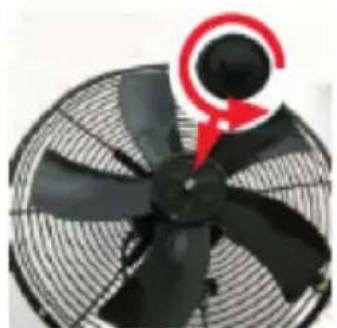

1. Place the blades on the blade holder and fix them by turning the knob to the left.

Close-up of a black and white fan with a red circular icon highlighting the blade (no text or symbols)

Close-up of a black industrial fan with five blades, no visible text or symbols

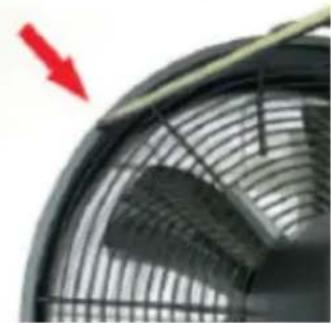

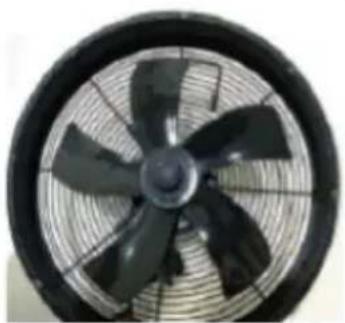

1. Positionate the front grille and fix it by tightening the screws.

Close-up of a black and white industrial fan with five blades, no visible text or symbols

Close-up of a black fan with visible blades and grille, marked by a red arrow (no text or symbols)

Fixing the telescopic support to the base

1. The screw is attached to the bottom tube or supplied separately. Unscrew the screw, if necessary, and remove it from the bottom of the lower column.

2. Turn the base over and screw the screw from the underside of the base into the thread of the bottom tube. Tighten firmly, but do not overdo it.

3. Loosen the height adjustment knob, extend the telescopic stand to the desired height and then tighten the knob again.

1. Fun head
2. Extension pole
3. Height adjustment knob
4. Lower tube
5. Base
6. Weight
7. L sharped screw

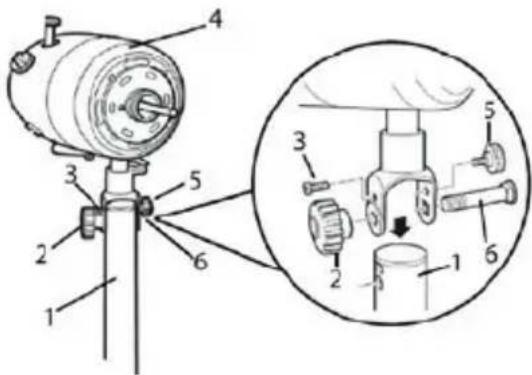

Attaching the fan head and motor to the pedestal

1. Pedestal
2. Big knob to adjust the inclination
3. Fixing screw
4. Motor body
5. Small knob

6. Bolt

7. To begin with, remove the knob (2) and bolt (6) from the top of the tube, then remove the fixing screw (3) and small knob (5) from the motor body bracket.

8. Place the fan head and motor on the top of the pedestal and thread the bolt (6) through the bracket. Tighten the fastening screw (3) and tighten it, but do not overdo it.
9. Tighten the small knob (5) on the other side, tighten the big knob on the other end (2) while keeping the fan motor upright.

INSTRUCTIONS FOR USE

1. Place the fan on a dry, flat and solid surface.
2. Connect the fan's electrical socket to the electricity supply.
3. Make sure the fan voltage complies with your local power supply conditions before using the fan.

Adjust the swing angle

1. Push down the button to activate the swing function, push up again to deactivate this function.

Speedcontrol

Adjust the speed using the wheel on the motor head:

0--- Stop I--- Low II --- Medium III --- High

Cleaning and maintenance

1. Turn off and unplug the appliance before proceeding with any cleaning operation and maintenance.
2. Metal parts can be cleaned using a soft, dry cloth.

Caution: Do not use abrasive cleaners, chemicals or solvents that could damage the surface of the components.

RATING LABEL

Innoliving Spa The product implies with all Via Merloni 2/B - 60131 Ancona - Italy

INN-529B

VENTILATORE A PIANTANA IN METALLO METAL STAND FAN

220-240V \~ 50-60Hz 50W

MADE IN CHINA

Lot n.

applicable European directives.

Read carefully the instruction manual

I INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)". The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 cm. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoiding possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree

DESCRIPTION SYMBOL VALUE UNIT
Type of fan according to mounting Pedestal fan
Maximum fan flow rate F 64,52 m			^3/min
Fan power input P 46,20 W
Service value SV 1,40 (m			^3/min)/W
Standby power consumption P	SB	-	W
Off power consumption P	OFF	0	W
Fan sound power level	LWA	63,31 dB(A)
Maximum air velocity	C	3,58	m/sec
Seasonal electricity consumption	Q	14,78	(kWh/a)
Measurement standard for service value	EN IEC 60879:2019
Referent	Innoliving Spa Via Merloni 2/B Ancona

innoliving easy tech, easy life

Innoliving Spa Via Merloni, 2/B 60131 Ancona Italy Tel [phone] www.innoliving.it

MADE IN CHINA

CE

Rev.00_12.2024
