USER MANUAL INN-522 Innoliving

Modern office desk fan with metallic blades and a stand, no visible text or symbols on the fan body.

VENTILATORE A PIANTANA IN METALLO

INN-522

MANUALE D'USO

USER MANUAL

MANUALE D'ISTRUZIONE

Technical diagram of a fan assembly with numbered components and an inset view of the internal structure.

ASSEMBLARE IL VENTILATORE

PASSAGGI:

Technical diagram of a mechanical device with numbered parts and an inset view showing internal components.

Technical diagram of a mechanical assembly with numbered parts labeled 7, 19, and 20

Thank you for purchasing Innoliving stand fan INN-522.

Before use, read the instruction manual carefully and keep this manual safe for future references.

WARNINGS

• This product is not a toy. Keep this product out of reach of children and pets.
• Keep all packing material (plastic bags, cardboard, polystyrene, etc.) out of reach of the children, since they are potential sources of danger and must be disposed of as provided by law.
• Keep this product out of extreme temperatures such as direct sunlight, strong vibrations, excessive moisture, wet, gas, vapor or flammable solvents.
• Do not subject the product to any mechanical stress.
• Handle the product with caution. Shock, blow or fall even at a minimum height may damage it.
• This product can be used by children older than 8 years old and persons with reduced physical, mental or sensory capacity, or lack of experience and knowledge only if under supervision or if they received appropriate instructions regarding the safe use of the equipment and have fully learned the associated risks.
• Children should be supervised to ensure they do not play with the appliance.
• Never touch the product with wet or wet hands.
• Do not use the appliance if it is damaged.
• Electric shock hazard! Do not immerse the appliance in water.

- Do not use the fan near an open window to avoid short circuiting due to dripping or rain water.

- Before removing the protective cages, the fan must be disconnected from the mains. Never operate the fan without protective cages. CAUTION: RISK OF INJURY DUE TO ACCIDENTAL CONTACT WITH MOVING BLADES.

• Make sure that there are no parts, such as textiles or hair, that may engage the fan blade.

- Do not leave the product unattended when it is operating.

- Only use the appliance with the secured cage.

- Never cover the product when it is in operation.

- Danger of injury! While the product is in operation, do not insert objects through the protective cage.

- The power outlet must be close to the appliance and must be easily accessible.

- Never disconnect the plug from the power outlet by pulling the cable, always unplug it from the appropriate grips.

- Disconnect the plug from the power outlet when not in use for long periods of time.

- For safety reasons, always disconnect the plug from the socket when it is stormy.

- Make sure the power cord is not crushed, bent, damaged by sharp objects, or exposed to other mechanical stresses.

- If the power cord is damaged, do not touch it.

• First, disconnect the power socket (eg through the respective resistor) and then carefully disconnect the plug from the socket. Never use the product with the damaged power cord.
• To avoid risk, a damaged power cord should only be replaced by the manufacturer, a workshop authorized by him, or a qualified person.
• Plugs must never be connected or disconnected with wet hands.
• If the cord or plug is damaged, it must be replaced by the manufacturer or its after sales service or any other person with similar qualifications to prevent any risk.
• In the event of a malfunction of the appliance, turn it off and do not tamper with it. For any repair, contact an authorized service center only.
• Cleaning and maintenance operations shall not be carried out by children without supervision.

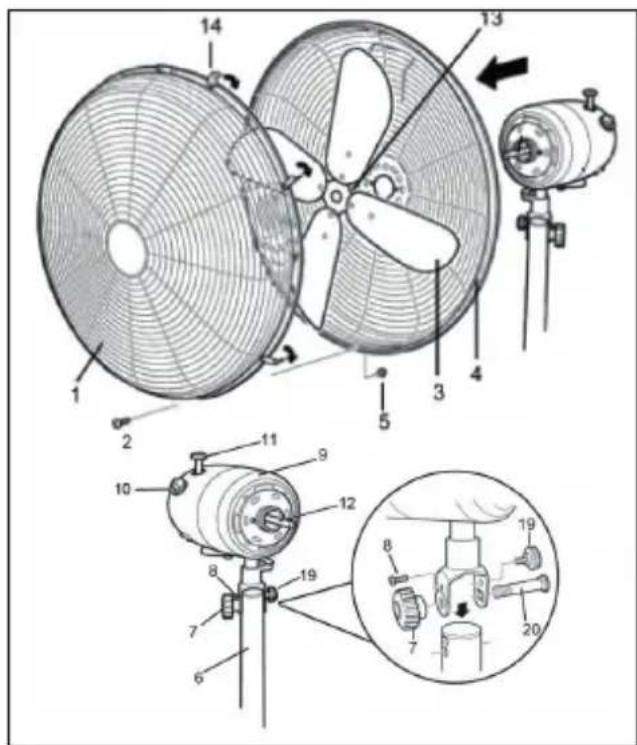

PARTS DESCRIPTION

1. Front mesh
2. Stud for mesh block
3. Fans
4. Back mesh
5. Safety back nut (x1)
6. Telescopic support structure
7. Knob for inclination adjustment
8. Screw for inclination adjustment
9. Motor housing
10. On / Off / Speed control
11. On/Off/Oscillation
    12.Motor spindle
    13.Fixing screw for blades (x1)
12. Mesh fixing clip
    15.Base
13. Counterweight
14. Lock washer
    18.L-shaped screw
15. 20.Knob and tilt adjustment bolt

Technical diagram of a fan assembly with numbered components and an inset view of the main device.

ASSEMBLING THE FAN

STEPS:

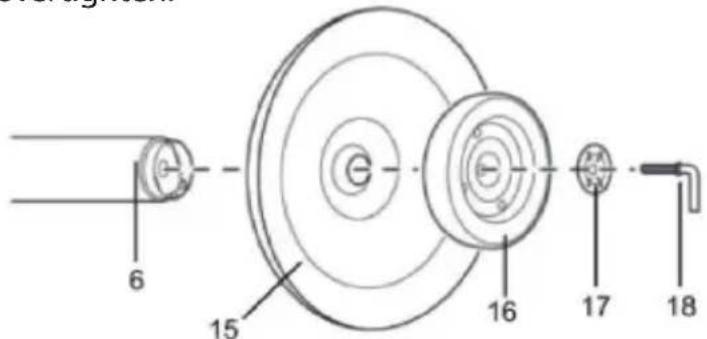

1. Set the telescopic support (6) to the base (15), positioning the counterweight (16) in the lower part of the base (15) and then the locking washer (17) in the center of the counterweight. Screw the other components (15,16,17) to the telescopic support (6) with the L-shaped screw (18). Screw tightly but do not overtighten.

6 15 16 17 18

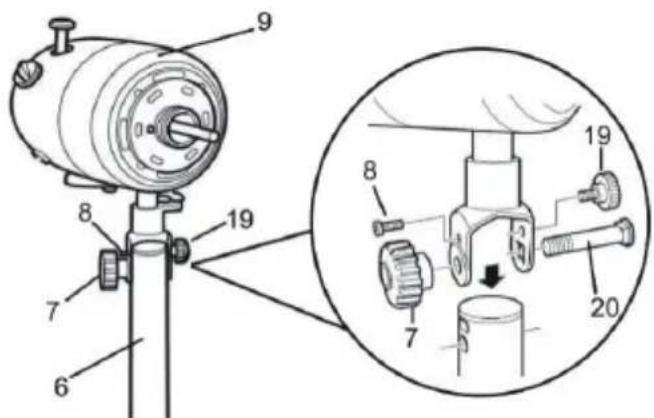

1. Remove all screws, etc. first. (7, 8, 19 and 20) from the bottom of the motor housing. Then place the motor housing (9) in the upper part of the telescopic support (6).

Technical diagram of a mechanical device with numbered parts and an inset view showing mechanical assembly details.

1. Now insert the bolt (20) into the bracket and screw the small fixing screw (8) firmly (but do not overtighten).
2. Screw the large knob (7) to the end of the bolt (20). Insert the small knob (19) and screw the large knob (7).

Technical diagram of a mechanical assembly with labeled parts and an arrow indicating direction or force

Technical diagram of a mechanical assembly with numbered parts labeled 7, 19, and 20

1. Set the inner mesh to the front cover with the 4 screws. Insert the fan into the motor housing and lock it with its screw. Mount the front mesh by hooking it in the upper part and fasten it with the screw and nut in the lower part and close the 4 safety hooks.

INSTRUCTIONS FOR USE

1. Place the fan on a dry, flat and solid surface.
2. Connect the fan's electrical outlet to the electrical power supply.
3. Make sure that the voltage of the fan complies with the local power supply conditions before using the fan.

ADJUST THE SWING ANGLE

1. Push down the button (11) to activate the oscillation function, press upwards again to deactivate this function.

Adjust the angle of inclination

Use the knobs and screws to adjust the inclination of the motor head and therefore of the fans, depending on the desired inclination.

SPEEDCONTROL

Adjust the speed using the wheel on the motor head:

$$ 0 > \text { Stop } \quad I > \text { Low } \quad I I > \text { Medium } \quad I I I > \text { High } $$

CLEANING AND MAINTENANCE

1. Turn off and unplug the appliance before proceeding with any cleaning operation and maintenance.
2. The metal parts can be cleaned using a soft, dry cloth.

Caution: Do not use abrasive cleaners, chemicals or solvents which could damage the surface of the components.

RATING LABEL

Innoliving Spa

Via Merloni 2/B - 60131 Ancona - Italy

INN-522

VENTILATORE A PIANTANA IN METALLO METAL STAND FAN

220-240V \~ 50-60Hz 50W

MADE IN CHINA

Lot n.

This product complies with all the applicable EU directives

Read carefully the instruction manual.

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)" The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately

from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.

DESCRIPTION SYMBOL VALUE UNIT
Maximum air flow capacity F 62,78 m			^3/min
Fan absorbed power P 44,4 W
Operating values SV 1,41 (m			^3/min)/W
Electric consumption “stand by” mode P	SB	-	W
Electric consumption “off” mode P	OFF	0	W
Seasonal electricity consumption	Q	14,21	kWh/a
Fan noise power level	LWA	66,14 dB(A)
Maximum air speed	C	3,66	m/sec
Measurement regulation	IEC 60879:1986+corr.1992
Referent	Innoliving Spa Via Merloni 2/B Ancona
