INN-514 - Household Fan Innoliving - Free user manual and instructions

Product Type	Stand Fan (Ventilatore Pianta)
Model	INN-514
Brand	Innoliving
Power Supply	220-240 V~ 50 Hz
Power Consumption	8 W
Maximum Airflow	70.24 m³/min
Sound Power Level	48 dB(A)
Maximum Air Speed	2.14 m/s
Seasonal Electricity Consumption	2.589 kWh/a
Standby Power Consumption	0 W
Operating Value	8.68 (m³/min)/W
Number of Blades	4
Speed Settings	Single (on/off)
Control Type	Push switch on fan head
Base Diameter	Approx. 35 cm
Height Adjustment	Telescopic tube, max height approx. 150 cm
Safety Class	Class II (double insulated)
Material	Plastic and metal
Cord Length	Approx. 1.5 m
Included Accessories	Base, pole, telescopic tube, fan head, 4 blades, locknut, screws, screwdriver
Cleaning	Unplug, wipe with damp cloth
Certifications	CE, complies with EU Directives
Manufacturer	Innoliving Spa, Via Merloni 9, 60131 Ancona, Italy
Country of Origin	Made in China

Frequently Asked Questions - INN-514 Innoliving

How do I assemble the Innoliving INN-514 stand fan?

Assemble the base by inserting the pole and tightening the locknut underneath. Extend the telescopic tube to maximum height and tighten the fitting. Attach the fan head to the tube using the supplied screws and screwdriver. Finally, insert the four blades into the fan head as shown in the manual.

How should I clean the fan?

Always unplug the fan before cleaning. Wait for it to cool down. Wipe the exterior with a damp cloth and dry with a soft cloth. Never immerse in water or use solvents or abrasives.

What should I do if the fan does not turn on?

Check that the plug is fully inserted into a working socket and press the switch on the back of the fan head. If it still doesn't work, contact authorized after-sales service.

Why is my fan making excessive noise?

Excessive noise may occur if the blades are not assembled correctly or are deformed. Reassemble the blades following the instructions. If the problem persists, contact after-sales service.

Can I use this fan outdoors?

No, this fan is designed for indoor use only. Avoid using it near open windows to prevent water damage and short circuits.

Is it safe for children to use the fan?

Children 8 years and older can use it under supervision. Ensure they do not play with the appliance or insert objects through the grills while it is operating.

Does the fan have multiple speed settings?

No, the Innoliving INN-514 has a single-speed on/off switch. It does not offer variable speed control.

What is the power consumption of this fan?

The fan consumes 8 W of power when operating and 0 W in standby mode. Its seasonal electricity consumption is 2.589 kWh per year.

How should I store the fan when not in use?

Disconnect the fan, allow it to cool, and store it in its original packaging or a cool, dry place. Keep away from children and pets.

What should I do if the power cord is damaged?

Do not touch the damaged cord. Immediately disconnect the plug from the socket. The cord must be replaced by the manufacturer, its service agent, or a qualified person to avoid hazard.

USER MANUAL INN-514 Innoliving

innoliving easy tech, easy life

VENTILATORE PIANTANA

White and green adjustable air fan with four blades, standing on a stand (no text or symbols visible)

Figura 1.

Istallazione base

Line drawings of a two-blade propeller fan and a stand (no text or symbols)

Istallazione pale

Thank you for purchasing Innoliving stand fan INN-514. Before use, read the instruction manual carefully and keep this manual safe for future references

WARNINGS

• Keep all packaging material (plastic bags, cardboard. Polystyrene, etc.) out of reach of children since they are potential sources of danger and must be disposed as provided by law.
• Protect the product from extreme temperatures, direct sunlight, strong vibrations, excessive moisture, liquids, gases, vapours or flammable solvents. Do not subject the product to mechanical stress
• Handle the product with caution. Bumps, blows or even a fall from a minimum height could damage it.
• This product can be used by children older than 8 years old and persons with reduced physical, mental or sensory capacity, or lack of experience and knowledge only if under supervision or if they received appropriate instructions regarding the safe use of the equipment and have fully learned the associated risks.
• Children should be supervised to ensure they do not play with the appliance.
• This product is not a toy. Keep this product out of reach of children and pets.
• Cleaning and maintenance operation should not be carried out by children without supervision.
• Do not touch the product if your hands are wet.
• The plugs must never be connected or disconnected with wet hands.
• Danger of electric shock! Do not immerse the product in water.

• Do not use the fan near an open window to avoid a short circuit caused by dripping or rain water.

• Do not use the appliance if damaged.

• Make sure that there are no objects such as fabrics or hair near the fan that can get caught on its blades.
• Danger of injury! While the product is operating, do not insert objects through the slots in the grids.
• Do not leave the product unattended when it is operating.
• Do not cover the product when it is operating.
• The plug socket must be near the unit and must be easily accessible.
• Never disconnect the product from the USB port by pulling the cable, always unplug it by pulling the connector.
• Disconnect the product from the USB port when it is not used for a long period.
• For safety reasons, always unplug the connector from the USB port in the event of a lightning storm.
• Make sure that the power cord is not crushed, bent, damaged by sharp objects or exposed to other mechanical stresses. Avoid excessive thermal loads due to excessive heat or extreme cold. Do not modify the power cord. A damaged cord can cause a deadly electric shock.
• If the power cord is damaged, do not touch it. First of all, switch off the relevant power socket and then carefully disconnect the plug from the socket. Never use the product with a damaged power cord.
• If the cord or plug is damaged, it must be replaced by the manufacturer or its after sales service or any other person with similar qualifications to prevent any risk.
• In case of failure or malfunction of the appliance, switch it off and do not tamper with it. For any repairs, contact only an authorized technical assistance center.

PRODUCT DESCRIPTION AND ACCESSORIES

1. Locknut for base
2. Base
3. Pole
4. Telescope pipe fitting
5. Telescopic tube
6. Blade
7. ON/OFF Switch
8. Fan Head
9. Front disc

ASSEMBLY

Remove the packing material and place all components on a flat and stable surface.

Figure 1.

Intallation - Base

Insert the pole (3) on the base (2) and fix it, screwing the locknut under the base, as shown in figure 1.

Figure 2.

Telescopic pipe installation

As shown in figure 2, unscrew the fitting (4), lengthen the telescopic tube at the maximum height and then fix by screwing the fitting in the opposite direction.

Figure 3.

An Head Installation

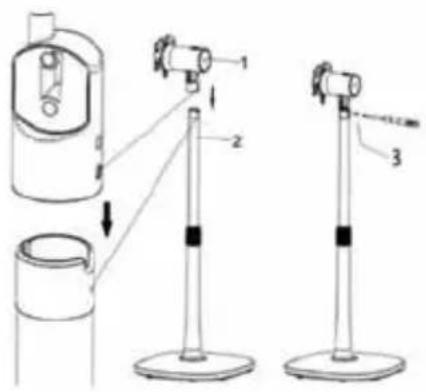

As shown in figure 3, insert the fan head on the telescopic tube, making sure that the holes on the head coincide with those on the tube. Using the screwdriver and the supplied screws, firmly fix the two parts.

Figure 4.

Line drawings of a wind turbine with two variants: one showing a five-blade propeller and the other a four-blade propeller mounted on a stand (no text or symbols)

Installation of blades

Insert the blades into the fan head as shown in figure 4.

HOW TO USE

Place the fan on a flat and stable surface. Do not place it on a table with an inclination of more than 10^ . Connect the fan to the power outlet and press the switch on the back of the fan head.

To switch off the product, press the switch again and disconnect from the mains.

Disconnect the product from the mains when not in use and before proceed with any cleaning or maintenance operation.

CLEANING AND MAINTENANCE

Unplug the power cord before proceeding with any cleaning or maintenance operation.

After use, wait a few minutes and let the product to cool completely down before proceeding with any cleaning and maintenance operation. Never immerse the product in water. Wipe the outside of the appliance using a damp cloth and then dry it with a soft cloth. Never use solvents or abrasives. Never clean the appliance components with flammable liquids. Vapors may cause fires or explosions. In case of prolonged non-use, remove the product and store it in its original packaging in a cool and dry place.

TROUBLESHOOTING

Problem	Cause Solution
The fan does not work 1. The plug is not inserted in the socket2. The plug is not fully inserted into the socket.3. The switch has not been pressed4. The product is faulty	1. Insert the plug into the socket2. Insert the plug correctly into the socket3. Press the switch located in the fan head4. Contact the authorized after sales service
The fan does not turn off The product is faulty Contact the authorized after sales service
The fan is excessively noisy when in use	1. The blades have not been assembled correctly2. The blades are deformed	1. Insert the blades on the fan head following the instructions above mentioned.2. Contact the authorized after sales service

TECHNICAL SPECIFICATION

Description	Symbol Value Unit
Maximum air flow F 70,24 m			^3 /min
Power absorbed by fan P 8,09 W
Operating values SV 8,68 (m			^3 /min)/W
Electrical consumption in “waiting” mode	PSB	0	W
Seasonal electricity consumption	Q	2,589	kWh/a
Sound power level of the fan	LWA	48,0	dB(A)
Maximum air speed	C 2,14	meter/second
Measurement standard	IEC 60879:1986+corr.1992
Contact	Innoliving Spa Via Merloni, 9 60131 Ancona

RATING LABEL

Innoliving Spa

Via Merloni 9 - 60131 Ancona - Italy

INN-514

VENTILATORE PIANTANA - STAND FAN 220-240V\~50Hz 8W

This product complies with all the applicable EU Directives.

Read the instruction manual carefully

Appliance with electrical insulation class II.

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 “2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)”. The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste.

The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014

innoliving easy tech, easy life

Innoliving Spa Via Merloni, 9 60131 Ancona Italy Tel [phone] www.innoliving.it

MADE IN CHINA

CE
