Product Type	Cordless Leaf Blower
Model	CB4010
Brand	Blaupunkt
Voltage	18 V DC
No-load Speed	13000-16000 min⁻¹ (rpm)
Air Speed (Low/High)	110 km/h / 160 km/h
Battery Compatibility	18 V Li-Ion (BP1820, BP1840, BP1850) – not included
Recommended Battery	BP1840 4.0 Ah (for optimal performance)
Dimensions (L x W x H)	90 x 15 x 26 cm
Weight	1.84 kg
Sound Pressure Level (LpA)	76.3 dB(A) (K=3.0 dB)
Sound Power Level (LWA)	90.9 dB(A) (typical operating)
Vibration Emission (ah)	0.49 m/s² (K=1.5 m/s²)
Recommended Operating Cycle	15 min on / 30 min off
Power Source	Battery-powered (cordless)
Motor Type	Brushed DC motor
Speed Settings	2 (variable via trigger)
Turbo Function	Yes (momentary boost)
Safety Features	Double electrical insulation
Cleaning	Clean with damp cloth; do not use solvents or immerse
Maintenance	Keep ventilation grilles clean; check for damage before use
Included Accessories	Blow tube (assembles)
Certifications	CE, RoHS, WEEE
Intended Use	Outdoor leaf blowing and light debris removal
Noise Protection	Wear hearing protection

Frequently Asked Questions - CB4010 BLAUPUNKT

What battery does the CB4010 leaf blower use?

The CB4010 uses an 18 V Li-Ion battery pack. Compatible models include BP1820 (2.0 Ah), BP1840 (4.0 Ah recommended), and BP1850 (5.0 Ah).

Is the battery included with the leaf blower?

No, the battery is not included. It must be purchased separately. The recommended battery is the BP1840 4.0 Ah for optimal performance.

How do I adjust the air speed?

The blower has a variable speed trigger. Squeeze the trigger to start and increase speed by pulling further. There is also a Turbo button for momentary high-speed boost.

What is the turbo button for?

The Turbo button provides a temporary increase in airflow for heavy debris. Press and hold it while the trigger is engaged. Release to return to normal speed.

How do I clean the leaf blower?

Clean the exterior with a damp cloth. Do not use solvents or immerse the tool in water. Keep ventilation grilles free of debris for proper cooling.

Can I use the leaf blower in wet conditions?

No, the blower is designed for dry outdoor use only. Never expose it to rain or moisture. Avoid using in humid environments like bathrooms or camping houses.

What safety precautions should I take when using the CB4010?

Always wear hearing protection (noise ≥ 90.9 dB). Wear goggles, gloves, and sturdy footwear. Keep children and pets away. Ensure the work area is well-lit and free of flammable materials.

How long does the battery last per charge?

Battery life depends on capacity and usage. With a 4.0 Ah battery, expect approximately 15 minutes of continuous use under normal load. Follow the recommended cycle: 15 minutes on, 30 minutes off.

What is the weight of the CB4010 leaf blower?

The blower weighs 1.84 kg (without battery). With the recommended 4.0 Ah battery, the total weight is approximately 2.3 kg.

How do I assemble the blow tube?

Insert the blow tube into the main housing until it clicks into place. Ensure the locking clip is engaged. To disassemble, press the release latch and pull the tube out.

USER MANUAL CB4010 BLAUPUNKT

Black and blue industrial fan with red and black components, no visible text or symbols on the device itself.

Enjoy it.

Lehepuhur

Lapų pūstuvas

Lapu pūtējs

Suflator de frunze

Vyfukovač lístia

Puhalnik listja

Leaf blower

Dmuchawa do liści

Φυσητήρας φύλλων

Levélfúvó

Духалка за листа

IMPORTANT INFORMATION

To achieve the highest satisfaction, enjoy the product's performance and learn about all its features and functions, please read this manual before using the product.

Before using the device, read the Operating Instructions and comply to its contents. The manufacturer shall not be liable for any damage caused by the use of the device other than for its intended purpose or by improper handling.

Keep these Operating Instructions for future reference.

• This device is for domestic use only. Do not use for any other purposes.
• The device should only be connected to an socket with values corresponding to the values on the rating label.
• It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards.

- Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord. Damage to the power cord or plug can lead to an electrocution hazard.

- Never leave the product connected to the power source

without supervision.

- Never put the power cable, the plug or the whole device into the water or any other liquids.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment. Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

- The power cable should be periodically checked for damage. If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it.

All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.

- Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

- Keep your workplace tidy and well lit.

• Disorder and insufficient lighting lead to accidents.

- Do not use power tools in explosive atmospheres, i.e. in the presence of flammable liquids, gases or dust.

- A moment of carelessness may cause losing control of your tool.

- If it is possible to fit power tools for dust extraction or collection, check that they are fitted and working correctly. Using such power tools reduces the risk posed by the presence of dust.

- Do not lean out too far when working with your power tool. Maintain a stable posture and balance. This allows you to keep better control of your power tool in unforeseen situations.

- Avoid starting the power tool unintentionally. Make sure the power switch is in the OFF position before connecting the power tool to the mains. Carrying a power tool with your finger on its trigger or plugging in a power tool after switching it on can lead to accidents.

- Wear appropriate clothing. Do not work in loose clothing and do not wear jewellery while working. Keep your hair, clothing and gloves away from moving parts. The moving parts of a power tool can catch and pull in loose pieces of clothing, jewellery or long hair.

- Remove any spanners or tools from the power tool before starting it. A tool or spanner still connected to the rotating

part of the power tool may cause personal injury.

- Be careful when working with power tools, concentrate on your work and use common sense. Do not use a power tool when tired or under the influence of drugs, alcohol or medication. Even a moment of carelessness while working with a power tool can lead to a serious accident.

- Keep children away from the work area and DO NOT allow children to pull on the power cord - this can cause serious injury.

• Always place and use the power tool on a stable, level and horizontal surface.

- Before making any adjustments, changing accessories or storing the power tool, move the switch to the off position to disconnect the power tool from the power supply. Such precautions reduce the risk of accidentally starting the power tool.

- Check the grinder housing for damage before each use.

- Ensure that the vents are free from debris.

- The device may only be used in a dry, well-lit environment.

- This tool should not be used by anyone under the age of 16. The device is intended for outdoor use only. Do not use for other than its intended purpose.

- Only charge the batteries in chargers specified by the manufacturer. There is a danger of fire if a charger designed for specific battery types is not used as intended.

- The battery should only be used in the manufacturer's equipment. This is the only way to protect the battery from dangerous overloading.

- Only use the power tool with the correct batteries. The use of other batteries could cause a risk of personal injury and a fire hazard.

- The battery can be damaged by sharp objects such as nails or screwdrivers as well as external forces. The battery may then short circuit internally and burn out, explode or overheat.

• When not in use, keep the battery away from metal items such as paper clips, coins, keys, nails, screws or other small metal objects that could short-circuit the battery terminals. A short circuit between the battery terminals can cause burns or a fire.
• Vapours may occur if the battery is damaged or not used as intended. The battery may catch fire or explode. Provide access to fresh air or contact your doctor in the event of any discomfort. Vapours may irritate the respiratory tract.
• Do not open the battery. Short-circuit hazard.
• Wait until the power tool stops moving before putting it down. The work tool may jam and lead to a loss of control of the power tool.
• Storing or using the battery in unsuitable conditions can cause electrolyte leakage. Avoid contact with the electrolyte, and flush the skin with water in the event of accidental contact. Additionally, seek medical advice if the electrolyte comes into contact with the eyes. Electrolyte leaking from the battery can cause skin irritation or burns.
• When carrying out work where the tool or clamping attachment could come into contact with concealed electric wires, hold the power tool only by insulated surfaces. Contact of the tool or clamping attachment with a live electrical conductor may cause voltage to be transmitted to non-insulated metal parts of the power tool, causing a risk of electric shock.
• Loss of control of the power tool may result in personal injury.
• Use appropriate detectors to locate the installation or seek assistance from your local service provider. Contact with live wires may result in a fire or electric shock.

Charger and battery pack safety instructions

To connect the battery pack for charging, insert the battery pack into the charger dock and plug the charger to a power

source.

• Keep the charger away from rain and moisture. The charger may only be used indoors.
• Keep the charger clean.
• Do not operate the charger on readily combustible objects and surfaces (e.g. paper) or areas with flammable/explosive atmospheres.
  • Always ensure adequate ventilation when charging; fumes or battery acid can be released from the battery pack if the latter is compromised by poor handling or damage.
• When charging is complete, unplug the charger from the power source. Do not leave it connected to a power source for longer than necessary.
• Store and charge the battery pack in a dry place and make sure it will not be flooded by water.
• Keep the battery pack terminals clean and free of dirt.
• Protect the battery pack from shocks and moisture; never open the battery pack or expose it to any damage.

The battery pack charge level can be displayed with the number of charge indicator LEDs by pressing the state of charge indicator button on the pack; if required, charge the battery pack for as long as required to reach the desired charge level and the expected operating time of the cordless power tool.

SYMBOLS

• The following symbols may appear in the operating instructions or on the tool's nameplate.
  • These signs contain important information about the product and instructions on how to use it.

	Read the user manual. Wear protective footy
	The product complies with EC safety standards		Use ear protection
			Wear protective glovesGeneral warning
	Dispose of the product in accordance with the WEEE directive		Wear protective clothing
LI-ION	Contains a lithium-ion rechargeable battery		Wear a protective mask
	The product has double electrical insulation		Wear safety glasses
	Fire hazard		Wear a protective helmet
	Electric shock hazard		Wear respiratory protection

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance in the common waste bin.

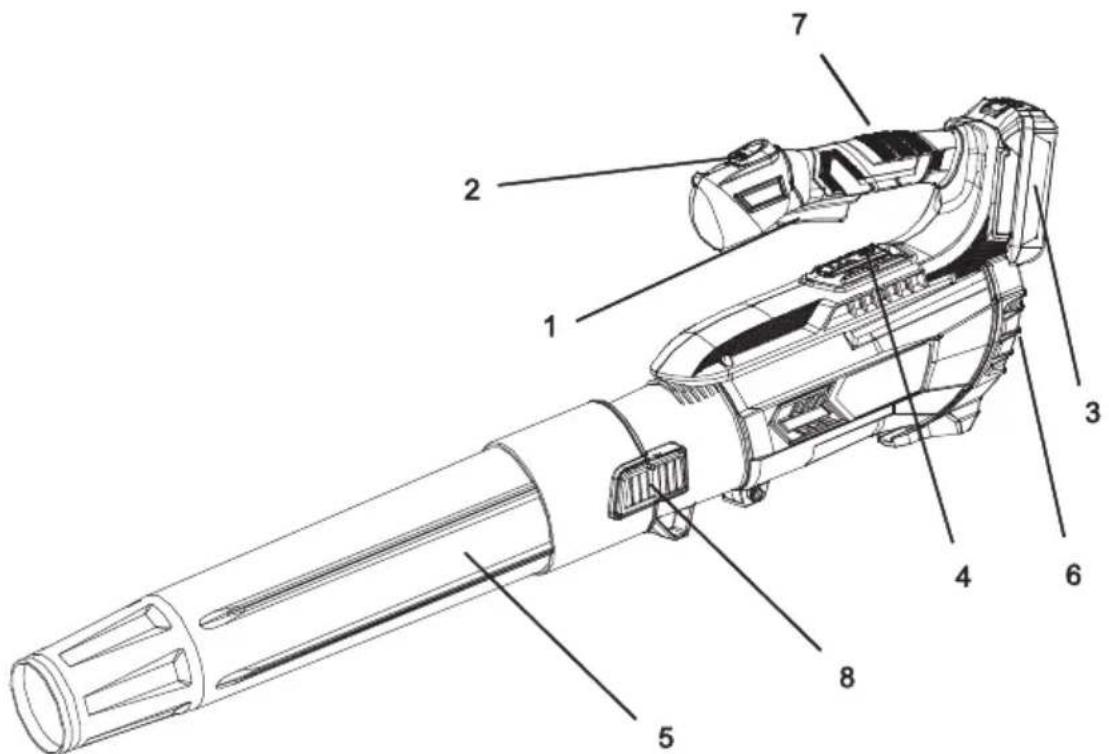

Design of the electric leaf blower.

1. On/Off switch, triggers
2. TURBO button
3. Battery pack

4. Battery charge indicator

5. Tube

6. Ventilation grille
7. Handle
8. Lock release latch

Technical line drawing of a vehicle interior and rearview assembly (no text or symbols)

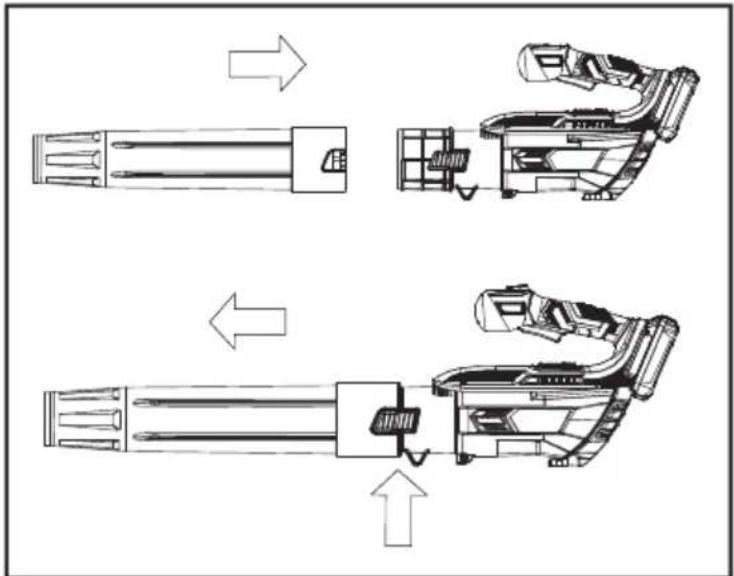

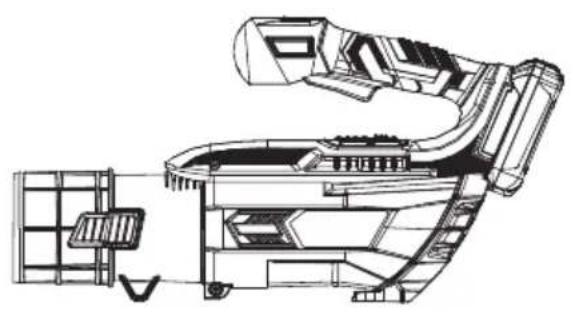

ASSEMBLING THE UNIT

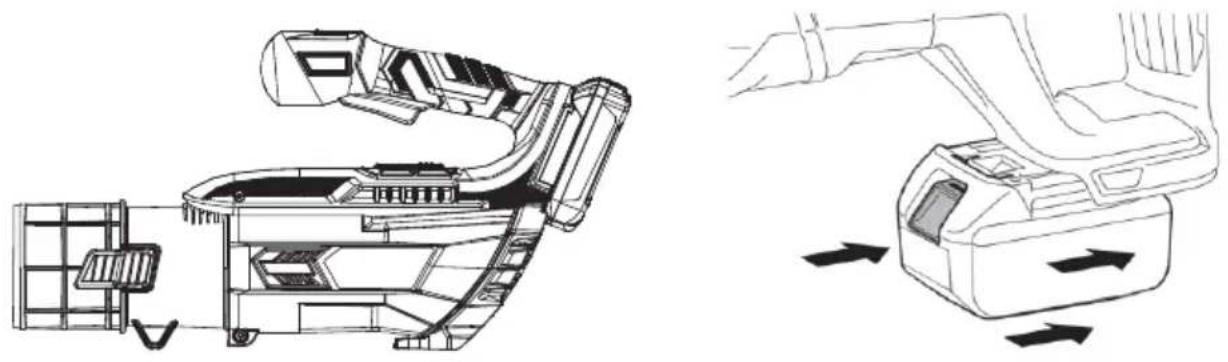

Follow the description and illustration to assemble the unit, push in the tube (5) until the locking clip locks into place.

Technical line drawing of a mechanical device with two views showing internal components and directional arrows (no text or symbols)

Switching on/off

Hold the blower with one hand by the handle.

Pull the trigger with your finger and hold it in this position.

To switch off, release the on/off trigger.

Take special care at the outlet of the blowpipe, debris or other objects can be ejected with great force by the air pressure causing injury.

The unit should only be used in a dry, well-lit environment. The unit is designed for blowing leaves, grass clippings and other light debris from paths, driveways and other areas

Turbo button

The "turbo" airflow increase function is used when the normal airflow is not sufficient. The increase in airflow is mainly used for short-term operations.

To use the turbo button, initially press the trigger and then press and hold the turbo button.

To stop using turbo mode, release the turbo button.

CLEANING AND MAINTENANCE

Clean the appliance with a damp cloth. Do not use cleaning agents containing solvents. Do not immerse the appliance in water. Do not clean the appliance with water from a hose or a pressurised water jet. Switch off the device before cleaning.

Technical data:

Voltage: 18 V

No-load speed: 13000-16000 rpm

2 speed settings: 110 km/h; 160 km/h

Battery: 18 V Li-Ion, BP1820 2.0 Ah (not included); BP1840 4.0 Ah recommended (not included); BP1850

5.0 Ah (not included)

Dimensions: 90 x 15 x 26 cm

Weight: 1,84 kg

Noise

Typical A-weighted noise level measured in accordance with ISO 3744:

Sound pressure level (LpA): 76,3 dB (A)

Measurement uncertainty (K): 3.0 dB (A)

Noise level during operation may exceed: 90.9 dB (A).

Wear hearing protection!

Vibrations

Total vibration value measured in accordance with CR 1030-1:

Vibration emission: ah=0,49 m/s ^2 K=1.5 m/s ^2

Measurement uncertainty (K): 1,5 m/s ^4

Weight: 1,84 kg

Permissible Operating Time: 15 minutes of operation, 30 minutes off.

The declared vibrations has been measured according to the standard test method and can be used to compare tools.

The declared vibrations can also be used in the initial exposure assessment.

WAŻNE INFORMACJE

Technical line drawing of a mechanical device with two views showing internal components and directional arrows (no text or symbols)

MONTÁŽ JEDNOTKY

Technical line drawing of a mechanical device showing two sequential assembly steps (no text or symbols)

Technické údaje:

Napětí: 18 V

Technical line drawing of a mechanical device showing internal components and directional arrows (no text or symbols)

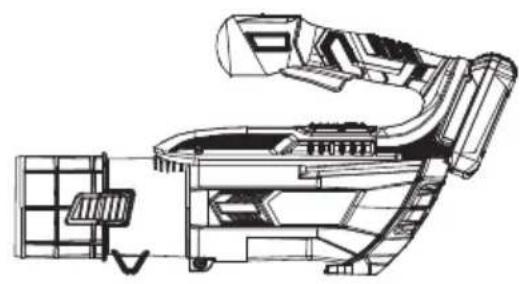

Zapnutie/vypnutie

Technical line drawing of a mechanical assembly (no text or symbols visible)

Line drawing of a car interior component with directional arrows indicating movement (no text or symbols)

Technical diagram of a mechanical device showing two sequential assembly steps with arrows indicating direction (no text or labels)

Be-/kikapcsolás

Technical line drawing of a mechanical device showing two sequential assembly steps (no text or symbols)

Vklop/izklop

Merilna negotovost (K): 3,0 dB (A)

Technical line drawing of a mechanical device or assembly (no visible text or symbols)

Line drawing of a car interior with directional arrows indicating movement or flow (no text or symbols)

SASTAVLJANJE JEDINICE

Technical line drawing of a mechanical device showing two sequential assembly steps (no text or symbols)

Technical illustration of a mechanical device showing two exploded views with arrows indicating assembly or transformation (no text or symbols present)

Technical line drawing of a mechanical device showing two sequential assembly steps (no text or symbols)

Технически данни:

Напрежение: 18 V

Technical line drawing of a mechanical device with two views showing internal components and directional arrows (no text or symbols)

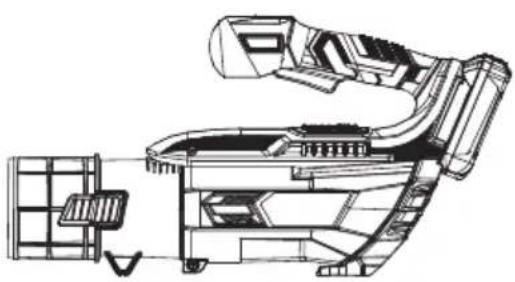

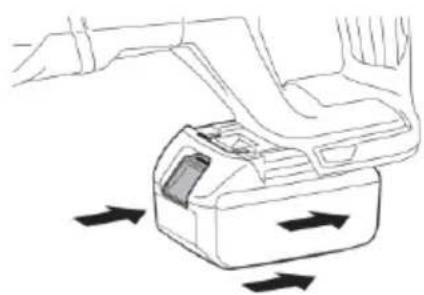

Pornirea/oprirea

Technical line drawing of a mechanical device with internal components (no text or symbols)

Line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols)

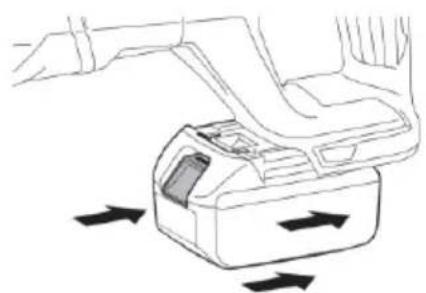

IRENGINIO SURINKIMAS

Technical line drawing of a mechanical device with internal components and no visible text or symbols

Line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

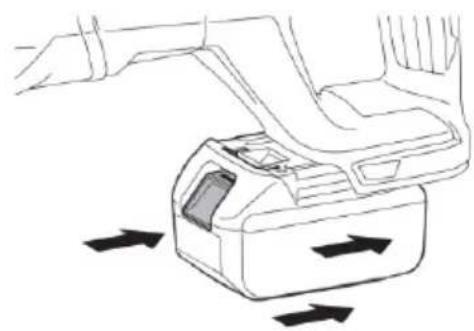

SEADME KOKKUPANEK

Technical line drawing of a mechanical device with two views showing internal components and directional arrows (no text or symbols)

127

Technical line drawing of a mechanical assembly or device with no visible text or symbols

Line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols)

IERICES MONTAŽA

Technical illustration of a mechanical device with two views showing internal components and directional arrows (no text or symbols)

EU – DECLARATION OF CONFORMITY

01/2024/CB4010

MANUFACTURER:

BLAUPUNKT COMPETENCE CENTER

2N-Everpol Sp. z o.o.

ul. Puławska 403A

02-801 Warsaw, Poland

Authorized person to prepare the technical documentation:

Tomasz Jakóbczyk

ul. Puławska 403A

02-801 Warsaw, Poland

We declare under our sole responsibility that our product:

Type of device:

Cordless Leaf Blower 18 V

CB4010

Name:

If used for its intended use complies with the essential protection requirements relating to the:

2014/30/EU (EMC Directive)

2006/42/EC (MD Machinery Directive)

2011/65/EU (RoHS Directive) and its Annex II amending directive 2015/863/EU

The assessment of this product has been based on the following standards:

EMC standards:

EN 55014-1:2017+A11:2020 | EN IEC 55014-1:2021

EN 55014-2:1997+A1:2001+A2:2008 | EN IEC 55014-2:2021

MD and LVD standards:

ISO 12100:2010

EN 62841-1:2015

EN 15503:2009+A2:2015

EN 62233:2008

RoHS standards:

EN IEC 63000:2018

Warsaw, 05.07.2024

BLAUPUNKT

02-801 Warsaw, Poland

Corespondence address:

Puławska 12

05-532 Baniocha, Poland

Phone [phone]

DEKLARACJA ZGODNOŚCI UE

01/2024/CB4010

PRODUCENT:

BLAUPUNKT COMPETENCE CENTER

2N-Everpol Sp. z o.o.

ul. Puławska 403A

02-801 Warszawa, Polska

02-801 Warsaw, Poland

phone:[phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems please contact our service.

Tel. [phone]

Email:[e-mail]

Enjoy it.

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.
