USER MANUAL TS 302 MPMAN

Poker face ue my dostiny MP3 & Video Player with Touchscreen Control For Model No. EI Instruction Manual TS302 Please read this instruction carefully before the operation

SN) Thank You Congratulations on your purchase of the Video & MP3 player. This manual is designed to help you easily set up and begin using your new player right away. Please read this manual carefully and retain it for future reference. Package Contents Please make sure that the items shown below are included in the package. Should an item be miss- ing, please contact the local retailer from which you purchased this product. + Video & MP3 player + USB Cable + Instruction Manual & Documentation + Professional Stereo Earphones + Protective Pouch This package may contain plastic bags or other mate- rials that pose a hazard to children. Be sure to safely dispose ofall packing materials after opening. Features

Integrated flash memory intuitive touchscreen control 2.8" TFT Display Plays music, video, photos and text 1D3 and LRC support for song and synchronized lyric information display microSD card slot for easy memory capacity upgrades (microSD card not included) Integrated FM Radio Integrated 0.3 Mega Pixel Camera USB 2.0 Hi-speed for fast file transfers Page 5 Thank You

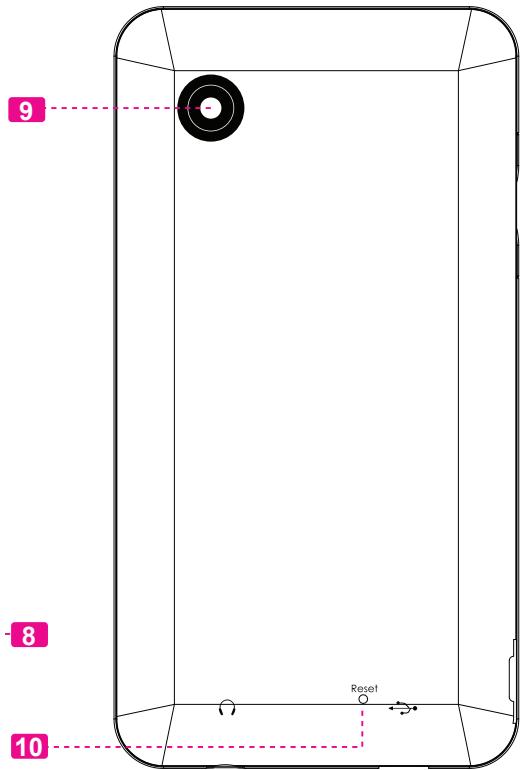

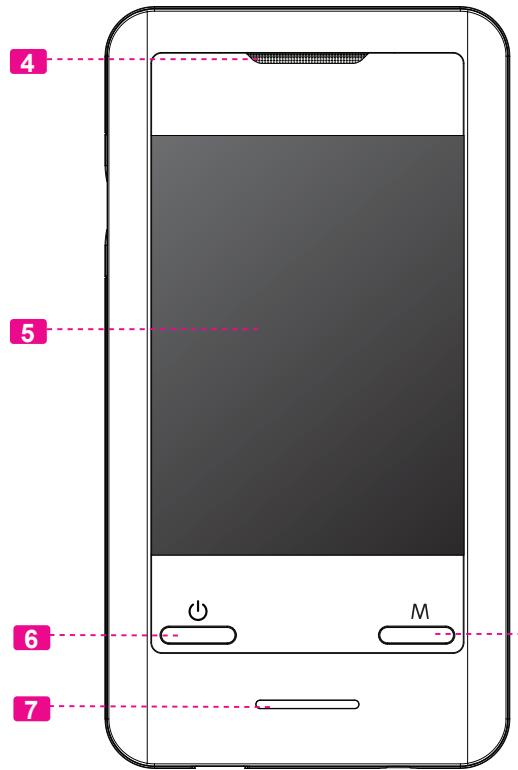

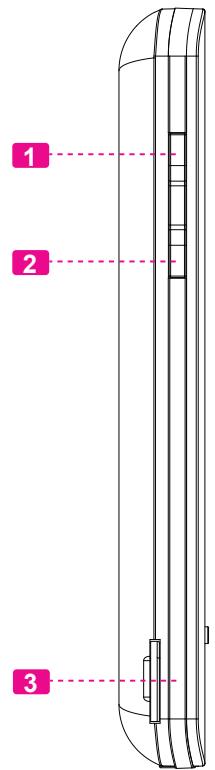

N) Controls at a Glance Bottom View Left View

Load a microSD memory card here to upgrade the memory capacity of the player.

Connect to a computer to transfer media files to the player.

12. 3.5mm Headphone Jack

Tap the display with your finger to activate the on-screen control.

6. Power/Enter button

Press and hold the button to <ENTER> power the palyer on or off.

Page 6 Controls At A Glance

Page 7 Controls At A Glance

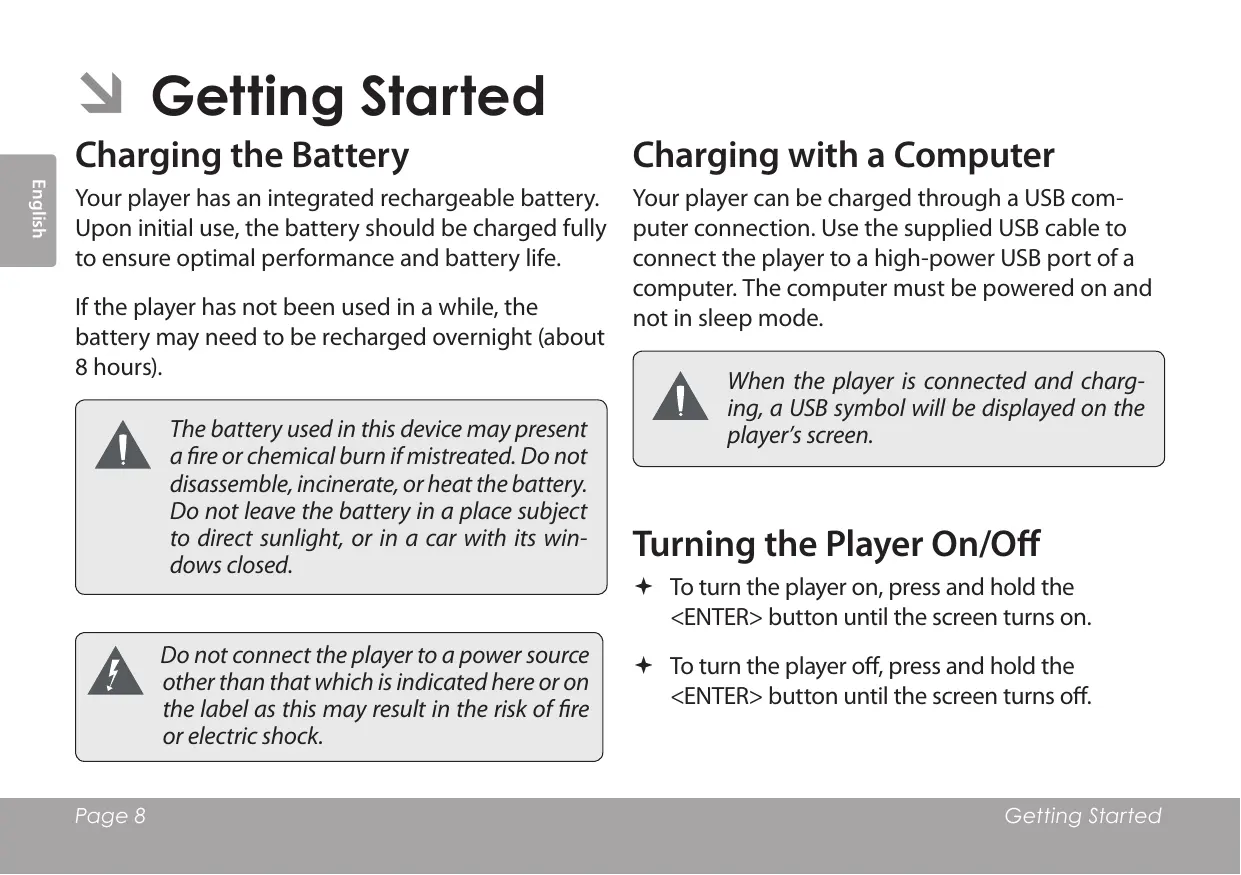

SN Getting Started Charging the Battery Your player has an integrated rechargeable battery. Upon initial use, the battery should be charged fully to ensure optimal performance and battery life. Ifthe player has not been used in a while, the battery may need to be recharged overnight (about 8 hours). The battery used in this device may present a fire or chemical burn if mistreated. Do not disassemble, incinerate, or heat the battery. Do not leave the battery in a place subject to direct sunlight, or in a car with its win- dows closed. Do not connect the player to a power source other than that which is indicated here or on the label as this may result in the risk of fire or electric shock.

Charging with a Computer Your player can be charged through a USB com- puter connection. Use the supplied USB cable to connect the player to a high-power USB port of a computer. The computer must be powered on and not in sleep mode. When the player is connected and charg- ing, a USB symbol will be displayed on the player's screen. Turning the Player On/Off + To turn the player on, press and hold the <ENTER> button until the screen turns on. + To turn the player off, press and hold the <ENTER> button until the screen turns off. Page 8 Getting Started

Resetting the Player Installing a microSD Memory Reset the player if it should freeze and not respond Card (optional) or otherwise malfunction. : You can upgrade the memory capacity of your

1. Disconnect your player if it is connected to a player by adding microSD memory card.

computer. | : : p Insert microSD card into the slot as shown in the

2. Use a paper clip to gently press the <RESET> illustration below.

button located on the rear of the player. ea) This player supports memory cards up Using the Touchscreen Controls to 2GB in size. Your video MP3 player comes equipped with an easy-to-use touchscreen which allows access to the player's functions. Use your finger tip or the stylus to tap the area of the screen where a control icon is displayed. If you tap and hold an icon, it will register as a continuous button press. À To avoid damaging the screen, do not touch it with excessive force or with any object other than your finger or the stylus. For best response, make sure your hands are clean before using the touchscreen controls. Page 9 Getting Started

N) Main Menu When you turn on the player, you will see the Main menu. From the Main menu, you can access each of your MP3 player's function modes. These modes are: Music Browse and play music Video Browse and play movies Photo Browse and view pictures Radio Listen to FM radio broadcasts Text Browse and read text files Explorer | Browse all files Setting Adjust the player's options DV Record video clips Camera Capture still images Calendar |Launch the calendar program Clock Set the internal clock display Main Menu Controls Each function mode is represented by an icon on the Main Menu screen. To enter a mode, tap the icon with your finger. You may also use the player's standard controls to access each mode: + Press the <UP> or <DOWN> button to move the selection. + Press <ENTER> to confirm. Page Main Menu

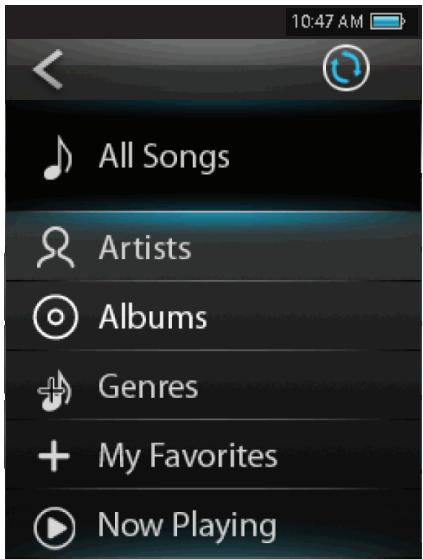

Music Mode Browse for and play your music files. + You can also touch the < [®]> icon to refresh - = - - the music library if you have loaded new mu- @) For information about loading music sic files onto the player, this process may take onto your player, please refer fo the sec several minutes. You will not be able to access on rensering MeS tie MEET: the Music Browser screen until you refresh the music library. Music Browser Controls When you choose MUSIC mode from the Main < menu, you will see the Music Browser screen. Function Key Action à AllSongs To browse through the Music & folders | Press <UP> or <DOWN> To select/view an item Press <ENTER», or tap S Artists the desired selection on ©) RIborme the LCD screen. To return to the previous screen Tap < on screen or “) Genres press <MENU> . + MyFavorites To return to the Main menu Hold <MENU> @) Now Playing

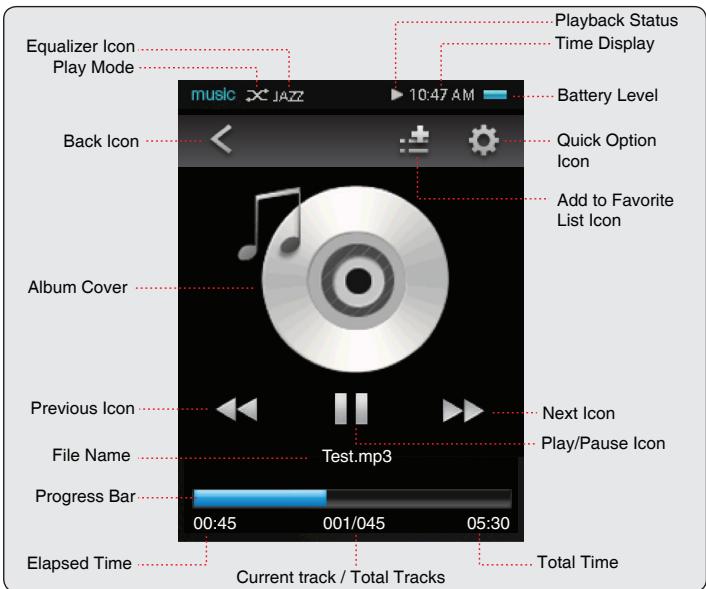

Now Playing Controls (Music Playback) To start playing music, browse for a song and then tap the song title to start playback, or you can press <ENTER> to start playback. When a song is playing, the Now Playing screen appears (see below). Playback Status Equalizer Icon Time Display Play Mode Battery Level Back Icon Quick Option Icon Add to Favorite List Icon Album Cover « CL >> Test mp3 Previous Icon Next Icon Play/Pause Icon File Name …| Progress Bar 00:45 001/045 05:30 Elapsed Time Total Time Current track / Total Tracks The following functions may be performed from the Now Playing screen. Function Key Action Press <ENTER> or tap To pause/resume playback the Play/Pause Icon on screen To play the next track Tap>-B> on screen To forward-scan through the track Holdp-B> on screen To play the previous track Tap 4 on screen To reverse-scan through the track Hold 44 on screen To adjust the volume level Press <UP> or <DOWIE> button. To access the Quick Option menu (see section below for details) Tap Q on screen : Tap € on screen or Toretum to the Music Explorer screen m< MENUS button G) Tap the screen once to view the controls.

Quick Option Menu To access the quick option menu, tap <{> on the Now Playing screen. + To browse through the settings, press the <UP> or <DOWN> button. + To select a setting, press the <ENTER> button or tap the desired selection on screen. + To return to the previous screen, tap < < >on screen or press the <MENU> button. Repeat Mode Change the repeat options to adjust the order in which tracks are played. Item Description Normal Play tracks in normal order and no repeat. Single Play the current track repeatedly. Random Play all tracks in random order. All Play all tracks repeatedly. Equalizer Select a digital equalizer preset to optimize the way the player processes audio signals. The options are: Normal, Classic, Pop, Rock, and Jazz. Add to Favorite Add the current song to the Favorite list. +. You can also tap =äf icon on the Now Playing screen to add the song to the Favorite list. To play the favorite songs, select “My Favo- reites” from the Music Browser screen. Lyric Set the Lyric display ON or OFF. Page 13 sic Mode

Lyric display requires a “.LRC"lyric file which may be found on the internet or may be created with a Lyric file editor. Lyric files can contain synchronized timing information as well as lyric information. Lyric files must have the same name as its corresponding music file (e.g., “Songlitlel. Irc” and “Songfitlel.mp3”) and must be placed in the same directory. Page sic Mode

N Video Mode Browse for and play your movie files. To return to the Main menu Hold <MENU> @) Your player supports AVI files. Videos may need to be encoded with the included soft- ware for device playback. Movie Browser Controls When you choose Video mode from the Main menu, you will see the Movie Browser screen. Use the Movie Browser to find all movie files loaded on your player. Function Key Action To browse through the list of Press <UP> or <DOWN> movie files & folders To select/play an item Press <ENTER> or tap the selection on screen directly To return to the previous screen | Tap < on screen or press <MENU> Page deo Mode

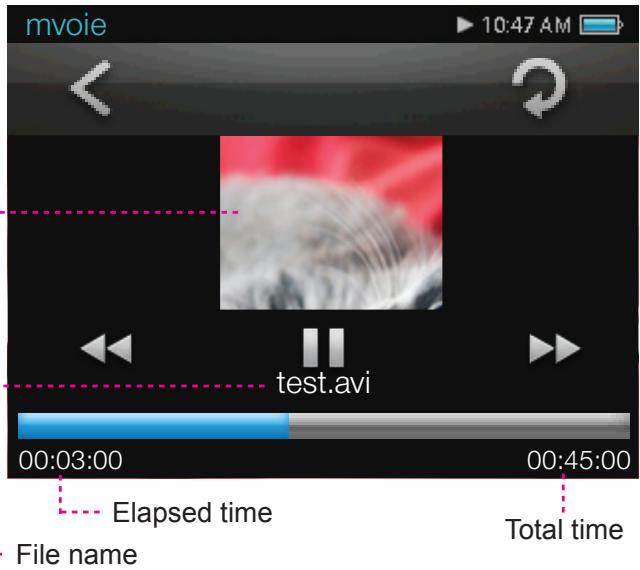

Movie Playback Controls The following functions may be performed from Le . . the Now Playing screen. When a video is playing, hold the player horizon- tally, the Now Playing screen appears: Function Key Action To play the next movie Tapb> .-- Video playing window To play the previous movie Tap 44 > 10:47 AM = To forward-scan quickly through the | Holdp-> current movie To reverse-scan quickly through the Hold 44 current movie To pause/resume playback Press <ENTER> or tap II To adjust the volume level Press <UP> or <DOWN> To return to the Movie Browser screen | Press <MENU> or tap < To return to the Main menu Hold <MENU> ---- Elapsed time --- File name Total time | @) Tap the screen once to view the controls.

SN) Photo Mode Browse for and view your photo files. Function Key Action Photo Browser Controls To select/view an item Press <ENTER>, or tap When you choose Photo mode from the Main me re selection on menu, you will see the Photo Browser screen. Your the LOD screen. Photo will be displayed as thumbnail images. To return to the previous screen Tap < on screen or Use the Photo Browser to find all Photo files loaded press <MENU> on your player. To return to the Main menu Hold <MENU>

2. Photo Photo Viewer Controls

3. Name ofthe selected To view a Photo, browse through the thumbnail

folder or photo Photo and then press <ENTER> or tap on the selec- tion directly. The following functions may be performed from the Photo Viewer screen. Function Key Action To browse through the Photo & folders | Press <UP>or<DOWN> Page Photo Mode

Function Key Action To view the next or previous Photo Press <UP> or <DOWN:>, or tap or B>B> on screen To start or stop slideshow mode Tapb> orfl To rotate the Photo Press <ENTER> or tap TD on screen To access the Quick Option menu Tap Le] on screen To return to the Photo Browser screen Press <MENU> or tap < on screen To return to the Main menu Hold <MENU> @) Tap the screen once to view the controls. Quick Option Menu To access the quick option menu, tap << onthe photo viewing screen. + To browse through the settings, press the <UP> or <DOWN> button. + Toselect a setting, press the <ENTER> button or tap the desired selection on screen. + Toreturn to the previous screen, tap < < >on screen or press the <MENU> button. Save to PowerOn picture Save the current photo as a PowerOn picture that will display when you power on the player. Save to PowerOff picture Save the current photo as a PowerOff picture that will display when you power off the player. Slide Setting Enter this menu to turn slideshow mode on or off, or to adjust the amount of time between photos during slideshow mode. Page 18 Photo Mode

Radio Mode Listen to FM radio broadcasts. The following functions may be performed from the Radio Tuning screen. nected to the headphone jack to receive Function Key Action FM broadcasts; your player will utilize the Totune to a higher station manually | Tap >> @) You must have a pair of headphones con- headphone cord as an antenna. To tune to a lower station manually Tap 44 To tune to the next preset station Taph> Radio Tuning Controls To access the Quick Option menu Rp Là When you choose RADIO from the Main menu, you To adjust the volume level Press <UP> or <DOWN> will see the Radio Tuning screen. You can search for | To return to the Main menu Tap < on screen or press stations, tune to stations manually, or tune to preset <MENU> stations.

Quick Option Menu Area Select To access the quick option menu, tap << onthe Set the FM frequency range area Radio screen. + To browse through the settings, press the <UP> Save Station Info or <DOWN> button. Save the current station to the Preset Station list. + To select a setting, press the <ENTER> button or + You can also tap säl on the Radio screen to add tap the desired selection on screen. the current station to the Preset Station list. + To return to the previous screen, tap < < >on screen or press the <MENU> button. Read Station Info Load the Preset station list. Search Station + You can also tap:Æ on the Radio screen to load Scan for all stations in broadcast reception range. the list. The player will automatically seek and save all frequencies with a broadcast signal to the Preset Station list. + Press <UP> or <DOWN> to browse through the stations. + Press <ENTER> or tap the desired selection | @ The auto scan feature will overwrite any to listen the station. previously stored Preset Stations. . Delete Station Info Delete station from the Preset Station list. Page Radio Mode

Delete All Stations Info Delete all stations from the Preset Station list. Page 21 Radio Mode

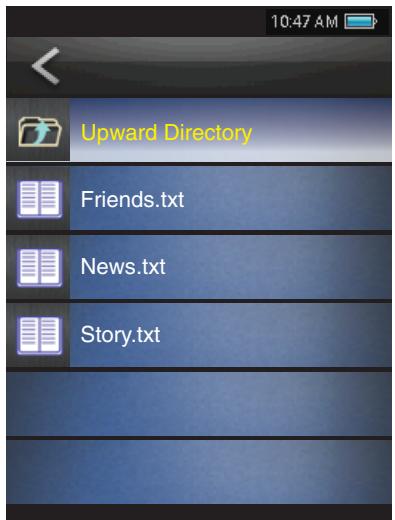

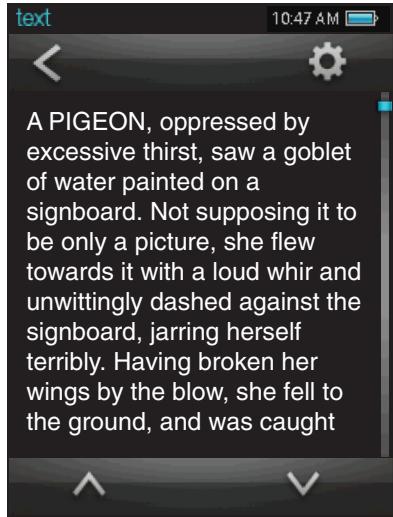

N Text Mode Read .TXT files loaded on your player. Text Browser Controls When you choose Text from the Main menu, you will see the Text Browser Screen. ES Friends. Use the Text Browser to find all text files loaded on ES veus your player. ES Soytx Function Key Action To browse through the Photo & folders | Press <UP>or<DOWN> To select/view an item Press <ENTER», or tap the desired selection on the LCD screen. To return to the previous screen Tap < on screen or Text Reader Controls press <MENU> The following functions may be performed from To return to the Main menu Hold <MENU> the Text Display screen. Page 22 Text Mode

< Lo) A PIGEON, oppressed by excessive thirst, saw a goblet of water painted on a signboard. Not supposing it to be only a picture, she flew towards it with a loud whir and unvwittingly dashed against the signboard, jarring herself terribly. Having broken her wings by the blow, she fell to the ground, and was caught A V Function Key Action To read the next page Tap V To read the previous page Tap A To read the next line Press <DOWN> To read the previous line Press <UP> To access the Quick Option menu Rp To return to the Text Browser screen Tap < on screen or press <MENU> To return to the Main menu Hold <MENU> Quick Option Menu To access the quick option menu, tap Fes on the Text reading screen. + To browse through the settings, press the <UP> or <DOWN> button. + To select a setting, press the <ENTER> button or tap the desired selection on screen. + To return to the previous screen, tap < < >on screen or press the <MENU> button. Auto Browse Set the auto page scroll on or off. + Press <ENTER> or tap the “Auto Browse” menu bar to toggle the setting. Scroll Interval Adjust the amount of time between pages during Auto Scroll mode.

+ Press <UP> and <DOWN> or tap @ and © to adjust the time in second. + Press <ENTER> or tap Otto confirm the setting. + Press <MENU> or tap< &3 > to exit the setting without saving. Scroll Extent Set the type of Auto Scroll with One Line or One Page. Page 24 Text Mode

N Explorer Mode Enter Explorer mode to browse all folders and files loaded on your player. To enter Explorer mode, select and confirm EXPLORER from the Main Menu. Explorer Controls Playback Mode File Type When you choose EXPLORER mode from the Main | Music MP3, WMA menu, you will see the File Explorer screen. Video AVI Function Key Action Photo JPG, BMP, GIF To browse through the Photo &folders … | Press <UP> or<DOWN> Text TXT To select/view an item Press <ENTER>, or tap Quick Option Menu the desired selection on : : To access the quick option menu, tap Le: on the the LCD screen. : Explorer Browsing screen. To access the Quick Option menu Tap le: T h = T + To browse through the settings, press the <UP> o return to the previous screen ap < on screen or or <DOWNS button, press <MENU> To return to the Main menu Hold <MENU> + To select a setting, press the <ENTER> button or tap the desired selection on screen. Files and folders will be displayed in a list. If a compatible file is selected, it will be played in its corresponding mode: Page 25 Explorer Mode + Toreturn to the previous screen, tap < on screen or press the <MENU> button.

Add audio to List 3. Tap À} to access the Quick Option menu. Add the current song to the Favorite list. 4. Select “Paste” and tap it to confirm. @ This additional setting just available when | File Information you selected a music file. Select to view the file storage information. Delete Delete the selected file or folder Delete AII Delete all files in the selected folder. Copy Copy the selected file to another location on the player. Once you have copied the desired file:

1. Tap < on screen or press the <MENU> button

to back to the previous screen.

2. Press <UP> or <DOWN: to highlight a desired

destination folder that you want to copy the file to. Page 26 Explorer Mode

N Setting Mode Enter the Setup mode to set your player's system options. To enter Setup mode, select SETUP in the Main menu. Function Key Action To browse through the options Press <UP> or <DOWN> To select an item Press <ENTER>, or tap the desired selection on the LCD screen. To cancel and return to the previous screen Tap < on screen or press <MENU> To return to the Main menu Hold <MENU> The following options are available. Some of these options may be set from the Quick Option menus. Item Description Language — Set the on-screen menu language. Memory Information Page 27 Setting Mode

Item Description _ View used and available memory info. Version _ View the player's firmware version. Factory Setup — Restore all ofthe player's settings to their factory-default state. Personal Setup Auto PowerOff Time Set the duration of time (in minutes) that the player will remain on when it is idle. The setting of "Close" will disable this power-saving feature. Screen Savers Time Adjust the duration of time (in seconds) that the backlight will remain on after a key press. À setting of “Close” will keep the backlight on continuously. Screen Calibrate Follow the screen signal to calibrate the touch point of LCD. animation Ul Set the slide transition effect between the different menu displays. Page 28 Setting Mode

N) DV Mode Record video clips from your player. Change the video recording resolution Video Recording Controls Tap E on the right side of screen to toogle the . : resolution, the options include: 176 x 144, 352 x 288, When you choose DV from the Main menu, you will 640 x 480. À lower recording resolution will result in see the Video Recording screen. a smaller size video. + Press the <ENTER> button to start recording. + Press the <ENTER> button again to stop and save the recording. + The video recording files will be saved to the folder “C:\VIDEO\RECORD" and named “AKXXXXXX.AVI" where XXXXXX corre- sponds to the numerical sequence in which the recording was made (numbering starts from 000001). + Press the <MENU> button to return the Main Menu without saving. Page 29 Dv Mode

N Camera Mode Capture still images from your player. Image Capturing Controls Change the shooting resolution When you choose Camera from the Main menu, you Tap UE on the right side of screen to toggle the will see the Image Capturing screen. resolution, the options include: 640 x 480, 1280 x 1024, 1600 x 1200. A lower shooting resolution will + Hold the player steady, then press the <ENTER> : Le result in a smaller size image. button to take a image. + The images were be saved to the directory: Time Capture C/IMAGE/RECORD and named "AKXXXXXX. _ JPG” where XXXXXX corresponds to the Tap Cd on the right side of screen to set the numerical sequence in which the recording duration of time(in seconds) that the image will was made (numbering starts from 000001. Captured automatically after the <ENTER> button is + Press the <MENU> button to return the Main pressed. Tap @ will disable this feature. Menu without saving. Page Camera Mode

N Calendar Mode View the Calendar. Before using Calendar Mode, be sure that you have set the correct date and time in Clock Mode. Calendar Viewing Controls When you choose Calendar from the Main menu, you will see the Calendar screen. + Press the <UP> or <DOWN> button to navigate from day to day. + Tap < or > icons that locate above the calendar list to navigate from month to month.

+ Tap <that locate on the top side of screen or press <MENU> to exit to the Main Menu. Page 31 Calendar Mode

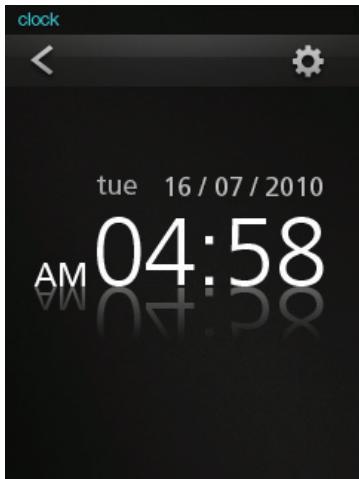

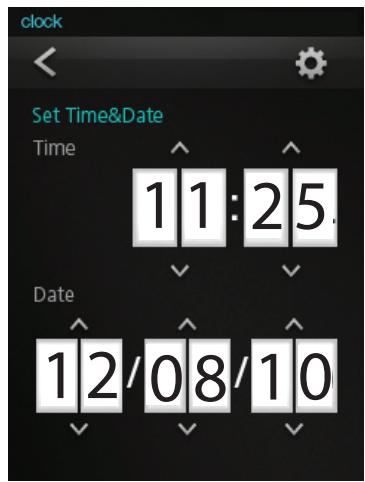

Clock Mode To set the internal date and time. Clock Setting Controls When you choose Clock from the Main menu, you will see the Clock display screen. Lo) tue 16/07/2010 aw04:58 + Tap V or A to adjust the corresponding field. + From up to down and left to right, the fields are: Hour, Minute, Date, Month, and Year. Touch 4} to access the clock setting screen. + Press <ENTER> to back to the Clock display screen and save the setting.

SN MPMANAGER For movie and music synchronisation and conversion, please use MPMANAGER software supplied in the CD ROM. This software can be used also for UPDATE of your player. MPMANAGER manual is included in your CDROM. Page 33 Mpmanager

N Specifications Design, specifications, and manual are subject to change without notice. Display Type 2.8" TFT LCD @ 240x320 Plug and Play Windows 7/Vista/XP Support Macintosh OS X Memory Integrated Flash Memory Audio Output 3.5mm Stereo (Headphone) Audio Format MP3, WMA Integrated Speakers Support u Power Rechargeable Li-Poly Battery Video Format AVI: 320x240, 25fps USB Charge Support Play Time Music: 7 hours* Photo Format JPEG, BMP Support * Music play time is an estimated value based on playing an MP3 encoded at 128 kbps. Actual play time may vary Song Info 1D3, Windows Media depending on encoding method used and other factors. Support FM Frequency 87.5 - 108.0MHz Range PC Interface USB 2.0 (MSC)

N Troubleshooting & Support If you have a problem with this device, please check the troubleshooting guide below. The player does not turn on. + Ensure that the player is fully charged. Try charging the player overnight (8 hours). + Reset the player (use a paper clip to gently press the Reset button on the rear of the player) and try again. The buttons do not work. + Reset the player (use a paper clip to gently press the Reset button on the rear of the player) and try again. Il cannot transfer files to the player. + Ensure that your computer is running a supported operating system. + _lfusing a USB extension cable, ensure that it is securely attached to the player and the PC, or try using another USB cable. + Ensure that the players memory capacity is not full. There is no sound during playback. + Check the volume level. Page 35 Troubleshooting & Support

+ Ensure that the headphones are attached The LCD characters are corrupted or securely to the player. something is wrong with the display. + Ensure that the correct menu language has The sound quality of the music is poor. been set. + Try playing the file on your computer. If the sound quality is still poor, try downloading the file again or re-encoding the file yourself. + Reset the player (use a paper clip to gently press the Reset button on the rear of the player) and try again. + Ensure that the bit rate of the file is not too low. The higher the bit rate of the file, the better it The player has malfunctioned. will sound. The minimum recommended bitrate + Reset the player (use a paper clip to gently press is 128kbps for MP3s and 96kbps for WMAs. the Reset button on the rear of the player) and + Try lowering the volume of the player. try again. + Ensure that the headphones are attached securely to the player. The player will not play my music file. + Ensure that the file is in a compatible format. + The file may be copy-protected and you no longer have authorization to play this file. If you feel this is in error, please contact the service from which you downloaded the file. Page 36 Troubleshooting & Support
