Product Type	Power Bank
Brand	GoGen
Model	PB400001B
Rated Capacity	4000 mAh
Battery Type	Lithium-ion
Input	5V/2.0A (Micro USB)
Output	5V/2.1A (USB-A)
Number of Output Ports	2
Charging Time	Approx. 4-5 hours
Dimensions	Approx. 100 x 65 x 15 mm
Weight	Approx. 150 g
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 60°C
LED Indicators	Yes, 4 LED power indicators
Protection Features	Overcharge, overdischarge, short circuit, overcurrent
Compatible Devices	Smartphones, tablets, and other USB devices
Included Accessories	Micro USB cable
Material	Plastic casing
Color	Black/White (depending on variant)
Certifications	CE, RoHS
Maintenance	Wipe with a dry cloth; avoid water and strong chemicals
Battery Replacement	Not replaceable; dispose of according to local regulations
Repairability	Non-serviceable; contact manufacturer for issues

Frequently Asked Questions - PB400001B GoGen

How long does it take to charge the GoGen PB400001B power bank?

It takes approximately 4 to 5 hours to fully charge the power bank using a 5V/2.0A adapter.

Can I charge my tablet with this power bank?

Yes, the output is 5V/2.1A which is suitable for most tablets. However, some large tablets may charge slower or require a higher current.

How do I know how much charge is left?

The power bank has 4 LED indicators. Each LED represents approximately 25% charge level.

Is it safe to leave the power bank charging overnight?

Yes, it has overcharge protection, but it's best to unplug once fully charged to preserve battery lifespan.

Can I use the power bank while it's charging?

It is not recommended to use the power bank as a passthrough charger; doing so may reduce efficiency and battery life.

What devices are compatible with this power bank?

It is compatible with most USB-powered devices like smartphones, tablets, Bluetooth headphones, and cameras.

How should I store the power bank when not in use?

Store it in a cool, dry place at around 50% charge for optimal battery health.

What should I do if the power bank gets wet?

Do not use it. Dry it thoroughly with a cloth and let it air dry for at least 24 hours before attempting to charge or use it again.

How many times can I charge my phone with this power bank?

With a 4000 mAh capacity, it can charge a typical 2000 mAh phone battery about 1.5 times, accounting for conversion losses.

Can I bring this power bank on a plane?

Yes, power banks under 100Wh (this one is approx 14.8Wh) are allowed in carry-on luggage. Check with your airline for specific regulations.

USER MANUAL PB400001B GoGen

Abstract logo with a stylized white 'S' inside a black circle (no text or symbols)

GoGEN

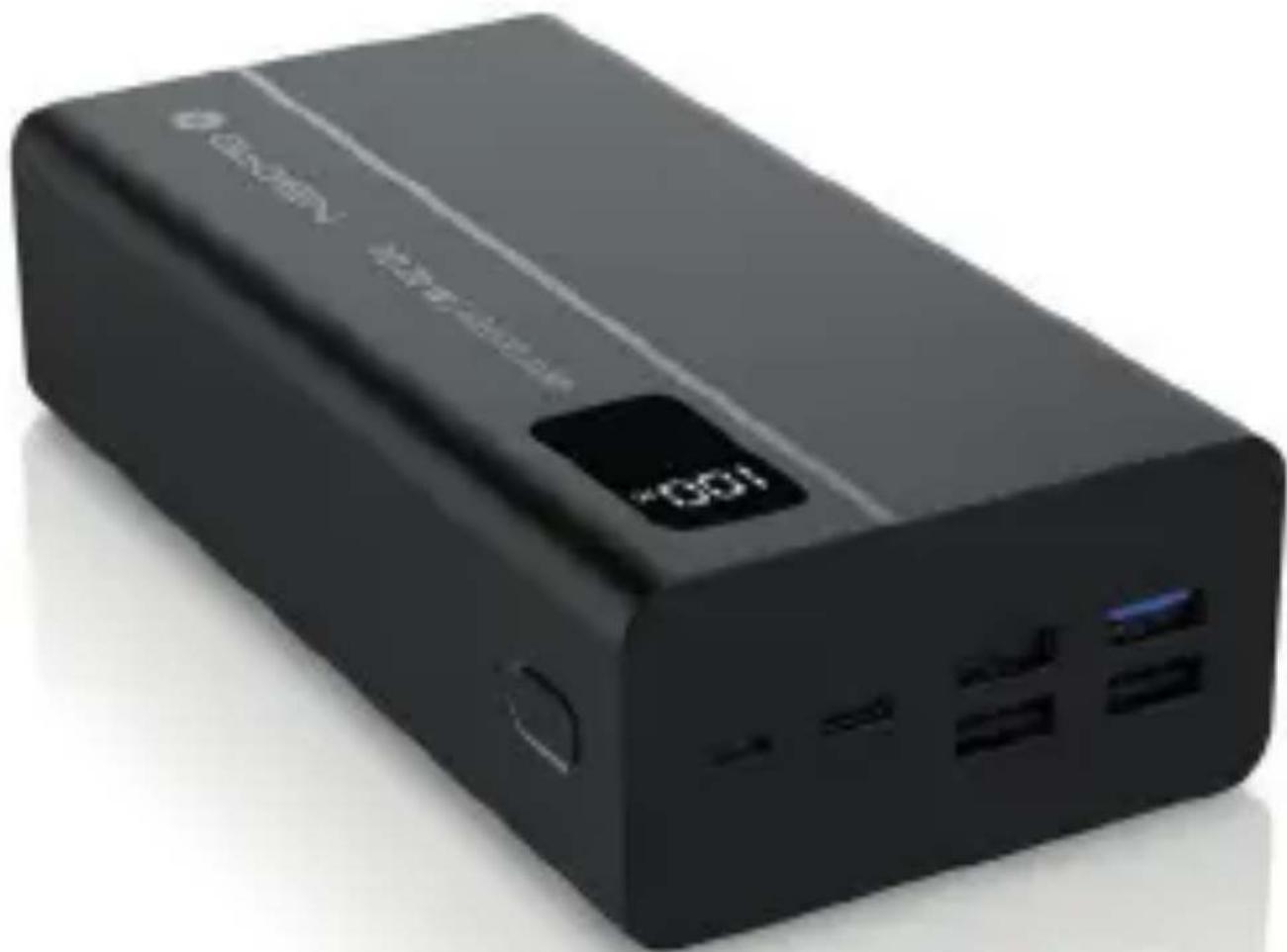

Black rectangular electronic device with a digital display and ports, no visible text or symbols on the body.

No smoking sign symbol (no text or numbers present)

Prohibition sign with a crossed-out robot silhouette (no text or symbols)

NEBEZPEČÍ UDUŠENÍ. PE SÁČEK ODKLÁDEJTE MIMO DOSAH DĚTÍ. SÁČEK NENÍ NA HRANÍ. NEPOUŽÍVEJTE TENTO SÁČEK V KOLÉBKÁCH, POSTÝLKÁCH,

KOČÁRCÍCH NEBO DĚTSKÝCH OHRÁDKÁCH.

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

Prohibition sign with a circular border and a central figure (no text or symbols)

Prohibition sign with a crossed-out robot silhouette (no text or symbols)

NEBEZPEČENSTVO UDUSENIA. PE VRECKO ODKLADAJTE MIMO DOSAHU DETÍ. VRECKO NIE JE NA HRANIE. NEPOUŽÍVAJTE TOTO

VRECÚŠKO V KOLÍSKACH, POSTIEL'KACH, KOČÍKOCH ALEBO DETSKÝCH OHRÁDKACH.

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

oddeleného zberu)

Thank you for purchasing our product. For optimum performance and safety, please read these instructions carefully before operating the product. Please keep this manual for future reference.

PACKAGE CONTENT

Powerbank, USB-C cabel, instruction manual

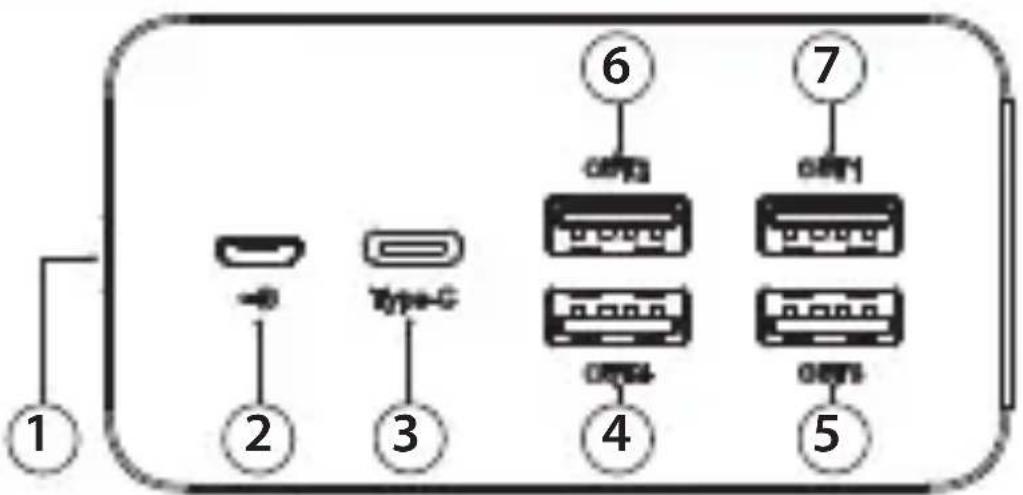

DEVICE LAYOUT

1. Power button
2. Micro USB input
3. USB-C input/output
4. USB 4 output
5. USB 3 output
6. USB 2 output
7. USB 1 output

CHARGING INSTRUCTION

The power bank will auto power on when connected and turn off automatically 20 seconds after disconnecting. Press the power button to turn the product on.

Charging of mobile devices

Connect the charging cable to the USB output or the USB-C output on the device and the mobile device. Charging starts automatically.

Please use compatible charging cable (not included) for using PD (Power Delivery) function.

Charging the power bank

Connect the backup power supply using a charging cable to a power supply with a minimum charging current of 5V / 2A. Micro USB or USB-C input on the device can be used.

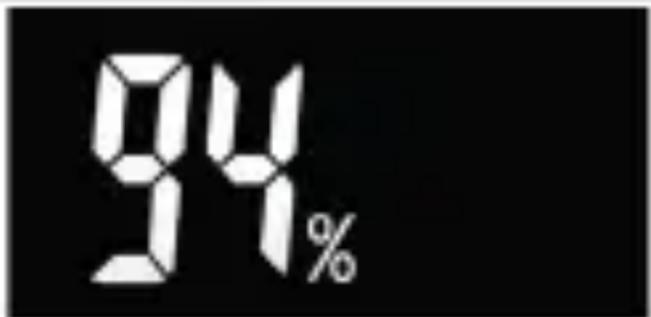

Capacity Indication

Press the power button to show the remaining capacity:

ATTENTION

This device has safety protection that prevent the battery from damages when overcharging. It is normal for the casing to become warm during charging and it will gradually cool down to room temperature after fully charged.

Please make a complete charge every three month to avoid shorten the mobile power life span.

TECHNICAL SPECIFICATION

Battery type: Li-pol Battery

Capacity: 40 000 mAh (148 Wh)

Input: Micro USB DC 5 V / 3 A, 9 V / 2 A, 12 V / 1,5 A

USB-C DC 5 V / 3 A, 9 V / 2 A, 12 V / 1,5 A

Output: USB-C DC 5 V / 3 A, 9 V / 2,22 A, 12 V / 1,66 A

USB 1 DC 4,5 V / 5A, 5 V / 3A, 9 V / 2A,

12 V / 1,5 A

USB 2,3,4 DC 5V / 3 A (Max)

Dimension: 161,2 x 81,6 x 43 mm

Weight: 879 g

CAUTION

• Please completely full charge the mobile power in first usage.
• Please make sure that use standard cable with appropriate specification, or it may lead to the mobile power damage.
• Please confirm the voltage of the electric device is 5V before charging it.
• Do not drop, knock, disassemble or attempt to repair the mobile power by yourself.
• Do not immerse or put the mobile power in water or damp place.
• Do not expose or put the mobile power near to heat sources or flammable place.
• Do not put the mobile power in car, for strong light and high temperature will lead to product damage.
• Keep the mobile power away from children.
• Do not put any item into the mobile power USB input and output ports to avoid any shortcut or damage.
• Please make a complete charge every three month to avoid shorten the mobile power life span.

- This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safety. Young children should be supervised to ensure that they do not play with the appliance.

- Never charge the battery unattended.

WARRANTY

Our product is warranted for 2 full year from the date of purchase. The warranty is provided on all material defects and workmanship. Guarantee of 24 months does not apply to decrease in the accumulator's effective capacity caused by its use or age. Effective capacity gradually decreases depending on the method of use of the accumulator.

WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.

Prohibition sign with a circular border and a central figure (no text or symbols)

Prohibition sign with a crossed-out robot silhouette (no text or symbols)

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES

OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

Symbol of a trash bin with crossed lines and a blank rectangular base (no text or numbers)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Prohibition sign with a circular border and a central figure (no text or symbols)

Prohibition sign with a crossed-out robot silhouette (no text or symbols)

NIEBEZPIECZEŃSTWO UDUSZENIA. TOREBKE Z PE POŁOŻYĆ W MIEJSCU BĘDĄCYM POZA ZASIĘGIEM DZIECI. TOREBKA NIE SŁUŻY DO

ZABAWY! TEGO WORKA NIE NALEŻY UŻYWAĆ W KOŁYSKACH, ŁÓŻECZKACH, WÓZKACH LUB KOJCACH DZIECIĘCYCH.

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

Prohibition sign with a circular border and no text or symbols

Prohibition sign with a crossed-out robot silhouette (no text or symbols)

FULLADÁSVESZÉLY. TARTSA A PE ZACSKÓT GYERMEKEKTÓL ELZÁRT HELYEN. A ZACSKÓ NEM JÁTÉKSZER. NE HASZNÁLJA EZT A

ZACSKÓT BÖLCSŐKBEN, KISÁGYAKBAN, BABAKOCSIKBAN, VAGY GYEREK JÁRÓKÁKBAN.

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present
