PB100009B - Power bank GoGen - Free user manual and instructions

Product Type	Power Bank
Brand	GoGen
Model	PB100009B
Battery Type	Lithium-ion
Battery Capacity	10000 mAh
Input Port	Micro USB 5V/2A
Output Port 1	USB-A 5V/2.1A
Output Port 2	USB-A 5V/1A
Number of USB Ports	2
Dimensions	140 x 68 x 15 mm
Weight	230 g
Charging Time	Approx. 5-6 hours
Indicator Type	4 LED lights
Material	ABS plastic
Safety Features	Overcharge, overdischarge, short circuit protection
Maintenance	Wipe with dry cloth; avoid moisture
Included Accessories	Micro USB charging cable
Repairability	Not user-serviceable; do not disassemble

Frequently Asked Questions - PB100009B GoGen

How do I charge the power bank itself?

Connect the included Micro USB cable to the power bank's input port and to a USB power source such as a wall charger or computer. The LED indicators will show charging status.

How do I charge my devices with the power bank?

Use your device's charging cable to connect to one of the USB output ports. The power bank will automatically start charging when a device is detected.

How long does it take to fully charge the power bank?

With a 5V/2A charger, full charging takes approximately 5-6 hours. Using a lower current charger will increase charging time.

What do the LED indicators mean?

The 4 LEDs indicate remaining battery capacity: 1 LED = 0-25%, 2 LEDs = 25-50%, 3 LEDs = 50-75%, 4 LEDs = 75-100%. When charging, LEDs flash and remain solid when full.

Can I charge two devices at the same time?

Yes, the power bank has two USB output ports allowing simultaneous charging. Note that total output is shared, so charging speed may be reduced.

Is it safe to leave the power bank charging overnight?

Yes, the power bank has overcharge protection that automatically stops charging once full. It is safe to leave plugged in.

What should I do if the power bank gets wet?

Disconnect immediately and do not use. Dry it thoroughly with a cloth and let it air dry for at least 24 hours before attempting to use again.

How many times can it charge my phone?

A typical smartphone with a 3000 mAh battery can be charged about 3 times, accounting for energy loss during conversion.

Can I use it while it is charging?

Yes, the power bank supports pass-through charging, so you can charge the power bank and charge your device simultaneously.

How should I store the power bank when not in use?

Store in a cool, dry place away from direct sunlight. Keep battery charge between 50-80% for long-term storage to prolong battery life.

USER MANUAL PB100009B GoGen

Abstract logo with a stylized white 'S' inside a circle on black background (no text or symbols)

PB 100009 B

PB 100009 W

GoGEN

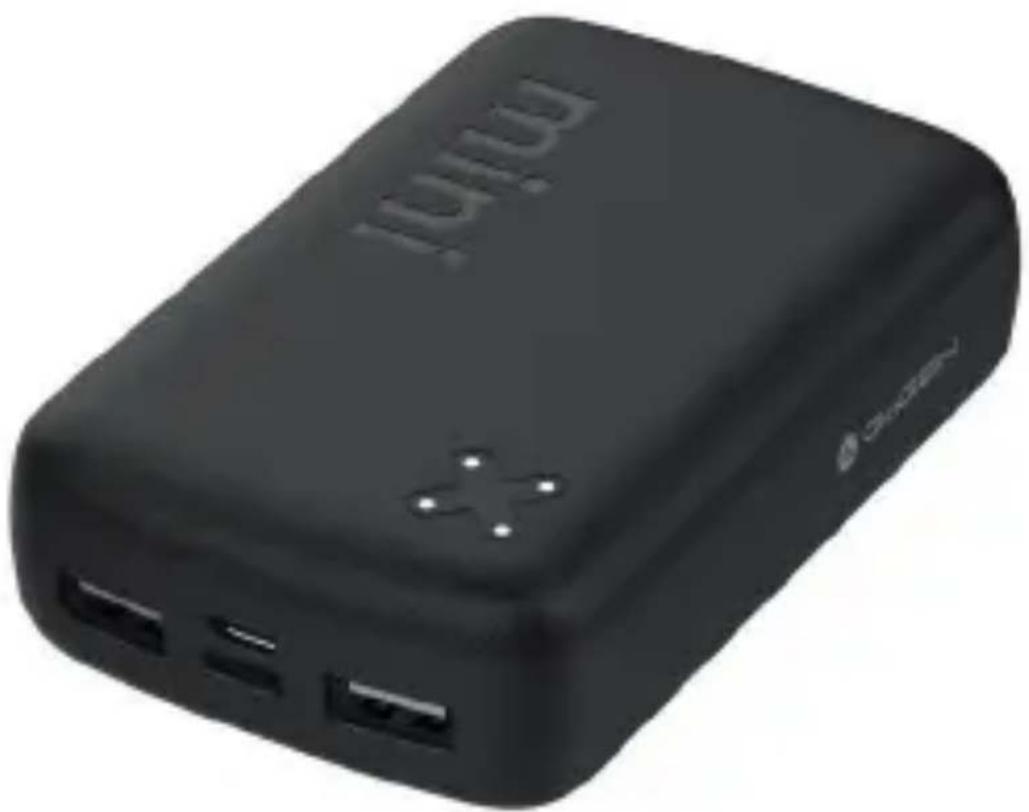

Black rectangular electronic device labeled 'mi' with ports and indicator lights (no readable text beyond branding)

Simple X-shaped diagram with a black dot at the center and four surrounding circles (no text or symbols)

25%

Simple X-shaped diagram with black and white dots on each side (no text or symbols)

50%

Simple X-shaped diagram with four dots and a white circle inside, no text or symbols present.

75%

Simple X-shaped diagram with four black dots at each corner, no text or symbols present.

100%

UPOZORNĚNÍ

Prohibition symbol with a person silhouette inside a circle (no text or numbers)

Prohibition sign with a diagonal line crossing through it, no text or symbols present.

NEBEZPEČÍ UDUŠENÍ. PE SÁČEK ODKLÁDEJTE MIMO DOSAH DĚTÍ. SÁČEK NENÍ NA HRANÍ. NEPOUŽÍVEJTE TENTO SÁČEK V KOLÉBKÁCH, POSTÝLKÁCH, KOČÁRCÍCH

NEBO DĚTSKÝCH OHRÁDKÁCH.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Simple X-shaped diagram with four circular nodes and a black dot at the top center (no text or symbols)

25%

Simple X-shaped diagram with two black dots and two white circles, no text or symbols present.

50%

Simple X-shaped diagram with four dots and a circle inside, no text or symbols present.

75%

Simple X-shaped diagram with four black dots at the center and four curved lines forming an X shape (no text or symbols)

100%

UPOZORNENIE

NEBEZPEČENSTVO UDUSENIA. PE VRECKO ODKLADAJTE MIMO DOSAHU DETÍ. VRECKO NIE JE NA HRANIE. NEPOUŽÍVAJTE TOTO VRECÚŠKO V KOLÍSKACH,

POSTIEL'KACH, KOČÍKOCH ALEBO DETSKÝCH OHRÁDKACH.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Thank you for purchasing our product. For optimum performance and safety, please read these instructions carefully before operating the product. Please keep this manual for future reference.

PACKAGE CONTENT

Powerbank, charging cabel, instruction manual

DEVICE LAYOUT

1. ON button
2. USB 1 output
3. Micro USB input
4. USB-C input
5. USB 2 output
6. LED power indicator

CHARGING INSTRUCTION

The power bank will auto power on when connected and turn off automatically 20 seconds after disconnecting. Press the power button to turn the product on.

Charging of mobile devices

Connect the charging cable to the USB output on the device and the mobile device. Charging starts automatically.

Charging the power bank

Connect the backup power supply using a charging cable to a power supply with a minimum charging current of 5V / 2A. Micro USB or USB-C input on the device can be used.

Capacity Indication

Press the main button to show the remaining capacity:

Simple X-shaped diagram with a black dot at the center and four circular endpoints (no text or symbols)

25%

Simple X-shaped diagram with two black dots and two white circles inside, no text or symbols present.

50%

Simple X-shaped diagram with four dots and a small circle inside, no text or symbols present.

75%

Simple X-shaped diagram with four dots at the center and two outer rings (no text or symbols)

100%

ATTENTION

This device has safety protection that prevent the battery from damages when overcharging. It is normal for the casing to become warm during charging and it will gradually cool down to room temperature after fully charged.

Please make a complete charge every three month to avoid shorten the mobile power life span.

TECHNICAL SPECIFICATION

Battery type: Li-pol Battery

Capacity: 10 000 mAh

Input: Micro USB / USB-C DC 5 V / 2 A

Output: USB 1/2 DC 5V / 2,1 A

Dimension: 100 x 63 x 26 mm

Weight: 220 g

CAUTION

• Please completely full charge the mobile power in first usage.
• Please make sure that use standard cable with appropriate specification, or it may lead to the mobile power damage.
• Please confirm the voltage of the electric device is 5V before charging it.
• Do not drop, knock, disassemble or attempt to repair the mobile power by yourself.
• Do not immerse or put the mobile power in water or damp place.
• Do not expose or put the mobile power near to heat sources or flammable place.
• Do not put the mobile power in car, for strong light and high temperature will lead to product damage.
• Keep the mobile power away from children.
• Do not put any item into the mobile power USB input and output ports to avoid any shortcut or damage.
• Please make a complete charge every three month to avoid shorten the mobile power life span.
• This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safety. Young children should be supervised to ensure that they do not play with the appliance.
• Never charge the battery unattended.

WARRANTY

Our product is warranted for 2 full year from the date of purchase. The warranty is provided on all material defects and workmanship. Guarantee of 24 months does not apply to decrease in the accumulator's effective capacity caused by its use or age. Effective capacity gradually decreases depending on the method of use of the accumulator.

WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN

CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Simple X-shaped diagram with a black dot at the top center and four circular holes at the bottom (no text or symbols)

25%

Simple X-shaped diagram with two black dots and two white circles on a white background (no text or symbols)

50%

Simple X-shaped diagram with four dots and a small circle inside, no text or symbols present.

75%

Simple X-shaped diagram with four black dots at the center and two curved lines forming an X shape (no text or symbols)

100%

UWAGA

NIEBEZPIECZEŃSTWO UDUSZENIA. TOREBKE Z PE POŁOŻYĆ W MIEJSCU BĘDĄCYM POZA ZASIĘGIEM DZIECI. TOREBKA NIE SŁUŻY DO ZABAWY! TEGO WORKA NIE

NALEŻY UŻYWAĆ W KOŁYSKACH, ŁÓŻECZKACH, WÓZKACH LUB KOJCACH DZIECIĘCYCH.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Simple geometric X-shaped diagram with four rounded corners and a central dot (no text or symbols)

25%

Simple X-shaped diagram with two black dots and two white circles inside, no text or symbols present.

50%

Simple X-shaped diagram with four dots and a small circle inside, no text or symbols present.

75%

Simple X-shaped diagram with four black dots on a white background (no text or symbols)

100%

FIGYELEM

Prohibition sign with a circular border and diagonal lines, no text or symbols present.

Prohibition sign with a crossed-out dog silhouette (no text or symbols)

FULLADÁSVESZÉLY. TARTSA A PE ZACSKÓT GYERMEKEKTÓL ELZÁRT HELYEN. A ZACSKÓ NEM JÁTÉKSZER. NE HASZNÁLJA EZT A ZACSKÓT

BÖLCSÖKBEN, KISÁGYAKBAN, BABAKOCSIKBAN, VAGY GYEREK JÁRÓKÁKBAN.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)
