Product Type	Wireless Microphone System
Brand	CAD Audio
Model	WX1000BP
Frequency Range	UHF 500-578 MHz (varies by region)
Modulation Type	FM (Frequency Modulation)
RF Output Power	10mW (typical)
Receiver Type	Diversity Receiver (single channel)
Antenna	External detachable antennas (×2)
Audio Output	XLR balanced, 1/4" unbalanced
Power Supply (Receiver)	12V DC via included adapter
Battery Type (Transmitter)	2× AA alkaline (not included)
Battery Life (Transmitter)	Approx. 8 hours (alkaline)
Dimensions (Receiver)	8.5 × 4.7 × 1.6 in (216 × 120 × 40 mm)
Dimensions (Bodypack Transmitter)	4.3 × 2.6 × 0.9 in (110 × 66 × 23 mm)
Weight (Receiver)	1.2 lbs (544 g)
Weight (Bodypack Transmitter)	0.2 lbs (91 g) without batteries
Operating Range	Up to 300 ft (90 m) line-of-sight
Included Accessories	Receiver, bodypack transmitter, headset microphone, power supply, cable
Cleaning and Maintenance	Wipe with dry cloth; avoid liquids and solvents
Safety	Keep away from water; use only specified power supply
Repairability	Battery compartment easily accessible; contact CAD Audio for service

Frequently Asked Questions - WX1000BP CAD Audio

How do I pair the transmitter with the receiver?

Turn on the receiver first, then the transmitter. The system should automatically sync via IR or manual frequency matching. Refer to the manual for specific steps.

What type of batteries does the transmitter use?

The bodypack transmitter uses 2× AA alkaline batteries. Rechargeable Ni-MH batteries can also be used.

How long do the batteries last?

Alkaline batteries last approximately 8 hours of continuous use. Rechargeable batteries may vary.

What is the operating range of the WX1000BP?

The system has a range of up to 300 feet (90 meters) in line-of-sight conditions. Obstacles may reduce range.

Can I use multiple WX1000BP systems simultaneously?

Yes, but they must be set to different frequencies to avoid interference. The receiver allows manual frequency selection.

How do I clean the microphone and bodypack?

Use a dry, lint-free cloth to wipe the surfaces. Do not use liquids or abrasive cleaners. Remove batteries before cleaning.

What should I do if there is audio dropout or interference?

Check batteries, move closer to receiver, change frequency, or ensure antennas are fully extended. Avoid other RF sources.

Is the WX1000BP compatible with other CAD Audio receivers?

Transmitters are generally compatible only with receivers of the same series. Use only with WX1000BP receiver.

Does the receiver require a specific power adapter?

Yes, use only the included 12V DC power adapter. Using a different adapter may damage the receiver.

How do I adjust the audio output level?

The receiver has a volume control knob. Adjust to desired level. Also check the transmitter mute switch.

USER MANUAL WX1000BP CAD Audio

100 Channel UHF Wireless

Body Pack Microphone System

User Guide

CAD Audio

6573 Cochran Rd., Bldg. I Solon, OH 44139 U.S.A.

Tel: [phone] Fax: [phone]

Sales: 800-762-9266 cadaudio.com

Distributed Worldwide by American Music and Sound

925 Broadbeck Drive, Suite 220

Newbury Park, CA 91320 U.S.A.

Tel: [phone] Fax: [phone]

©2022 CAD Audio Rev00 0622

WX1000BP 100 Channel UHF Wireless Body Pack Microphone System

Introduction

Enjoy the easy and exciting performance that the WX1000BP provides for your next performance. CAD Audio has been creating valued product since 1931 and prides itself on developing and supporting the live performer. Our concept was straightforward - develop a high value wireless microphone system that can cope with today's challenging RF environment that is both easy to operate and exciting to use.

The WX1000BP is a Frequency Agile UHF Wireless Body Pack System which operates in the 510 - 570MHz frequency band and features 100 channels for optimum clarity of signal. Auto-scan and IR sync functions make set up and channel-changing a breeze. Enjoy up to 12 hours of run time using two AA batteries, with a battery level indicator on both the transmitter and receiver, so you'll know when you need to replace them. All metal construction and included rack mounting hardware help ensure your equipment will stand up to even the toughest conditions. System includes head-worn mic, lavalier mic, and guitar cable.

The WX1000BP includes the following features:

• Frequency Agile Design (100 switchable frequencies)
- Use up to 20 systems at the same time
- Up to 295' (90m) range between transmitter and receiver
• Rugged, all metal construction
- Auto scan finds the optimal frequency setting
- IR sync wirelessly matches transmitter and receiver frequencies
• Transmitter features battery life indicator
• Transmitter utilizes 2 AA Batteries with >12 Hrs of operation
- Rack mounting hardware and antenna relocation kit included
- Head-worn and lavalier microphones and guitar/instrument cable included
- 2 Year Warranty

Individuals with cardiac pacemakers and other similar medical devices should consult with their physician before using any RF devices. Though the output level of this wireless system is below 50 milliwatts, the proximity of the transmitter to the implant device could pose a threat.

As with any wireless product, environmental conditions can reduce or in some cases prohibit a successful connection between the transmitter and the receiver.

This device complies with Part 15 of the FCC Rules. Most users of CAD Audio wireless products in the United States do not need a license for operation. However, the rules for unlicensed operation state that this device must not operate in excess of 50 milliwatts and it must not cause harmful interference to other wireless devices, and must accept interference received from other devices. Wireless products meeting CAD factory standards adhere to these rules. The FCC reserves the right to change these rules at any time. For more information contact the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at:

www.fcc.gov/cgb/wirelessmicrophones

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.l.r.p.) is not more than that necessary for successful communication.

1. Antenna

2. Audio input jack

3. Power Switch

4. LCD display

5. Battery compartment

Specifications TX1000

Frequency Response....30 - 18KHz

Frequency Range 510MHz - 570MHz

Transmit Mode....Micro power wireless

Channels.... 100

Input Power ....../<10mW

Signal-to-Noise Ratio ....>85dB

Harmonic Distortion....<0.5%

Frequency Error....<15ppm

Frequency Stability ....≤±0.002%

Modulation Mode ...... FM

Working Current 100 - 120mA

Antenna ....Sheltered antenna

Power Requirements....2x AA batteries 1.5V

Operating Instructions

• Power on/off
  • Volume Up: short press ( ) ▲
  • Volume Down: short press ( ) ▼
• Synchronizing: short press the middle "SET" button, the system will enter into its pairing mode

Bring the transmitter 2" (5cm) close to the "IR indicator" on the left of the front panel, and the receiver and transmitter will be synchronized

• Frequency Setting Manually: Long press ( ) to enter the manual setting mode. Press ( ) and ( ) to select channel 0-99
• Frequency Automatic Scanning Feature: Long press ( ) to enter auto-scanning mode, and the system will scan for the best possible frequency to eliminate radio interference
• Lock/unlock Setting: press () (▲ at the same time, the "LOCK SIGN" on the LCD screen will display or conceal

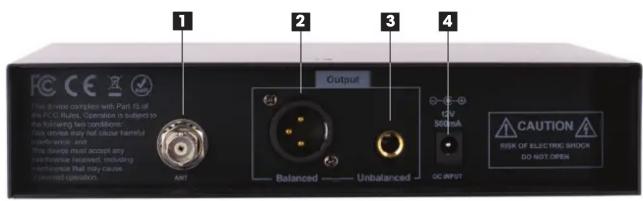

Receiver RX1000 (Rear)

1. Antenna jack

1. XLR-type balanced output
2. 1/4" unbalanced output
3. DC power jack (use included supply)

Specifications WX1000

Frequency Response....30Hz - 18KHz

Frequency Range 510MHz - 570MHz

Frequency Mode FM

Channels.... 100

Receiver Sensitivity....<108dBm

Signal-to-Noise Ratio ....>85dB

Harmonic Distortion....<0.5%

Dynamic Range.....>100dB

Delay ....../<3ms

Operating Range.....278' (85m) in open area, 196' (60m) indoors

Audio Output......XLR balanced output,

1/4" (6.3mm) unbalanced jack

Antenna Plug....1x TNC, 50ohms

Power Requirements....DC 12V, 1A

Dimensions 16" x 12.1" x 2.8" (40.5cm x 30.7cm x 7cm)

Weight 3.3Lbs (1.5kg)
