BE-SBM114 - Speaker Stand Best Buy - Free user manual and instructions

Product Type	Adjustable Soundbar Mount for Wall-Mounted TVs
Brand	Best Buy essentials
Model	BE-SBM114
Maximum Soundbar Weight	15 lbs (6.8 kg)
TV Mount Weight Limit (combined)	Must not exceed TV mount's maximum rating
Mounting Options	Back-mount (threaded inserts or keyhole slots) and bottom-mount
Adjustable Height	Yes, using hex key on back of bracket
Adjustable Depth	Yes, slide soundbar support in/out
Compatible TV Back Types	Flat, irregular, or obstructed backs with spacers
Included Hardware	Screws (M4, M5, M6, M8), washers, spacers, keyhole screws/nuts, fender washers
Tools Required	Phillips screwdriver, level, hex key (3/16 in.)
VESA Compatible	Yes, attaches to TV VESA holes
Material	Steel (brackets and supports)
Warranty	1-year limited warranty
Customer Service	1-866-597-8427 (US and Canada)

Frequently Asked Questions - BE-SBM114 Best Buy

Can this mount be used with any soundbar?

It is designed for soundbars under 15 lbs (6.8 kg) with compatible mounting holes on the back (threaded inserts or keyhole slots) or bottom. Check your soundbar's mounting pattern before purchase.

How do I know if my TV is compatible with this mount?

The mount attaches to your TV's VESA holes. Ensure your TV mount's weight capacity exceeds the combined weight of TV, soundbar, and this bracket. The manual provides steps to determine screw diameter and back type (flat, irregular, or obstructed).

What tools do I need for installation?

You need a Phillips screwdriver and a level. A hex key (3/16 in.) is included for height adjustment.

Can I adjust the soundbar position after installation?

Yes, you can adjust the height using the hex key on the back of the bracket, and the depth by loosening screws at the bottom of the bracket and sliding the support in or out. You may need to remove the TV first.

What is the maximum weight limit for the soundbar?

The soundbar must not exceed 15 lbs (6.8 kg). Additionally, the combined weight of TV, soundbar, and mount must be less than your TV mount's maximum rating.

Does this mount work with bottom-mounted soundbars?

Yes, it supports bottom-mounted soundbars using included brackets and supports (Option C in the manual).

What if my soundbar has keyhole slots on the back?

Use Option B in the manual: attach keyhole screws and nuts through the soundbar brackets into the slots.

Are spacers included for TVs with irregular backs?

Yes, the kit includes multiple spacers (22 mm, 45 mm, 42.5 mm) to accommodate TVs with irregular or obstructed backs.

How long is the warranty?

The product comes with a one-year limited warranty from the date of purchase, covering defects in materials and workmanship.

Can I install this without removing my TV from the wall?

It is recommended to remove the TV for safe installation. However, height and depth adjustments may be possible with the TV mounted, depending on your TV mount type.

USER MANUAL BE-SBM114 Best Buy

Adjustable Bottom/Rear-Mounted Soundbar Bracket for Wall Mounted TVs

Technical line drawing of two articulated robotic legs with evenly spaced circular holes, shown from different angles (no text or symbols)

BEST BUY essentials™

BEST BUY essentials™

Contents

IMPORTANT SAFETY INSTRUCTIONS .... 3

Tools needed 4

Package contents 5

Parts....5

Preparing for the installation 7

Installation instructions....8

STEP 1 - Install brackets on your soundbar ....8

Option A - Back-mount Holes with THREADED INSERTS....8

Option B - Back-mount Holes with KEYHOLE SLOTS .....10

Option C - Bottom-mount holes 12

STEP 2 - Prepare your TV ....15

STEP 3 - Position your soundbar .....17

STEP 4 - Determine the TV screw diameter .....18

STEP 5 - Determine whether your TV has a flat, irregular, or obstructed back .19

STEP 6 - Install the soundbar mount on your TV .....21

STEP 7 - Hang your TV....25

STEP 8 - Adjust the soundbar height (optional)....26

STEP 9 - Adjust the soundbar depth (optional) .....27

ONE-YEAR LIMITED WARRANTY....28

Índice

IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS

CAUTION: Do not use this product for any purpose not explicitly specified by Best Buy essentials.

• Improper installation may cause property damage or personal injury. If you do not understand these directions, or have doubts about the safety of the installation, contact Customer Service or call a qualified contractor. Best Buy is not responsible for damage or injury caused by incorrect installation or use.
• This product contains small items that could be a choking hazard if swallowed. Keep these items away from young children!

Weight restrictions

Soundbar weight restrictions

Make sure that the total weight of your soundbar does not exceed 15 lbs. (6.8 kg).

TV mount weight restrictions

CAUTION: Avoid potential personal injuries and property damage! The weight of your TV, this soundbar mount, your soundbar, and any accessories, MUST BE LOWER than the maximum weight rating of your TV mount. See your TV mount's manual for maximum weight allowed.

2 lb. 9 kg
____ lb. ____ kg
____ lb. ____ kg
____ lb. ____ kg

Tools needed

You need the following tools to assemble your new soundbar support:

Phillips screwdriver

Level

Package contents

Parts

Make sure that you have all the parts and hardware necessary to assemble your new soundbar support:

01 Soundbar bracket (2)

02 Soundbar support (2)

03 Fender washer (2)

04 Keyhole screw (2)

05 Keyhole nut (2)

LBL	HARDWARE QTY LBL HARDWARE QTY
06 2 09 M4 × 10 mm screw			M4 × 16 mm screw
06 2 09 M4 × 16 mm screw			M8 x 20 mm screw
06 2 09 4 M5 × 10 mm screw			M8 x 40 mm screw
06 2 ( M5 × 16 mm screw			M8 x 55 mm screw
06 2 0 M6 × 16 mm screw			M4 × 40 mm screw
06 2 09 * 1/4-20 x 3/8 in. screw			M6 × 16 mm screw

LBL	HARDWARE QTY LBL HARDWARE	QTY
08 2 09 4	Mount spacer
07/10	M4/M5 washer	6
07/10	M6/M8 washer	6
11 4	H1- 22 mm TV spacer

	M6 40 mm screw
1	1 [ST7W]45 mm TV spacer
1	1 42.5 mm TV spacer
	Hex key 3/16 in.

Preparing for the installation

- Look at the mounting holes on the back or bottom of your soundbar to determine which method you need to use.

• For back-mounted threaded inserts, go to Option A - Back-mount Holes with THREADED INSERTS on page8.
• For back-mounted keyhole slots, go to Option B - Back-mount Holes with KEYHOLE SLOTS on page10.
• For bottom-mounted threaded inserts, go to Option C - Bottom-mount holes on page12.

Installation instructions

STEP 1 - Install brackets on your soundbar

Option A - Back-mount Holes with THREADED INSERTS

You'll need

Screws 06 - 2

Washers 07 - 2

1 Pick the screw that fits your soundbar. Only one screw size (06) fits your soundbar.

M4

M5

M6

2 Attach the soundbar brackets (01) to back mount holes in your soundbar with the correct sized screw (06), using washers (07).

Note: If the soundbar brackets do not rest flat on your soundbar surface, use fender washers (03) as shown.

3 Tighten the screws with a Phillips screwdriver.

Technical line drawing of a mechanical device with a tool and rotating component (no text or symbols)

Option B - Back-mount Holes with KEYHOLE SLOTS You'll need

04 Keyhole screw (2)

05 Keyhole nuts (2)

03 Fender washers (2)

brackets (2)

Phillips screwdriver01 Sc

1 Thread keyhole nuts (05) onto two keyhole screws (04).

2 Insert the keyhole screws (04 and 05) through the soundbar brackets (01) into the slots on the back of your soundbar.

Note: If the soundbar brackets do not rest flat on your soundbar surface, use fender washers (03) as shown.

3 Push the keyhole screws (04) into the narrow section of the slot, then tighten the keyhole nuts (05).

Diagram showing a mechanical assembly with a curved component and directional arrows, no text or symbols present.

Option C - Bottom-mount holes You'll need

Screws 06 - 2

OR

M4 x 10 mm

M4 x 16 mm

OR

M5 x 10 mm

M5 x 16 mm

OR

M6 x 16 mm

Washers 07 - 2

M4/M5

OR

M6/M8

04 Keyhole screw (2)

05 Keyhole nuts (2)

01 Soundbar brackets (2)

02 Soundbar support (2)

Phillips screwdriver

03 Fender washers (2)

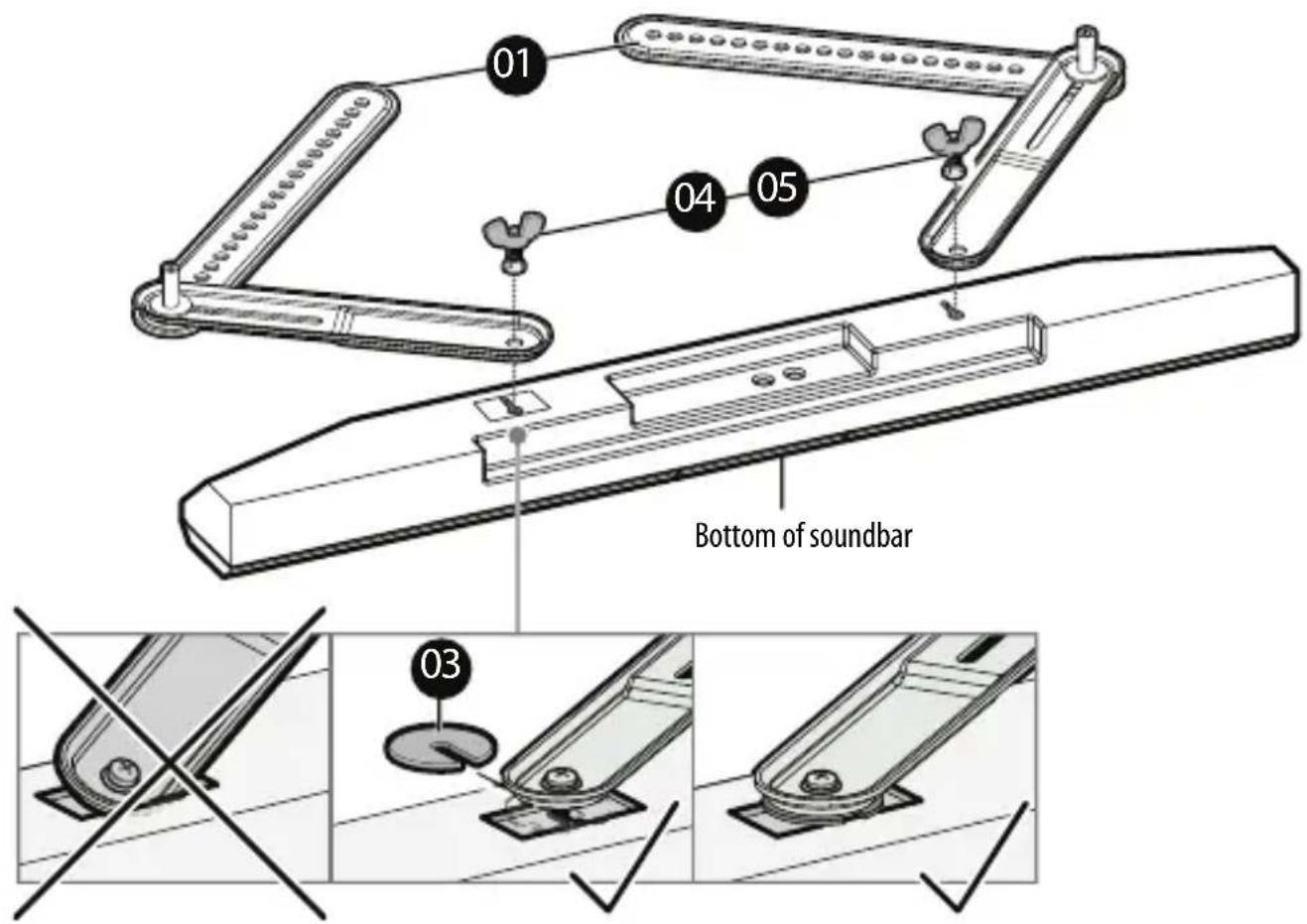

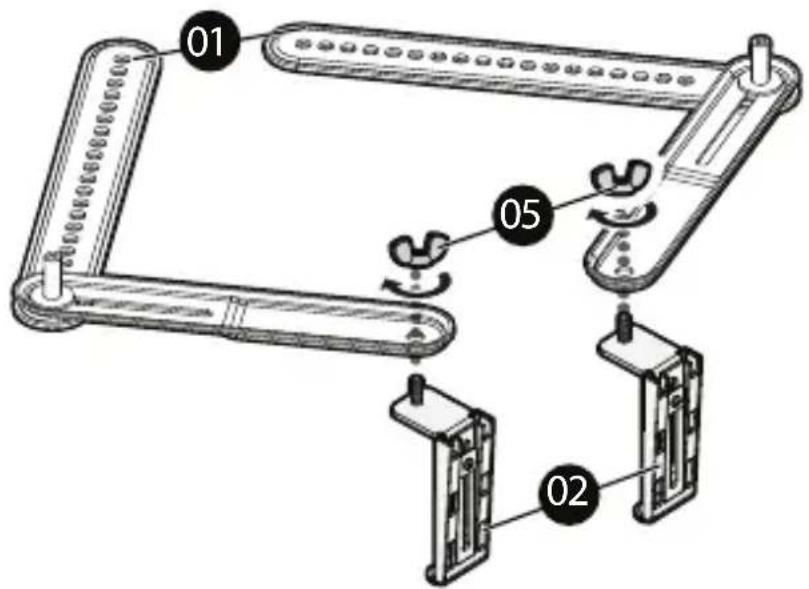

1 Thread keyhole nuts (05) onto the threaded bolts on the soundbar supports (02), through the holes in the soundbar brackets (01).

2 Attach the soundbar supports (02) to the bottom mount holes in your soundbar with the correct sized screws (06), using the appropriate sized washers (07), then tighten the screws with a Phillips screwdriver.

3 Adjust the soundbar supports (02) so that the bracket extends the whole width of the soundbar, then tighten the adjustment screws with a Phillips screwdriver.

STEP 2 - Prepare your TV

CAUTION: Follow your TV mount's manual for instructions on how to safely remove your TV and TV bracket.

If your TV has a wall mount installed:

1 Remove any cables attached to your TV.

2 Remove your TV and bracket assembly from your wall plate, arm assembly, or pillar.

Technical line drawing of a device panel with internal components and an external assembly (no text or symbols)

3 Remove the TV bracket assembly and hardware from your TV.

Technical line drawing of a mechanical assembly with mounting holes and a central component (no text or symbols)

STEP 3 - Position your soundbar

1 Carefully place your TV screen face-down on a cushioned, clean flat surface to protect the screen from damages and scratches, so that your soundbar and soundbar brackets lay flat on the back of your TV.

Simple line drawing of a table with a tool and directional arrow, no text or symbols present

Simple line drawing of a table with a tool and a cross symbol, no text or labels present

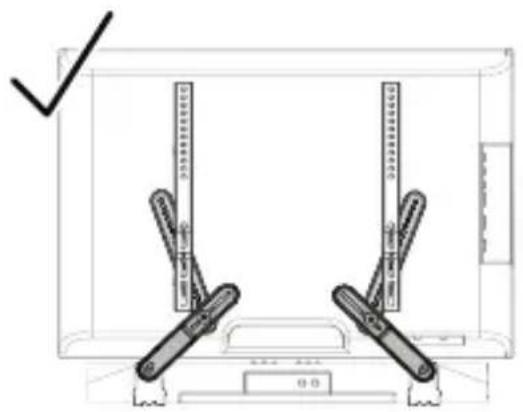

2 Rotate the brackets left or right to align with your soundbar mounting holes and the VESA hole pattern on your TV.

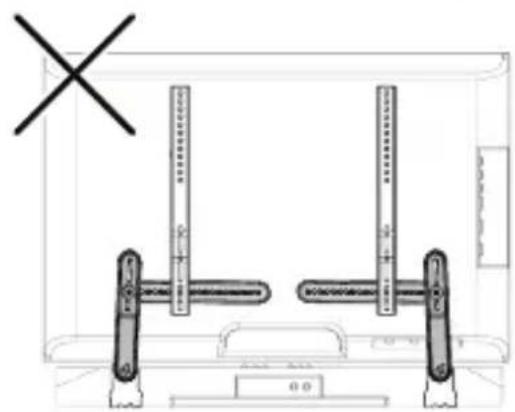

Note: Make sure that the arms are vertical as possible and do not overhang the ends of your soundbar or cover up any cable connections.

Technical line drawing of a mechanical assembly with two vertical supports and a checkmark (no text or symbols)

Technical line drawing of a mechanical assembly with two vertical supports and a checkmark indicating a detail (no text or symbols present)

Technical diagram of a mechanical clamp or bracket with two vertical rods and a cross mark, no text or symbols present.

STEP 4 - Determine the TV screw diameter

1 Determine the screw diameter that fits the back of your TV. If you don't know the correct diameter of the mounting screws your TV requires, test various sizes by hand threading the screws.

- Select the screws (09) that fit:

Screw type	Optional length Quantity
M4 16 and	40 mm 4
M6 16 and	40 mm 4
M8 20, 40, and	55 mm 4

CAUTION: To avoid potential personal injuries and property damage, make sure that there are adequate threads to secure the brackets to your TV. If you encounter resistance, stop immediately and contact customer service. Use the shortest screw and spacer combination to accommodate your TV. Using hardware that is too long may damage your TV. However, using a screw that is too short may cause your TV to fall from the mount.

Screw fits correctly

Simple line drawing of a hand holding a rectangular object with grid lines (no text or symbols)

Screw is too long

Screw is too short

2 Remove the screws from the holes in the back of your TV.

STEP 5 - Determine whether your TV has a flat, irregular, or obstructed back

1 Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages and scratches.
2 If your TV has a table-top stand attached, remove the stand. See the documentation that came with your TV for instructions.
3 Lay the TV brackets, oriented vertically, on the back of your TV.
4 Align the screw holes in the TV brackets with the mounting screw holes on your TV.
5 Identify which type of back your TV has:

- Flat back: The bracket lays flush against the back of your TV and doesn't block any jacks. You don't need TV wall-mount spacers. Go to STEP 6 - Install the soundbar mount on your TV on page 21.

- Obstructed back: The bracket blocks any of the jacks on the back of your TV. You need TV wall-mount spacers. Go to STEP 6 - Install the soundbar mount on your TV on page 21.

Diagram showing screw installation process with battery, three circular components, and a separate cylindrical component (no text or symbols)

- Irregularly-shaped back: There is a gap between the brackets and some part of the back of your TV. You need TV wall-mount spacers. Go to STEP 6 - Install the soundbar mount on your TV on page 21.

Diagram showing screw fastening setup with three circular components and a separate cylindrical component (no text or symbols)

6 Remove the TV brackets.

STEP 6 - Install the soundbar mount on your TV You'll need

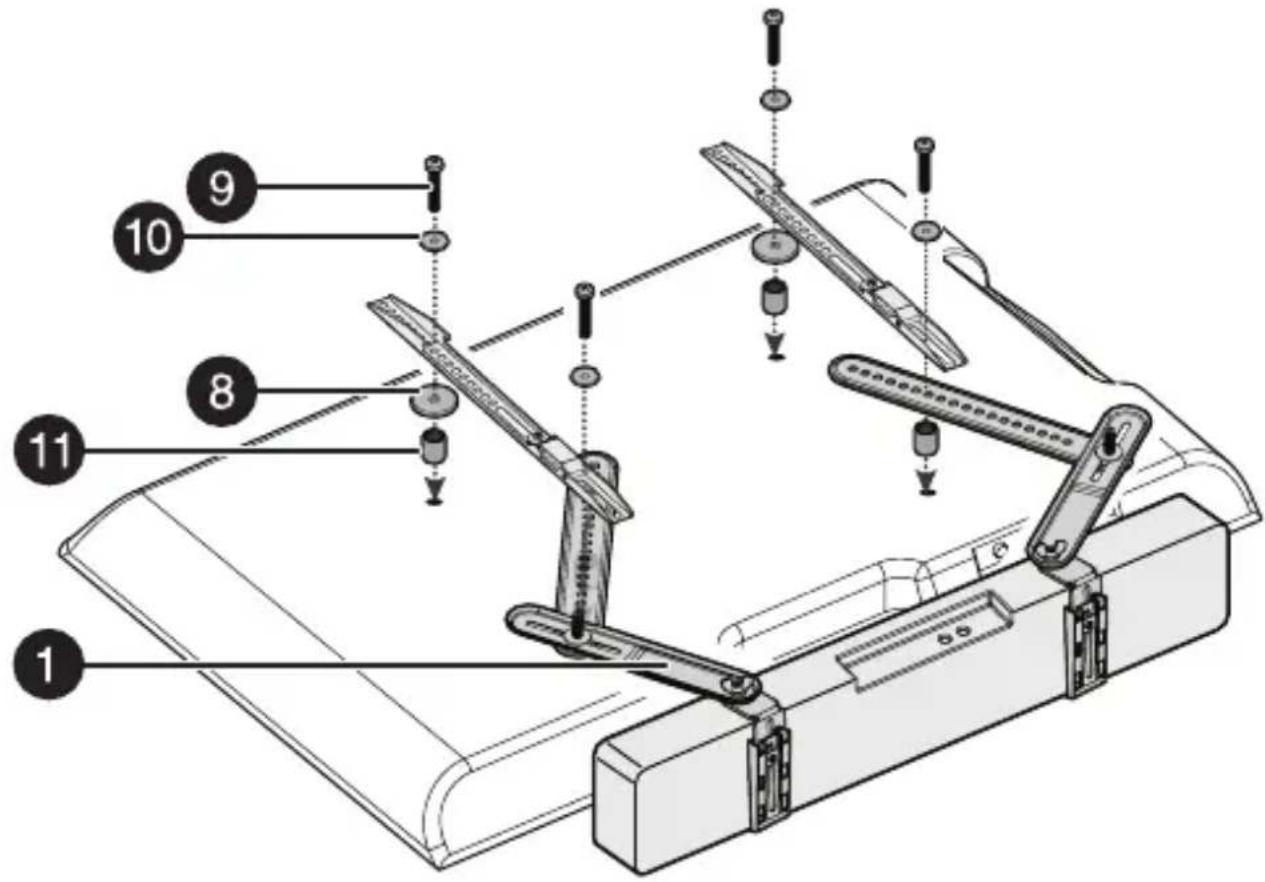

1 If your TV has a flat back, place the mount spacers (08) over the top mounting holes.

OR

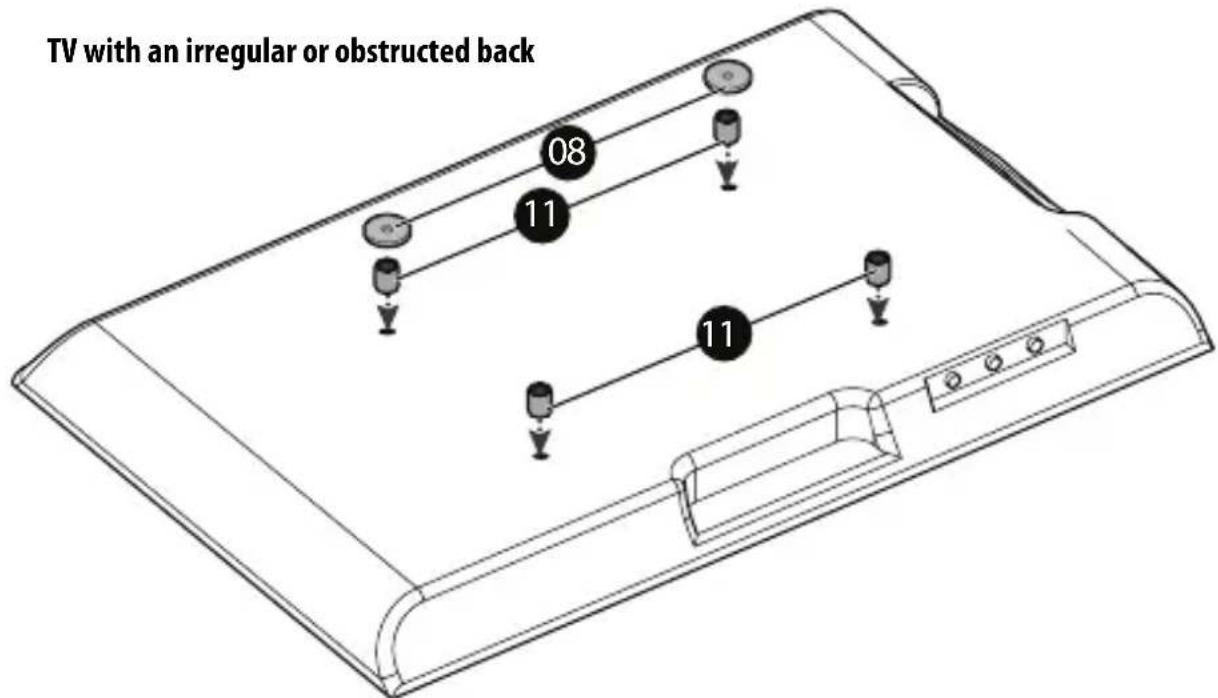

If your TV has an irregular or obstructed back, place the spacers (11) over your TV's mounting hole. Then place the mounting spacer (08) over your TV's top mounting holes.

2 If your TV has a flat back, center the soundbar bracket (01) over your TV's bottom mounting holes.

Center your TV mount bracket(s) on top of the mounting spacer (08) and the soundbar bracket (01). Secure the TV mount and soundbar mount to your TV using the correct size TV screws (09) and washers (10).

OR

If your TV has an irregular or obstructed back, center the soundbar bracket (01) over the spacers (11) at the bottom of your TV's mounting holes.

Center your TV mount bracket(s) on top of the mounting spacer (08), spacers (11), and the soundbar bracket (01). Secure the TV mount and soundbar mount to your TV using the supplied TV screws (09) and washers (10).

STEP 7 - Hang your TV

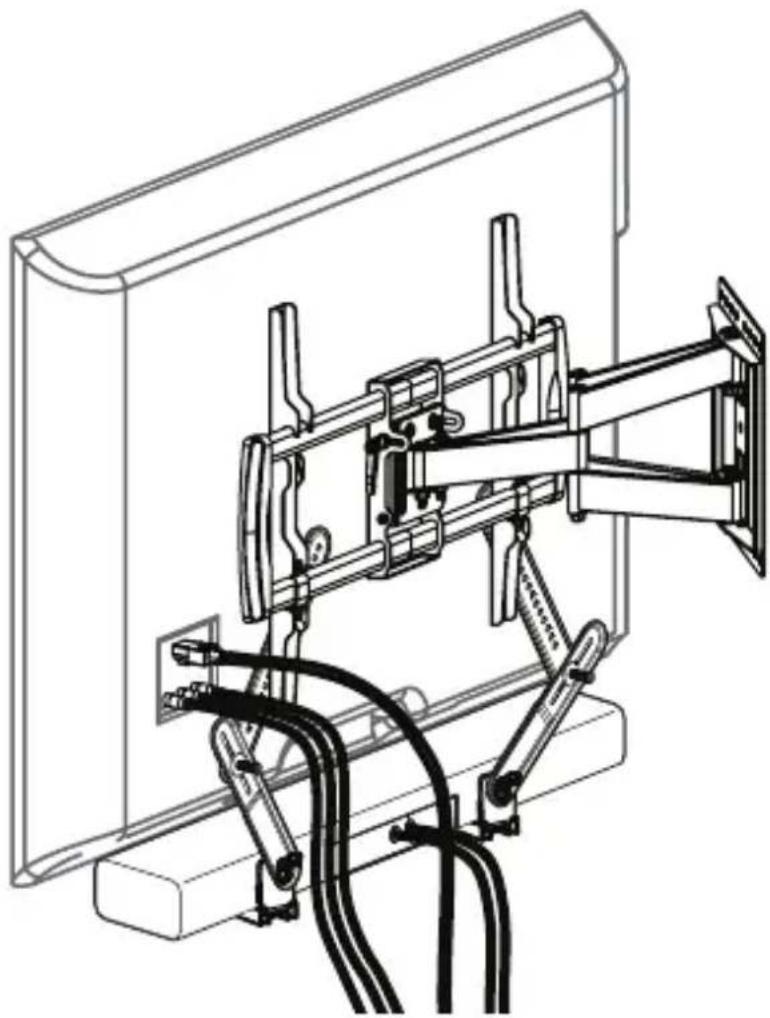

1 Follow the instructions in your TV wall mount installation manual to hang your TV assembly.

Technical line drawing of a mechanical assembly with cables and brackets (no text or symbols)

STEP 8 - Adjust the soundbar height (optional) You'll need

Note: Depending on the type of TV wall mount you have, you may need to remove your TV from the wall to adjust the soundbar height

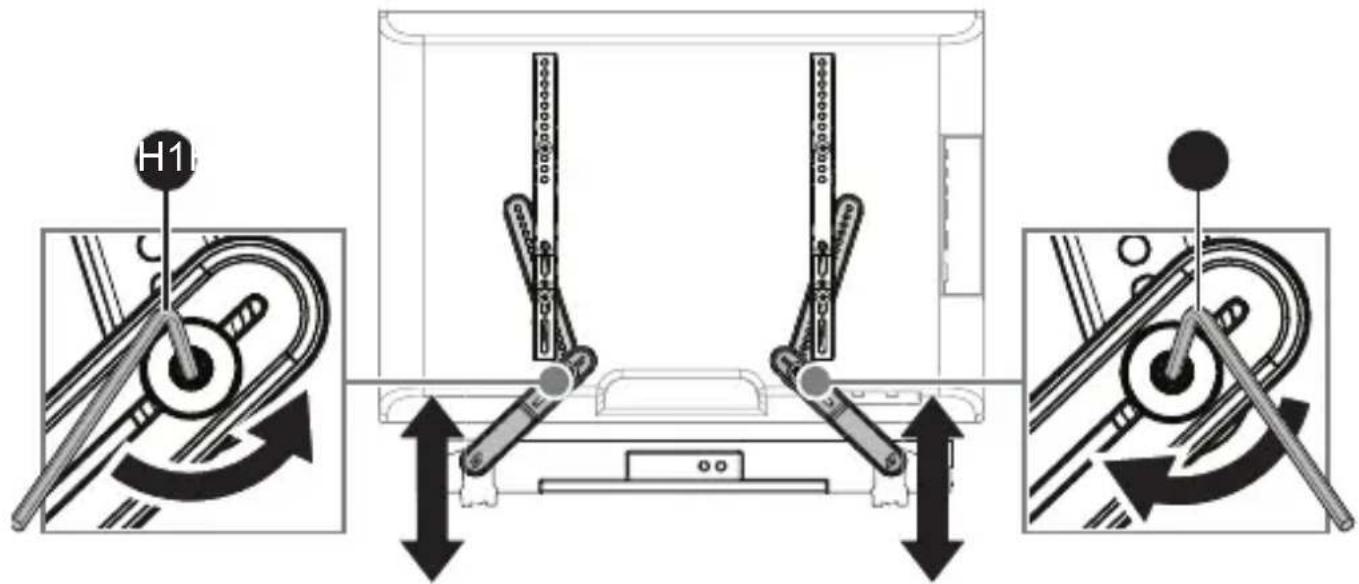

1 Use the Hex key (H1) on the back of the bracket to loosen the screws to adjust the height.

2 When you have it to the desired height, tighten the screws with the hex key (H1).

STEP 9 - Adjust the soundbar depth (optional) You'll need

1 Loosen the screws at the bottom of the bracket, then slide the soundbar support (02) in or out.

Technical diagram showing a mechanical assembly with directional arrows and a tool, no visible text or symbols

2 Tighten the screws when you finish adjusting the depth.

For customer service, call: 1-866-597-8427 (U.S. and Canada)

ONE-YEAR LIMITED WARRANTY

Definitions:

The Distributor* of Best Buy essentials branded products warrants to you, the original purchaser of this new Best Buy essentials-branded product ("Product"), that the Product shall be free of defects in the original manufacturer of the material or workmanship for a period of one (1) year from the date of your purchase of the Product ("Warranty Period").

For this warranty to apply, your Product must be purchased in the United States or Canada from a Best Buy branded retail store or online at www.bestbuy.comor www.bestbuy.ca and is packaged with this warranty statement.

How long does the coverage last?

The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. Your purchase date is printed on the receipt you received with the Product.

What does this warranty cover?

During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Best Buy essentials repair center or store personnel, Best Buy essentials will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Best Buy essentials and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Best Buy essentials Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.

How to obtain warranty service?

If you purchased the Product at a Best Buy retail store location or from a Best Buy online website (www.bestbuy.com or www.bestbuy.ca), please take your original receipt and the Product to any Best Buy store. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging.

To obtain warranty service, in the United States and Canada call 1-866-597-8427. Call agents may diagnose and correct the issue over the phone.

Where is the warranty valid?

This warranty is valid only in the United States and Canada at Best Buy branded retail stores or websites to the original purchaser of the product in the country where the original purchase was made.

What does the warranty not cover?

This warranty does not cover:

- Customer instruction/education

- Installation

- Setup padjustmen

- Cosmetic damage

- Damage due to weather, lightning, and other acts of God, such as power surges

- Accidental damage

- Misuse

- A b u s e

- Negligence

- Commercial purposes/use, including but not limited to use in a place of business or in communal areas of a multiple dwelling condominium or apartment complex, or otherwise used in a place of other than a private home.

- Modification of any part of the Product, including the antenna

- Display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).

- Damage due to incorrect operation or maintenance

- Connection to an incorrect voltage or power supply

- Attempted repair by any person not authorized by Best Buy essentials to service the Product

- Products sold "as is" or "with all faults"

- Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.)

- Products where the factory applied serial number has been altered or removed

- Loss or Theft of this product or any part of the product

- Display panels containing up to three (3) pixel failures (dots that are dark or incorrectly illuminated) grouped in an area smaller than one tenth (1/10) of the display size or up to five (5) pixel failures throughout the display. (Pixel based displays may contain a limited number of pixels that may not function normally.)

- Failures or Damage caused by any contact including but not limited to liquids, gels or pastes.

REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. Best Buy essentials SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. Best Buy essentials PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NOW WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

Contact Best Buy essentials:

1-866-597-8427

www.bestbuy.com/bestbuyessentials

Best Buy essentials is a trademark of Best Buy and its affiliated companies.

* Distributed by Best Buy Purchasing, LLC

7601 Penn Ave South, Richfield, MN 55423 U.S.A.

©2021 Best Buy. All rights reserved.

ESPAÑOL

Technical drawing of a bolt with threaded body and circular end (no text or symbols)

Technical line drawing of a mechanical device with a tool and rotating component (no text or symbols)

Diagram showing a mechanical assembly with a curved component and directional arrows, no text or symbols present.

Diagram of a device panel with an arrow indicating assembly or connection, showing internal components and external structure (no text or symbols present)

Technical line drawing of a mechanical assembly with mounting holes and a central bracket (no text or symbols)

Two technical diagrams showing a table with mechanical components and directional arrows, no text or symbols present.

Technical line drawing of a mechanical assembly with two vertical supports and a checkmark (no text or symbols)

Technical line drawing of a mechanical assembly with two vertical supports and a checkmark (no text or symbols)

Technical diagram of a mechanical assembly with two vertical supports and a cross mark symbol (no text or labels)

Simple line drawing of a hand holding a rectangular object (no text or symbols)

Diagram showing screw installation components and a magnified view of a cylindrical component (no text or symbols)

Diagram showing screw installation setup with two screws, a ruler, and a cylindrical component (no text or symbols)

0

PASO 7 - Cuelgue su televisor

Technical line drawing of a mechanical assembly with cables and brackets (no text or symbols)

Technical diagram showing a mechanical assembly with directional arrows and a tool, no visible text or symbols

www.bestbuy.com/bestbuyessentials

For product inquiries, please contact us with the information below: 1-866-597-8427

www.bestbuy.com/bestbuyessentials Best Buy essentials is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2021 Best Buy. All rights reserved.
