Product Type	Speaker Stand
Brand	Best Buy
Model	BE-SBM110
Dimensions (H x W x D)	36 x 12 x 14 inches (approx.)
Weight	12 lbs (each)
Load Capacity	50 lbs per stand
Material	Steel and MDF
Height Adjustment	Fixed height
Base Type	Rectangular steel base with rubber feet
Cable Management	Built-in cable channels
Assembly Required	Yes, tools included
Color	Black
Warranty	1 year limited
Recommended Speaker Size	Up to 8 inches (bookshelf speakers)
Mounting Plate Size	6 x 6 inches
Package Includes	2 stands, hardware, and manual
Care Instructions	Wipe with dry cloth; avoid liquids
Safety Feature	Anti-slip pads and stability straps

Frequently Asked Questions - BE-SBM110 Best Buy

What is the weight capacity of the BE-SBM110 speaker stand?

Each stand supports up to 50 lbs (22.7 kg). Always ensure your speaker does not exceed this limit.

Is assembly required for this stand?

Yes, some assembly is needed. The package includes all necessary tools and hardware, and the manual provides step-by-step instructions.

Can I adjust the height of the stand?

No, the BE-SBM110 has a fixed height of 36 inches (91 cm). It is designed for optimal listening at ear level when seated.

What size speakers will fit on this stand?

The mounting plate measures 6x6 inches, suitable for most bookshelf speakers up to 8 inches in width. Check your speaker's dimensions before purchase.

Does the stand have cable management?

Yes, it features built-in cable channels to route wires neatly down the stand, keeping your setup tidy.

Are the stands sold as a pair?

Yes, the package includes two stands for a stereo pair of speakers.

How do I clean the speaker stand?

Use a dry, soft cloth to remove dust. Avoid any liquids or harsh chemicals that could damage the finish.

Can I use this stand with soundbars?

The stand is designed for bookshelf speakers, but you could place a soundbar on top if it fits the 6x6 plate. However, stability is not guaranteed for larger soundbars.

What is the warranty on the BE-SBM110?

Best Buy offers a 1-year limited warranty against defects in materials and workmanship.

How do I prevent the stand from tipping over?

The stand has anti-slip rubber feet on the base. For added safety, you can use the included stability straps to secure the stand to the floor or wall.

USER MANUAL BE-SBM110 Best Buy

Technical line drawing of two battery compartments with slots and mounting holes (no text or symbols)

BEST BUY essentials

BEST BUY essentials

Contents

IMPORTANT SAFETY INSTRUCTIONS.... 3

Tools needed....4

Package contents. 4

Parts 4

Preparing for the installation. 6

Installation instructions 6

STEP 1 - Determining the bracket location....6

STEP 2 - Installing the soundbar brackets. 10

STEP 3 - Installing your soundbar ..... 13

ONE-YEAR LIMITED WARRANTY 17

Contenido

IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS

CAUTION: Do not use this product for any purpose not explicitly specified by Best Buy essentials.

- Improper installation may cause property damage or personal injury. If you do not understand these directions, or have doubts about the safety of the installation, contact Customer Service or call a qualified contractor. Best Buy is not responsible for damage or injury caused by incorrect installation or use.

- This product contains small items that could be a choking hazard if swallowed. Keep these items away from young children!

Weight restrictions

Make sure that the weight does not exceed 20 lbs. (9 kg).

CAUTION: Avoid potential personal injuries and property damage!

Tools needed

You need the following tools to assemble your new soundbar bracket:

Wood Stud Install

Drywall Install

Package contents

Parts

Make sure that you have all the parts and hardware necessary to assemble your new soundbar bracket:

Simple line drawing of a mechanical component or bracket (no text or symbols)

1 Soundbar brackets (2)

LABEL HARDWARE QUANTITY
2	Lag screw	4
3	Anchor	4
4	M4 × 10 mm screw	2
4	M4 × 16 mm screw	2
4	M5 × 16 mm screw	2
4	M6 × 16 mm screw	2
5	M4/M5 washer	2
5	M6/M8 washer	2

Preparing for the installation

- Look at the mounting holes on the back or bottom of your soundbar to determine which method you need to use.

Bottom mounted (threaded inserts)

Shelf-style (no threaded inserts)

Technical line drawing of a mechanical assembly with two components and a numbered label (1), no readable text or symbols present.

Installation instructions

STEP 1 - Determining the bracket location

You'll need

Simple line drawing of a device with a lid and base (no text or symbols)

1 Soundbar brackets (2)

Determining the height of the mounting brackets

Note: We suggest that you check the documentation that came with your soundbar for the recommended distance from the TV to the soundbar.

1 If your TV is already mounted on the wall, measure down from the bottom of the TV to where you want the top of the soundbar, then measure down the height of the soundbar. This should be the height of the bottom of the mounting brackets (1).

OR

If your TV isn't mounted on the wall, determine where the bottom of your TV will be when mounted, then measure as indicated in Step 1.

2 Measure the distance of the soundbar bracket mounting holes from the bottom of the soundbar bracket (1). This should be the height of the mounting holes. Mark this with a pencil.

3 Use a level to mark a corresponding hole for the other mounting bracket (1).

Determining the width between the mounting brackets

1 If the soundbar mounting brackets (1) will be mounted to the soundbar on the bottom with threaded inserts, measure the distance between the threaded inserts.

OR

2 If the soundbar will be mounted shelf-style, measure in from the edges of the soundbar (centered under the TV) two to five inches.

Bottom mounted (threaded inserts)

Simple line drawing of a rectangular container with a small circular component and a vertical rod, connected by a wire (no text or symbols)

Threaded hole

Shelf-style (no threaded inserts)

Mounting bracket (1)

Diagram of a mechanical assembly with two rotating components and a warning symbol (no text or labels)

Triangular holes 2" to 5" in from the edges of the soundbar

3 Mark this distance on the wall with a pencil at the height previously measured, centered under the TV.
4 Center the triangular holes in the two mounting brackets (1) on these marks, then mark the mounting holes with a pencil. Be sure the marks are level.

STEP 2 - Installing the soundbar brackets You'll need

Simple line drawing of a handheld electric drill (no text or symbols)

Drill

1/8 in. (3.2 mm) drill bit

Phillips screwdriver

3/8 in. (10 mm) drill bit

2 Lag screw (4)

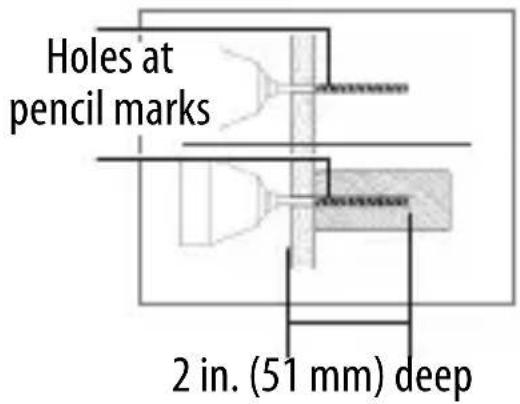

1 Drill test holes on the pencil marks with the 1/8 in. drill bit.

Technical line drawing of a mechanical arm or robotic device with no visible text or symbols

2 If you hit drywall only in any of the holes, re-drill those holes with the 3/8 in. drill bit and insert anchors (3) in each of the holes, then go to STEP 3 below.

Note: Fold the "wings" of the anchors forward as shown below, so that they expand when pushed through the wallboard.

OR

If you hit a wood stud in any of the holes, go to STEP 3 below.

3 Secure the mounting brackets (1) with lag screws (2).

STEP 3 - Installing your soundbar You'll need

Screws (4)

OR

Washers (5)

OR

1 Loosen the screws on the bottom of the mounting brackets (1) and pull the front of the mounting brackets out.

Technical diagram showing two mechanical components with directional arrows, one being inserted into a housing, and the other assembled in a post assembly (no text or symbols present)

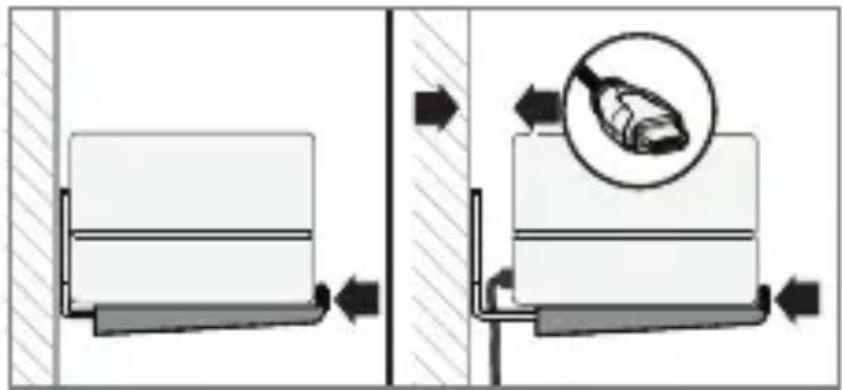

2 Connect the necessary cables to the back of your soundbar, then place your soundbar on the mounting brackets (1).

Pure electrical circuit lines without any symbols

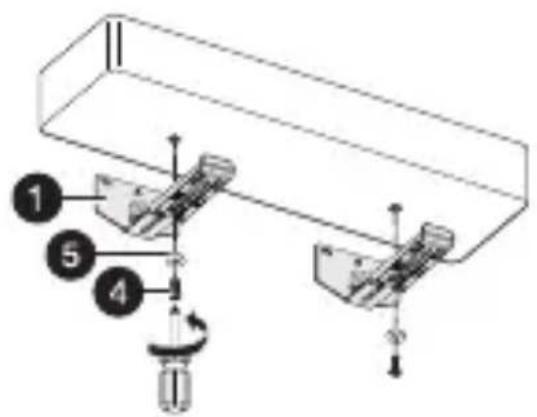

3 If your soundbar is bottom mounted (with threaded inserts), you can (optionally) install the correct sized mounting screws (4) through washers (5), into the threaded holes. Snug the screws.

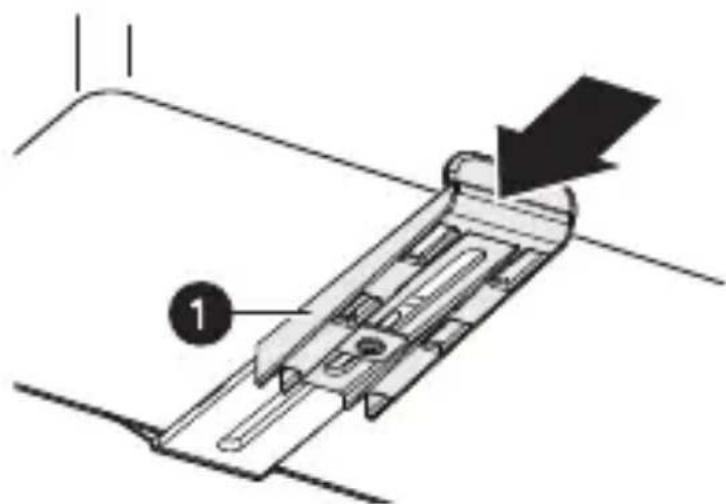

4 Adjust the front portion of the mounting brackets (1) so that they contact the front of your soundbar.

CAUTION: Take care not to crimp the cables on the back of your soundbar. You could damage them.

5 Adjust the mounting brackets (1) so that the bracket extends for the whole width of the soundbar, then tighten the adjustment screws with a Phillips screwdriver.

Mechanical assembly diagram showing a tool interacting with a component, no text or symbols present

6 Tighten the screws on the bottom of the mounting brackets (1).

For customer service, call: 1-866-597-8427 (U.S. and Canada)

ONE-YEAR LIMITED WARRANTY

Definitions:

The Distributor* of Best Buy essentials branded products warrants to you, the original purchaser of this new Best Buy essentials-branded product ("Product"), that the Product shall be free of defects in the original manufacturer of the material or workmanship for a period of one (1) year from the date of your purchase of the Product ("Warranty Period").

For this warranty to apply, your Product must be purchased in the United States or Canada from a Best Buy branded retail store or online at www.bestbuy.com or www.bestbuy.ca and is packaged with this warranty statement.

How long does the coverage last?

The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. Your purchase date is printed on the receipt you received with the Product.

What does this warranty cover?

During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Best Buy essentials repair center or store personnel, Best Buy essentials will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Best Buy essentials and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Best Buy essentials Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.

How to obtain warranty service?

If you purchased the Product at a Best Buy retail store location or from a Best Buy online website (www.bestbuy.com or www.bestbuy.ca), please take your original receipt and the Product to any Best Buy store. Make sure that you place

the Product in its original packaging or packaging that provides the same amount of protection as the original packaging.

To obtain warranty service, in the United States and Canada call 1-866-597-8427. Call agents may diagnose and correct the issue over the phone.

Where is the warranty valid?

This warranty is valid only in the United States and Canada at Best Buy branded retail stores or websites to the original purchaser of the product in the country where the original purchase was made.

What does the warranty not cover?

This warranty does not cover:

• Customer instruction/education
• Installation
• Set up adjustments
• Cosmetic damage
• Damage due to weather, lightning, and other acts of God, such as power surges
• Accidental damage
• M i s u s e
• Abuse
• Negligence
• Commercial purposes/use, including but not limited to use in a place of business or in communal areas of a multiple dwelling condominium or apartment complex, or otherwise used in a place of other than a private home.
• Modification of any part of the Product, including the antenna
• Display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).

• Damage due to incorrect operation or maintenance

• Connection to an incorrect voltage or power supply

• Attempted repair by any person not authorized by Best Buy essentials to service the Product
• Products sold "as is" or "with all faults"
• Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.)
• Products where the factory applied serial number has been altered or removed
• Loss or Theft of this product or any part of the product
• Display panels containing up to three (3) pixel failures (dots that are dark or incorrectly illuminated) grouped in an area smaller than one tenth (1/10) of the display size or up to five (5) pixel failures throughout the display. (Pixel based displays may contain a limited number of pixels that may not function normally.)
• Failures or Damage caused by any contact including but not limited to liquids, gels or pastes.

REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. Best Buy essentials SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. Best Buy essentials PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

Contact Best Buy essentials:

1-866-597-8427

www.bestbuy.com/bestbuyessentials

Best Buy essentials is a trademark of Best Buy and its affiliated companies.

* Distributed by Best Buy Purchasing, LLC

7601 Penn Ave South, Richfield, MN 55423 U.S.A.

©2021 Best Buy. All rights reserved.
