Altair 2 - Embroidery machine BABY LOCK - Free user manual and instructions

Product Type	Embroidery and sewing machine
Brand	Baby Lock
Model Number	Altair 2 (BLTA2)
Power Supply	AC 100-240V, 50/60Hz (polarized plug)
Display	7-inch color LCD touch screen with adjustable brightness
Connectivity	Wireless LAN (802.11 b/g/n), USB port for mouse and flash drive
Stitch Width	Up to 7 mm (9/32 inch)
Embroidery Area	36 cm x 24 cm (14 in x 9.5 in) with included frame; optional frames up to 30 cm x 20 cm
Embroidery Speed	Adjustable up to 650 stitches per minute (estimated)
Sewing Speed	Adjustable via sliding controller
Needle System	Home sewing needle (standard 130/705H); twin needle capable
Bobbin Type	Plastic Class 15 (A style), 11.5 mm
Automatic Features	Needle threader, thread cutter, presser foot lifter, bobbin winder, thread sensors

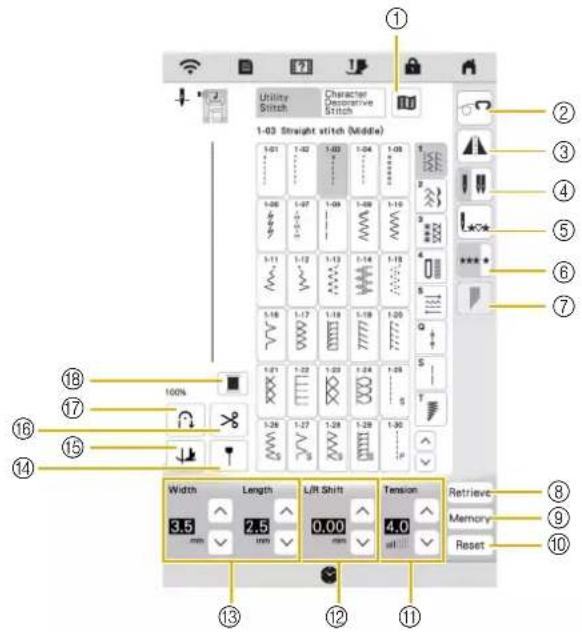

Stitch Patterns	Over 300 utility and decorative stitches, plus embroidery patterns and IQ Designer
Accessories Included	22 presser feet, 4 embroidery frames, spool stand, knee lifter, multi-purpose screwdriver, etc.
Dimensions (Machine)	Approximately 52 cm (W) x 38 cm (D) x 30 cm (H) (20.5 in x 15 in x 11.8 in)
Weight	Approximately 15 kg (33 lbs)
Warranty	Limited warranty; register at babylock.com
Safety Certifications	FCC Part 15 Class B, IC RSS, laser Class 1 (IEC 60825-1)

Frequently Asked Questions - Altair 2 BABY LOCK

How do I thread the needle automatically?

Press the automatic threading button located on the operation panel. First, raise the presser foot and turn the handwheel until the needle is at its highest position. Then, guide the upper thread through the thread guides and the needle bar thread guide, and press the automatic threading button. The machine will thread the needle automatically.

How do I wind the bobbin?

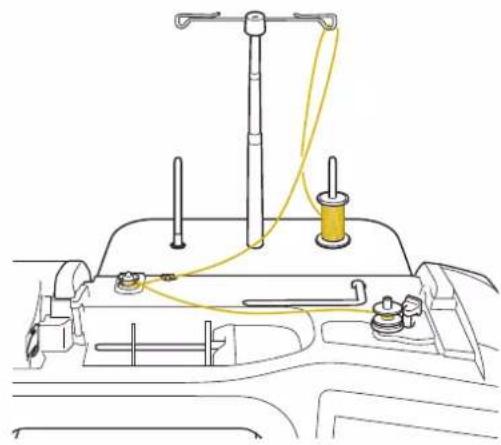

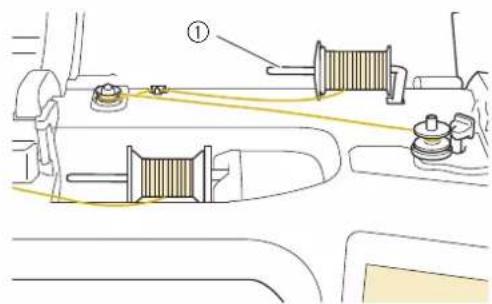

Place the thread spool on the supplemental spool pin, guide the thread through the pretension disk and wind it clockwise around the bobbin several times. Set the bobbin on the bobbin winder shaft, push the bobbin winding switch to the left, and touch Start on the screen. The machine will stop automatically when the bobbin is full.

How do I set up a wireless network connection?

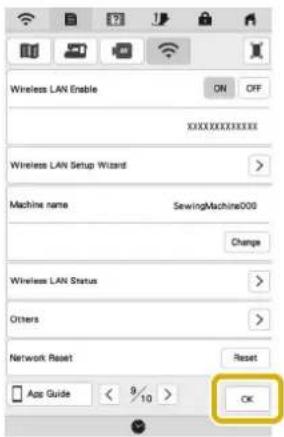

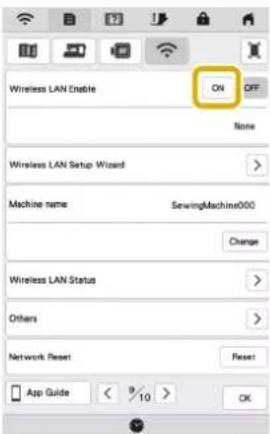

From the home screen, touch the Wireless LAN key and set Wireless LAN Enable to ON. Then touch Wireless LAN Setup Wizard and select your network SSID. Enter the network password using the on-screen keyboard, and touch OK. The machine will connect and display a confirmation message.

How do I embroider a pattern?

Attach the embroidery unit and the desired frame. Hoop the fabric with stabilizer. Select an embroidery pattern from the Embroidery key on the home screen. Adjust size and position if needed. Press the Start/Stop button to begin embroidering. The machine will stop automatically when the pattern is complete.

How do I clean the machine?

Turn off the machine and unplug it. Use a soft, dry cloth to clean the LCD screen and machine surface. Clean the race under the needle plate by removing the bobbin case and using the cleaning brush to remove lint. Do not use organic solvents or oil unless specified.

How do I change the needle?

Press the Presser foot/Needle exchange key on the screen to lock the machine. Loosen the needle clamp screw, remove the old needle, and insert a new needle with the flat side facing the back. Tighten the screw securely. Then unlock the screen by pressing the key again.

How do I use the IQ Designer?

Touch the IQ Designer key on the home screen. You can draw lines, regions, or use stamps to create original embroidery patterns. Use the Stitch Settings screen to adjust stitch type and density. Save the design and transfer it to the embroidery mode for stitching.

How do I adjust the thread tension?

During sewing or embroidery, touch the Thread tension key on the screen. Use the up/down arrows to adjust the upper thread tension (higher number = tighter). For bobbin tension, use the alternate bobbin case with no color on the screw. Refer to the manual for specific adjustments.

What should I do if the thread breaks during embroidery?

The machine will stop and display a message. Press the Start/Stop button to stop. Rethread the upper thread and rewind the bobbin if needed. Use the Needle position button to reposition the needle. Press Start/Stop again to resume. The machine will automatically backtrack a few stitches.

How do I update the machine software?

To update via USB: Download the update file from the Baby Lock website, copy it to a USB flash drive, insert the drive into the USB port, and go to Machine Settings > Wireless LAN Settings > Update. Follow the on-screen instructions. To update wirelessly, ensure the machine is connected to the internet and touch the update key.

USER MANUAL Altair 2 BABY LOCK

Decorative pillow with floral and vine patterns, placed on a woven fabric surface (no text or symbols)

baby lock

FOR THE LOVE OF SEWING

To register your machine warranty and receive Baby Lock product updates and offers, go to babylock.com/login. If you have questions about registration, visit your Authorized Baby Lock Retailer.

Baby Lock Consumer Helpline: 800-313-4110

www.BabyLock.com

INTRODUCTION

Thank you for purchasing this machine. Before using this machine, carefully read the "IMPORTANT SAFETY INSTRUCTIONS", and then study this manual for the correct operation of the various functions. In addition, after you have finished reading this manual, store it where it can quickly be accessed for future reference.

IMPORTANT SAFETY INSTRUCTIONS

Please read these safety instructions before attempting to use the machine.

⚠️DANGER

- To reduce the risk of electric shock

1 Always unplug the machine from the electrical outlet immediately after using, cleaning, making any user servicing adjustments mentioned in this manual, or if you are leaving the machine unattended.

WARNING

- To reduce the risk of burns, fire, electrical shock, or injury to persons.

2 Always unplug the machine from the electrical outlet, or when making any adjustments mentioned in the instruction manual.

• To unplug the machine, switch the machine to the symbol "O" position to turn it off, then grasp the plug and pull it out of the electrical outlet. Do not pull on the cord.
• Plug the machine directly into the electrical outlet. Do not use an extension cord.
• Always unplug your machine if there is a power failure.

3 Electrical Hazards:

• This machine should be connected to an AC power source within the range indicated on the rating label. Do not connect it to a DC power source or inverter. If you are not sure what kind of power source you have, contact a qualified electrician.
• This machine is approved for use in the country of purchase only.

4 Never operate this machine if it has a damaged cord or plug, if it is not working properly, has been dropped or damaged, or water is spilled on the unit. Return the machine to the nearest authorized Baby Lock retailer for examination, repair, electrical or mechanical adjustment.

• While the machine is stored or in use if you notice anything unusual, such as an odor, heat, discoloration or deformation, stop using the machine immediately and unplug the power cord.
• When transporting the machine, be sure to carry it by its handle. Lifting the machine by any other part may damage the machine or result in the machine falling, which could cause injuries.
• When lifting the machine, be careful not to make any sudden or careless movements, which may cause a personal injury.
  5 Always keep your work area clear:

- Never operate the machine with any air openings blocked. Keep ventilation openings of the machine and the foot controller free from the build up of lint, dust, and loose cloth.

- Do not store objects on the foot controller.

- Never drop or insert foreign object into any opening.

- Do not operate where aerosol (spray) products are being used or where oxygen is being administered.

- Do not use the machine near a heat source, such as a stove or iron; otherwise, the machine, power cord or garment being sewn may ignite, resulting in fire or an electric shock.

- Do not place this machine on an unstable surface, such as an unsteady or slanted table, otherwise the machine may fall, resulting in injuries.

6 Special care is required when sewing:

- Always pay close attention to the needle. Do not use bent or damaged needles.

- Keep fingers away from all moving parts. Special care is required around the machine needle.

- Switch the machine to the symbol "O" position to turn it off when making any adjustments in the needle area.

- Do not use a damaged or incorrect needle plate, as it could cause the needle to break.

- Do not push or pull the fabric when sewing, and follow careful instruction when free motion stitching so that you do not deflect the needle and cause it to break.

7 This machine is not a toy:

- Your close attention is necessary when the machine is used by or near children.

- This product contains small parts. Keep the product out of the reach of children to prevent accidental ingestion of small parts.

- The plastic bag that this machine was supplied in should be kept out of the reach of children or disposed of. Never allow children to play with the bag due to the danger of suffocation.

- Do not use the seam ripper in any other way than how it is intended.

- Do not use outdoors.

8 For a longer service life:

- When using and storing this machine, avoid direct sunlight and high humidity locations. Do not use or store the machine near a space heater, iron, halogen lamp, or other hot objects.

- Do not use cleansers or organic solvents, such as thinner, petroleum ether or alcohol, to clean the machine. Otherwise, the finish may peel off or become scratched.

- Always consult the Instruction and Reference Guide when replacing or installing any assemblies, the presser feet, needle, or other parts to assure correct installation.

9 For repair or adjustment:

- If the light unit is damaged, it must be replaced by an authorized Baby Lock retailer.

- In the event a malfunction occurs or adjustment is required, first follow the troubleshooting table in the back of the Instruction and Reference Guide to inspect and adjust the machine yourself. If the

problem persists, please consult your local authorized Baby Lock retailer.

Use this machine only for its intended use as described in the manual.

Use accessories recommended by the manufacturer as contained in this manual.

The contents of this manual and specifications of this product are subject to change without notice.

For additional product information and updates, visit our website at www.babylock.com

SAVE THESE INSTRUCTIONS This machine is intended for household use.

FOR USERS IN COUNTRIES EXCEPT EUROPEAN COUNTRIES

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

FOR USERS IN EUROPEAN COUNTRIES

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

FOR USERS IN THE UK, EIRE, MALTA AND CYPRUS ONLY

IMPORTANT

• In the event of replacing the plug fuse, use a fuse

approved by ASTA to BS 1362, i.e. carrying the mark, rating as marked on plug.

• Always replace the fuse cover. Never use plugs with the fuse cover omitted.

- If the available electrical outlet is not suitable for the plug supplied with this equipment, you should contact your authorized Baby Lock retailer to obtain the correct lead.

Federal Communications Commission (FCC) Supplier's Declaration of Conformity (For U.S.A. Only)

Responsible Party: Tacony Corporation

1760 Gilsinn Lane, Fenton,

Missouri 63026, U.S.A.

declares that the product

Product Name: Baby Lock Sewing Machine

Model Number: BLTA2

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the authorized Baby Lock retailer or an experienced radio/TV technician for help.
• This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

Important

Changes or modifications not expressly approved by Tacony Corporation could void the user's authority to operate the equipment.

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person's body.

For Users in Canada

This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions:

(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person's body.

For Users in Mexico

The operation of this equipment is subject to the following two conditions:

(1) it is possible that this equipment or device may not cause harmful interference, and
(2) this equipment or device must accept any interference, including interference that may cause undesired operation.

Laser Notices (For U.S.A. only)

Laser Safety

This sewing machine is certified as a Class 1 laser product under the U.S. Department of Health and Human Services (DHHS) Radiation Performance Standard according to the Radiation Control for Health and Safety Act of 1968. This means that the sewing machine does not produce hazardous laser radiation.

IEC 60825-1 Specification

This machine is a Class 1 laser product as defined in IEC 60825-1:2007 and IEC 60825-1:2014 specifications.

The laser beam emitted by the laser unit installed in this machine is restricted to an output at a safe level. However, the machine contains 6-milliwatt, 630-640 nanometer wavelength, 6-12 degree at parallel divergence angle, 28-40 degree at perpendicular divergence angle, InGaAlP laser diodes. Therefore, eye damage may result from disassembling or altering this machine.

Safety precautions have been designed to prevent any possible laser beam exposure to the operator.

FDA Regulations

U.S. Food and Drug Administration (FDA) has implemented regulations for laser products manufactured on and after August 2, 1976. Compliance is mandatory for products marketed in the United States. The label shown on the back of the sewing machine indicates compliance with the FDA regulations and must be attached to laser products marketed in the United States.

Tacony Corporation

1760 Gilsinn Lane, Fenton, Missouri 63026, U.S.A.

This product complies with FDA performance standards for laser products except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019.

CAUTION

- Use of controls, adjustments or the performance of procedures other than those specified in this manual may result in hazardous radiation exposure.

Laser Notices (For countries except U.S.A.)

IEC 60825-1 Specification

This machine is a Class 1 laser product as defined in IEC 60825-1:2007 and IEC 60825-1:2014 specifications.

The laser beam emitted by the laser unit installed in this machine is restricted to an output at a safe level. However, the machine contains 6-milliwatt, 630-640 nanometer wavelength, 6-12 degree at parallel divergence angle, 28-40 degree at perpendicular divergence angle, InGaAlP laser diodes. Therefore, eye damage may result from disassembling or altering this machine.

Safety precautions have been designed to prevent any possible laser beam exposure to the operator.

CAUTION

• This sewing machine has a Class 3B Laser Diode in the Laser Unit. The Laser Unit should not be opened under any circumstances.
• Use of controls, adjustments or the performance of procedures other than those specified in this manual may result in hazardous radiation exposure.

TRADEMARKS

IMPORTANT:

READ BEFORE DOWNLOADING, COPYING, INSTALLING OR USING.

By downloading, copying, installing or using the software you agree to this license. If you do not agree to this license, do not download, install, copy or use the software.

Intel License Agreement For Open Source Computer Vision Library

Copyright © 2000, Intel Corporation, all rights reserved. Third party copyrights are property of their respective owners.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistribution's of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistribution's in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• The name of Intel Corporation may not be used to endorse or promote products derived from this software without specific prior written permission.

This software is provided by the copyright holders and contributors “as is” and any express or implied warranties, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose are disclaimed. In no event shall Intel or contributors be liable for any direct, indirect, incidental, special, exemplary, or consequential damages (including, but not limited to, procurement of substitute goods or services; loss of use, data, or profits; or business interruption) however caused and on any theory of liability, whether in contract, strict liability, or tort (including negligence or otherwise) arising in any way out of the use of this software, even if advised of the possibility of such damage.

All information provided related to future Intel products and plans is preliminary and subject to change at any time, without notice.

WPA ^™ and WPA2 ^™ are trademarks of Wi-Fi Alliance ^® .

Any trade names and product names of companies appearing on Baby Lock products, related documents and any other materials are all trademarks or registered trademarks of those respective companies.

COPYRIGHT AND LICENSE

This product includes software developed by the following vendor: ©2008 Devicescape Software, Inc.

PRECAUTION FOR WIRELESS CONNECTION

Make sure you use a router or firewall when connecting your machine to the Internet to protect it against unauthorized access from the Internet.

CONTENTS

Chapter 1 GETTING READY 9

NAMES OF MACHINE PARTS...... 9

INCLUDED ACCESSORIES 11

Included Accessories 11

Options.... 15

Using the Multi-Purpose Screwdriver 17

Using the Spool Stand.... 17

Using the Machine Settings Key 25

Using the Machine Help 29

Using the Stitch Pattern Explanation Function 31

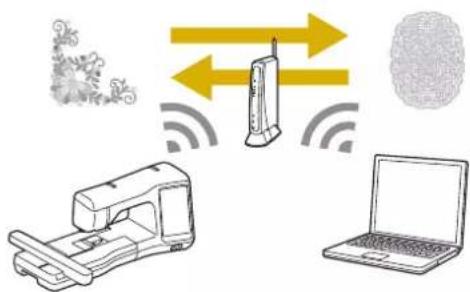

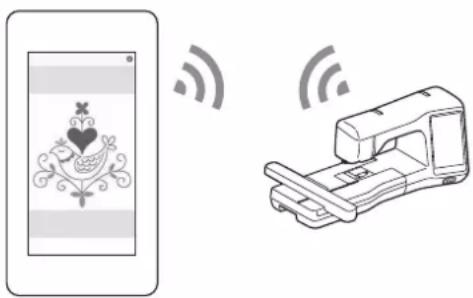

WIRELESS NETWORK CONNECTION FUNCTIONS... 31

Operations Available with a Wireless Network Connection ... 31

Enabling a Wireless Network Connection 32

Using the Wizard to Set Up the Wireless Network Connection ... 32

CONNECTING THE ACCESSORY TO THE

MACHINE 34

Using a USB Mouse 34

WINDING/INSTALLING THE BOBBIN...... 35

Winding the Bobbin.... 35

Setting the Bobbin.... 39

Pulling Up the Bobbin Thread.... 40

UPPER THREADING 41

Upper Threading.... 41

Using the Twin Needle Mode 43

Using the Spool Stand.... 45

CHANGING THE NEEDLE...... 46

FABRIC/THREAD/NEEDLE COMBINATIONS .... 48

CHANGING THE PRESSER FOOT 49

Replacing the Presser Foot 49

Attaching the Presser Foot with the Included Adapter ..... 49

Using the Compact Digital Dual Feed Foot 50

Chapter 2 SEWING BASICS 53

SEWING 53

Stitch Types 53

Basic Sewing.... 53

Using Advanced Multi-Function Foot Controller 55

Combining Stitch Patterns 57

Sewing Reverse Stitches/Reinforcement Stitches.... 59

Automatic Reverse/Reinforcement Stitching 59

Automatic Presser Foot Lowering Function and Thread Cutting

Function 61

STITCH SETTINGS.... 61

Setting the Stitch Width/Stitch Length/"L/R Shift".... 61

Setting the Thread Tension.... 62

Saving Your Stitch Settings 63

USEFUL FUNCTIONS.... 64

Automatic Thread Cutting 64

Adjusting the Needle Drop Point with the Guideline Marker... 64

Pivoting 65

Using the Knee Lifter.... 66

Automatic Fabric Sensor System (Automatic Presser Foot

Pressure) 66

Needle Position - Stitch Placement 66

Using the Straight Stitch Needle Plate and the Straight Stitch Foot... 67

USEFUL SEWING TIPS 68

Sewing Tips 68

Sewing Various Fabrics 69

Sewing Decorative Stitch Patterns 70

Chapter 3 VARIOUS STITCHES 71

UTILITY STITCHES 71

Straight Stitches.... 71

Zigzag Stitches.... 75

Overcasting....76

Quilting....77

Blind Hem Stitches....83

Shell Tuck Stitches 85

Scallop Stitches 85

Smocking Stitches 85

Fagoting 86

Attaching Tape or Elastic 86

Heirloom....87

One-Step Buttonholes 88

Four-Step Buttonholes 90

Bar Tacks 92

Button Sewing 93

Eyelet 94

Multi-directional Sewing (Straight Stitch and Zigzag Stitch) ... 95

Zipper Insertion.... 95

Changing the Start and End Angles of the Stitch Pattern (Stitch

Tapering Function) 97

MAKING ADJUSTMENTS 100

MAKING STEP STITCH PATTERNS (FOR 7MM

SATIN STITCH PATTERNS ONLY) 101

USING THE MEMORY FUNCTION ...... 102

Saving Stitch Patterns 102

Retrieving Stitch Patterns 102

Chapter 4 BASIC EMBROIDERY 105

Embroidery Step by Step.... 105

Attaching Embroidery Foot "W+" with LED Pointer 105

About the Embroidery Unit.... 106

SELECTING PATTERNS 107

Selecting Embroidery Patterns 108

Selecting Character Patterns 109

Selecting Frame Patterns.... 111

Combining Patterns 111

EDITING PATTERNS 113

Previewing the Pattern.... 115

Changing the Size and the Density of the Pattern 116

Creating Repeated Patterns.... 116

Embroidering the Pattern Repeatedly.... 120

Deselect Region Setting (No Sew Setting) 121

EDITING COLORS.... 122

Changing the Thread Color 122

Finding New Color Schemes with the Color Visualizer Function ... 123

Thread Color Sorting 125

VIEWING THE EMBROIDERY SCREEN...... 126

PREPARING THE FABRIC 128

Attaching Iron-on Stabilizers (Backing) to the Fabric..... 128

Hooping the Fabric in the Embroidery Frame 129

ATTACHING THE EMBROIDERY FRAME ..... 131

CONFIRMING THE PATTERN POSITION ..... 132

Checking the Needle Drop Point with the Embroidery Foot "W+"

with LED Pointer 132

Displaying a Background Image 133

Checking the Pattern Position.... 134

THE 2-POINT EMBROIDERY POSITIONING

FUNCTION.... 135

EMBROIDERING A PATTERN.... 139

Embroidering Attractive Finishes 139

Embroidering Patterns 140

If the Thread Breaks or the Bobbin Runs out of Thread During

Embroidering....143

Resuming Embroidery after Turning off the Power ..... 144

Chapter 5 ADVANCED EMBROIDERY 145

VARIOUS EMBROIDERING FUNCTIONS...... 145

Basting Embroidery 145

Creating an Appliqué Piece.... 146

MAKING EMBROIDERY ADJUSTMENTS ...... 149

Adjusting Thread Tension.... 149

Adjusting the Alternate Bobbin Case (with No Color on the Screw) 150

Using the Automatic Thread Cutting Function (End Color Trim).... 151

Using the Thread Trimming Function (Jump Stitch Trim) .... 152 Adjusting the Embroidery Speed.... 152

Changing the Thread Color Display.... 153
Aligning the Pattern and the Needle.... 153

Embroidering Linked Characters.... 154

USING THE MEMORY FUNCTION...... 155

Saving Embroidery Patterns 155

Retrieving Embroidery Patterns.... 156

EMBROIDERY APPLICATIONS...... 157

Using a Frame Pattern To Make an Appliqué.... 157 Embroidering Couching Patterns .... 158

Creating Stippling, Echo Quilting, or Decorative Fill Patterns around a Design.... 161

Embroidering Split Embroidery Patterns.... 162

Chapter 6 IQ DESIGNER 163

ABOUT IQ DESIGNER 163

PATTERN DRAWING SCREEN 163

Before Creating Designs 165

Drawing Lines 165

Drawing Regions.... 166

Using the Stamp Key 167

Using the Erase Key.... 168

Using the Select Key.... 168

STITCH SETTINGS SCREEN.... 169

Specifying Individual Stitch Settings 169

Specifying Global Stitch Settings 170

Loading the Background Image 171

LINE CONVERSION 172

Create a Pattern with Line Conversion.... 172

ILLUSTRATION CONVERSION...... 174

Create a Pattern with Illustration Conversion 174

STIPPLING.... 176

Basic Stippling with IQ Designer 176

Decorative Stitching around a Pattern in Embroidery (a Quilting Function) 178

IQ INTUITION- MONITORING APP .... 180

IQ INTUITION- POSITIONING APP...... 181

Chapter 7 APPENDIX 183

CARE AND MAINTENANCE.... 183

Cleaning the LCD.... 183

Cleaning the machine surface 183

Restrictions on Oiling.... 183

Precautions on Storing the Machine 183

Cleaning the Race 183

Cleaning the Bobbin Case 184

Cleaning the Cutter in the Bobbin Case Area.... 185

BEFORE LENDING OR DISPOSING OF THE

PRODUCT 185

ADJUSTING THE SCREEN.... 186

Touch Panel is Malfunctioning 186

TROUBLESHOOTING 186

Frequent Troubleshooting Topics 186

Upper Thread is Too Tight.... 186

Tangled Thread on Wrong Side of Fabric 187

Incorrect Thread Tension.... 187

Fabric is Caught in the Machine and Cannot Be Removed ... 188

If the Thread Becomes Tangled Under the Bobbin Winder Seat 189

List of Symptoms.... 190

ERROR MESSAGES.... 194

SPECIFICATIONS.... 196

UPDATING YOUR MACHINE'S SOFTWARE... 198

Update Procedure Using USB Media 198

Update Procedure Using Wireless LAN Connection ..... 198

STITCH SETTING CHART 199

INDEX...... 206

Chapter 1 GETTING READY

Note

- Be sure to install the latest software. Refer to "UPDATING YOUR MACHINE'S SOFTWARE" on page 198.

NAMES OF MACHINE PARTS

■ Main Parts

①Top cover

②Pretension disk (page 36)

③Thread guide for bobbin winding (page 36)

④Spool pin (page 41)

⑤Spool cap (page 35)

⑥Supplemental spool pin (page 35)

⑦Bobbin winder (page 35)

⑧LCD (liquid crystal display) (page 21)

⑨Speaker

⑩Knee lifter (page 66)

⑪Knee lifter slot (page 66)

⑫Operation buttons and sewing speed controller (page 10)

⑬ Flat bed attachment with accessory compartment (page 11)

⑭Thread cutter (page 42)

⑮Thread guide plate (page 38)

⑯ Connector for the presser foot (page 51, page 106)

⑰Handle

Carry the machine by its handle when transporting the machine.

⑱Presser foot lever

You cannot use the presser foot lever after the presser foot has been raised using (Presser foot lifter button).

⑲Air vent

The air vent allows the air surrounding the motor to circulate. Do not cover the air vent while the machine is being used.

⑳Main power switch (page 19)

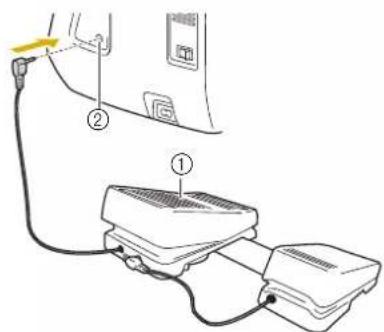

②1Foot controller (page 55)

②Power cord receptacle (page 19)

②3Foot controller jack (page 55)

②USB port for mouse (page 34)

⑲USB port

⑳Handwheel

Turn the handwheel toward you (counterclockwise) to raise and lower the needle.

■ Needle and Presser Foot Section

①Buttonhole lever (page 89)

② Presser foot holder screw (page 49, page 105)

③Presser foot holder (page 49)

④Presser foot locking pin (page 69)

⑤Presser foot

The presser foot consistently applies pressure to the fabric as sewing takes place. Attach the appropriate presser foot for the selected stitch.

⑥Feed dogs

The feed dogs feed the fabric in the sewing direction.

⑦Bobbin cover (page 39)

⑧Needle plate (page 72)

⑨Needle bar thread guide (page 42)

⑩Needle clamp screw (page 47)

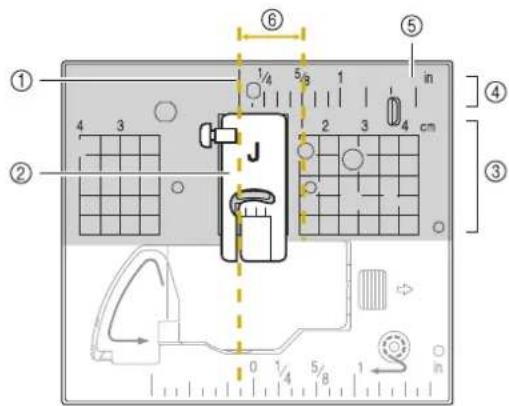

Measurements on the needle plate and the bobbin cover (with mark)

The measurements on the bobbin cover and needle plate are references for stitch patterns with a left or middle (center) needle position.

①For stitches with a middle (center) needle position
②For stitches with a left needle position
③Left needle position on the needle plate
④Left needle position on the needle plate
⑤Middle (center) needle position on the bobbin cover (with mark)
⑥Middle (center) needle position on the needle plate

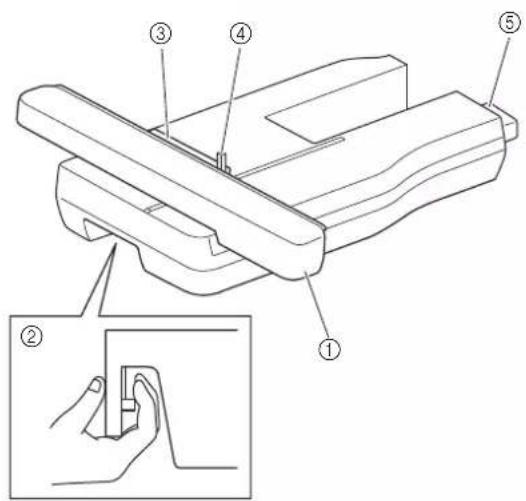

■ Embroidery unit

①Carriage
The carriage moves the embroidery frame automatically when embroidering.
②Release lever (located under the embroidery unit)
Press the release lever to remove the embroidery unit.
③Embroidery frame holder
Insert the embroidery frame into the embroidery frame holder to hold the frame in place.

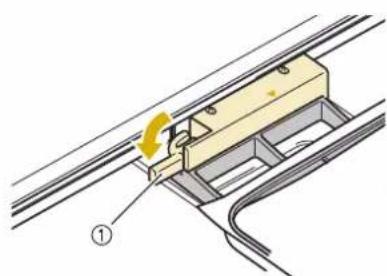

④Frame-securing lever
Press the frame-securing lever down to secure the embroidery frame.
⑤Embroidery unit connection
Insert the embroidery unit connection into the connection port when attaching the embroidery unit.

■ Operation Buttons

①"Start/Stop" button

Press the "Start/Stop" button to start or stop sewing. The button changes color according to the machine's operation mode.

Green: The machine is ready or is operating.

Red: The machine is not ready.

②Reverse stitch button

Press the reverse button to sew reverse or reinforcement stitches depending on the selected stitch pattern. (page 59)

③Reinforcement stitch button

Press the reinforcement button to sew a single stitch repeatedly and tie-off. (page 59)

For character/decorative stitches, press this button to end with a full stitch instead of at a mid-point.

The LED beside the button automatically lights up while the stitch is being sewn and goes off when sewing is finished.

④Needle position button

Press the needle position button to raise or lower the needle position. Pressing the button twice sews a single stitch.

⑤Thread cutter button

Press the thread cutter button after sewing to automatically trim the excess thread.

⑥Presser foot lifter button

Press the presser foot lifter button to lower the presser foot and apply pressure to the fabric. Press this button again to raise the presser foot.

⑦Sewing Speed controller

Use the sewing speed controller to adjust the sewing speed. Move the slide to the left to sew at slower speeds. Move the slide to the right to sew at higher speeds.

⑧Automatic threading button

Use the automatic threading button to automatically thread the needle.

INCLUDED ACCESSORIES

■ Using the Flat Bed Attachment

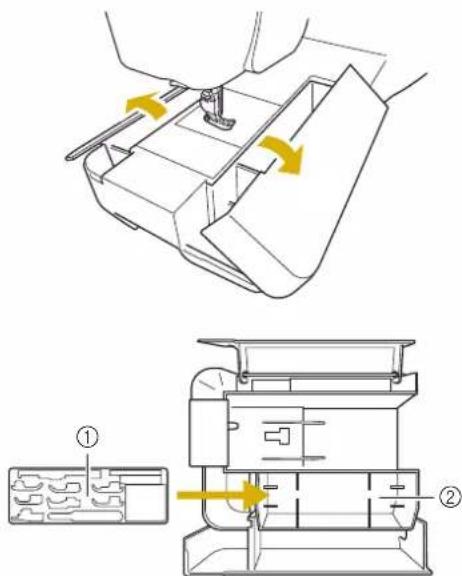

Pull the top of the flat bed attachment to open the accessory compartment.

①Presser foot storage tray
②Presser foot storage space of the flat bed attachment

■ Using the Accessory Case

□ Opening the accessory case

Fully slide the bar on each side of the accessory case to the unlocked position, and then lift off the lid to open the case.

The case can only be opened or locked correctly if both bars are slid in the same direction.

①Bars

□ Closing the accessory case

1 Fully slide the bar on each side of the accessory case lid to the unlocked position.

2 Place the lid on top of the case so that the notches in the lid align with the tabs on the case, and then slide the bar on each side back to the locked position.

Included Accessories

After opening the box, check that the following accessories are included. If any item is missing or damaged, contact your authorized Baby Lock retailer.

	Part Name
	Part Code
1.	Zigzag foot “J” (on machine)
	XF3022-001
2.	Advanced monogramming foot “N+”
	BLSA-MF
3.	Overcasting foot “G”
	XC3098-051
4.	Zipper foot “I”
	X59370-051
5.	Buttonhole foot “A”
	X57789-351
6.	Blind stitch foot “R”
	X56409-051
7.	Button fitting foot “M”
	130489-001
8.	Compact digital dual feed foot
	BLSA-DDF
9.	Regular sole for digital dual feed foot (on compact digital dual feed foot)
	XF4419-101
10.	Straight stitch foot
	XD0826-051
11.	Free motion open toe quilting foot “O”
	XF4873-001
12.	Free motion quilting foot “C”
	XF4737-001
13.	Free motion echo quilting foot “E”* Attach the included adapter (reference item #19) to use this product.
	XE0766-001
14.[ ]	Embroidery foot “W+” with LED pointer
	BLTY-EF
15.	1/4 Quilting foot with guide
	XC6800-251
16.	Embroidery couching foot “Y”
	XH1815-101

	Part Name
	Part Code
17.	Yarn guide for embroidery couching
	XH3803-001
18.	Yarn threader
	XF7187-001
19.	Adapter
	XF3613-001
20.	Screw (small)
	XA4813-051
21.	Needle set75/11 2 needles90/14 2 needles90/14 2 needles: Ball point needle (gold colored)
	XE4962-001
22.	Twin needle2/11 needle
	XE4963-001
23.	Ball point needle set75/11 2 needles:Ball point needle for embroidery
	XD0705-151
24.	Bobbin × 10 (One bobbin is in machine.)
	X52800-120
25.	Seam ripper
	XF4967-001
26.	Scissors
	XF2052-001
27.	Cleaning brush
	X59476-051
28.	Eyelet punch
	XG7791-001
29.	Screwdriver (small)
	X55468-051
30.	Screwdriver (large)
	XC4237-021
31.	Disc-shaped screwdriver
	XC1074-051
32.	Multi-purpose screwdriver
	BLMPD2
33.	Spool cap (small)
	130013-157
34.	Spool cap (medium) × 2 (One spool cap is on machine.)
	X55260-156
35.	Spool cap (large)
	130012-027
36.	Thread spool insert (mini king thread spool)
	XA5752-121

	Part Name
	Part Code
37.	Spool felt (on machine)
	X57045-051
38.	Spool net × 2
	XA5523-050
39.	Embroidery needle plate cover
	XE5131-001
40.	Touch pen (stylus)
	XA9940-051
41.	Knee lifter
	XA6941-052
42.	Advanced multi-function foot controller- Main foot controller- Side pedal- Mounting plate- Mounting screw × 2
	BLSA3-AMFC
43.	Standard bobbin case (green marking on the screw) (on machine)
	XE5342-101
44.	Alternate bobbin case (no color on the screw)
	XC8167-651
45.	Straight stitch needle plate
	D02LH8-001
46.	Cord guide bobbin cover
	XE5992-001
47.	Bobbin cover (with mark) (on machine)
	D02T27-001
48.	Bobbin cover (on straight stitch needle plate)
	D02T26-001
49.	Embroidery frame with decal set 36 cm (H) × 24 cm (W)(approx. 14 inches (H) × 9-1/2 inches (W))
	EF95S: FrameEF96: Embroidery sheet
50.	Embroidery frame with decal set 24 cm (H) × 24 cm (W)(approx. 9-1/2 inches (H) × 9-1/2 inches (W))
	EF97S: FrameEF98: Embroidery sheet
51.	Embroidery frame with decal set 18 cm (H) × 13 cm (W)(approx. 7 inches (H) × 5 inches (W))
	EF75S: FrameEF79: Embroidery sheet
52.	Embroidery frame with decal set 10 cm (H) × 10 cm (W)(approx. 4 inches (H) × 4 inches (W))
	EF74S: FrameEF78: Embroidery sheet
53.	Embroidery positioning sticker sheets × 4
	XE4912-501
54.	Lens calibration sheet
	XH4336-001
55.	Embroidery bobbin thread (#60, white)
	BBT-W
56.	Stabilizer material
	X81176-001

	Part Name
	Part Code
57.	Chalk pencil
	XE8568-001
58.	Bobbin center pin and instruction sheet
	XF5048-001
59.	Accessory case
	D02RM5-001
60.	Soft cover
	XG0717-001
61.	Power cord
	XC6052-121
62.*	Telescopic thread guide
	XE0776-001
63.*	Spool support
	XE4958-101
64.*	Spool pin x 2
	XA6313-051
65.*	Screw and washer
	XC7568-051Spool cap (XL) × 2
66.*
	XE0779-001
67.*	Spool holder × 2
	XA0679-050
68.*	Spool cap base × 2
	XE0780-001
69.*	Spool felt × 2
	XC7134-051
70.*	Ring × 4
	026030-136
71.	Instruction and Reference Guide
	D02M47-001
72.	Quick Reference Guide
	D02M4E-001

* For the spool stand

Memo

• (For U.S.A. only) Foot controller: Model X This foot controller can be used on the machine with product code 882-W74. The product code is mentioned on the machine rating plate.
• Please visit www.babylock.com to download the Embroidery Design Guide.

Options

The following are available as optional accessories to be purchased separately from your authorized Baby Lock retailer.

* These embroidery frames can be used for general embroidery but cannot be used with the application (IQ Intuition).

	Part Name
	Part Code
1.*	Embroidery frame set30 cm (H) × 20 cm (W)(approx. 12 inches (H) × 8 inches (W))
	EF92: FrameEF94: Embroidery sheet
2.*	Embroidery frame set20 cm (H) × 20 cm (W)(approx. 8 inches (H) × 8 inches (W))
	EF91: FrameEF93: Embroidery sheet
3.*	Embroidery frame set15 cm (H) × 15 cm (W)(approx. 6 inches (H) × 6 inches (W))
	BLMA-150
4.*	Embroidery frame set2 cm (H) × 6 cm (W)(approx. 1 inch (H) × 2-1/2 inches (W))
	EF73: FrameEF77: Embroidery sheet
5.*	Border embroidery frame30 cm (H) × 10 cm (W)(approx. 12 inches (H) × 4 inches (W))
	BLMA-CBH
6.	Magnetic frame300 mm (H) × 180 mm (W)(approx. 12 inches (H) × 7 inches (W))
	EMF300
7.	Magnetic frame 18 cm (H) × 13 cm (W)(approx. 7 inches (H) × 5 inches (W))
	EMF180
8.	Magnifying lens
	BLMA-ML
9.	10 spool stand
	BLMA-TS
10.	Extension table
	BLMA-ET
11.	Embroidery bobbin thread (#60, black)
	BBT-B
12.	Embroidery foot “W”
	XF4012-101
13.	Seam guide
	BLG-SG
14.	Walking foot
	BLG-WF
15.	Dynamic walking foot set* Includes standard and open toe soles.
	BLSA-WF
16.	Interchangeable sole set for Dynamic walking foot* Includes 1/4-inch sole, stitch-in-the-ditch sole, and quilting guide.
	BLSA-WFS
17.	Quilting guide
	BLG-QG
18.	Side cutter foot
	BLG-SCF

	Part Name
	Part Code
19.	Free-motion quilting foot
	BLG-FM
20.	Circular sewing attachment
	BL-CSA
21.	Edge Joining foot
	ESG-EJF
22.	Open toe sole for dual feed foot
	BLTY-OTDF
23.	Stitch in the ditch sole for dual feed foot
	BLDY-SDDF
24.	1/4" Sole with guide for dual feed foot
	BLDY-QFDF
25.	Couching foot
	BLTY-CCF

Memo

• To obtain optional accessories or parts, contact your authorized Baby Lock retailer or visit our site www.babylock.com.
- All specifications are correct at the time of printing. Please be aware that some specifications may change without notice.
- A variety of feet are available to enable different types of stitching and finishes. Visit your nearest authorized Baby Lock retailer or our site www.babylock.com for a complete listing of optional accessories available for your machine.
• Always use accessories recommended for this machine.

Using the Multi-Purpose Screwdriver

Since the screwdriver can be changed to three different positions, it can be extremely useful for the various machine preparations. With this machine, position "1" and position "3" are used.

Position “1” You can install/remove the presser foot holder, needle clamp screw or needle plate.

Position “3” The multi-purpose screwdriver can be positioned over the screw on the embroidery frame to tighten the screw after hooping the fabric or when removing the fabric.

Using the Spool Stand

The included spool stand is useful when using thread spools with a large diameter (cross-wound thread). The spool stand can hold two spools of thread.

No.	Part Name
1	Telescopic thread guide
2	Spool support
3	Spool pin × 2
4	Screw and washer
5	Spool cap (XL) × 2
6	S p o o l h o l d e r × 2
7	Spool cap base × 2
8	S p o o l f e l t × 2
9	R i n g × 4

IMPORTANT

• Do not lift the handle of the machine while the spool stand is installed.
• Do not push or pull the telescopic thread guide or spool pins with extreme force, otherwise damage may result.
• Do not place any object other than spools of thread on the spool support.
• Do not try to wind thread on the bobbin while sewing using the spool stand.

■ How to Assemble the Spool Stand

Fully extend the telescopic thread guide shaft, and then rotate the shaft until the two internal stoppers click into place.

2 Insert the telescopic thread guide into the round hole at the center of the spool support, and then use a screwdriver to securely tighten the screw from the reverse side.

Technical line drawing of a mechanical device with a vertical rod and base plate, showing directional arrows (no text or symbols)

①Screw

Note

- Make sure that the stoppers on the telescopic thread guide shaft are firmly in place and that the thread guide openings are directly above the two holes for spool pins in the spool support. In addition, check that the shaft is securely tightened in the spool support.

3 Firmly insert the two spool pins into the two holes in the spool support.

Diagram of a mechanical device with two vertical supports and a central vertical rod, showing directional arrows (no text or symbols)

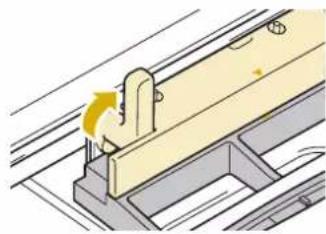

4 Open the upper cover of the machine, and then pull the upper cover up to remove it from the machine.

Technical line drawing of a mechanical device with yellow directional arrows indicating movement or force (no text or symbols)

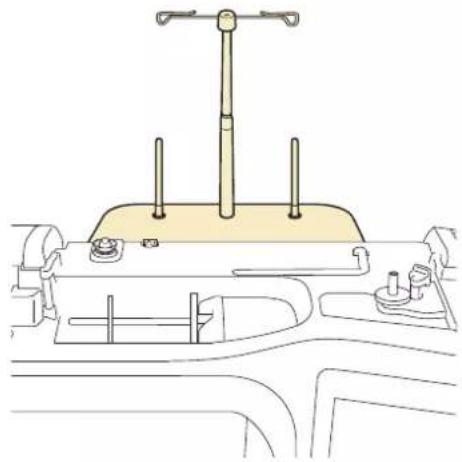

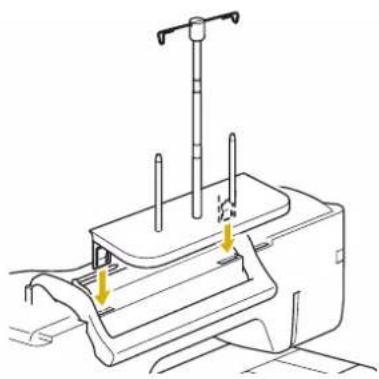

5 Insert the spool stand onto the notches of the machine.

Technical line drawing of a printer with spool and handle (no text or symbols)

How To Remove

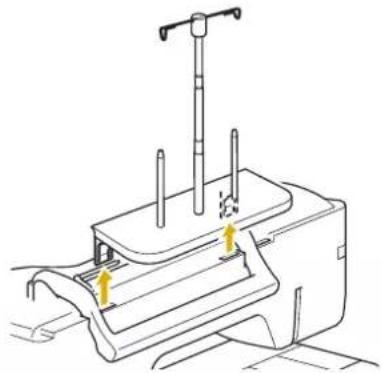

1 Pull the spool stand up to remove it from the machine.

Diagram of a printer with three vertical pins and a handle, showing internal structure without any text or symbols.

2 Attach the upper cover to the machine.

Technical line drawing of a mechanical device with no visible text or symbols

• Use only regular household electricity for the power source. Using other power sources may result in fire, electric shock, or damage to the machine.
• Do not touch the plug with wet hands. Electric shock may result.
• Make sure that the plugs on the power cord are firmly inserted into the electrical outlet and the power cord receptacle on the machine. Otherwise, a fire or electric shock may result.

• Turn the main power to OFF and remove the plug in the following circumstances:

• When you are away from the machine
  • After using the machine

• When the power fails during use
• When the machine does not operate correctly due to a bad connection or a disconnection
  • During electrical storms

CAUTION

• Use only the power cord included with this machine.
• Do not use extension cords or multi-plug adapters with many other appliances plugged in to them. Fire or electric shock may result.
• When unplugging the machine, always turn the main power to OFF first. Always grasp the plug to remove it from the outlet. Pulling on the cord may damage the cord, or lead to fire or electric shock.
• Do not allow the power cord to be cut, damaged, modified, forcefully bent, pulled, twisted, or bundled. Do not place heavy objects on the cord. Do not subject the cord to heat. These things may damage the cord, or cause fire or electric shock. If the cord or plug is damaged, take the machine to your authorized Baby Lock retailer for repairs before continuing use.
• Unplug the power cord if the machine is not to be used for a long period of time. Otherwise, a fire may result.

• ( For U . S . A only )

This appliance has a polarized plug (one blade wider than the other). To reduce the risk of electrical shock, this plug is intended to fit in a polarized electrical outlet only one way. If the plug does not fit fully in the electrical outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper electrical outlet. Do not modify the plug in any way.

1 Insert the power supply cord into the power cord receptacle, then insert the plug into a wall outlet.

①Main power switch
②Power supply cord

2 Turn the main power switch to "I" to turn on the machine.

Memo

- The light, LCD and the "Start/Stop" button light up when the machine is turned on. The machine will make a sound. This is not a malfunction.

3 When the machine is turned on, the opening movie is played. Touch anywhere on the screen.
4 Turn the main power switch to "O" to turn off the machine.

■ Setting Your Machine for the First Time

When you first turn on the machine, set the language and time/date to your language and local time/date.

1 Touch and to set your local language and then

touch OK.

2 The message screen, confirming if you want to set time/date, appears. Touch . OK

3 Touch or to set time/date. And then touch OK.

①Select [ON] to display time/date on the screen.
②Touch or to select the date display format.
③ Set the year (YYYY), month (MM) and date (DD).
④Select whether 24h or 12h setting will display.
⑤Set the current time.

→ The clock starts from 0 second of the time you set.

Memo

- The time/date you set may be cleared, if you don't turn on the machine for an extended period of time.

4 The following message about a wireless LAN connection appears. To set up a connection, touch

OK, and then refer to steps 3 through 6 in "Using the Wizard to Set Up the Wireless Network Connection" on page 32 to finish setting up a wireless LAN connection.

LCD SCREEN

Touch the LCD screen or a key with your finger or the included touch pen to select a machine function.

IMPORTANT

- Only touch the screen with your finger or the touch pen (stylus) included with the machine. Do not use a mechanical pencil, screwdriver or any other hard or sharp object. In addition, do not press the screen with extreme pressure. Otherwise the screen may be damaged.

Note

- All or part of the screen may sometimes become darker or lighter due to changes in the surrounding temperature or other changes in the environment. This is not a sign of a malfunction. If the screen is difficult to read, adjust its brightness.

■ Home Page Screen

No.	Display	Explanation Page
	Name
1	Select an utility stitch	or character/ decorative stitch pattern.	53
	Sewing key
2	Select an embroidery	ery pattern.Attach the embroidery unit.	107
	Embroidery key
3	Create an original	embroidery pattern.	163
	IQ Designer key
4	Shows the machine	's signal strength. Touch this key to specify the wireless settings.If there is a new update file, the key appears as	27, 32
	Wireless LAN key

No.	Display	Explanation Page
	Name
5	Change needle [325A]	stop position, adjust the pattern or screen, and change other machine settings.	25
	Mach settings key
6	See exp tions [2CKD] H = H	on how to use the machine. You can see the tutorial videos and also MP4 movie files that you have saved on USB media.	29
	Mach help key [Y45K]
7	Touch the key before [4TT0]	fore changing the needle, the presser foot, etc. This key locks all key and button functions to prevent operation of the machine.	39, 46, 49
	Pres:oot/ Needle	Exch
8	Lock the given. When the screen is locked, you can still sew, but cannot change any of the screen functions. Touch this key again to unlock the screen.		—
	Screw	key
9	Return home [XT50]	home page screen at any time and select a different category - [Sewing], [Embroidery] or [IQ Designer].	—
	Homage screen key
10	Set the date.	date. 19
	Time key [BAKH]

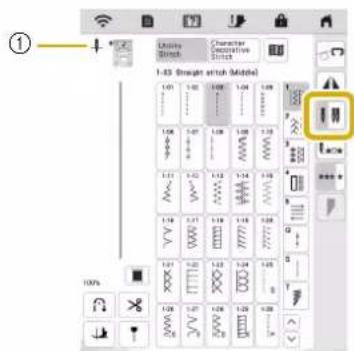

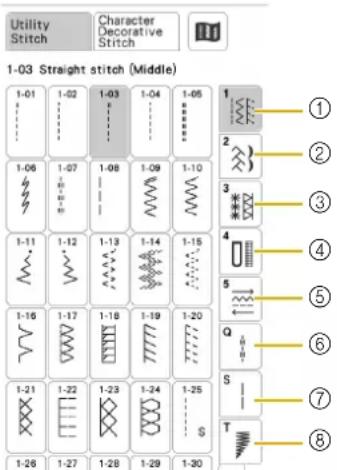

■ Utility Stitch Screen

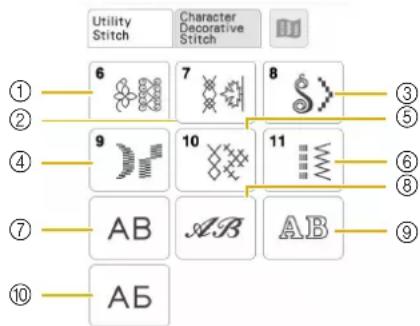

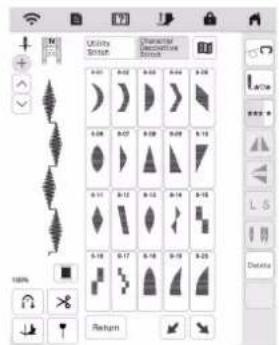

■ Character/Decorative Stitch Screen

No.	Display Name Explanation Page
1	Utility Stitch	Utility stitch key	Select a straight stitch, zigzag stitch, buttonhole, blind hem stitch, or other stitch (utility stitch) commonly used in garment making.	53
2	Character/Decorative Character Decorative Stitch	stitch key	Select character or decorative stitch patterns. 53
3	Needle position	setting	Shows single or twin needle mode setting, and the needle stop position. 43,65Single needle/down position Twin needle/down positionSingle needle/up position Twin needle/up position
4		Presser foot	Shows the presser foot to be used. Attach the presser foot indicated here before sewing.* The symbols for certain presser feet, such as zipper foot “I”, may not appear in the screen.* Advanced monogramming foot “N+” is displayed as “N” on the screen.	49
5	Selected stitch Plus Straight Stitch (Middle)	display	Shows the name and code number of the selected stitch. -
6		Stitch preview	Shows a preview of the selected stitch. When shown at 100%, the stitch appears in the screen at nearly its actual size.	-
7	Stitch pattern display 100%	size	Shows the approximate size of the stitch pattern selected.100%: Nearly the same size as the sewn stitch pattern50%: 1/2 the size of the sewn stitch pattern25%: 1/4 the size of the sewn stitch pattern	-
8	-	Category	Select the category of the stitch pattern you want to sew.	53
9		Page key	Touch ^ or √, to move the pages of stitch selection screen, one page at a time. You can scroll up and down the pages by touching the screen.	-
10	Stitch selection	screen	Touch the key for the stitch pattern you want to sew.	-

■ Key Functions

Memo

• Some editing functions cannot be used with certain stitch patterns. Only the functions for the displayed keys are available when a stitch pattern is selected.
• The machine default setting is highlighted.

No.	Display Name Explanation Page
1	Image key Display an enlarged image of the selected stitch pattern.[88-G][A76S][YCWV][C34K][44XC][0KZT][227T][4CXK][4ZW][XCKS][XHEZ][WY8B]		Touchtochange the thread color in the image.To display the enlarged image, touchTo view any part of the image that extends out of the viewable display area,touch^/✓/<</>	-
2	Fretotion mode[5ZYK][0TTD]	key	Touch this key to enter free motion sewing mode.The presser foot is raised to an appropriate height and the feed dog is lowered for free motion quilting.	80
3	Hontal mirror[326S][HWAA][XYH][232S][490C][A2ST]	image key	Create a horizontal mirror image of the stitch pattern. -
4	Mode[326S][HWAA][XYH][232S][490C][A2ST]	selection key (single/ double)	Touch this key to select twin needle mode. The sewing mode changes between single needle mode and twin needle mode each time you touch the key.If thekey is light gray after selecting the stitch, the selected stitch cannot be sewn in the twin needle mode.	43
5	[4ZWV][254D]	Back to beginning key	When sewing is stopped, touch this key to return to the beginning of the stitch.	-
6	Repeat sewing[KYSA][236D][KWXT][60T2][0KC4]	key	Select single stitches or continuous stitches. To finish a complete motif while sewing the stitch pattern continuously, you can touch this key while sewing.The machine will automatically stop when the motif is finished.	101

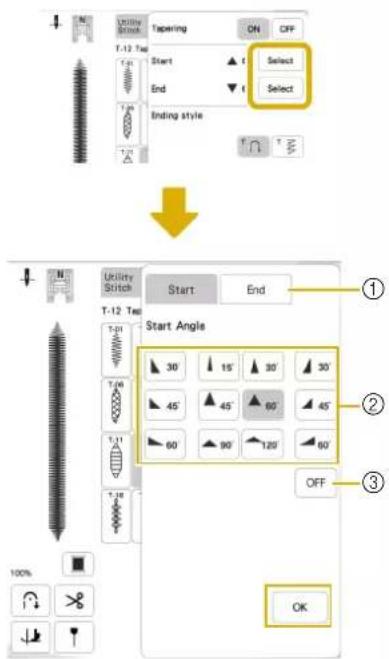

7		Stitch tapering key	Touch this key to change the start and end angles of the stitch pattern.	97
8	[7CAA][607T]	Retrieve key	Retrieve a saved stitch pattern.	63
9	Memory[XDC][X75E][T58W][A27G]	Manual memory key	Change the stitch pattern settings (zigzag width and stitch length, thread tension, etc.), then save them by touching this key. Five sets of settings can be saved for a single stitch pattern.	63
10	X78S[0C02][T18H]	Reset key	Return the saved settings for the selected stitch pattern to their defaults.	63
11	[245T][307X][T566][A128][T066]	Thread tension key	Shows the automatic thread tension setting of the currently selected stitch pattern. You can use^and✓to change the thread tension settings.	62
No.	Display	Name	Explanation	Page
12“L/B Shift” key			Touch to shift the stitch pattern to the right or touch to shift the stitch pattern to the left. This feature is not available for all stitch patterns. Only those applicable will be shifted.	62
13Stitch width and		stitch length key	Shows the zigzag width and stitch length settings of the currently selected stitch pattern. You can use and to adjust the zigzag width and stitch length settings.	61
14		Guideline marker key	Display the guideline marker along the sewing line. The guideline marker makes it easier to align stitches with the fabric edge or other marker on the fabric.	64
15		Pivot key	Turn on/off the pivot function. When the pivot function is selected, stopping the machine lowers the needle and slightly raises the presser foot automatically. In addition, when sewing is restarted, the presser foot is automatically lowered.	65
16Automatic thread[2C57]		cutting key	Turn on this function to set the machine to automatically sew reinforcement stitches (or reverse stitches, depending on the selected stitch pattern) at the beginning and end of stitching and to trim the threads at the end of stitching.	64
17Automatic reverse/		reinforcement stitch key	If you select this setting before sewing, the machine will automatically sew reinforcement stitches at the beginning and end of sewing (depending on the pattern, the machine may sew reverse stitches).	59
18Thread color change[AA0D]		key	Change the thread color in the image. -

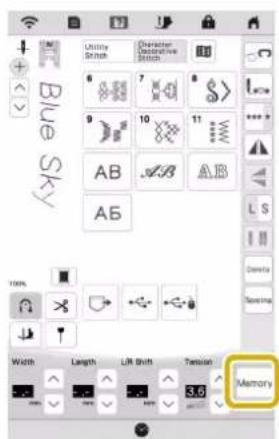

19Memory key Save stitch Memory		pattern combinations.	102
20Ver mirror image		key	Create a vertical mirror image of the stitch pattern. -
21		Size selection key	Select the size of the decorative stitch pattern or character stitch pattern (large, small).	-
22Delete key Delete the selected stitch pattern. 58
23	Some of the following keys will appear, depending on the selected stitch pattern.
	[XHH8][HDSW]	Elongation key When 7mm satin stitch patterns are selected, you can choose from 5 automatic length settings, without changing the stitch zigzag width or stitch length settings.		-
		Thread density key When the satin stitch patterns are selected, you can change the thread density of the stitch pattern.		-
	[HZCK]	Character spacing key	Change the spacing of character stitch patterns. The setting is applied to all entered characters.	-
24		Add stitch pattern key	Touch this key when you want to combine decorative stitch patterns and/or character stitch patterns.	58

Using the Machine Settings Key

Touch exchange the default machine settings (needle stop position, embroidery speed, opening display, etc.). To display the different settings screens, touch for "Sewing settings", for "General settings", for "Embroidery settings" or for "Wireless LAN settings".

Note

- The machine default setting is highlighted.

Memo

- Touch of to display a different settings screen.

■ Sewing Settings

①Select whether to use the sewing speed controller to determine the zigzag width (page 79). When a straight stitch is selected, the sewing speed controller can be used to change the needle position.

②Make adjustments to character or decorative stitch patterns (page 100).

③Adjust the presser foot height. Select the height of the presser foot when the presser foot is raised.

④Adjust the presser foot pressure. The higher the number, the greater the pressure will be. Set the pressure at [3] for normal sewing.

⑤Adjust the amount of fabric feeding of the compact digital dual feed foot (page 52).

⑥Select whether [1-01 Straight stitch (Left)] or [1-03 Straight stitch (Middle)] is the utility stitch that is automatically selected when the machine is turned on.

⑦Select whether utility stitches or quilting stitches are displayed first in the stitch selection screen.

⑧You can activate this setting after connecting the multi-function foot controller. (These settings appear when the multi-function foot controller is connected to the machine.) (page 55)

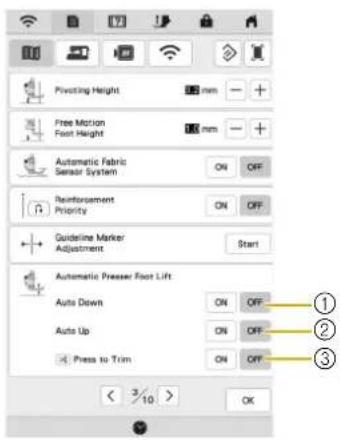

⑨Select the height of the presser foot when sewing is stopped when the pivot setting is selected (page 65).

⑩Select the height of the presser foot when the machine is set to free motion sewing mode (page 80).

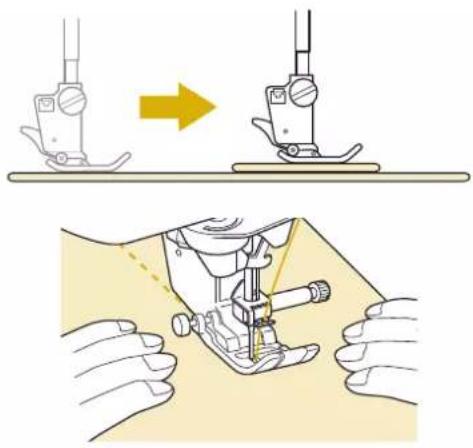

⑪ When set to [ON], the thickness of the fabric is automatically detected by an internal sensor while sewing. This enables the fabric to be fed smoothly. (page 66, page 69)

⑫When set to [ON], reinforcement stitches are sewn at the beginning and/or end of sewing for a reinforcement stitch pattern, even when (Reverse stitch button) is pressed (page 59).

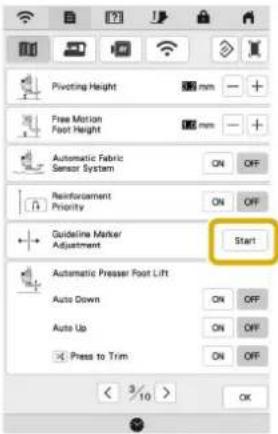

⑬Adjust the guideline marker position and brightness (page 65).

⑭Select whether to lower the presser foot automatically before starting sewing. (page 61)

⑮Select whether to raise the presser foot automatically when stopping sewing. (page 61)

⑯Select whether touching (Thread cutter button) automatically lowers the presser foot before cutting the thread. The presser foot will be raised after the thread is cut. (page 61)

⑰You can save the current settings screen image in a USB media by touching this key when the USB media is inserted into the USB port. The files are saved in a folder labeled [bPocket].

⑱Reset settings on this page to original default. Some settings are not reset.

■ General Settings

IMPORTANT

- When [Upper and Bobbin Thread Sensor] is set to [OFF], the machine cannot detect tangled upper thread. Continuing to use the machine with tangled thread may cause damage.

①Select the needle stop position (the needle position when the machine is not operating) to be up or down.
②Select the operation of the [Needle Position - Stitch Placement] to [ON] or [OFF]. (page 66)
③Select the shape of the pointer when a USB mouse is used.
④Turn both the upper and bobbin thread sensors [ON] or [OFF]. If it is turned [OFF], the machine can be used without thread.
⑤Select the speaker volume. Increase the number for louder volume, decrease for softer volume.
⑥Select the brightness of the work area lights.
⑦Select the screen display brightness.
⑧Set the [Eco Mode] and the [Shutoff Support Mode] to save the machine power (page 28).
⑨Select the length of time until the screen saver appears.
⑩Select the image of the screen saver (page 28).
⑪Select the initial screen that is displayed when the machine is turned on.
⑫Select the display language.
⑬KIT I has been certified on this machine.
⑭Shows the total number of stitches sewn on this machine, which is a reminder to take your machine in for regular servicing. (Contact your authorized Baby Lock retailer for details.)
⑮Shows the internal machine number for this machine.
⑯Shows the program version.
⑰Erase all saved data, customized settings and network information in the machine.

■ Embroidery Settings

①Select the embroidery frame to be used.
②Select the center point marker or grid lines.
③Select the thread color display on the embroidery screen; thread number, color name. (page 153)
④Select the thread brand of the thread color display. (page 153)
⑤Adjust the maximum embroidery speed (page 152).
⑥Adjust the upper thread tension for embroidering (page 150).
⑦Select the height of the embroidery foot during embroidering (page 128).
⑧Select the display units for embroidering (mm/inch).
⑨Select the color of the background for the embroidery display area.
⑩Select the color of the background for the thumbnail area.
⑪Select the size of pattern thumbnails.
⑫Adjust the distance between the pattern and the basting stitching. (page 145)
⑬When set to [ON], pressing the "Start/Stop" button when the embroidery foot is raised automatically lowers the embroidery foot before starting embroidering.
⑭Adjust the position and brightness of the embroidery foot "W+" with LED pointer (this setting is available if embroidery foot "W+" with LED pointer has been attached.) (page 132).

■ Wireless LAN Settings

①Enable/Disable the wireless LAN function (page 32).
②Shows the connected SSID.
③Set the machine to connect wireless LAN function.
④Shows the machine name used on the wireless network.
⑤Change the machine name used on the wireless network.
⑥Check the wireless LAN status.
⑦Display other menus.
⑧Reset network operations.
⑨Display the introduction to the applications. Touch the key of the app whose information you want to display. On smart devices with a QR reader app installed, scan the QR code to display a screen that shows how to install the app.

IQ Intuition- Monitoring: The machine's embroidering status can be monitored from your smart device. For details, refer to "IQ INTUITION- MONITORING APP" on page 180.

IQ Intuition- Positioning: You can position your embroidery designs on the fabric, by capturing image of the hooped fabric and sending the image to your machine. For details, refer to "IQ INTUITION-POSITIONING APP" on page 181.

⑩If there is a new update program, download the update file. (page 198)
⑪Display update program information. (page 198)

■ Setting the [Eco Mode] and the [Shutoff Support Mode]

You can save the machine power by setting the [Eco Mode] and the [Shutoff Support Mode].

If you leave the machine turned on without using it for the set period of time, the machine enters in each mode.

Touch display [Eco Mode] and [Shutoff Support Mode]. (page 26)

[Eco Mode];

Machine will enter a sleep mode after the set period of time. Touch the screen or press the "Start/Stop" button to continue operating.

[Shutoff Support Mode];

Machine will enter the lower power mode after the set period of time. Turn the machine off and then back on to restart operating.

Memo

• If you turn off the machine while the machine is in the [Eco Mode] or the [Shutoff Support Mode], wait for about 5 seconds before turning on the machine again.
• For details on condition of the [Eco Mode] and [Shutoff Support Mode], refer to "SPECIFICATIONS" on page 196.

■ Changing the Screen Saver Image

Instead of the default image, you can select your own personal images for the screen saver of your machine. Before changing the screen saver image, prepare the image on USB media. For details on compatible image files, refer to "SPECIFICATIONS" on page 196.

Touch

→ The settings screen appears.

Touch

→ The general settings screen appears.

Display [Screen Saver] in the general settings screen.

Touch

Select

Touch

Customize

Connect the USB media that contains your personal image to the USB port of the machine.

Touch to select the first image.

Select the device that is connected.

→ A list of your personal images appears on the screen.
* : Delete the selected image.
* : Return to the previous page.

Select a file name and then touch

Set

→ The selected image is stored on your machine.
* : Return to the previous page.

Repeat steps 7 through 9 to set the remaining images.

Touch to return to the original screen.

Memo

- Touch [Default] to select default images for the screen saver.

Using the Machine Help

Touch 📄 display the machine help screen. Functions are available from the screen shown below.

①Explanation for upper threading, winding the bobbin, preparing to embroider a pattern, and how to use the machine (page 29)
②Procedures for sewing utility stitches (page 29)
③Explanation of the stitch selected
④Tutorial videos or MPEG-4 (MP4) videos (page 29, page 30)
⑤Display the introduction to the applications. Touch the key of the app whose information you want to display. On smart devices with a QR reader app installed, scan the QR code to display a screen that shows how to install the app.

IQ Intuition- Monitoring: The machine's embroidering status can be monitored from your smart device. For details, refer to "IQ INTUITION- MONITORING APP" on page 180.

IQ Intuition- Positioning: You can position your embroidery designs on the fabric, by capturing image of the hooped fabric and sending the image to your machine. For details, refer to "IQ INTUITION- POSITIONING APP" on page 181.

⑥End-user license agreements (EULA)

■ Using the Operation Guide Function

Touch display the screen shown below. Categories are displayed at the top of the screen. Touch a key to see more information about that category. Some of the functions are described in the movies. Watch these movies for a better understanding of the functions.

①Information about the main parts of the machine and their functions
②Information about the operation buttons
③Information about threading the machine, changing presser feet, etc.
④Information about attaching the embroidery unit, preparing fabric for embroidering, etc.
⑤Information about troubleshooting
⑥Information about cleaning the machine, etc.

■ Using the Sewing Guide Function

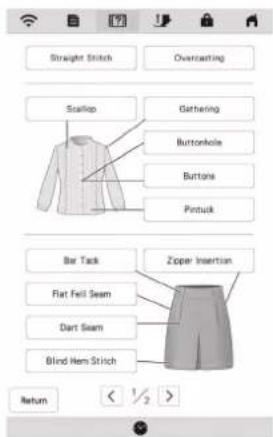

Use this function when you are not sure which stitch to use for your application, or to get advice about sewing particular stitches.

1 Enter Utility Stitch category from the home page.

2 Touch ? .

3 Touch Sewing Guide

→ The advice screen is displayed.

4 Touch the key of the category whose sewing instructions you wish to view.

5 Read the explanations and select the appropriate stitch.

→ The screen displays directions for sewing the selected stitch. Follow the directions to sew the stitch.

■ Playing a Tutorial Video

This machine provides tutorial videos on how to use the machine.

1 Touch ? .

3 Select the category and the tutorial video.

①Category
②Tutorial video

4 Play the tutorial video.

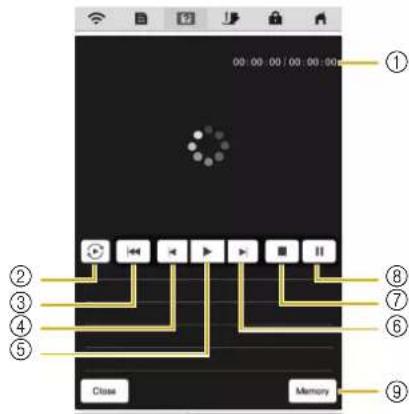

①Number of seconds elapsed/Total number of seconds
②Repeat
③Return to beginning
④Skip back 10 seconds
⑤Play
⑥Skip forward 10 seconds
⑦Stop
⑧Pause
⑨Save to machine (when playing from USB media).

A video can be saved to (for favorites) of the machine, from where it can be played. When playing

from the machine's memory, changes to . Delete

Touch to delete the video.

Note

• The specifications shown in the movie may differ from the ones on the actual product, in details.
• The movie includes optional parts not included with this product.

5 After you are finished playing the video, touch .Close

■ Playing MPEG-4 (MP4) Videos

Your MP4 videos can be played from USB media. In addition, the MP4 video can be saved to the machine so that a tutorial video on creating a project, for example, can be viewed at any time. For details on supported file extensions, refer to "SPECIFICATIONS" on page 196.

- Some types of MP4 file cannot be played with the machine.

3 Select the device where the video is saved.

①Tutorial videos
②Videos saved on the machine (favorites)
③Videos from USB media plugged into the USB port
④Videos from USB media plugged into the USB port for mouse

4 Select the video that you want to play.

- Long file names may be shortened when they are displayed.

5 Play the video.

* Use the operation keys as described in "Playing a Tutorial Video" on page 29.

6 After you are finished playing the video, touch . Close

Using the Stitch Pattern Explanation Function

If you want to know more about the uses of a stitch pattern, select the pattern and touch 📁 and then

Pattern Explanation to see an explanation of the stitch selection.

Example: Displaying information about 4-01

1 Touch 4-01

2 Touch ? .

3 Touch Pattern Explanation

→ The screen shows information.

4 Touch to return to the original screen.

WIRELESS NETWORK CONNECTION FUNCTIONS

Operations Available with a Wireless Network Connection

This machine supports a wireless network connection. The following useful operations will be available if the machine is connected to a wireless network.

For updating

Directly download the update file to the machine. (page 198)

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

■ For embroidering

- Conveniently check the operating status of the machine from your smart device by using the dedicated mobile application (IQ Intuition-Monitoring).

Illustration of a mobile phone displaying a QR code with Wi-Fi signal waves, alongside a scanning scanner device (no text or symbols present)

- IQ Intuition- Positioning: You can position your embroidery designs on the fabric, by capturing image of the hooped fabric and sending the image to your machine.

Illustration showing a card with a heart symbol and wireless signal waves from a printer (no text or symbols present)

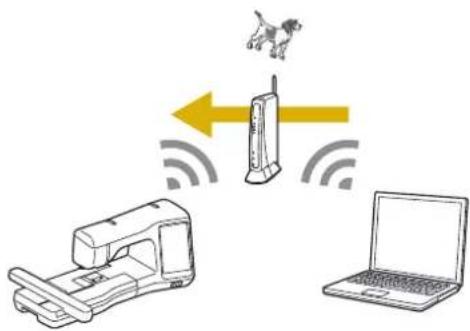

- Wirelessly transfer an embroidery pattern from your computer to the machine by using the dedicated Windows application (Design Database Transfer). The application can be downloaded from the following URL. https://www.babylock.com/accessories/software/design-database-transfer

* Settings must be specified in Design Database Transfer. For more information, refer to the manual for Design Database Transfer.

- Wirelessly transfer to the machine an embroidery pattern edited with embroidery editing software (Palette version 11 or later) on a computer. Also, transfer to Palette an embroidery pattern edited on the machine.

* Settings must be specified in Palette. For more information, refer to the manual for Palette.

- When an updated version of the software is available on our website, the wireless LAN key appears as

(page 198)

Enabling a Wireless Network Connection

The machine can be connected to your wireless network. Refer to "SPECIFICATIONS" on page 196 for requirements for a wireless network connection.

Touch

Set [Wireless LAN Enable] to [ON].

→ The machine begins to emit the wireless network signal.

Using the Wizard to Set Up the Wireless Network Connection

There are multiple ways to set up the wireless network connection. We recommend the method that uses the wizard on this machine.

In order to connect your machine to a wireless network, the security information (SSID and network key) for your home network will be required. The network key may also be called a password, security key or encryption key. First, find your security information and note it.

SSID Network Key (Password)

Memo

• The wireless network connection cannot be set up if you do not have the security information.
  • How to find the security information

①Check the manual provided with your home network.
②The default SSID may be the manufacturer's name or the model name.
③If you cannot find the security information, contact the manufacturer of the router, your network administrator or your Internet provider.
④Some SSIDs and network keys (passwords) are case (upper case and lower case) sensitive.

Please properly record your information.

Touch beside [Wireless LAN Setup Wizard].

→ A list of available SSIDs appears.

Touch beside the SSID that was noted.

→ The screen for entering the network key (password) appears.

Memo

• If the SSID that was noted does not appear in the list, touch . Refresh
• If the desired network SSID is not displayed, specify it as described below.

①Select New SSID.

②Enter the desired network SSID, and then

touch OK.

③Select the authentication method and encryption mode.

- If the machine had already been connected to the home network, touch s and then select the saved SSID.

Enter the network key (password) that was noted, and then touch . OK

①Text input area
②Character keys
③Caps key
④Space key
⑤Letters/numbers/symbols key
⑥Backspace key (Deletes the character at the cursor's position.)
⑦Cursor keys (Move the cursor to the left or right.)

When the following message appears, touch . OK

→ When a connection is established, the following message appears.

Touch to exit the setup.

→ The name beside [Machine name] is the name that will be used when registering the machine with embroidery editing software (Palette version 11 or later) or Design Database Transfer in order to transfer files.

Memo

• The name in the [Machine name] field will be used with the IQ Intuition- Monitoring App and IQ Intuition- Positioning App.
• While connected, the signal strength is indicated by the icon in the upper-left corner of the display.
• Once a wireless network connection has been set up, a connection will be established each time the machine is turned on. However, [Wireless LAN Enable] in the network settings screen must remain set to [ON].

■ Using the [Others] Menu To Set Up the Wireless Network Connection

The |Others| menu contains the following items.

①TCP/IP settings can be manually entered.

②Shows the MAC address.

③Use when proxy settings are required.

CONNECTING THE ACCESSORY TO THE MACHINE

Using a USB Mouse

A USB mouse, connected to the machine, can be used to perform a variety of operations in the screens. Connect a USB mouse to the USB port.

Memo

- Use a basic computer mouse to operate the machine functions. Some USB mouse devices may not be compatible with this machine.

①USB port
②USB mouse

Note

• The left mouse button can be used to perform operations such as choosing a design and choosing menu keys.
• The mouse pointer does not appear in the screen saver or opening screen.

- Clicking a Key

When the mouse is connected, the pointer appears on the screen. Move the mouse to position the pointer over the desired key, and then click the left mouse button.

Memo

- Double-clicking has no effect.

①Pointer

WINDING/INSTALLING THE BOBBIN

Winding the Bobbin

IMPORTANT

- Use the plastic bobbins that came with this machine or bobbins of the same type: 11.5 mm (approx. 7/16 inch) plastic Class 15 (A style) bobbins, which are available from your Baby Lock retailer.

■ Using the Supplemental Spool Pin

With this machine, you can wind the bobbin during sewing. While using the main spool pin to sew or embroider, you can conveniently wind the bobbin using the supplemental spool pin.

①Supplemental spool pin

1 Turn the main power to ON and open the top cover.

2 Align the groove in the bobbin with the spring on the bobbin winder shaft, and set the bobbin on the shaft.

①Groove in the bobbin
②Spring on the bobbin winder shaft

3 Place the spool of thread for the bobbin and the spool cap onto the supplemental spool pin.

Slide the spool onto the supplemental spool pin so that the thread unwinds to the front from the bottom. Otherwise the thread may become tangled around the supplemental spool pin.

Illustration of two mechanical components: a saw and a threaded rod, with no visible text or symbols.

①The thread unwinds to the front from the bottom.

4 Slide the spool cap onto the spool pin as far as possible to the right, with the rounded side on the left.

IMPORTANT

- If the spool or the spool cap is not installed correctly, the thread may become tangled around the spool pin, and the machine may be damaged.

- Three spool cap sizes are available, allowing you to choose a spool cap that best fits the size of spool being used. If the spool cap is too small for the spool being used, the thread may catch on the slit in the spool or the machine may be damaged. When using mini king thread spool, use the thread spool insert. For details on thread spool insert (mini king thread spool), refer to "Note" on page 35.

Note

- When using the spool as shown below, use the thread spool insert (mini king thread spool). Make sure that the thread spool insert is firmly inserted. After installing it, pull out some thread, and check that the thread unwinds without getting caught.

①Thread spool insert (mini king thread spool)
②Hole diameter 8.0 mm to 10.5 mm (approx. 5/16 inch to 13/32 inch)
③Spool (cross-wound thread)

- When using thread that winds off quickly, such as transparent nylon thread or metallic thread, place the spool net over the spool before placing the spool of thread onto the spool pin. If the spool net is too long, fold it to fit the size of the spool.

①Spool net
②Thread spool
③Spool pin
④Spool cap

* When threading the spool with the spool net on, make sure that 5-6cm (approx. 2 - 2-1/2 inches) of thread is pulled out.
* It may be necessary to adjust the thread tension when using the spool net.

5 With your right hand, hold the thread near the thread spool. With your left hand, hold the end of the thread, and use both hands to pass the thread through the thread guide.

①Thread guide

6 Pass the thread around the pretension disk making sure that the thread is under the pretension disk.

①Pretension disk

→ Make sure that the thread passes under the pretension disk.

②Pretension disk
③Pull it in as far as possible.
→ Check to make sure thread is securely set between pretension disks.

7 Wind the thread clockwise around the bobbin 5 or 6 times, pass the thread through the guide slit in the bobbin winder seat, and then pull the thread to cut it.

①Guide slit in bobbin winder seat (with built-in cutter)

Note

- Be sure to wind the thread clockwise around the bobbin, otherwise the thread may become wrapped around the bobbin winder shaft.

CAUTION

- Be sure to cut the thread as described. If the bobbin is wound without cutting the thread using the cutter built into the guide slit in the bobbin winder seat, the thread may become tangled in the bobbin or the needle may break and cause injury when the bobbin thread starts to run out.

8 Set the bobbin winding switch to the left, until it clicks into place.

①Bobbin winding switch

→ The bobbin winding window appears.

9 Touch Start

①Touch to decrease the winding speed.
②Touch to increase the winding speed.

→ Bobbin winding starts. changes to while the bobbin is winding. The bobbin stops rotating when bobbin winding is completed. The bobbin winding switch will automatically return to its original position.

Memo

• Touch to minimize the bobbin winding window. Then, you can perform other operations, such as selecting a stitch or adjusting the thread tension, while the bobbin is being wound.
• Touch (in top right of the LCD screen) to display the bobbin winding window again.

- The sound of winding the bobbin with stiff thread, such as nylon thread for quilting, may be different from the one produced when winding normal thread; however, this is not a sign of a malfunction.

IMPORTANT

- When winding transparent nylon thread on the bobbin, stop bobbin winding when the bobbin is 1/2 to 2/3 full. If the bobbin was fully wound with transparent nylon thread, it may not be wound neatly, or sewing performance may suffer. In addition, extreme pressure may be applied to the bobbin, it may not be possible to remove the bobbin from the bobbin winder shaft, or the bobbin may break.

10 After bobbin winding is finished, cut the thread with scissors and remove the bobbin.

Illustration of a mechanical device with a spring, spool, and handle (no text or symbols)

IMPORTANT

- When removing the bobbin, do not pull on the bobbin winder seat. Doing so could loosen or remove the bobbin winder seat, and could result in damage to the machine.

■ Using the Spool Pin

You can use the main spool pin to wind the bobbin before sewing. You cannot use this spool pin to wind the bobbin while sewing.

Pure mechanical diagram showing a lever system with pulleys and a central shaft, no text or symbols present.

1 Turn the main power to ON and open the top cover.

2 Align the groove in the bobbin with the spring on the bobbin winder shaft, and set the bobbin on the shaft.

①Groove in the bobbin
②Spring on the bobbin winder shaft

3 Remove the spool cap and place the spool of thread for the bobbin onto the spool pin.

Slide the spool onto the spool pin so that the thread unwinds to the front from the bottom.

①Spool pin
②Spool cap
③Spool of thread
④Spool felt

4 Slide the spool cap onto the spool pin as far as possible to the right, with the rounded side on the left.
5 While holding the thread with both hands, pass the thread through grooves of the thread guide plate.

①Thread guide plate

6 Pass the thread through the thread guide.

①Thread guide

7 Pass the thread around the pretension disk making sure that the thread is under the pretension disk.

Pull the thread as far as possible.

①Pretension disk
②Thread guide

8 Follow steps 7 through 10 on page 36 through page 37.

■ Using the Spool Stand

To wind thread on the bobbin while the spool stand is installed, pass the thread from the spool through the thread guide on the telescopic thread guide, and then wind the bobbin according to steps 5 through 10 of "Using the Supplemental Spool Pin" on page 36 to page 37.

Technical line drawing of a mechanical device with pipes, shafts, and wiring (no text or symbols)

IMPORTANT

- When winding thread on the bobbin, do not cross the bobbin winding thread with the upper thread in the thread guides.

Setting the Bobbin

CAUTION

- Use a bobbin that has been correctly wound with thread, otherwise the thread tension may be incorrect and the needle may break, causing injuries.

- Before inserting or changing the bobbin, be sure to touch in the LCD to lock all keys and buttons. Otherwise injuries may occur if the "Start/Stop" button or any other button is pressed and the machine starts sewing.

1 Touch to lock all keys and buttons and raise the presser foot.

* If the message [OK to automatically lower the presser foot?] appears on the LCD screen, touch

ok to continue.

2 Slide the bobbin cover latch to the right.

①Bobbin cover

②Latch

→ The bobbin cover opens.

3 Remove the bobbin cover.

4 Hold the bobbin with your right hand and hold the end of the thread with your left hand.

Illustration of hands holding a spool of thread (no text or symbols)

5 Set the bobbin in the bobbin case so that the thread unwinds to the left.

Line drawing of a hand holding a tool interacting with a circular component (no text or symbols)

6 Lightly hold down the bobbin with your right hand, and then guide the end of the thread around the tab of the needle plate with your left hand.

Illustration of a hand holding a tool with a circular component and a yellow curved arrow indicating rotation (no text or symbols)

①Tab

Note

- Be sure to hold down the bobbin with your finger and unwind the bobbin thread correctly, otherwise the thread may break or the thread tension will be incorrect.

7 While lightly holding down the bobbin with your right hand, guide the thread through the slit in the needle plate and lightly pull it with your left hand.

①Slit

Memo

- By pulling the thread in this way, the thread will enter the tension spring of the bobbin case to apply the appropriate tension to the bobbin thread during sewing.

8 While lightly holding down the bobbin with your right hand, continue guiding the thread through the slit with your left hand. Then, cut the thread with the cutter.

①Cutter

→ The cutter cuts the thread.

9 Insert the tab in the lower-left corner of the bobbin cover (①), and then lightly press down on the right side to close the cover (②).

Two mechanical component diagrams showing a housing with arrows indicating movement or force (no text or symbols)

Touch to unlock all keys and buttons.

Memo

- You can begin sewing without pulling up the bobbin thread. If you wish to pull up the bobbin thread before starting to sew, pull up the thread according to the procedure in "Pulling Up the Bobbin Thread" on page 40.

Pulling Up the Bobbin Thread

There may be some sewing applications where you want to pull up the bobbin thread; for example, when making gathers, darts, or doing free motion quilting or embroidery.

Memo

- You can pull up the bobbin thread after threading the upper thread ("UPPER THREADING" on page 41).

Follow steps 1 to 5 in "Setting the Bobbin" on page 39 for installing the bobbin into the bobbin case.

Guide the bobbin thread through the groove, following the arrow in the illustration.

* Do not cut the thread with the cutter.

* Do not replace the bobbin cover.

Illustration of hands holding a device with a yellow arrow indicating rotation (no text or symbols)

Touch to anlock all keys and buttons.

While lightly holding the upper thread with your left

hand, press (Needle position button) twice to lower and then raise the needle.

Line drawing of a hand operating a sewing machine with tools and circular components (no text or symbols)

Gently pull the upper thread. A loop of the bobbin thread will come out of the hole in the needle plate.

Technical line drawing of a sewing machine needle and base (no text or symbols)

Pull up the bobbin thread, pass it under the presser foot and pull it about 10 cm (approx. 4 inches) toward the back of the machine, making it even with the upper thread.

Technical line drawing of a sewing machine needle and foot (no text or symbols)

Reattach the bobbin cover.

UPPER THREADING

Upper Threading

CAUTION

- Be sure to thread the machine properly. Improper threading can cause the thread to tangle and break the needle, leading to injury.

IMPORTANT

• Never use a thread weight of 20 or lower. It may cause the machine to malfunction. Use the needle and the thread in the correct combination. For details on the correct combination of needles and threads, refer to "FABRIC/THREAD/NEEDLE COMBINATIONS" on page 48.
• When using 65/09 needle, manually thread the needle. If the automatic needle threading function is used, the unit may be damaged.

Memo

• The automatic threading function can be used with home sewing machine needle sizes 75/11 through 100/16.
• When threads such as transparent nylon monofilament or specialty threads are used, it is not recommended to use the needle threader.
• The automatic threading function cannot be used with the wing needle or the twin needle.

Line drawing of a sewing machine needle and screw mechanism (no text or symbols)

1 Turn the main power to ON.
2 Press (Presser foot lifter button) to raise the presser foot.

→ The upper thread shutter opens so the machine can be threaded.

① Upper thread shutter

3 Press (Needle position button) to raise the needle.

IMPORTANT

- Be sure to raise the needle before using the automatic needle threader. Otherwise, the needle may not thread correctly and the needle threader may be damaged.

4 Remove the spool cap and place the spool of thread onto the spool pin.

Slide the spool onto the spool pin so that the thread unwinds to the front from the bottom.

①Spool pin
②Spool cap
③Spool of thread
④Spool felt

5 Slide the spool cap onto the spool pin as far as possible to the right, with the rounded side on the left.

CAUTION

- Choose a spool cap that best fits the size of spool being used. For more information, refer to "Note" on page 35.

Diagram showing a mechanical assembly process: adding a shaft to a spool, then adding a pin to a cylindrical component (no text or symbols present)

- If the spool or the spool cap is not positioned correctly, the thread may become tangled around the spool pin, possibly causing the needle to break, resulting in injuries.

6 While holding the thread with both hands, pass the thread through grooves of the thread guide plate.

①Thread guide plate

7 While holding the thread in your right hand, pass the thread through the thread guide in the direction indicated.

Line drawing of a sewing machine needle stitching a cable, showing no text or symbols

8 Guide the thread down, up, then down through the groove, as shown in the illustration.

Diagram of a mechanical or fluidic component with directional arrows indicating flow or movement (no text or symbols)

Memo

- Look in the upper groove area to check if the thread catches on the thread take-up lever visible inside the upper groove area.

Diagram showing a hand holding a yellow object through a circular inset, with no visible text or symbols.

9 Pass the thread through the needle bar thread guide (marked "6") by holding the thread with both hands and guiding it as shown in the illustration.

①Needle bar thread guide ②Tab

10 Pass the thread through the notch in the thread guide. Then firmly pull the thread from front to back into the slit of the thread guide disk (marked "7").

①Notch in thread guide ②Thread guide disk

11 Press (Presser foot lifter button) to lower presser foot.

12 Pull the thread up through the thread cutter to cut the thread, as shown in the illustration.

①Thread cutter

Note

- When using thread that quickly winds off the spool, such as metallic thread, it may be difficult to thread the needle if the thread is cut. Therefore, instead of using the thread cutter, pull out about 8 cm (approx. 3 inches) of thread after passing it through the thread guide disks (marked "7").

Illustration of a hand holding a medical device with a yellow cable and a pen inserted (no text or symbols)

①About 8 cm (approx. 3 inches) or more

13 Press (Automatic threading button) to have the machine automatically thread the needle.

→ The thread passes through the eye of the needle.

Memo

- When (Automatic threading button) is pressed, the presser foot will be automatically lowered. After threading is finished, the presser foot moves back to the position before (Automatic threading button) was pressed.

14 Carefully pull the end of the thread that was passed through the eye of the needle.

* If a loop was formed in the thread passed through the eye of the needle, carefully pull on the loop of thread through to the back of the needle.

15 Raise the presser foot lever and pull out about 10 cm (approx. 4 inches) of the thread, and then pass it under the presser foot toward the rear of the machine.

①About 10 cm (approx. 4 inches)

Memo

- If the needle could not be threaded or the thread was not passed through the needle bar thread guides, perform the procedure again starting from step 3.

Note

- Some needles and threads cannot be threaded with the needle threader. In this case, instead of using the needle threader after passing the thread through the needle bar thread guide (marked "6"), manually pass the thread through the eye of the needle from the front.

Using the Twin Needle Mode

The twin needle can only be used for stitch patterns that show

“” after being selected. Before you select a stitch pattern, make sure the stitch can be sewn in the twin needle mode (refer to the “STITCH SETTING CHART” on page 199).

CAUTION

• When using the twin needle, it is recommended to use presser foot "J". Otherwise, the needle may break and cause injury.
• Before changing the needle or threading the machine, be sure to touch on the LCD screen to lock all keys and buttons, otherwise injuries may occur if the "Start/Stop" button or any other button is pressed and the machine starts sewing.

IMPORTANT

- Twin needle (part code XE4963-001) is recommended for this machine. Contact your authorized Baby Lock retailer for replacement needles (size 2/11 is recommended).

Note

- When the twin needle is used, bunched stitches may occur depending on the types of fabric and thread that are used. Use advanced monogramming foot “N+” or attach stabilizer material.

Touch to lock all keys and buttons and then install the twin needle ("CHANGING THE NEEDLE" on page 46).

* If the message [OK to automatically lower the presser foot?] appears on the LCD screen, touch

ok to continue.

2 Thread the machine for the first needle according to the procedure for threading a single needle ("Upper Threading" on page 41).

Technical line drawing of a sewing machine with no visible text or symbols

3 Pass the thread through the needle bar thread guides on the needle bar, then thread the needle on the left side manually.

①Needle bar thread guide

IMPORTANT

- (Automatic threading button) cannot be used. Manually thread the twin needle from front to back. Using (Automatic threading button) may result in damage to the machine.

4 Pull up the supplemental spool pin and set it in the up position. Place the additional spool of thread on the supplemental spool pin, so that the thread unwinds from the front. Push the spool cap onto the spool pin as far as possible to secure the thread spool.

①Spool cap ②Spool pin ③Spool of thread

5 Hold the thread from the spool with both hands, and place the thread in the thread guide.

* Do not place the thread in the pretension disks.

①Thread guide

6 While holding the thread from the spool, pull the thread through the lower notch in the thread guide plate, then through the upper notch. Hold the end of the thread with your left hand, and then guide the thread through the groove, following the arrows in the illustration.

Diagram of a car interior showing handrails, steering wheel, and directional arrows indicating movement (no text or labels)

7 Continue threading; however, do not pass the thread in the needle bar thread guide "6" on the needle bar. Thread the needle on the right side.

①Needle bar thread guide

8 Touch to unlock all keys and buttons.

9 Select a stitch pattern.

* Refer to "Basic Sewing" on page 53 for selecting a stitch pattern. * Refer to "STITCH SETTING CHART" on page 199 for the proper stitch to use with presser foot "J".

10 Touch to select the twin needle mode.

①Single needle/twin needle position setting display

→ -appears.

CAUTION

- Be sure to set the twin needle mode when using the twin needle. Using the twin needle while the machine is in single needle mode could cause the needle to break and cause injury.

Start sewing.

Memo

- To change direction when sewing with the twin needle, raise the needle from the fabric, raise the presser foot lever, and then turn the fabric.

Using the Spool Stand

The included spool stand is useful when using thread on spools with a large diameter (cross-wound thread). This spool stand can hold two spools of thread.

Using the Spool Stand

• Be sure to use a spool cap that is slightly larger than the spool. If the spool cap that is used is smaller or much larger than the spool, the thread may catch and sewing performance may suffer.
• When using thread on a thin spool, place the included spool felt on the spool pin, place the thread spool on the spool pin so that the center of the spool is aligned with the hole at the center of the spool felt, and then insert the spool cap onto the spool pin.

- When using thread on a cone spool, use the spool holder. When using cone shaped thread spool with other than cotton thread, it is not necessary to use spool caps.

- Depending on the size of spool or the amount of thread remaining, choose the appropriate sized spool cap (large or medium). Spool cap (small) cannot be used with the spool cap base.

①Spool felt

①Spool holder

①Spool cap
②Spool cap base

Attach the spool stand to the machine. (page 17)

Technical line drawing of a printer with a stand and paperclip, no text or symbols present

Place the spool of thread on the spool pin so that the thread feeds off the spool clockwise. Firmly insert the spool cap onto the spool pin.

Simple line drawing of a vertical pole with two identical base stations and two lit candles, no text or symbols present.

CAUTION

- Make sure that the spools do not touch each other, otherwise the thread will not feed off smoothly, the needle may break and cause injury. In addition, make sure that the spools do not touch the telescopic thread guide at the center.

Note

• When using two spools of thread, make sure that both spools are feeding in the same direction.
  • Make sure that the thread is not caught under the spool.

Pull the thread off the spool. Pass the thread from the back to the front through the thread guides at the top.

When using thread that quickly feeds off the spool, such as metallic thread, use the enclosed ring to prevent the thread from becoming entangled.

Threading sequence; Pull the thread from the spool, place the thread through the ring from the bottom up (1), into the thread guide (2) and through the ring from the top down (3). When using the ring, do not use the spool cap base.

Note

• Guide the thread so that it does not become entangled with the other thread.
  • After feeding the thread as instructed, wind any excess thread back onto the spool, otherwise the excess thread will become tangled.

Pass the thread through the machine's thread guide from the right to the left.

1 Thread guide

Thread the machine according to the steps 6 to 15 of "Upper Threading" on page 42.

CHANGING THE NEEDLE

CAUTION

• Always touch on the screen to lock all keys and buttons before changing the needle.

If is not touched and the "Start/Stop" button or another operation button is pressed accidentally, the machine will start and injury may result.

• Use only home sewing machine needles. Other needles may break and may cause injury.
• Never use a bent needle. This may cause injury.

Memo

- To check the needle correctly, place the flat side of the needle on a flat surface. Check the needle from the top and the sides. Throw away any bent needles.

1 Parallel space

2 Flat surface (bobbin cover, glass, etc.)

- The machine needles are consumables. Replace the needle in cases such as those described below.

• If an unusual sound is produced when the needle enters the fabric. (The tip of the needle may be broken or dull.)
• If stitches are skipped. (The needle may be bent.)
• Generally, after completing one project, such as a piece of clothing.

Press (Needle position button) to raise the needle.

Touch to lock all keys and buttons.

* If the message [OK to automatically lower the presser foot?] appears on the LCD screen, touch

ok to continue.

Note

- Before replacing the needle, cover the hole in the needle plate with fabric or paper to prevent the needle from falling into the machine.

3 Remove the presser foot. (page 49)

4 Use the disc-shaped screwdriver to turn the needle clamp screw toward you (counterclockwise) to loosen the screw. Remove the needle.

5 With the flat side of the needle facing the back, insert the new needle all the way to the top of the needle stopper (viewing window) in the needle clamp. Use the disc-shaped screwdriver to securely tighten the needle clamp screw.

①Needle stopper
②Hole for inserting the needle
③Flat side of the needle

CAUTION

- Be sure to push in the needle until it touches the stopper, and securely tighten the needle clamp screw with the disc-shaped screwdriver. If the needle is not completely inserted or the needle clamp screw is loose, the needle may break and cause injury.

6 Attach the presser foot. (page 49)

7 Touch to unlock all keys and buttons.

Memo

• The automatic threading function can be used with home sewing machine needle sizes 75/11 through 100/16.
• When threads such as transparent nylon monofilament or specialty threads are used, it is not recommended to use the needle threader.

FABRIC/THREAD/NEEDLE COMBINATIONS

• Needles that can be used with this machine: Home sewing machine needles (size 65/9 - 100/16) * The larger the number, the larger the needle. As the numbers decrease, the needles get finer

- Thread that can be used with this machine: 30 - 90 weight * Never use thread of 20 weight or lower. It may cause machine to malfunction. * The smaller the number, the heavier the thread. As the numbers increase, the thread gets finer.

- The machine needle and thread that should be used depends on the type and thickness of the fabric. Refer to the following table when choosing the thread and needle appropriate for the fabric that you wish to sew.

• The combinations shown in the table provide a general guideline. Be sure to sew trial stitches on the actual number of layers and type of fabric to be used in your project.
• The machine needles are consumables. For safety and best results, we recommend replacing the needle regularly. For details on when to replace the needle, refer to "CHANGING THE NEEDLE" on page 46.

- In principle, use a fine needle and thread with lightweight fabrics, and a larger needle and heavier thread with heavyweight fabrics.

- Select a stitch appropriate for the fabric, and then adjust the stitch length. When sewing lightweight fabrics, make the stitch length finer (shorter). When sewing heavyweight fabrics, make the stitch length coarser (longer). (page 62)

When sewing stretch fabrics, refer to "Sewing Stretch Fabrics" on page 70.

Fabric Type/Application		Thread		Size of needle	Stitch length mm (inch)
		Type Weight
Lightweight fabrics	Lawn, georgette, challis, organdy, crepe, chiffon, voile, gauze, tulle, lining, etc.	Polyester thread 60 - 90		65/9 - 75/11	Fine stitches 1.8-2.5 (approx. 1/16-3/32)
		Cotton thread Silk thread	50 - 80
Medium weight fabrics	Broadcloth, taffeta, gabardine, flannel, seersucker, double gauze, linen, terry cloth, waffle weave, sheeting, poplin, cotton twill, satin, quilting cotton, etc.	Polyester thread 60 - 90		75/11 - 90/14	Regular stitches 2.0-3.0 (approx. 1/16-1/8)
		Cotton thread Silk thread	50 - 60
Heavyweight fabrics	Denim (12 ounces or more), canvas, etc.	Polyester thread Cotton thread	30 100/16		Coarse stitches 2.5-4.0 (approx. 3/32-3/16)
	Denim (12 ounces or more), canvas, tweed, corduroy, velour, melton wool, vinyl-coated fabric, etc.	Polyester thread 60		90/14 - 100/16
		Cotton thread Silk thread	30 - 50
Stretch fabrics (knit fabrics, etc.)	Jersey, tricot, T-shirt fabric, fleece, interlock, etc.	Polyester thread Cotton thread Silk thread	50	Ball point needle 75/11 - 90/14	Setting appropriate for the fabric thickness
For top-stitching		Polyester thread Cotton thread	30 90/14 - 100/16		Setting appropriate for the fabric thickness
			50 - 60 75/11 - 90/14

■ Transparent Nylon Thread

Use a home sewing machine topstitching needle, regardless of the fabric or thread.

■ Sewing Character Stitch Patterns and Decorative Stitch Patterns (Needles and Threads)

When sewing lightweight, medium weight or stretch fabrics, use a ball point needle (gold colored) 90/14. When sewing heavyweight fabrics, use a home sewing machine needle 90/14. In addition, #50 to #60 thread should be used.

■ Embroidery Needles

Use a 75/11 home sewing machine needle for embroidery. When embroidering patterns with short stitches, such as small letters, we recommend using a ball point needle for embroidery.

CAUTION

- The appropriate fabric, thread and needle combinations are shown in the preceding table. If the combination of the fabric, thread and needle is not correct, particularly when sewing heavy fabrics (such as denim) with thin needles (such as 65/9 to 75/11), the needle may break and cause injury. In addition, the stitching may be uneven or puckered or there may be skipped stitches.

CHANGING THE PRESSER FOOT

CAUTION

• Always touch on the screen to lock all keys and buttons before changing the presser foot. If is not touched and the "Start/Stop" button or another button is pressed, the machine will start and may cause injury.
  • Always use the correct presser foot for the selected stitch pattern. If the wrong presser foot is used, the needle may strike the presser foot and break, and may cause injury.
• Make sure that the presser foot is installed in the correct direction, otherwise the needle may strike the presser foot, breaking the needle and causing injuries.

IMPORTANT

- Use presser feet made for this machine.

Replacing the Presser Foot

1 Press (Needle position button) to raise the needle.

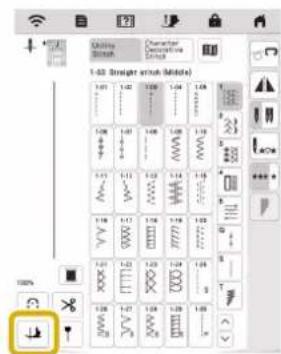

2 Touch to lock all keys and buttons.

* If the message [OK to automatically lower the presser foot?] appears on the LCD screen, touch

ok to continue.

3 Raise the presser foot lever.
4 Press the black button on the presser foot holder and remove the presser foot.

①Black button
②Presser foot holder

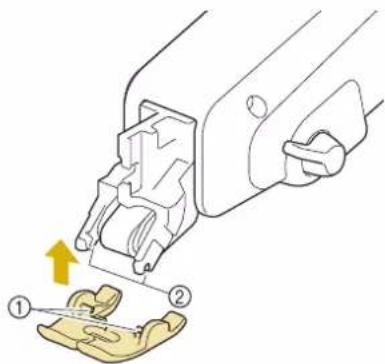

5 Place the new presser foot under the holder, aligning the foot pin with the notch in the holder. Lower the presser foot lever so that the presser foot pin snaps into the notch in the holder.

①Notch
②Pin

6 Raise the presser foot lever to check that the presser foot is securely attached.

Diagram of a sewing machine needle with yellow directional arrows indicating movement (no text or symbols)

7 Touch to unlock all keys and buttons.

Attaching the Presser Foot with the Included Adapter

Some presser feet require using the included adapter and small screw, for example, the free motion echo quilting foot "E" and so on.

■ Attaching the Walking Foot (Sold Separately)

The walking foot holds the fabric between the presser foot and the feed dogs to feed the fabric. This enables you to have better fabric control when sewing difficult fabrics (such as quilted fabrics or velvet) or fabrics that slip easily (such as vinyl, leather, or synthetic leather).

Note

• Thread the needle manually when using the walking foot, or only attach the walking foot after threading the needle using (Automatic threading button).
• When sewing with the walking foot, sew at medium to low speeds.

Memo

- The walking foot can only be used with straight or zigzag stitch patterns. Reverse stitches cannot be sewn with the walking foot. Only select straight or zigzag stitch patterns with reinforcement stitches. (page 59)

1 Follow the steps in "Replacing the Presser Foot" on page 49.
2 Loosen the screw of the presser foot holder to remove the presser foot holder.

①Presser foot holder screw
②Presser foot holder

3 Remove the screw of the presser foot completely from the presser foot shaft.

Illustration of a hand using a screwdriver to adjust a mechanical clamp, with no text or symbols present.

4 Set the adapter on the presser foot bar, aligning the flat side of the adapter opening with the flat side of the presser bar. Align the screw holes in the adapter and presser foot bar, and then securely tighten the screw with the disc-shaped screwdriver.

5 Turn the included small screw 2 or 3 times with your hand.

Illustration of a hand using a tool to lift a small object, with no visible text or symbols

6 Set the operation lever of the walking foot so that the needle clamp screw is set in the fork. Position the shank of the walking foot on the presser foot bar.

①Operation lever
②Needle clamp screw
③Fork
④Walking foot shank
⑤Presser foot bar

7 Lower the presser foot lever. Insert the screw, and tighten the screw securely with the screwdriver.

Technical line drawing of a sewing machine with no visible text or symbols

CAUTION

• Use the included screwdriver to tighten the screw securely. If the screw is loose, the needle may strike the presser foot and cause injury.
• Be sure to rotate the handwheel toward you (counterclockwise) to check that the needle does not strike the presser foot. If the needle strikes the presser foot, injury may result.

8 Touch to unlock all keys and buttons.

Using the Compact Digital Dual Feed Foot

The compact digital dual feed foot enables you to have best fabric control when sewing difficult fabrics that slip easily, such as quilted fabrics or fabrics that tend to stick to the bottom of a presser foot, such as vinyl, leather or synthetic leather.

Note

- When sewing with the compact digital dual feed foot, sew at medium to low speeds.

Memo

• When selecting stitches to be used with the compact digital dual feed foot, only the stitches that can be used will be activated on the display.
• When sewing fabric that easily sticks together, a more attractive finish can be achieved by basting the beginning of sewing.

■ Attaching the Compact Digital Dual Feed Foot

1 Remove the presser foot. (page 49)

2 Loosen the screw of the presser foot holder to remove the presser foot holder.

①Presser foot holder screw
②Presser foot holder

3 Position the compact digital dual feed foot to the presser foot bar by aligning the notch of the compact digital dual feed foot to the large screw.

Side view

Diagram showing a foot with a hammer and fulcrum before and after a change, no text or symbols present

4 Hold the compact digital dual feed foot in place with your right hand, then using the disc-shaped screwdriver securely tighten the large screw.

Diagram of a mechanical device with a yellow arrow indicating direction (no text or symbols present)

CAUTION

- Use the included screwdriver to firmly tighten the screw. If the screw is loose, the needle may strike the presser foot and possibly cause injury.

5 Plug the connector of the compact digital dual feed foot into the jack on the back of your machine.

Line drawing of a mechanical device with a cable and connector, no text or symbols present

6 Touch to unlock all keys and buttons.

→ All keys and operation buttons are unlocked, and the previous screen is displayed.

7 Place the fabric under the compact digital dual feed foot with the needle at the starting point of the stitching.

8 Be sure that the feed position lever is pushed down and the compact digital dual feed foot is ready to sew.

Mechanical sewing machine diagram showing needle insertion and cutting (no text or symbols)

①Feed position lever

Note

- Do not operate the lever while sewing.

Memo

- When the feed position lever is up, dual feed function is not effective. When the feed position lever is down, the black roller belt on the compact dual feed is engaged.

■ Attaching/Detaching Toe

Attach the toe by aligning the pins with the notches and snap it into place.

①Pins
②Notches

If you push down on the front and back part of the compact digital dual feed foot, the toe of the compact digital dual feed foot will snap off.

Technical line drawing of a mechanical component with a yellow connector detail (no text or symbols)

■ Adjusting the Amount of Fabric Feeding from the Compact Digital Dual Feed Foot

The dual feed mechanism pulls the top fabric according to the set stitch length. With troublesome fabrics, fine tune the set length, by changing [Dual Feed Feed Adjustment] in the settings screen.

Note

- As a default, some keys mentioned in the following procedures appear in light gray and are not available. To enable the keys for specifying the settings, attach the compact digital dual feed foot to the machine. The keys are enabled after the compact digital dual feed foot is detected.

1 Touch

→ The settings screen appears.

2 Touch

→ The sewing settings screen appears.

3 Display [Dual Feed Feed Adjustment] in the sewing settings screen.

4 Use or to increase or decrease the feeding of the top fabric.

* Select [00] for sewing in most cases.
* If the feed amount for the top fabric is too little, causing the fabric to be longer than the bottom fabric, touch tb increase the feed amount for the top fabric.
* If the feed amount for the top fabric is too much, causing the fabric to be shorter than the bottom fabric, touch to decrease the feed amount for the top fabric.

5 Touch to return to the original screen.

Chapter 2 SEWING BASICS

SEWING

CAUTION

• To avoid injury, pay special attention to the needle while the machine is in operation. Keep your hands away from moving parts while the machine is in operation.
• Do not stretch or pull the fabric during sewing. Doing so may lead to injury.
• Do not use bent or broken needles. Doing so may lead to injury.
• Do not attempt to sew over basting pins or other objects during sewing. Otherwise, the needle may break and cause injury.

IMPORTANT

- If stitches become bunched, lengthen the stitch length setting before continuing sewing. Otherwise, the needle may break and cause injury.

Stitch Types

■ Utility Stitches

①Straight/Overcasting

②Decorative Stitches

③Heirloom Stitches

④Buttonholes/Bar tacks

⑤Multi-directional

⑥Sewing Quilting Stitches

⑦Other Stitches

⑧Stitch Tapering

■ Character/Decorative Stitches

①Decorative stitch patterns

②7mm decorative stitch patterns You can set stitch length and width.

③Satin stitch patterns

④7mm satin stitch patterns You can set stitch length and width.

⑤Cross stitch

⑥Utility decorative stitch patterns

⑦Alphabet characters (gothic font)

⑧Alphabet characters (handwriting font)

⑨Alphabet characters (outline)

⑩Cyrillic font

⑪ Stitch patterns saved in the machine's memory (page 102)

⑫Stitch patterns saved in USB media (page 102)

Basic Sewing

- First, perform a trial sewing, using a piece of fabric and thread that are the same as those used for your project.

1 Turn the main power to ON and touch to display

the utility stitches, and press (Needle position button) to raise the needle.

Select the category you want.

Touch the key of the stitch you want to sew.

• For details on stitch patterns, refer to "STITCH SETTING CHART" on page 199.
• For details on the key functions, refer to "Key Functions" on page 23.
• If necessary, change to the desired stitch width or stitch length. (page 61)

→ The symbol of the correct presser foot will be displayed in the upper left corner of the LCD screen.

Install the presser foot (page 49).

CAUTION

- Always use the correct presser foot. If the wrong presser foot is used, the needle may strike the presser foot and break, possibly resulting in injury. Refer to "STITCH SETTING CHART" on page 199 for presser foot recommendations.

Set the fabric under the presser foot. Hold the fabric and thread in your left hand, and rotate the handwheel counterclockwise or press (Needle position button) to set the needle in the sewing start position.

Illustration of a sewing machine needle stitching fabric (no text or symbols)

Lower the presser foot.

* You do not have to pull up the bobbin thread.

Adjust the sewing speed with the speed control slide.

* You can use this slide to adjust sewing speed during sewing.

①Slow

②Fast

Press the "Start/Stop" button to start sewing.

* Guide the fabric lightly by hand.

Illustration of a sewing machine needle and its corresponding close-up view (no text or symbols)

Memo

- When the foot controller is being used, you cannot start sewing by pressing the "Start/Stop" button.

Press the "Start/Stop" button again to stop sewing.

Technical illustration of a sewing machine needle and its corresponding schematic diagram (no text or symbols)

Press (Thread cutter button) to trim the upper and bobbin threads.

→ The needle will return to the up position automatically.

IMPORTANT

• Do not press (Thread cutter button) after the threads have been cut. Doing so could tangle the thread or damage the machine.
• Do not press (Thread cutter button) when there is no fabric set in the machine or during machine operation. The thread may tangle, possibly resulting in damage.

Note

- When cutting thread thicker than #30, nylon monofilament thread, or other decorative threads, use the thread cutter on the side of the machine.

Illustration of a sewing machine needle stitching fabric, with no visible text or symbols

When the needle has stopped moving, raise the presser foot and remove the fabric.

Using Advanced Multi-Function Foot Controller

With the advanced multi-function foot controller, various sewing machine operations in addition to starting/stopping sewing, such as thread cutting and reverse stitching, can be specified to be performed.

WARNING

- The advanced multi-function foot controller contains small parts. Keep the product out of the reach of children to prevent accidental ingestion of small parts.

Note

- (For U.S.A. only) Foot controller: Model X This foot controller can be used on the machine with product code 882-W74. The product code is mentioned on the machine rating plate.

1

2

3

4

No.	Part Name
1	Main foot controller
2	Side pedal
3	Mounting plate
4	Mounting screw × 2

Align the smaller end of the mounting plate with the guide on the bottom of the side pedal, and then gently fasten them together with the mounting screw. Align the larger end of the mounting plate with the guide on the bottom of the main foot controller, and then gently fasten them together with the mounting screw.

①Guide on side pedal
②Mounting plate
③Guide on main foot controller

Memo

• The side pedal can be mounted on either the left or right side of the main foot controller.
• The main foot controller and side pedal can also be used without installing the mounting plate.

2 Adjust the spacing between the main foot controller and side pedal.

* Use the markings on the mounting plate as a convenient guide to adjust the spacing.

Mechanical assembly diagram showing a shaft with two circular components and bidirectional arrows indicating motion (no text or symbols)

3 Firmly tighten the mounting screws to secure the main foot controller and side pedal.

Memo

- To readjust the spacing between the main foot controller and side pedal, slightly loosen the mounting screws, and then adjust the positions of the main foot controller and side pedal.

4 Turn off the machine.

5 Insert the plug for the side pedal into the jack on the main foot controller.

Line drawing of two electronic devices connected by wires, no text or symbols present

6 Insert the plug for the main foot controller into the foot controller jack on the right side of the machine.

①Main foot controller ②Foot controller jack

Memo

- The length of the cord for the main foot controller can be adjusted. (page 57)

7 Turn on the machine. And then touch display page 2 of the settings screen.

Memo

- Before specifying the functions, connect the multifunction foot controller to the machine. The settings screen is activated the first time that the machine detects the multi-function foot controller.

8 Select the functions to be performed by the multifunction foot controller.

	Controller Functions that can be specified
1Main foot controller Start/Stop
2Heel switch Select any of the following:• [Thread Cutting]• [Needle Position – Up/Down]• [Single Stitch]• [Reverse Stitch] (Reinforcement Stitch) *• [Presser Foot Up/Down]• [No Setting]
3Side pedal

* If you set the "Reverse Stitch" function on the heel switch, machine operates the same as pressing (Reverse stitch button) on the machine.

* Reinforcement stitching may be applied depending on the selected stitch pattern. For the details, refer to "Automatic Reverse/Reinforcement Stitching" on page 59.

Memo

- If you set [Reverse Stitch] on the side pedal, you can create a darning stitch effect using zigzag stitches. With both feet, keep pressing the main foot controller, and repeat pressing and releasing the side pedal to sew forward and reverse in turn. Machine will reverse at the speed you press the main foot controller.

9 Touch OK.

10 Sew trial stitches and confirm that the settings are as desired.

Pressing down on the main foot controller increases the sewing speed; releasing the pressure on the main foot controller decreases the sewing speed.

Release the main foot controller or side pedal to stop sewing.

Illustration of a person using a foot-to-heel converter device (no text or symbols present)

Memo

• The speed that is set using the sewing speed controller will be the main foot controller's maximum sewing speed.
• When the multi-function foot controller is connected, the "Start/Stop" button cannot be used to start sewing.

■ Adjusting the Length of the Cord for the Main Foot Controller

1 Unwind the cord for the main foot controller.
2 Guide the cord between the tabs.

3 Wind the cord until it is the desired length.

* The cord can be wound either clockwise or counterclockwise.

4 Pass the cord between the tabs.

Pure electrical circuit lines without any symbols

Note

- In order to avoid stepping on the cord with the main foot controller, pass the cord between the tabs.

Memo

- When storing the cord, pass it between the tabs, and then insert the plug into the jack on the main foot controller.

Combining Stitch Patterns

Stitch patterns from the following categories can be combined.

Example:

1 Touch \$>.

2 Select the following stitch pattern (8-35).

3 Touch so that it displays. +

4 Touch Return .

→ The display returns to the stitch selection screen.

5 Select a font.

6 Enter characters.

• Select a stitch pattern individually.
  • : Delete the selected stitch pattern.
• : Enter a space.

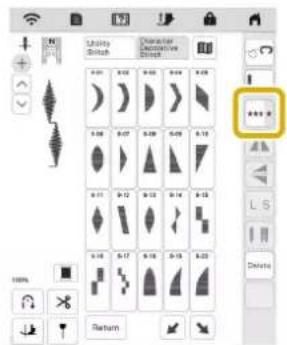

7 If you want to sew the stitch pattern continuously,

touch ....

→ The stitch pattern turns continuous.

Memo

- When sewing is completed, trim any excess thread between characters.

■ Inserting Stitch Patterns

1 Touch or to select the stitch pattern at the position where a new stitch pattern will be added.

2 Touch . Return

3 Select a new stitch pattern.

→ The new stitch pattern is added immediately after the stitch pattern selected in step 1.

Sewing Reverse Stitches/Reinforcement Stitches

Reverse/reinforcement stitches are generally necessary at the beginning and end of sewing. You can use ☑Reverse stitch button) to sew reverse/reinforcement stitches. When you keep pressing ☑Reinforcement stitch button), the machine will sew reinforcement stitch at that point 3 to 5 stitches, and then stop. (page 10)

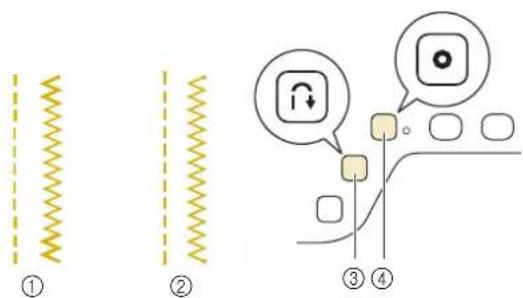

①Reverse stitch
②Reinforcement stitch
③ (Reverse stitch button)
④ (Reinforcement stitch button)

The operation performed when the button is pressed differs depending on the selected stitch pattern. (Refer to "STITCH SETTING CHART" on page 199.)

Memo

• When you press (Reinforcement stitch button) while sewing character/decorative stitch pattern, you can end sewing with a full stitch instead of at a mid-point.
• The green light on the right of (Reinforcement stitch button) lights up while the machine is sewing a full motif, and it automatically turns off when the sewing is stopped.

Automatic Reverse/Reinforcement Stitching

After selecting a stitch motif, turn on the automatic reinforcement stitching function before sewing, and the machine will automatically sew reinforcement stitches (or reverse stitches, depending on the stitch motif) at the beginning and end of sewing.

Select a stitch pattern.

Touch ☐ set the automatic reinforcement stitching function.

→ The key will display as

Set the needle in the start position and press the "Start/Stop" button to start sewing.

①Reverse stitches (or reinforcement stitches)

→ The machine will automatically sew reverse stitches (or reinforcement stitches) and then continue sewing.

Memo

- Pressing the "Start/Stop" button while the machine is sewing pauses or restarts sewing.

Press (Reverse stitch button) or (Reinforcement stitch button).

①Reverse stitches (or reinforcement stitches)

→ The machine will sew reverse stitches (or reinforcement stitches) and stop.

The operation performed when the button is pressed differs depending on the selected stitch pattern. Refer to the following table for details on the operation that is performed when the button is pressed.

	(Reverse stitch button)	(Reinforcement stitch button)
Utility Stitch [phone]	Machine sews reverse stitches while holding (Reverse stitch button).	Machine sews 3 - 5 reinforcement stitches while holding (Reinforcement stitch button).
Utility Stitch [phone]	Machine sews reverse stitches while holding (Reverse stitch button).*	Machine sews 3 - 5 reinforcement stitches while holding (Reinforcement stitch button).
with a stitch other than reverse or reinforcement stitch pattern selected.	Machine sews 3 - 5 reinforcement stitches while holding (Reverse stitch button).	Machine sews 3 - 5 reinforcement stitches while holding (Reinforcement stitch button).
Character Decorative Stitch +	Machine sews reinforcement stitches while holding (Reverse stitch button).	Machine sews reinforcement stitches after completing the stitch pattern, when (Reinforcement stitch button) is pressed.
Utility Stitch [phone]	Machine sews reverse stitches and stops sewing when the (Reverse stitch button) is pressed.(At the beginning of sewing, reverse stitches are sewn automatically when “Start/Stop” button is pressed.)	Machine sews reinforcement stitches and stops sewing when (Reinforcement stitch button) is pressed.(At the beginning of sewing, reverse stitches are sewn automatically when “Start/Stop” button is pressed.)
Utility Stitch [phone]	Machine sews reverse stitches and stops sewing when (Reverse stitch button) is pressed.* (At the beginning of sewing, reinforcement stitches are sewn automatically when “Start/Stop” button is pressed.)	Machine sews reinforcement stitches and stops sewing when (Reinforcement stitch button) is pressed.(At the beginning of sewing, reinforcement stitches are sewn automatically when “Start/Stop” button is pressed.)

	(Reverse stitch button)	(Reinforcement stitch button)
with a stitch other than reverse or reinforcement stitch pattern selected.	Machine sews reinforcement stitches and stops sewing when (Reverse stitch button) is pressed. (At the beginning of sewing, reinforcement stitches are sewn automatically when “Start/Stop” button is pressed.)	Machine sews reinforcement stitches and stops sewing when (Reinforcement stitch button) is pressed. (At the beginning of sewing, reinforcement stitches are sewn automatically when “Start/Stop” button is pressed.)
+	Machine sews reinforcement stitches and stops sewing when (Reverse stitch button) is pressed. (At the beginning of sewing, reinforcement stitches are sewn automatically when “Start/Stop” button is pressed.)	Machine sews reinforcement stitches and stops sewing after completing the stitch pattern, when (Reinforcement stitch button) is pressed. (At the beginning of sewing, reinforcement stitches are sewn automatically when “Start/Stop” button is pressed.)

* If [Reinforcement Priority] of the settings screen is set to [ON] (page 25), reinforcement stitches are sewn instead of reverse stitches.

Automatic Presser Foot Lowering Function and Thread Cutting Function

By setting the machine to automatically raise and lower the presser foot, sewing operations can be performed more smoothly.

No.	Key Name Explanation
1	[Auto Down] When [Auto Down] is set to [ON], pressing the "Start/Stop" button or depressing the foot controller automatically lowers the presser foot (if it is raised) before starting to sew.
2	[Auto Up] When [Auto Up] is set to [ON], the presser foot is raised when stopping sewing.The presser foot is raised to the height specified for [Presser Foot Height](page 25).When the pivot setting () is selected,the presser foot is raised to the height specified for [Pivoting Height] (page 25).
3	[Press to Trim] When [Press to Trim] is set to [ON],pressing (thread cutter button)automatically lowers the presser foot (if it is raised) before cutting the thread. The presser foot will be raised after the thread is cut.

STITCH SETTINGS

Setting the Stitch Width/Stitch Length/"L/R Shift"

When you select a stitch, your machine automatically selects the appropriate stitch width, stitch length, and L/R Shift. However, if needed, you can change any of the individual settings.

Memo

• Settings for some stitches cannot be changed (page 199).
• If you turn off the machine or select another stitch without saving stitch setting changes (page 63), the stitch settings will return to their default settings.
• Touch Memory to save the stitch settings.
• Touch to check changes made to the stitch.
• Touch Reset to return the original setting.

Note

- After adjusting the stitch width or the "L/R Shift", slowly turn the handwheel toward you (counterclockwise) and check that the needle does not touch the presser foot.

IMPORTANT

- If the stitches get bunched together, lengthen the stitch length and continue sewing. Do not continue sewing without lengthening the stitch length. Otherwise, the needle may bend or break.

■ Setting the Stitch Width

Follow the steps below when you want to change the zigzag stitch pattern width.

Memo

- For an alternate method of changing the stitch width using the speed controller, refer to page 79.

■ Setting the Stitch Length

Follow the steps below when you want to change the stitch pattern length.

Setting the "L/R Shift"

Follow the steps below when you want to change the placement of the zigzag stitch pattern by moving it left and right.

Setting the Thread Tension

You may need to change the thread tension, depending on the fabric and thread being used. Follow the steps below to make any necessary changes.

Memo

- Touch the return the thread tension to the original setting.

■ Proper Thread Tension

The upper thread and the bobbin thread should cross near the center of the fabric. Only the upper thread should be visible from the right side of the fabric, and only the

bobbin thread should be visible from the wrong side of the fabric.

①Wrong side
②Surface
③Upper thread
④Bobbin thread

Memo

- Many decorative stitches and satin stitches are designed so that the upper thread wraps to the back slightly for a more attractive finish.

■ Upper Thread is Too Tight

If the bobbin thread is visible from the right side of the fabric, the upper thread is too tight.

Note

- If the bobbin thread was incorrectly threaded, the upper thread may be too tight. In this case, refer to "Setting the Bobbin" on page 39 and rethread the bobbin thread.

①Bobbin thread
②Upper thread
③Surface
④Locks appear on surface of fabric

Touch, no loosen the upper thread.

■ Upper Thread is Too Loose

If the upper thread is visible from the wrong side of the fabric, the upper thread is too loose.

Note

- If the upper thread was incorrectly threaded, the upper thread may be too loose. In this case, refer to "Upper Threading" on page 41 and rethread the upper thread.

①Upper thread
②Bobbin thread
③Wrong side
④Locks appear on wrong side of fabric

Touch to tighten the upper thread.

Saving Your Stitch Settings

The settings for the zigzag stitch width, stitch length, thread tension, etc., are preset in the machine for each stitch. However, if you have specific settings that you wish to reuse later for a stitch, you can change the settings so that they can be saved for that stitch. Five sets of settings can be saved for single stitch.

■ Saving Settings

1 Select a stitch.

2 Specify your preferred settings.

3 Touch Memory.

→ The settings are saved and the original screen automatically appears.

Memo

- If you try to save settings when there are already 5 sets of settings saved for a stitch, delete a setting referring to "Retrieving Saved Settings" on page 63.

■ Retrieving Saved Settings

1 Select a stitch.

2 Touch Retrieve.

3 Touch the numbered key of the settings to be retrieved.

* Touch to return to the original screen without retrieving settings.

①Numbered keys

4 Touch Retrieve .

→ The selected settings are retrieved, and the original screen automatically appears.

Memo

- To save new settings when there are already 5 sets of settings saved for a stitch, touch RTouch the numbered key of the setting to be deleted.

Touch, touch and thenx. The Memory new setting will be saved in place of the recently deleted setting.

- You can delete all the saved settings by touching All Delete.

■ Returning the Selected Stitch Pattern Saved Settings to the Default Settings

1 Touch Reset.

2 Touch Memory.

USEFUL FUNCTIONS

Automatic Thread Cutting

After selecting a stitch pattern, turn on the automatic thread cutting function before sewing, and the machine will automatically sew reinforcement stitches (or reverse stitches, depending on the stitch pattern) at the beginning and end of sewing, and trim the threads at the end of sewing. This function is useful when sewing buttonholes and bar tacks.

1 Select a stitch pattern.

2 Touch to set the automatic thread cutting function.

→ The keys will display as ⬤, and the machine is set for automatic thread cutting function and automatic reverse/reinforcement stitching.

Memo

- To turn off the automatic thread cutting function, touch again, so it appears as .

3 Set the needle into the fabric and start sewing.

→ The machine will automatically sew reverse stitches (or reinforcement stitches) and then continue sewing.

4 Once you have reached the end of the stitching, press

(Reverse stitch button) or Reinforcement stitch button) once.

If stitching, such as buttonholes and bar tacking, that includes reinforcement stitching has been selected, this operation is unnecessary.

→ After the reverse stitching (or reinforcement stitching) has been done, the machine stops, and the threads are cut.

①The point where the "Start/Stop" button was pressed.

②The point where (Reverse stitch button)

or (Reinforcement stitch button) was pressed.

③The thread is cut here.

Adjusting the Needle Drop Point with the Guideline Marker

The red guideline marker indicates the sewing position on the fabric. You can adjust the sewing position by moving the guideline marker while checking the guideline marker on the fabric.

WARNING

- The guideline marker is a laser; therefore, do not stare at the laser light directly. Otherwise it may cause blindness.

1 Touch to display the guideline marker.

→ The guideline marker scale appears.

* Depending on the setting of [Initial Position] in the settings screen, the initial needle drop point is scaled as either 0.0 mm or 3.5 mm.

2 Use or to move the needle drop point.

→ Adjust the position from 15.5 mm (approx. 5/8 inch) to the right of the left needle to -3.5 mm (approx. -1/8 inch) to the left of the left needle.

①Touch to flip the guideline marker position on the center needle position.

3 Touch again to stop using the guideline marker.

■ Adjusting the Guideline Marker Position

If the guideline marker indicates the position incorrectly in the center needle position, adjust the initial position in the settings screen.

1 Touch

→ The settings screen appears.

2 Touch

→ The sewing settings screen appears.

3 Display [Guideline Marker Adjustment] in the sewing settings screen.

4 Touch Start.

5 Use or to adjust the guideline marker position.

* : Move the guideline marker to the left.

+ : Move the guideline marker to the right.

6 Touch twice to return to the original screen.

■ Adjusting the Brightness of the Guideline Marker

1 Follow steps from 1 to 4 to display the [Guideline Marker Adjustment] screen.

2 Use or to adjust the brightness of the guideline marker.

→ Set the brightness of the guideline marker from [1] for a dim marker, to [5] for the brightest marker, on the fabric.

3 Touch twice to return to the original screen.

Pivoting

If the pivot function is selected, the machine stops with the needle lowered (in the fabric) and the presser foot is automatically raised to an appropriate height when the "Start/Stop" button is pressed. When the "Start/Stop" button is pressed again, the presser foot is automatically lowered and sewing continues. This function is useful for stopping the machine to rotate the fabric.

CAUTION

- When the pivot setting is selected, the machine starts when the "Start/Stop" button is pressed or the foot controller is pressed down even if the presser foot has been raised. Be sure to keep your hands and other items away from the needle, otherwise injuries may occur.

Memo

- When the pivot setting is selected, the height of the presser foot when sewing is stopped can be changed according to the type of fabric being sewn. Touch to display [Pivoting Height] of the settings screen. Touch or to select the height. To raise the presser foot further, increase the setting.

1 Select a stitch.

2 Touch to select the pivot setting.

→ The key appears as ↓

Memo

- If appears as light gray when the stitch pattern was selected, the pivot function cannot be used.

- If the pivot function is selected, and beside [Presser Foot Height] in the settings screen are not available and the setting cannot be changed.

3 Place the fabric under the presser foot with the needle at the starting point of the stitching, and then press the "Start/Stop" button. The machine will begin sewing.

4 Press the "Start/Stop" button to stop the machine at the point where the sewing direction changes.

→ The machine stops with the needle in the fabric, and the presser foot is raised.

5 Rotate the fabric, and then press the "Start/Stop" button.

Mechanical sewing machine needle with yellow motion arrow indicating rotation (no text or symbols)

→ The presser foot is automatically lowered, and sewing continues.

Using the Knee Lifter

Using the knee lifter, you can raise and lower the presser foot with your knee, leaving both hands free to handle the fabric.

1 Align the tabs on the knee lifter with the notches in the knee lifter slot on the front of the machine. Insert the knee lifter bar as far as possible.

Memo

- If the knee lifter bar is not pushed into the mounting slot as far as possible, it may come out during use.

2 Use your knee to move the knee lifter bar to the right in order to raise the presser foot. Slowly return the knee lifter bar to the left to lower the presser foot.

Note

- Be sure to keep your knee away from the knee lifter during sewing.

Automatic Fabric Sensor System (Automatic Presser Foot Pressure)

The thickness of the fabric is automatically detected and the presser foot pressure is automatically adjusted with an internal sensor while sewing, to insure that your fabric is fed smoothly. The fabric sensor system works continuously while sewing. This function is useful for sewing heavyweight fabrics (page 69), or quilting (page 78).

Touch, and then set |Automatic Fabric Sensor System| to [ON]. (page 25)

Illustration showing a sewing machine being adjusted to form a fabric or thread, with no text or symbols present.

Needle Position - Stitch Placement

When the [Needle Position - Stitch Placement] is [ON], the needle will be partially lowered for precise stitch placement and then completely lowered when you press Needle Position button). Each press of Needle Position button) changes the needle to the next position. When the [Needle Position - Stitch Placement] is [OFF], each press of (Needle Position button) simply raises and then lowers the needle.

Touch , and then set [Needle Position - Stitch Placement] to [ON] or [OFF]. (page 26)

|Needle Position - Stitch Placement| is |ON|

* When the needle is nearly lowered by pressing (Needle position button), the feed dogs are lowered. At this time, the fabric can be shifted to finely adjust the needle drop point.

[Needle Position - Stitch Placement] is [OFF]

Using the Straight Stitch Needle Plate and the Straight Stitch Foot

The straight stitch needle plate and the straight stitch foot can only be used for straight stitches (middle needle position stitches). Use the straight stitch needle plate and the straight stitch foot when sewing thin fabrics or when sewing small pieces which tend to sink into the hole of the regular needle plate during sewing. The straight stitch foot is perfect to reduce puckering on lightweight fabrics. The small opening on the foot provides support for the fabric as the needle travels through the fabric.

①2.25 mm (1/8 inch) ②4.25 mm (3/16 inch) ③6.25 mm (1/4 inch) ④8.5 mm (5/16 inch)

CAUTION

• Always use the straight stitch foot in combination with the straight stitch needle plate. Otherwise, the needle may break and cause injury.

1 Press (Needle position button) to raise the needle, raise the presser foot and turn the main power to OFF. And then unplug the machine.

2 Remove the needle and the presser foot. (page 46, page 49)

3 Insert the multi-purpose screwdriver into the hole, and tilt the multi-purpose screwdriver to the left and then to the back, as shown in the illustration.

4 Slide out the regular needle plate with your right hand to remove it.

Illustration of a hand holding a device with a yellow arrow indicating direction (no text or symbols)

5 Insert the tabs on the straight stitch needle plate into the notches in the machine.

①Tabs ②Notches

6 Press down on the right side of the straight stitch needle plate to secure it.

Diagram of a vehicle interior with a car and directional arrow (no text or symbols)

7 Insert needle and attach the straight stitch foot.

①Notch ②Pin

8 Select any of the straight stitches.

Memo

• Selecting unavailable stitches will cause an error message to be displayed.
• When the straight stitch needle plate is on the machine, the needle will automatically move to the middle position.

Note

- Slowly rotate the handwheel toward you (counterclockwise) before sewing and make sure that the needle is not contacting the straight stitch foot and straight stitch needle plate.

9 Start sewing.

* After sewing, make sure to turn off the machine and to remove the straight stitch needle plate and the straight stitch foot. Reinstall the regular needle plate and the presser foot "J".

USEFUL SEWING TIPS

Sewing Tips

Trial Sewing

Before starting your sewing project, we recommend sewing trial stitches using thread and scrap fabric that are the same as those used for your project.

While checking the sewing results, adjust the thread tension as well as the stitch length and width according to the number of fabric layers and stitch that is sewn.

Note

• Other factors, such as fabric thickness, stabilizer material, etc., also have an effect on the stitch, so you should always sew a few trial stitches before beginning your project.
• When sewing satin stitch or 7 mm satin stitch patterns, there may be shrinking or bunching of stitches, so be sure to use a stabilizer material.

■ Sewing Curves

Sew slowly while keeping the seam parallel with the fabric edge as you guide the fabric around the curve.

Technical line drawing of a sewing machine needle and handle (no text or symbols)

Shorten the stitch length setting to obtain a fine stitch. Sew slowly, keeping the seams parallel with the fabric edge as you guide the fabric around the curve.

■ Changing Sewing Direction

Stop the machine. Leave the needle in the fabric, and press (Bresser foot lifter button) to raise the presser foot. Using the needle as a pivot, turn the fabric so that you can sew in the new direction. Press (Bresser foot lifter button) to lower the presser foot and start sewing.

Diagram of a sewing machine needle stitching on fabric, with an inset showing the same mechanism (no text or symbols present)

The pivot setting is useful when changing the sewing direction. (page 65)

Sewing Various Fabrics

■ Sewing Heavyweight Fabrics

If the thickness of a seam causes the presser foot to rest at an angle, help guide the fabric by hand and sew on the downward slope.

CAUTION

- If fabric more than 6 mm (approx. 1/4 inch) thick is sewn or if the fabric is pushed with too much force, the needle may break and cause injury.

Memo

- Thicker fabrics require a larger needle. (page 48)

☐ If the Fabric does not Fit under the Presser Foot

If the presser foot is in the up position, and you are sewing heavyweight or multiple layers of fabric which do not fit easily under the presser foot, use the presser foot lever to raise the presser foot to its highest position. The fabric will now fit under the presser foot.

Diagram of a sewing machine mechanism with yellow directional arrows indicating motion (no text or labels)

Memo

- You cannot use the presser foot lever after the presser foot has been raised using (Presser foot lifter button).

□ If the Fabric does not Feed

When sewing thick fabric such as denim or quilting layers, the fabric may not feed at the start of sewing if the presser foot is not level, as shown below. In this case, use the presser foot locking pin (black button on the left side) of zigzag foot "J" so that the presser foot remains level while sewing, allowing the fabric to be fed smoothly.

If the presser foot misalignment is too large, place thick paper or fabric (with the same thickness as the fabric being sewn) under the heel of the presser foot to be able to start sewing smoothly.

①Sewing direction
②Misalignment
③Fabric being sewn
④Fabric or thick paper

1 Raise the presser foot.

2 While keeping the black button on the left side of

presser foot "J" pressed in, press (Presser foot lifter button) to lower the presser foot.

Illustration of a sewing machine needle and its side view showing control buttons (no text or symbols)

3 Release the presser foot locking pin.

→ The presser foot remains level, enabling the fabric to be fed.

Memo

• Once the trouble spot has been passed, the foot will return to its normal position.
• When [Automatic Fabric Sensor System] (Automatic Presser Foot Pressure) in the machine settings screen is set to [ON], the thickness of the fabric is automatically detected by the internal sensor so the fabric can be fed smoothly for best sewing results (page 66).

■ Sewing Lightweight Fabrics

Place thin paper or tear away embroidery stabilizer under thin fabrics to make sewing easier. Gently tear off the paper or the stabilizer after sewing.

Mechanical sewing machine diagram showing needle insertion and base connection (no text or symbols)

①Thin paper

■ Sewing Stretch Fabrics

First, baste together the pieces of fabric, and then sew without stretching the fabric.

In addition, a better result can be achieved by using thread for knits or a stretch stitch.

Memo

- For best results when sewing stretch fabrics, decrease the pressure of the presser foot (page 25).

Mechanical assembly diagram showing a sewing machine needle and base mount (no text or labels)

①Basting stitching

■ Sewing Leathers or Vinyl Fabrics

When sewing fabrics that may stick to the presser foot, such as leather or vinyl fabrics, replace the presser foot with the compact digital dual feed foot.

①Leather

If the leather or vinyl fabric sticks to the flat bed attachment, sew with copy paper or tracing paper placed on top of the flat bed attachment so the fabric moves smoothly.

If the paper is positioned so that it does not cover the needle plate, the paper will not be sewn together with the fabric.

Diagram of a sewing machine needle stitching fabric, showing base and cutting path (no text or symbols)

①Copy paper or tracing paper

Sewing Decorative Stitch Patterns

Fabric When sewing on stretch fabrics, lightweight fabrics, or fabrics with coarse weaves, attach stabilizer on the wrong side of the fabric. An alternative would be to place the fabric on thin paper such as tracing paper. 1Fabric2Stabilizer3Thin paper

Thread #50 - #60

Needle With lightweight, regular, or stretch fabrics: the Ball point needle (golden colored) 90/14With heavyweight fabrics: home sewing machine needle 90/14

Presser foot Advanced monogramming foot “N+”.Using another presser foot may give inferior results.

Chapter 3 VARIOUS STITCHES

UTILITY STITCHES

CAUTION

- Before replacing the presser foot, be sure to touch to lock all keys and buttons, otherwise injuries may occur if the "Start/Stop" button or any other button is pressed and the machine starts. For details on changing the presser foot, refer to "Replacing the Presser Foot" on page 49.

Straight Stitches

Memo

- For details on stitch patterns, refer to "STITCH SETTING CHART" on page 199.

① Left needle position
② Middle needle position

■ Changing the Needle Position (Left or Middle Needle Position Stitches Only)

When you select left or middle needle position stitches, you can use and in the L/R Shift display to change the position of the needle. Match the distance from the right edge of the presser foot to the needle with the L/R Shift, then align the edge of the presser foot with the edge of the fabric during sewing for an attractive finish.

①L/R Shift

Example: Left/Middle needle position stitches

Memo

• Stitch Q-01 will not permit using the L/R Shift function.
• When [Width Control] in the Sewing settings screen is set to [ON], the needle position of a straight stitch can be changed with the sewing speed controller.
  And use the foot controller to operate the machine.

①Shift the needle position to the left. ②Shift the needle position to the right.

■ Aligning the Fabric with a Mark on the Needle Plate or Bobbin Cover (with Mark)

While sewing, align the edge of the fabric with the 5/8 inch (approx. 1.6 cm) mark on the needle plate or bobbin cover (with mark) depending on the needle position (left or middle (center) needle position stitches only).

For stitches with a left needle position (Stitch width: 0.0 mm)

①Seam
②Presser foot
③Centimeters
④Inches
⑤Needle plate
⑥5/8 inch (approx. 1.6 cm)

For stitches with a middle (center) needle position (Stitch width: 3.5 mm)

①Seam
②Presser foot
③Inches
④Bobbin cover (with mark)
⑤5/8 inch (approx. 1.6 cm)

Basting

1 Select and attach presser foot "J".
2 Keep pressing (Reverse stitch button) or (Reinforcement stitch button) to sew 4 stitches of reinforcement stitches, then press "Start/Stop" button to continue sewing.

Memo

• Before sewing, pull up the bobbin thread, align it with the upper thread, and then pull them to the back of the machine. (page 40) For clean stitching, hold these thread ends when starting to sew.
• You can set the stitch length between 5 mm (approx. 3/16 inch) and 30 mm (approx. 1-3/16 inches).

①Between 5 mm (approx. 3/16 inch) and 30 mm (approx. 1-3/16 inches)

3 When sewing is finished, sew reinforcement stitches, and then cut the threads to a generous length.

Dart Seam

1 Select and attach presser foot "J".

2 Sew a reverse stitch at the beginning of the dart and then sew from the wide end to the other end without stretching the fabric.

Diagram showing a yellow garment with a seam or seam, marked with number ① (no text or symbols present)

①Basting

3 Cut the thread at the end leaving 5 cm (approx. 2 inches), and then tie both ends together.

* Do not sew a reverse stitch at the end.

Simple line drawing of a rope tied to a vertical pole, no text or symbols present

4 Insert the ends of the thread into the dart with a hand sewing needle.

Yellow fabric piece with a yellow seam and a small loop, no text or symbols present

5 Iron the dart to one side so that it is flat.

Simple line drawing of a pointed object hanging from a vertical rod against a yellow background (no text or symbols)

Gathering

Use on waists of skirts, sleeves of shirts, etc.

1 Select a straight stitch and attach presser foot "J".

2 Set the stitch length to 4.0 mm (approx. 3/16 inch) and the thread tension to approximately 2.0 (weaker tension).

3 Pull the bobbin and upper threads out by about 10 cm (approx. 4 inches) (page 40).

①Upper thread
②Bobbin thread
③About 10 cm (approx. 4 inches)

4 Sew two rows of straight stitches parallel to the seam line, then trim excess thread leaving about 5 cm (approx. 2 inches).

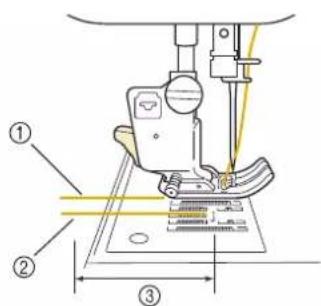

①Seam line
②1 cm to 1.5 cm (approx. 3/8 inch to 9/16 inch)
③About 5 cm (approx. 2 inches)

5 Pull the bobbin threads to obtain the desired amount of gather, then tie the threads.

Illustration of hands performing a gentle stroke technique on a textured surface (no text or symbols)

6 Smooth the gathers by ironing them.

Simple line drawing of a fabric or garment with a pointed object attached to the edge (no text or symbols)

7 Sew on the seam line and remove the basting stitch.

Flat Fell Seam

Use for reinforcing seams and finishing edges neatly.

1 Select and attach presser foot "J".

2 Sew the seam line, then cut half of the seam allowance from the side on which the flat fell seam will lie.

* When the automatic thread cutting and automatic reinforcement stitching are preset, reverse stitches will be sewn automatically at the beginning of sewing. Press (Reinforcement stitch button) to sew a reinforcement stitch and trim the thread automatically at the end of sewing.

①About 1.2 cm (approx. 1/2 inch)

②Wrong side

3 Spread the fabric out along the seam.

Diagram of a yellow fabric or material cross-section with labeled parts (① and ②), showing layered structure without any text or symbols.

①Seam

②Wrong side

4 Lay both seam allowances on the side of the shorter seam (cut seam) and iron them.

Diagram of a yellow folder with a white triangular object and a curved handle, showing a yellow arrow indicating direction (no text or symbols)

①Wrong side

5 Fold the longer seam allowance around the shorter one, and sew the edge of the fold.

Yellow fabric with two numbered points and a seam, no text or symbols present

①Wrong side

Finished flat fell seam

Simple diagram showing two labeled sections (①) with a vertical line and a small object, no text or symbols present.

①Surface

Pintuck

1 Mark along the folds on the wrong side of the fabric.

Illustration of a yellow surface with wavy lines and a diagonal tool touching it, no text or symbols present.

①Wrong side

2 Turn the fabric and iron the folded parts only.

3 Select and attach presser foot "J".
4 Sew a straight stitch along the fold.

①Width for pintuck
②Wrong side
③Surface

5 Iron the folds in the same direction.

Simple diagram showing vertical yellow lines with dashed outlines and a triangular shape on the right (no text or symbols)

Zigzag Stitches

■ Cord Guide Bobbin Cover (Using a Zigzag Stitch)

1 Remove the bobbin cover from the machine (page 39).
2 Thread the gimp thread through the hole in the cord guide bobbin cover from bottom to top. Position the thread in the notch at the back of the cord guide bobbin cover.

①Notch
②Gimp thread

3 Snap the cord guide bobbin cover into place, making sure that the gimp thread can be fed freely.

* Make sure there are no restrictions when feeding the thread.

Illustration of hands using a tool to adjust or install a yellow object (no text or symbols visible)

4 Set the zigzag width from 2.0-2.5 mm (approx. 1/16 - 3/32 inch).
5 Attach advanced monogramming foot "N+".
6 Position the fabric right side up on top of the cord and place the cord to the rear of the machine under the presser foot.

①Fabric (right side)
②Gimp thread

Lower the presser foot and start sewing to make a decorative finish.

Overcasting

Sew overcasting stitches along the edges of cut fabric to prevent them from fraying.

Memo

- For details on stitch patterns, refer to "STITCH SETTING CHART" on page 199.

Using Overcasting Foot "G"

Select a stitch.

Attach overcasting foot "G".

CAUTION

- When using overcasting foot "G", be sure select a stitch that can be used with overcasting foot "G". If you sew with the incorrect stitch, the needle may strike the presser foot and break, and may cause injury.

Position the fabric with the edge of the fabric against the guide of the presser foot, and then lower the presser foot lever.

Mechanical assembly diagram showing a sewing machine with a close-up of its component (no text or symbols visible)

①Guide

Rotate the handwheel toward you (counterclockwise). Check that the needle does not touch the presser foot.

①The needle should not touch the center bar

5 Sew with the edge of the fabric against the presser foot guide.

①Needle drop point

IMPORTANT

• Be sure to pull the fabric backward after finished sewing. If you pull the fabric toward side or forward, the presser foot pin may be damaged.
• If thread is tangled on the presser foot, remove the entangled thread, and then raise the presser foot lever to remove the presser foot. If the presser foot is raised while entangled with thread, the presser foot may be damaged.

6 Press the "Start/Stop" button to stop sewing when you have reached the end of the stitching, and raise the presser foot and needle to pull the fabric under the presser foot towards the back of the machine.

■ Using Zigzag Foot "J"

1 Select a stitch.

2 Attach zigzag foot "J".

3 Sew along the edge of the fabric with the needle dropping off the edge at the right.

①Needle drop point

Note

- Fine adjustment of the stitching on the fabric can be done with “L/R Shift”. Before sewing your project, be sure to sew trial stitches using the same conditions as in the actual project.

Quilting

You can make beautiful quilts quickly and easily with this machine. When making a quilt, you will find it convenient to use the knee lifter and foot controller to free your hands for other tasks ("Using Advanced Multi-Function Foot Controller" on page 55 and /or "Using the Knee Lifter" on page 66) The 40 quilting stitches Q-01 through Q-40, stitches S-02 through S-04 and the utility stitches with "P" or "Q" indicated on their key are useful for quilting. The "P" or "Q" at the bottom of the key display indicates that these stitches are intended for ("Q") quilting and ("P") piecing.

Q-01	Q-02	Q-03	Q-04	Q-05
	P	P	P	Q
Q-06	Q-07	Q-08	Q-09	Q-10
Q-11	Q-12	Q-13	Q-14	Q-15
Q-16		Q-18	Q-19	Q-20
Q-21		Q-23	Q-24	Q-25
Q-26		Q-28	Q-29	Q-30

Q-31	Q-32	Q-33	Q-34	Q-35
Q-36	Q-37	Q-38	Q-39	Q-40

Memo

• When a stitch pattern in the quilting stitches category (only quilting stitches marked with "Q") is selected, a finer stitch width can be set than that available with stitch patterns in other categories.
• For details on stitch patterns, refer to "STITCH SETTING CHART" on page 199.

■ Piecing

Sewing two pieces of fabric together is called piecing. When cutting pieces for quilt blocks, make sure the seam allowance is 6.5 mm (approx. 1/4 inch).

1 Select a stitch and attach presser foot "J".

Align the edge of the fabric with the edge of the presser foot, and start sewing.

* To sew a 6.5 mm (approx. 1/4 inch) seam allowance along the right edge of the presser foot with (Q-02) selected, the width (which is the needle position) should be set to 5.50 mm (approx. 7/32 inch).

①6.5 mm (approx. 1/4 inch)

* To sew a 6.5 mm (approx. 1/4 inch) seam allowance along the left edge of the presser foot with selected, the width should be set to 1.50 mm (approx. 1/16 inch).

①6.5 mm (approx. 1/4 inch)

* To change the needle position, use or in the L/R Shift display.

Memo

- In the case Q-01(center, at L/R Shift 3.5 mm) is selected, if the guideline marker is set at 10.0 mm (3.5 mm plus 6.5 mm, close to 1/4 inch), you can sew piecing by referring to the guideline marker.

Piecing Using the 1/4 Quilting Foot with Guide

This quilting foot can sew an accurate 1/4 inch or 1/8 inch seam allowance. It can be used for piecing together a quilt or for topstitching.

Select , and then attach the 1/4 Quilting foot with guide.

Technical line drawing of a sewing machine on a workbench (no text or symbols)

①Guide

Use the guide and marks on the presser foot to sew accurate seam allowances.

Piecing a 1/4 inch seam allowance

Sew keeping the edge of the fabrics against the guide.

①Guide

②1/4 inch

Memo

- For accurate fabric placement, refer to "Aligning the Fabric with a Mark on the Needle Plate or Bobbin Cover (with Mark)" on page 72.

Creating an accurate seam allowance

Use the mark on the foot to begin, end, or pivot 1/4 inch from edge of fabric.

①Align this mark with edge of fabric to begin.

②Beginning of stitching

③End of stitching

④Opposite edge of fabric to end or pivot

⑤1/4 inch

Memo

- For details on pivoting, refer to "Pivoting" on page 65.

Topstitching quilting, 1/8 inch

Sew with the edge of the fabric aligned with the left side of the presser foot's front section.

①Surface of fabric

②Seam

③1/8 inch

■ Quilting

Sewing the quilt top, batting, and backing together is called quilting. You can sew the quilt with the compact digital dual feed foot to keep the quilt top, batting, and backing from sliding. The compact digital dual feed foot has a motorized belt that moves together with the feed dogs in the needle plate during sewing. For straight line quilting, use the compact digital dual feed foot and the straight stitch needle plate. Always select a straight stitch (middle needle position) when using the straight stitch needle plate.

1 Select a stitch.

2 Attach the compact digital dual feed foot (page 50).

Diagram of a mechanical device with a yellow arrow indicating rotation or motion (no text or symbols)

3 Place one hand on each side of the presser foot to hold the fabric secure while sewing.

Line drawing of a sewing machine being adjusted with hands (no text or symbols)

Memo

• Sew at slow to medium speed.
  • Always check to be sure that your quilting project is securely basted before beginning to sew.

Appliqué

1 Use two-sided stabilizer material to secure the appliqué piece to the base fabric.
2 Select Q-12 q
3 Attach the zigzag foot "J".
4 Turn the handwheel toward you (counterclockwise), and then begin sewing around the edge of the appliqué, making sure that the needle drops just outside of the appliqué.

Illustration of a sewing machine needle stitching fabric (no text or symbols)

When sewing around corners, stop the machine with the needle in the fabric just outside of the appliqué, raise the presser foot lever, and then turn the fabric as needed to change the sewing direction.

■ Quilting with Satin Stitches

For better fabric control, use the foot controller to sew with satin stitches. Set the speed control slide to control the stitch width to make subtle changes in the stitch width during sewing.

1 Attach the foot controller (page 55).
2 Select and attach presser foot "J".
3 Touch in the length display to shorten the stitch length.

Memo

- The setting will vary according to the kind of fabric and the thickness of the thread, but a length of 0.3 to 0.5 mm (approx. 1/64 to 1/32 inch) is best for satin stitches.

4 Touch to use the speed control slide to control the stitch width.
5 Set the [Width Control] to [ON].

6 Touch OK.

→ The display will return to the original screen.

7 While sewing, slide the sewing speed controller to adjust the stitch width.

* Adjust the sewing speed with the foot controller.

①narrower ②wider

Two yellow spiral-shaped objects with black connectors, no text or symbols present

8 When you are finished sewing, set the [Width Control] back to [OFF].

■ Free Motion Quilting

With free motion quilting, the feed dogs can be lowered by touching so that the fabric can be moved freely in any direction.

For free motion quilting, use free motion quilting foot "C" or free motion open toe quilting foot "O" depending on the stitch that is selected, and set the machine to free motion sewing mode. In this mode, the presser foot is raised to the necessary height for free motion sewing. We recommend attaching the foot controller and sewing at a consistent speed. You can adjust the sewing speed with the speed control slide on the machine.

CAUTION

- With free motion quilting, control the feeding speed of the fabric to match the sewing speed. If the fabric is moved faster than the sewing speed, the needle may break and cause injury.

Memo

- When starting to sew, the internal sensor detects the thickness of the fabric, and the quilting foot is raised to the height specified in the machine settings screen. Touch display [Free Motion Foot Height] of the settings screen. Touch or to select the height that the quilting foot is raised above the fabric.

- In order to sew with a balanced tension, it may be necessary to adjust the upper thread tension. Test with a sample piece of fabric that is similar to your chosen fabric. - Do not be discouraged with your initial results. The technique requires practice.

□ Using free motion quilting foot "C"

Use the free motion quilting foot "C" with straight stitch needle plate for free motion sewing.

Free motion quilting foot "C"

CAUTION

- When using free motion quilting foot "C", be sure to use the straight stitch needle plate. If the needle is moved to any position other than the middle (center) needle position, the needle may break, which may result in injuries.

1 Attach the straight stitch needle plate (page 67).

①Round hole

CAUTION

- The machine must be turned off and unplugged when switching the needle plate.

Select a stitch.

Touch to set the machine to free motion sewing mode.

→ The key appears as, the quilting foot is raised to the necessary height, and then the feed dogs are lowered for free motion sewing.

①Free motion quilting foot "C"

→ When stitch Q-01 or 1-31 is selected, free motion quilting foot "C" is indicated in the upper-left corner of the screen.

4 Remove the presser foot holder (page 49).

5 Attach free motion quilting foot "C" at the front with the presser foot holder screw aligned with the notch in the foot.

①Presser foot holder screw ②Notch

Note

- Make sure that the free motion quilting foot "C" is attached properly and not slanted.

6 Hold the free motion quilting foot "C" in place with your right hand, and tighten the presser foot holder screw using the disc-shaped screwdriver with your left hand.

Mechanical assembly diagram showing a lever and clamp mechanism (no text or labels)

CAUTION

- Be sure to securely tighten the screws with the disc-shaped screwdriver. Otherwise, the needle may touch the free motion quilting foot "C", causing it to break and causing injury.

7 Use both hands to stretch the fabric taut, and then move the fabric at a consistent pace in order to sew uniform stitches roughly 2.0-2.5 mm (approx. 1/16 - 3/32 inch) in length.

①Stitch

8 Touch to cancel the free motion sewing mode.

→ Rotate the handwheel toward you (counterclockwise) to raise the feed dogs.

9 After sewing, make sure to remove the straight stitch needle plate and free motion quilting foot "C", and reinstall the regular needle plate.

Note

- Free motion open toe quilting foot "O" can also be used with the straight stitch needle plate. We recommend using free motion open toe quilting foot "O" with free motion sewing of fabrics of uneven thicknesses.

□ Using free motion open toe quilting foot "O"

The free motion open toe quilting foot "O" is used for free motion quilting with zigzag or decorative stitches or for free motion quilting of straight lines on fabric with an uneven thickness. Various stitches can be sewn using free motion open toe quilting foot "O". For details on the stitches that can be used, refer to "STITCH SETTING CHART" on page 199.

Free motion open toe quilting foot "O"

Memo

- The standard needle plate must be used if zigzag or decorative stitch patterns are selected.

1 Touch to set the machine to free motion sewing mode.

→ The key appears as the quilting foot is raised to the necessary height, and then the feed dogs are lowered for free motion sewing.

2 Select a stitch.

Memo

- When stitch Q-01 or 1-31 is selected, free motion quilting foot "C" is indicated in the upper-left corner of the screen. When the other stitches are selected, free motion open toe quilting foot "O" is indicated in the screen.

3 Remove the presser foot holder (page 49).

4 Attach free motion open toe quilting foot "O" by positioning the pin of the foot above the needle clamp screw and aligning the lower-left of the foot and the presser bar.

①Pin

②Needle clamp screw

③Presser bar

Note

- Make sure that the free motion open toe quilting foot "O" is not slanted.

5 Hold the free motion open toe quilting foot "O" in place with your right hand, and tighten the presser foot holder screw using the disc-shaped screwdriver with your left hand.

①Presser foot holder screw

CAUTION

- Be sure to securely tighten the screws with the disc-shaped screwdriver. Otherwise, the needle may touch the free motion open toe quilting foot "O", causing it to break and causing injury.

6 Use both hands to stretch the fabric taut, and then move the fabric at a consistent pace in order to sew uniform stitches roughly 2.0-2.5 mm (approx. 1/16 - 3/32 inch) in length.

①Stitch

7 Touch to cancel the free motion sewing mode.

→ Rotate the handwheel toward you (counterclockwise) to raise the feed dogs.

■ Echo Quilting Using the Free Motion Echo Quilting Foot "E"

Sewing quilting lines at equal distances around a motif is called echo quilting. The quilting lines, which appear as ripples echoing away from the motif, are the distinguishing characteristic of this quilting style. Use the free motion echo quilting foot "E" for echo quilting. Using the measurement on the presser foot as a guide, sew around the motif at a fixed interval. We recommend attaching the foot controller and sewing at a consistent speed.

Free motion echo quilting foot "E" measurements

①6.4 mm (approx. 1/4 inch)
②9.5 mm (approx. 3/8 inch)

1 Select 1-03

2 Touch to set the machine to free motion sewing mode.

→ The key appears as, the quilting foot is raised to the necessary height, then the feed dogs are lowered for free motion sewing.

3 Remove the presser foot holder and then attach the adapter. (page 49)

4 Position the free motion echo quilting foot "E" on the left side of the presser bar with the holes in the foot and presser bar aligned.

Diagram of a sewing machine needle stitching a circular arc, with no text or symbols present.

5 Tighten the screw with the included screwdriver (large).

Technical line drawing of a mechanical clamp or lever assembly with a yellow arrow indicating motion (no text or symbols)

Diagram of a mechanical clamp or lever mechanism with a yellow motion arrow indicating motion (no text or symbols present)

CAUTION

- Be sure to securely tighten the screws with the included screwdriver (large). Otherwise, the needle may touch the free motion echo quilting foot "E", causing it to break and causing injury.

6 Using the measurement on the free motion echo quilting foot "E" as a guide, sew echo quilting around the motif.

Illustration of a sewing machine needle stitching fabric, with hands operating it (no text or symbols)

Diagram showing a circular component with a central cross and directional arrow, no text or symbols present

①6.4 mm (approx. 1/4 inch)

Finished project

Abstract geometric shape resembling a stylized 'X' with no text or symbols

7 Touch to cancel the free motion sewing mode.

→ Rotate the handwheel toward you (counterclockwise) to raise the feed dogs.

Blind Hem Stitches

Secure the lower edge of skirts and pants with a blind hem.

Memo

• When the size of cylindrical pieces is too small to slide onto the arm or the length is too short, the fabric will not feed and desired results may not be achieved.
• For details on stitch patterns, refer to "STITCH SETTING CHART" on page 199.

1 Turn the skirt or pants inside out.

①Wrong side of fabric
②Right side of fabric
③Lower edge of fabric

2 Fold the lower edge of fabric to the desired length to be hemmed and then press.

①Wrong side of fabric
②Right side of fabric
③Lower edge of fabric
④Desired length for hem

3 Using tailor's chalk, mark the fabric about 5 mm (approx. 3/16 inch) from the edge of the fabric, and then baste it.

①Wrong side of fabric
②Right side of fabric
③Lower edge of fabric
④Desired length for hem
⑤5 mm (approx. 3/16 inch)
⑥Basting

4 Fold back the fabric inside along the basting.

①Wrong side of fabric
②Right side of fabric
③Lower edge of fabric
④Desired length for hem
⑤5 mm (approx. 3/16 inch)

⑥Basting

⑦Basting point

5 Unfold the edge of fabric, and position the fabric with the wrong side facing up.

①Wrong side of fabric
②Right side of fabric
③Edge of fabric
④Desired edge of hem
⑤Basting point
⑥Basting

6 Select a stitch.

7 Attach blind stitch foot "R".

8 Remove the flat bed attachment to use the free arm.
9 Slide the item that you wish to sew onto the free arm, make sure that the fabric feeds correctly.

Technical line drawing of a mechanical assembly with no visible text or symbols

①Free arm

10 Position the fabric with the edge of the folded hem against the guide of the presser foot, and then lower the presser foot lever.

①Wrong side of fabric
②Fold of hem
③Guide

11 Adjust the stitch width until the needle slightly catches the fold of the hem. (page 61)

①Needle drop point

When you change the needle drop point, raise the needle, and then use and to decide the needle drop point. (The stitch width setting is in neither millimeters nor inches.)

①Thick fabric
②Normal fabric

Memo

- Blind hem stitches cannot be sewn if the left needle drop point does not catch the fold. If the needle catches too much of the fold, the fabric cannot be unfolded and the seam appearing on the right side of the fabric will be very large, leaving an unattractive finish.

12 Sew with the fold of the hem against the presser foot guide.
13 Press the "Start/Stop" button to stop sewing when you are finished, and raise the presser foot and needle to pull the fabric under the presser foot towards the left of the machine.

IMPORTANT

- Be sure to pull the fabric towards the back of the machine after sewing. If you pull the fabric toward side or forward, the presser foot may be damaged.

14 Remove the basting stitching and turn the fabric with the right side facing out.

①Wrong side of fabric
②Right side of fabric

Shell Tuck Stitches

The gathers that look like shells are called "shell tucks". They are used to decorate trims, the front of blouses or cuffs made of thin fabrics.

Memo

- For details on stitch patterns, refer to "STITCH SETTING CHART" on page 199.

1 Draw equally spaced lines along the bias, and then fold the fabric along the lines.

2 Select , and then increase the thread tension.

3 Attach zigzag foot "J".

4 Sew while making sure that the needle drops slightly off the edge of the fabric.

One fold at a time, continue folding the fabric along the line, then sewing it.

5 After sewing is finished, remove the fabric. Unfold the fabric, and then iron the tucks down to one side.

Scallop Stitches

The wave-shaped satin stitch is called "scalloping". Use this stitch to decorate the edges of blouse collars and handkerchiefs or use it as a hem accent.

Memo

- For details on stitch patterns, refer to "STITCH SETTING CHART" on page 199.

1 Select 2-06

2 Attach advanced monogramming foot "N+".

3 Stitch along the edge of the fabric, making sure not to sew directly on the edge of the fabric.

Line drawing of a sewing machine needle and handle (no text or symbols)

4 Trim along the stitches.

Illustration of a hand holding a tool with scissors, no text or symbols present

- Be careful not to cut the stitches.

Smocking Stitches

The decorative stitch created by stitching or embroidering over gathers is called "smocking". It is used to decorate the front of blouses or cuffs.

The smocking stitch adds texture and elasticity to fabric.

Memo

- For details on stitch patterns, refer to "STITCH SETTING CHART" on page 199.

1 Select the straight stitch, and then adjust the stitch length to 4.0 mm (approx. 3/16 inch) and loosen the thread tension.

2 Attach zigzag foot "J".

3 Sew parallel stitching at intervals of 1 cm (approx. 3/8 inch) and pull the bobbin threads to create gathers.

Smooth the gathers by ironing them.

Illustration showing two methods of measuring a surface with parallel lines and a hand holding a tool (no text or symbols present)

4 Select a stitch.

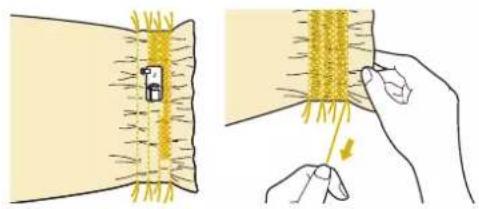

5 Stitch between the straight stitches and pull out the threads for the straight stitches.

Illustration showing two steps of fabric application: one with a zipper and another with a hand holding a textured fabric (no text or symbols)

Fagoting

Stitching across an open seam is called "fagoting". It is used on blouses and children's clothing. This stitch is more decorative when thicker thread is used.

Memo

- For details on stitch patterns, refer to "STITCH SETTING CHART" on page 199.

1 Use an iron to fold the two pieces of fabric along their seams.

2 Baste the two pieces of fabric, separated by about 4 mm (approx. 3/16 inch), onto thin paper or a sheet of water soluble stabilizer.

If you draw a line down the middle of the thin paper or water soluble stabilizer, sewing is easier.

①About 4 mm (approx. 3/16 inch)

②Thin paper or water soluble stabilizer

③Basting stitching

3 Select a stitch.

4 Attach zigzag foot "J".

5 Set the stitch width to 7.0 mm (approx. 1/4 inch).

6 Sew with the center of the presser foot aligned along the center of the two pieces of fabric.

Illustration of a sewing machine needle and fabric work (no text or symbols)

7 After sewing is finished, remove the paper.

Attaching Tape or Elastic

Memo

- For details on stitch patterns, refer to "STITCH SETTING CHART" on page 199.

1 Select a straight stitch and attach presser foot "J".

2 Set the stitch length to 4.0 mm (approx. 3/16 inch), and loosen the upper thread tension to 2.0 (page 62).

Memo

- Be sure that neither automatic reinforcement nor automatic thread cutting is selected.

3 Sew two rows of straight stitches on the right side of the fabric, then pull the bobbin thread to create the necessary gather.

Simple line drawing of a curved surface with vertical tick marks, no text or symbols present

Memo

- Before sewing the straight stitch, rotate the handwheel toward you (counterclockwise) and pull up the bobbin thread. Holding the top and bobbin thread, pull a length of thread out from the rear of the machine. (Be sure that the presser foot is raised.)

4 Place the tape over the gather, and hold it in place with basting pins.

Diagram of a curved surface with a vertical seam and marked point (①), no text or symbols present

①Tape

5 Select a stitch.

Sew over the tape (or elastic).

Illustration of hands operating a sewing machine with a measuring tool, next to a close-up of fabric texture (no text or symbols)

CAUTION

- Be sure the needle does not strike a basting pin, or any other objects, during sewing. The thread could tangle or the needle could break, causing injury.

Pull out the straight stitch threads.

Illustration of a hand holding a tool near a textured surface, with a yellow arrow indicating direction (no text or symbols)

Heirloom

Hemstitching (Daisy Stitch)

Use for sewing tablecloths, decorative hems, and decorative stitching on shirt fronts.

Memo

• Use a light to medium weight homespun fabric with a little stiffness.
• For details on stitch patterns, refer to "STITCH SETTING CHART" on page 199.

Insert a type 130/705H, size 100/16 Wing needle.

* This specialty sewing needle is not furnished with your machine. It must be purchased separately.

CAUTION

• A more attractive finish can be obtained if you use a "130/705H Wing" needle when sewing these stitch patterns. If using a wing needle and the stitch width has been set manually, check that the needle will not touch the presser foot by carefully rotating the handwheel toward you (counterclockwise) before starting to sew.
• When sewing with the wing needle, select a stitch width of 6.0 mm (approx. 15/64 inch) or less, otherwise the needle may bend or break.

Select a stitch and attach advanced monogramming foot "N+".

3-01	3-02	3-03	3-04	3-05
3-06	3-07	3-08	3-09	3-10
3-11	3-12	3-13	3-14	3-15
3-16	3-17	3-18	3-19	3-20
3-21	3-22	3-23	3-24	3-25

Start sewing.

One-Step Buttonholes

With one-step buttonholes, you can make buttonholes appropriate to the size of your button.

One-step buttonholes are sewn from the front of the presser foot to the back, as shown below.

Memo

- For details on stitch patterns, refer to "STITCH SETTING CHART" on page 199.

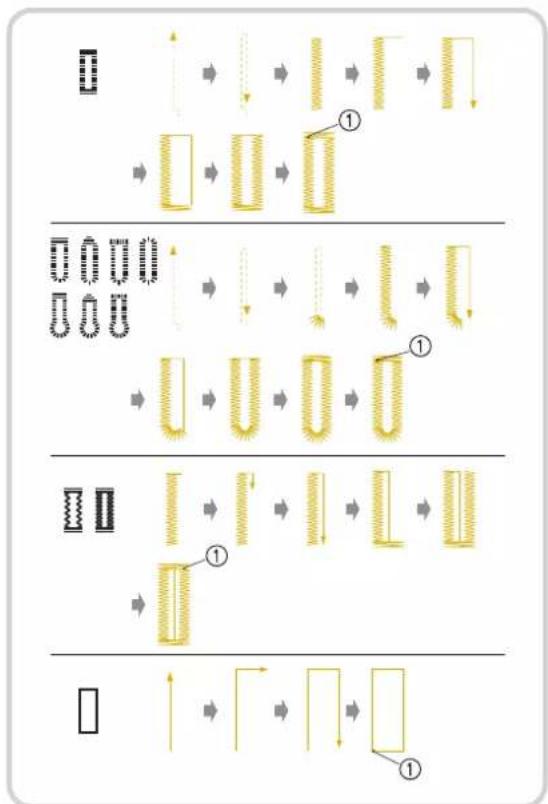

    subgraph Input
        E["Input"] --> F["Process Step ①"]
        F --> G["Filter Process Step ①"]
        G --> H["Output"]

    end

    subgraph Filter
        I["Input"] --> J["Process Step ①"]
        J --> K["Filter Process Step ①"]
        K --> L["Output"]

    end

    style Input fill:#f9f,stroke:#333
    style Filter fill:#bbf,stroke:#333

①Reinforcement stitching

1 Select a buttonhole stitch, and attach buttonhole foot "A".

Position the upper thread under the presser foot by guiding thread through the hole in the presser foot before attaching the buttonhole foot "A".

Mark the position and length of the buttonhole on the fabric.

①Marks on fabric
②Buttonhole sewing

Memo

- The maximum buttonhole length is about 28 mm (approx. 1-1/16 inches) (diameter + thickness of the button).

Pull out the button holder plate on the presser foot, and insert the button that will be put through the buttonhole. Then tighten the button holder plate around the button.

Mechanical sewing machine diagram showing needle and base components (no text or labels)

①Button holder plate

Memo

- The size of the buttonhole is determined by the size of the button in the button holder plate.

Align the presser foot with the mark on the fabric, and lower the presser foot.

①Mark on the fabric
②Marks on the presser foot

Note

- Slide the outside frame of the buttonhole foot backward as far as possible as shown in the illustration, making sure that there is no gap behind the part of the foot marked "A". If the buttonhole foot is not slid back as far as possible, the buttonhole will not be sewn at the correct size.

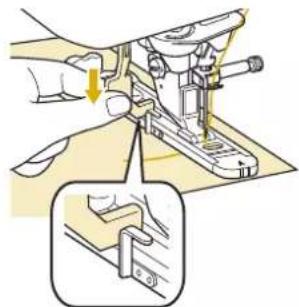

5 Lower the buttonhole lever so that it is positioned behind the metal bracket on the buttonhole foot.

Illustration of a sewing machine needle insertion operation, showing tool path and detail (no text or symbols)

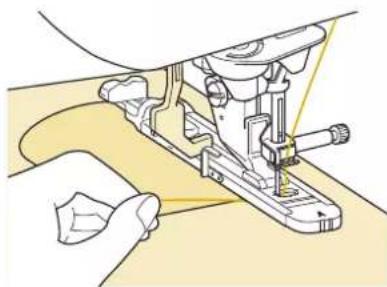

6 Gently hold the end of the upper thread, and then start sewing.

* Feed the fabric carefully by hand while the buttonhole is sewn.

Illustration of a sewing machine needle being adjusted, showing the mechanism and fabric (no text or symbols)

→ Once sewing is completed, the machine automatically sews reinforcement stitches, and then stops.

7 Press the "Thread Cutter" button once. Raise the presser foot, and then remove the fabric.

Memo

- When using the thread cutter on the left side of the machine or scissors to cut the threads, press the "Needle Position" button to raise the needle, raise the presser foot, and then pull out the fabric before cutting the threads.

8 Insert a pin along the inside of one of the bar tacks, and then insert the seam ripper into the center of the buttonhole and cut towards the pin.

①Basting pin

②Seam ripper

CAUTION

- When using the seam ripper to open the buttonhole, do not put your hand or finger in the path of the ripper. The ripper may slip and cause injury.

Memo

- For keyhole buttonholes, use the eyelet punch to make a hole in the rounded end of the buttonhole. Then insert a pin along the inside of one of the bar tacks, insert a seam ripper into the hole made with the eyelet punch, and cut towards the pin.

①Eyelet punch

②Basting pin

■ Sewing Stretch Fabrics

Note

- Attach stabilizer material to the back of stretch fabrics to prevent them from stretching.

When sewing on stretch fabric with or , sew the buttonhole stitches over a gimp thread.

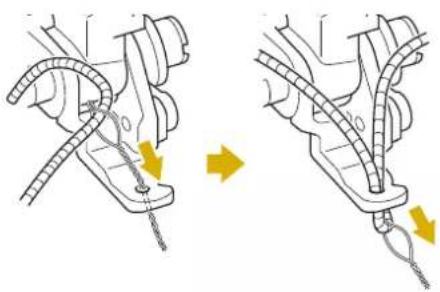

1 Hook the gimp thread onto the back of presser foot "A". Insert the ends into the grooves at the front of the presser foot, and then temporarily tie them there.

①Upper thread

2 Lower the presser foot and start sewing.

Technical illustration of a sewing machine with two metal fasteners (no text or symbols)

3 Once sewing is completed, gently pull the gimp thread to remove any slack, and trim off any excess.

Illustration of a hand holding scissors cutting into a pen-like tool (no text or symbols present)

■ Odd Shaped Buttons/Buttons that Do Not Fit into the Button Holder Plate

Add together the diameter and thickness of the button, and then set the button holder plate to the calculated length. (The distance between the markings on the presser foot scale is 5 mm (approx. 3/16 inch).)

①Presser foot scale

②Button holder plate

③Combined measurement of diameter + thickness

④5 mm (approx. 3/16 inch)

Example: For a button with a diameter of 15 mm (approx. 9/16 inch) and a thickness of 10 mm (approx. 3/8 inch), the scale should be set at 25 mm (approx. 1 inch).

①10 mm (approx. 3/8 inch)

②15 mm (approx. 9/16 inch)

Four-Step Buttonholes

You can sew 4-step buttonholes using the following 4 stitches together. You can sew any desired length for the buttonhole when using 4-step buttonholes. 4-step buttonholes are a good option when attaching oversize buttons.

Memo

- For details on stitch patterns, refer to "STITCH SETTING CHART" on page 199.

Note

- When changing the stitch settings, make sure that all stitch settings are changed to match.

Four-step buttonholes are sewn as shown below.

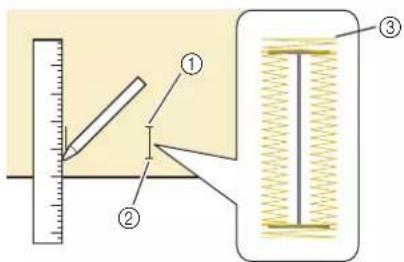

1 Mark the position and length of the buttonhole on the fabric.

①Starting point
②End point
③Buttonhole sewing

2 Attach advanced monogramming foot "N+", and select

stitch 4-10 to sew the left side of the buttonhole.

3 Press the "Start/Stop" button to start sewing.

4 Sew the desired length for the buttonhole and press the "Start/Stop" button again.

Line drawing of a sewing machine needle and foot (no text or symbols)

5 Select stitch to sew the bar tack and press the "Start/Stop" button.

→ The machine will automatically stop after sewing the bar tack.

6 Select stitch 4-18 to sew the right side of the buttonhole, and press the "Start/Stop" button to begin sewing.

Illustration of a sewing machine needle stitching fabric (no text or symbols)

7 Sew the right side of the buttonhole and press the "Start/Stop" button again.

* Sew the right side of the buttonhole the same length as the left.

8 Select stitch to sew the bar tack and then press the "Start/Stop" button.

→ The machine will automatically sew off the bar tack tie and stop when the bar tack is complete.

9 Raise the presser foot and remove the fabric.

10 Open the buttonhole (page 89).

■ Darning

Use darning stitches for mending and other applications. Darning is performed by sewing from the front of the presser foot to the back as shown below.

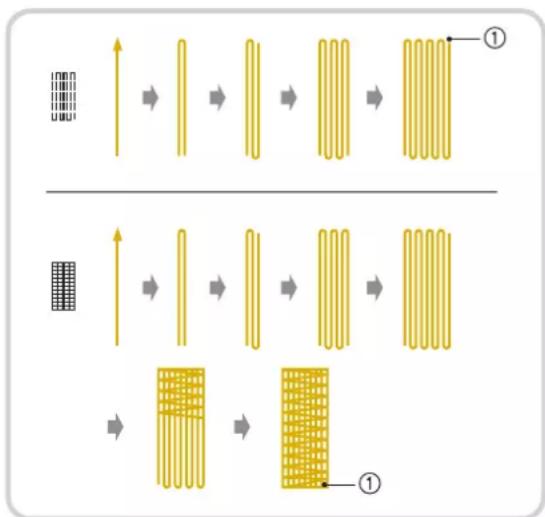

    subgraph Input
    F["Input Image"] --> G["Barcode"]
    G --> H["Sequential Structure"]
    H --> I["Structured Structure"]
    I --> J["Final Structure"]

    style A fill:#f9f,stroke:#333
    style J fill:#bbf,stroke:#333

①Reinforcement stitches

1 Select or , and attach buttonhole foot "A".

Position the upper thread under the presser foot by guiding thread through the hole in the presser foot before attaching the buttonhole foot "A".

2 Set the scale to the desired length of the darning.

①Presser foot scale
②Completed length measurement
③Width 7 mm (approx. 1/4 inch)
④5 mm (approx. 3/16 inch)

3 Check that the needle drops at the desired position and lower the presser foot, making sure the upper thread passes underneath the buttonhole foot.

Illustration of a sewing machine needle stitching fabric (no text or symbols)

Note

- Slide the outside frame of the buttonhole foot backward as far as possible as shown in the illustration, making sure that there is no gap behind the part of the foot marked "A". If the buttonhole foot is not slid back as far as possible, the buttonhole will not be sewn at the correct size.

4 Lower the buttonhole lever so that it is positioned behind the metal bracket on the buttonhole foot.

Illustration of a hand using a mechanical clamp to adjust a workpiece, with an inset showing the same component (no text or symbols present)

5 Gently hold the end of the upper thread, and then press the "Start/Stop" button to start the machine.

Illustration of a hand operating a sewing machine with a handle and shaft (no text or symbols)

→ Once sewing is completed, the machine automatically sews reinforcement stitches, and then stops.

Bar Tacks

Use bar tacks to reinforce areas that will be subject to strain, such as pocket corners.

Memo

- For details on stitch patterns, refer to "STITCH SETTING CHART" on page 199.

1 Select Ⅱ.

2 Attach buttonhole foot "A" and set the scale to the length of the bar tack you wish to sew.

Position the upper thread under the presser foot by guiding thread through the hole in the presser foot before attaching the buttonhole foot "A".

①Presser foot scale

②Completed length measurement

③5 mm (approx. 3/16 inch)

3 Set the fabric so that the pocket moves toward you during sewing.

Line drawing of a sewing machine needle stitching fabric (no text or symbols)

Note

- Slide the outside frame of the buttonhole foot backward as far as possible as shown in the illustration, making sure that there is no gap behind the part of the foot marked "A". If the buttonhole foot is not slid back as far as possible, the buttonhole will not be sewn at the correct size.

4 Check the first needle drop point and lower the presser foot.

①2 mm (approx. 1/16 inch)

5 Lower the buttonhole lever so that it is positioned behind the metal bracket on the buttonhole foot.

Illustration of a sewing machine needle stitching a small bracket, with no visible text or symbols

6 Gently hold the end of the upper thread and start sewing.

Illustration of a sewing machine needle stitching a fabric (no text or symbols visible)

→ When sewing is completed, the machine will sew reinforcement stitches and stop automatically.

■ Bar Tacks On Thick Fabrics

Place a piece of folded fabric or cardboard beside the fabric being sewn to level the buttonhole foot and allow for easier and even feeding.

①Presser foot

②Thick paper

③Fabric

Button Sewing

Buttons with 2 or 4 holes can be attached, using the machine.

Memo

- For details on stitch patterns, refer to "STITCH SETTING CHART" on page 199.

Note

- Do not use the automatic thread cutting function when sewing buttons. Otherwise, you will lose the thread ends.

Select

→ The feed dogs are lowered automatically.

Raise the presser foot.

Attach button fitting foot "M", slide the button along the metal plate and into the presser foot, and lower the presser foot.

①Button
②Metal plate

Rotate the handwheel toward you (counterclockwise) to check that the needle goes into each hole correctly.

①Align the buttonholes with the marks on button fitting foot "M".

* If the needle does not reach the holes on the left side, adjust the stitch width.

Gently hold the end of the upper thread and start sewing.

→ The machine stops automatically when sewing is finished.

IMPORTANT

• Make sure the needle does not strike the button during sewing.

* To attach the button more securely, repeat the process.

6 From the wrong side of the fabric, pull the end of the bobbin thread to pull the upper thread through to the wrong side of the fabric. Tie the two thread ends together and cut the threads.

7 After the button is attached, select another stitch and rotate the handwheel toward you (counterclockwise) to raise the feed dogs.

■ Attaching 4-Hole Buttons

Sew the two holes closest to you. Then raise the presser foot and move the fabric so that the needle goes into the next two holes, and sew them in the same way.

■ Attaching a Shank to the Button

1 Pull the shank lever toward you before sewing.

①Shank lever

2 After sewing is finished, pull the two ends of the upper thread between the button and the fabric, wind them around the shank, and then tie them firmly together.

3 Tie the ends of the bobbin thread from the beginning and end of sewing together on the wrong side of the fabric.

4 Cut off any excess thread.

Eyelet

Use this stitch for making belt holes and other similar applications.

Memo

- For details on stitch patterns, refer to "STITCH SETTING CHART" on page 199.

1 Select a stitch.

2 Use In either the stitch width display or the stitch length display to choose the size of the eyelet (page 61).

3 Attach advanced monogramming foot "N+", then rotate the handwheel toward you (counterclockwise) to check the needle drop point.

①Needle drop point

4 Lower the presser foot and start sewing.

→ When sewing is finished, the machine sews reinforcement stitches and stops automatically.

5 Use the eyelet punch to make a hole in the center of the stitching.

Hand holding a cylindrical object above a surface, with a small yellow-orange mark at the bottom (no text or symbols)

Multi-directional Sewing (Straight Stitch and Zigzag Stitch)

Use these stitch patterns to attach patches or emblems to pant legs, shirt sleeves, etc.

Memo

- For details on stitch patterns, refer to "STITCH SETTING CHART" on page 199.

Remove the flat bed attachment to use the free-arm.

Memo

- Insert the tubular piece of fabric onto the free-arm, and then sew in the order shown in the illustration.

Select and attach advanced monogramming foot "N+".

Set the needle in the fabric at the sewing start point, and sew seam "1" as shown.

①Start Point

Select and sew seam "2" as shown.

* The fabric will move sideways, guide the fabric by hand to keep sewing straight.

Simple diagram with a yellow square and a dashed line, no text or symbols present

Select and sew seam "3" as shown.

→ The fabric feeds forward while stitching backward.

Select and sew seam "4" as shown.

→ The seam will be connected to the starting point of seam 1.

Zipper Insertion

Centered Zipper

Use for bags and other such applications.

Memo

- For details on stitch patterns, refer to "STITCH SETTING CHART" on page 199.

Note

- Make sure you sew using the middle needle position.

Select

Attach presser foot "J" and sew straight stitches up to the zipper opening. Change to a basting stitch (page 72) and sew to the top of the fabric.

①Basting stitches
②Reverse stitches
③End of zipper opening
④Wrong side

3 Press the seam allowance open and attach the zipper with a basting stitch in the middle of each side of the zipper tape.

①Basting stitches
②Zipper
③Wrong side

4 Remove presser foot "J". Align the right side of the pin in zipper foot "I" with the presser foot holder, and attach the zipper foot.

①Right
②Left
③Needle drop point

Note

- When using zipper foot "I", make sure the straight stitch, middle needle position is selected. Rotate the handwheel toward you (counterclockwise) to make sure the needle does not strike the presser foot.

5 Topstitch 7 to 10 mm (approx. 1/4 to 3/8 inch) from the seamed edge of the fabric, then remove the basting.

Technical line drawing of a sewing machine needle and base (no text or symbols)

CAUTION

• Make sure the needle does not strike the zipper during sewing. If the needle strikes the zipper, the needle may break, leading to injury.

■ Inserting a Side Zipper

Use for side zippers in skirts or dresses.

1 Select

Note

- Make sure you sew using the middle needle position.

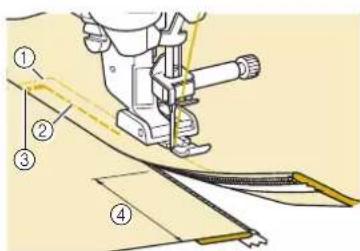

2 Attach presser foot "J" and sew straight stitches up to the zipper opening. Change to a basting stitch and sew to the top of the fabric.

①Reverse stitches
②Wrong side of fabric
③Basting stitches
④End of zipper opening

3 Press the seam allowance open and align the folded hem along the teeth of the zipper, while maintaining 3 mm (approx. 1/8 inch) of sewing space.

①Zipper pull tab

②Wrong side of fabric
③Zipper teeth
④End of zipper opening
⑤3 mm (approx. 1/8 inch)

4 Remove presser foot "J".

5 Align the right side of the pin in zipper foot "I" with the presser foot holder, and attach the presser foot.

①Right
②Left
③Needle drop point

6 Set the presser foot in the 3 mm (approx. 1/8 inch) margin.
7 Starting from the end of the zipper opening, sew to a point about 5 cm (approx. 2 inches) from the edge of the fabric, then stop the machine.
8 Pull down the zipper slider, then continue sewing to the edge of the fabric.

①About 5 cm (approx. 2 inches)
②3 mm (approx. 1/8 inch)

CAUTION

• Make sure the needle does not strike the zipper during sewing. If the needle strikes the zipper, the needle may break, leading to injury.

9 Close the zipper, turn the fabric over, and sew a basting stitch.

①Front of the skirt (wrong side of fabric)
②Basting stitches
③Front of the skirt (right side of fabric)
④Back of the skirt (right side of fabric)

10 Remove the presser foot, and reattach it so that the left side of the pin is attached to the presser foot holder.

* When sewing the left side of the zipper, the needle should drop on the right side of the presser foot. When sewing the right side of the zipper, the needle should drop on the left side of the presser foot.

①Right
②Left
③Needle drop point

11 Set the fabric so that the left edge of the presser foot touches the edge of the zipper teeth.
12 Sew reverse stitches at the top of the zipper, then continue sewing.
13 Stop sewing about 5 cm (approx. 2 inches) from the edge of the fabric, leave the needle in the fabric, and remove the basting stitches.
14 Open the zipper and sew the rest of the seam.

①Basting stitch
②7 to 10 mm (approx. 1/4 inch to 3/8 inch)
③Reverse stitches
④About 5 cm (approx. 2 inches)

Changing the Start and End Angles of the Stitch Pattern (Stitch Tapering Function)

The angles of the start and end of stitch patterns can be changed. This is useful when sewing projects with sharply defined angles or decorative stitching, attaching appliqués, etc.

Four abstract line patterns with no text or symbols, featuring vertical and horizontal lines (no text or symbols present)

Use the method for finishing sewing the stitch pattern, according to your needs.

• Method 1: Begin Changing the Angle at the End of Sewing by Pressing the "Reverse Stitch" Button (page 97)
  • Method 2: Sewing a Specified Number of Stitch Patterns (page 99)

Note

• Using the same material and stitch pattern as your project, sew trial stitches to check the result. If necessary, attach a stabilizer material.
• If reinforcement stitches at the beginning and end of sewing are needed, use Reinforcement

stitch button). (Reverse stitch button) cannot be used for reinforcement stitching when stitch tapering function is on.

■ Method 1: Begin Changing the Angle at the End of Sewing by Pressing the "Reverse Stitch" Button

1 Touch , then , and then select a stitch pattern for stitch tapering.

2 If necessary, change the stitch width and stitch length. 3 Touch ▼.

4 Touch, select the angle settings for the start and end of sewing, and then touch. OK

①Select the start or end of sewing.
②Select an angle.
③Specify that the angle does not change.

5 Select the method for finishing sewing. For this example, since the angle at the end of sewing will begin changing when (Reverse stitch button) is pressed, select .in

①Press (Reverse stitch button) for the angle at the end of sewing to start changing; the machine stops when sewing is finished.
②The machine stops when the specified number of stitch patterns have been sewn. The number of patterns that are specified includes the number of patterns used to change the angle. (page 99)

6 If necessary, use a chalk pencil to draw a line at the location to be sewn.
7 Start sewing.
8 After sewing the desired length, press (Reverse stitch button).

→ When (Reverse stitch button) is pressed, the angle at the end of sewing begins to change, and the machine stops when sewing is finished.

Memo

- If you stop sewing at the point where end tapering should begin (either by pressing the "Start/Stop" button or by lifting your foot from the foot controller), press (Reverse stitch button) and resume sewing by either pressing the "Start/Stop" button or pressing on the foot controller. End tapering will begin as soon as sewing resumes.

9 When finished sewing, set [Tapering] to [OFF], and then touch . Close

■ Method 2: Sewing a Specified Number of Stitch Patterns

With this method, the number of stitch patterns (including those used to change the angle) are specified. This allows stitch patterns of the same length to be repeatedly sewn.

1 Refer to steps 1 through 4 of "Method 1: Begin Changing the Angle at the End of Sewing by Pressing the "Reverse Stitch" Button" on page 97 to select the angle settings for the start and end of sewing.

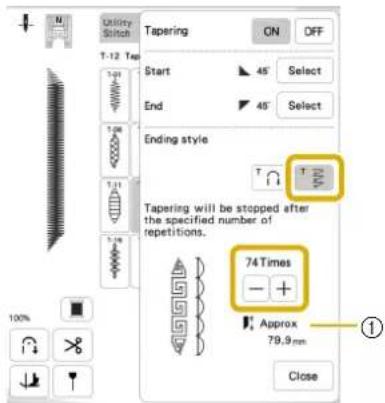

2 Touch, and then specify the number of stitch patterns (including those used to change the angle).

①Approximate length of the stitch pattern

Memo

- The number of stitch patterns used to change the angle depends on the pattern and angle. Perform trial sewing to check the result.

Start sewing.

→ The machine stops automatically when sewing is finished.

Memo

- To sew stitching in a square, select for the start of sewing and for the end of sewing, and then continue sewing the same stitch pattern, rotating the fabric 90^ after sewing each line of stitching.

The pivot setting is useful when changing the sewing direction. (page 65)

■ Saving Settings

Specified angles for start and end, finish tapering method, and stitch settings can be saved in machine's memory.

After setting the tapering function, touch . Close

Touch Memory.

■ Retrieving Saved Settings

Touch Hot retrieve the saved setting after selecting pattern.

Touch the numbered key of the settings to be retrieved and then touch .Retrieve

* The settings cannot be retrieved if stitch tapering function is set to [ON].

Memo

- For more information on saving and recalling settings, refer to "Saving Your Stitch Settings" on page 63.

MAKING ADJUSTMENTS

Your stitch pattern may sometimes turn out poorly, depending on the type or thickness of fabric, the stabilizer material used, sewing speed, etc. If your sewing does not turn out well, sew trial stitches using the same conditions as the real sewing, and adjust the stitch pattern as explained below. If the stitch pattern does not turn out well even after making adjustments based on the stitch pattern described below, make adjustments for each stitch pattern individually.

Memo

• For details on stitch patterns, refer to "STITCH SETTING CHART" on page 199.
• This adjustment can be made to -36 Quilting
  stippling stitch), (2-21 Decorative stippling stitch), (4-24 Eyelet stitch), (4-25 Star
  eyelet stitch), (Q-15 Quilting stippling stitch) and stitch patterns from the following categories.

Touch and select (6-284).

Attach advanced monogramming foot "N+" and sew the stitch pattern.

Be sure to use advanced monogramming foot "N+". Adjustments may not be made correctly with any other presser foot.

Compare the finished stitch pattern to the illustration of the correct stitch pattern below.

Touch, and then adjust the stitch pattern with the [Fine Adjust Verti.] or [Fine Adjust Horiz.] displays.

□ If the stitch pattern is bunched:

Touch in the [Fine Adjust Verti.] display.

→ The displayed value increases each time the button is touched and the stitch pattern will lengthen.

□ If the stitch pattern has gaps:

Touch in the [Fine Adjust Verti.] display.

→ The displayed value decreases each time the button is touched and the stitch pattern will shorten.

☐ If the stitch pattern is skewed to the left:

Touch in the [Fine Adjust Horiz.] display.

→ The displayed value increases each time the button is touched and the stitch pattern will slide to the right.

☐ If the stitch pattern is skewed to the right:

Touch in the [Fine Adjust Horiz.] display.

→ The displayed value decreases each time the button is touched and the stitch pattern will slide to the left.

Sew the stitch pattern again.

* If the stitch pattern still comes out poorly, make adjustments again. Adjust until the stitch pattern comes out correctly.

Memo

- You can sew with the setting screen on the display.

Touch to return to the original screen.

MAKING STEP STITCH PATTERNS (FOR 7MM SATIN STITCH PATTERNS ONLY)

You can use keys to create a step effect, also called step stitch patterns.

- Touch to move the stitch pattern a distance equal to half of the stitch pattern's size to the left or right.

• To combine the stitch patterns, refer to page 57.

Example:

1 Select (9-11).

2 Touch so that it displays . + 3 Touch ↘ .

→ The next stitch pattern will move to the right.

4 Select (9-11) again.

→ The next stitch pattern will move to the left.

6 Touch ***.

→ The entered stitch pattern is repeated.

USING THE MEMORY FUNCTION

Memo

- For more information about the memory function, refer to "SPECIFICATIONS" on page 196.

Saving Stitch Patterns

You can save stitch patterns that you have customized in the machine's memory or USB media.

Note

- Do not turn the main power to OFF while the [Saving...] screen is displayed. You will lose the stitch pattern you are saving.

1

Touch

2

When saving the stitch pattern in a USB media, insert the USB media into the USB port on the machine.

3

Touch the desired destination to start saving.

①Save to the machine's memory. ②Save to the USB media. The stitch pattern is saved in a folder labeled [bPocket].

Retrieving Stitch Patterns

Retrieve stitch patterns saved in the machine's memory or USB media.

1

When retrieving stitch patterns from a USB media, insert the USB media into the USB port on the machine.

2

Touch the desired destination.

①Retrieve from the machine's memory.
②Retrieve from a USB media. When retrieving stitch patterns from a USB media, insert the USB media into the USB port on the machine.
③Retrieve via the wireless network.

Memo

- If the stitch pattern to be retrieved is in a folder of the USB media, touch the key for that folder. Touch to return to the previous screen.

• Folders in the USB media cannot be created with the machine.
• For details on supported file extensions, refer to "SPECIFICATIONS" on page 196.

Select the desired stitch pattern, and then touch

Note

- When you touch, the selected stitch pattern will be deleted permanently.

Chapter 4 BASIC EMBROIDERY

BEFORE EMBROIDERING

Embroidery Step by Step

Follow the steps below to prepare the machine for embroidery.

Step #	Aim Action Page
1	Presser foot attachment	Attach embroidery foot “W+” with LED pointer.	105
2	Checking the needle	Use needle 75/11 for embroidery.	46
3	Embroidery unit attachment	Attach the embroidery unit. 106
4	Bobbin thread setup	For the bobbin thread, wind embroidery bobbin thread and set it in place.	35
5	Fabric preparation Attach a stabilizer material to the fabric, and hoop it in the embroidery frame.		128
6	Pattern selection Turn	the main power to ON, and select an embroidery pattern.	107
7	Embroidery frame attachment	Attach the embroidery frame to the embroidery unit.	131
8	Checking the layout	Check and adjust the size and position of the embroidery.	132
9	Embr thread setup	Set upi embroidery upper y thread according to the pattern.	u 41 p

Diagram showing two mechanical components with a directional arrow indicating motion (no text or symbols present)

Attaching Embroidery Foot "W+" with LED Pointer

CAUTION

• When attaching an embroidery foot, always touch the screen. You may accidentally press the "Start/Stop" button and possibly cause injury.
• Be sure to use the embroidery foot "W+" with LED pointer when doing embroidery. Using another embroidery foot may cause the needle to strike the embroidery foot, causing the needle to break and possibly causing injury.

1 Remove the presser foot and presser foot holder. (page 49)
2 Position the embroidery foot "W+" with LED pointer on the presser foot bar by aligning the notch of the presser foot to the large screw.

Side view

3 Hold the embroidery foot in place with your right hand, and then use the disc-shaped screwdriver to securely tighten the presser foot holder screw.

①Presser foot holder screw

p

CAUTION

- Use the disc-shaped screwdriver to firmly tighten the presser foot holder screw. If the screw is loose, the needle may strike the embroidery foot and break, possibly cause injury.

4 Plug the connector of the embroidery foot "W+" with LED pointer into the jack on the back left side of your machine.

Simple line drawing of a mechanical or electrical component with no text or symbols

5 Touch to unlock all keys and buttons.

→ All keys and operation buttons are unlocked, and the previous screen is displayed.

About the Embroidery Unit

CAUTION

- Do not move the machine with the embroidery unit attached. The embroidery unit could fall off and cause injury.

IMPORTANT

• Keep your hands and foreign objects away from the embroidery carriage and frame when the machine is embroidering. Damage or malfunction may result.
• Be sure to turn off the power before attaching or removing the embroidery unit. Otherwise, the machine may be damaged.
• Do not touch the inner connector of the embroidery unit. The pins on the embroidery unit connection may be damaged.
• Do not apply strong force to the embroidery unit carriage or pick up the unit by the carriage. Otherwise, the embroidery unit may be damaged.
• Do not push on the carriage when attaching the embroidery unit onto the machine. Moving the carriage may damage the embroidery unit.
• Make sure that there is enough space for the carriage of the embroidery unit to move. If the embroidery frame comes into contact with an object, the pattern may not be embroidered correctly, or damage may result.
• Do not touch the embroidery carriage until the initialization finishes.

Note

• To avoid distorting your embroidery design, do not touch the embroidery carriage and frame when the machine is embroidering.
• Store the embroidery unit in a safe place to prevent damage to the unit.

Memo

- You can also sew utility/decorative stitches with the embroidery unit attached. Touch and

. The feed dogs will automatically raise for utility and decorative stitching.

■ Attaching the Embroidery Unit

1 Turn the main power to OFF, and remove the flat bed attachment.

2 Insert the embroidery unit connection into the connection port of the machine until it snaps into place.

Diagram of a mechanical assembly with a hand holding a tool, showing a yellow arrow indicating direction (no text or symbols present)

Note

- Be sure there is no gap between the embroidery unit and the machine. If there is a gap, the embroidery patterns will not embroider with the correct registration.

3 Turn the main power to ON.

→ The following message will appear.

4 Touch OK.

→ The carriage will move to the initialization position.

■ Removing the Embroidery Unit

1 Remove the embroidery frame.

- For details on removing the embroidery frame, refer to "Removing the Embroidery Frame" on page 131.

2 Touch , then touch .

→ The carriage will move to the removal position.

3 Turn the main power to OFF.

4 Press the release button, and pull the embroidery unit away from the machine.

Illustration of a hand operating a wooden cutting machine with yellow directional arrows indicating motion (no text or symbols)

SELECTING PATTERNS

■ Copyright Information

The patterns stored in the machine and patterns sold separately are intended for private use only. Any public or commercial use of copyrighted patterns is an infringement of copyright law and is strictly prohibited.

■ About Embroidery Patterns

There are many character and decorative embroidery patterns stored in the machine's memory (see the "Embroidery Design Guide" for a full summary of patterns in the machine's memory or visit www.babylock.com). You can also use patterns sold separately.

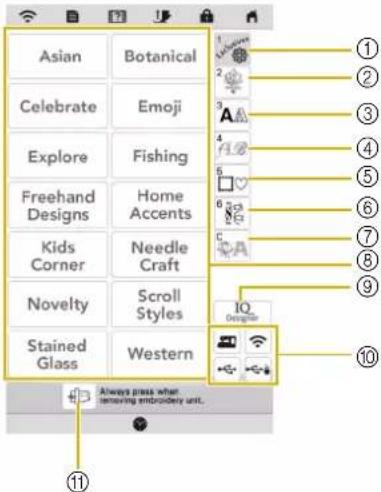

①Baby Lock "Exclusives"
②Embroidery patterns
③Character patterns
④Decorative alphabet patterns
⑤Frame patterns
⑥Utility embroidery patterns
⑦Couching patterns (page 158)
⑧Pattern type selection keys
⑨IQ Designer (page 163)
⑩Patterns saved in the machine's memory, USB media, etc. (page 156)
⑪ Touch this key to position the embroidery unit for storage.

Selecting Embroidery Patterns

1 Touch the category tab and then touch the pattern type selection key or pattern key you want to embroider.

①Pattern category tab
②Pattern type/pattern selection key

2 Select a pattern.

* Touch the category tab or to return to the previous screen.
→ The selected pattern is displayed.

3 Touch the pattern.

* Touch to listen the background color for the pattern image with bright thread colors, to get a clearer image.
→ The pattern is designated with a red box around it on the edit screen.

4 Touch to edit the selected pattern.

(page 113)

5 Touch Embroidey.

→ The embroidery screen appears.

6 Touch to edit the pattern before embroidering. (page 126)

* To return to the edit screen, touch . Return

7 Start embroidering. (page 140)

Selecting Character Patterns

1 Touch ^3 AA.

2 Touch the key of the font you want to embroider.

* : View the next page.

^ : View the previous page.

3 Select the character category and then type in the text. (page 110)

4 Touch Set.

→ The edit screen appears.

5 Follow the steps from 4 to 7 of "Selecting Embroidery Patterns" on page 108.

■ Character Pattern Input Keys

Memo

- If a key display is grayed out, you cannot use that function with the selected pattern.

No.	Display Explanation
	Name
①	Return to the previous screen.
	Return key
②	Change the size of the character patterns. L M S To change the size of one character, touch ABC A to display and then select the character. The size of the selected character is changed.
	Size key
③	Change the configuration of the character patterns. Array key • To arrange the character patterns on an arc, touch ABC B : Make the arc flatter. : Make the arc rounder. • To arrange the character patterns on an incline, touch ABC : Change the incline counterclockwise. : Change the incline clockwise. : Reset the layout.
④	Change the spacing of the character patterns. Spacing Character spacing key • : Increase the character spacing. • : Decrease the character spacing. • To change the spacing after one character, touch to display and then ABC A select the character. The spacing between the selected character and the next character is changed. ABCDE E ↔ ABCDE ABCDE E ↔ ABCDE +ABC+ +ABC+ AB : Move the one selected character up. AB : Move the one selected character down. : Reset the spacing.

No.	Display	Explanation
	Name
⑤Switch alignment.		This function is available when multiple lines of characters are input.
		Alignment key	Right alignment ABCDE FGH IJKLMN Left alignment ABCDE FGH IJKLMN Center alignment ABCDE FGH IJKLMN
⑥Chang the font of the characters. Depending on the font that was selected, it may not be possible to change the font. To change the font of one character, touch ABC A to display ABC A and then select the character. The font of the selected character is changed.
⑦Apply the character pattern editing.
⑧Enter a space.
⑨Make a new line.
⑩Delete the character. Delete
⑪	-	Select the category of character.
	Category keys
⑫Select to edit all characters or one character. ABC A Select one/all key		ABC A : Edit all characters. ABC A : Edit one character.
⑬Move the cursor and select a character.
Character selection keys

Selecting Frame Patterns

1 Touch 5

2 Touch the key of the frame shape you want to embroider in the top part of the screen.

①Frame shapes

②Frame patterns

→ Various frame patterns are displayed at the bottom part of the screen.

3 Touch the key of the frame pattern you want to embroider.

→ The selected pattern is displayed on the screen.

4 Touch Set .

→ The edit screen appears.

5 Follow the steps from 4 to 7 of "Selecting Embroidery Patterns" on page 108.

Combining Patterns

Example:

1 Select a pattern and then touch

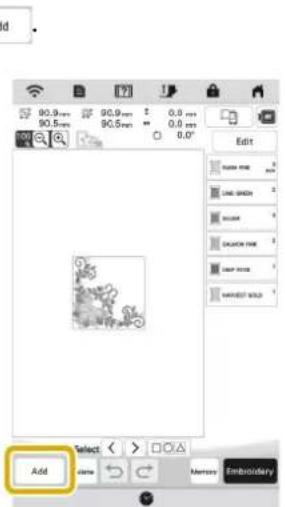

2 Touch Add.

3 Touch ³A.

4 Select and enter "LOVE".

→ The characters you enter will be displayed in the center of the embroidery pattern area.

5 Touch Set.

6 Touch and then touch .

7 Use to move the characters.

* Characters can also be moved by directly dragging them with your finger or the touch pen.

Touch OK.

Touch to change the color of the characters. (page 122)

Touch OK.

When all editing is finished, touch Embroiday

Memo

- Combined patterns will be embroidered in the order they were entered.

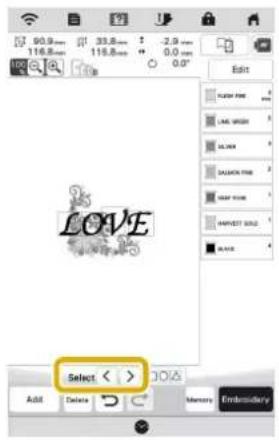

■ Selecting a Pattern

If multiple patterns have been combined, use

Select < > to select the pattern to be edited. Patterns can also be selected by directly touching the screen with your finger or touch pen.

■ Selecting Multiple Patterns at the Same Time

Multiple patterns can easily be edited, for example, when moving patterns, if they are all selected together.

Touch □○△.

Touch each pattern to be selected.

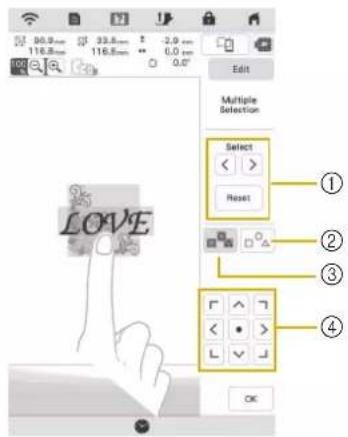

①Touch or < to check the patterns to be selected, and then touch . The selected patterns are highlighted with a red box. To deselect the selected patterns, touch . Reset

②Touch this key to deselect all selected patterns.
③Touch this key to select all patterns in the pattern display area.
④Patterns can be moved with this key.

Memo

- You can also select multiple patterns by dragging your finger to specify the area of selection.

Touch to return to the edit screen.

→ Each selected pattern is surrounded with a red box.

Memo

- The following functions are available while multiple patterns are selected.

• Moving
• Copying
• Grouping
• Stippling
• Extracting pattern outlines

■ Grouping Patterns

If the multiple patterns are grouped, they can be edited as a single pattern.

1 Select patterns you want to group. (page 112)

2 Touch

→ The selected patterns are grouped.

* To ungroup a grouped pattern, select the grouped pattern, and then touch .At this time, multiple patterns are selected. To cancel the multiple selection, touch any other pattern or the blank area.

Memo

- The following functions are applied to all patterns in the grouped pattern.

• Moving
• Rotating
• Appliqué
• Border
• Extracting pattern outlines
• Simple stippling
• Thread color changing

EDITING PATTERNS

Using these keys, you can edit the pattern as you like.

Memo

- If a key display is grayed out, you cannot use that function with the selected pattern.

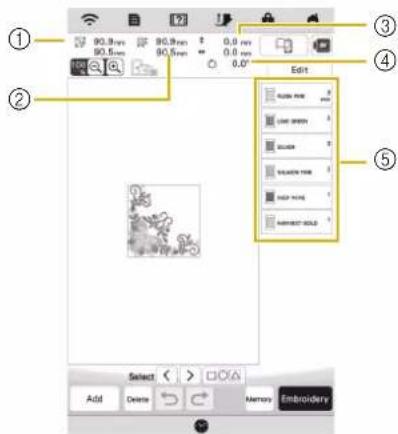

①Size of the entire combined pattern
②Size of the pattern currently selected
③Distance from the center of the frame to the center of the pattern currently selected
④Degree of rotation for the pattern currently selected
⑤Color sequence and stitching times of each step of the pattern

■ Key Functions

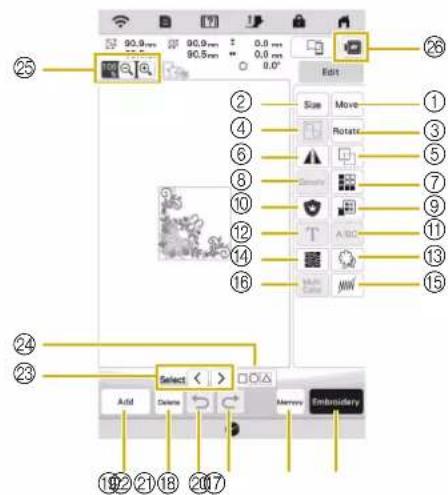

Touch to display the editing window.

No.	Display	Explanation Page
	Name
1	Display the pattern move	moving window.	111
	Move key	:Move the pattern inthe direction shown by the arrow.:Center the pattern.
2	Display the pattern sizing window.Size key	Decrease the pattern proportionately.Decrease the pattern vertically.Decrease the pattern horizontally.Enlarge the pattern proportionately.Stretch the pattern vertically.Stretch the pattern horizontally.Change the size of the character patterns.Reset the size. (except for character patterns.)Move the pattern inthe direction shown by the arrow.	116
3	Display the pattern rotating windowRotate key	Reset the position.Move the pattern inthe direction shown by the arrow.You can also rotate the pattern by dragging the red point at the corners of the pattern.	—
	Group selected multiple patterns. 113
	Group key
5	Duplicate the pattern. —
	Duplicate key
6	Change the pattern to a horizontal mirror image.		—
	Horizontal mirror image key
7	Make and edit the repeated pattern.		116
	Border key
8	Allows the thread density density to change for some Alphabet characters and frame patterns. Other patterns density can be modified after the pattern size is changed.		116
	Density key
9	Change the thread color. 123
	Thread palette key
10	Create an appliqué outline of the pattern.		146
	Appliqué key

No.	Display	Explanation Page
	Name
11Separate the continuous character patterns to adjust the spacing or edit separately afterwards.·: Select where the patterns is to be separated.·: Separate the patten. A separated character pattern cannot be combined again.			—
12Edit character patterns. 110, 115
13Extract the outline of the pattern.The extracted pattern can be used with IQ Designer.			178
14Touch this key to create stippling, echo quilting, or decorative fill around a pattern.			161
15Touch this key to specify not to embroider the selected thread color.			121
16Touch this key when you want to change the thread color, character by character in character embroidery. Since the machine stops at the end of each character, the upper thread can be changed as you embroider.			—
17Proced the embroidery screen. —
18Save a pattern in the machine's memory or USB media. The pattern can also be transferred to a computer via a wireless network connection.			155
19Redo the last operation that was undone.			—
20Undo the last operation. —
21Delete the selected pattern (the pattern outlined by the red box).			—
22Add another pattern to the editing pattern.			111
23Select the pattern to edit when there are multiple patterns.			112
24Make multiple patterns to be selected at the same time.			112
Multiple selection key
No.	Display	Explanation	Page
	Name
25	Magnify keys	· Magnify the image.Use ∧/√/〈 /> to scroll through the display in any direction.· Demagnify the image (minimum: 100%).· Select the percent of magnification.	-
26	Preview the embroidered image. 115
	Image key

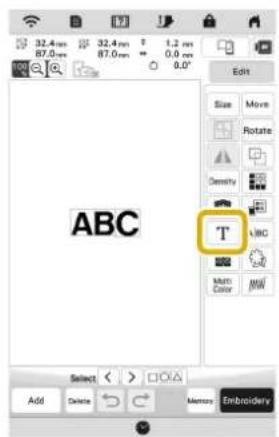

■ Editing Letters

For details on input keys, refer to "Character Pattern Input Keys" on page 110.

Memo

- To edit character patterns with multiple lines in the edit screen, ungroup the pattern. (page 113)

Previewing the Pattern

Touch

→ An image of the pattern as it will be embroidered appears.

Touch to select the frame used in

the preview.

* Frames displayed in gray cannot be selected.
* Touch to enlarge the image of the pattern.
* The pattern can be embroidered as it appears in the display.

Illustration of a mobile phone interface with a small pixelated icon inside a rounded rectangle, no text or symbols present.

Touch to check the embroidering order.

→ The stitch simulator screen appears.

①Simulation speed keys

②Operation keys

: Start the simulation at the set speed.
II : Pause the simulation.
■ : Stop the simulation.

* Touch to return to the embroidery frame selection screen.

4 Touch OK.

Changing the Size and the Density of the Pattern

If is selected, you can change the pattern size while maintaining the thread density. The machine recalculates the stitch density automatically. With this function, the pattern will be enlarged or reduced at a larger ratio than with normal pattern resizing.

1 Touch, and then touch. Size

2 Select in the size window.

* : Change the pattern size while maintaining the number of stitches. Enlarged patterns will be less dense, and reduced patterns will be more dense. In order to maintain embroidering quality, there is a limit to how much the embroidery pattern can be enlarged or reduced. * : Change the pattern size while maintaining the thread density. After the pattern size is changed, the thread density can be changed in the edit screen. The number of stitches is recalculated depending on the pattern size.

Memo

• This function cannot be used with alphabet character patterns, frame patterns, repeated patterns or buttonhole patterns.
• Patterns with a large number of stitches (100,001 or more) cannot be resized while maintaining a thread density.
• You can also change the size by dragging the red point at the sides and corners of the pattern.

3 Select the direction in which to change the pattern size.

4 When you select in step 2, touch, and ok

then touch to change the thread density.

* : Make the pattern less dense.
* : Make the pattern more dense.

5 Touch OK.

Creating Repeated Patterns

Using the border function, you can create repeated patterns. You can also adjust the spacing of the patterns.

1 Touch , and then touch .

2 Select the direction in which the pattern will be repeated.

* : Repeat the pattern above.
* : Repeat the pattern below.
* : Delete above pattern.
* : Delete below pattern.

Vertical direction

①Repeating and deleting keys
②Spacing keys
③Key to cancel pattern repeating

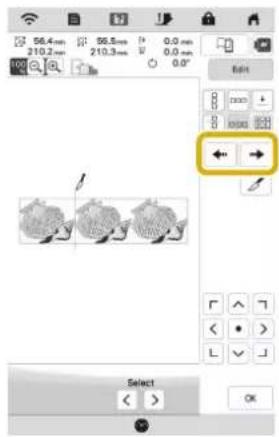

Horizontal direction

①Repeating and deleting keys
②Spacing keys
③Key to cancel pattern repeating

3 Adjust the spacing of the repeated pattern.

* : Widen spacing.
* : Tighten spacing.

4 Complete repeated patterns by repeating steps 2 through 3.

5 Touch OK.

■ Repeating Patterns Using the Matrix Copy

Place the pattern repeatedly throughout the embroidery area.

1 Touch .

2 Touch

→ The repeated pattern is displayed positioned throughout the area.

3 Adjust the spacing of the repeated pattern.

* Widen spacing. * Tighten spacing.

→ Every time the key is pressed, the pattern is automatically re-laid out.

4 Touch Set .

5 Touch OK.

■ Repeating One Element of a Repeated Pattern

You can select one element of a repeated pattern and repeat only that single element. This function allows you to create complex repeated patterns.

1 Touch

2 Choose the direction in which the repeated pattern will be cut.

* : Cut horizontally.
* : Cut vertically.

→ The pattern direction indicator will change depending on the direction selected.

3 Use and to select the cut line.

4 Touch

→ The repeated pattern will be divided into separate elements.

5 Touch

6 Use and to select the element to repeat.

7 Repeat the selected element.

8 Touch OK.

■ Color Sorting Repeated Patterns

Touch Embroidery automatically change the embroidering order of colors in combined border embroidery patterns so that the same color can be continuously embroidered. This allows you to continue embroidering without repeatedly changing the upper thread or changing the embroidering order manually.

Memo

• When a grouped pattern is repeated, the embroidering order is changed in each pattern.
• If there are repeated patterns with other repeated patterns or other patterns, the embroidering order of only the repeated patterns is changed.

■ Assigning Thread Marks

By sewing thread marks, you can easily align patterns when rehooping the fabric to embroider a series. When embroidering is finished on a pattern, a thread mark in the shape of an arrow will be sewn using the final thread. When embroidering a series of patterns, use the point of this arrow for positioning the following designs to be embroidered.

Touch

Touch

Touch to select the thread mark to be sewn.

Memo

• When there are two or more elements, use
  to select an element to assign a thread mark(s) to.

Touch

Embroidering the Pattern Repeatedly

After creating the repeated pattern, rehoop the embroidery frame and keep embroidering for the next pattern.

1 Select the repeated pattern and assign the thread mark at the center of the bottom of the pattern.

* Refer to "Assigning Thread Marks" on page 119.

2 Touch OK,

3 Press the "Start/Stop" button to start embroidering.

→ When embroidering is finished, the thread mark is embroidered with the last thread color.

Illustration of three seashells with a downward arrow below (no text or symbols)

4 Remove the embroidery frame.

5 Rehoop the fabric in the embroidery frame.

Note

- Adjust the position of the fabric so that the embroidering area for the next pattern is within the embroidering area.

①Pattern embroidered first
②Position of pattern to be embroidered next
③Embroidering area

6 Attach the embroidery frame to the machine, and then

touch

7 Touch to set the starting point to the center top of the pattern.

Screenshot of a graphic design software interface showing a vertical sequence of five identical bird illustrations on a grid background, with no visible text or symbols.

8 Touch OK.
9 Touch, and then touch. Move

Touch to move the embroidery frame until

the thread mark on the fabric is aligned with the light of the LED pointer.

* To check the needle drop point with the light of the LED pointer, touch 📊

Memo

- For the accurate needle drop point, slowly turn the handwheel toward you (counterclockwise) to lower the needle. Then, turn the handwheel away from you (clockwise) until the mark on the handwheel is at the top. The carriage cannot move if the mark on the handwheel is not at the top.

①Mark

Touch OK.

Remove the thread mark.

Start embroidering.

Deselect Region Setting (No Sew Setting)

The deselect region setting (which specifies that a thread color will not be embroidered) can be applied to a part of the pattern with a specific color.

Touch in the embroidering edit screen.

From the thread color sequence display, select the thread color that will not be embroidered.

→ The selected thread color is highlighted in blue.

Touch

→ The mark appears to indicate that the selected thread color will not be embroidered. The parts of the pattern that will not be embroidered are hidden in the pattern preview screen.

Memo

- To cancel the setting, select the thread color and touch .

4 If necessary, repeat steps 2 and 3 for all thread colors that will not be embroidered.

5 After specifying the desired settings, touch . OK

6 Touch and then touch to check an enlarged image of the finished embroidery.

* After deselecting a region, check the image to be sure no previously hidden stitches are visible.

Decorative floral design with swirling vines and leaves, displayed in a mobile app interface (no text or symbols on the main image)

Memo

• When a pattern with the deselect region setting applied is saved, the deselect region setting is also saved. However, the pattern cannot be saved if the deselect region setting is applied to all thread colors.
• The parts with the deselect region setting applied are merely not displayed; they are not deleted. The embroidery area required to embroider the pattern is the same as for the original pattern.

EDITING COLORS

Changing the Thread Color

You can change the thread color by moving the color to be changed to the top of the embroidering order and selecting a new color from the thread colors in the machine.

Touch, and then touch.

→ The thread color palette appears.

Touch the color of the part to be changed.

* Touch or to display the thread color that is not on the screen.
→ The selected thread color image appears.

①Selected thread color image

Memo

- When you directly touch a part of the pattern whose color is to be changed, the part can be selected and displayed.

Select a new color from the thread color palette, and

then touch . OK

* To return to the original color, touch . If Reset multiple colors have been changed, this command will return all colors to their original colors.

①Thread brand for colors
②Thread color palette
→ The display shows the changed colors.

Memo

- Touch to specify a thread color by entering its number. If you enter the wrong number, touch C, and then enter the correct number. After entering the number, touch . OK

Finding New Color Schemes with the Color Visualizer Function

With the color visualizer function, the machine suggests new color schemes for the embroidery pattern that you have selected. After you select the desired effect ([Random], [Vivid], [Gradient] or [Soft]), sample color schemes for the selected effect are displayed.

Touch, and then touch.

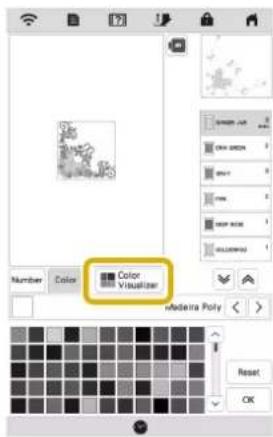

Touch

Memo

- This function may not be available depending on the pattern you select (ex. a repeated pattern, licensed pattern).

Select the thread brand for colors and the number of colors you want to create the pattern with.

①Thread brand for colors
②Number of colors to be used

Select the desired effect.

①Effects for schemes

→ If you select [Random] or [Gradient], the color specifying screen will appear.
→ If you select [Vivid] or [Soft], proceed to step 7.

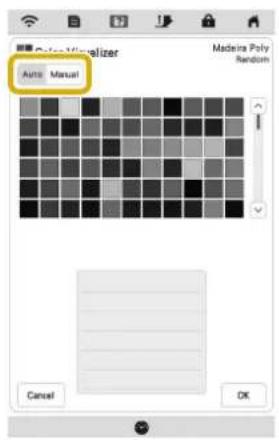

Touch Aorsetan and specify the thread color to use in the effect.

* If you don't need to specify the thread color, just set to Auto.

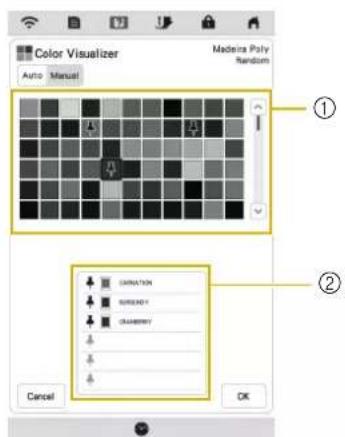

[Manual] setting for [Random]

You can select up to 6 colors to be used in the [Random] effect. The effect will be created using the selected colors.

①Select colors from the palette. ②Selected colors are listed.

[Manual] setting for [Gradient]

You can select one color to be used in the [Gradient] effect. The effect will be created with a color you select.

①Select a color from the palette. ②Selected color is displayed.

Touch OK.

Select the desired color scheme from samples.

* Touch to add the new schemes.

①Touch to review the previous schemes.

Memo

• To temporarily register your favorite schemes, touch (to release your favorite schemes, touch again). 9 color schemes can be added. Touch to check the registered favorite schemes.

To cancel the registration, touch

• Maximum 20 pages of schemes can be reviewed.

Select the displayed color scheme.

* : Return to the previous screen.
* or <: Display the other color schemes.
* : Select the displayed color scheme.

Color visualization tool interface showing floral decorative pattern and control buttons (no text or symbols on the flower itself)

→ The thread color palette screen will appear.

Thread Color Sorting

This function allows you to embroider while replacing the thread spool a minimal number of times.

Before starting to embroider, touch the embroidery screen to rearrange the embroidery order and sort it by thread colors.

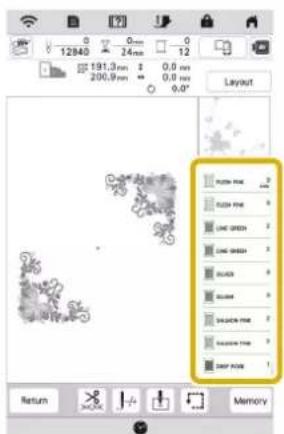

Touch in the embroidery screen.

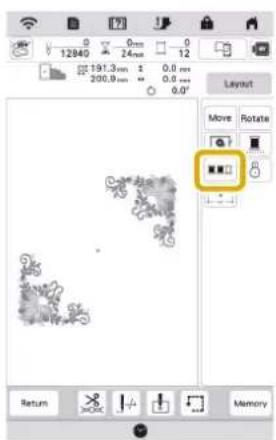

Touch □□.

* Touch again to check the sorted thread colors.

→ The embroidery color order is rearranged and sorted by thread colors.
* Touch, then to cancel color sorting and embroider with the original embroidery color order.

Note

- This function does not work on overlapping patterns.

VIEWING THE EMBROIDERY SCREEN

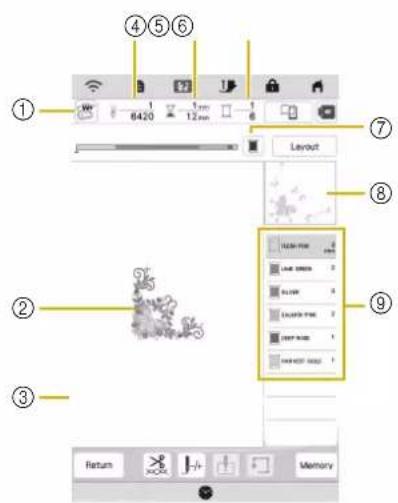

* This screen appears when embroidery starts.

①The presser foot symbol Attach embroidery foot "W+" with LED pointer or embroidery foot "W" (sold separately) for all embroidery projects.
②A preview of the pattern
③The boundary for embroidering with the selected frame in the settings screen
④Total number of stitches in the selected pattern and number of stitches that have already been embroidered
⑤The time necessary to embroider the pattern, and the time already spent embroidering the pattern (not including time for changing and automatically trimming the thread)
⑥The number of colors in the pattern, and the number of the color currently being embroidered
⑦Switch the progress bar (which shows the embroidering progress) between showing only one color or all colors. This key appears after starting embroidering or after touching the key.
⑧The part of the embroidery pattern that will be embroidered with the thread color at the top of the list
⑨The order for thread color changes and the embroidering time for each thread color
* The displayed time is the approximate time that will be required. The actual embroidering time may be longer than the displayed time, depending on the embroidery frame that is used. In addition, the amount of time required to change thread colors is not included.

■ Key Functions

Using these keys, you can move or rotate pattern, etc.

Touch to display the editing window.

Note

- Some operations or functions are not available for certain patterns. If the key display is grayed out, you cannot use that function or operation with the selected pattern.

No.	Display	Explanation Page
	Name
1Turn on the light of the LED pointer.			132
2Shows the embroidery frames that can be used for the selected pattern.			129
3Shows the size of the selected pattern.			—
4Preview the embroidery image. 115
5Shows the distance between the embroidering position and the center (when the embroidery pattern is moved).			—
6Shows the degree of rotation of the pattern.			—
7Display the pattern moving window.			—
8Display the pattern rotating window.			—
9Add the basting stitch around the pattern. You can select the distance from the pattern to the basting stitching.			27, 145
10	Change the setting	to embroiderthe pattern with a single color.Touch the key again to return tothe original setting.Even if uninterrupted embroideringhas been set, the automaticthread cutting function and thethread trimming function can beused.The icons of the spool of threadare grayed out.	—
	Uninterruptedembroiderykey
11	Touch this key to	rearrange thestitching sequence for combinedpatterns.	125
	Thread colorsorting key
12	Touch this key to	align theembroidering position.	134
	Embroiderypositioningkey
13	Switch on/off the	2-pointembroidery positioning functionwith a LED pointer.	135
	2-pointembroiderypositioningfunction with aLED pointeron/off key

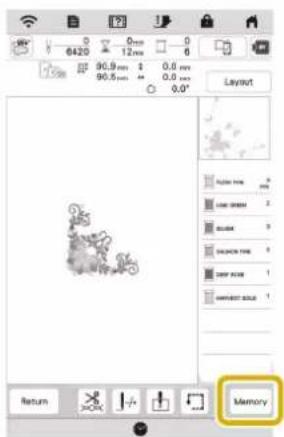

14	Save the patternMemory	to the machine’smemory or USB media. Thepattern can also be transferred toa computer via a wireless networkconnection.	155
	Memory key
15	Check the position	of the pattern.:Move the carriage totrace the embroidery area of thepattern. This allows you tocheck that there is enoughspace to embroider the pattern.:Move the carriage tothe selected position.	134
	Trace key
16	Specify the needle	e start position.:Set the needle startposition to the lower-leftcorner of the pattern. Thissetting is useful whenconnecting patterns since itallows you to continueembroidering until the first stitchof the next pattern.:Move the carriage tothe selected position.	153, 154
	Starting pointkey
17	Move the needle	forward or backin the pattern; useful if the threadbreaks while embroidering or ifyou want to start again from thebeginning.	143
	Forward/Backkey
18	Set automatic thre	read cutting,thread trimming or the threadtension. For embroidery, thesefunctions are set automatically.	149-152
	Cut/Tensionkey

No.	Display	Explanation Page
	Name
19	Return to the edit screen. —
	Return key

PREPARING THE FABRIC

CAUTION

- Use fabrics with a thickness of less than 2 mm (approx. 1/16 inch). Using fabrics thicker than 2 mm (approx. 1/16 inch) may cause the needle to break and cause injury.

Memo

- When using layers with thicker batting etc., you can embroider more attractive finishes by adjusting the embroidery presser foot height in the embroidery settings screen.

Touch, and use and in the +

[Embroidery Foot Height] in the embroidery settings screen. Adjust the presser foot height for thick or puffy fabrics.

- To increase the space between the embroidery foot and the needle plate, set the [Embroidery Foot Height] to a larger number.

- In the case of thick terry cloth towels, we recommend that you place a piece of water soluble stabilizer on the top surface of the towel. This will help to reduce the nap of the toweling and result in more attractive embroidery.

Attaching Iron-on Stabilizers (Backing) to the Fabric

CAUTION

• Always use a stabilizer material for embroidery when embroidering on stretch fabrics, lightweight fabrics, fabrics with a coarse weave, or fabrics which cause pattern shrinkage. Otherwise, the needle may break and cause injury.

1 Iron the iron-on stabilizer material to the wrong side of the fabric.

- Use a piece of stabilizer which is larger than the embroidery frame being used.

①Fusible side of stabilizer
②Fabric (wrong side)
③Size of the embroidery frame

Memo

- When embroidering small pieces of fabric that cannot be hooped in an embroidery frame, use stabilizer material as a base. After lightly ironing the fabric to the stabilizer material, hoop it in the embroidery frame. If stabilizer material cannot be ironed onto the fabric, attach it with a basting stitch. After completing the embroidery, remove the stabilizer material carefully.

①Fabric ②Stabilizer ③Basting

- When embroidering on thin fabrics such as organdy or lawn, or on napped fabrics such as towel or corduroy, use water soluble stabilizer (sold separately) for best results. The water soluble stabilizer material will dissolve completely in water, giving the project a more attractive finish.

Hooping the Fabric in the Embroidery Frame

■ Types of Embroidery Frames

Optional embroidery frames can be used. When choosing frames that do not appear on the screen, be sure to check the design size of the embroidery field of the optional frame. Check with your authorized Baby Lock retailer for frame compatibility.

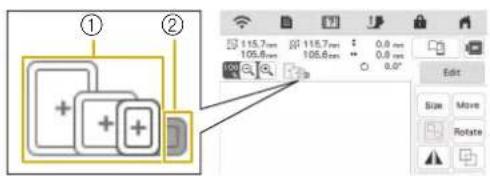

Select a frame that matches the pattern size. Available frame options are displayed on the LCD.

①Highlighted: Can be used

②Shaded: Cannot be used

- Inserting the Fabric

Note

• If the fabric is not securely held in the embroidery frame, the pattern will embroider out poorly. Insert the fabric on a level surface, and gently stretch the fabric taut in the frame.
• Only embroidery frames with factory-coded stickers can be used with the application (IQ Intuition- Positioning). (page 181)

①Factory-coded stickers

1 Lift-up and loosen the frame adjustment screw and remove the inner frame.

①Frame adjustment screw
②Inner frame

2 Lay the fabric right side up on top of the outer frame.

3 Insert the inner frame making sure to align the inner frame's ▲ with the outer frame's . ▽

①Inner frame's △
②Outer frame's ▽

4 Slightly tighten the frame adjustment screw.

Illustration of a yellow fabric or paper sheet with a rounded rectangular cutout and a yellow handle, no text or symbols present.

5 Gently smooth out the fabric. Make sure fabric is flat and without wrinkles.

* After stretching the fabric, make sure the fabric is taut.

Illustration of a hand using a tool to cut a component, with arrows indicating direction (no text or symbols)

* Make sure the inside and outside frames are even before you start embroidering.

①Outer frame
②Inner frame
③Fabric

6 Tighten the frame adjustment screw to keep the fabric from loosening while stitching.

Pure mechanical component diagram without any text, numbers, or symbols

7 Return the frame adjustment screw to its initial position.

Pure diagram of cable or connector assembly without any text, numbers, or symbols

Memo

- You can use the disc-shaped screw driver, when you loosen or tighten the frame adjustment screw.

■ Using the Embroidery Sheet

When you want to embroider the pattern in a particular place, use the embroidery sheet with the frame.

1 With a chalk pencil, mark the area of the fabric you want to embroider.

①Embroidery pattern

②Mark

2 Place the embroidery sheet on the inner frame. Align the guide lines on the embroidery sheet with the mark you made on the fabric.

①Inner frame

②Guide line

3 Gently stretch the fabric so there are no folds or wrinkles, and press the inner frame into the outer frame.

①Inner frame

②Outer frame

4 Remove the embroidery sheet.

Diagram of a mechanical assembly with a yellow component and a blue housing, showing an upward arrow (no text or symbols)

ATTACHING THE EMBROIDERY FRAME

Note

• Wind embroidery bobbin thread and insert the bobbin before attaching the embroidery frame. Check that there is enough thread in the bobbin.
• Make sure that the frame-securing lever is correctly lowered after the embroidery frame has been installed in the embroidery frame holder.

1 Press (Presser foot lifter button) to raise the presser foot.
2 Align the embroidery frame guide with the right edge of the embroidery frame holder.

①Embroidery frame holder
②Embroidery frame guide

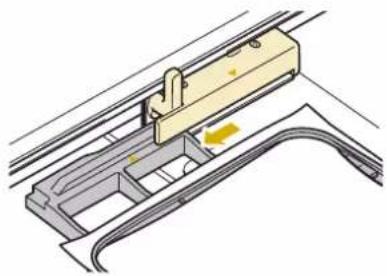

3 Slide the embroidery frame into the holder, making sure to align the embroidery frame's with the holder's ▽.

①Arrow mark

4 Lower the frame-securing lever to be level with the frame to secure the embroidery frame in the embroidery frame holder.

Technical diagram of a mechanical assembly with labeled component (no text or symbols present)

①Frame-securing lever

■ Removing the Embroidery Frame

1 Press (Presser foot lifter button) to raise the presser foot.
2 Raise the frame-securing lever.

Technical illustration of a mechanical assembly with a yellow arrow indicating motion (no text or symbols)

3 Pull the embroidery frame toward you.

Technical diagram of a mechanical assembly with a yellow bracket and gray internal components (no text or symbols)

CONFIRMING THE PATTERN POSITION

The pattern is normally positioned in the center of the embroidery frame. If the pattern needs to be repositioned for better placement on the garment, you can check the layout before starting embroidery.

Checking the Needle Drop Point with the Embroidery Foot "W+" with LED Pointer

1 Touch In the embroidery screen.

→ The LED pointer indicates the needle drop point.

Memo

• When the LED pointer turns on, the presser foot height is automatically adjusted according to the fabric thickness.
• appears when the embroidery foot "W+" with LED pointer is attached to the machine.
• If is not displayed, you cannot use the LED pointer.
• The LED pointer turns off automatically by lowering the presser foot or returning to the previous page.

Note

• With spongy fabric, the position may not be accurate due to the various depths of the fabric.
• With fabric that has a very uneven surface such as quilting, the fabric thickness may not be correctly measured. In this case, the pointer indication should be used only as a reference.

■ Adjusting the LED Pointer

Adjust the LED pointer if it indicates a point different than the actual needle drop point. Before adjusting the LED pointer, mark the actual needle drop point on the fabric to be embroidered, and attach the embroidery frame.

1 Touch

→ The settings screen appears.

2 Touch

→ The embroidery settings screen appears.

3 Display [Embroidery Foot with LED Pointer Adjustment] in the embroidery setting screen.

Note

- As a default, appears gray. After the embroidery foot "W+" with LED pointer is attached to the machine, the key becomes available and settings can be specified.

4 Touch Start.

→ The Embroidery Foot "W+" with LED Pointer Adjustment screen appears.

①LED pointer adjustment

Note

• The specified setting is saved in the machine's memory. This is useful for positioning during continuous embroidering.
• For normal use, return the setting to [00].

5 Use or to adjust the LED pointer so that it indicates the actual needle drop point.

Memo

- In order to more accurately check the needle drop point, turn the handwheel toward you (counterclockwise) to lower the needle.

6 Touch to return to the original screen.

■ Adjusting the Brightness of the LED Pointer

1 Follow the steps from 1 to 3 of "Adjusting the LED Pointer" on page 132 to display the embroidery foot with LED pointer adjustment screen.

2 Use or to adjust the brightness of the LED pointer.

3 Touch to return to the original screen.

Displaying a Background Image

Using a special application downloaded to a smartphone or tablet, you can transfer a photo of the hooped fabric to be embroidered to the machine to be used as a background image.

The embroidery frame is displayed in the application. You can see how the pattern will be arranged on the actual fabric.

For details, refer to "IQ INTUITION- POSITIONING APP" on page 181.

Note

• The wireless network settings must first be specified on the machine. Refer to “WIRELESS NETWORK CONNECTION FUNCTIONS” on page 31.
• Only embroidery frames with factory-coded stickers can be used with the application (IQ Intuition- Positioning).

①Factory-coded stickers

■ Displaying the Background Image on the Screen of the Machine

Select the pattern. (page 107)

Photograph the fabric in the frame with the easy mode of the application, and then transfer it to the machine.

For a detailed procedure, refer to the application.

Touch OK.

* Attach the frame used in the image before touching

→ The transferred background image appears on the screen of the machine.

Memo

- To hide the background image, touch

Touch to display the background image again.

- The transferred background image includes the embroidery frame display.

■ Calibrating the Position of the Background Image

By calibrating the position of the background image transferred to the machine, the pattern can be positioned more accurately.

Select a pattern. (page 107)

Set the application to advanced mode, attach the embroidery positioning sticker to the fabric in the hoop, take the photo of the background, and with the advanced mode of the application, transfer it to the machine.

For a detailed procedure, refer to the application.

Touch OK.

* Attach the frame used in the image before touching

→ The carriage will move, and the LED pointer will turn on.

Use to align the LED pointer with the center

of the larger circle in the embroidery positioning sticker.

①Center of the larger circle in the embroidery positioning sticker

Memo

- The position can also be calibrated by lowering the needle with the handwheel. This method enables more accurate positioning. Slowly turn the handwheel toward you (counterclockwise) to check the needle drop point. Then, turn the handwheel away from you (clockwise) until the mark on the handwheel is at the top. The carriage cannot move if the mark on the handwheel is not at the top.

①Mark

Touch OK.

→ The position of the background image is calibrated.

■ Aligning the Embroidering Position

1 Calibrate the position of the background image. (page 133)

2 Touch 8.

Memo

- The orientation of the pattern will change depending on the orientation of the embroidery positioning sticker.

3 When the following message appears, touch . OK

4 Select the position to be set as the reference point.

Mobile phone screenshot showing a decorative floral pattern within a square frame, with no visible text or symbols on the pattern itself.

5 Touch OK.

Decorative floral pattern within a square frame, displayed in an app interface (no text or symbols on the pattern itself)

→ When the following message appears, touch OK

6 Remove the embroidery positioning sticker, and then start embroidering.

* To remove the embroidery positioning sticker more easily, touch so that the embroidery frame moves slightly forward and away from under the needle. After the embroidery positioning sticker is removed, touch . OK

Checking the Pattern Position

The carriage moves and shows the pattern position. Watch the embroidery frame closely to make sure the pattern will be embroidered in the right place.

1 Touch

2 From touch the key for the position that you want to check.

①Selected position

→ The carriage will move to the selected position on the pattern.

Memo

- To see the entire embroidering area, touch . The carriage moves and shows the embroidery area.

Diagram of a sewing machine needle stitching a yellow fabric, with no visible text or symbols

CAUTION

- Do not lower the needle when the embroidery frame is moving. If the needle is down, it could break and result in injury.

Touch

THE 2-POINT EMBROIDERY POSITIONING FUNCTION

By using the 2-point embroidery positioning function with a LED pointer, the embroidering position can easily be aligned. This is useful when embroidering in an area where it is necessary to align the pattern, as shown below.

Use a chalk pencil to mark the desired embroidering position.

The line drawn for the reference direction should be longer.

Abstract geometric line drawing with intersecting lines and a labeled point (①), no text or symbols present.

①Chalk pencil mark

Memo

- If the desired position of the pattern can be clearly established, such as when embroidering along a pocket, it is not necessary to mark the position with a chalk pencil.

Hoop the fabric in the embroidery frame.

Abstract geometric line drawing with a pentagon inside a rounded rectangle (no text or symbols)

Note

- When hooping the fabric in the embroidery frame, make sure that the embroidery pattern will fit within the embroidering area of the frame being used.

①Embroidering area
②Embroidery pattern size
③Chalk pencil mark

3 Select the pattern.

4 Touch Eriniday play the embroidery screen.

5 Touch and then touch.

①Switch on/off the 2-point embroidery positioning function with a LED pointer.

Memo

• The LED pointer lights up to indicate the needle drop point.
• When the LED pointer is turned on, the embroidery foot height is automatically adjusted according to the fabric thickness.
• If the surface of the fabric is too uneven or rough, check and adjust the alignment of the light of the LED pointer and the needle drop point before starting to embroider.

6 If a message appears, indicating that the move and rotate settings will return to the original ones, touch OK.
7 From the reference points shown in the screen, select the point to be used for aligning the pattern.

For this example, select the point in the lower-left corner of the pattern.

8 Touch Next .

9 Select the direction (from the reference point) to be used as a reference for aligning the pattern.

For this example, select the arrow pointing to the right as the reference direction.

①Cancel the pattern alignment settings.

②Return to the previous screen.

10 Touch Next .

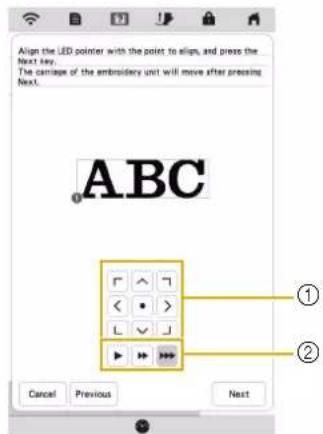

11 Touch the positioning keys to move the embroidery frame until the position of the LED pointer and the center of the first mark are aligned.

To change the speed that the frame moves, use the frame movement speed keys. If it is difficult to make a precision alignment, touch a frame movement speed key for a slower speed.

①Positioning keys

②Frame movement speed keys

③Center of the first mark

④Light of the LED pointer

Note

- If is displayed to the left of the positioning keys, the LED pointer has shifted from its initial position. Touch to adjust the position.

Touch Next.

Touch the positioning keys to move the embroidery frame until the position of the LED pointer and the center of the second mark are aligned.

To change the speed that the frame moves, use the frame movement speed keys. If it is difficult to make a precision alignment, touch a frame movement speed key for a slower speed.

①Positioning keys
②Frame movement speed keys

③Center of the second mark
④Light of the LED pointer

Note

- Set the position of the LED pointer to a position that is not too close to the first reference point. If it is too close, a message will appear, prompting you to reposition it. - In order to increase the accuracy of the pattern alignment, align the position of the LED pointer above the second mark (③) and as far away from the center mark as possible.

Touch Set.

→ The pattern is repositioned.

Press the "Start/Stop" button to start embroidering.

Another example

By specifying an alignment point and direction, embroidery patterns can be positioned and aligned for various purposes.

In this example, a pattern is aligned at the left center of the towel.

Use a chalk pencil to mark the desired embroidering position.

The line drawn for the reference direction should be longer.

①Chalk pencil mark

2 Hoop the fabric in the embroidery frame.

Simple diagram with a rectangular frame and a central cross symbol, no text or labels present.

3 Select the pattern.

4 Touch Embroidery play the embroidery screen.

5 Touch and then touch .

①Switch on/off the 2-point embroidery positioning function with a LED pointer.

6 If a message appears, indicating that the move and rotate settings will return to the original ones, touch OK.

7 From the reference points shown in the screen, select the point to be used for aligning the pattern.

For this example, select the point in the lower-center of the pattern.

8 Touch Next.

9 Select the direction (from the reference point) to be used as a reference for aligning the pattern.

For this example, select the arrow pointing upward as the reference direction.

①Cancel the pattern alignment settings.

②Return to the previous screen.

10 Touch Next.

11 Touch the positioning keys to move the embroidery frame until the position of the LED pointer and the center of the first mark are aligned.

①Positioning keys

②Frame movement speed keys

③Center of the first mark

④Light of the LED pointer

Touch Next .

Touch the positioning keys to move the embroidery frame until the position of the LED pointer and the center of the second mark are aligned.

①Positioning keys
②Frame movement speed keys

③Center of the second mark
④Light of the LED pointer

Touch Set .

→ The pattern is repositioned.

Press the "Start/Stop" button to start embroidering.

EMBROIDERING A PATTERN

Embroidering Attractive Finishes

Many factors are involved in achieving a beautiful embroidery result. Using the appropriate stabilizer (page 128) and hooping the fabric in the frame (page 129) are two important factors mentioned earlier. Another important point is the appropriateness of the needle and thread being used. See the explanation of threads below. Included with this machine are two bobbin cases. Follow the explanation below.

Thread Upper thread Use embroidery thread intended for use with this machine.

Bobbin thread Use embroidery bobbin thread intended for use with this machine.

Memo

- If you use threads other than those listed above, the embroidery may not embroider out correctly.

Bobbin case (recommended for sewing and for embroidering with included 60 weight bobbin thread)

①Standard bobbin case (green marking on the screw)

Standard bobbin case originally installed in the machine has a green marking on the screw. We recommend using the included embroidery bobbin thread with this bobbin case. Do not adjust the tension screw on this bobbin case with the green marked screw.

Bobbin case (for prewound or other embroidery bobbin threads)

①Bobbin case (no color on the screw)

The bobbin case with no color on the screw is set with tighter tension for embroidery with different weights of bobbin threads and a variety of embroidery techniques. This bobbin case is identified with a dark colored mark on the inside of the bobbin cavity. The tension screw on this case can be adjusted if necessary. For details, refer to "Adjusting the Alternate Bobbin Case (with No Color on the Screw)" on page 150.

CAUTION

- When embroidering on large items (especially jackets or quilts), do not let the fabric hang off of the table. Otherwise, the embroidery unit cannot move freely and the embroidery frame may strike the needle, causing the needle to break and possibly causing injury.

■ Embroidery Needle Plate Cover

Under some conditions, based on the type of fabric, stabilizer, or thread being used, there may be some looping in the upper thread. In this case, attach the included embroidery needle plate cover to the needle plate. Attach the cover by inserting the two projections on the underside of the cover into the notches on the needle plate as shown below.

1 Groove

2 Projection

3 Notch

To remove the embroidery needle plate cover, place your fingernail in the groove and lift the plate out.

CAUTION

- Push the embroidery needle plate cover as far as possible to attach it. If the embroidery needle plate cover is not securely attached, it may cause the needle to break and cause injury.

Embroidering Patterns

1 Prepare embroidery threads of the colors shown on the screen.

1 Embroidery color order

2 Cursor

Memo

- The [+] cursor moves over the pattern, showing which part of the pattern is being embroidered.

2 Using the automatic needle threader, thread the machine for the first color. (page 41)

Technical line drawing of a mechanical assembly with no visible text or symbols

3 Lower the presser foot, then press the "Start/Stop" button to start embroidering.

→ When the first color is completely embroidered, the machine will automatically trim the threads and stop. The embroidery foot will then automatically be raised.

On the embroidery color order display, the next color will move to the top.

Memo

• If you want to get more attractive finishes, try the procedures below;
• After 5-6 stitches, press the "Start/Stop" button again to stop the machine.
• Trim the excess thread at the beginning of the pattern. If the excess thread tail is under the embroidery foot, raise the embroidery foot, then trim the excess thread.

Diagram of a mechanical assembly with scissors cutting a tool (no text or symbols)

- If there is thread left over from the beginning of embroidering, it may be embroidered over as you continue embroidering the pattern, making it very difficult to deal with the thread after the pattern is finished. Trim the threads at the beginning of each thread change.

Remove the upper thread for the first color from the machine. Thread the machine with the next color.

Repeat the same steps for embroidering the remaining colors.

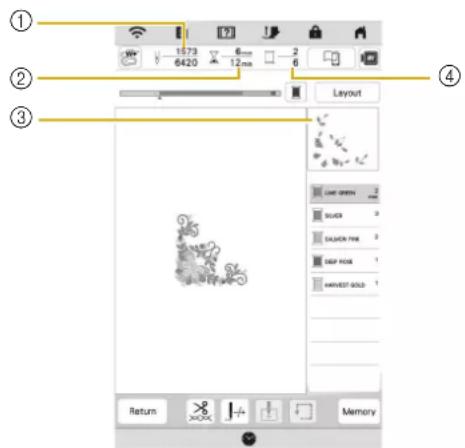

①Current stitch numbers/Total stitch numbers
②Current time/Total time
③Part of pattern to be embroidered next
④Embroidered colors/Total colors

→ When the last color is embroidered, [Finished embroidering] will appear on the display. Touch

ok, and the display will return to the original screen.

Memo

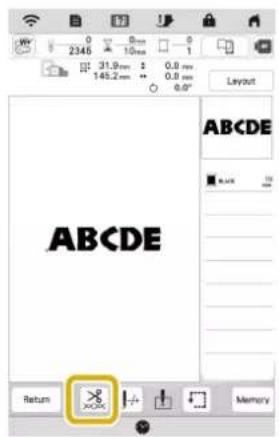

- The thread trimming function is originally set to trim excess thread jumps (threads linking parts of the pattern, etc.). Depending on the type of thread and fabric that are used, an end of upper thread may remain on the surface of the fabric at the beginning of the stitching. After embroidering is finished, cut off this excess thread. If the setting has been turned off, trim the excess thread jumps using scissors after the pattern is finished. Refer to page 152 for information on the thread trimming function.

IMPORTANT

• Do not press (Thread cutter button) after the threads have been cut. Doing so could tangle the thread or damage the machine.
• Do not press ✗ (Thread cutter button) when there is no fabric set in the machine or during machine operation. The thread may tangle, possibly resulting in damage.

Using Appliqués

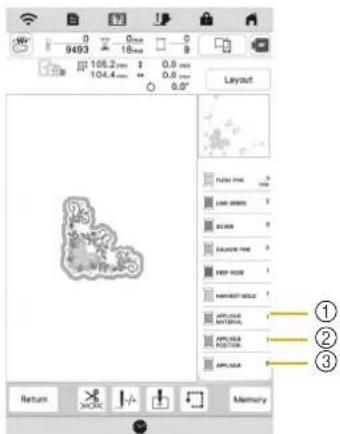

When the color embroidering order display shows

[(APPLIQUE MATERIAL)],
[APPLIQUE POSITION] or
| (APPLIQUE), follow the procedure below.

Required materials

• Fabric for the appliqué piece
• Fabric for the appliqué base
- Stabilizer material
• Fabric glue or temporary spray adhesive
- Embroidery thread

Note

• Refer to "Embroidery Design Guide" to review the recommended method for built-in appliqué patterns. Please visit www.babylock.com. Some appliqué patterns differ from the procedure described in this manual.
• The correct names and numbers of the thread colors to be used will not appear. Use the thread colors depending on those in the appliqué pattern.

■ 1. Creating an Appliqué Piece

1 Attach stabilizer material to the wrong side of the fabric for the appliqué piece.

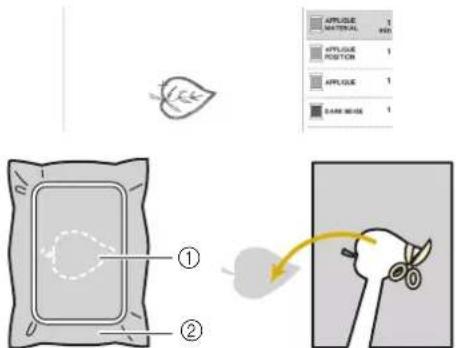

2 Sew the cutting line of the appliqué piece. Remove the fabric for the appliqué piece from the embroidery frame, and then carefully cut along the sewn cutting line.

①Outline of appliqué
②Fabric for appliqué piece

Note

• If the appliqué piece is cut out along the inside of the cutting line, it may not be correctly attached to the fabric. Therefore, carefully cut out the appliqué piece along the cutting line.
  • After cutting out the appliqué piece, carefully remove the thread.

■ 2. Sewing the Appliqué Position on the Base Fabric

1 Attach stabilizer material to the wrong side of the fabric for the appliqué base.
2 Sew the appliqué position.

①Position of appliqué ②Base fabric

3 Remove the embroidery frame from the embroidery unit.

Note

- Do not remove the base fabric from the embroidery frame until all embroidering is finished.

■ 3. Affixing the Appliqué Piece to the Base Fabric

Lightly apply fabric glue or temporary spray adhesive to the back of the appliqué piece, and then attach it to the base fabric within the outline of the position sewn in step 2 of "2. Sewing the Appliqué Position on the Base Fabric".

Simple illustration of a bag with a yellow arrow pointing to it, no text or symbols present.

Note

• If the appliqué piece cannot be attached to the base fabric with fabric glue or temporary spray adhesive, securely baste it in place with basting stitches.
• If thin fabric is used for the appliqué piece, reinforce and secure it in place with an iron-on adhesive sheet. An iron can be used to attach the appliqué piece to the appliqué location.

2 After the appliqué piece is attached, attach the embroidery frame to the machine.

Thread the machine with the embroidery thread, lower the presser foot lever, and then press the "Start/Stop" button to embroider the appliqué.

■ 4. Embroidering the Remainder of the Pattern

1 Change the embroidery thread according to the embroidery color order display, and then finish embroidering the remainder of the pattern.

Memo

• Since glue may become attached to the presser foot, needle or needle plate, clean off any glue after finishing embroidering the appliqué pattern.
• For best results, trim all excess threads each time the thread color is changed.

ADJUSTMENTS DURING THE EMBROIDERY PROCESS

If the Thread Breaks or the Bobbin Runs out of Thread During Embroidering

1 Redo the upper threading or replace the bobbin.

If the upper thread breaks, stop the machine, trim the bobbin thread, and then rethread the machine.

If the bobbin thread is almost empty or broken, touch of the displayed message, remove the embroidery frame, and then replace the bobbin.

Note

- If [Upper and Bobbin Thread Sensor] in the settings screen of the machine is set to [OFF], the message shown above does not appear.

2 Touch J-/+ .

3 Touch -1, -10, -100, or to move the needle back the correct number of stitches before the area where the thread broke, and then touch OK

- Touch to restart from the beginning.

Memo

- If you cannot move back to the spot where the thread broke, touch or to select the color and move to the beginning position of that color, then use ,J+1, or J+10 ,J+100 to move ahead to slightly before where the thread broke.

Lower the presser foot and press the "Start/Stop" button to continue embroidering.

Resuming Embroidery after Turning off the Power

The current color and stitch number are saved when embroidery is stopped. The next time the machine is turned on, you have the option to continue or delete the pattern.

Chapter 5 ADVANCED EMBROIDERY

VARIOUS EMBROIDERING FUNCTIONS

Basting Embroidery

Before embroidering, basting stitches can be sewn along the outline of the pattern. This is useful for embroidering fabric that cannot have stabilizer material affixed with an iron or adhesive. Basting stitches can be used to attach material that cannot be hooped to stabilizer, making it possible to be embroidered.

Note

- It is recommended to finish combining and editing the pattern before selecting the basting setting. If the pattern is edited after selecting the basting setting, the basting and pattern may become misaligned, and the basting under the pattern may be difficult to remove after embroidering is complete.

Touch

Use and to specify the distance from the pattern to the basting stitching.

Memo

• The higher the setting, the farther the basting is from the pattern.
• The setting remains selected even if the machine is turned off.

Touch to return to the embroidering screen.

Touch, and then touch to select the basting setting.

Note

• When is touched, the pattern is moved to the center. After selecting the basting setting, move the pattern to the desired position.
  → Basting is added to the beginning of the embroidering order.

Press the "Start/Stop" button to start embroidering.

When embroidering is finished, remove the basting stitching.

Decorative floral border with swirls and leaves on a light gray background (no text or symbols)

Creating an Appliqué Piece

Creating an appliqué piece is convenient for fabrics that cannot be embroidered or when you wish to attach an appliqué to a garment.

■ Creating an Appliqué Piece

The following pattern will be used to create an appliqué piece.

Note

• Felt or denim fabrics are recommended to make the appliqué piece. Depending on the pattern and fabric used, lighter weight fabrics may cause the stitching to appear smaller.
• For best results, be sure to use stabilizer material for embroidering.
• When making appliqué pieces, do not use the optional border embroidery frame. Depending on the pattern density and fabric used, shrinkage of the stitching may occur.

1 Select the pattern, and edit it if necessary.

Note

• Finish combining and editing the pattern before selecting the appliqué setting. If the pattern is edited after selecting the appliqué setting, the appliqué stitching and pattern may become misaligned.
• Since an outline is added, the pattern for an appliqué piece (when the appliqué setting is selected) will be larger than the original pattern. First, adjust the size and position of the pattern as shown below.

①Embroidering area
②About 1cm (approx. 1/2 inch)
③Pattern size

2 Touch and then, touch.

3 Specify the distance between the pattern and the appliqué outline, and then touch . OK

→ The pattern and appliqué outline are grouped.

Touch

→ The steps for creating the appliqué piece are added to the embroidering order.

Memo

- Three steps are added to the embroidering order: appliqué cutting line, position of pattern placement on the stabilizer material, and appliqué stitching.

①Cutting line for appliqué

②Position of pattern placement on stabilizer material

③Appliqué stitching

- When setting the [Thread color] to [#123] (thread number) in the settings screen, the following screen is displayed.

Note

- An appliqué piece cannot be created if the pattern is too large or too complicated or a combined pattern is separated. Even if the selected pattern fits within the embroidering area, the entire appliqué pattern may exceed the embroidering area when the outline is added. If an error message appears, select a different pattern or edit it.

Fuse or stick a piece of stabilizer to the back of the felt or denim fabric to be used as the appliqué piece.

Hoop the fabric for the appliqué piece in the embroidery frame, attach the embroidery frame to the machine, and then start embroidering.

After the pattern is embroidered, thread the machine with the thread for the cutting line, and then sew the cutting line (APPLIQUE MATERIAL).

①Cutting line for appliqué

Memo

- We recommend using thread for the cutting line that is closest to the color of the fabric.

Remove the fabric for the appliqué piece from the embroidery frame, and then carefully cut along the stitching. After cutting, carefully remove all of the cutting line thread.

Note

- Depending on the pattern density and fabric used, there may be shrinking of the pattern, or the appliqué may be misaligned with the placement line. We recommend cutting slightly outside of the cutting line.

- When using patterns that are vertically and horizontally symmetrical, use a chalk pencil to indicate the pattern orientation before cutting it out.

- Carefully cut out the pattern on the outline you just sewed. Do not cut inside the cutting line, otherwise the appliqué fabric will not be caught by the appliqué stitch.

9 Use two layers of adhesive water soluble stabilizer material with their sticky sides together, and then hoop them in the embroidery frame.

Note

- If water soluble stabilizer is used, it is not necessary to remove the stabilizer material after sewing the appliqué outline. To reduce shrinkage of the pattern, we recommend using water soluble stabilizer. - Put together two layers of water soluble stabilizer, otherwise the stabilizer material may tear during embroidering.

10 Thread the machine with the thread for the outline, and then sew the placement line for the appliqué position (APPLIQUE POSITION).

①Pattern placement line

11 Lightly apply glue or spray adhesive, and paste the appliqué piece so that it aligns with the placement line.

Illustration of a small irregular shape being cut off into a rectangular package with an arrow pointing to it (no text or symbols)

Note

- Before pasting the appliqué piece down, make sure the appliqué piece is positioned correctly within the placement line.

12 With the machine threaded using the thread for the outline from step 10, embroider the outline (APPLIQUE).

①Outline of appliqué piece

Memo

- The outline is sewn using satin stitching. - Since glue may become attached to the presser foot, needle or needle plate, clean off any glue after finishing embroidering the appliqué pattern.

13 After embroidering is finished, remove the stabilizer material from the embroidery frame.

14 Use scissors to cut the excess water soluble stabilizer from outside the appliqué outline.

15 Soak the appliqué piece in water to dissolve the water soluble stabilizer.

16 Dry the appliqué piece, and then iron it if necessary.

Note

- Do not apply a strong force when ironing, otherwise the stitching may be damaged.

MAKING EMBROIDERY ADJUSTMENTS

Adjusting Thread Tension

When embroidering, the thread tension should be set so that the upper thread can slightly be seen on the wrong side of the fabric.

The following screen appears when you touch

Memo

- If the thread tension is changed from the default setting, the new setting will remain after turning the machine off and on. This new setting will apply to any selected design.

■ Correct Thread Tension

The pattern can be seen from the wrong side of the fabric. If the thread tension is not set correctly, the pattern will not finish well. The fabric may pucker or the thread may break.

①

②

①Right side

②Wrong side

Follow the operations described below to adjust thread tension according to the situation.

Note

- If the thread tension setting is made extremely loose, the machine may stop during embroidering. This is not the sign of a malfunction. Increase the thread tension slightly, and start embroidering again.

Memo

- If the thread tension is changed from the default setting, the new setting will remain after turning the machine off and on. This new setting will apply to any selected design.

■ Upper Thread Is Too Tight

The tension of the upper thread is too tight, resulting in the bobbin thread being visible from the right side of the fabric.

Note

- If the bobbin thread was incorrectly threaded, the upper thread may be too tight. In this case, refer to "Setting the Bobbin" on page 39 and rethread the bobbin thread.

①

②

①Right side

②Wrong side

Touch in to tension the upper thread tension. (The tension number will decrease.)

■ Upper Thread Is Too Loose

The tension of the upper thread is too loose, resulting in a loose upper thread, loose thread locks, or loops appearing on the right side of the fabric.

Note

- If the upper thread was incorrectly threaded, the upper thread may be too loose. In this case, refer to "Upper Threading" on page 41 and rethread the upper thread.

①

②

①Right side

②Wrong side

Touch -in to tension the upper thread tension. (The tension number will increase.)

■ Adjusting Overall Upper Thread Tension

When embroidering, if the overall tension of the upper thread is too tight or too loose, adjust it from the setting screen. The selected setting will be applied to all patterns. If an individual embroidery pattern needs additional fine tuning, refer to "Adjusting Thread Tension" on page 149.

1 Touch

→ The settings screen appears.

2 Touch

→ The embroidery settings screen appears.

3 Display [Embroidery Tension] in the embroidery settings screen.

4 Use +to adjust the upper thread tension.

* : Tighten the upper thread tension.

* : Loosen the upper thread tension.

5 Touch OK.

Adjusting the Alternate Bobbin Case (with No Color on the Screw)

When using the embroidery bobbin thread provided, please be sure to choose the green marked bobbin case when performing utility stitch sewing and embroidery functions. When in the embroidery function mode, the alternate bobbin case (with no color on the screw) should be selected when substitute embroidery bobbin threads (other than what is accompanied with your machine) are being used. The alternate bobbin case (with no color on the screw) can be easily adjusted when bobbin tension changes are required to accommodate different bobbin threads. Refer to "Embroidering Attractive Finishes" on page 139.

To adjust the bobbin tension for embroidery function, using the alternate bobbin case (with no color on the screw), turn the slotted screw (-) with a (small) screwdriver.

①Do not turn a phillips screw (+).
②Adjust with a screwdriver (small).

■ Correct Tension

Upper thread slightly appears on the wrong side of fabric.

①

②

①Right side
②Wrong side

■ Bobbin Thread Is Too Loose

Bobbin thread appears slightly on the right side of fabric.

①

②

①Right side
②Wrong side

If this occurs, turn the slotted screw (-) clockwise, being careful not to over-tighten the screw, approximately 30-45 degrees to increase bobbin tension.

■ Bobbin Thread Is Too Tight

Upper thread on the right side of fabric seems to be lifting/looping and bobbin thread is not seen on the wrong side of fabric.

①

②

①Right side

②Wrong side

If this occurs, turn the slotted screw (-) counterclockwise, being careful not to over-loosen the screw, approximately 30-45 degrees to decrease bobbin tension.

IMPORTANT

• DO NOT adjust the position of the phillips (+) screw on the alternate bobbin case as this may result in damage to the bobbin case, rendering it unusable.
• If the slotted screw (-) is difficult to turn, do not use force. Turning the screw too much or providing force in either (rotational) direction may cause damage to the bobbin case. Should damage occur, the bobbin case may not maintain proper tension.

Note

- When adjusting the alternate bobbin case, be sure to remove the bobbin from the alternate bobbin case.

Using the Automatic Thread Cutting Function (End Color Trim)

The automatic thread cutting function will cut the thread at the end of embroidering each color. This function is initially turned ON. To turn this function OFF, touch and then .

* This setting returns to its default when the machine is turned off.

Touch

Touch to turn off the automatic thread cutting function.

→ The key will display as . When one color thread is embroidered, the machine will stop without cutting the thread.

Using the Thread Trimming Function (Jump Stitch Trim)

The thread trimming function will automatically trim any excess thread jumps within the color. This function is initially turned ON. To turn this function OFF, touch key and then .

* Your customized setting remains after turning the machine off and on.

Circular decorative border with wavy lines and a numbered label (①) at the bottom right corner.

①Jump stitch

1 Touch

2 Touch to turn off the thread trimming function.

→ The key will display as the machine will not trim the thread before moving to the next stitching.

■ Selecting the Length Of Jump Stitch Not to Trim

When the thread trimming function is turned on, you can select the length of the jump stitch. Select a setting from 5 mm to 50 mm in 5 mm increments.

* Your customized setting remains after turning the machine off and on.

Touch or to select the length of jump stitch.

For example: Touch to select 25 mm (approx. 1 inch) and the machine will not trim a jump stitch of 25 mm or less before moving to the next stitching.

Note

- If design has many trims it is recommended to select a higher jump stitch trim setting in order to reduce the amount of excess tails on backside of fabric.

- The higher number of the jump stitch length selected, the fewer number of times the machine will trim. In this case, more jump stitches remain on the surface of the fabric.

Adjusting the Embroidery Speed

1 Touch

→ The settings screen appears.

2 Touch

→ The embroidery settings screen appears.

3 Display [Max Embroidery Speed] in the embroidery settings screen.

4 Use +to change the maximum embroidery speed.

Memo

- SPM is the number of stitches embroidered in one minute.

- Decrease the embroidery speed when embroidering on thin, thick, or heavy fabrics and when using a specialty thread like a metallic thread.

- The setting specified before the main power is set to OFF remains selected the next time that the machine is turned ON.

5 Touch OK.

Changing the Thread Color Display

You can display the name of the thread colors or embroidery thread number.

Memo

• Colors on the screen may vary slightly from actual spool colors.
• [Original], imported data remains the brand thread created with the software, is set as a default.

Touch

→ The settings screen appears.

Touch

→ The embroidery settings screen appears.

Display [Thread color] in the embroidery settings screen.

Use ▶ to display the name of the thread colors or the embroidery thread number.

Use to select a thread brand.

Touch

Aligning the Pattern and the Needle

Example: Aligning the lower left side of a pattern and the needle

Mark the embroidery start position on the fabric, as shown.

Simple geometric lines forming an L-shape on a plain background (no text or symbols)

Touch

Touch

①Start position

→ The needle is positioned in the lower-left corner of the pattern. The carriage moves so that the needle is positioned correctly.

Touch

Touch and then, touch .

Move

Use to align the needle and the mark on the

L V J

fabric, and start embroidering the pattern.

Simple geometric diagram showing a vertical line intersecting a horizontal line (no text or symbols)

Embroidering Linked Characters

Follow the procedure described below to embroider linked characters in a single row when the entire pattern extends beyond the embroidery frame.

Example: Linking "FG" to the characters "ABCDE"

ABCDEFG

1 Select the character patterns for "ABCDE".

2 Touch

3 Touch □.

→ The needle is positioned in the lower-left corner of the pattern. The carriage moves so that the needle is positioned correctly. The machine is set to embroider until the first stitch of the next character pattern (F).

Note

- To cancel the starting point setting and return the starting point to the center of the pattern, touch

- Using can select a different starting point for embroidering. However, the starting point setting is canceled.

4 Touch OK.

5 Touch

6 Touch to turn off the thread cutting function and then touch . OK

7 Press the "Start/Stop" button.

8 After the characters are embroidered, cut the threads to a generous length, remove the embroidery frame, reposition the fabric in the hoop so that the remaining characters ("FG") can be embroidered, and then attach the embroidery frame.

①End of the embroidering

9 As in step 1, select the character patterns for "FG".

10 Touch

11 Touch L.

→ The needle is positioned in the lower-left corner of the pattern. The carriage moves so that the needle is positioned correctly.

12 Touch, then and use to align

the needle with the end of embroidering for the previous pattern.

13 Touch OK.

14 Press the "Start/Stop" button to start embroidering the remaining character patterns.

USING THE MEMORY FUNCTION

Saving Embroidery Patterns

Note

- Do not turn the main power to OFF while the [Saving...] screen is displayed. You will lose the pattern you are saving.

1 Touch when the pattern you want to save is in the embroidering screen.

Memo

- You can also save the pattern by touching the embroidery edit screen.

2 When saving the embroidery pattern in a USB media, insert the USB media into the USB port on the machine.

3 Touch the desired destination to start saving.
    G["Cancel"]

①Save to the machine's memory.
②Save to the USB media. The pattern is saved in a folder labeled [bPocket].
③Save to the wireless function pocket. For the detailed procedure, refer to the manual for Palette (version 11 or later).

Retrieving Embroidery Patterns

When retrieving the embroidery patterns from a USB flash drive, insert the USB flash drive into the USB port on the machine.

To retrieve embroidery patterns via wireless network, use Palette (version 11 or later) or Design Database Transfer to transfer the patterns in advance. For details on transferring embroidery patterns, refer to the manual for Palette or Design Database Transfer.

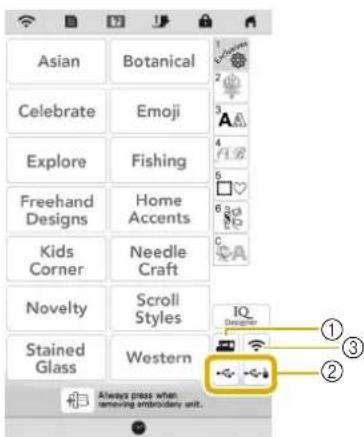

①Retrieve from the machine's memory.
②Retrieve from a USB media.
③Retrieve the pattern via the wireless network connection. For detailed procedures, refer to Palette manual (Version 11 or later).

Memo

• If the embroidery pattern to be retrieved is in a folder of the USB media, touch the key for that folder. Touch to return to the previous screen.
• You can save all or multiple data to the machine by touching 📄.

- To select multiple patterns, touch their thumbnails.

• : Select all patterns.
• : Deselect all patterns.
• : Save the selected patterns to the machine.
* To cancel the selection, touch again.

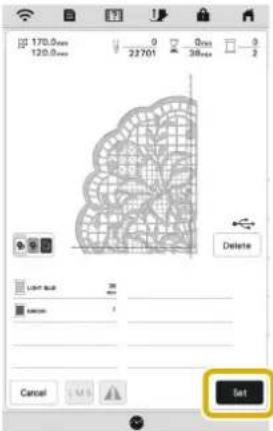

2 Touch Set .

* Touch to delete the embroidery pattern.

EMBROIDERY APPLICATIONS

Using a Frame Pattern To Make an Appliqué

Note

- If you change the size or position of the patterns when making an appliqué, make a note of the size and the location.

Method 1

You can use framed patterns of the same size and shape to create an appliqué. Embroider one pattern with a straight stitch and one pattern with a satin stitch.

1 Select a straight stitch frame pattern. Embroider the pattern onto the fabric for the appliqué piece, then cut neatly around the outside of the shape.

2 Embroider the same pattern from step 1 onto the base fabric.

3 Apply two-sided stabilizer material to the back of the fabric for the appliqué piece created in step 1. Attach the appliqué to the base fabric matching the shapes.

4 Select the satin stitch frame pattern of the same shape as the appliqué. Embroider over the fabric for the appliqué piece and base fabric from step 3 to create the appliqué.

Method 2

1 Select a straight stitch frame pattern, and embroider the pattern onto the base fabric.

2 Place the fabric for the appliqué piece over the pattern embroidered in step 1 and embroider the same pattern on the fabric for the appliqué piece.

* Be sure that the fabric for the appliqué piece completely covers the stitched line.

Remove the embroidery frame from the embroidery unit, and cut around the outside of the stitches of the fabric for the appliqué piece. And then, reattach the embroidery frame to the embroidery unit.

Note

- Do not remove the fabric from the embroidery frame to cut it. Also, do not pull or push on the fabric. Otherwise, the fabric may loosen in the frame.

Select the satin stitch frame pattern of the same shape as the appliqué and embroider the satin stitch pattern to create an appliqué.

Embroidering Couching Patterns

Couching patterns can be embroidered using yarn.

CAUTION

- When using yarn, we recommend selecting yarn of weight 4 (MEDIUM Medium yarn is often referred to as worsted weight, 20 knitted stitches per 10cm , or 9-11 wraps per inch. The diameter of the yarn is approximately 2 - 3mm (approx. 1/12-1/8 inch). If the yarn is extremely thin or thick, has an unusual shape (flat or furry), or more than 2 yarns, the best finishing results may not be achieved, or injuries or damage may result.

Note

- Before embroidering your project, do trial embroidery on a scrap piece of fabric that is the same as that used in your project.

Preparing for Embroidery Couching

Turn off the machine. Attach the embroidery unit.

Install a bobbin wound with embroidery bobbin thread.

Turn on the machine.

Touch, and then touch.

5 Select the desired pattern from the desired category.

And then touch . Set

①Couching patterns
②Fill couching embroidery font

6 Touch to lock all keys and buttons, and then raise the presser foot lever.

7 Attach embroidery couching foot "Y".

* Attach the embroidery couching foot through the front of the buttonhole lever.

①buttonhole lever

CAUTION

- When using the embroidery couching foot "Y", make sure the machine is in embroidery mode. Otherwise, the needle will strike the embroidery couching foot, causing the needle to break and possibly causing injury.

8 Rotate the handwheel and check that the needle is in the left half of the hole in embroidery couching foot "Y".

If the needle is not in the left half, use the multi-purpose screwdriver to turn the screw of embroidery couching foot "Y" to adjust the position of the embroidery foot. Turn the screw toward you to move the embroidery foot to the right. Turn the screw toward the back to move the embroidery foot to the left.

After making adjustments, rotate the handwheel and check that the needle does not touch the presser foot.

Technical illustration of a sewing machine needle and base assembly (no text or symbols)

9 Attach the spool stand to the machine.

At this time, do not raise the telescopic thread guide shaft.

Technical line drawing of a mechanical assembly with no visible text or symbols

* Refer to "Using the Spool Stand" on page 45.

10 Insert the yarn guide for embroidery couching into the slot on the top left of the machine.

Diagram of a mechanical component with a yellow arrow indicating direction (no text or symbols)

11 Pass the yarn through the telescopic thread guide and the yarn guide (①) to (②).

Note

• Pull off an appropriate amount of yarn from the ball so that the yarn does not become taut.
  • Make sure that the yarn does not become entangled as you work.

12 Pass the yarn through the guide on embroidery couching foot "Y".

Technical line drawing of a mechanical assembly with no visible text or symbols

13 Thread the yarn through embroidery couching foot "Y". Pass the yarn through the loop in the yarn threader, and then pass the threader from top to bottom through the hole in embroidery couching foot "Y". Pull the yarn to the front of the machine.

Mechanical diagram showing two stages of a cable or clamp assembly with arrows indicating motion (no text or symbols present)

Memo

- Place a sheet of paper under the presser foot to smoothly pass the yarn threader through the hole in embroidery couching foot "Y".

14 Touch to unlock all keys and buttons.

15 Thread the machine with the upper thread.

Note

- Do not use the spool stand for upper thread. Otherwise thread may tangle with yarn.

Memo

- For best results, use an upper thread that is the same color as the yarn.

16 Press (Presser foot lifter button) twice to raise the presser foot and then attach the embroidery frame to the embroidery unit.

■ Embroidering a Couching Pattern

1 Touch Embroidey.

2 Make sure that about 20 cm (approx. 8 inches) of yarn is pulled to the front of the machine.

3 While holding the yarn in your hand in front of you, press the "Start/Stop" button.

Line drawing of a hand inserting a small component into a device (no text or symbols)

CAUTION

- Pulling the yarn upwards may cause it to catch on the needle, causing it to break. Be careful not to allow the yarn to catch on the needle.

Note

• Before embroidering, make sure that there is enough yarn, upper thread and bobbin thread.
• Make sure that the yarn passes smoothly through the guides. Unravel as much yarn from the ball as necessary so that the yarn does not become taut.
• Use yarn that has no knots.

4 After embroidering several stitches, release the yarn.

→ When embroidering is finished, the machine will automatically trim the threads and stop.

Memo

- When using a high-density yarn, the upper thread tension may be disturbed. If this happens, it is possible to improve it by raising the [Embroidery Foot Height] by about 1 mm on the settings screen.

5 Cut the yarn, leaving about 20 cm (approx. 8 inches).
6 Punch a hole through the fabric with an awl or tapestry needle and then use the yarn threader to pull the excess yarn to the wrong side of the fabric.

Line drawing of two hands holding a thin wire or filament, no text or symbols present

Line drawing of hands tying a knot with ropes (no text or symbols)

7 Tie the end of the yarn so it cannot be pulled out, and then use scissors to cut off any excess yarn.

Creating Stippling, Echo Quilting, or Decorative Fill Patterns around a Design

Stippling, echo quilting, and decorative fill patterns can be created around the machine's built-in patterns or original embroidery data without using IQ Designer.

Memo

- If this simple stippling operation is used with batting sandwiched between two layers of fabric, the embroidery pattern and stippling may become misaligned. Stippling can be added in IQ Designer after the pattern is embroidered. For details, refer to "Decorative Stitching around a Pattern in Embroidery (a Quilting Function)" on page 178.

Select the pattern that stippling will be added around.

* To select multiple patterns, refer to "Selecting Multiple Patterns at the Same Time" on page 112.

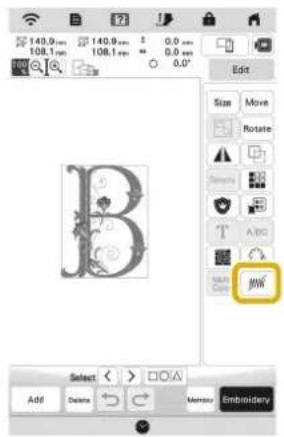

Touch in the embroidery edit screen.

→ Stippling is automatically applied around the selected pattern.

After specifying the stitch settings for the stippling, touch , and then touch . OK

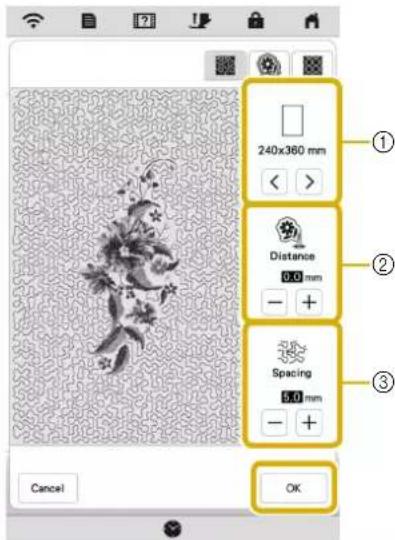

①The stippling is added within the area of the selected frame size. If the pattern is larger than the selected frame size, the area indicating the frame size will appear in gray, and stippling will not be added.

②Specify the distance from the outline of the pattern to the stippling.

③Specify the spacing for the stippling.

* Touch in the stippling settings screen to create an echo quilting pattern.

* Touch in the stippling settings screen to create a decorative fill pattern.

Black-and-white floral pattern with concentric wavy lines and scattered petals (no text or symbols)

①

Ornamental floral pattern with swirling vines and leaves (no text or symbols)

②

①Echo quilting pattern

②Decorative fill pattern

Embroidering Split Embroidery Patterns

Split embroidery patterns created with Palette Ver. 7 or later can be embroidered. With split embroidery patterns, embroidery patterns larger than the embroidery frame are divided into multiple sections, which combine to create a single pattern after each section is embroidered.

For details on creating split embroidery patterns and for more detailed embroidery instructions, refer to the Instruction guide included with Palette Ver. 7 or later.

1 Insert the USB media containing the created split embroidery pattern, and then select the split embroidery pattern to be embroidered. (page 156)

2 Select section to be embroidered.

4 If necessary, touch and edit the pattern.

Touch Embroidery play the embroidery screen.

5 Embroider the pattern section.

6 When embroidering is finished, the following screen appears. Touch . OK

→ A screen appears so that a section of the split embroidery pattern can be selected.

7 Repeat steps 2 through 6 to embroider the remaining sections of the pattern.

Chapter 6 IQ DESIGNER

ABOUT IQ DESIGNER PATTERN DRA

With IQ Designer, you can use the functions listed below:

• Hand-drawn functions - creating embroidery patterns by drawing on the LCD screen
• Loading functions - creating embroidery patterns by transferring data from the application or USB media.

You can also combine patterns that you have created with the machine's built-in patterns.

Start IQ Designer by touching in the home page screen or touching in the embroidery pattern selection screen.

NG SCREEN

①Pattern drawing area
②Pattern preview area

Memo

• The actual dimension of the pattern area is the size of the embroidery frame, which is shown in the pattern preview area. The pattern you drew may be bigger than you expected. Please resize the pattern after converting the design to the embroidery pattern.
• When the pattern is enlarged so that only a part of it appears in the pattern drawing area, the entire pattern is displayed in the pattern preview area. The red frame in the pattern preview area indicates the part of the pattern displayed in the pattern drawing area. Move the red frame in the pattern preview area with the touch pen (stylus) or your finger to display the corresponding area in the pattern drawing area.

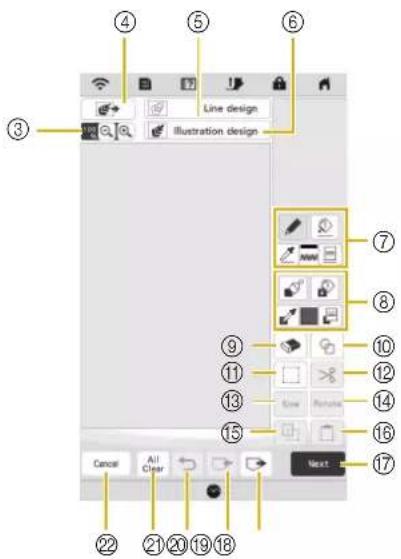

■ Key Functions

No.	Display	Explanation Page
	Name
3	Magnify the pattern. 166
	Magnify key
4	Load the fabric asthe background or the picture as the reference when creating the pattern. You can load the image file from the application or USB media.	the	171
	Load key
5	Load a line drawing, then edit andconvert it to embroidery data. You can load a line drawing from the application or USB media to create the embroidery design.	172
	Line design key
6	Load an image, then edit andconvert it to embroidery data. You can load an image from the application or USB media to create the embroidery design.	174
	Illustrationdesign key
7	Draw lines and set the color. You can select the line type, stitch type and color as you need.	165
	Line tool key	Touchtopick up the color,line type and stitch type from a line in the pattern within the pattern drawing area. The picked up color is shown as the currently selected line color beside the button and as the selected color in the Line Property screen.
8	Paint with brush and set the color.You can select the brush type, fill type and color as you need. Painted lines and regions will be converted to the pattern to be embroidered with fill stitch.	166
	Brush tool key

No.	Display	Explanation Page
	Name
9	Erase lines and shapes that have been drawn. You can select the size/shape of the eraser.		168
	Erase key
10	Select the stamp shape for pattern drawing.		167
	Stamp key
11	Select a section for moving, copying, deleting, changing size and rotating lines and shapes that have been drawn.		168
	Select key
12	Cut out the selected section. —
	Cut key
13	Change the size of the selected section.		176
	Size key
14	Rotate the selected section. —
	Rotate key
15	Duplicate the selected section. The temporarily positioned section can immediately be rotated, enlarged, reduced or moved.		—
	Duplicate key
16	Paste in the selected section duplicated with the duplicate key or a selected section using the cut key.		—
	Paste key
17	Proceed to the stitch settings screen.		—
	Next key
18	Recall image data created with IQ Designer from the machine's memory or the USB media.		—
	Recall key
19	Store the pattern being created to the machine's memory or the USB media.		—
	Memory key
20	Undo the last operation that was performed and return to the previous state. Each touch of this key will undo one operation.		—
	Undo key
21	Clear all the lines and shapes and start from the beginning. The background image is also cleared.		—
	All Clear key
22	Exit from IQ Designer. All lines and shaped are erased when you touch this key.		—
	Cancel key

Before Creating Designs

The pattern preview displays the design smaller than the actual size. You can view the actual pattern size by setting the |Embroidery Frame Display|.

With [Embroidery Frame Display] in the settings screen, the embroidery frame and grid can be specified separately.

Touch

→ The settings screen appears.

Touch

→ The embroidery settings screen appears.

Display [Embroidery Frame Display] in the embroidery settings screen.

Select the embroidery frame display.

①Embroidery frame types

②Grid types

Drawing Lines

Touch

and draw lines.

Pure graphical interface elements without any text, numbers, or symbols

Memo

- When is touched, all regions will be displayed in the background to clarify the drawing lines on the screen.

■ Setting the Line Types, Stitch Types and Colors

You can set or change the line types, stitch types and colors anytime. You can also specify the line types, stitch types and colors before drawing lines.

Touch to set the line types, stitch types and colors.

Abstract graphic design with geometric shapes and icons, no readable text or symbols

→ The settings screen appears.

①Line types

②Stitch types

③ Line color selection: touch the color palette to activate the drawing pen color.

Line types

	Freehand line with the end open.
	Freehand line closing the end automatically.
	Straight line with one stroke
	Straight line changing directions to the point you select. If the end point is created near the start point, a closed object will be created.

Stitch types

	Zigzag stitch
	Running stitch
	Triple stitch
	Candlewicking stitch
	Chain stitch
	E stitch
	V stitch
	Select motif stitchesDisplays motif stitch selection screen, where Select can be touched to select a pattern.
	Line without stitch for creating a region.Created region will be defined by the gray line.

Touch to return to the pattern drawing screen.

→ You can check the selected stitch type and color.

①Color bar
②Stitch type

Touch then touch on the line to change its color.

→ The connected line will be changed to the selected color.

Memo

• Touch to magnify the image when you cannot touch on the line correctly.
• Touch, and then select a color within the pattern drawing area to apply the same color to other lines or parts of the pattern.

①Use to select the line color.

②Touch for changing the line color, and then select the pattern to be changed.

Drawing Regions

Touch and draw with brush.

■ Setting the Brush Types, Fill Patterns and Fill Colors

Touch to set the brush types, fill patterns and fill colors.

Abstract curved line drawing with tool icons on the right side (no text or symbols)

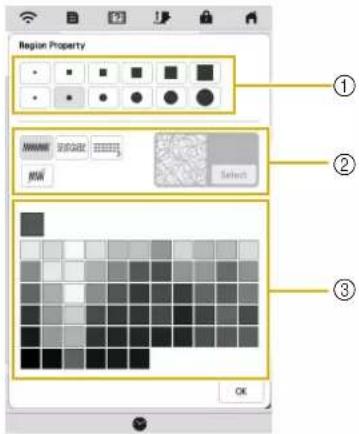

→ The setting screen appears.

①Brush types
②Fill stitch types
③ Fill color selection: touch the color palette to activate the paint brush color.

Brush shapes/sizes

Fill stitch types

	Fill stitch pattern
	Stippling pattern

Select when you don't want fill stitch.

2 Touch to return to the pattern drawing screen.

→ The color bar on the brush tool key is changed to the selected color. If a stippling pattern or decorative fill pattern has been selected, the stitch pattern is displayed.

①Color bar

3 Touch and touch on the brush line to change color and fill stitch type. You can also set the fill color, stitch type and fill pattern of a closed area made of the lines and brush lines.

Memo

• Touch magnify the image when you cannot touch on the fill correctly.
• Touch, and then select a pattern color in the pattern drawing area to apply that fill color and stitch type to other patterns.

①Use to select the fill color.

Two dark droplet shapes with a yellow line and a small icon, no text or symbols present

②Touch for changing the fill color and stitch type, and then select the pattern to be changed.

Using the Stamp Key

1 Touch

2 Select a stamp type and stamp shape.

①Stamp shapes
②Stamp types
③Saved outlines
④Frame embroidering areas

Stamp shapes

	Basic shapes
	Closed shapes
	Open shapes

Stamp types (Only for Basic shapes)

	Outline
	Fill stitch
	Outline and fill stitch

* Select the outline (), fifth stitch (), or outline and fill stitch () of a basic shape.

Saved outlines

Embroidery pattern outlines can be registered as stamp shapes. When registering stamp shapes, select from the last 20 embroidery patterns used. If more than 20 shapes are registered, the oldest one is automatically erased. For details on registering a stamp shape, refer to “Decorative Stitching around a Pattern in Embroidery (a Quilting Function)” on page 178.

Frame embroidering areas

Select an embroidering area in order to arrange the pattern to fit an embroidery frame.

* Touch to return to the pattern drawing screen.

Touch toset the selected stamp.

→ The pattern drawing screen appears.

* You can change size of, rotate or move the shape right after you create it by touching or. Rotate

Using the Erase Key

Touch

Pure geometric shape with no text or symbols, showing a diamond outline and a highlighted icon (no readable text or symbols)

Select the shape of the eraser.

→ The pattern drawing screen appears.

Drag along the area or line that you want to erase

while the key appears as

Using the Select Key

You can select the part of the design to move and/or edit. Some keys are available only after you select the part.

Touch

Simple line drawing of a heart inside an egg shape with tool icons on the right (no text or symbols)

Select the area you want to edit.

* Drag to create the red box around your selected area to be edited.

Simple line drawing of a heart shape inside an oval, with no text or symbols present.

Edit the design with available keys. (Refer to "Key Functions" on page 164 for the details of each key function.)

Touch, and then specify the stitch setting.

STITCH SETTINGS SCREEN

After creating the pattern drawing data (.pm9) in the drawing screen (page 163), you will have an opportunity to:

• Check and change the stitch settings for each line and region.
• Save the pattern drawing data (.pm9).
• Convert the data to an embroidery pattern (.phx), proceed to the embroidery edit screen, and/or save the embroidery pattern.

Specifying Individual Stitch Settings

Select a pattern in the stitch settings screen to specify its line and region stitch settings. If multiple patterns are selected, the settings are applied to those patterns.

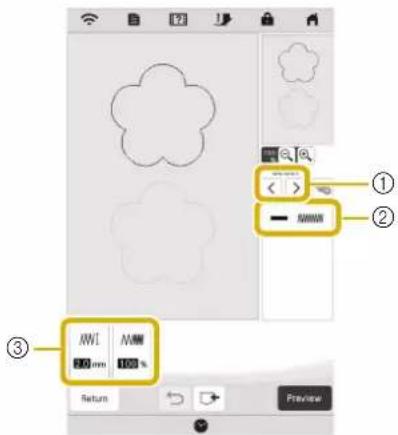

■ Line Settings

①Select the line to be changed.
②Shows the stitch type and color for the selected line.
③Shows the stitch settings for the selected line.

Line stitch settings

Select the type of stitching you want applied to your line art.

Zigzag stitch

MWI [Zigzag width]	Specifies the width of the stitch.
WWW [Density]	Specifies the density of the stitch.

Running stitch /Triple stitch

* Both includes an under sewing.

...... [Run Pitch]

Specifies the length of the stitch.

Candlewicking Stitch

*** [Size]	Increases/reduces the size of the stitch.
*** [Spacing]	Specifies the spacing of the stitch.

Chain stitch

◇◇◇ [Size]	Increases/reduces the size of the stitch.
•≡≡• [Thickness]	Sets repeated embroidering at the same part.

E stitch

[Stitch width]	Increases/reduces the size of the pattern.
[Spacing]	Specifies the spacing of the E stitch.
[Thickness]	Sets repeated embroidering at the same part.
[Flip]	Specifies if the decorative line shows up inside or outside.

V stitch

[Stitch width]	Increases/reduces the size of the pattern.
[Spacing]	Specifies the spacing of the V stitch.
·≡ [Thickness]	Sets repeated embroidering at the same part.
[Flip]	Specifies if the decorative line shows up inside or outside.

Motif stitch

[Size]	Increases/reduces the size of the pattern.
[Spacing]	Specifies the spacing of the motif stitch.
[Flip]	Specifies if the decorative line shows up inside or outside.

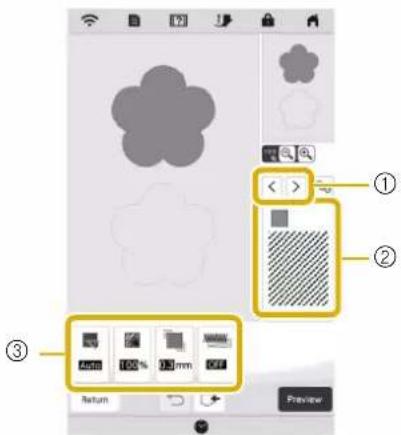

■ Region Settings

①Select the region to be changed.
②Shows the stitch type and color for the selected region.
③Shows the stitch settings for the selected region.

Fill stitch settings

[Direction]	Specifies the embroidering direction. SelectManualto change to the desired direction offill stitch.
[Density]	Specifies the stitch density of fill stitch.
[Pullcompensation]	Specifies to correct the shrinkage of thepattern by slightly shortening or lengtheningthe stitching. Change the setting after youtest embroider the pattern and can check theshrinkage.
[Undersewing]	Select if you need or do not need the undersewing for the stabilized fabric.

Stippling stitch settings

	[Run Pitch]	Specifies the length of a stitch of the stippling stitch.
	[Spacing]	Specifies the spacing between the stitches when embroidering the stippling stitch.
	[Distance] Specifies the offset from the pattern outline.

Decorative fill stitch settings

[Size]	Increases/reduces the size of the pattern.
[Direction]	Specifies the rotation angle of the pattern.
[Outline]	Select whether [ON] or [OFF] the outline is also converted to embroidery data. If [ON] is selected, the number of thread jumps can be reduced.

1 Use → Each touch of moves the highlighting of the selected pattern in order.

2 Select the setting to be changed, and then change the setting in the screen that appears. (In this example, the embroidering direction will be changed.)

 → The setting screen appears.

3 Touch ,anel then use to change the direction.


4 Touch to apply the setting.

\* appears on the tab for settings that were changed. \* Change other settings in the same way.

Specifying Global Stitch Settings

The same stitch settings can be changed at the same time for multiple patterns of the same type.

1 Use < > to select the stitch whose settings are to be changed, and then touch.

 → The same stitch type lines or regions will be selected at the same time.

2 Follow steps 2 through 4 in "Specifying Individual Stitch Settings" on page 169 to change the settings.

3 Touch to create the embroidery pattern.

 → When the following message appears, touch OK  4 Touch to display the pattern editing screen.  → When the following message appears, touch OK  ①: Check an enlarged view of the pattern. ②: Save the embroidery data.

Loading the Background Image

Prepare the data file of your favorite picture so that you can create an embroidery pattern. Load the image file from the application "IQ INTUITION- POSITIONING APP" on page 181 or a USB media. 1 Touch  2 Select the device you saved the data to.  3 Select the data, and then touch . Set  4 The selected image is displayed transparently in the pattern drawing area.  5 Using the included touch pen (stylus), touch and then draw lines to trace the image. \* For details on drawing lines, refer to "Drawing Lines" on page 165.  ①Transparency adjustment \* Touch or < to adjust the transparency of the background. Each touch of lights the background, making the line pattern darker. Each touch of highlights the background, making the line pattern lighter. 6 After editing the pattern, touch to specify the settings for pattern. 7 Touch to create the embroidery pattern.

LINE CONVERSION

Custom patterns can be created from drawings. You can create patterns by loading an image on the application "IQ INTUITION- POSITIONING APP" on page 181 or a USB media.

Diagram showing a curved umbrella transforming into a shaded umbrella shape (no text or symbols)

Recommended line drawings for Line Conversion

- Line drawings must be drawn clearly using lines with approximately 1 mm thickness. • Line drawings should be drawn in a strong contrast. - If the lines are too short or gathered too densely, they will not be loaded correctly.

Note

- For details on creating patterns using color illustrations, refer to "ILLUSTRATION CONVERSION" on page 174. - If you cannot convert the drawings as expected, you can edit the design in IQ Designer. Refer to "PATTERN DRAWING SCREEN" on page 163. - Line drawings are converted without recognizing the thickness of lines. If you want to change the thickness of lines, specify in the settings screen. Refer to "STITCH SETTINGS SCREEN" on page 169. - Line drawings are converted as black lines. If you want to change the colors, specify in IQ Designer. Refer to "Drawing Lines" on page 165.

Create a Pattern with Line Conversion

1 Touch Line design

 → The image display screen appears.  Select the device you saved the data to.   Select the data, and then touch . Set   When loading is finished, specify the [Gray-Scale Detection level] on the screen if necessary. The [Gray-Scale Detection level] can change the black and white threshold for the image.  \* If you do not know how the settings should be changed, first continue the operation without specifying settings and check the results. \* To stop loading and return to the screen in step touch. The loaded image will be deleted when you return to the previous screen.   Move to frame the image for the pattern.  Touch OK. → The screen for confirming the converted image appears.  In the screen for confirming the converted image, you can adjust the [Gray-Scale Detection level] again, if necessary.  ①The settings for the lines to be embroidered appear. \* If you do not know how the settings should be changed, first continue the operation without specifying settings and check the results. \* : Enlarge the image. \* : Display the image before being converted. Compare the images before and after being converted, and then change the settings if necessary. \* : Return to the previous screen. → After changes to the settings for |Gray-Scale Detection level| are applied, changes to Retry. Touch to check that the image is as desired.  Touch Set. → The pattern drawing screen appears.  If necessary, edit the loaded image.  \* After the loaded image is converted to stitching, it appears as a background in the pattern drawing screen. Use gauge ① to adjust the transparency of the background. Each touch of lightens the background, making the line pattern darker. Each touch of darkens the background, making the line pattern lighter.

ILLUSTRATION CONVERSION

Custom patterns can be created from color illustrations. You can create patterns by loading an image on the application "IQ INTUITION- POSITIONING APP" on page 181 or a USB media.

Illustration of a penguin transforming into another penguin (no text or symbols)

Recommended illustrations for Illustration Conversion

• Illustrations that are clearly drawn, with no gradation, fading or blurriness. • Illustrations that are at least a 5 mm square • Illustrations that are extremely simple images

Create a Pattern with Illustration Conversion

 Touch Illustration design  → The image display screen appears.

Select the device you saved the data to.

  Select the data, and then touch    When loading is finished, specify the necessary settings in the loaded image confirmation screen. Change the settings to adjust the image so it can easily be converted to the desired pattern.

1[Max. Number of Colors]	The number of colors in an image will be reduced less than the number specified here, and then the outline will be extracted.
2[Remove Background] Select whether or not the background color will be included as one of the colors.
3[Line] Select whether or not the outline will be detected as a line. A thick outline can also be detected as a region. When detected as a line, the line thickness and color can be specified.

\* To stop loading and return to the screen in step 2, touch Cancel.

Memo

\- Touch to detect the outline. Line thickness can be specified from 1.0 mm (approx. 1/16 inch) to 5.0 mm (approx. 3/16 inch).  \- Touch to select the outline color. Select by touching the color, or moving icon using   Move to frame the image for the pattern.  Touch OK. → The screen for confirming the converted image appears.  In the screen for confirming the converted image, adjust the image as necessary as in step 4.  \* : Enlarge the image. \* : Display the image before being converted. Compare the images before and after being converted, and then change the settings if necessary. \* : Return to the previous screen. → After changes to the settings described above have   Touch Set. → The pattern drawing screen appears.  If necessary, edit the loaded image.  \* After the loaded image is converted to stitching, it appears as a background in the pattern drawing screen. Use gauge ① to adjust the transparency of the background. Each touch of lightens the background, making the illustration pattern darker. Each touch of marks the background, making the illustration pattern lighter.

STIPPLING

Basic Stippling with IQ Designer

Create a stippling design with the basic procedure. Example:

1 Touch


2 Select the square shape, and then touch . OK


3 Touch


4 Select the heart shape, and then touch . OK


5 Touch Size .

 6 Touch until the heart shape fits in the square shape, and then touch . OK 7 Touch , and then touch .  8 Touch 📋 and then select the stitch color. Touch OK after setting the color.  9 Select the region you want to set stippling effect.  ①Select this region. 10 Touch Next.  11 Adjust the stippling stitch settings to create the desired effect, and then touch Preview \* For details, refer to "Specifying Individual Stitch Settings" on page 169.  → When the following message appears, touch 9k   Touch to convert into embroidery.  → When the following message appears, touch OK   Follow the procedure described on "EDITING PATTERNS" on page 113 to edit the pattern as desired.

Note

\- You can also load a line drawing or an image of the fabric to create a region for stippling stitches.

Decorative Stitching around a Pattern in Embroidery (a Quilting Function)


Memo

- For best results, reduce the embroidery speed. (page 27) - For best results, hoop the stabilizer and fabric and embroider the design prior to adding the batting and backing under the hoop for quilting. A quilt can be created with stippling stitch around an embroidery pattern.  Touch in the home page screen and select the pattern that decorative stitching will be added around, and then touch in the embroidery edit screen.  → The outline of the pattern is displayed.  Set the distance and touch Memory  → A message appears, and the pattern outline is registered as a stamp shape in IQ Designer. Touch   3 Touch Embroidery tinue to the embroidery screen, and then embroider the pattern at the center. 4 Remove the embroidery frame from the carriage. 5 Photograph the embroidery frame with the application. 6 Attach the embroidery frame to the carriage again. 7 Place the batting and bottom layer of fabric under the embroidery frame. 8 Touch in the home page screen to start IQ Designer. 9 Touch to load the embroidered fabric. Refer to "Loading the Background Image" on page 171 for details.  10 Touch, touch to recall the stamp shape registered in step 2, and then arrange it over the loaded pattern.   11 Use a stamp or rectangular frame to determine the region to be stitched.

Note

\- If the region is to be drawn by hand, be sure to draw a completely closed shape. If the region is not closed, it cannot be correctly filled with any of the fill stitches.  12 Touch to select the pattern and color of the decorative stitching.  13 Touch, and then fill the region to be stitched outside of the stamp shape outline.

14 If you select the stamp shapes to determine the region

on step 11, touch for the line tool keys to select . Touch, then select the frame outline, and then touch . Next \* Stitch settings can be adjusted in the stitch settings screen. For details, refer to "STITCH SETTINGS SCREEN" on page 169.

15 Specify the stitch spacing and length in the stitch

settings screen, and then touch .Preview  → Check the pattern, and then touch Set  16 Embroider the stippling stitch around the embroidery pattern.

IQ INTUITION- MONITORING APP

With the IQ Intuition- Monitoring App installed on your smart device and the machine and smart device connected to the same wireless network, you can check the operating status of the machine. In addition, you can receive notifications when the machine stops.

■ Installing the App

1 Use your smart device to scan the appropriate QR code below to visit Google Play™ or the App Store.  Android™: https://www.babylock.com/IQIntuition\_MonitoringAndroid  iOS: https://www.babylock.com/IQIntuition\_MonitoringiOS 2 Install [IQ Intuition- Monitoring].  IQ Intuition- Monitoring

Memo

- To download and install the app, you can also search for [IQ Intuition- Monitoring] in Google Play™ or the App Store. - For more information on how to use this application, visit the following web site. https://www.babylock.com/support

■ Monitoring


Memo

\- The app will be updated from time to time. The following descriptions may differ from the actual screens and operations.

1 Connect the machine to your wireless network.

\* Refer to "WIRELESS NETWORK CONNECTION FUNCTIONS" on page 31.

2 Confirm that your smart device and your machine are connected to the same network.

3 Tap the icon for [IQ Intuition- Monitoring] on the smart device to start the app.

4 Follow the instructions that appear in the app to connect the app to your machine.

\* Select the name that appears beside [Machine name] in the settings screen on your machine. → The machine can now be monitored.

IQ INTUITION- POSITIONING APP

With IQ Intuition-Positioning app, you can position your embroidery designs on the fabric, by capturing image of the hooped fabric and sending the image to your machine.

■ Installing the IQ Intuition- Positioning App

1 Use your smart device to scan the appropriate QR code below to visit Google Play™ or the App Store.

 Android™: https://www.babylock.com/IQIntuition\_PositioningAndroid  iOS: https://www.babylock.com/IQIntuition\_PositioningiOS  Install [IQ Intuition- Positioning].  IQ Intuition- Positioning

Memo

- To download and install the app, you can also search for [IQ Intuition- Positioning] in Google Play™ or the App Store. - For more information on how to use this application, visit the following web site. https://www.babylock.com/support

Chapter 7 APPENDIX

CARE AND MAINTENANCE

CAUTION

\- Be sure to unplug the machine before cleaning it. Otherwise, injury may result.

Cleaning the LCD

If the surface of the LCD is dirty, lightly wipe it with a soft dry cloth.

Cleaning the machine surface

When wiping dirt off the machine, firmly wring a soft cloth soaked in (lukewarm) water. After cleaning the machine, dry it with a soft, dry cloth.

Restrictions on Oiling

In order to prevent damaging this machine, it must not be oiled by the user. This machine was manufactured with the necessary amount of oil applied to ensure correct operation, making periodic oiling unnecessary. If problems occur, such as difficulty turning the handwheel or an unusual noise, immediately stop using the machine, and contact your authorized Baby Lock retailer.

Precautions on Storing the Machine

Do not store the machine in any of the locations described below, otherwise damage to the machine may result, for example, rust caused by condensation. \* Exposed to extremely high temperatures \* Exposed to extremely low temperatures \* Exposed to extreme temperature changes \* Exposed to high humidity or steam \* Near a flame, heater or air conditioner \* Outdoors or exposed to direct sunlight \* Exposed to extremely dusty or oily environments

Note

\- In order to extend the life of this machine, periodically turn it on and use it. Storing this machine for an extended period of time without using it may reduce its efficiency.

Cleaning the Race

 Press (Needle position button) to raise the needle. 2 Turn the main power to OFF, and then unplug the machine. 3 Remove the needle and presser foot (page 46, page 49). 4 Remove the flat bed attachment or the embroidery unit if either is attached. 5 Insert the multi-purpose screwdriver into the hole, and tilt the multi-purpose screwdriver to the left and then to the back, as shown in the illustration.  6 Slide out the needle plate with your right hand to remove it.

Illustration of a hand pressing down on a device with a yellow arrow indicating compression (no text or symbols)

7 Grasp the bobbin case, and then gently lift out.

Hand placing a yellow object into a container with food inside (no text or symbols visible)

8 Use the cleaning brush or a vacuum cleaner to remove any lint and dust from the race and bobbin thread sensor and the surrounding area.  ①Cleaning brush ②Race ③Bobbin thread sensor

IMPORTANT

\- Do not apply oil to the bobbin case.

Memo

\- If lint or dust collects on the bobbin thread sensor, the sensor may not operate correctly. 9 Insert the bobbin case so that the ▲ mark on the bobbin case aligns with the ● mark on the machine.   \* Align the ▲ and ● marks.

Illustration of a hand holding a small object inside an open device (no text or symbols visible)

①▲ mark ② mark ③Bobbin case \* Make sure that the indicated points are aligned before installing the bobbin case.

CAUTION

- Never use a bobbin case that is scratched or has a burr on it. Otherwise the upper thread may become tangled, and the needle may break and cause injury. For a new bobbin case, contact your nearest authorized Baby Lock retailer. - Be sure that the bobbin case is correctly installed, otherwise the needle may break and cause injury. 10 Insert the tabs on the needle plate into the notches in the machine.  ①Tabs ②Notches 11 Press down on the right side of the needle plate to secure it.

Diagram of a device with labeled components and directional arrow (no text or symbols)

Cleaning the Bobbin Case

Thread wax and dust easily collect around the notch in the tension spring on the bobbin case, resulting in an incorrect thread tension. Therefore, the bobbin case should be cleaned as necessary should tension problems arise. When cleaning the bobbin case, use card stock or another type of paper of similar thickness and sturdiness in order to prevent pieces of paper tearing off and getting lodged in the bobbin case. 1 Follow steps 1 to 7 in "Cleaning the Race" to remove the bobbin case. 2 Using a piece of paper of adequate thickness and sturdiness, slide the paper between the tension plate base and the tension spring and also slide the paper behind the notch of the spring to remove any dirt or dust.  ①Tension plate base ②Notch ③Paper (e.g. business card type) ④Tension spring

Memo

\- Do not bend the tension spring. In addition, do not use anything other than recommended paper to clean the bobbin case. 3 Use the cleaning brush to remove any lint and dust from inside the bobbin case. 4 Replace the bobbin case and needle plate.

Cleaning the Cutter in the Bobbin Case Area

The cutter below the needle plate should be cleaned. If dust or lint accumulate on the cutter, it will be difficult to cut the thread when (Thread cutter button) is pressed or the automatic thread cutting function is used. Clean the cutter when the thread is not easily cut. 1 Follow steps 1 through 7 in "Cleaning the Race" to remove the needle plate and the bobbin case. 2 Use the cleaning brush or a vacuum cleaner to remove any lint and dust from the cutter in the bobbin case area.

CAUTION

\- Do not touch the cutter, otherwise injuries may result. 3 Insert the bobbin case and attach the needle plate following steps 9 through 11 in "Cleaning the Race".

Note

\- If the needle plate has been removed, check machine operations to confirm that installation has been completed correctly. Refer to “Checking Machine Operations” on page 188.

BEFORE LENDING OR DISPOSING OF THE PRODUCT

Please be sure to reset the settings of your machine to delete the following data. - all saved data - customized settings • network information 1 Touch, and then touch beside [Reset to Default]. 2 Touch Reset

Note

\- Do not turn the main power to OFF while the [Deleting...] screen is displayed.

ADJUSTING THE SCREEN

Touch Panel is Malfunctioning

If the screen does not respond correctly when you touch a key (the machine does not perform the operation or performs a different operation), follow the steps below to make the proper adjustments. 1 Holding your finger on the screen, turn the main power switch to OFF and back to ON.  → The touch panel adjustment screen appears. 2 Using the included touch pen, lightly touch the center of each +, in order from 1 to 13.

Note

\- Only use the included touch pen to touch the screen. Do not use a mechanical pencil, pin, or other sharp object. Do not press too hard on the screen. Otherwise, damage may result. 3 Turn the main power to OFF, then turn it back to ON.

Note

\- If you finish the screen adjustment and the screen still does not respond, or if you cannot do the adjustment, contact your authorized Baby Lock retailer.

TROUBLESHOOTING

If the machine stops operating correctly, check the following possible problems before requesting service. You can solve most problems by yourself. Visit us at www.babylock.com. If the problem persists, contact your authorized Baby Lock retailer.

Frequent Troubleshooting Topics

Detailed causes and remedies for common troubleshooting topics are described below. Be sure to refer to this before contacting your authorized Baby Lock retailer.

■ Upper Thread is Too Tight	page 186
■ Tangled Thread on Wrong Side of Fabric	page 187
■ Incorrect Thread Tension	page 187
■ Fabric is Caught in the Machine and Cannot Be Removed	page 188
■ If the Thread Becomes Tangled Under the Bobbin Winder Seat	page 189

Upper Thread is Too Tight

■ Symptom

\* The upper thread appears as a single continuous line. \* The bobbin thread is visible from the right side of the fabric. (Refer to the illustration below.) \* The upper thread has tightened up, and comes out when pulled. \* The upper thread has tightened up, and wrinkles appear in the fabric. \* The upper thread tension is tight, and the results do not change even after the thread tension is adjusted.  ①Wrong side of fabric ②Bobbin thread visible from right side of fabric ③Upper thread ④Right side of fabric ⑤Bobbin thread

Cause

Incorrect bobbin threading

If the bobbin thread is incorrectly threaded, instead of the appropriate tension being applied to the bobbin thread, it is pulled through the fabric when the upper thread is pulled up. For this reason, the thread is visible from the right side of the fabric.

■ Remedy

Correctly install the bobbin thread. (page 39)

Tangled Thread on Wrong Side of Fabric

Symptom

\* The thread becomes tangled on the wrong side of the fabric.

Diagram showing a yellow spray or dust flowing through a mechanical component (no text or symbols)

\* After starting sewing, a rattling noise is made and sewing cannot continue. \* Looking under the fabric, there is tangled thread in the bobbin case.

Illustration of a mechanical assembly with a yellow component inserted, showing no text or symbols.

Cause

Incorrect upper threading

If the upper thread is incorrectly threaded, the upper thread passed through the fabric cannot be firmly pulled up and the upper thread becomes tangled in the bobbin case, causing a rattling noise.

■ Remedy

Remove the tangled thread, and then correct the upper threading.  Remove the tangled thread. If it cannot be removed, cut the thread with scissors. \* Refer to "Cleaning the Race" on page 183.  Remove the upper thread from the machine.  Correct the upper threading by following the instructions in "Upper Threading" on page 41. \* If the bobbin was removed from the bobbin case, refer to "Setting the Bobbin" on page 39 to correctly install the bobbin.

Incorrect Thread Tension

■ Symptoms

- Symptom 1: The bobbin thread is visible from the right side of the fabric. - Symptom 2: The upper thread appears as a straight line on the right side of the fabric. - Symptom 3: The upper thread is visible from the wrong side of the fabric. - Symptom 4: The bobbin thread appears as a straight line on the wrong side of the fabric. - Symptom 5: The stitching on the wrong side of the fabric is loose or has slack. □ Symptom 1 □ Symptom 3   ①Wrong side of fabric ②Bobbin thread visible on right side of fabric ③Upper thread ④Right side of fabric ⑤Bobbin thread ⑥ Upper thread visible from wrong side of fabric

■ Cause/Remedy

□ Cause 1

The machine is not correctly threaded.

The bobbin threading is incorrect. Return the upper thread tension to the standard setting, and then refer to "Setting the Bobbin" on page 39 to correct lower threading. The upper threading is incorrect. Return the upper thread tension to the standard setting, and then refer to "UPPER THREADING" on page 41 to correct the upper threading. □ Cause 2

A needle and thread appropriate for the fabric are not being used.

The machine needle that should be used depends on the type of fabric sewn and the thread thickness. If a needle and thread appropriate for the fabric are not being used, the thread tension will not be adjusted correctly, causing wrinkles in the fabric or skipped stitches. \* Refer to "FABRIC/THREAD/NEEDLE COMBINATIONS" on page 48 to check that a needle and thread appropriate for the fabric are being used. □ Cause 3

An appropriate upper tension is not selected.

Select an appropriate thread tension. Refer to "Setting the Thread Tension" on page 62. The appropriate thread tension differs according to the type of fabric and thread being used. \* Adjust the thread tension while test sewing on a piece of scrap fabric that is the same as that used in your project.

Note

\- If the upper threading and bobbin threading are incorrect, the thread tension cannot be adjusted correctly. Check the upper threading and bobbin threading first, and then adjust the thread tension. \* When the bobbin thread is visible on the right side of the fabric. Set the upper thread tension to a lower number. (Loosen the thread tension.) \* When the upper thread is visible on the wrong side of the fabric. Set the upper thread tension to a higher number. (Tighten the thread tension.)

Fabric is Caught in the Machine and Cannot Be Removed

If the fabric is caught in the machine and cannot be removed, the thread may have become tangled under the needle plate. Follow the procedure described below to remove the fabric from the machine. If the operation cannot be completed according to the procedure, instead of attempting to complete it forcefully, contact your nearest Baby Lock retailer.

■ Removing the Fabric From the Machine

1 Immediately stop the machine. 2 Turn off the machine. 3 Remove the needle. If the needle is lowered into the fabric, turn the handwheel away from you (clockwise) to raise the needle out of the fabric, and then remove the needle. \* Refer to "CHANGING THE NEEDLE" on page 46. 4 Remove the presser foot. If the thread is entangled on the presser foot, remove the entangled thread, and then raise the presser foot lever to remove the presser foot. Otherwise, the presser foot may be damaged. \* Refer to "CHANGING THE PRESSER FOOT" on page 49. 5 Lift up the fabric and cut the threads below it. If the fabric can be removed, remove it. Continue with the following steps to clean the race. 6 Remove the needle plate and bobbin case. If threads remain in the bobbin case, remove them. \* Refer to "Cleaning the Race" on page 183. 7 Remove any threads in the race and around the feed dogs. \* Refer to step 8 on page 184.  ①Cleaning brush ②Race 8 Insert the bobbin case and then attach the needle plate. \* Refer to steps 9 through 11 on page 184.

Diagram of a device with a labeled component and directional arrow (no text or symbols)

9 Check the condition of the needle, and then install it. If the needle is in a poor condition, for example, if it is bent, be sure to install a new needle. \* Refer to "CHANGING THE NEEDLE" on page 46. ■ Checking Machine Operations If the needle plate has been removed, check machine operations to confirm that installation has been completed correctly. 1 Turn on the machine. 2 Select Straight stitch (Middle).

Note

\- Do not yet install the presser foot and thread. 3 Slowly turn the handwheel toward you (counterclockwise), and look from all sides to check that the needle falls at the center of the opening in the needle plate.  ①Opening in the needle plate ②Handwheel If the needle or feed dogs contact the needle plate, the machine may be malfunctioning; therefore, contact your authorized Baby Lock retailer. 4 Turn off the machine, and then install the bobbin and presser foot. Never use a scratched or damaged presser foot. Otherwise, the needle may break, or sewing performance may suffer. \* Refer to "Setting the Bobbin" on page 39 and "CHANGING THE PRESSER FOOT" on page 49.

Correctly thread the machine.

\* For details on the machine, refer to "UPPER THREADING" on page 41.

Note

\- The thread may have become tangled as a result of incorrect upper threading. Make sure that the machine is correctly threaded.

Perform trial sewing with normal fabric.


Note

\- Incorrect sewing may be the result of incorrect upper threading or sewing thin fabrics. If there are poor results from the trial sewing, check the upper threading or the type of fabric being used.

If the Thread Becomes Tangled Under the Bobbin Winder Seat

If the bobbin winding starts when the thread is not passed through the pretension disk correctly, the thread may become tangled beneath the bobbin winder seat. Wind off the thread according to the following procedure.  ①Thread ②Bobbin winder seat

CAUTION

\- Do not remove the bobbin winder seat even if the thread becomes tangled under the bobbin winder seat. The cutter in the bobbin winder seat may cause injury.

Touch to stop the bobbin winding.



Cut the thread with scissors near the pretension disk.

 ①Pretension disk  Push the bobbin winder switch to the right, and then remove the bobbin from the shaft and cut the thread leading to the bobbin in order to be able to completely remove the bobbin from shaft.   Hold the thread end with your left hand, and wind off the thread clockwise from under the bobbin winder seat with your right hand as shown below.

Illustration of a hand holding a plant with a yellow arrow indicating rotation or movement (no text or symbols)

List of Symptoms

Check the following possible problems before requesting service. If the reference page is “\*”, contact your authorized Baby Lock retailer. ■ Getting Ready

Cannot thread the needle.
Needle is not in the correct position.• Press (e position button) to raise the needle.	10
Needle is installed incorrectly. 46
Needle is turned, bent or the point is dull. 46
Upper threading is incorrect. 41
The needle threader hook is bent and does not pass through the eye of the needle.	*
The needle threader lever cannot be moved or returned to its original position.	*
A size 65/9 needle is being used.• The needle is incompatible with the needle threader. Manually pass the thread through the eye of the needle.	43

Cannot lower the presser foot with the presser foot lever.
Presser foot was raised using (Presser foot lifter button).• Press (Presser foot lifter button) to lower the presser foot.	10

Symptom, Cause/solution	Reference
The bobbin thread cannot be pulled up.
Needle is turned, bent or the point is dull. 46
Bobbin is set incorrectly. 39

Machine does not operate
All keys and buttons have been locked by	46, 49

Nothing appears in the LCD.
Main power switch is not turned on. 19
The plug of the power cord is not inserted into an electrical outlet.	19

The LCD screen does not look very clear.
The brightness of the screen is not adjusted. 26

Nothing happens, even if the LCD display is touched
Adjust the screen. 186
The screen has been locked.• Touch either of the following keys to unlock the screen.	—

The LCD screen is fogged up.
Condensation has formed on the LCD screen.• After a while, the cloudiness will disappear.	—

Embroidery unit does not operate.
Embroidery unit is not attached correctly.	106
Embroidery frame was attached before the unit was initialized.	106

Pointer of the embroidery foot “W+” with LED pointer does not indicate the position correctly
With thick elastic fabric, the position will be misaligned only at raised parts in the fabric.	132
With fabric having a very uneven surface, the position is not correctly aligned.• The pointer indication should be used only as a reference.	—

Bobbin thread does not wind neatly on the bobbin.
The thread is not passed through the bobbin winding thread guide correctly.	36
Bobbin spins slowly. 37
The thread that was pulled out was not wound onto the bobbin correctly.	36
The empty bobbin was not set on the pin properly.	35

While winding the bobbin, the bobbin thread was wound below the bobbin winder seat.
You have not wound the bobbin thread properly when you initially wound thread on the bobbin.Ensure that the bobbin thread was properly set in the guides.	35

■ While Operating

Symptom, Cause/solution	Reference
Machine does not operate.
“Start/Stop” button was not pressed. 10
There is no stitch pattern selected. 53
Presser foot is not lowered. 10
“Start/Stop” button was pressed with the foot controller attached.	55
The “Start/Stop” button was pressed while the machine is set for the sewing speed controller to control the zigzag stitch width.	25, 55

Needle breaks.
Needle is installed incorrectly. 46
Needle clamp screw is not tightened. 47
Needle is turned or bent. 46
Using improper needle or thread for the selected fabric.	48
Wrong presser foot was used. 199
Upper thread tension is too tight. 62, 149
Fabric is pulled during sewing. —
Spool cap is set incorrectly. 41
There are scratches around the opening in the needle plate.* There is a notch on the left side of the opening in the needle plate. This is not a scratch.1 Notch	*
There are scratches around the opening in the presser foot.	*
There are scratches on the bobbin case. *
Needle is defective. 46
A bobbin designed specifically for this machine is not used.	35
Upper threading is incorrect.	41
Bobbin is set incorrectly.	39
Presser foot is attached incorrectly.	49
Screw of the presser foot holder is loose.	49
Fabric is too thick.	69
Fabric is fed forcefully when sewing thick fabric or thick seams.	69
Stitch length is too short.	62

Symptom, Cause/solution	Reference
Stabilizer is not attached to fabric being embroidered.	128
Bobbin thread is incorrectly wound.	35

Upper thread breaks.
Machine is not threaded correctly (used the wrong spool cap, spool cap is loose, the thread did not catch the needle bar threader, etc.)	41
Knotted or tangled thread is being used.	—
The selected needle is not appropriate for the thread being used.	48
Upper thread tension is too tight.	62, 149
Thread is twisted.	—
Needle is turned, bent or the point is dull.	46
Needle is installed incorrectly. 46
There are scratches around the opening of the needle plate.* There is a notch on the left side of the opening in the needle plate. This is not a scratch.1 Notch	*
There are scratches around the opening in the presser foot.	*
There are scratches on the bobbin case. *
Using improper needle or thread for the selected fabric.	48
A bobbin designed specifically for this machine is not used.	35

The thread is tangled on the wrong side of the fabric.
Upper threading is incorrect.	41
Using improper needle or thread for the selected fabric.	48

The upper thread is too tight.
The bobbin thread is incorrectly installed.	39

Bobbin thread breaks.
Bobbin is set incorrectly.	39
Bobbin thread is incorrectly wound.	35
There are scratches on the bobbin or it doesn't rotate properly.	39
Thread is twisted.	—
Symptom, Cause/solution	Reference
A bobbin designed specifically for this machine is not used.	35

Fabric puckers.
There is a mistake in the upper or bobbin threading.	39, 41
Spool cap is set incorrectly. 41
Using improper needle or thread for the selected fabric.	48
Needle is turned, bent or the point is dull. 46
Stitches are too long when sewing thin fabrics. 62
Thread tension is set incorrectly. 62, 149
Wrong presser foot was used. 199

The stitch is not sewn correctly.
The presser foot that is used is not appropriate for the type of stitch that you wish to sew.	199
The thread tension is incorrect. 62
The thread is tangled, for example, in the bobbin case.	183

Skipped stitches
Machine is threaded incorrectly. 41
Using improper needle or thread for the selected fabric.	48
Needle is turned, bent or the point is dull. 46
Needle is installed incorrectly. 46
Needle is defective. 46
Dust or lint has collected under the needle plate. 183
Thin or stretch fabrics are being sewn. 70

No stitching
Needle is turned, bent or the point is dull. 46
Bobbin is set incorrectly. 39
Upper threading is incorrect. 41

High-pitched sound while sewing
Dust or lint is caught in the feed dogs.	183
Pieces of thread are caught in the race.	183
Upper threading is incorrect. 41
A bobbin designed specifically for this machine is not used.	35
There are needle holes or friction scratches in the bobbin case.	183

Symptom, Cause/solution	Reference
Fabric does not feed through the machine.
Feed dogs are set in the down position.• Touch , and then turn the handwheel to raise the feed dogs.	80
Stitches are too close together.	62
Wrong presser foot was used. 199
Needle is turned, bent or the point is dull. 46
Thread is entangled.	188
Zigzag foot “J” is slanted on a thick seam at the beginning of stitching.	69

The fabric feeds in the opposite direction.
The feed mechanism is damaged.	*

The needle contacts the needle plate.
The needle clamp screw is loose.	46
Needle is turned, bent or the point is dull. 46

Fabric being sewn with the machine cannot be removed.
Thread is tangled below the needle plate.	187

A broken needle has fallen into the machine.

Turn off the machine, and then remove the needle plate. If the needle that fell into the machine can be seen, use tweezers to remove it. After removing the needle, return the needle plate to its original position.Before turning on the machine, slowly turn the handwheel toward you to check that it turns smoothly. If the handwheel does not turn smoothly or the needle that fell into the machine cannot be removed, consult your authorized Baby Lock retailer.

188

The handwheel feels sluggish when it is turned.
Thread is tangled in the bobbin case.	187

■ After Sewing

Symptom, Cause/solution	Reference
Thread tension is incorrect.
Upper threading is incorrect. 41
Bobbin is set incorrectly. 39
Using improper needle or thread for the selected fabric.	48
Presser foot holder is not attached correctly. 49
Thread tension is set incorrectly. 62, 149
Bobbin thread is incorrectly wound. 35
Needle is turned, bent or the point is dull. 46
A bobbin designed specifically for this machine is not being used.	35

Character or decorative stitch patterns are misaligned.
Stitch pattern adjustment settings were set incorrectly.	100

Stitch pattern does not turn out.
Wrong presser foot was used. 199
Did not use a stabilizer material on thin fabrics or stretch fabrics.	70
Thread tension is set incorrectly. 62, 149
Fabric was pulled, pushed or fed at an angle while it was being sewn.• Sew while guiding the fabric with your hands so that the fabric is fed in a straight line.	53
The thread is tangled, for example, in the bobbin case.	187

Symptom, Cause/solution	Reference
The pattern is not embroidered correctly.
Thread is twisted. —
Thread tension is set incorrectly. 62, 149
Fabric was not inserted into the frame correctly (fabric was loose, etc.).	129
Stabilizing material was not attached.• Always use stabilizing material, especially with stretch fabrics, lightweight fabrics, fabrics with a coarse weave, or fabrics that often cause pattern shrinkage. See your authorized Baby Lock retailer for the proper stabilizer.	128
There was an object placed near the machine, and the carriage or embroidery frame hit the object during embroidering.	106
Fabric outside the frame edges interferes with the arm, so the embroidery unit cannot move.• Reinsert the fabric in the embroidery frame so that the excess fabric is away from the arm, and rotate the pattern 180 degrees.	129
Fabric is too heavy, so the embroidery unit cannot move freely.• Place a large thick book or similar object under the arm head to lightly lift the heavy side and keep it level.	—
Fabric is hanging off the table.• If the fabric is hanging off the table during embroidery, the embroidery unit will not move freely. Place the fabric so that it does not hang off the table or hold the fabric to keep it from dragging.	140
Fabric is snagged or caught on something.• Stop the machine and place the fabric so that it does not get caught or snagged.	—
Embroidery frame was removed during embroidering (for example, to reset the bobbin). The presser foot was bumped or moved while removing or attaching the embroidery frame, or the embroidery unit was moved.	143
Stabilizer is incorrectly attached, for example, it is smaller than the embroidery frame.	128

Loops appear on the surface of the fabric when embroidering
The thread tension is incorrectly set. 149
The tension of the upper thread is incorrectly set for the combination of the fabric, thread and pattern being used.• Use the embroidery needle plate cover.	140
The combination of the bobbin case and bobbin thread is incorrect.	139


ERROR MESSAGES

Below is an explanation of error messages. Refer to these when necessary (if you touch or do the operation correctly while the error message is displayed, the message disappears).

	Error messages Cause/solution
1	Cannot change the configuration of the characters.	This message is displayed when there are too many characters and the curved character configuration is impossible.
2	Cannot recognize the data for the selected pattern. The data may be corrupted.	This message is displayed when there is a possibility that the data for the selected embroidery pattern is corrupted.
3	Change to a larger embroidery frame. This message is displayed when the machine is in embroidery mode and the small frame is attached, and the selected pattern does not fit in the small frame.
4	Data volume is too large for this pattern.	This message is displayed when the stitch patterns you are editing take up too much memory, or if you are editing too many stitch patterns for the memory. For a combined pattern, reduce the number of patterns.
5	Failed to save file. This message is displayed when no more images can be saved on the USB media. In this case, delete a file from the USB media or use different USB media.
6	Includes a special pattern that cannot be saved to external memory. Save the pattern in the machine's memory.	This message is displayed when you try to save a copyright protected pattern to USB media. According to copyright laws, patterns that are illegal to reproduce or edit cannot be saved to USB media. If this message displays, save the pattern in the machine's memory.
7	Lower the presser foot lever.	This message is displayed when (Presser foot lifter button) is pressed while the presser foot lever is raised and the needle is lowered.
8	Not enough available memory to save the data. Delete some patterns or use a different media.	This message is displayed when the memory is full and the stitch pattern or embroidery pattern cannot be saved.
9	OK to recall and resume previous memory? This message appears if the machine is turned off while embroidering, then turned on again. Touch to return the machine to the condition (pattern position and number of stitches) when it was turned off. Follow the procedure described in "If the Thread Breaks or the Bobbin Runs out of Thread During Embroidering" on page 143 to align the needle position and embroider the remainder of the pattern.
10	OK to separate the combined border pattern? This message is displayed when rotating a saved combined pattern in the embroidery screen.
11	Pattern extends to the outside of embroidery frame.	This message is displayed when the machine is in embroidery mode, and the character pattern combination is too large to fit in the embroidery frame.
12	Pattern extends to the outside of embroidery frame. If you plan to add more patterns, rotate the pattern combination.	This message is displayed when the machine is in embroidery mode and the combined character pattern is too large for the embroidery frame. You can rotate the pattern 90 degrees and continue combining characters.
13	Preventive maintenance is recommended.	This message is displayed when the machine needs to be maintained. Once this message appears, it is recommended to take your machine to an authorized Baby Lock retailer for a regular maintenance check. Although this message will disappear and the machine will continue to function once you touch , the message will display several more times until the appropriate maintenance is performed.
14	Remove Dual Feed module from the machine. This message appears when you try to start embroidering with the dual feed foot attached to the machine. Remove the dual feed foot before entering the embroidery mode.
15	Set the clock.	This message appears when the time/date is not set. Set time/date. (page 19)
16	The "Start/Stop" button does not operate with the foot controller attached. Remove the foot controller.	This message is displayed when the "Start/Stop" button is pushed to sew Utility stitches or Character/Decorative stitches while the foot controller is connected.
17	The bobbin thread is almost empty.	This message is displayed when the bobbin thread is running out.Although a few stitches can be sewn when the “Start/Stop” button is pressed,replace with a wound bobbin immediately. When embroidering, touchtouch , remove the embroidery frame, and then replace the bobbinwith one wound with plenty of embroidery bobbin thread.If [Upper and Bobbin Thread Sensor] in the general settings screen of themachine setting mode is set to [OFF], this message does not appear.
18	The bobbin winder safety device has activated. Is the thread tangled?	This message is displayed when the bobbin is being wound, and the motor locks because the thread is tangled, etc.
19	The safety device was activated since the main shaft motor was heated. Is the thread tangled?	This message is displayed when the temperature of the motor increases,activating the safety device. Wait until the temperature decreases. If the error persists, contact your nearest authorized Baby Lock retailer.
20	The safety device was activated since the main shaft motor seized. Is the thread tangled?	This message is displayed when the motor locks due to tangled thread or for other reasons related to thread delivery.
21	The safety device was activated since the needle position sensor malfunctioned.	This message is displayed when an error in the needle position sensor is detected, activating the safety device. Turn the machine off, then on again. If the message continues to appear, the machine may be damaged. Contact your nearest authorized Baby Lock retailer.
22	Turn off the machine before attaching or removing the needle plate.	This message is displayed when you try to sew with a stitch other than a middle needle position stitch while the straight stitch needle plate is installed.This message is displayed when the needle plate is removed with the machine on or when the machine is turned on and embroidery mode is selected.
23	This file cannot be used. This message appears if the	file format is incompatible with this machine.Check the list of compatible file formats. (page 196)
24	This file exceeds the data capacity and cannot be used. Use a suitable size file.	This message is displayed when the file size exceeds the data capacity of the machine.Confirm the file size and format. (page 196)
25	This key cannot be used at this time. This message is	displayed when you touch [Sewing Guide] in the screenother than the Utility Stitch, or touch [Pattern Explanation] in the screen other than the Utility Stitch or Character/Decorative Stitch.
26	This USB media cannot be used. This message is	played when you try to use incompatible media.For a list of compatible USB media, visit www.babylock.com
27	Turn off the power and replace the needle plate.	This message is displayed when the machine is set to embroidery mode or utility decorative stitch mode from the home page screen while the straight stitch needle plate or no needle plate is installed.This message is displayed when the straight stitch needle plate is installed while a stitch pattern that cannot be used with that needle plate is selected.
28	USB media error This message is displayed when an	error occurs with the USB media.For a list of compatible USB media, visit www.babylock.com
29	When the speed controller is set to control the zigzag stitch width, the "Start/Stop" button does not operate.	This message is displayed when the speed control lever is set to control the zigzag stitch width, and the "Start/ Stop" button is pressed. Set [Width Control] to [OFF] in the settings screen to use the "Start/Stop" button (page 25), or use the foot controller to operate the machine (page 79).

SPECIFICATIONS

Item Specification
Dimensions of machine Approx. 662 mm (W) × 348 mm (H) × 321 mm (D)(approx. 26-1/16 inches (W) × 13-11/16 inches (H) × 12-5/8 inches (D))
Weight of machine Approx. 17 kg (approx. 37.5 lb)
Dimensions of machine with embroidery unit attached	Approx. 916 mm (W) × 348 mm (H) × 524 mm (D)(approx. 36-1/16 inches (W) × 13-11/16 inches (H) × 20-5/8 inches (D))
Weight of machine with embroidery unit attached	Approx. 20.7 kg (approx. 45.6 lb)
Sewing speed 70 to 1050 stitches per minute
Maximum embroidery speed 1050 stitches per minute
Interfaces	Wireless LAN ^1
Memory	Stitch	patterns	1
	Embroidery patterns 10 MB
	IQ Designer 100 MB
Data Types	Stitch patterns^2	.pmv .pmx .pmu .pmi
	Embroidery patterns^3	.pes .phc .phx .dst
	Data that can be loaded when using IQ Designer	.jpg (up to 2 MB), .png (up to 2 MB), .bmp (up to 3 MB)
Number of decorative stitch pattern combinations	Up to 70
Maximum embroidering area 360 mm	(H) x 240 mm (W) (approx. 14 inches (H) x 9-1/2 inches (W))
Types of USB Devices/Media that can be Used^4	Stitch patterns, Embroidery patterns	Data can be saved to or recalled from USB media. Use media that meets the following specifications.• USB Flash drive (USB Flash memory)Embroidery data can be recalled only from;• USB External CD/DVD drives
Condition of the [Eco Mode] and [Shutoff Support Mode]	[Eco Mode]	Available time	OFF, 10 - 120 (minute)
		“Start/Stop” button	Green flashing
		Suspended function	Machine light, Screen display, LED pointer, Guideline marker
		After recovering	The machine starts from the previous operation.
	[Shutoff Support Mode]	Available time	OFF, 1 - 12 (hour)
		“Start/Stop” button	Green slow flashing
		Suspended function	All functions
		After recovering	An error message appears.You need to turn off and on the machine to restart.
Compatible image files of the Screen Saver Image	Format	.jpg
	File size	Max. 150 KB for each image
	File dimension	1280 × 1280 pixels or less (If the width is between 800 and 1279 pixels, the image will be displayed at 800 pixels.)
	Number allowed	5 or less
Videos that can be played	MP4 file format	Video - H.264/MPEG-4 AVC, Audio - AAC
	Size	450 (H) × 800 (W)
	Maximum file size	1 GB

\*1 The wireless network connection complies with IEEE 802.11b/g/n standards and uses the 2.4 GHz frequency. A wireless network cannot be set up with WPA ^TM /WPA2 ^TM Enterprise. Use Design Database Transfer or Palette version 11 or later to transfer data from your computer to the machine. For the operating systems compatible with the software, visit our website www.babylock.com \*2 ".pmu" stitch data files can be retrieved; however, when the machine is used to save the file, it is saved as a ".pmv" stitch data file. Using data other than that created using this machine or the machine which create ".pmu" data file, may cause the machine to malfunction. \*3 • Using data other than that saved using our data design systems or this machine may cause this machine to malfunction. When the machine is used to save a file with any extension, it is saved as a .phx data file. \- Since Tajima (.dst) data does not contain specific thread color information, it is displayed with our default thread color sequence. Check the preview and change the thread colors as desired. \*4 Some USB media may not be usable with this machine. Please visit our website www.babylock.com for more details. \* Please be aware that some specifications may change without notice.

Note

\- We recommend using the 26 letters of the alphabet (uppercase and lowercase), the numbers 0 through 9, “-”, and “\_” for the name of the file/folder.

IMPORTANT

\- When using embroidery data other than our original patterns, the thread or needle may break when embroidering with a stitch density that is too fine or when embroidering three or more overlapping stitches. In that case, use one of our original data design systems to edit the embroidery data.

UPDATING YOUR MACHINE'S SOFTWARE

You can update your machine's software using the following two procedures.

Update Procedure Using USB Media

When an update program is available on www.babylock.com, please download the files following the instructions on the website and steps below.

Note

\- When using USB media to update the software, check that no data other than the update file is saved on the USB media being used before starting to update. 1 While pressing (Automatic threading button), turn the main power to ON. 2 Touch  3 Insert the USB media into the primary (top) USB port on the machine.  4 Touch Load → When updating is finished, the completion message appears. 5 Turn the machine off, remove the USB media, and turn the machine on again.

Update Procedure Using Wireless LAN Connection

If the machine is connected to a wireless network with a strong, reliable connection, update files can be downloaded directly to the machine using this network. For details on the wireless LAN connection, refer to page 32.

Memo

\- The machine periodically checks if there is a new update file on the server. When there is a new update file, the wireless LAN key is displayed as   1 Display page 10 of the settings screen. 2 Touch Start \* The machine starts to download the update file, if there is a new update file on server.  ①When the wireless LAN key appears as , touching Start causes the machine to check if there is a new update file. If there is a new file, downloading begins.

Note

\- Do not turn off the machine during the download. \- Touch to pause the download. To restart, touch . Resume 3 When downloading is finished, turn off the machine, then hold down (Automatic threading button) while turning on the machine.

4 Touch


Pure graphical icons including a document icon, upload arrow, USB port, and Wi-Fi signal button (no text or symbols)

5 Touch to update the machine.

\* Do not turn off the machine during the update.

Memo

\- If there are changes or additions to functions, manuals available on the machine may be updated.

STITCH SETTING CHART

Memo

\- When any of the following stitches (reverse stitch patterns and reinforcement stitch patterns) are selected, pressing (Reverse stitch button) will sew reverse stitches.  When any other stitch is selected, pressing 🔒 (Reverse stitch button) will sew reinforcement stitches. \- The stitch pattern symbols indicate the following.  ①Reverse stitch pattern ②Reinforcement stitch pattern - Advanced monogramming foot "N+" is displayed as "N" on the screen. - Values and measurements provided in inches are approximate. Actual values are provided in the metric unit of measurement.

Note

\- The presser foot that is displayed on each screen when Free motion mode is OFF/ON is shown in the table under "Presser foot". \* Twin needle can be used by attaching zigzag foot "J".

Stitch	Presser foot	Stitch name/Applications	Stitch width(mm (inch))	Stitch length(mm (inch))
			Auto.Manual	Auto.Manual
	J*/O	Straight stitch (Left)General sewing, gather,pintuck, etc.	0.0 (0)0.0 - 7.0(0 - 1/4)	2.5 (3/32)0.2 - 5.0(1/64 - 3/16)
	J*/O	Straight stitch (Left)General sewing, gather,pintuck, etc.	0.0 (0)0.0 - 7.0(0 - 1/4)	2.5 (3/32)0.2 - 5.0(1/64 - 3/16)
	J*/O	Straight stitch (Middle)General sewing, gather,pintuck, etc.	3.5 (1/8)0.0 - 7.0(0 - 1/4)	2.5 (3/32)0.2 - 5.0(1/64 - 3/16)
	J*/O	Straight stitch (Middle)General sewing, gather,pintuck, etc.	3.5 (1/8)0.0 - 7.0(0 - 1/4)	2.5(3/32)0.2 - 5.0(1/64 - 3/16)
	J*/O	Triple stretch stitchGeneral sewing for reinforcement and decorative topstitching	0.0 (0)0.0 - 7.0(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	J*/O	Stem stitchReinforced stitching, sewing and decorative applications	1.0 (1/16)0.0 - 7.0(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	N*/O	Decorative stitchDecorative stitching, top stitching	0.0 (0)0.0 - 7.0(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	J/O	Basting stitchFor basting.	0.0 (0)0.0 - 7.0(0 - 1/4)	20 (3/4)5 - 30(3/16 - 1-1/4)
	J*/O	Zigzag stitchFor overcasting, mending.	3.5 (1/8)0.0 - 7.0(0 - 1/4)	1.4 (1/16)0.0 - 5.0(0 - 3/16)
	J*/O	Zigzag stitchFor overcasting, mending.	3.5 (1/8)0.0 - 7.0(0 - 1/4)	1.4 (1/16)0.0 - 5.0(0 - 3/16)
	J*/O	Zigzag stitch (Right)Start from right needle position, zigzag sew at left.	3.5 (1/8)2.5 - 5.0(3/32 - 3/16)	1.4 (1/16)0.3 - 5.0(1/64 - 3/16)
	J*/O	Zigzag stitch (Left)Start from left needle position, zigzag sew at right.	3.5 (1/8)2.5 - 5.0(3/32 - 3/16)	1.4 (1/16)0.3 - 5.0(1/64 - 3/16)
	J*/O	2 steps elastic zigzagOvercasting (medium weight and stretch fabrics), tape and elastic	5.0 (3/16)0.0 - 7.0(0 - 1/4)	1.0 (1/16)0.2 - 5.0(1/64 - 3/16)
	J*/O	2 steps elastic zigzagOvercasting (medium weight and stretch fabrics), tape and elastic	5.0 (3/16)0.0 - 7.0(0 - 1/4)	1.0 (1/16)0.2 - 5.0(1/64 - 3/16)

Stitch	Presser foot	Stitch name/Applications	Stitch width(mm (inch))	Stitch length(mm (inch))
			Auto.Manual	Auto.Manual
	J*/O	Overcasting stitchReinforcement of stretchfabric or decorativestitching	4.0 (3/16)0.0 - 7.0(0 - 1/4)	4.0 (3/16)0.4 - 5.0(1/64 - 3/16)
	J/O	Overcasting stitchStretch knit seam	5.0 (3/16)0.0 - 7.0(0 - 1/4)	4.0 (3/16)0.4 - 5.0(1/64 - 3/16)
	J*/O	Single diamond overcastReinforcement andseaming stretch fabric	6.0 (15/64)0.0 - 7.0(0 - 1/4)	3.0 (1/8)0.4 - 5.0(1/64 - 3/16)
	J*/O	Single diamond overcastReinforcement of stretchfabric	6.0 (15/64)0.0 - 7.0(0 - 1/4)	1.8 (1/16)0.4 - 5.0(1/64 - 3/16)
	S	With side cutterStraight stitch whilecutting fabrics	0.0 (0)0.0 - 2.5(0 - 3/32)	2.5 (3/32)0.2 - 5.0(1/64 - 3/16)
	S	With side cutterZigzag stitch while cuttingfabrics	3.5 (1/8)3.5 - 5.0(1/8 - 3/16)	1.4 (1/16)0.0 - 5.0(0 - 3/16)
	S	With side cutterOvercasting stitch whilecutting fabrics	3.5 (1/8)3.5 - 5.0(1/8 - 3/16)	2.0 (1/16)0.4 - 5.0(1/64 - 3/16)
	S	With side cutterOvercasting stitch whilecutting fabrics	5.0 (3/16)3.5 - 5.0(1/8 - 3/16)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	S	With side cutterOvercasting stitch whilecutting fabrics	5.0 (3/16)3.5 - 5.0(1/8 - 3/16)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
		Piecing stitch (Right)Piecework/patchwork 6.5mm (approx. 1/4 inch)right seam allowance	5.5 (7/32)0.0 - 7.0(0 - 1/4)	2.0 (1/16)0.2 - 5.0(1/64 - 3/16)
	J/C	Piecing stitch (Middle)Piecework/patchwork	-	2.0 (1/16)0.2 - 5.0(1/64 - 3/16)
	J/O	Piecing stitch (Left)Piecework/patchwork 6.5mm (approx. 1/4 inch) leftseam allowance	1.5 (1/16)0.0 - 7.0(0 - 1/4)	2.0 (1/16)0.2 - 5.0(1/64 - 3/16)
	J/O	Hand-look quiltingQuilting stitch made tolook like hand quiltingwhen using transparentnylon thread for the upperthread and a thread colormatching the quilt for thebobbin thread.Sew with a tight threadtension so that the bobbinthread is visible from theright side of the fabric.Use a needle between 90/14 and 100/16.	0.0 (0)0.0 - 7.0(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	J/O	Quilting appliqué zigzagstitchZigzag stitch for quiltingand sewing on appliquéquilt pieces	3.5 (1/8)0.0 - 7.0(0 - 1/4)	1.4 (1/16)0.0 - 5.0(0 - 3/16)
	J/O	Quilting appliqué stitchQuilting stitch for invisible appliqué or attaching binding	1.5 (1/16)0.0 - 7.0(0 - 1/4)	1.8 (1/16)0.4 - 5.0(1/64 - 3/16)
	J/O	Quilting stipplingBackground quilting	7.0 (1/4)0.0 - 7.0(0 - 1/4)	1.6 (1/16)0.4 - 5.0(1/64 - 3/16)
	R	Blind hem stitchHemming woven fabrics* The stitch width setting is in neither millimeters nor inches.	003← - →3	2.0 (1/16)0.4 - 5.0(1/64 - 3/16)
	R	Blind hem stitch stretchHemming stretch fabric* The stitch width setting is in neither millimeters nor inches.	003← - →3	2.0 (1/16)0.4 - 5.0(1/64 - 3/16)
	J*/O	Blanket stitchAppliqués, decorative blanket stitch	3.5 (1/8)0.0 - 7.0(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	J*/O	Blanket stitchAppliqués, decorative blanket stitch	2.5 (3/32)0.0 - 7.0(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	J*/O	Shell tuck edgeShell tuck edge finish on fabrics	4.0 (3/16)0.0 - 7.0(0 - 1/4)	2.5 (3/32)0.2 - 5.0(1/64 - 3/16)
	N*/O	Satin scallop stitchDecorating collar of blouse, edge of handkerchief	5.0 (3/16)0.0 - 7.0(0 - 1/4)	0.5 (1/32)0.1 - 5.0(1/64 - 3/16)
	N/O	Scallop stitchDecorating collar of blouse, edge of handkerchief	7.0 (1/4)0.0 - 7.0(0 - 1/4)	1.4 (1/16)0.4 - 5.0(1/64 - 3/16)
	J*/O	Patchwork join stitchPatchwork stitches, decorative stitching	4.0 (3/16)0.0 - 7.0(0 - 1/4)	1.2 (1/16)0.2 - 5.0(1/64 - 3/16)
	J*/O	Patchwork double overlock stitchPatchwork stitches, decorative stitching	5.0 (3/16)0.0 - 7.0(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	J*/O	Couching stitchDecorative stitching, attaching cord and couching	5.0 (3/16)0.0 - 7.0(0 - 1/4)	1.2 (1/16)0.2 - 5.0(1/64 - 3/16)
	J*/O	Smocking stitchSmocking, decorative stitching	5.0 (3/16)0.0 - 7.0(0 - 1/4)	1.6 (1/16)0.4 - 5.0(1/64 - 3/16)
	J*/O	Feather stitchFagoting, decorative stitching	5.0 (3/16)0.0 - 7.0(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	J*/O	Fagoting cross stitchFagoting, bridging and decorative stitching	5.0 (3/16)0.0 - 7.0(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	J*/O	Tape attachingAttaching tape to seam in stretch fabric	4.0 (3/16)0.0 - 7.0(0 - 1/4)	1.0 (1/16)0.2 - 5.0(1/64 - 3/16)

Stitch	Presser foot	Stitch name/Applications	Stitch width(mm (inch))	Stitch length(mm (inch))
			Auto.Manual	Auto.Manual
	J/O	Ladder stitchDecorative stitching	4.0 (3/16)0.0 - 7.0(0 - 1/4)	3.0 (1/8)0.4 - 5.0(1/64 - 3/16)
	J*/O	Rick-rack stitchDecorative top stitching	4.0 (3/16)0.0 - 7.0(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	J*/O	Decorative stitchDecorative stitching	1.0 (1/16)0.0 - 7.0(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	J*/O	Decorative stitchDecorative stitching	5.5 (7/32)0.0 - 7.0(0 - 1/4)	1.6 (1/16)0.4 - 5.0(1/64 - 3/16)
	N*/O	Serpentine stitchDecorative stitching and attaching elastic	5.0 (3/16)0.0 - 7.0(0 - 1/4)	1.0 (1/16)0.2 - 5.0(1/64 - 3/16)
	N*/O	Decorative stitchDecorative stitching and appliqué	6.0 (15/64)0.0 - 7.0(0 - 1/4)	1.0 (1/16)0.2 - 5.0(1/64 - 3/16)
	N/O	Decorative stipplingstitchDecorative stitching	7.0 (1/4)0.0 - 7.0(0 - 1/4)	1.6 (1/16)0.4 - 5.0(1/64 - 3/16)
	N*/O	HemstitchingDecorative hems, triple straight at left	1.0 (1/16)0.0 - 7.0(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	N*/O	HemstitchingDecorative hems, triple straight at center	3.5 (1/8)0.0 - 7.0(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	N*/O	Hemstitching zigzagDecorative hems, top stitching	6.0 (15/64)0.0 - 7.0(0 - 1/4)	3.0 (1/8)0.4 - 5.0(1/64 - 3/16)
	N/O	HemstitchingDecorative hems, lace attaching pin stitch	3.5 (1/8)0.0 - 7.0(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	N/O	HemstitchingDecorative hems	3.0 (1/8)0.0 - 7.0(0 - 1/4)	3.5 (1/8)0.4 - 5.0(1/64 - 3/16)
	N/O	HemstitchingDecorative hems daisy stitch	6.0 (15/64)0.0 - 7.0(0 - 1/4)	3.0 (1/8)0.4 - 5.0(1/64 - 3/16)
	N/O	HemstitchingHeirloom, decorative hems	5.0 (3/16)0.0 - 7.0(0 - 1/4)	3.5 (1/8)0.4 - 5.0(1/64 - 3/16)
	N/O	HemstitchingHeirloom, decorative hems	5.0 (3/16)0.0 - 7.0(0 - 1/4)	3.5 (1/8)0.4 - 5.0(1/64 - 3/16)3.5 (1/8)0.4 - 5.0(1/64 - 3/16)
	N*/O	HemstitchingHeirloom, decorative hems	5.0 (3/16)0.0 - 7.0(0 - 1/4)	3.5 (1/8)0.4 - 5.0(1/64 - 3/16)
	N*/O	HemstitchingHeirloom, decorative hems	5.0 (3/16)0.0 - 7.0(0 - 1/4)	4.0 (3/16)0.4 - 5.0(1/64 - 3/16)
	N*/O	HemstitchingHeirloom, decorative hems	4.0 (3/16)0.0 - 7.0(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)


Stitch	Presser foot	Stitch name/Applications	Stitch width(mm(inch))	Stitch length(mm(inch))
			Auto.Manual	Auto.Manual
	N*/O	Honeycomb stitchHeirloom, decorative hems	5.0 (3/16)0.0 - 7.0(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	N*/O	Honeycomb stitchHeirloom, decorative hems	6.0 (15/64)0.0 - 7.0(0 - 1/4)	3.5 (1/8)0.4 - 5.0(1/64 - 3/16)
	N*/O	HemstitchingHeirloom, decorative hems	6.0 (15/64)0.0 - 7.0(0 - 1/4)	1.6 (1/16)0.4 - 5.0(1/64 - 3/16)
	N/O	HemstitchingHeirloom, decorative hems	6.0 (15/64)0.0 - 7.0(0 - 1/4)	3.0 (1/8)0.4 - 5.0(1/64 - 3/16)
	N*/O	HemstitchingHeirloom, decorative hems	6.0 (15/64)0.0 - 7.0(0 - 1/4)	4.0 (3/16)0.4 - 5.0(1/64 - 3/16)
	N/O	HemstitchingHeirloom, decorative hems	4.0 (3/16)0.0 - 7.0(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	N*/O	HemstitchingHeirloom, decorative hems	5.0 (3/16)0.0 - 7.0(0 - 1/4)	2.0 (1/16)0.4 - 5.0(1/64 - 3/16)
	N*/O	HemstitchingDecorative hems and bridging stitch	6.0 (15/64)0.0 - 7.0(0 - 1/4)	2.0 (1/16)0.4 - 5.0(1/64 - 3/16)
	N*/O	HemstitchingDecorative hems.Fagoting, attaching ribbon	5.0 (3/16)0.0 - 7.0(0 - 1/4)	3.0 (1/8)0.4 - 5.0(1/64 - 3/16)
	N/O	HemstitchingDecorative hems,smocking	6.0 (15/64)0.0 - 7.0(0 - 1/4)	1.6 (1/16)0.4 - 5.0(1/64 - 3/16)
	N/O	HemstitchingDecorative hems,smocking	5.0 (3/16)0.0 - 7.0(0 - 1/4)	1.6 (1/16)0.4 - 5.0(1/16 - 3/16)
	N/O	HemstitchingDecorative hems,smocking	5.0 (3/16)0.0 - 7.0(0 - 1/4)	1.6 (1/16)0.4 - 5.0(1/64 - 3/16)
	N/O	HemstitchingDecorative hems	5.0 (3/16)0.0 - 7.0(0 - 1/4)	1.6 (1/16)0.4 - 5.0(1/64 - 3/16)
	N/O	HemstitchingDecorative hems	5.0 (3/16)0.0 - 7.0(0 - 1/4)	0.4 - 5.0(1/64 - 3/16)
	N/O	Ladder stitchDecorative hems.Fagoting, attaching ribbon	7.0 (1/4)0.0 - 7.0(0 - 1/4)	1.6 (1/16)0.4 - 2.5(1/64 - 3/32)
	A	Narrow rounded buttonholeButtonhole on light to medium weight fabrics	5.0 (3/16)3.0 - 6.0(1/8 - 15/64)	0.4 (1/64)0.2 - 1.0(1/64 - 1/16)
	A	Wide round ended buttonholeButtonholes with extra space for larger buttons	5.5 (7/32)3.5 - 6.0(1/8 - 15/64)	0.4 (1/64)0.2 - 1.0(1/64 - 1/16)
	A	Tapered round ended buttonholeReinforced waist tapered buttonholes	5.0 (3/16)3.0 - 6.0(1/8 - 15/64)	0.4 (1/64)0.2 - 1.0(1/64 - 1/16)

Stitch	Presser foot	Stitch name/Applications	Stitch width(mm(inch))	Stitch length(mm(inch))
			Auto.Manual	Auto.Manual
	A	Round ended buttonholeButtonholes with vertical bar tack in heavyweight fabrics	5.0 (3/16)3.0 - 6.0(1/8 - 15/64)	0.4 (1/64)0.2 - 1.0(1/64 - 1/16)
	A	Round ended buttonholeButtonholes with bar tack	5.0 (3/16)3.0 - 6.0(1/8 - 15/64)	0.4 (1/64)0.2 - 1.0(1/64 - 1/16)
	A	Round double ended buttonholeButtonholes for fine, medium to heavyweight fabrics	5.0 (3/16)3.0 - 6.0(1/8 - 15/64)	0.4 (1/64)0.2 - 1.0(1/64 - 1/16)
	A	Narrow squared buttonholeButtonholes for light to medium weight fabrics	5.0 (3/16)3.0 - 6.0(1/8 - 15/64)	0.4 (1/64)0.2 - 1.0(1/64 - 1/16)
	A	Wide squared buttonholeButtonholes with extra space for larger decorative buttons	5.5 (7/32)3.5 - 6.0(1/8 - 15/64)	0.4 (1/64)0.2 - 1.0(1/64 - 1/16)
	A	Squared buttonholeHeavy-duty buttonholes with vertical bar tacks	5.0 (3/16)3.0 - 6.0(1/8 - 15/64)	0.4 (1/64)0.2 - 1.0(1/64 - 1/16)
	A	Stretch buttonholeButtonholes for stretch or woven fabrics	6.0 (15/64)3.0 - 6.0(1/8 - 15/64)	1.0 (1/16)0.5 - 2.0(1/32 - 1/16)
	A	Heirloom buttonholeButtonholes for heirloom and stretch fabrics	6.0 (15/64)3.0 - 6.0(1/8 - 15/64)	1.5 (1/16)1.0 - 3.0(1/16 - 1/8)
	A	Bound buttonholeThe first step in making bound buttonholes	5.0 (3/16)0.0 - 6.0(0 - 15/64)	2.0 (1/16)0.2 - 4.0(1/64 - 3/16)
	A	Keyhole buttonholeButtonholes in heavyweight or thick fabrics for larger flat buttons	7.0 (1/4)3.0 - 7.0(1/8 - 1/4)	0.5 (1/32)0.3 - 1.0(1/64 - 1/16)
	A	Tapered keyhole buttonholeButtonholes in medium to heavy weight fabrics for larger flat buttons	7.0 (1/4)3.0 - 7.0(1/8 - 1/4)	0.5 (1/32)0.3 - 1.0(1/64 - 1/16)
	A	Keyhole buttonholeButtonholes with vertical bar tack for reinforcement in heavyweight or thick fabrics	7.0 (1/4)3.0 - 7.0(1/8 - 1/4)	0.5 (1/32)0.3 - 1.0(1/64 - 1/16)
	N/O	4 steps buttonhole 1Left side of 4 step buttonhole	5.0 (3/16)1.5 - 7.0(1/16 - 1/4)	0.4 (1/64)0.2 - 1.0(1/64 - 1/16)
	N/O	4 steps buttonhole 2Bar tack of 4 step buttonhole	5.0 (3/16)1.5 - 7.0(1/16 - 1/4)	0.4 (1/64)0.2 - 1.0(1/64 - 1/16)
	N/O	4 steps buttonhole 3Right side of 4 step buttonhole	5.0 (3/16)1.5 - 7.0(1/16 - 1/4)	0.4 (1/64)0.2 - 1.0(1/64 - 1/16)
	N/O	4 steps buttonhole 4Bar tack of 4 stepbuttonhole	5.0 (3/16)1.5 - 7.0(1/16 - 1/4)	0.4 (1/64)0.2 - 1.0(1/64 - 1/16)
	A	DarningDarning of medium weightfabric	7.0 (1/4)2.5 - 7.0(3/32 - 1/4)	2.0 (1/16)0.4 - 2.5(1/64 - 3/32)
	A	DarningDarning of heavyweightfabric	7.0 (1/4)2.5 - 7.0(3/32 - 1/4)	2.0 (1/16)0.4 - 2.5(1/64 - 3/32)
	A	Bar tackReinforcement at openingof pocket, etc.	2.0 (1/16)1.0 - 3.0(1/16 - 1/8)	0.4 (1/64)0.3 - 1.0(1/64 - 1/16)
	M	Button sewingAttaching buttons	3.5 (1/8)2.5 - 4.5(3/32 - 3/16)	—
	N/O	EyeletFor making eyelets, holeson belts, etc.	7.0 (1/4)7.0 6.0 5.0(1/4 15/643/16)	7.0 (1/4)7.0 6.0 5.0(1/4 15/643/16)
	N/O	Star eyeletFor making star-shapedeyelets on holes.	—	—
	N/O	Diagonally left up(Straight)For attaching appliqué ontubular pieces of fabricand mitering corners	—	—
	N/O	Reverse (Straight)For attaching appliqué ontubular pieces of fabricand mitering corners	—	—
	N/O	Diagonally right up(Straight)For attaching appliqué ontubular pieces of fabricand mitering corners	—	—
	N/O	Sideways to left(Straight)For attaching appliqué ontubular pieces of fabric	—	—
	N/O	Sideways to right(Straight)For attaching appliqué ontubular pieces of fabric	—	—
	N/O	Diagonally left down(Straight)For attaching appliqué ontubular pieces of fabricand mitering corners	—	—
	N/O	Forward (Straight)For attaching appliqué ontubular pieces of fabricand mitering corners	—	—
	N/O	Diagonally right down(Straight)For attaching appliqué ontubular pieces of fabricand mitering corners	—	—

Stitch	Presser foot	Stitch name/Applications	Stitch width(mm(inch))	Stitch length(mm(inch))
			Auto.Manual	Auto.Manual
[KAWO]	N/O	Sideways to left (Zigzag)For attaching appliqué on tubular pieces of fabric	—	—
[KWBH]	N/O	Sideways to right(Zigzag)For attaching appliqué on tubular pieces of fabric	—	—
	N/O	Forward (Zigzag)For attaching appliqué on tubular pieces of fabric and mitering corners	—	—
[SKX4]	N/O	Reverse (Zigzag)For attaching appliqué on tubular pieces of fabric and mitering corners	—	—
	J/C	Piecing stitch (Middle)Piecework/patchwork	—	2.0 (1/16)0.2 - 5.0(1/64 - 3/16)
	J/O	Piecing stitch (Right)Piecework/patchwork 6.5 mm (approx. 1/4 inch) right seam allowance	5.50 (7/32)0.00 - 7.00(0 - 1/4)	2.0 (1/16)0.2 - 5.0(1/64 - 3/16)
Q-02[05TH]	J/O	Piecing stitch (Left)Piecework/patchwork 6.5 mm (approx. 1/4 inch) left seam allowance	1.50 (1/16)0.00 - 7.00(0 - 1/4)	2.0 (1/16)0.2 - 5.0(1/64 - 3/16)
[8A3T]	J/O	Hand-look quiltingQuilting stitch made to look like hand quilting stitch	3.50 (1/8)0.00 - 7.00(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	J/O	Basting stitchBasting	3.50 (1/8)0.00 - 7.00(0 - 1/4)	20 (3/4)5 - 30(3/16 - 1-1/4)
	J/O	Stem stitchReinforced stitching, sewing and decorative applications	1.00 (1/16)0.00 - 7.00(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
Q-05	J/O	Quilting appliqué zigzag stitchZigzag stitch for quilting and sewing on appliqué quilt pieces	3.50 (1/8)0.00 - 7.00(0 - 1/4)	1.6 (1/16)0.0 - 5.0(0 - 3/16)
	J/O	Zigzag stitch (Right)Start from right needle position, zigzag sew at left	3.50 (1/8)2.50 - 5.00(3/32 - 3/16)	1.6 (1/16)0.3 - 5.0(1/64 - 3/16)
	J/O	Zigzag stitch (Left)Start from left needle position, zigzag sew at right	3.50 (1/8)2.50 - 5.00(3/32 - 3/16)	1.6 (1/16)0.3 - 5.0(1/64 - 3/16)
Q-07	J/O	2 steps elastic zigzagOvercasting (medium weight and stretch fabrics), tape and elastic	5.00 (3/16)0.00 - 7.00(0 - 1/4)	1.0 (1/16)0.2 - 5.0(1/64 - 3/16)
	J/O	3 steps elastic zigzagOvercasting (medium, heavyweight and stretch fabrics), tape and elastic	5.00 (3/16)0.00 - 7.00(0 - 1/4)	1.0 (1/16)0.2 - 5.0(1/64 - 3/16)
[7OKW]	J/O	Quilting appliqué stitchQuilting stitch for invisible appliqué or attaching binding	2.00 (1/16)0.00 - 7.00(0 - 1/4)	2.0 (1/16)0.4 - 5.0(1/64 - 3/16)
[ZZXT]	J/O	Quilting appliqué stitchQuilting stitch for invisible appliqué or attaching binding	2.00 (1/16)0.00 - 7.00(0 - 1/4)	2.0 (1/16)0.4 - 5.0(1/64 - 3/16)
	J/O	Quilting appliqué stitchQuilting stitch for invisible appliqué or attaching binding	2.00 (1/16)0.00 - 7.00(0 - 1/4)	2.0 (1/16)0.4 - 5.0(1/64 - 3/16)
	J/O	Quilting appliqué stitchQuilting stitch for invisible appliqué or attaching binding	2.00 (1/16)0.00 - 7.00(0 - 1/4)	2.0 (1/16)0.4 - 5.0(1/64 - 3/16)
Q-12	J/O	Quilting appliqué stitchQuilting stitch for invisible appliqué or attaching binding	2.00 (1/16)0.00 - 7.00(0 - 1/4)	2.0 (1/16)0.4 - 5.0(1/64 - 3/16)
	J/O	Shell tuck edgeShell tuck edge finish on fabrics	4.00 (3/16)0.00 - 7.00(0 - 1/4)	2.5 (3/32)0.2 - 5.0(1/64 - 3/16)
	J/O	Blanket stitchAppliqués, decorative blanket stitch	3.50 (1/8)0.00 - 7.00(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	J/O	Quilting stipplingBackground quilting	7.00 (1/4)0.00 - 7.00(0 - 1/4)	1.6 (1/16)0.4 - 5.0(1/64 - 3/16)
	J/O	Overcasting stitchStretch knit seam	5.00 (3/16)0.00 - 7.00(0 - 1/4)	4.0 (3/16)0.4 - 5.0(1/64 - 3/16)
	J/O	Tape attachingAttaching tape to seam in stretch fabric	5.50 (7/32)0.00 - 7.00(0 - 1/4)	1.4 (1/16)0.2 - 5.0(1/64 - 3/16)
	N/O	Serpentine stitchDecorative stitching and attaching elastic	5.00 (3/16)0.00 - 7.00(0 - 1/4)	2.0 (1/16)0.2 - 5.0(1/64 - 3/16)
	J/O	Feather stitchFagoting, decorative stitching	5.00 (3/16)0.00 - 7.00(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	J/O	Fagoting cross stitchFagoting, bridging and decorative stitching	5.00 (3/16)0.00 - 7.00(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	J/O	Couching stitchDecorative stitching, attaching cord and couching	5.00 (3/16)0.00 - 7.00(0 - 1/4)	1.2 (1/16)0.2 - 5.0(1/64 - 3/16)
	J/O	Patchwork double overlock stitchPatchwork stitches, decorative stitching	5.00 (3/16)0.00 - 7.00(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	J/O	Smocking stitchSmocking, decorative stitching	5.00 (3/16)0.00 - 7.00(0 - 1/4)	1.6 (1/16)0.4 - 5.0(1/64 - 3/16)
	J/O	Rick-rack stitchDecorative top stitching	4.00 (3/16)0.00 - 7.00(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	N/O	Decorative stitchDecorative stitching and appliqué	6.00 (15/64)0.00 - 7.00(0 - 1/4)	1.0 (1/16)0.2 - 5.0(1/64 - 3/16)
	J/O	Decorative stitchDecorative stitching	5.50 (7/32)0.00 - 7.00(0 - 1/4)	1.6 (1/16)0.4 - 5.0(1/64 - 3/16)
	N/O	HemstitchingHeirloom, decorative hems	5.00 (3/16)0.00 - 7.00(0 - 1/4)	2.0 (1/16)0.4 - 5.0(1/64 - 3/16)
	N/O	HemstitchingDecorative hems and bridging stitch	6.00 (15/64)0.00 - 7.00(0 - 1/4)	2.0 (1/16)0.4 - 5.0(1/64 - 3/16)
	J/O	Single diamond overcastReinforcement and seaming stretch fabric	6.00 (15/64)0.00 - 7.00(0 - 1/4)	3.0 (1/8)0.4 - 5.0(1/64 - 3/16)
	J/O	Overcasting stitchReinforcement of stretch fabric or decorative stitching	4.00 (3/16)0.00 - 7.00(0 - 1/4)	4.0 (3/16)0.4 - 5.0(1/64 - 3/16)

Stitch	Presser foot	Stitch name/Applications	Stitch width(mm(inch))	Stitch length(mm(inch))
			Auto.Manual	Auto.Manual
	N/O	Appliqué stitchAppliqués, decorative stitch	3.00 (1/8)0.00 - 7.00(0 - 1/4)	2.0 (1/16)0.4 - 5.0(1/64 - 3/16)
	N/O	Blanket stitchAppliques, decorative blanket stitch	4.00 (3/16)0.00 - 7.00(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	N/O	Decorative stitchDecorative stitching	7.00 (1/4)0.00 - 7.00(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	N/O	Decorative stitchDecorative stitching	7.00 (1/4)0.00 - 7.00(0 - 1/4)	2.5 (3/32) 0.4 - 5.0 (1/64 - 3/16)
	N/O	Decorative stitchDecorative stitching	7.00 (1/4)0.00 - 7.00(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	N/O	Decorative stitchDecorative stitching	7.0O (1/4)0.00 - 7.00(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	N/O	Decorative stitchDecorative stitching	7.00 (1/4)0.00 - 7.00(0 - 1/4)	2.5 (1/4)0.4 - 5.0(1/64 - 3/16)
	N/O	Decorative stitchDecorative stitching	7.00 (1/4)0.00 - 7.00(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	N/O	decorateditchDecorative stitching	7.00 (1/4)0.00 - 7.00(0 - 1/4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	N/O	Decorative stitchDecorative stitching	7.00 (1/4)0.00 - 7.00(0 - 1 /4)	2.5 (3/32)0.4 - 5.0(1/64 - 3/16)
	N/O	Decorative stitchDecorative stitching	7.00 (1/4)0.00 - 7.00(0 - 1/4)	0.4 (1/64)0.1 - 5.0(1/64 - 3/16)
	X	Free motion couching stitchFree motion couching stitch	3.50 (1/8)2.75 - 3.75(3/32 - 1/8)	-
	J/O	Hand-look quiltingQuilting stitch made to look like hand quilting stitch	0.0 (0)0.0 - 7.0(0 - 1/4)	-
	J/O	Hand-look quiltingQuilting stitch made to look like hand quilting stitch	0.0 (0)0.0 - 7.0(0 - 1/4)	-
	J/O	Hand-look quiltingQuilting stitch made to look like hand quilting stitch	0.0 (0)0.0 - 7.0(0 - 1/4)
	N/O	Tap er ing stit chStitch pattern can be tapered at the beginning or at the end of sewing.	7.0 (1/4)2.5 - 7.0(3/32 - 1/4)	1.0 (1/16)0.1 - 5.0(1/64 - 3/16)
	N/O	Tap er ing stit chStitch pattern can be tapered at the beginning or at the end of sewing.	5.0 (3/16)2.5 - 7.0(3/32 - 1/4)	2.5 (3/32)1.4 - 5.0(1/16 - 3/16)
	N/O	Tap er ing stit chStitch pattern can be tapered at the beginning or at the end of sewing.	5.0 (3/16)2.5 - 7.0(3/32 - 1/4)	2.5 (3/32)1.4 - 4.0(1/16 - 3/16)
	N/O	Tapering s t it c hStitch pattern can be tapered at the beginning or at the end of sewing.	7.0 (1/4)2.5 - 7.0(3/32 - 1/4)	2.0 (1/16)1.0 - 4.0(1/16 - 3/16)
	N/O	Tapering s t it c hStitch pattern can be tapered at the beginning or at the end of sewing.	7.0 (1/4)2.5 - 7.0(3/32 - 1/4)	3.5 (1/8)2.5 - 4.0(3/32 - 3/16)
	N/O	Tapering s t it c hStitch pattern can be tapered at the beginning or at the end of sewing.	7.0 (1/4)2.5 - 7.0(3/32 - 1/4)	3.0 (1/8)2.0 - 5.0(1/16 - 3/16)
	N/O	Tapering s t it c hStitch pattern can be tapered at the beginning or at the end of sewing.	7.0 (1/4)3.0 - 7.0(1/8 - 1/4)	3.0 (1/8)2.5 - 5.0(3/32 - 3/16)
	N/O	Tapering s t it c hStitch pattern can be tapered at the beginning or at the end of sewing.	7.0 (1/4)3.0 - 7.0(1/8 - 1/4)	2.5 (3/32)2.5 - 4.0(3/32 - 3/16)
	N/O	Tapering s t it c hStitch pattern can be tapered at the beginning or at the end of sewing.	7.0 (1/4)2.5 - 7.0(3/32 - 1/4)	2.5 (3/32)1.4 - 4.0(1/16 - 3/16)
	N/O	Tapering s t it c hStitch pattern can be tapered at the beginning or at the end of sewing.	7.0 (1/4)3.0 - 7.0(1/8 - 1/4)	2.5 (3/32)2.0 - 4.0(1/16 - 3/16)
	N/O	Tapering s t it c hStitch pattern can be tapered at the beginning or at the end of sewing.	7.0 (1/4)4.0 - 7.0(3/16 - 1/4)	3.0 (1/8)2.5 - 4.0(3/32 - 3/16)
	N/O	Tapering s t it c hStitch pattern can be tapered at the beginning or at the end of sewing.	7.0 (1/4)2.5 - 7.0(3/32 - 1/4)	1.0 (1/16)0.4 - 5.0(1/64 - 3/16)
	N/O	Tapering s t it c hStitch pattern can be tapered at the beginning or at the end of sewing.	6.0 (15/64)4.0 - 7.0(3/16 - 1/4)	0.3 (1/64)0.2 - 2.0(1/64 - 1/16)
	N/O	Tapering s t it c hStitch pattern can be tapered at the beginning or at the end of sewing.	6.0 (15/64)4.0 - 7.0(3/16 - 1/4)	0.3 (1/64)0.2 - 2.0(1/64 - 1/16)
	T-15	Tapering s t it c hStitch pattern can be tapered at the beginning or at the end of sewing.	7.0 (1/4)3.5 - 7.0(1/8 - 1/4)	0.3 (1/64)0.1 - 2.0(1/64 - 1/16)
	N/O	Tapering s t it c hStitch pattern can be tapered at the beginning or at the end of sewing.	7.0 (1/4)4.0 - 7.0(3/16 - 1/4)	3.5 (1/8)2.5 - 4.0(3/32 - 3/16)
	N/O	Tapering s t it c hStitch pattern can be tapered at the beginning or at the end of sewing.	7.0 (1/4)4.0 - 7.0(3/16 - 1/4)	2.5 (3/32)2.0 - 4.0(1/16 - 3/16)
	N/O	Tapering s t it c hStitch pattern can be tapered at the beginning or at the end of sewing.	7.0 (1/4)4.5 - 7.0(3/16 - 1/4)	2.5 (3/32)2.0 - 4.0(1/16 - 3/16)

Stitch	Presser foot	Stitch name/Applications	Stitch width(mm (inch))	Stitch length(mm (inch))
			Auto.Manual	Auto.Manual
	N/O	Taperin g s tit chStitch pattern can be tapered at the beginning or at the end of sewing.	7.0 (1/4)2.5 - 7.0(3/32 - 1/4)	2.5 (3/32)1.6 - 4.0(1/16 - 3/16)
	N/O	Taperin g s tit chStitch pattern can be tapered at the beginning or at the end of sewing.	7.0 (1/4)4.0 - 7.0(3/16 - 1/4)	2.5 (3/32)2.0 - 4.0(1/16 - 3/16)


INDEX

A

Accessories included accessories 11 options 15 Accessory compartment 11 Adjustments screen 186 Advanced multi-function foot controller 55 Air vent 9 Alphabet characters embroidery 109 Appliqué quilting .... 79 using an embroidery frame pattern .... 157 Automatic fabric sensor system 66 Automatic thread cutting key 64 Automatic threading button 10, 41

B

Ball point needle 48 Bar tacks 92 Blind hem stitches 83 Bobbin pulling up the bobbin thread .... 40 setting 39 winding 35 Bobbin case cleaning 183 Bobbin cover 9,39 Bobbin threading pulling up the bobbin thread .... 40 setting the bobbin .... 39 winding the bobbin .... 35 Bobbin winder 9 Bobbin winding switch 37 Border key 116, 119 Button sewing .... 93 4 hole buttons .... 94 shank .... 94 Buttonhole lever 9 Buttonholes four-step .... 90 odd-shaped/buttons that do not fit the button holder plate .... 90 one-step .... 88

C

Character/Decorative Stitches adjustments .... 100 retrieving 102 saving 102 Cleaning race 183 Clock 19 Color visualizer function 123 Compact digital dual feed foot 50 Cord guide bobbin cover 75 Couching patterns 158

D

Darning 91 Dart seam 73 Decorative fill pattern 161 Denim 48 Deselect region setting 121

E

Echo quilting 82, 161 Eco mode 28 Editing embroidery edit 113 Embroidery 2-point embroidery positioning function .... 135 adjusting the speed 152 automatic thread cutting function (End color trim).... 151 key functions .... 120 resuming embroidery after turning off the power 144 selecting patterns 107 thread color display 153 thread trimming function (Jump stitch trim) 152 Embroidery appliqué 141 Embroidery edit changing the thread color .... 122 key functions .... 113 repeated patterns .... 116 Embroidery foot "W+" with LED pointer 105 Embroidery frames attaching .... 131 inserting fabric .... 129 removing .... 131 types .... 129 using the embroidery sheet .... 130 Embroidery needle plate cover 140 Embroidery patterns checking the position 134 editing 113 embroidering 139 linked characters 154 retrieving 156 saving 155 selecting 107 using a frame pattern to make an appliqué 157 Embroidery sheet 130 Embroidery unit 106 Error messages 194 Eyelet 94

F

Fabric 48 Fabrics sewing heavyweight fabrics .... 69 sewing lightweight fabrics .... 70 sewing stretch fabrics .... 70, 89 Fagoting 86 Favorite color scheme 125 Feed dogs 9,80 Flat bed attachment 9, 106 Flat fell Seam 74 Free motion quilting free motion echo quilting foot "E" 82 free motion open toe quilting foot "O" 81 free motion quilting foot "C" 80 Free motion sewing mode 80

G

Gathering 73 Guideline marker 64

H

Handle 9 Handwheel 9 Heirloom 87 Hemstitching daisy stitch 87 Home page screen 21

1

Image key 115 IQ Designer 163 IQ Intuition- Monitoring App 180 IQ Intuition- Positioning App 181

K

Key functions embroidery 126 embroidery edit 113 utility stitches 23 Knee lifter 9,66

L

L/R Shift 62 LCD screen 9, 21 light 26 Leather 70

M

Machine help key 29 Main power switch 9 Metallic thread 36 MPEG-4 (MP4) videos 30 Multi-directional sewing 95

N

Needle 48 changing the needle 46 changing the needle position 71 mode 22 twin needle 43 Needle bar thread guide 9,44 Needle mode selection key 43 Needle plate 9 Needle position 66, 71 Needle position button 10

O

Operation buttons 9, 10 Overcasting 76

P

Piecing 77 1/4 Quilting foot with guide 78 Pintuck 74 Pivoting 65 Power cord 19 Power cord receptacle 9 Presser foot pressure 66 removing 49 types 199 Presser foot code 126 Presser foot holder 9,49 Presser foot holder screw 9 Presser foot lever 9,69 Presser foot lifter button 10 Presser foot/Needle exchange key 43, 46, 49 Pretension disk 9, 36, 38

Q

Quilting 77 free motion 80 with satin stitches 79

R

Race 183 Reinforcement stitch 59 Reinforcement stitch button 10 Repeated patterns 116 Retrieving character/decorative stitch patterns 102 embroidery patterns 156 machine's memory 102, 156 stitch settings 63 utility stitches 63 Reverse stitch button.... 10 Reverse/Reinforcement stitches.... 59

S

Satin stitches 79 Saving character/decorative stitches 102 embroidery patterns 155 machine's memory 102, 155 stitch settings 63 utility stitches 63 Scallop stitches 85 Screen saver 28 Settings automatic thread cutting 64, 151 embroidery settings 27 general settings 26 machine settings key 25 sewing settings 25 stitch length 62 stitch width 61 thread tension 62, 149 thread trimming 152 Sewing speed controller (speed control slide) 9, 10, 53 Sewing type selection key 29 Shelltuck stitches 85 Shutoff support mode 28 Smocking stitches 85 Speaker 26 Specifications 196 Spool cap 9 Spool net 36 Spool pin 9 Spool stand 38, 45 Stabilizer 128 Start/Stop button 10 Starting point key 153 Step stitch patterns 101 Stippling 161 Stitch setting chart 199 Stitch tapering function 97 Straight stitch foot 67 Straight stitch needle plate 67 Straight stitches 71 Supplemental spool pin 9, 35, 44

T

Tape or elastic attaching 86 Thread 48 thread tension 62,149 Thread color display 153 Thread color palette 122 Thread cutter 9,55 Thread cutter button 10 Thread guide 9, 36, 38, 44 Thread guide plate 9, 38, 42 Thread marks 119 Touch pen 21, 186 Transparent nylon thread 37,48 Trial key 134 Troubleshooting 186 Tutorial video 29 Twin needle 43

U

Updating 198 Upper thread 48 Upper threading twin needle mode 43 using the Automatic threading button 41 USB mouse 34 USB port 9 Utility stitches key functions 23 pattern explanation key 31 retrieving....63 saving 63 sewing type selection key 29 stitch setting chart 199

V

Vinyl fabrics 70

W

Walking foot 49

Z

Zigzag stitches 75 Zipper insertion centered 95 side 96

Altair 2 ^TM
