| Product Type | Network Switch |
| Brand | Hikvision |
| Model | DS-3E2528P-H |
| Ports | 28 (24 PoE + 4 Gigabit uplink) |
| PoE Support | Yes (Power over Ethernet) |
| Installation Options | Rack-mountable (1U) or workbench |
| Mounting Brackets | Type A and Type B (screw-attached) |
| Grounding | Required using provided grounding cable |
| Power Module | Removable AC or DC module |
| Power Consumption | Approx. 250W (with PoE load) |
| Dimensions (approx.) | 440 x 260 x 44 mm (17.3 x 10.2 x 1.7 in) |
| Weight (approx.) | 5 kg (11 lbs) |
| Safety | ESD wrist strap recommended; reliable grounding required |
| Maintenance | Clean with dry cloth; avoid liquids |
| Spare Parts | Power module, fan (if applicable) |
| Repairability | Only by qualified personnel |
| Accessories Included | Mounting brackets, cage nuts, screws, rubber feet, cable ties |
| Manual Language | English (PDF download available) |
| EMI Protection | Proper grounding ensures EMI protection |
Frequently Asked Questions - DS-3E2528P-H Hikvision
User questions about DS-3E2528P-H Hikvision
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Network switch in PDF format for free! Find your manual DS-3E2528P-H - Hikvision and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DS-3E2528P-H by Hikvision.
USER MANUAL DS-3E2528P-H Hikvision
The installation tools are not provided with the switch. Prepare them yourself as required.

Installation accessories




Cage nutGrounding cable M6 screw M4 countersunk-head screw
Mounting brackets Rubber feet Grounding screw
Cable tie
The applicable installation accessories vary by switch model. Some accessories are not provided with the switch. The packing list describes the accessories provided with the switch.
A Wear an ESD wrist strap, and make sure the wrist strap makes good skin contact and is reliably grounded.
Mounting the switch in a rack
The applicable mounting brackets vary by switch model. Some switch models provide two installation positions on the two sides for mounting brackets: one at the port side and one at the power module side. Select an installation position for the mounting brackets as required.
Four screws are required to attach a Type A mounting bracket. Two screws are required to attach a Type B mounting bracket.
1 Attaching mounting brackets to the switch
Type A mounting bracket

Type A mounting bracket

Type B mounting bracket

2 Attach cage nuts to the rack posts

Mount the switch in the rack

Mounting the switch on a workbench
Correctly connecting the switch grounding cable is crucial to lightning protection and EMI protection. Use the grounding cable provided with the chassis to ground the switch.


Installing and removing a power module
This section is applicable only to switch models that use removable power modules.


Connecting the power cord
Before connecting the power cord, connect the grounding cable and make sure the switch is reliably grounded. To avoid bodily injury, connect the power cord first to the switch and then to the power supply system.

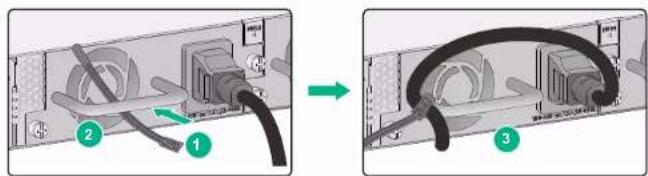

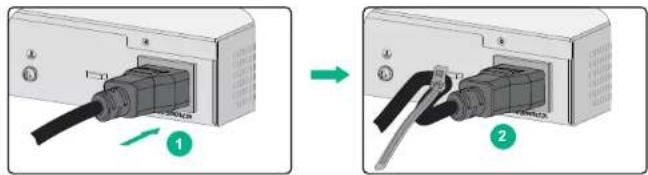

1 Connecting the power cord for an AC power module.
Method 1

Method 2

2 Connecting the power cord for a DC power module.
