2583DF - Safe FIRST ALERT - Free user manual and instructions

Product Type	Executive Safe
Brand	First Alert
Model	2583DF
Fire Rating	Up to 1200°F (649°C) for 30 minutes
Interior Temperature Retention	Below 350°F (177°C) during fire exposure
Lock Type	Digital keypad with programmable personal passcode
Override Key	Included for emergency access
Power Source	4 AA batteries (not included)
Battery Replacement Recommendation	Annually or as needed
Material	Steel body and door
Exterior Dimensions (Approx.)	13.5" H x 10" W x 10" D
Interior Dimensions (Approx.)	12.5" H x 9" W x 9" D
Weight (Approx.)	22 lbs
Programming	Personal passcode programmable via reset button
Security Lock-out	15-minute lock-out after 3 invalid passcode attempts
Mounting Options	Pre-drilled holes for floor or wall mounting
Shelf Included	Yes, adjustable shelf installation
Emergency Escape Latch	Not applicable for model 2583DF (available on 2754DBF)
Warranty	5-year limited warranty from date of purchase
Customer Service	1-800-323-9005 (Mon-Fri, 7:30 am - 5:00 pm CST)

Frequently Asked Questions - 2583DF FIRST ALERT

How do I change the batteries in my First Alert 2583DF safe?

To change batteries: locate the battery compartment (usually inside the safe behind the keypad cover), remove old batteries, clean contacts, and install 4 fresh AA batteries. Replace the cover. It is recommended to change batteries annually.

How do I program a new personal passcode?

Lift the keypad cover, press the reset button. The ready light will flash and beep, then remain solid green. Within 10 seconds, enter your desired personal passcode twice. The safe will accept the new code. Test it before closing the door.

What if I forget my passcode?

If you forget the passcode, use the override key provided. Insert the key into the override lock, turn counterclockwise and hold, then rotate the handle clockwise to open. The override key should be stored separately from the safe. You can also contact Consumer Affairs for a copy of the combination (requires notarized proof of ownership).

How do I use the override key?

Insert the override key into the lock located on the front of the safe. Turn the key counterclockwise and hold it. While holding, rotate the handle clockwise to open the door. If the handle does not turn, rotate it slightly counterclockwise first then clockwise.

What are the dimensions of the First Alert 2583DF safe?

Approximate external dimensions are 13.5 inches high x 10 inches wide x 10 inches deep. Internal dimensions are approximately 12.5 x 9 x 9 inches. Weight is about 22 lbs. Always verify with the product packaging for exact specs.

Is the 2583DF safe fireproof?

Yes, it is fire-resistant. It can withstand external temperatures up to 1200°F (649°C) for 30 minutes while keeping the interior below 350°F (177°C). It must be closed and latched for proper fire protection.

How do I mount the safe to the floor or wall?

Use the pre-drilled holes in the back and bottom of the safe. Securely bolt it to a concrete floor or wall using appropriate hardware (not included). Follow the mounting instructions in the manual. Ensure the area is clear of obstacles.

What should I do if the safe locks out?

If three invalid passcodes are entered, the safe enters a security lock-out for 15 minutes. Wait the full 15 minutes without pressing any buttons. After the period, you can re-enter your passcode. If you have forgotten it, use the override key.

Does the warranty cover damage from fire or misuse?

The 5-year limited warranty covers defects in material and workmanship. It does not cover damage from fire, flood, humidity, misuse, disassembly, or unauthorized repairs. Incidental damages such as loss of contents are not covered. Proof of purchase is required.

Can I store pearls in the safe?

No, pearls should not be stored in this safe because they sustain heat damage at temperatures below 350°F (177°C), which may be reached inside the safe during a fire. Store pearls elsewhere.

USER MANUAL 2583DF FIRST ALERT

BRK Brands, Inc., ("BRK") warrants that for a period of five (5) years from the date of purchase, this product will be free from defects in material and workmanship. BRK, at its sole option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement or repair will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty.

This warranty is only valid for the original retail purchaser from the date of initial retail purchase and is not transferable. You must keep the original sales receipt. Proof of purchase is required to obtain warranty performance. BRK dealers, service centers, or retail stores selling this product do not have the right to alter, modify or in any way change the terms and conditions of this warranty.

This warranty does not apply to the finish on the product. This warranty does not cover normal wear and tear of parts or damage resulting from any of the following: negligent use or misuse of the product, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than BRK or an authorized service center, improper installation, or exposure to extremes of heat or humidity. Further, the warranty does not cover Acts of God, such as fire, flood, hurricanes and tornadoes.

BRK shall not be liable for any incidental or consequential damages caused by the breach of any express or implied warranty. BRK is also not responsible for: costs associated with removing or installing the product; damage or loss of the contents of the product; nor for the unauthorized removal of the contents; or damages incurred during shipment.

Except to the extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose is limited in duration to the duration of the above Warranty Period. Some states, provinces or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state, or province to province, or jurisdiction to jurisdiction.

Operation & Installation Guide

EXECUTIVE SAFE

If you have any questions that cannot be answered by reading this manual, call Consumer Affairs at 1-800-323-9005

© 2010 BRK Brands, Inc., a Jarden Corporation company (NYSE: JAH) 3901 Liberty Street Road, Aurora, IL 60504-8122 All rights reserved.

www.FirstAlert.com

Models 2583DF / 2743DF / 2754DBF

• Read carefully
• Keep for reference
  ■ Do not keep inside of safe

First Alert®

Home and Office Security Safes

Contents

Use, care and support

2583DF

2743DF

2754DBF

Collection of electronic components and tools including a refrigerator, battery pack, screwdriver, and circuit board (no text or labels visible)

Safe Identification Record

Digital Passcode Record - Model 2583DF / 2743DF / 2754DBF
Your Passcode must be at least 3 digits and no more than 8 digits followed by the # key.

Important: DO NOT RETURN SAFE TO STORE

If you are missing parts, have difficulty programming your safe or have any other questions pertaining to its proper use and care, DO NOT RETURN your safe to the store. Please contact Consumer Affairs at 1-800-323-9005, 7:30 am – 5:00 pm Central Standard Time, Monday through Friday. To assist us in serving you, please have the model number and date of purchase available when calling.

Appropriate use of your safe

This Executive Safe protects records and many other valuables. Testing shows that the interior temperature of the safe remains below 350^ F ( 177^ C) for 30 minutes during a fire up to 1200^ F ( 649^ C) when used properly. Your safe must be closed and latched in order to properly protect the contents from fire.

Important:

Because pearls sustain heat damage at temperatures below 350^ F, we advise that you DO NOT store pearls in this safe.

Safe Care and Maintenance

When properly maintained, your safe will continue to operate and accurately read the authorized Passcode for many years. In order to ensure optimum performance of your safe, please follow these simple precautions:

Replace Batteries – For best results and performance, we recommend that the batteries be replaced at least once a year or sooner depending on amount of use.

Clean Hands - Never attempt to operate the digital keypad if your hands have excessive dirt, debris or liquids on them.

Clean Safe – To clean the surface of your safe, it is recommended that you use a mild cleaner (e.g., window cleaner) to avoid scratching or discoloring the surface. Always wipe dry and NEVER use abrasive cleansers on the safe or digital keypad.

Moisture – We recommend that you place delicate items such as pictures or intricate jewelry into an air-tight container before storing them in your safe. Avoid placing your safe in areas of high humidity. For optimum performance, the safe should be opened and aired out for at least 20 minutes every two weeks.

For future reference, store this Operation and Installation Guide in a secure area away from the safe. DO NOT DISCARD!

How to Obtain Warranty Service

If service is required, do not return the product to your retailer. In order to obtain warranty service, contact the Consumer Affairs Division at 1-800-323-9005, 7:30 am – 5:00 pm Central Standard Time, Monday through Friday. To assist us in serving you, please have the model number and date of purchase available when calling.

For Warranty Service return to:

First Alert, Inc.,

Attn: Warranty Safe Returns

23610 So. Banning Blvd. GARANT, CA 90745

Carson, CA 70745

Ordering Replacement Keys

If you lose or forget the combination or lose the safe key, you can obtain a copy of the combination or a replacement key from BRK Brands, Inc. You must supply the following information to assure accurate processing:

■ Name / Address / Telephone.

■ Safe Model Number / Serial Number

■ Key Number (located on the key and on the Emergency Override Key lock).

■ Notarized statement of ownership.

- For replacement keys, indicate number of keys requested. Please ignore if

recovering a lost combination.

■ Method for how you would like to receive the combination or keys.

Please send all the information via fax at 630-851-7995

or mail BRK Brands, Inc., 3901 Liberty Street Road, Aurora, IL 60504-8122

Checks or Money Orders are required for orders received by mail and should be made payable to First Alert. Contact our Consumer Affairs Department for costing information prior to ordering.

Mail to: First Alert

Consumer Affairs

3901 Liberty St Rd

Aurora, IL 60504

Shelves and mounting

Initial set-up

Shelf install

Three-step illustration showing a hand holding a tool, with three views of the tool (no text or symbols present)

Floor mounting

Wall mounting

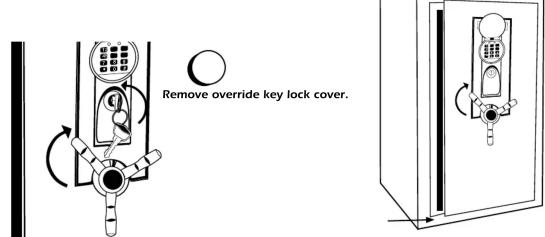

Override key use

Insert key and turn counterclockwise and hold. Rotate handle clockwise then pull door open.

Important:

If the spindle handle will not rotate clockwise after the key is turned, then rotate the spindle handle slightly counterclockwise until it stops, then rotate clockwise again to open.

Important:

The override key is used to gain access to the safe to change batteries or if the digital lock fails to operate. This key should be stored in a secure place away from your safe.

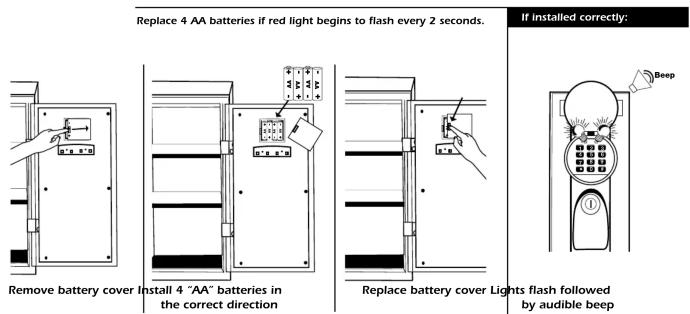

Battery install

Important:

Clean the battery contacts in the battery compartment and on the batteries before installing new batteries.

Programming Personal Passcode

Closing safe

Lift keypad cover

Press reset button

Ready light flashes along with a beep

Lights will then remain solid green. Enter your Personal Passcode twice within 10 seconds

Personal Passcode entry

Lift keypad cover

Ready light flashes along with a beep

Lights will then remain solid green. Enter your Personal Passcode + # within 10 seconds

Rotate handle clockwise, then pull door open

Important: Important

If the spindle handle will not rotate clockwise after the key is turned, then rotate the spindle handle slightly counterclockwise until it stops, then rotate clockwise again to open.

Push door closed then rotate handle counterclockwise fully into the locked position.

TROUBLE

SHOOTING:

If safe fails to open with your Personal Passcode, try the following:

1. Check to see if the batteries have been installed properly and replace if necessary.
2. Lock-out may have occurred. Wait 15 minutes before trying again.
3. Contact BRK Consumer Affairs Department.

EMERGENCY INTERIOR ESCAPE LATCH

Your safe is equipped with an Emergency Escape Latch to allow the safe to be easily opened from the inside in the unlikely event that someone should become locked inside the safe. To engage, pull down on the lever handle and push the door open.

NOTES

SECURITY LOCK-OUT PERIODS:

For added security, the safe will automatically "Lock-out" entry for 15 minutes after three attempts to open with an invalid Passcode.
