| Brand | Sennheiser |
| Model | RS 65 |
| Product type | Wireless headset |
| Transmitter dimensions | 155 x 153 x 105 mm |
| Receiver dimensions | 150 x 80 x 200 mm |
| Transmitter weight | Approx. 186 g (battery pack included) |
| Receiver weight | Approx. 160 g (battery pack included) |
| Transmitter power supply | 12 V DC via mains adapter |
| Receiver power supply | 2.4 V via BA 151 battery pack |
| Battery life | More than 4 hours per charge |
| Charging time | 14 hours (initial charge 24 hours) |
| Modulation | FM stereo |
| Signal-to-noise ratio | Typ. > 68 dBA |
| Max. sound pressure level | 100 dB |
| Total harmonic distortion | < 0.5% (at 1 kHz) |
| Audio connector | 3.5 mm / 6.3 mm stereo jack with RCA adapter |
| Main features | Wireless transmission, volume control, channel selection (2 or 3 channels), SRS Surround, automatic standby, charging on transmitter |
| Care and cleaning | Use a soft cloth or chamois; do not use harsh detergents |
| Safety | Listening at high volume can damage hearing; do not open the device |
| Spare parts available | BA 151 battery pack, L 151-2 charger, additional HDR 65 headsets |
Frequently Asked Questions - RS 65 SENNHEISER
User questions about RS 65 SENNHEISER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Wireless Headphones in PDF format for free! Find your manual RS 65 - SENNHEISER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RS 65 by SENNHEISER.
USER MANUAL RS 65 SENNHEISER
Instructions for use
Notice d'emploi
Instructions for use 7
Notice d'emploi 11

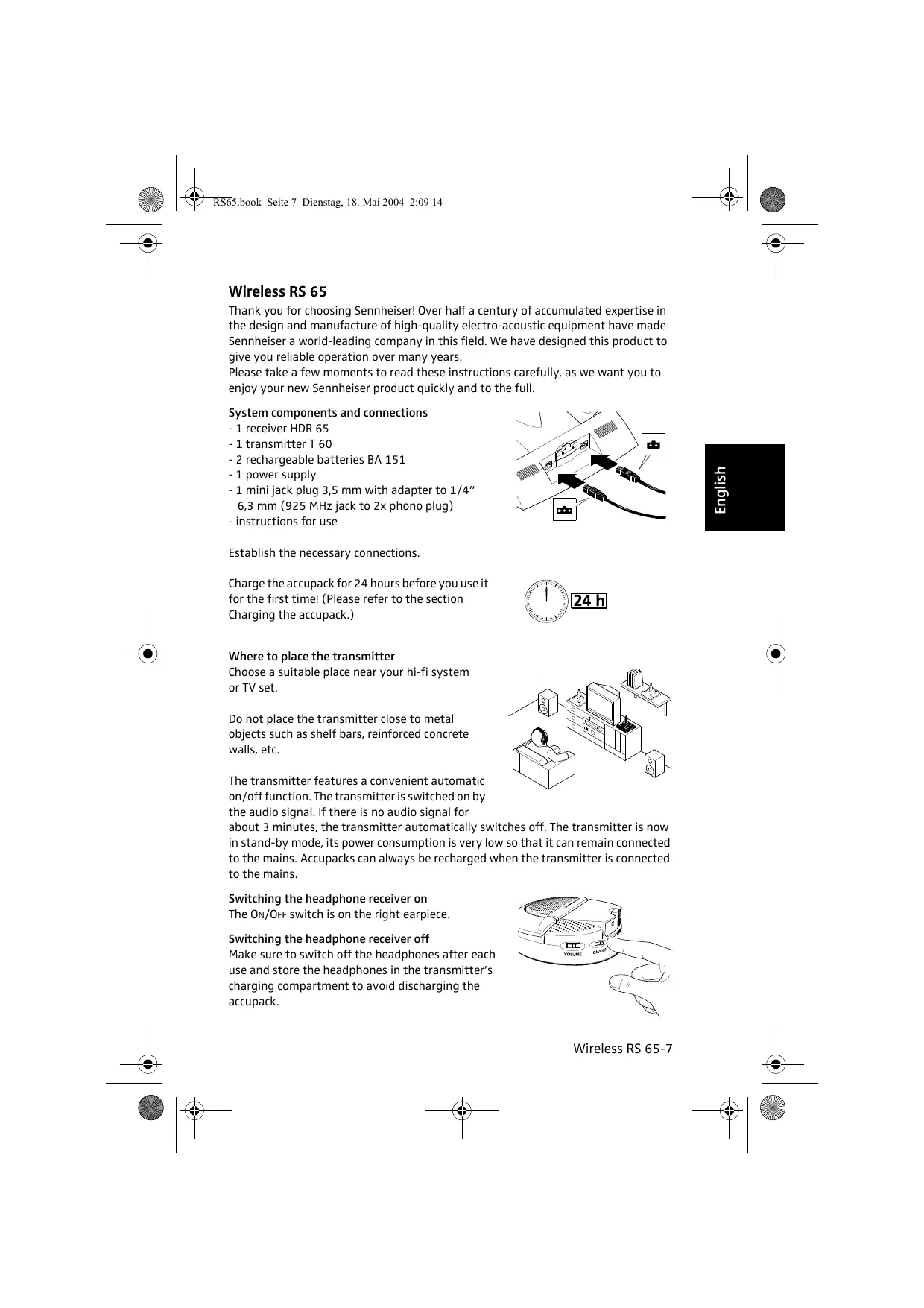

Thank you for choosing Sennheiser! Over half a century of accumulated expertise in the design and manufacture of high-quality electro-acoustic equipment have made Sennheiser a world-leading company in this field. We have designed this product to give you reliable operation over many years.
Please take a few moments to read these instructions carefully, as we want you to enjoy your new Sennheiser product quickly and to the full.
System components and connections
- 1 receiver HDR 65
- 1 transmitter T 60
- 2 rechargeable batteries BA 151
- 1 power supply
- 1 mini jack plug 3,5 mm with adapter to 1 / 4'' 6,3 mm (925 MHz jack to 2x phono plug)
- instructions for use
Establish the necessary connections.
Charge the accupack for 24 hours before you use it for the first time! (Please refer to the section Charging the accupack.)
Where to place the transmitter
Choose a suitable place near your hi-fi system or TV set.
Do not place the transmitter close to metal objects such as shelf bars, reinforced concrete walls, etc.
The transmitter features a convenient automatic on/off function. The transmitter is switched on by the audio signal. If there is no audio signal for
about 3 minutes, the transmitter automatically switches off. The transmitter is now in stand-by mode, its power consumption is very low so that it can remain connected to the mains. Accupacks can always be recharged when the transmitter is connected to the mains.
Switching the headphone receiver on
The ON/OFF switch is on the right earpiece.
Switching the headphone receiver off
Make sure to switch off the headphones after each use and store the headphones in the transmitter's charging compartment to avoid discharging the accupack.
24h
Adjusting the volume
Set the volume of your sound source to a medium value. With some devices, the volume for the headphone output can be regulated separately.

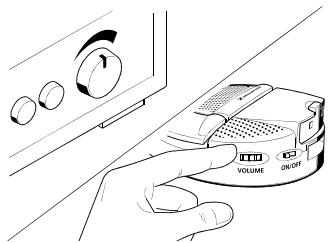

Use the VOLUME control on the right earpiece to adjust the headphones' volume.
Adjusting the receiver channel
First switch on the transmitter (see section Where to place the transmitter). Then switch on the headphone receiver - as soon as the receiver is switched on it automatically tunes itself to the first strong signal found (normally the transmitter frequency). If, for some reason, the selected channel is not the correct one (eg: because of

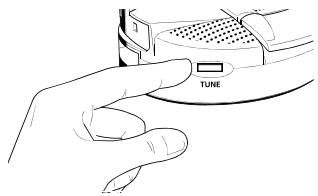

interference or another nearby system), press the TUNE button on the earpiece and the auto-tune function will re-tune to the next strong signal. Repeat this until you can hear the audio signal loud and clear. If you decide to change the transmitter channel, the receiver search tuning must be re-started by pressing the TUNE button on the headphones again
Changing the transmission channel
To avoid interference caused by the simultaneous operation of several transmitters, select a different channel on each transmitter. Depending on the system variant, two or three switchable transmission channels are available.
To select a channel, press the CHANNEL button until the desired LED or LED combination
lights up:
LED1
LED2
LED 1 and 2
channel 1 active
channel 2 active
channel 3 active (except 863 MHz version).

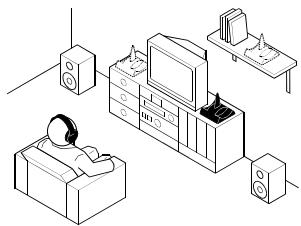

Complete freedom of movement
It is not necessary that transmitter and headphone receiver are in a direct line of sight, so you can move around freely in the home or outside in the garden. One transmitter can be used to transmit to several receivers on the same frequency.
Additional headphones with the designation HDR 65 are available from your specialist dealer.
Please make sure to choose headphones with the
same frequency range as the transmitter you are using (see type plate on the bottom of the transmitter).
Charging the accupack

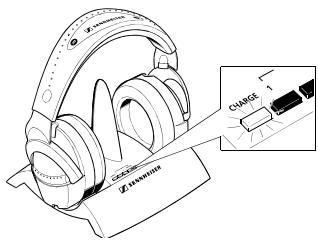

For charging the accupack, place the headphones into the transmitter's charging compartment (nb: make sure the headphones are inserted the correct way round. The Sennheiser logo on the headband must be readable looking from the front - see diagram. The charging contacts are on the RH earpiece of the headphones - these are placed on the corresponding contacts in the LH indentation of the transmitter, the one next to
the "charge" light). The red LED on the transmitter must light up to show charging is taking place.
Always store the headphones on the transmitter to ensure that they are fully charged when they are needed. The headphones are automatically switched off by the charging process.
BA 151 spare accupack
When the headphones' accomplice is going flat (noise, interference and distortion are sure signs of a flat accompack), recharge the accompack. After an initial charging of 24 hours, the normal charging time is 14 hours. A fully charged accompack has an operating time of more than four hours. Place the discharged accompack in the charging compartment at the back of the transmitter and use the spare accompack in the meantime.
Additional BA 151 spare accompanies can be charged via the L 151-2 charger (available from your specialist dealer).
Before disposing of an old and exhausted accumulator, make sure that it is totally discharged by using it until the device switches off. To protect the environment, only dispose of totally exhausted accumacks.
Sound Retrieval System (SRS) (●) SRS HEADPHONE
This device is equipped with SRS, a system that creates a full bodied three dimensional sound image from a stereo signal. You can switch SRS ON and OFF by pressing the SURROUND button on the transmitter.
Additional information
The audio transmission technology used with this device is basically that of a radio. According to today's scientific knowledge, the radio waves emitted by this device are not harmful to humans or animals.
ATTENTION: LISTENING AT HIGH VOLUME LEVELS FOR LONG PERIODS CAN PERMANENTLY DAMAGE YOUR HEARING.
This device has been designed for use with stereo devices. For connection to mono devices, please use a stereo to mono jack plug available from most audio accessory shops.
Use a soft cloth or, if necessary, a damp wash-leather for cleaning the devices. Do not use aggressive cleansing agents.
Varnish or furniture polish may attack the rubber feet of the transmitter's charging unit. As these could stain your furniture, place the transmitter on a non-slip pad.
If problems occur...
Are all connections properly made?
Are the headphones and sound source switched on and is the volume correctly adjusted?
Have you charged the accupack for at least 20 minutes?
Are you too far from the transmitter? (if so, move closer)
Choose a different channel.
Adjust the setting with the TUNE button.
If the problem persists, please contact your specialist dealer for assistance.
Never open the device!
Only use original Sennheiser spare parts and accessories. Components from other manufacturers (e.g. for mains unit or accumulator) may cause damage to the device and will invalidate the guarantee.
Accessories
The following accessories are available from your specialist dealer:
Spare accupack BA 151
Charger L 151-2
Additional headphones HDR 65
Technical data
Modulation FM, stereo
Transmitter
Power supply 12 V DC via plug-in mains unit
Power consumption approx. 1 VA
RF output power typ.up to 10mW
(0.75 mW with 925 MHz version)
Signal-to-noise ratio typ. >68 dBA
Frequency range see type plate located on the bottom of transmitter
Channels 3 (2 with 863 MHz version)
Audio connector 3.5 mm /1 / _4'' (6.3 mm) stereo jack plug, (925 MHz version supplied with jack to 2× phono plug)
Charging compartments 1, for BA 151 accapack
Weight approx. 186 g incl. accupack
Dimensions approx. 155× 153× 105mm
Receiver
Max. sound pressure level 100 dB THD < 0.5 % (at 1 kHz and nom. deviation)
Power supply 2.4 V via BA 151 accupack
Current consumption approx. 19.5mA
Operating time more than 4 hrs per accupack
Weight approx. 160 g incl. accupack
Dimensions approx. 150 × 80 × 200 ~mm
Wireless RS 65
This device has been type-approved to EN 300 220-1 Nov.97 and is in compliance with the applicable CE standards and regulations.
Certification
Before putting the device into operation, please observe the respective country-specific regulations!
Français
Exigences R&TTE
Operation is subject to the following two conditions: (1) this device may not cause any interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.
Garantie / Warranty / Garantie / Garanzia / Garantia / Garantie
2 Jahre Garantie
2 year warranty
2 ans de garantie
2 anni di garanzia
2 años de garantía
2aar garantie
Subject to alterations
30900 Wedemark, Germany
Phone +49 (5130) 600 0
Fax +49 (5130) 600 300
www.sennheiser.com
Printed in Germany
Publ. 07/03
81855 / A04
