Product Type	Plate Warmer
Brand	Wells
Model	SS8TDU
Overall Width	10 1/16 in (256 mm)
Overall Depth	8 3/4 in (222 mm)
Overall Height	7 1/4 in (184 mm)
Cutout Dimensions (Countertop)	8 3/4 in x 7 1/4 in (222 mm x 184 mm)
Mounting System	WellsLok with rotating ears for secure flange tightening
Gasket	Silicone adhesive/sealant bead on underside of flange
Drain Option	Available on D models (1/2 NPT connection)
Suggested Clearance - Back	1 in (25 mm)
Suggested Clearance - Sides	1 in (25 mm)
Suggested Clearance - Front (control box above)	8 1/2 in (216 mm)
Suggested Clearance - Front (control box below)	2 in (51 mm)
Suggested Clearance - Bottom	4 in (102 mm)
Electrical Requirement	Must comply with national and local electrical codes; grounding required
Plumbing Requirement (D models)	Comply with federal, state, or local plumbing codes; union recommended for ease of service
Counter Material	All-metal counter with suitable wiring and control enclosures
Service Access	Accessible from bottom; control box accessible from front apron
Metal Shield	Provided for high-temperature area protection
Warranty	Refer to manufacturer for warranty details

Frequently Asked Questions - SS8TDU Wells

What are the cutout dimensions for the Wells SS8TDU plate warmer?

The cutout dimensions for the countertop are 8 3/4 inches (222 mm) wide and 7 1/4 inches (184 mm) deep.

How do I install the plate warmer into the countertop?

Apply silicone adhesive to the gasket on the underside of the flange, seat the warmer into the cutout, then from underneath insert a screwdriver into the WellsLok slots and twist the ears outward to secure the flange tight to the countertop.

What clearances are required around the unit?

Suggested clearances: 1 inch (25 mm) from back and sides, 4 inches (102 mm) from bottom. Front clearance is 8 1/2 inches (216 mm) if control box is above, or 2 inches (51 mm) if control box is below. Adjustments may be made upon further evaluation to UL standards.

Can the plate warmer be installed near combustible materials?

Increased clearances are required if storage of combustible materials is in close proximity. Follow all local and national codes.

What type of counter is suitable for installation?

The appliance must be installed in an all-metal counter with suitable wiring and control enclosures conforming to national and local electrical codes.

How do I connect the drain if my model has one?

For D models, connect a 1/2 NPT drain line. A union is recommended for ease of service. Comply with applicable plumbing codes.

Is electrical grounding required?

Yes, all dead metal parts must be reliably connected to the grounding means of the appliance, complying with UL classifications and local codes.

How do I access the unit for servicing?

The unit must be accessible for servicing from the bottom. The control box is mounted to the rear of the front apron and can be accessed from the front.

Can I use the plate warmer with water?

Only D models with a drain are designed for wet operation. For other models, avoid water contact as they are intended for dry use only.

What maintenance is required for the plate warmer?

Clean with a damp cloth using mild detergent. Avoid abrasive cleaners. Ensure the gasket remains intact for proper sealing.

USER MANUAL SS8TDU Wells

INSTALLER MUST MEET CONDITIONS OF ACCEPTABILITY OUTLINED BELOW UPON INSTALLATION:

1. This appliance shall be installed in an all metal counter with suitable wiring and control enclosures conforming to national and local electrical codes.

2. Electrical component temperatures, including wiring, within and surrounding the appliance must be monitored in the end use installation for suitability.

3. Electrical grounding of all dead metal parts must be reliably connected to the grounding means of the appliance and must comply with the requirements outlined in appropriate Underwriters Laboratories Inc. classification, national and local electrical codes.

4. Increased clearances are required if storage of combustible materials is in close proximity to this appliance.

5. Unit shall be accessible for servicing from the bottom.

6. The name/rating plate information shall be accessible.

7. For water and waste connections: This appliance is to be installed to comply with the applicable federal, state or local plumbing codes.

TO FABRICHATE:

1. Lay out "cutout" dimensions on countertop and front apron.

2. Lay out and fabricate control panel holes in counter apron using the control box as a template.

3. Cut out and/or drill holes as required in countertop and apron.

4. Unit must be accessible for servicing from the bottom.

CLEARANCES

SUGGESTED CLEARANCES FROMUNIT TO THE NEAREST SURFACE
1(25)	1	8 1/2(216)(25)	4(102) FRONTBOTTOMSIDEBACK

SEE CONDITIONS OF ACCEPTABILITY BELOW

WHEN CONTROL BOX IS LOCATED BELOW THE UNIT, FRONT CLEARANCE CAN BE 2 INCHES.

NOTE: DEPENDING ON THE INSTALLATION, CLEARANCES CAN BE CHANGED UPON FURTHER EVALUATIONS TO UL STANDARDS.

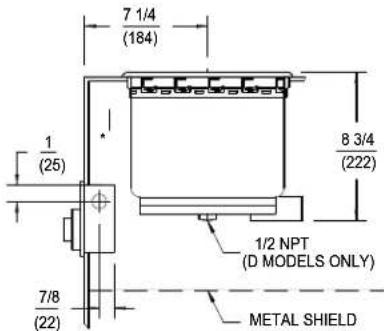

PRODUCT DIMENSIONS

NOTE: * CONTROL MUST NOT BE MOUNTED IN THIS HIGH TEMPERATURE AREA.

TO INSTALL:

1. Locate warmer and control box over countertop cutout. Pass control through opening, then mount control electrical box to the rear of the apron.

2. Apply a bead of silicone adhesive/sealant to the gasket supplied on the underside of the warmer flange then seat the warmer onto the countertop. Properly position.

3. From underneath, insert a screwdriver into "slots" on the wellslok frame and twist the "ears" outward to secure the flange tightly to the countertop (see detail above).

4. Mount the control panel to the front of the counter apron using the screws supplied.

RECOMMENDATION: Units with drains should be installed with a union for ease of service.
