| Product Type | Plate Warmer |
| Brand | Wells |
| Model | SS10D |
| Dimensions (W x D x H) | 16.5 x 12 x 4 inches |
| Weight | 10 lbs |
| Power Supply | 120V, 60Hz, 300W |
| Material | Stainless Steel |
| Temperature Range | 150°F - 200°F |
| Heating Type | Electric, Conductive |
| Capacity | Holds up to 10 dinner plates |
| Adjustable Heat Settings | Yes, Thermostat Control |
| Moisture Feature | Integrated Water Pan for Humidity |
| Safety Features | Auto Shut-Off, Overheat Protection, Hot Surface Indicator |
| Cleaning and Maintenance | Wipe with Damp Cloth; Do Not Immerse |
| Power Cord Length | 6 feet |
| Plug Type | NEMA 5-15P, 3-prong grounded |
| Certifications | ETL, NSF |
| Warranty | 1 Year Limited |
| Repairability | Replacement heating element and thermostat available |
Frequently Asked Questions - SS10D Wells
What is the purpose of the Wells SS10D Plate Warmer?
The Wells SS10D is designed to keep dinner plates warm before serving, ensuring food stays at an optimal temperature. It uses electric heating and can maintain a temperature between 150°F and 200°F.
How do I set the temperature on the SS10D?

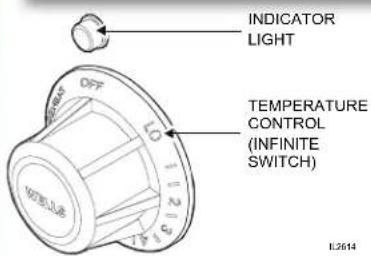

The unit features a thermostat control knob. Turn it to the desired temperature setting. A pilot light indicates when the unit is heating.
Can I use the plate warmer without water?
Yes, but for best results and to prevent plates from becoming too dry, it is recommended to add water to the integrated water pan. This creates humidity and gentle heat.
How many plates can the SS10D hold?
The warmer can hold up to 10 standard dinner plates (approximately 10-12 inches diameter).
Is the SS10D safe to leave unattended?
It includes auto shut-off and overheat protection features, but always follow safety guidelines and avoid leaving it unattended for long periods.
How do I clean the plate warmer?
Unplug and allow to cool. Wipe the exterior and interior with a damp cloth. Do not immerse in water or use abrasive cleaners. Empty and dry the water pan regularly.
What type of plates can I use?
Use only oven-safe or heat-resistant plates. Avoid plastic or melamine plates as they may melt or warp.
Why is the pilot light blinking?
A blinking pilot light typically indicates the unit is heating up. Once it reaches the set temperature, the light will remain on steadily. If it continues blinking, check the thermostat setting.
Can I use the SS10D to warm food directly?
No, it is intended only for warming plates, not for cooking or reheating food. Placing food directly on the heating surface may cause burns.
Where can I find replacement parts for the SS10D?

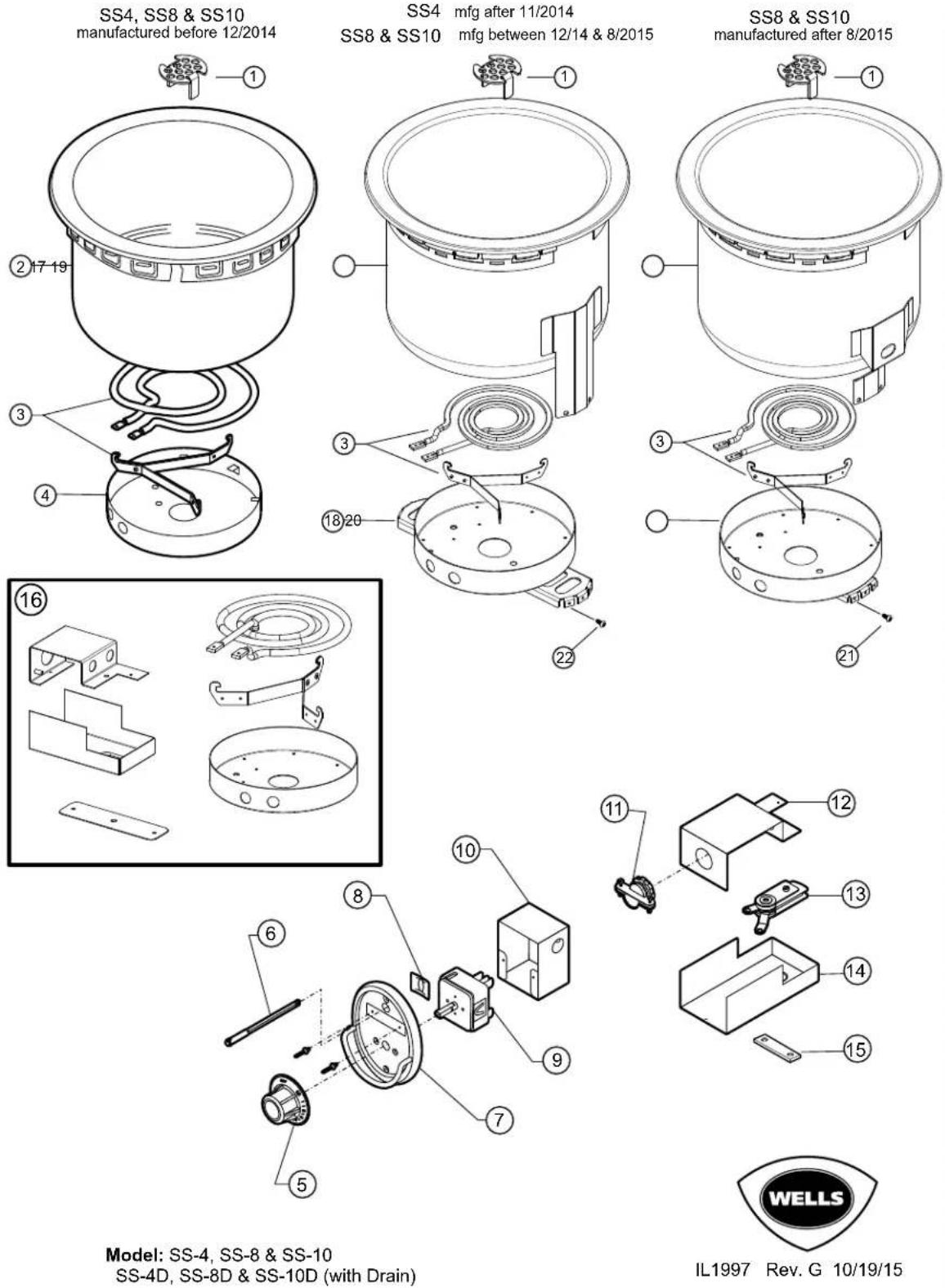

Replacement parts such as the heating element or thermostat can be ordered through Wells authorized dealers or parts distributors. Check the manual for a parts list.
