Product Type	HDMI Repeater with Scaler
Model	SCALE1
HDMI Compliance	HDMI 2.0b
Video Bandwidth	18 Gbps
Maximum Video Resolution	4K2K@60Hz (YUV4:4:4), 4K2K@30Hz, 1080P@120Hz, 1080P 3D@60Hz
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth	10-bit, 12-bit
HDCP Compliance	HDCP 2.2 and HDCP 1.4
Scaling Function	Scale up/down between 4K and 1080p (no frame rate conversion), pass-through
Audio Formats (Pass-through)	LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio
Cable Extension (4K2K@60Hz)	Input up to 10m, output up to 10m (total 20m)
Cable Extension (4K2K@30Hz)	Input up to 18m, output up to 12m (total 30m)
Cable Extension (1080p)	Input up to 25m, output up to 15m (total 40m)
Input Connector	1x HDMI Type A (19-pin female)
Output Connector	1x HDMI Type A (19-pin female)
USB Connector	1x Mini-USB (firmware upgrade only)
Power Supply	DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption	3W (Max)
Dimensions (W x D x H)	81mm x 55mm x 16mm
Weight	400g
Housing Material	Metal Enclosure
Color	Black
ESD Protection	Human body model: ±8kV (air-gap) & ±4kV (contact)
Operating Temperature	32 - 104°F (0 - 40°C)
Storage Temperature	-4 - 140°F (-20 - 60°C)
Relative Humidity	20 - 90% RH (no condensation)
Package Contents	SCALE1 unit, 5V/1A power adaptor, user manual
Warranty	3 years parts and labor

Frequently Asked Questions - SCALE1 Simplified MFG

What is the SCALE1 and what does it do?

The SCALE1 is an HDMI Repeater with Scaler that amplifies and equalizes HDMI signals. It can scale up or down between 4K and 1080p resolutions (no frame rate conversion) or pass through the signal unchanged. It supports HDMI 2.0b with 18 Gbps bandwidth, 4K@60Hz, and multi-channel audio passthrough.

What cable lengths does the SCALE1 support?

For 4K2K@60Hz, total cable length is up to 20 meters (input max 10m, output max 10m). For 4K2K@30Hz, up to 30 meters (input 18m, output 12m). For 1080p, up to 40 meters (input 25m, output 15m). These lengths assume high-speed HDMI cables.

How do I use the scaling feature?

The SCALE1 automatically scales between 4K and 1080p based on the source and display capabilities. You can override this by pressing the Scaler Button on the unit to cycle through: Scale Up (1080p to 4K), Scale Down (4K to 1080p), and Pass-through (no scaling). The LED indicators show the input and output resolution.

What power supply do I need?

The SCALE1 requires a DC 5V/1A power adaptor. A suitable adaptor is included in the package. Ensure you use a surge-protected power source to protect the unit from electrical spikes.

Does the SCALE1 support HDR or Dolby Vision?

The manual does not explicitly mention HDR or Dolby Vision. It supports 4K@60Hz 4:4:4 and 10/12-bit color depth, which are parts of the HDMI 2.0b specification. However, HDR metadata passthrough is not guaranteed. For best results, check the connected source and display capabilities.

What audio formats are supported?

The SCALE1 passes through LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, and DTS-HD Master Audio. Audio sampling rates up to 192 kHz are supported.

How do I update the firmware?

Firmware updates are performed via the Mini-USB port labeled 'Service' on the unit. This port is for firmware upgrade only. Simplified MFG may provide firmware updates; check their website for instructions.

Does the SCALE1 require separate power for the HDMI signal?

Yes, the SCALE1 is an active repeater and requires external power via the included 5V/1A adaptor. It will not function without power. Connect power last when setting up to ensure proper initialization.

What is the warranty period?

Simplified MFG provides a 3-year parts and labor warranty from the original purchase date. The warranty covers defects in materials or workmanship but does not cover damage from misuse, power surges, or unauthorized service. Proof of purchase is required.

Can I cascade multiple SCALE1 units?

Yes, the SCALE1 supports multiple layer cascading for longer distances. However, each unit adds a small delay and requires its own power. Ensure total cable lengths do not exceed the recommended maximums for each resolution.

USER MANUAL SCALE1 Simplified MFG

Thank you for purchasing this device

The Simplified MFG SCALE1 is designed to provide years of reliable service. At Simplified MFG, we want the experience with this device to be the best possible and are committed to helping achieve that experience.

Surge protection device recommended

This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection such as the HDSURGE and other systems is highly recommended in order to protect and extend the life of your equipment.

Table of Contents

1. Introduction ...... 2
2. Features.... 2
3. Package Contents.... 2
4. Specifications .... 3
5. Operation Controls and Functions .... 4
6. Connection Diagram 5
7. Warranty and Contact Info....6&7

1. Introduction

The SCALE1 is a HDMI Repeater with one input and one output port that can scale up/down/pass-through. The SCALE1 one supports video resolution up to 4K2K@60Hz (YUV444) and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio, audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass supported.

2. Features

• HDMI 6G 20M Re-timer & Repeater with scaling
- Amplifies and equalizes the HDMI signal to provide high quality audio and video
• HDMI extension transmission over long cable and supports multiple layers cascading
- 20 meters HDMI high-speed cable extender (input max 10 meters, output max 10 meters at 4K2K@60Hz)
- 30 meters HDMI high-speed cable extender (input max 18 meters, output max 12 meters at 4K2K@30Hz)
- 40 meters HDMI high-speed cable extender (input max 25 meters, output max 15 meters at 1080p)
• Supports scaling up/down between 4K and 1080p (no frame rate conversion)
• HDCP 2.2 or HDCP 1.4 indicator
- Dolby® TrueHD, DTS-HD Master Audio™, and LPCM digital audio streams up to 7.1 channels
• HDCP/3D/CEC/Lip-Sync pass-through

3. Package Contents

• 1 x SCALE1 HDMI 18Gbps HDMI repeater with scaler
• 1 x 5V/1A Power Adaptor
• 1 x User Manual

4. Specifications

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2 and HDCP 1.4
Video Bandwidth	18 Gbps
Video Resolutions	up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth	10-bit, 12-bit
HDMI Audio Formats (Pass-through)	LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio
ESD Protection	Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Inputs	1x HDMI Type A [19-pin female]
Outputs	1x HDMI Type A [19-pin female]
USB Connector	1x Mini-USB (firmware upgrade only)
DC POWER	5V-1A DC-JACK
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	81mm [W] x 55mm [D] x 16mm [H]
Weight	400g
Power Supply	Input: AC100 - 240V 50/60HzOutput: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption	3W(Max)
Operation Temperature	32 - 104°F / 0 - 40°C
Storage temperature	-4 - 140°F / -20 - 60°C
Relative Humidity	20 - 90% RH (no condensation)

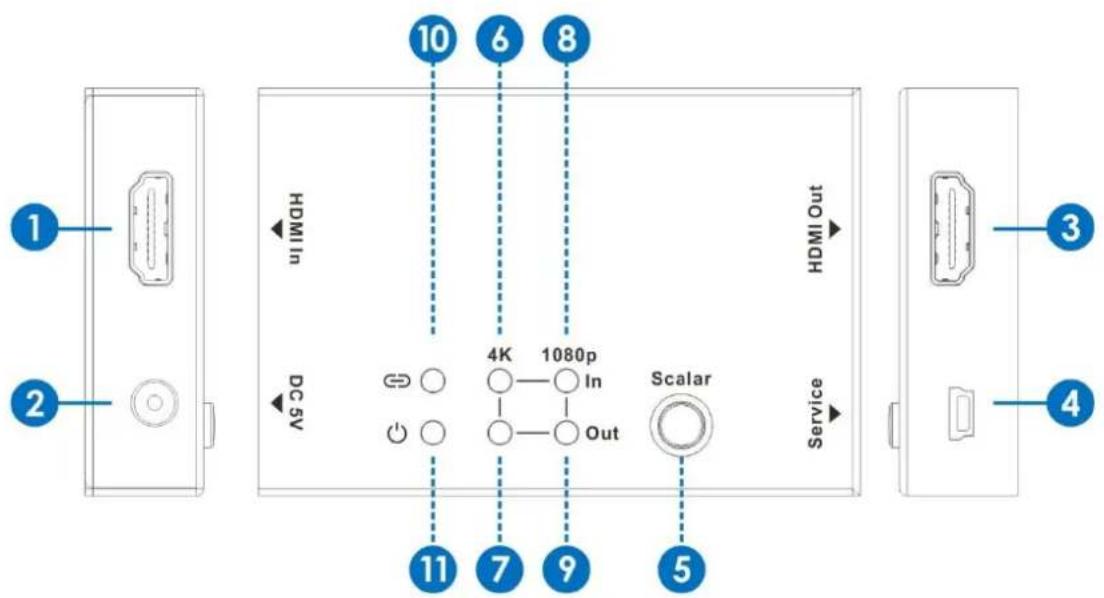

5. Operation Controls and Functions

1. HDMI In: HDMI signal input port
2. DC-5V: 5V-1A power in
3. HDMI Out: HDMI signal output port
4. Service: Firmware update port
5. Scaler Button: Scaling up/down between 4K and 1080p/pass through
6. 4K In: 4K HDMI signal input blue LED indicator
7. 4K Out: 4K HDMI signal output blue LED indicator
8. 1080p in: 1080p HDMI signal input blue LED indicator
9. 1080p Out: 1080p HDMI signal output blue LED indicator
10. Detect the signal input blue LED indicator
11. Power input red LED indicator

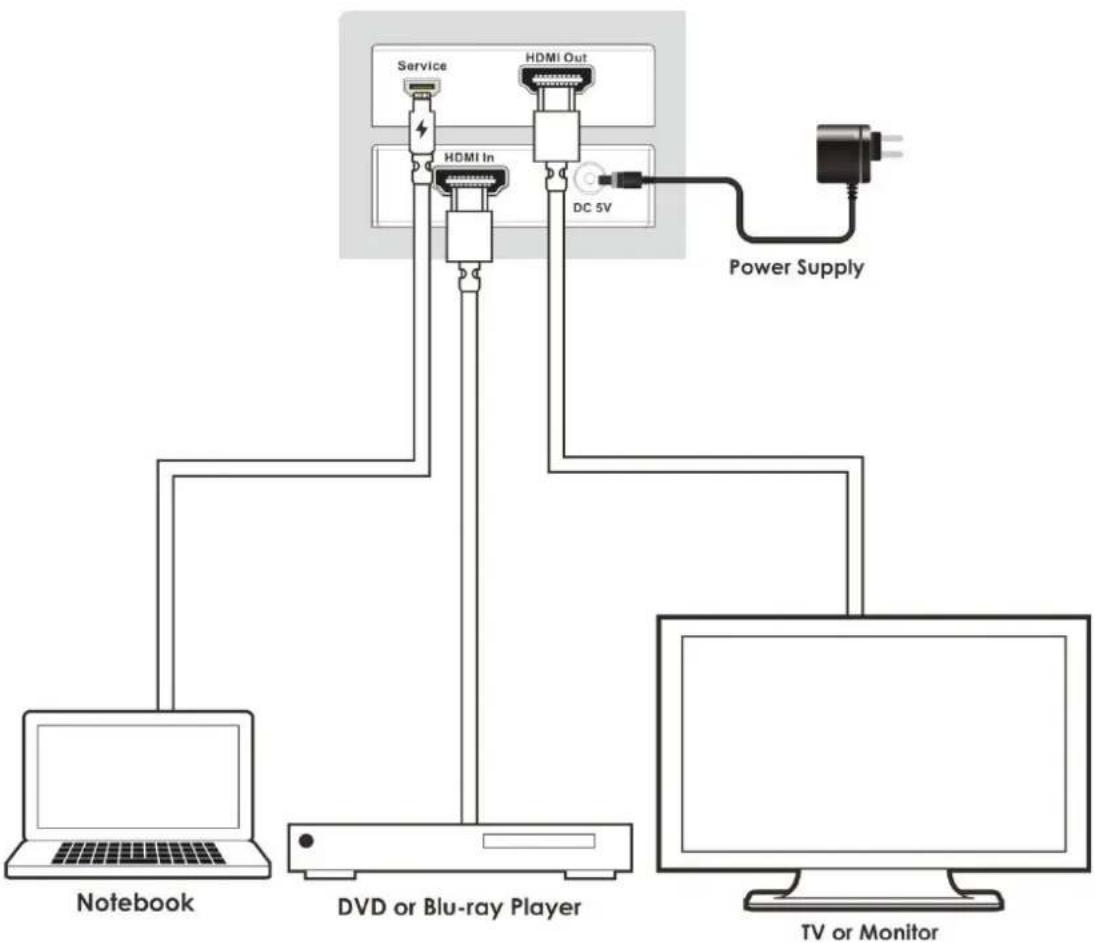

6. Connection Diagram

**Make sure that the SCALE1 is powered last when setting it up. The input and output lights will indicate that the SCALE1 is operational

Warranty

Should you feel your product does not function adequately due to defects in materials or workmanship, we (referred to as “the warrantor”) will, for the length of the period indicated below (starting from the original date of purchase) either: a) Repair the product with new or refurbished parts. or b) Replace it with a new or refurbished product.

All Simplified MFG products are covered by a 3 year PARTS and LABOR warranty. During this period there will be no charge for unit repair, replacement of unit components or replacement of product if necessary. The decision to repair or replace will be made by the warrantor. The purchaser must mail-in the product during the warranty period. This limited warranty only covers the product purchased as new and is extended to the original purchaser only. It is non-transferable to subsequent owners, even during the warranty period. A purchase receipt or other proof of original purchase date is required for the limited warranty service.

1. This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship and DOES NOT COVER normal wear and tear or cosmetic damage. The limited warranty also DOES NOT COVER damage that occurs in shipment or failures caused by products not supplied by the warrantor, failures resulting from accident, misuse, abuse, neglect, mishandling, misapplication, alteration, incorrect installation, set-up adjustment, implementation of/to consumer controls, improper maintenance, power line surge, lightening damage, modification, service by anyone other than a manufacturer-approved service center or factory authorized personnel, or damage attributable to acts of God.

2. There are no express warranties except as listed under “limited warranty coverage.” The warrantor is not liable for incidental or consequential damage resulting from the use of this product or arising out of any breach of this warranty. For example: damages for lost time, the cost of having a person/persons remove or re-install previously installed equipment, travel to and from service location, loss of or damage to media, images, data or other recorded/stored content. The items listed here are not exclusive, but are for illustration only. Parts and service not covered by this limited warranty are not the responsibility of the warrantor and should be considered the responsibility of the individual.

Simplified MFG Publication Disclaimer

The material contained in this document consists of information that is the sole property of Simplified MFG. This document is intended to provide information to allow interfacing to the relevant Simplified MFG equipment by third party products. Simplified MFG IS NOT RESPONSIBLE FOR MALFUNCTIONS AND/OR THE IN-OPERABILITY WHICH MAY BE CAUSED BY THE APPLICATION OF THIS INFORMATION, WHETHER EXPECTED OR NOT. Simplified MFG reserves the right to change software, control codes and specifications without notice. Simplified MFG will not be liable for any use of this information or any changes it may make to those products. The use of this information constitutes an agreement by the user to these limitations and exclusions.

Contact

Sales and Tech Support

P 1-833-HDMI-411

E [e-mail]

SIMPLIFIED

MFG

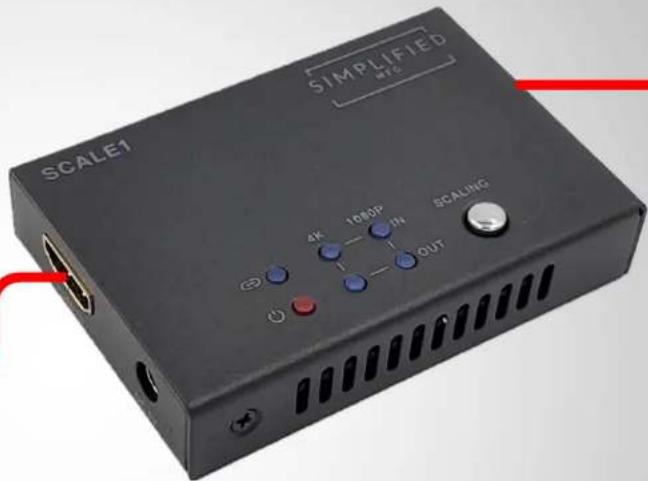

SCALE1 Quick Start Guide

4K or 1080p Display

HDMI

4K or 1080p Source4K or 1080p Source

• The SCALE1 is a HDMI 2.0b (18Gbps) 4K scaling device that will automatically scale form 4K to 1080p and 1080p to 4K
• The SCALE1 is automatic, but can be overridden with the "Scaling" butto
• The SCALE1 is compact and can be placed behind the display
• Great for systems where scaling is needed for legacy displays

Simplified MFG • 550 W Baseline Road Ste 102-121 • Mesa, AZ 85210 • www.simplifiedmfg.com • 833-HDMI-411 (436-4411)
