USER MANUAL SL3335 TOYOTA

The wires in this mains lead are coloured in accordance with the following code: BLUE-NEUTRAL BROWN-LIVE (OR ACTIVE) As the colours of the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug — PROCEED AS FOLLOWS: The earth plug pin is unnecessary. As the Machine is designed under double insulation structure, the earth wire is removed from the machine. The wire coloured BROWN must be connected to the terminal marked L or A or coloured RED. The wire coloured BLUE must be connected to the terminal marked N or coloured BLACK. Neiïther core is to be connected to the earth terminal of a three-pin plug.

When using an electrical appliance, basic safety precautions should always be followed, including the following: Read all instructions before using (this appliance). DANGER — — To reduce the risk of electric shock: An appliance should never be left unattended when plugged in. Always unplug this appliance from the electric outlet immediately after using and before cleaning. WARNING — — To reduce the risk of burns, fire, electric shock, or injury to persons:

Do not allow to be used as a toy. Close attention is necessary when this appliance is used by or near children. Use this appliance only for its intended use as described in this manual. Use only attachments recommended by the manufacturer as contained in this manual. . Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to the nearest authorized dealer or service center for examination, repair, electrical or mechanical adjustment. . Never operate the appliance with any air openings blocked. Keep ventilation openings of the sewing machine and foot controller free from the accumulation of lint, dust, and loose cloth.

5. Never drop or insert any object into any opening.

6. Do not use outdoors.

Do not operate where aerosol (spray) products are being used or where oxygen is being administered. . To disconnect, turn all controls to the off (“O”) position, then remove plug from outlet. .. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. DANGER

Always unplug before relamping. Replace the bulb with same type rated 15 watts. Do not reach for an appliance that has fallen into water. Unplug immediately. Do not place or store appliance where it can fall or be pulled into a tub or sink. Do not place or drop into water or other liquid.

WARNING Switch off or unplug the appliance when leaving it unatteneded. Unplug the appliance before carrying out maintenance or replacing lamps. Keep fingers away from all moving parts. Special care is required around the sewing machine needle. Always use proper needle plate. The wrong plate can cause the needle to break. Do not use bent needles. Do not pull or push fabric while stitching. It may deflect the needle causing it to break. Switch the sewing machine off (“O”) when making any adjustments in the needle area, such as threading needle, changing needle, threading bobbin, or changing presser foot, etc. 8. Always unplug sewing machine from the electrical outlet when removing covers, lubricating, or when making any other user servicing adjustments mentioned in the instruction manual.

9. Never operate on a soft surface such as a bed or couch where the air openings may be blocked.

SAVE THESE INSTRUCTIONS

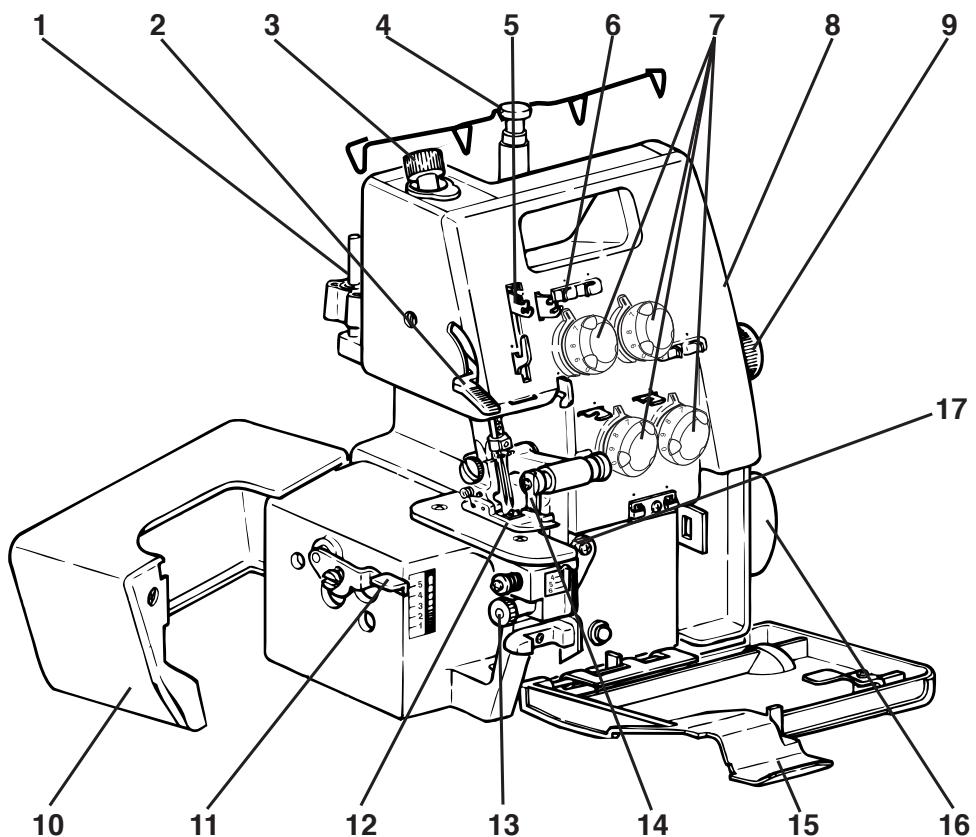

Connecting Power Cord … Setting Telescopic Thread Stand Opening The Front Panel and Side Cover How to Change Threads … Replacing Needles Threading Preparation for Sewing and Checking ….

3. FOUR THREAD OVEREDGING STITCH USING 2 NEEDLES

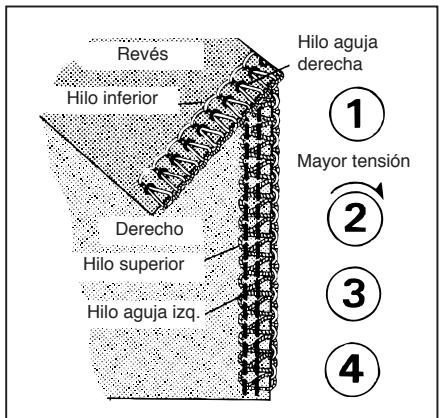

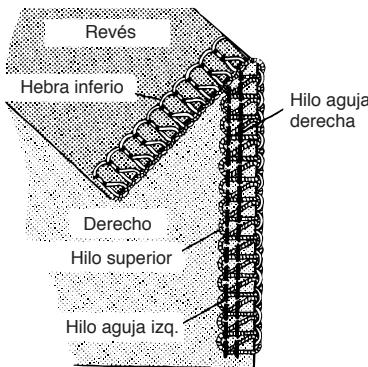

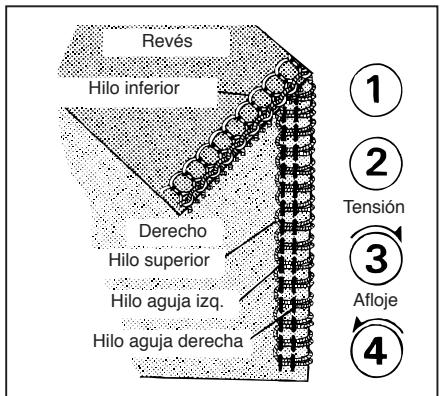

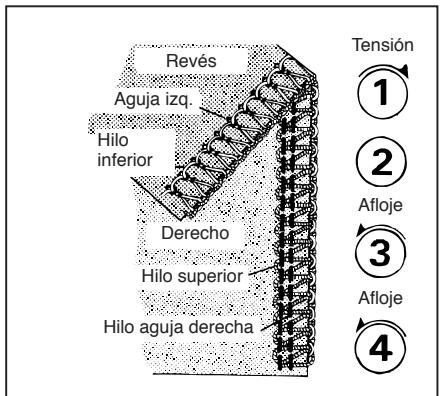

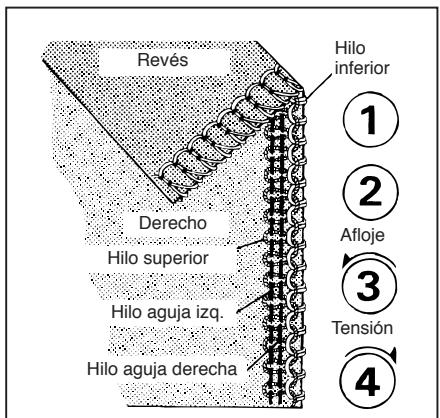

Before Sewing …. Presser Foot Lifter Beginning and Ending of Sewing Adjustment of The Presser Foot Pressure Thread Tension Adjustment . Adjustments for the Differential Feed Adjustments for Size of Bite How to Adjust Stitch Length Sewing for Curved Seams … Standard Chart for the Thread Tension

REPLACING THE CUTTING KNIVES

CHANGING THE LIGHT BULB

TABLE OF SEWING MATERIALS, NEEDLES AND

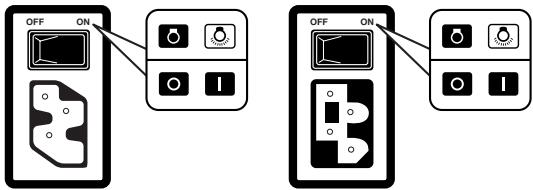

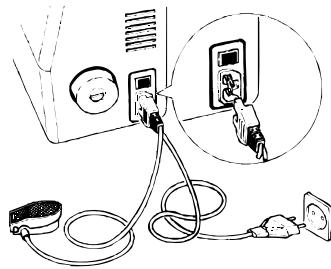

Connecting Power Cord Connect foot controller and power cord Before plugging in your machine, be sure that the voltage is same as that of jour machine. (written on a plate at back of machine) # Specifications vary from country to country. Press the switch on the machine to turn on the power and the sewing light Always switch off or unplug machine when not in use. The more you press foot controller, the faster the machine runs. When the power switch is turned off, the machine will not operate even by pressure on the toot controller. Electronic type of controller This foot controller is powerlul and stable, even at a slow speed. ILis posible to operate simply and produce neat finish, even detailed operation

English Español Cover the spool with the “NET” as chemical fibers (fibres) and the like are easily frayed. When using a real type thread spool, insert the spool adapter (supplied with the machine) (as shown) Replacing Needles Replace needles in the following way Note: Be sure to take out the power suppiy plug before replacing needies. {1) Bring néedies to their highest position by türning handwheel towards you. {2) Loosen the needle clamp screw and remove the iwo needles together. (8) With the flat side away from you, insert the new two needles together into the groove of needle bar as far as it will go. Use"HA x 18 (705/180)" #11(80) or #14(90) or ones the same as for home- use sewing machine. Cubra el con de hilo con la malla ya que las fibras quimicas y otras similares se desgastan faciimente. Al utiizar el carrete de tipo corriente, inserte el adaptador de carrete suministrado con la mäquina, en la forma aqui ilustrada. Cambio De Agujas Para cambiar agujas, siga los siguientes

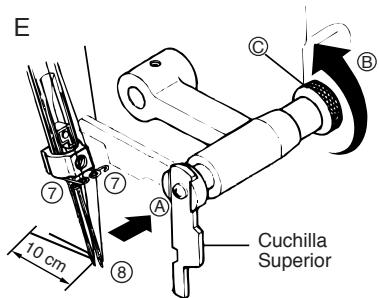

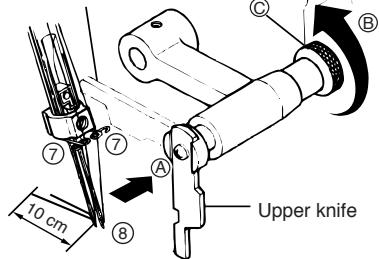

Engl Right needie threading + For ease in threading, turn the moveable knife to the non-operating position. Push the upper knife holder screw from ® with the foretinger of jour left hand # and grasp the right end of the older © and turn it in the direction of arrow @ with your right hand. (Fig. E) + Take the thread drawn from spool, and pass it through thread guide ( - ®. Then thread the eye of right-hand needie's eye ® from front to back using tweezers. Cut the thread leaving about 10cm (4") of spare thread. (Fig. E) Left needie threading

Page 13 English Español Preparation for Sewing and Checking + Check that no thread slips off or snaps. + Confirm that the upper knife moves against the lower knife correctly by tuning the handwheel slowly towards you. Ifit is not correct, check if there is any fabric or waste thread between knives. + Tum the handwheel towards you with your right hand to check that ihe thread winds around the stitch finger of the needle plate. Ifthe thread doesn't wind around the Stitch finger of the needie plate, check if Section any threads are threaded incorrectly.

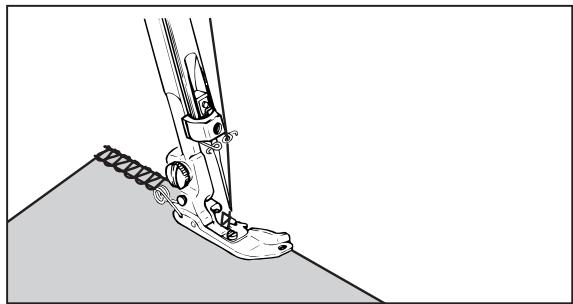

Before Sewing After threading is complete, and when the threads are not wound around the Stitch finger, gently draw out the four threads under and behind the presser foot, and turn the handwheel towards you by hand two or three times to make the thread wind on to the needle plate. Presser Foot Lifter For setting average material, there is no need to lower the presser foot lifter. When beginning to sew, push the material just in front of the presser foot and it will be fed through. For the thick material, lower the presser foot lifter, place the material under the presser foot, then raise the presser foot lifter.

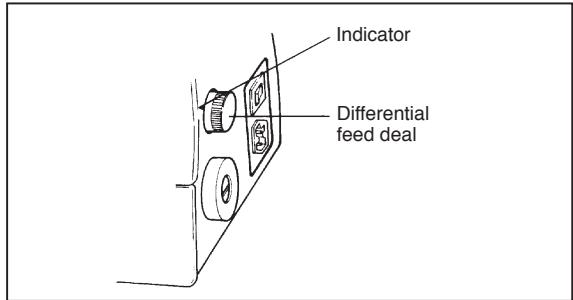

Page 22 Section Adjustments For The Differential Feed Differential eeding performs the function of stretching or condensing the edge of the fabric, since two independent feed dogs, one in front and one behind the needles, can be adjusted to feed at different ratio. The function has the effect of producing a neat finish of overedging for stretchable and condensable fabrics. #“N° indicates the neutral position. Refer to the below chart and test stitch performance on a scrap of material you are going to use. Indicator Differential feed deal l |

Fabre Differential feed Differential Resuit of ratio is set “N°! feed ratio adjustment Stretchable Kit Ne materials Jersey “ Unstretchable and | Medium uncondenseble | woven ni materials fabrics Condensable materials Georgette

English Español Adjustments for Size of Bight + Adjust the size of the bight from 5 mm {0.2") to 7 mm (0.28") according to the kind of material. + The standard bight size is 5 mm + Open the side cover to adjust the bight size. {1} Ifthe cutting width is narrower than the bight size, turn the bite width adusting dia 1o the direction of arrow. (To bigger number)

2) If the cutting width is wider than the

bight size, tum the bite width adjusting dial to the direction of the arrow. (a smaller number) The right figure shows that the size of the bite between the left needle and the edge of the material 5 mm. Ajuste Del Tamaño Del Lazo

(Option on some models) {1) Insert the right guide @ of the waste tray to the right leg of the overlock machine as illustrated. Turn the waste tray in the direction of arrow. {2) Push the left end of the waste tray in the direction of arrow. Español

Though this machine is made mainly for 4 thread stitch overedging using 2 needles, three-thread stitch overedging using 1 needle can be easily operated by just removing 1 needle. {1) By removing the right needle Three-thread overedging stitch using 1 needle for as wide as à 4-thread overedging stitch using 2 needies can be achieved. Use the left thread tension. (Dial ©). the bite width is normally 5 mm. The differential feed ratio is normally “N”. (See p.22) (2) By removing the left needle The right needle sews with a narrow width bite. Use the right thread tension. (Dial &) The bite width is normally 3 mm. The differential feed ratio is normally “N°”. (See p.22)

Open the front cover. Use one needle thread (left or right needle) and lower looper thread. Tu the handwheel toward you to move the upper looper to the right side of the needle.

4. Hold the © by hand and gentiy push

5. Insert the tip @ ofthe 2-thread

converter into the eye © of the upper looper.

6. Close the front cover.

For 3-thread/4-thread overlock sewing, set 2-thread overlock converter in the up position as illustrated, by removing the tip ® out of the eye © of the upper looper.

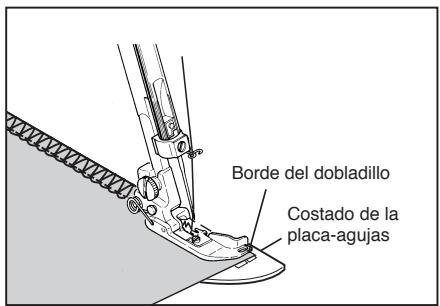

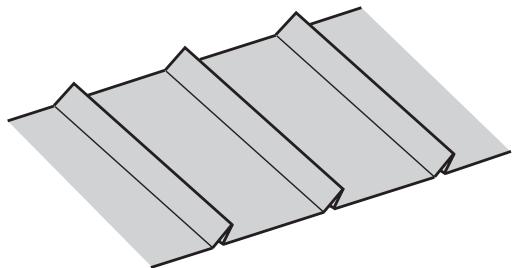

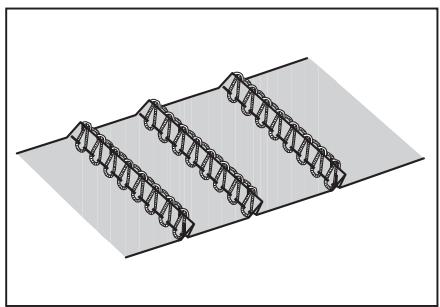

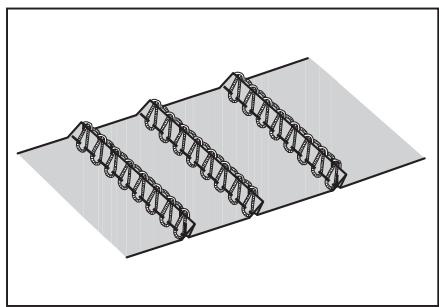

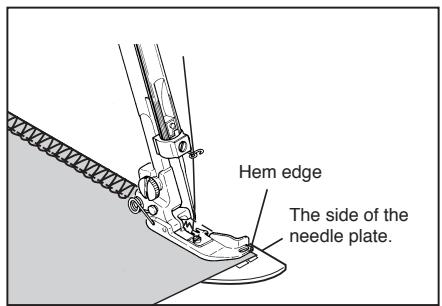

English Español PIN TUCKING Pin tucking is overlocked so avoid cutting the fabric by raising the upper knite Pin tucking is suited to the design of a child's clothing and a ladys blouse # Use the presser foot marked “A” and needie plate “A. {1) Remove the left or right needle to your required width. (Sew only with the one needle.) (2) Raise the upper knite. (See p.10) # Lower the presser foot lifter. (8) The tension is set the same as the one for overedging. (See p.25) The fabric is ironed along the line of the pin tucking in advance. #_ The differential feed ratio is normally

Page 35 Section English

REPLACING THE CUTTING KNIVES

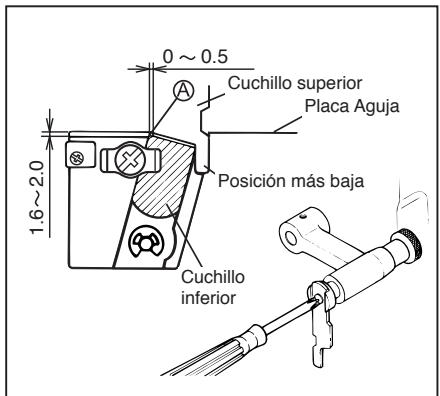

The upper knife and lower knife are made of a special long-lasting steel and will seldom have to be replaced. However, when they do not cut the fabric even though they are set in the right position. Replace them in the following way: Before replacing the knife, be sure the power supply plug is take out. Move the front cover to the right, then open it toward you.

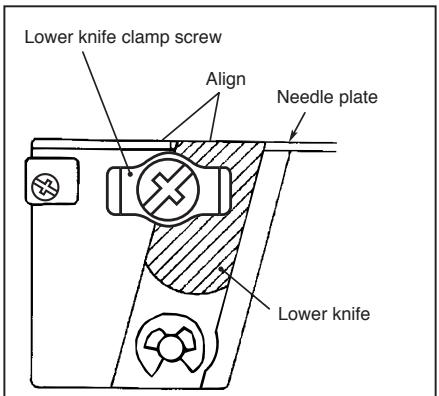

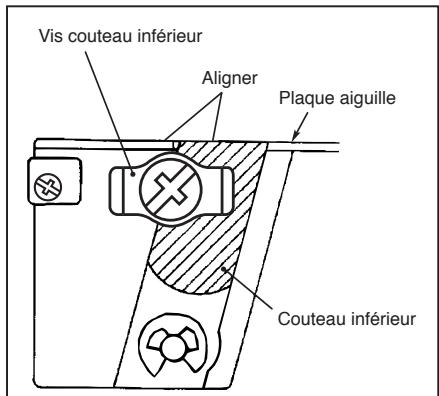

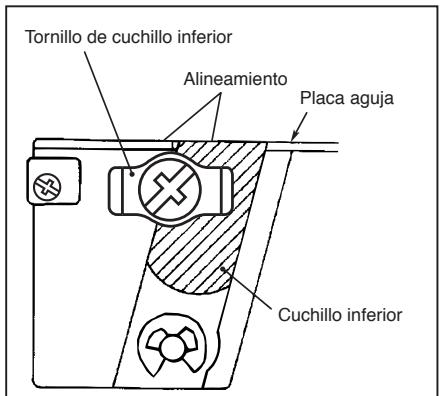

Page 36 Section English {1) Replacing the lower knife: Loosen the lower knife clamp screw and change the knife for a new one. Align the top of the lower knife with the top of the needle plate.

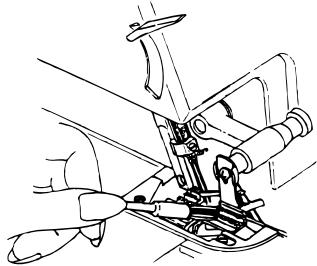

When the light does not come on even though it is Switched on:

Take out the power supply plug Remove the lamp cover. Change the light bulb Replace the lamp cover. Español

English Español LUBRICATION Lubrication is not necessary for this machine since the important parts are all made of a special oil impregnated Sintered metal. However, one or wo drops of oil will increase durability. CLEANING First disconnect machine from power supply by removing plug from the electric outlet.

1. Open front cover and side cover.

2. Using a brush which may or may not

be supplied with your machine. STORAGE {Option on some models) : When the machine is not in use, please disconnect it from the power Supply by removing plug from the electric outiet. Üsing a vinyl cover which may or may not be supplied with your machine Store away from bright and damp places. SERVICING

Page 39 TABLE OF SEWING MATERIALS NEEDLES AND THREAD HAxX1SP Needle HA X1T Thread tension Overedging width (ros/130) Thread Stitch length (For home-use sewing {Needle thread) | (Between left needie machine) and edge) Polyestel (spun, flament) #60/2 Twisted thread — #80/2 twisted thread Thin material #1 G0 Tuisted tnead Loose 5mm 2-25 mm ï (80) Section (crept, georgette) (80) 410073 tuisted thread) (Three-thread overedging stitch). 1 2 Medium to thick #60/2 Twisted thread material to or 0 Medium 5 mm 2.5-3 mm (Serge, gabardine, etc.) ( ) {Three or four-thread overedging stitch 450/2 Twisted thread — #60/2 twisted thread Thick material #4 right 5mm 25-38 mm {thick denim) (20) Three or four-thread overedging stitch ) # Use ball point needles for Man-Made fibres or stretch fabrics

7. Vinyl cover 7. Housse 7. Vinyl afdekhoes

SPECIFICATIONS Number of threads 4 Threads (3 threads, 2 threads) Stitch length 0.8-5mm Number of needles 2 Needles (1 needle) Differential feed ratio 107-2 Section Standard HA x 1SP Needles or Maximum sewing speed 1500 RPM HA X 1T (705/130) #11(80) #14(90) Width 300mm (Max. 320mm) Width between two needles 2mm Machine dimensions Depth 230mm (Max. 255mm) Height 290mm (Max. 340mm-555mm) Overedge width Standard 5mm (Range 5-7mm) ‘Weight (H [ 1k See or det eight (Head only) 8tkg
