| Product Type | Ice Machine (Clear Ice Maker) |
| Brand | Marvel |
| Model | Illuminice MA15CP1R |
| Ice Production | Up to 39 lbs/day (equivalent to nearly eight convenience-store ice bags) |
| Ice Storage Capacity | 35 lbs |
| Ice Type | Clear, slow-melting ice with immediate cooling |
| Product Dimensions (W x H x D) | 14 7/8" x 31 1/8" - 32 1/8" x 21 1/2" |
| Depth with Solid Door | 23 5/8" |
| Rough-In Dimensions (W x H x D) | 15" x 31 3/8" - 32 3/8" x 24" |
| Electrical Requirements | 120V / 60Hz / 15A |
| Power Cord Length | 6 ft |
| Shipping Weight | 120 lbs |
| Finish Options | Stainless Steel or Overlay (Panel Ready) |
| Lighting | Arctic Illuminice™ white LED lighting through clear ice |
| Control Type | Marvel Intuit™ Integrated Controls with Eco Ice™ mode |
| Eco Ice Mode | Reduces water and energy usage by 25%, saving 91 gallons water and $45 annually |
| Door Assist | Close Door Assist System™ for automatic gentle closing |
| Warranty | 1 year parts and labor, 5 years sealed system parts |
| Installation | Built-in zero clearance, ADA height (low profile) |
| Hinge | Classic Hinge (Right or Left hand) |
| Toe Grill | Black, adjustable to 4" with leveling legs |
| Vacation Mode | Yes |
| Certifications | CSA approved |
| Noise Level | Quietest ice machine available |
| Condenser | High-efficiency, low-maintenance design for zero clearance |
| Additional Features | Audible alerts, programmed cleaning reminders |
Frequently Asked Questions - Illuminice MA15CP1R Marvel
User questions about Illuminice MA15CP1R Marvel
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Sorbet maker in PDF format for free! Find your manual Illuminice MA15CP1R - Marvel and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Illuminice MA15CP1R by Marvel.
USER MANUAL Illuminice MA15CP1R Marvel
15" Marvel Low Profile Clear Ice Machine with Arctic Illuminice™ Lighting
Model # MA15CL & MA15CP
Performance
• The quietest ice machine you can buy
- New energy-saving options conserve water and electricity
- Engineered to consistently produce pure, clear ice with unrivaled clarity, immediate cooling and slower melt
- Produces up to 39 pounds of clear ice daily, the equivalent of nearly eight convenience-store ice bags
- Close Door Assist System™ prevents energy loss by automatically drawing door to a gentle close
- Streamlined componentry and single-connection water fitting for simple installation
Storage Capabilities
• Large-capacity bin stores 35 pounds of clear ice
Touchpad Controls
- Multifunction Marvel Intuit™ Integrated Controls adapt ice production to usage needs
- Eco Ice™ mode moderates ice production to conservative usage, saving 25% water (91 gallons monthly) and 25% energy (\$45 annually)**
• Audible alerts and programmed cleaning reminders
Aesthetics
- New Illuminice™ feature projects arctic white LED lighting through clear ice for a dazzling illumination effect
- High-efficiency, low-maintenance condenser design for built-in zero clearance installations
- Finish options: stainless steel or overlay (panel ready)
Additional Convenience

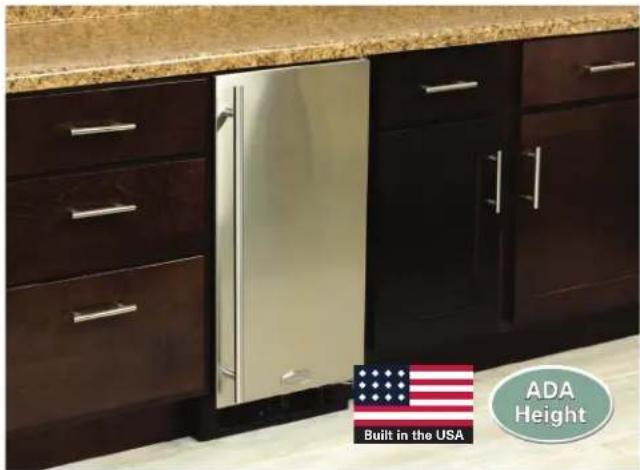

- Low profile, ADA height allows for universal installation applications
- Black toe kick adjustable to 4" with leveling legs
• 1-year parts and labor warranty, 5-year sealed system parts warranty
Finish Options
Stainless Steel
Solid Overlay (Panel Ready) ^4
Gravity Drain Applications
| Solid Stainless Steel Door, Right Hinge MA15CLS1RS | |
| Solid Stainless Steel Door, Left Hinge MA15CLS1LS | |
| Panel-Ready Solid Overlay Panel Door,Right Hinge* | MA15CLP1RP |
| Panel-Ready Solid Overlay Panel Door,Left Hinge* | MA15CLP1LP |
Factory Installed Pump
| Solid Stainless Door, Right Hinge MA15CPS1RS | |
| Solid Stainless Door, Left Hinge MA15CPS1LS | |
| Panel-Ready Solid Overlay Panel Door,Right Hinge* | MA15CPP1RP |
| Panel-Ready Solid Overlay Panel Door,Left Hinge* | MA15CPP1LP |
Accessories
Clear Ice Machine Cleaner, 4-oz bottle S41013789


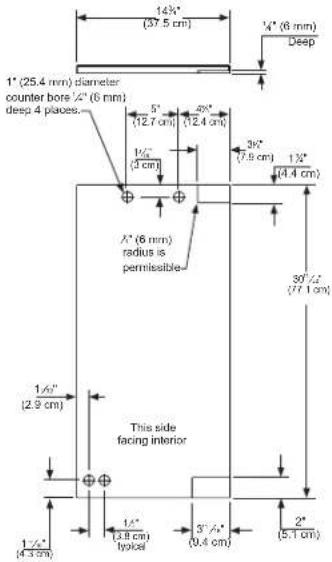

Panel Overlay Dimensions

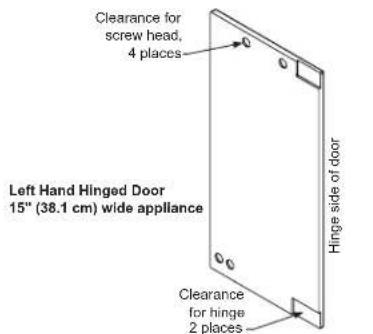

Left Hand Hinged Door

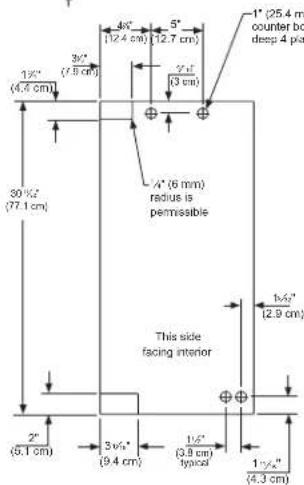

Right Hand Hinged Door

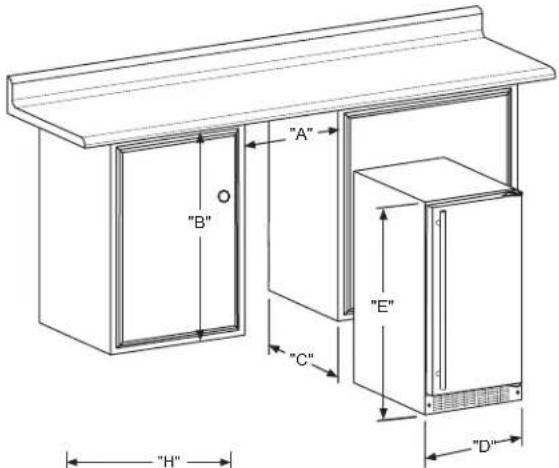

Rough-In Dimensions
| A. Rough-In Width 15" | |
| B. Rough-In Height 31 3/8" to 32 3/8" | |
| C. Rough-In Depth 24" | |

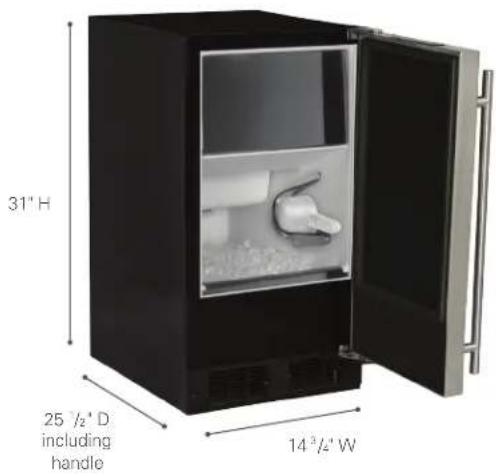

Product Dimensions
| D. Width 14 7/8" | ||
| E. Height 31 1/8 to 32 1/8 | ||
| F. Depth 21 1/2" | ||
| G. Depth to Front of Door | Solid Door 23 5/8" | |
| Overlay Door | 22 7/8" Without Handle | |
| H. Depth to Handle 25 1/2" | (Stainless Steel) | |
| I. Depth with door at 90" | Solid Door 37 1/16' | |
| Overlay Door 37 1/16' | ||
Product Features
| Interior Cabinet Finish White | |
| Capacity Up to 35 lbs of clear ice | |
| Shelving System NA | |
| Shelf Fronts NA | |
| Other Storage | Ice Bin |
| Interior Lighting | White LED |
| Toe Grill Finish | Black |
| Hinge | Classic Hinge |
| Handle | Slim Designer Handle(Panel Overlay DoesNot Include Handle) |
| Control Type | IntuitTM |
| Temperature Range | NA |
| Lock | No |
| Electrical Requirements | 120V / 60Hz / 15A |
| Length of Power Cord | 6' |
| Shipping Weight | 120 lbs |
| Finishes | Stainless Steel, Overlay |
| Vacation Mode Yes | |
| Agency Approvals CSA | |
For comprehensive installation instructions, please visit www.marvelrefrigeration.com to access the owner's guide.
